USER MANUAL AZOR W2 Cameo

LED WASH MOVING HEAD

CLAZORW2

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TRESC / CONTENO

ENGLISH

INFORMATION ON THIS USER MANUAL 5

INTENDED USE 5

DEFINITIONS AND SYMBOL EXPLANATIONS 5

SAFETYINSTRUCTIONS6

NOTES ON PORTABLE INDOOR DEVICES 10

PACKAGING CONTENT 10

INTRODUCTION 10

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 11

OPERATION 12

SETUP AND INSTALLATION 20

CARE, MAINTENANCE AND REPAIR 21

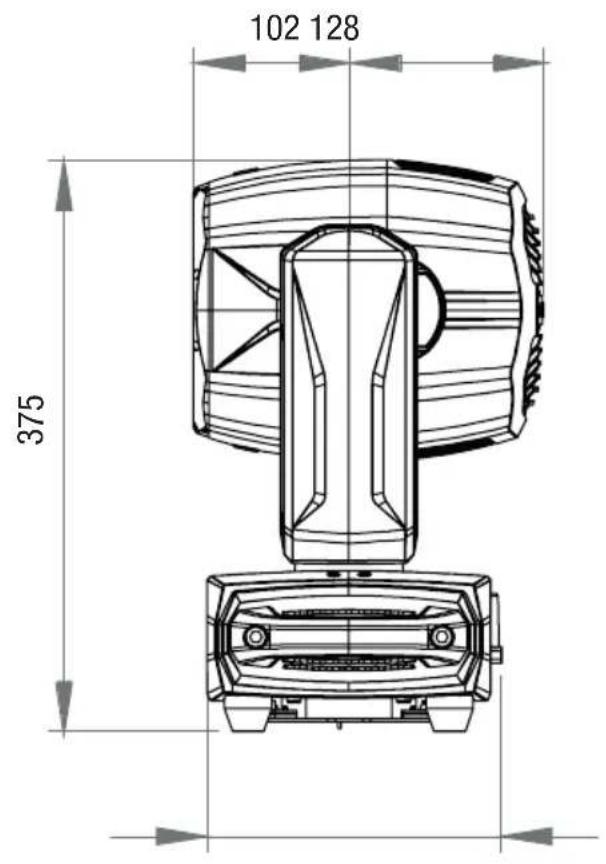

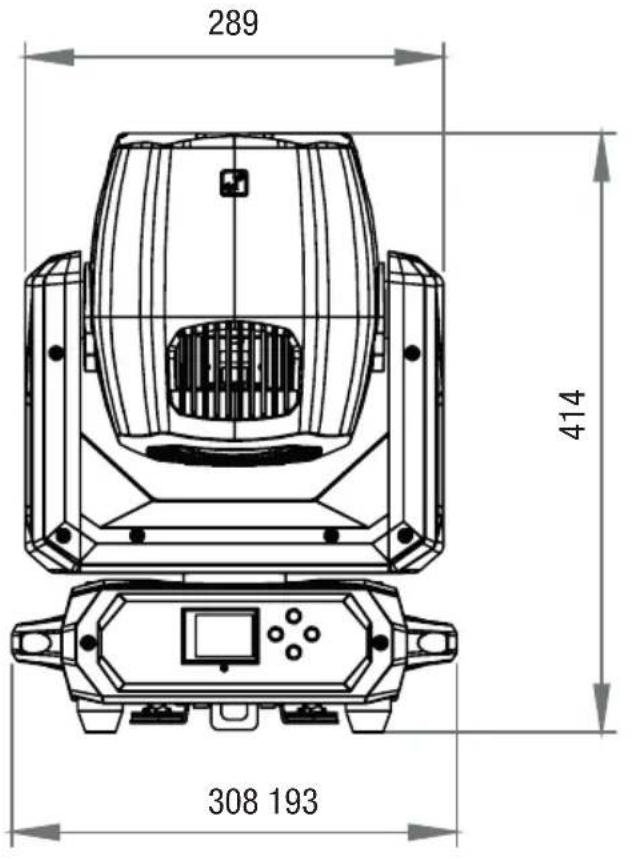

DIMENSIONS 22

TECHNICAL SPECIFICATIONS 23

MINIMUM DISTANCE TO ILLUMINATED SURFACE 24

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 24

DISPOSAL 24

MANUFACTURER'S DECLARATIONS 25

DEUTSCH

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

• Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
  Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately dangerous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations or conditions that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol identifies hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates a device in which there are no user-replaceable parts.

This symbol indicates additional information on the operation of the product.

This symbol indicates a device that may only be used in dry rooms.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open or modify the device.
2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective earth conductor must be connected correctly. Never disconnect the protective earth conductor. Devices of protection class 2 do not have a protective earth conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device must not be used if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the power cable of the device is damaged, do not operate the device.
4. Permanently connected power cables may only be replaced by a qualified person.

ATTENTION:

1. Do not switch on the device if it has been exposed to extreme temperature fluctuations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached ambient temperature.

1. Make sure that the voltage and frequency of the mains supply correspond to the values indicated on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable power cables.
2. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the unit.
3. Make sure that the fuse used corresponds to the type printed on the device.
4. Make sure that appropriate measures have been taken against overvoltage (e.g. lightning strike).
5. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
6. Replace plug-in power cables only with original cables.
7. Connect the device only to compliant, tested and undamaged power outlets.

DANGER:

1. Danger of suffocation! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that all applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, ensure that all cables are routed so as to avoid damage or accidents, such as from tripping.
5. Be sure to observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3m .

CAUTION:

1. Moving components such as mounting brackets pose a jamming hazard.
2. In the case of devices with motor-driven components, there is a risk of injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work and charging etc.

ATTENTION:

1. Do not install and operate the device in the vicinity of radiators, heat accumulators, ovens, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as lighted candles near the device.
3. Vents must not be covered and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP rating as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can always be further improved. In the event of any discrepancies between the operating instructions and the device labelling with regard to operating conditions, performance or other device characteristics, the information on the device always takes precedence.
8. The device is not suitable for tropical climates and for operation at elevations higher than 2000m above sea level.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

PLEASE NOTE:

For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the included instructions.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.

1. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

1. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this lighting unit may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

SIGNAL TRANSMISSION BY RADIO (e.g. W-DMX or wireless audio systems):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions. For example, the following factors can impact range and signal quality:

Shielding (e.g. masonry, metal structures, water)

High volumes of radio traffic (e.g. powerful wireless LAN networks)

Interference

Electromagnetic radiation (e.g. LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference!

The operation of radio systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (e.g. radio frequency and transmission power).

WARNING:

Wireless transmitting devices are not suitable for use in sensitive areas in which radio operation can lead to potential detrimental effects. These include e.g.:

• Hospitals, health centres or other healthcare facilities that provide patient treatment with skilled personnel and equipment.
• Hazardous areas Class I, II and III
• Restricted areas
  Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or traverse structures, DMX-controlled motors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic systems or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion effects, or gas or liquid effects. These include C02 cannons, confetti shooters, water effects or similar.

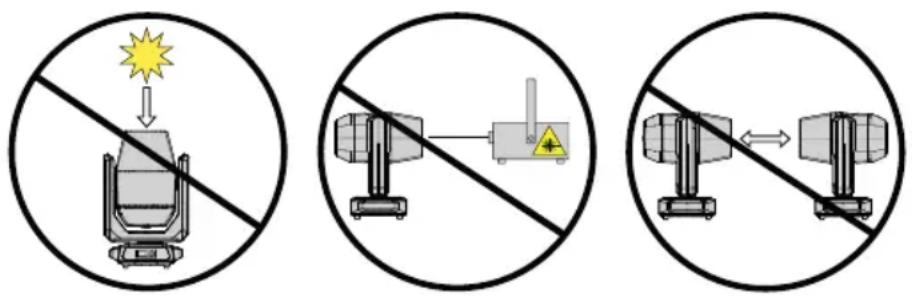

ATTENTION! POTENTIAL DAMAGE FROM EXTERNAL LIGHT SOURCES!

Solar radiation, laser radiation and bundled light beams from other spotlights can damage the housing and internal components such as filters, gobo and colour wheels, motors, cables, belts, etc., as well as light sources!

Do not expose the device and especially the lens opening to direct sunlight, laser radiation and bundled light beams from other spotlights during unpacking, installation, prolonged disuse and operation! Always point the lens opening towards the floor when the device is not in use! Damage caused by external light sources is excluded from the manufacturer's warranty!

NOTES ON PORTABLE INDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent installation can impair the functionality of the device and cause premature ageing.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content includes:

1xAZORW2LEDMovingHead
1xPower cable

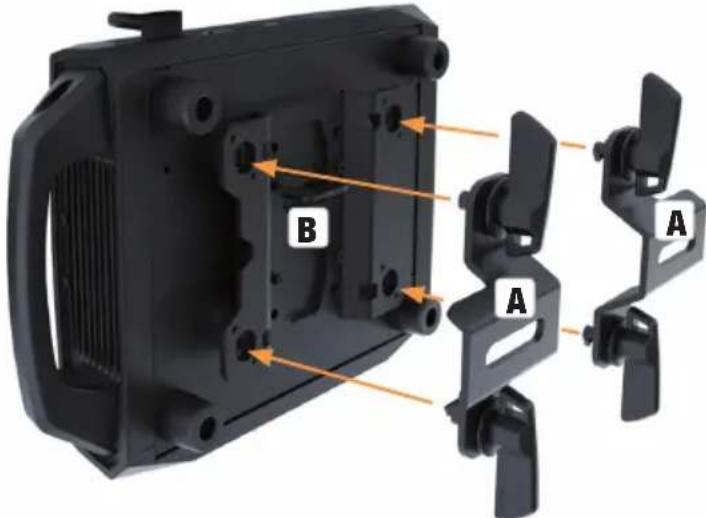

2x Omega bracket
1xUsermanual

INTRODUCTION

LED moving head

CLAZORW2

CONTROL FUNCTIONS:

19-channel, 18-channel HSI, 18-channel RGBL, 23-channel RGBL, 34-channel HSI, 36-channel RGB, 43-channel RGBL, 44-channel RGBL and 54-channel Full Access DMX control DMX512

W-DMX™ via optional Cameo iDMX stick RDM

Master / slave operation

Standalone functions

FEATURES:

7 x 40 W RGBL LEDs plus 48 x 2 W white effect LEDs. DMX512. Connection for optional iDMX stick for wireless control via W-DMX™. 5-pin DMX connections. 2 Omega mounting brackets included. The spotlight supports the RDM standard (Remote Device Management). Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE).

The Cameo UNICON also allows access to the entire spotlight menu.

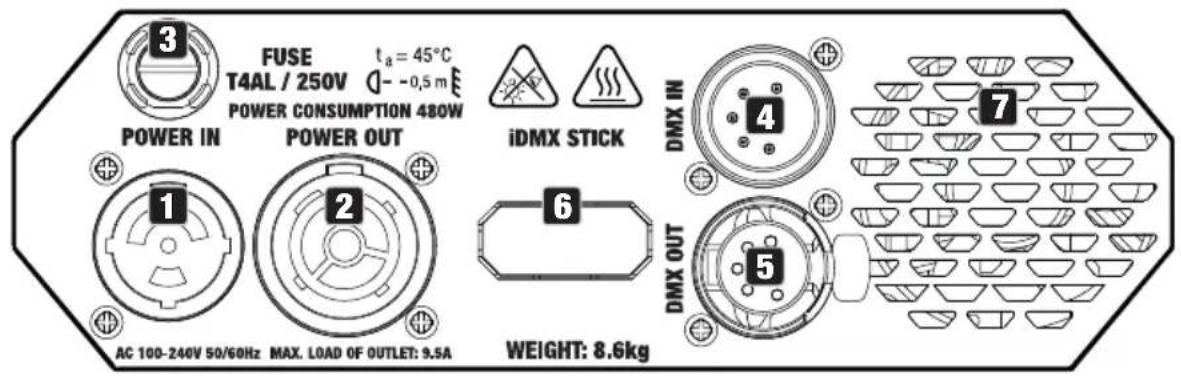

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

1 POWER IN

TRUE1-compatible mains input socket. Operating voltage 100 - 240 V AC / 50 - 60 Hz. Use the included power cable.

2 POWER OUT

TRUE1-compatible mains output socket. Enables power supply to other CAMEO spotlights. Ensure that the total power consumption of all connected devices does not exceed the value specified on the device in amperes (A).

3 FUSE

Fuse holder for 5 × 20 ~mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the same type and value. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male 5-pin XLR socket for connection to a DMX control device (e.g. DMX console).

5 DMX OUT

Female 5-pin XLR socket for forwarding the DMX control signal.

6 IDMX STICK

Connection for the optional iDMX stick for W-DMXTM operation (insert the iDMX stick with the antenna facing upwards). Note the wireless settings in the Settings menu.

AIR VENTS

To prevent damage to the device, do not cover the ventilation openings on the back and ensure that air can circulate freely.

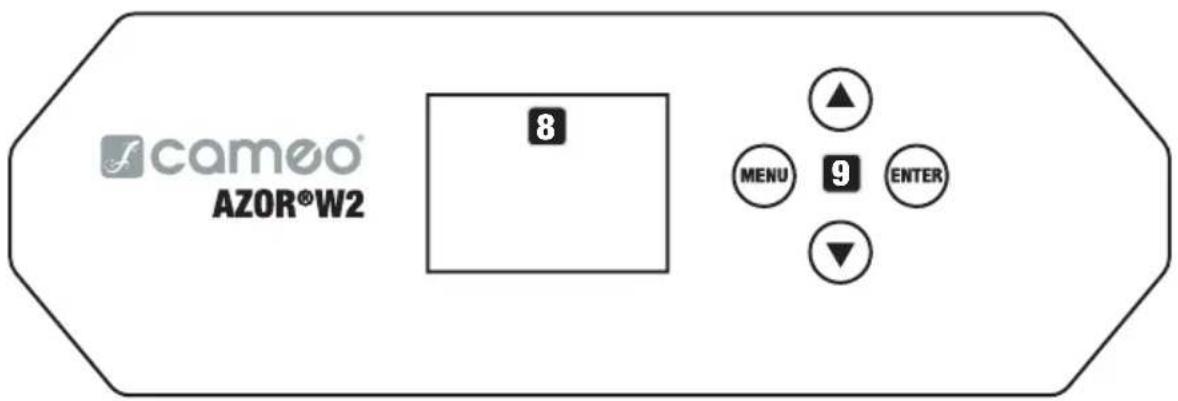

8 OLED DISPLAY

The OLED display shows the currently active operating mode (main screen), the menu items and the numerical value or operational status of certain menu items. If no input is made within approximately one minute, the display automatically returns to the main screen. Note on the main screen in operating modes with external control: In the event that the control signal is interrupted, the characters in the display begin flashing; once the control signal is present again, the flashing stops.

9 CONTROL BUTTONS

MENU - Press MENU to access the main menu. Press again or repeatedly to return to the main screen. Pressing MENU without confirming a value or status change by pressing ENTER restores the previously confirmed value or status.

ENTER - Press ENTER to access the menu and submenus. ENTER is also used to confirm value or status changes.

• and - Select menu items in the main menu (DMX address, DMX mode etc.) and in the sub-menus. Allows you to change the value of a menu option, such as the DMX address (long press = quick value change).

OPERATION

NOTES

Upon switching on the spotlight, the message "Update Wait" is displayed momentarily, followed by "Welcome to Cameo", the model name and the software version. Thereafter, the motors are reset (Motor Reset Please Wait). After this process, the spotlight is ready for operation and the previously activated operating mode is launched.

MAIN SCREEN IN DMX OPERATING MODE

In DMX mode, the main screen shows the currently set DMX start address (see illustration). Flashing characters indicate that no DMX signal is present.

DMX Address 001

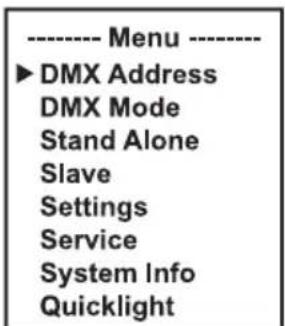

SET DMX START ADDRESS (DMX Address)

Starting from the main screen, press MENU to enter the main menu. Now use or to select the menu item DMX Address and confirm with ENTER. Use the or buttons to configure the desired DMX start address and press ENTER to confirm (the highest possible value depends on the selected DMX mode).

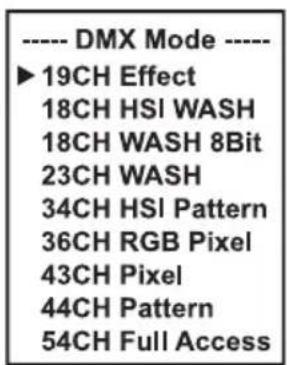

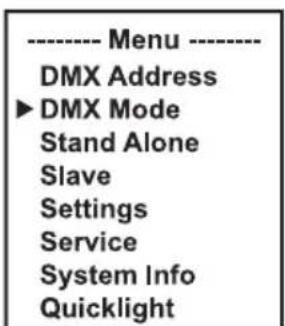

CONFIGURING DMX MODE (DMX MODE)

Starting from the main screen, press MENU to enter the main menu. Now use or to select the menu item DMX Mode and confirm with ENTER. Select the desired DMX operating mode using or and confirm with ENTER. Tables showing the channel assignment of the different DMX modes can be found in the DMX CONTROL section of this user manual.

STAND-ALONE MENU

In the stand-alone operating modes (Play Scene and Play Loop), the control signal of the corresponding mode can be output to slave units via XLR. If you do not want to output the control signal, deactivate the output.

A delay can be set for slave units for the time-delayed output of the control signal of the stand-alone operating modes. Activate one of the eight available scenes (Scene 1 - 8) or one of the eight available loops (Loop 1 - 8). The settings are made individually for each scene and each loop and are retained even after the device is restarted.

Starting from the main screen, press MENU to enter the main menu. Use the or buttons to select the Stand Alone menu item and confirm with ENTER. Now select the desired submenu item, confirm and then make the settings as required (see table).

…… Menu ……

DMX Address

DMX Mode

Stand Alone

Slave

Settings

Service

System Info

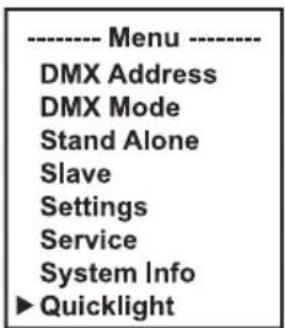

Quicklight

---- Stand Alone ----

Master/Alone

Play Scene/Loop

Edit User Scene

Edit Loop

Master/ Alone	Master	Delay	Forward control signal via DMX OUT and set delay for slave units: Off, 0.1s - 2.0s
	Alone		Do not forward control signal
Play Scene/ Loop	Scene	User Scene Select 1 - 8	Select and activate the desired scene
	Loop	Loop 1-Select	Select and activate the desired loop
Edit User Scene	User Scene 1 - 8	Pan	Set each scene individually. Scenes are activated by selecting them.
		Tilt
		Dimmer
		...
Edit Loop	Loop 1 - 8	Step 1	User Scene 1 - User Scene 8	Select scene 1 - 8
			t-Step 0s - 20min	Set step time
			t-Fade 0s - 20min	Set fade time
		Step 2	“	“
		Step 3	User Scene 1 - User Scene 8 / Skip Step	Select scene 1 - 8 / skip step
			t-Step 0s - 20min	Set step time
			t-Fade 0s - 20min	Set fade time
		Step 4	“	“
		Step 5	“	“
		Step 6	“	“
		Step 7	“	“
		Step 8	“	“

SLAVE MODE

Standard slave operation: Starting from the main screen, press MENU to enter the main menu. Use the or buttons to select the Slave menu item, confirm with ENTER, then select slave group 0 and confirm again. Connect the slave and master units (same model, same software version) using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master) and one of the stand-alone operating modes (Play Scene/Loop) in the master unit. The slave unit will now follow the master unit.

Advanced slave mode: If you wish to control the slave units in master/slave mode using one of the Play Scene or Play Loop stand-alone modes, the control signal can be played back with a time delay of up to 24 steps. The delay is set in the Stand Alone menu Master/Alone in the master unit; the delay factor is set in the slave menu of the corresponding spotlight (Group). This is a simple way to create a running light effect with a large number of identical spotlights that are running the same software version, which would otherwise require a suitable DMX controller and extensive programming. Connect the slave and master units (same model, same software version) using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master) and one of the stand-alone operating modes (Play Scene/Loop) in the master unit.

Group 0-24

Set the slave group for signal delay

Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied.

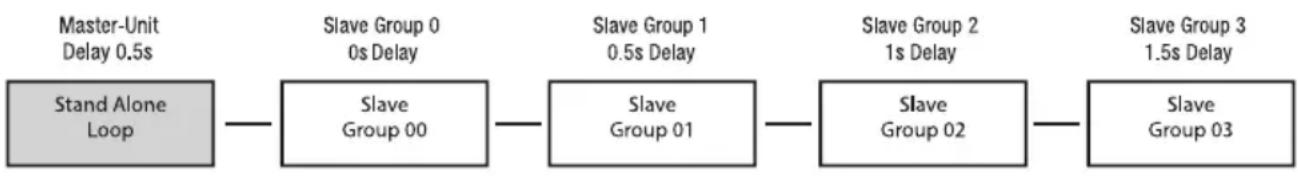

Setup example:

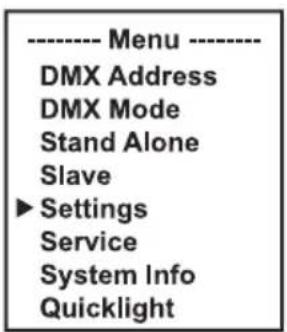

SYSTEM SETTINGS (Settings)

Starting from the main screen, press MENU to enter the main menu. Use the or buttons to select the menu item Settings and confirm with ENTER.

This takes you to the submenu (see table). Select submenu items with or , confirm with ENTER, change value or status with or , confirm with ENTER).

Settings (Bold print = factory setting)
Wireless	Wireless Settings (iDMX stick optional)	iDMX State	Off	Wireless control deactivated
			On	Wireless control activated
		Signal Routing	Send to XLR	Signal -> DMX OUT
			Backup by XLR	Backup via DMX IN in case of W-DMX signal interruption
			Receive only	W-DMX reception only
Display	Display Settings	Display Reverse	On	Display rotation by 180° (e.g. for over-head installation)
			Off	No display rotation
		Display Off Timer	Always On	Permanently on
			Off after 20s	Deactivates after approximately 20 seconds of inactivity
		Autolock	Off	Autolock function deactivated
			On after 60s	Controls locked after approx. 60 seconds without input (LOCKED). To unlock, press MENU for approx. 3 seconds.
Dimmer	Dimmer Settings	Dimmer Curve (Dimmer curve)	Linear	Light intensity increases linearly with DMX value
			Exponen-tial	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarith-mic	Light intensity can be broadly adjusted at lower DMX values and finely adjust-ed at higher DMX values
Dimmer	Dimmer Settings	Dimmer Curve (Dim-mer curve)	S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
		PWM Frequency	650Hz, 1530Hz, 3600Hz, 12kHz, 18.9kHz, 25kHz	Select LED PWM frequency
		Dimmer Response (Dimmer response)	LED	The spotlight responds immediately to changes of the DMX value
			Halogen	The spotlight behaves in a similar way to a halogen spotlight with gradual changes of brightness
Color Calibration	Colour calibration	RAW, and L (maximum value: 255)
		User		Custom colour calibration. Brightness setting of R, G, B and L with values ranging from 0 - 255
		Factory		Factory calibration
		Smart		Merging factory and RAW calibration
Movement	Set head move-ments	Pan Reverse	Off	Pan direction not reversed
			On	Pan direction reversed
		Tilt Reverse	Off	Tilt direction not reversed
			On	Tilt direction reversed
		Pan Angle	540°	Pan angle 540°
			630°	Pan angle 630°
		Position Feedback	Off	Automatic position correction disabled
			On	Automatic position correction enabled
		Move in Black	Off	No blackout during head movement
			On	Blackout during head movement
		Silent Move-ment	Off	Function disabled
			On	Slowed motor movements for quieter operation
Fan	Fan settings	Auto	Automatic fan control
		Fan Off	Deactivated fan with greatly reduced brightness
		Constant Low	Constant low fan speed with reduced brightness, if necessary
		Constant Mid	Constant average fan speed with reduced brightness, if necessary
		Constant High	Constant high fan speed

Signal Fail	Operational status in case the DMX signal is interrupted	Hold	Last command is retained
		Last Stand Alone	The last selected stand-alone operating mode is activated
		Fade to Black	10 second fade to blackout
		Blackout	Activates blackout
		Full	Full On
Pixel Mirror Mirrors	or pixels	Off	Function disabled
		Horizontal	Mirror pixels horizontally
		Vertical	Flip pixels vertically
		Horizontal + Vertical	Flip pixels horizontally and vertically
Store Default	Save settings in 3 custom presets	User Default A	Save all current settings as user preset A
		User Default B	Save all current settings as user preset B
		User Default C	Save all current settings as user preset C

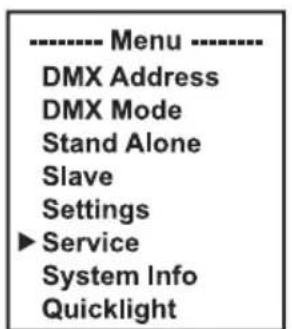

SERVICE MENU (Service)

Starting from the main screen, press MENU to enter the main menu. Use the or buttons to select Service and confirm with ENTER.

Information on the submenu items in the Service menu and the corresponding options can be found in the table below (select with or , confirm with ENTER, change value or status with or , confirm with ENTER).

Load Default	Factory Default	Reset to factory setting
	User Default A	Reset to User A values (store user values: Settings -> Store Default)
	User Default B	Reset to User B values (store user values: Settings -> Store Default)
	User Default C	Reset to User C values (store user values: Settings -> Store Default)
Reset	Pan/Tilt	Reset pan / tilt motors
	Head	Reset motors in the device head
	All functions	Reset all motors
Test	Test Sequence	Pre-programmed sequence to test all components
	Stress Test	Pre-programmed sequence to test all components under maximum load
	Motor Test	Activate all motors individually with values of 000 to 255
Reset Service Timer	No	Do not reset service operation time
	Yes	Reset service operation time
Password	Nur für Service-Zwecke

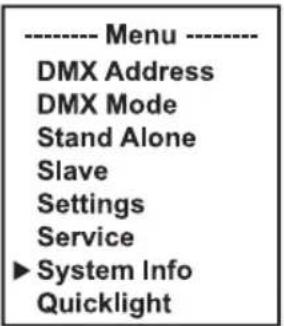

SYSTEM INFORMATION (System Info)

Starting from the main screen, press MENU to enter the main menu. Use the or buttons to select the menu item System Info and confirm with ENTER.

This takes you to the submenu (see table for submenu items). Select submenu items with or , confirm with ENTER, change value or status with or , confirm with ENTER).

Firmware	DISP	Vx.x.x	Display the firmware version of the corresponding component
	SCAN	Vx.x.x
	LED1	Vx.x.x
	...	Vx.x.x
Temperature	LED	xxx °C/°F	Display the temperature of the corresponding component
	Base	xxx °C/°F
	FX LED	xxx °C/°F
	Temperature Unit	°C (Celsius)	Set temperature unit
		°F (Fahrenheit)
Fan Speed	LED	xxxx RPM	Display the speed of the corresponding fans
	Base	xxxx RPM
Runtime	Total	xxxx h : xx m	Total operating time
	Operation	xxxx h : xx m	Time in use
	LED	xxxx h : xx m	Lamp operating time
	Service	xxxx h : xx m	Operating time since the last reset of the service operating time
RDM UID	RDM Unique Identifier (unique identifier)
Errors	Error display in case of malfunction

QUICKLIGHT

Set up a scene quickly and easily using the basic Moving Head functions without an external controller. Starting from the main screen, press MENU to access the main menu. Use or to select Quicklight and confirm with ENTER. Now select the desired submenu item, confirm, set the value as required and confirm again.

If the Quicklight mode is activated, the display does not automatically return to the main screen. Quicklight mode is automatically cancelled when you exit the Quicklight menu. The Quicklight settings are retained until the next restart of the spotlight. Quicklight can be accessed repeatedly with the same settings as long as the spotlight remains switched on. After a restart, the values are reset to the factory settings.

SETUP AND INSTALLATION

DANGER: Overhead mounting requires extensive experience, including calculating the load limit values of the mounting hardware and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

Thanks to its integrated rubber feet, the spotlight can be positioned in a suitable location on a level surface. It can be truss-mounted using two Omega brackets, which are attached to the base of the device (A). Two Omega brackets are included. Suitable truss clamps are available as an option. Ensure firm connections and secure the spotlight to the securing lug (B) with a suitable safety cable.

CARE, MAINTENANCE AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The maintenance requirement depends on the intensity of use and the environment in which it is used.

We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (can be performed by the user)

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment or even destruction of the device.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case).
3. Cables and connectors must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.

MAINTENANCE AND REPAIR (by qualified personnel only)

DANGER! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, e.g. due to charged capacitors.

PLEASE NOTE! There are no user-serviceable assemblies in the device.

NOTE! Maintenance and repair work may only be carried out by specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

NOTE! Improperly performed maintenance work may affect warranty claims.

DIMENSIONS (mm)

TECHNICAL SPECIFICATIONS

Product number: GLAZORW2
Product type: LED moving light
Type: Wash light
Colour spectrum (Centre LEDs): RGBL
Number of centre LEDs: 7
LED type (Centre LEDs): 40 W
CCT (Centre LEDs): 2200 K - 8000 K
Luminous flux (Centre LEDs): 3000 lm
Light intensity: 4100 lx @ 10 m, narrow zoom
CRI (Centre LEDs): 84
Dispersion (half-peak divergence): 4,3° - 34° (6,2° - 50,9°)
Colour spectrum (FX LEDs):	Cold White
Number of FX LEDs:	4 segments with 12 LEDs each (48 LEDs in total)
LED type (FX LEDs):	2 W
PWM frequency:	650 Hz; 1530 Hz; 3600 Hz; 12 kHz; 18.9 kHz; 25 kHz
DMX input:	5-pin male XLR
DMX output:	5-pin female XLR

Control: DMX512, RDM, iDMX stick compatible

DMX mode:	19-CH Effect,18-channel HSI, 18-channel RGBL, 23-channel RGBL, 34-channel HSI, 36-channel RGB, 43-channel RGBL, 44-channel RGBL, 54-channel Full Access
DMX functions:	Pan (fine); Tilt (fine); Dimmer (fine); Strobe Functions; Red (fine); Green (fine); Blue (fine); Lime (fine); Hue (fine); Saturation; Colour Temperature; Tint; Colour Presets; Dimmer FX 1-4; FX Strobe; FX Pattern Selection; FX Pattern Speed, Pattern Folder; Pattern Selection; Pattern Position & Speed; Pattern Transition; Pattern Fade/Wake Effect; Background Dimmer (fine) + Strobe + Red (fine) + Green (fine) + Blue (fine) + Lime (fine) + Hue (fine) + Saturation + Colour Temperature + Tint + Colour Presets; Zoom (fine); Device Settings; Red 1-7; Green 1-7; Blue 1-7; Lime 1-7, Device Settings
Standalone functions:	User Scene 1-8, Loop 1-8, Quick Light, Master/slave operation
Pan angle: 540°/630°
Tilt angle: 250°
Controls: MENU, ENTER, up arrow, down arrow
Display: OLED display
Operating voltage: 100–240 V AC / 50–60 Hz
Power consumption: 480 W
Inrush current: 96 A @ 0.358 ms
Power supply connection:	True1 compatible input and output (Max. output current 9.5 A)
Power Link: Up to 5 devices @ 230V; up to 3 devices @ 110V
Fuse: T4AL/250 V (5 x 20 mm)
Ambient temperature (in operation):	0 40°C – 40°C
Relative air humidity: < 85%, non-condensing
IP protection class:	IP20
Minimum distance to illuminated surface:	0.5 m
Minimum distance to normal flammable materials:	0.5 m
Housing material:	Metal, ABS
Housing colour:	Black
Housing cooling:	Temperature-controlled fan
Dimensions (W x H x D, without mounting bracket):	308 x 414 x 193 mm
Weight:	8.6 kg

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. In this example, the distance is 0.5m . For the applicable value for this device, please refer to the technical specifications in this manual and the imprint on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. In this example, the distance is 0.5m . For the applicable value for this device, please refer to the technical specifications in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment as amended. WEEE Directive Waste Electrical and Electronic Equipment. Electronic devices do not belong in household waste. The device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability

Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany

E-mail: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines

(where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, RoHS Directive can be requested from [e-mail]

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

---- Stand Alone ----

Master/Alone

Play Scene/Loop

Edit User Scene

Edit Loop

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

---- Stand Alone ----

Master/Alone

Play Scene/Loop

Edit User Scene

Edit Loop

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

Adam Hall GmbH declares that this product is in the form of a patent. Adam Hall GmbH has granted his专利权。

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

---- Stand Alone ----

Master/Alone

Play Scene/Loop

Edit User Scene

Edit Loop

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

19CH RGBL Effect
Channel	Function	Values Sub-				group	Group
1 Pan	000 - 255				0% to 100% Pan		Move-ment
2 Pan	fine 000 - 255
3 Tilt	000 - 255				0% to 100% Tilt
4 Tilt	fine 000 - 255
5 Dimmer 000 - 255					0% to 100% Dimmer Intensity
6	Dimmer fine	000 - 255
7	Strobe Functions	000 - 005 Open				Multi-functional Strobe	Strobe
		006 - 010 Closed
		011 - 022 Ramp up/down slow to fast
		023 - 033			Ramp up/down random slow to fast
		034 - 045 Ramp up slow to fast
		046 - 056 Ramp up random slow to fast
		057 - 068 Ramp down slow to fast
		069 - 079 Ramp down random slow to fast
		080 - 102 Random Strobe effect slow to fast
		103 - 127			Strobe Break effect 5s to 1s (short burst with break)
		128 - 250 Strobe slow to fast (<1Hz to 20Hz)
		251 - 255 Open
8 Red	000 - 255	0% to 100%				Additive Color Mixing	Color Mixing
9 Green	000 - 255	0% to 100%
10 Blue	000 - 255	0% to 100%
11 Lime	000 - 255	0% to 100%
12	Dimmer FX All	000 - 255	0% to 100%				FX Control
13 FX	Strobe	000 - 005 Open				Multi-functional Strobe
		006 - 010 Closed
		011 - 022 Ramp up/down slow to fast
		023 - 033			Ramp up/down random slow to fast
		034 - 045 Ramp up slow to fast
		045 - 056 Ramp up random slow to fast
13 FX Strobe
057-068 Ramp down slow to fast
069-079 Ramp down random slow to fast
080-102 Random Strobe effect slow to fast
080-102 Random Strobe effect slow to fast
080-102 Random Strobe effect slow to fast
13 FX Strobe
103-127 Strobe Break effect 5s to 1s (Short functional Strobe
128-250 Strobe slow to fast (<1Hz to 20Hz)
251-255 Open
000-005 off
006-0261
027-0472
048-0683
069-0894
090-1105
111-1316
132-1527
153-1738
174-1949
195-21510
216-23611
237-25512
000-005 FX Pattern Speed Stop
006-063 (Chase)
064-127 (Chase) (backwards)
128-191 (Fade)
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX Pattern Speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX pattern speed fast to slow
FX power off
000-005 off
006-0091
010-0132
014-0173
018-0214
022-0255
026-0296
030-0337
034-0378
038-0419
046-2011 to 49
202-2550

19

Device settings (all settings executed are after holding value for 3 seconds) (please read remark 1*)

000 - 005 No function

006 - 007 Blackout while P/T moving On

008 - 009 Blackout while P/T moving Off

010 - 024 No function

025 - 025 Record User Scene 1

026 - 026 Record User Scene 2

027 - 027 Record User Scene 3

028 - 028 Record User Scene 4

029 - 029 Record User Scene 5

030 - 030 Record User Scene 6

031 - 031 Record User Scene 7

032 - 032 Record User Scene 8

033 - 031 Record User Scene 9

034 - 034 Invert Pan On

042 - 043 Invert Pan Off

044 - 045 Invert Pan Off

046 - 047 Invert Tilt On

048 - 049 Invert Tilt Off

050 - 057 No Function

058 - 059 Pixel Mirroring Off

060 - 061 Pixel Mirroring Horizontal

062 - 063 Pixel Mirroring Vertical

064 - 065 Pixel Mirroring Horizontal + Vertical

066 - 073 No function

074 - 075 Dimmer Response LED

078 - 093 No function

094 - 095 Silent movement On

096 - 097 Silent movement Off

098 - 099 Fan Auto

100 - 101 Fan Off

102 - 103 Fan Constant Low

104 - 105 Fan Constant Medium

106 - 107 Fan Constant High

108 - 119 No function

19	Device settings (all settings executed are after holding value for 3 seconds) (please read remark 1*)	120 - 121 PWM 1 (650 Hz)	PWM Frequency	Control
		122 - 123 PWM 2 (1530 Hz)
		124 - 125 PWM 3 (3600 Hz)
		126 - 127 PWM 4 (12000 Hz)
		128 - 129 PWM 5 (18900 Hz)
		130 - 131 PWM 6 (25000 Hz)
		132 - 133 RAW	Color Calibration
		134 - 135 Factory Calibration
		136 - 137 User Calibration
		138 - 139 Smart Calibration
		140 - 141 Display Always On	Display Functions
		142 - 143 Display Off after 20s
		144 - 163 No function
		164 - 165 Dimmer Curve Linear	Dimmer Curve
		166 - 167 Dimmer Curve Exponential
		168 - 169 Dimmer Curve Logarithmic
		170 - 171 Dimmer Curve S-Curve
		172 - 221 No function
		222 - 223 Reset Pan / Tilt	Reset
		224 - 233 No function
		234 - 235 Reset Head
		236 - 237 Reset All
		238 - 239 No function
		240 - 241 Load Factory Defaults	Load Default
		242 - 243 No function
		244 - 245 Load User Default A
		246 - 247 Load User Default B
		248 - 249 Load User Default C
		250 - 255 No function

18CH HSI Wash	18CH RGBL Wash 8Bit	23CH RGBL Wash
Channels Function Values Sub-
1 1 1 Pan 00 - 255						0% to 100% Pan		Move-ment
2 2 2 Pan fine 000 - 255
3 3 3 Tilt 00 - 255						0% to 100% Tilt
4 4 4 Tilt fine 000 - 255
5 5 5 Dimmer 000 - 255							0% to 100% Dimmer Intensity
6 6 6			Dimmer fine	000 - 255
7 7 7			Strobe Functions	000 - 005 Open			Multi-functional Strobe	Strobe
				006 - 010 Closed
				011 - 022		Ramp up/down slow to fast
				023 - 033		Ramp up/down ran-dom slow to fast
				034 - 045 Ramp		p up slow to fast
				046 - 056		Ramp up random slow to fast
				057 - 068		Ramp down slow to fast
				069 - 079		Ramp down random slow to fast
				080 - 102		Random Strobe effect slow to fast
				103 - 127		Strobe Break effect 5s to 1s (Short burst with break)
				128 - 250		Strobe slow to fast (<1Hz to 20Hz)
				251 - 255 Open
	8 8 Red 000 - 255						0% to 100%	Additive Color Mixing
		9 Red fine 000 - 255
	9 10 Green 000 - 255						0% to 100%
		11 Green fine	000 - 255
	10 12 Blue 000 - 255						0% to 100%
		13 Blue fine 000 - 255
	11 14 Lime	000 - 255					0% to 100%
		15 Lime fine 000 - 255
8			Hue 000 - 255				0° (Red) to 360°	HSI
9			Hue Fine 000 - 255
10			Satura-tion	000 - 255		0% (White) to 100% (Color)
11 12 16			Color Temperature (affects Color Mixing)	000 - 005 Off		CCT
131418
121317
121317
121317
121317
121317
121317
121011	Color Jumping Fading	126-127	Color Jumping Fading	128-164	Color Jumping slow to fast	165-201	Color Fading slow to fast	202-255 No function
128-164	Color Jumping slow	128-164	Color Jumping slow	128-164	Color Jumping slow to fast	165-201	Color Jumping slow to fast	202-255 No function
128-164	Color Jumping slow	128-164	Color Jumping slow	128-164	Color Jumping slow to fast	165-201	Color Jumping slow to fast	202-255 No function
128-164	Color Jumping slow	129-255	Color Jumping slow	129-255	Color Jumping slow to fast	165-201	Color Jumping slow to fast	202-255 No function
128-164	Color Jumping slow	129-255	Color Jumping slow	129-255	Color Jumping slow to fast	165-201	Color Jumping slow to fast	202-255 Nofunction
128-164	Color Jumping slow	129-255	Color Jumping slow	129-255	Color Jumping slow to fast	165-201	Color Jumping slow to fast	202-255 Nofunction
128-164	Color Jumping slow	129-255	Color Jumping slow	128-170	Studio White (5600K)	CCT
128-164	Color Jumping slow	171-210	Studio White (5600K)	171-210	Studio White (5600K)	211-211	Daylight White (6500K)	212-251
128-164	Color Jumping slow	212-251	Daylight White (6500K)	212-251	Daylight White (6500K)	252-255	Cold white	252-255
128-164	Color Jumping slow	252-255	Cold white	252-255	Cold white	Tint
128-164	Color Jumping slow	252-255	Cold white	252-255	Cold white	Tint
128-164	Color Jumping slow	252-255	Cold white	252-255	Cold white	Tint
128-164	Color Jumping slow
128-164	Color Jumping slow
128-164	Color Jumping slow
128-164	Color Jumping slow
128-164	Color Jumping slow
128-163	Color Jumping slow
128-163	Color Jumping slow
128-163	Color Jumping slow
128-163	Color Jumping slow
128-163	Color Jumping slow							Color Mixing
128-163	Color Jumping slow
128-163	Color Jumping slow
128-163	Color Jumping slow
128-163	Color Jumping slow
128-163	Colour Jumping Fading	128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164
128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164
128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164	Color Jumping Fading	Tint
128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164	Color Jumping Fading	Tint
128-164	Color Jumping Fading	128-164	Color Jumping Fading	128-164	Color Jumping Fading	Tint

14.15 19		Dimmer FX All 000-255 0% to 100%
000-005 Open		000-005 Closed
006-010 Closed		011-022 to fast
011-022		023-033 to ramp up/down ran-
034-045 Ramp up slow to fast		046-056 to fast
046-056		057-068 fast
069-079		069-079 to ramp down random
080-102		080-102 slow to fast
103-127		103-127 to 1s (Short burst with break)
128-250		128-250 Strobe slow to fast
251-255 Open
1617 21 Zoom 000-255
1722 Zoom fine 000-255
000-005 No function
006-007		Blackout while P/T
008-009		Blackout while P/T
025-026 Record User Scene 1		026-026 Record User Scene 2
027-027 Record User Scene 3		027-027 Record User Scene 4
028-028 Record User Scene 4		028-028 Record User Scene 5
030-030 Record User Scene 6		030-030 Record User Scene 7
031-031 Record User Scene 8		031-031 Record User Scene 9
032-032 Record User Scene 9		032-032 Record User Scene 8
033-041 No function		033-041 No function
042-043 Invert Pan On		Move-

181823
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)
044-045 Invert Pan Off
046-047 Invert Tilt On
048-049 Invert Tilt Off
050-057 No Function
058-059 Pixel Mirroring Off
060-061 Pixel Mirroring Hor-
062-063 Pixel Mirroring Vertical
064-065 Pixel Mirroring Hor-
067-073 No function
074-075 Diemer Response LED
078-093 No function
094-095 Silent movement On
096-097 Silent movement Off
098-099 Fan Auto
100-101 Fan Off	Dimmer Response LED
102-103 Fan Constant Low	Dimmer Response LED
104-105 Fan Constant Medium	Dimmer 076-077
106-107 Fan Constant High	Dimmer 076-077
108-119 No function	Dimmer 076-077
120-121 PWM 1 (650 Hz)	Functions
122-123 PWM 2 (1530 Hz)	PWM Free-
124-125 PWM 3 (3600 Hz)	quency
126-127 PWM 4 (12000 Hz)
128-129 PWM 5 (18900 Hz)
130-131 PWM 6 (25000 Hz)
132-133 RAW	Control
134-135 Factory Calibration	Color Cal-
136-137 User Calibration	Irration
138-139 Smart Calibration	Color Cal-
140-141 Display Always On	Display
142-143 Display Off after 20s	Functions
144-163 No function	Dimmer Curve Linear
166-167 Dimmer Curve Expo-	Dimmer Curve Loga-
166-167	nential	nential	nential	nential	nential	nential	nential	nential
166-167	nential	nential	nential	nential	nential	nential	nential	nential

18 18 23			Device settings (all settings executed are after hold- ing value for 3 seconds) (please read remark1*)	170 - 171			Dimmer Curve S-Curve	Dimmer Curve	Control
				172 - 221		No function
				222 - 223		Reset Pan / Tilt		Reset
				224 - 233		No function
				234 - 235		Reset Head
				236 - 237		Reset All
				238 - 239		No function
				240 - 241		Load Factory Defaults		Load Default
				242 - 243		No function
				244 - 245		Load User Default A
				246 - 247		Load User Default B
				248 - 249		Load User Default C
				250 - 255		No function

34CH HSI Pat-tern	44CH RGBL Pat-tern
Channels Function Values Sub-						group	Group
1 1 Pan 000	-255				0% to 100% Pan		Move-ment
2 2 Pan fine	000 - 255
3 3 Tilt 000	-255				0% to 100% Tilt
4 4 Tilt fine	000 - 255
5 5 Dimmer	000 - 255				0% to 100% Dimmer Intensity
6	6	Dimmer fine	000 - 255
7	7	Strobe Functions	000 - 005 Open			Multi-functional Strobe	Strobe
			006 - 010 Closed
			011 - 022 Ramp up/down slow to fast
			023 - 033		Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056 Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
			069 - 079		Ramp down random slow to fast
			080 - 102		Random Strobe effect slow to fast

7	7	Strobe	103+127	Strobe Break effect 5s to 1s	Multi-	Srobe
		Functions	128+250	Strobe slow to fast (≥1Hz to	functional	Strobe
			251+255 Open
9 Red fine 000-255	9 Red 000-255	0% to 100%	0% to 100%
10 Green 000-255	11 Green 000-255	0% to 100%	0% to 100%
12 Blue 000-255	13 Blue fine 000-255	0% to 100%	0% to 100%
14 Lime 000-255	15 Lime fine 000-255	0% to 100%	0% to 100%
9 Hue 000-255	9 Hue Fine 000-255	0% to 100%	0% to 100%
10 Satura-	10 Satura-	0% to 100%	0% to 100%
9 Hue Fine 000-255	9 Hue Fine 000-255	0% to 100%	0% to 100%
10	10	0% to 100%	HSI
16	16	0% to 100%	CCT
Color	Color	000-005 Off	000-005 Off
Tem-	007-046 Warm white to 2700K	006-006 Warm white	006-006 Warm white
(affects)	047-047 Bulb White (2700K)	047-047 Bulb White (2700K)	047-047 Bulb White (2700K)
Color	048-087 2700K to 3200K	048-087 2700K to 3200K	048-087 2700K to 3200K
Mixing	048-087 2700K to 3200K	048-087 2700K to 3200K	048-087 2700K to 3200K
Tint	171-210 MesoK to 6500K	171-210 MesoK to 6500K	171-210 MesoK to 6500K
(affects)	211-211 Daylight White (6500K)	211-211 Daylight White (6500K)	211-211 Daylight White (6500K)
212-291 6500K to Cold white	252-255 Cold white	252-255 Cold white	252-255 Cold white
Tint	129+255 Neutral->Green	129+255 Neutral->Green	129+255 Neutral->Green

15 20 FX Strobe

14 19 FX All

14 19 FX All

14 19 FX All

14 19 FX All

14 19 FX All

14 19 FX All

14 19 FX All

Color Presets (override Color Mixing & Color Temperature)

13 18

14 19 FX All

Color Presets (override Color Mixing & Color Temperature)

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

006 - 07 3 Red

14 19 FX All

Color Presets (override Color Mixing & Color Temperature)

Color Presets (override Color Mixing & Color Temperature)

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

Color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

color

13 18

014 - 021 Amper

014 - 021 Amper

014 - 021 Amper

14 19 FX All

Dimmer FX All

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255.0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

110 - 17 White

110 - 17 White

126 - 127 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping /Feeding stop to fast

165 - 201 Color Fading slow to fast

201 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202- - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 – 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 -255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 17 White

110 - 17 White

110 - 17 White

126 - 127 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

128 - 164 Color Jumping/Feeding Stop

\( {165} - {201}\mathrm{{Color}}\mathrm{{Fading}}\mathrm{{SLOW}} \) to fast

201 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 No function

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

202 - 255 Nofunction

14 19 FX All

Dimmer FX All

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 255 0% to 100%

000 - 340 0% to 100%

000 - 340 0% to 100%

000 - 340 0% to 100%

000 - 340 0% to 100%

000 - 340 0% to 100%

000 - 340 0% to 100%

15 20 FX Strouse		128 - 250Strobe slow to fast (<1Hz to functional)
		251 - 255 OpenStrobe
16 21		000 - 005 Off	000 - 0261
006 - 0261	027 - 0472	027 - 0472	027 - 0472
048 - 0683	069 - 0894	069 - 0894	069 - 0894
090 - 1105	090 - 1105	090 - 1105	090 - 1105
153 - 1738	153 - 1738	153 - 1738	153 - 1738
174 - 1949	174 - 1949	174 - 1949	174 - 1949
195 - 21510	195 - 21510	195 - 21510	195 - 21510
216 - 23611	216 - 23611	216 - 23611	237 - 25512
237 - 25512	237 - 25512	237 - 25512	237 - 25512
000 - 005 FX Pattern Speed Stop		000 - 005 FX Pattern Speed Stop
006 - 063	FX Pattern Speed stop	006 - 063	FX Pattern Speed stop
064 - 127	FX Pattern Speed fast to slow	064 - 127	FX Pattern Speed fast to slow
128 - 191	FX Pattern Speed fast to slow	128 - 191	FX Pattern Speed fast to slow
192 - 255	FX Pattern Speed fast to slow	192 - 255	FX Pattern Speed fast to slow
(Fade) backwards)		(Fade) backwards)
000 - 005 Off	000 - 005 Off	000 - 005 Off	000 - 005 Off
006 - 064 Static Pattern 1		006 - 064 Static Pattern 1	006 - 064 Static Pattern 1
065 - 128 Static Pattern 2		065 - 128 Static Pattern 2	065 - 128 Static Pattern 2
129 - 255 Effect Pattern 1		129 - 255 Effect Pattern 1	129 - 255 Effect Pattern 1
000 - 005 Off	000 - 005 Off	000 - 005 Off	000 - 005 Off
006 - 091	006 - 091	006 - 091	006 - 091
010 - 0132	010 - 0132	010 - 0132	010 - 0132
014 - 0173	014 - 0173	014 - 0173	014 - 0173
018 - 0214	018 - 0214	018 - 0214	018 - 0214
022 - 0255	022 - 0255	022 - 0255	022 - 0255
026 - 0296	026 - 0296	026 - 0296	026 - 0296
030 - 0337	030 - 0337	030 - 0337	030 - 0337
034 - 0378	034 - 0378	034 - 0378	034 - 0378
038 - 0419	038 - 0419	038 - 0419	038 - 0419
042 - 04510	042 - 04510	042 - 04510	042 - 04510
046 - 20111 to 49		046 - 20111 to 49
202 - 25550

20 25		Pattern Position & Speed	006·127 fast Effect Pattern Speed slow to 128·255 Effect Pattern Speed fast to 128·255 slow (backwards)
21 26		Transition	006·255 1s to 5s
22 27		Pattern Effect	006·127 Fade 0% to 100%
23 28		Ground Dimmer	000·255 0% to 100%
24 29		Dinmer fine	000·255 0% to 100%
25 30		Ground	000·05 Open
26 31		Strobe	006·010 Closed
27 32		Ground	011·022 Ramp up/down slow to fast
28 33		Ramp-up/down random slow to fast
29 34		034·045 Ramp up slow to fast
30 35		046·056 Ramp up random slow to fast
31 36		057·068 Ramp down slow to fast
32 37		069·079 Ramp down random slow to fast
33 38		080·102 Random Strobe effect slow to fast
34 39		103·127 Strobe Break effect 5s to 1s (Short burst with break)
35 40		128·250 Strobe slow to fast (<1Hz to 20Hz)
36 41		251·255 Open
37 42		0% to 100%
Back- ground color Mixing		0% to 100%

2939		28	27	26
		33	34	35	36	37	38	39	39	0% to 100%
		Ground Green	Green	Blue	Blue	Blue	Blue	Blue	fine	0% to 100%
Background Color Temperature (affects Background Color Mixing)		33	34	35	36	37	38	39	39	0% to 100%
		Ground Green	Green	Blue fine	Blue fine	Blue fine	Blue fine	Blue fine	blue fine	0% to 100%
		Ground Color Temperature (affects Ground Color Mixing)	ground	ground	ground	ground	ground	ground	ground	0% to 100%
		Satura- tion	Satura-	Hue fine	Hue fine	Hue fine	Hue fine	Hue fine	Hue fine	0% to 100%
		000 - 255	000 - 255	000 - 255	0° (Red) to 360°
		000 - 255	000 - 255	000 - 255	0° (Red) to 360°
		000 - 005 of
		006 - 006 Warm white
		007 - 046 Warm white to 2700K
		047 - 047 Bub White (2700K)
		048 - 087 2700K to 3200K
		088 - 088 Halogen White (3200K)
		089 - 128 3200K to 4000K
		129 - 129 Neutral White (4000K)
		130 - 169 4000K to 5600K
		170 - 170 Studio White (6500K)
		211 - 211 Daylight White (6500K)
		212 - 251 6500K to Cold white

314		3040		2939
Background Color Presets (override Background Color Mixing & Color Temperature)		Background Tint (affects Background Color Temperature)		Background Color Temperature (affects Background Color Mixing)
		129-255 Neutral -> Green		252-255 Cold white
		001-127 Magenta -> Neutral
		128-128 neutral
Back-ground Color Presets (override Background Color Mixing & Color Temperature)		129-255 Neutral -> Green
		000-005 No function
		006-03 Red
		014-021 Amper
		022-029 Yellow warm
		030-037 Yellow
		038-045 Green
		046-053 Turquoise
		054-061 Cyan
		062-069 Blue
		070-077 Lavender
		078-085 Maive
		086-093 Magenta
		094-101 Pink
		110-117 White
		126-127 Color Jumping/Fading Stop
		165-201 Color Fading slow to fast
202-255 No function

32.42 ZOOM 000 - 255		33.43 fine 000 - 255	Narrow to Wide Zoom Beam
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)		006 - 007 Blackout while P/T moving On	Blackout
010 - 024 No function		025 - 025 Record User Scene 1	026 - 026 Record User Scene 2	027 - 027 Record User Scene 3
029 - 029 Record User Scene 4		029 - 029 Record User Scene 5	030 - 030 Record User Scene 6	031 - 031 Record User Scene 7
032 - 032 Record User Scene 8		032 - 032 Record User Scene 9	033 - 033 Record User Scene 10	034 - 034 Invert Pan On
044 - 045 Invert Pan Off		044 - 045 Invert Pan Off	Move-
046 - 047 Invert Tilt On		046 - 047 Invert Tilt On	ment
048 - 049 Invert Tilt Off		048 - 049 Invert Tilt Off	ment
050 - 057 No Function		050 - 057 No Function	ment
058 - 059 Pixel Mirroring Off		058 - 059 Pixel Mirroring Off	ment
060 - 061 Pixel Mirroring Horizontal		060 - 061 Pixel Mirroring Horizontal	Pixel Mirroring
062 - 063 Pixel Mirroring Vertical		062 - 063 Pixel Mirroring Vertical	mmort
066 - 073 No function		066 - 073 No function	mmort
074 - 075 Dimmer Responded LED		074 - 075 Dimmer Responded LED	mmort
078 - 093 No function		078 - 093 No function	Dimming
094 - 095 Silent movement On		094 - 095 Silent movement On	Ddimming
096 - 097 Silent movement Off		096 - 097 Silent movement Off	Ddimming
098 - 099 Fair Auto		098 - 099 Fair Auto	Ddimming
100 - 101 Fair Off		100 - 101 Fair Off	Ddimming
102 - 103 Fair Constant Low		102 - 103 Fair Constant Low	Ddimming
104 - 105 Fair Constant Medium		104 - 105 Fair Constant Medium	Ddimming
106 - 107 Fair Constant High		106 - 107 Fair Constant High	Ddimming
108 - 119 No function		108 - 119 No function	Ddimming

34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)2
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read mark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read mark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) (please read mark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) ( please read mark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) ( please read mark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds) ( please read mark1*)
34.44
Device settings (all settings executed are after holding value for 3 seconds )
34.44
Device settings (all settings executed are after holding value for 3 seconds )
34.44
Device settings (all settings executed are after holding value for 3 seconds )
34.44
Device settings (all settings executed are after holding value for 3 seconds )
34.44
Device settings( all settings executed are after holding value for 3 seconds )
34.44
Device settings (all settings executed are after holding value for 3 seconds )
34.44
Device settings (all settings executed are after holding value for 3 seconds )
34.44
Device settings (all settings executed are after holding value for 3 seconds )
050 - 255 No function

36CH RGB Pixel	43CH RGBL Pixel
Channels Function Values Sub-						group	Group
1 1 Pan 000	-255				0% to 100% Pan		Move-ment
2 2 Pan fine	000 - 255
3 3 Tilt 000	-255				0% to 100% Tilt
4 4 Tilt fine	000 - 255

5.5 Dimmer 000-255

6

6

fine

000-255

0% to 100% Dimmer Intensity

000-005 Open

0% to 100% Dimmer Intensity

006-010 Closed

0% to 100% Dimmer Intensity

011-022 Ramp up/down slow to fast

0% to 100% Dimmer Intensity

023-033 Ramp up/down random slow

0% to 100% Dimmer Intensity

034-045 Ramp up slow to fast

0% to 100% Dimmer Intensity

046-056 Ramp up random slow to fast

0% to 100% Dimmer Intensity

057-068 Ramp down slow to fast

0% to 100% Dimmer Intensity

069-079 Ramp down slow to fast

0% to 100% Dimmer Intensity

080-102 Random Strobe effect slow

0% to 100% Dimmer Intensity

103-127 Strobe Break effect 5s to 1s

0% to 100% Dimmer Intensity

128-250 Strobe slow to fast (<1Hz)

0% to 100% Dimmer Intensity

251-255 open

0% to 100% Dimmer Intensity

Multi-functional

Strobe

FX

Control

103-127 (Short burst with break)

080-102

079

to fast

099-079

080-102

079

to fast

099-079

080-102

079

to fast

099-079

080-102

079

to fast

099-079

12.12 FX Strobe	128 - 250	Strobe slow to fast (<1Hz) to Functional	FX Control
13.13 Zoom 000 - 255	251 - 255 Open	Narrow to Wide Zoom Beam	S/ Strobe
14.14 Zoom fine 000 - 255
15.15 Device settings (all settings executed are after holding value for 3 seconds) (please read remark1*)	000 - 005 No function
	006 - 007 Blackout while P/T moving On	Blackout
	008 - 009 Blackout while P/T moving Off
	010 - 024 No function
	025 - 025 Record User Scene 1
	026 - 026 Record User Scene 2
	027 - 027 Record User Scene 3
	028 - 028 Record User Scene 4
	029 - 029 Record User Scene 5
	030 - 030 Record User Scene 6
	031 - 031 Record User Scene 7
	032 - 032 Record User Scene 8
	033 - 043 Invert Pan On
	044 - 045 Invert Pan Off
	046 - 047 Invert Tilt On
	048 - 049 Invert Tilt Off
	050 - 057 No Function
	052 - 059 Pixel Mirroring Off
	058 - 059 Pixel Mirroring Off
	060 - 061 Pixel Mirroring Horizontal
	062 - 063 Pixel Mirroring Vertical
	064 - 065 Pixel Mirroring Horizontal + Mirroring
	074 - 075 Dimmer Response LED
	078 - 083 No function
	094 - 095 Silent movement On
	096 - 097 Silent movement Off
	098 - 099 Fan Auto
	100 - 101 Fan Off
	102 - 103 Fan Constant Low
	104 - 105 Fan Constant Medium
	106 - 107 Fan Constant High
	108 - 119 No function

120-121 PWM 1 (650 Hz)

122-123 PWM 2 (1530 Hz)

124-125 PWM 3 (3600 Hz)

126-127 PWM 4 (12000 Hz)

128-129 PWM 5 (18900 Hz)

130-131 PWM 6 (25000 Hz)

132-133 RAW

134-135 Factory Calibration

136-137 User Calibration

138-139 Smart Calibration

140-141 Display Always On

142-143 Display Off after 20s

144-163 No function

164-165 Dimmer Curve Linear

166-167 Dimmer Curve Exponential

168-169 Dimmer Curve Logarithmic

170-171 Dimmer Curve S-Curve

222-223 Reset Pan / Tilt

224-233 No function

236-237 Reset All

238-239 No function

240-241 Load Factory Defaults

242-243 No function

244-245 Load User Default A

246-247 Load User Default B

248-249 Load User Default C

250-255 No function

16 16 Red 1 000 - 255 0% to 100%

17 17 Green 1 000 - 255 0% to 100%

18 18 Blue 1 000 - 255 0% to 100%

19 19 Lime 1 000 - 255 0% to 100%

Color

Single

Pixel 1

Pixel 2

Color

Pixel

23 25 Green	3 000 - 255 0% to 100%		Color Mixing Pixel 3
24 26 Blue 3	000 - 255 0% to 100%
	27 Lime 3 000 - 255 0% to 100%
25 28 Red 4	000 - 255 0% to 100%		Color Mixing Pixel 4
26 29 Green	4 000 - 255 0% to 100%
27 30 Blue 4	000 - 255 0% to 100%
	31 Lime 4 000 - 255 0% to 100%
28 32 Red 5	000 - 255 0% to 100%		Color Mixing Pixel 5
29 33 Green	5 000 - 255 0% to 100%
30 34 Blue 5	000 - 255 0% to 100%
	35 Lime 5 000 - 255 0% to 100%
31 36 Red 6	000 - 255 0% to 100%		Color Mixing Pixel 6
32 37 Green	6 000 - 255 0% to 100%
33 38 Blue 6	000 - 255 0% to 100%
	39 Lime 6 000 - 255 0% to 100%
34 40 Red 7	000 - 255 0% to 100%		Color Mixing Pixel 7
35 41 Green	7 000 - 255 0% to 100%
36 42 Blue 7	000 - 255 0% to 100%
	43 Lime 7 000 - 255 0% to 100%

54CH Full Access
Channel Function Values Sub-					group	Group
1 Pan	000 - 255			0% to 100% Pan		Move-ment
2	Pan fine	000 - 255
3	Tilt	000 - 255		0% to 100% Tilt
4	Tilt fine 000 - 255
5	Dimmer	000 - 255		0% to 100% Dimmer Intensity
6	Dimmer fine	000 - 255
7	Strobe Functions	000 - 005 Open			Multi-functional Strobe	Strobe
		006 - 010 Closed
		011 - 022 Ramp up/down slow to fast
		023 - 033	Ramp up/down random slow to fast
		034 - 045 Ramp up slow to fast
		046 - 056 Ramp up random slow to fast
		057 - 068 Ramp down slow to fast
		069 - 079	Ramp down random slow to fast

18	17	16
		Tint (affects Color Tem- perature)	Color Tem- perature)	001 - 127 Magenta->Neutral	001 - 127 Magenta->Neutral	001 - 127 Magenta->Neutral	001 - 127 Magenta->Neutral	001 - 127 Magenta->Neutral	001 - 127 Magenta->Neutral
				171 - 210 5600K to 6500K	171 - 210 5600K to 6500K	171 - 210 5600K to 6500K	171 - 210 5600K to 6500K	171 - 210 5600K to 6500K	171 - 210 555 Gold white
				211 - 211 Daylight White (6500K)	212 - 251 6500K to Cold white	252 - 255 Gold white	CCT	CCT	CCT
				129 - 255 Neutral -> Green	129 - 255 Neutral -> Green

24 Zoom 000 - 255	23 FX Strobe	19 Dimmer FX 1 000 - 255% to 100%	Color Presets (override Color Mixing & Color Temperature)
		20 Dimmer FX 2 000 - 255% to 100%	128 - 164 Color Jumping slow to fast
		21 Dimmer FX 3 000 - 255% to 100%	165 - 201 Color Fading slow to fast
		22 Dimmer FX 4 000 - 255% to 100%	202 - 255 No function
		000 - 055 Open	000 - 055 Open
		006 - 010 Closed	011 - 022 Ramp up/down slow to fast
		023 - 033 to fast	034 - 045 Ramp up slow to fast
		046 - 056 Ramp up random slow to fast	057 - 068 Ramp down slow to fast
		069 - 079 Ramp down random slow to functional	Functional
		080 - 102 fast	Strobe effect slow to 1s
		103 - 127 (Short burst with break)	Strobe Break effect 5s to 1s
		128 - 250	Strobe slow to fast (<1Hz to 20Hz)
		251 - 255 open	FX
25 Zoom fine 000 - 255
Narrow to Wide Zoom Beam

26

Device settings (all settings executed are after holding value for 3 seconds) (please read remark 1*)

000-005 No function

006+007 Blackout while P/T moving On

008-009 Blackout while P/T moving Off

010+024 No function

025-025 Record User Scene 1

026-026 Record User Scene 2

027-027 Record User Scene 3

028-028 Record User Scene 4

029-029 Record User Scene 5

030-030 Record User Scene 6

031-031 Record User Scene 7

032-032 Record User Scene 8

033-041 No function

042-043 Invert Pan On

044-045 Invert Pan Off

046-047 Invert Tilt On

048-049 Invert Tilt Off

050-057 No Function

058+059 Pixel Mirroring Off

060-061 Pixel Mirroring Horizontal

062+063 Pixel Mirroring Vertical

064-065 Vertical Mirroring Horizontal +

066+073 No function

074+075 Dimmer Response LED

078-093 No function

094+095 Silent movement On

096-097 Silent movement Off

098+099 Fan Auto

100-101 Fan Off

102+103 Fan Constant Low

104+105 Fan Constant Medium

106+107 Fan Constant High

108+119 No function

109-110 PMM 1 (650 Hz)

120+121 PMM 1 (650 Hz)

122+123 PWM 2 (1530 Hz)

124+125 PWM 3 (3600 Hz)

PWM Free-

130+131 PWM 6 (25000 Hz)

132-133 RAW		134-135 Factory Calibration		Color Cal- Iration
136-137 User Calibration		138-139 Smart Calibration		140-141 Display Always On
142-143 Display Off after 20s		144-163 No function		Display Functions
164-165 Dimmer Curve Linear		166-167 Dimmer Curve Exponential		168-169 Dimmer Curve Logarithmic
170-171 Dimmer Curve S-Curve		170-171 Dimmer Curve S-Curve		Reset
172-221 No function		222-233 No function		234-235 Reset Head
236-237 Reset All		236-239 No function		238-241 Load Factory Defaults
240-241 Load User Default B		240-245 Load User Default A		Default
246-247 Load User Default B		248-249 Load User Default C		250-255 No function
250-255 No function
27 Red 1000-255% to 100%
28 Green 1000-255% to 100%
29 Blue 1000-255% to 100%
30 Lime 1000-255% to 100%
31 Red 2000-255% to 100%
32 Green 2000-255% to 100%
33 Blue 2000-255% to 100%
34 Lime 2000-255% to 100%
35 Red 3000-255% to 100%
36 Green 3000-255% to 100%
37 Blue 3000-255% to 100%
38 Lime 3000-255% to 100%
39 Red 4000-255% to 100%
40 Green 4000-255% to 100%
41 Blue 4000-255% to 100%
42 Lime 4000-255% to 100%
Color
Single
Pixel 4

43 Red	5 000 - 255 0% to 100%		Color Mixing Pixel 5	Single Pixel Control
44 Green	5 000 - 255 0% to 100%
45 Blue	5 000 - 255 0% to 100%
46 Lime	5 000 - 255 0% to 100%
47 Red	6 000 - 255 0% to 100%		Color Mixing Pixel 6
48 Green	6 000 - 255 0% to 100%
49 Blue	6 000 - 255 0% to 100%
50 Lime	6 000 - 255 0% to 100%
51 Red	7 000 - 255 0% to 100%		Color Mixing Pixel 7
52 Green	7 000 - 255 0% to 100%
53 Blue	7 000 - 255 0% to 100%
54 Lime	7 000 - 255 0% to 100%

EN: (1) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.
DE: (1^) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.
FR: (1^) Une fois les ajustements effectués, réglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.
ES: (1^) Después de realizar los ajustes, establezca el valor en 000 para evaporar perturbaciones mediante una llama de referencia sin fin.
PL: (1) Po dokonaniu ustawien ustaw wartosc na 000, abyunikac zaklocen przyzniekończace sie wywołanie funkcj.
IT: (1^) Dopo aver effettuato le regolazioni, impostare il valore su 000 per evitare disturbi causati da una chiamata a funzione infinita.
