Product Type	Digital Infrared Ear Thermometer
Brand	Aponorm (Microlife IR 210 model)
Model	Comfort 4S
Dimensions	159 x 43 x 60 mm
Weight	60 g (with battery)
Power Supply	1 CR2032 lithium battery, 3V
Battery Life	Approximately 800 measurements
Measurement Range (Body Mode)	32.0 °C – 43.0 °C / 89.6 °F – 109.4 °F
Measurement Range (Object Mode)	0.1 °C – 99.9 °C / 32.2 °F – 211.8 °F
Accuracy (Body Mode, Laboratory)	±0.2 °C from 35.0 °C to 42.0 °C; ±0.3 °C elsewhere
Resolution	0.1 °C / 0.1 °F
Memory	Last 30 measurements with date and time
Display	Backlit LCD screen (green or red depending on fever)
Fever Signal	10 short beeps + red backlight if ≥ 37.5 °C
Main Functions	Body and object mode, correct positioning indicator, °C/°F switching, auto shut-off
Maintenance and Cleaning	Clean the probe and housing with a soft cloth moistened with 70% isopropyl alcohol
Safety	Type BF applied part, IP22 protection degree, compliant with IEC 60601 standards
Spare Parts and Repairability	CR2032 battery and Microlife probe cover; no user-serviceable parts
Warranty	5 years (excluding battery, accessories, and damage due to misuse)
Operating Temperature	10 °C – 40 °C / 50 °F – 104 °F
Storage Temperature	-25 °C – +55 °C / -13 °F – +131 °F

Frequently Asked Questions - Comfort 4S Aponorm

How to use the Aponorm Comfort 4S ear thermometer?

Turn on the device with the START/IO button. Wait until the °C icon flashes. Attach a new probe cover. Gently pull the ear backwards and upwards, insert the probe into the ear canal. When 'good' appears, press START/IO. A long beep indicates the end of the measurement. Remove the thermometer and read the temperature.

How to switch from body mode to object mode?

Press the MODE button after turning on the device. The display shows the object symbol. To return to body mode, press MODE again. In object mode, remove the probe cover before measuring.

What does the 'H' or 'L' message on the screen mean?

'H' indicates a measured temperature that is too high (>43 °C in body mode, >99.9 °C in object mode). 'L' indicates a temperature that is too low (<32 °C in body mode, <0.1 °C in object mode). Check the mode and positioning.

How to change the thermometer battery?

When only the battery icon appears, replace it. Open the battery compartment cover. Insert a new CR2032 lithium battery with the + pole facing up. Close the cover.

How to view the measurement history?

Turn off the device, then press the M button. The 'M' symbol flashes. Press M again to display the last measurement (number 1). Each press shows the previous measurement (up to 30).

How to clean the thermometer?

Use a soft cloth moistened with 70% isopropyl alcohol to clean the probe and housing. Never immerse the device in water or other liquids. Let it dry for 5 minutes before the next measurement.

The thermometer displays 'AH' or 'AL', what to do?

'AH' means the ambient temperature is too high (>40 °C); 'AL' means it is too low (<10 °C). Place the device in a room with stable temperature (10-40 °C) and wait for it to adapt before measuring.

Can I use the thermometer without a probe cover?

No. The probe cover is mandatory for hygiene and accuracy reasons. Use only new Microlife probe covers for each measurement. In object mode, remove the probe cover.

How to disable the sound signal?

Press and hold the MODE button for 3 seconds. The BIP icon appears. Press M to enable or disable the beep (a cross on the icon means disabled). Confirm with START/IO.

The thermometer does not turn on, what to do?

Check the battery: insert a new CR2032 battery with correct polarity (+ facing up). If the screen remains blank, clean the battery contacts. If the problem persists, contact customer service.

USER MANUAL Comfort 4S Aponorm

■ KOWA Corporation H-3,1,6,2,799 (P.O. 104) 1043 31/22 - 2061, China 99841 C.V. MAXN

[Unreadable]

BANK OF CHINA + 70%

On the next day we need to use a product or

2013-04-0

microlife

mkouMie 36.8°C 9:00 START

IR210
Ear Thermometer

Microlife IR 210

Product display of microlife and a digital thermometer device (no visible text or symbols on main items)

[Non-Text]

Microlife IR 210 IR 210 Guarantee Card

① ② ③ ④ ⑤ ⑥ ⑦ 88.0% 36.0% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12 36.8% 12

microlife

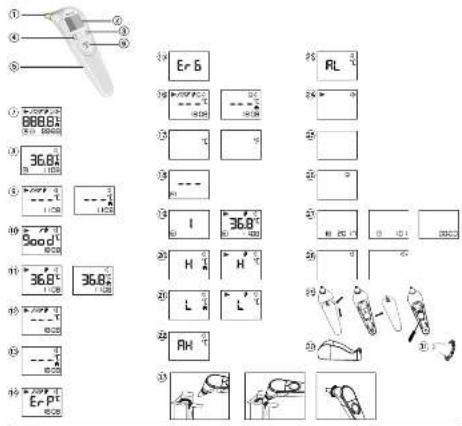

Microlife Ear Thermometer IR 210

① Meaning your

② Display

③ M cubon (memory)

4 MODE button

① Delivery compartment order

⑥ SINKDO butao

⑦ 41 segments display

⑥ Mancys

⑤ Ready for measuring

Correct position indication

Measurement complete

1. Bank notes

④ Dischrode

④ Increased location indication

① Enter function display

Low battery indicator

1. Changing between Colours and Fannenhoit

58 Final trade

1. Final Index 50

2. Mavaml hnuorostatic

3. Measured temperature too low

21 Antient International to h

1. «Истая інвенту»

2. History and psychology for the change

3. Дляга

4. Full-body

5. Ге-Туа

6. Function solution

7. Exploring the battery

8. Sivanna tibler

9. Речи-гем

23 How I can see a idea of the

(1) 2017年1月1日

Read the instructions carefully before using to this device.

The following table is provided in the image:

Type BE applied part

X

EN

This is more life warmer in a high quality product incorporating

the latest terminology and listed in procedures with international

concepts With the pre-technology, The deal is a pre-

1. 1. 10:30-11:30, 1986. 10:30-11:30, 1987. 10:30-11:30, 1988. 10:30-11:30, 1989. 10:30-11:30, 1990. 10:30-11:30, 1991. 10:30-11:30, 1992. 10:30-11:30, 1993. 10:30-11:30, 1994. 10:30-11:30, 1995. 10:30-11:30, 1996. 10:30-11:30, 1997. 10:30-11:30, 1998. 10:30-11:30, 1999. 10:30-11:30, 2000. 10:30-11:30, 2001. 10:30-11:30, 2002. 10:30-11:30, 2003. 10:30-11:30, 2004. 10:30-11:30, 2005. 10:30-11:30, 2006. 10:30-11:30, 2007. 10:30-11:30, 2008. 10:30-11:30, 2009. 10:30-11:30, 2010. 10:30-11:30, 2011. 10:30-11:30, 2012. 10:30-11:30, 2013. 10:30-11:30, 2014. 10:30-11:30, 2015. 10:30-11:30, 2016. 10:30-11:30, 2017. 10:30-11:30, 2018. 10:30-11:30, 2019. 10:30-11:30, 2020.

the first part of the second part of the third part of the fourth part of the fifth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the seventh part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the sixth part of the seventh part of the eighth part of the fifth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the sixth part of the fifth part.

The 1500s Ex. Thermometer is intended for the people

measurement and monitoring of human body temperature. It is

needed for use on people of shape.

This thermometer has been clinically tested and proven to be

safe and accurate when used in accordance to the operating

Instruction manual.

- Mean risk of the risk of a specific risk of a specific risk in the middle level of an adjustment of risk-free and safe information.

1. Sanis and Crude and Salay Monation

Table of Contents

1. The Advantages of this Thermometer

• Measurement in 1 second

- Correct choice inclusion

• Multiple uses (wide range of measurement)

• Probe cover

• Probe LED

- Accurate and reliable

• Genlo and easy to use

• Kelpre seedlings meal

• She and Partner

1. Investment of

2. Important Safety Instructions

3. Hand this Thermopolar measures

4. How and the numerical measures temperature

5. To social on incremental measurement

6. Control Displays and Symbols

7. Setting Debt Time and Reserve Functions

8. Changing between Body and Object Node

9. Directions for Use

• Measuring based

- Measuring in object mode

1. Changing between Celsius and Fahrenheit

2. How to recall 30 readings in Memory Mode

3. Error Messages

4. Cleaning and disinfecting

Narla in / Narla, 1984; Naranla, 1985; Naranla, 1986; Naranla, 1987; Naranla, 1988; Naranla, 1989; Naranla, 1990; Naranla, 1991; Naranla, 1992; Naranla, 1993; Naranla, 1994; Naranla, 1995; Naranla, 1996; Naranla, 1997; Naranla, 1998; Naranla, 1999; Naranla, 2000; Naranla, 2001; Naranla, 2002; Naranla, 2003; Naranla, 2004; Naranla, 2005; Naranla, 2006; Naranla, 2007; Naranla, 2008; Naranla, 2009; Naranla, 2010; Naranla, 2011; Naranla, 2012; Naranla, 2013; Naranla, 2014; Naranla, 2015; Naranla, 2016; Naranla, 2017; Naranla, 2018; Naranla, 2019; Naranla, 2020; Naranla, 2021; Naranla, 2022; Naranla, 2023; Naranla, 2024; Naranla, 2025; Naranla, 2026; Naranla, 2027; Naranla, 2028; Naranla, 2029; Naranla, 2030; Naranla, 2031; Naranla, 2032; Naranla, 2033; Naranla, 2034; Naranla, 2035; Naranla, 2036; Naranla, 2037; Naranla, 2038; Naranla, 2039; Naranla, 2040; Naranla, 2041; Naranla, 2042; Naranla, 2043; Naranla, 2044; Naranla, 2045; Naranla, 2046; Naranla, 2047; Naranla, 2048; Naranla, 2049; Naranla, 2050; Naranla, 2051; Naranla, 2052; Naranla, 2053; Naranla, 2054; Naranla, 2055; Naranla, 2056; Naranla, 2057; Naranla, 2058; Naranla, 2059; Naranla, 2060; Naranla, 2061; Naranla, 2062; Naranla, 2063; Naranla, 2064; Naranla, 2065; Naranla, 2066; Naranla, 2067; Naranla, 2068; Naranla, 2069; Naranla, 2070; Naranla, 2071; Naranla, 2072; Naranla, 2073; Naranla, 2074; Naranla, 2075; Naranla, 2076; Naranla, 2077; Naranla, 2078; Naranla, 2079; Naranla, 2080; Naranla, 2081; Naranla, 2082; Naranla, 2083; Naranla, 2084; Naranla, 2085; Naranla, 2086; Naranla, 2087; Naranla, 2088; Naranla, 2089; Naranla, 2090; Naranla, 2091; Naranla, 2092; Naranla, 2093; Naranla, 2094; Naranla, 2095; Naranla, 2096; Naranla, 2097; Naranla, 2098; Naranla, 2099; Naranla, 2100

Seel Number / Numero de serie Número de serie / Numero di centro / Gerler Nr. / Número de serie / Gerler Summer / Apel. De cujusz / Ser numeros /

Date of Purchase / Forthe or occipital Date of birth / Date of acquisition / Kaukranam / Date the duration / Date of arrival period / 10 days in inquisit : Date of birth / Date of arrival period /

Spectra de Dealer / Distributor e secebriad Levende / 10ologata noreltrone / Archtandler / Rescendor arcerian / Spectra de Dealer / Eclarexepirex ommocounica / Uzman zada suzukulat

microlife

1. Battery Replacement
2. Guarantee
3. Technical Specifications
4. www.microlife.com Guarantee Card (see Back Cover)

1. The Advantages of this Thermometer

Measurement in 1 second

The innovative infrared technology allows measurement of ear temperature in only 1 second.

Correct position indication

ACCUsens guidance system confirms the right position in the ear with «good» displayed on the LCD display and a beep.

Multiple uses (wide range of measurement)

This thermometer offers a wide range of measurement from 0.1-99.9 °C / 32.2-211.8 °F, meaning the unit can be used to measure body temperature or it also has a feature allowing it to be used to measure surface temperature of the following examples:

• Milk surface temperature in a baby's bottle
  • Surface temperature of a baby's bath
• Ambient temperature

Probe cover

This thermometer is user-friendly and more hygienic with the usage of a probe cover.

Probe LED

This thermometer includes a probe LED light which enables the user to find the correct ear position in the dark.

Accurate and reliable

The unique probe assembly construction incorporates an advanced infrared sensor, ensuring that each measurement is accurate and reliable.

Gentle and easy to use

• The ergonomic design enables simple and easy use of the thermometer.
• This thermometer can even be used on a sleeping child without causing any interruption.
  • This thermometer is quick, therefore child-friendly.

Multiple readings recall

Users will be able to recall the last30 readings with a record of both time and date when entering the recall mode, enabling efficient tracking of temperature variations.

Safe and hygienic

• No risk of broken glass or mercury ingestion.
  • Completely safe for use on children.
• Using a new probe cover each time, ensures this thermometer is completely hygienic for use by the whole family.

Fever alarm

10 short beeps and a red LCD backlight alert the patient that he/she may have a temperature equal to or higher than 37.5 °C.

2. Important Safety Instructions

• Follow instructions for use. This document provides important product operation and safety information regarding this device. Please read this document thoroughly before using the device and keep for future reference.
• This device may only be used for the purposes described in these instructions. The manufacturer cannot be held liable for damage caused by incorrect application.
• Never immerse this device in water or other liquids. For cleaning please follow the instructions in the «Cleaning and Disinfecting» section.
• Do not use this device if you think it is damaged or notice anything unusual.
• Never open this device.
• Earwax in the ear canal may cause a lower temperature reading. Therefore it is important to ensure the subject's ear canal is clean.
• Only use this thermometer with a new Microlife branded and undamaged probe cover to prevent cross-infection.
• If the measurement result is not consistent with the patient's finding or unusually low, repeat the measurement every 15 minutes or double check the result by another core body temperature measurement.
• This device comprises sensitive components and must be treated with caution. Observe the storage and operating conditions described in the «Technical Specifications» section.

• Ensure that children do not use this device unsupervised; some parts are small enough to be swallowed.

• Do not use this device close to strong electromagnetic fields such as mobile telephones or radio installations. Keep a minimum distance of 3.3 m from such devices when using this device.

• Protect it from:

• extreme temperatures

• impact and dropping
• contamination and dust
• direct sunlight
• heat and cold

- If the device is not going to be used for a prolonged period the battery should be removed.

WARNING: The measurement results given by this device is not a diagnosis. It is not replacing the need for the consultation of a physician, especially if not matching the patient's symptoms. Do not rely on the measurement result only, always consider other potentially occurring symptoms and the patient's feedback. Calling a doctor or an ambulance is advised if needed.

3. How this Thermometer measures Temperature

This thermometer measures infrared energy radiated from the eardrum and the surrounding tissue. This energy is collected through the lens and converted to a temperature value. The measured reading obtained directly from the eardrum (Tympanic Membrane) ensures the most accurate ear temperature. Measurements taken from the surrounding tissue of the ear canal generate lower readings and may result in misdiagnosis of fever.

To avoid an inaccurate measurement

1. Fit a new Microlife branded and undamaged probe cover ③1 on the measuring sensor ①.
2. Switch on the thermometer by pressing the START/IO button ⑥.
3. After one beep is heard (and the temperature scale icon is flashing), straighten the ear canal by gently pulling the middle of the ear back and up.
4. Place the probe ① firmly into the ear canal. «Good» will be displayed with a short beep to confirm the device has detected the correct position. Press the START/IO button ⑥ and keep the probe in the ear until the thermometer beeps to signal the completion of the measurement.

4. Control Displays and Symbols

• All segments displayed ⑦: Press the START/IO button ⑥ to turn on the unit; all segments will be shown for 1 second.
• Ready for measurement ⑨: When the unit is ready for measurement, the «°C» or «°F» icon will keep flashing. The probe LED light is activated and will keep flashing.
• Correct position indication ⑩: The probe LED light will stop flashing (stays illuminated) and «good» will be displayed on the LCD, when the measuring sensor detects an appropriate position.
• Measurement complete ⑪: The reading will be shown on the display ② with the «°C» or «°F» icon; the unit is ready for the next measurement, when the «°C» or «°F» icon is flashing again.
• Low battery indicator ⑯: When the unit is turned on, the «battery» icon will keep flashing to remind the user to replace the battery.

5. Setting Date, Time and Beeper Functions

Setting the date and time

1. After the new battery is fitted, the year number flashes in the display ②7. You can set the year by pressing the M-button ③. To confirm and then set the month, press the MODE button ④.
2. Press the M-button ③ to set the month. Press the MODE button ④ to confirm and then set the day.
3. Follow the previously mentioned instructions to set the day, hours and minutes.
4. Once you have set the minutes and pressed the START/IO button ⑥, the date and time are set and the time is displayed.

If no button is pressed for 20 seconds, the device automatically switches to ready for measuring ⑨.

Cancel time setup: Press the START/IO button ⑥ during time setup. The LCD will show Date/Time icons with «--:--». After that press the START/IO button ⑥ to start the measurement. If no further action is taken within 60 seconds, the device will automatically turn off.

Change current date and time: Press and hold the MODE button ④ for approx. 8 seconds until the year number starts to flash ⑳. Now you can enter the new values as described above.

Setting the beeper

1. Press and hold the MODE button ④ for 3 seconds to set the beeper ②8.

2. Press the M-button ③ to either turn the beeper on or off. The beeper is activated when the beeper icon ②8 is shown without a cross.

When the beeper setting has been chosen, press the START/IO button ⑥ to enter the «ready for measuring» mode; otherwise the device automatically switches to ready for measuring after 10 seconds ⑨.

6. Changing between Body and Object Mode

1. Press the START/IO button ⑥. The display ② is activated to show all segments for 1 second.
2. The default mode is body mode ⑫. Press the MODE button ④ to switch to object mode ⑬. For switching back to body mode, press the MODE button again.

7. Directions for Use

Measuring in body mode

Important: Before each measurement, fit a new undamaged probe cover ③1 on the measuring sensor ①. Failure to do so will result in incorrect temperature measurements. How to correctly fit a new probe cover ③2 is pictured at the beginning of this instruction.

1. Press the START/IO button ⑥. The display ② is activated to show all segments for 1 second.
2. When the «°C» or «°F» icon is flashing, a beep sound is heard and the thermometer is ready for measuring ⑨.

3. The probe LED light is activated and will keep flashing.

4. Straighten the ear canal by pulling the ear up and back to give a clear view of the eardrum.

5. For children under 1 year; pull the ear straight back.

6. For children of 1 year to adult; pull the ear up and back. Also refer to the short instructions at the front.

7. While gently pulling the ear, insert the probe snugly into the ear canal.

8. The probe LED light will stop flashing (stays illuminated) and «good» will be displayed on the LCD, when the measuring sensor detects an appropriate position.

9. Immediately press the START/IO button ⑥. Release the button and wait for the beep sound. This indicates the end of the measurement.

10. Remove the thermometer from the ear canal. The display shows the measured temperature ^11 .

11. Replace the probe cover ③1 before starting a new measurement.

12. For the next measurement wait until the «°C»/«°F» icon is flashing and follow steps 5-7 above.

13. Press and hold the START/IO button ⑥ for 3 seconds to turn off the device; otherwise the device will automatically switch off after approx. 60 seconds.

Measuring in object mode

Important: Remove the probe cover before each measurement in object mode. Failure to do so will result in incorrect temperature measurements.

1. Press the START/IO button ⑥. The display ② is activated to show all segments for 1 second.
2. Press the MODE button ④ to switch to object mode.

3. Aim the thermometer at the center of the object you want to measure with a distance of no more than 5 cm. Press the START/IO button ⑥. After 1 second a long beep will verify the completion of measurement.

4. Read the recorded temperature from the LCD display.

5. For the next measurement wait until the «°C»/«°F» icon is flashing and follow steps 3-4 above.

NOTE:

• Patients and thermometer should stay in similar room condition for at least 30 minutes.
- To ensure accurate readings, wait at least 30 sec. after 3-5 continuous measurements.
- It is essential that a new undamaged probe cover ③1 is used for each measurement. Therefore, this device reminds the user to take off the used probe cover when turning off the device. The «probe cover» icon ②4 is displayed and the probe LED light will flash for 3 seconds. For cleaning, follow the instructions in the «Cleaning and Disinfecting» section.
- After cleaning the measuring sensor ① with alcohol, wait 5 minutes before taking the next measurement, in order to allow the thermometer to reach its operating reference temperature.
- 10 short beeps and a red LCD backlight alert the patient that he/she may have a temperature equal to or higher than 37.5 °C.
- For an infant, it is best to have the child lying flat with his/her head sideways so the ear is facing upwards. For an older child or adult, it is best to stand behind and slightly to the side of the patient.
- Always take the temperature in the same ear, since the temperature readings may be different from ear to ear.
- In the following situations it is recommended that three temperatures in the same ear be taken and the highest one taken as the reading:

1. New born infants in the first 100 days.
2. Children under three years of age with a compromised immune system and for whom the presence or absence of fever is critical.
3. When the user is learning how to use the thermometer for the first time until he/she has familiarized himself/herself with the device and obtains consistent readings.
4. If the measurement is surprisingly low.

- Don't take a measurement while or immediately after nursing a baby.

- Don't use the thermometer in high humidity environments.

- Patients should not drink, eat or exercise before/while taking the measurement.

- Doctors recommend rectal measurement for newborn infants within the first 6 months, as all other measuring methods might lead to ambiguous results.

- Readings from different measuring sites should not be compared as the normal body temperature varies by measuring site and time of day, being highest in the evening and lowest about one hour before waking up.

Normal body temperature ranges:

- Axillar: 34.7 - 37.3 °C / 94.5 - 99.1 °F

- Oral: 35.5 - 37.5 °C / 95.9 - 99.5 °F

- Rectal: 36.6 - 38.0 °C / 97.9 - 100.4 °F

- Microlife IR 210: 35.4 - 37.4 °C / 95.7 - 99.3 °F

8. Changing between Celsius and Fahrenheit

This thermometer can display temperature readings in either Fahrenheit or Celsius. To switch the display between °C and °F, press and hold the MODE button ④ for 3 seconds; the beeper icon is shown on the display. Press the MODE button again; the current measurement scale («°C» or «°F» icon) will be shown on the display ⑰. Change the measurement scale between °C and °F by pressing the M-button ③. When the measurement scale has been chosen, press the START/IO button ⑥ to enter the «ready for measuring» mode; otherwise the device automatically switches to ready for measuring after 10 seconds ⑨.

9. How to recall 30 readings in Memory Mode

This thermometer can recall the last 30 readings with a record of both time and date.

• Recall mode ⑱: Press the M-button ③ to enter recall mode when the power is off. The memory icon «M» will flash.
• Reading 1 - the last reading ⑲: Press and release the M-button ③ to recall the last reading. Number «1» and a flashing «M» are displayed.

Pressing and releasing the M-button ③ after the last 30 readings have been recalled will resume the above sequence from reading 1.

10.Error Messages

• Measured temperature too high ②: Displays «H» when measured temperature is higher than 43 °C / 109.4 °F in body mode or 99.9 °C / 211.8 °F in object mode.
• Measured temperature too low ②1: Displays «L» when measured temperature is lower than 32 °C / 89.6 °F in body mode or 0,1 °C / 32,2 °F in object mode.
• Ambient temperature too high ②: Displays «AH» when ambient temperature is higher than 40 °C.
• Ambient temperature too low ②3: Display «AL» when ambient temperature is lower than 10.0 °C / 50.0 °F.
• Incorrect location indication ⑭: The probe is not correctly inserted in the ear canal. Please insert the probe as described in this manual.
• Error function display ⑮: The system has a malfunction.
• Blank display 25: Check if the battery has been loaded correctly. Also check polarity (<+> and <->) of the battery.
• Flat battery indication ②6: If only the «battery» icon is shown on the display, the battery should be replaced immediately.

11.Cleaning and Disinfecting

Use an alcohol swab or cotton tissue moistened with alcohol (70% Isopropyl) to clean the thermometer casing and the measuring sensor. Ensure that no liquid enters the interior of the device. Never use abrasive cleaning agents, thinners or benzene for cleaning and never immerse the device in water or other cleaning liquids. Take care not to scratch the surface of the sensor lens and the display.

12.Battery Replacement

This device is supplied with one lithium battery, type CR2032. The battery needs replacing when only the «battery» icon ②6 is shown on the display.

Remove the battery cover ⑲ by sliding it in the direction shown. Insert the new battery with the + at the top.

Batteries and electronic devices must be disposed of in accordance with the locally applicable regulations, not with domestic waste.

13. Guarantee

This device is covered by a 5 year guarantee from the date of purchase. During this guarantee period, at our discretion, Microlife will repair or replace the defective product free of charge.

Opening or altering the device invalidates the guarantee.

The following items are excluded from the guarantee:

• Transport costs and risks of transport.
- Damage caused by incorrect application or non-compliance with the instructions for use.
• Damage caused by leaking batteries.
• Damage caused by accident or misuse.
• Packaging/storage material and instructions for use.
• Regular checks and maintenance (calibration).
• Accessories and wearing parts: Battery.

Should guarantee service be required, please contact the dealer from where the product was purchased, or your local Microlife service. You may contact your local Microlife service through our website:

www.microlife.com/support

Compensation is limited to the value of the product. The guarantee will be granted if the complete product is returned with the original invoice. Repair or replacement within guarantee does not prolong or renew the guarantee period. The legal claims and rights of consumers are not limited by this guarantee.

14. Technical Specifications

Type: Adjusted mode Ear Thermometer IR 210

Mode type: Adjust mode

Measuring

site: Ear

Reference

body site: Sublingual

Measurement Body mode: 32.0-43.0 °C / 89.6-109.4°F

range: Object mode: 0.1-99.9 °C / 32.2-211.8 °F

Resolution: 0.1 °C / °F

Measurement Body mode:

accuracy ±0.2 °C, 35.0 \~ 42.0 °C / ±0.4 °F, 95.0 \~ 107.6 °F

(Laboratory): ±0.3 °C, 32.0 \~ 34.9 °C and 42.1 \~ 43.0 °C /

±0.5 °F, 89.6 \~ 94.8 °F and 107.8 \~ 109.4 °F

Object mode:

±1.0 °C, 0.1 \~ 99.9 °C / ±2 °F, 32.2 \~ 211.8 °F

Clinical Repeatability: 0.19 °C

results: Bias: 0.03 °C

Limits of agreement: 1.33 °C

Display: Liquid Crystal Display, 4 digits plus special icons

Acoustic: The unit is turned ON and ready for the measurement: 1 short beep. Complete the measurement: 1 long beep. System error or malfunction: 3 short beeps. Fever alarm: 10 short beeps.

Memory: 30 readings recall in the memory mode with a record of both time and date.

Backlight: The display light will be GREEN for 1 second, when the unit is turned ON. The display light will be GREEN for 5 seconds, when a measurement is completed with a reading less than 37.5 °C / 99.5 °F. The display light will be RED for 5 seconds, when a measurement is completed with a reading equal to or higher than 37.5 °C / 99.5 °F.

Operating 10 - 40 °C / 50.0 - 104 °F

conditions: 15 - 95 % relative maximum humidity

Storage -25 - +55 °C / -13 - +131 °F

conditions: 15 - 95 % relative maximum humidity

Automatic Approx. 1 minute after last measurement has been Switch-off: taken.

Battery: 1 x CR2032 battery 3V

Battery

lifetime: approx. 800 measurements (using a new battery)

Dimensions: 159 x 43 x 60 mm

Weight: 60 g (with battery), 58 g (w/o battery)

IP Class: IP22

Reference to ISO80601-2-56; IEC 60601-1; IEC 60601-1-2 standards: (EMC); IEC 60601-1-11

Expected

service life: 5 years or 12000 measurements

This device complies with the requirements of the Medical Device Directive 93/42/EEC.

Technical alterations reserved.

According to the Medical Product User Act a biennial technical inspection is recommended for professional users. Please observe the applicable disposal regulations.

15.www.microlife.com

Detailed user information about our thermometers and blood pressure monitors as well as services can be found atwww.microlife.com.

www.microlife.com/support

www.microlife.com/support

www.microlife.com/support

www.microlife.com/support

www.microlife.com/support

Compensation is limited to the value of the product. The guarantee will be granted if the complete product is returned with the original invoice. Repair or replacement within guarantee does not prolong or renew the guarantee period. The legal claims and rights of consumers are not limited by this guarantee.

www.microlife.com/support
