USER MANUAL BC45WM2205 Be Cool

Exterior view of a modern office air conditioner fan with visible blades and cooling grille (no text or symbols)

45 CM

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and triangular hazard symbol.

BE COOL

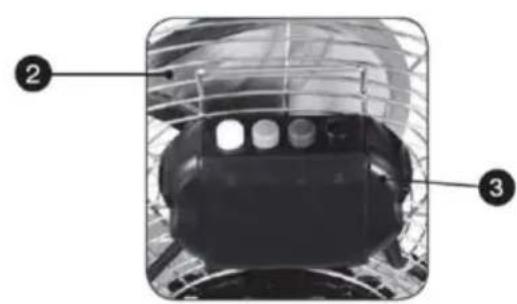

Technical diagram of a fan with numbered parts and exploded view, showing front and side views.

INBETRIEBNAHME

Exterior view of a modern office air conditioner fan with visible blades and mounting base (no text or symbols)

45 CM

FÉLICITATIONS!

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT CE MANUEL D'INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON- RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES OU DES DOMMAGES AUX PERSONNES ET/OU AUX BIENS ET/OU INVALIDER LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ,

Three black-and-white warning symbols: a hand crossed out, a warning triangle with an exclamation mark, and a lightning bolt symbol.

BE COOL

L'EMPLACEMENT ET LA CONNEXION ÉLECTRIQUE.

Utilisation prévue

Exterior view of a four-tiered air conditioner fan with visible blades and mounting base (no text or symbols)

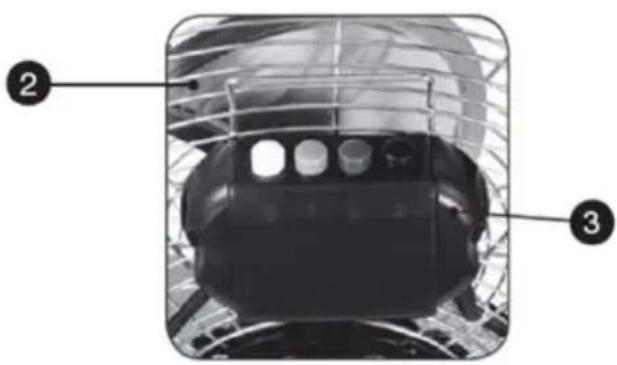

Technical diagram of a mechanical component with numbered annotations pointing to features

FONCTIONNEMENT

Position 1 = Vitesse minimale

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

FELICITAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE IL PRESENTE MANUALE DI ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE.

PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI O DANNI A PERSONE E/O COSE E/O INVALIDARE LA GARANZIA!

INFORMAZIONI IMPORTANTI SULLA SICUREZZA,

Warning symbols including a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol

BE COOL

L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

Destinazione d'uso

Exterior view of a four-tiered electric fan with visible blades and mounting base (no text or symbols)

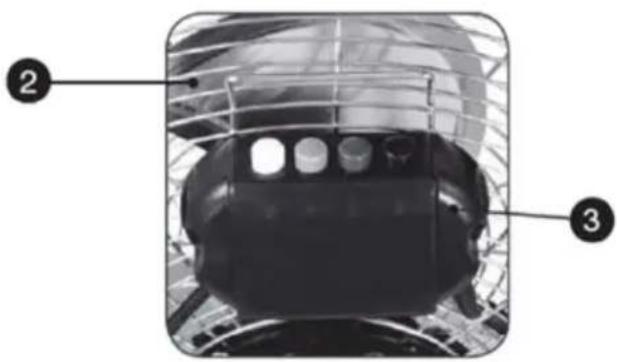

Close-up of a mechanical component with labeled parts (2 and 3), no visible text or symbols beyond labels

FUNZIONAMENTO

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN BE COOL PRODUCT.

BE COOL

QR code image containing encoded data, no visible human-readable text

LEES DEZE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT LETSEL OF SCHADE AAN PERSONEN EN/OF EIGENDOMMEN EN/OF HET VERVALLEN VAN DE GARANTIE!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Warning symbols including a hand crossed out, an exclamation mark, and a lightning bolt symbol

Beoogd gebruik

BE COOL

Exterior view of a four-wheeled fan with visible blades and mounting base (no text or symbols)

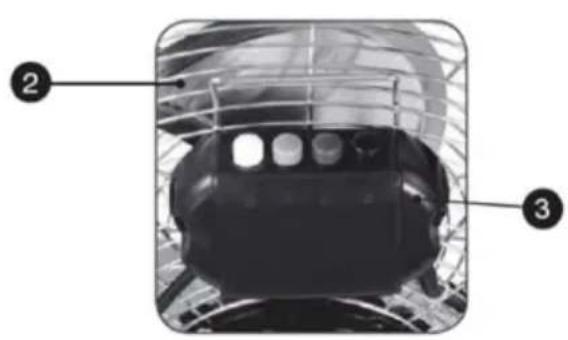

Technical diagram of a mechanical component with numbered annotations pointing to features

WERKING

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

¡ENHORABUENA!

GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

QR code image containing encoded data, no visible human-readable text

Exterior view of a four-wheeled fan with visible blades and mounting base (no text or symbols)

Top-down view of a mechanical component with labeled parts (no text or symbols visible)

PUESTA EN MARCHA

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

BLAHOPŘEJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT BE COOL.

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD K POUŽITÍ. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE VÉST KE ZRANĚNÍ NEBO POŠKOZENÍ OSOB A/NEBO MAJETKU A/NEBO KE ZTRÁTĚ ZÁRUKY!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Warning symbols including a hand holding a circle, an exclamation mark, and a lightning bolt symbol

Účel použití

BE COOL

Front view of a four-wheeled air fan with visible blades and mounting base (no text or symbols)

Close-up of a mechanical component with labeled parts (no text or symbols visible)

OPERACE

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

GRATULUJEM!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT BE COOL.

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TENTO NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE VIESŤ K ZRANENIU ALEBO POŠKODENIU OSÔB A/ALEBO MAJETKU A/ALEBO K STRATE PLATNOSTI ZÁRUKY!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Warning symbols including a hand holding a circle, an exclamation mark, and a triangular hazard symbol.

BE COOL

Zamýšl'ané použitie

Exterior view of a four-bladed desktop fan with visible blades and mounting base (no text or symbols)

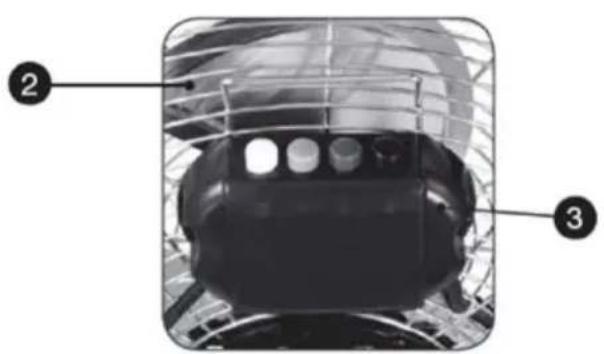

Technical diagram of a mechanical component with numbered annotations pointing to parts 2 and 3.

OPERÁCIA

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

FELICITĂRI!

VĂ MULTUMIM CĂ ATI ALES UN PRODUS BE COOL.

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACEST MANUAL DE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTREȚINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR POATE DUCE LA RĂNIREA SAU LA DETERIORAREA PERSOANELOR ȘI/SAU A BUNURILOR ȘI/SAU LA INVALIDAREA GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA,

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

BE COOL

AMPLASAREA ŞI CONECTAREA ELECTRICĂ.

Exterior view of a four-inch desktop fan with visible blades and mounting base (no text or symbols)

Close-up of a mechanical component with labeled parts (no text or symbols visible)

OPERATIUNE

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZEĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH POPRZEZ PRZESTRZEGANIE INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SKUTKOWAĆ OBRAŻENIAMI CIAŁA I/LUB USZKODZENIEM MIENIA I/LUB UTRATĄ GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I PODŁĄCZENIA ELEKTRYCZNEGO.

BE COOL

Przeznaczenie

Exterior view of a four-inch desktop fan with visible blades and mounting base (no text or symbols)

Top-down view of a mechanical component with labeled parts (no text or symbols visible)

URUCHOMIENIE

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK BE COOL.

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE NAVODILA ZA UPORABO. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

Three black-and-white warning symbols: a hand crossed out, an exclamation mark, and a triangular symbol with a lightning bolt.

BE COOL

Predvidena uporaba

Exterior view of a four-inch desktop fan with visible blades and mounting base (no text or symbols)

Close-up of a mechanical component with labeled parts (2 and 3), no visible text or symbols beyond labels

KOMISIONIRANJE

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI PROIZVOD BE COOL.

Aktualne upute za uporabu i drugi jezici

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS, PAŽLJIVO PROČITAJTE UPUTE ZA KORISNIKE PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM POVEZIVANJU.

Namjena

BE COOL

Ventilator je namijenjen isključivo za ventilaciju suhih prostorija.

Namijenjen je isključivo za privatnu uporabu i nije prikladan za komercijalnu uporabu.

Front view of a four-blade electric fan with visible blades and mounting base (no text or symbols)

Close-up of a mechanical component with labeled parts (2 and 3), no visible text or symbols beyond labels

MONTAŽA

Exterior view of a large industrial fan with visible blades and cooling grille (no text or symbols)

45 CM

CONGRATULATIONS!

THANK YOU FOR CHOOSING A BE COOL PRODUCT.

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS MAY LEAD TO INJURY OR DAMAGE TO PERSONS AND/OR PROPERTY AND/OR INVALIDATE THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELETRICAL CONNECTION.

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and lightning bolt symbol.

BE COOL

Intended use

The fan is designed exclusively for the ventilation of dry rooms.

It is intended exclusively for private use and is not suitable for commercial use.

Use the fan only as described in this user manual.

1. Use this device exclusively in accordance with the guidelines in the instruction manual. Any use other than that recommended by the manufacturer, may result in fire, electrical shock or injury to persons.
2. Remove the packaging and ensure the device is not damaged. In case of any doubt do not use the device and contact the service point or your dealer.
3. Keep children away from packaging materials. There is a risk of choking if swallowed!
4. If the power cable is damaged it must be replaced by the manufacturer or an authorised service point, in order to avoid all potential risks.
5. Check whether current type and grid voltage match the specifications on the device's type plate before plugging the device in.
6. The electrical plug socket, into which the device is connected, must not be defective or loose, must be

BE COOL

suitable for the required current load and, above all, must be properly earthed.

1. Avoid the use of an extension cable, as this may overheat and cause a fire.

2. It is strictly forbidden to modify the properties of this device in any form or manner and you must only use replacement parts or accessories recommended by the manufacturer (failure to do so will invalidate the warranty and guarantee).

3. If the device has a defect, switch it off and contact your dealer or the customer hotline.

4. For any possible repairs to the device and the mains plug or power cable you must always refer exclusively to the customer service points recommended by the manufacturer. You can view our customer service points online at www.becool.at.

5. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities and lack of experience and knowledge may only use this device under appropriate supervision and if comprehensively briefed on the safe use of the device and the associated hazards.

6. Do not use the device without supervision. Always switch the device off when leaving the room.

7. Children must not be allowed to play with the device.

BE COOL

1. Do not twist or kink the power cable.
2. Do not use the device with wet hands.
3. Do not use the device outdoors.
4. Never use the device in rooms in which gas, oil or sulphur are present.
5. Do not use the device in the proximity of water or strong moisture, e.g. in damp cellars, close to pools, bathtubs or showers. Make sure no water can enter the device.
6. Do not place any objects on the device.
7. Place the device on a stable and level subsurface.
8. Never cover the device.
9. Never put fingers, pens or other items into the device and make sure that air in- and outlets are never blocked.
10. Always switch the device off before pulling the power plug.
11. Do not pull on the power cable to unplug the device. Always pull on the plug to unplug the device.
12. Do not touch the plug with wet hands to avoid electrical shocks.
13. Pull the plug if you are not using the device, if you want to clean it, if it has to be serviced or if it is moved from one location to another.
14. Keep the device in good shape by cleaning and maintaining it. If you have any questions regarding

BE COOL

maintenance, you can contact the manufacturer's authorized customer hotline / service point.

1. Keep and store the device at a safe and dry place out of reach for children when you are not using it.

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Subject to errors and technical changes.

BE COOL

COMPONENTS

1. Spiral Guard (Front and Back).
2. Aluminium Blades
3. Control Panel
4. Motor (at back)

Exterior view of a four-blade desktop fan with visible blades and mounting base (no text or symbols)

Technical diagram of a mechanical component with numbered annotations pointing to features

OPERATION

• Ensure the fan is always placed on a flat and stable surface when in use.
• Plug the appliance into the mains.
• Move the airflow by turning the body of the appliance forwards or backwards.
• Press the control panel to:

Position 0 = Off

Position 1 = Minimum Speed

Position 2 = Medium Speed

Position 3 = Maximum Speed

Tilt setting

If you wish to change the air flow in vertical direction you can do so by tilting the fan head backwards or forwards.

BE COOL

CLEANING INSTRUCTIONS

1. Caution! Let the device come to a full stop before disconnecting it from the outlet.
2. Use a soft cloth to clean the device. If dirt and contamination should not come off easily, you may use warm soapy water.
3. Do not use solvents and scrubbing agents (thinners), metal cutlery or stiff brushes since these may damage the housing.
4. Do not immerse the fan in water or other liquids. Water must not drop onto or into the fan's motor housing.
5. Dry all components thoroughly before storing them.

BE COOL

Technical information
Rated voltage	220 – 240 V
Frequency	50 Hz
Rated input power	120 W
Noise Levels	65 dB(A)
Dimensions	195 x 560 x 545 mm
Weight	4,9 kg
Information requirements under Regulation (EU) No. 206/2012
Article number	BC45WM2205
Nominal	220 – 240 V
Protection	I
Power consumption when switched off (POFF)	0 W
Seasonal power consumption (Q)	33 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	96.6	m3/min
Fan power consumption	P	103.2	W
Service ratio	Sv	0.936	(m3/min)/W
Power consumption in standby mode	PSB	0	W
Fan sound power level	LWA	67.6	dB(A)
Maximum air velocity	c	8.2	m/s
Measurement standard for determining the service ratio	IEC 60879:2019
Contact address for further information and service line:	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Vienna Tel: [phone] – 0 Service line: [phone] – 502 www.becool.at Commercial register no.: 236974 t / Commercial register court: Vienna

BE COOL

WARRANTY

By purchasing a BE COOL quality product you have acquired an innovative, long lasting and reliable item.

For this BE COOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
• Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorised workshop.
• Unfulfilled customer expectations.
• Damage caused by force majeure, water, lightning and overvoltage.
• Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
• Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BE COOL device!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
