USER MANUAL HW-S61D SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

CONTENTS

01 Checking the Components 4

02 Product Overview 5

Front Panel / Top Panel of the Soundbar 5

Bottom Panel of the Soundbar 7

03 Using the Remote Control 8

Inserting Batteries before using the Remote Control (AAA batteries X 2) ____ 8

How to Use the Remote Control ____ 8

Setting the (Sound Control) 11

Using the Hidden Buttons (Buttons with more than one function) ____ 12

Output specifications for the different sound effect modes 13

Adjusting the Soundbar volume with a TV remote control 14

04 Connecting the Soundbar 15

Connecting Electrical Power 15

Connecting the Samsung Wireless Rear Kit and Subwoofer to your Soundbar 15

05 Connecting to a TV 16

Connecting the TV that supports HDMI ARC (Audio Return Channel) 16

Connecting using an Optical Cable 18

Connecting via Bluetooth 19

Connecting via Wi-Fi 21

Connecting to a TV that supports Dolby Atmos® 22

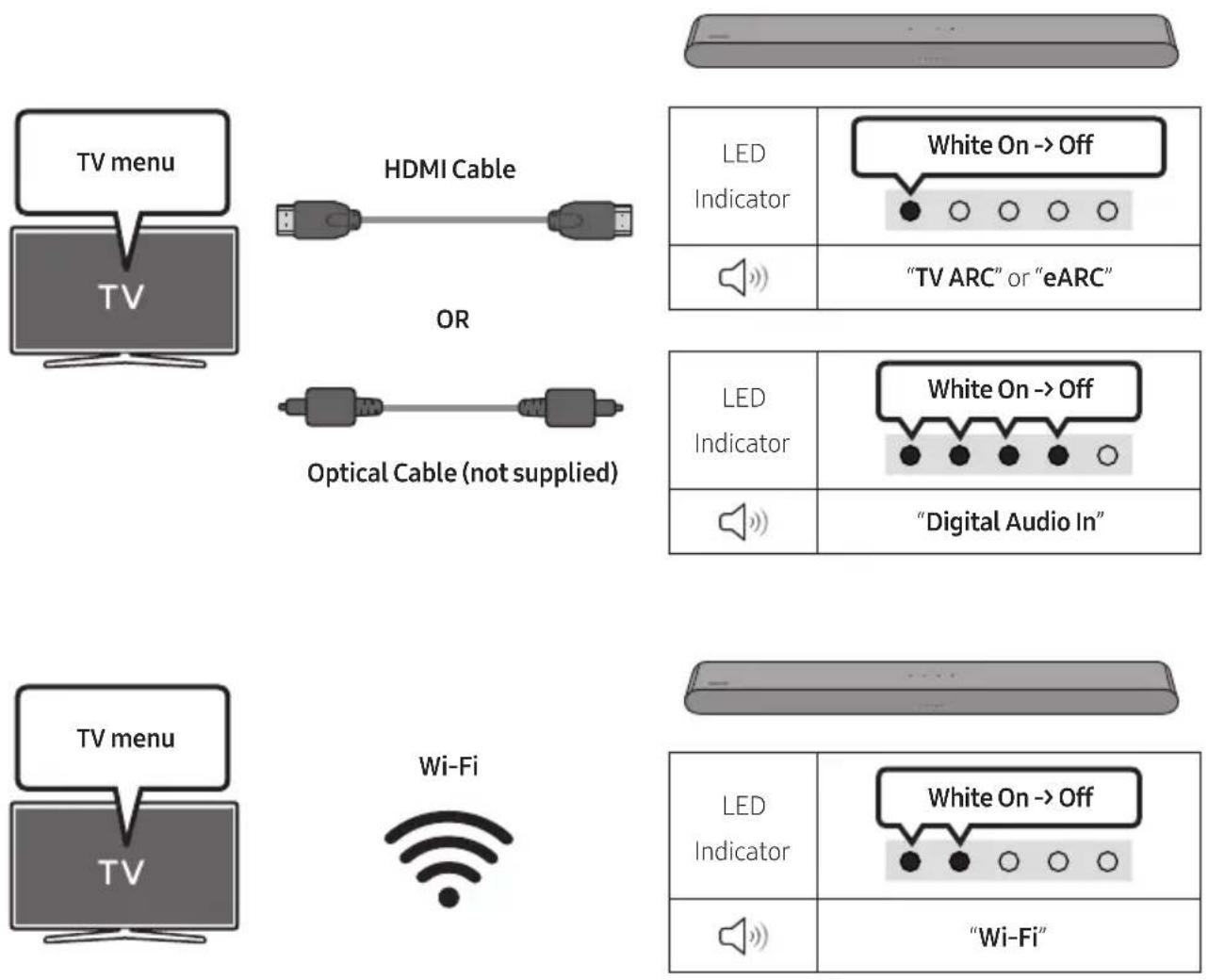

Using the Q-Symphony Function ____ 24

Using the SpaceFit Sound 25

06 Connecting an External Device 26

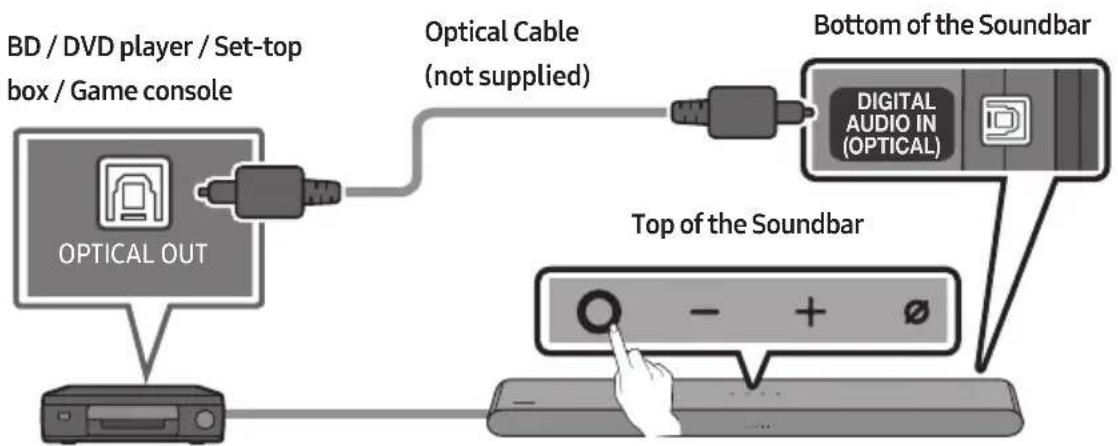

Connecting using an Optical Cable ____ 26

07 Connecting a Mobile Device 27

Method 1. Connecting via Bluetooth ____ 27

Method 2. Connecting via Wi-Fi (Wireless Network) ____ 30

Using Group Play ____ 31

Connecting via Apple AirPlay 32

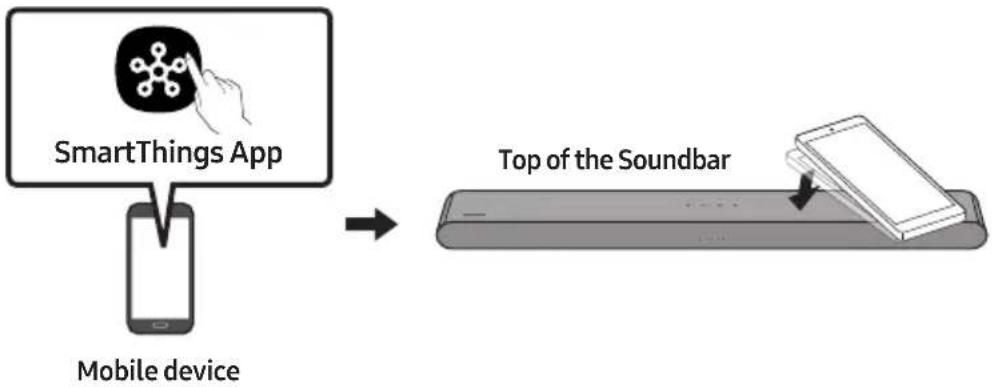

Using the Tap Sound ____ 33

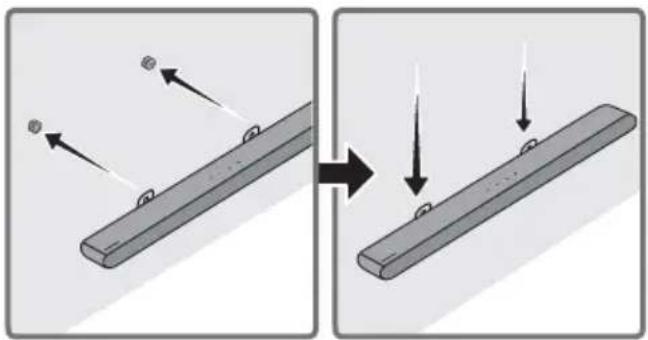

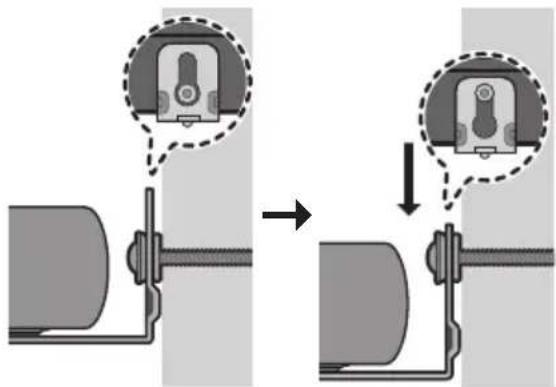

08 Installing the Wall Mount 34

Installation Precautions ____ 34

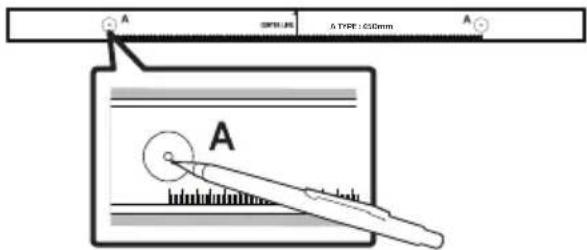

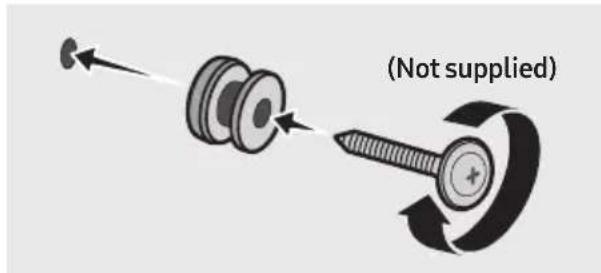

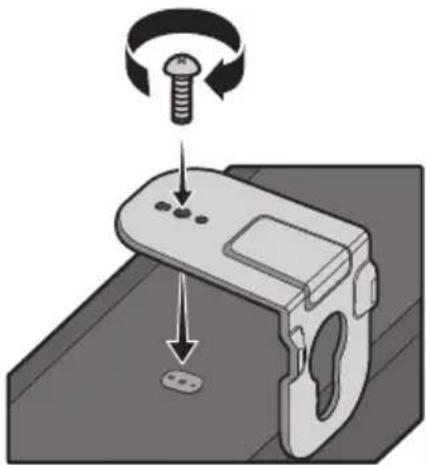

Wallmount Components 34

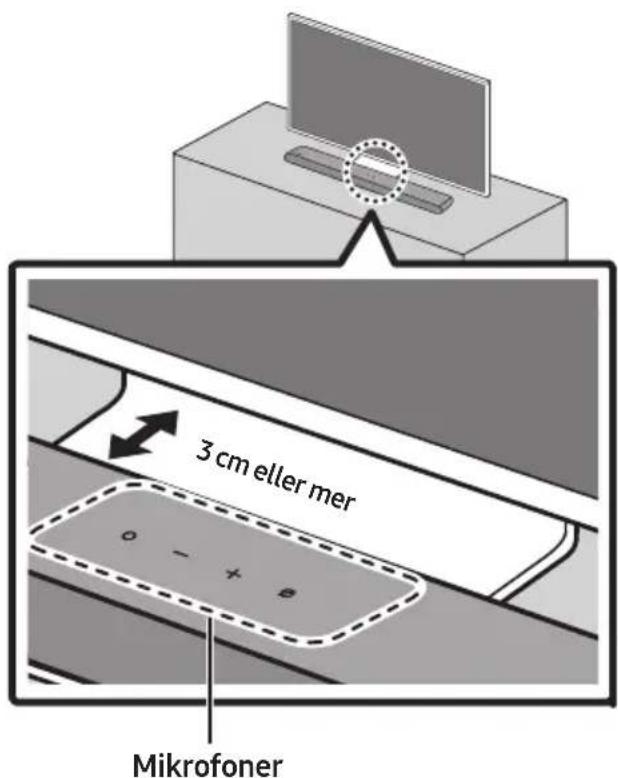

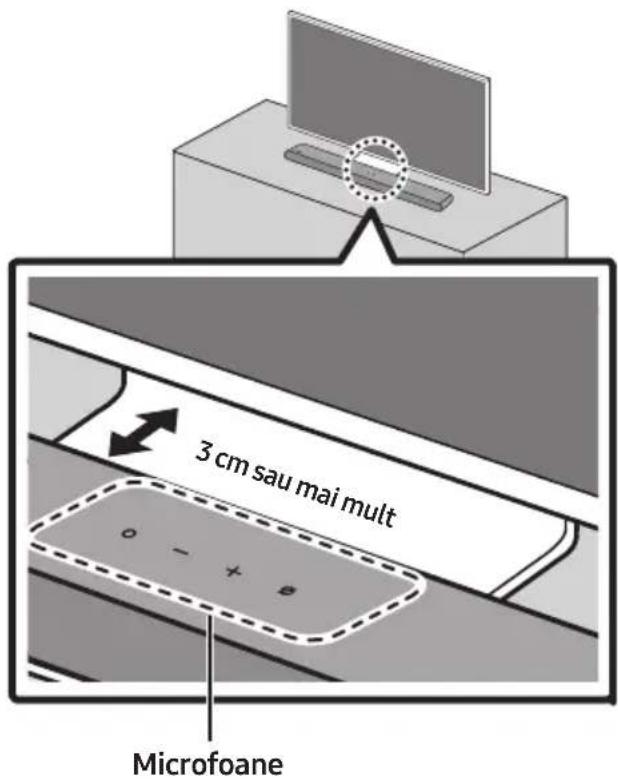

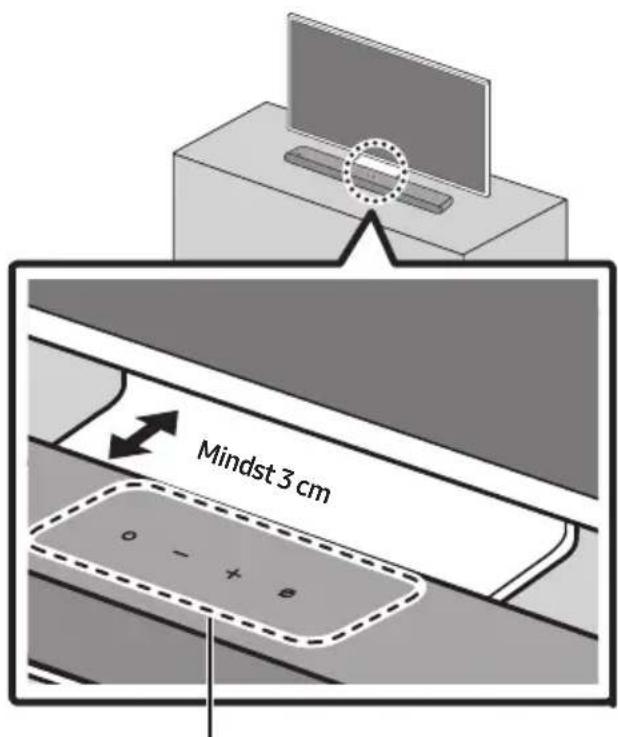

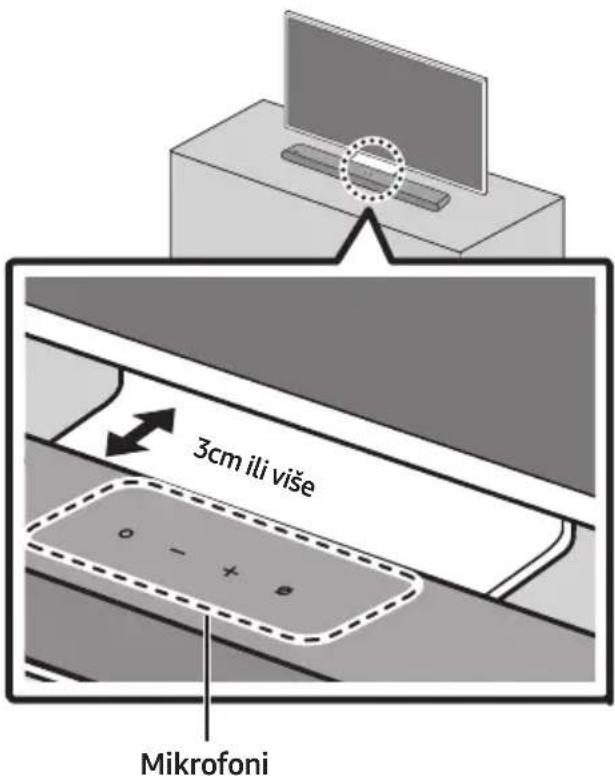

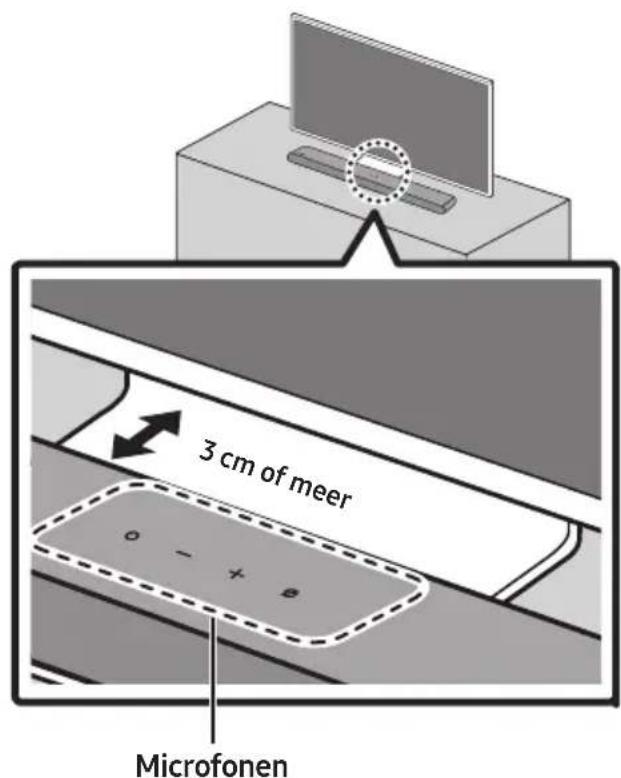

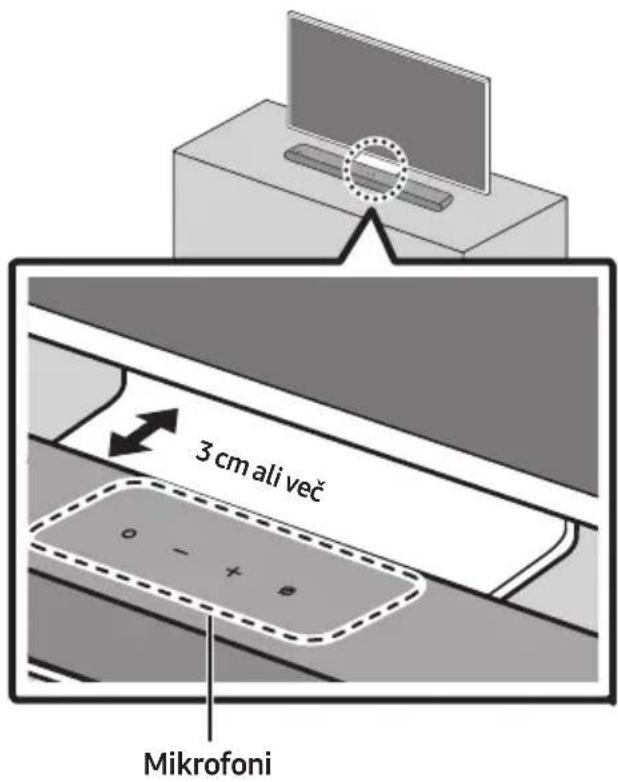

09 Installing the Soundbar in front of TV 36

10 Software Update 37

Auto Update 37

USB Update 37

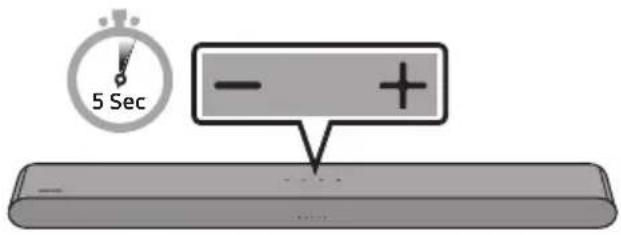

Reset 38

Security updates information 38

11 Troubleshooting 39

12 Licence 41

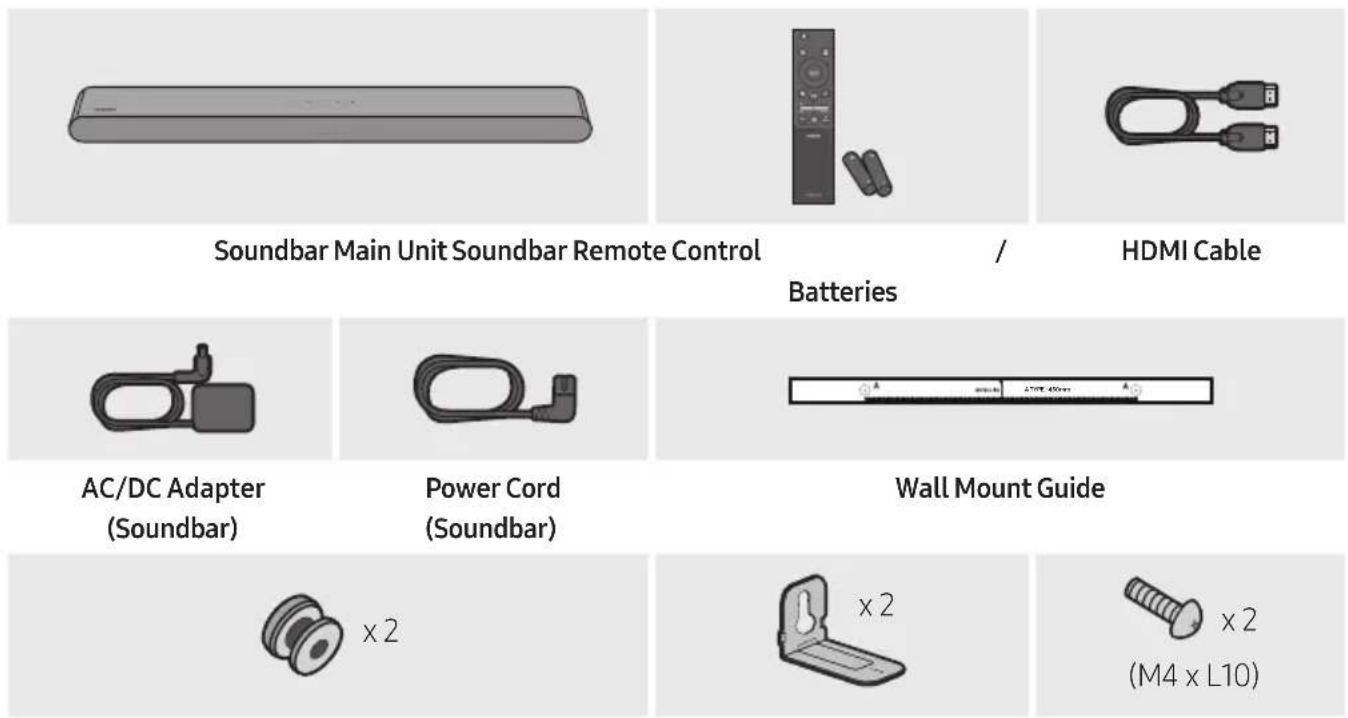

01 CHECKING THE COMPONENTS

Holder-Screw Bracket-Wall Mount Screw

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)
• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• For more information about the wallmount see page 34.
• Design, specifications, and App screen are subject to change without prior notice.
• The appearance of the accessories may differ slightly from the illustrations above.

02 PRODUCT OVERVIEW

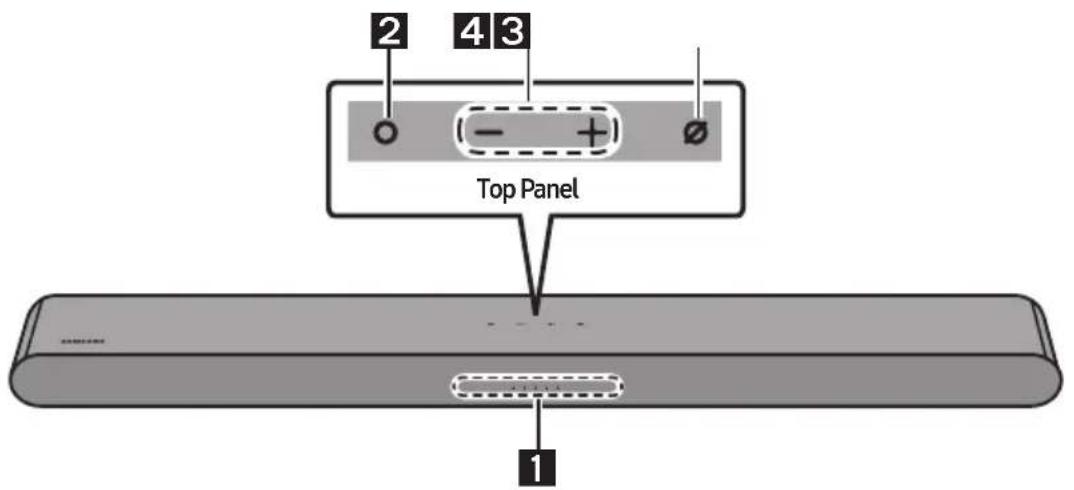

Front Panel / Top Panel of the Soundbar

2 4 3 Top Panel 1

1	LED indicator	The LED Indicator flashes, glows, or changes colour depending on the Soundbar's current mode or status. The colour of the LED indicator and the number of lights indicate the active mode as described below.
		White LED	White LED	Multicolour LED	White LED	White LED
		The Multicolour LED changes to White, Cyan, Green, Red, and Blue depending on the mode or status.
2	Multi Function Button	In standby mode, press the (Multi Function) button to turn on the Soundbar.Press the (Multi Function) button to change the mode. Each time you change the mode, the LED lights in white and then turns off.
		LED Indicator		te On -> Off

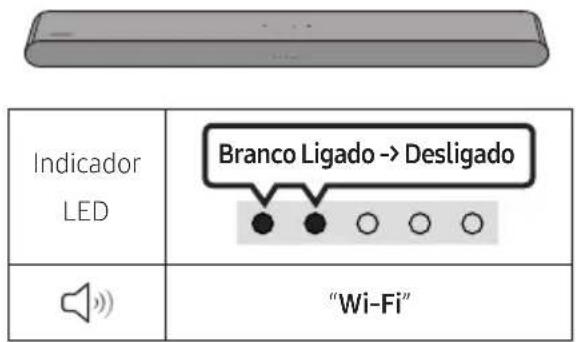

		[C×65]	"TV ARC" or "eARC"		"Wi-Fi"
		LED Indicator		te On -> Off

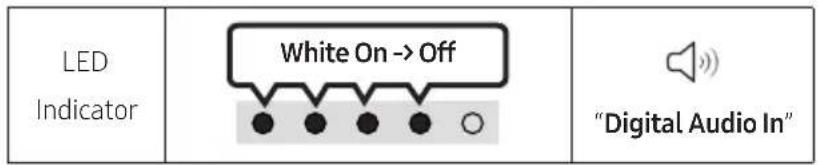

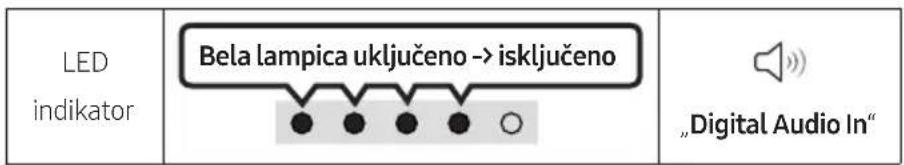

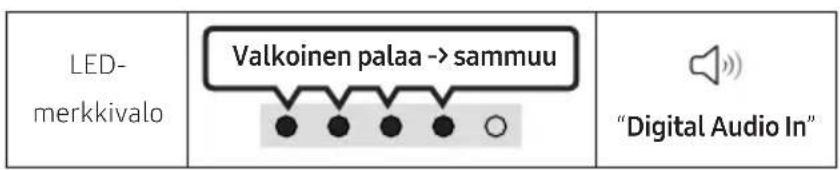

			"Bluetooth" "Digital Audio In"
3	Volume Button	Press the (Volume) button to adjust the volume.

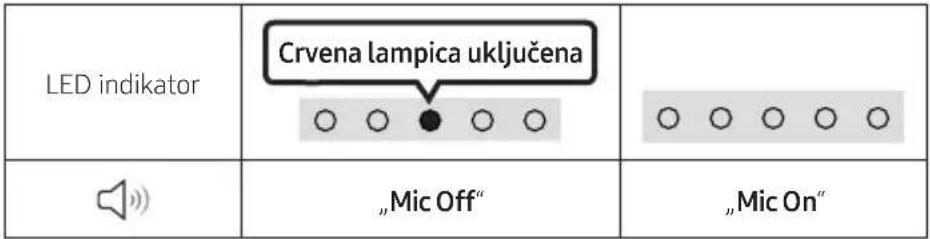

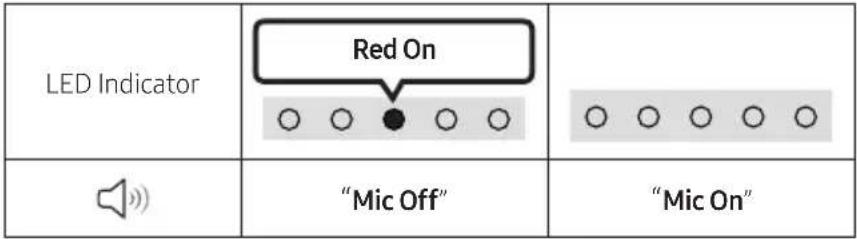

4	Mic On/Off Button	Press the ∅ (Mic On/Off) button to turn the microphone on or off. When the microphone is off, the LED Indicator will light red.

"Bluetooth" "Digital Audio In"

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and change the TV speaker to External Speaker.
• You can turn on and off audio feedback by using SmartThings app. To learn about using the SmartThings app, refer to "Method 2. Connecting via Wi-Fi (Wireless Network)".

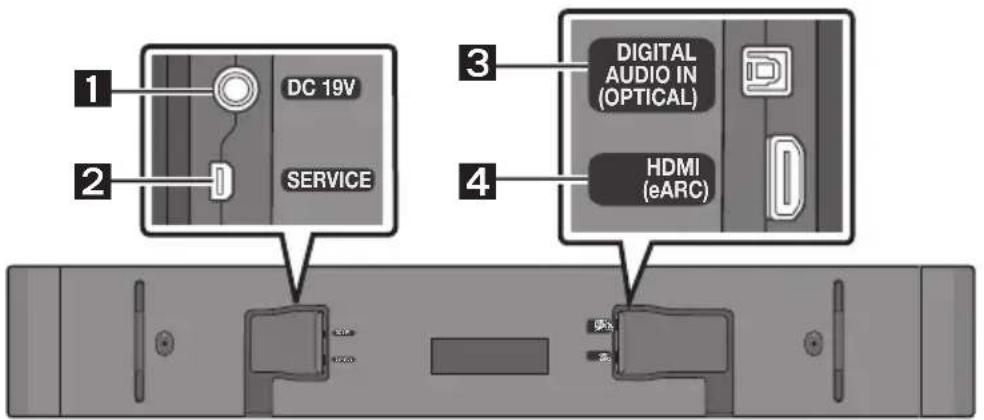

Bottom Panel of the Soundbar

1 DC 19V SERVICE 2 3 DIGITAL AUDIO IN (OPTICAL) HDMI (eARC) 4

1	DC 19V (Power Supply In)Connect the AC/DC power adapter. (See page 15)

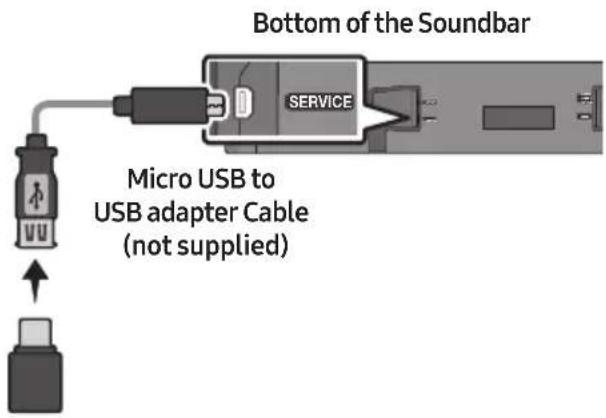

2	SERVICEConnect a USB storage device to upgrade the product's software.
3	DIGITAL AUDIO IN (OPTICAL)Connect to the digital (optical) output of an external device. (See page 26)
4	HDMI (eARC)Connect to the HDMI (eARC) port on a TV. (See page 16)

• When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 USING THE REMOTE CONTROL

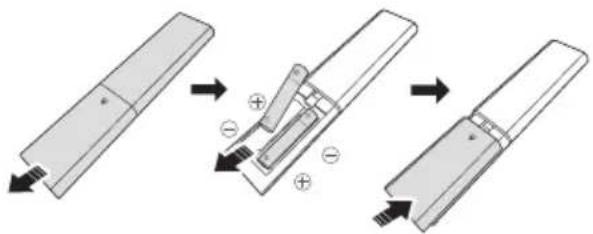

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow until it is completely removed.

Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. Slide the back cover back into position.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

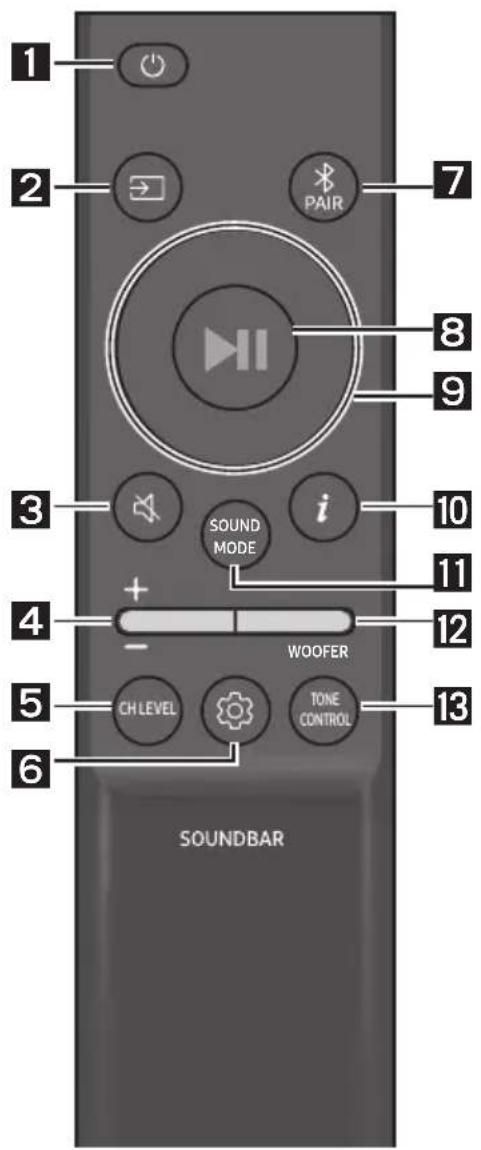

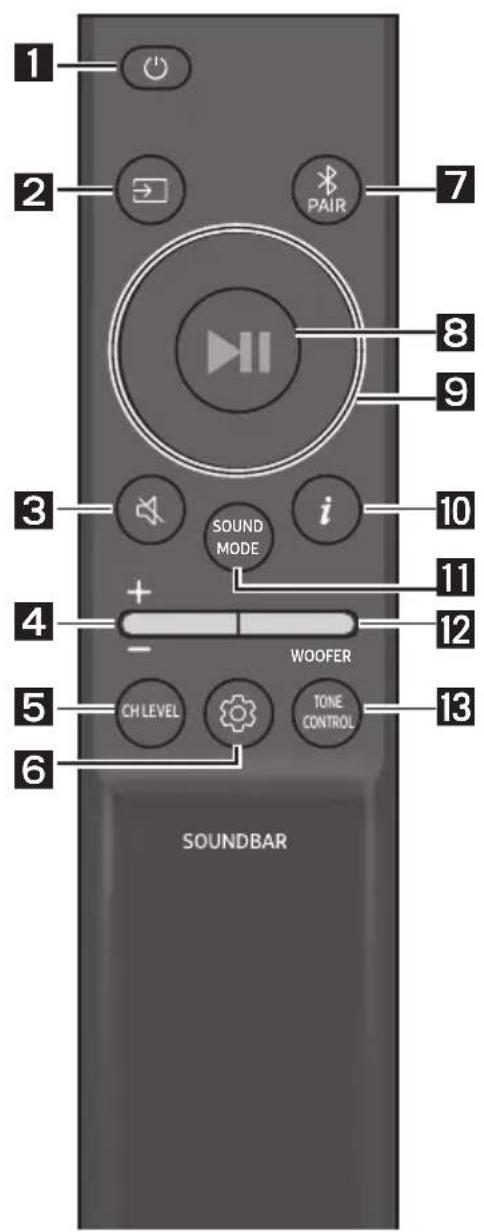

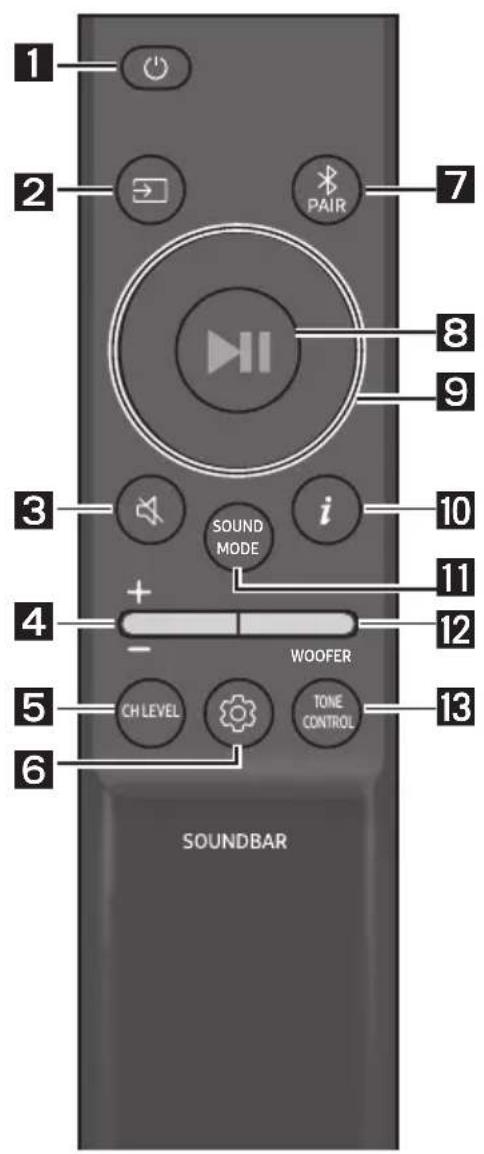

How to Use the Remote Control

1 2 PAIR 7 8 9 3 i SOUND MODE 10 11 4 - - WOOFER 12 5 CH LEVEL TONE CONTROL 13 6 SOUNDBAR

1

Power

Turns the Soundbar on and off.

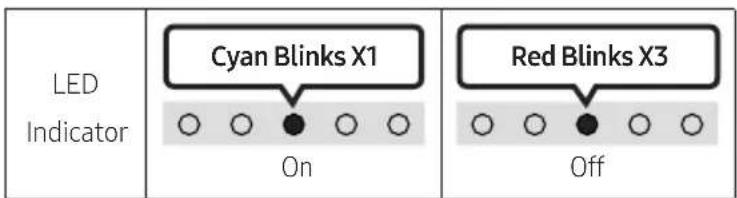

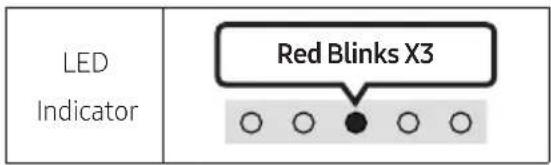

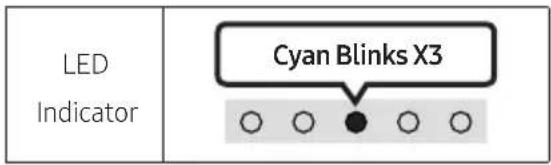

LED Indicator Cyan Blinks X1 On Red Blinks X3 Off

• Auto Power Down Function

The unit turns off automatically in the following situations:

- In "TV ARC" or "eARC" / "Wi-Fi" / "Bluetooth" / "Digital Audio In" mode if there is no audio signal for 18 minutes.

2

→ (Source)

Press to select a source connected to the Soundbar.

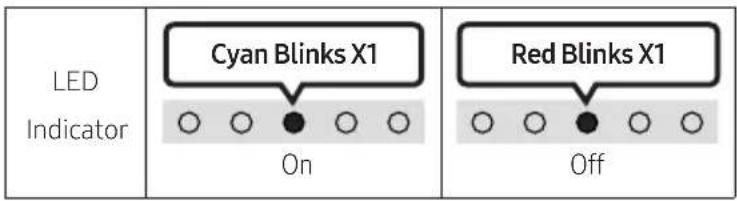

• Audio Feedback On/Off

You can turn the Audio Feedback on or off. Press and hold the → (Source) button on the remote control for 5 seconds while the Soundbar is off (Standby mode).

LED Indicator Cyan Blinks X1 On Red Blinks X1 Off

3	Press the (Mute) button to mute the sound.Press it again to unmute the sound.
	LEDIndicator

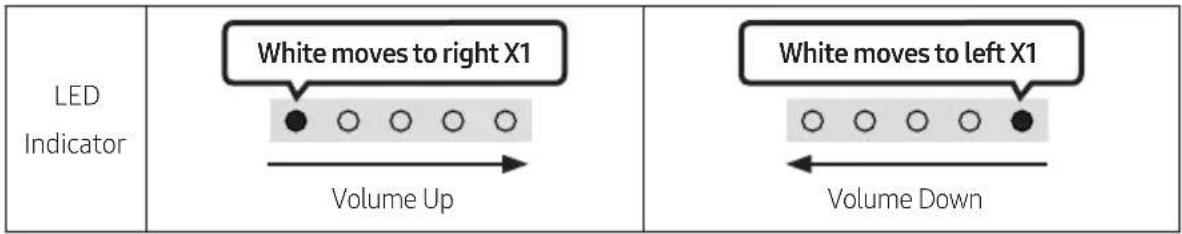

4	VolumePush the button up or down to adjust the volume.

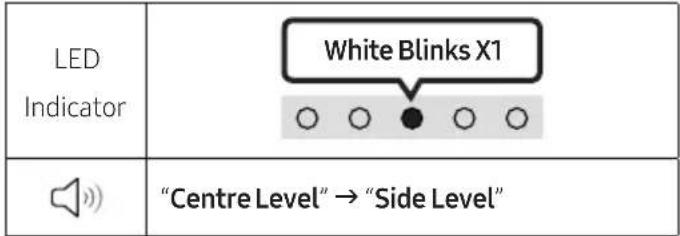

5	CH LEVELBy pressing the button, you can adjust the volume of each speaker.If the Rear Speakers (sold separately) are connected, the setting "Rear Level" is supported. Use the Up/Down button to adjust the volume of the "Rear Level" between -6 to +6.
6	(SEE)(Sound Control)By pressing the button, you can set the audio function. The desired item can be adjusted using the Up/Down buttons. Each time the mode changes, the Multicolour LED blinks in white.
	LEDIndicator	White Blinks X1
		"SpaceFit Sound" → "Active Voice Amplifier" → "Voice enhancement" → "Night mode" → "Sync" → "Virtual"
	- Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons.(Make sure the Sound mode is set to "Standard".)If the Rear Speakers (sold separately) are connected, the setting "Sound Grouping" and "Private Rear Sound" are supported.Refer to "Setting the (Sound Control)" on page 11.

LED Indicator
	"SpaceFit Sound" → "Active Voice Amplifier" → "Voice enhancement" → "Night mode" → "Sync" → "Virtual"

- Press and hold the 🎨 (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons. (Make sure the Sound mode is set to "Standard".)

- If the Rear Speakers (sold separately) are connected, the setting "Sound Grouping" and "Private Rear Sound" are supported.

- Refer to "Setting the ⚙ (Sound Control)" on page 11.

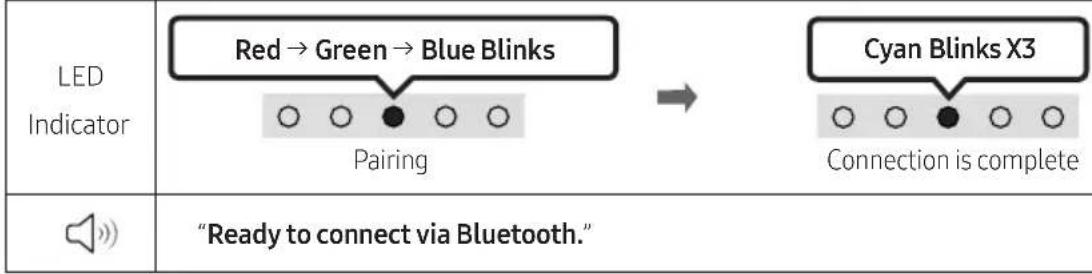

7	Bluetooth PAIRSwitch the Soundbar to Bluetooth pairing mode.When you press the button, the LED display changes as shown below.Until pairing is complete, the Multicolour LED changes asRed→Green→Bluein turn.
8	▶II (Play / Pause)You can also play or pause music by pressing the button.
9	Up/Down/Left/RightPress Up/Down/Left/Righton the button to select or set functions.Music SkipPress theRightbutton to select the next music file. Press theLeftbutton to select the previous music file.ID SETPress and hold theUpbutton for 5 seconds to completeID SET(when connecting to a wireless subwoofer or wireless rear speakers).
10	i (Info)Press the button to display information about the current function. (See page 5.)When connected to Dolby Atmos®, the LED indicator blinks cyan 3 times.
11	SOUND MODEBy pressing the button, you can select the desired audio mode. Each time the mode changes, the Multicolour LED blinks in white.
	LEDIndicator	White Blinks X1
		“Adaptive Sound” → “DTS Virtual:X” → “Music” → “Game” → “Standard”
	Adaptive SoundAnalyzes the content in real time and automatically provides the optimal sound field based on the characteristics of the content.DTS Virtual:XImmersive 3D sound from any content.MusicProvides more natural and room filling sound for music content.GameProvides stereoscopic sound to immerse you in the action while gaming.StandardOutputs the original sound.

▶II (Play / Pause)

Up/Down/Left/Right

- Music Skip

• ID SET

i(Info)

SOUND MODE

LED Indicator
	“Adaptive Sound” → “DTS Virtual:X” → “Music” → “Game” → “Standard”

- Adaptive Sound

- DTS Virtual:X

- Music

- Game

- Standard

12	WOOFER (BASS) LEVELPush the button up or down to adjust the level of the woofer (bass) to -12 or between -6 to +6. To set the woofer (bass) volume level to 0 (Default), press the button.

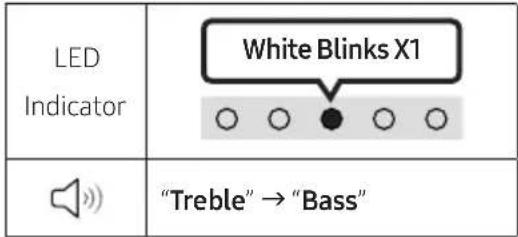

13	TONE CONTROLBy pressing the button, you can adjust the volume of the treble or bass sound. The desired item can be adjusted using theUp/Downbuttons. (This feature is available in all sound modes except “Standard” mode.)

Setting the Sound Control)

• SpaceFit Sound: This function analyzes the user's listening space with the Soundbar's microphone and provides optimal sound for the space. (Refer to "Using the SpaceFit Sound" on page 25.)
• Active Voice Amplifier : Analyzes external noise in real time while Soundbar is playing so that voice audio can always be heard clearly.

- No data is saved during the analysis.

• Voice enhancement makes it easier to hear spoken dialog in movies and TV.
- Night mode is optimized for night time viewing with the settings adjusted to bring the volume down but keep the dialog clear.
- Sound Grouping: The Soundbar main unit and the Surround Speakers play the entire sound instead of surround sound, making it ideal for large groups of people listening to music in a large space.

- This menu is initially activated when the Surround Speakers are connected, and then the menu remains activated regardless of the connection of the Surround Speakers.

• If you enable this mode, there are no differences in sounds between the Sound modes.
• Sound does not come out from all speaker units of the Soundbar main unit and the Surround speakers, but only from certain predetermined units, which varies by model.

- Private Rear Sound: This mode sets the sound to come out from the Surround Speakers only, allowing you to listen without being disturbed by others.

• If you enable this mode, sound does not come out from the Soundbar main unit and the subwoofer. Sound only comes out from the front channel of the Surround Speakers.

• If you enable this mode, there are no differences in sounds between the Sound modes.

• The function turns off when the power turns off or the Surround Speakers connection is lost.

• The menu is activated only when the Surround Speakers are connected.
• This mode is automatically turned off and becomes unavailable when the Q-Symphony function turns on.

- If the video on the TV and audio from the Soundbar are not synchronized, select Sync in Sound Control, and then set the audio delay between 0\~300 milliseconds by using the Up/Down buttons.

- Sync is only supported for some functions.

- The Virtual function can be turned On/Off by using the Up/Down buttons.

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER (Up)	TV remote control On/Off (Standby)	page 14
Up ID SET page 10
	7 Band EQ page 9
	Audio Feedback On/Off (Standby) page 8

Output specifications for the different sound effect modes

Effect Input		Output
		With Subwoofer Only	With Subwoofer & Wireless Rear Speaker Kit
Adaptive Sound	2.0 ch 5.1 ch 7.1 ch
	5.1 ch 5.1 ch 7.1 ch
	Dolby Atmos® 5.1 ch 7.1 ch
DTS Virtual:X	2.0 ch 5.1 ch 7.1 ch
	5.1 ch 5.1 ch 7.1 ch
	Dolby Atmos® 5.1 ch 7.1 ch
Music	2.0 ch 5.1 ch 7.1 ch
	5.1 ch 5.1 ch 7.1 ch
	Dolby Atmos® 5.1 ch 7.1 ch
Game	2.0 ch 5.1 ch 7.1 ch
	5.1 ch 5.1 ch 7.1 ch
	Dolby Atmos® 5.1 ch 7.1 ch
Standard	2.0 ch 2.1 ch 2.1 ch
	5.1 ch 5.1 ch 5.1ch
	Dolby Atmos® 5.1 ch 7.1 ch

• The Samsung Wireless Rear Speaker Kit, and Subwoofer can be purchased separately. To purchase a Kit or the Subwoofer, contact the vendor you purchased the Soundbar from.
• When the input source is Dolby Atmos® the Subwoofer-only setup provides 5.1 channel audio, while the Subwoofer & Wireless Rear Speaker Kit setup provides 7.1 channel audio.

Adjusting the Soundbar volume with a TV remote control

Adjust the Soundbar volume using the TV's remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.

• Set the TV speaker to External Speaker to use this function.
  • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA

• Turn Off the Soundbar.

• Push up and hold the WOOFER button for 5 seconds.

Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: "Off-TV Remote" (Default mode), "Samsung-TV Remote", "All-TV Remote".

The LED indicator status changes each time the mode is changed, as shown below.

Remote Control Button LED Indicator Status
	"Off-TV Remote"(Default mode)	Disable the TV remote control.
	"Samsung-TV Remote"	Enable a Samsung TV's IR remote control.
	"All-TV Remote"	Enable a third-party TV's IR remote control.

04 CONNECTING THE SOUNDBAR

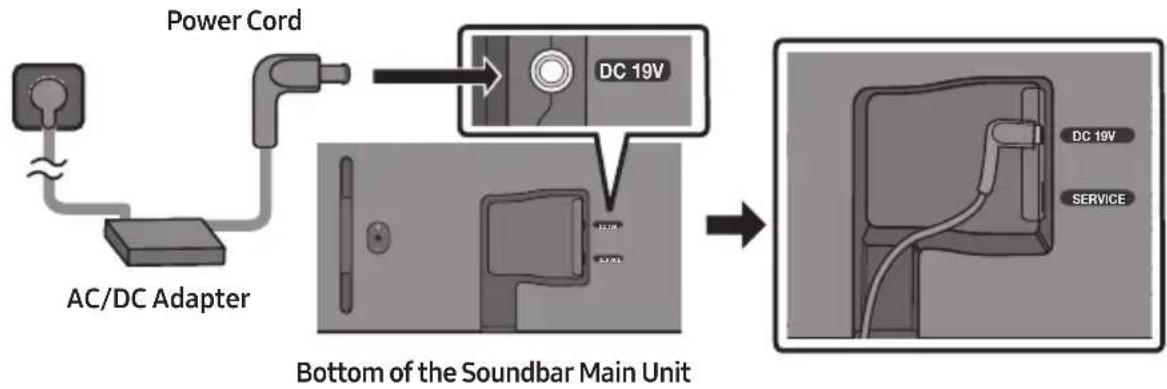

Connecting Electrical Power

Use the power components to connect the Soundbar to an electrical outlet in the following order:

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)
• First connect the power cable to the AC/DC adapter. Connect the AC/DC adapter (with the power cable) to the Soundbar.
• Connect the power cord to a wall socket.

NOTES

• If you unplug and reconnect the power cord when the product is turned on, the Soundbar turns on automatically.
• Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Connecting the Samsung Wireless Rear Kit and Subwoofer to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9200S, sold separately) and Wireless Subwoofer (SWA-W510, sold separately) to your Soundbar. For detailed information on connections, see the Samsung Wireless Rear Speaker Kit and Wireless Subwoofer manual.

05 CONNECTING TO A TV

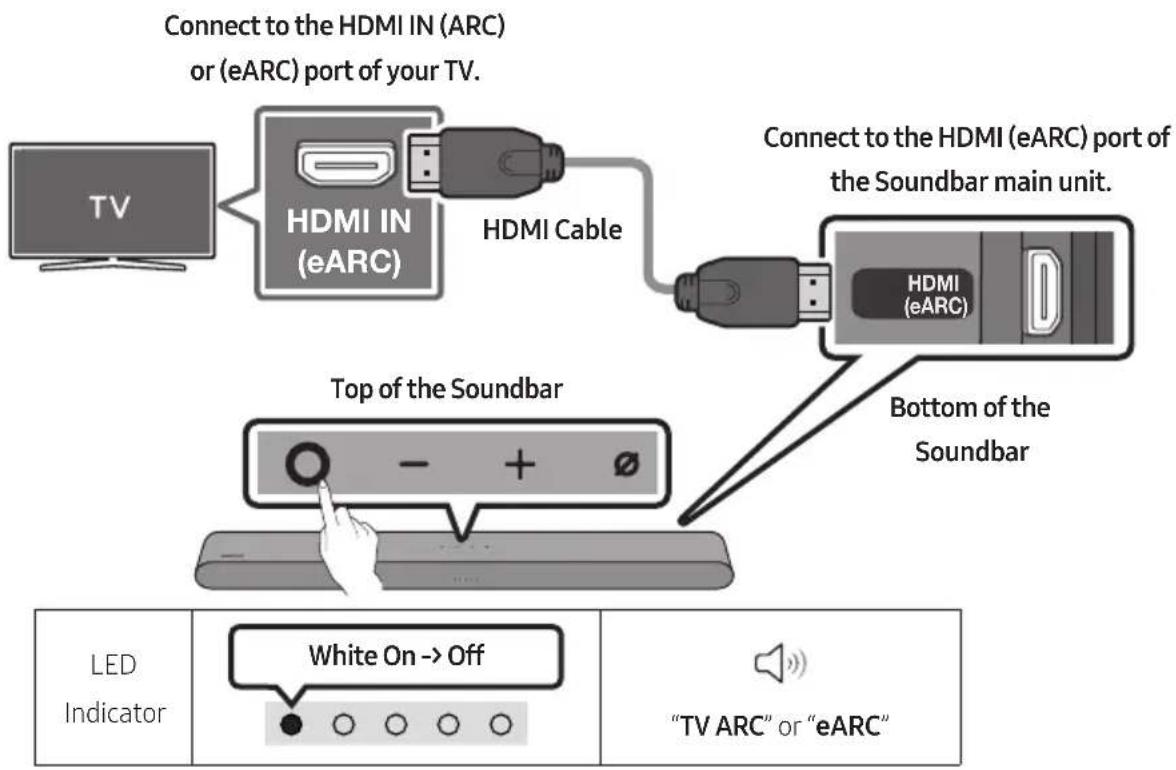

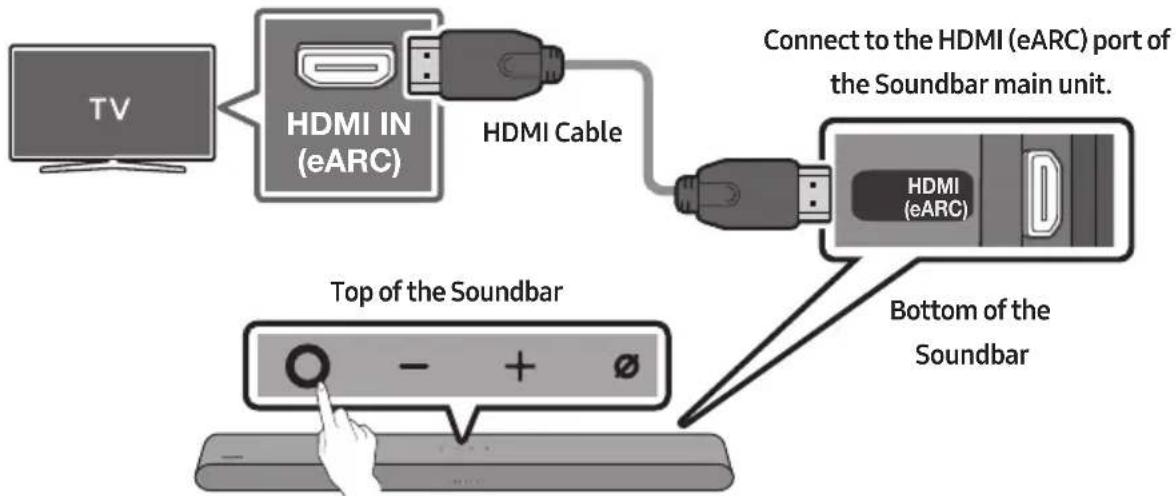

Connecting the TV that supports HDMI ARC (Audio Return Channel)

CAUTION

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC. Otherwise, the TV sound may not be output.
• The recommended cable is an HDMI cable certified by HDMI.org.

Connect to the HDMI IN (ARC) or

(eARC) port of your TV.

LED Indicator

White On -> Off

"TV ARC" or "eARC"

1. With the Soundbar and TV turned off, connect the HDMI cable as shown in the figure.
2. Turn on the Soundbar and TV.
3. TV sound is output from the Soundbar.

- When the TV sound is not output, press the ⬤ (Multi Function) button at the top of the Soundbar or the → (Source) button on the remote control to select the "TV ARC" or "eARC" mode.

• To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV user manual for details on setting. (e.g. Samsung TV: Home (n) → Menu → Settings (☀️) → All Settings (💡 → Sound → Expert Settings → HDMI-eARC Mode (Auto))
• When the sound is not output, check the HDMI Cable connection again.
• Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTES

• When you connect the TV that supports the HDMI ARC (Audio Return Channel) to the Soundbar with an HDMI cable, you can transmit the digital video and audio data without connecting a separate optical cable.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
• This function is not available if the HDMI cable does not support ARC.
• When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

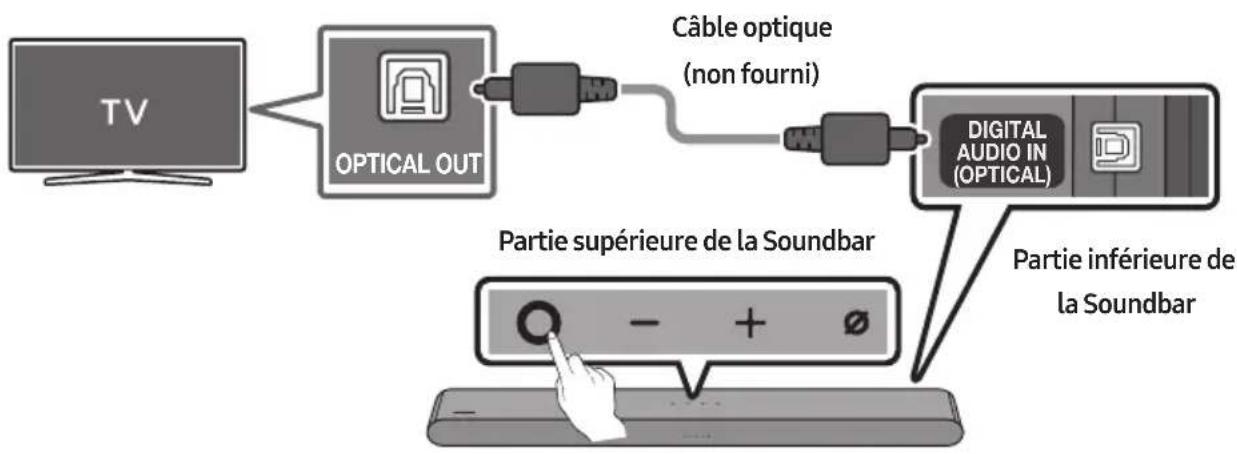

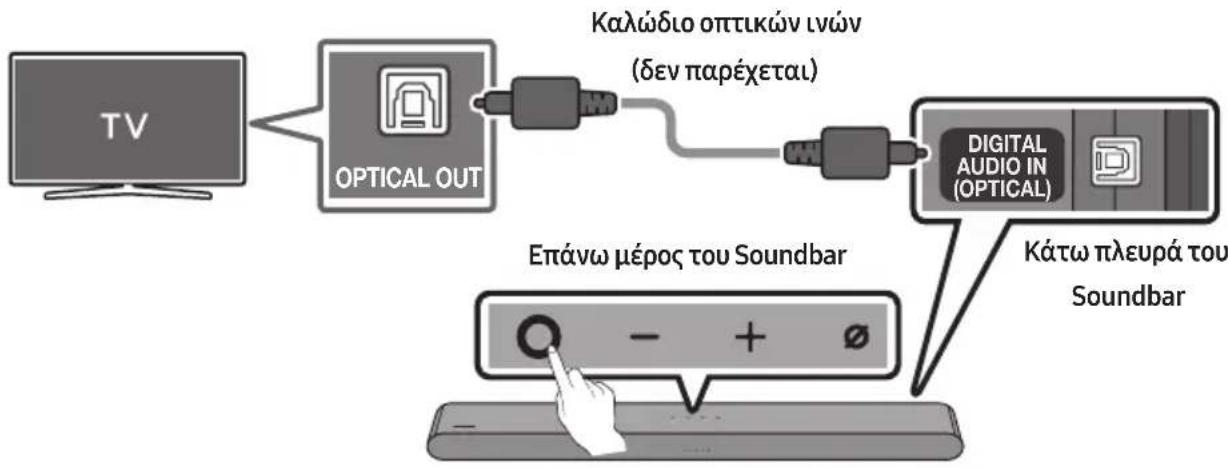

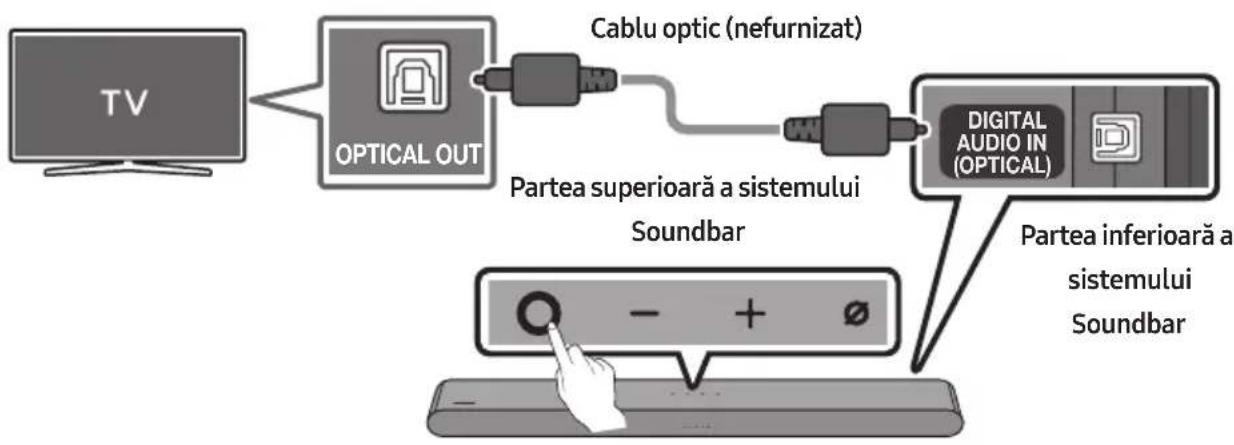

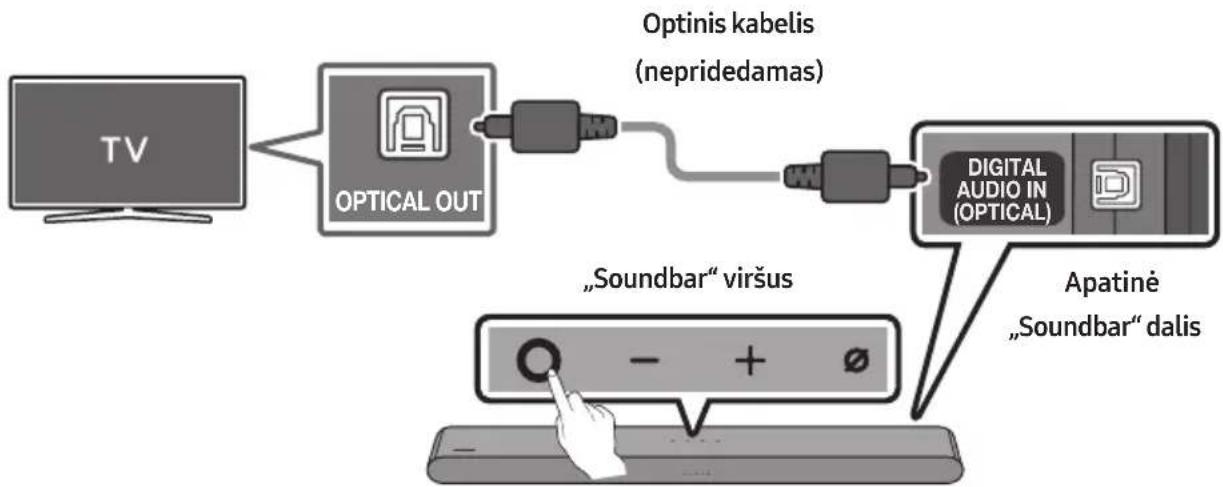

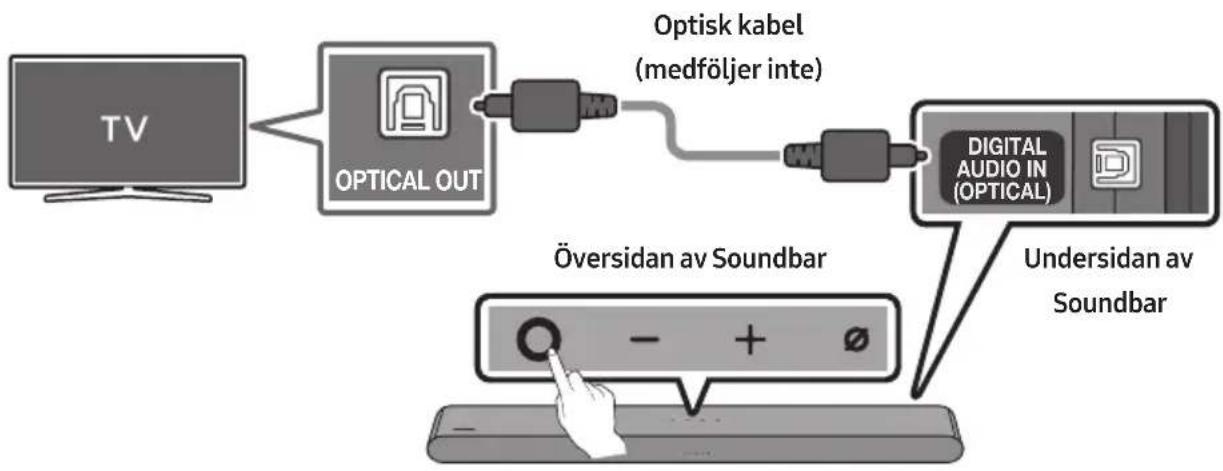

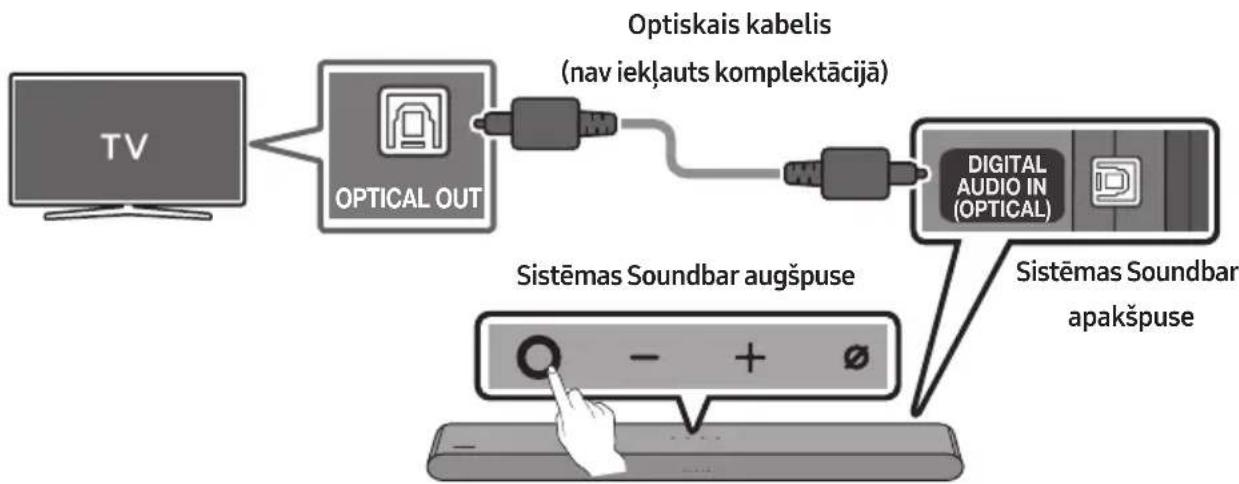

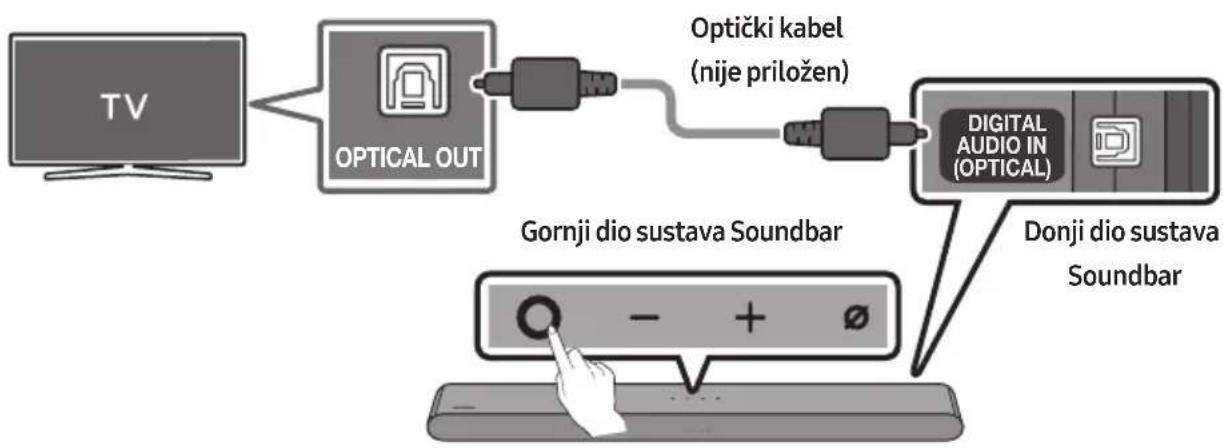

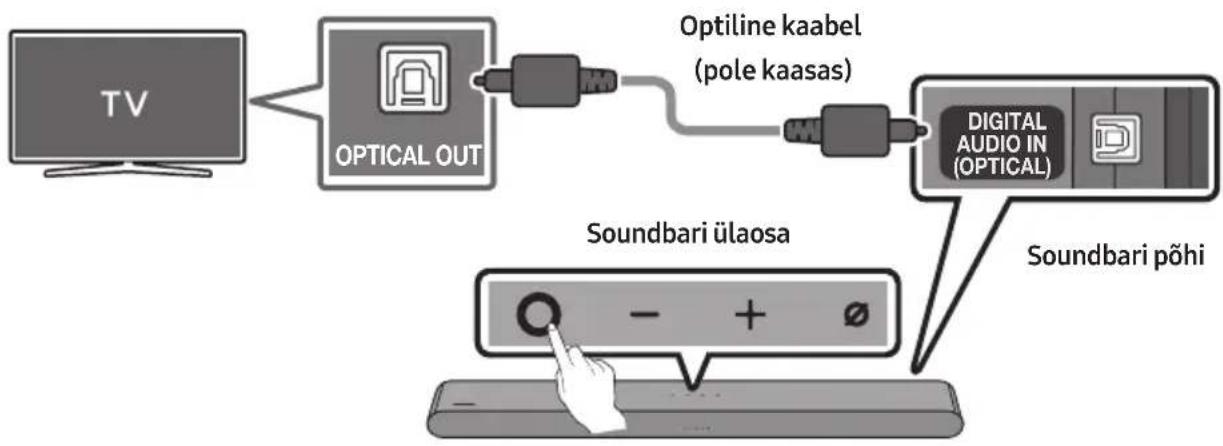

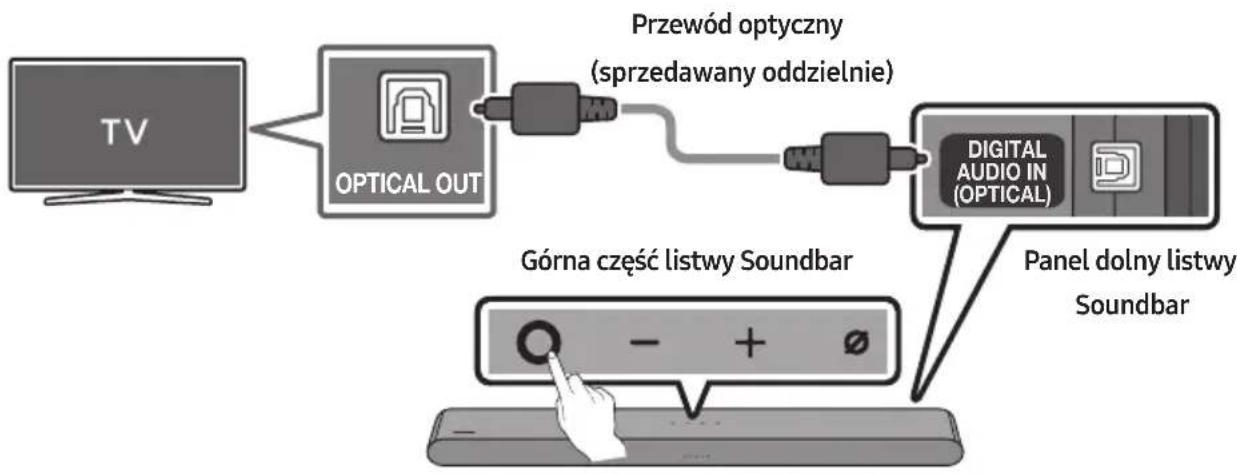

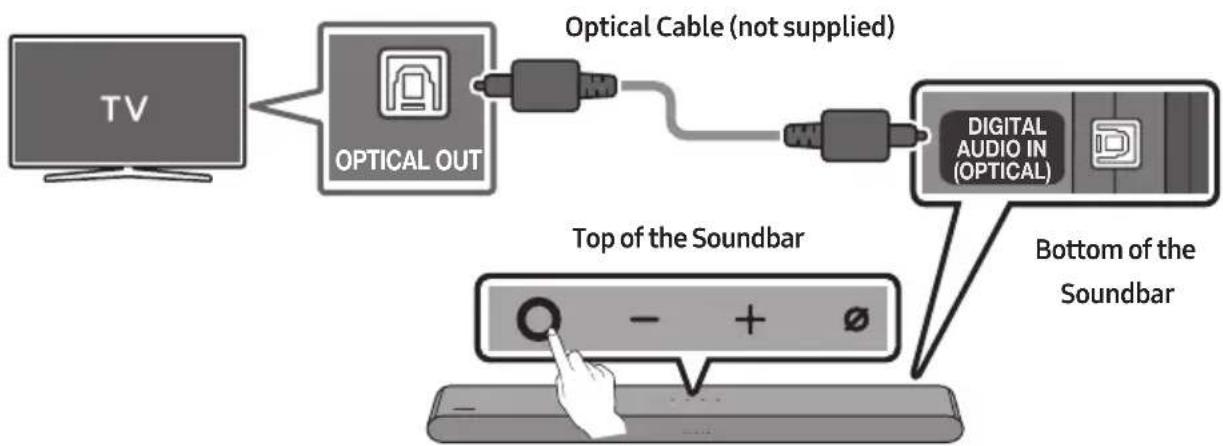

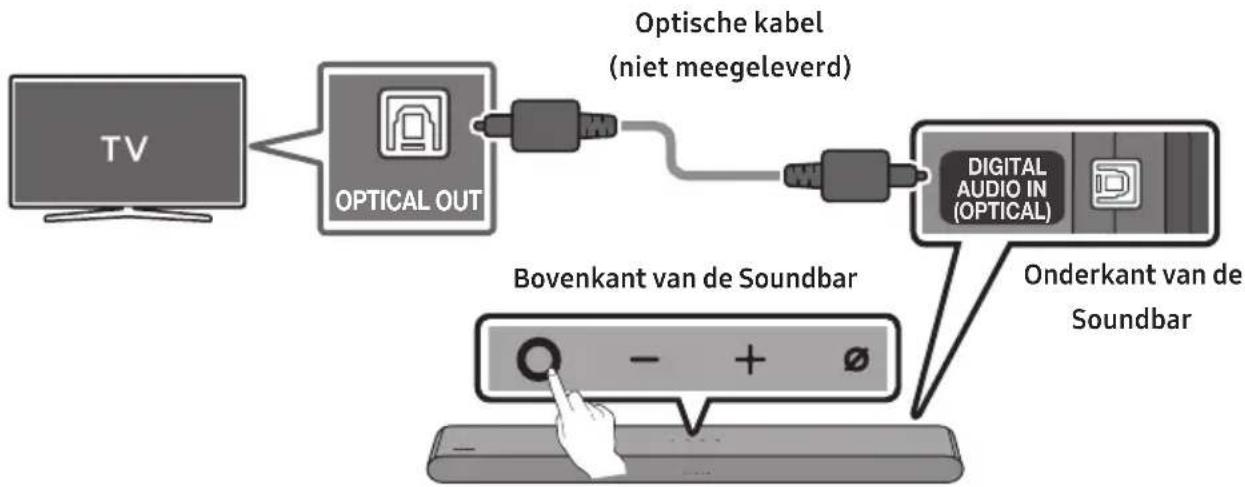

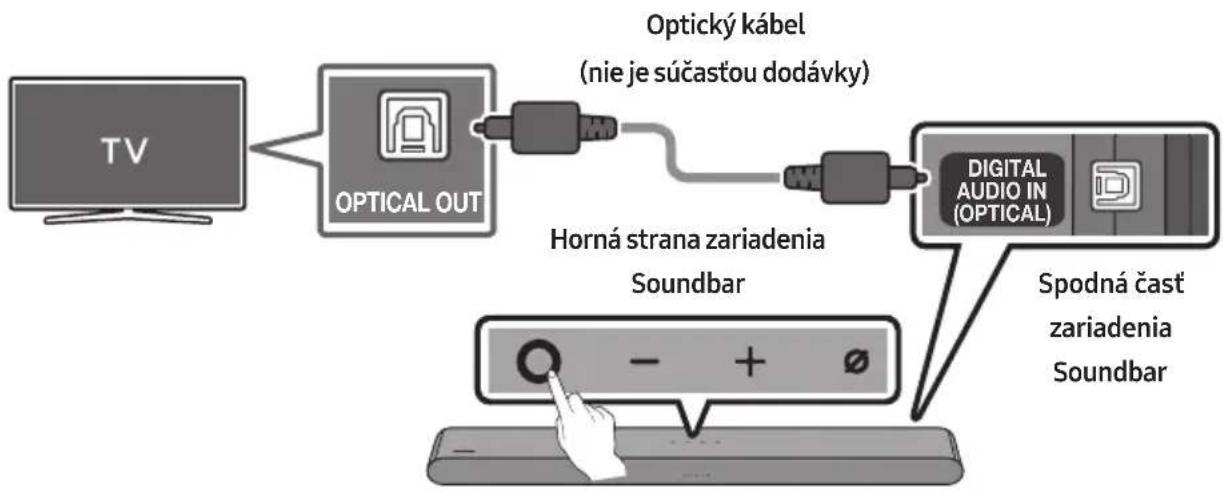

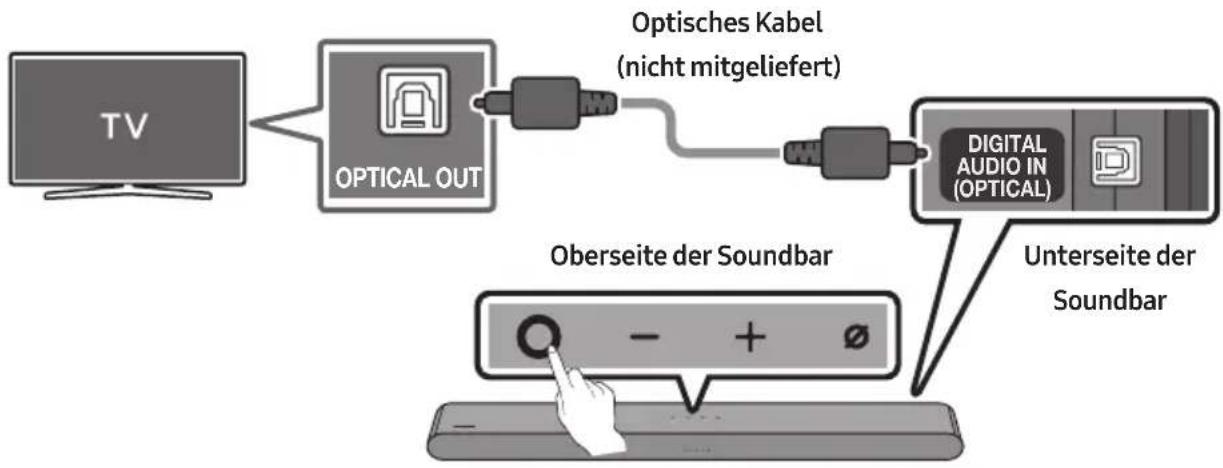

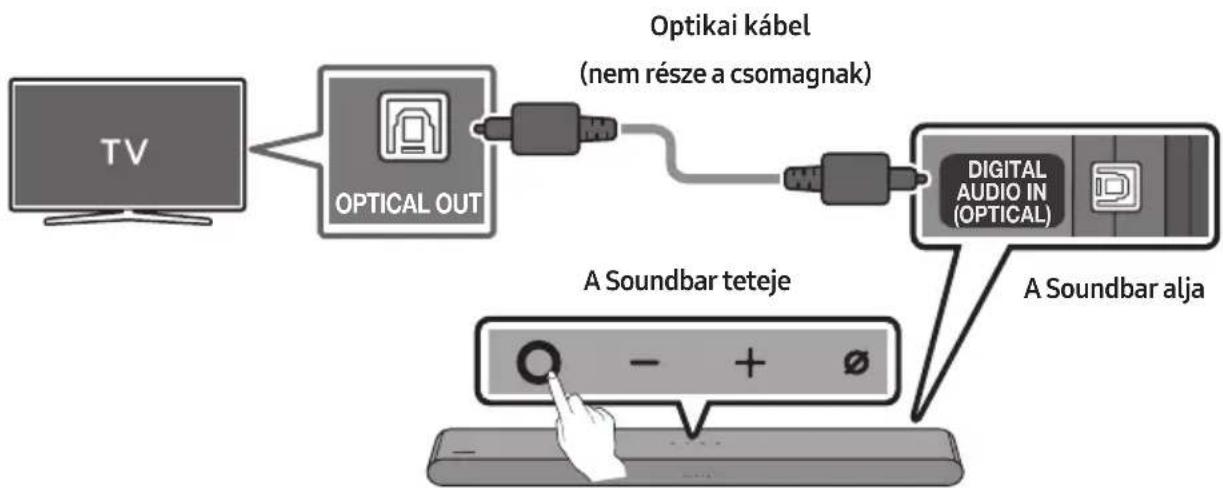

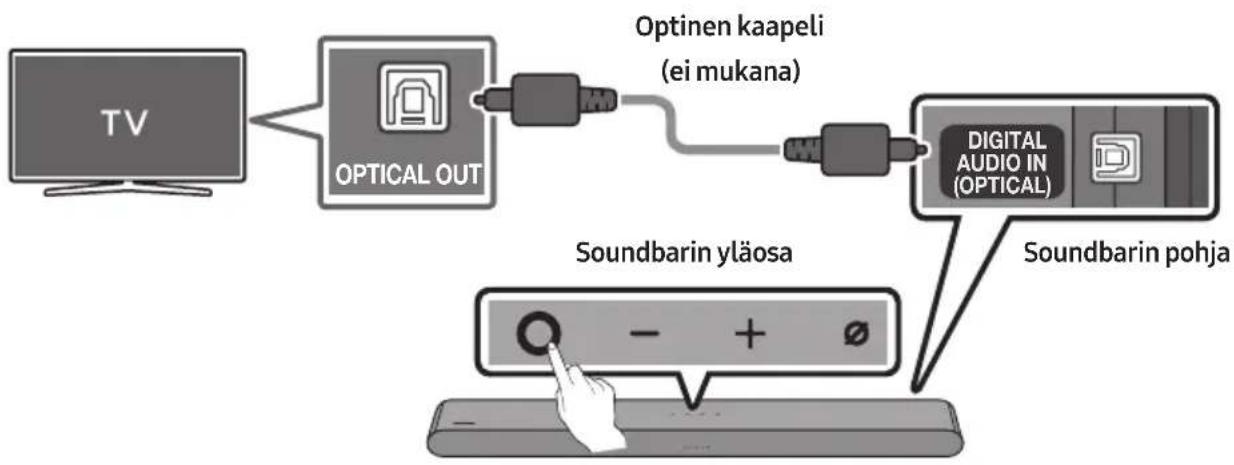

Connecting using an Optical Cable

Pre-connection Checklist

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• When you use an optical cable and the terminals have covers, be sure to remove the covers.

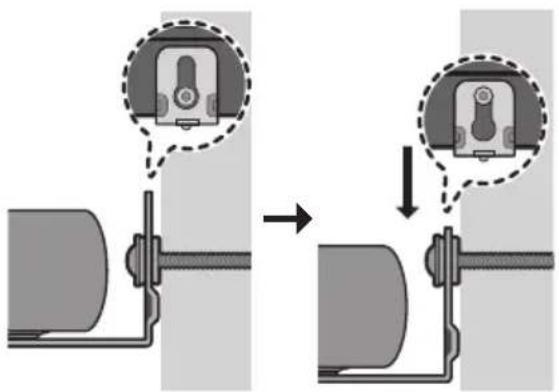

Diagram showing a mechanical component before and after assembly, with no visible text or symbols


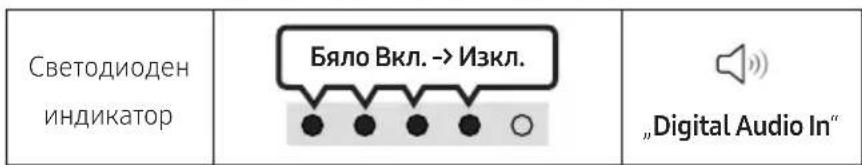

LEDIndicator

“Digital Audio In”

1. With the TV and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar and the OPTICAL output port on the TV with the optical cable (not supplied), as shown in the figure.
2. Turn on the Soundbar and TV.
3. Press the ⬆ (Multi Function) button at the top of the Soundbar or the ➞ (Source) button on the remote control and then select the "Digital Audio In" mode. Then the announcement, "Digital Audio In" is output.
4. The TV sound is output from the Soundbar.

Connecting via Bluetooth

When a Samsung TV is connected using Bluetooth, you can hear stereo sound without the hassle of cable.

• Only one Samsung TV can be connected at a time.
• Samsung TV that supports Bluetooth can be connected. Check the specifications of your TV.

TV

The initial connection

1.

Bluetooth Pairing button LED	Indicator

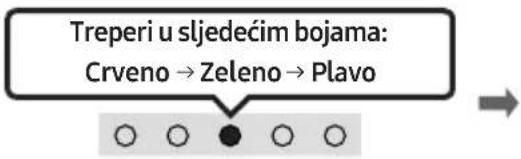

OR When in "Bluetooth" mode	Red → Green → Blue Blinks ○ ○ ● ○ ○ Pairing → Cyan Blinks X3 ○ ○ ● ○ ○ Connection is complete
	· Until pairing is complete, the Multicolour LED changes as Red → Green → Blue in turn.
	"Ready to connect via Bluetooth."

1. Select Bluetooth mode on the Samsung TV.

(e.g. Home (☐) → Menu → Settings (☒) → All Settings (☒) → Sound → Sound Output → Bluetooth Speaker List → S-Series Soundbar (Bluetooth))

1. Select "S-Series Soundbar" from the list on TV's screen.

An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV's Bluetooth device list. To connect the Samsung TV to the Soundbar, select the message, and then establish a connection.

1. You can now hear Samsung TV sound from the Soundbar.

- If there is a connection log between the Soundbar and Samsung TV, the Soundbar is automatically connected by changing its mode to "Bluetooth"

If the device fails to connect

• If you have an existing Soundbar (e.g., S-Series Soundbar) on the list of speakers on the Samsung TV, delete it.
  • Then repeat steps 1 through 3.

Disconnecting the Soundbar from the Samsung TV

Press the ⬤ (Multi Function) button at the top of the Soundbar or the ➞ (Source) button on the remote control to select the mode other than "Bluetooth".

- Disconnecting takes time because the Samsung TV must receive a response from the Soundbar. (The time required may differ, depending on the Samsung TV model.)

Notes on Bluetooth connection

• Locate a new device within 1 m to connect via Bluetooth communication.
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 18 minutes in the Ready state.
• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

- If there is an electronic equipment or electric apparatus that can cause wireless interference around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

- Precaution: The Soundbar will restart automatically if you turn on/turn off Bluetooth.

- Bluetooth Port deactivation method : Press the TONE CONTROL button on the remote control of the Soundbar for 30 seconds to turn Bluetooth On/Off.

Connecting via Wi-Fi

Pre-connection Checklist

• Wi-Fi connection is available only on Samsung TV.
• Check whether the wireless router (Wi-Fi) is turned on and the TV is connected to the router.
• The TV and Soundbar must be connected to the same wireless network (Wi-Fi).
• If your wireless router (Wi-Fi) uses a DFS channel, you will not be able to establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.
• Because the menus may differ depending on the year of manufacture, refer to your TV manual.

• To connect the TV to the Soundbar via Wi-Fi, connect the Soundbar to the wireless router first. See page 30, for details on how to establish a Wi-Fi connection.

• For more information about Wi-Fi connection to the Soundbar, see page 30, "Method 2. Connecting via Wi-Fi (Wireless Network)".

• Change the input source of the TV by using the Audio menu to Soundbar.

• Samsung TVs released in 2017 or later

Home (☑) → Menu → Settings (☑) → All Settings (☑) → Sound → Sound Output → S-Series Soundbar (Wi-Fi)

NOTE

- Precaution: The Soundbar will restart automatically if you turn on/turn off Wi-Fi.

- Wi-Fi Port deactivation method : Press the CH LEVEL button on the remote control of the Soundbar for 30 seconds to turn Wi-Fi On/Off.

Connecting to a TV that supports Dolby Atmos®

Pre-connection Checklist

• Dolby Atmos® is supported in "TV ARC" or "eARC" or "Wi-Fi" mode.
• Make sure that the content supports Dolby Atmos®.

1. With the Soundbar and TV turned off, connect the HDMI cable as shown in the figure.
2. Turn on the Soundbar and TV.
3. TV sound is output from the Soundbar.

TV menu TV

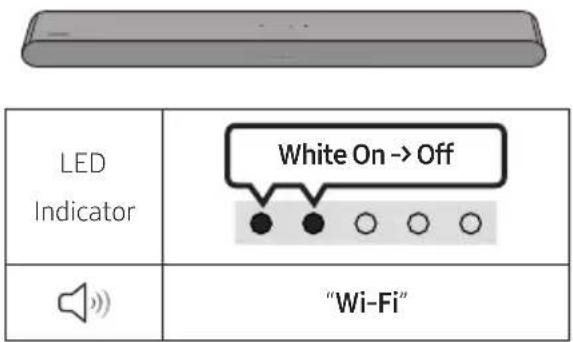

LED Indicator White On -> Off "Wi-Fi"

1. Connect the Soundbar and TV to the same wireless network (Wi-Fi).
2. For sound output of the TV, select Soundbar.
3. TV sound is output from the Soundbar.

NOTES

- Configuring Dolby Atmos® on a BD player or other device connected to the TV. Open the audio output options on the settings menu of your BD player or other device and make sure that "No Encoding" is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed).

- This function is available in some Samsung TVs and some Soundbar models.

Using the Q-Symphony Function

• When the Soundbar connects to a Samsung TV that supports the Q-Symphony function, you can play the sound simultaneously through the Soundbar and the TV. If you use the Q-Symphony function, the surround sound played on the TV allows you to enjoy a richer, more three-dimensional surround sound effect.
• When the Soundbar is connected, "Q-Symphony" menu appears on the TV.

Settings ( Ⓧ → All Settings ( ) ➕ Sound → Sound Output

• TV menu example: Q-Symphony

TV menu HDMI Cable OR Optical Cable (not supplied) LED Indicator White On -> Off "TV ARC" or "eARC" LED Indicator White On -> Off "Digital Audio In" TV menu Wi-Fi LED Indicator White On -> Off "Wi-Fi"

NOTES

• This function can be operated by the Codec supported by TV.
• This function is supported only when the HDMI Cable or Optical Cable (not supplied) or Wi-Fi is connected.
• The message displayed may differ with the TV model.
• Ensure that your TV and Soundbar are connected to the same wireless router/frequency.
• This function is available in some Samsung TVs and some Soundbar models.

Using the SpaceFit Sound

Provides optimized sound quality by analyzing the listening spaces.

Method 1. Connecting via Soundbar

To enable this function, turn on the SpaceFit Sound mode with the remote control of the Soundbar.

( ⚙️ (Sound Control) → "SpaceFit Sound Off" → ▲ (Up) → "SpaceFit Sound On")

• This is available in all Sound modes.

Method 2. Connecting via TV

To enable this function, turn on the Adaptive Sound+ mode on your Samsung TV menu.

(Home (💡) → Menu → Settings (💡) → All Settings (💡) → General → Intelligent Mode Settings → Adaptive Sound+)

- The sound mode on your Soundbar will automatically change to Adaptive Sound+ if you enable the Adaptive Sound+ mode on your TV.

NOTE

- This function works when the Soundbar connects to some of the Samsung TVs.

06 CONNECTING AN EXTERNAL DEVICE

Connecting using an Optical Cable

LED Indicator White On -> Off "Digital Audio In"

1. With the external device and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar and the OPTICAL output port on the external device with the optical cable (not supplied), as shown in the figure.
2. Turn on the Soundbar and external device.
3. Press the ⬆ (Multi Function) button at the top of the Soundbar or the ➞ (Source) button on the remote control and then select the "Digital Audio In" mode. Then the announcement, "Digital Audio In" is output.
4. The external device sound is output from the Soundbar.

07 CONNECTING A MOBILE DEVICE

Method 1. Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cable.

- When you connect a paired Bluetooth device with the Soundbar off, the Soundbar automatically turns on.

mobile device

The initial connection

- When connecting to a new Bluetooth device, make sure the device is within 1 m distance.

1.

Bluetooth Pairing button LED Indicator
OR When in "Bluetooth" mode	Red → Green → Blue Blinks ○○●○○○ Pairing → Cyan Blinks X3 ○○●○○○ Connection is complete • Until pairing is complete, the Multicolour LED changes as Red → Green → Blue in turn.
	“Ready to connect via Bluetooth.”

1. On your device, select "S-Series Soundbar" from the list that appears.
2. Play music files from the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If you have an existing Soundbar (e.g., S-Series Soundbar) on the list of speakers on the Mobile device, delete it.
• Then repeat steps 1 and 2.

Notes on Bluetooth connection

• Locate a new device within 1 m to connect via Bluetooth communication.
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• When connecting the Soundbar to a Bluetooth device, place them as close to each other as possible.
• The farther the Soundbar and Bluetooth device are from each other, the lower the sound quality will become.

The Bluetooth connection may break when the devices are out of the effective range.

• The Bluetooth connection may not function as intended in areas with poor reception.
• A Bluetooth device may experience noise or malfunction under in the following conditions:

- When the body is in contact with the signal transceiver on the Bluetooth device or Soundbar

- In corners or when there is an obstacle in proximity, such as a wall or partition, where electrical changes may occur.

• When exposed to radio interferences by other products operating on the same frequency ranges, such as medical equipment, microwave ovens, and wireless LAN devices.

• Obstacles such as doors and walls may still impact the sound quality even when the devices are within the effective range.

• Note that your Soundbar cannot be paired with other Bluetooth devices while using the Bluetooth option.

• This wireless device may cause electrical interference during operation.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
- If the Soundbar is disconnected from the Bluetooth device, the multicolour LED indicator on the Soundbar blinks "Red" three times.

Disconnecting the Soundbar from the Bluetooth device

Press the ⬆ (Multi Function) button at the top of the Soundbar or the ➞ (Source) button on the remote control to select the mode other than "Bluetooth".

- Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)

Method 2. Connecting via Wi-Fi (Wireless Network)

To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required.

The initial connection

1. Install and launch the SmartThings app from your mobile device (smartphone or tablet).
2. On the app, follow the screen instructions to add the Soundbar.

- The automatic pop-up (the second screenshot below) may not show on some devices. If the pop-up window does not appear, press “+” on the Home screen. The Soundbar is added to the app.

• The illustration below may differ according to the app version.

To change your Wi-Fi connection

1. Launch the SmartThings app from your mobile device (smartphone or tablet).
2. On the app, delete the registered Soundbar, and then add it again.

Using Group Play

• To benefit from this feature, add your Soundbar to the SmartThings app.
• To enable this, connect at least two audio devices to the same Wi-Fi network at 5 GHz.
• This is available on Samsung Sound devices that support Wi-Fi released year 2024 or later.
  • This feature does not support TV sound.

Configuring Group Play

1. Run the SmartThings app on your mobile device.

2. Add the Soundbar in the SmartThings app according to the instructions in the "Method 2. Connecting via Wi-Fi (Wireless Network)" → "Steps 2 (Device registration)" section.

3. Tap the Soundbar's card.

4. On your mobile device, tap Create Group under the audio device icon.

5. Create Group button appears only when Soundbar is in Wi-Fi mode.

6. If the Soundbar is playing the TV sound, the connection to the TV is disconnected when creating a group.

7. Enable Group Play.

8. Select a desired device in the list, and tap Apply.

9. You can add a maximum of 4 devices.

10. With Group Play, the audio will be output through the host device alone.
11. When a device connected to the host device switches to a different source, the device will be deleted from the group automatically.
12. When the host device is connected to a TV, the generated group will be deleted automatically.

Disabling Group Play

1. Tap the audio device's card.
2. On your mobile device, tap Edit Group under the audio device icon.
3. Disable Group Play.

- To disable an individual device, uncheck the device from the list and tap Apply.

Connecting via Apple AirPlay

• This feature may not be available in some countries.
• This Samsung Soundbar supports AirPlay and requires iOS 13.4 or later.
• To enable AirPlay in your Soundbar, you must first register the device with the Samsung SmartThings app by agreeing with the app's terms and conditions.
• Make sure the Soundbar is powered on and connected to the same Wi-Fi network as your Apple device.

With AirPlay, you can stream music, podcasts, and other audio from your Apple devices to the Samsung Soundbar.

• Select from an AirPlay-supported app or Control Centre on your iPhone, iPad, or Mac.
• Select the Soundbar from the list of available devices to play the current audio to.

Using the Tap Sound

Tap the Soundbar with your mobile device to play audio from the mobile device through the Soundbar.

• This function may not be supported depending on the mobile device.
• This function is only compatible with Samsung mobile devices with Android 8.1 or later.

1. Turn on the Tap Sound function on your mobile device.

2. For details on how to turn on the function, refer to "Enable the Tap Sound function" below.

3. Tap the Soundbar with the mobile device. Select "Start now" in the displayed message window. A connection is established between the mobile device and Soundbar via Bluetooth.

4. Play audio from the mobile device through the Soundbar.

5. This function connects a mobile device to the Soundbar via Bluetooth by detecting vibration that occurs when the device touches the Soundbar.

6. Make sure the mobile device does not tap a sharp corner of the Soundbar. The Soundbar or mobile device may become scratched or damaged.
7. It is recommended that the mobile device be covered with a case. Lightly tap the wide area in the upper portion of the Soundbar, without using excessive force.
8. To use this function, update the SmartThings app to the latest version. The function may not be supported, depending on the app version.

Enable the Tap Sound function

Use the SmartThings app to turn on the Tap View, Tap Sound function.

1. On the mobile device, run the SmartThings app.
2. Select (≡→_) in the SmartThings app screen displayed on the mobile device.
3. Set "Tap View, Tap Sound" to On to allow the function to work when a mobile device moves close to the Soundbar.

NOTES

• When the mobile device is in power-saving mode, the Tap Sound function does not work.
• The Tap Sound function may not work if there are devices near the Soundbar that cause radio interference such as electric devices. Make sure devices that may cause radio interference are placed at a sufficient distance away from the Soundbar.

08 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

- Diameter: M5

– Length: 35 mm or longer recommended.

- Connect cables from the unit to external devices before you install the Soundbar on the wall.

- Make sure the unit is turned off and unplugged from the power source before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

Holder-Screw Screw

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be leveled.

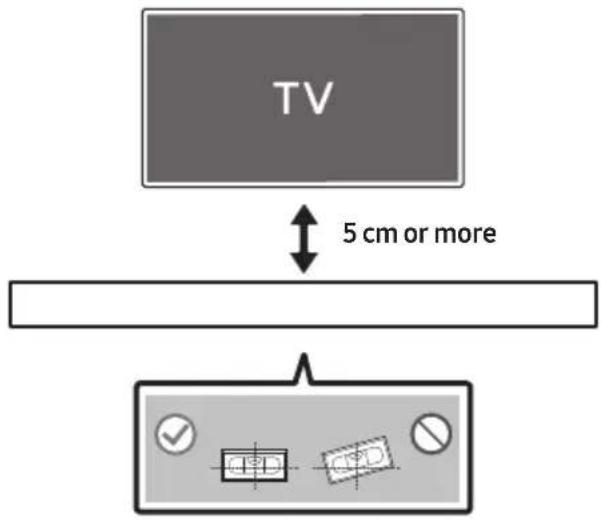

- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

TV 5 cm or more

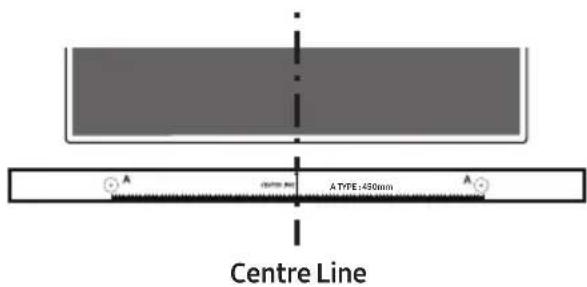

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

Centre Line A C A TYPE: 450mm A

1. Use a pen to mark the positions of the holes and remove the Wall Mount Guide.

A CSTRURE A TYPE: CSDmm A

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors into the holes before you insert the support screws. If you use anchors, make sure the holes you drill are large enough for the anchors you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

(Not supplied)

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

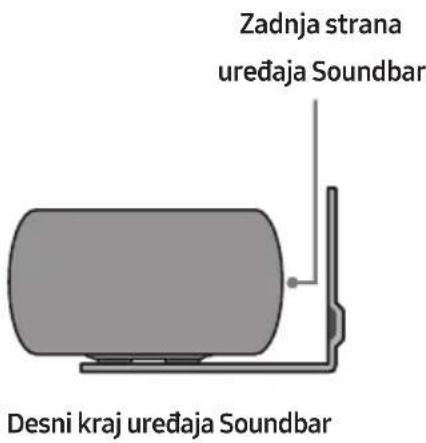

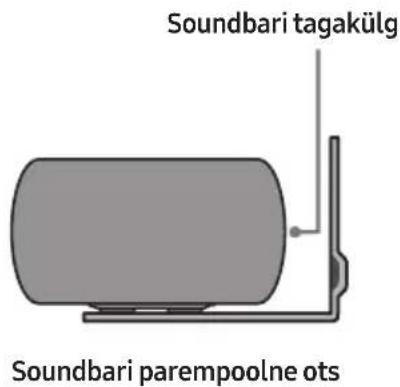

Rear of Soundbar

Right end of Soundbar

- The actual product may look different from the above image, depending on the model.

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

Diagram illustrating a mechanical assembly process with two stages of tool positioning and movement, showing close-ups of the component.

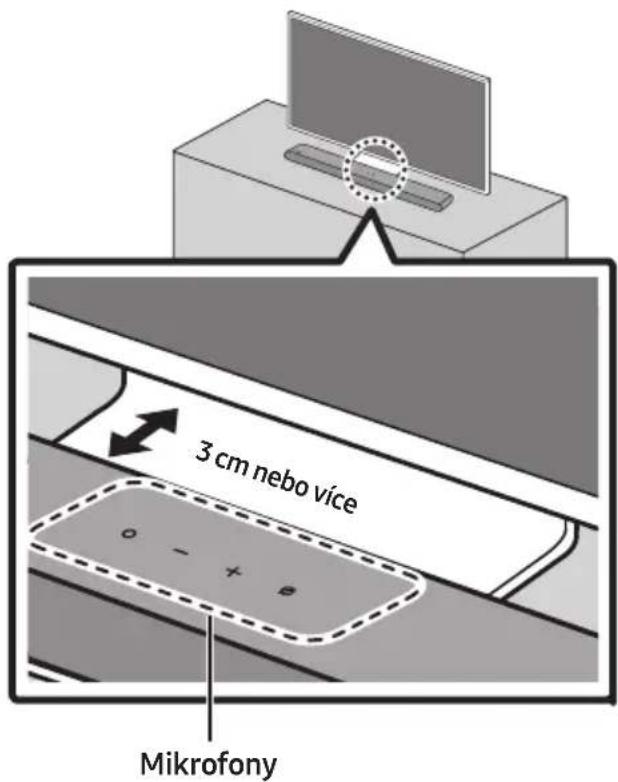

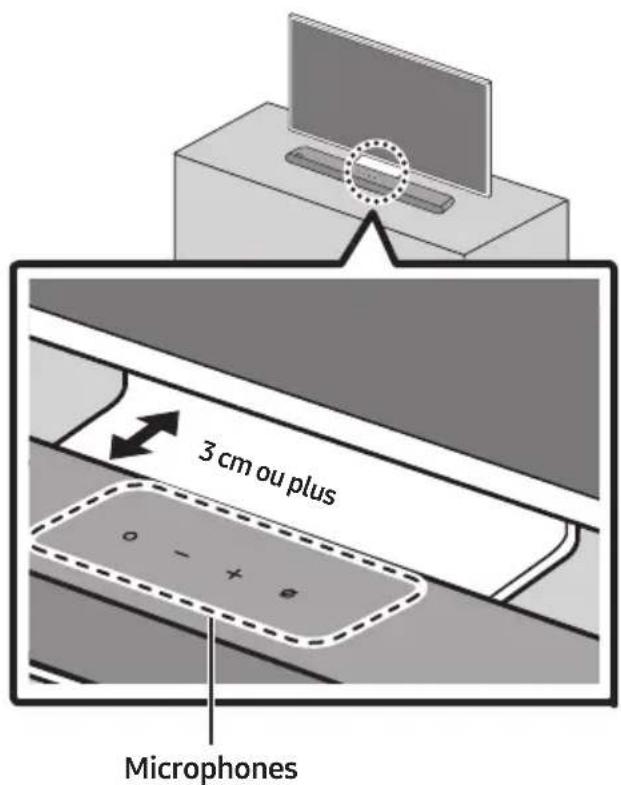

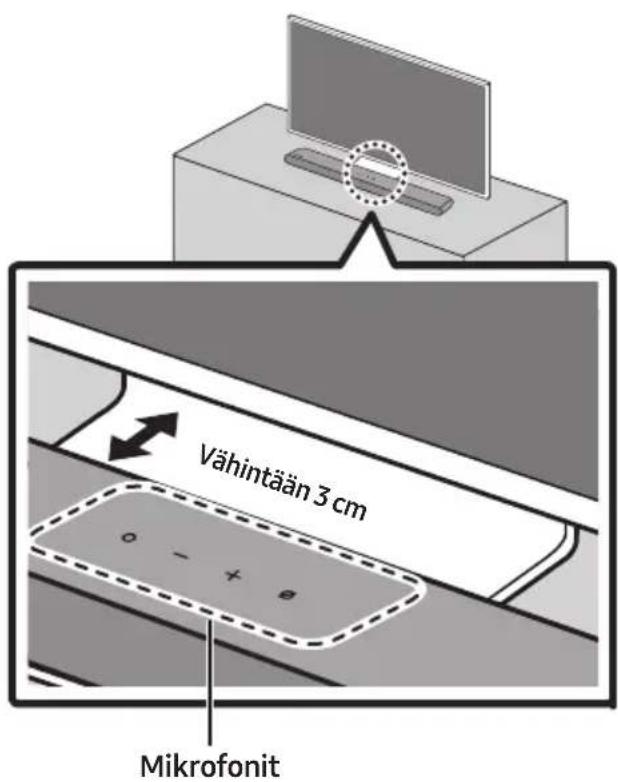

09 INSTALLING THE SOUNDBAR IN FRONT OF TV

3cm or more Microphones

Align the centre of the Soundbar to the centre of the TV as illustrated in the image.

At the same time, place the Soundbar at least 3cm away from the TV so that there is no interference with voice recognition.

NOTES

• Make sure the Soundbar is placed on a flat and solid surface.
• Insufficient gap between the TV and Soundbar may cause voice recognition and acoustic problems.

10 SOFTWARE UPDATE

Auto Update

When the Soundbar is connected to the Internet, software updates automatically occur even when the Soundbar is turned off.

- To use the Auto Update function, the Soundbar must be connected to the Internet. The Wi-Fi connection to the Soundbar will be terminated if the Soundbar's power cord is disconnected or the power is cut off. If the power is cut off, when the power comes back on or you reconnect the power cord, turn on the Soundbar, and then reconnect it to the Internet.

USB Update

Bottom of the Soundbar Micro USB to USB adapter Cable (not supplied)

Samsung may offer updates for the Soundbar's system firmware in the future.

When an update is available, you can update the Soundbar by connecting the USB drive that contains the update firmware to the SERVICE port of the Soundbar.

1. Go to (www.samsung.com) → search for the model name from the customer support menu option.

- For more information about update, refer to Upgrade Guide.

1. Download the upgrade file (USB type).
2. Unzip the file to create a folder with the file name.
3. Store the created folder in a USB and then connect it to the Soundbar.
4. Turn on the Soundbar. Then the product is updated within 3 minutes.

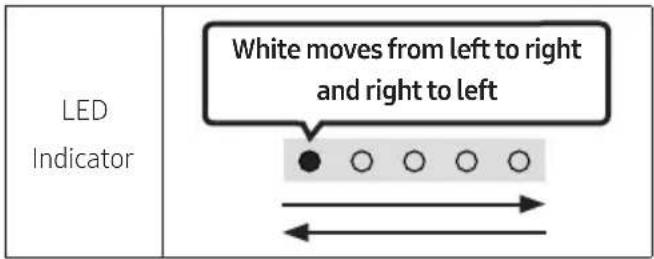

LED Indicator White moves from left to right and right to left

• During update, do not turn it off or remove the USB.
• If the yellow LED is on after the software update is completed, this means that an additional update is in progress. When this happens, don't turn off the power or remove the USB.
• If update does not proceed, reconnect the Soundbar power cord.
• When the latest version is installed, no update is performed.
• Depending on the USB type, update may not be supported.
• If there is no update file available

LED Indicator Red Blinks X3 ○ ○ ● ○ ○

- If the update file is for the same version or lower

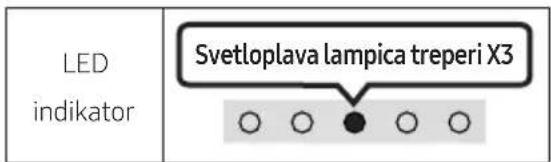

LED Indicator Cyan Blinks X3 ○ ○ ● ○ ○

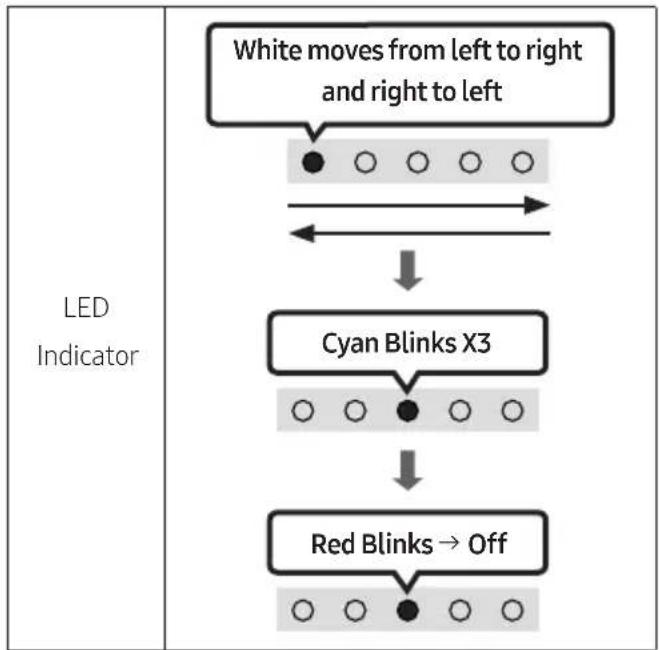

Reset

5 Sec - +

With the Soundbar on, press the - + (Volume) buttons on the body at the same time for at least 5 seconds. The LED display changes as shown below and then the Soundbar is reset.

CAUTION

- All the settings of the Soundbar are reset. Be sure to perform this only when a reset is required.

Security updates information

Security updates are provided to strengthen the security of your device and protect your personal information. For more information on security updates, visit https://security.samsungtv.com.

• The website supports only some languages.

11 TROUBLESHOOTING

Refer to the instructions below if this product does not function properly.

Soundbar does not turn on.

→Check whether the power cord of the Soundbar is correctly inserted into the outlet.

Soundbar works erratically.

→After removing the power cord, insert it again.
→Power cycle the external device and try again.
→If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power. (See page 8.)

Remote control does not work.

→Point the remote directly at the Soundbar.
→Replace the batteries with new ones.

The red LED indicator light on the soundbar stays on.

→The microphone is turned off. Turn on the microphone. (See page 6.)

The Soundbar does not output any sound.

→The volume of the Soundbar is too low or muted. Adjust the volume.
→When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device.
→For sound output of the TV, select Soundbar. (Samsung TV: Home ( →Menu → Settings ( →All Settings ( →Sound → Sound Output → Select Soundbar)
→The cable connection to the Soundbar may not be loose. Remove the cable and connect again.
→Remove the power cord completely, reconnect, and turn the power on.
→Reset the product and try again. (See page 38.)

If the TV is not connected via HDMI (eARC).

→Check whether the HDMI cable is correctly connected to the eARC terminal. (See page 16)
→Connection may not be possible due to the connected external device (set-top box, game console, etc.). Directly connect the Soundbar.
→HDMI-CEC may not be activated on the TV. Turn on the CEC on the TV menu. (Samsung TV: Home ( → Menu → Settings ( ) ⚙️ All Settings ( → Connection → External Device Manager → Anynet+ (HDMI-CEC) ON)

There is no sound in when connecting to the TV in HDMI (eARC) mode.

→Your device is unable to play the input signal. Change the TV's audio output to PCM or Dolby Digital.
(For a Samsung TV: Home ( → Menu →
Settings ( Ⓧ→ All Settings ( ) ➕ Sound
→ Expert Settings → Digital Output Audio Format)

The Soundbar will not connect via Bluetooth.

→When connecting a new device, switch to Bluetooth Pairing for connection. (Press the

*PAIR button on the remote control or press the ⏻ (Mic On/Off) button on the body for at least 5 seconds.)

→If the Soundbar is connected to another device, disconnect that device first to switch the device.

→Reconnect it after removing the Bluetooth speaker list on the device to connect.

(Samsung TV: Home (→Menu →

Settings ( Ⓧ→ All Settings ( ) ➕ Sound

→ Sound Output → Bluetooth Speaker List)

→Remove and reconnect the power plug, then try again.

→Reset the product and try again. (See page 38.)

The sound drops out when connected via Bluetooth.

→Some devices can cause radio interference if they are located too close to the Soundbar. e. g. microwaves, wireless routers, etc.

→If your device that is connected via Bluetooth moves too far away from the Soundbar, it may cause the sound to drop out. Move the device closer to the Soundbar.

→If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, the sound may drop out. Check the installation environment and conditions for use.

Unable to connect to Wi-Fi.

→Check whether your wireless router is on.
→Turn off the router, turn it back on, and then try again.
→The Soundbar will not connect if the wireless signal is too weak. Try moving the router closer to the Soundbar, or eliminating any obstacles that are between the Soundbar and the router, if possible.
→If your wireless router is new, you will need to reconfigure the speaker's network settings.
→Soundbar does not support Wi-Fi 6.

The Soundbar does not turn on automatically with the TV.

→When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV.

The AVA function is not available in the following cases.

→The AVA function will not be available using Q-Symphony function.
→The AVA function will not be available when the microphone is turned off.

After connecting the TV to the Soundbar, I switched the Soundbar mode. Then no sound is output from the TV.

→If you connect your Soundbar to a mobile device while the Soundbar is connected to the TV, the Soundbar outputs sound from the mobile device while keeping the TV connection. So the TV sound will not be delivered anywhere.
→Disconnect the mobile device, and the TV sound will be output from the Soundbar again.

The Soundbar does not appear in AirPlay.

→To enable AirPlay in your Soundbar, you must first register the device with the Samsung SmartThings app by agreeing with the app's terms and conditions. (See page 32.)
→AirPlay does not operate if you delete the Soundbar from the Samsung SmartThings app.
→Make sure that the Soundbar and the Apple device are connected to the same Wi-Fi network.
→The Soundbar is compatible with AirPlay installed on iOS 13.4 or later.

Group Play is not enabled.

→Check if the audio devices are newer models released year 2024 or later.
→Check if the host device is connected to a Wi-Fi network as source.
→Make sure that all audio devices are connected to the same Wi-Fi network (at 5 GHz).

12 LICENCE

Dolby

ATMOS

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

• Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how
• The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses.

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Open Source Licence Notice

Open Source used in this product can be found on the following webpage (http://opensource.samsung.com).

SOMMAIRE

Three grayscale product photos: a rectangular remote, a black remote control with two USB cable connectors, and a coiled cord (no text or symbols visible)

Three technical illustrations of mechanical components: a clamp, a curved pipe, and a rectangular control panel (no text or symbols)

02 VUE D'ENSEMBLE DU PRODUIT

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Indicateur à LED

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Connexion initiale

1.

Diagram showing a control panel with check and no buttons, featuring two labeled boxes with checkmarks.

A CWP-1.0mm A TYPE: 450mm A

Diagram of a device with a screw and adjustment knob, showing mechanical components (no text or symbols)

Diagram showing two stages of a mechanical assembly or motion, with arrows indicating direction and force vectors (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 INSTALLATION DE LA SOUNDBAR DEVANT LE TÉLÉVISEUR

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

roon TESTED

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Avis de Licence Libre

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

A A TYPE: 450mm A

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 INSTALLAZIONE DELLA SOUNDBAR DAVANTI ALLA TV

Almeno 3 cm Microfoni

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

IndicadorLED

LÍNEA central TYPE: 450mm

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a device's internal structure change, showing three stages with labeled components and directional arrows.

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Menu do television TV

Indicador LED Branco Ligado -> Desligado "Wi-Fi"

Linha central A TYPE: 450mm

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram showing a mechanical assembly before and after disassembly, with no visible text or symbols

09 INSTALAR O SOUNDBAR EM FRENTE AO TELEVISOR

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Aviso de Licença de Open Source

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Led-lampje

“Digital Audio In”

• Samsung-tv's van 2017 of later

Start (m) → Menu → Instellingen (☀) → Alle instellingen (☀) → Geluid → Geluidsuitvoer → S-Series Soundbar (Wi-Fi)

OPMERKINGEN

Led- lampje Wit Aan -> Uit "Wi-Fi"

(Geluidsregeling) → "SpaceFit Sound Off" → ▲ (Omhoog) → "SpaceFit Sound On")

CENTRALE Lijn A TYPE: 450mm

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two states of a mechanical assembly with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 DE SOUNDBAR INSTALLEREN VOOR DE TV

3 cm of meer Microfonen

11 PROBLEEMOPLOSSING

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

roon TESTED

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Kennisgeving Open Source-Licentie

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

LED-Anzeige

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical or structural assembly with arrows indicating direction (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 INSTALLIEREN DER SOUNDBAR VOR DEM FERNSEHER

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

INNEHÅLLSFÖRTECKNING

01 Kontrollera komponenterna 4

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

LED-indikator
	"SpaceFit Sound" → "Active Voice Amplifier" → "Voice enhancement" → "Night mode" → "Sync" → "Virtual"

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED-indikator

"Digital Audio In"

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

( ⚙ (Ljudkontroll) → "SpaceFit Sound Off" → ▲ ( Upp ) → "SpaceFit Sound On")

A GIFT LINE A TYPE: 450mm A

Diagram of a device with a screw and adjustment knob, showing mechanical assembly (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, one mounted on a beam and the other fixed on a beam (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 INSTALLERA SOUNDBAR FRAMFÖR TV:N

3 cm eller mer Mikrofoner

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Licensmeddelande för open source

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED-indikator

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

A GPT1000 A TYPE: 650mm A

Diagram of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 INSTALLERE SOUNDBAR FORAN TV-EN

3 cm eller mer Mikrofoner

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

- Bruk telefonen, nettbrettet eller datamaskinen som en fjernkontroll for Spotify. Gå til spotify.com/connect for å lære hvordan

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

roon TESTED

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

LED-merkkivalo
[ΥD6K]	“Adaptive Sound” → “DTS Virtual:X” → “Music” → “Game” → “Standard”

- Adaptive Sound

- DTS Virtual:X

- Music

- Game

- Standard

Diagram showing three stages of a mechanical component or assembly, with arrows indicating direction (no text or symbols present)

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Ensimmäinen yhteys

1.

A GRT1.26 A TYPE: 450mm A

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 SOUNDBAR- LAITTEEN ASENTAMINEN TELEVISION ETEEN

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a device's internal structure change, showing three stages with labeled components and directional arrows.

LED-indikator
	“SpaceFit Sound” → “Active Voice Amplifier” → “Voice enhancement” → “Night mode” → “Sync” → “Virtual”

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED-indikator

“Digital Audio In”

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

A GPT1.25 A TYPE: 60mm A A

Diagram of a handheld device with screw and button, showing mechanical components and rotation arrows (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 INSTALLATION

AF SOUNDBAR

FORAN TV

Mindst 3 cm

Mikrofoner

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

• Brug din telefon, tablet eller computer som fjernbetjening til Spotify. Gå til spotify.com/connect for at finde ud af, hvordan du gør
• Spotify-softwaren er underlagt tredjepartslicenser. Få mere at vide her: https://www.spotify.com/connect/third-party-licenses.

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Prima conectare

1.

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 INSTALAREA SISTEMULUI SOUNDBARÎN FAȚA TELEVIZORULUI

3 cm sau mai mult Microfoane

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Diagram showing a control panel with checkmark, radio buttons, and two labeled boxes (UNIT and CFD) on a gray background.

A A TYPE: 600mm A

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 ИНСТАЛИРАНЕ НА SOUNDBAR ПРЕД ТЕЛЕВИЗОР

3 cm или повече Микрофони

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

roon TESTED

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Obstuga pilota

1 2 PAIR 7 8 9 3 i 10 SOUND MODE 11 4 + - WOOFER 12 5 CH LEVEL TONE CONTROL 13 6 SOUNDBAR

1

Zasilanie

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Diagram showing a control panel with checkmark, radio button, and two labeled buttons below

A TYPE 450mm A A

Diagram of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two stages of a mechanical assembly or motion, with arrows indicating direction and force vectors (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 INSTALACJA LISTY SOUNDBAR PRZED TELEWIZOREM

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Diagram showing a control panel with checkmark, input box, and output button symbols

Osa TYPE: 450mm

diameter length

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 INSTALACE ZAŘÍZENÍ SOUNDBAR PŘED TELEVIZOREM

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.
    Optickýkabel["nie je súčastou dodávky"]

IndikátorLED

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Prvotné pripojenie

1.

A GPT1.25 A TYPE: 600mm A

1. Pomocou vrtáka vhodnej vel'kosti vyvítajte otvor do steny v mieste jednotlivých značiek.

Mechanical component diagram showing a screw being inserted into a housing with a button, no text or symbols present

Diagram showing two stages of a mechanical assembly or motion, with arrows indicating direction and force vectors (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 MONTÁŽ ZARIADENIA SOUNDBAR NA PREDNÚ ČASŤ TELEVÍZORA

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Pure electrical circuit lines without any symbols

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 A SOUNDBAR TELEPÍTÉSE A TV ELÓTT

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Gore/Dolje/Lijevo/Desno

i (Informacije)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LEDindikator

„Digital Audio In“

1. Kad su televizor i Soundbar isključeni, povežite ulaz DIGITAL AUDIO IN (OPTICAL) na sustavu Soundbar i izlazni priključak OPTICAL na televizoru s pomoću optičkog kabela (nije priložen), kao što je prikazano na slici.
2. Uključite Soundbar i televizor.
3. Pritisnite gumb ⚙ (Višenamjenski) na vrhu Soundbar sustava ili gumb ➞ (Izvor) na daljinskom upravljaču i zatim odaberite način rada „Digital Audio In”. Zatim se reproducira obavijest „Digital Audio In”.
4. Zvuk televizora se čuje iz Soundbar sustava.

Povezivanje putem Bluetooth veze

Kad je Samsung TV povezan putem Bluetooth veze, možete čuti stereo zvuk bez prethodnog mučenja s kabelima.

• Istodobno se može spojiti samo jedan Samsung TV.
• Može se povezati Samsung TV koji podržava Bluetooth. Provjerite specifikacije svojeg televizora.

Illustration of a flat-screen TV with wireless signal icons above (no text or symbols on screen)

Početno povezivanje

1.

Gumb za uparivanje Bluetooth uređaja	LED indikator
ILIKad je u načinu rada„Bluetooth”	UparivanjeDok se uparivanje ne završi, višebojna LED lampica naizmjenice se mijenja uCrveno → Zeleno → Plavo.	Povezivanje je završeno
	„Ready to connect via Bluetooth.”

1. Odaberite način rada Bluetooth na Samsung TV-u.

(Npr. Početna (☐) → Izbornik → Postavke (☒) → Sve postavke (☒) → Zvuk → Izlaz zvuka → Popis Bluetooth zvučnika → S-Series Soundbar (Bluetooth))

1. Odaberite „S-Series Soundbar“ s popisa na zaslonu televizora.

Dostupni sustav Soundbar označen je s „Potrebno je uparivanje” ili „Upareno je” na popisu Bluetooth uređaja televizora. Za povezivanje Samsung TV-a sa sustavom Soundbar odaberite poruku i uspostavite vezu.

1. Sada možete čuti zvuk sa Samsung TV-a na sustavu Soundbar.

- Ako postoji zapisnik povezivanja između Soundbar sustava i Samsung televizora, Soundbar sustav automatski se povezuje mijenjanjem načina rada „Bluetooth.”

Diagram showing a device with labeled components and a tool, likely illustrating a mechanical or electrical setup.

Diagram of a device with a screw and adjustment knob, showing mechanical components (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 POSTAVLJANJE SOUNDBAR SUSTAVAISPRED TELEVIZORA

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

• Koristite telefon, tablet ili računalo kao daljinski upravljač za Spotify. Idite na spotify.com/ connect da biste saznali kako
• Spotifyev softver podložan je licencijama trećih strana koje možete pronaći ovdje: https://www.spotify.com/connect/third-party-licenses.

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

2 4 3 Gornji panel 1

1	LED indikator	LED indikator treperi, svetli ili menja boju u zavisnosti od trenutnog režima ili statusa Soundbar uređaja. Boja LED indikatora i broj lampica ukazuju na režim koji je aktivan, kao što je opisano u nastavku.
		Bela LEDlampica	Bela LEDlampica	Višebojna LEDlampica	Bela LEDlampica	Bela LEDlampica
		• U zavisnosti od režima ili statusa, višebojna LED lampica menja sledeće boje: Bela, Svetloplava, Zelena, Crvena i Plava.
2	Multifunkcionalno dugme	• U režimu pripravnosti, pritisnite dugme (Multifunkcionalno) da biste uključili Soundbar zvučnik.• Pritisnite dugme (Multifunkcionalno) da biste promenili režim. Svaki put kada promenite režim, LED lampica zasvetli u beloj boji, a zatim se isključi.
		LED indikator
			„TV ARC“ ili „eARC“		„Wi-Fi“
		LED indikator
			„Bluetooth“ „Digital Audio In“

3	Dugme jačina zvuka	Pritisnite dugme (jačina zvuka) da biste podesili jačinu zvuka.
4	Dugme za uključivanje/isključivanje mikrofona	Pritisnite dugme ∅ (Uključivanje/isključivanje mikrofona) da biste uključili ili isključili mikrofon. Kada se mikrofon isključi, LED indikator svetleće u crvenoj boji.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Kako se koristi daljinski upravljač

1 2 PAIR 7 8 9 3 i 10 4 + - WOOFER 11 12 5 CH LEVEL TONE CONTROL 13 6 SOUNDBAR

1

Napajanje

- The function turns off when the power turns off or the Surround Speakers connection is lost.

– The menu is activated only when the Surround Speakers are connected.
- This mode is automatically turned off and becomes unavailable when the Q-Symphony function turns on.

- Ako video na TV-u i zvuk sa zvučnika Soundbar nisu sinhronizovani, izaberite Sync u opciji Kontrola zvuka, a zatim postavite odlaganje zvuka između 0\~300 milisekundi pomoću dugmadi Nagore/Nadole.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED indikator Bela lampica uključeno -> isključeno „Digital Audio In“

1. Kada su TV i Soundbar isključeni, optičkim kablom (ne isporučuje se) povežite DIGITAL AUDIO IN (OPTICAL) port Soundbar-a i OPTICAL izlazni port TV-a, na način prikazan na slici.
2. Uključite Soundbar i TV.
3. Na vrhu Soundbar uređaja pritisnite dugme ⚙ (Multifunkcionalno) ili dugme 📄 (Izvor), a zatim izaberite režim „Digital Audio In“. Tada će se čuti najava, „Digital Audio In“.
4. Soundbar uređaj emituje zvuk sa televizora.

Povezivanje putem Bluetooth veze

Kada se Samsung TV poveže putem Bluetooth veze, možete dobiti stereo zvuk bez petljanja sa kablovima.

• Istovremeno može biti povezan samo jedan Samsung TV.
• Može se povezati Samsung TV koji podržava Bluetooth povezivanje. Proverite specifikacije svog TV-a.

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Početno povezivanje

1.

Dugme za uparivanje pomoćuBluetooth veze	LED indikator
ILIKada je u „Bluetooth“ režimu	Uparivanje• Dok se uparivanje ne završi, višebojna LED lampica naizmenično menja boje: Crvena → Zelena → Plava	Povezivanje za završeno
	[BCG2] „Ready to connect via Bluetooth.“

1. Na Samsung TV-u izaberite režim Bluetooth.

(npr. Početna (☐) → Meni → Podešavanja (☐) → Sva podešavanja (☐) → Zvuk → Izlaz zvuka → Lista Bluetooth zvučnika → S-Series Soundbar (Bluetooth))

1. Izaberite „S-Series Soundbar“ sa liste na ekranu TV-a.

Dostupan Soundbar je označen sa „Uparivanje neophodno“ ili „Upareno“ na listi Bluetooth uređaja TV-a. Da biste povezali Samsung TV i Soundbar, izaberite poruku, pa zatim uspostavite vezu.

1. Sada sa Soundbar-a možete da čujete zvuk Samsung TV-a.

mobile device

Početno povezivanje

- Prilikom povezivanja sa novim Bluetooth uređajem, uverite se da je uređaj udaljen najviše 1 m.

1.

Dugme za uparivanje pomoćuBluetooth veze	LED indikator
ILIKada je u „Bluetooth“ režimu	Uparivanje• Dok se uparivanje ne završi, višebojna LED lampica naizmeničnomenja boje:Crvena → Zelena → Plava	Povezivanje za završeno
	„Ready to connect via Bluetooth.“

1. Na vašem uređaju izaberite „S-Series Soundbar“ sa prikazane liste.
2. Reprodukujte muzičke datoteke sa uređaja koji je povezan Bluetooth konekcijom preko uređaja Soundbar.

Osa A CUTTER RED A TYPE: 450mm A

A GPT1000 A TYPE: 650mm A

Diagram showing a screw being inserted into a device with a button, no text or symbols present

- Prilikom sklapanja noseći delovi Nosač za montažu na zid treba da se nalaze sa zadnje strane uređaja Soundbar.

Zadnja strana uređaja Soundbar Desni kraj uređaja Soundbar

- Stvarni proizvod može izgledati drugačije od gornje slike, u zavisnosti od modela.

1. Postavite uređaj Soundbar sa pričvršćenim Nosač za montažu na zid tako što ćete okačiti Nosač za montažu na zid na Zavrtanj držača na zidu.

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 POSTAVLJANJE UREĐAJA SOUNDBAR ISPRED TELEVIZORA

LED indikator Crvena lampica treperi X3 ○ ○ ● ○ ○

- Ako je datoteka za ažuriranje za istu verziju ili stariju

LED indikator Svetloplava lampica treperi X3

Resetovanje

5 Sec - +

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

• Koristite telefon, tablet ili računar kao daljinski upravljač za Spotify. Idite na spotify.com/connect da biste saznali kako
• Spotify softver podleže licencama treće strane koje se nalaze ovde: https://www.spotify.com/connect/third-party-licenses.

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Lučka kazalnika LED

A CSP1000 A TYPE: CSDmm A

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two stages of a mechanical assembly with arrows indicating motion direction (no text or symbols)

1. Zvočnik Soundbar potisnite navzdol, kot je prikazano spodaj, da Stenska nosilca varno namestite na Vijake nosilca.

- Vstavite Vijake nosilca v široki (spodnji) del Stenskih nosilcev in nato potisnite Stenska nosilca navzdol, da Stenska nosilca varno namestite na Vijake nosilca.

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 NAMESTITEV ZVOČNIKA SOUNDBAR PRED TELEVIZOR

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

• Uporabi telefon, tablico ali računalnik kot daljinski upravljalnik za Spotify. Obišči spotify.com/connect in izvedi več.
• Za programsko opremo Spotify veljajo licence drugih ponudnikov: https://www.spotify.com/connect/third-party-licenses.

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Diagram showing three stages of a mechanical component or assembly, with arrows indicating direction (no text or symbols present)

A A TYPE 450mm A

Diagram of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two states of a mechanical or structural assembly with arrows indicating motion direction (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

02 PRODUKTA PÄRSKATS

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Gaismas diožu indikators
	"SpaceFit Sound" → "Active Voice Amplifier" → "Voice enhancement" → "Night mode" → "Sync" → "Virtual"

"Off-TV Remote" (noklusējuma režīms), "Samsung-TV Remote", "All-TV Remote".

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Gaismas diožu indikators

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Diagram of a mechanical device with screw and adjustment knob, showing no text or symbols

Diagram showing two states of a mechanical or structural assembly with arrows indicating motion direction (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or transformation.

09 SISTEMAS SOUNDBAR UZSTADISHANA TELEVIZORA PRIEKŠA

3 cm vai vairāk Mikrofoni

11 PROBLÉMU NOVĚRŠANA

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

• Izmanto tālruni, planšetdatoru vai datoru kā Spotify tālvadības pulti. Apmeklē vietni spotify.com/ connect un uzzini, kā
• Uz Spotify programmatūru attiecas trešo pušu licences, kas atrodamas šeit: https://www.spotify.com/connect/third-party-licenses.

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED-näidik

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Esmane ühendus

1.

A GPT1.26 A TYPE: 50mm A

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

- Kokkupanekul veenduge, et Seinakinnituskronstein riputusosad jääksid Soundbari taha.

Soundbari tagakülg Soundbari parempoolne ots

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Libistage Soundbari alla, nagu on allpool näidatud, nii et Seinakinnituskronstein toetuksid Hoidikkruvi.

- Sisestage Hoidikkruvi Seinakinnituskronstein laia (alumisse) ossa ja seejärel libistage Seinakinnituskronstein allapoole, nii et Seinakinnituskronstein toetuksid kindlalt Hoidikkruvi.

Diagram illustrating a mechanical assembly process with two stages of tool positioning and alignment, showing component placement before and after assembly.

09 SOUNDBARI PAIGALDAMINE TELERI ETTE

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Šviesos diodo indikatorius

„Digital Audio In“

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

„Wi-Fi“ ryšio keitimas

A GPT1000 A TYPE: CS2mm A

Diagram of a device with a screw and adjustment knob, showing mechanical assembly (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion direction (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

09 „SOUNDBAR“ STATYMAS PRIEŠAIS TELEVIZORIŲ

3cm arba daugiau Mikrofonai

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, Digital Surround, Virtual:X, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Spotify®

Works with Apple AirPlay

Apple, AirPlay, iPad, iPhone, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Being Roon Tested means that Samsung and Roon have collaborated to ensure you have the best experience using Roon software and Samsung equipment together, so you can just enjoy the music.
