USER MANUAL ION Ceramic Compact Create

Line drawing of a handheld device with circular grille and handle (no text or symbols)

FAR INFRARED HAIR CARING DRYER

Security instructions 6

Installation and assembly 8

Instructions for use 8

Before first use 8

How to use the hair dryer 8

Mounting 8

Disassembly 8

Cleaning and maintenance 9

Problem resolution 10

PORTUGUÊS

Lista de peças 16

Thank you for choosing our hair dryer. Before using the appliance, read these instructions carefully for its correct use.

Properly following these safety instructions will reduce the risk of death, injury, and electric shock. Please keep this manual in a safe place for future reference, along with the completed product warranty card, original product packaging and proof of purchase. If possible, pass these instructions on to the next owner of the appliance. Follow basic safety precautions and accident prevention rules at all times when using an appliance. We decline all liability arising from non-compliance with these instructions by customers.

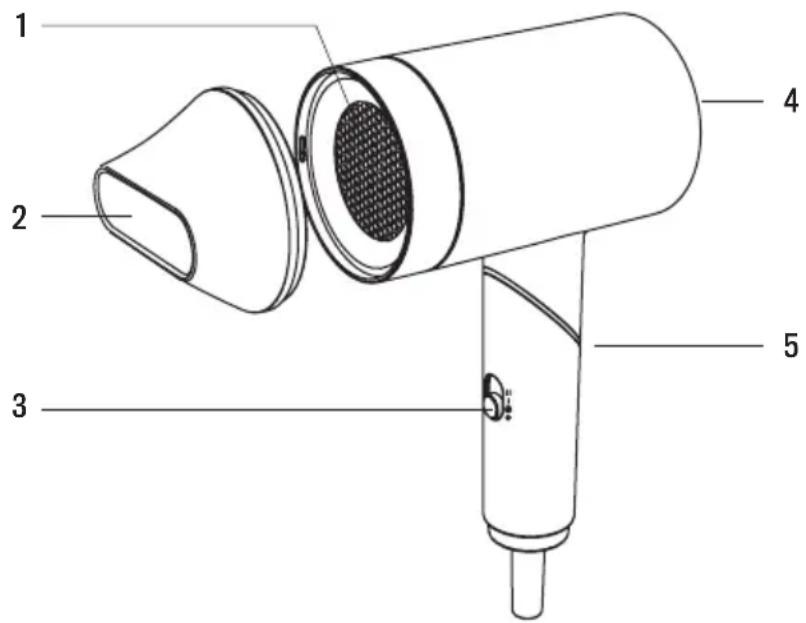

PARTS LIST

1. Bioceramic element
2. Concentrator nozzle
3. Options button
4. Air intake
5. Folding handle

1 2 3 4 5

SECURITY INSTRUCTIONS

When using this appliance, basic safety measures should be followed at all times:

• Prevent hair from getting caught in the rear air intake when blow drying.
• Do not lay the dryer down anywhere when it is on.
• Do not pull, bend, drag or twist the cable. Do not place heavy objects on the cable or try to modify it.
• Use only the voltage indicated in the product specifications.
• To unplug, pull on the plug and not on the cord. If you unplug the appliance by pulling on the cord, you will damage it.
  • The mouthpiece gets very hot during and after use. Do not touch it.

• Do not store the dryer in the bathroom or in humid rooms.

• Unplug the dryer when you are not using it.

• Do not block the nozzle or air intake with your hair or hand during use.
• Do not use the dryer continuously for more than 15 minutes.
• If the nozzle is blocked or there is dust in the air intake, it will overheat and the dryer will automatically turn off. Wait for the appliance to cool down, remove the air intake grille and clean the inside before using the dryer.
• If anything strange happens while using the dryer, turn it off immediately and unplug it. Please contact after-sales service and do not try to repair it yourself.
• Do not use the dryer to dry clothes.
• If ash appears on the rear air intake, carefully clean the dust from the grille.
• Put the air intake grille back in place before using the dryer again.
• If you notice that the cord is especially hot during use or after using the dryer, immediately turn it off and unplug it. Please contact after-sales service and do not try to repair it yourself.
• If the handle is bent too many times, it may break. Handle it with care.

CAUTION

• Avoid falls and blows from the hair dryer.
• There are no serviceable parts inside. Do not try to repair or modify the appliance yourself; contact after-sales service.
• Do not use the dryer if the cord or plug is damaged, or if the plug does not fit properly into the outlet.
• This appliance should not be used by children, keep it out of their reach.
• Do not use near flammable substances (such as gasoline, kerosene, thinner, etc.).
• Do not block the front and rear air intakes or allow foreign objects to be sucked into the dryer.
• Never immerse the cord, plug or the main body of the dryer in water or other liquids. If the dryer accidentally falls into water, immediately unplug it from the electrical outlet and have it checked by an expert before reconnecting it. Failure to do so may result in fire, electric shock, injury, and even death. Do not use the hair dryer with wet hands or in damp places, such as the bathroom.
• Power off and unplug after use.

MOUNTING DISASSEMBLY

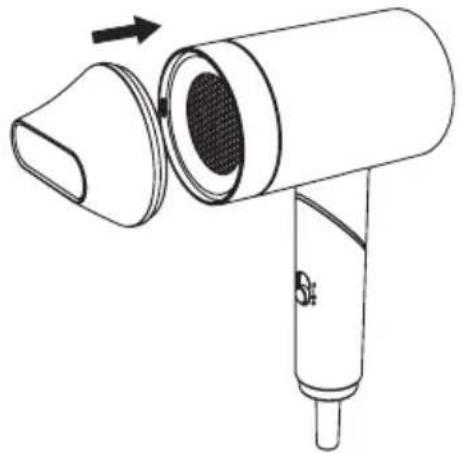

Put the concentrator nozzle and air outlet in a straight line and press the concentrator nozzle to fit with the air outlet.

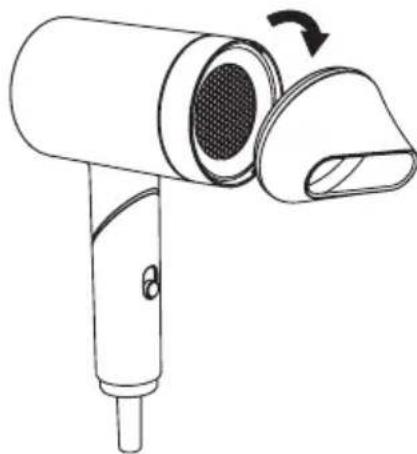

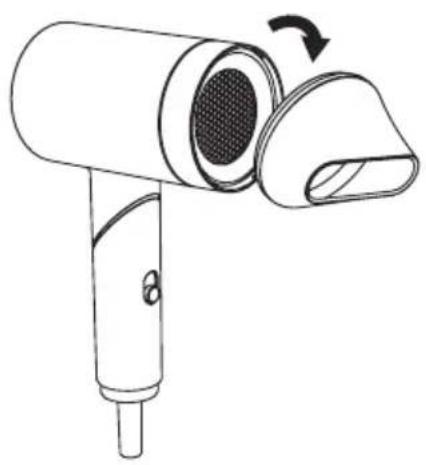

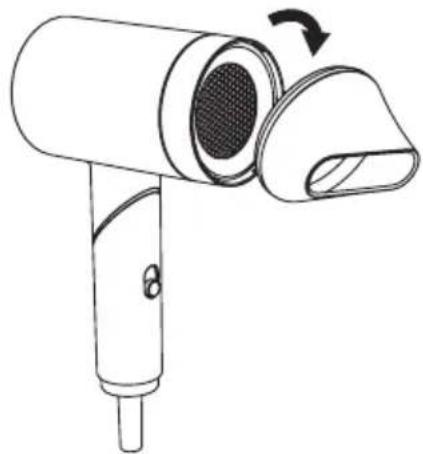

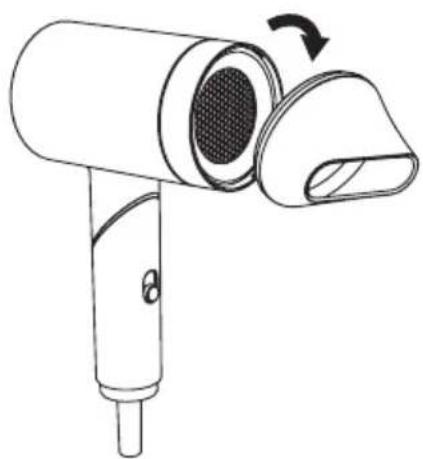

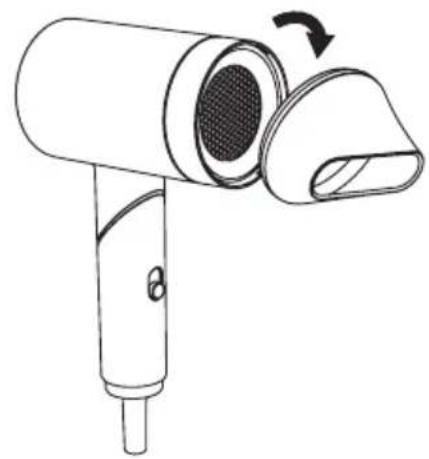

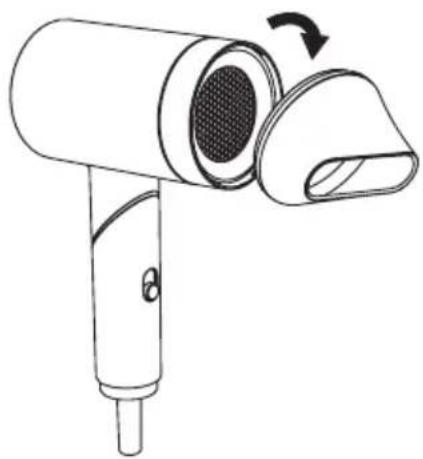

Grasp the nozzle of the concentrator and gently pull it to remove it from the dryer.

Diagram of a handheld device with a conical lid and a tube, showing internal components and airflow direction (no text or symbols)

Line drawing of a hair dryer with a curved arrow indicating rotation (no text or symbols)

INSTRUCTIONS FOR USE

BEFORE FIRST USE

• Before use, check that the mains voltage is suitable for the hair dryer.
• Do not cover the air inlet or outlet during operation as this may cause fire or mechanical damage to the appliance.
• Never use the dryer near cloth, paper or other combustible materials as this could cause a fire.
• Do not let children play with or touch the dryer when it has been used and may still be hot.
• Avoid subjecting the hair dryer to prolonged use or hitting it.
  • After use, turn it off and unplug the power cord.
• Do not store it in a humid area, such as a bathroom or toilet.
• The dryer is equipped with an overheat protection function so that it automatically shuts off if it gets too hot. Unplug it and let it cool down for a few minutes.
• Before turning it on again, check that the air intake and nozzle are not blocked by hair or other objects. Plug it in and set the switch to the position you want. Gently press the top button several times to cycle through the three available settings.

HOW TO USE THE HAIR DRYER

• After washing your hair, connect the power cable to the mains.
- Turn on the hair dryer by pressing the bottom switch on the handle. Choose from the different switch options:

Cold

Temperature slightly higher than room temperature, suitable for styling hair.

Adjustment I

An optimal and comfortable temperature to prevent overheating of the hair, suitable for styling and drying the hair slowly.

AdjustmentII

The highest temperature, to dry the hair quickly without damaging it.

To turn off

Option to turn off the dryer, always leave it in this position before unplugging it from the mains.

• Once you have finished using the hair dryer, turn it off again by pressing the off button to the off position and unplug the power cord. Do not pull the cord directly to unplug the hair dryer.
• The dryer incorporates the functions of far infrared rays and negative ions.
• This product generates low electromagnetic emissions and is suitable for vulnerable people, such as pregnant women and children.
• The bio-ceramic heating element produces far-infrared radiation to dry hair quickly without damaging it.
• The integrated emitter of negative ions prevents excessive drying of the hair. The dryer generates negative ions on all settings.

CLEANING AND MAINTENANCE

- Do not use volatile materials such as thinner, benzene or alcohol to clean the hair dryer to avoid discoloration, corrosion or breakdown.

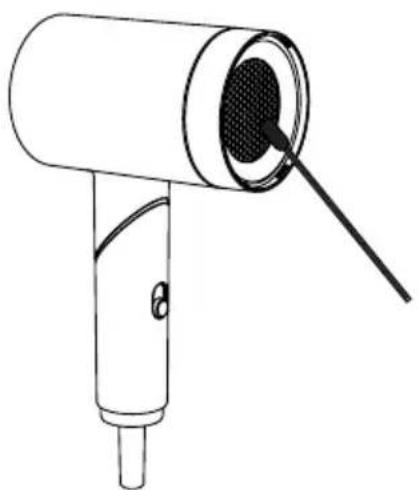

1. Unplug the dryer when you go to clean it and remove the nozzle. Use a cotton swab to clean the air outlet and apply a dry cloth.

2. Make sure the product is not plugged in when cleaning the rear air intake. Use a cotton swab to clean dust and hair from the air intake. Clean the product with a dry cloth.

Line drawing of a handheld hair dryer with a pointed tip and cable inserted (no text or symbols)

Line drawing of a handheld air conditioner with a circular fan and handle (no text or symbols)

TROUBLE CAUSE SOLUTION

It doesn't work when you turn it on.	Check that the dryer is plugged in.	Plug it in.
	The cable is damaged or the temperature control switch does not work.	Contact the customer service department.
Stop working sometimes.	Check that the dryer is plugged in correctly.	Plug it in correctly.
	Poor contact between cable and switch.	Contact the customer service department.
The dryer body is especially hot.	Check for hair or other debris in the air intake.	Clean the air intake frequently and keep it clean and unobstructed.
	The motor speed is very low and the internal resistance is red.	Stop using the dryer immediately and contact customer service.
The cord or plug is especially hot.	The cable is damaged.	Contact the customer service department.
	Poor contact between cable and switch.	Try plugging it into a different outlet.
The motor does not work well when it is started.	The motor carbon brush is worn or the motor is damaged and the resistor is broken.	Stop using the dryer immediately and contact customer service.
No hot air coming out.	The resistor or the switch is broken.	Stop using the dryer immediately and contact customer service.
Dryer rattles when shaken.	Internal components are broken or damaged.	Stop using the dryer immediately and contact customer service.
White smoke comes out the first time you use the dryer.	The first time you use the dryer, it will burn off any dust that has accumulated during manufacturing or storage.	Some white smoke is normal. Your dryer is ready for use.
A strange smell comes out the first time you use the dryer.	The first time you use the dryer, it will burn off any dust that has accumulated during manufacturing or storage.	Some white smoke is normal. Your dryer is ready for use.

In compliance with the directives: 2012/19/EU and 2015/863/EU on the restriction of the use of hazardous substances in electrical and electronic equipment, as well as their waste disposal. The crossed bin symbol shown on the packaging indicates that the product at the end of its useful life will be collected as separate waste. Therefore, any product that has reached the end of its useful life should be delivered to waste disposal centers specialized in the separate collection of waste electrical and electronic equipment, or returned to the retailer when purchasing similar new equipment, in one for a base. Proper separate collection for subsequent commissioning of equipment sent for recycling, treatment and disposal in an environmentally compatible manner helps prevent possible negative effects on the environment and health and optimizes recycling and reuse of waste. the components that make up the device. The abusive disposal of the product by the user implies the application of administrative sanctions in accordance with the laws.
