ZEUS04EP - Uninterruptible power supply CONCEPTRONIC - Free user manual and instructions

Product Type	Uninterruptible Power Supply (UPS)
Brand	Conceptronic
Model	ZEUS04EP
Capacity	2200 VA / 1320 W
Input Voltage	230 V AC, 50/60 Hz
Output Voltage	230 V AC (battery mode)
Battery Type	Sealed lead-acid, maintenance-free
Typical Runtime	Varies with load (see manual)
Charging Time	≥ 8 hours for full charge
Display	LCD screen (ZEUS03/04 models) or LED indicators (ZEUS01/02 models)
Interfaces	Communication USB port, RJ11/RJ45 jack for telephone/network protection (E/ES models)
Protection	Surge protection, circuit breaker, noise filter
Output Outlets	Battery backup outlets with surge protection
Management Software	Power Master (free download)
Silent Mode	Audible alarm can be disabled by double pressing the power button
Estimated Dimensions (W x D x H)	Approximately 400 x 200 x 250 mm (unofficial)
Estimated Weight	Approximately 12 kg (unofficial)
Operating Temperature	0-40°C, relative humidity < 90% (non-condensing)
Safety Instructions	Do not open, risk of electric shock. Have maintenance performed by a professional.
Warranty	Refer to the supplied warranty document

Frequently Asked Questions - ZEUS04EP CONCEPTRONIC

How long does it take to recharge the UPS battery?

It is recommended to leave the UPS plugged into the mains for at least 8 hours for a full charge. Some discharge may occur during transport and storage.

Can I connect a laser printer to the battery outlets?

No, do not connect a laser printer, photocopier, heater, or vacuum cleaner. These high-power devices can overload and damage the UPS. Only connect computer equipment (computer, monitor, etc.).

How to install Power Master management software?

Download the software from http://www.powermonitor.software/, double-click the file and follow the installation steps. After restart, a blue icon appears in the notification area.

What to do if the UPS emits a continuous beep?

A continuous beep indicates a fault. Turn off the UPS, unplug equipment, check the circuit breaker, and wait 10 seconds before turning back on. If the problem persists, contact a qualified repair technician.

How to disable the audible alarm?

Quickly press the power button twice. You will hear two short beeps confirming deactivation. To reactivate, repeat the operation.

The UPS does not turn on, what to check?

Ensure the UPS is plugged into a 230 V mains socket. Wait 10 seconds after turning off and then turn on again. Also check that the circuit breaker has not tripped.

What is the difference between the ZEUS03 and ZEUS04 models?

The main difference is capacity: ZEUS03 is 1200 VA (720 W) and ZEUS04 is 2200 VA (1320 W). Features are similar, but the 04 model offers higher power.

Can I use an extension cord with the UPS?

It is recommended to avoid extension cords. Plug the UPS directly into a grounded wall outlet to avoid risk of electric shock and overload.

What to do if the battery runtime is too short?

The batteries may not be fully charged. Leave the UPS plugged into the mains for 8 hours. If the problem persists, the battery may be worn out (typical lifespan 3-5 years).

How to store the UPS for a long period?

Fully charge the battery, cover the UPS, and store it in a dry, cool place. Recharge the battery every 3 months to preserve its lifespan.

USER MANUAL ZEUS04EP CONCEPTRONIC

Multi Language Quick Guide

UPS

ZEUS01E / ZEUS02E / ZEUS03E / ZEUS04E

ZEUS01ES / ZEUS02ES / ZEUS03EM / ZEUS04EM

ZEUS01EP / ZEUS02EP / ZEUS03EP / ZEUS04EP

ZEUS01ESP / ZEUS02ESP / ZEUS03EMP / ZEUS04EMP

Conceptronic UPS

1. Specifications

• Capacity: ZEUS01E / ZEUS01ES / ZEUS01EP / ZEUS01ESP (650VA 360W) ZEUS02E / ZEUS02ES / ZEUS02EP / ZEUS02ESP (850VA 480W) ZEUS03E / ZEUS03EM / ZEUS03EP / ZEUS03EMP (1200VA 720W) ZEUS04E / ZEUS04EM / ZEUS04EP / ZEUS04EMP (2200VA 1320W)

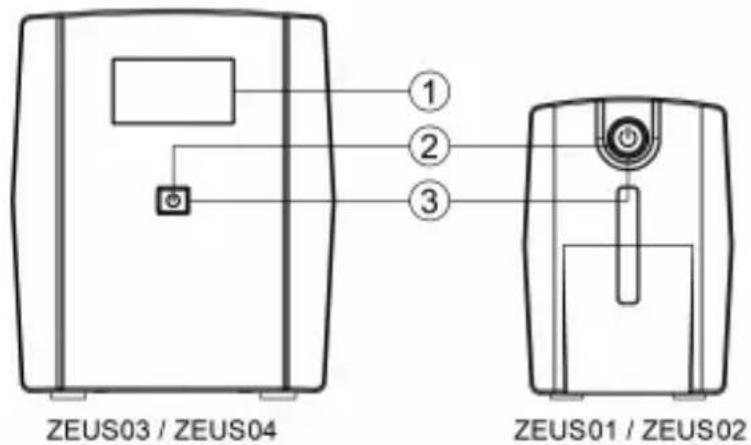

2. Product overview

1. LCD Display
2. Power Switch

Press the switch for 2 seconds to turn the UPS ON or OFF.

1. Led Indicator

This LED is illuminated when the UPS is working.

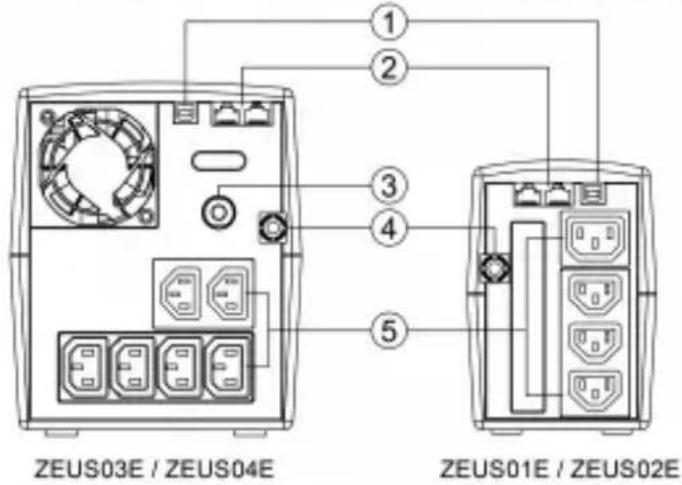

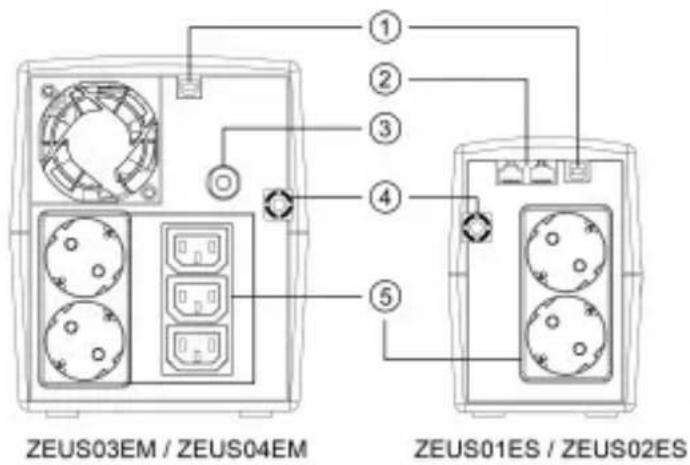

1. USB port

This port allows connection and communication from the USB port on the computer to the UPS unit.

1. Modem/LAN Internet Protection (ZEUS01E/01ES/02E/02ES/03E/04E)

Communication protection ports will protect any standard modem, fax, telephone line, or network cable

1. Input Circuit Breaker

The circuit breaker provides optimal overload protection.

1. Input power cord

2. Battery Backup & Surge Protected Outlets

Provide battery backup and surge protection. They ensure power is provided to connected equipment over a period of time during a power failure.

ZEUS01 / ZEUS02

Definitions for alarm

	LED Status	Alarm
Normal	LED lighting	off
Battery Discharge	Flash once every 30 sec	Beep once every 30 sec
Battery Low	Flash once every 2 sec	Beep once every 2 sec
Overload	Flash once every 0.5 sec	Beep once every 0.5 sec
Off charging mode	LED off	off
Fault	LED off	Continuous alarm

Mute setting: The audible alarm can be turned OFF or ON by quickly pressing the power button twice. The default setting is for the Alarm On. You will hear two short beeps when the Alarm is turned off.

ZEUS03 / ZEUS04

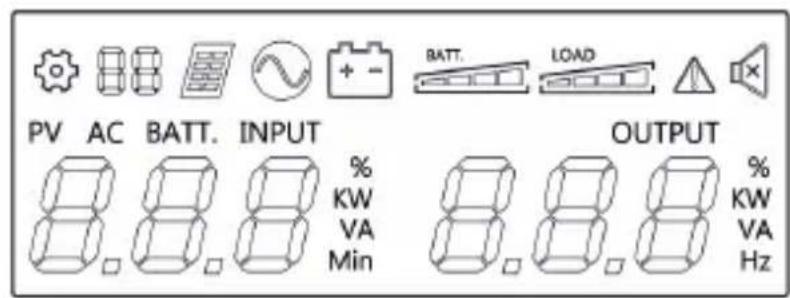

Definitions for illuminated lcd indicators

	Setting Item		Line mode
	PV mode		Bat-mode
	Fault		Sound disable
RATT[TDS8]	Bat mode: battery capacityLine mode:1. Battery charging: cycle lighting2. Battery full charged: lighting3. Line mode without charger:battery capacity		Load capacity

3. Installation & usage

Hardware installation guide

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data storage device (Zip drive, Jazz drive, Tape drive), etc. into the battery power supplied outlets. DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into the battery power supplied outlets. The power demands of these devices will overload and possibly damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc. Avoid using extension cords.
4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit will "beep".
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait 10 seconds. Make sure the circuit breaker / fuse is normal and then turns the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery every three months to ensure battery life.

Software Installation on your PC

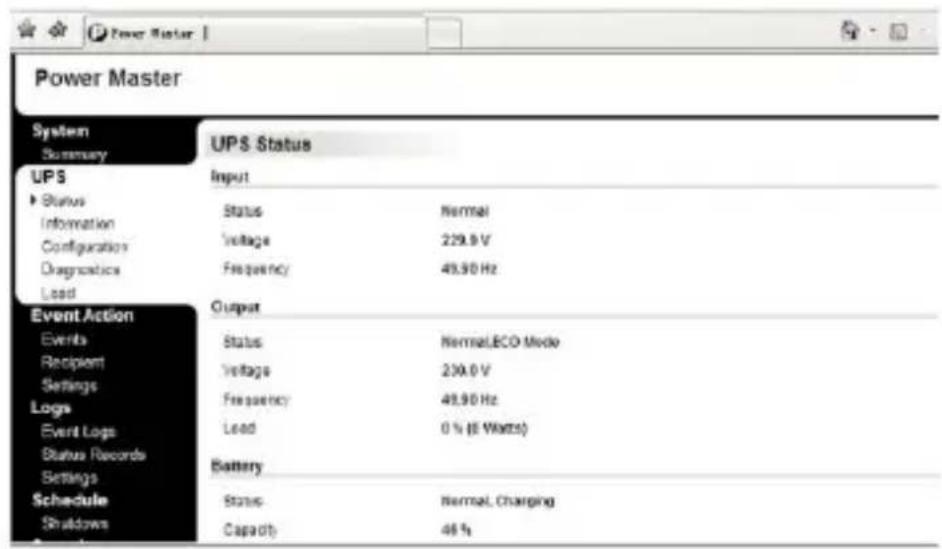

Power Master management software provides a user-friendly interface for your power systems. The graphic user-interface is intuitive and displays essential power information at a glance. Please follow procedure below to install the software.

Installation procedure:

1. Download Power Master from the website: http://www.powermonitor.software/
2. Double-click the file and follow the installation steps. When your computer restarts, the Power Master software will appear as a blue icon located in the system tray.

Caution:

• To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area, free of conductive contaminants.
• Risk of electric shock, do not remove the cover. No user serviceable parts. Refer servicing to qualified service personnel.
• Risk of electric shock, hazardous live parts inside this UPS can be energized from the battery supply even when the input AC power is disconnected.
• Risk of electric shock, Battery Circuit is not isolated from AC input, hazardous voltage may exist between battery terminals and ground. Test before touching.

Note: This manual contains important safety instructions. Please follow all instructions carefully during installation. Read this manual thoroughly before attempting to unpack, install or operate.

Note: The UPS is designed to be for use with computer loads only.

Trouble shooting

Problem	Possible Cause	Solution
The UPS does not perform expected runtime	Batteries are not fully charged.	Recharge the battery by leaving the UPS plugged in.
The UPS will not turn on	The on/off switch is designed to prevent damage by rapidly turning it off and on.	Turn the UPS off. Wait 10 seconds and then turn the UPS on.
	The unit is not connected to an AC outlet.	The unit must be connected to a 230Vac 50/60Hz outlet.
Outlets do not provide power to equipment	Circuit breaker is tripped due to overload	Turn the UPS off and unplug at least one piece connected equipment. Unplug the power cord of the UPS then press the circuit breaker knob.
	Batteries are discharged	Allow the unit to recharge for at least 4 hours.

Conceptronic UPS

1. Technische Daten

• Kapazität:ZEUS01E / ZEUS01ES / ZEUS01EP / ZEUS01ESP (650VA 360W)
  ZEUS02E / ZEUS02ES / ZEUS02EP / ZEUS02ESP (850VA 480W)
  ZEUS03E / ZEUS03EM / ZEUS03EP / ZEUS03EMP (1200VA 720W)
  ZEUS04E / ZEUS04EM / ZEUS04EP / ZEUS04EMP (2200VA 1320W)
