USER MANUAL MFSF1 SANUS

SANUS® A brand of Legend

MFSF1-B2

Universal Small Full-Motion

TV Wall Mount

Compatible with Amazon Fire TVs

INSTRUCTION MANUAL

Technical line drawing of a mechanical assembly with four arms and mounting brackets (no text or symbols)

Want to watch a video that shows how easy this DIY project will be?SANUS.com/3009 SANUS.com/2567

Get it right the first time. Height-FinderTM shows you where to drill.

Our install experts are standing by to help.US: [phone]EMEA: [phone]UK: [phone]

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS - PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let's make sure this mount is perfect for you!

1	Does your TV (including accessories) weigh more than 50 lb (22.6 kg)?	No - Perfect!Yes - This mount is NOT compatible. Visit MountFinder.sanus.com or callUS: [phone] | EMEA: [phone] | UK: [phone] to find a compatible mount.
2	What is your wall made of?		[XCY8]
3	Do you have all the tools needed?	TapeMeasure Pencil Level Screwdriver Electric Drill Socket Wrench	[S6KBA] Stud Finder Awl Drill Bit Hammer Drill Bit
4	Ready to begin?	Please read through these instructions completely to be sure you're comfortable with this easy install process.Also check your TV owner's manual to see if there are any special requirements for mounting your TV.If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at US: [phone] | EMEA: [phone] | UK: [phone].
		AUTION: Avoid potential personal injury or property damage!This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall aloneThe wall must be capable of supporting five times the weight of the TV and mount combinedDo not use this product for any purpose not explicitly specified by manufacturerManufacturer is not responsible for damage or injury caused by incorrect assembly or use

Tape Measure
Pencil Level
Screwdriver
ELECTRIC DATA
Wrench
Stud Finder
Avl
Drill Bit
Hammer
Drill Bit

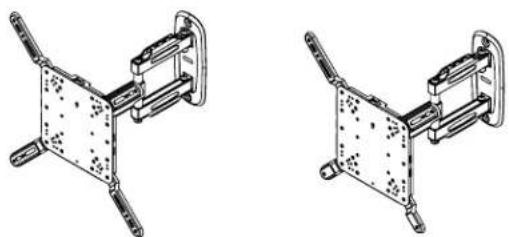

Dimensions

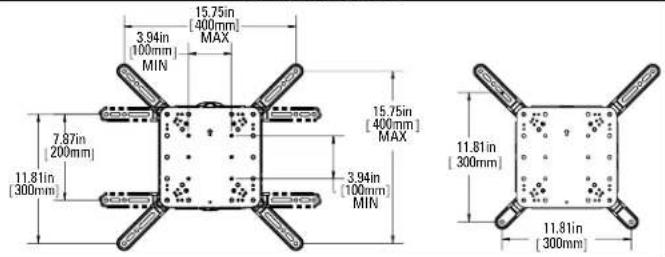

TV INTERFACE

3.94in [100mm] MIN 7.87in [200mm] 11.81in [300mm] 15.75in [400mm] MAX 3.94in [100mm] MIN 15.75in [400mm] MAX 11.81in [300mm] 11.81in [300mm]

3-D

Technical line drawing of two mechanical components with mounting brackets and mounting holes (no text or symbols)

WALL PLATE

4.02in [102mm] 9.92in [252mm] 8.27in [210mm] Ø0.33in [8.4mm]

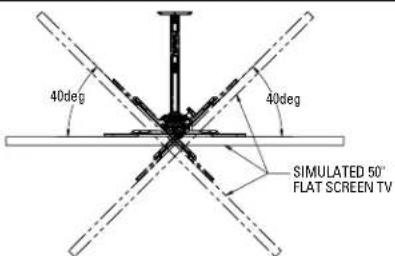

TOP VIEW - EXTENDED

40deg 40deg SIMULATED 50° FLAT SCREEN TV

SIDE VIEW - EXTENDED

15deg DOWN 5deg UP 15.02in (381.4mm)

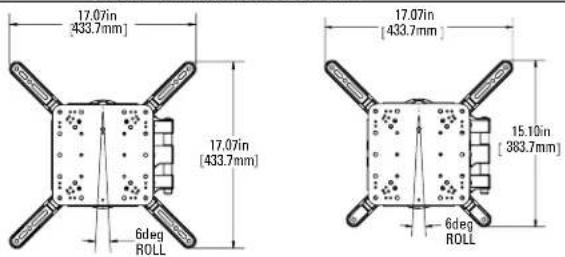

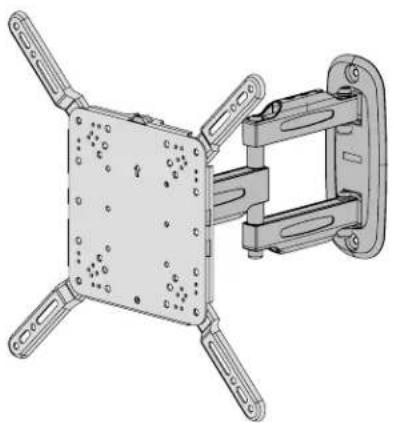

FULLY ASSEMBLED MOUNT

17.07in [433.7mm] 17.07in [433.7mm] 15.10in [383.7mm] 6deg ROLL 6deg ROLL

TOP VIEW - RETRACTED

SIDE VIEW RETRACTED

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

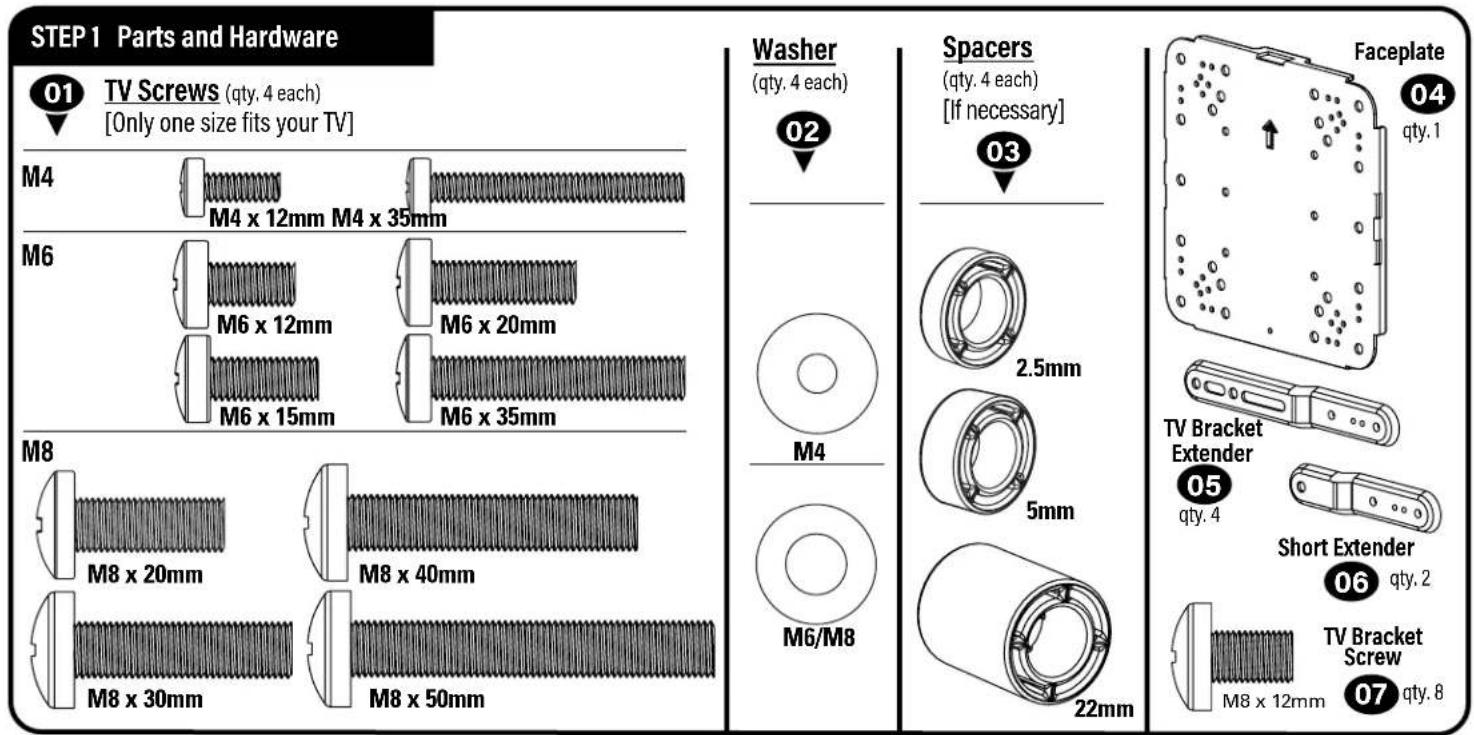

STEP 1 Parts and Hardware 01 TV Screws (qty. 4 each) [Only one size fits your TV] M4 M4 x 12mm M4 x 35mm M6 M6 x 12mm M6 x 20mm M6 x 15mm M6 x 35mm M8 M8 x 20mm M8 x 40mm M8 x 30mm M8 x 50mm Washer (qty. 4 each) 02 Spacers (qty. 4 each) [If necessary] 03 2.5mm 5mm M4 M6/M8 Faceplate 04 qty.1 TV Bracket Extender 05 qty. 4 Short Extender 06 qty. 2 TV Bracket Screw 07 qty. 8 M8 x 12mm

STEP 2 Parts and Hardware

Simple diagram of a black oval object with two holes, enclosed in a white rectangular frame (no text or symbols)

Wall Plate Template

08 qty.1 qty.1

Technical line drawing of a mechanical lifting device with multiple brackets and mounting holes (no text or symbols)

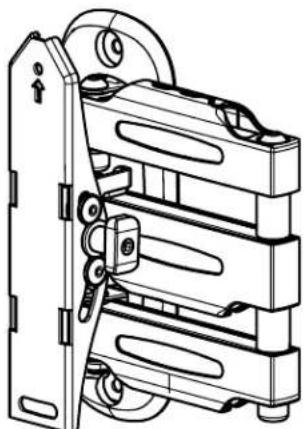

Full Motion Arm

STEP 2B: Concrete Installation Kit CMK1 [NOT INCLUDED]
Contact Customer Service to inquire about the additional hardware.

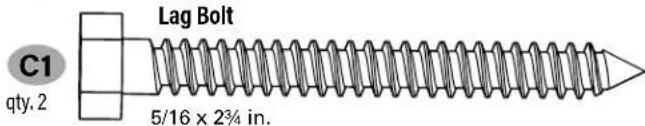

C1 qty. 2 Lag Bolt 5/16 x 2¾ in.

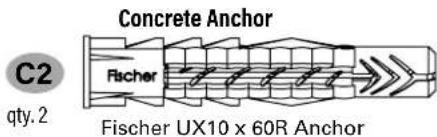

Concrete Anchor C2 Fischer Fischer UX10 x 60R Anchor qty. 2

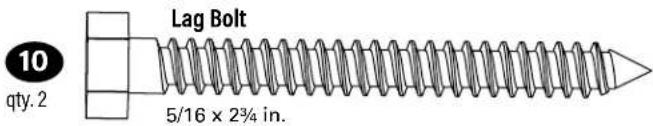

10 qty. 2 Lag Bolt 5/16 x 2¾ in.

STEP 3 Parts and Hardware
Nut Cap

qty. 1 qty. 1 qty. 1

Locking Screw

M5 x 6mm

Washer

STEP 1 Attach Faceplate to TV

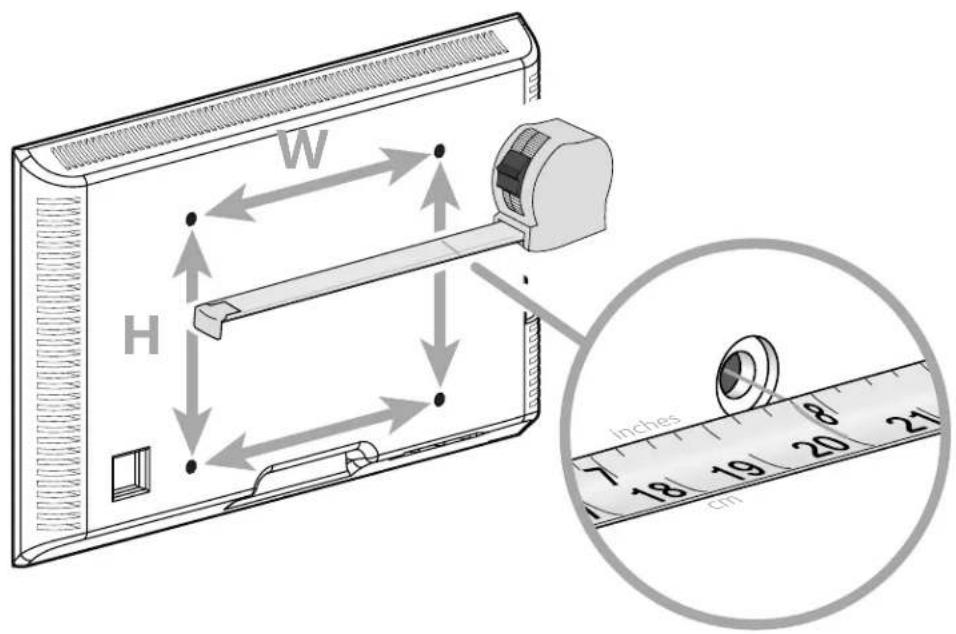

1.1 Measure Your TV Hole Pattern

Measure the width and height of your TV hole pattern in mm.

Record your measurements:

Width ____ mm x Height ____ mm

inches cm mm
4 10 100
7 18 20 200
11 34 30 300
15 34 40 400

inch dimensions are approximate

W H inches 7 18 19 20 21 cm

1.2 Assemble Your Faceplate

Based on your TV hole pattern measurements (W mm x H mm), determine your Faceplate configuration: A, B, C, D, E or F.

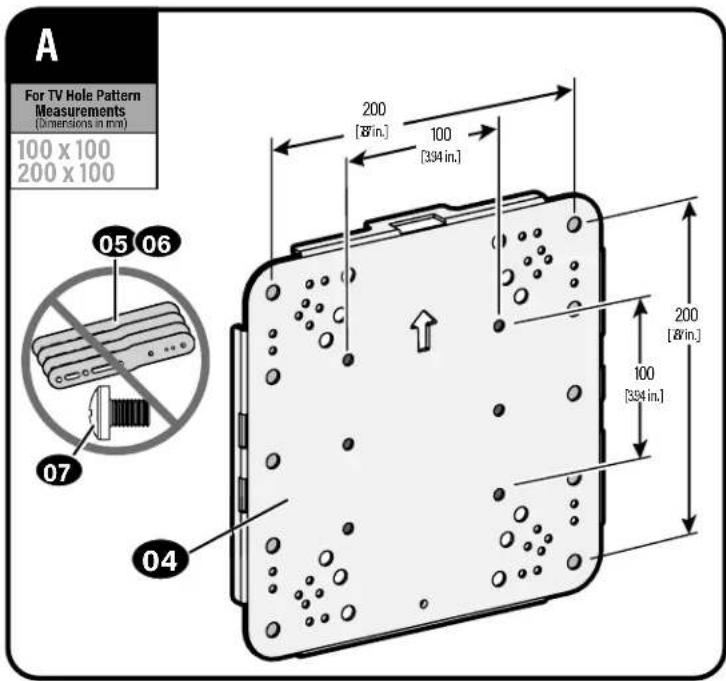

A For TV Hole Pattern Measurements (Dimensions in mm) 100 x 100 200 x 100 200 [8/in.] 100 [394 in.] 200 [8/in.] 100 [394 in.] 05 06 07 04

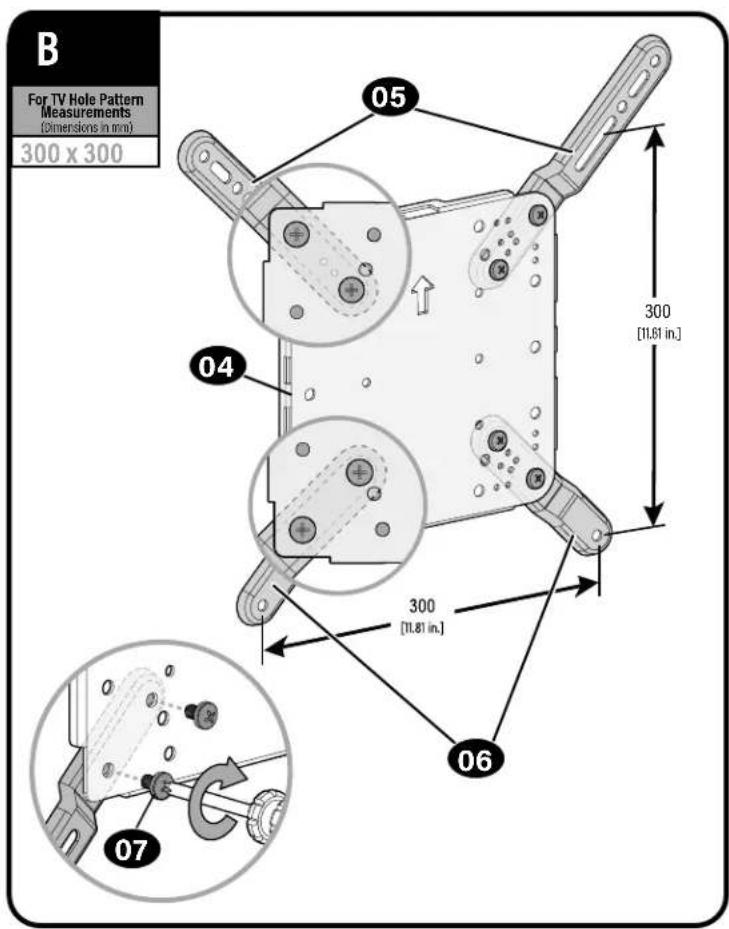

B For TV Hole Pattern Measurements (Dimensions in mm) 300 x 300 05 300 [11.81 in.] 04 300 [11.81 in.] 06 07

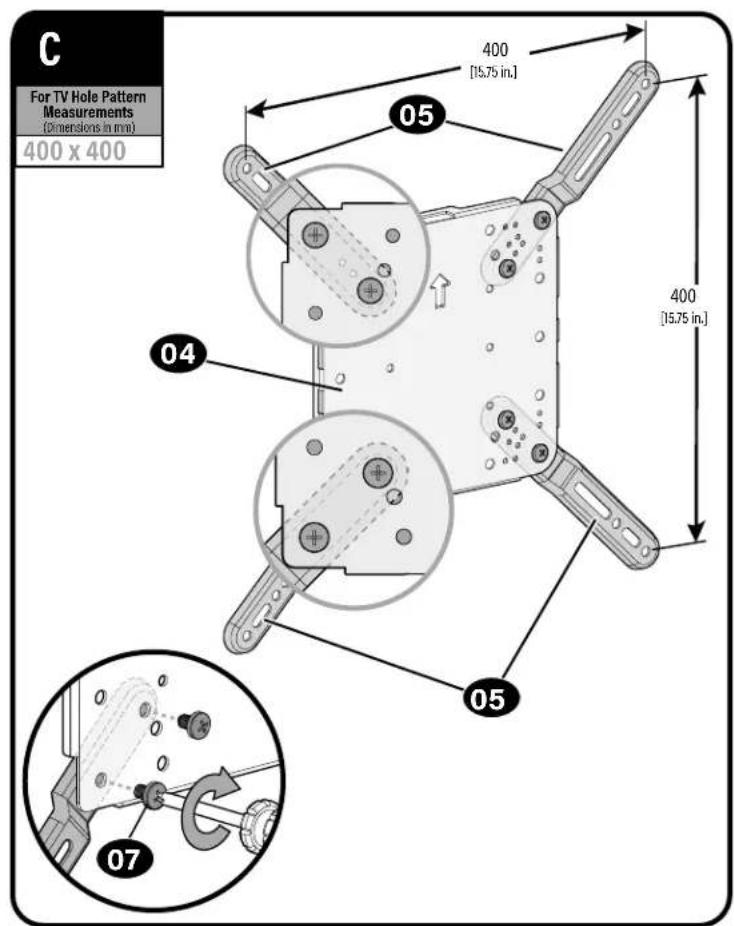

C For TV Hole Pattern Measurements (Dimensions in mm) 400 x 400 400 [15.75 in.] 400 [15.75 in.] 05 04 05 07

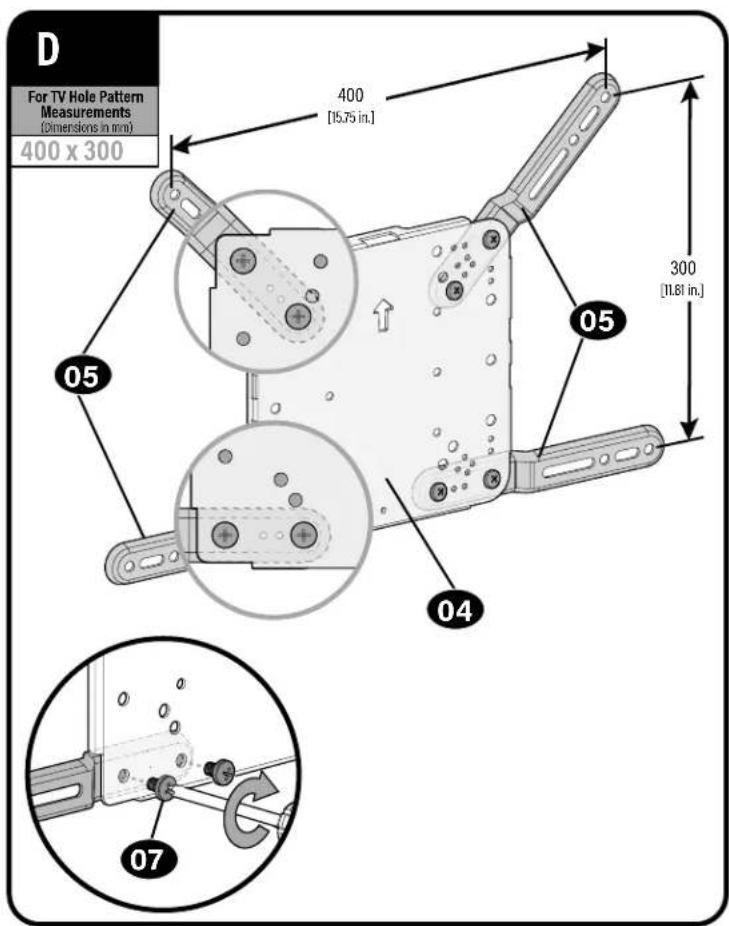

D For TV Hole Pattern Measurements (Dimensions in mm) 400 x 300 400 [15.75 in.] 300 [11.81 in.] 05 05 04 07

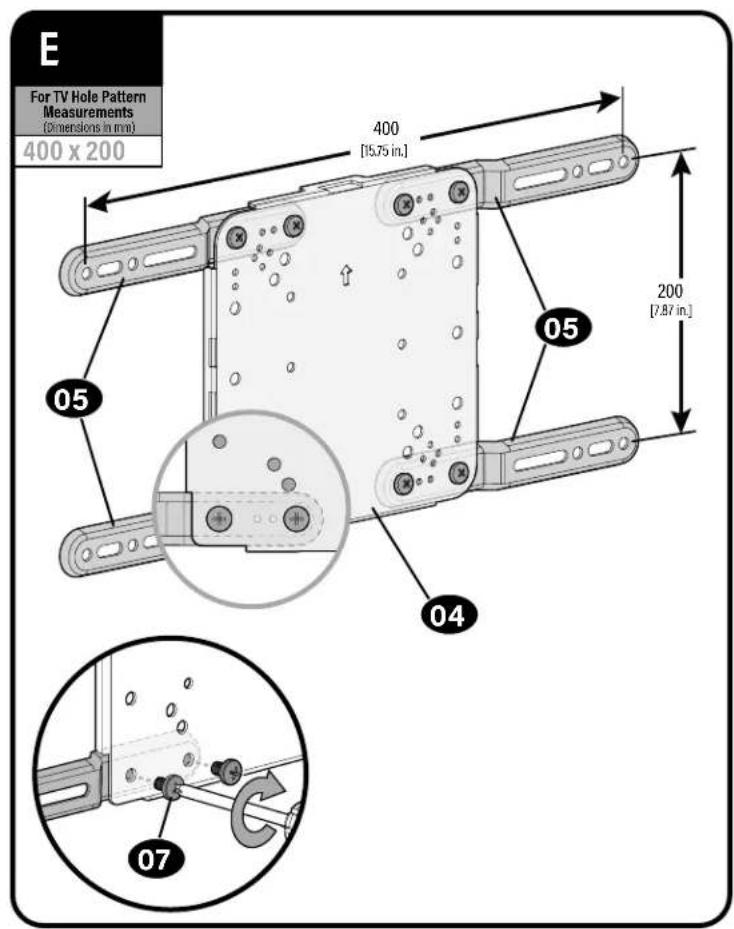

E For TV Hole Pattern Measurements (Dimensions in mm) 400 x 200 400 [15.75 in.] 200 [7.87 in.] 05 05 04 07

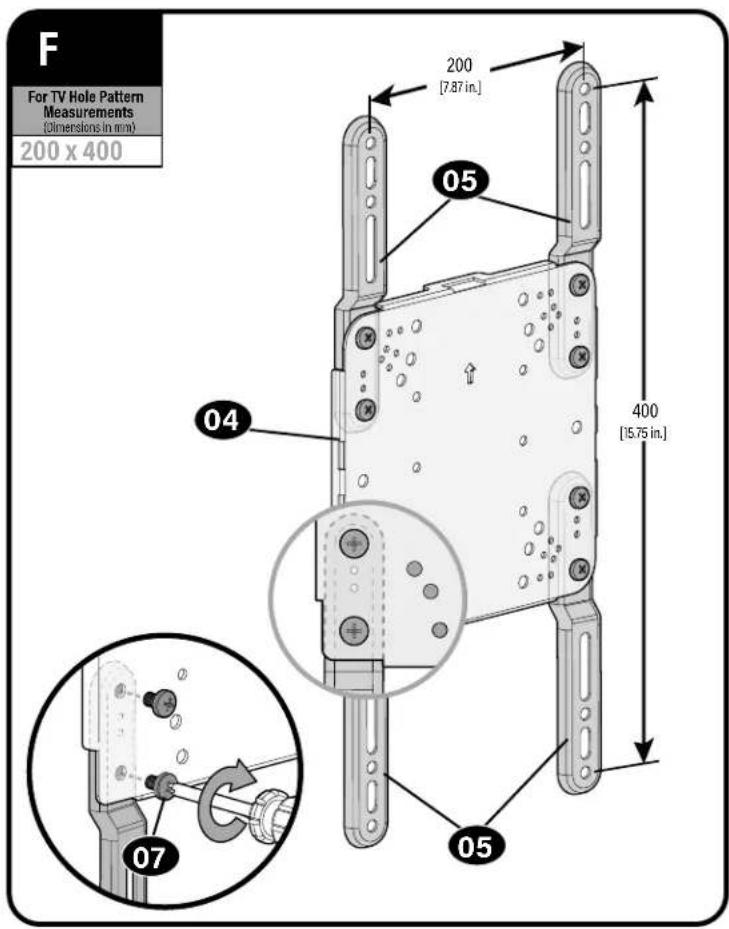

F For TV Hole Pattern Measurements (Dimensions in mm) 200 x 400 200 [7.87 in.] 05 04 400 [15.75 in.] 05 07

1.3 Select TV Screw Diameter

M4

M6

M8

Illustration of a hand pressing down on a computer RAM module with a circular arrow indicating rotation (no text or symbols)

1.4 Select TV Screw Length

a: For flat-back TVs, no spacers 03 required.

b: Spacers 03 supplied for:

• Round (irregular) back TVs
• TVs with inset mounting holes
• Extra space needed for cables

b 03

Diagram showing cable installation steps with labeled components and directional arrows indicating process flow

Standard configurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service.

CAUTION:

Verify adequate thread engagement with your screw/washer/spacer combination AND TV bracket. - Too short will not hold the TV. - Too long will damage the TV.

Too Short

Too Long

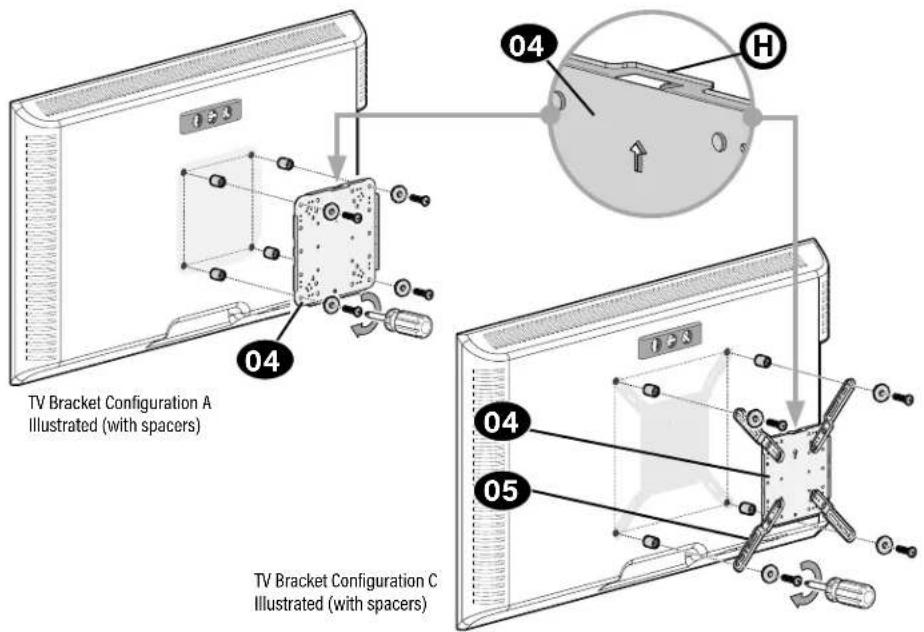

1.5 Attach TV Bracket

Position your TV bracket configuration (A, B, C, D, E or F) onto your TV, making sure the bracket is both centered and level over your TV hole pattern.

NOTE: The hanging tab Ⓗ on faceplate 04 must be oriented toward the top of the TV.

Secure the TV bracket using your selection: (a) screw/washer or (b) screw/washer/spacer.

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step.

Tighten the screws only enough to secure the TV bracket to the TV. DO NOT overtighten the screws.

04 H 04 TV Bracket Configuration A Illustrated (with spacers) 04 05 TV Bracket Configuration C Illustrated (with spacers)

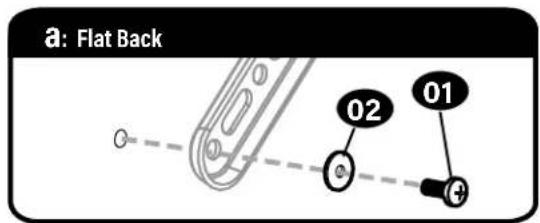

a: Flat Back 02 01

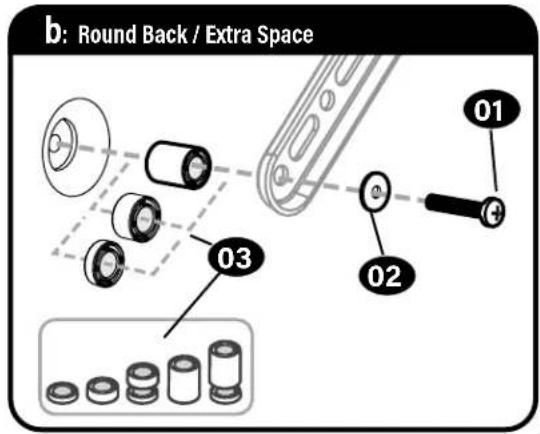

b: Round Back / Extra Space 01 02 03

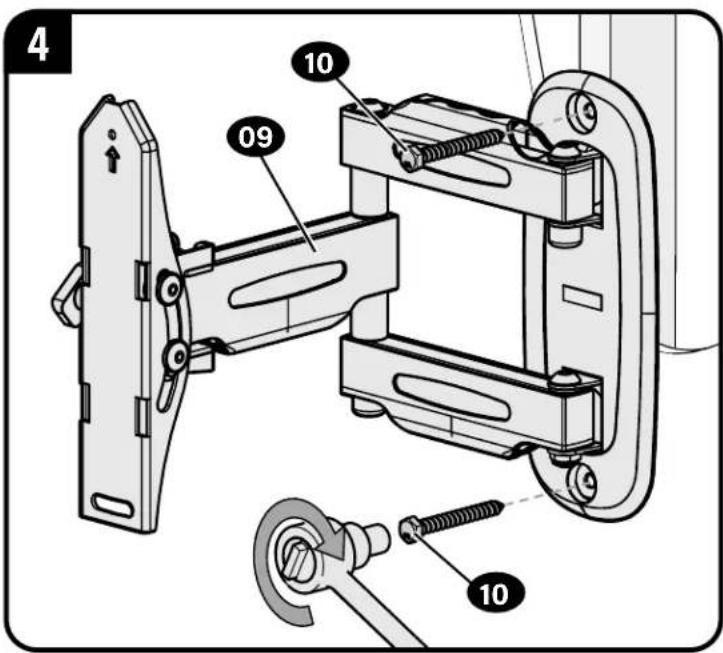

STEP 2A Attach Wall Plate to Wall

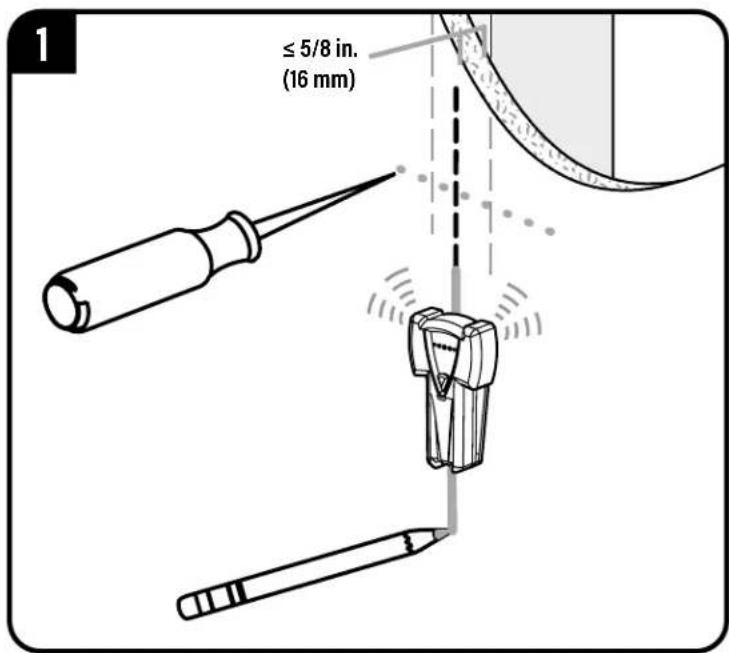

Wood Stud Installation

UTION: Avoid potential personal injury or property damage!

● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 ½ x 3 ½ in. (38 x 89 mm)

≤ 5/8 in. (16 mm)

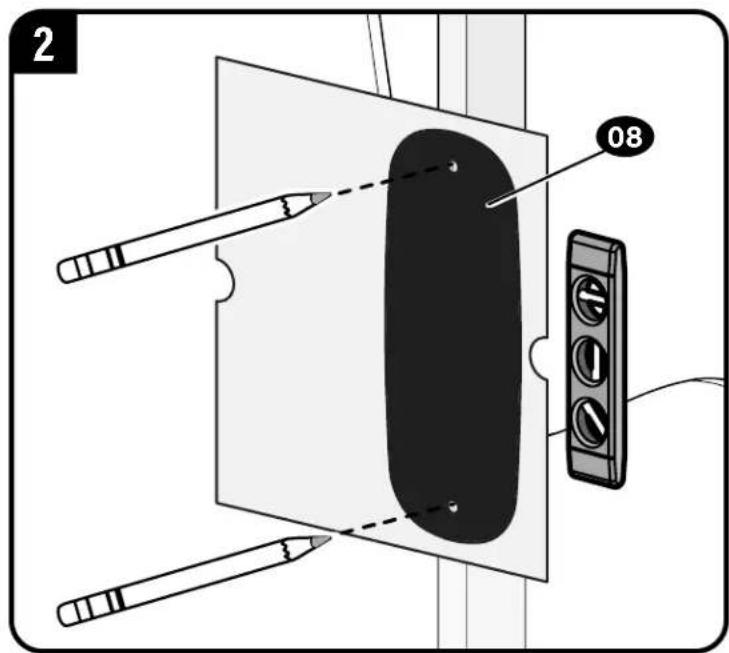

2 08

CAUTION: Avoid potential personal injury or property damage!

Improper use could reduce the holding power of the lag bolt 10

Tighten the lag bolts 10 only until they are pulled FIRMLY against the wall plate

09.

DO NOT over-tighten the lag bolts 10

Go to STEP 3 on PAGE 16.

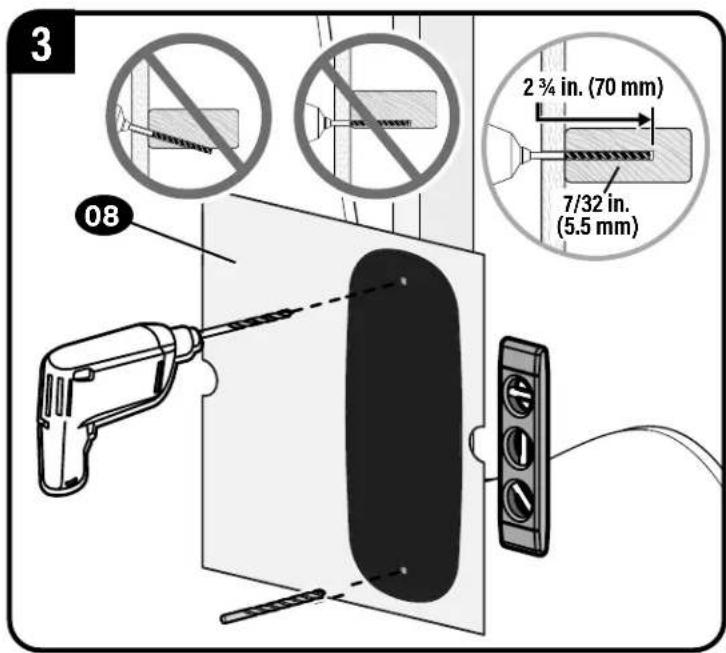

3 08 2 ¾ in. (70 mm) 7/32 in. (5.5 mm)

4 09 10 10

STEP 2B Attach Wall Plate to Wall

Solid Concrete /Concrete Block Installation

UTION: Avoid potential personal injury or property damage!

• Mount wall plate assembly 09 directly onto concrete surface (no wall covering)
  • Minimum solid concrete thickness: 8 in. (203 mm)
  ● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)

Concrete Installation Kit CMK1 is not included

(see page 5) Contact Customer Service to inquire about the additional hardware.

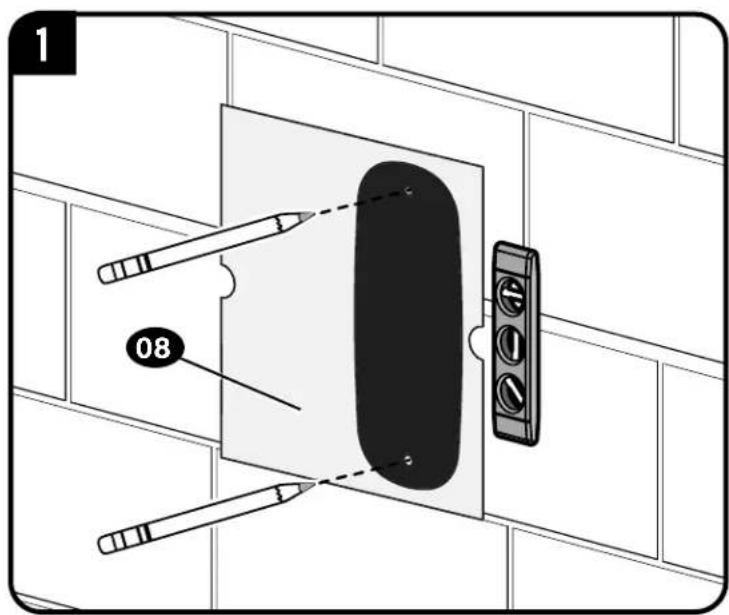

1 08

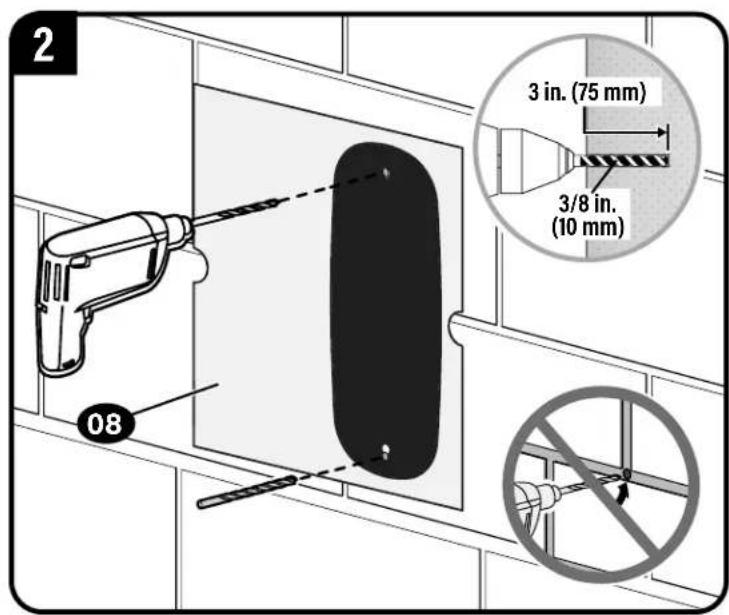

2 3 in. (75 mm) 3/8 in. (10 mm) 08

Fischer UX10 x 60R C2 - included in the Concrete Installation Kit CMK1).

(use ONLY the lag bolts C1 from the Concrete Installation Kit CMK1).

CAUTION: Avoid potential personal injury or property damage!

Improper use could reduce the holding power of the lag bolt C1.

Tighten the lag bolts C1 only until they are pulled FIRMLY against the wall plate 09.

DO NOT over-tighten the lag bolts C1.

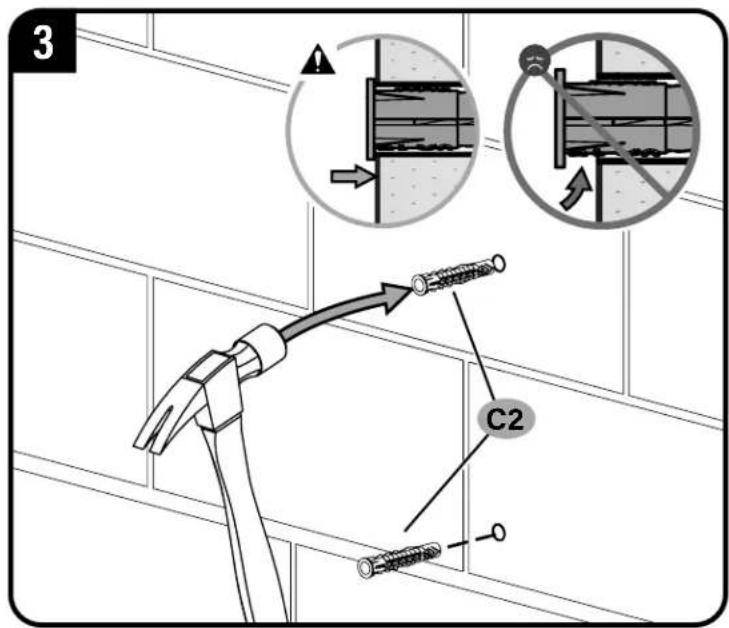

3 C2

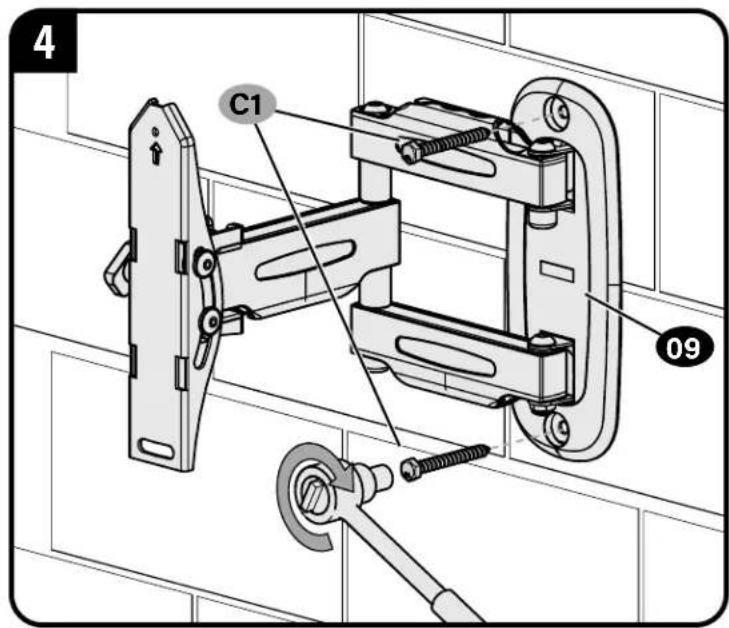

4 C1 09

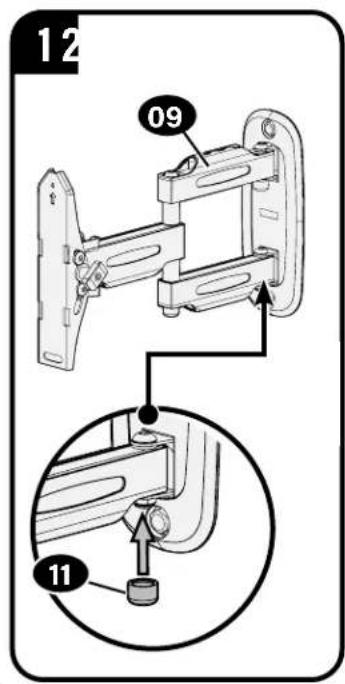

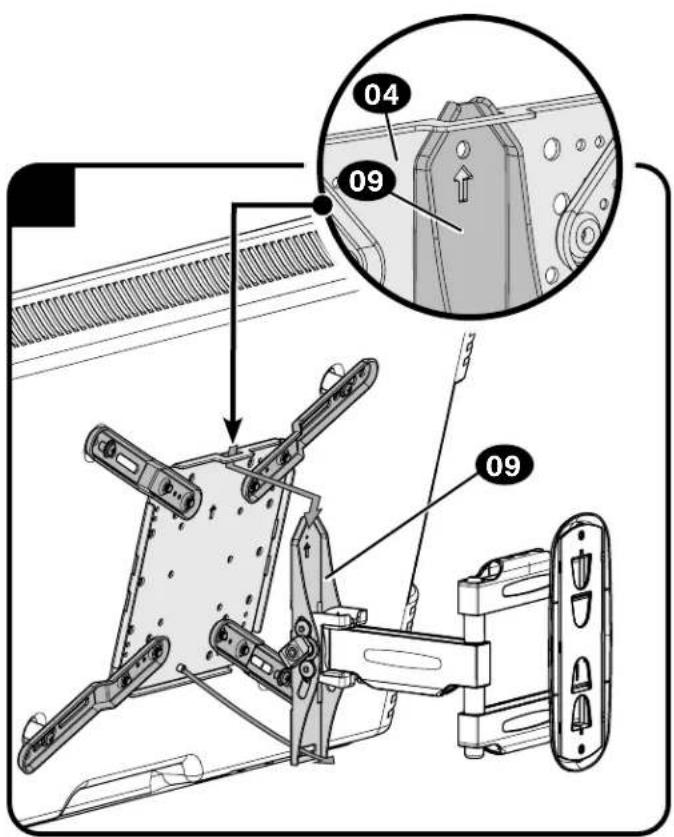

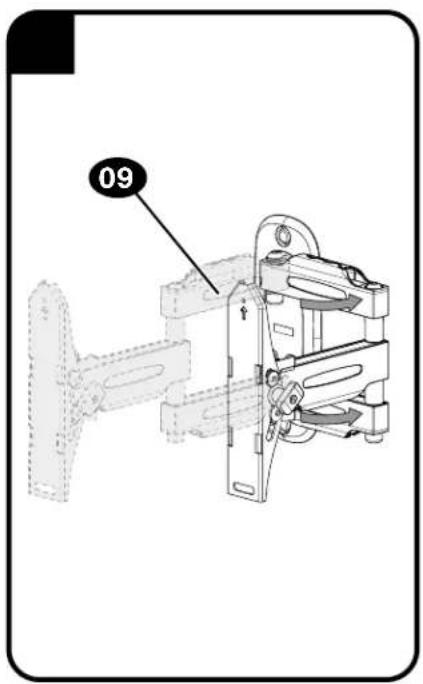

STEP 3 Hang TV onto Wall Plate

HEAVY! You may need assistance with this step.

12 09 11

09

Technical diagram of a mechanical assembly with labeled parts and an inset detail view showing component details.

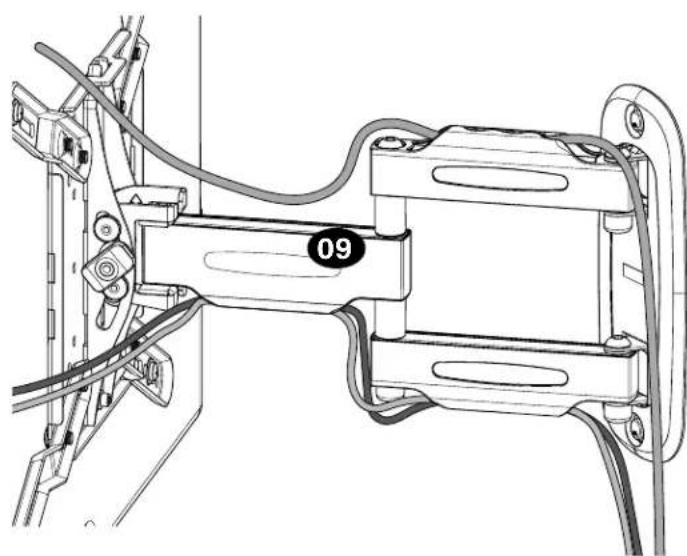

Manage Cables

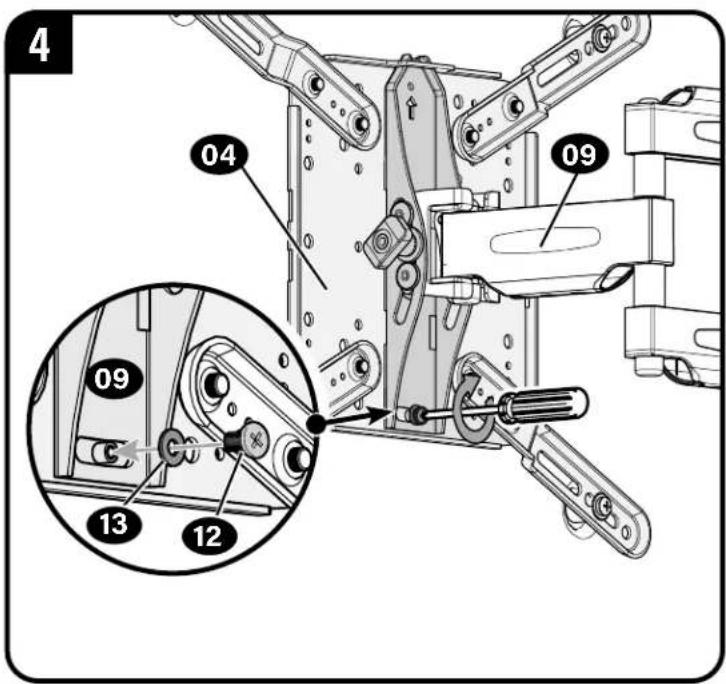

CAUTION: This locking screw 12 must be installed to secure the TV onto the full motion arm 09.

IMPORTANT: Fully extend arm assembly 09 to ensure you have enough slack in the cables to prevent binding.

4 04 09 09 13 12

Technical line drawing of a mechanical assembly with labeled component '09' (no text or symbols beyond label)

TV Adjustments

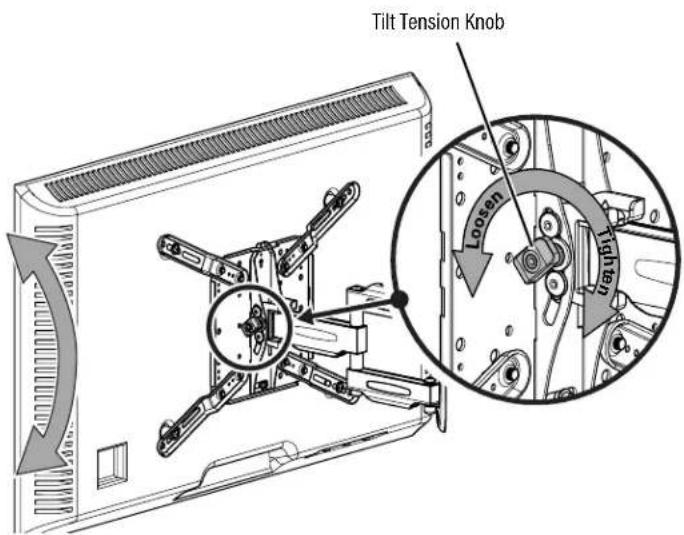

TILT ADJUSTMENT

Your TV should adjust easily when moved, then stay in place.

If your TV is too loose or too tight, adjust the tilt tension knob by hand.

NOTE: Once your TV is in place, tighten the tilt tension knob to prevent unwanted movement.

Tilt Tension Knob Loosen

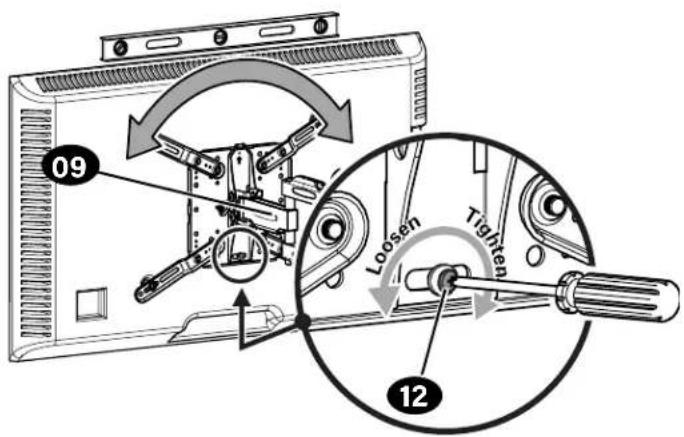

LEVEL ADJUSTMENT

To adjust the leveling of your TV, loosen the locking screw 12, level your TV, then tighten locking screw 12.

IMPORTANT: This locking screw 12 must be installed to secure the TV onto the full motion arm 09.

09 Loosen Tighten 12

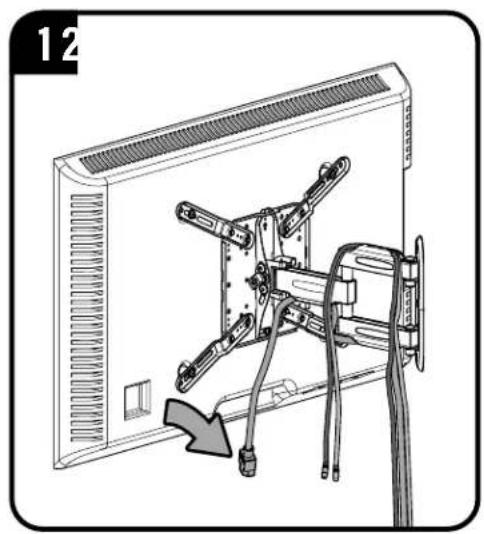

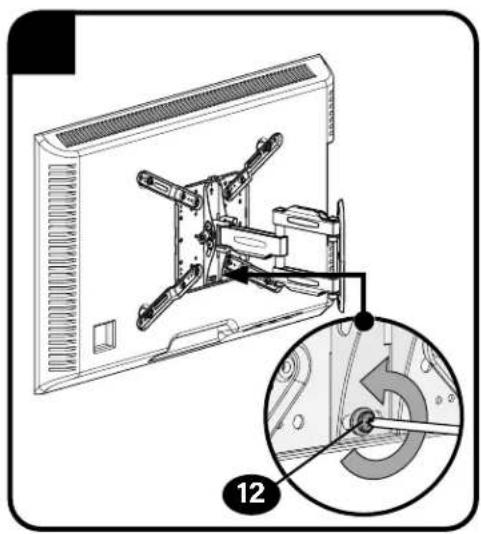

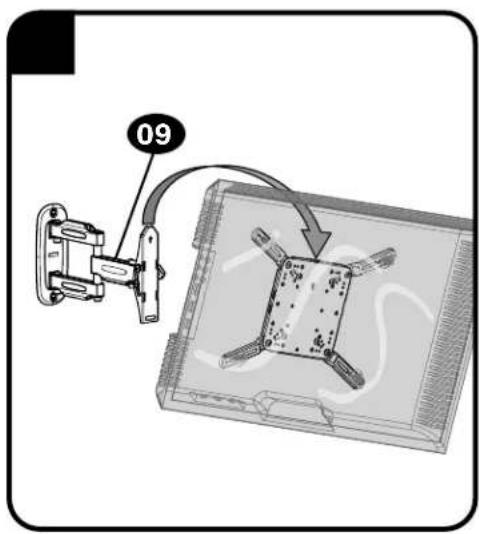

REMOVING THE TV

HEAVY! You may need assistance with this step.

Diagram of a mounted device with cable and connectors, showing a wall-mounted panel and cable attachment (no text or symbols)

Technical diagram of a mounted device with an inset showing a circular component labeled '12' (no text or symbols on the diagram itself)

09

ESPAÑOL

Illustration of four different electrical components: a magnifying glass, a pencil, a remote control panel, and a screwdriver (no text or symbols present)

Four technical illustrations of electrical components: a remote control switch, a screwdriver, a button, and a plus button (no text or symbols present)

巻き尺

電気ドリル
