INZONE M9 - Monitor SONY - Free user manual and instructions

Product type	4K HDR LCD Gaming Monitor
Screen size (diagonal)	27 inches (68.4 cm)
Resolution	3840 x 2160 pixels (4K UHD)
Backlight	LED
Refresh rate	144 Hz
HDR	Yes (DisplayPort HDR)
Built-in speakers	2 x 2 W
Connectivity	2 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x headphone output (mini-jack)
Power supply	19.5 V DC via AC adapter (100-240 V AC, 50/60 Hz)
Standby power consumption	0.5 W
Energy efficiency class	G
Dimensions (with stand)	615 x 479 x 248 mm (W x H x D)
Dimensions (without stand)	615 x 363 x 73 mm
Weight (with stand)	6.8 kg
Weight (without stand)	4.6 kg
Wall mount	VESA 100 x 100 mm
Operating temperature	0 °C to 40 °C
Operating humidity	10 % to 80 % RH (non-condensing)
Included accessories	Table stand, AC adapter, power cord, HDMI cable, DisplayPort cable, guides
Key features	NVIDIA G-SYNC compatibility, HDR, low latency, game mode
Maintenance and cleaning	Clean with a soft, dry or slightly damp cloth. Do not use abrasive products or solvents.
Safety	Do not block the ventilation openings. Disconnect during storms. Use only the Sony power cord.
Repairability	Have any repairs carried out by a Sony authorized service center. Spare parts available via after-sales service.

Frequently Asked Questions - INZONE M9 SONY

What is the maximum resolution of the INZONE M9 monitor?

The INZONE M9 monitor displays a native resolution of 3840 x 2160 pixels (4K UHD) with a refresh rate of 144 Hz.

Can I use a different power adapter than the one supplied?

No, it is imperative to use only the supplied Sony AC adapter to avoid any risk of malfunction or fire. Using a non-compliant adapter may damage the monitor.

How do I clean the monitor screen?

First unplug the power cord. Use a soft, dry cloth to remove dust. For stubborn dirt, lightly dampen the cloth with a mixture of water and mild detergent. Never spray liquid directly onto the screen and do not use abrasive products or solvents (alcohol, gasoline, thinner).

Is the monitor compatible with wall mounting?

Yes, it is compatible with a VESA wall mount 100 x 100 mm. Sony recommends using a qualified professional for wall installation to avoid risk of falling or injury.

What should I do if the screen does not turn on?

First check that the power cord is properly connected to the monitor and to a working wall outlet. Make sure the monitor is turned on (power indicator lit). If the problem persists, unplug the power cord and contact Sony after-sales service.

Does the monitor support G-SYNC technology?

Yes, the INZONE M9 monitor is NVIDIA G-SYNC compatible, which synchronizes the refresh rate with the graphics card for a smooth gaming experience without screen tearing.

What cables are included with the monitor?

The package includes: an HDMI cable, a DisplayPort cable, the power cord, the AC adapter, the table stand, the installation guide and the instruction manual.

How do I adjust the monitor angle?

Slowly move the monitor while holding the base and screen firmly. Avoid tilting it abruptly to prevent it from detaching from the stand and falling. The tilt angle can be adjusted manually.

Is it normal for the monitor to heat up during prolonged use?

Yes, it is normal for the area around the panel to get warm after prolonged use. This does not indicate a malfunction. Make sure the ventilation openings are not blocked and the monitor is installed in a well-ventilated location.

How do I dispose of the monitor at the end of its life?

Do not dispose of the monitor with household waste. Take it to a collection point for electrical and electronic equipment in accordance with local regulations. Recycling materials preserves the environment and natural resources.

USER MANUAL INZONE M9 SONY

This LCD Monitor comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

Operating Instructions (This manual)

Help Guide (Web manual)

Provides information including advanced usage.

https://rd1.sony.net/help/tv/u27m90/h_zz/

Note

Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

Location of the identification label

Labels for the LCD Monitor Model No., Production Date (year/month) and Power Supply rating are located on the rear of the LCD Monitor or package.

For models with supplied mains adaptor: Labels for mains adaptor Model No. and Serial No. are located on the bottom of mains adaptor.

WARNING

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, use a replacement fuse of the same rating and approved by ASTA or BSI to BS 1362 (i.e., marked with the appropriate certification mark).

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

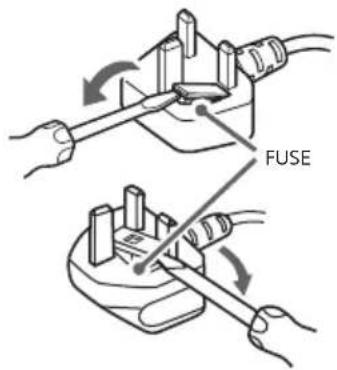

How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse. Please refer to the illustration that actually equipped with the product.

IMPORTANT NOTICE

This product has been manufactured by or on behalf of Sony Corporation.

EU and UK Importer: Sony Europe B.V.

Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer's authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.

Inquiries to the UK Importer or related to product compliance in the UK should be sent to the manufacturer's authorized representative, Sony Europe B.V., The Heights, Brooklands, Weybridge, Surrey KT13 0XW, United Kingdom.

Energy consumption and other information for the power supply, as required by Commission Regulation (EU) 2019/1782, is available at the following website: https://compliance.sony.eu and https://compliance.sony.co.uk for the United Kingdom

Safety Information

WARNING

Ventilation

• Never cover the ventilation holes or insert anything into the cabinet.
• Leave space around the LCD Monitor as shown below.

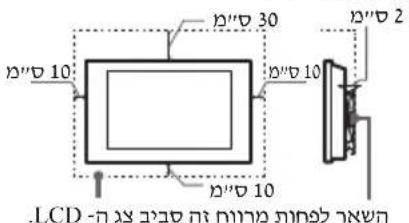

Installed on the wall

Leave at least this space around the set.

Installed with stand

Leave at least this space around the set.

To ensure proper ventilation and prevent the collection of dirt or dust:

• Do not lay the LCD Monitor flat, install upside down, backwards, or sideways.
• Do not place the LCD Monitor on a shelf, rug, bed or in a closet.
• Do not cover the LCD Monitor with a cloth, such as curtains, or items such as newspapers, etc.

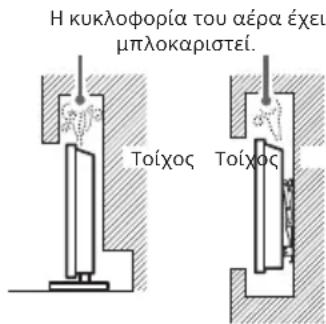

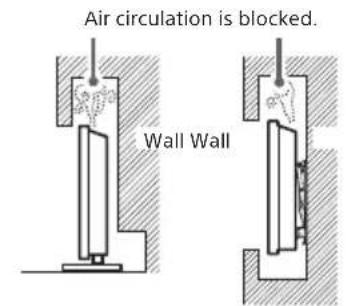

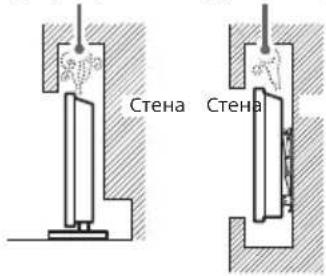

• Do not install the LCD Monitor as shown below.

Do not block the air circulation area.

Mains lead

Handle the mains lead and socket as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:

• Use only mains leads supplied by Sony, not other suppliers.
• Insert the plug fully into the mains socket.
• Operate the LCD Monitor on a 100 V - 240 V AC supply only.
• When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables.
• Disconnect the mains lead from the mains socket before working on or moving the LCD Monitor.
• Keep the mains lead away from heat sources.
• Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Note

• Do not use the supplied mains lead on any other equipment.
• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.
• Do not modify the mains lead.
• Do not put anything heavy on the mains lead.
• Do not pull on the mains lead itself when disconnecting the mains lead.
• Do not connect too many appliances to the same mains socket.
• Do not use a poor fitting mains socket.

Never insert the USB plug when the product or charging cable is wet.

• When the USB plug is inserted in a wet condition, a short circuit occurs due to the liquid (tap water, salt water, refreshing drink, etc.) attached to the main unit and charging cable or foreign matter, which may cause abnormal heat generation or malfunction.

NOTE ON MAINS ADAPTOR

Warning

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Do not install this equipment in a confined space, such as a bookshelf or similar unit.

• Please ensure that the mains socket is installed near the equipment and shall be easily accessible.
• Be sure to use the supplied mains adaptor and mains lead. Otherwise, it may cause a malfunction.
• Connect the mains adaptor to an easily accessible mains socket.
• Do not coil the mains lead around the mains adaptor. The core wire may be cut and/or it may cause a malfunction of the media receiver.
• Do not touch the mains adaptor with wet hands.
• If you notice an abnormality in the mains adaptor, disconnect it from the mains socket immediately. The set is not disconnected from the mains source as long as it is connected to the mains socket, even if the set itself has been turned off.
• As the mains adaptor will become warm when it is used for a long time, you may feel hot when touching it by hand.

Prohibited Usage

Do not install/use the LCD Monitor in locations, environments or situations such as those listed below, or the LCD Monitor may malfunction and cause a fire, electric shock, damage and/or injuries.

Locations:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environments:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near the source of naked flame, such as lighted candle, which is placed on a LCD Monitor. The LCD Monitor shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the LCD Monitor.

Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the LCD Monitor from mains socket during lightning storms.

Install the LCD Monitor so that it sticks out into an open space. Injury or damage from a person or object bumping into the LCD Monitor may result. - Place the LCD Monitor in a humid or dusty space, or in a room with oily smoke or steam

(near cooking tables or humidifiers). Fire, electric shock, or warping may result. - Install the LCD Monitor in places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The LCD Monitor may overheat in such condition which can cause deformation of the enclosure and/or LCD Monitor malfunction.

• If the LCD Monitor is placed in the changing room of a public bath or hot spring, the LCD Monitor may be

damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid moving the LCD Monitor from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the LCD Monitor to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the LCD Monitor on.

Broken pieces:

• Do not route a thick cable or multiple cables through the hole in the stand. This could damage the cable and cause trouble or malfunction. The LCD Monitor may not move smoothly under such cable conditions. - Do not throw anything at the LCD Monitor. The screen glass may break from the impact and cause serious injury.

The LCD Monitor may not be able to move smoothly under such cable conditions. - Do not throw anything at the LCD Monitor. The screen glass may break upon impact and cause serious injury.

• If the surface of the LCD Monitor cracks, do not touch it until you have unplugged the mains lead. Otherwise this may cause an electric shock.

If you will not be using the LCD Monitor for several days, it should be disconnected from the mains for environmental and safety reasons. - As the LCD Monitor is not disconnected from the mains when it is just turned off, pull the plug from the mains socket to disconnect it completely.

If you will not be using the LCD Monitor for several days, it should be disconnected from the mains for environmental and safety reasons. Since the LCD Monitor is not disconnected from the mains when it is just turned off, pull the plug from the mains socket to disconnect it completely.

Do not allow children to climb on the LCD Monitor.

• Do not allow children to climb on the LCD Monitor.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

Turn off the LCD Monitor and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

Turn off the LCD Monitor and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

Mains lead is damaged.

• Poor fitting of mains socket.
• LCD Monitor is damaged by being dropped, hit, or having something thrown at it.
• The LCD monitor is damaged by being dropped, hit, or having something thrown at it.
• Any liquid or solid object falls through openings in the cabinet.

About LCD Monitor Temperature

When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Do not place this product close to medical devices

This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.

Keep out of the reach of children or the supervised individuals

This product (including accessories) has magnet(s). Swallowing magnet(s) could cause serious harm, such as choking hazard or intestinal injuries. If magnets (or a magnet) were swallowed, consult a doctor immediately.

Magnetic influence

This product (including accessories such as covers) uses magnets. Do not place magnetically sensitive objects (cash cards, credit cards with magnetic coding, etc.) near this product.

Precautions

View the LCD Monitor in moderate light, as viewing the LCD Monitor in poor light or during long period of time, strains your eyes. - When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Screen:

• Although the screen is made with high precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the screen. This is a structural property of the screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this LCD Monitor. The image may be uneven or the screen may be damaged.
• If this LCD Monitor is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this LCD Monitor is in use. This is not a malfunction.
• The screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the LCD Monitor

Be sure to unplug the mains lead connected to the LCD Monitor from mains socket before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/ cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Never spray water or detergent directly on the LCD Monitor. It may drip to the bottom of the screen or exterior parts and enter the LCD Monitor, and may cause damage to the LCD Monitor.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• Do not touch the LCD Monitor if your hand is covered in any chemical substance such as hand cream or sunblock. Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation.
• When adjusting the angle of the LCD Monitor, move it slowly so as to prevent the LCD Monitor from moving or slipping off from its table stand.

Optional Equipment

• Keep optional components or any equipment emitting electromagnetic radiation away from the LCD Monitor. Otherwise picture distortion and/or noisy sound may occur.
• This equipment has been tested and found to comply with the limits set out in the EMC Standards using a connection signal cable shorter than 3 meters.

Disposal of the LCD Monitor

Disposal of old electrical & electronic equipment (applicable in the European Union and other countries with separate collection systems)

This symbol on the product

or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Installation/Set-up

• Install and use the LCD Monitor in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The LCD Monitor should be installed near an easily accessible mains socket.
• Place the LCD Monitor on a stable, level surface to prevent it from falling over and causing personal injury or property damage. Install the LCD Monitor where it cannot be pulled, pushed, or knocked over.

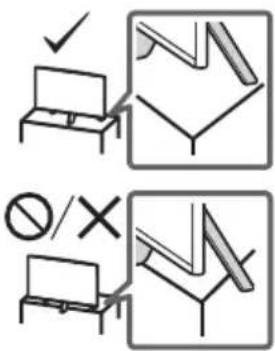

• Install the LCD Monitor so that the LCD Monitor's Table-Top Stand does not protrude out from the LCD Monitor stand (not supplied). If the Table-Top Stand protrudes out from the LCD Monitor stand, it may cause LCD Monitor set to topple over, fall down, and cause personal injury or damage to the LCD Monitor.

Transporting

• Before transporting the LCD Monitor, disconnect all cables.
• When transporting the LCD Monitor by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

• When lifting or moving the LCD Monitor, hold it firmly from the bottom.
• When transporting the LCD Monitor, do not subject it to jolts or excessive vibration.
• When transporting the LCD Monitor for repairs or when moving, pack it using the original carton and packing material.

Installing the LCD Monitor to the Wall

This LCD Monitor's instruction manual only provides the steps to prepare the LCD Monitor for Wall-Mount installation before it is installed on the wall.

Your LCD Monitor can be mounted to a wall using a suitable Wall-Mount Bracket (not supplied). If the Table-Top Stand is attached to the LCD Monitor, the LCD Monitor may require detaching the Table-Top Stand. Prepare the LCD Monitor for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of your LCD Monitor on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this LCD Monitor, especially to determine the strength of the wall for withstanding the LCD Monitor's weight.
• The screws for installing the Wall-Mount Bracket to the LCD Monitor are not supplied.

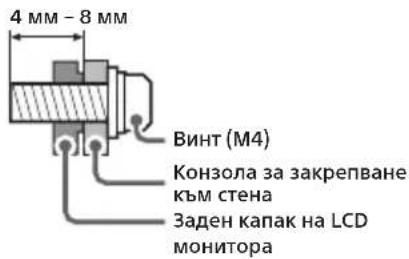

• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please refer to below illustration.

Refer to the following table for wall-mount hole pattern.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight Sound output: 2 W + 2 W

Input/Output jacks

HDMI IN 1/2 (HDMI 2.1, HDCP 2.3) (Stereo mini jack)

Headphone 1,2,3

USB Type-A (PC) USB Type-B DP USB Type-C, DP Alt mode DisplayPort (Ve)

Mains adaptor input

Power, Product Fiche and others

Power requirements

19.5 V DC with AC adapter

Rating: Input 100 V - 240 V AC, 50/60 Hz

Energy Efficiency Class* G

Screen size (measured diagonally) (Approx.) 68.4 cm / 27 inches

Standby power consumption*0.5 W

Display resolution (horizontal × vertical) (pixels)

3840× 2160

Dimensions (Approx.) (w× h× d) cm

with Table-Top Stand 61.5 × 47.9 × 24.8

without Table-Top Stand 61.5 × 36.3 × 7.3

Stand width (Approx.) (cm) 45.3

Mass (Approx.) (kg)

with Table-Top Stand 6.8 without Table-Top Stand 4.6

Others

Operating temperature: 0°C - 40°C Operating humidity: 10% -80% RH (non-condensing)

¹ This information is for EU and other countries whose relevant regulation is based on EU energy labelling regulation. 2 Specified standby power is reached after the LCD Monitor finishes necessary internal processes.

Note

• Design and specifications are subject to change without notice. Some of the on-screen instructions may not apply to your LCD Monitor model. Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

SDM-U27M90 (1125537)

Trademark Information

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. - DisplayPort™, the DisplayPort™ logo and the DisplayHDR™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. © 2021 NVIDIA, the NVIDIA logo, and NVIDIA G-SYNC Compatible are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. - USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

KEEP THE PRODUCT AWAY FROM

LIT CANDLES OR ANY OTHER FORM OF OPEN FLAME TO PREVENT FIRE.

FORESIGHT

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

IMPORTANT MESSAGE

Disposal of old electrical and electronic equipment (applies in the European Union and other countries with separate collection systems)

MANUFACTURER'S LABEL

The label with the model number, manufacturing date (year/month) and power rating is located on the back of the LCD monitor or on the packaging.

For models that come with an external power adapter:

The label with the model name and serial number of the external power adapter is located on the bottom of the external power adapter.

PRECAUTIONS

TO PREVENT FIRE OR EXPLOSION, KEEP CANDLES AND OTHER SOURCES OF OPEN FLAME AWAY FROM THE PRODUCT.

This product is manufactured by or on behalf of Sony Corporation.

Imported into the EU: Sony Europe B.V.

For any inquiries regarding import or inquiries related to product compliance with EU legislation, please contact the authorized representative of the manufacturer Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.

Energy efficiency information regarding power consumption, as required by Commission Regulation (EU) 2019/1782, is available at the following website: https://compliance.sony.eu

Do not mount the LCD monitor as shown below.

Air circulation is blocked.

Air circulation

Do not block the air circulation zone.

Power cord

To prevent fire, electric shock, damage, or malfunction, use the power cord as follows: Use only the original Sony power cord. Do not use other brands. Insert the plug fully into the outlet. Connect the LCD monitor only to a power supply of 100V-240V AC. When routing the cord, for safety, ensure that the power cord is unplugged; be careful not to trip over the cords. Unplug the power cord from the outlet before cleaning or moving the LCD monitor. Place the power cord away from heat sources. Unplug the power cord periodically. If the power cord is damaged or wet, or if moisture forms on it, unplug it immediately; this could lead to fire.

Caution

Do not use the supplied power cord with other equipment. Do not bend, twist, or pull the power cord excessively. The internal wires may break. Do not modify the power cord. Do not place heavy objects on the power cord. Do not pull the power cord when unplugging it from the outlet. Do not connect too many devices to a single outlet. Do not use an outlet that does not securely hold the plug.

Never place the USB charger or cable for charging in a wet place.

If the USB connector is wet, disconnect it from the main unit and dry the cable or material that may have become damp before reconnecting it to avoid malfunction.

SAFETY PRECAUTIONS FOR THE ADAPTER

Warning

To prevent the risk of fire or electric shock, do not expose the device to rain or moisture.

To prevent fire or electric shock, do not place objects filled with liquids, such as vases, on the device. Do not install this equipment in a confined space, such as a bookcase or similar furniture.

Make sure that the electrical contacts are installed close to the equipment and are easily accessible.

• Make sure you use the provided adapter and cable. Otherwise, this may cause malfunction.

Connect the adapter to an easily accessible electrical outlet.

Do not connect the adapter cable to the adapter. The internal wiring may overheat and cause malfunction.

Do not touch the adapter with wet hands.

If the adapter is damaged, unplug it from the electrical outlet immediately. LCD monitors do not disconnect the power supply while they are connected to the electrical outlet, even if the LCD monitor is turned off. If the adapter is submerged, and you continue to use it, you may feel heat when you touch it.

Prohibited use

Do not install/use the LCD monitor in places or situations described below. Otherwise, the LCD monitor may be damaged or cause fire, electric shock, damage, or malfunction.

Location:

On an open (under direct sunlight), on a ship, on a vessel or other craft, inside the vehicle, in public places, on unstable surfaces, above water, placed on the floor, or near a heat source.

Ambient environment:

Places that are hot, humid, or exposed to rain; where insects may enter; where it may be exposed to mechanical vibration, near a source of open flame such as a candle, placed on top of an LCD monitor. The LCD monitor should be protected from moisture; do not place objects with moisture near it, such as a vase.

Situations:

Do not use if your hands are wet when plugging in the device or its accessories, which are not protected from the manufacturer. During thunderstorms, unplug the LCD monitor. Do not mount the LCD monitor in a way that it can fall. It may cause injury or damage from impact to a person or object. Do not place the LCD monitor in a damp or wet place, or in a place with high humidity.

or near water (close to kitchen sinks or washing machines). It may cause fire, electric shock, or deformation. Do not place the LCD monitor in places exposed to high temperatures, such as direct sunlight, near radiators, or heaters. In such conditions, the LCD monitor may overheat, which may cause deformation of the casing and/or damage to the LCD monitor.

If the LCD monitor is placed in a public bath or mineral bath, it may be damaged by

-For the best picture quality, do not place it in direct sunlight or under strong lighting. -Place the LCD monitor away from heat sources. Sudden changes in temperature may cause condensation. This may cause the LCD monitor to show a poor picture and/or malfunction. In such cases, wait for the moisture to evaporate naturally before turning on the LCD monitor.

Cleaning:

Do not run cables or many cables through the opening of the stand. This may damage the cable and cause problems with the LCD monitor, possibly resulting in malfunction. Do not throw anything at the LCD monitor. The screen surface may crack or explode upon impact and cause serious injury. If the surface of the LCD monitor is cracked, do not touch it until you unplug the power cable. Otherwise, it may cause electric shock.

When not using the device

To save energy and for safety, we recommend unplugging the LCD monitor from the outlet when you do not plan to use it for several days. The LCD monitor is not disconnected from the power source when it is turned off. To disconnect the device completely, unplug the power cable from the electrical outlet.

Regarding dust

Do not allow dust to accumulate on the LCD monitor. - Keep small accessories away from dust, so they are not affected by it.

If problems occur...

If the LCD monitor is damaged, contact your dealer or Sony service center for repair. The LCD monitor must be checked and qualified by service personnel.

Warning:

The screen may be damaged if it is hit or dropped. Do not place heavy objects on the monitor. Do not insert any objects into the openings of the cabinet.

Regarding the temperature of the LCD monitor

When the LCD monitor is used for a long time, the frame around the panel becomes warm. You may feel the heat when you touch it.

Do not place this product near medical equipment

This product (including accessories) contains magnets that may interfere with pacemakers, programmable shunt valves for hydrocephalus, or other medical equipment. Do not place this product near such equipment. Consult your doctor before using this product if you use such medical equipment.

Keep the product in a place where it cannot be reached by children or pets

This product (including accessories) contains magnets. The magnets may cause serious injury, such as swallowing or choking, or damage to the intestines. If the magnets are swallowed (or inhaled), consult a doctor immediately.

Magnetic influence

This product and its accessories, such as the remote control, use magnets. Do not place objects that are sensitive to magnets (such as cards, credit cards with magnetic stripes, etc.) near the product.

Precautions

• View the LCD monitor in moderate light, as viewing it in dim light or for a long time may cause eye strain. When using headphones, adjust the volume to avoid hearing damage.

Screen:

Although the screen is manufactured with high-precision technology and more than 99.99% of its pixels are effective, black or bright dots (red, blue, or green) may appear on the screen. This is a structural characteristic of the screen and is not a malfunction. Do not press or scratch the screen, and do not place objects on the LCD monitor. The image may be uneven or the screen may be damaged. If you use the LCD monitor in a cold place, the image may appear dark or become dim. This is not a malfunction. This phenomenon disappears when the temperature rises. If still images are displayed for a long time, residual images may appear. They may disappear after a few seconds. The screen and the cabinet become warm when you use the LCD monitor. This is not a malfunction.

Small amount of thermal paste crystals. Follow local rules and regulations for disposal of such waste.

Cleaning and maintenance of the surface of the screen/casing of the LCD monitor

Make sure you have unplugged the power cable from the LCD monitor before cleaning. To prevent damage to the screen surface, follow the instructions below.

To remove dust from the surface of the screen/casing, wipe with a soft dry cloth. If additional cleaning is needed, wipe the screen with a soft cloth slightly dampened with a mild cleaning solution.

Never spray water or solution directly onto the LCD monitor. On the screen or other parts, drops may form, which can run down and penetrate the inner part of the LCD monitor and damage it. Do not use abrasive cloths, cleaning agents on an alkaline/acidic basis, solvents such as alcohol, benzene, thinners, or insecticides. Using such substances for a long time may damage the screen surface or the surface of the casing of the device. Do not use the LCD monitor if your hands are covered with a chemical substance like cream for hands or lotions. - Periodically clean the ventilation openings with a vacuum cleaner to ensure proper ventilation. When adjusting the height of the LCD monitor, place it on a stable surface to prevent the LCD monitor from falling or being damaged.

Additional equipment

Do not place additional components or any equipment near the LCD monitor that emits electromagnetic waves. Otherwise, the picture and/or sound may be distorted. This equipment has been tested and complies with EMC standards, using shielded signal cables of less than 3 meters.

Disposal of the LCD monitor

Disposal of old electrical and electronic equipment (applicable in the European Union and other countries with separate collection systems)

This symbol on the product or its packaging indicates that this product must not be treated as household waste. Instead, it should be handed over to the appropriate collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling. Recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Installation/Setup

• Install and use the LCD monitor in accordance with the instructions described below to avoid the risk of fire, electric shock, or damage and/or malfunction.

Installation

Place the LCD monitor on a stable, flat surface to avoid it falling, which could cause injury or damage to property. - Mount the LCD monitor in a place where it cannot be pulled, bumped, or overturned. Place the LCD monitor so that the stand for the LCD monitor is not the stand on which the LCD monitor is placed (not supplied). If the stand is pulled out from under the LCD monitor, this could cause the LCD monitor to overturn and fall, leading to injury or damage to the LCD monitor.

Removal

Before moving the LCD monitor, disconnect all cables from it. When moving the LCD monitor to another place, hold it as shown below. Do not press on the LCD panel or the frame around the screen.

For the mounting hole pattern, see the following table.

Model name

Hole pattern for

wall mounting

a×b

SDM-U27M90100×100 mm

Rated input voltage: Input voltage 100 V - 240 V AC, 50/60 Hz

Energy efficiency class* G

Screen size (measured diagonally) (approx.) 68.4 cm / 27 inches

Power consumption in standby mode**2

0.5 W

Operating humidity: Relative humidity

European Sony

Dear Customer

Thank you for purchasing this Sony product. We hope you will be satisfied with it. If, in the unlikely event that your product needs service (repair) during the warranty period, please contact the dealer from whom you purchased it or any of our authorized service network (ASN) in the European Economic Area (EEA) or in other countries where they are indicated in this warranty or in the documents accompanying this warranty (Warranty Conditions). You can find details about our ASN network, in our telephone directories, in our product catalogs and in our leaflets. To avoid any unnecessary inconvenience, we recommend that you read this instruction manual carefully before using the product with your dealer or our authorized service network.

Your Warranty

This product warranty applies to the Sony product you purchased, as long as such is mentioned in the documents accompanying your product, under the condition that the purchase was made within the Warranty Coverage Area. With this product, Sony warrants that the product is free from any defects related to materials or workmanship, for a period of TWO YEARS from the date of the original purchase. The obligation to provide warranty service for the product is the responsibility of the Sony company that is indicated in this warranty or in the documents accompanying this warranty in the country where the service or repair is requested during the warranty period.

If, within the warranty period, the product proves to be defective (from the date of the original purchase) due to faulty materials or workmanship, Sony or any member of the authorized service network (ASN) in the Warranty Coverage Area will repair or replace it (at Sony's discretion) without charge for labor or parts, the product or its defective parts, within a reasonable time, under the terms and conditions set out below. Sony and the members of the authorized service network (ASN) may replace defective products or parts with new or reconditioned products or parts. All replaced products and parts become the property of Sony.

Terms

1. The warranty service can only be provided if you present the original receipt or proof of purchase (with the date of purchase, the name of the product and the name of the dealer) together with the defective product within the warranty period. Sony and the members of the authorized service network (ASN) may refuse the provision of service during the warranty period if the aforementioned documents are not presented or if they do not arise from them the date of purchase, the product or the name of the product or the name of the dealer. The warranty does not apply if the model or the serial number of the product has been altered, erased or rendered illegible.
2. To avoid damage or loss/erasure of stored data or data storage accessories, you must remove them before handing over the product for repair during the warranty period.
3. This warranty does not cover the risks associated with the transport of the product to and from Sony or its authorized service centers.
4. This warranty does not cover the risks associated with the transport of the product to and from Sony or its authorized service centers.
5. Consumables and parts subject to wear and tear are excluded from this warranty. Examples include (but are not limited to) batteries, lamps, filters, and similar parts that require periodic replacement during the life of the product.

This device has been designed and manufactured to be used in accordance with the instructions for use, either the standard or the household use. The instructions or the warnings for use in case of misuse, are as follows: -of the device before use, simple or explanatory instructions or the warnings for use in the event of use in conditions of high humidity -the standard or the form or the instructions of the Sony installation or the use of the device -the maintenance of the device in accordance with the instructions of the Sony maintenance instructions -the installation or the use of the device in a way that is compatible with the technical specifications and the safety standards that apply in the place where it is installed and used. The use of the device with software is not allowed if the software is not the original or the verified installation of the software. The installation and the defects of the systems with which the device is used or with which the device is connected, except for other Sony products that are designed to be used with the device in question. The use of the device with accessories, peripheral equipment and other products of which the type, the installation and the protocol are not certified by Sony. The attempted repair of the device by persons who are not authorized by Sony or by the authorized ASN. Adjustments or adaptations without the prior written consent of Sony, including: -the upgrade of the device beyond the specifications or the characteristics described in the manual or

-the modifications of the device in any way that does not comply with the local or national technical specifications and safety standards that apply in the countries for which the device was not designed and manufactured.

A. Accidents, misuse, abuse, negligence, and other causes, damage, breakage, overheating, improper ventilation, overvoltage, overcurrent or reverse polarity or voltage, radiation, electrostatic discharges including lightning, other internal forces and actions. 5. This warranty covers only the materials of the device. It does not cover the software (either of Sony or of third-party manufacturers) for which the device is intended to be used with a license from the final user or the warranty exclusions or limitations from the warranty.

-Do not touch the LCD screen as shown below.

Do not block the air circulation.

Cable connection

To avoid the risk of fire, electric shock or damage and/or injury, use the cable connection and the plug as follows:

The power cord must be connected to a Sony-approved outlet. Do not use any other type of outlet. The plug must be inserted firmly. - Operate the LCD screen only with a power supply of 100 V - 240 V AC. When connecting the power cord, make sure the plug is securely inserted into the outlet. - Before performing any work on the LCD screen, disconnect the power cord from the outlet. Hold the power cord by the plug when disconnecting. Do not pull the cord. If the plug is damaged or the cord is frayed, there is a risk of electric shock or fire.

Note

Do not use the supplied power cord with any other device. Do not modify, bend, or twist the power cord. Do not place heavy objects on the power cord. - To disconnect the power cord from the outlet, pull it out by the plug. Do not pull the cord. Do not use outlets with poor contact.

Do not place the product near medical equipment

This product (including accessories) has magnets that may interfere with pacemakers, programmable shunt valves, or other medical devices. Do not place this product close to persons using such medical devices. Consult your doctor before using this product if you use such medical devices.

Product Information

REGULATION (EU) 2019/2013

SDM-U27M90 (1125337)

Installation

ELECTRIC SHOCK HAZARD

DO NOT OPEN

IMPORTANT NOTICE

27 68.4 05 (ONxPON)ON

#

annnnn

-

.

in qunn b ohy oy hnn nn

·5wnn

·

mnnn, mnnn T nenn nn

.17

AP = PN = 2∴ 在 ΔAPN 和 ΔPNP 中

5nwn

·17n17n

.

USB 0000000000000000

n 10000000000000000000000000000000000000000000000

• 01.2mm

·Brown 1

Tuesday, January 2, 2007

·

（）

（m）

.

https://rd1.sony.net/help/tv/u27m90/h_zz/

·

T

https://compliance.sony.eu

7

y

n nn, n

NIN

.

nnn nn 77 7771N

mnnnne

·

LCD

LCDn

by mmpn

HIGH-DEFINITION MULTIMEDIA INTERFACE

NVIDIA.

G-SYNC
