USER MANUAL HydroBlast Hammersmith

AS SEEN ON TV ORIGINAL M MEDIASHOP

HAMMERSMITH®

HydroBlast

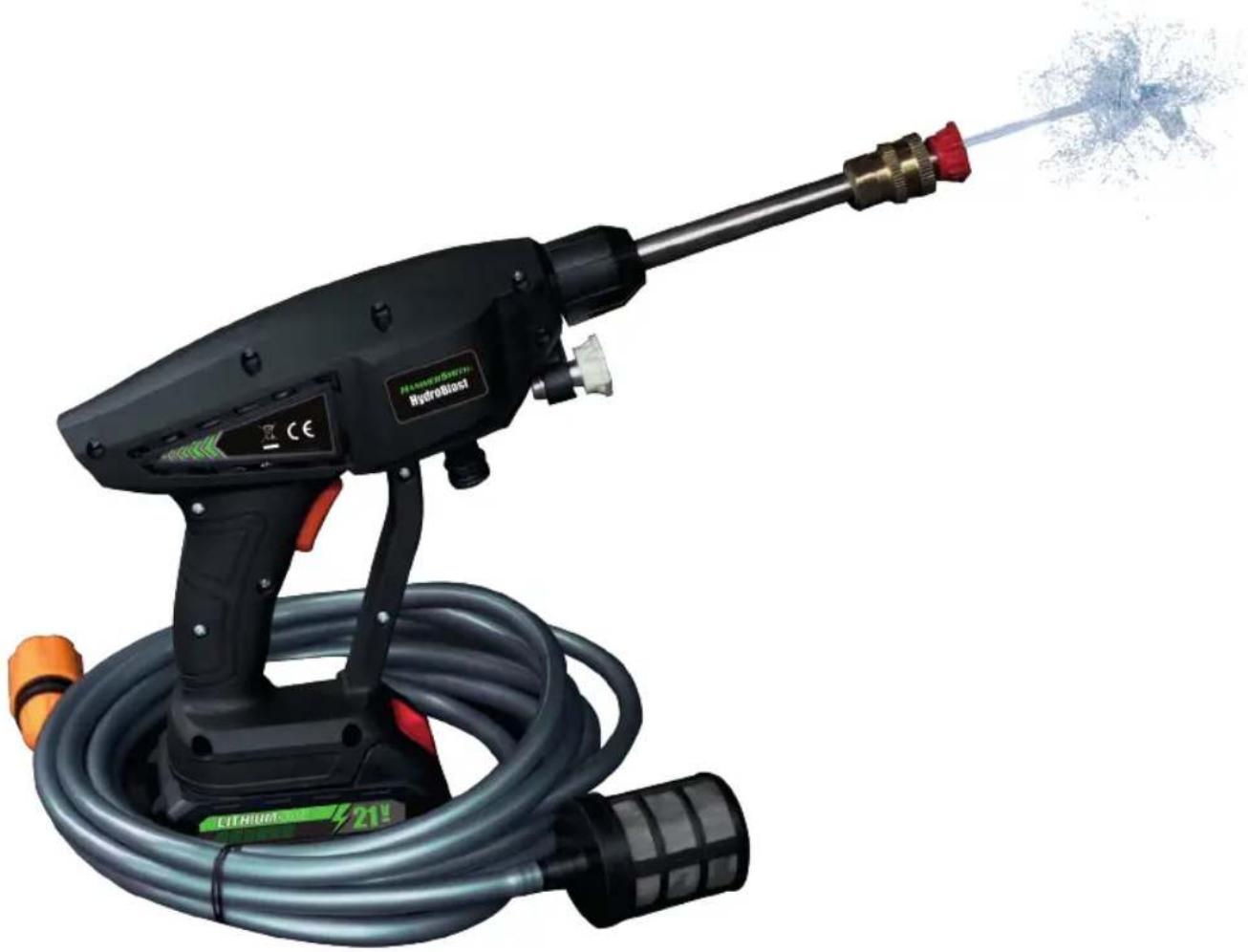

Black HydroBiom® water spray gun with coiled hose and hose assembly (no text or symbols visible)

Instructions for Use 09

Mode d'emploi....13

Black industrial spray gun with control panel and red handle (no visible text or symbols)

Orange cylindrical object with black cap, no visible text or symbols

White plastic water dispenser bottle with black handle (no text or symbols visible)

Black cylindrical container with transparent glass layers and a side outlet tube, labeled 'D' in top-left corner (no other text or symbols)

Black electronic device with attached cable and connector (no visible text or symbols)

Battery with red and black casing, displaying 'LITHIUM 21!' and a green lightning bolt symbol (no additional text or symbols)

Red and silver mechanical component with a circular head (no visible text or symbols)

Close-up of a white plastic pressure regulator connector with metallic fittings (no text or symbols visible)

Close-up of a metallic tool with two brass connectors and a black handle (no text or symbols visible)

Coiled metallic wire or coiled spring, no text or symbols visible

K HAMMERSMITH. HydroBlast

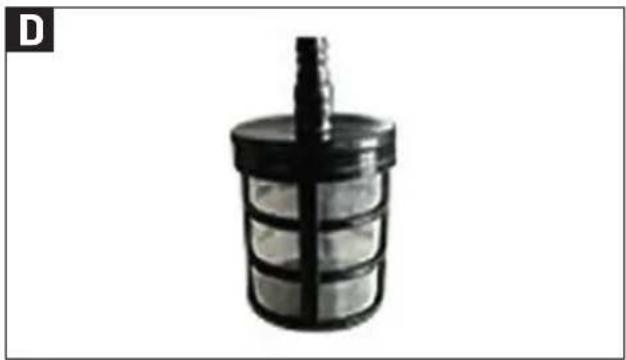

D. NANO SCREEN FILTER (non-rusting)

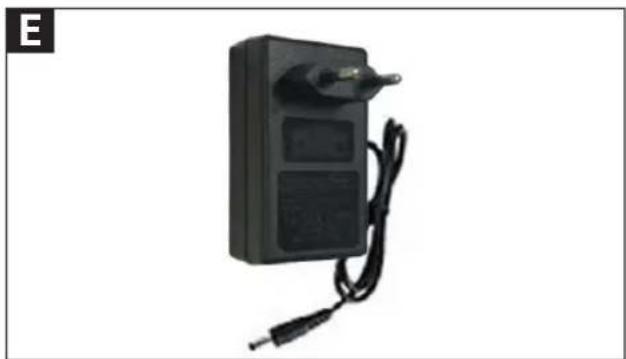

E. CHARGER

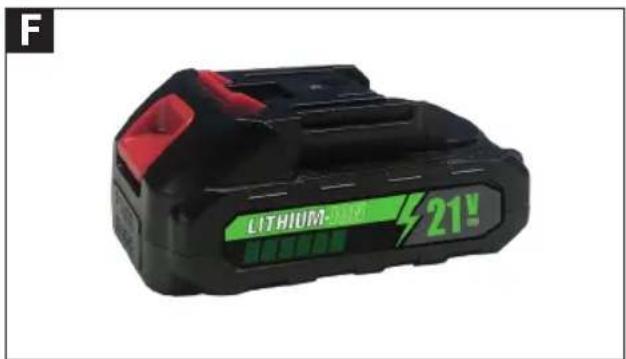

F. RECHARGEABLE LITHIUM-ION BATTERY

G. JET PRECISION SPRAY NOZZLE

H. WIDE JET SPRAY NOZZLE

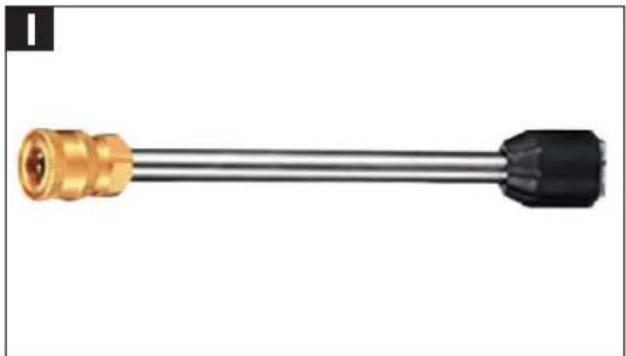

I. LONG HIGH PRESSURE NOZZLE

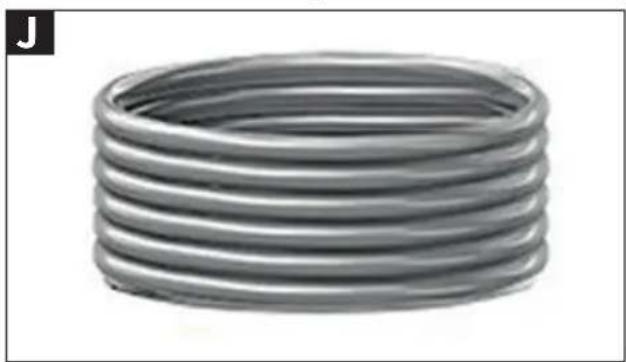

J. 5-METRE HIGH PRESSURE HOSE

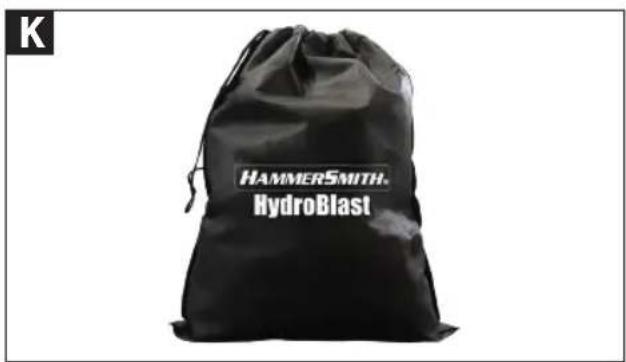

K. STORAGE BAG

FR | CONTENU DE LA LIVRAISON ET DÉSIGNATION DES PIÈCES (#1) :

A. APPAREIL PRINCIPAL

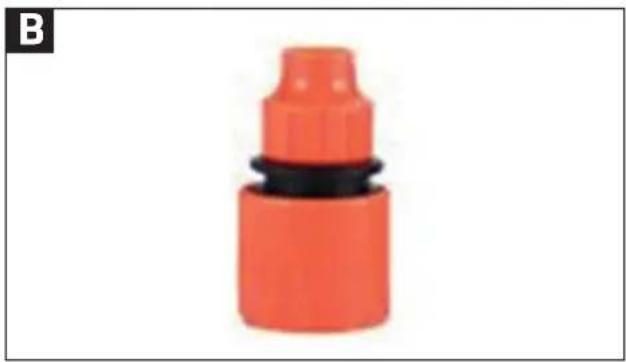

B. ADAPTATEUR DE TUYAU

C. FLACON DE MOUSSE DE SAVON

D. NANO-FILTRE À TAMIS (inoxydable)

E. CHARGEUR

F. BATTERIE AU LITHIUM-ION RECHARGEABLE

G. BUSE DE PULVÉRISATION À JET DE PRÉCISION

H. BUSE DE PULVÉRISATION À JET LARGE

I. BUSE HAUTE PRESSION LONGUE

J. TUYAU HAUTE PRESSION DE 5 MÊTRES

K. POCHETTE DE RANGEMENT

IT | FORNITURA & DESCRIZIONE DEI COMPONENTI (#1):

A. APPARECCHIO PRINCIPALE

B. ADATTATORE PER TUBI

C. BOMBOLA DI SCHIUMA DI SAPONE

D. FILTRO A SETACCIO NANO (inossidabile)

E. CARICABATTERIE

Electric shock absorber connected to a wall-mounted sensor and power supply unit (no text or symbols visible)

Hand holding a black industrial spray gun with a green sensor device and red directional arrows indicating motion (no text or symbols visible)

#4 #5

#6 HydroLine

#7 #8

#9 #10

#11 #12

#13

Two industrial welding machines: one with a green hose and labeled component, the other with a close-up of its cable (no visible text or symbols)

Close-up of a red mechanical component with a blue wire extending from its tip, labeled #15 in the corner (no other text or symbols)

Close-up of a white spray gun with a blue spray can pointed out, no visible text or symbols

#17 #18 #19

Illustration of two plastic bottles with different spray methods, one emitting a green liquid from a container (no text or symbols)

Two industrial hoses: a brass hose with red arrow and a teal plastic bottle with black handle (no text or symbols visible)

Close-up of a blue plastic bottle with red arrows indicating motion or pressure direction (no text or symbols)

DE

• In some countries/regions, the use of cleaning products on outdoor private property is not permitted. Please check the applicable rules for your country/region.
• Do not use water over 50^ .
• Do not spray objects that contain substances or materials that are hazardous to health (e.g. asbestos).
• Operate the device in accordance with applicable regulations and never without a circuit breaker.
• The device is not a toy; keep it out of the reach of children. The device must not be operated by children.
• Product performance may vary depending on water pressure.
• Do not drop the product on hard surfaces, as this may damage it.
• The battery must only ever be charged indoors.
• The charger power cord must be replaced if it is damaged. Consult a qualified electrician, and never attempt to replace the cable yourself.
• Accessories that are not included in the scope of delivery must not be used.
• Unplug the battery's power cable when not in use or when cleaning.
• This device may only be used by people with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or

instructed in the safe use of the device and understand the dangers associated with its use. Children must not be allowed to play with the device.

• Children should be supervised to ensure that they do not play with this device.
• Be careful not to immerse electrical parts in water.
• This pressure washer is intended for domestic use only, and is intended to clean: cars, bicycles, patios, grills, plastic furniture, pond areas and gardens.
• Do not place the pressure washer near sources of fire or other high-temperature locations.
• Do not expose the lithium battery to sources of heat or fire, and avoid storing it in direct sunlight.
• Do not subject the lithium battery to mechanical shocks.
• Avoid short-circuiting the lithium battery. To avoid them short-circuiting one another or being short-circuited by other metal objects, do not place battery packs in boxes or drawers.
• Never attempt to disassemble or open the lithium battery.
• Do not charge the lithium-ion battery for an overly long period of time.
• It is recommended that you charge the lithium battery every three months if not used for an extended period of time.
• Cease use of the product if it accidentally falls to the ground and has visible damage or failure.

• The lithium battery performs best at normal temperatures (20°C ± 5°C).

• Only use a dry cloth to clean the products. Do not use water, petrol, alcohol or other chemical solvents. The water inlet filter and the water pipe filter should be cleaned regularly.

• Used batteries should be recycled and not simply disposed of in the bin.
• Do not use the included charger for any other appliance.
• Do not charge at high temperatures.
• Only ever charge indoors, and avoid the device getting wet in the rain.
• If the power cord is damaged, it must be replaced by the manufacturer, its maintenance department or similar professionals, in order to avoid any danger.
• Before charging, please ensure that the charger is in good operating condition.
• Improper use of a high pressure jet lance can be dangerous. Do not aim the high-pressure jet directly at people, animals, electrical devices or the cleaner itself.
• Do not splash water on devices that contain electrical components.
• Cease use of the product if it accidentally falls to the ground and has visible evidence of damage or failure.

CHARGING & INSERTING THE BATTERY (#2-3)

1. To charge, connect the battery to the charging device, and plug the power adapter into a power outlet. It takes approximately 4 hours to fully charge the battery. Disconnect the power adapter from the power supply after charging.

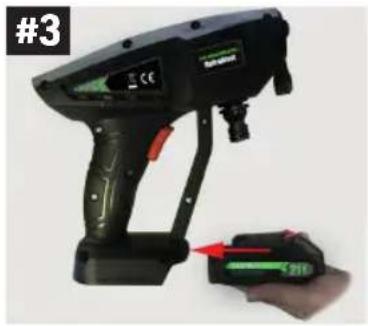

2. Slide the battery into the base of the main unit as shown in Figure #3 until you hear the battery click into place.
3. To remove the battery, press the large red button on the battery and pull it forward.

ASSEMBLY & USE

Please follow the installation instructions to assemble the high-pressure cleaner and get it ready for use. After assembly, ensure that the flexible hose with the nanofilter is submerged in water and that the nozzles and accessories are correctly assembled and secured.

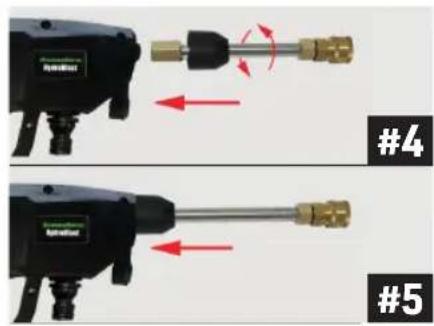

INSTALLING & REMOVING THE LONG HIGH PRESSURE NOZZLE (#4-6)

Installation (#4+5): Slightly push back the black rubber protective cap on the long nozzle to expose the hexagonal thread. Attach the nozzle to the main unit, and screw the nozzle clockwise. Note: Do not use a wrench; only screw the nozzle on hand-tight. Slide the black rubber protective cap back over the hexagonal thread.

Removal (#6): Slightly push back the black rubber protective cap on the long nozzle to expose the hexagonal thread. Using a hexagonal wrench (or by hand), turn the nozzle anti-clockwise to loosen and remove it.

INSTALLING THE NANOFILTER (#7-8)

Note: The nanofilter and high-pressure hose adapter are already pre-installed on the device when it is delivered.

Hold the flexible high-pressure hose and the nanofilter micro-sieve.

Insert the tip of the flexible high-pressure hose into the socket of the nanofilter micro-sieve. Make sure the filter is seated correctly and tightly.

Tip: If the hose is difficult to insert, take a cup of hot water, dip the tip of the hose into the hot water, and leave it there for a few minutes. This loosens-up the flexible rubber hose and allows it to expand, making it easier to insert and connect.

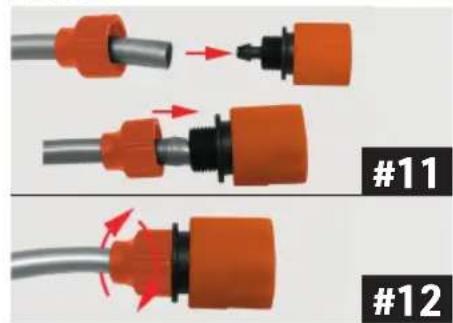

INSTALLING THE HIGH PRESSURE FLEXIBLE HOSE ADAPTER (#9-12)

1. Take the other end of the flexible 5-metre high pressure hose and the hose adapter.
2. Turn the bottom cover of the hose adapter anticlockwise to expose the tip of the adapter.
3. Thread the end of the flexible hose through the bottom adapter cover, and insert the tip of the adapter into the end of the hose. Make sure the adapter is secure.
4. Place the adapter cover back onto the thread of the adapter, and tighten everything in a clockwise direction.

USE WITH A BUCKET OR GARDEN HOSE (#13-#14a+b)

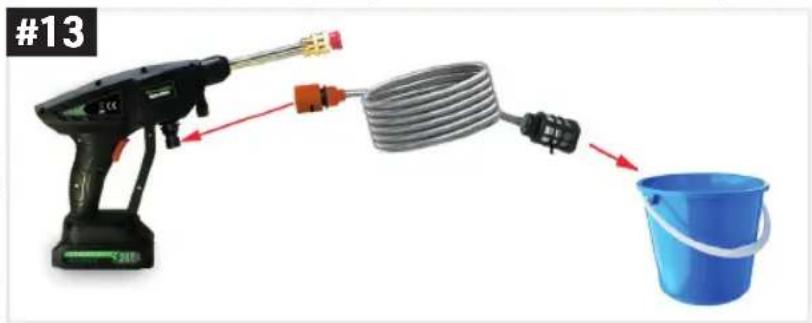

1. a) with high pressure hose and bucket (#13):

Connect the high pressure hose to the main unit. Place the other end of the hose, including the nanofilter micro-sieve, in a bucket of clean water, making sure that the sieve is completely submerged. Hold the main device firmly and press the on/off button on the handle. Keep the button pressed while using. You need to keep the button pressed for around 15 seconds until the pressure builds up and pressurized water comes out of the device. As soon as you release the button, the device switches off.

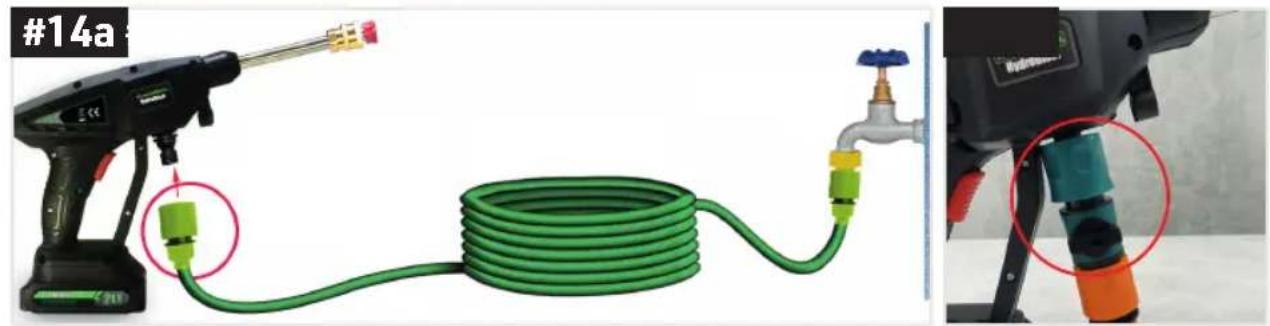

1. with a garden hose (#14a+b): Your garden hose requires a standard quick-coupler (not included in delivery contents). Connect one end of the garden hose directly to the main unit and the other to the tap. Then turn on the tap. As soon as the tap is opened, water comes out of the device; this is not a defect. You can purchase a commercially available start-stop control device (not included) for the garden hose or high-pressure hose. Attach the start-stop control device directly to the device and connect your garden hose or high-pressure hose to it (#14b). Hold the main device firmly and press the on/off button on the handle. Keep the button pressed while using. As soon as you release the button, the device switches off. If necessary, turn off the water supply using the start/stop control device.

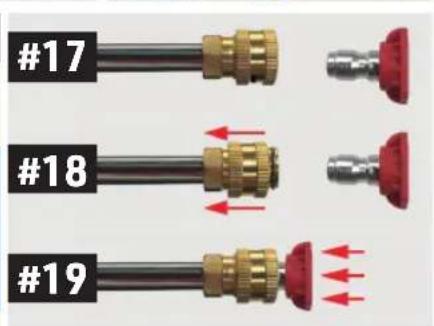

USING THE PRECISION OR WIDE JET NOZZLE (#15-19)

Connect the red precision or white wide jet nozzle as required.

1. The device must be switched off to do this.

2. Inserting: To do this, pull the ring of the brass quick-coupler backwards and hold it firmly. Insert the metal tip of the nozzle and push the brass quick-coupler ring back in.

3. Removing: To remove the nozzle again, switch off the device and pull the ring of the brass quick-coupler backwards and hold it firmly. Then pull off the nozzle.

ATTACHING & FILLING THE SOAP FOAM BOTTLE (#20-22)

1. Unscrew the top cap of the foam soap bottle in an anti-clockwise direction to open it. Fill the bottle with the desired soap or detergent to the first (bottom) rim. Then put the top cap back on, and turn it clockwise to seal the bottle.
2. Make sure that no nozzle is connected to the brass coupling. Connect the longer tip of the bottle to the brass quick-coupler.
3. Pull back the ring of the brass quick-coupler and hold it firmly. Insert the tip of the bottle into the coupling, and release the ring to snap it into place.
4. To remove the bottle, pull back the ring of the brass quick-coupler and hold it firmly. Then pull off the bottle and let go of the ring.
5. To operate: Point the device at the floor and press the on/off button on the handle to start the pressure washer. Release the button to stop it. Note when using with a bucket: It can take up to 15 seconds for sufficient pressure to build up. This is not a defect. Press and hold the on/off button for approximately 15 seconds.

TROUBLESHOOTING

Description Possible cause Solution
Weak lithium-ion battery or no power.	Low battery power	Remove the battery from the main unit and charge it for approximately 4 hours.
The battery is not charging	The battery is not connected to the charger.	Check whether the connections of the network adapter are firmly connected to the device and the socket.
No water flow or low water pressure	There is an accumulation of air in the suction and pump system	Bleed the system: Remove the hose adapter from the main unit. Turn the device upside down. Fill the pistol with a cup of water through the water inlet, and turn it on at the same time. Once the water has flowed into the system, reattach the hose adapter.
	No pressure builds up (using with a bucket)	It can take up to 15 seconds for sufficient pressure to build up. This is not a defect. Press and hold the on/off button for approximately 15 seconds.
	The filter is clogged.	Clean the filter of any debris that may have obstructed the flow.
	The hose is folded or kinked. Unfold and straighten the hose.
	The water is dirty Replace it with clean water.
	Clogged nozzles	Pull off the nozzle and clear it of any blockages
	Loose connection of hose, hose adapter and water inlet.	Connect the hose adapter and hose firmly to the main unit until everything clicks into place.
	The nanofilter micro-sieve is not completely submerged in the water	Submerge the filter in the bottom of the water bucket. Make sure that the bucket is filled with clean water.
Leakage of water between the tip of the device and the long high-pressure nozzle	The long high pressure nozzle is not installed correctly.	Remove the nozzle and inspect it for blockages, dirt and damage. If they it is clogged, clean it. Re-attach it and make sure it is installed correctly. If there is any visible damage, please contact customer services.
