USER MANUAL WAGL6S500 ELECTROLUX

Simple line drawing of a washing machine with a circular button and wavy lines inside (no text or symbols)

WAGL6S500

Diagram of a washing machine with numbered parts for identification and assembly reference.

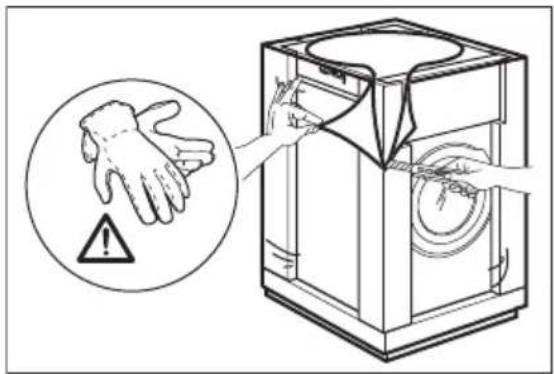

Diagram illustrating hand protection and cleaning process with warning symbol and labeled components

Diagram of a mechanical device with arrows indicating forces or motion, no text or symbols present

Diagram illustrating a washing machine operation with an open box and a close-up of a cord, plus a document and coins.

Line drawing of a washing machine with hands adjusting the top panel and a circular dial on the side (no text or symbols)

Technical line drawing of a mechanical device with labeled components (1 and 2), no readable text or symbols beyond labels

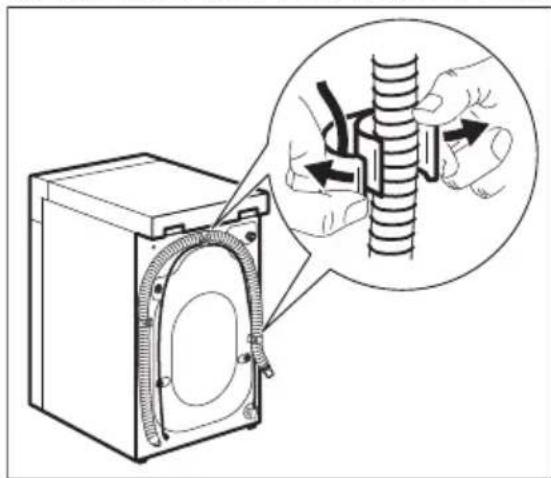

Diagram showing a device with coiled tubing and a magnified view of the internal structure being adjusted for mechanical assembly.

WARNUNG!

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing rotational motion.

Technical diagram of a washing machine with labeled parts and close-up insets showing hand positioning and cleaning steps

Diagram showing a washing machine with a close-up of its internal component and a 4x4 ratio adjustment indicator.

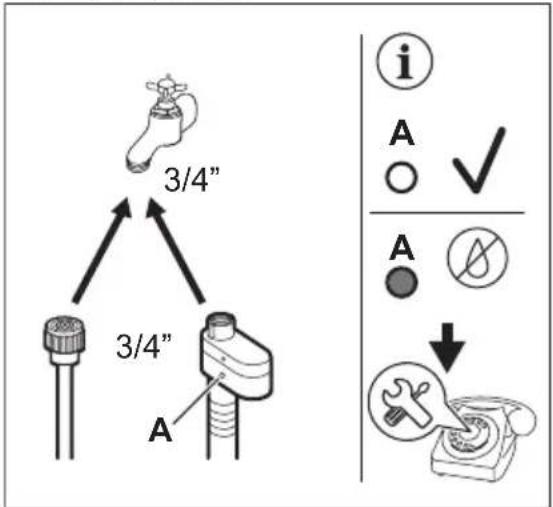

3/4" 3/4" A i A ✓ A ✓ ↓

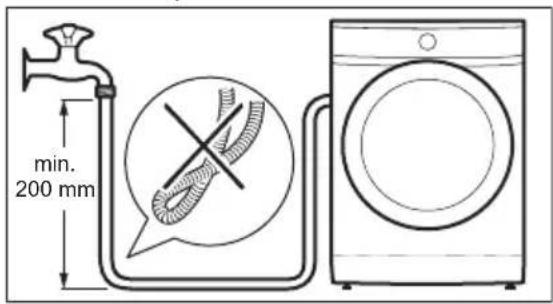

WARNUNG!

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

18.8 kg MAX 8:88 *88 1888 dB

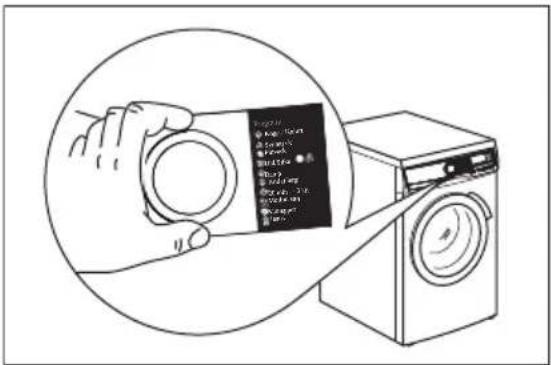

Diagram showing a hand holding a circular device with a list of items, next to a washing machine and a fan.

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

Medical warning diagram showing a warning symbol with an exclamation mark and a cross, next to a medical device.

VORSICHT!

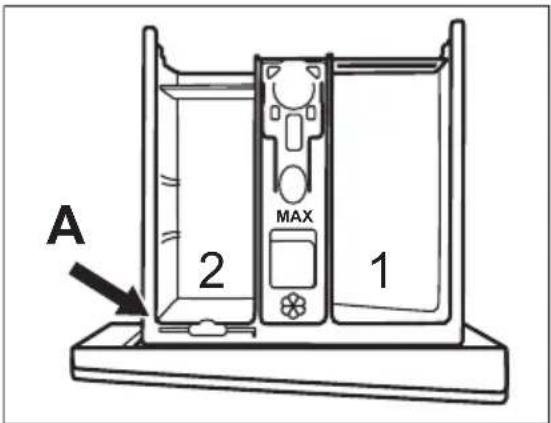

Technical diagram of a device casing with labeled parts 1 and 2, showing internal components and mounting features.

VORSICHT!

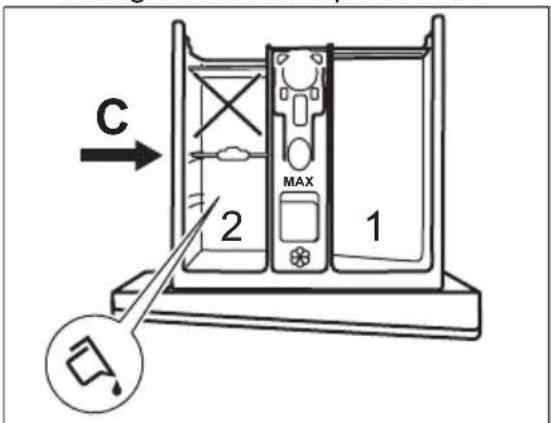

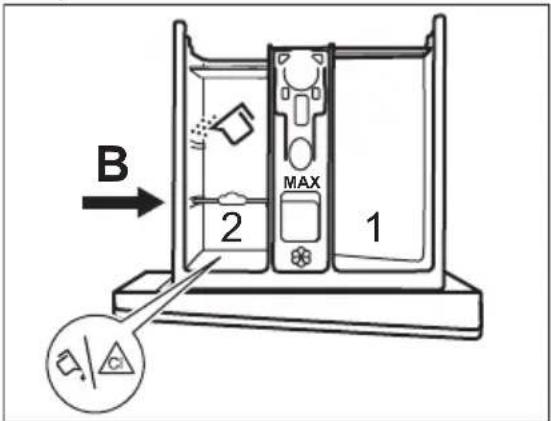

A 2 MAX 1

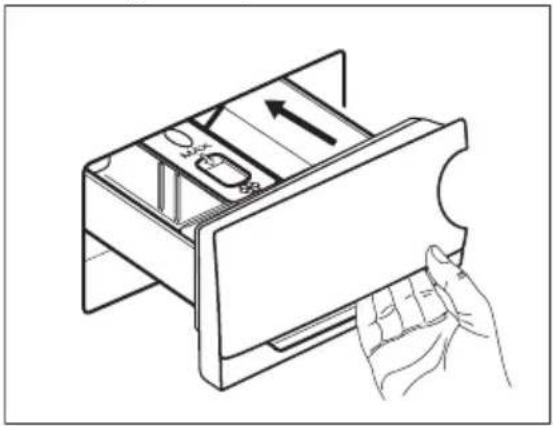

Line drawing of a hand inserting a device into a drawer (no text or symbols)

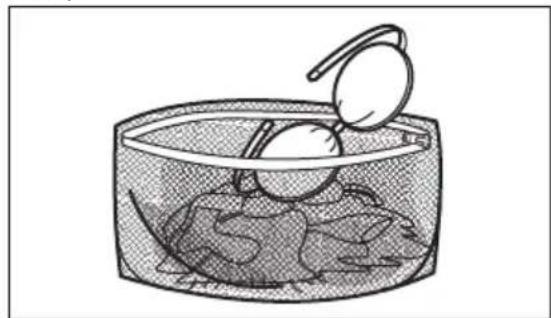

Line drawing of a bowl containing fish and a spoon, no text or symbols present

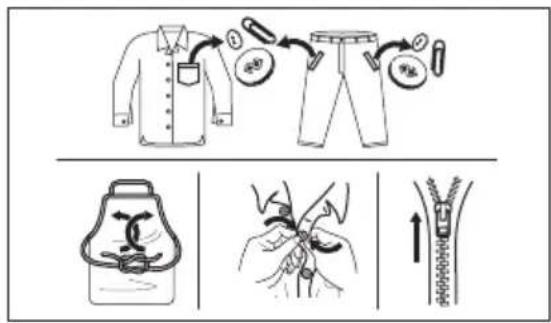

Diagram illustrating garment usage and zipper application steps, showing clothing, fabric, and zipper mechanism.

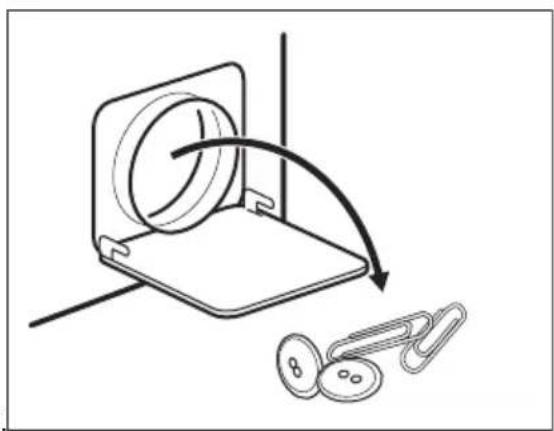

12.2 Hartnäckige Flecken

Line drawing of a hand holding a car seatbelt, no text or symbols present

Line drawing of hands operating a mechanical device with a handle and lever mechanism (no text or symbols)

Diagram of a mechanical device with a tool interacting with a spring, showing no text or symbols.

Line drawing of a kitchen sink with faucet and control panel, showing water flow from drain to sink (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Illustration of a hand holding a smartphone with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a sewing machine to press or install a piece of fabric (no text or symbols present)

Hand holding a device with a circular dial and directional arrow, labeled 3 and 4 (no text or symbols on the diagram itself)

Line drawing of a container pouring liquid into a bowl (no text or symbols)

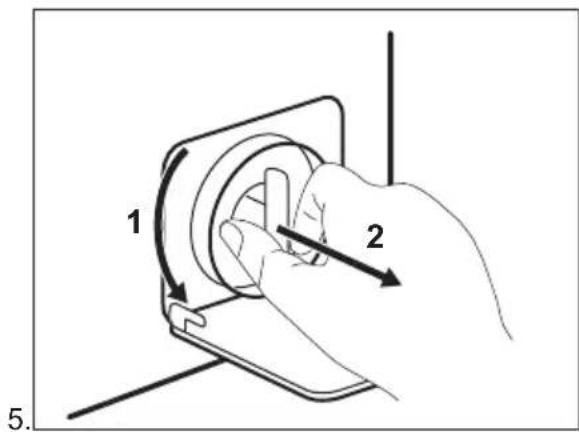

1 2 5.

Diagram showing a mechanical device with a rotating component and two hanging weights (no text or symbols)

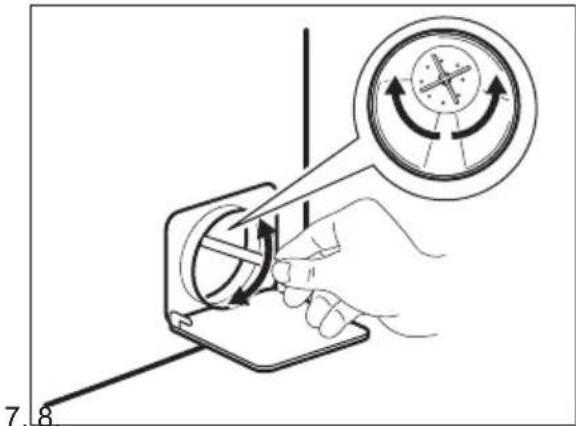

7. 8.

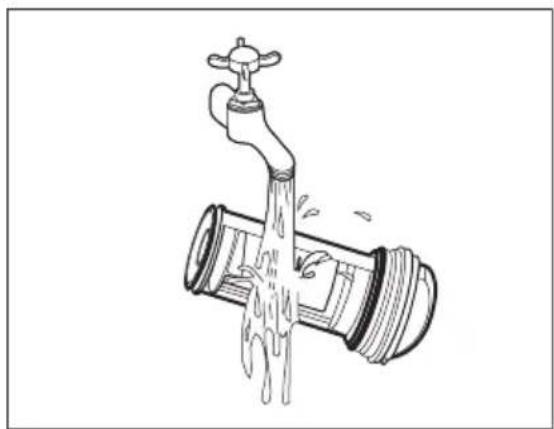

Line drawing of a faucet with water flowing out (no text or symbols)

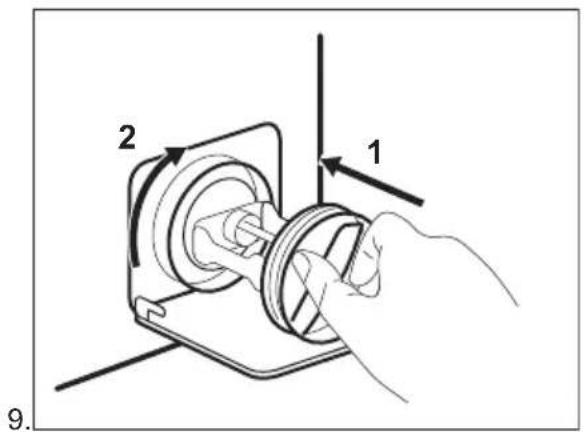

2 1 9.

Hand holding a device with a circular component and arrow indicating rotation (no text or symbols)

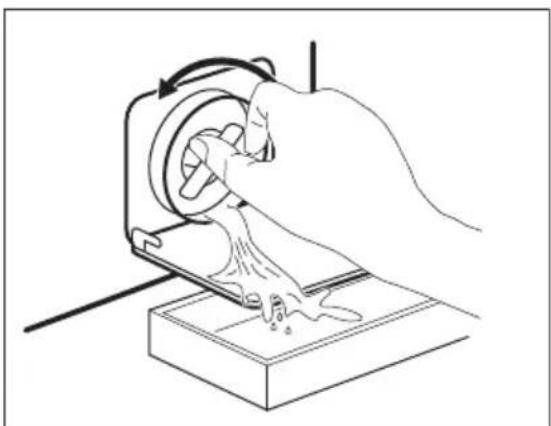

WARNUNG!

Diagram illustrating three-step hairpin tool application: step 1 shows a rotary knob, step 2 shows the same grip, and step 3 shows a brush.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to filter or clean the mesh (no text or symbols present)

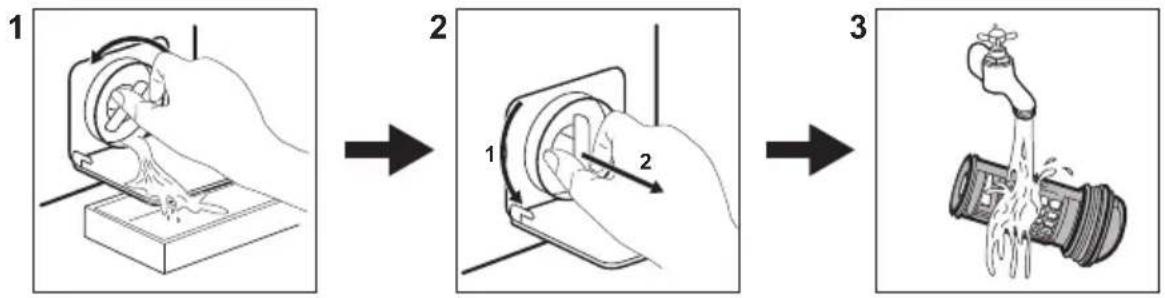


Line drawing of a hand holding a car seatbelt, no text or symbols present

Diagram of a washing machine with numbered parts for identification and assembly reference.

Diagram illustrating hand protection warning with a warning symbol and labeled components

Diagram of a washing machine with directional arrows indicating motion or force (no text or symbols)

Diagram illustrating a washing machine operation with an open box and a speech bubble containing medical devices like stethoscope and coins.

Line drawing of a washing machine with hands installing or adjusting the top panel (no text or symbols)

1. Retirez la protection du bas.

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Diagram showing a mechanical device with a magnified inset illustrating the assembly process of a threaded component.

AVERTISSEMENT!

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing rotational motion.

Technical diagram of a washing machine with labeled parts and close-up insets showing mechanical components.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for four times.

3/4" 3/4" A i A ✓ A ✓ ↓

AVERTISSEMENT!

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

18.8 kg MAX 8:88 *88 1888 dB

Diagram showing a hand holding a camera next to a washing machine, with a magnified inset highlighting the camera screen.

7. MANETTES ET TOUCHES

WOOLMARK WOOL CARE

WOOL HAND WASH SAFE

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating an emergency or diagnostic hazard.

ATTENTION!

Technical diagram of a device casing with labeled parts 1 and 2, showing internal components and mounting features.

ATTENTION!

A 2 MAX 1

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a bowl containing fish and a spoon, no text or symbols present

Illustration showing garment styling steps: cutting, holding a zipper, and adjusting a zipper with a zipper mechanism.

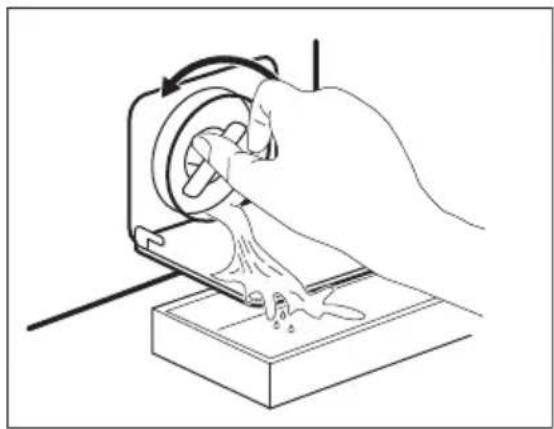

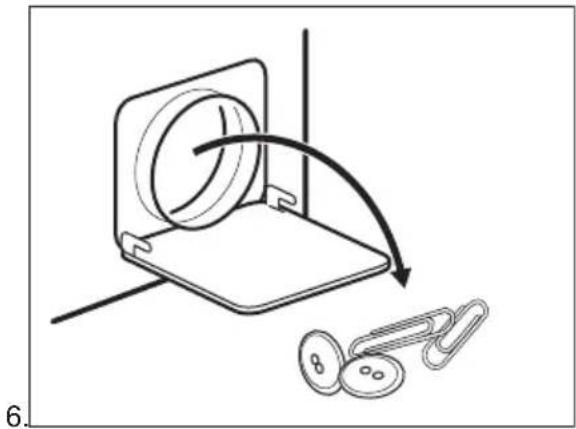

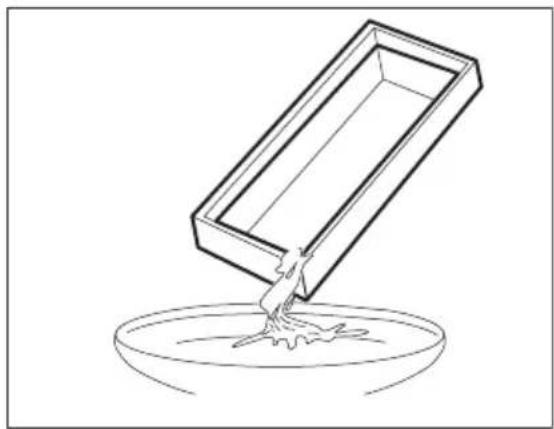

12.2 Taches tenaces

Line drawing of a hand holding a car seatbelt, no text or symbols present

Illustration of hands operating a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a hand holding a tool inside a device with a spring, showing mechanical components and an open control panel (no text or symbols)

Line drawing of a kitchen sink with faucet and control panel, showing water flow from drain to sink (no text or symbols)

Line drawing of a hand inserting a component into a device drawer (no text or symbols)

Illustration of a hand inserting a card into a device, showing a curved arrow indicating rotation (no text or symbols)

Illustration of a hand using a mechanical device to press or print a piece of material (no text or symbols visible)

Hand holding a rotary knob with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a container pouring liquid into a bowl (no text or symbols)

1 2 5.

Diagram showing a mechanical device with a rotating arrow and two hanging weights (no text or symbols)

7.8

Line drawing of a faucet with water flowing out (no text or symbols)

1 2 9.

Hand holding a device with a circular component and arrow indicating rotation (no text or symbols)

AVERTISSEMENT!

Diagram illustrating three-step instructions for using a tool to adjust a component, with numbered steps and directional arrows.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to filter or clean the mesh (no text or symbols present)

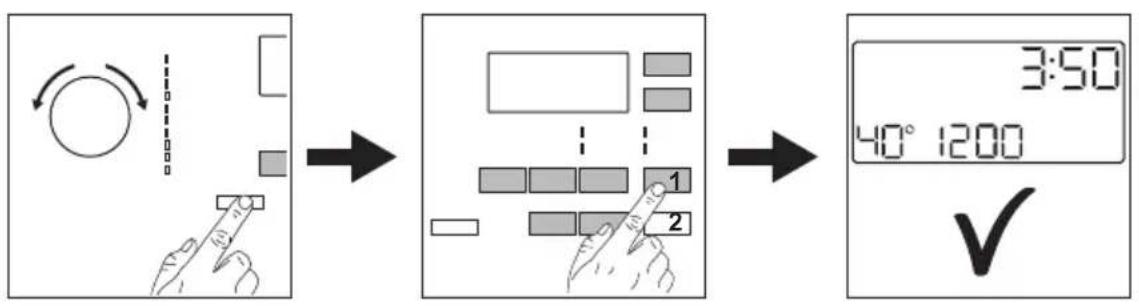


Line drawing of a hand holding a small object near a curved surface (no text or symbols)

Diagram of a washing machine with numbered parts for identification and assembly reference.

Diagram illustrating hand protection and cleaning process with warning symbol and labeled components

Diagram of a washing machine with directional arrows indicating motion or force (no text or symbols)

Diagram illustrating a washing machine operation with an open box icon, a speech bubble showing a cord, and coins linked to a document.

Line drawing of a washing machine with hands operating it, showing a circular dial and mechanical components (no text or symbols)

Diagram of a washing machine with a magnified inset showing hand positioning and coiled spring (no text or symbols)

AVVERTENZA!

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Technical diagram of a washing machine with labeled parts and close-up insets showing hand positioning and component insertion.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for four times.

1. Installare l'apparecchiatura su un pavimento piano e solido.

3/4" 3/4" A i A ✓ A ✓ ↓

AVVERTENZA!

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

18.8 kg MAX 8:88 *88 1888 dB

Diagram showing a hand holding a circular device with a screen displaying product information and a washing machine in the background.

7. SELETTORE E TASTI

WOOLMARK WOOL CARE

WOOL HAND WASH SAFE

Medical warning diagram showing a warning symbol with an exclamation mark and a cross, next to a medical device.

ATTENZIONE!

Technical diagram of a device casing with labeled parts, showing internal components and part numbers 1 and 2.

ATTENZIONE!

A 2 MAX 1

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Simple line drawing of a bowl containing food with a spoon above it (no text or symbols)

Illustration showing garment styling steps: cutting, holding, and fastening a zipper with a bag.

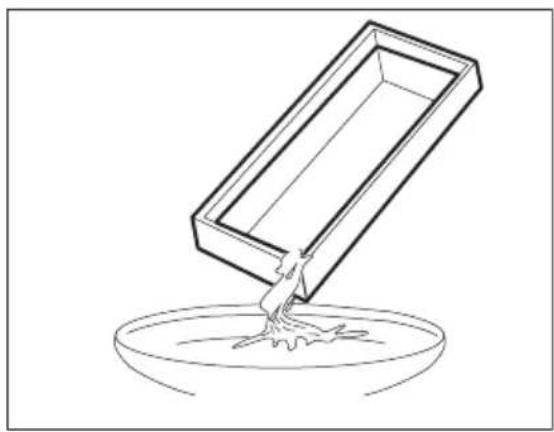

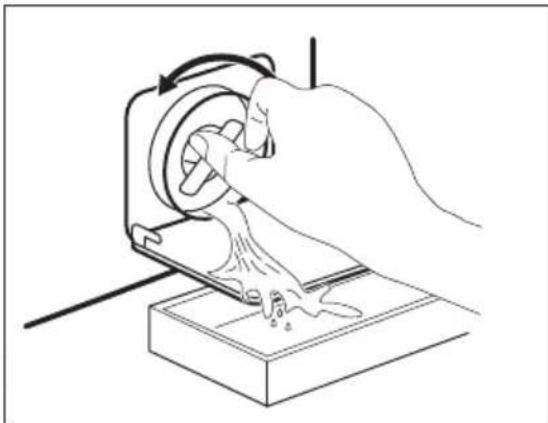

12.2 Macchie ostinate

Line drawing of a hand holding a car seatbelt, no text or symbols present

Line drawing of hands operating a mechanical device with arrows indicating motion (no text or symbols)

Line drawing of a hand holding a remote control panel with a scroll inside, showing mechanical components (no text or symbols)

Line drawing of a kitchen sink with faucet and control panel, showing water flow from drain to sink (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand holding a smartphone with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a mechanical device to press or install a component, with no visible text or symbols.

1.2

Hand holding a circular device with an arrow indicating rotation (no text or symbols)

Line drawing of a container pouring liquid into a bowl (no text or symbols)

1 2 5.

Diagram showing a mechanical device with a rotating arrow and two hanging weights (no text or symbols)

7. 8.

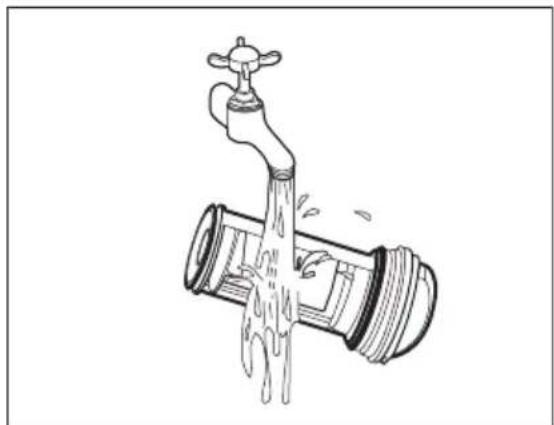

Line drawing of a faucet with water flowing out, no text or symbols present

1 2 9.

Hand holding a device with a circular component and arrow indicating rotation (no text or symbols)

AVVERTENZA!

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

Line drawing of a hand holding a small object near a curved surface (no text or symbols)

Welcome to Electrolux! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at electrolux.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at electrolux.com/support

Buy accessories, consumables, and original spare parts for your appliance at electrolux.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION.... 132
2. SAFETY INSTRUCTIONS.... 134
3. PRODUCT DESCRIPTION.... 136
4. TECHNICAL DATA.... 137
5. INSTALLATION....137
6. CONTROL PANEL....142
7. DIAL AND BUTTONS....144
8. PROGRAMMES....146
9. SETTINGS.... 150
10. BEFORE FIRST USE....152
11. DAILY USE....152
12. HINTS AND TIPS.... 157
13. CARE AND CLEANING.... 159
14. TROUBLESHOOTING.... 164
15. CONSUMPTION VALUES.... 166
16. QUICK GUIDE.... 168
17. GUARANTEE 171
18. ENVIRONMENTAL CONCERNS....171

1. ⚠SAFETY INFORMATION

Before the installation and use of this appliance,

carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.
• The appliance maximum load is 7.0 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

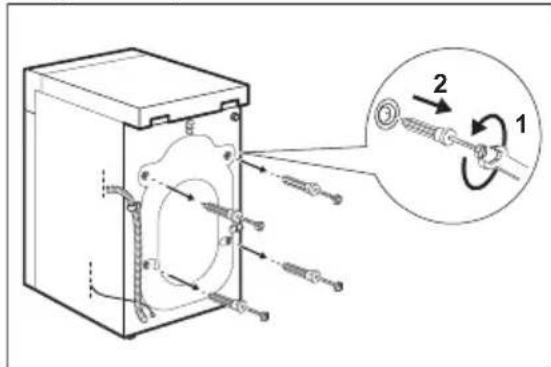

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Follow the installation instructions supplied with the appliance.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature can be less than 0°C or where it is exposed to the weather.
• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

• Make sure that there is air circulation between the appliance and the floor.
- When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
- Do not install the appliance directly above a floor drain.
- Do not spray water on the appliance and do not expose it to excessive humidity.
- Do not install the appliance where the appliance door cannot be fully opened.
- Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

- WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.

• Always use a correctly installed shockproof socket.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the mains plug and to the mains cable. If the mains cable needs to be replaced, this must be carried out by our Authorised Service Centre.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not touch the mains cable or the mains plug with wet hands.
- Do not disconnect the appliance by pulling on the mains cable. Always pull on the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25^ .
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.
• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.
• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.
• Make sure that there is access to the tap after the installation.
• Close the water tap after each use of the appliance.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.
• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts will be available for 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. Please note that some of these spare parts are only available to

professional repairers, and that not all spare parts are relevant for all models.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

- Disconnect the appliance from the mains electrical and water supplies.

• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Special features

Your new washing machine meets all modern requirements for an effective treatment of laundry with low water, energy and detergent consumption and proper care of fabric.

- The ProSense technology detects the laundry load size defining the program duration in 30 seconds. The washing programme is tailored to the laundry load

and the type of fabric without consuming more time, energy and water than necessary.

- Thanks to the Soft Plus - Douceur Plus option, the fabric softener is uniformly spread out in the laundry and deeply penetrates the fabric fibres favouring a perfect softness.

3.2 Appliance overview

Diagram of a washing machine with numbered parts for identification and assembly reference.

1 Worktop
2 Detergent dispenser
3 Control panel
4 Door handle

5 Rating plate
6 Drain pump filter
7 Feet for levelling the appliance
8 Drain hose

9 Inlet hose connection
10 Mains cable
11 Transit bolts

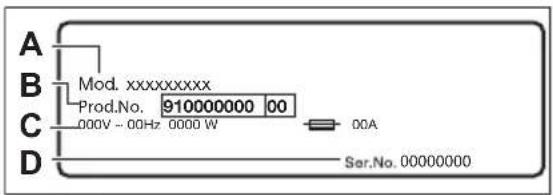

A B Mod. xxxxxxxxx Prod.No. 910000000 00 C 000V - 00Hz 0000 W 00A D Sar.No. 00000000

12 Hose support

The rating plate reports the model name (A), product number (B), electrical ratings (C) and serial number (D).

4. TECHNICAL DATA

Dimension Width/ Height/ Total depth 59.5 cm / 84.3 cm / 48.7 cm

Electrical connection Voltage		230 V
	Overall power	2100 W
	Fuse	10 A
	Frequency	50 Hz

Level of protection against ingress of solid particles and moisture IPX4 ensured by the protective cover, except where the low voltage equipment has no protection against moisture

Water supply pressure Minimum	0.5 bar (0.05 MPa)
Maximum	10 bar (1.0 MPa)

Water supply 1) Cold water Maximum Load Cotton 7.0 kg

1) Connect the water inlet hose to a water tap with a 3/4" thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

1. Remove the external film. If necessary, use a cutter.

Diagram illustrating hand protection and cleaning process with warning symbol and labeled components

1. Remove the cardboard top and the packaging materials.

Diagram of a mechanical device with arrows indicating forces or motion, no text or symbols present

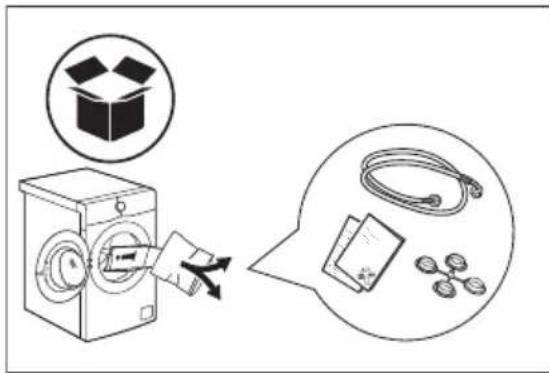

1. Open the door. Remove all the items from the drum.

Diagram illustrating washing machine operation with labeled components including box, clothes, and earphones

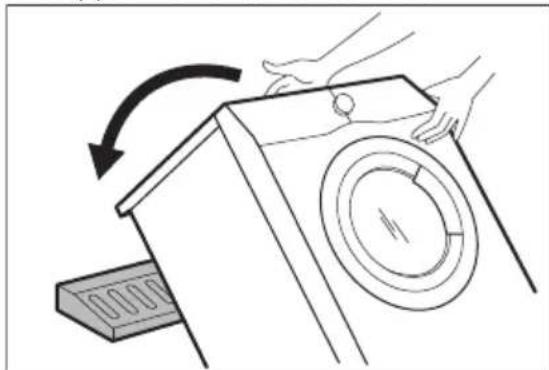

1. Put the corner element on the floor behind the appliance. Carefully put down the appliance onto its rear side.

Line drawing of a hand pressing down on a washing machine with a circular dial (no text or symbols)

1. Remove the protection from the bottom.

Technical line drawing of a mechanical device with labeled components (1 and 2), no readable text or symbols beyond labels

1. Put the appliance back into an upright position. Remove the power supply cable

and the drain hose from the hose holder.

Diagram showing a washing machine with a magnified inset illustrating the mechanical assembly process.

WARNING!

It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

1. Remove the four transit bolts and pull out the plastic spacers.

Technical diagram showing a mechanical assembly with labeled parts and a magnified inset illustrating rotational motion.

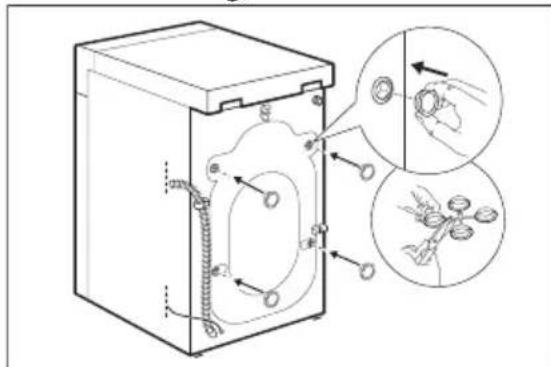

1. Put the plastic caps, that you find in the user manual bag, in the holes.

Technical diagram of a washing machine with labeled parts and close-up insets showing hand positioning and cleaning steps

We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

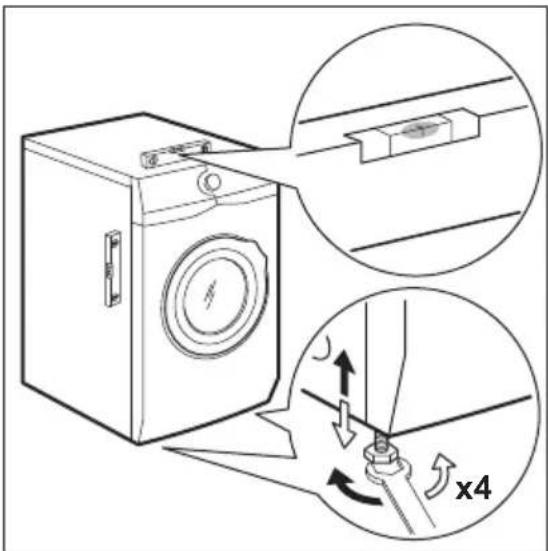

5.2 Positioning and levelling

Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates.

Diagram showing a washing machine with a close-up view of its internal components and a 4x4 ratio indicator.

1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance.

2. Loosen or tighten the feet to adjust the level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

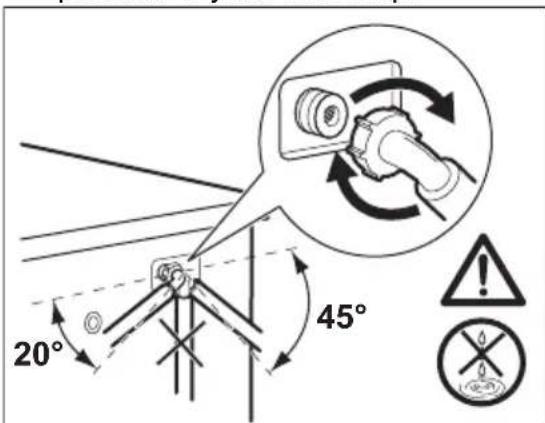

5.3 The inlet hose

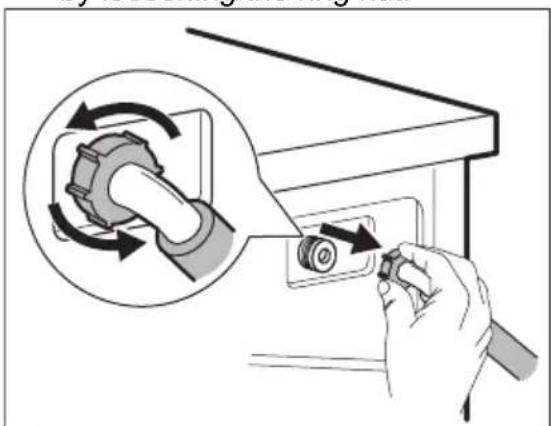

1. Connect the water inlet hose to the back of the appliance if needed. Usually, it is

already installed at the factory.

4° 20° 4° 45°

1. Position it toward left or right depending on the position of the tap. Make sure that the inlet hose is not in vertical position.

2. If necessary, loose the ring nut to set it in the correct position

3. Connect the water inlet hose to the cold water tap with 3/4" thread.

WARNING!

To reduce the sideways force maintain a 200mm minimum straight section of hose below the tap connection

min. 200 mm

Some model can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service center for information to replace the hose.

3/4" 3/4" A i A ✓ A ✓ ↓

WARNING!

The inlet water shall not exceed 25^ C.

CAUTION!

Make sure that there are no leaks from the couplings.

Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

5.4 Water-stop device

The inlet hose has a water stop device. This device prevents water leaks in the hose because of its natural ageing.

The red sector in the window «A» shows this fault.

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

If this occurs, close the water tap and contact the authorized service centre to replace the hose.

5.5 Water drainage

The drain hose should be positioned at a height of not less than 60 cm and not more than 100 cm from the floor.

You can extend the drain hose to maximum 400 cm. Contact the authorized service centre to buy the other drain hose and the extension.

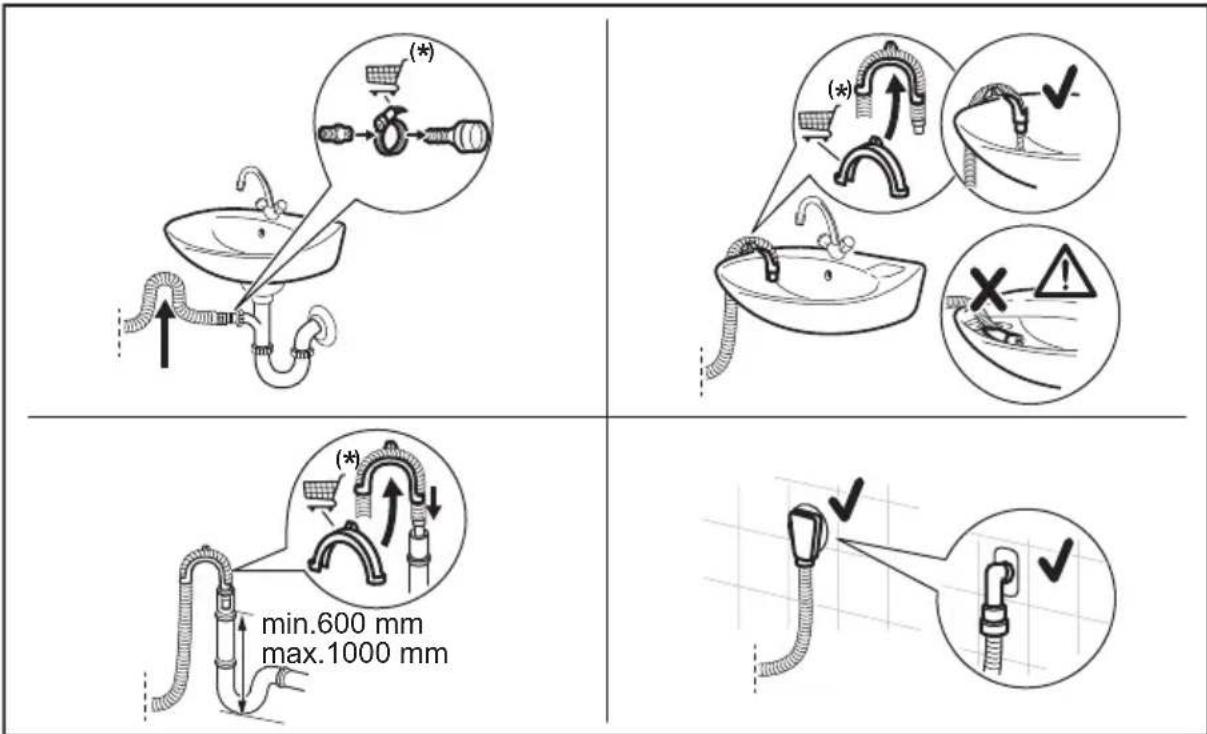

It is possible to connect the drain hose in different ways:

(*) ↓ min.600 mm max.1000 mm

(*) Subject to change without notice.

• Connect the drain hose to the spigot and tighten it with a clamp.
• Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.
• Without the plastic hose guide, to a sink spigot - put the drain hose in the spigot and tighten it with a clamp.
• To a stand pipe with vent hole - insert the drain hose directly into a drain pipe or stand pipe.
• The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - fasten the guide to the water tap or to the wall.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance.

Buy accessories from authorised supplier.

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

5.6 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load

required, also taking into account any other appliances may also be in use.

Connect the appliance to an earthed socket.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.

6. CONTROL PANEL

6.1 Control panel description

1 2 3 4 5 12 10 8 9 7 6

1 Programme dial
2 Display
3 Zeitvorwahl - Départ Différé touch button
4 Zeit Sparen - Gain de Temps touch button
5 Spülen - Rinçage touch button

- Extra Spülen - Rinçage Plus option

- Skipping wash phase - Nur Spülen - Rinçage

6 Start/Pause - Départ/Pause touch button

7 Flecken Taches / Vorw. Prélavage touch button

18.8 kg MAX 8:88 *88 1888 dB

0.0kgMAX	Maximum load indicator. The icon flashes during programme time estimation (refer to "PROSENSE load detection" paragraph).
	Delay start indicator.
	Door locked indicator.
0:00	The digital indicator can show:Programme duration (e.g.)240Delay time (e.g. 0h)30' 2hCycle end ()Alarm code (e.g.)E20Indication of total operating hours of the appliance. Refer to the 'Operating hours counter' section in the 'Settings' paragraph for more details.
	Washing phase indicator: it flashes during prewash and wash phase.
	Rinsing phase indicator: it flashes during rinse phase.
	The Indicator appears when the permanent Extra Spülen - Rinçage Plus option is activated.
	Spin and drain phase indicator. It flashes during spin and drain phase.
	Child safety lock indicator.
	Time saving indicator.
88	Temperature indicator. The indicator appears when a cold wash is set.
1888	Spin speed indicator.
	Rinse hold indicator.
dB	Extra Silent indicator.

6.3 Multilingual badges

Adhesive badges in different languages are supplied with the appliance.

The desired badge can be glued around the programme dial.

Diagram showing a hand holding a circular device next to a washing machine, with Chinese text labels indicating product details.

7. DIAL AND BUTTONS

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again.

i

The default selected programme, at machine switch on, is always the Eco 40-60 programme.

For more details, refer to Stand-by paragraph in Daily Use chapter.

7.2 Introduction

i

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

7.3 Temp.

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators and, the appliance does not heat the water.

7.4 Schleudern - Essorage

When you set a programme, the appliance automatically sets the default spin speed allowed.

Touch repeatedly this button to:

- Change the spin speed.

i

The display shows only the spin speeds available for the set programme.

- Activate the Rinse Hold option.

The final spin is not performed. The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum.

The display shows the indicator. The door stays locked and the drum turns regularly to reduce creasing. You must drain the water to unlock the door. If you touch the Start/Pause - Départ/ Pause button, the appliance performs the spinning phase and drains the water.

i

The appliance empties the water out automatically after 18 hours approximately.

- Activate the Extra Silent option.

The intermediate and the final spinning phases are suppressed and the programme ends with water in the drum. This helps to reduce creasing.

The display shows the indicator dB The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

If you touch the Start/Pause - Départ/Pause button, the appliance performs the only draining phase.

i

The appliance empties the water out automatically after 18 hours approximately.

- Activate the drain-only option (Skipping the wash, rinse and spin phases): Nur Abpumpen - Vidange.

The appliance performs the only draining phase of the selected washing programme.

The display shows the indicator - - (cold), and the indicator - (no spin) and the indicator ©

- Activate the spin-only option (Skipping the wash and rinse phases): Nur Schleudern - Seulement Essorage.

i

Before setting this option, select a suitable washing programme for the garments. The appliance will perform the most fitting spin cycle for your garments care (e.g. For synthetics items, first select the Synthetics washing programme and then the Nur Schleudern - Seulement Essorage option).

The appliance performs only the spinning phase of the selected washing programme.

The display shows the indicator -- (cold), the phase indicator and the spin speed.

Press this button repeatedly to activate one of the two options.

The relevant indicator goes on in the display.

- Flecken - Taches

Select this option to add an anti-stain phase to a programme in order to treat heavily soiled or stained laundry with stain remover.

Pour the stain remover into compartment

☐. The stain remover will be added in the appropriate phase of the washing programme.

i

This option is not available with a temperature lower than 40 °C.

Use this option to add a pre-wash phase at 30 °C before the washing phase. This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

i

The options can increase the programme duration.

i

These two options cannot be set together.

7.6 Zeitvorwahl - Départ Différé

With this option you can delay the start of a programme in a more convenient time.

Touch the button repeatedly to set the required delay. The time increases by steps of 30 minutes up to 90' and from 2 hours up to 20 h.

After touching the Start/Pause - Départ/Pause button, the display shows the indicator

😊 and the selected delay time and the appliance begins the countdown.

7.7 Spülen - Rinçage

With this button you can select one of the following options:

• Extra Spülen - Rinçage Plus option This option adds a few rinses according to the selected washing programme.
  Use this option for persons allergic to detergent residues and in areas where the water is soft.

This option increases slightly the programme duration.

• Skipping wash phase - Nur Spülen - Rinçage option
  The appliance performs only the rinsing phase, the spinning and the draining phases of the selected programme.
  The corresponding indicator above the touch button illuminates.

7.8 Zeit Sparen - Gain de Temps

With this option you can decrease the programme duration.

- If your laundry is normally or lightly soiled, it may be advisable to shorten the washing programme. Touch this button once to decrease the duration.

- In case of smaller load, touch this button twice to set an extra quick programme.

The display shows the indicator 🕒

7.9 Hygiene - Hygiène

Set this option with white Cottons items programme. When the option is selected,

neither the temperature or the cycle time can be changed. Option Zeit Sparen - Gain de Temps and Extra silent are not available.

The corresponding indicator above the touch button illuminates.

This option, thanks to washing phase combined with steam vapour, removes more than 99,99% of bacteria and viruses keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This option ensures also a proper reduction of pollens/allergenic items.

Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

Programme Programme description
Washing programmes

Eco 40-60 White cotton and fast-coloured cotton. Normally soiled items. The energy consumption decreases and the time of the washing programme is extended, ensuring good washing results.
Programme Programme description
Cottons	White cotton and coloured cotton. Normally, heavily and lightly soiled items.
Synthetics	Synthetic items or mixed fabric items. Normally soiled items.
Delicates	Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normally and lightly soiled items.
Wool / Silk [IMAGE]	Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol1).
20min 3kg	Cotton and synthetic items lightly soiled or once worn.
Easy Iron	Synthetic items requiring a gentle wash. Normally and lightly soiled items.2)
Downing Jackets	Special programme for one down jackets, synthetic blanket, duvet, bedspread and so on.
Outdoor	Do not use fabric softener and make sure that there is no softener residue in the detergent dispenser.Outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets with a removable fleece or inner insulation. The recommended laundry load is 2.0 kg.This programme can also be used as water repellent restoring phase, specifically tailored for treating clothes with a hydrophobic coating. To perform the water repellent restoring phase, proceed as follows:Pour the washing detergent in the compartment.Pour a special water repellency restorer for fabric in the drawer compartment for fabric softenerReduce the laundry load to 1.0 kg.To further improve the water repellent restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
Denim	Denim clothing and jersey items. Normal soiled. This programme performs a gentle rinsing phase, designed for denim, that reduces fading and does not cause washing powder residues on the fibres.

1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

2) To reduce creasing, this cycle regulates the water temperature and performs a soft wash and spin phase. The appliance adds some rinses.

Programme temperature, maximum spin speed and maximum load

Programme Default temperature Temperature range		Reference spin speed Spin speed range	Maximum load
Washing programmes
Eco 40-60	40 °C1)	1200 rpm1200 rpm - 400 rpm	7.0 kg
Cottons	40 °C95 °C - Cold	1200 rpm1200 rpm - 400 rpm	7.0 kg
Synthetics	40 °C60 °C - Cold	1200 rpm1200 rpm - 400 rpm	3.0 kg
Delicates	30 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	1.5 kg
Wool / Silk	40 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	1.5 kg
20min 3kg	30 °C40 °C - 30 °C	1200 rpm1200 rpm - 400 rpm	3.0 kg
Easy Iron	30 °C60 °C - Cold	800 rpm800 rpm - 400 rpm	3.0 kg
Downing Jackets	40 °C60 °C - Cold	800 rpm800 rpm - 400 rpm	2.0 kg
Outdoor	30 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	2.0 kg2)1.0 kg3)
Denim	30 °C40 °C - Cold	800 rpm1200 rpm - 400 rpm	2.0 kg

1) According to Commission Regulation EU 2019/2023 and Ukrainian decree 834/2023. This programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

2) Washing programme.

3) Washing programme and water repellent phase.

Programme options compatibility

	Eco 40-60	Cottons	Synthetics	Delicates	Wool / Silk	20min 3kg	Easy Iron	Downing Jackets	Outdoor	Denim
Schleudern - Essorage	■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Rinse Hold	■ ■ ■ ■ ■ ■ ■ ■
Extra Silent dB	■ ■ ■ ■ ■ ■ ■ ■ ■
Nur Abpumpen - Vidange	■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Nur Schleudern - Seulement Essorage1)	■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Flecken - Taches2)	■ ■ ■ ■ ■ ■
Vorwäsche - Prélavage	■ ■ ■ ■
Extra Spülen - Rinçage Plus	■ ■ ■ ■ ■ ■ ■ ■
Nur Spülen - Rinçage	■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Hygiene - Hygiène ■
Zeit Sparen - Gain de Temps3)	■ ■ ■ ■ ■
Zeitvorwahl - Départ Différé	■ ■ ■ ■ ■ ■ ■ ■ ■ ■

1) Before setting this option, select a suitable washing programme for the garments. The appliance will perform the most fitting spin cycle for your garments care (e.g. For synthetics items, first select the Synthetics washing programme and then the Nur Schleudern - Seulement Essorage option).
2) This option is not available with temperature lower than 40 °C.
3) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory.

Suitable detergents for washing programmes

Programme Universal powder1)		Liquid Univer-sal	Liquid for col-oureds	Delicates woollens	Special
Eco 40-60 ▲ ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Programme Universal powder1)		Liquid Univer-sal	Liquid for col-oureds	Delicates woollens	Special
Delicates -- -- -- ▲ ▲
Wool / Silk
20min 3kg -- ▲ ▲ -- --
Easy Iron	▲ ▲ ▲ -- --
Downing Jackets	-- -- -- ▲ ▲
Outdoor -- -- -- ▲ ▲
Denim -- -- ▲ ▲ ▲

1) At temperature higher than 60 °C the use of powder detergent is recommended.

▲ = Recommended -- = Not recommended

8.2 Woolmark Premium Wool Care - Blue

WOOLMARK WOOL CARE

WOOL HAND WASH SAFE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M1460

9. SETTINGS

9.1 Introduction

When pressing a key combination, do not tilt your fingers downwards. The sensors of the underneath buttons are sensitive and may interfere with your choice.

9.2 Child Lock

With this option you can prevent that the children play with the control panel.

- To activate/deactivate this option, touch the Schleudern - Essorage and the Flecken Taches / Vorw. Prélavage buttons simultaneously until the indicator comes on/goes off on the display.

You can activate this option:

• After you touch the Start/Pause - Départ/Pause button: all the buttons and the programme dial are deactivated (except Ein/Aus - Marche/Arrêt button).
- Before you touch the Start/Pause - Départ/Pause button: the appliance cannot start. The appliance keeps the selection of this option after you switch it off.

9.3 Acoustic signals

This appliance is provided with different acoustic signals, that operate when:

• You activate the appliance (special short tune).
• You deactivate the appliance (special short tune).
• You touch the buttons (click sound).
• You make a wrong selection (3 short sounds).
• The programme is completed (sequence of sounds for about 2 minutes).
• The appliance has a malfunction (sequence of short sounds for about 5 minutes).

To deactivate/activate the acoustic signals when the programme is completed, touch the Hygiene - Hygiène and the Flecken Taches / Vorw. Prélavage buttons simultaneously for about 6 seconds.

i

If you deactivate the acoustic signals, they continue operate when the appliance has a malfunction.

9.4 Permanent Extra Spülen - Rinçage Plus

With this option you can permanently have an extra rinse when you set a new programme.

- To activate/deactivate this option touch the Flecken Taches / Vorw. Prélavage button and the Spülen - Rinçage button simultaneously until the indicator of the Extra Spülen - Rinçage Plus button comes on/goes off.

9.5 Operating Hours Counter

It is possible to visualise the total operating time of the appliance in hours, starting from the first switching on. This value will count operating time of the cycles (does not include pauses, delayed start time). To visualise this value, proceed as follows:

1. Switch the appliance on by pressing Ein/Aus - Marche/Arrêt button.

2. Turn the programme knob to the Eco 40-60 programme (1st position clockwise).

3. Press and hold the Hygiene - Hygiène and Flecken Taches / Vorw. Prélavage buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).

4. After 3 seconds the total hours operated by the appliance are shown in the display: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and hundreds) for 2 seconds and 76 (tens and units).

i

If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

9.6 Factory Reset

This function allows to restore the factory default options. To activate this option follow steps below:

1. Switch the appliance on by pressing Ein/Aus - Marche/Arrêt button.
2. Turn the programme knob to the Synthetics programme (3rd position clockwise).

3. Press and hold the Hygiene - Hygiène and Flecken Taches / Vorw. Prélavage buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).

4. The display will show for about 5 seconds.

i

If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

1. Make sure that the electrical power is available and the water tap is open.
2. Pour 2 litres of water into the detergent compartment marked as 2.

This action activates the drain system.

1. Pour a small quantity of detergent into the compartment marked as 2.

2. Set and start a programme for cotton at the highest temperature without any laundry in the drum.

This removes all possible dirt from the drum and the tub.

11. DAILY USE

WARNING!

Refer to Safety chapters.

11.1 Activating the appliance

1. Connect the mains plug to the mains socket.
2. Open the water tap.
3. Press the Ein/Aus - Marche/Arrêt button for a few seconds to activate the appliance.

A short tune sounds. The appliance automatically proposes a default programme. The relevant indicator illuminates.

The display shows the default programme, Eco 40-60, cycle duration, the maximum load, the default spin speed and the indicators of the phases making up the programme.

11.2 Loading the laundry

• Open the appliance door.
• Shake the items before you put them in the appliance.
• Put the laundry in the drum, one item at a time.

Make sure not to put too much laundry in the drum.

- Close the door firmly.

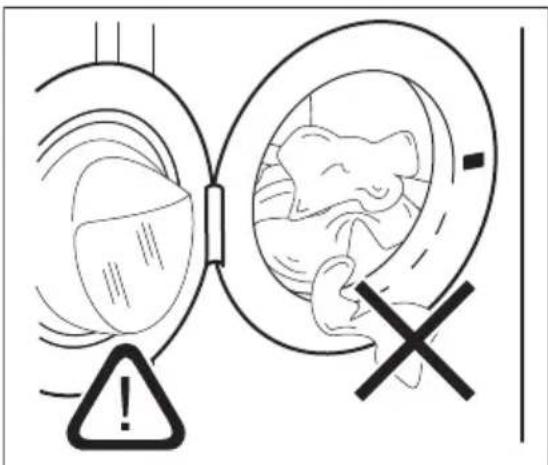

Medical diagram showing a warning sign and a cross symbol in a biological procedure involving an eye and sinus.

CAUTION!

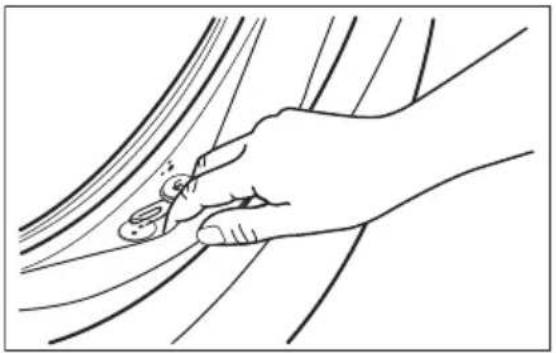

• Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.
• Washing heavily oiled, greasy stains or using fragrances perfume could cause damage rubber parts of the appliance.

11.3 Using detergent and additives

1. Measure out the detergent and the fabric conditioner.
2. Put the detergent and the fabric conditioner into the compartments.
3. Carefully close the detergent drawer

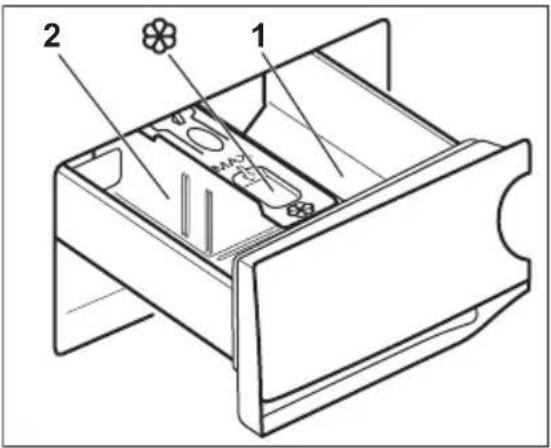

Technical diagram of a device casing with labeled parts 1 and 2, showing internal components and mounting features.

CAUTION!

Use only specified detergents for washing machine.

Always obey the instructions that you find on the packaging of the detergent products.

1 Detergent compartment for prewash phase or soak programme (if available). Add the detergent for prewash and soak before the start of the programme.

2 Detergent compartment for washing phase. If you use a liquid detergent, put it immediately before you start the programme.

Compartment for liquid additives (fabric conditioner, starch). Put the product in the compartment before you start the programme.

After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

11.4 Changing position of detergent divider

1. Pull out the detergent dispenser. The position A of the detergent divider is for powder detergent (factory setting).

A 2 MAX 1

1. To use also liquid detergent/additive or bleach: Remove detergent divider from the position A and insert it in position B.

B 2 MAX 1

The position B of the detergent divider is for powder detergent in the rear compartment and for liquid detergent/additive or bleach in the front compartment.

1. To use only liquid detergent: Insert the detergent divider in position C.

C 2 MAX 1

• Do not use gelatinous or thick liquid detergents.
• Do not exceed the maximum dose of liquid detergent.
• Do not set the prewash phase.

• Do not set the delay start function.

• Measure out the detergent and the fabric conditioner and carefully close the detergent dispenser.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Make sure that the detergent divider is inserted properly and does not cause a blockage when you close the drawer.

11.5 Setting a programme

1. Turn the programme dial to select the desired washing programme. The related programme indicator comes on.

The Eco 40-60 is the default proposed programme when the appliance is turned on, the one to which the information of the energy label relates.

The indicator of the Start/Pause - Départ/Pause button flashes.

The display shows the maximum declared load for the programme, the default temperature, the default spin speed, the washing phase indicators (when available) and an indicative programme duration.

1. To change the temperature and/or the spin speed, touch the related buttons.
2. If desired, set one or more options by touching the related buttons. The related indicators come on in the display and the given information changes accordingly.

i

In case a selection is not possible, no indicator comes on and an acoustic signal sounds.

11.6 Starting a programme

Touch the Start/Pause - Départ/Pause button to start the programme.

The related indicator stops flashing and stays on.

In the display, the indicator of the operating phase starts flashing.

The programme starts, the door is locked.

The display shows the indicator :

i

The drain pump can operate shortly before the appliance fills water.

11.7 Starting a programme with the delay start

1. Touch this repeatedly until the display shows the desired delay time. The indicator ⏻ comes on.
2. Touch the Start/Pause - Départ/Pause button.

The appliance starts the countdown of the delay start.

When the countdown is completed, the programme starts.

i

The ProSense estimation starts at the end of the countdown.

Cancelling the delay start after the countdown has started

To cancel the delay start:

1. Touch the Start/Pause - Départ/Pause button to pause the appliance. The related indicator flashes.
2. Touch the Zeitvorwahl - Départ Différé button repeatedly until the display shows
3. Touch the Start/Pause - Départ/Pause button again to start the programme immediately.

Changing the delay start after the countdown has started

To change the delay start:

1. Touch the Start/Pause - Départ/Pause button to pause the appliance. The related indicator flashes.
2. Touch the Zeitvorwahl - Départ Différé button repeatedly until the display shows the desired delay time.
3. Touch the Start/Pause - Départ/Pause button again to start the new countdown.

11.8 The ProSense load detection

The programme duration in the display is referred to a medium/high load.

After touching the Start/Pause - Départ/Pause button, the maximum declared load indicator goes off, the indicator flashes, the ProSense starts the laundry load detection:

1. The appliance detects the load in the first 30 seconds: the indicator kg and the time dots: flash, the drum rotates shortly.
2. At the end of the load detection, the indicator goes off and the time dots stop flashing. The programme duration will be adjusted accordingly and could increase or decrease. After further 30 seconds, the water filling starts.

At the end of the load detection, in case of drum overload, the indicator is flashing in the display:

In this case, for 30 seconds, it is possible to pause the appliance and remove the exceeding garments.

Once removed the exceeding garments, touch the Start/Pause - Départ/Pause button to start the programme again. The ProSense phase can be repeated up to three times (see point 1).

Important! If the laundry amount will not be reduced, the washing programme starts anyway, despite the overload. In this case, it will be not possible to guarantee the best washing results.

• About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics.
• The ProSense detection is carried out with complete washing programmes only (no skipping phase selected).
• The ProSense is not available with programmes with short cycles and without washing phase.
• The appliance can play a double beep to indicate overload or unevenly distributed load. The tune sounds if acoustic signals are not disabled.

11.9 Programme phase indicators

When the programme starts the indicator of the running phase flashes and the other phase indicators are steady on.

E.g. the washing or pre wash phase is

running:

When the phase ends the relevant indicator stops flashing and is steady on. The next phase indicator starts flashing.

E.g. the rinse phase is running:

11.10 Interrupting a programme and changing the options

When the programme is running, you can change only some options:

1. Touch the Start/Pause - Départ/Pause button.
   The related indicator flashes.
2. Change the options. The given information in the display changes accordingly.
3. Touch the Start/Pause - Départ/Pause button again.
   The washing programme continues.

11.11 Cancelling a running programme

1. Press the Ein/Aus - Marche/Arrêt button to cancel the programme and to deactivate the appliance.
2. Press the Ein/Aus - Marche/Arrêt button again to activate the appliance. Now, you can set a new washing programme.

i

If the ProSense phase is already carried out and the water filling is already started, the new programme starts without repeating the ProSense phase.

The water and the detergent are not drained out in order to avoid waste. The display shows the maximum duration of the programme, updating it about 20 minutes after the starting of the new programme.

11.12 Opening the door - Adding garments

While a programme or the delay start operates, the appliance door is locked.

i

If the temperature and level of the water in the drum are too high and/or the drum still rotates you cannot open the door.

1. Touch the Start/Pause - Départ/Pause button.
   In the display the related door lock indicator goes off.
2. Open the appliance door. If necessary, add or remove the items.
3. Close the door and touch the Start/Pause - Départ/Pause button.
   The programme or the delay start continues.
4. The door can be opened when the programme is complete, or set spinning or draining programme/option and than press Start/Pause - Départ/Pause button.

11.13 End of the programme

When the programme has finished, the appliance stops automatically. The acoustic signals operate (if they are active). In the display all washing phase indicators become steady and the time area shows

The indicator of the Start/Pause - Départ/Pause button goes off.

The door unlocks and the indicator goes off.

1. Press the Ein/Aus - Marche/Arrêt button to deactivate the appliance.
   After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

i

When you activate the appliance again, it proposes Eco 40-60 as default programme. Turn the programme dial to set a new cycle.

1. Remove the laundry from the appliance.
2. Make sure that the drum is empty.
3. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.
4. Close the water tap.

11.14 Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:

• The display shows the indicator, the option indicator or dB and the door locked indicator. The indicator of the running phase flashes.

- The drum still turns at regular intervals to prevent the creases in the laundry.

• The door stays locked.

- You must drain the water to open the door:

1. If necessary, touch the Schleudern - Essorage button to decrease the spin speed proposed by the appliance.

2. Touch the Start/Pause - Départ/Pause button:

3. If you have set ,the appliance drains the water and spins.

4. If you have set , the appliance only drains the water.

The option indicator [or] goes off, while the indicator ⓗashes and then goes off.

1. When the programme is completed and the door locked indicator goes off, you can open the door.

2. Press the Ein/Aus - Marche/Arrêt button a few seconds to deactivate the appliance.

i

In any case, the appliance empties the water out automatically after approximately 18 hours.

11.15 Stand-by option

The Stand-by function automatically deactivates the appliance to decrease the energy consumption when:

- You do not use the appliance for 5 minutes before you touch the Start/Pause - Départ/Pause button.

Press the Ein/Aus - Marche/Arrêt button to activate the appliance again.

• After 5 minutes from the end of the washing programme. Press the Ein/Aus - Marche/Arrêt button to activate the appliance again. The appliance proposes Eco 40-60 as default programme. Turn the programme dial to set a new cycle.

i

If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water.

12. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

12.1 The laundry load

• Divide the laundry into: white, coloured, synthetics, delicates and wool.
• Follow the washing instructions on the laundry care labels.
• Do not wash white and coloured items together.
• Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first couple of times.
• Turn multilayered fabrics, wool and items with printed illustrations inside out.
  • Pre-treat stubborn stains.
• Wash stubborn stains with a special detergent.
• Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase.
• A very small load can cause balance problems with the spin phase leading to excessive vibration. If this occurs:

a. interrupt the programme and open the door (refer to "Daily Use" chapter);
b. manually redistribute the load so that the items are spaced evenly around the tub;
c. press the Start/Pause - Départ/Pause button. The spin phase continues.

- Button up pillowcases, close zippers, hooks and poppers. Tie up belts, cords, shoelaces, ribbons and any other loose elements.

- Do not wash laundry without hems or with cuts. Use a washing bag to wash small and/or delicate items (e.g. underwired bras, belts, tights, shoelaces, ribbons, etc.).

Illustration of a bowl containing food with eggs and a spoon (no text or symbols)

• Empty pockets and unfold the items.

Illustration showing garment styling steps: cutting, folding, and fastening with labeled parts.

12.2 Stubborn stains

For some stains, water and detergent is not sufficient.

We recommend that you pre-treat these stains before you put the items in the appliance.

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

12.3 Detergent type and quantity

The choice of detergent and use of correct quantities not only affects your wash performance, but also helps to avoid waste and protect the environment:

• Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:
• powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization,
• liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

- The choice and quantity of detergent will depend on: type of fabric (delicates, woollens, cottons, etc), the colour of clothes, size of the load, degree of soiling, wash temperature, time and hardness of the water used.

- Follow the instructions that you find on packaging of the detergents or other treatments without exceeding the indicated maximum level (MAX).

- Do not mix different types of detergents.

- Use less detergent if: - you are washing a small load,

• the programme duration has been reduced by the Time Manager button.
  – the laundry is lightly soiled,
  – there is large amounts of foam during washing.

- When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow the manufacturer's recommendations.

Insufficient detergent may cause:

• unsatisfactory washing results,
• the wash load to turn grey,
- greasy clothes,
- mould in the appliance.

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.

12.4 Savings tips

To save water, energy and detergent we recommend that you follow these tips:

• Loading the appliance to the maximum capacity indicated for each programmes helps to reduce energy and water consumption.
• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.
• To use the correct quantity of detergent, refer to the quantity suggested by the detergent producer and check the water hardness of your domestic system. Refer to 'Water hardness'.
• If you have a tumble dryer its suggested to use maximum possible spin speed for the selected washing programme in order to save energy during drying.
• Preferably, use short cycles at lower temperatures.

12.5 Water hardness

If the water in your area is hard or medium hard, we recommend that you use a water softener additive for washing machines.

In areas where the water is soft it is not necessary to use a water softener.

To find out the water hardness in your area, contact your local water authority.

Use the correct quantity of water softener. Follow the instructions that you find on the packaging of the product.

13. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

13.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Every two months er

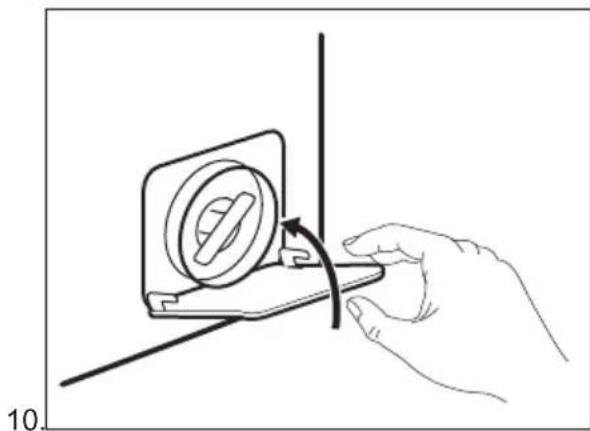

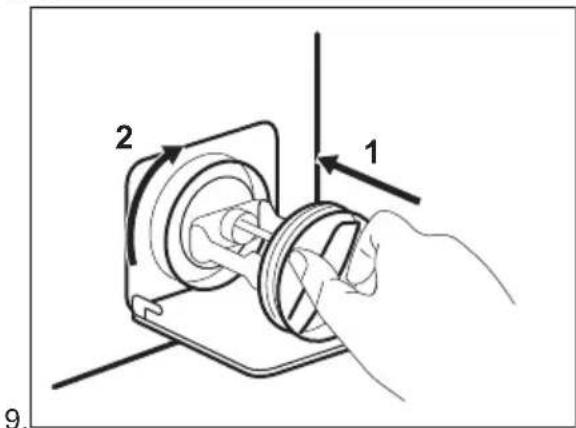

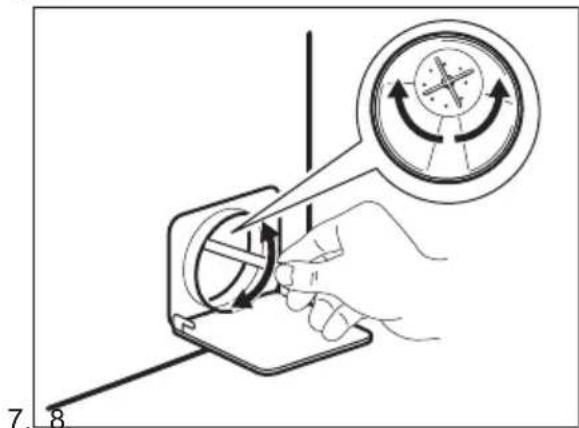

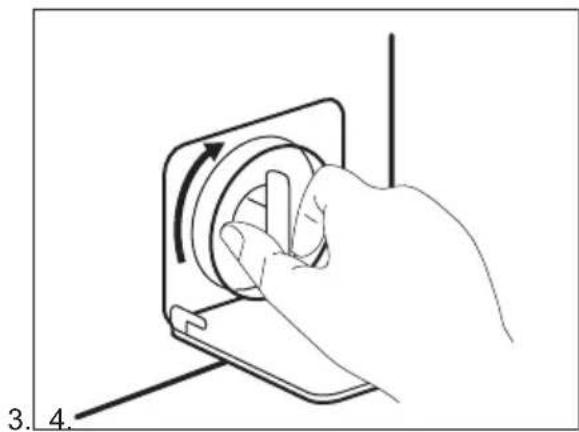

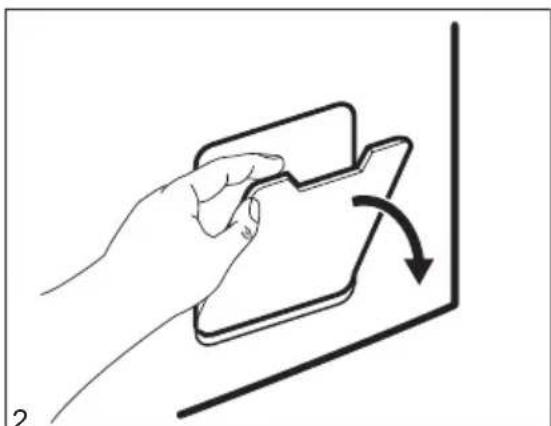

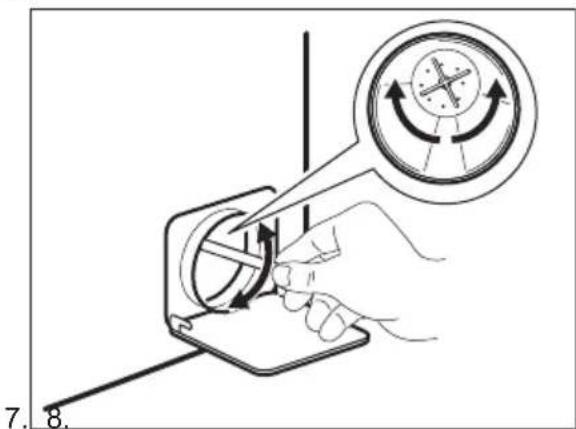

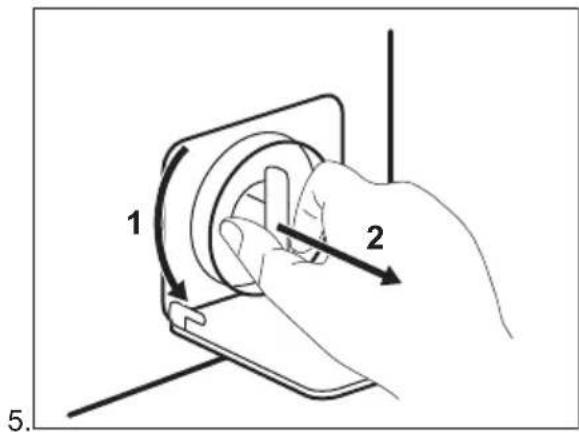

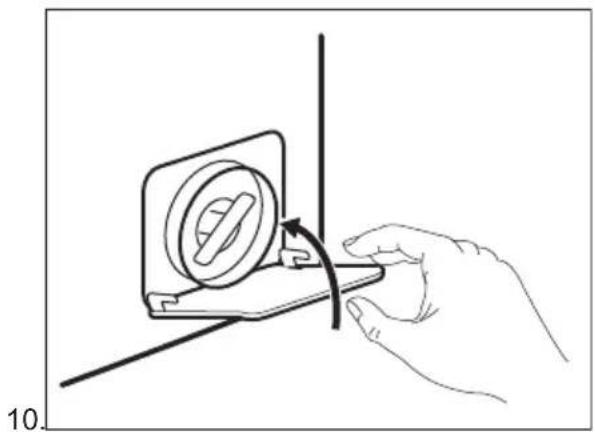

Clean drain pump filter Twice a year

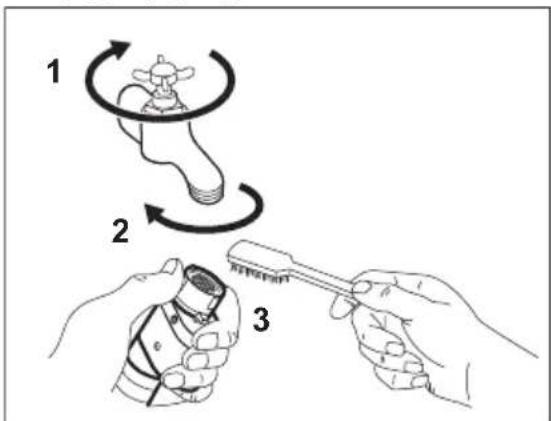

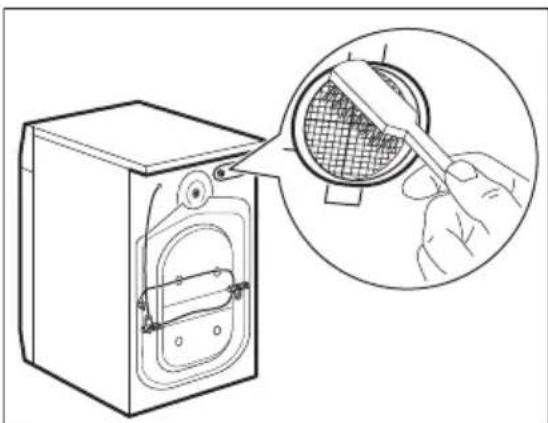

Clean the inlet hose and Twice a year the valve filter

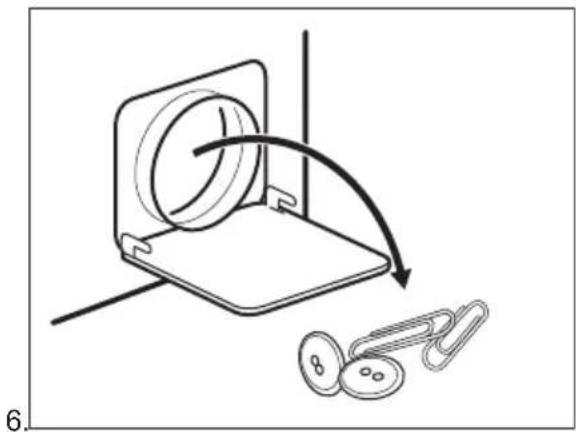

13.2 Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump filter" and "Cleaning the inlet hose and the valve filter" paragraphs. Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase. If necessary,

please contact the Authorised Service Centre.

13.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

Do not use a scouring pads or any scratching material.

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

13.4 Descaling

If the water in your area is hard or medium hard, we recommend that you use a water softener for washing machines (descaling occasionally).

Regularly examine the drum to check for limescale.

Always follow the instructions that you find on the packaging of the product.

13.5 Maintenance wash

The repeated and prolonged use of low temperature programmes can cause detergent deposits, fluff residues, bacterial growth inside the drum and the tub.

To eliminate these deposits and hygienize the inner part of the appliance, run a maintenance wash regularly (at least once a month).

Run a cotton programme with the highest temperature with a small quantity of powder detergent or, if available, run the Machine Clean programme.

13.6 Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a small object, with curved lines and a plate above (no text or symbols)

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

13.7 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel.

For a thorough clean:

1. Clean the drum with special products for stainless steel.
2. Run a short cotton programme at high temperature with empty drum and with a small quantity of powder detergent or, if

available, run the Machine Clean programme.

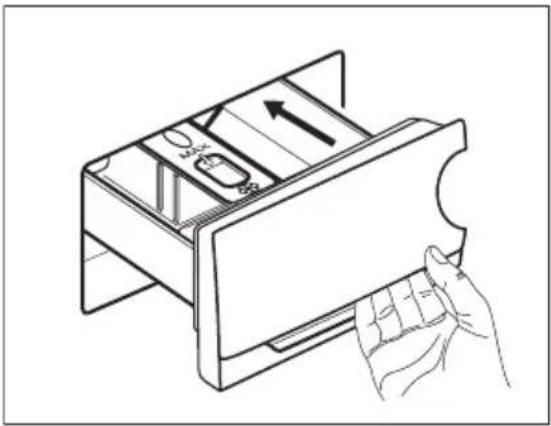

13.8 Cleaning the detergent dispenser

To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, every two months carry out the following cleaning procedure how explained in the following diagrams:

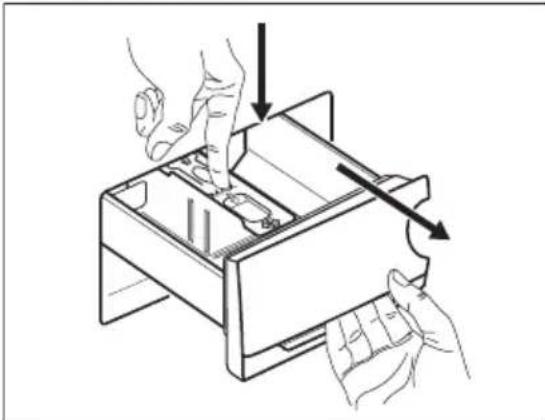

1. Open the drawer. Press the catch downwards as indicated in the picture and pull it out.

Line drawing of hands assembling a mechanical device with arrows indicating process (no text or symbols)

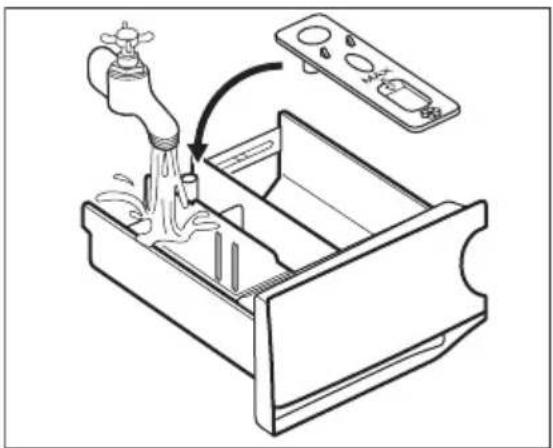

1. Remove the top part of the additive compartment to aid cleaning. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Line drawing of a hand holding a remote control panel with a scroll inside, showing mechanical assembly (no text or symbols)

1. Flush the detergent drawer out under running warm water to remove any traces of accumulated detergent. After cleaning, replace the top part in its position.

Line drawing of a kitchen sink with faucet and control panel, showing water flow from drain to sink (no text or symbols)

1. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

Line drawing of a hand inserting a card into a drawer (no text or symbols)

13.9 Cleaning the drain pump filter

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump filter if:

• The appliance does not drain the water.
• The drum does not turn.
- The appliance makes an unusual noise because of the blockage of the drain pump.
• The display shows the alarm code E20

WARNING!

• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down.
• Repeat Step 3 several times by closing and opening the valve until the water stops flowing out.

Always keep a rag nearby to dry up any water spillages when removing the filter.

Proceed as described in following diagrams to clean the pump filter:

Illustration of a hand inserting a card into a device, with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand using a mechanical device to press or spread material, no text or symbols present

1.2

Hand holding a circular device with an arrow indicating rotation (no text or symbols)

Line drawing of a container pouring liquid into a bowl (no text or symbols)

1 2 5.

Diagram showing a mechanical device with a rotating arrow and two hanging weights (no text or symbols)

7. 8.

Line drawing of a faucet with water flowing out, no text or symbols present

1 2 9.

Hand holding a device with a circular component and arrow indicating rotation (no text or symbols)

WARNING!

Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.

13.10 Cleaning the inlet hose and the valve filter

It is recommended to clean both the filters of the inlet hose and valve occasionally to remove any deposit, collected over the time:

1. Remove the inlet hose from the tap and clean the filter.

Diagram illustrating three-step tool manipulation: tool rotation, tool positioning, and tool application.

1. Remove the inlet hose from the appliance by loosening the ring nut.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1. Clean the valve filter on the back of the appliance with a toothbrush.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

1. When you reconnect the hose to the back of the appliance, turn it left or right (not in vertical position) depending on the position of your water tap.

20° 45°

13.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump filter' paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.

13.12 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0^ C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.

3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.

4. Empty the drain pump. Refer to the emergency drain procedure.

5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

14. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

14.1 Alarm Codes and Possible failures

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

With some problems, the display shows an alarm code and the Start/Pause - Départ/Pause button may flash continuously:

Problem Possible solution

E10The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to 'Care and cleaning'.
E20The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
E40The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.
EHOThe mains supply is unstable.	Wait until mains supply is stable.

If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre. In case of different problem with the washing machine check the table below for possible solutions.

Problem Possible solution
The programme does not start.	Make sure that the mains plug is connected to the mains socket.Make sure that the appliance door is closed.Make sure that there is no damaged fuse in the fuse box.Make sure that the Start/Pause - Départ/Pause has been touched.If the delay start is set, cancel the setting or wait for the end of countdown.Deactivate the Child Lock function if it is on.Check the position of the knob on the selected programme.
The appliance fills with water and drains immediately.	Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruction".
The spin phase does not operate or the washing cycle lasts longer than usual.	Set the spin programme.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.Make sure that the water inlet hose and the drain hose have no damages.Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appliance door.	Make sure that a washing programme that ends with water in tub, has not been selected.Make sure that the washing programme is finished.Set the drain or the spin programme if there is water in the drum.Make sure that the appliance receives electrical power.This problem may be caused by a failure of the appliance. Contact the Authorised Service Centre.

Problem Possible solution

The appliance makes an unusual noise and vibrates.	Make sure the levelling of the appliance is correct. Refer to "Installation instruction".Make sure that the packaging and/or the transit bolts are removed. Refer to "Installation instruction".Add more laundry in the drum. The load may be too small.
The programme duration increases or decreases during programme execution.	The ProSense Technology is able to adjust the programme duration according to the type and the laundry load size. Refer to "The ProSense Technology load detection" in "Daily Use" chapter.
The washing results are not satisfactory.	Increase the detergent quantity or use a different detergent.Use special products to remove the stubborn stains before you wash the laundry.Make sure that you set the correct temperature.Decrease the laundry load.
Too much foam in the drum during the washing cycle.	Reduce the quantity of detergent.

After the check, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Authorised Service Centre.

The necessary data for the service centre are on the rating plate.

15. CONSUMPTION VALUES

15.1 Comment

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

15.2 According to Commission Regulation Eu 2019/2023 and all new accompanying standards in cooperating markets (\*)

Eco 40-60 pro-gramme	kg kWh Litres hh:mm %	°C		rpm2)
		1)
Full load 7.0 0.875 58.0 03:25 53.00 46.0 1151
Half load 3.5 0.355 40.0 02:40 53.00 28.0 1151
Quarter load 2.0 0.165 31.0 02:25 55.00 23.0 1151

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Maximum spin speed.

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

2) Maximum spin speed.

15.3 Common programmes

i

These values are indicative only.

Programme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Cottons3)95°C	7.0 2.100 80.0 04:10 53.00 85.0 1200
Cottons60°C	7.0 1.200 80.0 04:00 53.00 55.0 1200
Cottons4)20°C	7.0 0.300 80.0 02:45 53.00 20.0 1200
Synthetics40°C	3.0 0.650 65.0 02:15 35.00 40.0 1200
Delicates5)30°C	1.5 0.400 50.0 01:10 35.00 30.0 1200
Wool/Silk30°C	1.5 0.250 50.0 01:10 30.00 30.0 1200

(*) UK Ecodesign for Energy-Related Products and Energy Information Regulations; Ukrainian decree 834/2023; AS/NZS2040 and AS/NZS6400 The temperatures and the loads are set automatically and may not be visible for all models.

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

2) Reference indicator of the spin speed.

3) Suitable for washing heavily soiled textiles.

4) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.

5) It also performs as quick washing cycle for lightly soiled laundry.

Time to Off/Standby mode is 15 minutes maximum.

16. QUICK GUIDE

16.1 Daily use

Connect the mains plug to the mains socket.

Open the water tap.

Load the laundry.

Pour the detergent and other treatment in the proper compartment of the detergent dispenser.

1. Push the Ein/Aus - Marche/Arrêt button to turn on the appliance. Turn the

programme dial to set the desired programme.

1. Set the desired options by means of the corresponding touch buttons.
2. To start the programme, touch the Start/Pause - Départ/Pause ▷ button.

At the end of the programme, remove the laundry.

16.2 Cleaning the drain pump filter

Clean the filter regularly and, especially, if the alarm code appears on the display.

16.3 Programmes

1) According to Commission Regulation EU 2019/2023 and Ukrainian decree 834/2023. This programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

Programmes Load Product description
Eco 40-601)	7.0 kg White and coloured cottons. Normally soiled garments.
Cottons	7.0 kg White cotton and coloured cotton.
Synthetics	3.0 kg Synthetic items or mixed fabric items.
Delicates	1.5 kg Delicate fabrics such as acrylics, viscose, polyester items.
Wool / Silk	1.5 kg Machine washable wool, hand washable wool and delicates.
20min 3kg	3.0 kg Cotton and synthetic lightly soiled items or once worn items.
Easy Iron	3.0 kg Synthetic items requiring a gentle wash.
Downing Jackets	2.0 kg Single synthetic blanket, padded clothes, duvets, down jackets.
Outdoor	2.0 kg 2)Modern outdoor sporting garments.1.0 kg 3)
Denim	2.0 kg Denim clothing and jersey items.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

2) Washing programme.

3) Washing programme and water repellent phase.

Loading the appliance to the maximum capacity indicated for each programmes

helps to reduce energy and water consumption.

Suitable detergents for washing programmes

Programme Universal powder1)	Liquid Univer-sal	Liquid for col-oureds	Delicates woollens	Special
Eco 40-60 ▲ ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Delicates -- -- -- ▲ ▲
Wool / Silk	-- -- -- ▲ ▲
20min 3kg -- ▲ ▲ -- --
Easy Iron	▲ ▲ ▲ -- --
Downing Jackets	-- -- -- ▲ ▲
Programme Universal powder1)	Liquid Universal	Liquid for coloureds	Delicates woollens	Special

Outdoor -- -- -- ▲ ▲

Denim -- -- ▲ ▲ ▲

1) At temperature higher than 60^ the use of powder detergent is recommended.

▲ = Recommended

-- = Not recommended

16.4 Detergent type and quantity.

• Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:
• powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization,
• liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

- Do not mix different types of detergents.

- Use less detergent if:

- you are washing a small load,

– the laundry is lightly soiled,

– there is large amounts of foam during washing.

- When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow the manufacturer's recommendations.

Insufficient detergent may cause:

• unsatisfactory washing results,
• the wash load to turn grey,
- greasy clothes,
- mould in the appliance.

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.

16.5 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Every two months er

Clean drain pump filter Twice a year

Clean the inlet hose and Twice a year the valve filter

Regularly examine the drum to check for limescale. We recommend to run a cycle with empty drum and a descaling product occasionally.

Removing foreign objects

i

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre.

Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the

following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a small object near a car window (no text or symbols)

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

If it is necessary, remove fluff and objects from the filter recess.

17. CH GUARANTEE

Customer Service Centres

Point of Service
Industriestrasse 105506 Mägenwil	Le Trési 61028 Préverenges	Via Violino 116928 Manno
Morgenstrasse 1313018 Bern
Langgasse 109008 St. Gallen
Am Mattenhof 4a/b6010 Kriens
Schlossstrasse 14133 Pratteln
Comercialstrasse 197000 Chur

Spare parts service Industriestrasse 10, 5506 Mägenwil, Tel. [phone]

Specialist advice/Sale Buckhauserstrasse 40, 8048 Zürich, Tel. [phone]

Warranty For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as

proof). The guarantee covers the costs of materials, labour and travel. The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

18. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol ♣. Put the packaging in relevant containers to recycle it. Help protect the environment and human

health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to

your local recycling facility or contact your municipal office.

For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.

The list of official SENS collection points can be found at www.erecycling.ch

[Non-Text]

......

[EMPTY]

[EMPTY]

[Non-Text]

......

......

[Non-Text]

[Non-Text]

[EMPTY]

......

......

[Non-Text]

[Non-Text]

[EMPTY]

[EMPTY]
