Welcome to Electrolux! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at electrolux.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at electrolux.com/support

Buy accessories, consumables, and original spare parts for your appliance at electrolux.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......54
2. SAFETY INSTRUCTIONS.... 56
3. PRODUCT DESCRIPTION....58
4. TECHNICAL INFORMATION....59
5. INSTALLATION....59
6. CONTROL PANEL....63
7. THE AUTODOSE TECHNOLOGY (AUTODOSING).... 69
8. PROGRAMMES....76
9. WI-FI - CONNECTIVITY SETUP 82
10. DAILY USE....84
11. CARE AND CLEANING.... 86
12. CONSUMPTION VALUES....94
13. QUICK GUIDE......95
14. ALARM CODES AND POSSIBLE FAILURES.... 100
15. ENVIRONMENTAL CONCERNS....101

1. ⚠SAFETY INFORMATION

Before beginning the installation and use of this ance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.

• The appliance maximum load is 9 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If a tumble dryer is stacked on the top of the washing machine, make sure to use the correct stacking kit approved by Electrolux (see more details in chapter "Accessories - Stacking kit").

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Follow the installation instructions supplied with the appliance.
- Do not install or use a damaged appliance.
- Do not install or use the appliance where the temperature can be less than 0^ C or where it is exposed to the weather.
- The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
- Make sure that there is air circulation between the appliance and the floor.

• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
• Do not install the appliance directly above a floor drain.
• Do not spray water on the appliance and do not expose it to excessive humidity.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
  • Always use a correctly installed shockproof socket.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25^ .
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted

(water meters, etc.), let the water flow until it is clean and clear.

• Ensure that there are no visible water leaks during and after the first use of the appliance.
• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.
• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.
• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.
• Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.
• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety

consequences and might void the guarantee.

• The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website.
• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
• Concerning the lamp(s) inside this product and spare part lamps sold separately:

These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Appliance overview

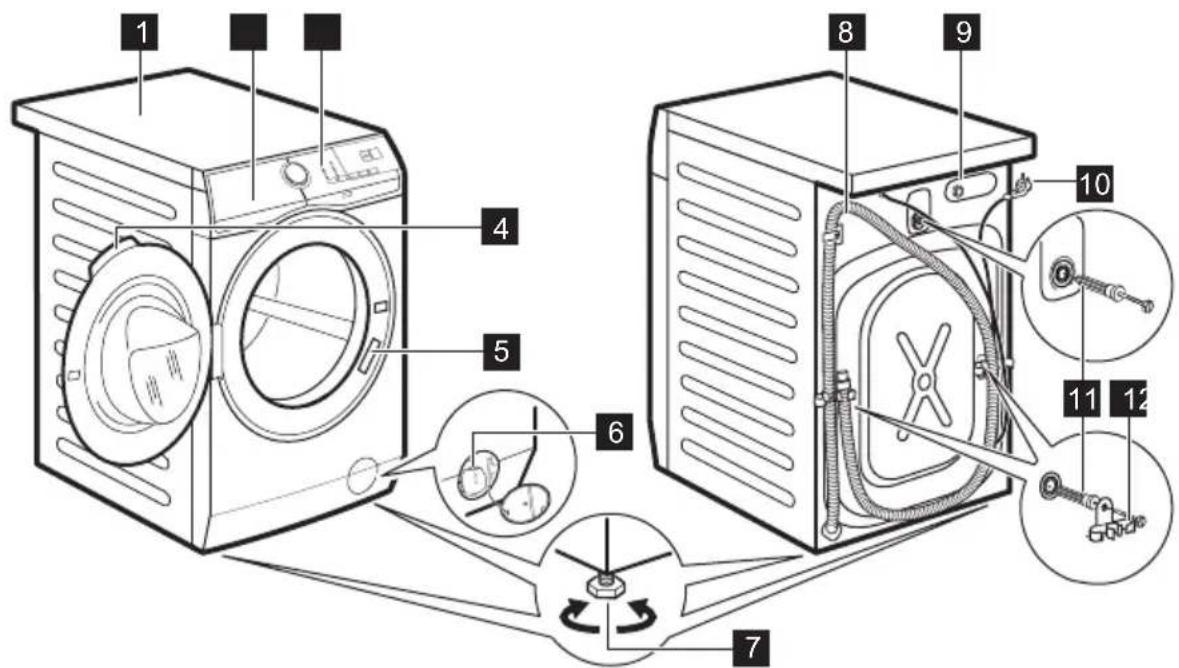

Diagram of a washing machine with numbered parts and labeled parts for assembly or maintenance reference.

1 Worktop

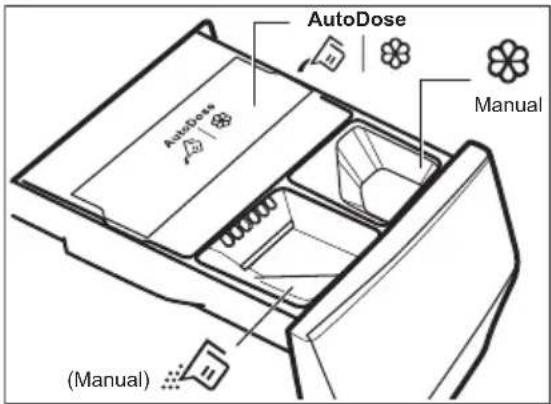

2 Detergent dispenser with AutoDose tanks and manual compartments
3 Control panel
4 Door handle
5 Rating plate
6 Drain pump filter

Mod.xxxxxxxxxx Prod.No. 910000000 00 000V - 00Hz 0000 W COA Ser.No. 00000000 B C D EA

7 Feet for levelling the appliance
8 Drain hose
9 Inlet hose connection
10 Mains cable
11 Transit bolts
12 Hose support

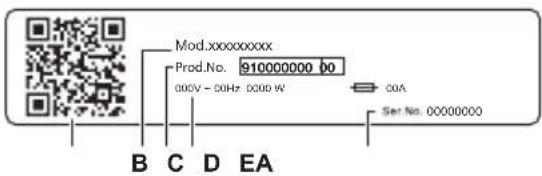

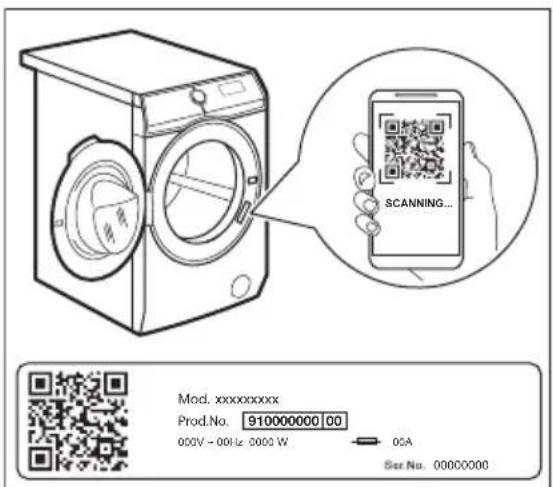

The rating plate reports:

A. QR code
B. model name
C. product number
D. electrical ratings
E. serial number

Scan the QR code on the appliance to register your product and get the most out of it.

• Access your appliance details, documentation and articles on how to use the best features (User Manual also available at electrolux.com/manuals)
• Get usage advice, troubleshooting, service and repair information (also available at electrolux.com/support)
• • Buy accessories, Consumable and Original Spare parts for you appliance (also available at electro-lux.com/shop)

4. TECHNICAL INFORMATION

Dimension Width/ Height/ Total depth 59,7 cm /84,7 cm /65,8 cm

Electrical connection Voltage		230 V
	Overall power	2100 W
	Fuse	10 A
	Frequency	50 Hz

Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture

Water supply pressure Minimum	Maximum	0.5 bar (0.05 MPa)10 bar (1.0 MPa)
Water supply 1)		Cold water

Maximum Load Cotton 9 kg

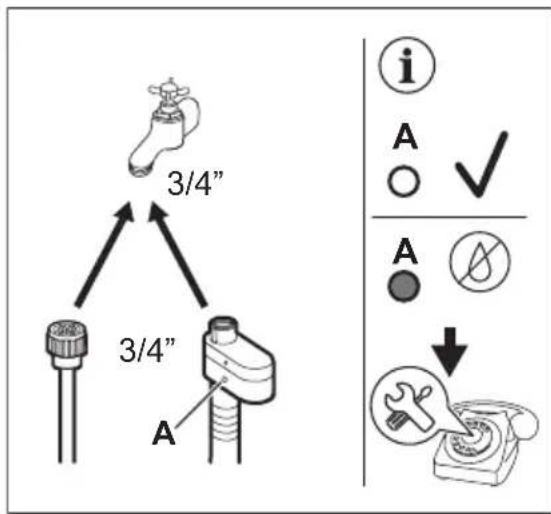

1) Connect the water inlet hose to a water tap with a 3/4" thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

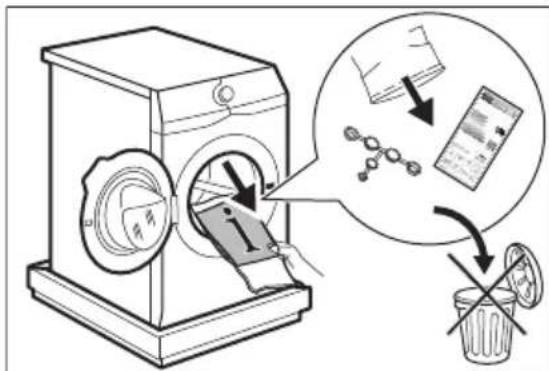

1. Open the door. Remove all the items from the drum.

Diagram illustrating a washing machine operation with labeled components and process steps including recycling, cleaning, and waste disposal.

i

Accessories delivered with the appliance may vary depending on the model.

1. Put the packaging element on the floor behind the appliance and carefully put it down onto its rear side. Remove the protection from the bottom.

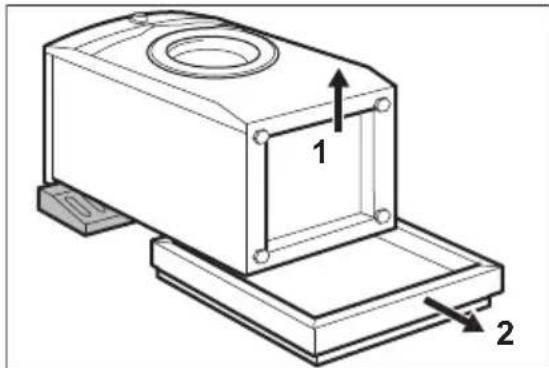

Technical diagram of a mechanical device with labeled components and directional arrows

!

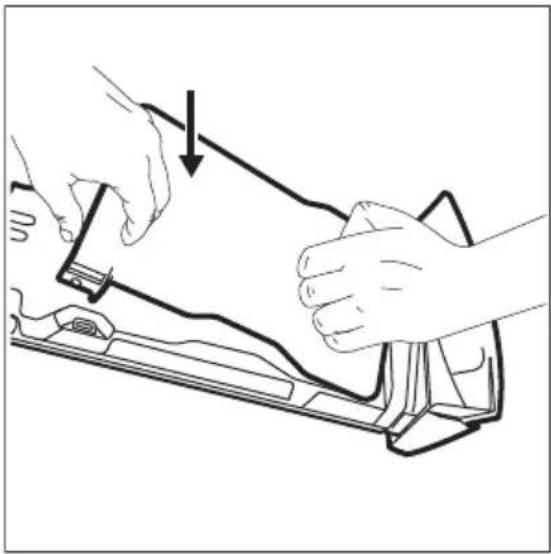

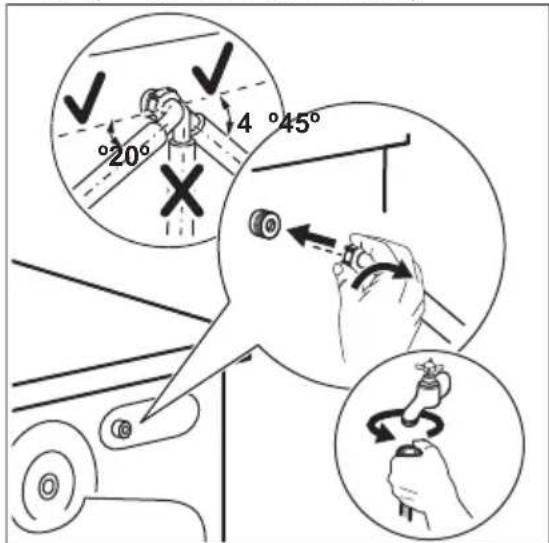

CAUTION!

Do not lay washing machine on its front.

1. Put the appliance back into an upright position. Remove the power supply cable and the drain hose from the hose holders.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

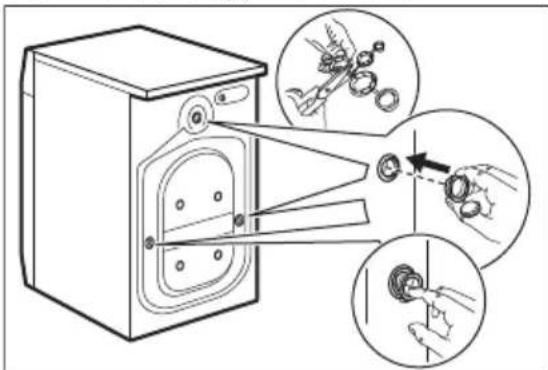

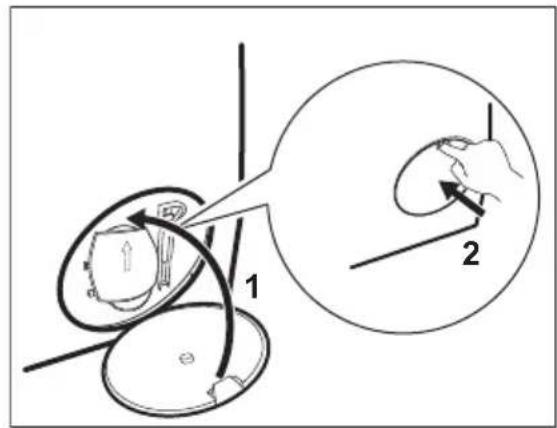

WARNING!

It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

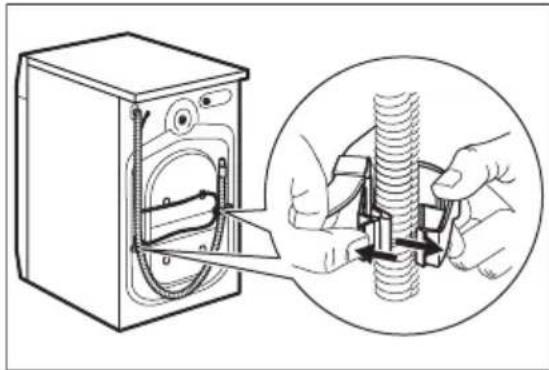

1. Remove the three transit bolts and pull out the plastic spacers.

Diagram showing washing machine operation with close-ups of screw and wrench components, illustrating mechanical assembly steps.

i

We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

1. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating a washing machine operation with three circular insets showing different steps of cutting or disassembly.

5.2 Information for installation

Positioning and levelling

Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates.

1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance.
2. Loosen or tighten the feet to adjust the level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

The inlet hose

CAUTION!

Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

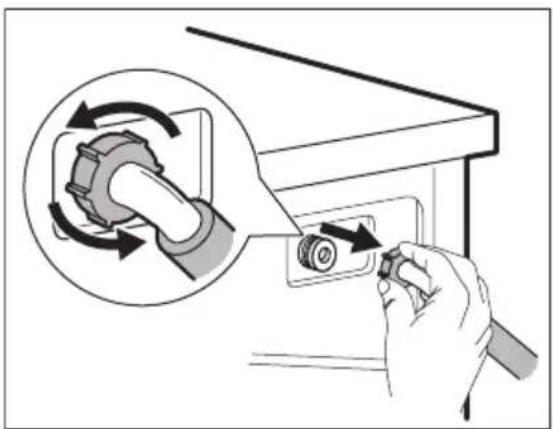

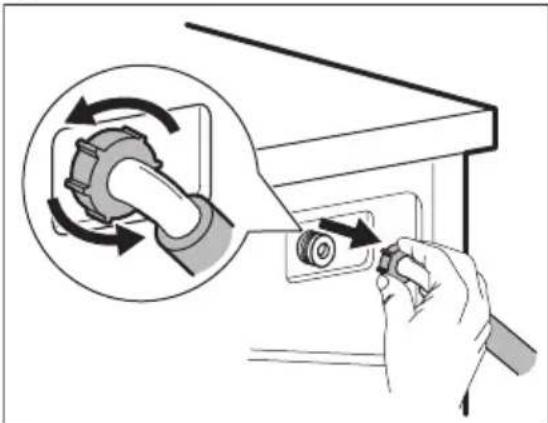

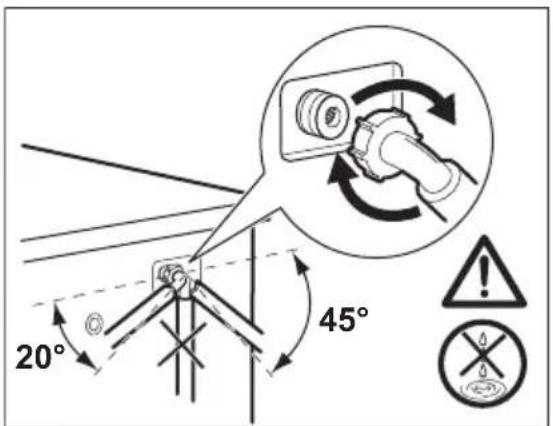

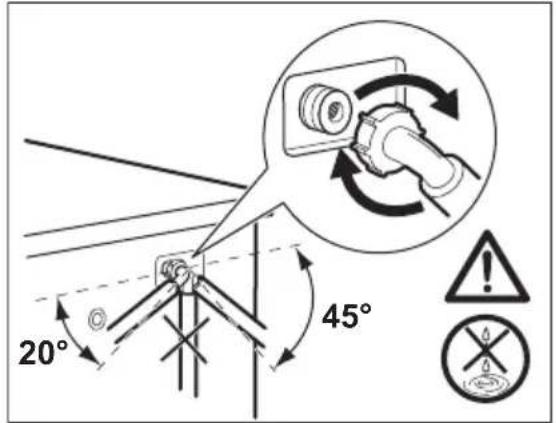

1. Connect the water inlet hose to the back of the appliance if needs. Usually, it is already installed at the factory.

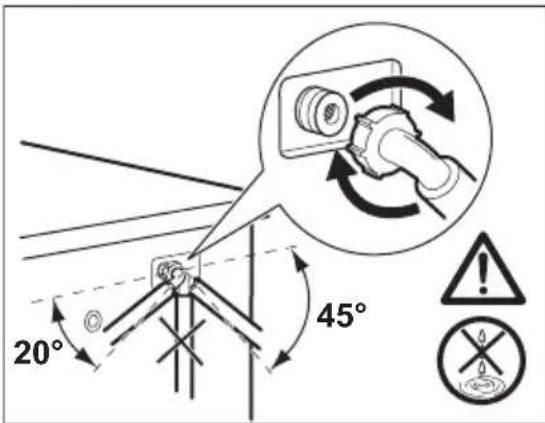

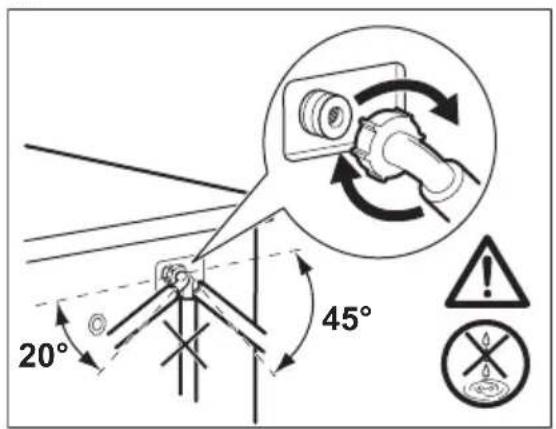

20° 4° 45°

1. Position it toward left or right depending on the position of the water tap. Make sure that the inlet hose is not in vertical position.
2. If necessary, loosen the ring nut to set it in the correct position.

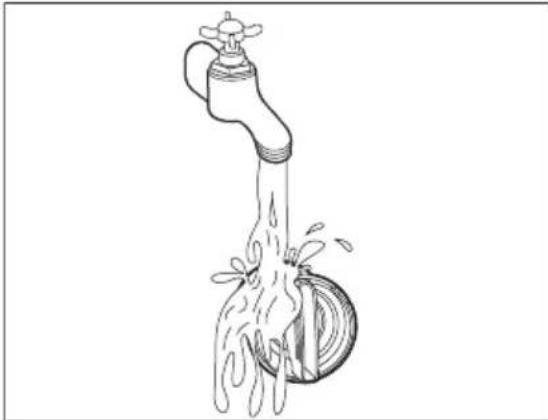

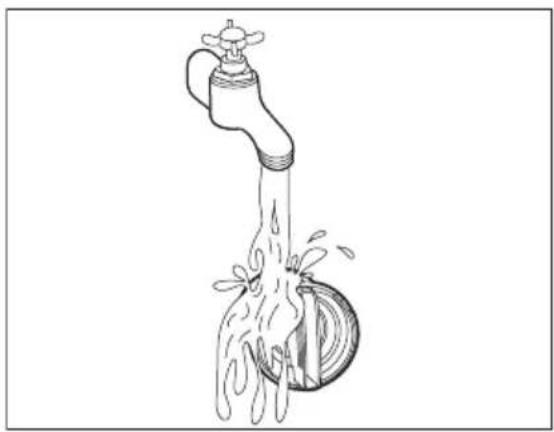

3. Connect the water inlet hose to the cold water tap with 3/4" thread.
4. Some models can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service centre for information to replace the hose.

3/4" 3/4" A i A ✓ A ✓

WARNING!

The inlet water shall not exceed 25 °C.

Water drainage

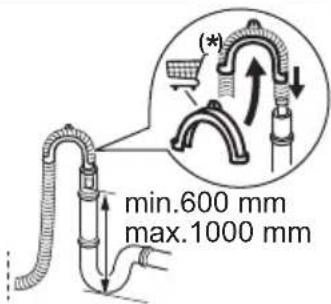

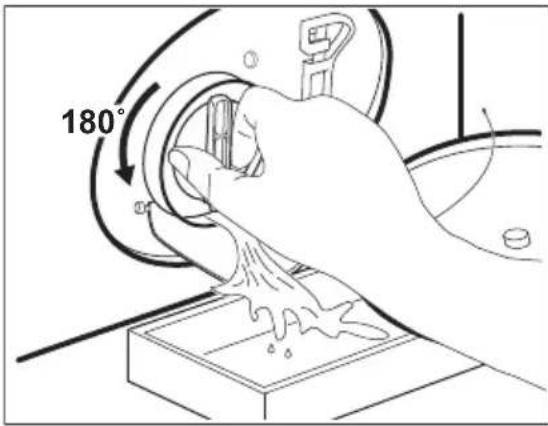

The drain hose should stay at a height of no less than 60 cm and not more than 100 cm.

You can extend the drain hose to maximum 400 cm. Contact the authorised service centre to buy the other drain hose and the extension.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Connect the drain hose to the spigot and tighten it with a clamp. Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

Without the plastic hose guide, to a sink spigot- Put the drain hose in the spigot and tighten it with a clamp.

The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance. Buy accessories from authorised supplier.

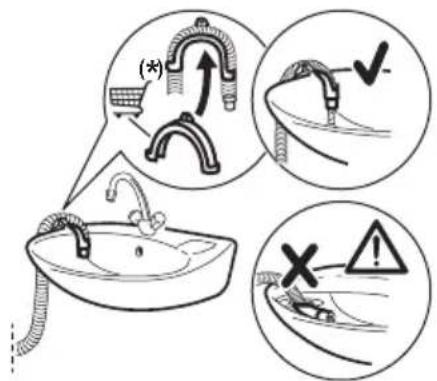

To a stand pipe with vent hole - Insert the drain hose directly into a drain pipe or stand pipe

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

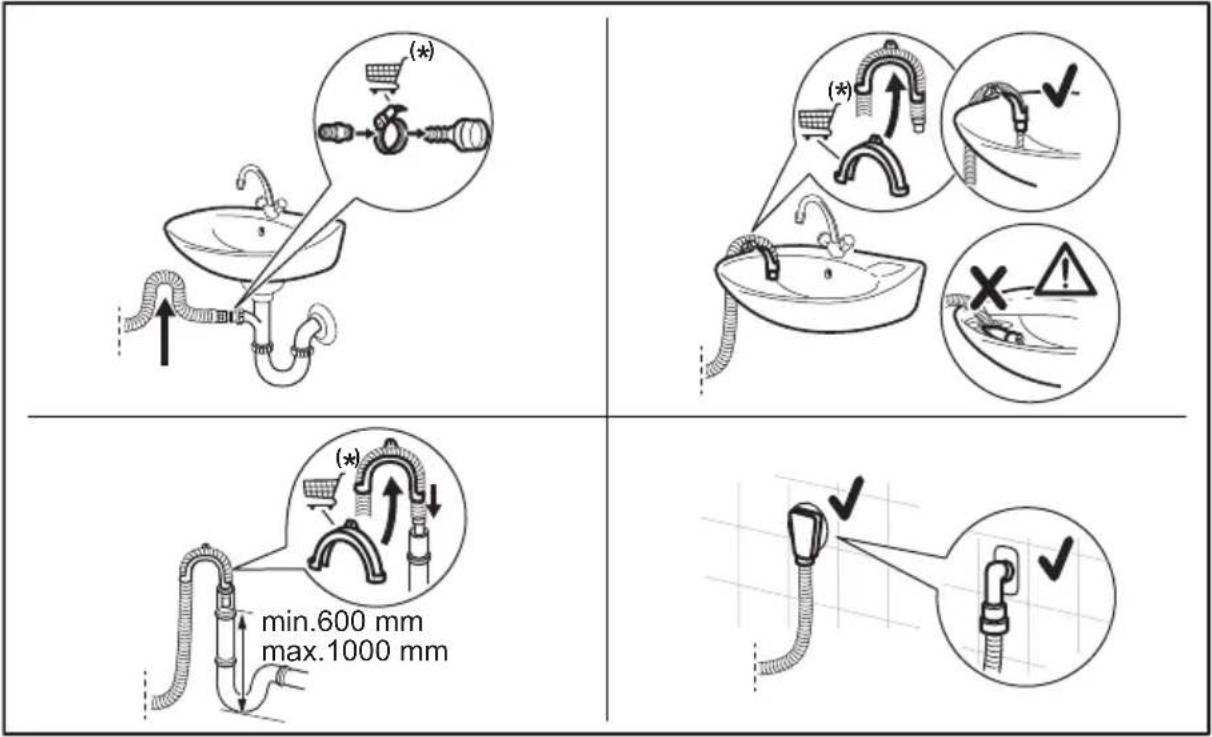

It is possible to connect the drain hose in different ways:

(*) (*) (*) ✓ × ⚠ min.600 mm max.1000 mm

(*) Subject to change without notice.

5.3 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances may also be in use.

Connect the appliance to an earthed socket.

Line drawing of an electric plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through

failure to comply with the above safety precaution.

6. CONTROL PANEL

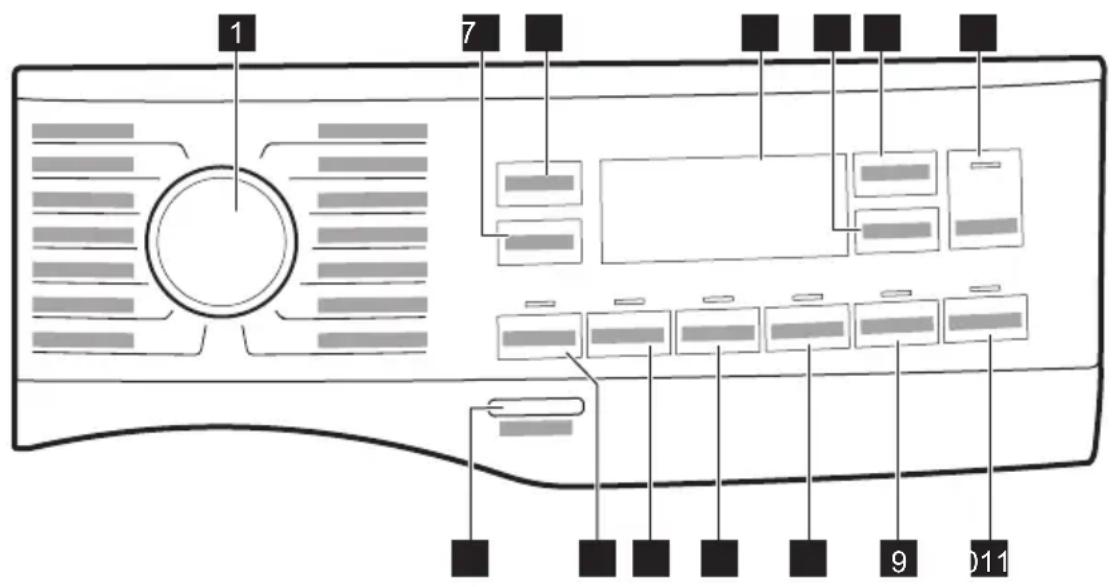

6.1 Control panel description

The options are not selectable with all washing programmes. Check the compatibility between options and washing programmes in the "AutoDose and options compatibility with programmes' paragraph in the "Programmes" chapter. An option can exclude another one, in this case the appliance doesn't allow you to set the incompatible options together. Make sure the screen and touch buttons are always clean and dry.

Programme dial

For selecting the desired washing programme. Refer to "Programmes" chapter for more details.

2	Centrifugeren - Essorage button	When you set a programme, the appliance automatically selects the default spin speed.Touch this button repeatedly to:·Change the spin speed. The display shows only the spin speeds available for the set programme.·Select No Spin option. Set this option to deactivate all spin phases.The appliance performs the only draining phase of the selected washing programme. Set this option for very delicate fabrics. The rinses phase uses more water for some washing programmes.By means of the Centrifugeren - Essorage button you can also set:·Activate the Rinse Hold option.The water of the last rinse is not drained out to prevent the fabrics from creasing.The washing programme ends with water in the drum and the final spin phase is not performed.The display shows the indicatorThe door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.Touch Start/Pauze - Départ/Pause button: the appliance performs the spinning phase and drains the water.
		·Activate option Stil - SilenceAll spinning phases (intermediate spin and final spin) are suppressed and the programme ends with water in the drum. This helps to reduce creasing.As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.The display shows the indicatorThe door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.Touch the Start/Pauze - Départ/Pause button: the appliance performs only the draining phase.The appliance empties the water out automatically after approximately 18 hours.
3	Temp. touch button	When you select a washing programme, the appliance automatically proposes a default temperature.Touch this button repeatedly until the desired temperature value appears on the display.When the display shows the indicators, the appliance does not heat the water.
4	Display	It provides information about the setting programme. Refer to "Display" paragraph for more details.
5	AutoDose Fabric Softener touch button	For activating and deactivating the automatic fabric softener loading. Refer to "The AutoDose Technology (Autodosing)" chapter for more details.
6	AutoDose Liquid Detergent touch button	For activating and deactivating the automatic detergent loading. Refer to "The Auto-Dose Technology (Autodosing)" chapter for more details.
7	Start/Pauze - Dé-part/Pause touch button	Touch this button to start, pause the appliance or interrupt a running programme.
Add Garments		At the beginning of the wash phase you can pause the cycle and add or remove garments. Read the "Opening the door - Adding garments" section for more details.

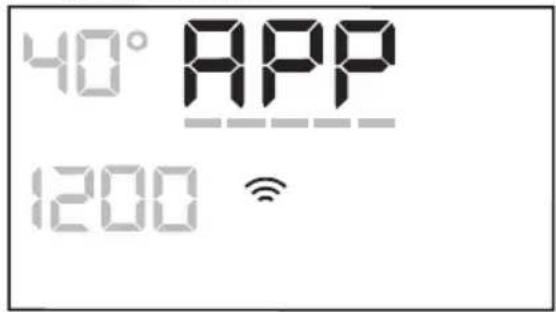

8	Remote start/Star-tuitstel - Départ Dif-féré touch button	Press this button repeatedly to activate one of the two options or both.The relevant indicator comes on in the display.Remote startSelect this option to connect appliance with App.Touch this button, the display shows the indicator blinking for a few seconds.After touching the Start/Pauze - Départ/Pause button, the display shows the indicator and the Remote start is confirmed.When touching the Start/Pauze - Départ/Pause button after the indicator stops blinking, the Remote Start is not activated, but the set programme starts.Startuitstel - Départ DifféréWith this option you can delay the start of a programme in a more convenient time.Touch the button repeatedly to set the required delay. The time increases by steps of 1 hour up to 20 h.After touching the Start/Pauze - Départ/Pause button, the display shows the indicator and the selected delay time and the appliance begins the count-down.
9	Time Manager touch button	With this option you can decrease the programme duration. Refer to "Time Manager paragraph.
10	Strijkvrij - Repas-sage facile touch button	The appliance carefully washes and spins the laundry to prevent the creases.The appliance decreases the spin speed, uses more water and adapts the pro-gramme duration to the type of laundry.
Child Lock		With this option you can prevent children from playing with the control panel.To activate/deactivate this option, hold the Strijkvrij - Repassage facile buttonpressed until comes on/goes off on the display.If it is activate, when pressing any buttons the button light flashes 3 times.
11 Spoelen + - Rinçage+ touch button		With this option you can add a few rinses according to the selected washing programme.Use this option for people with allergies to detergent residues and with sensitive skin.This option increases the programme duration.The corresponding indicator above the touch button illuminates and also stays permanently on during next cycles until this option is deactivated.
Soft Plus option		Thanks to additional functionality of this option the fabric softener is uniformly spread out in the laundry and boosting the effects on fabrics. It is suggested when you use the fabric softener.Toactivate/deactivatethis option, hold the Spoelen + - Rinçage + button pressed untilcomes on/goes offon the display.
12 Vlekken - Taches touch button		Touch this button to add the stain phase to a programme.The corresponding indicator above the touch button illuminates.By pressing this button the indicatorappears close to detergent symbol, and the appliance will automatically dose an extra amount of detergent when automatic detergent tank is enabled.If automatic detergent tank is Off, it is possible to run this option as in traditional washing machine by filling detergent or additive in the manual compartment.If you press detergent tank button while Vlekken - Taches option is active, AutoDose function is switched off, but Vlekken - Taches option still remains active in manual mode.This option increases the programme duration.
13 Voorvas - Prélavage touch button		Use this option to add a pre-wash phase at 30 °C before the washing phase.The corresponding indicator above the touch button illuminates.This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.The extra amount of detergent will be added automatically in the prewash phase.When selecting a pre-wash phase and AutoDose is active, the appliance will automatically dose the detergent. When AutoDose is switched off, put the detergent/additive in a dosing ball inside the drum. The options can increase the programme duration.
Acoustic signals		This appliance is provided with different acoustic signals, that operate when:You activate the appliance (special short tune).You deactivate the appliance (special short tune).You touch the buttons (click sound).You make a wrong selection (3 short sounds).The programme is completed (sequence of sounds for about 2 minutes).The appliance has a malfunction (sequence of short sounds for about 5 minutes).Toactivate/activatethe acoustic signals when the programme is completed, touch the Voorvas - Prélavage and the Vlekken - Taches buttons simultaneously for about 6 seconds.If you deactivate the acoustic signals, they continue operate when the appliance has a malfunction.
Operating hours counter		It is possible to visualise the total operating time of the appliance in hours, starting from the first switching on. This value will count operating time of the cycles (does not include pauses, delayed start time).To visualise this value, proceed as follows:Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appli-ance.Turn the programme dial to any programme.Press and hold the Vlekken - Taches and Spoelen + - Rinçage + buttons for some seconds.After 3 seconds the total hours operated by the appliance are shown in the dis-play: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thou-sands and hundreds) for 2 seconds and 76 (tens and units).If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.
Factory Reset		To return to the factory settings press and hold the Strijkvrij - Repassage facile and Time Manager buttons for some seconds.The display will show -for about 5 seconds.
[XXET]	Aan/Uit - Marche/ Arrêt push button	Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.As the Stand-by function automatically deactivates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again.Refer to "Stand-by option" paragraph in "Daily Use" chapter for more details.

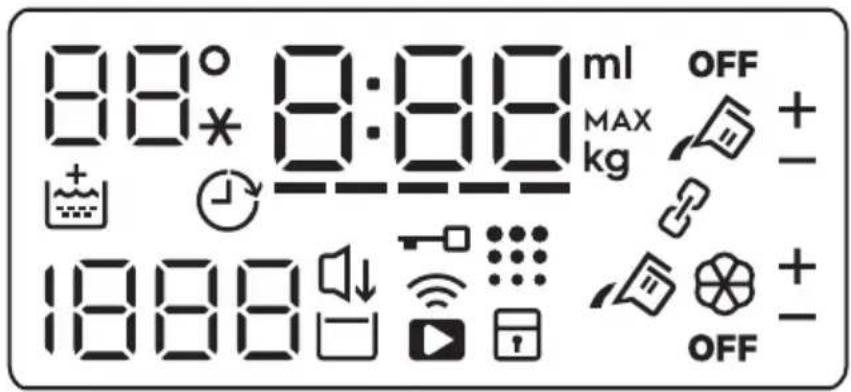

6.2 Display

8:00* 8:00 ml OFF + MAX + - 18:00 OFF + -

88°*	The Temperature area:88°Temperature indicator.--- Cold water indicator.
	The Soft Plus indicator.
	Delay start indicator.
1888	The spin area:Spin speed indicator--- No Spin indicator. Spin phase is off.

	Drum clean indicator. Refer to the "Cleaning the drum" section in the "Care and cleaning" paragraph for more details.
----	Time Manager indicator.
0:00	The digital indicator can show:Programme duration: e.g. .240Delay time: e.g. .2hCycle end: .0:00Warning code: e.g. .E21Error indicator: .---Indication of total operating hours of the appliance. Refer to the "Operating hours counter" section in the "Control panel description" paragraph for more details.Other setting messages.
88ml	Liquid additives quantity indicator (refer to "The AutoDose Technology (Autodosing)" chapter).
88.8	Maximum load indicator (refer to "The SensiCare System load detection" paragraph).MAXIt flashes when the laundry load exceeds the maximum declared load of the selected programme.
	Linked mode indicator. It lights when both compartments are linked and filled with the same detergent. AutoDose function for softener is disable.
+	These indicators will appear next to detergent tank and softener tank indicators when increasing or decreasing the automatic detergent or softener dosage.
	AutoDose softener tank indicator. When it lights, appliance automatically doses the softener.
OFF	AutoDose status indicator. It lights when AutoDose function is disable.
	AutoDose detergent tank indicator. When it lights, appliance automatically doses the detergent.

6.3 Time Manager

With this option you can reduce the programme duration depending on the load size and the degree of soiling.

When you set a washing programme, the display shows the default duration and ---- dashes.

Touch Time Manager button to reduce the programme duration according to your needs. The display shows the new programme duration and a number of dashes will decrease accordingly:

---- suitable for a full load of normally soiled garments.

--- a quick cycle for a full load of lightly soiled garments.

-- very quick cycle for a smaller lightly soiled load (max. half load recommended).

- the shortest cycle to freshen up a small amount of laundry.

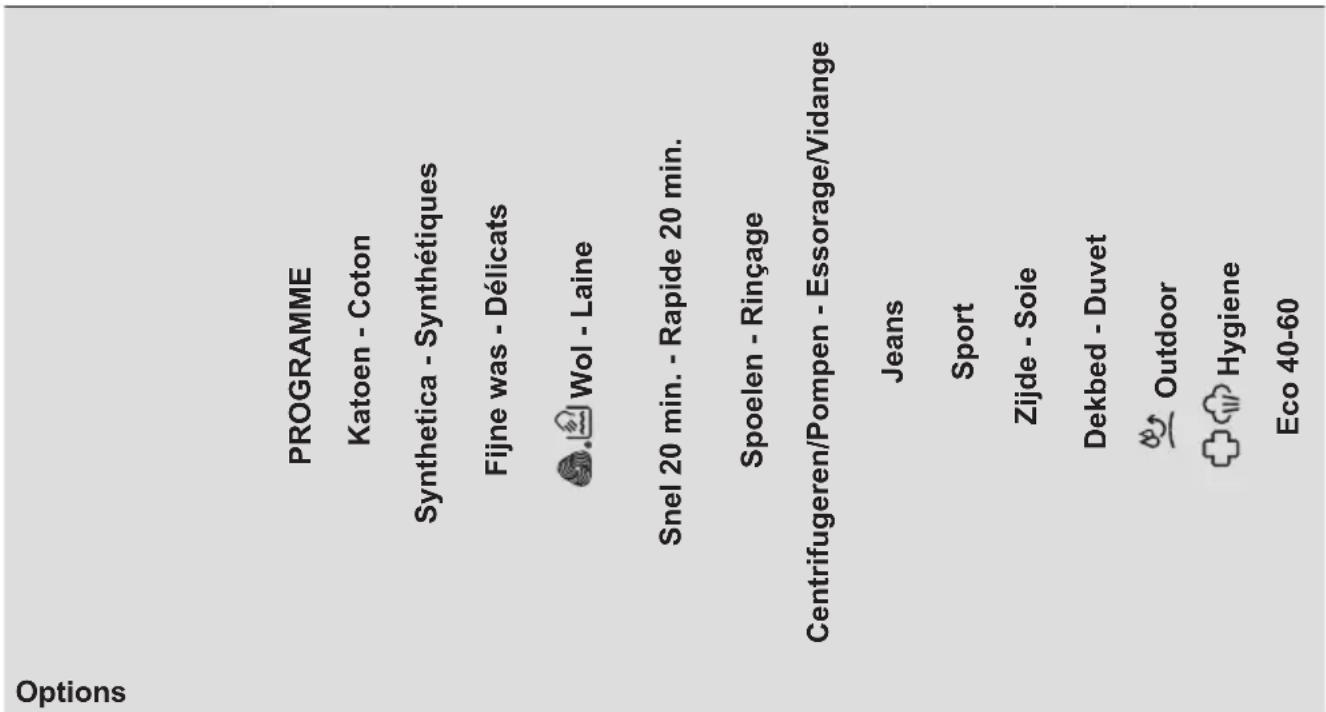

The Time Manager is available only with the programmes in the table.

indicator	Katoen - Coton	Synthetica - Synthétiques
---- 1)	■	■
----	■	■
----	■	■
-- 2)	■	■
- 2)	■	■

1) Default duration for all programmes.
2) This level of Time Manager option is not available in 90°C.

i

In some appliances the programme duration is reduced without showing any dashes.

7. THE AUTODOSE TECHNOLOGY (AUTODOSING)

i

Read this chapter carefully.

7.1 Introduction

Right detergent and fabric softener dosage takes better care of the laundry and ensuring good wash performances.

Too much detergent damages your clothes and too little doesn't ensure good wash performances.

This appliance is equipped with an auto dosing system able to automatically provide the right detergent and fabric softener dosage to preserve the fabric integrity and colour brightness.

Line drawing of a refrigerator internal compartments (no text or symbols)

AutoDose liquid detergent tank.

AutoDose fabric softener tank.

The appliance is pre-set by the factory to suit most users habits.

Once started the programme, the appliance will automatically release the right amount of detergent and softener according to the real fabric load, if AutoDose is activated and the indicators and/or are visible on the display.

i

In some programmes, AutoDose is deactivated (the indicators and/or are not displayed and the display shows OFF) because there are garments requiring special detergents or treatments. If this is the case, pour the detergent and other treatments in the proper manual filling compartment.

Please refer to "AutoDose and options compatibility with programmes" in "Programmes" chapter.

i

Further explanations on AutoDose and activation of advanced settings are available downloading the APP.

7.2 Detergent dispenser with AutoDose tanks and manual compartments

i

When using detergent and any other treatments, always follow the instructions that you find on the packaging of the detergent products. Anyway, we recommend not to exceed the maximum indicated level in each compartment (MAX).

If both AutoDose tanks are enabled in the set programme, liquid detergent and fabric softener are automatically loaded.

If one of the AutoDose tank or both are disabled (OFF) in the set programme, proceed by manually filling in the proper manual compartment.

AutoDose Airbox Manual (Manual)

- AutoDose tanks for liquid detergent and fabric softener.

WARNING!

Do not put powder detergent in the AutoDose compartment.

- Manual compartment for washing phase: powder or liquid detergent.

When using liquid detergent, make sure that the special container for liquid detergent is inserted. Refer to the "Manual filling the detergent and additives" paragraph in this chapter. The liquid detergent container is supplied inside the drum.

AutoDrive

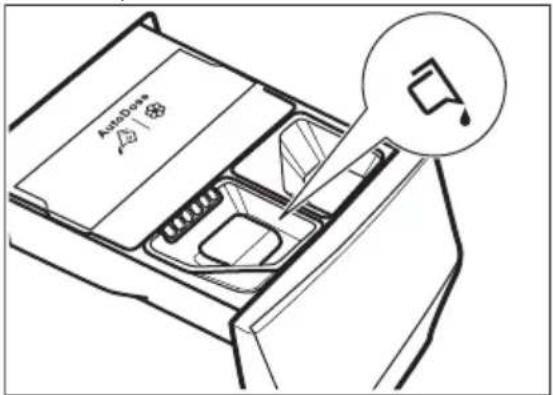

• Manual Manual compartment for liquid additives (fabric softener, fabric conditioner, starch).
  • MAX maximum level for detergent/additives quantity.

7.3 AutoDose basic setting

The factory pre-set doses for a large load are 90 ml for detergent tank and 25 ml for fabric softener tank: the optimal configuration to meet majority of use condition. The appliance will use these settings to calculate the precise dosage for each wash based on load size.

However, under extreme conditions (very soft or very hard water) and particular type of detergent (such as super compact), we recommend to adjust the pre-set dosage by following the indication given on detergent and fabric softener container: e.g when using super compact detergent you may need to reduce the pre-set dosage considerably.

If the washing results are not satisfying or there is too much foam during washing, you may need to change the factory setting. Read in the paragraph 'AutoDose configuration mode' how to change the basic setting, but before:

1. Identify the water hardness level.

Check the water hardness level in your area. The levels are generally indicated as: soft, medium and hard.

If necessary, please contact your local water authority to check the water hardness in your area.

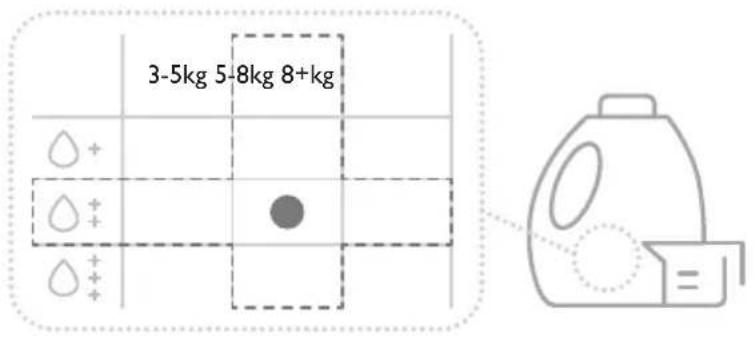

2. Identify the customized detergent dosage.

Check the label in the detergent/fabric softener container and identify the quantity to use. For the detergent the suggested quantity of detergent is the combination of three different factors:

• Water hardness level (see the following table);
- Normal soil level;
- Rated capacity of the appliance (e.g. maximum load capacity 9 kg). If the rated capacity on the detergent container label refers to lower capacity appliances, the customized dosage should be increased by 20% referring to the proposed dosage.

As example for a machine with rated capacity 8 kg, medium water, normal soil level the dosage is recognised by the crossing in the detergent label dosages.

3-5kg 5-8kg 8+kg

Water hardness levels

Levels Water hardness range
	^^1)	^^2)	^^3)	mmol/l ppm
Soft <15 <8 <10 <1.4 <140
Medium ^4)	15 - 25 8 - 14 0 - 17 1.5 - 2.5 150 - 250
Hard >25 >14 >17 >2.5 >250

1) French degrees
2) German degrees
3) English degrees
4) Factory setting, able to satisfy most of the use conditions.

7.4 AutoDose configuration mode

Enter the AutoDose configuration mode before proceeding with any programme setting. The configuration mode may cancel temporary settings.

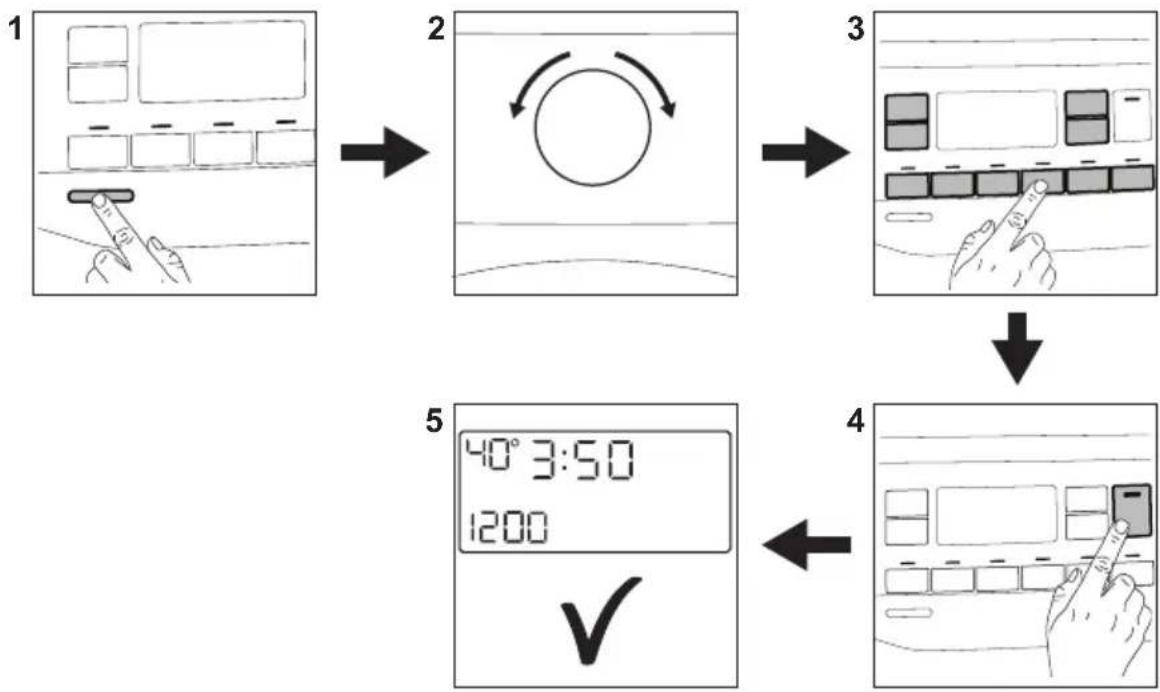

1. Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appliance.
2. Wait about 10 seconds for appliance internal check.

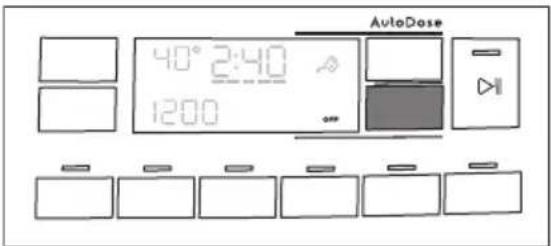

3. To enter in configuration mode, hold pressed the Temp. and the Centrifugeren - Essorage buttons simultaneously for a few seconds until and the blinking
   detergent tank 📋 and softener tank 🌐 indicators appear in the display. After 10 seconds without interacting with control panel the appliance exits the configuration mode.

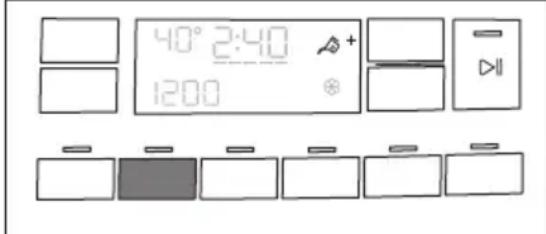

SET AutoDose

1. Touch related tank buttons to toggle function off and on. The display shows OFF when a tank is disabled or shows tank indicator when it is enabled.

AutoDose 40° 2:40 1200

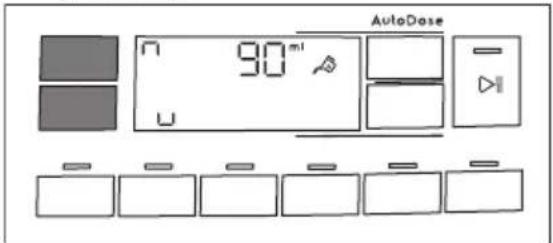

1. To set basic dosage touch related tank buttons until default dosage laundry product and two arrows on bottom of display appear. Touch the Temp. button repeatedly to decrease the dosage and

the Centrifugeren - Essorage button to increase it: minimum step is 1 ml (each single step) or 10 ml (when button is hold pressed).

AutoDose 90°

1. After about 10 seconds the display returns to the programme information screen or hold pressed the Temp. and the Centrifugeren - Essorage buttons again to exit immediately.

7.5 Filling the detergent and additives on AutoDose system

i

Please read "Detergents and other treatments" in "Hints and tips" chapter.

i

We recommend that you do not exceed the maximum indicated level (MAX).

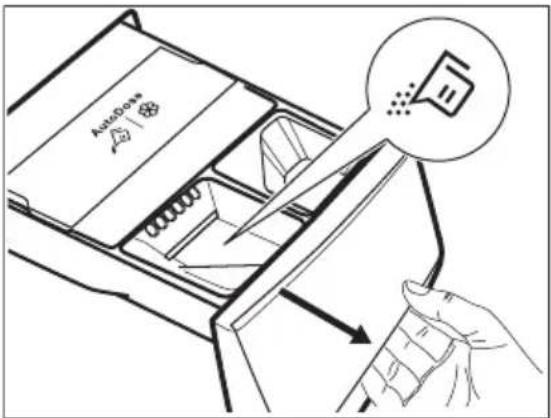

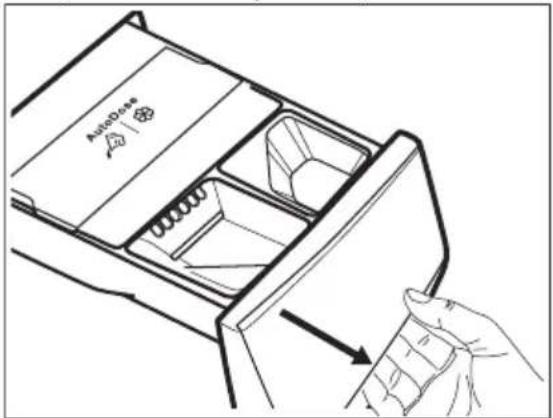

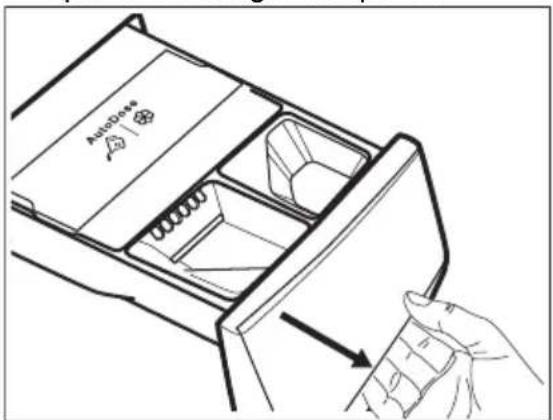

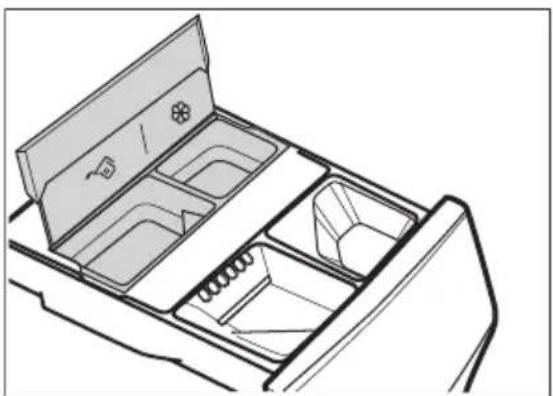

1. Open the detergent dispenser.

AutoDress

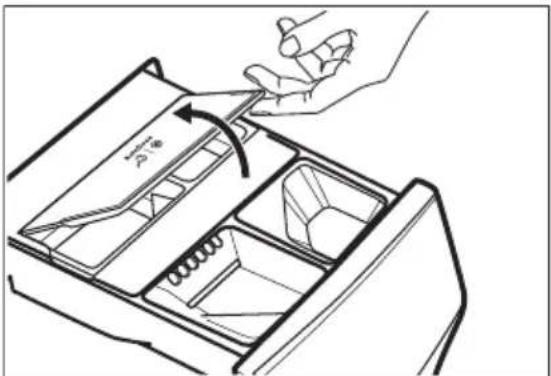

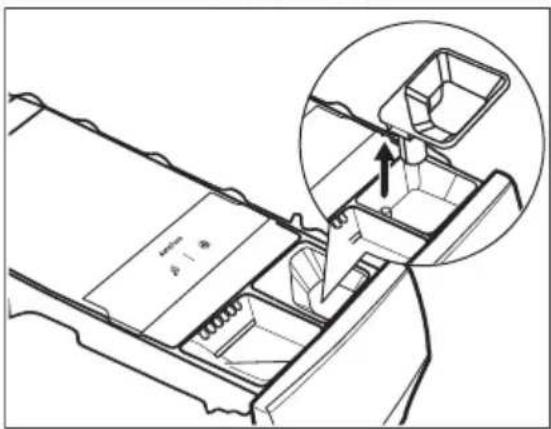

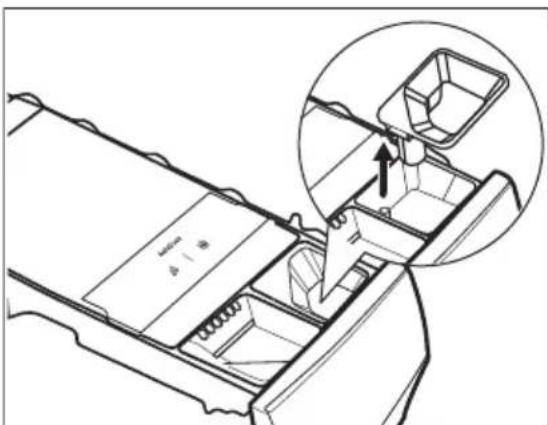

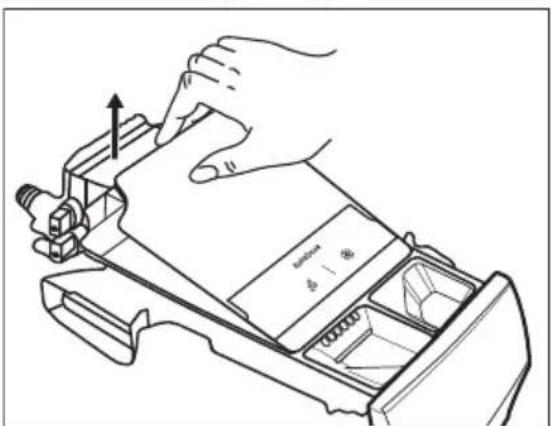

1. Lift up the AutoDose cover lid.

Line drawing of a hand inserting a plastic into a drawer with an arrow indicating the process (no text or symbols present)

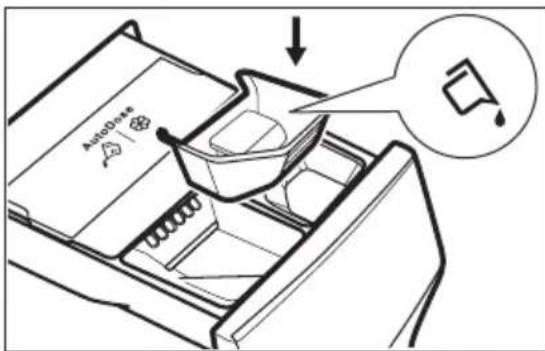

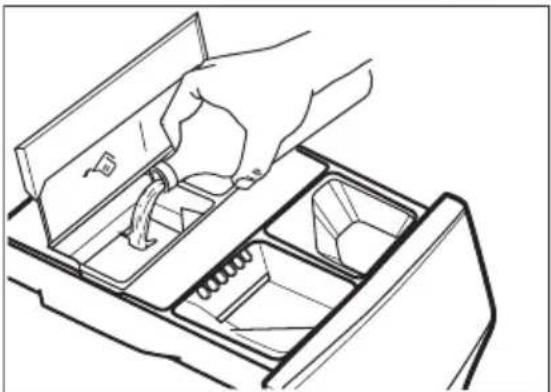

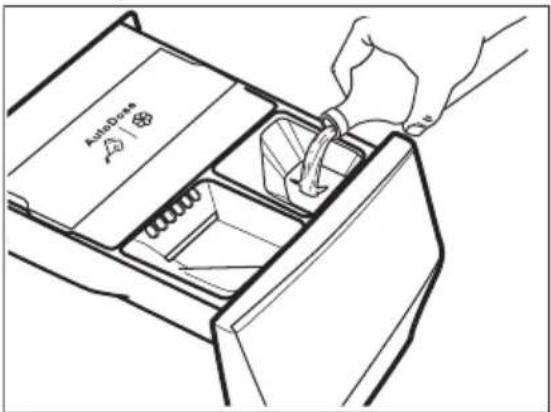

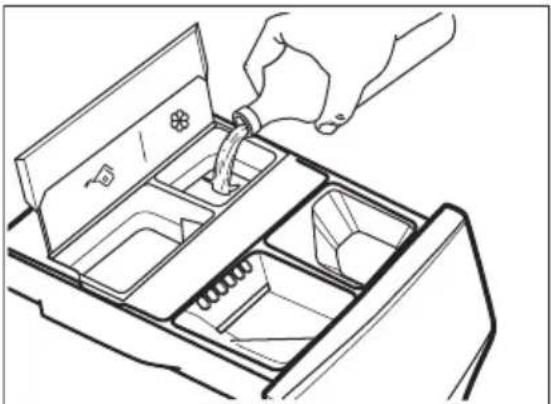

1. Gently pour only liquid detergent in the AutoDose detergent tank. Fill up to the maximum indicated level MAX

Line drawing of a hand inserting a plastic into an open drawer with internal compartments (no text or symbols)

1. Gently pour only liquid softener in the AutoDose fabric softener tank ✿ Fill up to the maximum indicated level MAX

Line drawing of a hand inserting a ring into a drawer with compartments (no text or symbols)

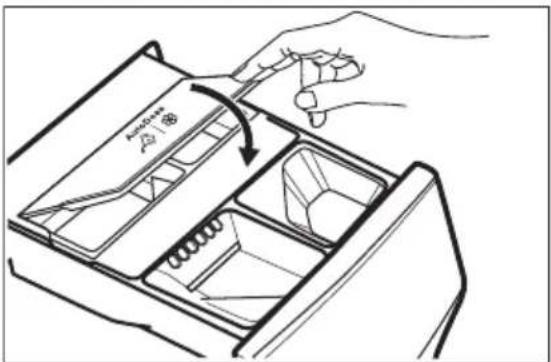

1. Lift down the AutoDose cover lid.

Line drawing of a hand inserting a plastic into a drawer with a handle, showing internal compartments and a scroll (no text or symbols)

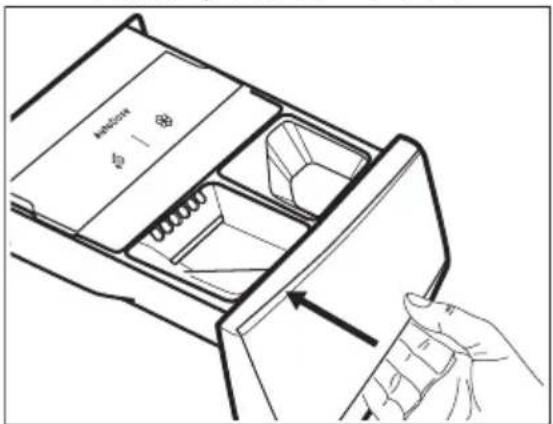

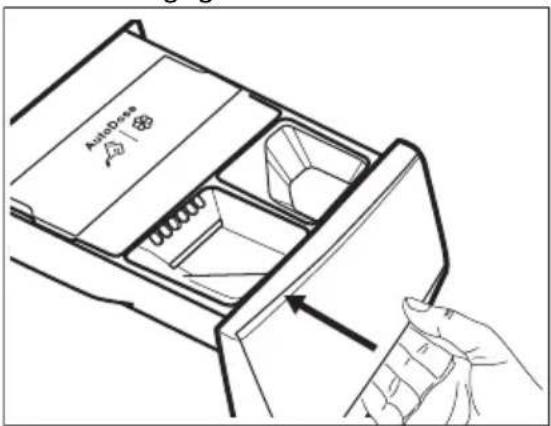

1. Gently close the detergent dispenser, till click engagement.

AutoDose

7.6 AutoDose low level indication

Do not refill the AutoDose tanks unless appliances indicates that one or both tanks are empty.

When the activated tank reaches a low level of detergent, related indicator blinks slowly and continuously on the display.

It will stop blinking when the compartment is refilled.

If tank is not refilled, once a programme has started, the indicator will stop blinking and stay steadily lit. Once the programme is finished, it will start blinking again.

Unless AutoDose is turned OFF, if a compartment has reached low level, the set dosage for that compartment will be shown by the display for a few seconds each time the drawer is opened, to remind refill is needed.

If in both tanks detergent level is low, both indicators blink, but only the set dosage for detergent will be displayed.

If the tanks are filled before the appliance is powered on for the first time, the AutoDose indicator will not blink.

CAUTION!

The tanks refill must be carried out with the same brand and type of detergent/fabric softener/additive used before, otherwise clean the tanks before refilling.

7.7 Switching from AutoDose to manual dosing

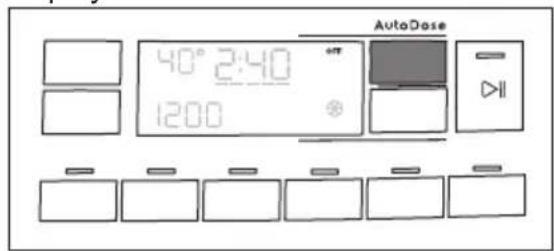

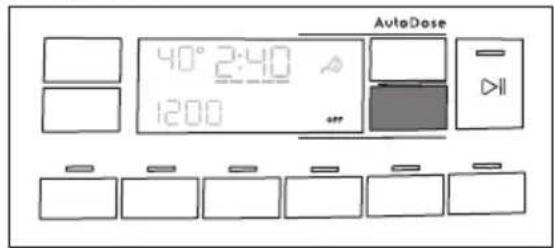

It is possible to disable AutoDose function for one or both tanks by pressing related button symbol.

Example:

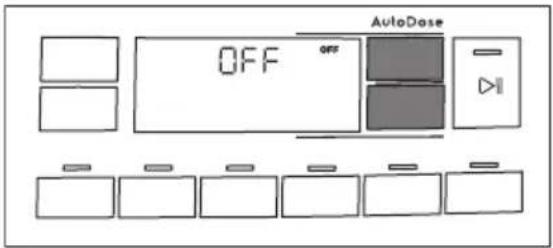

- To switch Fabric Softener tank off, press the softener 🎨 button until the display shows OFF.

AutoDose 40° 2:40 1200

- If you need to use different detergent than ones present in AutoDose tanks, you could switch Detergent tank off by pressing the detergent button until the display shows OFF.

AutoDose 40°2:40 1200

7.8 Deactivating the AutoDose

If you want to use the machine ONLY manually, you can deactivate the Autodose functionality. Once you have entered the AutoDose configuration mode by a long press of Temp. and the Centrifugeren - Essorage buttons:

1. Tap on the detergent button or the softener button until display shows OFF: the AutoDose is excluded completely for related tank or both.

AutoDose OFF OFF

1. After about 10 seconds the display returns to the programme information screen.

7.9 Manual filling the detergent and additives

You may need to use a different detergent or fabric softener than the ones used in the AutoDose tanks. First, make sure that the AutoDose tanks are disabled and then pour the detergent and/or other treatments in the manual compartments.

i

Do not exceed the maximum indicated level (MAX

1. Open the detergent dispenser.

AutoDress 23 | 80

1. Put the powder detergent in the compartment. When using liquid detergent, refer to "Manual filling the liquid detergent".

AutoDose

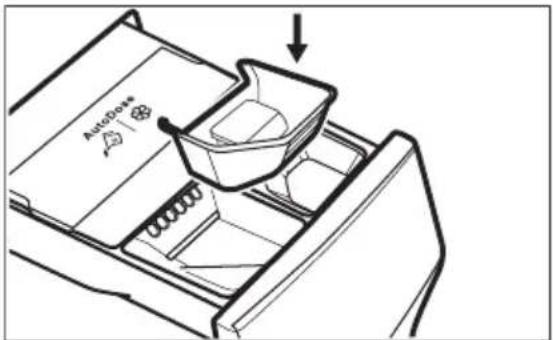

1. If desired, pour the fabric softener in the

compartment Manual.

AutoDose 10

1. Gently close the detergent dispenser, till click engagement.

AutoDress © 18

Manual filling the liquid detergent

1. Insert the container for liquid detergent.

AutoDash 83

1. Pour the liquid detergent in the compartment

AutoDress ✓ | ✉

1. Gently close the detergent dispenser, till click engagement.

AutoDose √25 | 80°

If the machine has not been used for more than 4 weeks with filled tanks, detergent/softener can become viscous or dry out. It is needed to clean the drawer as indicated in 'Care and Cleaning' chapter.

7.10 Drawer open indication

When a programme is running, the detergent drawer must always be closed.

A sensor in the drawer detects if the drawer is open (or not properly closed) while the programme is running. In such case, the appliance will immediately be paused.

If you press the Start/Pauze - Départ/Pause ▷|| button, an error sound is generated and everything in the display will turn off except the AutoDose indicators remain lit for a few seconds. Then the display returns to the previous paused state.

This will happen even if the user turned AutoDose off.

To restart the programme, ensure the drawer is properly closed and press Start/Pauze - Départ/Pause button.

8. PROGRAMMES

8.1 Programme Chart
1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

Programme Default temperature Temperature range	Reference spin speed Spin speed range [rpm]	Maxi-mum load	Programme description (Type of load and level of soiling)
Katoen - Coton 40 °C90 °C - Cold	1400 rpm (1400- 400)	9 kg White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetica - Syn-thétiques 30 °C60 °C - Cold	1200 rpm (1200 - 400)	4 kg Synthetic items or mixed fabric items. Normal soil.
Fijne was - Délicats 30 °C40 °C - Cold	800 rpm (1200- 400)	2 kg Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wol - Laine 40 °C40 °C - Cold	1200 rpm (1200- 400)	1,5 kg Machine washable wool, hand washable wool and other fab-rics with «hand washing» care symbol 1).
Snel 20 min. - Rap-ide 20 min.30 °C40 °C - 30 °C	1200 rpm (1400- 400)	3 kg Synthetic and mixed fabric items. Lightly soiled items and items to freshen up.
Spoelen - Rinçage	1400 rpm (1400- 400)	9 kg All fabrics, except woollens and very delicate fabrics. Pro-gramme for rinsing and spinning the laundry. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Spoelen + - Rinçage + option to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.
Centrifugeren/ Pompen - Essor-age/Vidange	1400 rpm (1400 -400)	9 kg To spin the laundry and to drain the water in the drum. All fab-rics, except woollens and delicate fabrics.
Jeans 30 °C40 °C - Cold	800 rpm (1200 - 400)	4 kg Special programme for Denim clothing with delicate washing phase to minimize colour fading and marks. For better care a reduced load size is recommended.
Sport 30 °C40 °C - Cold	1200 rpm (1200 - 400)	4 kg Mixed fabric sportswear. Lightly soiled items or items to re-fresh.
Zijde - Soie 30 °C	800 rpm (800 - 400)	0,5 kg Machine and hand washable silk and other delicate fabrics. Drum movements are so gentle that is possible to treat even very delicate garments. Run a complete wash and dry cycle to reduce creases.
Dekbed - Duvet30 °C60 °C - Cold	800 rpm(800 - 400)	3 kg Special programme for synthetic or feather and down filledblanket, duvet, bedspread and so on. Use liquid delicate detergent, like wool detergent.
Outdoor30 °C40 °C - Cold	1200 rpm(1200- 400)	2,5 kg ^2) 1 kg ^3)	Do not use fabric softener and make sure that there is no softener residue in the detergent dispenser.
			Outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets with a removable fleece or inner insulation. The recommended laundry load is 2,5 kg. This programme can also be used as water-repellent restoring cycle, specifically tailored for treating clothes with a hydrophobic coating. To perform the water-repellent restoring cycle, proceed as follows:Pour the washing detergent in the compartment.Pour a special water-repellent restorer for fabric in the drawer compartment for fabric softenerManual. Reduce the laundry load to 1 kg.
			To further improve the water-repellent restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
Hygiene60 °C	1400 rpm(1400 - 400)	9 kgWhite cotton items. This high-performance wash program combined with steam vapour, removes more than 99,99% of bacteria and viruses ^4) keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This program ensures also a proper reduction of pollens/allergenic items.
ProgrammeDefault temperatureTemperature range	Referencespin speedSpin speedrange[rpm]	Maximumload	Programme description(Type of load and level of soiling)
Eco 40-6040 °C 5)	1400 rpm(1400- 400)	9 kg White	cotton and fast-coloured cotton. Normally soiled items.The energy consumption decreases and the time of the washing programme is extended, ensuring good washing results.

2) Washing programme.
3) Washing programme and waterproofing phase.
4) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).
5) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Programme options compatibility

AutoDose Detergent

Options

PROGRAMME

Katoen - Coton

Synthetica - Synthétiques

Fijne was - Délicats

Wol - Laine

Snel 20 min. - Rapide 20 min.

Spoelen - Rinçage

Centrifugeren/Pompen - Essorage/Vidange

Jeans

Sport

Zijde - Soie

Dekbed - Duvet

Outdoor

Hygiene

Eco 40-60

AutoDose Fabric Softener

■

■

■

■

■

■

■

Centrifugeren - Essorage

■

■

■

■

■

■

■

■

No Spin

■

■

■

■

■

■

■

■

Rinse Hold

■

■

■

■

■

■

■

■

Stil - Silence

■

■

■

Voorvas - Prélavage

■

■

■

Vlekken - Taches 1)

■

■

■

■

Spoelen + - Rinçage +

■

■

■

■

■

■

■

Soft Plus ■ ■ ■

■

■

■

Strijkvrij - Repassage facile

■

■

■

Time Manager

■

■

Options

PROGRAMME

Katoen - Coton

Synthetica - Synthétiques

Fijne was - Délicats

Wol - Laine

Snel 20 min. - Rapide 20 min.

Spoelen - Rinçage

Centrifugeren/Pompen - Essorage/Vidange

Jeans

Sport

Zijde - Soie

Dekbed - Duvet

Outdoor

Hygiene

Eco 40-60

Startuitstel - Départ Dif- féré

1) This option is not available with temperature lower than 40 °C.

Suitable detergents for washing programme

Katoen - Coton

Synthetica - Synthétiques

Fijne was - Délicats

Wol - Laine

Snel 20 min. - Rapide 20 min.

Jeans

Sport

Zijde - Soie

Dekbed - Duvet

Outdoor

Hygiene

Eco 40-60

Universal powder1)

▲ ▲ -- -- -- -- -- -- ▲ ▲

Liquid Universal ▲ ▲ -- -- ▲ -- ▲ -- -- -- ▲ ▲

Liquid for colour-eds

▲ ▲ -- -- ▲ -- ▲ -- -- -- ▲

Delicates wool-lens

-- -- ▲ ▲ -- ▲ -- ▲ ▲ ▲ -- --

Katoen - Coton

Fijne was - Délicats

1) At temperature higher than 60 °C the use of powder detergent is recommended.

▲ = Recommended -- = Not recommended

Woolmark Premium Wool Care - Blue

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M1512

The app and additional hidden programmes

Our app provides you with a wide choice of additional hidden programmes. After pairing your smart device with the appliance you will be able to choose the programme that suits your needs most. In the App you can find a complete description of each programme.

Machine Clean - Lavage tambourCurtainsBed Linen

TowelsFleeceMicrofibre

BabyBusiness ShirtsWorking Clothes

Programme names are subject to change depending on market requirements without notice.

9. ⓤWI-FI - CONNECTIVITY SETUP

This chapter describes how to connect the smart appliance to the Wi-Fi network and to link it to mobile devices.

By this functionality you can receive notifications, control and monitor your appliance from your mobile devices.

The Wi-Fi functionality is off as factory default setting.

To connect the appliance to enjoy the full range of features and services you need:

• Wireless network at home with internet connection enabled.
• Mobile device connected to wireless network.

Wi-Fi module parameters

Frequency

2.412 - 2.472 GHz for European market

Protocol IEEE 802.11b/g/n

Max Power <20 dBm

Encryption WPA, WPA2, WPA3

9.1 QR code on rating plate

Mod. xxxxxxxxx Prod.No. 910000000 00 000V - 00Hz 0000 W SCANNING... 0GA Ser No. 00000000

QR code can be used in two ways:

• Scan the QR code with the built-in camera app to download our app from the App store on your smart device and follow the required steps.
• Pairing your smart device with appliance to simplify the process. Scan the QR code with QR code scanner built-in our app.

9.2 Installing and configuring the App

i

The App allows you to control your laundry through a mobile device.

It contains a large number of programmes, useful features and product information tailored perfectly to the appliance.

Through the app you can select the programmes already available from the appliance control panel, plus unlock additional programmes available only from a mobile device.

Additional programmes can change over the time along with new versions of the app.

It's personalized laundry care - all from your mobile device.

When connecting the appliance to the application, stand near it with your mobile device.

Make sure that your mobile device is connected to the wireless network.

1. Go to the App Store on your smart device or scan QR code (see 'QR code on rating plate' paragraph).
2. Download and install our app.
3. Make sure you started a Wi-fi connection in the appliance. If not, read the next paragraph 'Configuring the appliance wireless connection'.
4. Start the application. Select the country and language and login with Your email and password. If you do not have an account, create a new one following the instructions in the App.
5. Follow the instructions on the App for the appliance registration and configuration.

9.3 Configuring the washing machine wireless connection

1. Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appliance. Wait about 10 seconds before proceeding with wireless configuration.

2. Select a programme by turning the programme dial.

3. Press and hold the and the buttons simultaneously for a few seconds until a 'click' sounds. Release the buttons. On appears on the display for 5 seconds and the indicator starts blinking.

The wireless module begins starting up.

i

Make sure that your App is ready for connection.

1. After a few seconds, (Access Point) appears on the display.

The access point will be open for about 5 minutes.

i

As long as the appliance is activated, it will keep trying to connect with saved credentials until the Wi-Fi is deactivated or resets the credentials.

1. Configure App on your smart device and follow the instructions to connect the appliance to your Wi-Fi network.
2. If the connectivity is configured, when the programme information screen returns, the indicator is on the display.

0:00 40° 1200

i

Every time you switch the appliance on, the appliance takes few seconds to connect to the network automatically. When the indicator stops blinking the connection is ready.

To switch the wireless connection off after the connectivity is configured, press and hold the and the buttons simultaneously for a few seconds until the first acoustic signal. Release the buttons.

OFF appears on the display for a few seconds.

i

If you switch the appliance off and on again, the wireless connection is automatically off.

To remove the wireless credentials, press and hold the and the buttons simultaneously for a few seconds until the second acoustic signal: appears on the display.

9.4 Remote Start

The Remote Start enables you to start a cycle in remote control.

i

The Remote Control activates automatically when you press the Start/

Pauze - Départ/Pause button to start the programme, but it is also possible to start a washing programme remotely.

When the App is installed and the wireless connection is complete, you can activate the Remote Start:

1. Touch the Remote start button and the indicator appears on the display for a few seconds.

40° APP 1200

1. Touch the Start/Pauze - Départ/Pause ▷|| button to activate the Remote Start before the indicator stops blinking.

The indicators and appear on the programme summary screen and the door is locked. Now it is possible to start the programme remotely.

When touching the Start/Pauze - Départ/Pause button after the indicator

APP stops blinking, the Remote Start is not activated, but the set programme starts.

To remove the Remote Start, tap on the Remote start button and confirm by

pressing the Start/Pauze - Départ/Pause ▷ II button.

The reset position deactivates the Remote Start.

9.5 Over-the-air update

The App may propose an update for your appliance.

The update is accepted via App only.

If a programme is running, the App notifies that the update will start at the end of the programme.

During the update, the appliance shows UPd in the display.

Do not switch off or unplug the appliance during update.

The appliance will be usable again at the end of the update, without any notification about successful update.

If an error occurs, the appliance shows Err in the display: just press any buttons or turn the knob to return to normal use.

10. DAILY USE

WARNING!

Refer to Safety chapters.

10.1 Activating the appliance

1. Connect the mains plug to the mains socket.
2. Open the water tap.
3. To activate the appliance press for a few seconds the buttonAan/Uit - Marche/Arrêt

A short tune sounds.

The display shows the default programme Eco 40-60, cycle duration, the maximum load, the default spin speed and the indicators of the phases making up the programme.

10.2 Loading the laundry

1. Open the appliance door.
2. Empty the pockets and unfold the items before you put them in the appliance.
3. Put the laundry in the drum, one item at a time.
   Do not put too much laundry in the drum.
4. Close the door firmly.

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating an emergency or diagnostic hazard.

CAUTION!

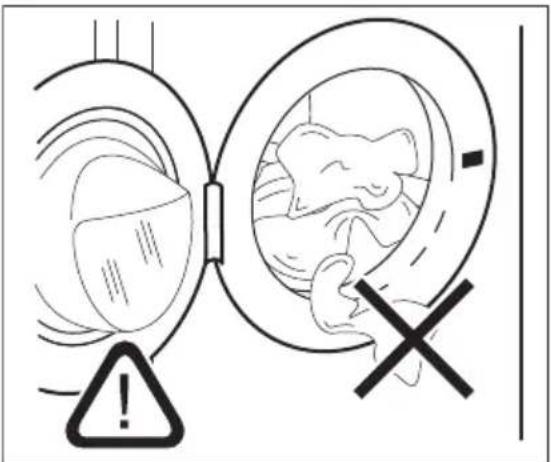

-Make sure that no laundry gets caught between the seal and the door to avoid risk of water leakage and damage to the laundry.

-Washing heavily oiled, greasy stains or using fragrances perfume could cause damage to rubber parts of the washing machine.

10.3 Setting a programme

i

If you wish to change the automatic detergent or fabric softener dosage, enter the AutoDose configuration mode before proceeding with any programme setting. The configuration mode may cancel temporary settings. Please refer to "AutoDose configuration mode" paragraph in "The AutoDose Technology (Autodosing)" chapter.

1. Turn the programme dial to select the desired washing programme.
   The indicator of the Start/Pauze - Départ/Pause ▶ button flashes.
   The display shows an indicative programme duration.
2. To change the temperature and/or the spin speed, touch the related buttons.
3. If desired, set one or more options by touching the related buttons. The related indicators illuminate on the display and the given information changes accordingly.

If a selection is not possible an acoustic signal sounds and the display shows

10.4 Additional information about daily use

The SensiCare System load detection

The SensiCare System adjusts automatically the programme duration to the laundry in the drum to achieve perfect washing results in the minimum possible time. The appliance detects the load in the first 30 seconds. In the programmes where Time Manager is available, during this phase the display play a simple animation. The drum rotates shortly. At the end of the load detection, in case of

drum overload, the indicator is flashing in the display. You can pause the appliance and remove the exceeding garments. If not the washing programme starts anyway. About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics. The SensiCare System is not available in programmes with short cycles.

Starting a programme

Touch the Start/Pauze - Départ/Pause ▷ II button to start the programme. The related indicator stops flashing and stays on. The programme starts, the door is locked. The display shows the indicator The programme starts, the door is locked. The display shows the indicator.

Starting a programme with delay start

1. Touch the Startuitstel - Départ Différé button repeatedly until the display shows the desired delay time.

2. Touch the Start/Pauze - Départ/Pause button. The appliance door locks and starts the countdown of the delay start. When the countdown is completed, the programme starts automatically.

Interrupting a programme and changing the options.

1. When the programme is running, you can change only some options. Touch the Start/Pauze - Départ/Pause button.
2. Change the options. The given information in the display changes accordingly
3. Touch the Start/Pauze - Départ/Pause ▷|| again. The washing programme continues.

Cancelling a running programme

• Press the button Aan/Uit - Marche/Arrêt button to cancel the programme and to deactivate the appliance. Press again to activate the appliance.
• Rotate the selection knob to the "reset" position activate the appliance . Wait 2 second. Now you can set a new washing programme.

End of the programme

• The appliance stops automatically. In the display comes on. The acoustic signals operate (if they are active).
• The indicator of the Start/Pauze - Départ/Pause button goes off. The door locked goes off and the door unlocks.

- Press the Aan/Uit - Marche/Arrêt button for some seconds to deactivate the appliance. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse you must remember to drain the water:

• Touch button Centrifugeren - Essorage to decrease the spin speed proposed by the appliance

• Press the Start/Pauze - Départ/Pause ▷

• When the programme is completed and the door locked indicator →0 goes off, you can open the door.

• Aan/Uit - Marche/Arrêt to deactivate the appliance.

Stand-by function

The Stand-by function automatically deactivates the appliance to reduce the energy consumption.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Twice a year er and AutoDose tanks

Clean drain pump filter Twice a year

Clean the inlet hose and Twice a year the valve filter

The following paragraphs explain how you should clean each part.

11.2 Removing foreign objects

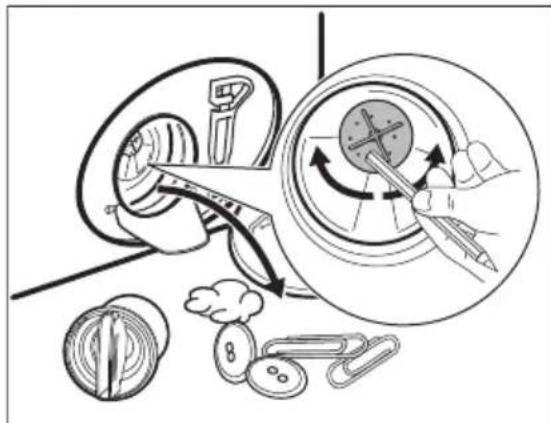

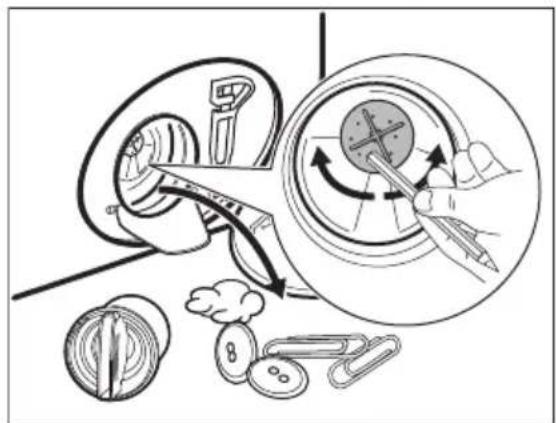

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase. If necessary, please contact the Authorised Service Centre.

11.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces. Do not use a scouring pads or any scratching material.

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

11.4 Descaling

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines.

Regularly examine the drum to check for limescale.

Regular detergents already contain water softening agents, but we recommend to run a cycle with an empty drum and a descaling product.

Always follow the instructions that you find on the packaging of the product.

11.5 Maintenance wash

The repeated and prolonged use of low temperature programmes can cause detergent deposits, fluff residues, bacterial growth inside the drum and the tub. This could generate bad odours and mildew. To eliminate these deposits and clean the inner part of the appliance, run a maintenance wash regularly (at least once a month).

Refer to "Cleaning the drum" paragraph.

11.6 Door seal with double lip trap

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

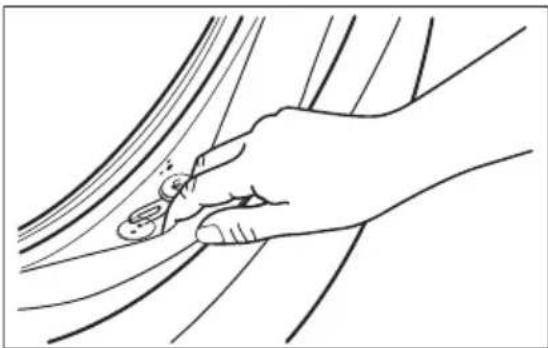

Line drawing of a hand holding a car seatbelt, no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

Check and remove objects (if there are any) that could be trapped in the fold.

Make sure that no laundry remains between the seal and the door.

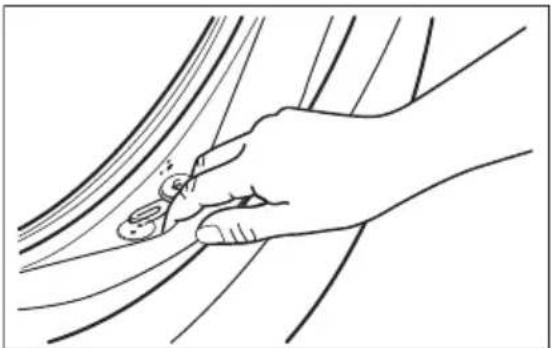

Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle.

11.7 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool.

For a thorough clean:

1. Remove all laundry from the drum.
2. Deactivate AutoDose function for detergent and softener.
3. Run a Katoen - Coton programme with the highest temperature. If your appliance can be connected to Wi-Fi, the special programme Machine Clean - Lavage tambour is also downloadable through the APP.
4. Add a manually small quantity of powder detergent or a specific product into the empty drum, in order to rinse out any left residues.

Occasionally, at the end of a cycle the display may show the icon ... this is a recommendation to perform the "drum cleaning". Once the drum cleaning has been performed, the icon disappears.

11.8 Cleaning the detergent dispenser and the AutoDose tanks

CAUTION!

If you change detergent type as brand, concentration, and thickness, then it is suggested to clean the detergent drawer.

Before cleaning, make sure that the all compartments are empty.

To prevent possible deposits of dried detergent, clotted fabric softener, formation of mould in the detergent dispenser and/or clotted liquid additives in the AutoDose tanks, every two months carry out the following

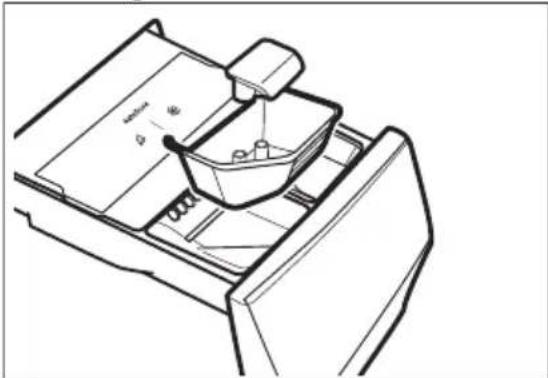

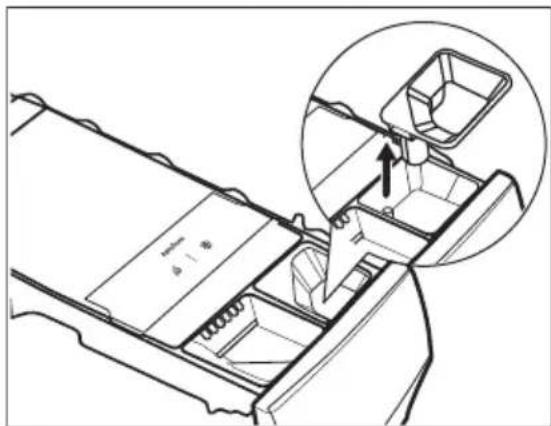

cleaning procedure how explained in the following diagrams:

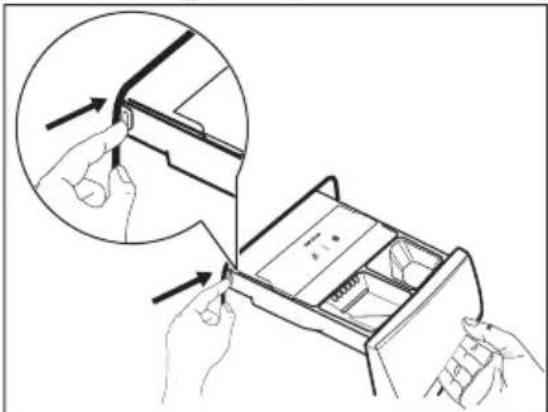

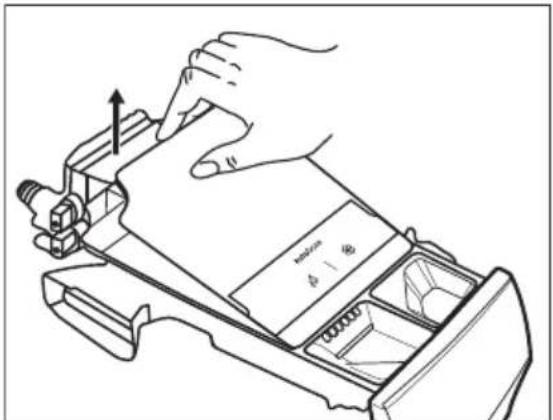

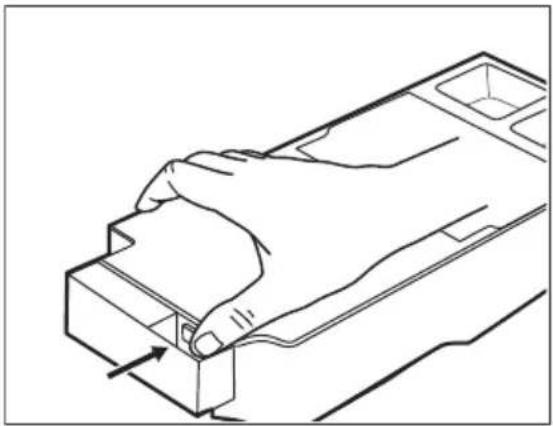

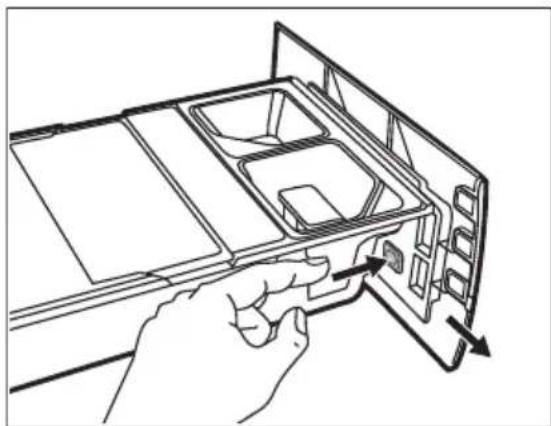

1. Open the detergent dispenser. Press the catch as indicated in the picture and pull the detergent dispenser out.

Illustration of hands assembling a mechanical device into a drawer (no text or symbols present)

1. Remove the insert for the softener and, if inserted, the container for liquid detergent.

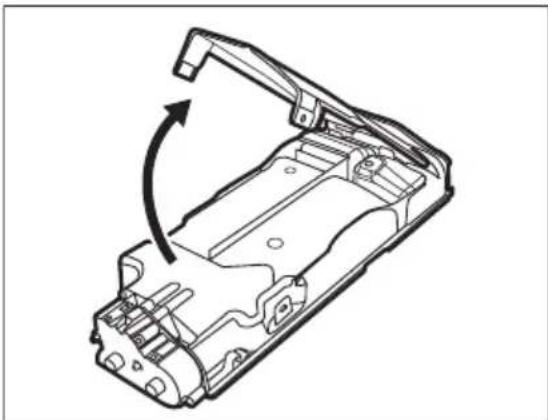

Line drawing of a mechanical device with a central component and surrounding components (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a component (no text or symbols)

1. Press the catch on the back as indicated in the picture and lift up the top cover to remove it.

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols present)

1. To remove any detergent residue or if you place a wrong additives in the tanks, empty the drawer in a basin or in suitable containers to collect the liquid.

Architectural diagram of a building interior with roof, windows, and central structure (no text or labels)

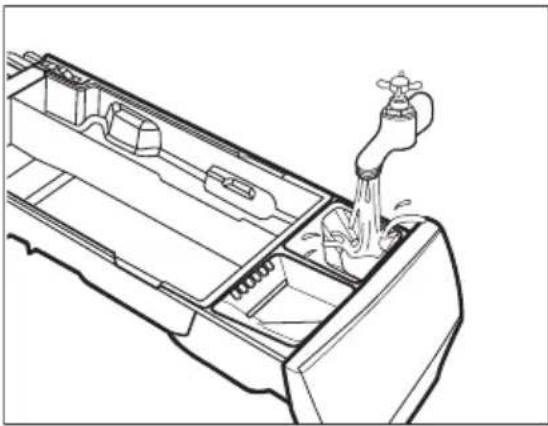

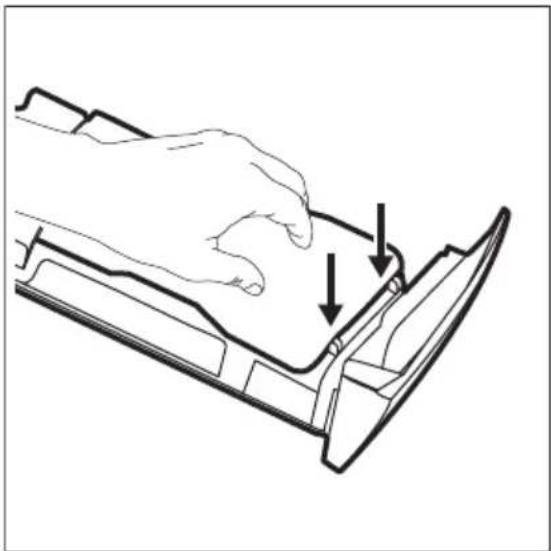

1. Wash the drawer and all inserts under running water or clean it with a damp cloth.

Line drawing of a cleaning or cleaning device with a faucet pouring water into the interior (no text or symbols)

CAUTION!

Do not use sharp or metal brushes and sponges. Do not wash drawer in a dish washer.

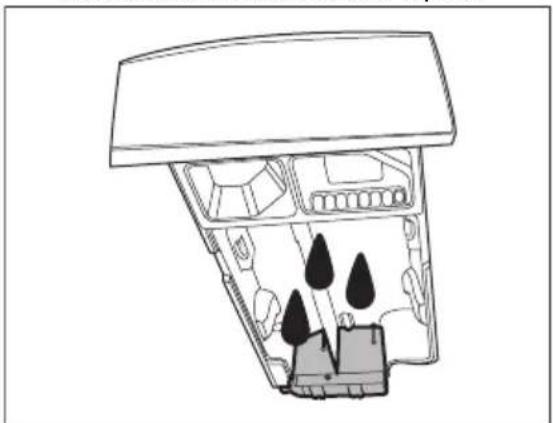

1. Turn the dispenser up side down and open the bottom cover as indicated in the picture.

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

1. Make sure that all detergent residue is removed from the conveyor. Use only soft damp clothes.

2. Put bottom cover back to its position by aligning its holes on drawer hooks as indicated in the picture. Close it till "click" sound.

Illustration of hands using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols present)

CAUTION!

Press the bottom cover as indicated in the picture. Make sure that it is closed properly.

Line drawing of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols)

WARNING!

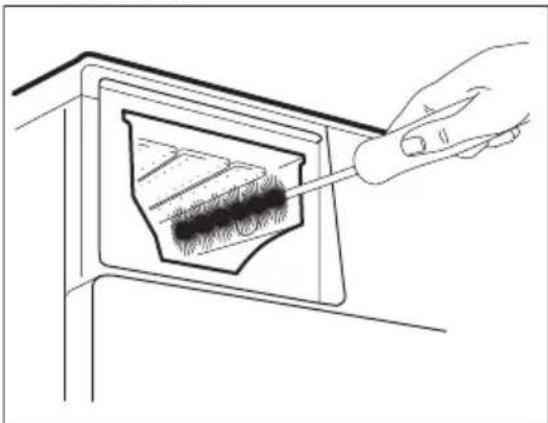

Do not clean with any sharp and metal brushes or any tools, pumps or sensors allocated on the back of the detergent drawer. If necessary, use only soft damp clothes.

Line drawing of a refrigerator interior with an inset close-up showing internal components (no text or symbols)

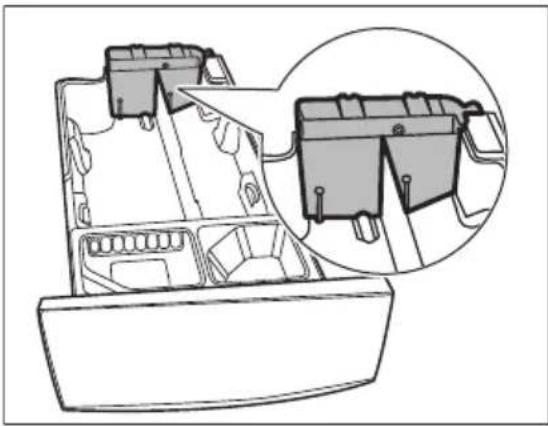

WARNING!

If some residues remain on the back area of tanks, soak detergent drawer in a warm water. Do not use tools to clean it. Before soaking, remove the handle by pressing red button and slide the handle as indicated in the picture.

Line drawing of a hand inserting a device into a tray (no text or symbols)

1. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Line drawing of a hand using a tool to insert or install a component, no text or symbols present

1. Reassembly the drawer as follows: a. Place the handle if was disassembled.

b. Place the bottom cover and press till "click" sound.
c. Place the top cover on the tanks compartment and press till "click" sound.
d. Replace components on manual compartment.

1. Insert the detergent dispenser into the guide rails and gently close it till "click" sound. Run the rinsing programme without any clothes in the drum.

Window φ 1 &

To restore the functionality, refill tanks with detergent and softener.

11.9 Cleaning the drain pump filter

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump filter if:

• The appliance does not drain the water.
• The drum does not turn.
- The appliance makes an unusual noise because of the blockage of the drain pump.
• The display shows the alarm code E21

WARNING!

• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down.
• Repeat Step 3 several times by closing and opening the valve until the water stops flowing out.

Always keep a rag nearby to dry up any water spillages when removing the filter.

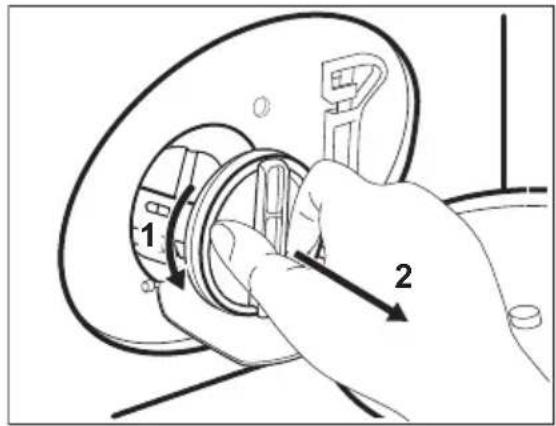

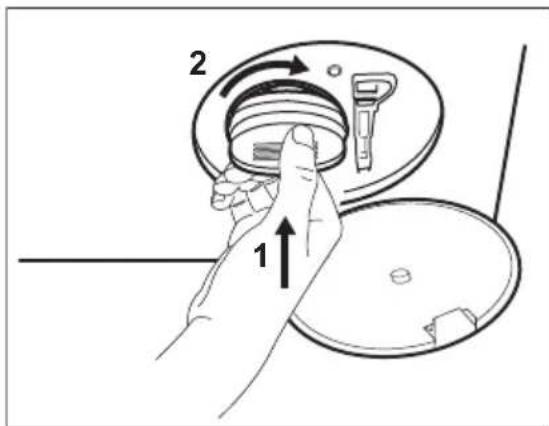

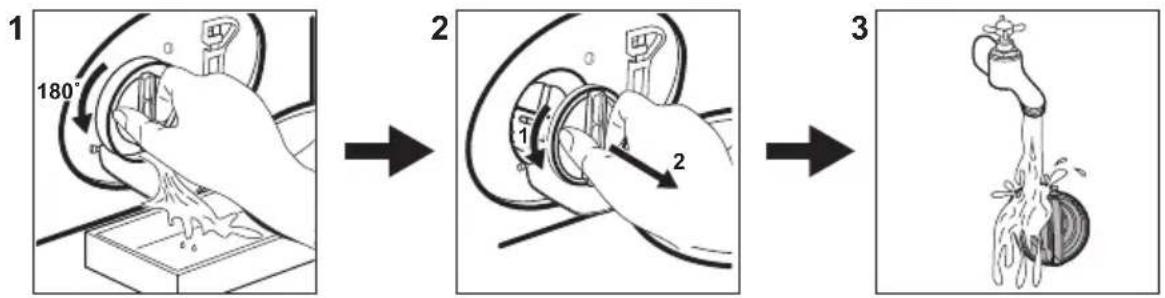

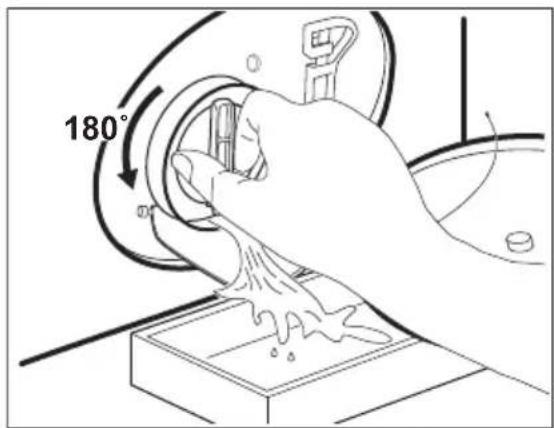

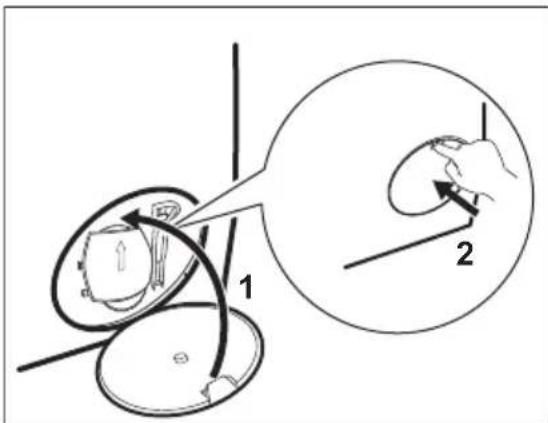

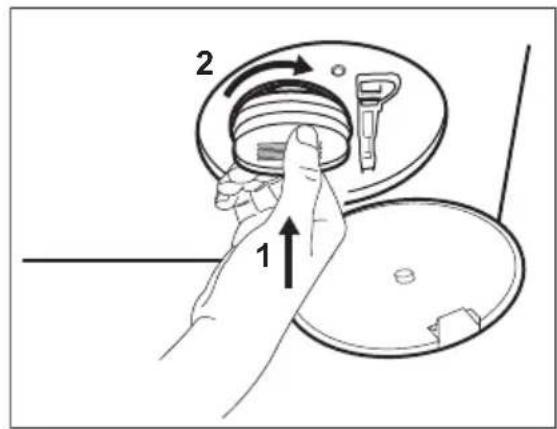

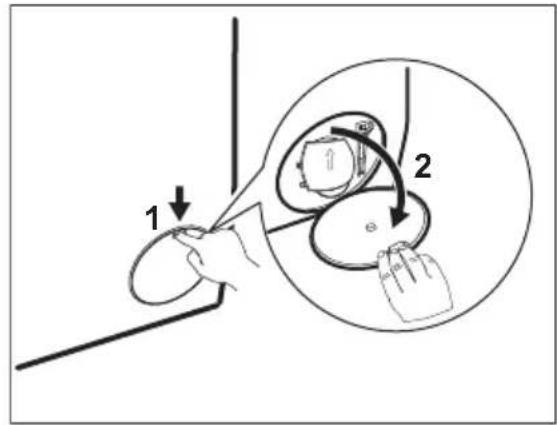

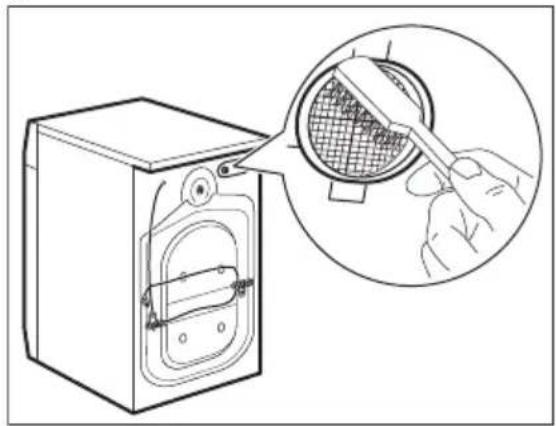

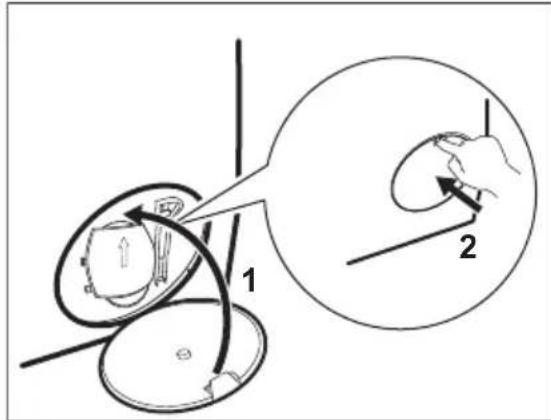

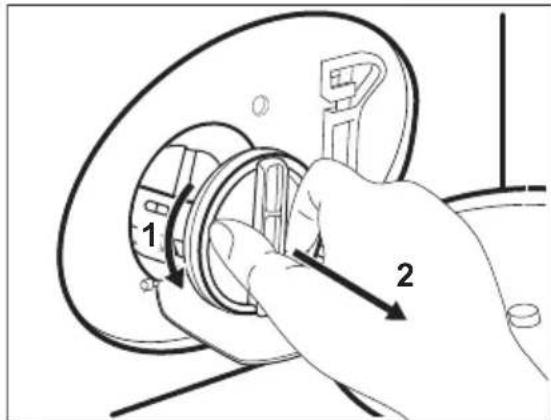

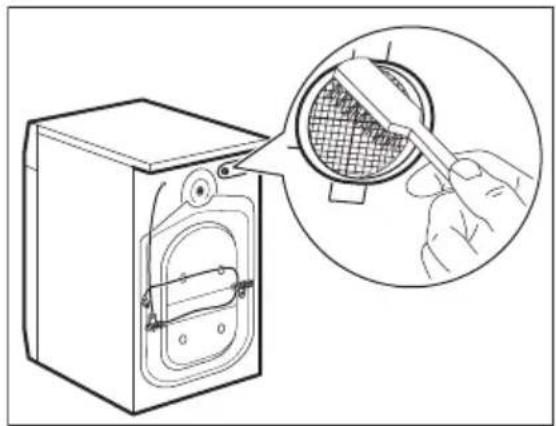

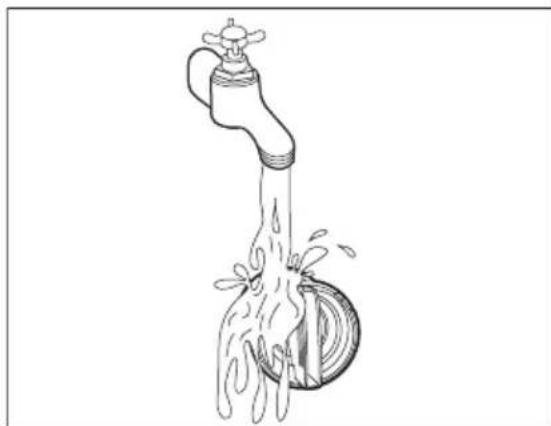

Proceed as following diagrams to clean the pump filter:

1 2

1.

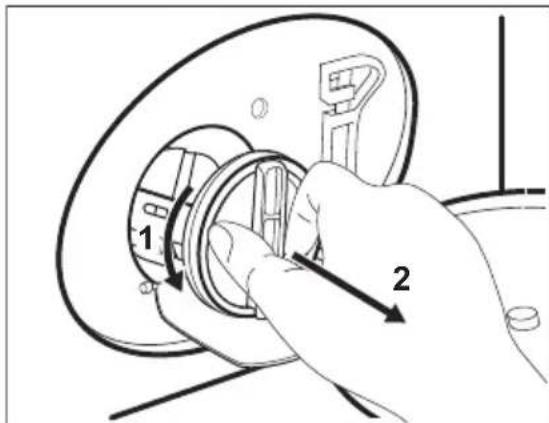

Diagram showing a hand operating a mechanical component with a circular inset view of the internal components (no text or symbols present)

2.

180°

3.

4.

1 2

Illustration of a medical procedure with surgical tools and a circular diagram showing tool positioning (no text or symbols)

5.

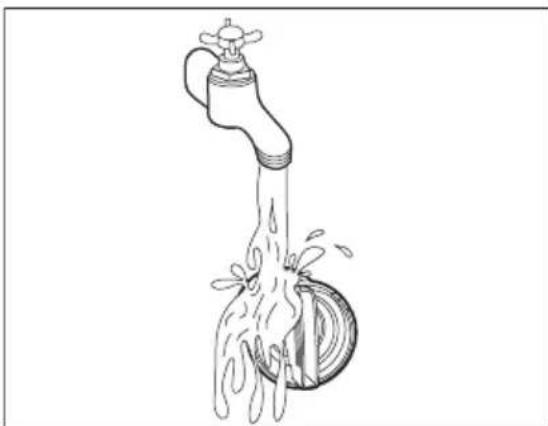

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

6.

1 2

7.

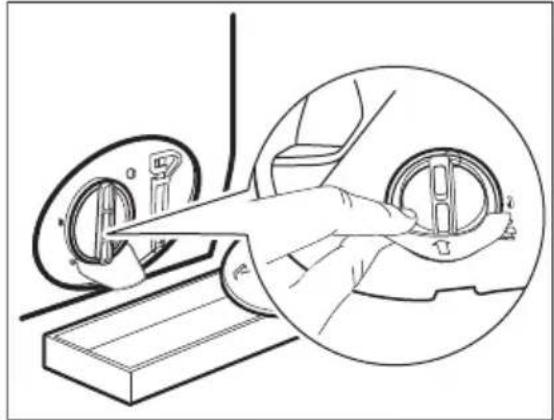

Diagram illustrating a hand operating a device with labeled parts and directional arrows, including parts numbered 1 and 2.

8.

WARNING!

Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.

11.10 Cleaning the inlet hose and the valve filter

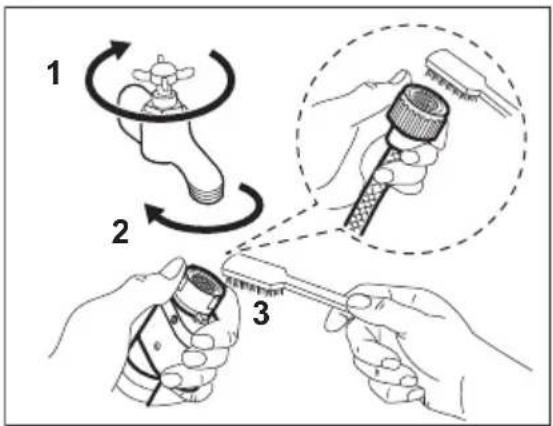

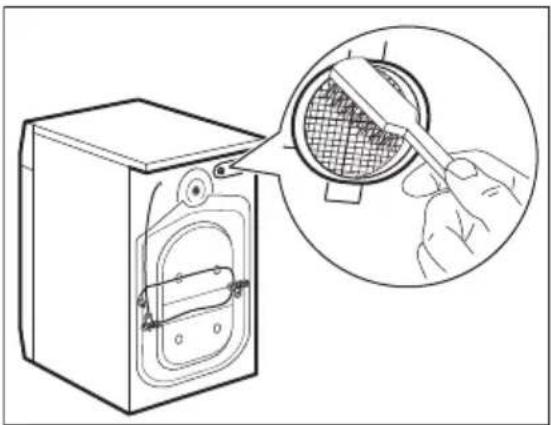

It is recommended to clean both filters of the inlet hose and valve twice a year to remove any deposit, collected over the time. Proceed following diagrams to clean filters:

1.

Diagram illustrating three-step tool application steps for a mechanical device, showing hand positioning and tool path.

1.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

4.

20° 45°

11.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in "Cleaning the drain pump" paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.

11.12 Frost precautions

If the appliance is installed in an area where the temperature can reach values around 0^ C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.
4. Empty the drain pump. Refer to the emergency drain procedure.
5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

12. CONSUMPTION VALUES

12.1 Comment

i

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

According to Commission Regulation Eu 2019/2023

Eco 40-60 pro-gramme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Full load 9 0.760 64 3:40 53.00 33 1351
Half load 4,5 0.440 47 2:45 53.00 27 1351
Quarter load 2,5 0.300 39 2:35 54.00 26 1351

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Maximum spin speed.

Common programmes

i

These values are indicative only.

Programme	kg kWh Litres hh:mm		%1)	°C	rpm2)
Katoen - Coton3)90°C	9	2.75 85 4:00 52.00 85 1400
Katoen - Coton60°C	9	1.65 80 3:30 52.00 55 1400
Katoen - Coton4)20°C	9	0.35 80 3:00 52.00 20 1400
Synthetica - Synthé-tiques40°C	4	0.85 75 2:30 35.00 40 1200

Programme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Fijne was - Délicats5)30°C	2 0.35 60 1:25 35.00 30 1200
Wol - Laine30°C	1,5 0.30 70 1:05 30.00 30 1200

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

2) Reference indicator of the spin speed.

3) Suitable for washing heavily soiled textiles.

4) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.

5) It also performs as quick washing cycle for lightly soiled laundry.

Power consumption in different modes

Off (W) Stand-by (W) Delay start (W)	Networked standby (W)
0.50 0.50 4.00	2.001)

Time to Off/Standby mode is 15 minutes maximum.
1) The energy consumption of the connected function is approximately 17.5 kWh per year. To disconnect this function, please refer to the chapter 'Wi-fi - Connectivity setup'.

13. QUICK GUIDE

13.1 Daily use

Connect the mains plug to the mains socket.

Open the water tap.

Load the laundry.

When using AutoDose tanks, the detergent and fabric softener are uploaded automatically. Make sure that tanks are not empty.

When using manual compartments, pour the detergent and other treatments in the proper compartment.

i

When using a liquid detergent in manual compartment, insert the container for liquid detergent.

1. Push the Aan/Uit - Marche/Arrêt button to switch the appliance on.

2. Turn the programme dial to set the desired programme.

3. Set the desired options by means of the corresponding touch buttons.

4. To start the programme, touch the Start/Pauze - Départ/Pause button.

5. The appliance starts. At the end of the programme, remove the laundry.

Push the Aan/Uit - Marche/Arrêt button to switch the appliance off.

13.2 Care and cleaning

Periodic cleaning schedule will helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Twice a yearer and AutoDose tanks

Clean the inlet hose and Twice a year the valve filter

Keep clear the plastic parts, especially near the detergent drawer area, remove excess spillage.

The following paragraphs explain how you should clean some part.

Door seal with double lip trap

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a small object against a curved background (no text or symbols)

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

i

Always obey the instructions that you find on the packaging of the product.

Check and remove objects (if there are any) that could be trapped in the fold.

Make sure that no laundry remains between the seal and the door.

Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle.

Removing foreign objects

i

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in

the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre.

Cleaning the drain pump filter

Clean the filter regularly and, especially, if the alarm code appears on the display.

13.3 Programmes

Programme Load Product description
Katoen - Coton	9 kg White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetica - Syn-thétiques	4 kg Synthetic items or mixed fabric items.
Fijne was - Déli-cats	2 kg Delicate fabrics such as acrylics, viscose, polyester items.
Wol - Laine	1,5 kg Machine washable wool, hand washable wool and delicates.
Snel 20 min. - Rapide 20 min.	3 kg Cotton and synthetic items lightly soiled or worn only once.
Spoelen - Rin-çage	9 kg All fabrics, except woollens and very delicate fabrics. Programme for rins-ing and spinning.
Centrifugeren/ Pompen - Essor-age/Vidange	9 kg All fabrics, except woollens and very delicate fabrics. Programme for spin-ning and draining the water.
Jeans	4 kg Denim clothing and jersey items.
Sport	4 kg Sportswear.
Zijde - Soie	0,5 kg Special programme for silk and mixed synthetic items.
Dekbed - Duvet	3 kg Single synthetic blanket, bedspread, duvet.
Outdoor	2,5 kg ^1) 1 kg ^2) Modern outdoor sporting garments.
Hygiene	9 kg White cotton items. This programme removes more than 99,99% of bacte-ria and viruses ^3)

Programme Load Product description

Eco 40-60

9 kg ^4)

White and coloured cottons. Normally soiled garments.

1) Washing programme.
2) Washing programme and waterproofing phase.
3) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).
4) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the appliance to the maximum capacity indicated for each programmes
helps to reduce energy and water consumption.
Suitable detergents for washing programmes

Programme Universal powder 1)		Liquid Univer-sal	Liquid for coloureds	Delicates woolens	Special
Katoen - Coton	▲ ▲ ▲ -- --
Synthetica - Synthé-tiques	▲ ▲ ▲ -- --
Fijne was - Délicats	-- -- -- ▲ ▲
Wol - Laine	-- -- -- ▲ ▲
Snel 20 min. - Rap-ide 20 min.	-- ▲ ▲ -- --
Jeans	-- -- ▲ ▲ ▲
Sport	-- ▲ ▲ -- ▲
Zijde - Soie	-- -- -- ▲ ▲
Dekbed - Duvet	-- -- -- ▲ ▲
Outdoor	-- -- -- ▲ ▲
Hygiene [XT&W]	▲ ▲ -- -- ▲
Eco 40-60 ▲ ▲ ▲ -- --

1) At temperature higher than 60 °C the use of powder detergent is recommended.
-- = Not recommended ▲ = Recommended

13.4 Detergent type and quantity.

- Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:

- powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization,

- liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

- Do not mix different types of detergents.

- Use less detergent if:

- you are washing a small load,

– the laundry is lightly soiled,

– there is large amounts of foam during washing.

- When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow the manufacturer's recommendations.

Insufficient detergent may cause:

• unsatisfactory washing results,
• the wash load to turn grey,
- greasy clothes,
- mould in the appliance.

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.

13.5 Configuring the appliance wireless connection

1. Press the Aan/Uit - Marche/Arrêt ① button for a few seconds to activate the appliance. Wait about 10 seconds before proceeding with wireless configuration.
2. Select a programme by turning the programme dial.
3. Press and hold the and the buttons simultaneously for a few seconds until a 'click' sounds. Release the buttons.

On appears on the display for 5 seconds and the indicator starts blinking.

The wireless module begins starting up.

Make sure that you APP is ready for connection.

1. After about 10 seconds, (Access Point) appears on the display.

The access point will be open for about 5 minutes.

1. Configure the App on your smart device and follow the instructions to connect the appliance to your Wi-Fi network.
2. If the connectivity is configured, when the programme information screen returns, the indicator is on the display.

Every time you switch the appliance on, the appliance takes about 10 seconds to connect to the network automatically. When the indicator stops blinking the connection is ready.

To remove the wireless credentials, press and hold the and the buttons

simultaneously for a few seconds until the second acoustic signal: --- appears on the display.

To switch the wireless connection off after the connectivity is configured, press and

hold the and the buttons simultaneously for a few seconds until the first acoustic signal. Release the buttons.

OFF appears on the display for a few seconds.

If you switch the appliance off and on again, the wireless connection is automatically off.

Wi-Fi - Connectivity setup

Wi-Fi module parameters

Frequency 2.412 - 2.472 GHz for European market

Protocol IEEE 802.11b/g/n

Max Power <20 dBm

Encryption WPA, WPA2, WPA3

14. ALARM CODES AND POSSIBLE FAILURES

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

Problem Possible solution
E10E11The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the filter of the inlet hose and the filter of the valve are not clogged.
E20E21The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase. If the drain programme is not available in the programme dial, it can be set via App.Set the drain programme if you set an option which ends with water in the tub.
E40E41The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.
EHOThe mains supply is unstable.	Wait until mains supply is stable.
EH1: Frequency of power supply is out of range.EH2: Supply voltage is too high.EH3: Supply voltage is too low.
EF0EF3The anti-flood device is on.	Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.
If the problem persists, contact the Authorised Service Centre. The necessary data for the service centre are on the rating plate
*Some alarm codes may not occur. Subject to change without notice.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📀 with the household waste. Return the product to your local recycling facility or contact your municipal office.

Diagram of a washing machine with numbered parts and labeled parts for assembly or maintenance reference.

Diagram illustrating a washing machine operation with labeled parts and instructions for cleaning or recycling.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

AVERTISSEMENT!

Diagram showing a washing machine with two close-up insets illustrating the mechanism of fastening or locking.

Diagram illustrating washing machine operation with three circular insets showing tool positioning and cleaning steps

3/4" 3/4" A i A ✓ A ✓ ↓

⚠ AVERTISSEMENT!

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

1 7 9 D11

Line drawing of a refrigerator internal compartments (no text or symbols)

AutoDose SET

Line drawing of a hand inserting a plastic into a drawer with an arrow indicating the process (no text or symbols present)

Line drawing of a hand inserting a plastic bag into a drawer with internal compartments (no text or symbols)

Line drawing of a hand inserting a plastic bag into a drawer with internal compartments (no text or symbols)

Line drawing of a hand inserting a plastic into a drawer with a handle, showing internal compartments and a spring (no text or symbols)

AutoDose ✓ | ✓

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

40° APP 1200

Medical warning diagram showing a catheter connected to an embryo with a warning symbol and cross mark

ATTENTION!

Line drawing of a hand holding a car seatbelt, no text or symbols present

Illustration of hands assembling a mechanical device into a drawer (no text or symbols present)

Line drawing of a refrigerator interior with a bucket and lid (no text or symbols)

Technical line drawing of a car interior drawer with an inset showing a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols present)

Diagram of a small building interior with roof, windows, and central structure (no text or symbols)

Line drawing of a washing machine handle with faucet, showing internal compartments and water flow (no text or symbols)

ATTENTION!

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

ATTENTION!

Line drawing of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

AVERTISSEMENT!

Technical line drawing of a mechanical device with internal compartments and a magnified inset showing internal structure (no text or symbols)

AVERTISSEMENT!

Line drawing of a hand inserting a plastic tray into an open device (no text or symbols)

Line drawing of a hand using a tool to insert or install a rectangular object, with no visible text or symbols.

Illustration of a hand inserting a component into a circular housing (no text or symbols)

2.

3.

180°

4.

1 2

5.

Illustration of a medical procedure involving a tool, tubing, and tools around a circular device (no text or symbols present)

6.

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

2 1

7.

Diagram illustrating a mechanical or electrical device with labeled parts and directional arrows, including parts numbered 1 and 2.

8.

AVERTISSEMENT!

Illustration showing three-step instructions for using a tool to adjust the valve, with numbered steps and magnified views.

1.

Illustration of a hand using a tool to adjust a pipe fitting, showing rotational arrows (no text or symbols)

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

1.

20° 45°

11.11 Vidange d'urgence

Line drawing of a hand holding a small object against a curved background (no text or symbols)

13.3 Programmes

-- = non recommandé ▲ = recommandé

Diagram of a washing machine with numbered parts and labeled parts for assembly or maintenance reference.

Diagram illustrating a washing machine operation with labeled components and process steps including recycling, cleaning, and waste disposal.

i

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

WARNUNG!

Diagram showing a washing machine with two close-up insets illustrating the internal components of the device.

i

Diagram illustrating a washing machine operation with three circular insets showing hand-cranking and disassembly steps.

3/4" 3/4" A i A ✓ A ✓ ↓

WARNUNG!

Diagram illustrating a kitchen sink with tubing and a shopping cart icon, showing a close-up of the product's handle.

(*)

min.600 mm max.1000 mm

Diagram showing a hose with a connector and a magnified view highlighting the connector's detail.

Simple line drawing of an electrical plug with a socket and power outlet, no text or symbols present

Line drawing of a multi-compartment drawer with compartments and a lid (no text or symbols)

AutoDose SET

Line drawing of a hand inserting a tray into an open drawer with a spring, showing internal compartments and a handle (no text or symbols)

Line drawing of a hand inserting a device into a drawer with a handle (no text or symbols)

Line drawing of a hand inserting a plastic bag into a drawer with internal compartments (no text or symbols)

Diagram showing a hand using a tool to adjust or remove a device into a drawer with labeled components and directional arrow.

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

40° APP 1200

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating an emergency or diagnostic hazard.

VORSICHT!

Illustration of hands assembling a mechanical device with an inset showing hand positioning and assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset showing a component being inserted (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols present)

Diagram of a mechanical device with internal components and mounting holes (no text or symbols)

Line drawing of a washing machine handle with water spilling out (no text or symbols)

VORSICHT!

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

Illustration of hands using a tool to adjust or install a component, with an arrow indicating the process (no text or symbols present)

VORSICHT!

Line drawing of a hand pressing down on a curved mechanical component with arrows indicating motion (no text or symbols)

WARNUNG!

Technical line drawing of a mechanical device with internal compartments and a magnified inset showing a close-up view (no text or symbols)

WARNUNG!

Line drawing of a hand inserting a device into a tray (no text or symbols)

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

Illustration of a hand inserting a component into a circular housing, with no visible text or symbols.

180°

Diagram showing hand operating a switch mechanism with labeled parts 1 and 2

Illustration of a mechanical device with arrows indicating motion, showing components like gears and parts (no text or symbols)

Line drawing of a faucet with water flowing out, creating a circular pipe (no text or symbols)

2 1

Diagram illustrating a hand operating a device with labeled parts and directional arrows, showing two views of the device.

WARNUNG!

Diagram illustrating three-step hairpin tool application: rotation, folding, and cutting steps

1.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1.

Illustration of a washing machine with a magnified inset showing a hand using a tool to filter or clean the mesh (no text or symbols present)

1.

20° 45°

11.11 Notentleerung

Line drawing of a hand holding a tool near a car wheel (no text or symbols)

13.3 Programme

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

The software in this product contains components that are based on free and open source softwares. Electrolux gratefully acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these five and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit http://electrolux.opensoftwarerepository.com (folder/NUS)
