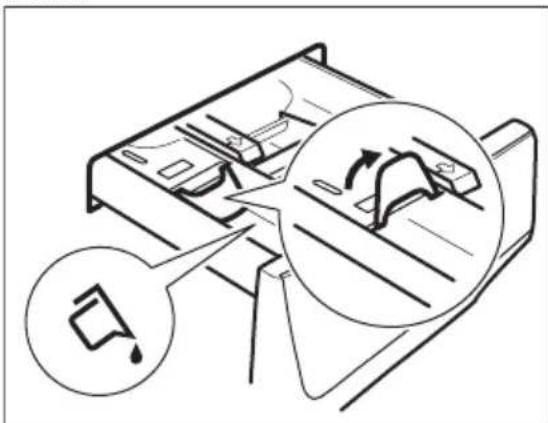

Met de klep in de stand OMLAAG:

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand holding a car seatbelt, no text or symbols present

Diagram showing two hands operating a device with labeled parts, indicating process steps 1 and 2.

Technical line drawing of a device interior showing internal components and a top-mounted device (no text or symbols)

Line drawing of a hand using a tool to insert or install a component, no text or symbols present

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Diagram showing a hand inserting a component into a car wheel, with no visible text or symbols.

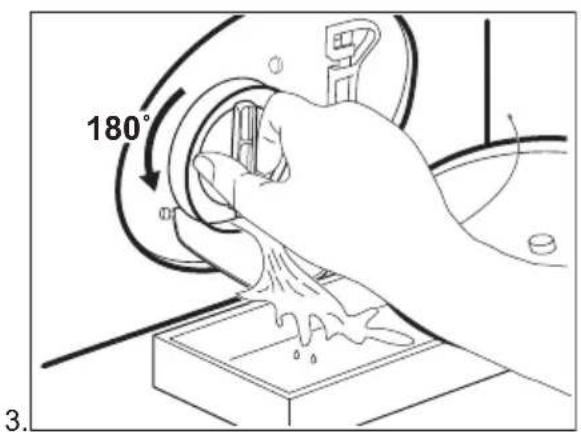

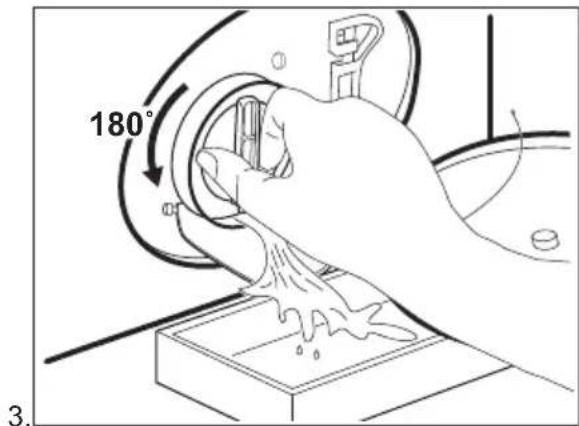

180° 3.

1 2 4.

5.6.

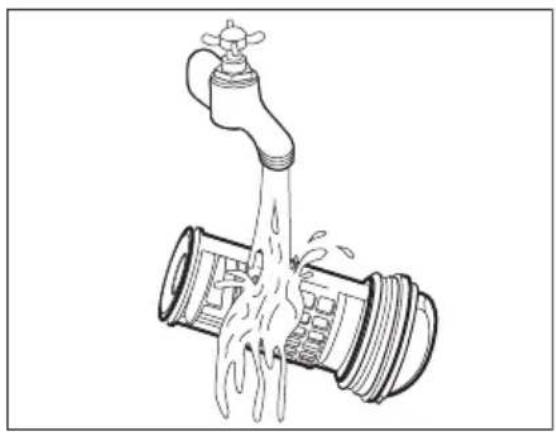

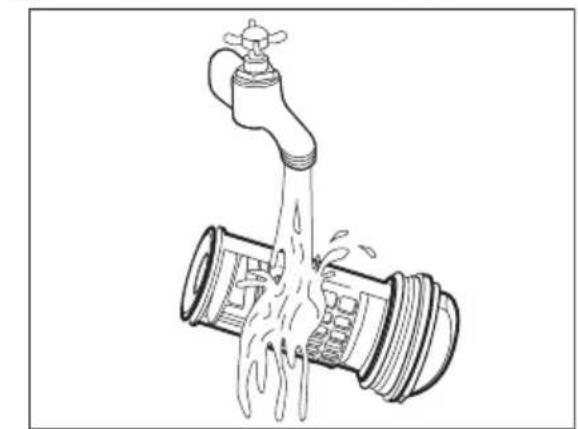

Illustration of a faucet with water flowing from it into a pipe (no text or symbols)

1 2 7.

1 2 8.

WAARSCHUWING!

Diagram illustrating three-step hairpin tool application: rotation, folding, and cutting steps

1.

Illustration of a hand using a tool to adjust a pipe fitting, showing rotational arrows (no text or symbols)

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

1.

20° 45°

11.11 Noodafvoer

Line drawing of a hand holding a small object, partially enclosed by curved lines (no text or symbols)

Welcome to Electrolux! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at electrolux.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at electrolux.com/support

Buy accessories, consumables, and original spare parts for your appliance at electrolux.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION...... 38
2. SAFETY INSTRUCTIONS.... 40
3. PRODUCT DESCRIPTION....42
4. TECHNICAL INFORMATION 43
5. INSTALLATION 43
6. CONTROL PANEL 47
7. DIAL AND BUTTONS 49
8. PROGRAMMES 51
9. SETTINGS 56
10. DAILY USE ....57
11. CARE AND CLEANING 60
12. CONSUMPTION VALUES 65
13. QUICK GUIDE 67
14. DETERGENT TYPE AND QUANTITY. 70
15. ALARM CODES AND POSSIBLE FAILURES.... 71
16. ENVIRONMENTAL CONCERNS....71

1. ⚠ SAFETY INFORMATION

Before beginning the installation and use of this ance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.

• The appliance maximum load is 9 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If a tumble dryer is stacked on the top of the washing machine, make sure to use the correct stacking kit approved by ELECTROLUX (see more details in chapter "Accessories - Stacking kit").

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Follow the installation instructions supplied with the appliance.
- Do not install or use a damaged appliance.
- Do not install or use the appliance where the temperature can be less than 0^ or where it is exposed to the weather.
- The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
- Make sure that there is air circulation between the appliance and the floor.

• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
• Do not install the appliance directly above a floor drain.
• Do not spray water on the appliance and do not expose it to excessive humidity.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
  • Always use a correctly installed shockproof socket.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25^ .
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted

(water meters, etc.), let the water flow until it is clean and clear.

- Ensure that there are no visible water leaks during and after the first use of the appliance.

- Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.

- When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.

- You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.

- Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the washing machine. Prewash such fabrics by hand before loading them into the washing machine.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.

• The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website.
• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand

extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Appliance overview

Diagram of a washing machine with numbered parts for identification and assembly reference.

1 Worktop
2 Detergent dispenser
3 Control panel
4 Door handle
5 Rating plate
6 Drain pump filter
7 Feet for levelling the appliance

8 Drain hose
9 Inlet hose connection
10 Mains cable
11 Transit bolts
12 Hose support

Mod.xxxxxxxx Prod.No. 910000000 00 000V - 00Hz 0000 W 00A Ser.No. 00000000 B C D EA

The rating plate reports:

A. QR code
B. Model name
C. Product number
D. Electrical ratings
E. Serial number

Scan the QR code on the appliance to register your product and get the most out of it.

- Access your appliance details, documentation and articles on how to use the best features (User Manual also available at electrolux.com/manuals)

- - Get usage advice, troubleshooting, service and repair information (also available at electrolux.com/support)

- - Buy accessories, Consumable and Original Spare parts for you appliance (also available at electrolux.com/shop)

4. TECHNICAL INFORMATION

Dimension Width/ Height/ Total depth 59,7 cm /84,7 cm /65,8 cm
Electrical connection Voltage		230 V
	Overall power	2100 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure Minimum		0.5 bar (0.05 MPa)
	Maximum	10 bar (1.0 MPa)
Water supply 1)		Cold water
Maximum Load Cotton 9 kg

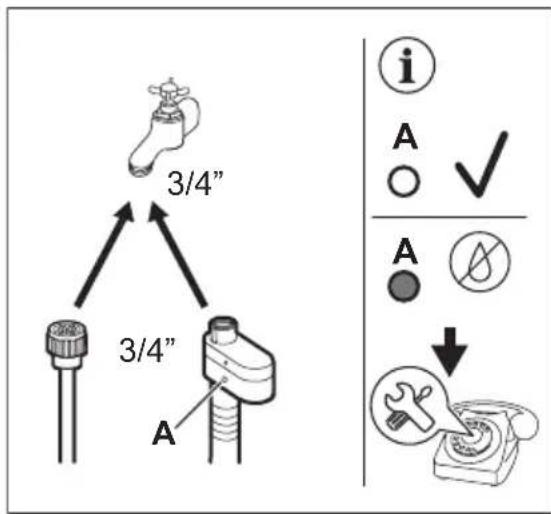

1) Connect the water inlet hose to a water tap with a 3/4" thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

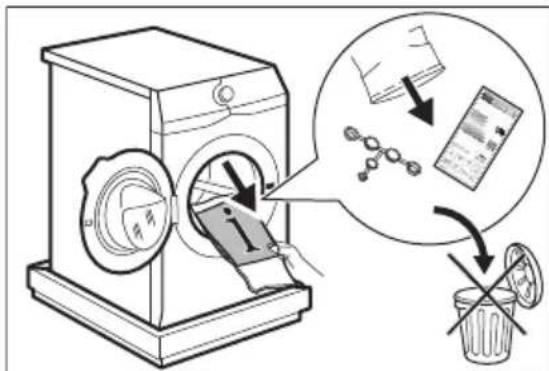

1. Open the door. Remove all the items from the drum.

Diagram illustrating a washing machine operation with labeled components and process steps including recycling, cleaning, and waste disposal.

i

Accessories delivered with the appliance may vary depending on the model.

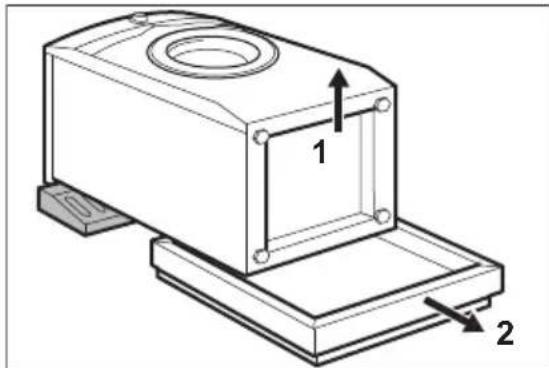

1. Put the packaging element on the floor behind the appliance and carefully put it down onto its rear side. Remove the protection from the bottom.

Technical diagram of a mechanical device with labeled components and directional arrows

!

CAUTION!

Do not lay washing machine on its front.

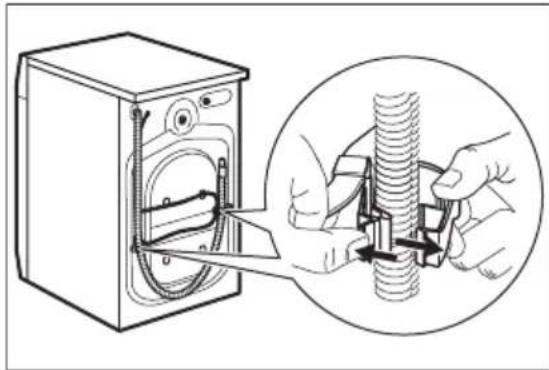

1. Put the appliance back into an upright position. Remove the power supply cable and the drain hose from the hose holders.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

WARNING!

It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

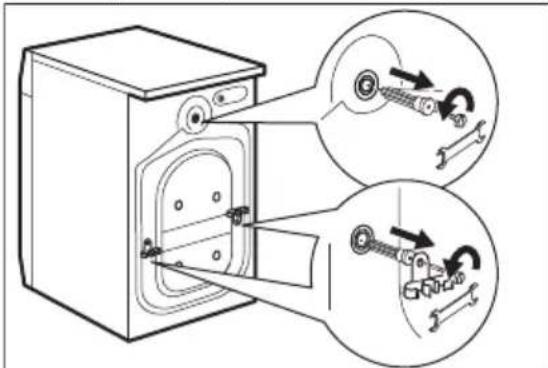

1. Remove the three transit bolts and pull out the plastic spacers.

Diagram showing a washing machine with two close-up insets illustrating the internal components of the device.

i

We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

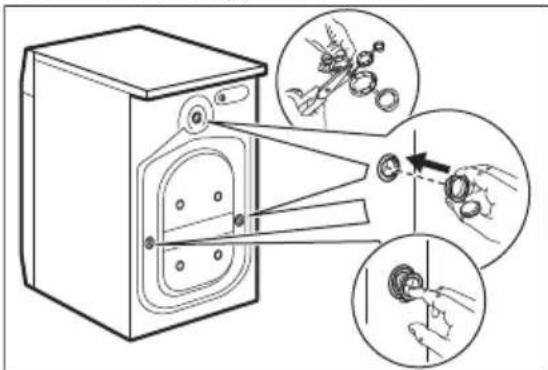

1. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating a washing machine operation with three circular insets showing different steps of cutting or disassembly.

5.2 Information for installation

Positioning and levelling

Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates.

1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance.
2. Loosen or tighten the feet to adjust the level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

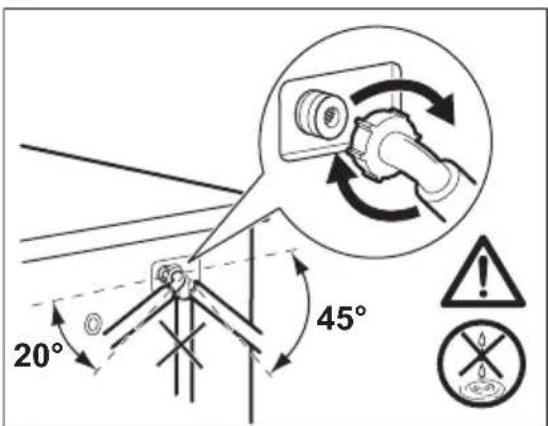

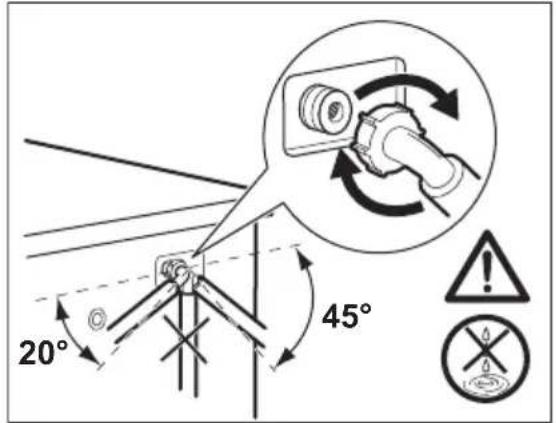

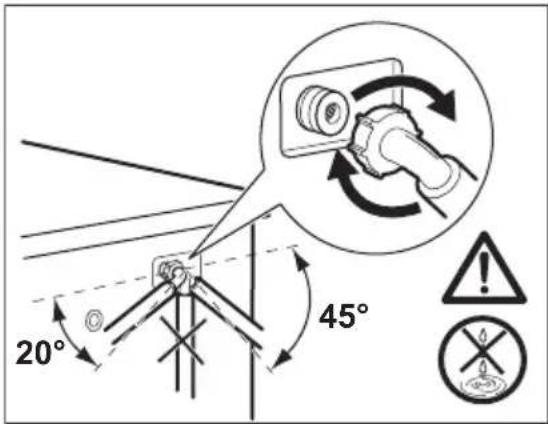

The inlet hose

CAUTION!

Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

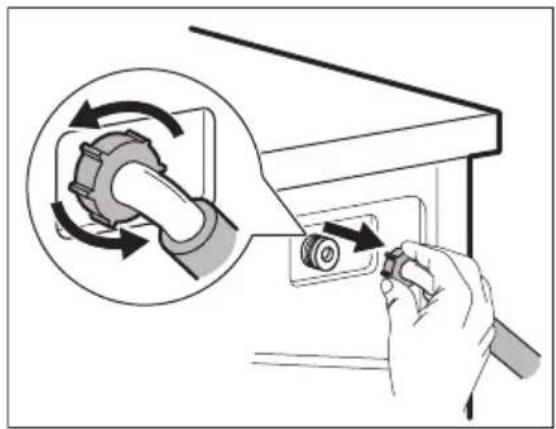

1. Connect the water inlet hose to the back of the appliance if needs. Usually, it is already installed at the factory.

20° 4° 45°

1. Position it toward left or right depending on the position of the water tap. Make sure that the inlet hose is not in vertical position.
2. If necessary, loosen the ring nut to set it in the correct position.
3. Connect the water inlet hose to the cold water tap with 3/4" thread.
4. Some models can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service centre for information to replace the hose.

3/4" 3/4" A i A ✓ A ↕ ↓

WARNING!

The inlet water shall not exceed 25 °C.

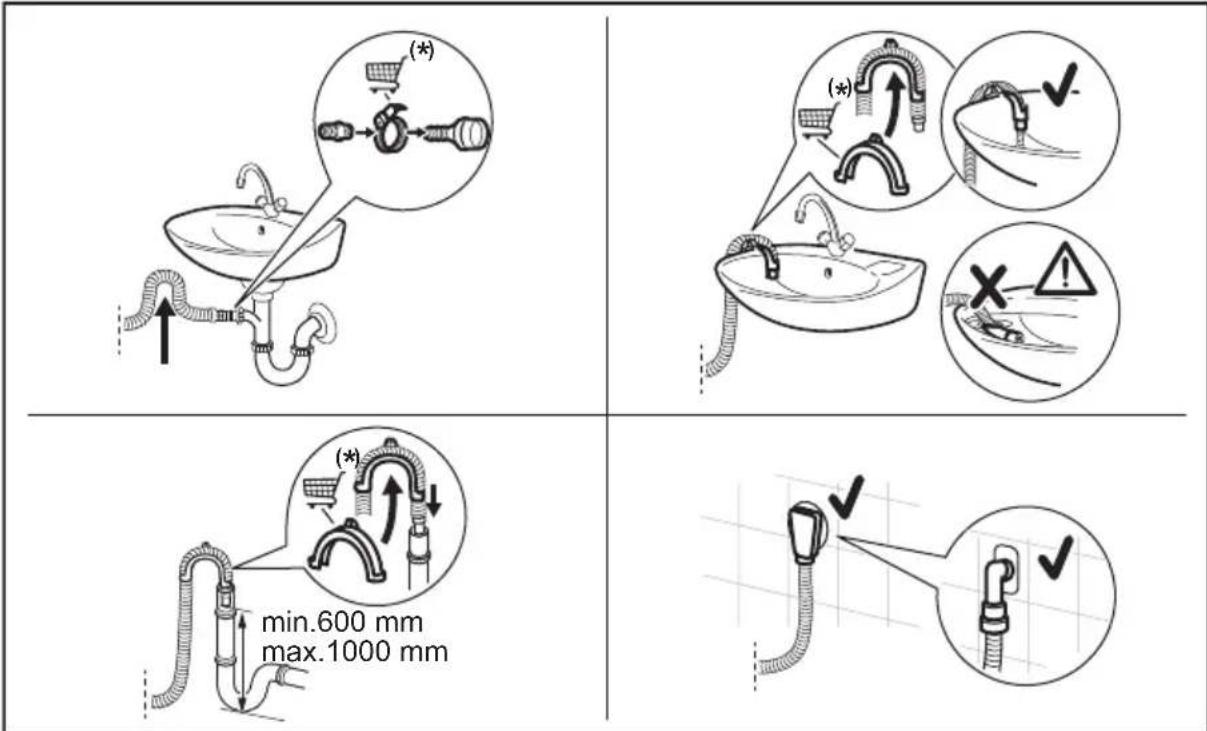

Water drainage

The drain hose should stay at a height of no less than 60 cm and not more than 100 cm.

You can extend the drain hose to maximum 400 cm. Contact the authorised service centre to buy the other drain hose and the extension.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Connect the drain hose to the spigot and tighten it with a clamp. Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

Without the plastic hose guide, to a sink spigot- Put the drain hose in the spigot and tighten it with a clamp.

The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance. Buy accessories from authorised supplier.

To a stand pipe with vent hole - Insert the drain hose directly into a drain pipe or stand pipe

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

It is possible to connect the drain hose in different ways:

(*) (*) (*) ✓ X ! min.600 mm max.1000 mm (*)

(*) Subject to change without notice.

5.3 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate on the inner edge of the appliance door and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances in use.

Connect the appliance to an earthed socket.

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through

failure to comply with the above safety precaution.

6. CONTROL PANEL

6.1 Control panel description

1 2 3 13 12 9 81

1 Programme dial
2 Centrifugeren - Essorage reduction options touch button
3 Temp. touch button
4 Display
5 Startuitstel - Départ Différé touch button
6 Time Manager touch button
7 Pauze - Pause touch button

8 Strijkvrij - Repassage facile touch button
9 Stil - Silence touch button
10 Spoelen + - Rinçage + touch button
11 Vlekken - Taches touch button
12 Voorvas - Prélavage touch button
13 Aan/Uit - Marche/Arrêt push button

6.2 Display

88° 8:88 1888 MAX 88.8 kg

88°---	The Temperature area:Temperature indicatorCold water indicator
	Child safety lock indicator.
	Delay start indicator.
	Door locked indicator.
000	The digital indicator can show:Programme duration (e.g.).240Delay time (e.g.).2hCycle end (000).Warning code (e.g.).E20Indication of total operating hours of the appliance. Refer to the "Operating hours counter" section in the "Settings" paragraph for more details.
----	Time Manager bars level indicator.

88.8	Maximum laundry weight indicator.MAX It flashes when the laundry load exceeds the maximum declared load of the selected programme.
	Add garments indicator. Lights on during the beginning of the Wash phase, while the user can still pause the appliance and add more laundry.
	Drum clean indicator. Refer to the "Cleaning the drum" section in the "Care and cleaning" paragraph for more details.
	Stil - Silence indicator.
	Rinse Hold indicator.
1888---	The spin area:Spin speed indicatorNo Spin indicator. Spin phase is off.

7. DIAL AND BUTTONS

7.1 Introduction

i

The options/functions are not available with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set incompatible options/functions.

Press this button for a few seconds to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance after several minutes to reduce the energy consumption, you may need to activate the appliance again.

For more details, refer to Stand-by paragraph in Daily Use chapter.

7.3 Temp.

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators -, - the appliance does not heat the water.

7.4 Centrifugeren - Essorage

When you set a programme, the appliance automatically sets the default spin speed.

Touch repeatedly this button to:

- Change the spin speed. The display shows only the spin speeds available for the set programme.

- Set No Spin option: Set this option to deactivate all spin phases. The display shows the indicator

- - - . The appliance performs the only draining phase of the selected washing programme. Set this option for very delicate fabrics. The rinses phase uses more water for some washing programmes.

- Activate the Rinse Hold option.

The final spin is not performed. The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum.

The indicator remains on. The door stays locked and the drum turns regularly to reduce creasing. You must drain the water to unlock the door.

If you touch the Pauze - Pause ▷|| button, the appliance performs the spinning phase and drains the water.

i

The appliance empties the water out automatically after 18 hours approximately.

With this option you can add a prewash phase to a washing programme.

The corresponding indicator above the touch button illuminates.

Use this option to add a pre-wash phase at 30 °C before the washing phase.

This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

i

The option can increase the programme duration.

Touch this button to add the stain phase to a programme.

The corresponding indicator above the touch button illuminates.

Use this option for laundry with hard stains to remove.

When you set this option, put the stain remover into compartment ☐

This option increases the programme duration.

This option is not available with a temperature lower than 40 °C .

7.7 Spoelen + - Rinçage +

With this option you can add a few rinses according to the selected washing programme. Use this option for people with sensitive skin.

This option increases the programme duration.

The corresponding indicator above the touch button illuminates.

7.8 Stil - Silence

By touching this button you can activate- deactivate the silent mode.

The intermediate and the final spinning phases are suppressed and the programme ends with water in the drum. This helps to reduce creasing.

The display shows the indicator ↓. The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

If you touch the Pauze - Pause button, the appliance performs the only draining phase.

The appliance empties the water out automatically after 18 hours approximately.

The appliance carefully washes and spins the laundry to prevent the creases.

The appliance decreases the spin speed, uses more water and adapts the programme duration to the type of laundry.

The related indicator comes on.

With this option you can delay the start of a programme to a more convenient time.

Touch the button repeatedly to set the required delay. The time increases in steps of 1 hour up to 20 hours.

The display shows the indicator ⏻ and the selected delay time. After touching the Pauze - Pause button, the appliance begins the countdown and the door is locked.

7.11 Time Manager

With this option you can reduce the programme duration depending on the load size and the degree of soiling.

When you set a washing programme, the display shows the default duration and ---- dashes.

Touch Time Manager button to reduce the programme duration according to your needs. The display shows the new programme duration and a number of dashes will decrease accordingly:

---- suitable for a full load of normally soiled garments.

--- a quick cycle for a full load of lightly soiled garments.

-- very quick cycle for a smaller lightly soiled load (max. half load recommended).

- the shortest cycle to freshen up a small amount of laundry.

The Time Manager is available only with the programmes in the table.

indicator
	Katoen - Coton	Synthetica - Synthétiques
---- 1)	■	■
----	■	■
---	■	■
-- 2)	■	■
- 2)	■	■

1) Default duration for all programmes.
2) This level of Time Manager option is not available in 90°C.

In some appliances the programme duration is reduced without showing any dashes.

7.12 Pauze - Pause ▷||

Touch the Pauze - Pause button to start, pause the appliance or interrupt a running programme.

You can pause the cycle and add or remove garments when the icon 📄 appears on the display. Read the "Opening the door - Adding garments" section for more details.

8. PROGRAMMES

8.1 Programme Chart

Programme Default temperature Temperature range	Reference spin speed Spin speed range (rpm)	Maximum load	Programme description (Type of load and level of soiling)
Katoen - Coton 40 °C90 °C - Cold	1400 rpm (1400 - 400)	9 kg White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetica - Syn-thétiques 30 °C60 °C - Cold	1200 rpm (1200 - 400)	4 kg Synthetic items or mixed fabric items. Normal soil.
Fijne was - Délicats 30 °C40 °C - Cold	800 rpm (1200 - 400)	2 kg Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wol - Laine 40 °C40 °C - Cold	1200 rpm(1200 - 400)	1,5 kg Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol 1).
Snel 20 min. - Rap-ide 20 min.30 °C40 °C - 30 °C	1200 rpm(1400 - 400)	3 kg Cotton and synthetic items lightly soiled or worn only once.
Spoelen - Rinçage 1400 rpm(Pompen - Essor-age/Vidange)	(1400 - 400)	9 kg All fabrics, except woollens and very delicate fabrics. Pro-gramme for rinsing and spinning the laundry. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Extra Rinse option to add rinses. With a low spin speed the ap-pliance performs delicate rinses and a short spin.
Centrifugeren/Pompen - Essor-age/Vidange	1400 rpm(1400 - 400)	9 kg To spin the laundry and to drain the water in the drum. All fab-rics, except woollens and delicate fabrics.
Jeans30 °C40 °C - Cold	800 rpm(1200 - 400)	4 kg Special programme for Denim clothing with delicate washing phase to minimize colour fading and marks. For better care a re-duced load size is recommended.
Sport30 °C40 °C - Cold	1200 rpm(1200 - 400)	4 kg Synthetic sport items. This programme is designed to gently wash modern outdoor sportswear and is also suitable for gym, cycling or jogging clothes or similar.
Zijde - Soie30 °C	800 rpm(800-400)	0,5 kg Machine and hand washable silk and other delicate fabrics.Drum movements are so gentle that is possible to treat even very delicate garments. Run a complete wash and dry cycle to reduce creases.
Dekbed - Duvet30 °C60 °C - Cold	800 rpm(800-400)	3 kg	Special programme for synthetic or feather and down filled blan-ket, duvet, bedspread and so on. Use liquid delicate detergent, like wool detergent.
Programme Default temperature Temperature range	Reference spin speed Spin speed range (rpm)	Maxi-mum load	Programme description (Type of load and level of soiling)
Outdoor^[H50A] 30 °C40 °C - Cold	1200 rpm(1200 - 400)	2,5 kg ^2) 1 kg ^3)	Do not use fabric softener and make sure that there is no softener residue in the detergent dispenser.Outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets with a removable fleece or inner insulation. The recommended laundry load is 2,5 kg. This programme can also be used as water-repellent restoring cycle, specifically tailored for treating clothes with a hydrophobic coating. To perform the water-repellent restoring cycle, proceed as follows:Pour the washing detergent in the compartment.Pour a special water-repellent restorer for fabric in the drawer compartment for fabric softenerReduce the laundry load to 1 kg.To further improve the water repellency restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
Hygiene^ 60 °C	1400 rpm(1400 - 400)	9 kgWhite cotton items. This high-performance wash program combined with steam vapour, removes more than 99,99% of bacteria and viruses ^4) keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This program ensures also a proper reduction of pollens/allergenic items.
Eco 40-6040 °C ^5)	1400 rpm(1400 - 400)	9 kg White cotton and fast-coloured cotton. Normally soiled items.The energy consumption decreases and the time of the washing programme is extended, ensuring good washing results.

1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

2) Washing programme.

3) Washing programme and waterproofing phase.

4) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

5) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Programme options compatibility

Programme	Centrifugeren - Essorage		Voorvas - Prélavage 1)	Vlekken - Taches 2)	Spoelen + - Rinçage +	Stil - Silence	Strijkvrij - Repassage facile	Startuitstel - Départ Différé	Time Manager
Katoen - Co-ton	■	■	■	■	■				■3)
Synthetica - Synthétiques	■	■	■	■	■
Fijne was - Délicats	■	■	■	■
Wol - Laine	■	■		■
Snel 20 min. - Rapide 20 min.	■	■		■
Spoelen - Rin-cage	■	■	■	■
Centrifugeren/ Pompen - Es-sorage/ Vidange	■		■4)		■
Jeans	■	■	■	■	■
Sport	■	■	■	■	■
Zijde - Soie	■	■		■
Dekbed - Du-vet	■	■		■
Outdoor	■	■	■	■
Hygiene	■	■	■	■	■

Programme
Centrifugeren - Essorage

Voorvas - Prélavage 1)
Vlekken - Taches 2)
Spoelen + - Rinçage +
Stil - Silence
Strijkvrij - Repassage facile
Startuitstel - Départ Différé
Time Manager

Eco 40-60 ■ ■ ■

1) Voorvas - Prélavage and Vlekken - Taches cannot be selected together.
2) This option is not available with temperature lower than 40 °C.
3) This level of Time Manager option is not available in 90 °C
4) If you set the No Spin option, the appliance performs draining only.

Suitable detergents for washing programmes

Programme Universal pow-der 1)		Liquid Univer-sal	Liquid for col-oureds	Delicates woolens	Special
Katoen - Coton	▲▲▲-- --
Synthetica - Syn-thétiques	▲▲▲-- --
Fijne was - Déli-cats	-- -- -▲▲
Wol - Laine	-- -- -▲▲
Snel 20 min. - Rapide 20 min.	--▲▲-- --
Jeans	-- --▲▲▲
Sport	--▲▲--▲
Zijde - Soie	-- -- --▲▲
Dekbed - Duvet	-- -- --▲▲
Outdoor	-- -- --▲▲
Hygiene	▲▲-- --▲
Eco 40-60 ▲▲▲-- --

1) At temperature higher than 60 °C the use of powder detergent is recommended.

8.2 Woolmark Premium Wool Care - Blue

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M1512

9. SETTINGS

9.1 Acoustic signals

This appliance has different acoustic signals, that operate when:

• You activate the appliance (special short tune).
• You deactivate the appliance (special short tune).
• You touch the buttons (click sound).
• You make an invalid selection (3 short sounds).
• The programme is completed (sequence of sounds for about 1 minute).
  • The appliance has a malfunction (sequence of short sounds for about 5 minutes).

To deactivate/activate the acoustic signals set a one of the programme, touch the Voorvas - Prélavage and the Vlekken - Taches buttons simultaneously for about 2 seconds. The display shows On/Off

If you deactivate the acoustic signals, they continue to operate when the appliance has a malfunction.

9.2 Child Lock

With this option you can prevent children from playing with the control panel.

To activate/deactivate this option, hold down the Strijkvrij - Repassage facile button until comes on/goes off on the display.

The appliance will default to this option after you switch it off.

The Child Lock function may not be available for a few seconds after switching the appliance on.

9.3 Operating Hours Counter

It is possible to visualise the total operating time of the appliance in hours, starting from the first switching on. This value will count operating time of the cycles (does not include pauses, delayed start time). To visualise this value, proceed as follows:

1. Switch the appliance on by pressing Aan/Uit - Marche/Arrêt button.
2. Turn the programme knob to any programme.
3. Press and hold the Vlekken - Taches and Spoelen + - Rinçage + buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).
4. After 3 seconds the total hours operated by the appliance are shown in the display: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and hundreds) for 2 seconds and 76 (tens and units).

If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

9.4 Factory Reset

This function allows to restore the factory default options. To activate this option follow steps below:

1. Switch the appliance on by pressing Aan/Uit - Marche/Arrêt button.

2. Turn the programme knob to any programme.

3. Press and hold the Stil - Silence and Strijkvrij - Repassage facile buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).

4. The display will show for about 5 seconds.

If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

10. DAILY USE

WARNING!

Refer to Safety chapters.

10.1 Activating the appliance

1. Connect the mains plug to the mains socket.
2. Open the water tap.
3. Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appliance.
   A short tune sounds.

10.2 Loading the laundry

1. Open the appliance door.
2. Empty the pockets and unfold the items before you put them in the appliance.
3. Put the laundry in the drum, one item at a time.
   Do not put too much laundry in the drum.
4. Close the door firmly.

Medical warning diagram showing a catheter and an eye with a warning symbol and cross mark

CAUTION!

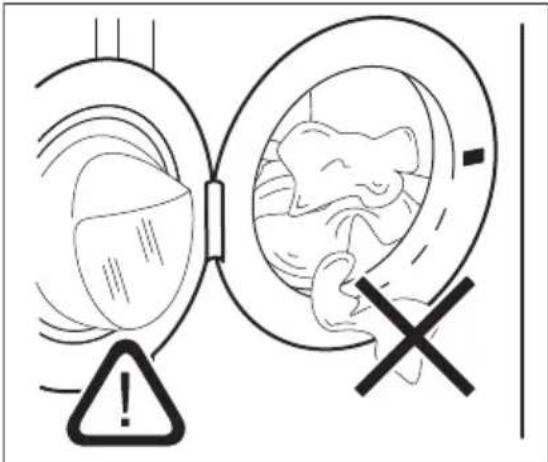

-Make sure that no laundry gets caught between the seal and the door to avoid risk of water leakage and damage to the laundry.

-Washing heavily oiled, greasy stains or using fragrances perfume could cause damage to rubber parts of the washing machine.

10.3 Filling the detergent and additives

Technical diagram of a mechanical device with labeled components and symbols

Compartment for prewash phase, soak programme or stain remover.

Compartment for washing phase.

Compartment for liquid additives (fabric conditioner, starch).

MAX Maximum level for quantity of liquid additives.

Flap for powder or liquid detergent.

1. Measure out specified detergents and the fabric conditioner.
2. Put the detergent and the fabric conditioner into the proper compartments.

i

-Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level MAX This quantity will however guarantee the best washing results.

i

-After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

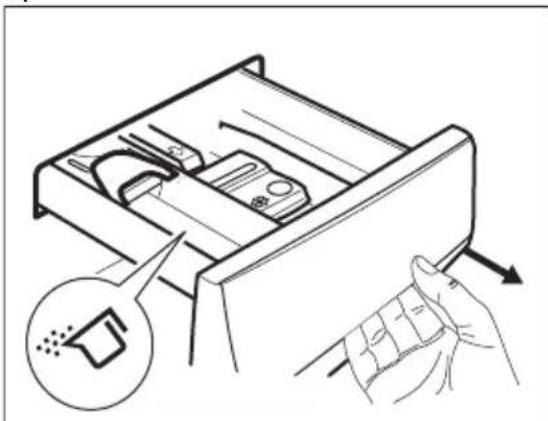

10.4 Check the position of the detergent flap

1. Pull out the detergent dispenser until it stops.
2. Press the lever down to remove the dispenser.

Diagram showing two hands operating a device drawer with labeled parts and directional arrows indicating movement or operation.

1. To use powder detergent, turn the flap up.

Line drawing of a hand inserting a device into a drawer with an inset showing a magnified view of the component (no text or symbols)

1. To use liquid detergent, turn the flap down.

Diagram illustrating a mechanical or electrical component with a magnified inset showing internal structure and a drop symbol.

With the flap in the position DOWN:
- Do not use gelatinous or thick liquid detergents.
- Do not exceed to liquid detergent dose indicated on the flap.
- Do not set the prewash phase.

- Do not set the delay start function.

1. Measure out the detergent and the fabric conditioner.

2. Carefully close the detergent dispenser.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Make sure that the flap does not cause a blockage when you close the drawer.

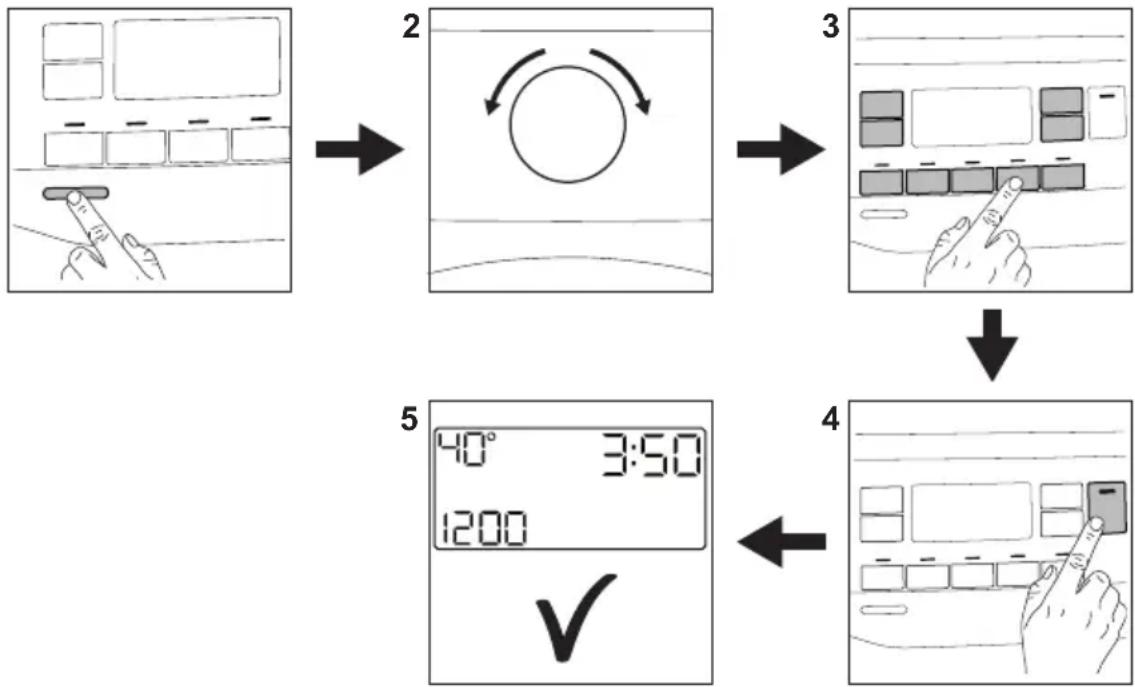

10.5 Setting a programme

1. Turn the programme dial to select the desired washing programme.

The indicator of the Pauze - Pause button flashes.

The display shows an indicative programme duration.

1. To change the temperature and/or the spin speed, touch the related buttons.

2. If desired, set one or more options by touching the related buttons. The related indicators illuminate on the display and the given information changes accordingly.

i

If a selection is not possible an acoustic signal sounds and the display shows

---.

10.6 Additional information about daily use

The SensiCare System load detection

The SensiCare System adjusts automatically the programme duration to the laundry in the drum to achieve perfect washing results in the minimum possible time. The appliance detects the load in the first 30 seconds. In the programmes where Time Manager is available, during this phase the display play a simple animation. The drum rotates shortly. At the end of the load detection, in case of

drum overload, the indicator MAX is flashing in the display. You can pause the appliance and remove the exceeding garments. If not the washing programme starts anyway. About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics. The SensiCare System is not available in programmes with short cycles.

Starting a programme

Touch the Pauze - Pause button to start the programme. The related indicator stops flashing and stays on. The programme starts, the door is locked. The display shows the indicator The programme starts, the door is locked. The display shows the indicator:

Starting a programme with delay start

1. Touch the Startuitstel - Départ Différé button repeatedly until the display shows the desired delay time.

2. Touch the Pauze - Pause button. The appliance door locks and starts the countdown of the delay start. When the countdown is completed, the programme starts automatically.

Interrupting a programme and changing the options.

1. When the programme is running, you can change only some options. Touch the Pauze - Pause button.

2. Change the options. The given information in the display changes accordingly

3. Touch the Pauze - Pause ▷ again. The washing programme continues.

Cancelling a running programme

- Press the button Aan/Uit - Marche/Arrêt button to cancel the programme and to deactivate the appliance. Press again to activate the appliance.

- Rotate the selection knob to the "reset" position activate the appliance .Wait 2 second. Now you can set a new washing programme.

End of the programme

• The appliance stops automatically. In the display comes on. The acoustic signals operate (if they are active).
• The indicator of the Pauze - Pause button goes off. The door locked goes off and the door unlocks.
• Press the Aan/Uit - Marche/Arrêt button for some seconds to deactivate the appliance. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse you must remember to drain the water:

• Touch button Centrifugeren - Essorage to decrease the spin speed proposed by the appliance
• Press the Pauze - Pause ▷∥
• When the programme is completed and the door locked indicator goes off, you can open the door.
• Aan/Uit - Marche/Arrêt to deactivate the appliance.

Stand-by function

The Stand-by function automatically deactivates the appliance to reduce the energy consumption.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispenser Every two months

Clean drain pump filter Twice a year

Clean the inlet hose and twice a yearthe valve filter

The following paragraphs explain how you should clean each part.

11.2 Removing foreign objects

i

Make sure that pockets are empty and all loose elements are tied up before running your cycle. Refer to "The laundry load" in "Hints and tips".

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. If necessary, please contact the Authorised Service Centre.

11.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces. Do not use a scouring pads or any scratching material.

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

11.4 Descaling

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines.

Regularly examine the drum to check for limescale.

Regular detergents already contain water softening agents, but we recommend to run a cycle with an empty drum and a descaling product.

Always follow the instructions that you find on the packaging of the product.

11.5 Maintenance wash

The repeated and prolonged use of low temperature programmes can cause detergent deposits, fluff residues, bacterial growth inside the drum and the tub. This could generate bad odours and mildew. To eliminate these deposits and clean the inner part of the appliance, run a maintenance wash regularly (at least once a month).

Refer to "Cleaning the drum" paragraph.

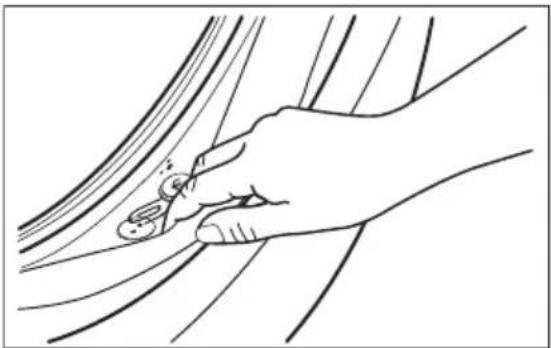

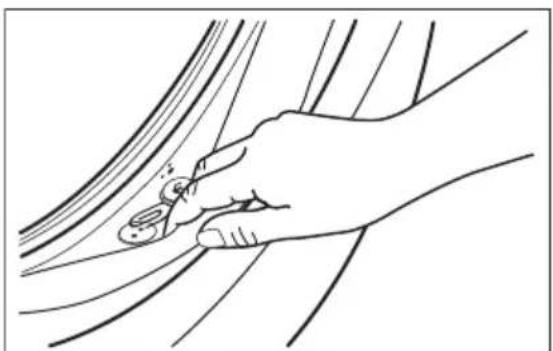

11.6 Door seal with double lip trap

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car seatbelt, no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

Check and remove objects (if there are any) that could be trapped in the fold.

Make sure that no laundry remains between the seal and the door.

Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle.

11.7 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool.

For a thorough clean:

1. Remove all laundry from the drum.
2. Run a Katoen - Coton programme with the highest temperature.
3. Add a small quantity of powder detergent into the empty drum, in order to rinse out any left residues.

Occasionally, at the end of a cycle the display may show the icon: this is a recommendation to perform the "drum cleaning". Once the drum cleaning has been performed, the icon disappears.

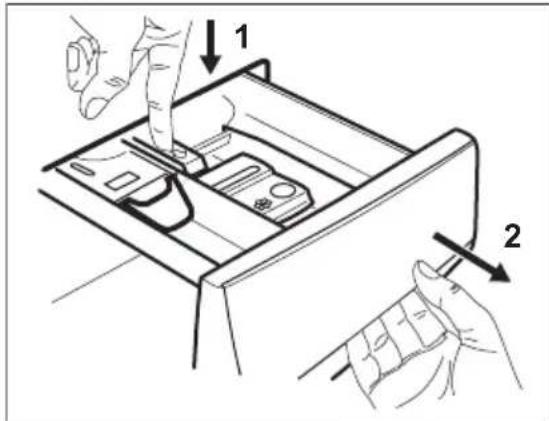

11.8 Cleaning the detergent dispenser

To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, every two months carry out the following cleaning procedure how explained in the following diagrams.

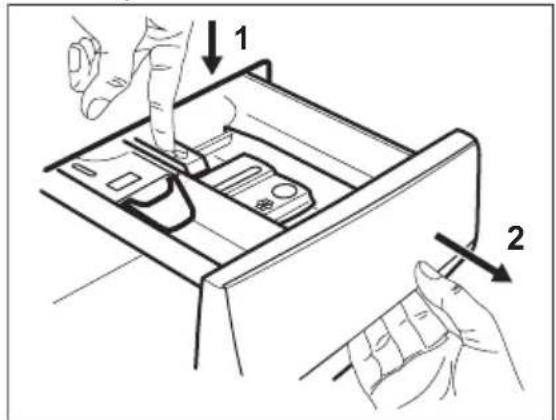

1. Open the drawer. Press the catch downwards as indicated in the picture and pull it out.

Diagram showing two hands operating a device with labeled parts and directional arrows indicating movement or force.

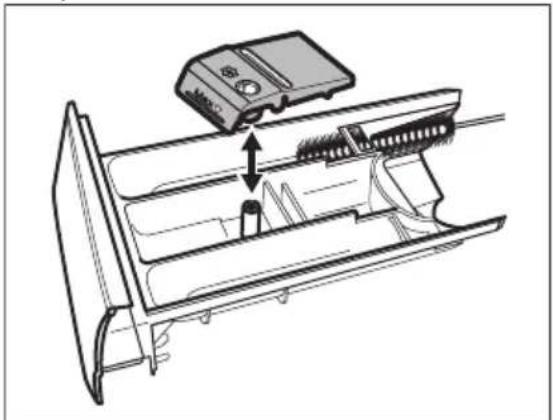

1. Remove the top part of the additive compartment to aid cleaning and flush it out under running warm water, to remove any traces of accumulated detergent. After cleaning, put the top part back into position.

Technical line drawing of a device interior with an open lid and internal components (no text or symbols)

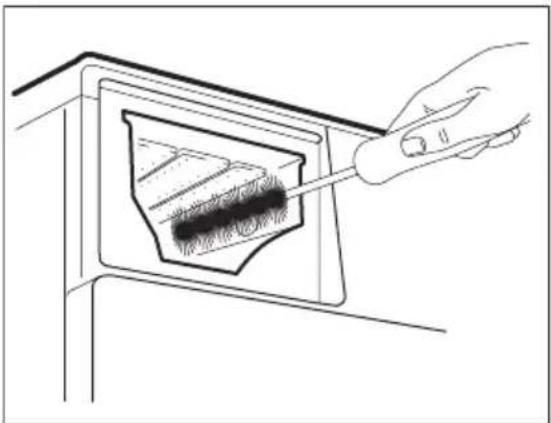

1. Make sure that all detergent residue is removed from the upper and lower part of

the recess. Use a small brush to clean the recess.

Line drawing of a hand using a tool to clean or store items inside a rectangular frame (no text or symbols)

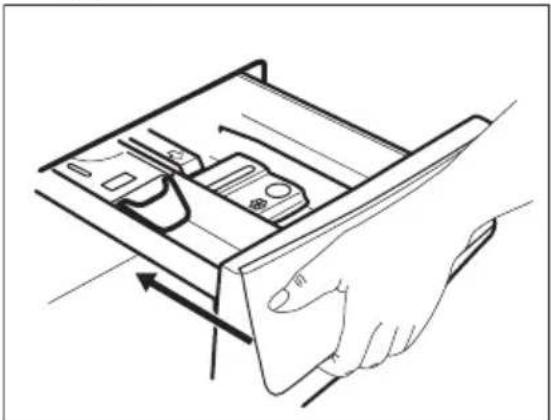

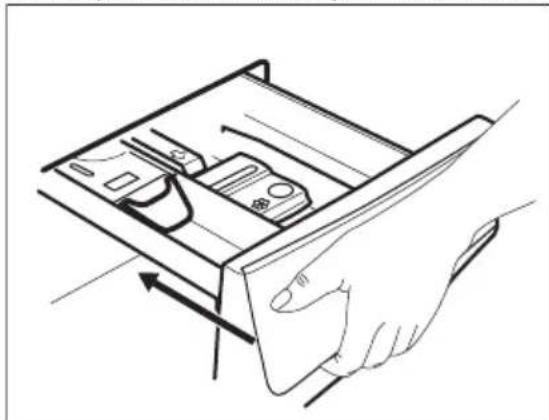

1. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

11.9 Cleaning the drain pump

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump if:

• The appliance does not drain the water.
• The drum does not turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.
• The display shows the alarm code

E20

WARNING!

• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down.
• Repeat Step 3 several times by closing and opening the valve until the water stops flowing out.

Always keep a rag nearby to dry up any water spillages when removing the filter.

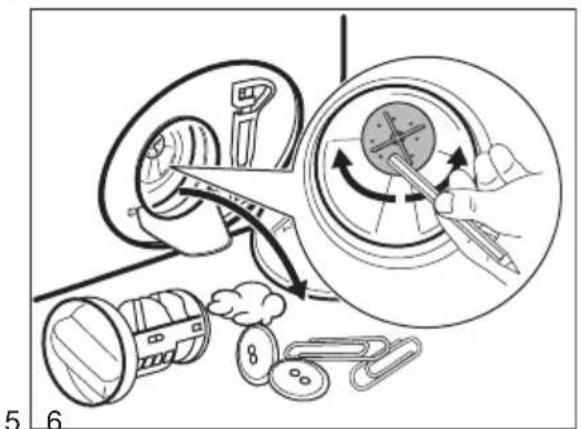

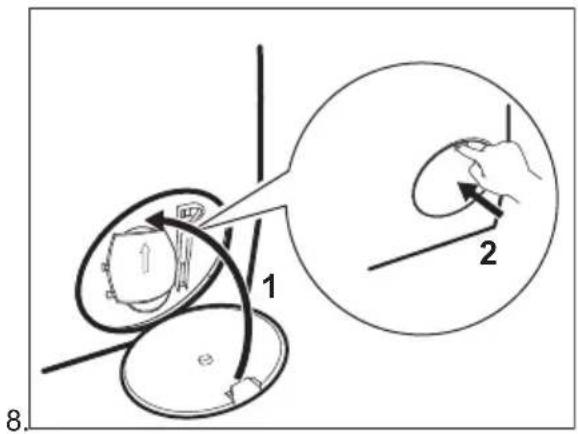

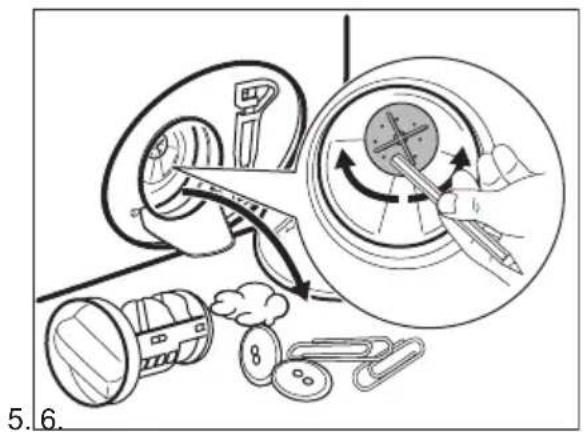

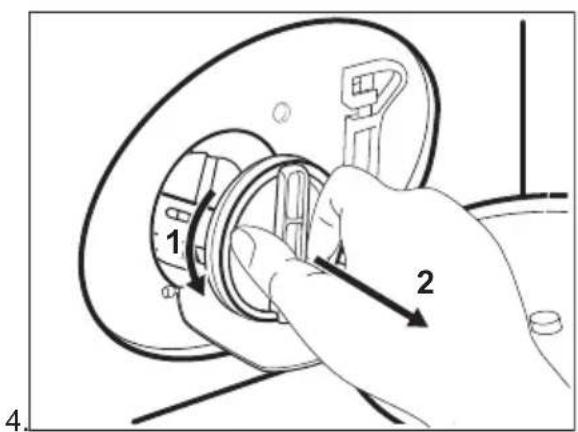

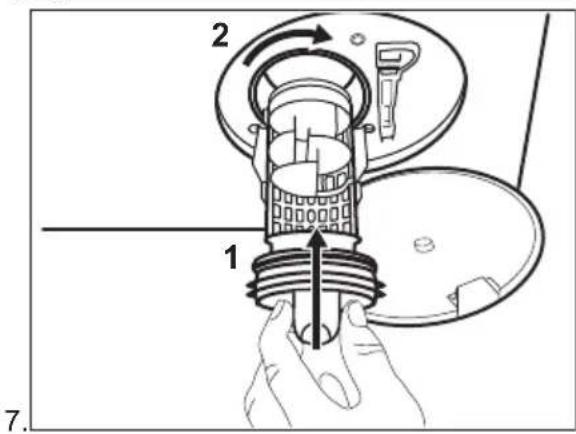

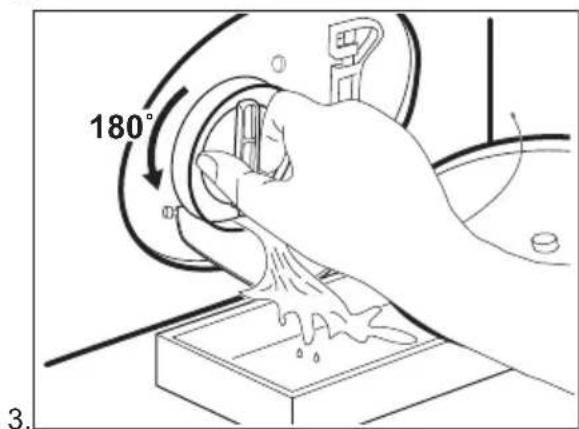

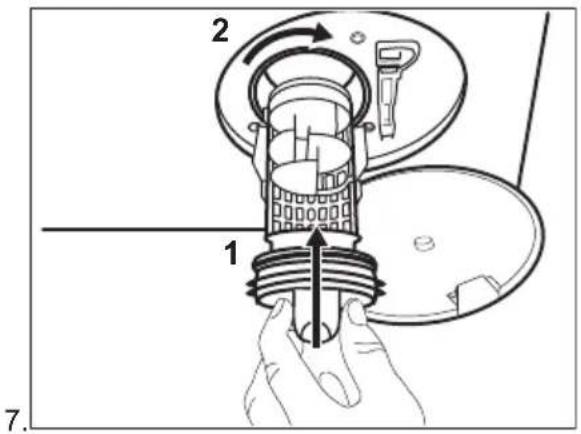

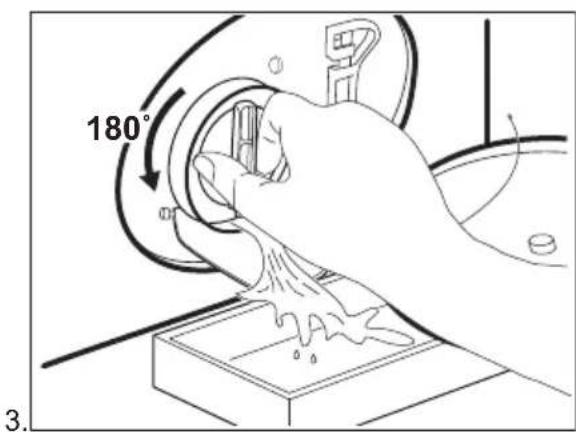

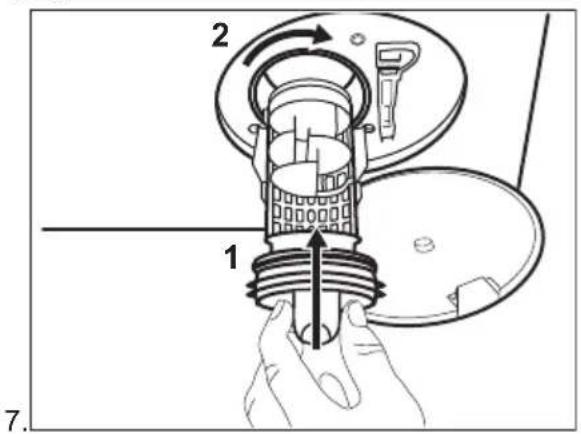

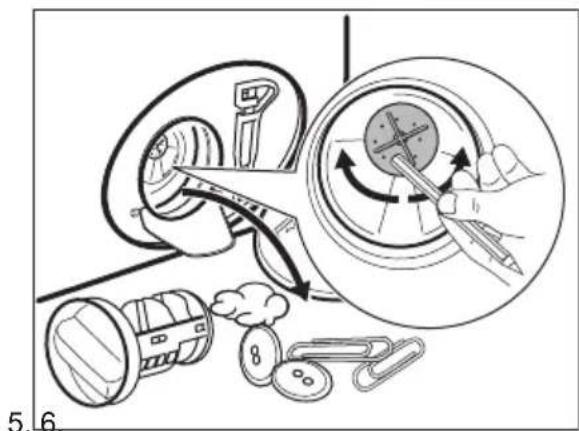

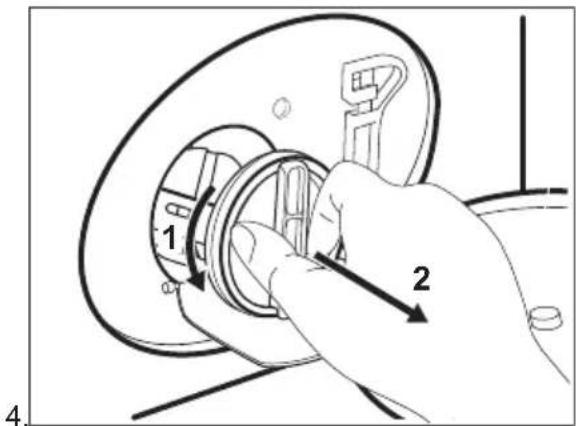

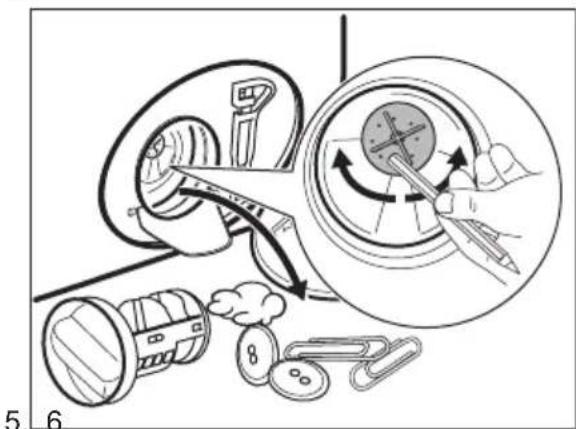

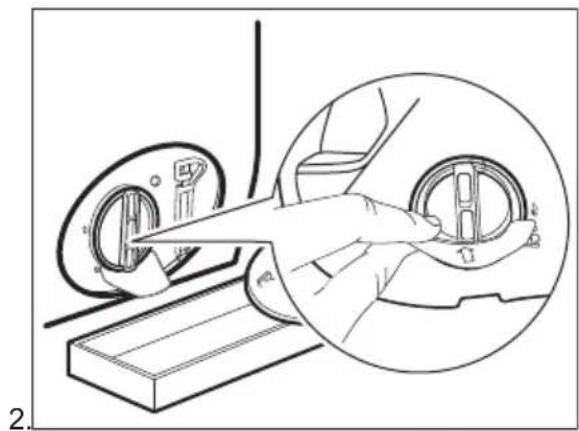

Proceed as follows to clean the pump:

1 2 1.

180° 3.

5.6.

Diagram showing a hand inserting a component into a car's wheel, with no visible text or symbols.

1 2 4.

Illustration of a faucet releasing water into a pipe (no text or symbols)

1 2 7.

1 2 8.

WARNING!

Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.

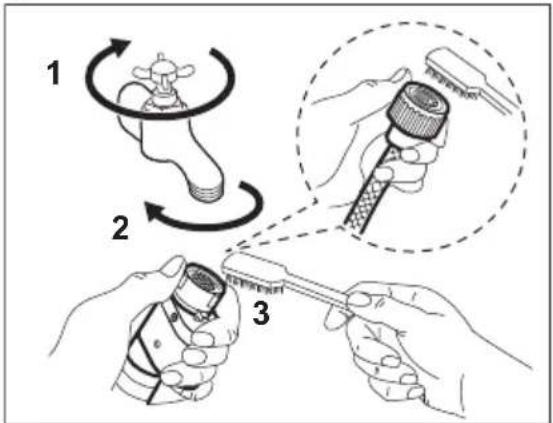

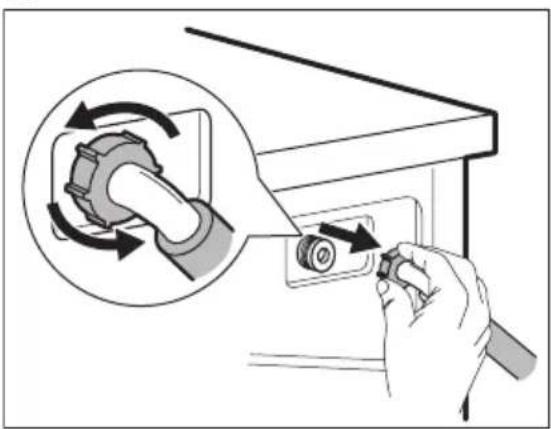

11.10 Cleaning the inlet hose and the valve filter

It is recommended to clean both filters of the inlet hose and valve twice a year to remove any deposit, collected over the time. Proceed following diagrams to clean filters:

1.

Diagram illustrating three-step tool manipulation process: rotary valve rotation, hand positioning, and tool tip application.

1.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

1.

20° 45°

11.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in "Cleaning the drain pump" paragraph. If necessary, clean the pump.

11.12 Frost precautions

If the appliance is installed in an area where the temperature can reach values around 0^

C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.
4. Empty the drain pump. Refer to the emergency drain procedure.
5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

12. CONSUMPTION VALUES

12.1 Comment

i

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

According to Commission Regulation Eu 2019/2023

Eco 40-60 pro-gramme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Full load 9 0.760 64.0 3:40 53.00 33 1351
Half load	4,5 0.440 47.0 2:45 53.00 27 1351

Quarter load 2,5 0.300 39.0 2:35 54.00 26 1351

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.

2) Maximum spin speed.

Common programmes

i

These values are indicative only.

Programme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Katoen - Coton 3)90°C	9 2.75 85.0 4:00 52.00 85 1400
Katoen - Coton60°C	9 1.65 80.0 3:30 52.00 55 1400
Katoen - Coton 4)20°C	9 0.35 80.0 3:00 52.00 20 1400
Synthetica - Synthé-tiques40°C	4 0.85 75.0 2:30 35.00 40 1200
Fijne was - Délicats 5)30°C	2 0.35 60.0 1:25 35.00 30 1200
Wol - Laine30°C	1,5 0.30 70.0 1:05 30.00 30 1200

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Reference indicator of the spin speed.
3) Suitable for washing heavily soiled textiles.
4) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
5) It also performs as quick washing cycle for lightly soiled laundry.

Power consumption in different modes

Time to Off/Standby mode is 15 minutes maximum.

13. QUICK GUIDE

13.1 Daily use

1

• Connect the mains plug to the mains socket.
• Open the water tap.
• Load the laundry.
• Pour the detergent and other treatment in the proper compartment of the detergent dispenser.

- Push the Aan/Uit - Marche/Arrêt button to switch the appliance on. Turn the programme dial to set the desired programme.

- Set the desired options, by means of the corresponding touch buttons. To start the programme, touch the button

Pauze - Pause

– The appliance starts.

• At the end of the programme, remove the laundry to prevent wrinkles.
• Push the Aan/Uit - Marche/Arrêt button to switch the appliance off.

13.2 Care and cleaning

Periodic cleaning schedule will helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Every two months er

Clean drain pump filter Twice a year

Clean the inlet hose and the valve filter

Twice a year

The following paragraphs explain how you should clean each part.

Door seal with double lip trap

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a small object near a curved surface (no text or symbols)

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product. Check and remove objects (if there are any) that could be trapped in the fold. Make sure that no laundry remains between the seal and the door. Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle.

Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle. Refer to "The laundry load" in "Detergent type and quantity".

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. If necessary, please contact the Authorised Service Centre.

Cleaning the drain pump filter

Clean the filter regularly and, especially, if the alarm code appears on the display.

13.3 Programmes

Programme Load Product description
Katoen - Coton	9 kg White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetica - Syn-thétiques	4 kg Synthetic items or mixed fabric items.
Fijne was - Déli-cats	2 kg Delicate fabrics such as acrylics, viscose, polyester items.
Wol - Laine	1,5 kg Machine washable wool, hand washable wool and delicates.
Snel 20 min. - Rapide 20 min.	3 kg Cotton and synthetic items lightly soiled or worn only once.
Spoelen - Rin-çage	9 kg	All fabrics, except woollens and very delicate fabrics. Programme for rins-ing and spinning.
Centrifugeren/ Pompen - Essor-age/Vidange	9 kg	All fabrics, except woollens and very delicate fabrics. Programme for spin-ning and draining the water.
Jeans	4 kg Denim clothing and jersey items.
Sport	4 kg Sportswear.
Zijde - Soie	0,5 kg Special programme for silk and mixed synthetic items.
Dekbed - Duvet	3 kg Single synthetic blanket, bedspread, duvet.
Outdoor	2,5 kg ^1) 1 kg ^2)	Modern outdoor sporting garments.
Hygiene	9 kg	White cotton items. This programme removes more than 99,99% of bacte-ria and viruses ^3)
Eco 40-60	9 kg ^4)	White and coloured cottons. Normally soiled garments.

1) Washing programme.

2) Washing programme and waterproofing phase.

3) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

4) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the appliance to the maximum capacity indicated for each programmes

helps to reduce energy and water consumption.

Suitable detergents for washing programmes

Programme Universal powder 1)		Liquid Univer-sal	Liquid for coloureds	Delicates woolens	Special
Katoen - Coton	▲▲▲-- --
Synthetica - Synthé-tiques	▲▲▲-- --
Fijne was - Délicats	-- -- -- ▲▲
Wol - Laine	-- -- -- ▲▲
Snel 20 min. - Rap-ide 20 min.	-- ▲▲ -- --
Jeans	-- -- ▲▲▲
Sport	-- ▲▲ -- ▲
Zijde - Soie	-- -- -- ▲▲
Dekbed - Duvet	-- -- -- ▲▲
Outdoor	-- -- -- ▲▲
Hygiene	▲▲ -- --▲
Eco 40-60 ▲▲▲ -- --

1) At temperature higher than 60 °C the use of powder detergent is recommended.
-- = Not recommended ▲ = Recommended

14. DETERGENT TYPE AND QUANTITY.

• Use only detergents and other treatments specially made for washing machines.
  First, follow these generic rules:
• powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization,
  – liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

- Do not mix different types of detergents.

• Use less detergent if:
  – you are washing a small load,
  – the laundry is lightly soiled,
  – there is large amounts of foam during washing.
  • unsatisfactory washing results,
  • the wash load to turn grey,
• greasy clothes,
• mould in the appliance.

Insufficient detergent may cause:

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,

- a greater impact for the environment.

15. ALARM CODES AND POSSIBLE FAILURES

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

Problem Possible solution
E10The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the filter of the inlet hose and the filter of the valve are not clogged.
E20The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
E40The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.
EHOThe mains supply is unstable.	Wait until mains supply is stable.
EFOThe anti-flood device is on.	Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.
If the problem persists, contact the Authorised Service Centre. The necessary data for the service centre are on the rating plate
*Some alarm codes may not occur. Subject to change without notice.

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .Put the packaging in relevant containers to recycle it.

Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to

your local recycling facility or contact your municipal office.

Diagram of a washing machine with numbered parts and labeled parts for assembly or maintenance reference.

Diagram illustrating a washing machine operation with labeled components and process steps including document handling and waste disposal.

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

ATTENTION!

Illustration of a washing machine with a magnified inset showing hands adjusting the screw (no text or symbols present)

AVERTISSEMENT!

Diagram showing a washing machine with two close-up insets illustrating the mechanism of fastening or locking.

Diagram illustrating the process of washing machine tooling, showing steps from cutting to cleaning with magnified views.

20° 4°45°

3/4" 3/4" A i A ✓ A ✓

AVERTISSEMENT!

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

Medical warning diagram showing a warning symbol with an exclamation mark and a magnified view of a patient inside the uterus.

ATTENTION!

Technical diagram of a device casing with labeled components and annotations in Chinese

Diagram showing two hands operating a device with labeled parts, indicating mechanical or electrical assembly steps.

Line drawing of a hand inserting a device into a drawer with a magnified inset showing the device's tip (no text or symbols)

Diagram showing a device with a drop and arrow, indicating fluid or flow direction, with an icon of a container and water droplet.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand holding a tool near a car wheel (no text or symbols)

Diagram showing two hands operating a device with labeled parts, including a component being inserted into a tray.

Technical line drawing of a device interior with a mounted device and internal components (no text or symbols)

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

11.9 Nettoyage de la pompe de vidange

Diagram showing a hand operating a car interior with circular components and a base, no text or symbols present.

180° 3.

1 2 4.

5. 6.

Illustration of a faucet releasing water into a pipe (no text or symbols)

1 2 7.

1 2 8

AVERTISSEMENT!

Diagram illustrating three-step tool application for valve turning, showing step 1 with rotating valve and step 2 with base, step 3 with tool tip.

2.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

1.

20° 45°

11.11 Vidange d'urgence

Line drawing of a hand holding a tool near a car window (no text or symbols)

13.3 Programmes

Diagram of a washing machine with numbered parts for identification and assembly reference.

Diagram illustrating a washing machine operation with labeled components and a recycling bin, accompanied by explanatory text.

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

VORSICHT!

Technical illustration of a washing machine with a magnified inset showing hands adjusting the screw (no text or symbols present)

WARNUNG!

Diagram showing a washing machine with mechanical components and directional arrows indicating motion or assembly.

Diagram illustrating a washing machine operation with three circular insets showing different tool positions and a close-up of the mechanism.

20° 4°45°

3/4" 3/4" A i A ✓ A ✓

WARNUNG!

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

88° 8:88 1888 88.8 kg MAX

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

Medical diagram showing a catheter connected to an infant inside a tube, with warning symbols and a cross indicating no need.

VORSICHT!

Technical diagram of a mechanical device with labeled components and symbols

Diagram showing two hands operating a device drawer with labeled parts and directional arrows indicating movement or operation.

Line drawing of a hand inserting a device into a drawer with a magnified inset showing sound waves (no text or symbols)

Diagram illustrating a mechanical or electrical component with a magnified inset showing internal structure and motion indicators.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand holding a tool near a curved surface (no text or symbols)

Diagram showing two hands operating a device with labeled parts, indicating process steps 1 and 2.

Technical line drawing of a device interior with a mounted device and internal components (no text or symbols)

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Diagram showing a hand operating a car interior with a magnified view of the wheel (no text or symbols present)

180° 3.

1 2 4.

5. 6.

Illustration of a faucet with water flowing from it, showing fluid and mechanical components (no text or symbols)

1 2 7.

1 2 8

WARNUNG!

Diagram illustrating three-step hairpin tool application: rotation, folding, and cutting steps

1.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

1.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to filter or clean material inside (no text or symbols)

1.

20° 45°

11.11 Notentleerung

Line drawing of a hand holding a tool near a car wheel (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)
