Welcome to Electrolux! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at electrolux.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at electrolux.com/support

Buy accessories, consumables, and original spare parts for your appliance at electrolux.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......45
2. SAFETY INSTRUCTIONS.... 47
3. PRODUCT DESCRIPTION....49
4. TECHNICAL INFORMATION....51
5. INSTALLATION....51
6. CONTROL PANEL....54
7. DIAL AND BUTTONS....56
8. SETTINGS....59
9. BEFORE FIRST USE....60
10. PROGRAMMES....60
11. DAILY USE....65
12. CARE AND CLEANING....70
13. TROUBLESHOOTING....77
14. CONSUMPTION VALUES....80
15. QUICK GUIDE......82
16. ENVIRONMENTAL CONCERNS....85

1. ⚠SAFETY INFORMATION

Before beginning the installation and use of this chance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.

• The appliance maximum load is 9.0 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Follow the installation instructions supplied with the appliance.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature can be less than 0°C or where it is exposed to the weather.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.
• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
• Do not install the appliance directly above a floor drain.
• Do not spray water on the appliance and do not expose it to excessive humidity.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service

Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
  • Always use a correctly installed shockproof socket.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25 °C.
- Do not cause damage to the water hoses.
- Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
- Ensure that there are no visible water leaks during and after the first use of the appliance.
- Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.
- When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.
• Make sure that there is access to the tap after the installation.
• Close the water tap after each use of the appliance.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.
• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
• Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
• The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed

circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website.

• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not

intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Special features

Your new washing machine meets all modern requirements for an effective treatment of laundry with low water, energy and detergent consumption and proper care of fabric.

• The SteamCare system, thanks to Steam Cashmere and Steam Refresh programmes offers the perfect solution for refreshing even the most delicate garments without washing. Use the delicate fragrance exclusively developed by Electrolux to add a pleasant feeling of "just-washed" garment to the removing odours and wrinkles action.

• The UniversalDose drawer with a compartment dedicated to each type of detergent, including a compartment for Pods®, equipped with a system able to spread and mixing the detergent in an optimal way, and to dissolve the detergent residues after each cycle.

• The steam has a quick and easy way to refresh the clothes. The gentle steam programmes can reduce odours and reduce creases in dry fabrics so they need less ironing.
  The Steam Easy Iron option, finishes every cycle with gentle steam that relaxes the fibres and reduces fabric creasing. Ironing will be easier!

• Thanks to the Soft Plus option, the fabric softener is uniformly spread out in the laundry and deeply penetrates the fabric fibres favouring a perfect softness.
• The SensiCare System detects the laundry load size defining the programme duration in 30 seconds. The washing programme is tailored to the laundry load and the type of fabric without consuming more time, energy and water than necessary.

3.2 Appliance overview

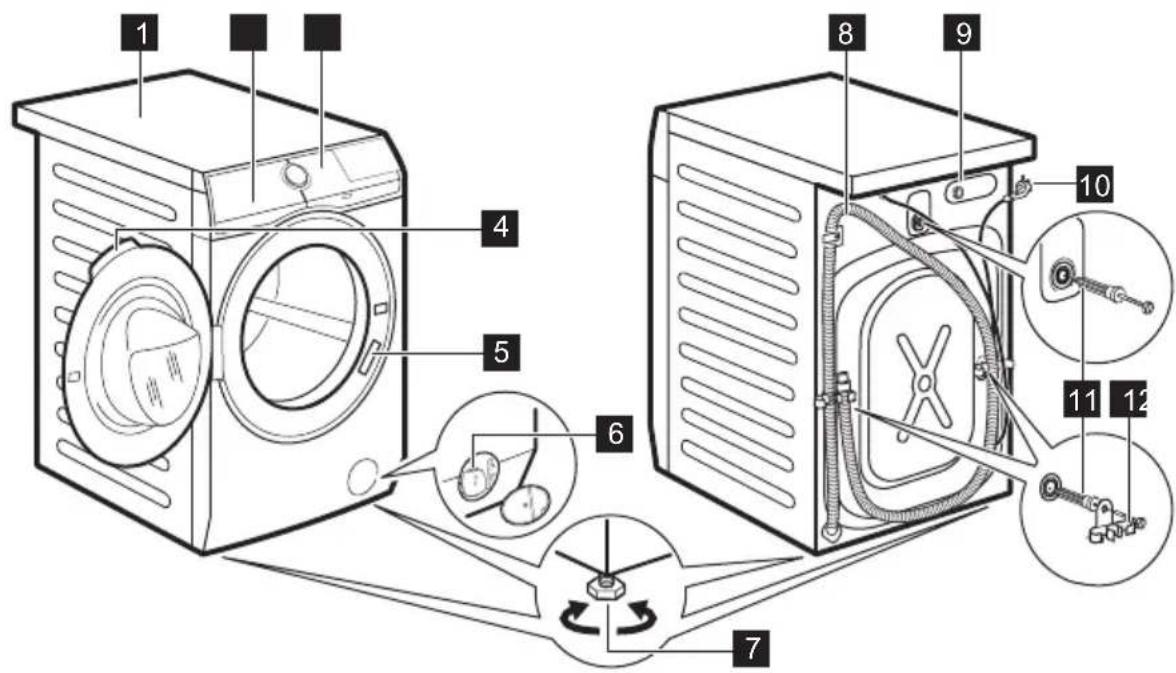

Diagram of a washing machine with numbered parts and labeled components for assembly or maintenance reference.

1 Worktop
2 Detergent dispenser
3 Control panel
4 Door handle
5 Rating plate
6 Drain pump filter
7 Feet for levelling the appliance

8 Drain hose
9 Inlet hose connection
10 Mains cable
11 Transit bolts
12 Hose support

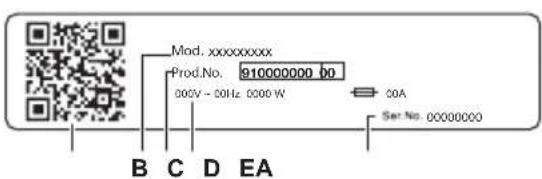

Mod. xxxxxxxxx Prod.No. 910000000 bo 000V - 00Hz 0000 W COA Set No. 00000000 B C D EA

The rating plate reports:

A. QR code
B. Model name
C. Product number
D. Electrical ratings
E. Serial number

Scan the QR code on the appliance to register your product and get the most out of it.

• Access your appliance details, documentation and articles on how to use the best features (User Manual also available at electrolux.com/manuals)
  • Get usage advice, troubleshooting, service and repair information (also available at electrolux.com/support)
• Buy accessories, Consumable and Original Spare parts for your appliance (also available at electrolux.com/shop)

4. TECHNICAL INFORMATION

Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /65.8 cm
Electrical connection Voltage		230 V
	Overall power	2100 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure Minimum		0.5 bar (0.05 MPa)
	Maximum	10 bar (1.0 MPa)
Water supply 1)		Cold water
Maximum Load Cotton 9.0 kg

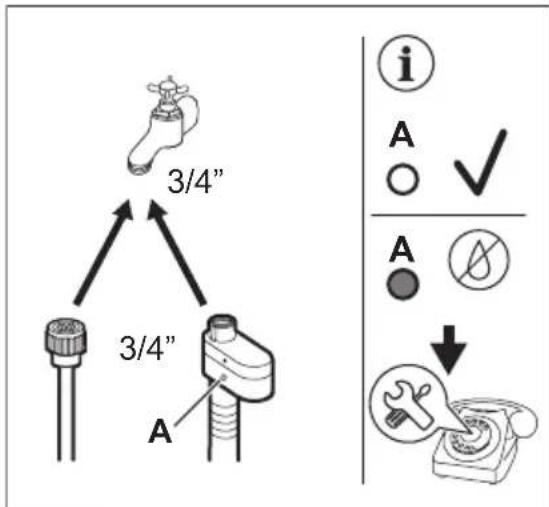

1) Connect the water inlet hose to a water tap with a 3/4" thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

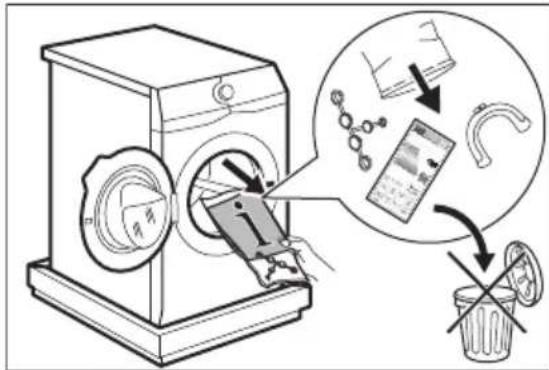

1. Open the door. Remove all the items from the drum.

Diagram illustrating a washing machine operation with labeled components and a recycling bin, accompanied by explanatory text.

Accessories delivered with the appliance may vary depending on the model.

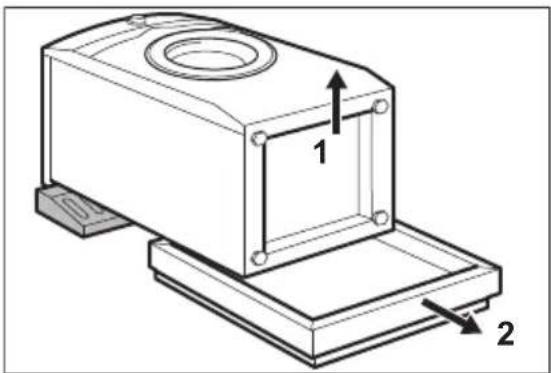

1. Put the packaging element on the floor behind the appliance and carefully put it down onto its rear side. Remove the protection from the bottom.

Technical diagram of a mechanical device with labeled components and directional arrows

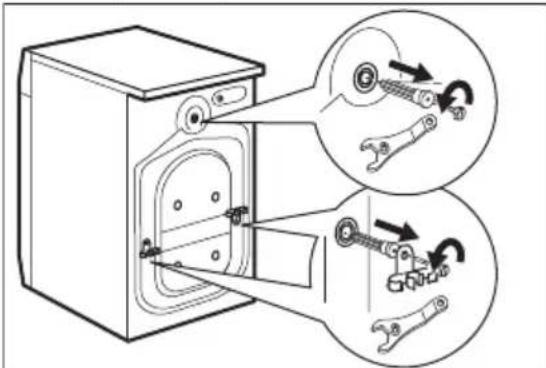

CAUTION!

Do not lay washing machine on its front.

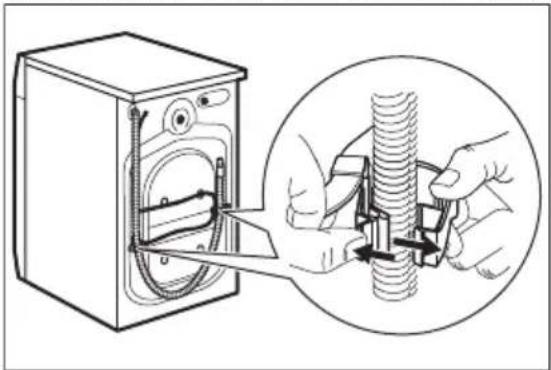

1. Put the appliance back into an upright position. Remove the power supply cable and the drain hose from the hose holders.

Illustration of a washing machine with a magnified inset showing hands adjusting the screw (no text or symbols present)

It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

1. Remove the three transit bolts and pull out the plastic spacers.

Diagram showing a washing machine with mechanical components and close-ups of wrenching tools, illustrating the process.

We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

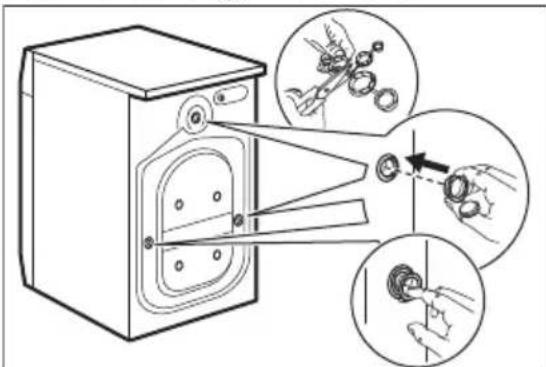

1. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating a washing machine operation with three circular insets showing different hand positions and tool tips.

5.2 Information for installation

Positioning and levelling

Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates.

1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance.
2. Loosen or tighten the feet to adjust the level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

The inlet hose

CAUTION!

Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

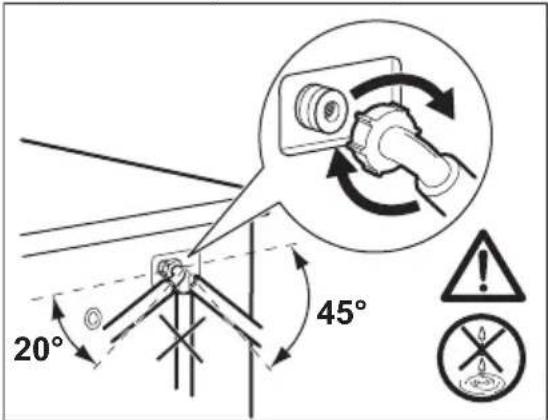

1. Connect the water inlet hose to the back of the appliance if needs. Usually, it is already installed at the factory.

20° 4°45°

1. Position it toward left or right depending on the positon of the water tap. Make sure that the inlet hose is not in vertical position.
2. If necessary, loosen the ring nut to set it in the correct position.
3. Some model can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service center for information to replace the hose.

3/4" 3/4" A i A ✓ A ✓

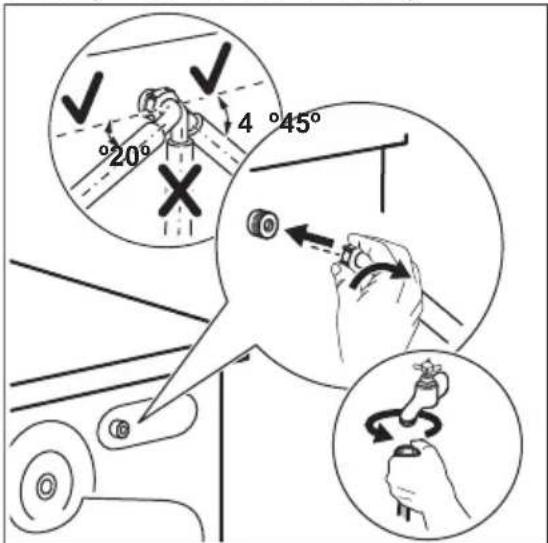

1. Connect the other end of the COLD water inlet hose to the cold water tap with 3/4" thread.

WARNING!

The inlet water shall not exceed 25 °C.

Water drainage

The drain hose should stay at a height of no less than 60 cm and not more than 100 cm.

You can extend the drain hose to maximum 400 cm. Contact the authorised service centre to buy the other drain hose and the extension.

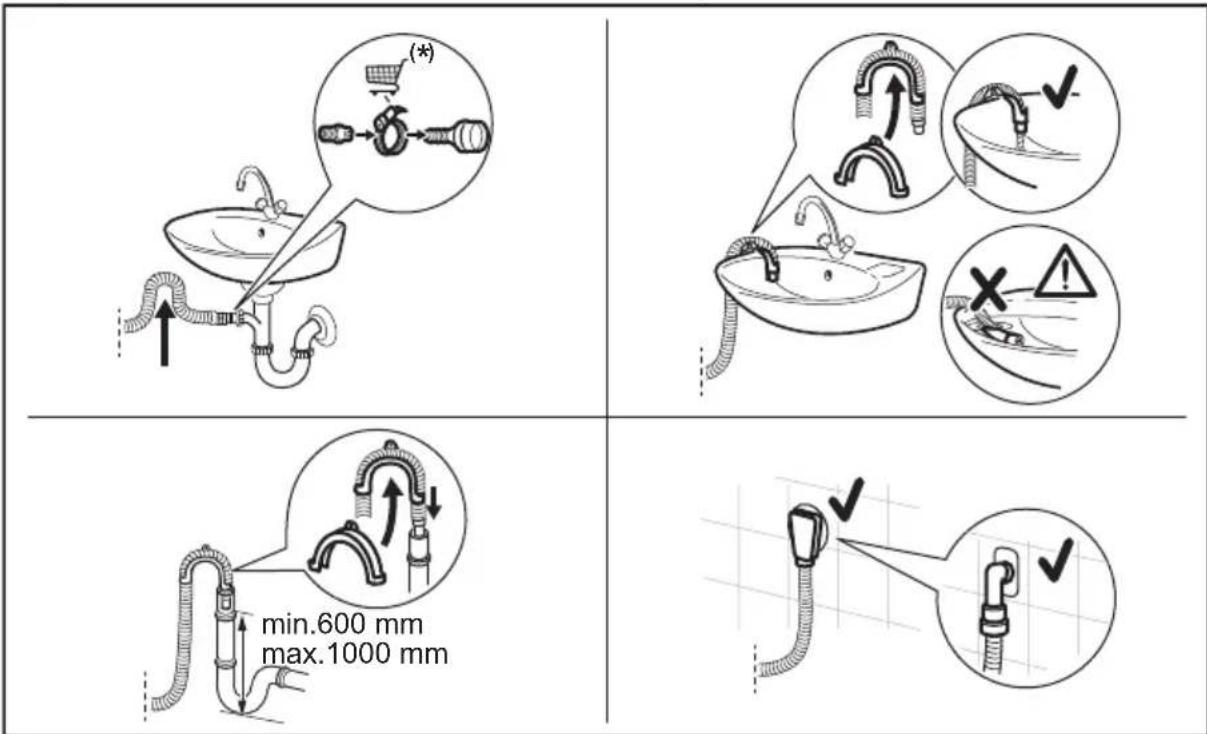

It is possible to connect the drain hose in different ways:

(*) min.600 mm max.1000 mm

* Subject to change spare parts without notice.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Connect the drain hose to the spigot and tighten it with a clamp. Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

Without the plastic hose guide, to a sink spigot- Put the drain hose in the spigot and tighten it with a clamp.

The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance.

To a stand pipe with vent hole - Insert the drain hose directly into a drain pipe or stand pipe

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

5.3 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances may also be in use.

Connect the appliance to an earthed socket.

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.

6. CONTROL PANEL

6.1 Control panel description

1 2 3 13 4 0 9 31 1

i

The options are not selectable with all washing programmes. Check the compatibility between options and washing programmes in the "Options compatibility with programmes" paragraph in the "Programmes" chapter. An option can exclude another one, in this case the appliance doesn't allow you to set the incompatible options together. Make sure the screen and touch buttons are always clean and dry.

1 Programme dial
2 Spin touch button
3 Temperature touch button
4 Display
5 Delay Start
6 Time Manager touch button
7 Start/Pause touch button ▷||
8 Pods® touch button

9 Steam Easy Iron touch button and
permanent Child Lock option
10 Silent touch button
11 Extra Rinse touch button
12 Stains touch button
13 Prewash touch button
14 On/Off push button

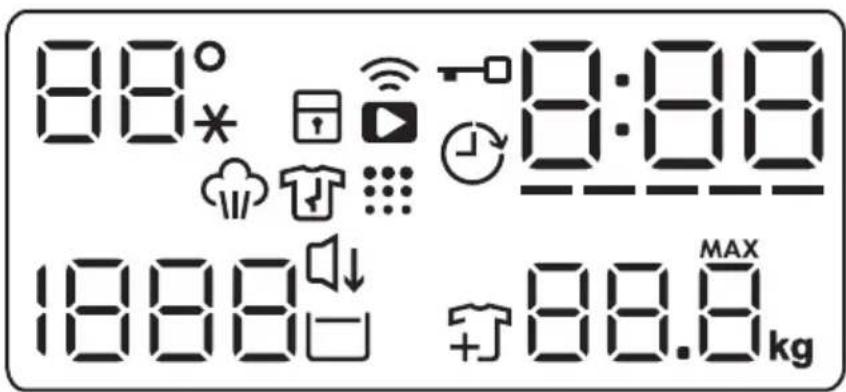

6.2 Display

88° 18:88 8:88 MAX 88.8kg

88°	The Temperature area:88° Temperature indicator .---* Cold water indicator.
	Child safety lock indicator.
	Door locked indicator.
	Delay start indicator.
0:00	The digital indicator can show:Programme duration (e. g.)240Delay time (e. g.)24Cycle end ( ).000Warning code (e.g.)E20Error indicator ( ).-- --Indication of total operating hours of the appliance. Refer to the 'Operating hours counter' section in the 'Settings' paragraph for more details.
----	Time Manager indicator.
	Steam phase indicator.
	Drum clean indicator. This is a recommendation to perform the drum cleaning.
1888	The spin area:Spin speed indicator-- -- - No Spin indicator. Spin phase is off.
	Silent indicator.
	Rinse Hold indicator.
	Add garments indicator. It lights at the beginning of the washing phase, when it is still possible to pause the appliance and add more laundry.
88.8	Maximum load indicator (refer to "The SensiCare System load detection" paragraph).MAXIt flashes when the laundry load exceeds the maximum declared load of the selected programme.

7. DIAL AND BUTTONS

7.1 Introduction

The options/functions are not available with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set incompatible options/functions.

7.2 On/Off

Press this button for a few seconds to activate or deactivate the appliance. Two

different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance after several minutes to reduce the energy consumption, you may need to activate the appliance again.

For more details, refer to Stand-by paragraph in Daily Use chapter.

7.3 Programme dial

By rotating the programme dial it is possible to select the desired programme.

7.4 Temperature

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators _— , the appliance does not heat the water.

7.5 Spin

When you set a programme, the appliance automatically sets the default spin speed.

Touch repeatedly this button to:

• Change the spin speed. The display shows only the spin speeds available for the set programme.
• Set No Spin option.

Set this option to deactivate all spin phases. The display shows the indicator

- - - . The appliance performs the only draining phase of the selected washing programme. Set this option for very delicate fabrics. The rinses phase uses more water for some washing programmes.

- Activate the Rinse Hold option.

The final spin is not performed. The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum.

The indicator remains on. The door stays locked and the drum turns regularly to reduce creasing. You must drain the water to unlock the door.

If you touch the Start/Pause button, the appliance performs the spinning phase and drains the water.

i

The appliance empties the water out automatically after 18 hours approximately.

7.6 Prewash

With this option you can add a prewash phase to a washing programme.

The corresponding indicator above the touch button illuminates.

Use this option to add a pre-wash phase at 30 °C before the washing phase.

This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

i

The option can increase the programme duration.

7.7 Stains

Touch this button to add the stain phase to a programme.

The corresponding indicator above the touch button illuminates.

Use this option for laundry with hard stains to remove.

When you set this option, put the stain remover into compartment

i

This option increases the programme duration.

This option is not available with a temperature lower than 40 °C.

7.8 Permanent Extra Rinse

With this option you can add a few rinses according to the selected washing programme.

Use this option for people with allergies to detergent residues and with sensitive skin. Thanks to additional functionality of this option the fabric softener is uniformly spread out in the laundry and boosting the effects on fabrics. It is suggested when you use the fabric softener.

i

This option increases the programme duration.

The corresponding indicator above the touch button illuminates and also stays permanently on during next cycles until this option is deactivated.

7.9 Steam Easy Iron

This option adds a steam phase followed by a short anti-crease phase at the end of the washing programme.

The steam phase reduces fabric creasing and facilitates the fabric ironing.

The corresponding indicator above the touch button illuminates.

The indicator is steady on during steam phase.

This option can increase the programme duration.

When the programme stops the display shows, the indicator goes off and the indicator and the Start/Pause led are steady on. The drum performs smooth movements for about 30 minutes to keep the steam benefit. By touching any button the anti-crease movements stop and the door unlocks, the appliance proposes again the previous set programme.

To interrupt the anti-crease phase, you can also:

• Press the On/Off button for a few seconds to activate or the deactivate the appliance.
• Turning the programme dial in another position.

A small laundry load helps to reach better results.

7.10 Silent

Touch this button to activate-deactivate the option Silent.

The intermediate and the final spinning phases are suppressed and the programme ends with water in the drum. This helps to reduce creasing.

The display shows the indicator. The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door.

As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

If you touch the Start/Pause button, the appliance performs the only draining phase.

The appliance empties the water out automatically after 18 hours approximately.

7.11 Pods®

Touch this button to activate or deactivate the Pods® option.

When activated the relevant indicator is on.

Follow the Pods manufacturer's dosage and storage recommendations.

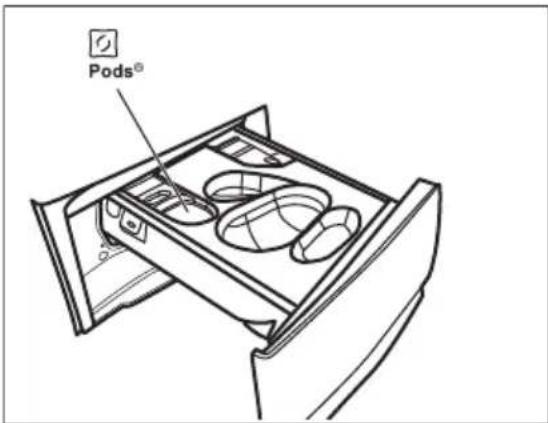

Put maximum two tablets or single-dose detergents in the Pods® compartment in the detergent dispenser drawer.

The option remains active also for next cycles until it is deactivated and if it is selectable with the set programme.

7.12 Delay Start

With this option you can delay the start of a programme to a more convenient time.

Touch the button repeatedly to set the required delay. The time increases in steps of 1 hour up to 20 hours.

The display shows the indicator and the selected delay time. After touching the Start/Pause button, the appliance begins the countdown and the door is locked.

7.13 Time Manager

With this option you can reduce the programme duration depending on the load size and the degree of soiling.

When you set a washing programme, the display shows the default duration and ---- dashes.

Touch Time Manager button to reduce the programme duration according to your needs.

The display shows the new programme duration and a number of dashes will decrease accordingly:

---- suitable for a full load of normally soiled garments.
--- a quick cycle for a full load of lightly soiled garments.
-- very quick cycle for a smaller lightly soiled load (max. half load recommended).
- the shortest cycle to freshen up a small amount of laundry.

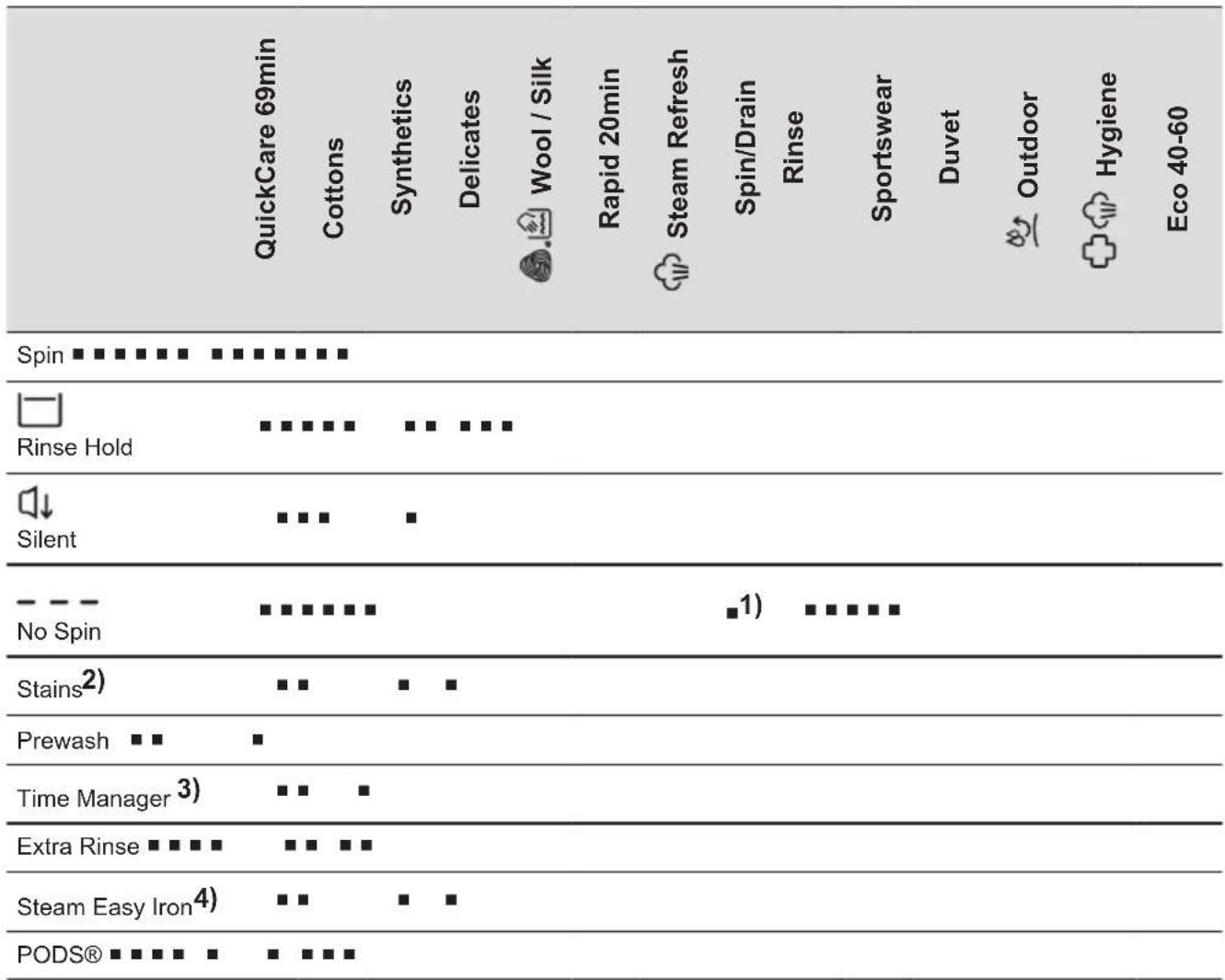

The Time Manager is available only with the programmes in the table.

indicator	Cottons	Synthetics
---- 1)	■	■
----	■	■
----	■	■
-- 2)	■	■
- 2)	■	■

1) Default duration for all programmes.
2) This level of Time Manager option is not available in 90°C.

8. SETTINGS

8.1 Setting

i

When pressing a key combination, do not tilt your fingers downwards. The sensors of the underneath buttons are sensitive and may interfere with your choice.

Time Manager with steam programmes

When setting a steam programme, this button allows to chose three steam levels and the programme duration is reduced accordingly:

In some appliances the programme duration is reduced without showing any dashes.

7.14 Start/Pause ▷∥

Touch the Start/Pause button to start, pause the appliance or interrupt a running programme.

i

The icon means that you can pause the cycle and add or remove garments. Read the 'Opening the door - Adding garments' section for more details.

9. BEFORE FIRST USE

During installation or before first use you may observe some water in the appliance. This is a residual water left in the appliance after a full functional test in the factory to ensure the appliance is delivered to customers in perfect working order and is no cause for concern.

1. Make sure that all transit bolts have been removed from the appliance.

2. Make sure that the electrical power is available and the water tap is open.

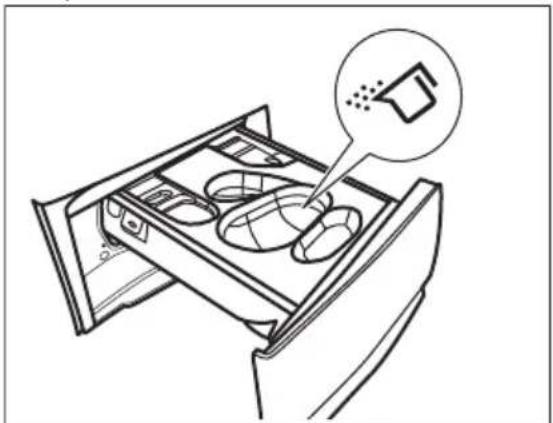

3. Pour 2 litres of water into the detergent compartment marked by 🐎
   This action activates the drain system.

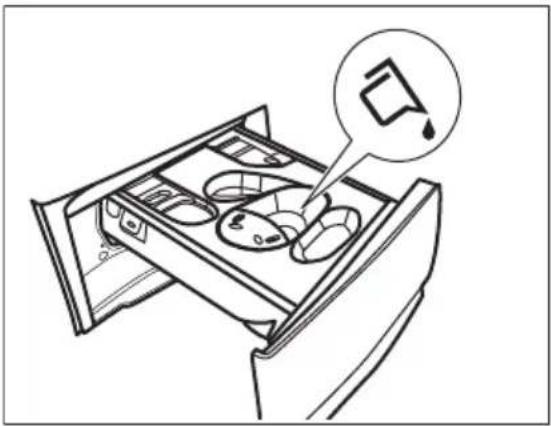

4. Pour a small quantity of detergent into the compartment marked by 🐎
5. Set and start a programme for cotton at the highest temperature without any laundry in the drum.

This removes all possible dirt from the drum and the tub.

10. PROGRAMMES

10.1 Programme Chart

Washing programmes

Programme Programme description
QuickCare 69min	Cotton and mixed synthetic fabrics. Ideal to wash your daily load in a short time, for a better clothes care and good cleaning already at 30°C.
Cottons	White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetics	Synthetic items or mixed fabric items. Normal soil.
Delicates	Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wool / Silk	Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol1).
Rapid 20min	Cotton and synthetic items lightly soiled or worn only once.

Programme Programme description

Steam programme with FreshScent System

Steam programme can be used for reducing wrinkles and odours ^2) of garments that just need to be refreshed, avoiding washing. The fabric fibres are relaxed and afterwards ironing becomes effortless. When the programme is completed, quickly remove the laundry from the drum ^3) . Steam programmes do not perform any hygienic cycle. Do not set this programme with the following type of items:

• Items that are not suitable for tumble drying.
• Items with label "Dry clean only".

Electrolux fragrance. If you use this special gentle fragrance, your laundry will scent as just washed. Read carefully the instructions supplied with the fragrance. Reduce the fragrance dosage when treating smaller load. By means of the Time Manager button, you can reduce the programme duration when treating items labeled to be washed at low temperature.

DO NOT:

• Tumble dry the garments treated with fragrance. Its benefit would evaporate.
• Use the fragrance with different purposes than those here described.
• Use the fragrance on new garments. New garments may contain residual finishing compounds which are not compatible with it.

The fragrance is available on Electrolux web shop or by authorised dealer.

Steam Refresh

Cotton, synthetic and mixed items. Special steam cycle without washing that can be used to prepare your dried laundry for ironing or refresh garments worn once. This programme reduces creases, odours and relaxes the fibres. Do not use any detergent.

To spin the laundry and to drain the water in the drum. All fabrics, except wool-lens and delicate fabrics.

Spin/Drain

All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning the laundry. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Extra Rinse option to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.

Rinse

Sport outfit, synthetic fibres like polyester, polyester/elastane blends, polyamide. Suitable to remove sweat and body soil from technical sport garments.

Sportswear

Special programme for synthetic or feather and down filled blanket, duvet, bedspread and so on. Use liquid delicate detergent, like wool detergent

Programme Programme description
Outdoor	Do not use fabric softener and make sure that there is no softener residue in the detergent dispenser.
	Outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets with a removable fleece or inner insulation. The recommended laundry load is 2.0 kg.This programme can also be used as water repellent restoring phase, specifically tailored for treating clothes with a hydrophobic coating. To perform the water repellent restoring phase, proceed as follows:Pour the washing detergent in the compartment.Pour a special water repellency restorer for fabric in the drawer compartment for fabric softenerReduce the laundry load to 1.0 kg.
	To further improve the water repellent restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
Hygiene	White cotton items. This high-performance wash programme combined with steam vapour, removes more than 99,99% of bacteria and viruses4)keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This programme ensures also a proper reduction of pollens/allergenic items.
Eco 40-60	Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.2) Steam programme doesn't remove particularly intense odour.3) After the steam treatment the laundry can be humid. Hang items out for a few minutes.4) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

Programme temperature, maximum spin speed and maximum load
1) Washing programme.

Programme Default temperature	Temperature range	Reference spin speed Spin speed range	Maximum load
QuickCare 69min	30 °C	1400 rpm	5.0 kg
	60 °C - 30 °C	1400 rpm - 400 rpm
Cottons	40 °C	1400 rpm	9.0 kg
	90 °C - Cold	1400 rpm - 400 rpm
Synthetics	30 °C60 °C - Cold	1200 rpm1200 rpm - 400 rpm	4.0 kg
Delicates	30 °C40 °C - Cold	800 rpm1200 rpm - 400 rpm	2.0 kg
Wool / Silk	40 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	1.5 kg
Rapid 20min	30 °C40 °C - 30 °C	1200 rpm1400 rpm - 400 rpm	3.0 kg
Steam Refresh	- - 1.0 kg
Spin/Drain	-	1400 rpm1400 rpm - 400 rpm	9.0 kg
Rinse	-	1400 rpm1400 rpm - 400 rpm	9.0 kg
Sportswear	30 °C60 °C - Cold	1200 rpm1200- 400 rpm	4.0 kg
Duvet	30 °C60 °C - Cold	800 rpm800 - 400 rpm	3.0 kg
Outdoor	30 °C40 °C - Cold	1200 rpm1200 rpm - 400 rpm	2.0 kg ^1) 1.0 kg ^2)
Hygiene	60 °C	1400 rpm1400 rpm - 400 rpm	9.0 kg
Eco 40-60	40 °C ^3)	1400 rpm1400 rpm - 400 rpm	9.0 kg

2) Washing programme and water repellent phase.
3) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

10.2 Woolmark Premium Wool Care - Blue

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M1230

10.3 Options compatibility with programmes

1) If you set the No Spin option, the appliance performs draining only.
2) This option is not available with temperature lower than 40 °C.
3) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory.
4) This option is not available with temperature lower than 40^ C.

Suitable detergents for washing programmes

Programme Universal powder1)	Liquid Univer-sal	Liquid for col-oureds	Delicates woollens	Special
QuickCare 69min	-- ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Delicates -- -- -- ▲ ▲
Wool / Silk -- -- -- ▲ ▲
Rapid 20min -- ▲ ▲ -- --
Sportswear -- ▲ ▲ -- ▲
Duvet -- -- -- ▲ ▲
Outdoor -- -- -- ▲ ▲
Hygiene ▲ ▲ -- -- ▲
Eco 40-60 ▲ ▲ ▲ -- --

1) At temperature higher than 60 °C the use of powder detergent is recommended.
▲ = Recommended -- = Not recommended

11. DAILY USE

WARNING!

Refer to Safety chapters.

11.1 Activating the appliance

1. Connect the mains plug to the mains socket.

2. Open the water tap.

3. Press the On/Off button for a few seconds to activate the appliance. A short tune sounds.

11.2 Loading the laundry

• Open the appliance door.
• Shake the items before you put them in the appliance.
• Put the laundry in the drum, one item at a time.

Make sure not to put too much laundry in the drum.

- Close the door firmly.

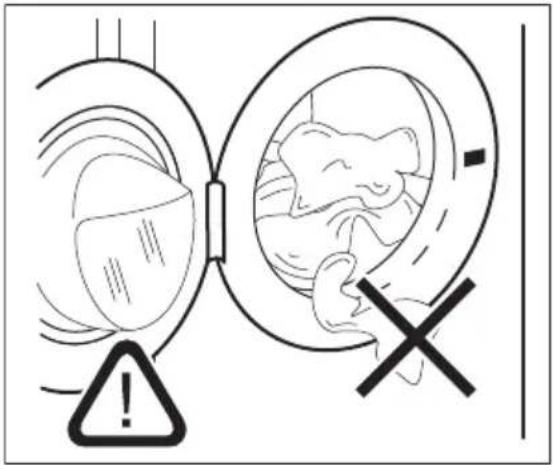

Medical warning diagram showing a warning sign with an exclamation mark and a circular diagram containing a fetus inside.

CAUTION!

• Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.
• Washing heavily oiled, greasy stains or using fragrances perfume could cause damage rubber parts of the appliance.

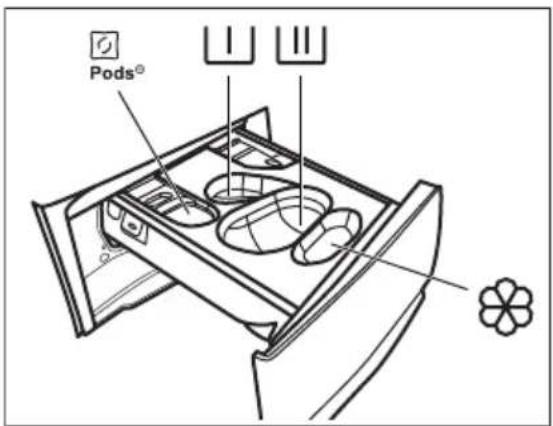

11.3 Filling the detergent and additives

Pods®

- Compartment for detergent pods (Max 2 pods). When using detergent tablets, make sure that the Pods® option is activated.

- Compartment for prewash phase an soak programme (powder detergent only).

- Compartment for washing phase (powder detergent only).

Make sure that the Pods® option is deactivated when using this compartment.

If using liquid detergent, remember to insert the container for liquid detergent

- Compartment for fabric softener and other liquid treatments (fabric conditioner, starch).

MAX - Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level (Y). This quantity will however guarantee the best washing results.

After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

Proceed as follows

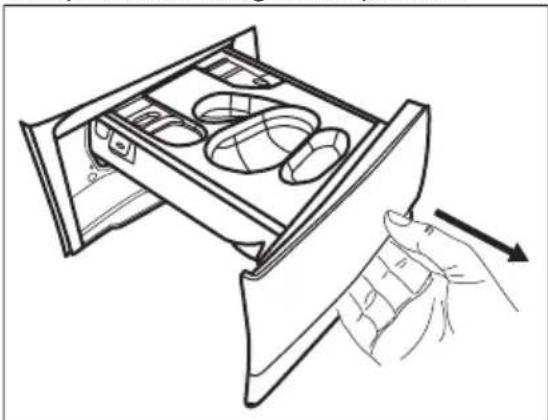

1. Open the detergent dispenser.

Line drawing of a hand holding a tray with multiple compartments and a handle, showing an arrow indicating direction (no text or symbols)

1. If a prewash phase is set, put the powder detergent in compartment

2. For main wash, chose the proper compartment depending on the type of detergent:
   a) Put the powder detergent in the compartment ⏻

Line drawing of a refrigerator drawer with a magnified inset showing a glass container (no text or symbols)

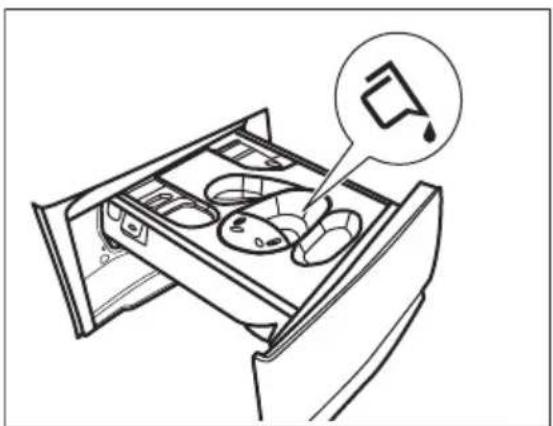

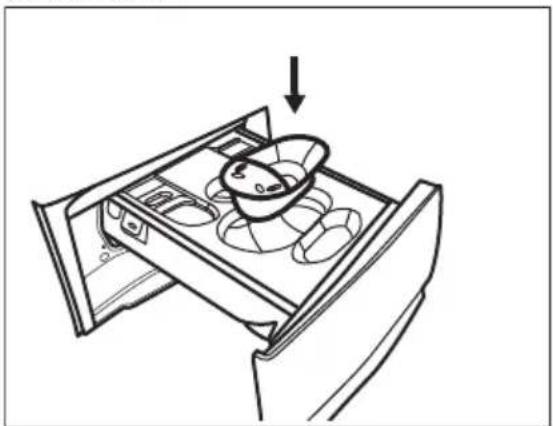

b) Pour the liquid detergent in the same compartment after inserting the relevant container

Line drawing of a refrigerator interior with a bowl and tray, showing an arrow pointing to the lid (no text or symbols)

Line drawing of a drawer with multiple compartments and a magnified inset showing a drop (no text or symbols)

c) Put the tablets in the compartment ☐ Make sure that the Pods® option is activated.

Pods®

1. Pour fabric softener in the compartment
2. Close the detergent dispenser.

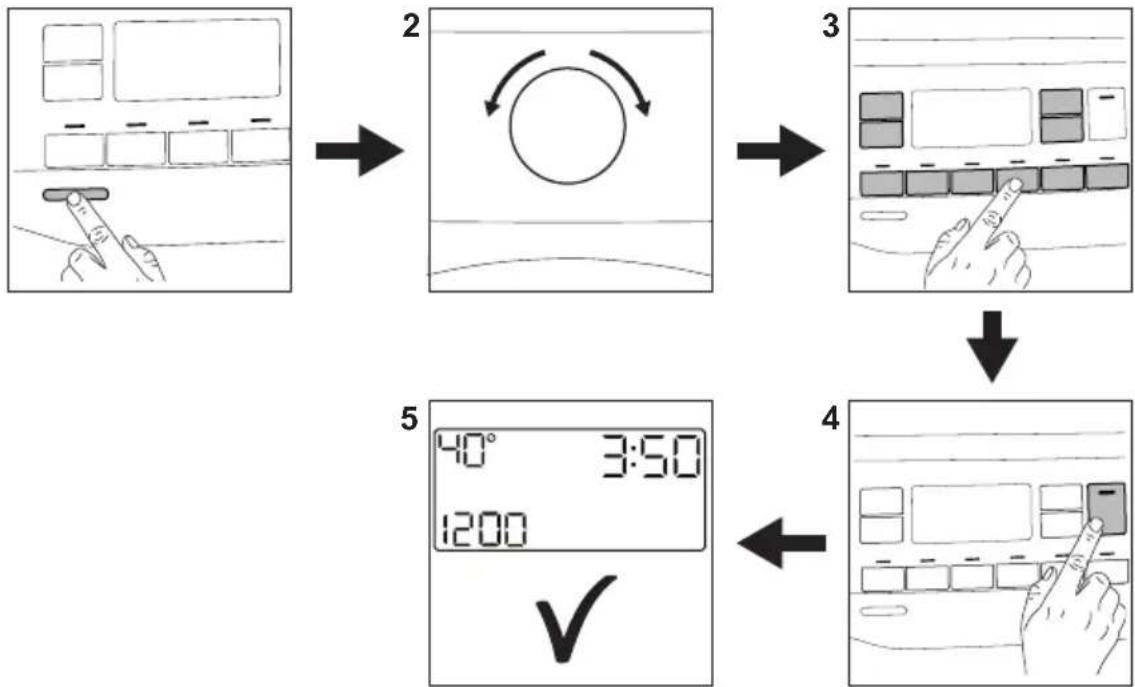

11.4 Setting a programme

1. Turn the programme dial to select the desired washing programme. The related programme indicator comes on.

The Eco 40-60 is the default proposed programme when the appliance is turned on, the one to which the information of the energy label relates.

The indicator of the Start/Pause button flashes.

The display shows an indicative programme duration, the maximum declared load for the set programme (only for a few seconds), the default temperature, the default spin speed and the washing phase indicators (when available).

1. To change the temperature and/or the spin speed, touch the related buttons.
2. If desired, set one or more options by touching the related buttons. The related indicators come on in the display and the given information changes accordingly.

i

In case a selection is not possible an acoustic signal sounds.

11.5 Starting a programme

Touch the Start/Pause button to start the programme.

The related indicator stops flashing and stays on.

The programme starts, the door is locked.

The display shows the indicator .

i

The drain pump can operate shortly before the appliance fills water.

11.6 Starting a programme with the delay start

1. Touch the Delay Start button repeatedly until the display shows the desired delay time. On the display the indicator shows
2. Touch the Start/Pause button. The appliance door locks and starts the countdown of the delay start. The display shows the indicator

When the countdown is completed, the programme starts automatically.

Cancelling the delay start after the countdown has started

To cancel the delay start:

1. Touch the Start/Pause button to pause the appliance. The related indicator flashes.
2. Touch the Delay Start button repeatedly until the display shows and the indicator goes off.
3. Touch the Start/Pause button again to start the programme immediately.

Changing the delay start after the countdown has started

To change the delay start:

1. Touch the Start/Pause button to pause the appliance. The related indicator flashes.
2. Touch the Delay Start button repeatedly until the display shows the desired delay time.
3. Touch the Start/Pause button again to start the new countdown.

11.7 The SensiCare System load detection

i

The programme duration in the display is referred to a medium/high load.

After touching the Start/Pause button, the maximum declared load indicator goes off, the SensiCare System starts the laundry load detection:

1. The appliance detects the load in the first 30 seconds. In the programmes where Time Manager is available, during this phase the Time Manager bars ---- placed below the time digits play a simple animation. The drum rotates shortly.
2. The programme duration could be adjusted accordingly and could increase or decrease. After further 30 seconds, the water filling starts.

At the end of the load detection, in case of drum overload, the indicator is flashing in the display:

In this case, for 30 seconds, it is possible to pause the appliance and remove the exceeding garments.

Once removed the exceeding garments, touch the Start/Pause button to start the programme again. The SensiCare phase can be repeated up to three times (see point 1).

Important! If the laundry amount will not be reduced, the washing programme starts anyway, despite the overload. In this case, it will be not possible to guarantee the best washing results.

i

About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics.

i

The SensiCare detection is carried out with complete washing programmes only and if the programme duration has not been reduced by means of the Time Manager button.

i

The SensiCare System is not available with all programmes such as :Wool / Silk, Rinse and programmes with short cycles.

11.8 Interrupting a programme and changing the options

When the programme is running, you can change only some options:

1. Touch the Start/Pause button. The related indicator flashes.
2. Change the options. The given information in the display changes accordingly.
3. Touch the Start/Pause button again. The washing programme continues.

11.9 Cancelling a running programme

1. Press the On/Off button to cancel the programme and to deactivate the appliance.
2. Press the On/Off button again to activate the appliance.

Now, you can set a new washing programme.

i

If the SensiCare phase is already carried out and the water filling is already started, the new programme starts without repeating the SensiCare phase. The water and the detergent are not drained out in order to avoid waste. The display shows the maximum duration of the programme, updating it about 20 minutes after the starting of the new programme.

There is also an alternative way of cancelling:

1. Touch the Start/Pause button.

2. Rotate the selector knob to the "Reset" position

3. Wait for 1 second. The display shows ---

Now, you can set a new washing programme.

11.10 Opening the door - Adding garments

If the icon is on, you can always open the door.

While a programme or the delay start operates, the appliance door is locked. The display shows the indicator

i

If the temperature and level of the water in the drum are too high and/or the drum is still rotating you should not open the door.

To add or to remove garments:

1. Touch the Start/Pause button. In the display the related door lock indicator goes off.
2. Open the appliance door. If necessary, add or remove the garments. Close the door and touch the Start/Pause ▷∥ button.
   The programme or the delay start continues.

11.11 End of the programme

When the programme has finished, the appliance stops automatically. The acoustic signals operate (if they are active). The display shows 0:00

The indicator of the Start/Pause button goes off.

The door unlocks and the indicator goes off.

1. Press the On/Off button to deactivate the appliance.

After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

When you activate the appliance again, the display shows the end of the previous programme. Turn the programme dial to set a new cycle.

1. Remove the laundry from the appliance.
2. Make sure that the drum is empty.
3. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

11.12 Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:

• The time area shows
  display shows the door locked
  • The indicator of the Start/Pause starts flashing.
• The drum still turns at regular intervals to prevent creases in the laundry.
  • The door stays locked.
• You must drain the water to open the door:

1. If necessary, touch the Spin button to decrease the spin speed proposed by the appliance.

2. Press the Start/Pause button: the appliance drains the water and spins.

The option indicator Rinse Hold or disappears.

If you have set Silent and the spin speed is not changed, when you press the Start/Pause button, the appliance only drains the water.

1. When the programme is completed and the door locked indicator goes off, you can open the door.
2. Press the On/Off button for a few seconds to deactivate the appliance.

11.13 Stand-by function

The Stand-by function automatically deactivates the appliance to reduce the energy consumption when:

• You do not use the appliance for 5 minutes when no programme is running.
  Press the button On/Off to activate the appliance again.
• 5 minutes after the end of the washing programme.
  Press the On/Off button to activate the appliance again.
  The display shows the end of the last programme.
  Turn the programme dial to set a new cycle.

If the dial is rotated to the "Reset" position, the appliance automatically turns off in 30 seconds.

If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water.

12. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

12.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispenser Every two months

Clean drain pump filter Twice a year

Clean the inlet hose and twice a yearthe valve filter

12.2 Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle. Refer to "The laundry load" in "Hints and tips".

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. If necessary, please contact the Authorised Service Centre.

12.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

Do not use a scouring pads or any scratching material.

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

12.4 Descaling

If the water in your area is hard or medium hard, we recommend that you use a water softener for washing machines (descaling occasionally).

Regularly examine the drum to check for limescale.

Always follow the instructions that you find on the packaging of the product.

12.5 Maintenance wash

The repeated and prolonged use of low temperature and short programmes can cause detergent deposits, fluff residues, bacterial growth and biofilm formation inside the drum and the tub. This could generate bad odours and mildew.

To eliminate these deposits and hygienize the inner part of the appliance, run a maintenance wash at least once a month:

1. Remove all laundry from the drum.
2. Run a cotton programme with the highest temperature with a small quantity of powder detergent or, if available, run the Machine Clean programme.

12.6 Door seal

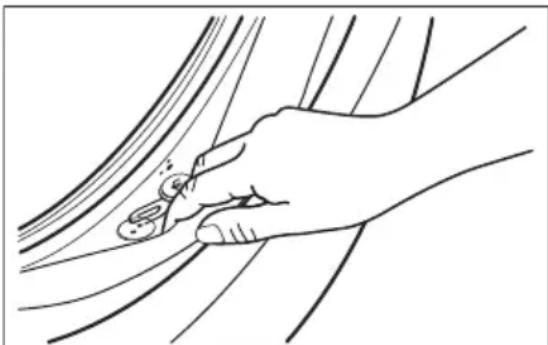

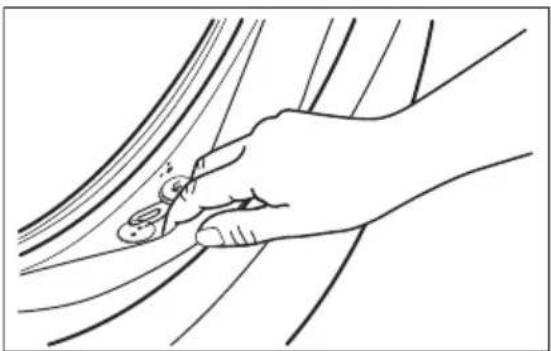

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car seatbelt, no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

12.7 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool.

For a thorough clean:

1. Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product.

1. Remove all laundry from the drum.

2. Run a short cotton programme at high temperature with empty drum and with a small quantity of powder detergent or, if available, run the Machine Clean programme. If your appliance can be connected to Wi-Fi, the special programme Machine Clean is also downloadable through the APP.

3. Add a manually small quantity of powder detergent or a specific product into the empty drum, in order to rinse out any left residues.

Occasionally, at the end of a cycle the display may show the icon: this is a recommendation to perform the "drum cleaning". Once the drum cleaning has been performed, the icon disappears.

12.8 Cleaning the detergent dispenser

To prevent possible deposits of dried detergent, clotted fabric softener, formation of mould in the detergent dispenser, every two months carry out the following cleaning procedure how explained in the following diagrams:

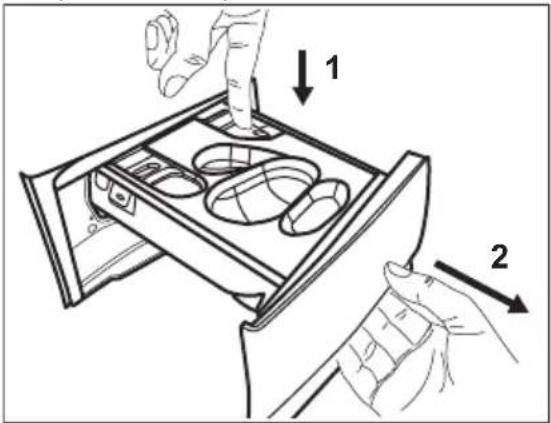

1. Open the detergent dispenser. Press the catch downwards as indicated in the picture and pull it out.

Diagram showing hand positioning of a device with labeled parts and directional arrows indicating movement.

1. Remove the container for liquid detergent, if inserted.

Line drawing of a refrigerator interior with a bowl and tray, showing an upward arrow (no text or symbols)

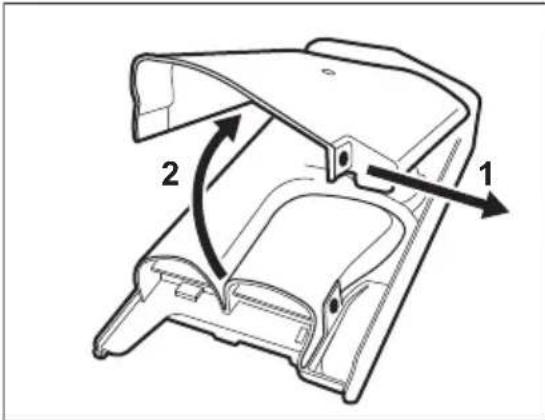

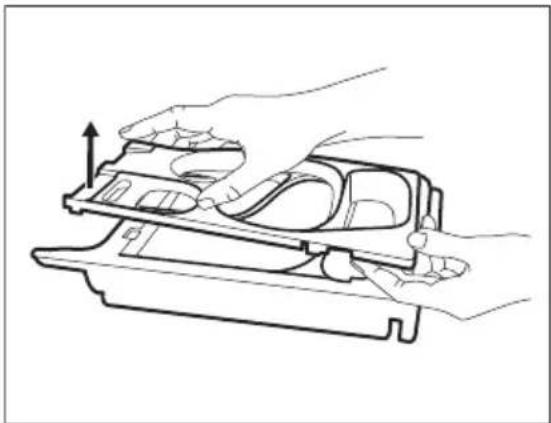

1. Lift up the top cover of the compartments to remove it.

Line drawing of a hand holding a tray with an arrow indicating upward motion (no text or symbols)

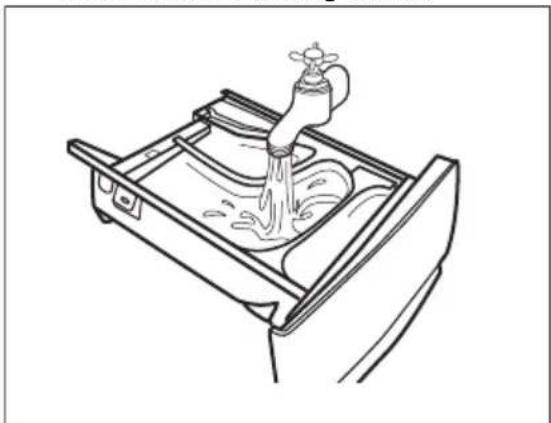

1. Wash the detergent dispenser and any insert under running water.

Line drawing of a faucet dispensing liquid into a tray (no text or symbols)

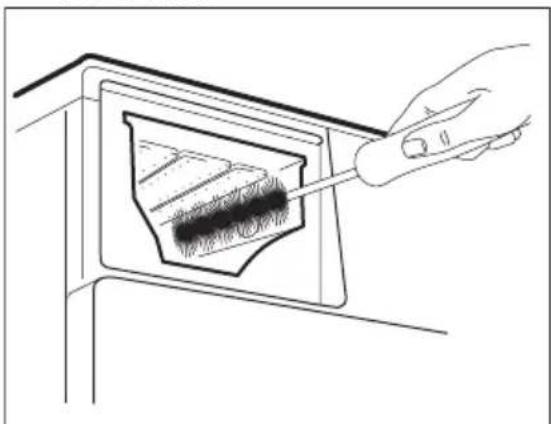

1. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

CAUTION!

Do not use sharp or metal brushes and sponges.

Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Line drawing of a hand using a tool to insert or mark a dark object inside a rectangular frame (no text or symbols)

1. Turn the dispenser up side down and open the bottom cover as indicated in the

picture: first pull the side tabs outwards and then remove the bottom cover.

Technical diagram of a mechanical component with labeled parts 1 and 2, showing directional arrows indicating movement or assembly.

1. Make sure that all detergent residue is removed from the conveyor. Use only soft damp clothes.

2. Put bottom cover back to its position by aligning its holes on drawer hooks as indicated in the picture. Close it till "click" sound.

Illustration of hands using a tool to adjust or install a component, with an arrow indicating the process (no text or symbols present)

CAUTION!

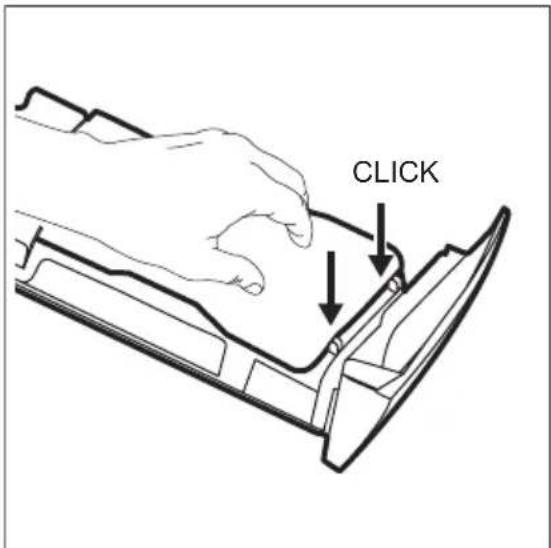

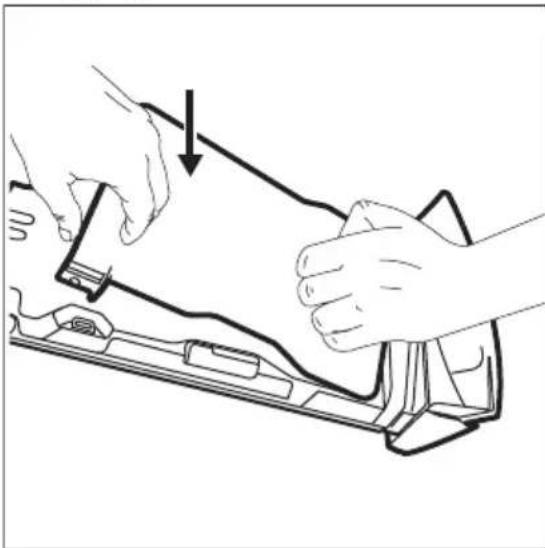

Press the bottom cover as indicated in the picture. Make sure that it is closed properly.

CLICK

1. Reassembly the drawer as follows:

a. Place the bottom cover and press till "click" sound.
b. Place the top cover and press till "click" sound.
c. Insert the container for liquid detergent, if needed.

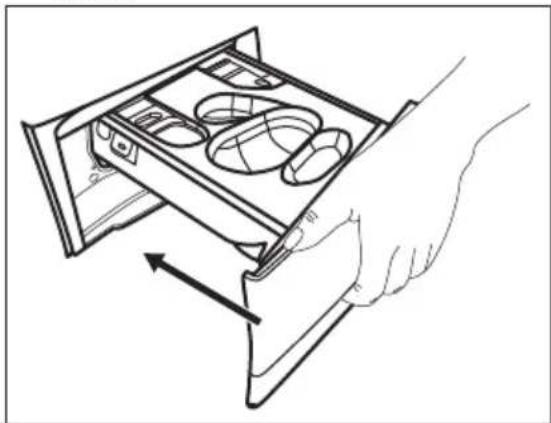

1. Insert the detergent dispenser into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

Line drawing of a hand holding an open tray with multiple compartments and a directional arrow indicating movement (no text or symbols)

12.9 Cleaning the drain pump filter

WARNING!

Disconnect the mains plug from the mains socket.

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump filter if:

• The appliance does not drain the water.

• The drum does not turn.
- The appliance makes an unusual noise because of the blockage of the drain pump.

• The display shows the alarm code

E20

WARNING!

• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down

Proceed as described in following diagrams to clean the pump filter:

Always keep a rag nearby to dry up any water spillages when removing the filter.

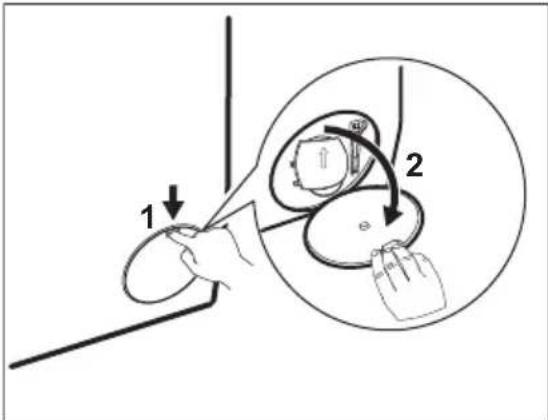

1. Open the pump cover.

1 2

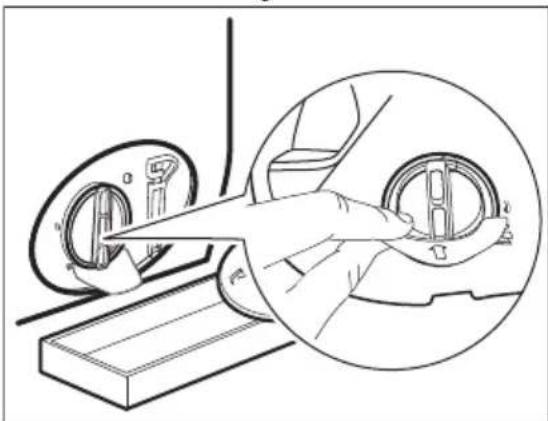

1. Place a suitable bowl below the drain pump access to collect the water that flows out.
2. Open the chute downwards. Always keep a rag nearby to dry up any water spillages when removing the filter.

Illustration of a hand inserting a component into a circular housing (no text or symbols)

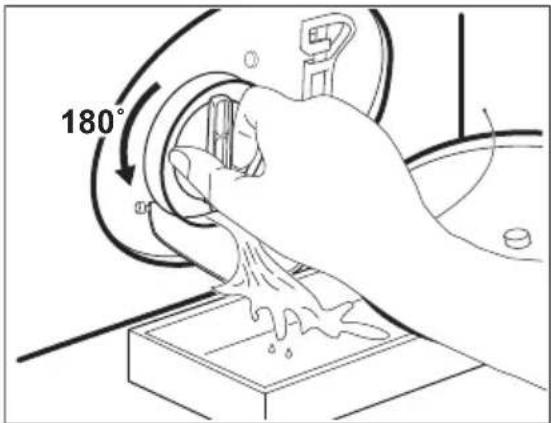

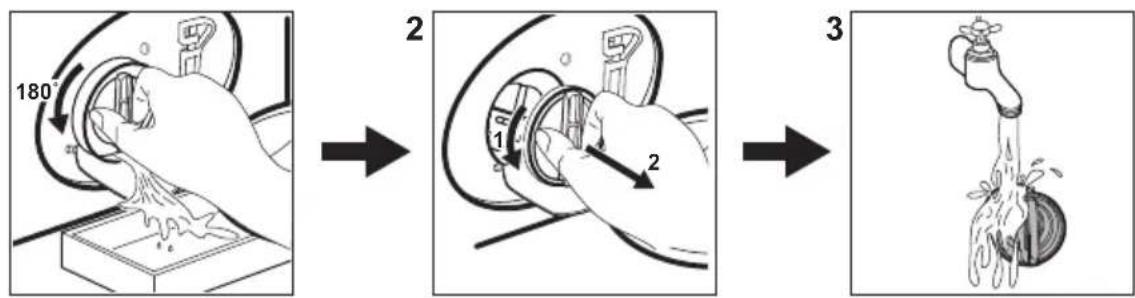

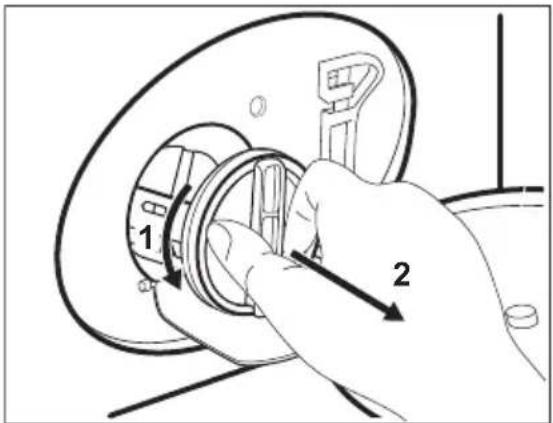

1. Turn the filter 180 degrees in anti-clockwise direction to open it, without removing. Let the water flow out.

180°

1. When the bowl is full of water, turn the filter back and empty the container.
2. Repeat the steps 4 and 5 until the water stops to flow out.
3. Turn the filter anti-clockwise to remove it.

1 2

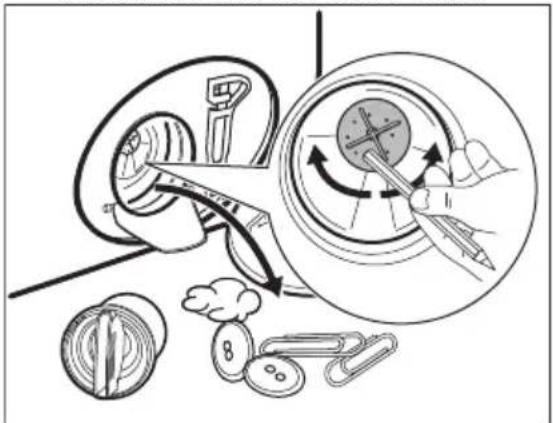

1. If it is necessary, remove fluff and objects from the filter recess.
2. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

Illustration of a medical procedure involving needle insertion, tool use, and surgical tools (no text or symbols)

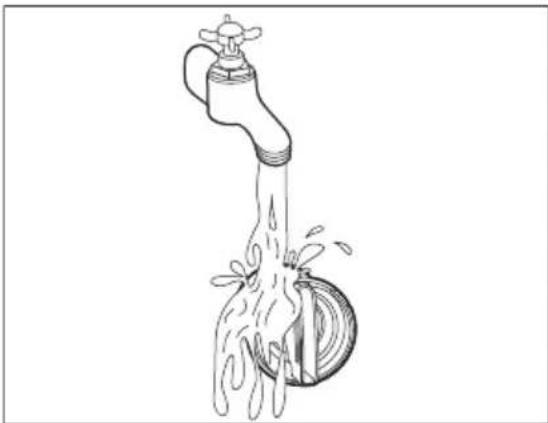

1. Clean the filter under the water tap.

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

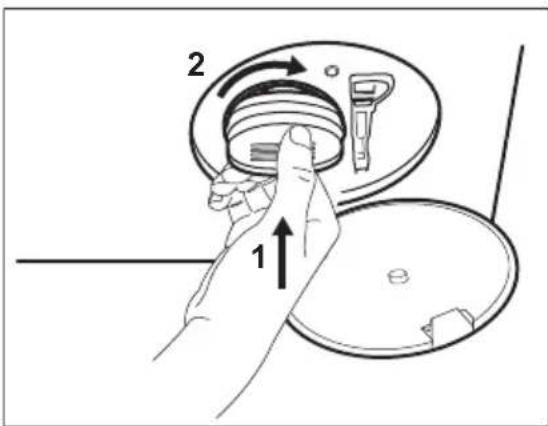

1. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

2 1

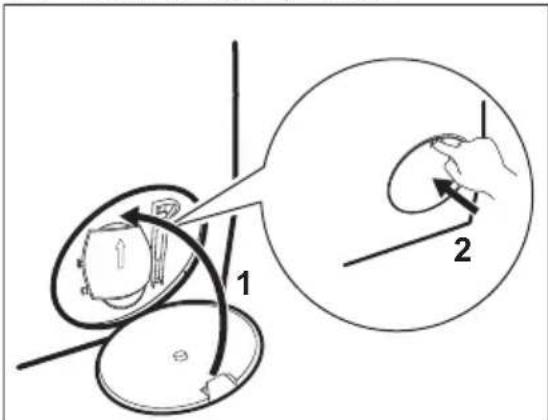

1. Close the pump cover.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including numbered annotations 1 and 2.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

a. Put 2 litres of water in the main wash compartment of the detergent dispenser.
b. Start the programme to drain the water.

12.10 Cleaning the inlet hose and the valve filter

It is recommended to clean both the filters of the inlet hose and valve twice a year to remove any deposit, collected over the time. Proceed as described in following diagrams to clean filters:

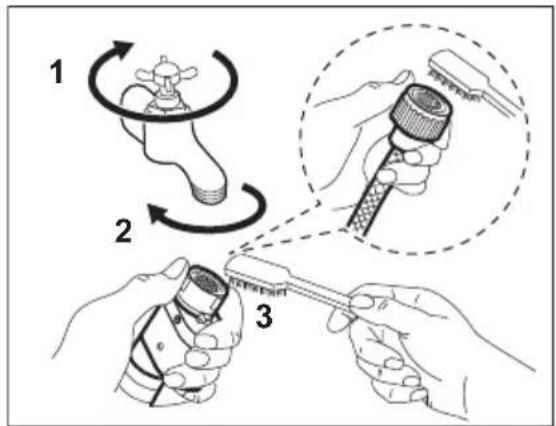

1. Remove the inlet hose from the tap and clean the filter.

Diagram illustrating three-step hairpin tool application: rotation, press, and cutting steps

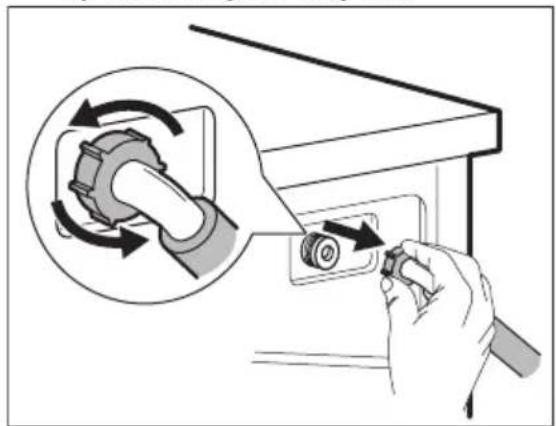

1. Remove the inlet hose from the appliance by loosening the ring nut.

Hand holding a device with a magnified inset showing rotational components (no text or symbols)

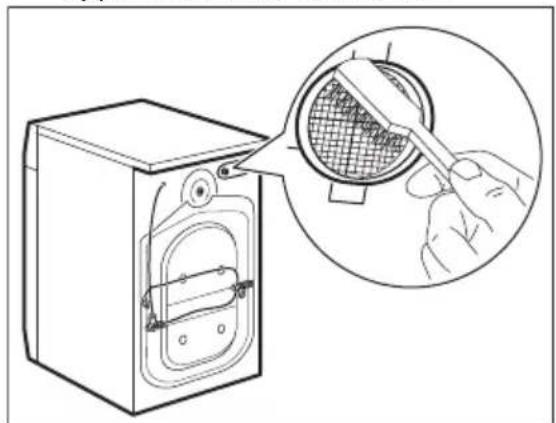

1. Clean the valve filter on the back of the appliance with a toothbrush.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

1. When you reconnect the hose to the back of the appliance, turn it left or right (not in

vertical position) depending on the position of your water tap.

20° 45°

12.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.

2. Start the programme to drain the water.

12.12 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0^ C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.
4. Empty the drain pump. Refer to the emergency drain procedure.
5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 Alarm Codes and Possible failures

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

With some problems, the display shows an alarm code and the Start/Pause Button may flash continuously:

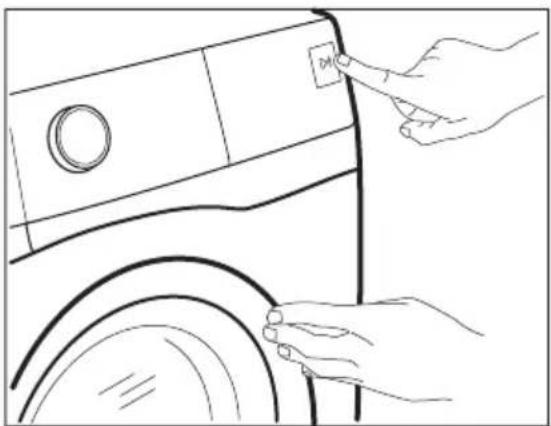

If the appliance is overloaded, remove some items from the drum and/or keep pressed the door while touching the Start/Pause button until the indicator stops flashing (see the picture below).

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Problem Possible solution

E 10

The appliance does not fill with water properly.

• Make sure that the water tap is open.
- Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the inlet hose has no kinks, damages or bends.
- Make sure that the connection of the water inlet hose is correct.
- Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to 'Care and cleaning'.

E20The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
E40The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.

If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre. In case of different problem with the appliance check the table below for possible solutions.

Problem Possible solution
The programme does not start.	Make sure that the mains plug is connected to the mains socket.Make sure that the appliance door is closed.Make sure that there is no damaged fuse in the fuse box.Make sure that the Start/Pause has been touched.If the delay start is set, cancel the setting or wait for the end of countdown.Deactivate the Child Lock function if it is on.Check the position of the knob on the selected programme.
The appliance fills with water and drains immediately.	Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruction".
The spin phase does not operate or the washing cycle lasts longer than usual.	Set the spin programme.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.Make sure that the water inlet hose and the drain hose have no damages.Make sure you use the correct detergent and the correct quantity of it.

Problem Possible solution

You cannot open the appli-ance door.	Make sure that a washing programme that ends with water in tub, has not been selected.Make sure that the washing programme is finished.Set the drain or the spin programme if there is water in the drum.Make sure that the appliance receives electrical power.This problem may be caused by a failure of the appliance. Contact the Authorised Service Centre.If you need to open the door, please read carefully "Emergency door opening".
The appliance makes an un-usual noise and vibrates.	Make sure the levelling of the appliance is correct. Refer to "Installation instruction".Make sure that the packaging and/or the transit bolts are removed. Refer to "Installation instruction".Add more laundry in the drum. The load may be too small.
The programme duration increases or decreases during programme execution.	The SensiCare System is able to adjust the programme duration according to the type and the laundry load size. Refer to "The SensiCare System load detection" in "Daily Use" chapter.
The washing results are not satisfactory.	Increase the detergent quantity or use a different detergent.Use special products to remove the stubborn stains before you wash the laundry.Make sure that you set the correct temperature.Decrease the laundry load.
Too much foam in the drum during the washing cycle.	Reduce the quantity of detergent or the number of tablets or single-dose deter-gents.
After the washing cycle, there are some detergent residues in the dispenser drawer.	Make sure you have used the detergent dispenser according the indications given in this user manual.Make sure to use fresh tablets or single-dose detergents. Store them in their box and close it after use, according to the manufacturer's recommendations. Direct exposure to environment can modify their characteristic and their behaviour in the Pods® compartment, specially in combination with certain options (e.g. Delay Start).

After the check, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Authorised Service Centre.

The necessary data for the service centre are on the rating plate.

13.2 Emergency door opening

In case of power failure or functioning failure the appliance door remains locked. The washing programme continues when the power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock function.

Before opening the door:

CAUTION!

Risk of burns! Make sure that the water temperature is not too high and the laundry is not hot. If necessary, wait until they cool down.

CAUTION!

Risk of injury! Make sure that the drum is not rotating. If necessary, wait until the drum stops rotating.

Make sure that the water level inside the drum is not too high. If necessary, proceed with an emergency drain (refer to «Emergency drain» in «Care and cleaning» chapter).

To open the door, proceed as follows:

1. Press the On/Off button to switch the appliance off.
2. Disconnect the mains plug from the mains socket.
3. Open the filter flap.

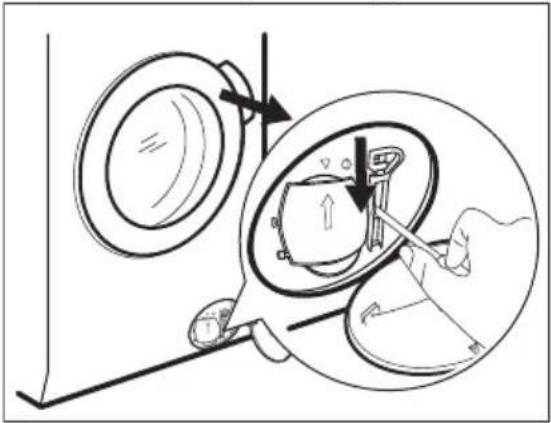

4. Pull the emergency unlock trigger downward once. Pull it downward once

again, keep it tensed and, in the meanwhile, open the appliance door.

Illustration of a hand using a tool to adjust or install a mechanical component, showing a magnified view with arrows indicating motion (no text or symbols present)

1. Take out the laundry and then close the appliance door.
2. Close the filter flap.

14. CONSUMPTION VALUES

14.1 Comment

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance. Refer to 'Product description' chapter for the position of the rating plate.

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

14.2 According to Commission Regulation Eu 2019/2023

Eco 40-60 pro-gramme	kg kWh	Litres	hh:mm % °C	rpm1)
Full load 9.0 0.820	55.0	03:40	53.00 35.0	1351
Half load	4.5	0.540	45.0	02:35 53.00 33.0

Eco 40-60 pro-gramme	kg kWh Litres hh:mm % °C	rpm1)
Quarter load 2.5 0.185 38.0 02:30 54.00 23.0 1351

1) Maximum spin speed.

Power consumption in different modes

Off (W) Stand-by (W) Delay start (W)

0.50 0.50 4.00

Time to Off/Standby mode is 15 minutes maximum.

14.3 Common programmes

Programme kg kWh Litres hh:mm % °C rpm
Cottons^1) 90°C	9.0 2.700 90.0 04:05 52.00 85.0 1400
Cottons60°C	9.0 1.600 85.0 03:50 52.00 55.0 1400
Cottons^2) 20°C	9.0 0.350 85.0 03:00 52.00 20.0 1400
Synthetics40°C	4.0 0.800 55.0 02:15 35.00 40.0 1200
Delicates^3) 30°C	2.0 0.400 60.0 01:05 35.00 30.0 1200
Wool30°C	1.5 0.300 65.0 01:05 30.00 30.0 1200

1) Suitable for washing heavily soiled textiles.

2) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.

3) It also performs as quick washing cycle for lightly soiled laundry.

15. QUICK GUIDE

15.1 Daily use

1

• Connect the mains plug to the mains socket.
• Open the water tap.
• Push the On/Off button to turn the appliance on (1).
• Turn the programme dial to set the desired programme (2).
• Set the desired options by means of the corresponding touch buttons (3).

• Put the laundry in the drum, one item a time without exceeding the maximum suggested load. Close the door and make sure that no laundry stays between the seal and the door.

• Pour the detergent and other treatments in the proper compartment of the detergent dispenser. If you use tablets, please activate the Pods® option
  • To start the programme, touch the Start/Pause Button (4).
  • The appliance starts.

• At the and of the programme, remove the laundry.
• Push the On/Off button to turn the appliance off.

15.2 Cleaning the drain pump filter

1

Clean the filter regularly and, especially, if the alarm code appears on the display.

15.3 Programmes

Programmes Load Product description
QuickCare 69min	5.0 kg	Cotton and synthetic items. This programme ensures a good washing performance in a short time.
Cottons	9.0 kg White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetics	4.0 kg Synthetic items or mixed fabric items.
Delicates	2.0 kg Delicate fabrics such as acrylics, viscose, polyester items.
Wool / Silk	1.5 kg Machine washable wool, hand washable wool and delicates.
Rapid 20min	3.0 kg Cotton and synthetic lightly soiled items or once worn items.
Steam Refresh	1.0 kg Cotton and synthetic items that need to de-wrinkle.
Spin/Drain	9.0 kg	To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.
Rinse	9.0 kg	All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning.
Sportswear	4.0 kg	Sport outfit, synthetic fibres like polyester, polyester/elastane blends, polyamide. Suitable to remove sweat and body soil from technical sport garments.
Duvet	3.0 kg	Synthetic or feather and down filled blankets, padded clothes, du-vets.
Outdoor	2.0 kg ^1) 1.0 kg ^2)	Modern outdoor sporting garments.
Hygiene	9.0 kg	White cotton items. This programme removes more than 99,99% of bacteria and viruses ^3) . It also ensure a proper reduction of allergens.
Eco 40-60	9.0 kg	Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.

1) Washing programme.

2) Washing programme and water repellent phase.

3) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

15.4 Detergent type and quantity.

- Use only detergents and other treatments specially made for washing machines. First, follow these generic rules:

- powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization,

- liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

• Do not mix different types of detergents.

• Use less detergent if:

• you are washing a small load,
  – the laundry is lightly soiled,
  – there is large amounts of foam during washing.

Insufficient detergent may cause:

• unsatisfactory washing results,
• the wash load to turn grey,
- greasy clothes,
- mould in the appliance.

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.

15.5 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Every two months er

Clean drain pump filter Twice a year

Clean the inlet hose and Twice a year the valve filter

Regularly examine the drum to check for limescale. We recommend to run a cycle with empty drum and a descaling product occasionally.

Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre.

Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car seatbelt, no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

If it is necessary, remove fluff and objects from the filter recess.

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

Diagram of a washing machine with numbered parts and labeled internal components

Diagram illustrating a washing machine operation with labeled components and a magnified view of the device's internal structure.

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

ATTENTION!

Illustration of a washing machine with a magnified inset showing hands adjusting a threaded bolt (no text or symbols present)

Diagram illustrating the internal mechanism of a washing machine, showing tool placement and disassembly steps with magnified insets.

Diagram illustrating the process of hairpin mounting, showing steps from washing machine to disassembly with magnified insets.

3/4" 3/4" A i A ✓ A ✓ ↓

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

Medical warning diagram showing a mouse inside a catheter with a warning symbol and a cross mark indicating no need.

ATTENTION!

Line drawing of a hand holding a tray with compartments and a directional arrow indicating movement (no text or symbols)

Line drawing of a refrigerator drawer with a magnified inset showing a glass container (no text or symbols)

Line drawing of a refrigerator interior with a hand pointing to the lid (no text or symbols)

Line drawing of an open refrigerator with a hand pointing to the interior (no text or symbols)

Line drawing of a hand holding a car seatbelt, no text or symbols present

Diagram showing hand positioning of a tray with labeled parts and directional arrows indicating movement or positioning.

Line drawing of a refrigerator interior with a bowl and tray, showing an upward arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tray with an arrow indicating upward motion (no text or symbols)

Line drawing of a faucet dispensing water into a tray (no text or symbols)

Line drawing of a hand using a tool to insert or install a component, no text or symbols present

Technical diagram of a mechanical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

Illustration of hands holding a device with an arrow indicating direction (no text or symbols present)

ATTENTION!

Line drawing of a hand holding an open tray with multiple compartments and a handle, showing a directional arrow (no text or symbols)

Diagram showing a hand inserting a component into a circular housing, with no visible text or symbols.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating motion or movement.

Line drawing of a faucet with water flowing out, creating splashes from the drain (no text or symbols)

Diagram showing a hand pressing a button on a circular device with labeled parts and directional arrows

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including section 1 and section 2.

Diagram illustrating three-step tool application steps for a mechanical component, labeled 1 to 3.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Illustration of a hand holding a tool inside a circular frame, with no visible text or symbols

15.3 Programmes

Line drawing of a hand holding a car seatbelt, no text or symbols present

Diagram of a washing machine with numbered parts and labeled components for assembly or maintenance reference.

Diagram illustrating a washing machine operation with labeled components and a recycling bin, accompanied by explanatory text.

Technical diagram of a mechanical device with labeled components and directional arrows

VORSICHT!

Illustration of a washing machine with a magnified inset showing hands adjusting the screw (no text or symbols present)

Diagram showing washing machine operation with wrench and wrench icons and mechanical components

Diagram illustrating a washing machine operation with three circular insets showing hand turning and cutting steps.

20° 4°45°

3/4" 3/4" A i A ✓ A ✓ ↓

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

88° 1888 8:88 88.8 kg MAX

Dampfprogramm Unit FreshScent System

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating an emergency or diagnostic hazard.

VORSICHT!

Line drawing of a hand holding a tray with multiple compartments and a handle, no text or symbols present

Line drawing of a refrigerator drawer with a magnified inset showing a glass container (no text or symbols)

Line drawing of a refrigerator interior with a hand pointing to the lid (no text or symbols)

Line drawing of a refrigerator drawer with a hand inserting a plastic bag into the drawer (no text or symbols)

Line drawing of a hand holding a car tire, no text or symbols present

Diagram showing hand positioning of a device with labeled parts and directional arrows indicating movement or positioning.

Line drawing of a refrigerator interior with a bowl and tray, showing an upward arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tray with an arrow indicating upward motion (no text or symbols)

Line drawing of a faucet dispensing water into a washing machine (no text or symbols)

Line drawing of a hand using a tool to clean or store items inside a rectangular appliance (no text or symbols)

Technical diagram of a mechanical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

Illustration of hands using a tool to adjust or install a component, with an arrow indicating the process (no text or symbols present)

VORSICHT!

Line drawing of a hand holding a tray with an open drawer containing multiple compartments (no text or symbols)

Illustration of a hand inserting into a car's seat, showing mechanical components and wheel assembly (no text or symbols)

Diagram showing a hand using a switch to adjust the internal component, labeled with parts 1 and 2.

Diagram illustrating a medical procedure involving needle insertion, surgical tools, and tool positioning with labeled parts.

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram showing a hand pressing a button on a circular device with labeled parts and directional arrows

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing a hand holding a component.

Diagram illustrating three-step hairpin tool application: rotation, folding, and cutting steps

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or filter material (no text or symbols present)

Line drawing of a hand pressing down on a washing machine wheel (no text or symbols)

Diagram showing a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand holding a tool near a car wheel (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)
