USER MANUAL IVR 60/30 Sc M ACD Kärcher

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "\_\_\_\_", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

IVR 40/30 Sc M ACD

IVR 60/30 Sc M ACD

IVR 100/30 Sc M ACD

IVR 100/40 Sc M ACD

Deutsch 5

English 16

Français 27

Italiano 39

Español 51

Português 63

Nederlands 75

Türkçe 86

Svenska 97

Suomi 107

Norsk 118

Dansk 128

Eesti 139

Latviešu 149

Lietuviškai 160

Polski 170

Magyar 182

Čeština 193

Slovenčina 204

Slovenščina 215

Română 226

Hrvatski 237

Srpski 248

Ελληνικά 259

Русский 272

Українська 285

Қазақша 298

Български 310

中文 323

العربية 332

A

Technical diagram of a vacuum cleaner with numbered parts and labeled control panel

Technical diagram of a mechanical assembly with pipes and a valve, showing no text or symbols

Technical line drawing of a vacuum cleaner on a wheeled cart, showing no text or symbols

D

Technical line drawing of a mechanical device with wheels and a central control unit (no text or symbols)

Illustration of hands holding a bag with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

H

RCHER

J × ✓

K ① ② ③ ④

Technical line drawing of a mechanical device with a central fan and internal structure, no visible text or symbols

Architectural line drawing of a modern building interior with a circular inset showing a mechanical component (no text or symbols)

Inhalt

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

T. Wahl
Managing Director

A. Haag
Director R&D

Waldstetten, 24/11/01

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

Contents

General instructions ...... 16

Safety information 16

Intended use 18

Environmental protection 18

Accessories and spare parts...... 18

Scope of delivery.... 19

Device description.... 19

Symbols on the device.... 19

Initial startup.... 20

Operation 20

Transport.... 22

Storage.... 23

Care and maintenance.... 23

Troubleshooting guide.... 25

Disposal 25

Warranty.... 25

Technical data.... 26

EU Declaration of Conformity...... 27

General instructions

Read these original instructions before using your device for the first time, adhere to the instructions contained therein and store them for later reference or subsequent owners.

- Be sure to read the safety instructions no. 5.956-249.0 prior to the initial start-up.

- If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.

- Notify the dealer immediately in the case of shipping damage.

Safety information

Hazard levels

⚠️DANGER

- Indication of an imminent threat of danger that will lead to severe injuries or even death.

⚠ WARNING

- Indication of a potentially dangerous situation that may lead to severe injuries or even death.

△CAUTION

- Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

- Indication of a potentially dangerous situation that may lead to damage to property.

General safety instructions

⚠️ DANGER ● Only trained personnel are permitted to use the device and the substances for which it is to be used, including the safe procedure for disposing of the vacuumed material. ● An air exchange rate L must be present in the room when the exhaust gas is returned into the room. To remain within the required limit values, the volume flow of returned air must be no greater than 50% of the fresh air volume (room volume V_R x air exchange rate L_W ). Without special ventilation measures, the following applies: L_W=1h^-1 . ● This device contains dust that is harmful to your health. Emptying and maintenance, including removal of the dust bag, may only be performed by technical specialists wearing suitable personal protective equipment. ● Do not operate the device without the complete filtration system. ● Observe the applicable safety instructions for the materials being vacuumed. ● The simultaneous collection of different combustible dusts in the collection container can lead to fires or explosion.

⚠ WARNING • You must not set up or operate the device in areas where there is a risk of dust or gas explosion. A dust explosive atmosphere inside the device is only allowed in front of the filter. Gas explosive atmospheres are prohibited inside the device. • The device is not suitable for the suctioning or vacuuming of flammable liquids (flammable, easily flammable, highly flammable according to Dangerous Substances Directive 67/548/EEC) (flash point below 55 °C) and mixtures of flammable dusts and liquids. • The device is not suitable for the vacuuming of dusts with extremely low minimum ignition energy (ME <1 mJ), e.g. toner, mesh, aluminium powder, lead acid suitable. • The device is not suitable for sucking up ignition sources and dusts with a glow temperature

≤ 190 °C. ● Every time before use, check whether the equipotential bonding conductors (earthing conductors) are connected.

- The device must not be used or stored outdoors in wet conditions. • Apply the parking brake at the steering roller to ensure a secure footing for the device. The device may move uncontrollably if the parking brake is open.

⚠️ CAUTION ● In case of longer breaks in operation and after use, switch off the device at the power switches and unplug the mains plug.

ATTENTION • Only use the device indoors. • Risk of crushing! Wear gloves when removing or installing the suction head, filter inlay or collection container.

- Risk of damage! Never vacuum without a filter or with a damaged filter. • Wear safety shoes when operating the device. • Only move the device at walking speed, and to move down a decline, have two workers steady the device as necessary. • Be careful to ensure that there is no dust spillage when replacing accessories. • Surface temperatures can rise to 135°C during normal operation. • Avoid kinking the suction hose unit. • Carry out a regular visual inspection of the hoses.

Electrical connection

The device may only be connected to an electrical connection which has been set up by a qualified electrician as per IEC 60364. For connected loads see Technical data and type plate.

⚠️DANGER

Danger of electric shock

Danger of death

Avoid damaging the power cables by driving over them or otherwise crushing them, or by jerking them.

Protect the cables from heat, oil and sharp edges.

Check the mains connection of the device for damage every time before operation. Do not operate the device using a damaged cable. Have any damaged cables replaced by a qualified electrician.

Behaviour in the event of an emergency

⚠️DANGER

Risk of injury and damage in the event of a short-circuit or other electrical faults

Danger of electric shock, danger of burns Switch off the device and unplug the mains plug.

Behaviour in case of filter breakage / leakage:

1. Switch off the unit immediately.

The unit may not be operated without the fresh water filter.

1. Replace the filter.

Intended use

The device is intended for:

• Wet and dry cleaning of floor and wall surfaces
• Vacuuming of dry, flammable, deposited dusts hazardous to health; dust class M according to EN 60335-2-69
• Vacuuming of non-explosive substances
• Vacuuming of flammable dusts of all dust explosion classes (excluding dusts with a minimum ignition energy ME < 1 mJ)
  • Vacuuming of dusts and coarse dirt
• Vacuuming of flammable dusts from a zone 22 if the device is installed outside of potentially explosive areas
  • Vacuuming moist and liquid substances
• Commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies
• Industrial usee.g. in storage and production areas

A corresponding Ex device must be used if there is a classified Ex zone at the device installation location.

The device's correct function is only guaranteed when using suction hose nominal widths of DN40 and DN50.

Any other use constitutes improper use.

The device is not suitable for:

- Vacuuming of ignition sources and dusts with a glow temperature ≤ 190 °C

• Vacuuming aluminium and magnesium dusts
• vacuuming of flammable liquids (flammable, easily flammable, highly flammable according to Dangerous Substances Directive 67/548/EEC) (flash point below 55 °C) and mixtures of flammable dusts and liquids
• vacuuming of magnesium dust or powder
• vacuuming of mixtures of flammable liquids and flammable dust
• Vacuuming of smouldering or hot particles where this could otherwise result in a fire or an explosion

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Accessories and spare parts

⚠️DANGER

Risk of explosion when used with non-permitted accessories

Only use accessories permitted by the manufacturer and with the Ex label for type 22 usage.

Only use original accessories and original spare parts. They ensure that the appliance will run safely and fault-free.

Information on accessories and spare parts can be found at www.kaercher.com.

Note

No accessories are included in the scope of delivery. The accessories must be ordered separately depending on the application.

Scope of delivery

Check the contents for completeness when unpacking. In the event of shipping damage, please notify your dealer.

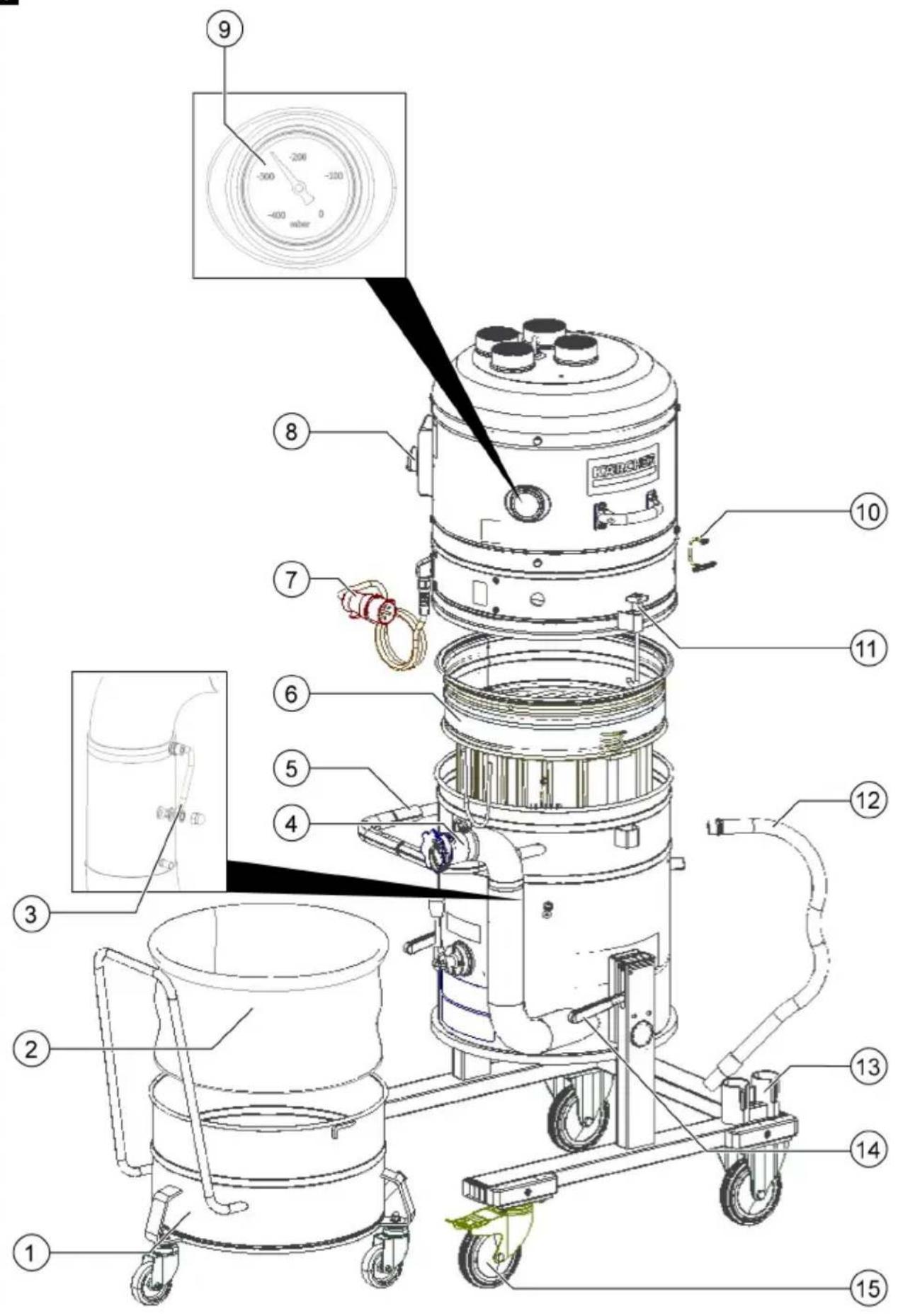

Device description

For the figures, please refer to the graphics pages

Illustration A

①Dirt receptacle
② Dust bag
③ Equipotential bonding cable
④ Suction hose connection
⑤Push handle
⑥filter
⑦Power cable
⑧Power switch
⑨Gauge
⑩ Equipotential bonding cable
⑪Suction head lock
⑫Pressure equalization tube
⑬Accessory holder
⑮ Steering rollers with parking brake

⑭ Lever for lowering the dirt receptacle

Symbols on the device

M ! i M

The device is suitable for vacuuming dusts up to dust class M.

⚠ WARNING

Damage to the skin, lungs and eyes

Expulsion of fine dust during emptying and maintenance work and disposal

Wear the prescribed personal protective gear when performing during emptying and maintenance work, including disposal of the dust bag.

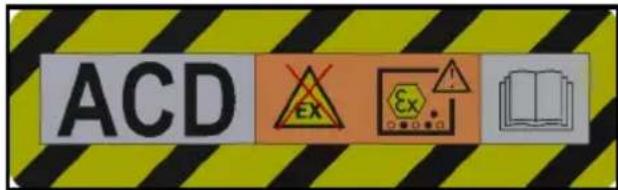

ACD No Ex No Ex Open Book

The device is suitable for vacuuming flammable dusts, installation outside zone 22.

WARNING: This device must not be placed in any zone 22. If a zone 22 is present, an EX-device must be used.

DN 40 MAX XX,X kPa/ XX,X mbar DN 50 MAX XX,X kPa/ XX,X mbar DN 70 MAX XX,X kPa/ XX,X mbar

The maximum vacuum value in relation to the hose cross-section is specified on the label. The actual value can be read on the pressure gauge. For the values applicable to this device, see chapter Reading the minimum volumetric flow. If this value is not reached, the filter must be cleaned (see chapter Cleaning the filter) or replaced (see chapter Replacing the filter). The various different hose cross-sections allow adaptation to the various different connection cross-sections of the accessories.

IVR 60

Dust bag

(Order no. 9.989-606.0)

filter

(Order no. 9.981-681.0)

IVR 100

Dust bag

(Order no. 9.989-607.0)

filter

(Order no. 9.981-681.0)

Initial startup

⚠ WARNING

Potential equalisation line not connected correctly

Electric shock

Every time before use, check whether the equipotential bonding conductor (earthing conductors) are connected.

⚠ WARNING

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Do not vacuum without correctly installed filter elements, otherwise a danger to health from increased fine dust emission is present.

ATTENTION

Missing filter element

Damage to the suction motor

Do not vacuum without a filter element.

1. Bring the device into the working position.
2. Secure the device with the parking brakes.
3. Ensure that the suction head is fitted correctly.
4. Insert the suction hose (not included in the scope of delivery) into the suction connection.
5. Check the filling level in the dirt receptacle (see chapter Check the dirt receptacle filling level).
6. Empty the dirt receptacle if necessary (see chapter Emptying the dirt receptacle).
7. Fit the dust bag before dry vacuuming (see chapter Fitting the dust bag).

Illustration B

1. Fit the desired accessory (not included in the scope of delivery) onto the suction hose.

Closing the suction connection

⚠ WARNING

Risk of injury

Damage to the skin, lungs and eyes through fine dust

The suction connection must be closed using the sealing plug after removing the suction hose.

1. Remove the suction hose.

Illustration C

1. Insert the sealing plug precisely into the suction connection.
2. Push the sealing plug in all the way to the end stop.
3. Turn the sealing plug to the right until the suction connection is tightly closed.

Check the dirt receptacle filling level

The dirt receptacle must be emptied when filled to the lower edge of the suction hose port on the dirt receptacle. The device does not switch off automatically if the maximum filling level is exceeded.

1. Check the dirt receptacle filling level regularly.

Operation

The device is suitable for vacuuming fine dust up to dust class M.

⚠ WARNING

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Do not vacuum without correctly installed filter elements, otherwise a danger to health from increased fine dust emission is present.

ATTENTION

Risk of damage to the suction motor.

Never remove the filter element when vacuuming.

Fitting the dust bag

1. Secure the device with the parking brakes.
2. Disconnect the pressure equalisation hose from the dirt receptacle.

Illustration D

1. Lower the dirt receptacle by pulling up the lever.

Illustration E

1. Pull the dirt receptacle out of the device.

Illustration F

1. Fit the dust bag in the dirt receptacle and carefully position it against the container wall and the container floor.
2. Fold the edge of the dust bag over the edge of the dirt receptacle to the outside.

Illustration E

1. Fit the dirt receptacle in the device.

Illustration D

⚠ WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.

Lock the dirt receptacle by operating the le-vers with both hands.

1. Lock the dirt receptacle with the levers.
2. Fit the pressure equalisation hose on the dirt receptacle.

Removing the dust bag

⚠️DANGER

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.
Accumulated dust must be transported in dust-proof containers. Do not transfer the contents. The dust bag may only be disposed of by qualified staff.

1. Secure the device with the parking brakes.
2. Remove the suction hose if necessary.
3. Disconnect the pressure equalisation hose from the dirt receptacle.

Illustration D

1. Lower the dirt receptacle by pulling up the lever.

Illustration E

1. Pull the dirt receptacle out of the device.

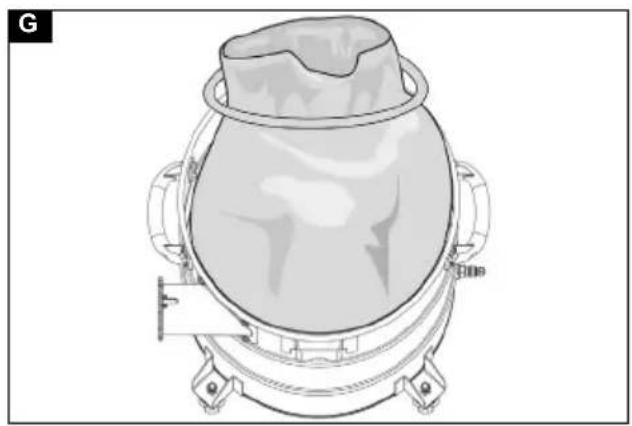

Illustration G

1. Turn up the dust bag.
2. Seal the dust bag tightly with the cable tie.

3. Remove the dust bag.

4. Dispose of the dust bag in accordance with statutory regulations.

Illustration E

1. Fit the dirt receptacle in the device.

Illustration D

⚠ WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.

Lock the dirt receptacle by operating the le-vers with both hands.

1. Lock the dirt receptacle with the levers.
2. Fit the pressure equalisation hose on the dirt receptacle

Switching on the device

1. Plug the mains plug into the socket.
2. Switch on the device at the trigger. Illustration H
3. Start vacuuming.

Reading the minimum volumetric flow

A gauge is mounted on the front of the device that shows the vacuum intensity (see chapter Device description).

The table shows the maximum vacuum intensity value. This value depends on the unit performance and the suction hose used.

ATTENTION

Suction loss

If the specified value is exceeded, the air speed in the suction hose drops below 20 m/s.

Clean the filter when the value is reached, or sooner (see chapter Cleaning the filter. Replace the filter if the value is not significantly reduced by cleaning (see chapter Replacing the filter).

Power Hose diameter Value

3.0 kW DN40 200 mbar (20 kPA)

3.0 kW DN50 150 mbar (15 kPA)

4.0 kW DN40 226 mbar (22.6 kPA)

4.0 kW DN50 216 mbar (21.6 kPA)

- Clean the filter before or when the specified value is reached.

Cleaning the filter

Note

Clean the filter regularly to avoid declining suction power.

Illustration I

1. Move the filter cleaning handle back and forth several times to clean the filter.

Switching off the device

1. Switch off the device at the On/Off switch.

2. Empty and clean the dirt receptacle.

3. Remove the accessory and clean and dry if necessary.

Each time after use Emptying the dirt receptacle

The dirt receptacle must be emptied as required and after each use and cleaned inside and out by vacuuming and wiping with a damp cloth.

A vacuum cleaner with the same or better classification must be used for vacuuming the device.

1. Switch off the device and disconnect from the mains supply.

2. Clean the filter.

3. Remove the dirt receptacle from the device and replace the dust bag (see chapter Replacing the dust bag).

Note

Only move the dirt receptacle on its rollers. Do not use a crane, forklift or similar means.

Removing the suction head

△CAUTION

Failure to observe the weight

Risk of injury and damage

Only lift the suction head. Because of its weight, do not remove the suction head by hand.

⚠️DANGER

Failure to observe the weight

Risk of injury from falling device

Observe the applicable accident prevention guidelines and safety instructions.

Every time before lifting, check to ensure correct functioning of the lifting device.

Only lift the device via the provided crane grommet.

Ensure that there will be no unintentional unhooking of the lifted load.

The crane may exclusively be operated by qualified staff.

No people may be located within the hazard zone of the crane.

Do not leave the device hanging unattended on the crane.

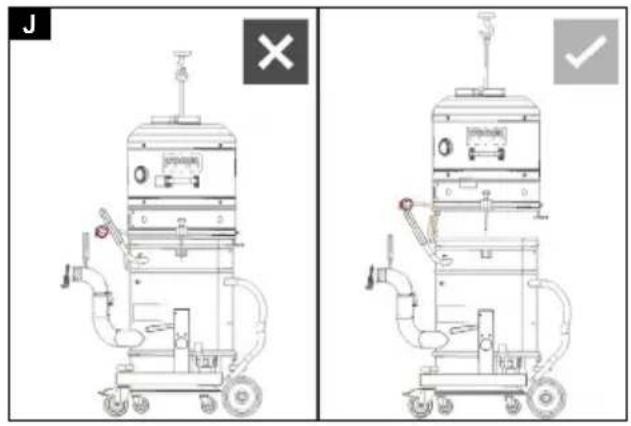

Illustration J

1. Switch off the device and disconnect it from the mains supply.

2. Open the suction head lock.

3. Attach a suitable hoist to the crane grommet.

4. Use the crane to lift the suction head and place it on a suitable surface.

Storing the device

1. Wind the mains cable onto the cable holders.

2. Store the device in a dry room and secure it against unauthorised use.

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

The dirt receptacle is emptied.

1. Close the suction connection for dust-free transport (see chapter Closing the suction connection).

2. Release the parking brakes and push the device by the push handle.

3. Grasp the device by the chassis and the push handle for loading.
4. Secure the device against slipping and tipping over when transporting in vehicles.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Only store the device on level surfaces to prevent it from tipping over.

Be aware of the weight of the device during storage.

The dirt receptacle is emptied.

1. Store the device indoors only.

Care and maintenance

⚠️DANGER

Inadvertently starting up device, touching live components

Risk of injury, electric shock

Switch off the device before performing any work on the device.

Remove the mains plug.

⚠️DANGER

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Wear a breathing protection mask of class P2 or higher and disposable clothing when performing maintenance work (e.g. filter change).

⚠ WARNING

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Safety devices providing hazard protection must be checked for correct safety-related functionality at least annually by the manufacturer or an appropriately instruction person, e.g. absence of leaks, filter damage, functionality of the monitoring devices.

ATTENTION

Care agents containing silicone

These can attach plastic components.

Do not use care agents containing silicone for cleaning.

Dust extraction machines are safety devices for the prevention or elimination of hazards according to the DGUV regulation:

- For servicing performed by the user, the device must be disassembled, cleaned and maintained only to the degree that this is possible without presenting a danger to the maintenance personnel and other persons. Suitable precautionary measures include detoxification before disassembly. Make provisions for local forced ventilation at the location where the device is to be disassembled, for cleaning the maintenance surface and to ensure adequate protection for the personnel.

• The exterior of the device should be detoxified by vacuuming and wiped clean, or treated with sealant before being removed from the hazardous area. All device parts must be regarded as contaminated when they are taken from the hazardous area. Suitable measures must be taken to prevent distribution of the dust.
• All contaminated objects resulting from maintenance and repair work that cannot be satisfactorily cleaned must be correctly disposed of. Such objects must be disposed of in sealed bags in accordance with the applicable regulations for the disposal of this type of waste.
• The suction hose ports are to be closed using the sealing plugs during transport and maintenance of the device.
• Note that you can carry out simple maintenance and care work yourself.
• Clean the surface of the device and the interior of the container regularly with a moist cloth.

Inspection and maintenance work

Have the device regularly inspected according to the respective national accident prevention regulations. Maintenance work as specified by the manufacturer must be performed by a technically qualified person at the specified regular intervals and in accordance with the applicable regulations and safety requirements. Work on electrical components may only be performed by a qualified electrician. Please contact a KÄRCHER branch office if you have any questions.

Replacing the filter

⚠️DANGER

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Accumulated dust must be transported in dust-proof containers. Do not transfer the contents. The dust bag may only be disposed of by qualified staff.

⚠ WARNING

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Do not use the filter element after removing it from the device.

Permanently installed filters may only be replaced in suitable areas, e.g. in so-called decontamination stations) by a technical expert.

Illustration K

①Clamping ring
②filter
③Nuts
④Cleaning fixture

1. Remove the suction head, see chapter Removing the suction head.
2. Remove the filter unit from the device using the handles and turn it over. Illustration L
3. Remove the nuts and remove the cleaning fixture.

4. Loosen the clamping ring screw connection.

5. Remove the filter.

6. Dispose of the foam filter.
7. Fit a new filter.
8. Insert the new foam filter.
9. Fit the tensioning ring and screw it in place.
10. Fit the cleaning device and screw it on.
11. Insert the filter inlay.

In doing so, make sure the tab on the filter inlay fits into the shaft.

Illustration M

Replacing the dust bag

⚠️DANGER

Danger from dust that is harmful to your health

Respiratory sicknesses through inhalation of dust.

Accumulated dust must be transported in dust-proof containers. Do not transfer the contents. The dust bag may only be disposed of by qualified staff.

1. Secure the device with the parking brakes.
2. Remove the suction hose if necessary.
3. Disconnect the pressure equalisation hose from the dirt receptacle.

Illustration D

1. Lower the dirt receptacle by pulling up the lever.

Illustration E

1. Pull the dirt receptacle out of the device.

Illustration G

1. Turn up the dust bag.
2. Seal the dust bag tightly with the cable tie.
3. Remove the dust bag.
4. Dispose of the dust bag in accordance with statutory regulations.

Illustration F

1. Insert the new dust bag in the dirt receptacle and carefully place it against the container wall and the container floor.
2. Fold the edge of the dust bag over the edge of the dirt receptacle to the outside.

Illustration E

1. Fit the dirt receptacle in the device.

Illustration D

⚠ WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.

Lock the dirt receptacle by operating the le-vers with both hands.

1. Lock the dirt receptacle with the levers.

2. Fit the pressure equalisation hose on the dirt receptacle.

Troubleshooting guide

⚠️DANGER

Risk of injury

Danger of the device unintentionally starting and danger of electric shock

Switch off the device and unplug the mains plug before performing any work on the device.

Have all checks and work on electrical parts performed by an qualified technician.

The motor (suction turbine) does not start up

No electrical voltage present

• Check the socket and the power supply fuse.
• Check the mains cable and the mains plug of the device.

The suction power decreases

Nozzle, suction hose or suction pipe clogged.

• Check the nozzle, the suction hose and the suction pipe and clean if necessary.
  The filter is dirty.
• Clean the filter.

Disposal

At the end of its service life, the device is to be disposed of in accordance with statutory regulations.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Technical data

			IVR 40/30 Sc M ACD	IVR 60/30 Sc M ACD	IVR100/30 Sc M ACD	IVR100/40 Sc M ACD
Electrical connection
Mains voltage V 400 400 400 400
P	h	a	s	e	~	3
Power frequency Hz 50 50 50 50
Protection type IPX4 IPX4 IPX4 IPX4
P	r	o	t	e	c	t
Nominal power			W	3000	3000	3000
Power protection (slow-blowing)			A 16 16 16 32
Dimensions and weights
Typical operating weight			kg 131	154 159 184
Length x width x height			mm	855 x 715 x 1530	855 x 760 x 1675	855 x 760 x 1975
						760 x 2095
Filter area			m2	1,75	1,75	1,75
Ambient conditions
Storage temperature			°C	-10-40	-10-40	-10-40
Device performance data
Container capacity			l	40 60 100	100
Air quantity			l/s	87,5	87,5	87,5
Air flow volume during operation			l/s	56,5	56,5	56,5
Vacuum			kPa (mbar)	26 (260)	26 (260)	26 (260)
Operating pressure			kPa (mbar)	21 (210)	21 (210)	21 (210)
Suction hose connection				DN70	DN70	DN70
Nominal width of the suction hose				DN40/50	DN40/50	DN40/50
Filter order number				9.981-681.0	9.981-681.0	9.981-681.0
Determined values in acc. with EN 60335-2-69
Hand-arm vibration value			m/s2	<2,5	<2,5	<2,5
K uncertainty			m/s2	0,2	0,2	0,2
Sound pressure level LpA			dB(A)	62	62	62
Uncertainty KpA			d	B	(	A)
Mains cable
Mains cable H07BQ-F			mm2	4 x 2.5	4 x 2.5	4 x 2.5
Part number (EU)				9.979-856.0	9.979-856.0	9.979-856.0
Cable length			m	7,5	7,5	7,5

Subject to technical modifications.

EU Declaration of Conformity

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us.

Product: Dry vacuum cleaner

Product: Wet/dry vacuum cleaner

Type: 9.990-xxx

Directives and Regulations

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

Harmonised standards used

EN 60335-1

EN 60335-2-69

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN IEC 61000-3-2: 2019

EN 61000-3-11: 2000

EN 62233: 2008

EN IEC 63000: 2018

Non-harmonised standards used

IEC 60335-1

IEC 60335-2-69

Name and address

Documentation supervisor:

A. Haag

Kärcher Industrial Vacuuming GmbH

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

T. Wahl

Managing Director

A. Haag

Director R&D

Waldstetten, 24/11/01

The signatories act on behalf of and with the authority of the Executive Board.

Kärcher Industrial Vacuuming GmbH

73550 Waldstetten (Germany)

Ph.: [phone]

Fax: [phone]

Contenu

ACD EX Ex Open Book

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

73550 Waldstetten (Germany)

Tél. : [phone]

T. Wahl
Managing Director

A. Haag
Director R&D

Waldstetten, le 01/11/24

73550 Waldstetten (Germany)

Tél. : [phone]

ACD EX Ex Education

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

T. Wahl
Managing Director

A. Haag
Director R&D

Waldstetten, 01/11/24

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

ACD EX Ex C O D

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

T. Wahl
Managing Director

A. Haag
Director R&D

Waldstetten, 24/11/01

ACD EX Ex O D D

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

T. Wahl
Managing Director

A. Haag
Director R&D

Waldstetten, 24/11/01

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

İçindekiler

ACD EX Ex

T. Wahl Managing Director

A. Haag Director R&D

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

T. Wahl
Managing Director

A. Haag
Director R&D

73550 Waldstetten (Germany)

Tfn: [phone]

Fax: [phone]

Sisältö

73550 Waldstetten (Germany)

73550 Waldstetten (Germany)

2006/42/EF (+2009/127/EF)

2014/30/EU

2011/65/EU

Anvendte harmoniserte standarder

EN 60335-1

EN 60335-2-69

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN IEC 61000-3-2: 2019

EN 61000-3-11: 2000

EN 62233: 2008

EN IEC 63000: 2018

73550 Waldstetten (Germany)

Tlf.: [phone]

Faks: [phone]

T. Wahl

Managing Director

A. Haag

Director R&D

Waldstetten, 24/11/01

73550 Waldstetten (Germany)

Tlf.: [phone]

Faks: [phone]

Indhold

ACD EX EX O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O... EX EX O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...O...

2006/42/EF (+2009/127/EF)

2014/30/EU

2011/65/EU

73550 Waldstetten (Germany)

Tlf.: [phone]

Fax: [phone]

T. Wahl

Managing Director

A. Haag

Director R&D

Waldstetten, 24/11/01

73550 Waldstetten (Germany)

Tlf.: [phone]

Fax: [phone]

Sisukord

Üldjuhised 139

Ohutusjuhised 139

Sihtotstarbeline kasutamine.... 140

2006/42/EÜ (+2009/127/EÜ)

2014/30/EL

2011/65/EL

73550 Waldstetten (Germany)

Tel: [phone]

Faks: [phone]

T. Wahl

Managing Director

A. Haag

Director R&D

Waldstetten, 24/11/01

73550 Waldstetten (Germany)

Tel: [phone]

Faks: [phone]

Saturs

ACD EX Ex

T. Wahl
Managing Director

A. Haag
Director R&D

T. Wahl Managing Director

A. Haag Director R&D

ACD EX Ex

T. Wahl
Managing Director

A. Haag
Director R&D

2006/42/ES (+2009/127/ES)

2014/30/EU

2011/65/EU

T. Wahl
Managing Director

A. Haag
Director R&D

Waldstetten, 24/11/01

ACD EX Ex C O P U

2006/42/ES (+2009/127/ES)

2014/30/EÚ

2011/65/EÚ

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

T. Wahl
Managing Director

A. Haag
Director R&D

73550 Waldstetten (Germany)

Tel.: [phone]

Fax: [phone]

Kazalo

Splošni napotki.... 215

Varnostna navodila 215

Namenska uporaba.... 217

Zaščita okolja 217

Pribor in nadomestni deli.... 217

Obseg dobave.... 217

Opis naprave.... 218

Simboli na napravi.... 218

Zagon....218

Obratovanje.... 219

Prevažanje 221

2006/42/ES (+2009/127/ES)

2014/30/EU

2011/65/EU

T. Wahl
Managing Director

A. Haag
Director R&D

Waldstetten, 24/11/01

ACD EX Ex

Uređaj je prikladan za usisavanje gorive prašine, postavljanje izvan zone 22.

UPOZORENJE: Ovaj se uređaj ne smije postavljati u zoni 22. Ako postoji zona 22, mora se upotrebljavati Ex uređaj.

DN 40 MAX XX,X kPa/ XX,X mbar DN 50 MAX XX,X kPa/ XX,X mbar DN 70 MAX XX,X kPa/ XX,X mbar

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2011/65/EU

73550 Waldstetten (Germany)

Tel.: [phone]

Faks: [phone]

T. Wahl

Managing Director

A. Haag

Director R&D

73550 Waldstetten (Germany)

Tel.: [phone]

Telefaks: [phone]

Sadržaj

Opšte napomene.... 248

Sigurnosne napomene.... 248

Namenska upotreba.... 250

T. Wahl Managing Director

A. Haag Director R&D

Waldstetten, 24/11/01 Potpisnici deluju u ime i uz punomoć rukovodstva. Kärcher Industrijsko usisavanje GmbH Robert-Bosch-Straße 4-8 73550 Waldstetten (Nemačka) Tel.: [phone] Faks: [phone]

Περιεχόμενα

ACD EX Ex

73550 Waldstetten (Germany)

Tηλ.: [phone]

Φαξ: [phone]

T. Wahl

Managing Director

A. Haag

Director R&D

Waldstetten, 24/11/01

73550 Waldstetten (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Содержание

Общие указания 272

ACD EX Ex

T. Wahl Managing Director

A. Haag Director R&D

T. Wahl
Managing Director

A. Haag
Director R&D

ACD EX Ex C O D E I

Icon showing a gear and wrench inside a square frame (no text or symbols)

http://www.kaercher.com/dealersearch

QR code image containing a central logo, likely linking to a digital resource or website.
