Roller Furia 2 - Speaker NGS - Free user manual and instructions

Product type	Portable Bluetooth speaker
Brand	NGS
Model	Roller Furia 2
Output power	30 W
RMS power	15 W
Power supply	Lithium-ion battery 7.4 V / 2500 mAh
Battery life	Up to 9 hours at 50% volume (without lights)
Charging time	Approximately 4 hours (via USB-C)
Connectivity	Bluetooth 5.0 (range 10 m), AUX 3.5 mm jack, USB input, TF card reader
Audio functions	MP3/WAV/WMA playback, FM radio, hands-free kit
TWS function	Pair two speakers for stereo sound
Waterproof rating	IPX7 (protection against temporary immersion)
Controls	Touch buttons: volume, track change, power on/off, mode, play/pause, Bluetooth, TWS
Frequency band	2402 - 2480 MHz
Maximum RF power	-2.45 dBm
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to heat sources, do not open the device. Use only the supplied charger.
Spare parts and repairability	The battery is a consumable with a 12-month warranty. For any repair, contact an authorized center.

Frequently Asked Questions - Roller Furia 2 NGS

How do I connect my phone via Bluetooth?

Turn on the speaker by pressing and holding the Power button for 3 seconds. The indicator light flashes. On your phone, search for "NGS Roller Furia" in Bluetooth settings and pair. The light becomes steady when the connection is established.

How to use the TWS function to pair two speakers?

Press the TWS button twice on each speaker to clear the existing pairing memory. Then, on the main speaker, briefly press TWS to enter TWS mode. The two speakers will connect automatically.

How do I charge the speaker?

Use the supplied USB-C cable and plug it into a power adapter (not included). The red LED indicator flashes during charging and turns off when fully charged.

Can I use the speaker while charging?

Yes, you can use the speaker while charging, but it may increase the charging time.

How do I switch to FM radio mode?

Briefly press the Power button to cycle through modes until you reach FM mode. Then, press and hold the Play/Pause button to start automatic station search.

What if the speaker does not turn on?

Check that the battery is charged. Plug the speaker into a power source and wait a few minutes before trying again. If the problem persists, contact after-sales service.

Is the speaker waterproof?

Yes, the speaker has an IPX7 rating, meaning it can be submerged in water up to 1 meter for 30 minutes. However, do not submerge it intentionally and dry it after use.

How do I reset the speaker to factory settings?

There is no reset procedure described in the manual. You can clear the Bluetooth pairing by pressing and holding the Bluetooth button for 3 seconds. For TWS memory, press the TWS button twice.

What audio formats are supported via USB/TF?

MP3, WAV, and WMA formats are supported. The maximum capacity of the USB drive or TF card is 32 GB.

How do I clean the speaker?

Use a soft, dry cloth to clean the surface. Do not use abrasive products or solvents. Avoid letting water enter the openings (charging port, jacks).

USER MANUAL Roller Furia 2 NGS

SLOVENSCINA I SRPSKI I NORSK I SUOMI I SVENSKA I DANSK I LIETUVIJ

www.ngs.eu

USER'S MANUAL

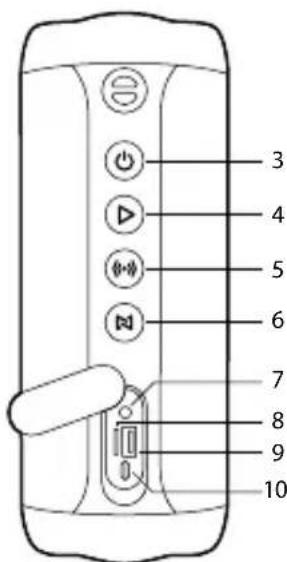

CONTROL BUTTONS

1 Volume +/Next track

Long press: Next track

Short press: Volume +

2 Volume - / Previous track

Long press: Previous track

Short press: Volume -

3 On/Off

Long press: Power on/off

Short press: Mode switching

4 Play / Pause

Short press: play/pause

Short press twice: Switch the passive radiator and beam's music playing light mode

Long press in FM mode: Search and save channels

5 Wireless

Short press: Enter Bluetooth mode

Short press: Pick up the phone call / Hang up the call

Short press twice: Reject the phone call

Long press: Disconnect the current Bluetooth paring

6 TWS

Short press: Enter/Exit TWS mode

Short press twice: Clear the TWS pairing memory

7 AUX IN audio input
8 TF audio input
9 USB audio input
10 USB-C charging port

BLUETOOTH MODE HOW TO CHARGE?

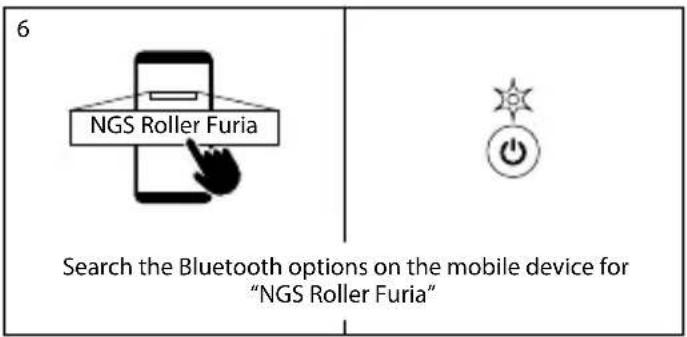

1 Press and hold the button for 3 seconds to switch on the speaker	2 The LED will flash because the speaker is in search mode
3 NGS Roller Furia Search for NGS Roller Furia in the Bluetooth options of the mobile device	4 Fixed LED: connected

	Red LED flashing: 100% charging 75% 50% LED switched off: 25% charged
Note: Press and hold the +/- buttons simultaneously for 1.5 seconds to check the battery level

USER'S MANUAL

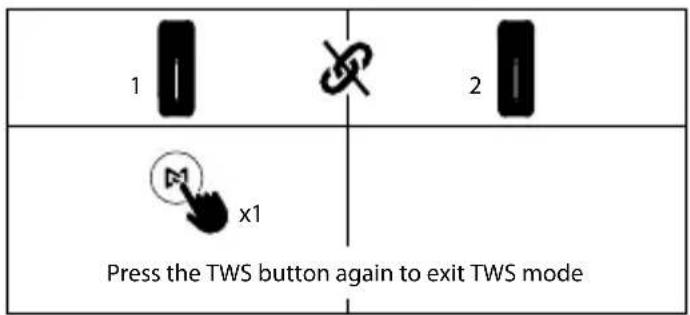

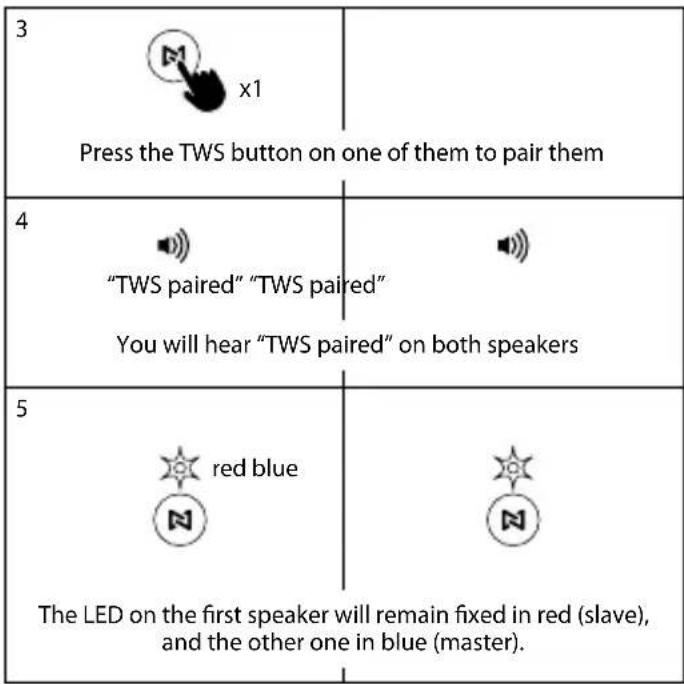

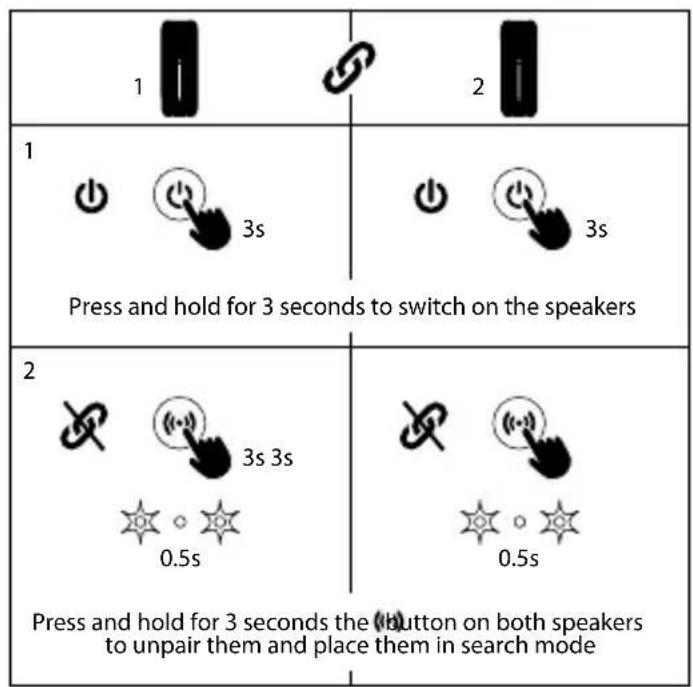

TWS

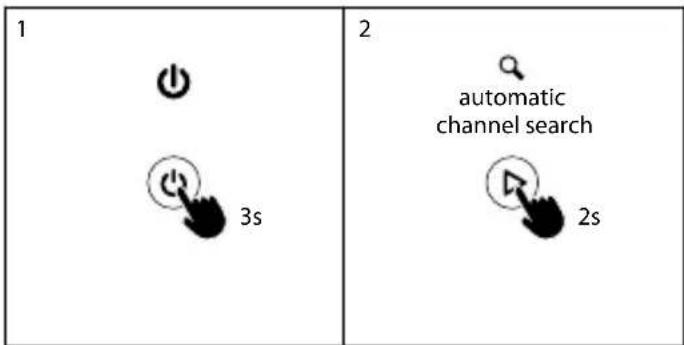

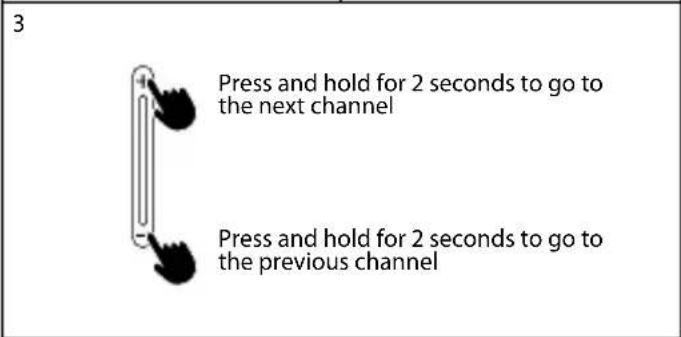

RADIO MODE

USER'S MANUAL

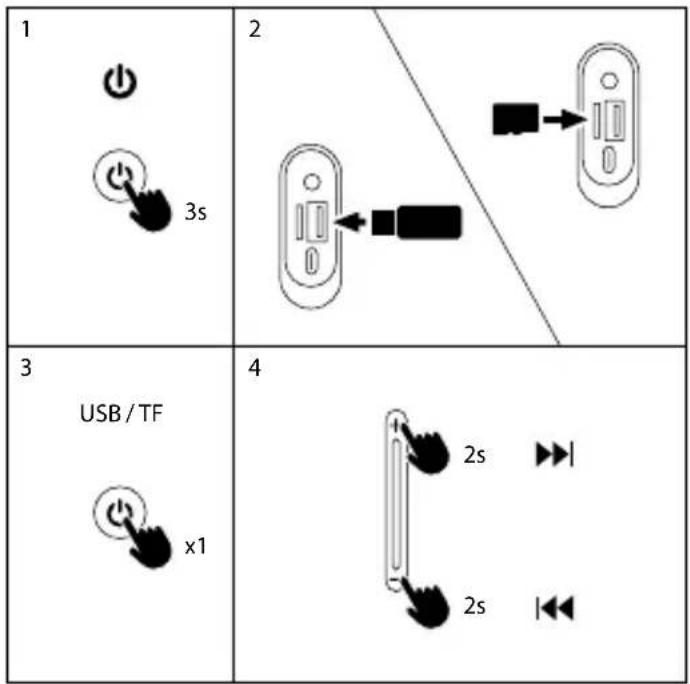

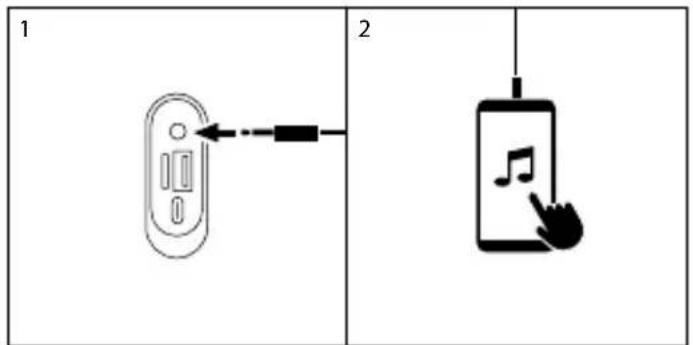

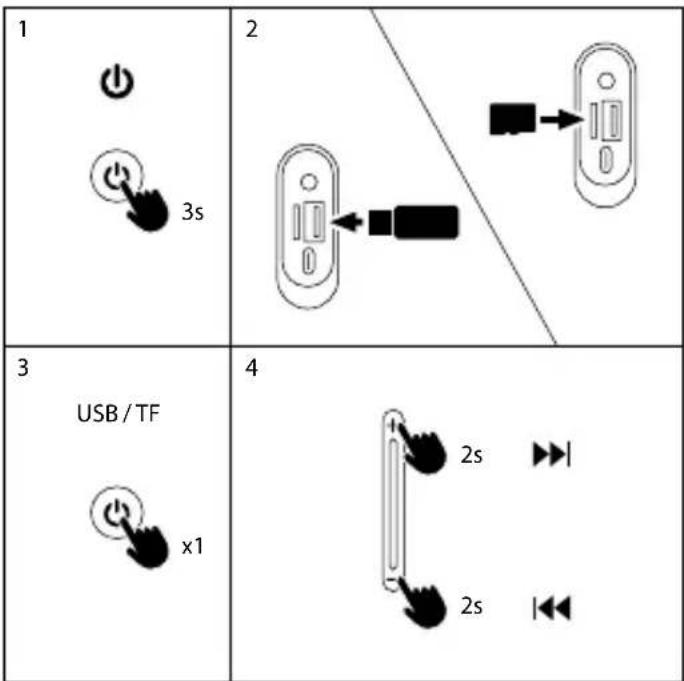

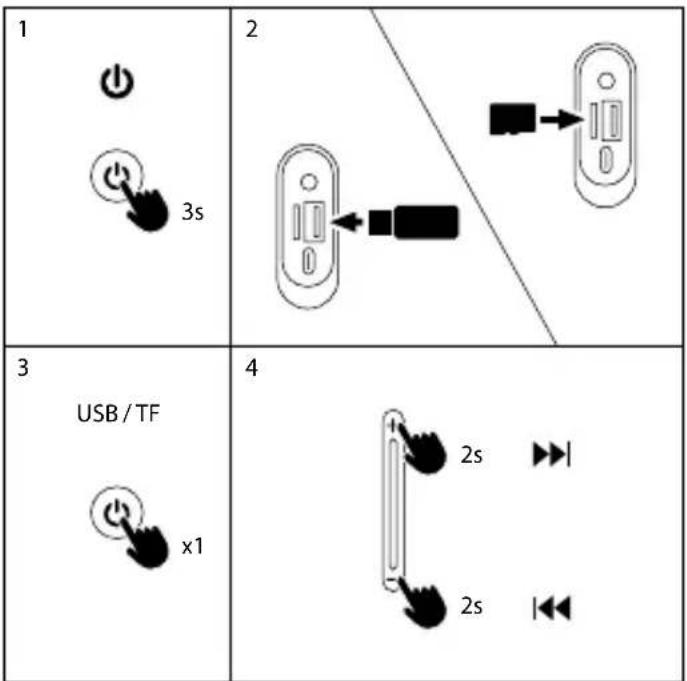

AUX IN MODEUSB/TF MODE

TECHNICAL SPECIFICATIONS

Compatible with bluetooth 5.3 5.3

TWS (get double power connecting

2 speakers at the same time without

cables) Yes Yes

Output power 30W 60W

RMS power 15W 30W

AUX audio input Yes Yes

USB audio input up to 32GB Yes Yes

TF audio input up to 32GB Yes Yes

Volume control Yes Yes

Battery Ion-Li 7.4V/2500mAh Ion-Li 7.4V/5000mAh

Battery life 6 hours*

Waterproof IPX7 IPX7

Operation frequency

Max. RF output power -2.45dBm

Powerbank No Yes

Audio formats MP3/WAV/WMA MP3/WAV/WMA

6 hours*

2402-2480MHz

Battery warranty

The battery is a consumer product, and as such it is under warranty for 12 months.

• with lights

8 hours at 50% volume

5 hours at 70% volume

4 hours at 100% volume

without lights

9 hours at 50% volume

6 hours at 70% volume

5 hours at 100% volume

USER'S MANUAL

SECURITY

IMPORTANT SAFETY INSTRUCTIONS

For all products:

1. Read and follow the instructions.
2. Keep the instructions in a safe place.
3. Observe the warnings.
4. Do not block the ventilation openings. Install according to the instructions.
5. Do not install near any heat sources such as radiators, heating vents, stoves, or other appliances (including amplifiers) that generate heat.
6. Avoid stepping on or pinching the power cord, especially at plugs, outlets, and the point where it exits the product.
7. Use only the accessories and auxiliary products specified in the product.
8. Take care when transporting the product to prevent damage.
9. Unplug the device during thunderstorms or when not in use for an extended period.
10. The power cable supplied for the device must remain ready for reuse.
11. Do not expose batteries to excessive heat such as direct sunlight or fire, as well as moisture in the area where you intend to use and/or store it.
12. This device is intended for use only with the power supply and/or charging cable provided by the manufacturer.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

The symbol refers to "dangerous voltage" inside the product's cabinet that, when misused and disassembled, may result in electric shock to people.

The symbol refers to "important instructions" for operation and maintenance (repairs).

WARNING:

The manufacturer disclaims all responsibility for damage or deterioration caused by unauthorized modifications.

FOR ALL EUROPEAN UNION COUNTRIES:

For products including audio output

Hearing loss prevention

Caution: Hearing loss may occur if headphones or earphones are used at high volume for extended periods. The products have been tested to verify compliance with the sound pressure level requirements established in the applicable standards NF EN 50332-1:2013 and/or EN 50332-2:2013 required by French Article L.5232-1.

Important: To prevent potential hearing damage, do not listen at high volume for extended periods.

This device complies with the European Union requirements (2014/53/UE) related to the limitation of the general public's exposure to electromagnetic fields concerning health protection.

The limits are part of broad recommendations for the protection of the general public. These recommendations have been developed and verified by independent scientific organizations through frequent and thorough assessments of scientific studies. The measurement unit for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the average SAR limit is 20W / kg over 10 grams of body tissue.

Lurbe Grup S.A. complies with the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

In the case of body-worn use, this product has been tested and complies with the ICNIRP exposure guidelines and the European standard EN 62479 and EN 50663. The SAR value has been measured with the device positioned 1.0cm away from the body while transmitting at the highest certified output power level across all frequency bands of the mobile device.

WEEE Notice: The Waste Electrical and Electronic Equipment (WEEE) Directive, which came into force as European law on 14/02/2014, addresses the treatment of electronic equipment at the end of its life cycle. Priority is given to reuse, recycling, and other forms of recovery of such waste to minimize disposal. The WEEE logo is the one found in this section.

This product should not be disposed of with household waste. It is your responsibility to properly dispose of all waste from your electrical equipment, and for this purpose, you must take them to the designated collection point for the recycling of such hazardous waste. The separate collection and proper recovery of waste from your electrical and electronic equipment at the time of disposal allows us to help preserve natural resources and ensure the safety of human health and the environment. For more information on disposal, recovery, and collection points for electrical and electronic equipment waste, please contact your local city center, domestic waste disposal service, the store where you purchased the equipment, or the equipment manufacturer.

USER'S MANUAL

Compliance with RoHS requirements.

This product complies with Directive 2011/65/EU and its amendment (EU) 2015/863 of the European Parliament and the Council of June 4, 2015, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products that include batteries.

EU Directive 2013/56/EU on batteries.

The new Directive 2013/56/EU on batteries and accumulators, which replaces the previous directive, came into force on 01/07/2015. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead-acid, rechargeable), including those incorporated into appliances, except for military, medical, and power tool applications. The directive sets standards for the collection, treatment, recycling, and disposal of batteries and aims to prohibit certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

User instructions for extraction, recycling, and disposal of used batteries.

To remove the batteries from the equipment or remote control, reverse the battery insertion process described in the owner's manual.

In the case of products with built-in batteries that last for the entire product's lifespan, it is not possible for the user to remove the batteries. In these cases, recycling or recovery centers handle the dismantling of the product and the extraction of the batteries. If, for any reason, it is necessary to replace one of these batteries, the procedure must be carried out at authorized service centers.

In the European Union and other locations, it is prohibited to dispose of batteries with household waste. All batteries must be disposed of in an environmentally friendly manner. Please contact local waste management officials for information on safe collection, recycling, and disposal of used batteries.

WARNING: Risk of explosion if the battery is replaced incorrectly. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short-circuit external contacts, expose to temperatures above 60^ (140^) , or dispose of in fire or water. Replace only with specified batteries.

The symbol for separate collection of all batteries and accumulators is shown in this section.

Batteries, accumulators, and button cells containing more than 0.0005% mercury, more than 0.002% cadmium, or more than 0.004% lead will be marked with the relevant chemical symbol: Hg, Cd, or Pb, respectively. Refer to the symbol shown below:

ENGLISH

BOUTONS DE COMMANDE

Appui long: Allumer/eteindre

Appui court: Lecture/pause

Akumulator Ion-Li 7.4V/2500mAh Ion-Li 7.4V/5000mAh

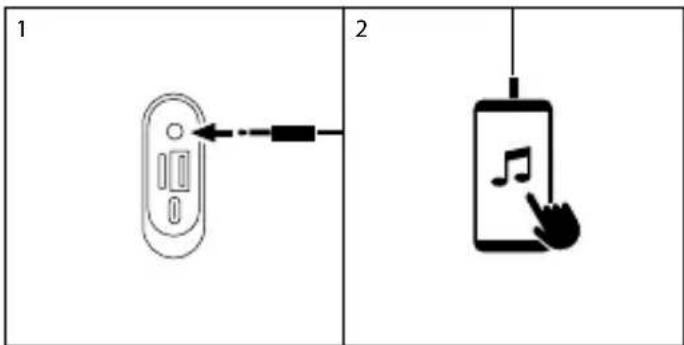

REŽIM AUX INREŽIM USB/TF

TECHNICKÉ SPECIFIKACE

REŽIM AUX INREŽIM USB/TF

TECHNICKE šPECIFKÁCIE

BLUETOOTH MOD HOGYAN KELL TÖLTENI?

Compatible with bluetooth 5.3 5.3

TWS (get double power connecting

2 speakers at the same time without

cables) Da Da

Output power 30W 60W

RMS power 15W 30W

AUX audio input Da Da

USB audio input up to 32GB Da Da

TF audio input up to 32GB Da Da

Volume control Da Da

Battery Ion-Li 7.4V/2500mAh Ion-Li 7.4V/5000mAh

Battery life 6 ur* 6 ur*

Waterproof IPX7 IPX7

Operation frequency

Max. RF output power

Powerbank Ne Da

Zvočni formati

2402-2480MHz

-2.45dBm

MP3/WAV/WMA

2402-2480MHz

-2.41dBm

MP3/WAV/WMA

• z lučmi

8 ur pri 50% glasnosti

5 ur pri 70% glasnosti

Overholdelse at RoHS.

EU DECLARATION OF CONFORMITY

DECLARACION UE DE CONFORMIDAD
DECLARATION "UE" DE CONFORMITE
DECLARacao DE CONFORMIDADE DA UE
DICHIARAZIONE DI CONFORMITA DELL'UE
EU-KONFORMITATSERKLARING

The undersigned, on behalf of the manufacturer:

NGS.

LURBE GRUP, S.A.

Calle Portuetxe, 27

20018 - San Sebastián, Guipuzcoa (Spain)

Declarsthat the design and construction of the PRODUCT/

This declaration of conformity is issued the sole responsibility of the manufacturer.

Complies with the relevant Union harmonisation legislation / Cumple con la législation de armonizacion de la Unión pertinente / Conforme à la législation d'harmonisation de l'Union applicable / Atende à législation de harmonização da União pertinente / É conforme alla législation di armonizzazione dell'Unione pertinente / Entspricht der einschlädigten Unionsharmonisierungsgesetzgebung /

2014/53/UE - RED 2011/65/UE - ROHS amended by 2015/863/UE Replamento (CE) n° 1907/2006 Replamento UE 2019/1021

References to the relevant harmonised standards used or references to the other technical specifications / Referencias a las normas armonizadas pertinentes realizadas o referencias a outras espécificacioneséticas / References aux normes harmonisées pertinentes utilisées ou références aux autres specifications techniques / Referências às normas harmonizadas relevantes realizadas ou référencias a outras espécificações técnicas / Riferimento alle norme armonizzate pertinenti realizaze o riferimento ad autre specifiche tecniche / Verweise auf die relevanten harmonisierten Normen oder Verweise auf andere tecnische Spezifikationen /

Safety (Art. 3.1 (a) of RE Directive): EN IEC 62368-1:2020 EN 62311:2020 EMC (Art. 3.1 (b) of RE Directive): EN 55032:2015+A11:2020 EN 55035:2017+A11:2020 EN 301 489-1 Radio (Art. 3.2 of RE Directive): EN 300 328 ROHS: EN IEC 63000:2018

Date of issue of this declaration of conformity:

25/09/2023

SIGNATURE

RAUL MARTIN

PRODUCT MANAGER

NGS

technical support: www.ngs.eu/support

www.ngs.eu
