USER MANUAL Ovation B-2805FC Chauvet

Technical line drawing of a long rectangular structural beam with circular holes, supported by two supports (no text or symbols)

About This Guide

The Ovation B-2805FC Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
  • DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
  • DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
  • ONLY use the mounting brackets or the handles to carry this product. Do not carry by the moving head.
  • In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Ovation B-2805FC

• Neutrik® powerCON® power cord

• Wall washing filter

• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 2 Ovation B-2805FC products at 120 V, 3 products at 208 V, or 4 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing The Fuse

1. Disconnect this product from power
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

Signal Connections

You can link the Ovation B-2805FC to a controller or controller software using a DMX connection or an Ethernet connection. If using other Art-Net™ or sACN-compatible products with the Ovation B-2805FC, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Control Personalities

The Ovation B-2805FC uses DMX, Art-Net™, and sACN for its 32 control personalities, ranging from 3CH to 135CH in 1-cell modes, 2-cell modes, 5-cell modes, and 10-cell modes:

Mode	1-Cell	2-Cell	5-Cell	10-Cell
DMX-VCW-CCT	3	N/A	N/A	N/A
HSV	3	6	15	30
RGB	3	6	15	30
RGBA	4	8	20	40
RGBAL	5	10	25	50
RGB EXT	8	15	33	63
RGBA EXT	9	17	38	73
RGBAL EXT 10	19	43	83
RGBAL Fine	10	20	50	100
RGBAL FULL	17	31	70	135

DMX Connection

The Ovation B-2805FC will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is available from www.chauvetprofessional.com.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network.

Master/Slave Connection

The Ovation B-2805FC uses the DMX data connection for its Master/Slave mode. See the User Manual for information about connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation B-2805FC supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

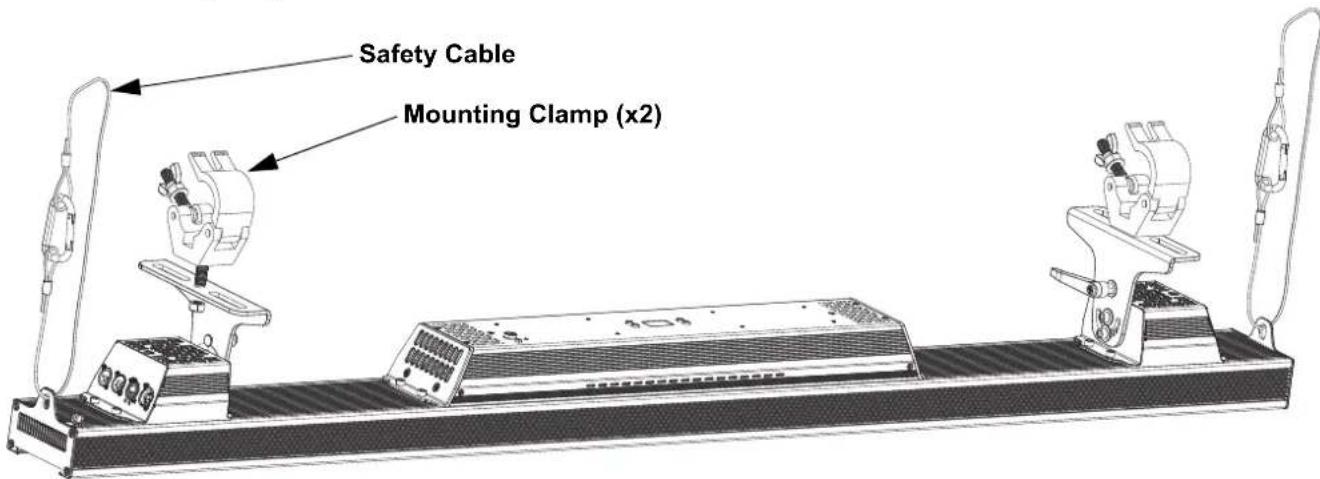

Product Mounting Diagram

Safety Cable Mounting Clamp (x2)

Overhead Mounting

Technical line drawing of a long rectangular industrial or structural component with circular holes and mounting feet (no text or symbols)

Floor Mounting

Web Server

The Ovation B-2805FC Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control protocol and starting address, color output testing, and the ability to change the Web Server password.

To access the Web Server:

1. Set the IP address of the network to have the same first digit as the IP address of the product.
2. Enter the IP address of the product into the URL bar of a web browser application.
3. Enter both the user name and password as admin to log in.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Virtual Color Wheel (VCW)

The Ovation B-2805FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a stand-alone control mode for manual use and also as a control channel in select DMX personalities. More than 30 pre-mixed colors, custom blended by our engineers, are available to call up for easier programming. The DMX values used to mix these colors are provided below. You may adjust the overall intensity of the Ovation fixture in order to more closely replicate colors you are familiar with. A chart is available on our website www.chauvetprofessional.com to compare our pre-mixed colors with popular gel colors. This chart is for comparison purposes only and is not a representation that our pre-mixed colors match any of the gel colors listed.

Virtual Color Wheel Chart

DMX Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ⇔ 005	- 000 000 000 000 000
006 ⇔ 013	C3050 - Md Yellow	233	163	020	123	255
014 ⇔ 021	C3040 - Lt Yellow	224	158	047	255	231
022 ⇔ 028	C3240 - Amb Yellow	180	060	000	245	255
029 ⇔ 035	C2340 - VLt Amber	245	107	081	255	213
036 ⇔ 043	C2040 - Lt Amber	230	130	062	255	155
044 ⇔ 051	C2050 - Md Amber	255	000	025	255	194
052 ⇔ 059	C2060 - Dk Amber	255	000	024	255	150
060 ⇔ 067	C1050 - Lt Red	255	037	027	030	038
068 ⇔ 075	C1080 - Md Red	255	004	017	000	000
076 ⇔ 083	C1020 - NC Pink	238	135	129	255	255
084 ⇔ 091	C1030 - Md Pink	255	131	120	255	195
092 ⇔ 099	C1630 - Dk Pink	255	165	123	255	210
100 ⇔ 107	C1250 - Md Red Amber	255	000	041	195	055
108 ⇔ 115	C1060 - Dk Red Amber	255	000	045	120	030
116 ⇔ 121	C1650 - Magenta	255	050	115	255	115
122 ⇔ 130	C6170 - Dk Magenta	255	035	117	000	000
131 ⇔ 138	C6020 - Lt Lavender	127	122	142	251	255
139 ⇔ 146	C5030 - Lt Blue	000	255	197	100	255
147 ⇔ 154	C5020 - VLt Blue	158	255	189	000	255
155 ⇔ 162	C5430 - Lt Blue 2	000	255	180	000	243
163 ⇔ 170	C5070 - Blue	043	255	210	043	036
171 ⇔ 178	C5050 - Md Blue	000	255	218	000	181
179 ⇔ 186	C5060 - Dk Blue	000	210	206	000	118
187 ⇔ 194	C5690 - Indigo	065	000	210	040	055
195 ⇔ 202	C5080 - VDk Blue	000	203	230	000	040
203 ⇔ 210	C5081 - VDk Blue2	040	199	240	000	045
211 ⇔ 218	C4370 - Yel Green	027	255	028	016	104
219 ⇔ 226	C4070 - Green	049	255	055	120	090
227 ⇔ 234	C4550 - Turquoise	060	230	109	000	245
235 ⇔ 242	C4560 - Aqua	020	240	126	036	255
243 ⇔ 250	C4570 - Blue Green	000	255	079	030	053
251 ⇔ 255	- 000 000 000 000 000

The colors above are simulated renditions of the color output produced as compared with other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

Color Temperature Chart

DMX Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ⇔ 005	--	000	000	000	000	000
006 ⇔ 025	2800K	237	120	036	255	255
026 ⇔ 050	3000K	220	128	050	255	255
051 ⇔ 075	3200K	176	128	057	255	255
076 ⇔ 100	3500K	154	128	080	255	255
101 ⇔ 125	4000K	128	128	112	255	255
126 ⇔ 150	4500K	108	128	133	255	255
151 ⇔ 175	5000K	097	128	152	255	255
176 ⇔ 200	5600K	087	128	170	255	255
201 ⇔ 225	6000K	075	128	177	255	255
226 ⇔ 250	6500K	066	128	187	255	255
251 ⇔ 255	--	000	000	000	000	000

The color temperatures above are simulated renditions of the color output produced as compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Menu Map

Main Level Programming Levels Description
Protocol	DMX512		Selects the control protocol
	ArtNet
	sACN
Start Address	001-510*		Selects starting address (*highest channel restricted to personality chosen)
Personality	1-Cell	DMX-VCW-CCT 3CH	3-channel: dimmer, virtual color wheel, color temperature
		HSV 3CH	3-channel: HSV control
		RGB 3CH	3-channel: RGB
		RGBA 4CH	4-channel: RGBA
		RGBAL 5CH	5-channel: RGBAL
		RGB EXT 8CH	8-channel: 16-bit dimmer, RGB, virtual color wheel, color temperature, strobe
		RGBA EXT 9CH	9-channel: 16-bit dimmer, RGBA, virtual color wheel, color temperature, strobe
		RGBAL EXT 10CH	10-channel: 16-bit dimmer, RGBAL, virtual color wheel, color temperature, strobe
		RGBAL Fine 10CH	10-channel: 16-bit RGBAL
		RGBAL FULL 17CH	17-channel: 16-bit dimmer, 16-bit RGBAL, virtual color wheel, color temperature, strobe, color macros, dimmer mode
	2-Cell	HSV 6CH	6-channel: HSV control (per cell)
		RGB 6CH	6-channel: RGB (per cell)
		RGBA 8CH	8-channel: RGBA (per cell)
		RGBAL 10CH	10-channel: RGBAL (per cell)
		RGB EXT 15CH	15-channel: 16-bit dimmer, RGB (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBA EXT 17CH	17-channel: 16-bit dimmer, RGBA (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL EXT 19CH	19-channel: 16-bit dimmer, RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL Fine 20CH	20-channel: 16-bit RGBAL (per cell)
		RGBAL FULL 31CH	31-channel: 16-bit dimmer, 16-bit RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell), color macros, dimmer mode

Main Level Programming Levels Description
Personality (cont.)	5-Cell	HSV 15CH 15-channel: HSV control (per cell)
		RGB 15CH 15-channel: RGB (per cell)
		RGBA 20CH 20-channel: RGBA (per cell)
		RGBAL 25CH 25-channel: RGBAL (per cell)
		RGB EXT 33CH	33-channel: 16-bit dimmer, RGB (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBA EXT 38CH	38-channel: 16-bit dimmer, RGBA (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL EXT 43CH	43-channel: 16-bit dimmer, RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL Fine 50CH 50-channel: 16-bit RGBAL (per cell)
		RGBAL FULL 70CH	70-channel: 16-bit dimmer, 16-bit RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell), color macros, dimmer mode
	10-Cell	HSV 30CH 30-channel: HSV control (per cell)
		RGB 30CH 30-channel: RGB (per cell)
		RGBA 40CH 40-channel: RGBA (per cell)
		RGBAL 50CH 50-channel: RGBAL (per cell)
		RGB EXT 63CH	63-channel: 16-bit dimmer, RGB (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBA EXT 73CH	73-channel: 16-bit dimmer, RGBA (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL EXT 83CH	83-channel: 16-bit dimmer, RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell)
		RGBAL Fine 100CH 100-channel: 16-bit RGBAL (per cell)
		RGBAL FULL 135CH	135-channel: 16-bit dimmer, 16-bit RGBAL (per cell), virtual color wheel (per cell), color temperature (per cell), strobe (per cell), color macros, dimmer mode
Virtual Color Wheel	Virtual Color Wheel	C3050 - Md Yellow	Dimmer <000-255>	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart section for specific values.
		C3040 - Lt Yellow
		C3240 - Amb Yellow
		C2340 - VLt Amber
		C2040 - Lt Amber
		C2050 - Md Amber
		C2060 - Dk Amber
		C1050 - Lt Red
		C1080 - Md Red
		C1020 - NC Pink
		C1030 - Md Pink
		C1630 - Dk Pink
		C1250 - Md Red Amber
		C1060 - Dk Red Amber
		C1650 - Magenta
		C6170 - Dk Magenta
		C6020 - Lt Lavender
		C5030 - Lt Blue
		C5020 - VLt Blue
		C5430 - Lt Blue 2
		C5070 - Blue
		C5050 - Md Blue
		C5060 - Dk Blue

Main Level Programming Levels Description
Virtual Color Wheel (cont.)	Virtual Color Wheel (cont.)	C5690 - Indigo		Dimmer <000-255>	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart section for specific values.
		C5080 - VDk Blue
		C5081 - VDk Blue 2
		C4370 - Yel Green
		C4070 - Green
		C4550 - Turquoise
		C4560 - Aqua
		C4570 - Blue Green
	Color Temperature	2800K		Dimmer <000-255>	Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to the Color Temperature Chart section for specific values.
		3000K
		3200K
		3500K
		4000K
		4500K
		5000K
		5600K
		6000K
		6500K
	Manual Color Mixer	Red		<000-255>	Combine red, green, blue, amber, and lime to make a custom color (0-100%)
		Green
		Blue
		Amber
		Lime
Auto Show	Auto 1		Speed 1-100		Selects automatic programs and auto program speed
	Auto 2
	Auto 3
	Auto 4
	Auto 5
	Auto 6
	Auto 7
	Auto 8
	Auto 9
	Fade
Master/Slave	Master Master mode
	Slave Slave mode
Dimmer Mode	Off Linear dimmer
	Dimmer 1 Fast dimmer curve
	Dimmer 2 Medium dimmer curve
	Dimmer 3 Slow dimmer curve
White Balance	Off Uses factory default white setting
	Manual	Red			Sets red LED maximum value
		Green Sets green		LED maximum value
		Blue Sets blue LED		LED maximum value
		Amber Sets amber		LED maximum value
		Lime Sets lime LED maximum value
LED Frequency	600Hz				Selects the PWM output frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Main Level	Programming Levels Description
Display	Normal Normal display orientation
	Inverted Inverted display
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 20 seconds of inactivity
	2Min		Turns off display backlight after 2 minutes of inactivity
	On Display backlight always on
Ethernet Setting	Universe	1 (DMX)	Sets universe for Art-NetTM or sACN
		0–255 (Art-NetTM)
		1–256 (sACN)
	IP Address ____.	Sets IP address
Information	Fixture Hours ____.	Shows total product hours
	Version V__.-V__	Shows installed software version
	Device ID ____.	Shows product device	ID
	UID: ____.	Shows product UID
Factory Setting	No		Reset to factory defaults
	Yes

10-Cell DMX Values

10-Cell RGBAL FULL 135CH

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	Red 1	000 ⇔ 255	0–100%
4	Red fine 1	000 ⇔ 255	0–100%
5	Green 1	000 ⇔ 255	0–100%
6	Green fine 1	000 ⇔ 255	0–100%
7	Blue 1	000 ⇔ 255	0–100%
8	Blue fine 1	000 ⇔ 255	0–100%
9	Amber 1	000 ⇔ 255	0–100%
10	Amber fine 1	000 ⇔ 255	0–100%
11	Lime 1	000 ⇔ 255	0–100%
12	Lime fine 1	000 ⇔ 255	0–100%
13	Virtual Color Wheel 1	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
14	Color Temperature 1	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
15	Strobe 1	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
16	Red 2	000 ⇔ 255	0–100%
17	Red fine 2	000 ⇔ 255	0–100%
18	Green 2	000 ⇔ 255	0–100%
19	Green fine 2	000 ⇔ 255	0–100%
20	Blue 2	000 ⇔ 255	0–100%
21	Blue fine 2	000 ⇔ 255	0–100%
22	Amber 2	000 ⇔ 255	0–100%
23	Amber fine 2	000 ⇔ 255	0–100%
24	Lime 2	000 ⇔ 255	0–100%
25	Lime fine 2	000 ⇔ 255	0–100%
26	Virtual Color Wheel 2	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
27	Color Temperature 2	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
28	Strobe 2	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
29	Red 3	000 ⇔ 255	0–100%
30	Red fine 3	000 ⇔ 255	0–100%
31	Green 3	000 ⇔ 255	0–100%
32	Green fine 3	000 ⇔ 255	0–100%
33 Blue	3 000 ⇔ 255 0–100%
34 Blue	fine 3 000 ⇔ 255 0–100%
35 Amber	3 000 ⇔ 255 0–100%
36 Amber	fine 3 000 ⇔ 255 0–100%
37 Lime	3 000 ⇔ 255 0–100%
38 Lime	fine 3 000 ⇔ 255 0–100%
39	Virtual Color Wheel 3	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
40	Color Temperature 3	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
41 Strobe	3	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
42 Red	4 000 ⇔ 255 0–100%
43	Red fine 4	000 ⇔ 255	0–100%
44	Green 4	000 ⇔ 255	0–100%
45	Green fine 4	000 ⇔ 255	0–100%
46 Blue	4 000 ⇔ 255 0–100%
47 Blue	fine 4 000 ⇔ 255 0–100%
48 Amber	4 000 ⇔ 255 0–100%
49 Amber	fine 4 000 ⇔ 255 0–100%
50 Lime	4 000 ⇔ 255 0–100%
51 Lime	fine 4 000 ⇔ 255 0–100%
52	Virtual Color Wheel 4	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
53	Color Temperature 4	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
54 Strobe	4	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
55 Red	5 000 ⇔ 255 0–100%
56	Red fine 5	000 ⇔ 255	0–100%
57	Green 5	000 ⇔ 255	0–100%
58	Green fine 5	000 ⇔ 255	0–100%
59 Blue	5 000 ⇔ 255 0–100%
60 Blue	fine 5 000 ⇔ 255 0–100%
61 Amber	5 000 ⇔ 255 0–100%
62 Amber	fine 5 000 ⇔ 255 0–100%
63 Lime	5 000 ⇔ 255 0–100%
64 Lime	fine 5 000 ⇔ 255 0–100%
65	Virtual Color Wheel 5	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
66	Color Temperature 5	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
67 Strobe	5	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
68 Red	6 000 ⇔ 255 0–100%
69	Red fine 6	000 ⇔ 255	0–100%
70	Green 6	000 ⇔ 255	0–100%
71	Green fine 6	000 ⇔ 255	0–100%
72 Blue	6 000 ⇔ 255 0–100%
73 Blue	fine 6 000 ⇔ 255 0–100%
74 Amber	6 000 ⇔ 255 0–100%
75 Amber	fine 6 000 ⇔ 255 0–100%
76 Lime	6 000 ⇔ 255 0–100%
77 Lime	fine 6 000 ⇔ 255 0–100%
78	Virtual Color Wheel 6	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
79	Color Temperature 6	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
80 Strobe	6	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
81 Red	7 000 ⇔ 255 0–100%
82	Red fine 7	000 ⇔ 255	0–100%
83	Green 7	000 ⇔ 255	0–100%
84	Green fine 7	000 ⇔ 255	0–100%
85 Blue	7 000 ⇔ 255 0–100%
86 Blue	fine 7 000 ⇔ 255 0–100%
87 Amber	7 000 ⇔ 255 0–100%
88 Amber	fine 7 000 ⇔ 255 0–100%
89 Lime	7 000 ⇔ 255 0–100%
90 Lime	fine 7 000 ⇔ 255 0–100%
91	Virtual Color Wheel 7	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
92	Color Temperature 7	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
93 Strobe 7		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
94 Red	8 000 ⇔ 255 0–100%
95	Red fine 8	000 ⇔ 255	0–100%
96	Green 8	000 ⇔ 255	0–100%
97	Green fine 8	000 ⇔ 255	0–100%
98 Blue	8 000 ⇔ 255 0–100%
99 Blue	fine 8 000 ⇔ 255 0–100%
100 Amber	8 000 ⇔ 255 0–100%
101 Amber	fine 8 000 ⇔ 255 0–100%
102 Lime	8 000 ⇔ 255 0–100%
103 Lime	fine 8 000 ⇔ 255 0–100%
104	Virtual Color Wheel 8	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
105	Color Temperature 8	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
106 Strobe 8		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
107 Red	9 000 ⇔ 255 0–100%
108	Red fine 9	000 ⇔ 255	0–100%
109	Green 9	000 ⇔ 255	0–100%
110	Green fine 9	000 ⇔ 255	0–100%
111	Blue 9	000 ⇔ 255	0–100%
112	Blue fine 9	000 ⇔ 255	0–100%
113	Amber 9	000 ⇔ 255	0–100%
114	Amber fine 9	000 ⇔ 255	0–100%
115	Lime 9	000 ⇔ 255	0–100%
116	Lime fine 9	000 ⇔ 255	0–100%
117	Virtual Color Wheel 9	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
118	Color Temperature 9	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
119	Strobe 9	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
120	Red 10	000 ⇔ 255	0–100%
121	Red fine 10	000 ⇔ 255	0–100%
122	Green 10	000 ⇔ 255	0–100%
123	Green fine 10	000 ⇔ 255	0–100%
124	Blue 10	000 ⇔ 255	0–100%
125	Blue fine 10	000 ⇔ 255	0–100%
126	Amber 10	000 ⇔ 255	0–100%
127	Amber fine 10	000 ⇔ 255	0–100%
128	Lime 10	000 ⇔ 255	0–100%
129	Lime fine 10	000 ⇔ 255	0–100%
130	Virtual Color Wheel 10	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
131	Color Temperature 10	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
132 Strobe 10		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
133 Strobe all		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
134 Color macros		000 ⇔ 015	No function
		016 ⇔ 255	Color macros
135 Dimmer speed		000 ⇔ 051	Preset dimmer speed from display menu
		052 ⇔ 101	Dimmer speed mode off
		102 ⇔ 152	Dimmer speed mode 1 (fastest)
		153 ⇔ 203	Dimmer speed mode 2
		204 ⇔ 255	Dimmer speed mode 3 (slowest)

10-Cell RGBAL Fine 100CH

Channel Function Value Percent/Setting
1	R e d		1	000 ⇔ 255 0–100%
2 Red fine 1 000 ⇔ 255 0–100%
3	G r e e		n	1	000 ⇔ 255 0–100%
4 Green fine 1 000 ⇔ 255 0–100%
5	B l u e		1	000 ⇔ 255 0–100%
6	B l u e		f	i n e	1	000 ⇔ 255 0–100%
7	Amber 1		000 ⇔ 255	0–100%
8	Amber fine 1		000 ⇔ 255	0–100%
9	Lime 1		000 ⇔ 255	0–100%
10	Lime fine 1		000 ⇔ 255	0–100%
11	Red 2		000 ⇔ 255	0–100%
12	Red fine 2		000 ⇔ 255	0–100%
13	Green 2		000 ⇔ 255	0–100%
14	Green fine 2		000 ⇔ 255	0–100%
15	Blue 2		000 ⇔ 255	0–100%
16	Blue fine 2		000 ⇔ 255	0–100%
17	Amber 2		000 ⇔ 255	0–100%
18	Amber fine 2		000 ⇔ 255	0–100%
19	Lime 2		000 ⇔ 255	0–100%
20	Lime fine 2		000 ⇔ 255	0–100%
21	Red 3		000 ⇔ 255	0–100%
22	Red fine 3		000 ⇔ 255	0–100%
23	Green 3		000 ⇔ 255	0–100%
24	Green fine 3		000 ⇔ 255	0–100%
25	Blue 3		000 ⇔ 255	0–100%
26	Blue fine 3		000 ⇔ 255	0–100%
27	Amber 3		000 ⇔ 255	0–100%
28	Amber fine 3		000 ⇔ 255	0–100%
29	Lime 3		000 ⇔ 255	0–100%
30	Lime fine 3		000 ⇔ 255	0–100%
31	Red 4		000 ⇔ 255	0–100%
32	Red fine 4		000 ⇔ 255	0–100%
33	Green 4		000 ⇔ 255	0–100%
34	Green fine 4		000 ⇔ 255	0–100%
35	Blue 4		000 ⇔ 255	0–100%
36	Blue fine 4		000 ⇔ 255	0–100%
37	Amber 4		000 ⇔ 255	0–100%
38	Amber fine 4		000 ⇔ 255	0–100%
39	Lime 4		000 ⇔ 255	0–100%
40	Lime fine 4		000 ⇔ 255	0–100%
41	Red 5		000 ⇔ 255	0–100%
42	Red fine 5		000 ⇔ 255	0–100%
43	Green 5		000 ⇔ 255	0–100%
44	Green fine 5		000 ⇔ 255	0–100%
45	Blue 5		000 ⇔ 255	0–100%
46	Blue fine 5		000 ⇔ 255	0–100%
47	Amber 5		000 ⇔ 255	0–100%
48	Amber fine 5		000 ⇔ 255	0–100%

Channel	Function	Value	Percent/Setting
49 Lime	5 000 ⇔ 255 0–100%
50 Lime	fine 5 000 ⇔ 255 0–100%
51 Red	6 000 ⇔ 255 0–100%
52 Red	fine 6 000 ⇔ 255 0–100%
53 Green	6 000 ⇔ 255 0–100%
54 Green	fine 6 000 ⇔ 255 0–100%
55 Blue	6 000 ⇔ 255 0–100%
56 Blue	fine 6 000 ⇔ 255 0–100%
57 Amber	6 000 ⇔ 255 0–100%
58 Amber	fine 6 000 ⇔ 255 0–100%
59 Lime	6 000 ⇔ 255 0–100%
60 Lime	fine 6 000 ⇔ 255 0–100%
61 Red	7 000 ⇔ 255 0–100%
62 Red	fine 7 000 ⇔ 255 0–100%
63 Green	7 000 ⇔ 255 0–100%
64 Green	fine 7 000 ⇔ 255 0–100%
65 Blue	7 000 ⇔ 255 0–100%
66 Blue	fine 7 000 ⇔ 255 0–100%
67 Amber	7 000 ⇔ 255 0–100%
68 Amber	fine 7 000 ⇔ 255 0–100%
69 Lime	7 000 ⇔ 255 0–100%
70 Lime	fine 7 000 ⇔ 255 0–100%
71 Red	8 000 ⇔ 255 0–100%
72 Red	fine 8 000 ⇔ 255 0–100%
73 Green	8 000 ⇔ 255 0–100%
74 Green	fine 8	000 ⇔ 255 0–100%
75 Blue	8 000 ⇔ 255 0–100%
76 Blue	fine 8 000 ⇔ 255 0–100%
77 Amber	8 000 ⇔ 255 0–100%
78 Amber	fine 8 000 ⇔ 255 0–100%
79 Lime	8 000 ⇔ 255 0–100%
80 Lime	fine 8 000 ⇔ 255 0–100%
81 Red	9 000 ⇔ 255 0–100%
82 Red	fine 9 000 ⇔ 255 0–100%
83 Green	9 000 ⇔ 255 0–100%
84 Green	fine 9 000 ⇔ 255 0–100%
85 Blue	9 000 ⇔ 255 0–100%
86 Blue	fine 9 000 ⇔ 255 0–100%
87 Amber	9 000 ⇔ 255 0–100%
88 Amber	fine 9 000 ⇔ 255 0–100%
89 Lime	9 000 ⇔ 255 0–100%
90 Lime	fine 9 000 ⇔ 255 0–100%
91 Red	10 000 ⇔ 255 0–100%
92 Red	fine 10 000 ⇔ 255 0–100%
93 Green	10 000 ⇔ 255 0–100%
94	Green fine 10	000 ⇔ 255	0–100%
95	Blue 10	000 ⇔ 255	0–100%
96	Blue fine 10	000 ⇔ 255	0–100%
97	Amber 10	000 ⇔ 255	0–100%
98	Amber fine 10	000 ⇔ 255	0–100%
99 Lime	10 000	⇔ 255	0–100%
100	Lime fine 10	000 ⇔ 255	0–100%

10-Cell RGBAL EXT 83CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%
2 Dimmer fine 000 ⇔ 255 0-100%
3	R e d		1	000 ⇔ 255 0-100%
4	G r e e		n	1 000 ⇔ 255 0-100%
5	B l u e		1	000 ⇔ 255 0-100%
6	A m b e		r	1 000 ⇔ 255 0-100%
7	L i m e		1	000 ⇔ 255 0-100%
8	Virtual Color Wheel 1		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
9	Color Temperature 1		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
10	Strobe 1		000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
11	Red 2		000 ⇔ 255	0-100%
12	Green 2		000 ⇔ 255	0-100%
13	Blue 2		000 ⇔ 255	0-100%
14	Amber 2		000 ⇔ 255	0-100%
15	Lime 2		000 ⇔ 255	0-100%
16	Virtual Color Wheel 2		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
17	Color Temperature 2		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
18	Strobe 2		000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
19	Red 3		000 ⇔ 255	0-100%
20	Green 3		000 ⇔ 255	0-100%
21	Blue 3		000 ⇔ 255	0-100%
22	Amber 3		000 ⇔ 255	0-100%
23	Lime 3		000 ⇔ 255	0-100%
24	Virtual Color Wheel 3		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
25	Color Temperature 3		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
26	Strobe 3		000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
27	Red 4		000 ⇔ 255	0-100%
28	Green 4		000 ⇔ 255	0-100%
29	Blue 4		000 ⇔ 255	0-100%
30	Amber 4		000 ⇔ 255	0-100%
31	Lime 4		000 ⇔ 255	0-100%
32	Virtual Color Wheel 4		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
33	Color Temperature 4		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
34	Strobe 4		000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
35	Red 5		000 ⇔ 255	0-100%
36	Green 5		000 ⇔ 255	0-100%
37	Blue 5		000 ⇔ 255	0-100%
38	Amber 5		000 ⇔ 255	0-100%
39	Lime 5		000 ⇔ 255	0-100%
40	Virtual Color Wheel 5		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
41	Color Temperature 5		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
42	Strobe 5		000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
43	Red 6		000 ⇔ 255	0-100%
44	Green 6		000 ⇔ 255	0-100%
45	Blue 6		000 ⇔ 255	0-100%
46	Amber 6		000 ⇔ 255	0-100%
47	Lime 6		000 ⇔ 255	0-100%
48	Virtual Color Wheel 6		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
49	Color Temperature 6		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
Channel	Function		Value	Percent/Setting
50 Strobe 6		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
51 Red	7 000 ⇔ 255 0–100%
52 Green	7 000 ⇔ 255 0–100%
53 Blue	7 000 ⇔ 255 0–100%
54 Amber	7 000 ⇔ 255 0–100%
55 Lime	7 000 ⇔ 255 0–100%
56	Virtual Color Wheel 7		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
57	Color Temperature 7		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
58 Strobe 7		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
59 Red	8 000 ⇔ 255 0–100%
60 Green	8 000 ⇔ 255 0–100%
61 Blue	8 000 ⇔ 255 0–100%
62 Amber	8 000 ⇔ 255 0–100%
63 Lime	8 000 ⇔ 255 0–100%
64	Virtual Color Wheel 8		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
65	Color Temperature 8		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
66 Strobe 8		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
67 Red	9 000 ⇔ 255 0–100%
68 Green	9 000 ⇔ 255 0–100%
69 Blue	9 000 ⇔ 255 0–100%
70 Amber	9 000 ⇔ 255 0–100%
71 Lime	9 000 ⇔ 255 0–100%
72	Virtual Color Wheel 9		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
73	Color Temperature 9		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
74 Strobe 9		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
75 Red	10 000 ⇔ 255 0–100%
76 Green	10 000 ⇔ 255 0–100%
77	Blue 10		000 ⇔ 255	0–100%
78	Amber 10		000 ⇔ 255	0–100%
79 Lime	10 000 ⇔ 255 0–100%
80	Virtual Color Wheel 10		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
81	Color Temperature 10		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
82 Strobe 10		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
83 Strobe all		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast

10-Cell RGBA EXT 73CH

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	Red 1	000 ⇔ 255	0–100%
4	Green 1	000 ⇔ 255	0–100%
5	Blue 1	000 ⇔ 255	0–100%
6	Amber 1	000 ⇔ 255	0–100%
7	Virtual Color Wheel 1	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
8	Color Temperature 1	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
9	Strobe 1	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
10 Red	2 000 ⇔ 255 0–100%
11	Green 2	000 ⇔ 255	0–100%
12 Blue	2 000 ⇔ 255 0–100%
13 Amber 2 000 ⇔ 255 0-100%
14	Virtual Color Wheel 2	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
15	Color Temperature 2	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
16 Strobe 2		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
17 Red	3 000 ⇔ 255 0-100%
18 Green	3 000 ⇔ 255 0-100%
19 Blue	3 000 ⇔ 255 0-100%
20 Amber	3 000 ⇔ 255 0-100%
21	Virtual Color Wheel 3	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
22	Color Temperature 3	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
23 Strobe 3		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
24 Red	4 000 ⇔ 255 0-100%
25 Green	4 000 ⇔ 255 0-100%
26 Blue	4 000 ⇔ 255 0-100%
27 Amber	4 000 ⇔ 255 0-100%
28	Virtual Color Wheel 4	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
29	Color Temperature 4	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
30 Strobe 4		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
31 Red	5 000 ⇔ 255 0-100%
32 Green	5 000 ⇔ 255 0-100%
33 Blue	5 000 ⇔ 255 0-100%
34 Amber	5 000 ⇔ 255 0-100%
35	Virtual Color Wheel 5	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
36	Color Temperature 5	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
37 Strobe 5		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
38 Red	6 000 ⇔ 255 0-100%
39 Green	6 000 ⇔ 255 0-100%
40 Blue	6 000 ⇔ 255 0-100%
41 Amber	6 000 ⇔ 255 0-100%
42	Virtual Color Wheel 6	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
43	Color Temperature 6	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
44 Strobe 6		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
45 Red	7 000 ⇔ 255 0-100%
46 Green	7 000 ⇔ 255 0-100%
47 Blue	7 000 ⇔ 255 0-100%
48 Amber	7 000 ⇔ 255 0-100%
49	Virtual Color Wheel 7	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
50	Color Temperature 7	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
51 Strobe 7		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
52 Red	8 000 ⇔ 255 0-100%
53 Green	8 000 ⇔ 255 0-100%
54 Blue	8 000 ⇔ 255 0-100%
55 Amber	8 000 ⇔ 255 0-100%
56	Virtual Color Wheel 8	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
57	Color Temperature 8	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
58 Strobe 8		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
59 Red	9 000 ⇔ 255 0-100%
60 Green	9 000 ⇔ 255 0-100%
61 Blue	9 000 ⇔ 255 0-100%
62 Amber 9 000 ⇔ 255 0–100%
63	Virtual Color Wheel 9	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
64	Color Temperature 9	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
65 Strobe 9		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
66 Red	10 000 ⇔ 255 0–100%
67 Green	10 000 ⇔ 255 0–100%
68 Blue	10 000 ⇔ 255 0–100%
69 Amber	10 000 ⇔ 255 0–100%
70	Virtual Color Wheel 10	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
71	Color Temperature 10	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
72 Strobe 10		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
73 Strobe all		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast

10-Cell RGB EXT 63CH

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	Red 1	000 ⇔ 255	0–100%
4	Green 1	000 ⇔ 255	0–100%
5	Blue 1	000 ⇔ 255	0–100%
6	Virtual Color Wheel 1	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
7	Color Temperature 1	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
8	Strobe 1	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
9	Red 2	000 ⇔ 255	0–100%
10	Green 2	000 ⇔ 255	0–100%
11	Blue 2	000 ⇔ 255	0–100%
12	Virtual Color Wheel 2	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
13	Color Temperature 2	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
14 Strobe 2		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
15	Red 3	000 ⇔ 255	0–100%
16	Green 3	000 ⇔ 255	0–100%
17	Blue 3	000 ⇔ 255	0–100%
18	Virtual Color Wheel 3	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
19	Color Temperature 3	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
20 Strobe 3		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
21	Red 4	000 ⇔ 255	0–100%
22	Green 4	000 ⇔ 255	0–100%
23	Blue 4	000 ⇔ 255	0–100%
24	Virtual Color Wheel 4	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
25	Color Temperature 4	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
26 Strobe 4		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
27	Red 5	000 ⇔ 255	0–100%
28	Green 5	000 ⇔ 255	0–100%
29	Blue 5	000 ⇔ 255	0–100%
30	Virtual Color Wheel 5	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
31	Color Temperature 5	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
32 Strobe 5		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
33	Red 6	000 ⇔ 255	0–100%
34 Green 6 000 ⇔ 255 0–100%
35 Blue	6 000 ⇔ 255 0–100%
36	Virtual Color Wheel 6	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
37	Color Temperature 6	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
38 Strobe 6		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
39 Red	7 000 ⇔ 255 0–100%
40 Green 7 000 ⇔ 255 0–100%
41 Blue	7 000 ⇔ 255 0–100%
42	Virtual Color Wheel 7	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
43	Color Temperature 7	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
44 Strobe 7		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
45 Red	8 000 ⇔ 255 0–100%
46 Green	8 000 ⇔ 255 0–100%
47 Blue	8 000 ⇔ 255 0–100%
48	Virtual Color Wheel 8	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
49	Color Temperature 8	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
50 Strobe 8		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
51 Red	9 000 ⇔ 255 0–100%
52 Green	9 000 ⇔ 255 0–100%
53 Blue	9 000 ⇔ 255 0–100%
54	Virtual Color Wheel 9	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
55	Color Temperature 9	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
56 Strobe 9		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
57 Red	10 000 ⇔ 255 0–100%
58 Green	10 000 ⇔ 255 0–100%
59 Blue	10 000 ⇔ 255 0–100%
60	Virtual Color Wheel 10	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
61	Color Temperature 10	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
62 Strobe 10		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
63 Strobe all		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast

10-Cell RGBAL 50CH

Channel	Function	Value	Percent/Setting
1	Red 1	000 ⇔ 255	0–100%
2	Green 1	000 ⇔ 255	0–100%
3	Blue 1	000 ⇔ 255	0–100%
4	Amber 1	000 ⇔ 255	0–100%
5	Lime 1	000 ⇔ 255	0–100%
6	Red 2	000 ⇔ 255	0–100%
7	Green 2	000 ⇔ 255	0–100%
8	Blue 2	000 ⇔ 255	0–100%
9	Amber 2	000 ⇔ 255	0–100%
10	Lime 2	000 ⇔ 255	0–100%
11	Red 3	000 ⇔ 255	0–100%
12 Green 3 000 ⇔ 255 0–100%
13 Blue 3 000 ⇔ 255 0–100%
14	Amber 3	000 ⇔ 255	0–100%
15	Lime 3	000 ⇔ 255	0–100%
16 Red 4 000 ⇔ 255 0–100%
17 Green 4 000 ⇔ 255 0–100%

Channel Function Value Percent/Setting
18 Blue 4 000 ⇔ 255 0–100%
19 Amber 4 000 ⇔ 255 0–100%
20 Lime 4 000 ⇔ 255 0–100%
21 Red 5 000 ⇔ 255 0–100%
22 Green 5 000 ⇔ 255 0–100%
23 Blue 5 000 ⇔ 255 0–100%
24 Amber 5 000 ⇔ 255 0–100%
25 Lime 5 000 ⇔ 255 0–100%
26 Red 6 000 ⇔ 255 0–100%
27 Green 6 000 ⇔ 255 0–100%
28 Blue 6 000 ⇔ 255 0–100%
29 Amber 6 000 ⇔ 255 0–100%
30 Lime 6 000 ⇔ 255 0–100%
31 Red 7 000 ⇔ 255 0–100%
32 Green 7 000 ⇔ 255 0–100%
33 Blue 7 000 ⇔ 255 0–100%
34 Amber 7 000 ⇔ 255 0–100%
35 Lime 7 000 ⇔ 255 0–100%
36 Red 8 000 ⇔ 255 0–100%
37 Green 8 000 ⇔ 255 0–100%
38 Blue 8 000 ⇔ 255 0–100%
39 Amber 8 000 ⇔ 255 0–100%
40 Lime 8 000 ⇔ 255 0–100%
41 Red 9 000 ⇔ 255 0–100%
42 Green 9 000 ⇔ 255 0–100%
43 Blue 9	000 ⇔ 255 0–100%
44 Amber 9 000 ⇔ 255 0–100%
45 Lime 9 000 ⇔ 255 0–100%
46 Red 10 000 ⇔ 255 0–100%
47 Green 10 000 ⇔ 255 0–100%
48 Blue 10 000 ⇔ 255 0–100%
49 Amber 10 000 ⇔ 255 0–100%
50 Lime 10 000 ⇔ 255 0–100%

10-Cell RGBA 40CH

Channel Function Value Percent/Setting
1	Red 1	000 ⇔ 255	0–100%
2	Green 1	000 ⇔ 255	0–100%
3	Blue 1	000 ⇔ 255	0–100%
4	Amber 1	000 ⇔ 255	0–100%
5	Red 2	000 ⇔ 255	0–100%
6	Green 2	000 ⇔ 255	0–100%
7	Blue 2	000 ⇔ 255	0–100%
8	Amber 2	000 ⇔ 255	0–100%
9	Red 3	000 ⇔ 255	0–100%
10 Green 3 000 ⇔ 255 0–100%
11	Blue 3	000 ⇔ 255	0–100%
12 Amber 3 000 ⇔ 255 0–100%
13 Red	4 000 ⇔ 255 0–100%
14 Green 4 000 ⇔ 255 0–100%
15 Blue	4 000 ⇔ 255 0–100%
16 Amber 4 000 ⇔ 255 0–100%
17 Red	5 000 ⇔ 255 0–100%
18 Green 5 000 ⇔ 255 0–100%
19 Blue	5 000 ⇔ 255 0–100%
20 Amber 5 000 ⇔ 255 0–100%

Channel Function Value Percent/Setting
21 Red 6 000 ⇔ 255 0–100%
22 Green 6 000 ⇔ 255 0–100%
23 Blue 6 000 ⇔ 255 0–100%
24 Amber 6 000 ⇔ 255 0–100%
25 Red 7 000 ⇔ 255 0–100%
26 Green 7 000 ⇔ 255 0–100%
27 Blue 7 000 ⇔ 255 0–100%
28 Amber 7 000 ⇔ 255 0–100%
29 Red 8 000 ⇔ 255 0–100%
30 Green 8 000 ⇔ 255 0–100%
31 Blue 8 000 ⇔ 255 0–100%
32 Amber 8 000 ⇔ 255 0–100%
33 Red 9 000 ⇔ 255 0–100%
34 Green 9 000 ⇔ 255 0–100%
35 Blue 9 000 ⇔ 255 0–100%
36 Amber 9 000 ⇔ 255 0–100%
37 Red 10 000 ⇔ 255 0–100%
38 Green 10 000 ⇔ 255 0–100%
39 Blue 10 000 ⇔ 255 0–100%
40 Amber 10 000 ⇔ 255 0–100%

10-Cell RGB 30CH

Channel Function Value Percent/Setting
1	Red 1	000 ⇔ 255	0–100%
2	Green 1	000 ⇔ 255	0–100%
3	Blue 1	000 ⇔ 255	0–100%
4	Red 2	000 ⇔ 255	0–100%
5	Green 2	000 ⇔ 255	0–100%
6	Blue 2	000 ⇔ 255	0–100%
7	Red 3	000 ⇔ 255	0–100%
8	Green 3	000 ⇔ 255	0–100%
9	Blue 3	000 ⇔ 255	0–100%
10 Red	4 000 ⇔ 255 0–100%
11	Green 4	000 ⇔ 255	0–100%
12 Blue	4 000 ⇔ 255 0–100%
13 Red	5 000 ⇔ 255 0–100%
14 Green	5 000 ⇔ 255 0–100%
15 Blue	5 000 ⇔ 255 0–100%
16 Red	6 000 ⇔ 255 0–100%
17 Green	6 000 ⇔ 255 0–100%
18 Blue	6 000 ⇔ 255 0–100%
19 Red	7 000 ⇔ 255 0–100%
20 Green	7 000 ⇔ 255 0–100%
21 Blue	7 000 ⇔ 255 0–100%
22 Red	8 000 ⇔ 255 0–100%
23 Green	8 000 ⇔ 255 0–100%
24 Blue	8 000 ⇔ 255 0–100%
25 Red	9 000 ⇔ 255 0–100%
26 Green	9 000 ⇔ 255 0–100%
27 Blue	9 000 ⇔ 255 0–100%
28 Red	10 000 ⇔ 255 0–100%
29 Green	10 000 ⇔ 255 0–100%
30 Blue	10 000 ⇔ 255 0–100%

10-Cell HSV 30CH

Channel Function Value Percent/Setting
1	H u e	1	000 ⇔ 255 0–100%
2 Saturation 1 000 ⇔ 255 0–100%
3	V a l u	e	1 000 ⇔ 255 0–100%
4	H u e	2	000 ⇔ 255 0–100%
5 Saturation 2 000 ⇔ 255 0–100%
6	V a l u	e	2 000 ⇔ 255 0–100%
7	H u e	3	000 ⇔ 255 0–100%
8 Saturation 3 000 ⇔ 255 0–100%
9	V a l u	e	3 000 ⇔ 255 0–100%
10 Hue	4 000 ⇔ 255 0–100%
11	Saturation 4	000 ⇔ 255	0–100%
12	Value 4	000 ⇔ 255	0–100%
13 Hue	5 000 ⇔ 255 0–100%
14	Saturation 5	000 ⇔ 255	0–100%
15	Value 5	000 ⇔ 255	0–100%
16 Hue	6 000 ⇔ 255 0–100%
17	Saturation 6	000 ⇔ 255	0–100%
18	Value 6	000 ⇔ 255	0–100%
19 Hue	7 000 ⇔ 255 0–100%
20	Saturation 7	000 ⇔ 255	0–100%
21	Value 7	000 ⇔ 255	0–100%
22 Hue	8 000 ⇔ 255 0–100%
23	Saturation 8	000 ⇔ 255	0–100%
24	Value 8	000 ⇔ 255	0–100%
25 Hue	9 000 ⇔ 255 0–100%
26	Saturation 9	000 ⇔ 255	0–100%
27	Value 9	000 ⇔ 255	0–100%
28	Hue 10	000 ⇔ 255	0–100%
29	Saturation 10	000 ⇔ 255	0–100%
30	Value 10	000 ⇔ 255	0–100%

5-Cell DMX Values

5-Cell RGBAL FULL 70CH

Channel Function Value Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2 Dimmer fine 000 ⇔ 255 0–100%
3	R e d	1	000 ⇔ 255 0–100%
4	Red fine 1	000 ⇔ 255	0–100%
5	Green 1	000 ⇔ 255	0–100%
6 Green fine 1 000 ⇔ 255 0–100%
7	B l u e	1	000 ⇔ 255 0–100%
8	Blue fine 1	000 ⇔ 255	0–100%
9	Amber 1	000 ⇔ 255	0–100%
10	Amber fine 1	000 ⇔ 255	0–100%
11	Lime 1	000 ⇔ 255	0–100%
12	Lime fine 1	000 ⇔ 255	0–100%
13	Virtual Color Wheel 1	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
14	Color Temperature 1	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
15 Strobe 1		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
16 Red	2 000 ⇔ 255 0–100%
17	Red fine 2	000 ⇔ 255	0–100%
18	Green 2	000 ⇔ 255	0–100%
19 Green fine 2 000 ⇔ 255 0–100%
Channel	Function	Value	Percent/Setting
20 Blue	2 000 ⇔ 255 0-100%
21 Blue	fine 2 000 ⇔ 255 0-100%
22 Amber	2 000 ⇔ 255 0-100%
23 Amber	fine 2 000 ⇔ 255 0-100%
24 Lime	2 000 ⇔ 255 0-100%
25 Lime	fine 2 000 ⇔ 255 0-100%
26	Virtual Color Wheel 2	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
27	Color Temperature 2	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
28 Strobe	2	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
29 Red	3 000 ⇔ 255 0-100%
30	Red fine 3	000 ⇔ 255	0-100%
31	Green 3	000 ⇔ 255	0-100%
32	Green fine 3	000 ⇔ 255	0-100%
33 Blue	3 000 ⇔ 255 0-100%
34 Blue	fine 3 000 ⇔ 255 0-100%
35 Amber	3 000 ⇔ 255 0-100%
36 Amber	fine 3 000 ⇔ 255 0-100%
37 Lime	3 000 ⇔ 255 0-100%
38 Lime	fine 3 000 ⇔ 255 0-100%
39	Virtual Color Wheel 3	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
40	Color Temperature 3	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
41 Strobe	3	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
42 Red	4 000 ⇔ 255 0-100%
43	Red fine 4	000 ⇔ 255	0-100%
44	Green 4	000 ⇔ 255	0-100%
45	Green fine 4	000 ⇔ 255	0-100%
46 Blue	4 000 ⇔ 255 0-100%
47 Blue	fine 4 000 ⇔ 255 0-100%
48 Amber	4 000 ⇔ 255 0-100%
49 Amber	fine 4 000 ⇔ 255 0-100%
50 Lime	4 000 ⇔ 255 0-100%
51 Lime	fine 4 000 ⇔ 255 0-100%
52	Virtual Color Wheel 4	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
53	Color Temperature 4	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
54 Strobe	4	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
55 Red	5 000 ⇔ 255 0-100%
56	Red fine 5	000 ⇔ 255	0-100%
57	Green 5	000 ⇔ 255	0-100%
58	Green fine 5	000 ⇔ 255	0-100%
59 Blue	5 000 ⇔ 255 0-100%
60 Blue	fine 5 000 ⇔ 255 0-100%
61 Amber	5 000 ⇔ 255 0-100%
62 Amber	fine 5 000 ⇔ 255 0-100%
63 Lime	5 000 ⇔ 255 0-100%
64 Lime	fine 5 000 ⇔ 255 0-100%
65	Virtual Color Wheel 5	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
66	Color Temperature 5	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
67 Strobe	5	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
68 Strobe all		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
69 Color macros		000 ⇔ 015	No function
		016 ⇔ 255	Color macros
Channel Function Value Percent/Setting
70 Dimmer speed	000 ⇔ 051	Preset dimmer speed from display menu
	052 ⇔ 101	Dimmer speed mode off
	102 ⇔ 152	Dimmer speed mode 1 (fastest)
	153 ⇔ 203	Dimmer speed mode 2
	204 ⇔ 255	Dimmer speed mode 3 (slowest)

5-Cell RGBAL Fine 50CH

Channel Function Value Percent/Setting
1	R e d	1	000 ⇔ 255 0–100%
2 Red fine 1 000 ⇔ 255 0–100%
3	G r e e	n	1 000 ⇔ 255 0–100%
4 Green fine 1 000 ⇔ 255 0–100%
5	B l u e	1	000 ⇔ 255 0–100%
6	B l u e	f	i n e 1 000 ⇔ 255 0–100%
7	A m b e	r	1 000 ⇔ 255 0–100%
8	Amber fine 1	000 ⇔ 255	0–100%
9	Lime 1	000 ⇔ 255	0–100%
10	Lime fine 1	000 ⇔ 255	0–100%
11	Red 2	000 ⇔ 255	0–100%
12 Red fine 2 000 ⇔ 255 0–100%
13	Green 2	000 ⇔ 255	0–100%
14 Green fine 2 000 ⇔ 255 0–100%
15	Blue 2	000 ⇔ 255	0–100%
16	Blue fine 2	000 ⇔ 255	0–100%
17	Amber 2	000 ⇔ 255	0–100%
18	Amber fine 2	000 ⇔ 255	0–100%
19	Lime 2	000 ⇔ 255	0–100%
20	Lime fine 2	000 ⇔ 255	0–100%
21	Red 3	000 ⇔ 255	0–100%
22 Red fine 3 000 ⇔ 255 0–100%
23	Green 3	000 ⇔ 255	0–100%
24 Green fine 3 000 ⇔ 255 0–100%
25	Blue 3	000 ⇔ 255	0–100%
26	Blue fine 3	000 ⇔ 255	0–100%
27	Amber 3	000 ⇔ 255	0–100%
28	Amber fine 3	000 ⇔ 255	0–100%
29	Lime 3	000 ⇔ 255	0–100%
30	Lime fine 3	000 ⇔ 255	0–100%
31	Red 4	000 ⇔ 255	0–100%
32 Red fine 4 000 ⇔ 255 0–100%
33	Green 4	000 ⇔ 255	0–100%
34 Green fine 4 000 ⇔ 255 0–100%
35	Blue 4	000 ⇔ 255	0–100%
36	Blue fine 4	000 ⇔ 255	0–100%
37	Amber 4	000 ⇔ 255	0–100%
38	Amber fine 4	000 ⇔ 255	0–100%
39	Lime 4	000 ⇔ 255	0–100%
40	Lime fine 4	000 ⇔ 255	0–100%
41	Red 5	000 ⇔ 255	0–100%
42 Red fine 5 000 ⇔ 255 0–100%
43	Green 5	000 ⇔ 255	0–100%
44 Green fine 5 000 ⇔ 255 0–100%
45	Blue 5	000 ⇔ 255	0–100%
46	Blue fine 5	000 ⇔ 255	0–100%
47	Amber 5	000 ⇔ 255	0–100%
48	Amber fine 5	000 ⇔ 255	0–100%

Channel Function Value Percent/Setting
49 Lime 5 000 ⇌ 255 0–100%
50 Lime fine 5 000 ⇌ 255 0–100%

5-Cell RGBAL EXT 43CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%
2 Dimmer fine 000 ⇔ 255 0-100%
3	R e d		1	000 ⇔ 255 0-100%
4	G r e e		n	1 000 ⇔ 255 0-100%
5	B l u e		1	000 ⇔ 255 0-100%
6	Amber 1		000 ⇔ 255	0-100%
7	Lime 1		000 ⇔ 255	0-100%
8	Virtual Color Wheel 1		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
9	Color Temperature 1		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
10 Strobe 1			000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
11	Red 2		000 ⇔ 255	0-100%
12 Green 2 000 ⇔ 255 0-100%
13	Blue 2		000 ⇔ 255	0-100%
14	Amber 2		000 ⇔ 255	0-100%
15 Lime 2 000 ⇔ 255 0-100%
16	Virtual Color Wheel 2		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
17	Color Temperature 2		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
18 Strobe 2			000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
19	Red 3		000 ⇔ 255	0-100%
20 Green 3 000 ⇔ 255 0-100%
21	Blue 3		000 ⇔ 255	0-100%
22	Amber 3		000 ⇔ 255	0-100%
23 Lime 3 000 ⇔ 255 0-100%
24	Virtual Color Wheel 3		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
25	Color Temperature 3		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
26 Strobe 3			000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
27	Red 4		000 ⇔ 255	0-100%
28 Green 4 000 ⇔ 255 0-100%
29	Blue 4		000 ⇔ 255	0-100%
30	Amber 4		000 ⇔ 255	0-100%
31 Lime 4 000 ⇔ 255 0-100%
32	Virtual Color Wheel 4		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
33	Color Temperature 4		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
34 Strobe 4			000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
35	Red 5		000 ⇔ 255	0-100%
36 Green 5 000 ⇔ 255 0-100%
37	Blue 5		000 ⇔ 255	0-100%
38	Amber 5		000 ⇔ 255	0-100%
39 Lime 5 000 ⇔ 255 0-100%
40	Virtual Color Wheel 5		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
41	Color Temperature 5		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
42 Strobe 5			000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast
43 Strobe All			000 ⇔ 010	No function
			011 ⇔ 255	Strobe, slow to fast

5-Cell RGBA EXT 38CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2 Dimmer fine 000 ⇔ 255 0–100%
3	R e d		1	000 ⇔ 255 0–100%
4	G r e e		n	1 000 ⇔ 255 0–100%
5	B l u e		1	000 ⇔ 255 0–100%
6	A m b e		r	1 000 ⇔ 255 0–100%
7	Virtual Color Wheel 1		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
8	Color Temperature 1		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
9	S t r o		000 ⇔ 010	No function 1 Strobe, slow to fast
			011 ⇔ 255
10	Red 2		000 ⇔ 255	0–100%
11	Green 2		000 ⇔ 255	0–100%
12	Blue 2		000 ⇔ 255	0–100%
13	Amber 2		000 ⇔ 255	0–100%
14	Virtual Color Wheel 2		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
15	Color Temperature 2		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
16	Strobe 2		000 ⇔ 010	No function Strobe, slow to fast
			011 ⇔ 255
17	Red 3		000 ⇔ 255	0–100%
18	Green 3		000 ⇔ 255	0–100%
19	Blue 3		000 ⇔ 255	0–100%
20	Amber 3		000 ⇔ 255	0–100%
21	Virtual Color Wheel 3		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
22	Color Temperature 3		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
23	Strobe 3		000 ⇔ 010	No function Strobe, slow to fast
			011 ⇔ 255
24	Red 4		000 ⇔ 255	0–100%
25	Green 4		000 ⇔ 255	0–100%
26	Blue 4		000 ⇔ 255	0–100%
27	Amber 4		000 ⇔ 255	0–100%
28	Virtual Color Wheel 4		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
29	Color Temperature 4		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
30	Strobe 4		000 ⇔ 010	No function Strobe, slow to fast
			011 ⇔ 255
31	Red 5		000 ⇔ 255	0–100%
32	Green 5		000 ⇔ 255	0–100%
33	Blue 5		000 ⇔ 255	0–100%
34	Amber 5		000 ⇔ 255	0–100%
35	Virtual Color Wheel 5		000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
36	Color Temperature 5		000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
37	Strobe 5		000 ⇔ 010	No function Strobe, slow to fast
			011 ⇔ 255
38	Strobe all		000 ⇔ 010	No function Strobe, slow to fast
			011 ⇔ 255

5-Cell RGB EXT 33CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2 Dimmer fine 000 ⇔ 255 0–100%
3	R e d		1	000 ⇔ 255 0–100%
4	G r e e		n	1 000 ⇔ 255 0–100%
5	B l u e		1	000 ⇔ 255 0–100%
6	Virtual Color Wheel 1		000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
7	Color Temperature 1		000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
Channel	Function		Value	Percent/Setting
8	S t r o		000 ⇔ 010p011 ⇔ 255	No function1Strobe, slow to fast
9	R e d		2	000 ⇔ 255 0–100%
10 Green 2 000 ⇔ 255 0–100%
11 Blue	2 000 ⇔ 255 0–100%
12	Virtual Color Wheel 2		000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
13	Color Temperature 2		000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
14 Strobe 2		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
15 Red	3 000 ⇔ 255 0–100%
16 Green 3 000 ⇔ 255 0–100%
17	Blue 3		000 ⇔ 255	0–100%
18	Virtual Color Wheel 3		000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
19	Color Temperature 3		000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
20 Strobe 3		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
21 Red	4 000 ⇔ 255 0–100%
22 Green 4 000 ⇔ 255 0–100%
23	Blue 4		000 ⇔ 255	0–100%
24	Virtual Color Wheel 4		000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
25	Color Temperature 4		000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
26 Strobe 4		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
27 Red	5 000 ⇔ 255 0–100%
28 Green 5 000 ⇔ 255 0–100%
29	Blue 5		000 ⇔ 255	0–100%
30	Virtual Color Wheel 5		000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
31	Color Temperature 5		000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
32 Strobe 5		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
33 Strobe all		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast

5-Cell RGBAL 25CH

Channel	Function	Value	Percent/Setting
1	R e d	1	000 ⇔ 255 0–100%
2	Green 1	000 ⇔ 255	0–100%
3	Blue 1	000 ⇔ 255	0–100%
4	Amber 1	000 ⇔ 255	0–100%
5	Lime 1	000 ⇔ 255	0–100%
6	R e d	2	000 ⇔ 255 0–100%
7	Green 2	000 ⇔ 255	0–100%
8	Blue 2	000 ⇔ 255	0–100%
9	Amber 2	000 ⇔ 255	0–100%
10	Lime 2	000 ⇔ 255	0–100%
11	Red 3	000 ⇔ 255	0–100%
12 Green 3 000 ⇔ 255 0–100%
13	Blue 3	000 ⇔ 255	0–100%
14	Amber 3	000 ⇔ 255	0–100%
15	Lime 3	000 ⇔ 255	0–100%
16 Red	4 000 ⇔ 255 0–100%
17 Green 4 000 ⇔ 255 0–100%
18	Blue 4	000 ⇔ 255	0–100%
19	Amber 4	000 ⇔ 255	0–100%
20	Lime 4	000 ⇔ 255	0–100%
21 Red	5 000 ⇔ 255 0–100%
Channel Function Value Percent/Setting
22 Green 5 000 ⇔ 255 0–100%
23 Blue 5 000 ⇔ 255 0–100%
24 Amber 5 000 ⇔ 255 0–100%
25 Lime 5 000 ⇔ 255 0–100%

5-Cell RGBA 20CH

Channel Function Value Percent/Setting
1	R	e	d	1	000 ⇔ 255 0–100%
2	G	r	e	n	1 000 ⇔ 255 0–100%
3	B	l	u	e	1 000 ⇔ 255 0–100%
4	Amber 1			000 ⇔ 255	0–100%
5	R	e	d	2	000 ⇔ 255 0–100%
6	G	r	e	n	2 000 ⇔ 255 0–100%
7	B	l	u	e	2 000 ⇔ 255 0–100%
8	Amber 2			000 ⇔ 255	0–100%
9	R	e	d	3	000 ⇔ 255 0–100%
10 Green 3 000 ⇔ 255 0–100%
11	Blue 3			000 ⇔ 255	0–100%
12 Amber 3 000 ⇔ 255 0–100%
13	Red 4			000 ⇔ 255	0–100%
14 Green 4 000 ⇔ 255 0–100%
15 Blue	4 000 ⇔ 255 0–100%
16 Amber 4 000 ⇔ 255 0–100%
17	Red 5			000 ⇔ 255	0–100%
18 Green 5 000 ⇔ 255 0–100%
19 Blue	5 000 ⇔ 255 0–100%
20 Amber 5 000 ⇔ 255 0–100%

5-Cell RGB 15CH

Channel Function Value Percent/Setting
1	R	e	d	1	000 ⇔ 255 0–100%
2	G	r	e	n	1	000 ⇔ 255 0–100%
3	B	l	u	e	1	000 ⇔ 255 0–100%
4	R	e	d	2	000 ⇔ 255 0–100%
5	G	r	e	e	n	2 000 ⇔ 255 0–100%
6	B	l	u	e	2	000 ⇔ 255 0–100%
7	R	e	d	3	000 ⇔ 255 0–100%
8	G	r	e	e	n	3 000 ⇔ 255 0–100%
9	B	l	u	e	3	000 ⇔ 255 0–100%
10	Red 4			000 ⇔ 255	0–100%
11	Green 4			000 ⇔ 255	0–100%
12 Blue	4 000 ⇔ 255 0–100%
13	Red 5			000 ⇔ 255	0–100%
14 Green	5 000 ⇔ 255 0–100%
15 Blue	5 000 ⇔ 255 0–100%

5-Cell HSV 15CH

Channel Function Value Percent/Setting
1	H u e	1	000 ⇔ 255 0–100%
2	Saturation 1	000 ⇔ 255	0–100%
3	Value 1	000 ⇔ 255	0–100%
4	H u e	2	000 ⇔ 255 0–100%
5	Saturation 2	000 ⇔ 255	0–100%
6	Value 2	000 ⇔ 255	0–100%
Channel	Function	Value	Percent/Setting
7	H u e	3	000 ⇔ 255 0–100%
8 Saturation 3 000 ⇔ 255 0–100%
9	V a l u	e	3 000 ⇔ 255 0–100%
10 Hue	4 000 ⇔ 255 0–100%
11 Saturation 4 000 ⇔ 255 0–100%
12 Value	4 000 ⇔ 255 0–100%
13 Hue	5 000 ⇔ 255 0–100%
14 Saturation 5 000 ⇔ 255 0–100%
15 Value	5 000 ⇔ 255 0–100%

2-Cell DMX Values

2-Cell RGBAL FULL 31CH

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0-100%
2 Dimmer fine 000 ⇔ 255 0-100%
3	R e d	1	000 ⇔ 255 0-100%
4	Red fine 1	000 ⇔ 255	0-100%
5	Green 1	000 ⇔ 255	0-100%
6 Green fine 1 000 ⇔ 255 0-100%
7	B l u e	1	000 ⇔ 255 0-100%
8	Blue fine 1	000 ⇔ 255	0-100%
9	Amber 1	000 ⇔ 255	0-100%
10	Amber fine 1	000 ⇔ 255	0-100%
11	Lime 1	000 ⇔ 255	0-100%
12	Lime fine 1	000 ⇔ 255	0-100%
13	Virtual Color Wheel 1	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
14	Color Temperature 1	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
15 Strobe 1		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
16 Red	2 000 ⇔ 255 0-100%
17	Red fine 2	000 ⇔ 255	0-100%
18	Green 2	000 ⇔ 255	0-100%
19 Green fine 2 000 ⇔ 255 0-100%
20	Blue 2	000 ⇔ 255	0-100%
21	Blue fine 2	000 ⇔ 255	0-100%
22	Amber 2	000 ⇔ 255	0-100%
23	Amber fine 2	000 ⇔ 255	0-100%
24	Lime 2	000 ⇔ 255	0-100%
25	Lime fine 2	000 ⇔ 255	0-100%
26	Virtual Color Wheel 2	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
27	Color Temperature 2	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
28 Strobe 2		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
29 Strobe all		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
30 Color macros		000 ⇔ 015	No function
		016 ⇔ 255	Color macros
31 Dimmer speed		000 ⇔ 051	Preset dimmer speed from display menu
		052 ⇔ 101	Dimmer speed mode off
		102 ⇔ 152	Dimmer speed mode 1 (fastest)
		153 ⇔ 203	Dimmer speed mode 2
		204 ⇔ 255	Dimmer speed mode 3 (slowest)

2-Cell RGBAL Fine 20CH

Channel Function Value Percent/Setting
1	R e d		1	000 ⇔ 255 0–100%
2 Red fine 1 000 ⇔ 255 0–100%
3	G r e e		n	1 000 ⇔ 255 0–100%
4 Green fine 1 000 ⇔ 255 0–100%
5	B l u e		1	000 ⇔ 255 0–100%
6	B l u e		f	i n e 1 000 ⇔ 255 0–100%
7	A m b e		r	1 000 ⇔ 255 0–100%
8 Amber fine 1 000 ⇔ 255 0–100%
9	Lime 1		000 ⇔ 255	0–100%
10	Lime fine 1		000 ⇔ 255	0–100%
11	Red 2		000 ⇔ 255	0–100%
12	Red fine 2		000 ⇔ 255	0–100%
13	Green 2		000 ⇔ 255	0–100%
14	Green fine 2		000 ⇔ 255	0–100%
15	Blue 2		000 ⇔ 255	0–100%
16	Blue fine 2		000 ⇔ 255	0–100%
17	Amber 2		000 ⇔ 255	0–100%
18	Amber fine 2		000 ⇔ 255	0–100%
19	Lime 2		000 ⇔ 255	0–100%
20	Lime fine 2		000 ⇔ 255	0–100%

2-Cell RGBAL EXT 19CH

Channel Function Value Percent/Setting
1	Dimmer			000 ⇔ 255 0–100%
2 Dimmer fine 000 ⇔ 255 0–100%
3	R e d			1 000 ⇔ 255 0–100%
4	G r e e			n 1 000 ⇔ 255 0–100%
5	B l u e			1 000 ⇔ 255 0–100%
6	A m b e			r 1 000 ⇔ 255 0–100%
7	Lime 1			000 ⇔ 255 0–100%
8	Virtual Color Wheel 1			000 ⇔ 255 Refer to the Virtual Color Wheel Chart section for specific values
9	Color Temperature 1			000 ⇔ 255 Refer to the Color Temperature Chart section for specific values
10	Strobe 1			000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
11	Red 2			000 ⇔ 255 0–100%
12	Green 2			000 ⇔ 255 0–100%
13	Blue 2			000 ⇔ 255 0–100%
14	Amber 2			000 ⇔ 255 0–100%
15	Lime 2			000 ⇔ 255 0–100%
16	Virtual Color Wheel 2			000 ⇔ 255 Refer to the Virtual Color Wheel Chart section for specific values
17	Color Temperature 2			000 ⇔ 255 Refer to the Color Temperature Chart section for specific values
18	Strobe 2			000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
19	Strobe all			000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast

2-Cell RGBA EXT 17CH

Channel	Function	Value	Percent/Setting
1	Dimmer					000 ⇔ 255		0–100%
2 Dimmer fine		000 ⇔ 255	0–100%
3	R	e	d			1		000 ⇔ 255 0–100%
4	G	r	e	e		n		1 000 ⇔ 255 0–100%
5	B	l	u	e		1		000 ⇔ 255 0–100%
6	A	m	b	e		r		1 000 ⇔ 255 0–100%

Channel	Function	Value	Percent/Setting
7	Virtual Color Wheel 1	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
8	Color Temperature 1	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
9	S t r o	000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
10 Red	2 000 ⇔ 255 0–100%
11 Green	2 000 ⇔ 255 0–100%
12 Blue	2 000 ⇔ 255 0–100%
13 Amber	2 000 ⇔ 255 0–100%
14	Virtual Color Wheel 2	000 ⇔ 255	Refer to the Virtual Color Wheel Chart section for specific values
15	Color Temperature 2	000 ⇔ 255	Refer to the Color Temperature Chart section for specific values
16 Strobe 2		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
17 Strobe all		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast

2-Cell RGB EXT 15CH

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	Red 1	000 ⇔ 255	0–100%
4	Green 1	000 ⇔ 255	0–100%
5	Blue 1	000 ⇔ 255	0–100%
6	Virtual Color Wheel 1	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
7	Color Temperature 1	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
8	S t r o	000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
9	Red 2	000 ⇔ 255	0–100%
10	Green 2	000 ⇔ 255	0–100%
11	Blue 2	000 ⇔ 255	0–100%
12	Virtual Color Wheel 2	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
13	Color Temperature 2	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
14 Strobe 2		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast
15 Strobe all		000 ⇔ 010011 ⇔ 255	No functionStrobe, slow to fast

2-Cell RGBAL 10CH

Channel	Function	Value	Percent/Setting
1	Red 1	000 ⇔ 255	0–100%
2	Green 1	000 ⇔ 255	0–100%
3	Blue 1	000 ⇔ 255	0–100%
4	Amber 1	000 ⇔ 255	0–100%
5	Lime 1	000 ⇔ 255	0–100%
6	Red 2	000 ⇔ 255	0–100%
7	Green 2	000 ⇔ 255	0–100%
8	Blue 2	000 ⇔ 255	0–100%
9	Amber 2	000 ⇔ 255	0–100%
10	Lime 2	000 ⇔ 255	0–100%

2-Cell RGBA 8CH

Channel	Function				Value	Percent/Setting
1	Red 1				000 ⇔ 255	0–100%
2	Green 1				000 ⇔ 255	0–100%
3	Blue 1				000 ⇔ 255	0–100%
Channel	Function				Value	Percent/Setting
4	A	m	b	e	r	1 000 ⇔ 255 0–100%
5	R	e	d		2	000 ⇔ 255 0–100%
6	G	r	e	e	n	2 000 ⇔ 255 0–100%
7	B	l	u	e	2	000 ⇔ 255 0–100%
8	A	m	b	e	r	2 000 ⇔ 255 0–100%

2-Cell RGB 6CH

Channel Function Value Percent/Setting
1	R	e	d		1	000 ⇔ 255 0–100%
2	G	r	e	e	n	1 000 ⇔ 255 0–100%
3	B	l	u	e	1	000 ⇔ 255 0–100%
4	R	e	d		2	000 ⇔ 255 0–100%
5	G	r	e	e	n	2 000 ⇔ 255 0–100%
6	B	l	u	e	2	000 ⇔ 255 0–100%

2-Cell HSV 6CH

Channel Function Value Percent/Setting
1	H	u	e	1	000 ⇔ 255 0–100%
2 Saturation 1	000 ⇔ 255 0–100%
3	V	a	l	u	e
4	H	u	e	2	000 ⇔ 255 0–100%
5 Saturation 2	000 ⇔ 255 0–100%
6	V	a	l	u	e

1-Cell Personalities

1-Cell RGBAL FULL 17CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2 Dimmer fine 000 ⇔ 255 0–100%
3	Red	000 ⇔ 255	0–100%
4	Red fine	000 ⇔ 255	0–100%
5	Green	000 ⇔ 255	0–100%
6	Green fine	000 ⇔ 255	0–100%
7	Blue	000 ⇔ 255	0–100%
8	Blue fine	000 ⇔ 255	0–100%
9	Amber	000 ⇔ 255	0–100%
10	Amber fine	000 ⇔ 255	0–100%
11	Lime	000 ⇔ 255	0–100%
12	Lime fine	000 ⇔ 255	0–100%
13	Virtual Color Wheel	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
14	Color Temperature	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
15	Strobe	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
16	Color macros	000 ⇔ 015	No function
		016 ⇔ 255	Color macros
17	Dimmer speed	000 ⇔ 051	Preset dimmer speed from display menu
		052 ⇔ 101	Dimmer speed mode off
		102 ⇔ 152	Dimmer speed mode 1 (fastest)
		153 ⇔ 203	Dimmer speed mode 2
		204 ⇔ 255	Dimmer speed mode 3 (slowest)

1-Cell RGBAL Fine 10CH

Channel Function Value Percent/Setting
1	R	e	d	000 ⇔ 255 0–100%
2 Red fine 000 ⇔ 255 0–100%
3	G	r	e	n	000 ⇔ 255 0–100%
4	G	r	e	n	f	i n e 000 ⇔ 255 0–100%
5	B	l	u	e	000 ⇔ 255 0–100%
6	B	l	u	e	f	i n e 000 ⇔ 255 0–100%
7	A	m	b	e	r	000 ⇔ 255 0–100%
8	Amber fine			000 ⇔ 255	0–100%
9	Lime			000 ⇔ 255	0–100%
10	Lime fine			000 ⇔ 255	0–100%

1-Cell RGBAL EXT 10CH

Channel	Function Value Percent/Setting
1	Dimmer			000 ⇔ 255	0–100%
2	Dimmer fine			000 ⇔ 255	0–100%
3	R	e	d	000 ⇔ 255	0–100%
4	G	r	e e	n	000 ⇔ 255 0–100%
5	B	l	u e	000 ⇔ 255 0–100%
6	A	m	b e	r	000 ⇔ 255 0–100%
7	Lime			000 ⇔ 255	0–100%
8	Virtual Color Wheel			000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
9	Color Temperature			000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
10	Strobe			000 ⇔ 010	No function
				011 ⇔ 255	Strobe, slow to fast

1-Cell RGBA EXT 9CH

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	R e d	000 ⇔ 255 0–100%
4	G r e e	n	000 ⇔ 255 0–100%
5	B l u e	000 ⇔ 255 0–100%
6	A m b e	r	000 ⇔ 255 0–100%
7	Virtual Color Wheel	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
8	Color Temperature	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
9	S t r o	000 ⇔ 010b 011 ⇔ 255	No functionStrobe, slow to fast

1-Cell RGB EXT 8CH

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	R e d	000 ⇔ 255	0–100%
4	G r e e	n	000 ⇔ 255 0–100%
5	B l u e	000 ⇔ 255 0–100%
6	Virtual Color Wheel	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
7	Color Temperature	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values
8	S t r o	000 ⇔ 010b011 ⇔ 255	No functionStrobe, slow to fast

1-Cell RGBAL 5CH

Channel Function Value Percent/Setting
1	R	e	d		000 ⇔ 255 0–100%
2	G	r	e	e	n	000 ⇔ 255 0–100%
3	B	l	u	e	000 ⇔ 255 0–100%
4	A	m	b	e	r	000 ⇔ 255 0–100%
5	L	i	m	e	000 ⇔ 255 0–100%

1-Cell RGBA 4CH

Channel Function Value Percent/Setting
1	R	e	d		000 ⇔ 255 0–100%
2	G	r	e	e	n	000 ⇔ 255 0–100%
3	B	l	u	e	000 ⇔ 255 0–100%
4	A	m	b	e	r	000 ⇔ 255 0–100%

1-Cell RGB 3CH

Channel Function Value Percent/Setting
1	R	e	d		000 ⇔ 255 0–100%
2	G	r	e	e	n	000 ⇔ 255 0–100%
3	B	l	u	e	000 ⇔ 255 0–100%

1-Cell DMX-VCW-CCT 3CH

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Virtual Color Wheel	000 ⇔ 255	Refer to theVirtual Color Wheel Chartsection for specific values
3	Color Temperature	000 ⇔ 255	Refer to theColor Temperature Chartsection for specific values

1-Cell HSV 3CH

Channel Function Value Percent/Setting
1	H u e	000 ⇔ 255	0–100%
2	Saturation	000 ⇔ 255	0–100%
3	Value	000 ⇔ 255	0–100%

Acerca de Esta Guía

Technical line drawing of a long industrial conveyor or support structure with circular components and mounting feet (no text or symbols)

Montaje en el Suelo

Servidor Web

5-celdas RGBAL FULL 70CH

Canal Función Valor Porcentaje/Configuración
1	Atenuador	000 ⇔ 255	0–100%
2	Atenuador fino	000 ⇔ 255	0–100%
3	Rojo 1	000 ⇔ 255	0–100%
4	Rojo fino 1	000 ⇔ 255	0–100%
5	Verde 1	000 ⇔ 255	0–100%
6	Verde fino 1	000 ⇔ 255	0–100%
7	Azul 1	000 ⇔ 255	0–100%
8	Azul fino 1	000 ⇔ 255	0–100%
9	Ámbar 1	000 ⇔ 255	0–100%
10	Ámbar fino 1	000 ⇔ 255	0–100%
11	Limón 1	000 ⇔ 255	0–100%
12	Limón fino 1	000 ⇔ 255	0–100%
13	Rueda de Color Virtual 1	000 ⇔ 255	Vea Tabla de colores VCW
14	Temperaturas de color 1	000 ⇔ 255	Vea Gráfico de temperaturas de color
15 Estroboscopio 1		000 ⇔ 010	Sin función
		011 ⇔ 255	Estroboscopio, lento a rápido
16	Rojo 2	000 ⇔ 255	0–100%
17	Rojo fino 2	000 ⇔ 255	0–100%
18	Verde 2	000 ⇔ 255	0–100%
19	Verde fino 2	000 ⇔ 255	0–100%
Canal	Función	Valor	Porcentaje/Configuración
20 Azul	2 000 ⇔ 255 0–100%
21 Azul	fino 2 000 ⇔ 255 0–100%
22 Ámbar	2 000 ⇔ 255 0–100%
23 Ámbar	fino 2 000 ⇔ 255 0–100%
24 Limón	2 000 ⇔ 255 0–100%
25 Limón	fino 2 000 ⇔ 255 0–100%
26	Rueda de Color Virtual 2	000 ⇔ 255	Vea Tabla de colores VCW
27	Temperaturas de color 2	000 ⇔ 255	Vea Gráfico de temperaturas de color
28 Estroboscopio 2		000 ⇔ 010	Sin función
		011 ⇔ 255	Estroboscopio, lento a rápido
29 Rojo	3 000 ⇔ 255 0–100%
30 Rojo	fino 3 000 ⇔ 255 0–100%
31 Verde	3 000 ⇔ 255 0–100%
32 Verde	fino 3 000 ⇔ 255 0–100%
33 Azul	3 000 ⇔ 255 0–100%
34 Azul	fino 3 000 ⇔ 255 0–100%
35 Ámbar	3 000 ⇔ 255 0–100%
36 Ámbar	fino 3 000 ⇔ 255 0–100%
37 Limón	3 000 ⇔ 255 0–100%
38 Limón	fino 3 000 ⇔ 255 0–100%
39	Rueda de Color Virtual 3	000 ⇔ 255	Vea Tabla de colores VCW
40	Temperaturas de color 3	000 ⇔ 255	Vea Gráfico de temperaturas de color
41 Estroboscopio 3		000 ⇔ 010	Sin función
		011 ⇔ 255	Estroboscopio, lento a rápido
42 Rojo	4 000 ⇔ 255 0–100%
43 Rojo	fino 4 000 ⇔ 255 0–100%
44 Verde	4 000 ⇔ 255 0–100%
45 Verde	fino 4 000 ⇔ 255 0–100%
46 Azul	4 000 ⇔ 255 0–100%
47 Azul	fino 4 000 ⇔ 255 0–100%
48 Ámbar	4 000 ⇔ 255 0–100%
49 Ámbar	fino 4 000 ⇔ 255 0–100%
50 Limón	4 000 ⇔ 255 0–100%
51 Limón	fino 4 000 ⇔ 255 0–100%
52	Rueda de Color Virtual 4	000 ⇔ 255	Vea Tabla de colores VCW
53	Temperaturas de color 4	000 ⇔ 255	Vea Gráfico de temperaturas de color
54 Estroboscopio 4		000 ⇔ 010	Sin función
		011 ⇔ 255	Estroboscopio, lento a rápido
55 Rojo	5 000 ⇔ 255 0–100%
56 Rojo	fino 5 000 ⇔ 255 0–100%
57 Verde	5 000 ⇔ 255 0–100%
58 Verde	fino 5 000 ⇔ 255 0–100%
59 Azul	5 000 ⇔ 255 0–100%
60 Azul	fino 5 000 ⇔ 255 0–100%
61 Ámbar	5 000 ⇔ 255 0–100%
62 Ámbar	fino 5 000 ⇔ 255 0–100%
63 Limón	5 000 ⇔ 255 0–100%
64 Limón	fino 5 000 ⇔ 255 0–100%
65	Rueda de Color Virtual 5	000 ⇔ 255	Vea Tabla de colores VCW
66	Temperaturas de color 5	000 ⇔ 255	Vea Gráfico de temperaturas de color
67 Estroboscopio 5		000 ⇔ 010	Sin función
		011 ⇔ 255	Estroboscopio, lento a rápido
68 Estroboscopio todo		000 ⇔ 010	Sin función
		011 ⇔ 255	Estroboscopio, lento a rápido
69 Macros de color		000 ⇔ 015	Sin función
		016 ⇔ 255	Macros de color
Canal Función Valor Porcentaje/Configuración
70 Velocidad Atenuador		000 ⇔ 051052 ⇔ 101102 ⇔ 152153 ⇔ 203204 ⇔ 255	Pre configura la velocidad del atenuador desde la pantalla de menúAtenuador linealCurva de atenuación no-lineal 1 (la más rápida)Curva de atenuación no-lineal 2Curva de atenuación no-lineal 3

5-celdas RGBAL Fine 50CH

Canal Función Valor Porcentaje/Configuración
1	R o j o	1	000 ⇔ 255 0–100%
2 Rojo	fino 1 000 ⇔ 255 0–100%
3	V e r d	e	1 000 ⇔ 255 0–100%
4 Verde	fino 1 000 ⇔ 255 0–100%
5	Azul 1	000 ⇔ 255	0–100%
6	Azul fino 1	000 ⇔ 255	0–100%
7	Ámbar 1	000 ⇔ 255	0–100%
8	Ámbar fino 1	000 ⇔ 255	0–100%
9	Limón 1	000 ⇔ 255	0–100%
10	Limón fino 1	000 ⇔ 255	0–100%
11	Rojo 2	000 ⇔ 255	0–100%
12 Rojo	fino 2 000 ⇔ 255 0–100%
13	Verde 2	000 ⇔ 255	0–100%
14 Verde	fino 2 000 ⇔ 255 0–100%
15	Azul 2	000 ⇔ 255	0–100%
16	Azul fino 2	000 ⇔ 255	0–100%
17	Ámbar 2	000 ⇔ 255	0–100%
18	Ámbar fino 2	000 ⇔ 255	0–100%
19	Limón 2	000 ⇔ 255	0–100%
20	Limón fino 2	000 ⇔ 255	0–100%
21	Rojo 3	000 ⇔ 255	0–100%
22 Rojo	fino 3 000 ⇔ 255 0–100%
23	Verde 3	000 ⇔ 255	0–100%
24 Verde	fino 3 000 ⇔ 255 0–100%
25	Azul 3	000 ⇔ 255	0–100%
26	Azul fino 3	000 ⇔ 255	0–100%
27	Ámbar 3	000 ⇔ 255	0–100%
28	Ámbar fino 3	000 ⇔ 255	0–100%
29	Limón 3	000 ⇔ 255	0–100%
30	Limón fino 3	000 ⇔ 255	0–100%
31	Rojo 4	000 ⇔ 255	0–100%
32 Rojo	fino 4 000 ⇔ 255 0–100%
33	Verde 4	000 ⇔ 255	0–100%
34 Verde	fino 4 000 ⇔ 255 0–100%
35	Azul 4	000 ⇔ 255	0–100%
36	Azul fino 4	000 ⇔ 255	0–100%
37	Ámbar 4	000 ⇔ 255	0–100%
38	Ámbar fino 4	000 ⇔ 255	0–100%
39	Limón 4	000 ⇔ 255	0–100%
40	Limón fino 4	000 ⇔ 255	0–100%
41	Rojo 5	000 ⇔ 255	0–100%
42 Rojo	fino 5 000 ⇔ 255 0–100%
43	Verde	000 ⇔ 255	0–100%
44 Verde	fino 5 000 ⇔ 255 0–100%
45	Azul 5	000 ⇔ 255	0–100%
46	Azul fino 5	000 ⇔ 255	0–100%
47	Ámbar 5	000 ⇔ 255	0–100%
48	Ámbar fino 5	000 ⇔ 255	0–100%

Technical line drawing of a long rectangular structural component with circular holes and mounting feet (no text or symbols)

Montage au Sol

Serveur Web

5-cellules RGBAL Fine 50CH

Canal	Fonction	Valeur	Pourcentage/Configuration
1	Rouge 1	000 ⇔ 255	0–100%
2	Rouge fin 1	000 ⇔ 255	0–100%
3	Vert 1	000 ⇔ 255	0–100%
4	Vert fin 1	000 ⇔ 255	0–100%
5	Bleu 1	000 ⇔ 255	0–100%
6	Bleu fin 1	000 ⇔ 255	0–100%
7	Ambre 1	000 ⇔ 255	0–100%
8	Ambre fin 1	000 ⇔ 255	0–100%
9	Lime 1	000 ⇔ 255	0–100%
10	Lime fin 1 000 ⇔ 255 0–100%
11	Rouge 2	000 ⇔ 255	0–100%
12	Rouge fin 2 000 ⇔ 255 0–100%
13	Vert 2 000 ⇔ 255 0–100%
14	Vert fin 2 000 ⇔ 255 0–100%
15	Bleu 2 000 ⇔ 255 0–100%
16	Bleu fin 2 000 ⇔ 255 0–100%
17	Ambre 2 000 ⇔ 255 0–100%
18	Ambre fin 2 000 ⇔ 255 0–100%
19	Lime 2 000 ⇔ 255 0–100%
20	Lime fin 2 000 ⇔ 255 0–100%
21	Rouge 3 000 ⇔ 255 0–100%
22	Rouge fin 3 000 ⇔ 255 0–100%
23	Vert 3 000 ⇔ 255 0–100%
24	Vert fin 3 000 ⇔ 255 0–100%
25	Bleu 3 000 ⇔ 255 0–100%
26	Bleu fin 3 000 ⇔ 255 0–100%
27	Ambre 3 000 ⇔ 255 0–100%
28	Ambre fin 3 000 ⇔ 255 0–100%
29	Lime 3 000 ⇔ 255 0–100%
30	Lime fin 3 000 ⇔ 255 0–100%
31	Rouge 4 000 ⇔ 255 0–100%
32	Rouge fin 4 000 ⇔ 255 0–100%
33	Vert 4 000 ⇔ 255 0–100%
34	Vert fin 4 000 ⇔ 255 0–100%
35	Bleu 4 000 ⇔ 255 0–100%
36	Bleu fin 4 000 ⇔ 255 0–100%
37	Ambre 4 000 ⇔ 255 0–100%
38	Ambre fin 4 000 ⇔ 255 0–100%
39	Lime 4 000 ⇔ 255 0–100%
40	Lime fin 4 000 ⇔ 255 0–100%
41	Rouge 5 000 ⇔ 255 0–100%
42	Rouge fin 5 000 ⇔ 255 0–100%
43	Vert 5 000 ⇔ 255 0–100%
44	Vert fin 5 000 ⇔ 255 0–100%
45	Bleu 5 000 ⇔ 255 0–100%
46	Bleu fin 5 000 ⇔ 255 0–100%
47	Ambre 5 000 ⇔ 255 0–100%
48	Ambre fin 5 000 ⇔ 255 0–100%
49	Lime 5	000 ⇔ 255	0–100%
50	Lime fin 5 000 ⇔ 255 0–100%

5-cellules RGBAL EXT 43CH

5-cellules RGBA 20CH

Canal	Fonction	Valeur	Pourcentage/Configuration
1 Rouge 1 000 ⇌ 255 0–100%
2	V e r t	1	000 ⇌ 255 0–100%
3	B l e u	1	000 ⇌ 255 0–100%
4	Ambre 1	000 ⇌ 255	0–100%
5	Rouge	000 ⇌ 255	0–100%
6	V e r t	2	000 ⇌ 255 0–100%
7	B l e u	2	000 ⇌ 255 0–100%
8	Ambre 2	000 ⇌ 255	0–100%
9 Rouge 3 000 ⇌ 255 0–100%
10	Vert 3	000 ⇌ 255	0–100%
11	Bleu 3	000 ⇌ 255	0–100%
12	Ambre 3	000 ⇌ 255	0–100%
13 Rouge 4 000 ⇌ 255 0–100%
14	Vert 4	000 ⇌ 255	0–100%
15	Bleu 4	000 ⇌ 255	0–100%
16	Ambre 4	000 ⇌ 255	0–100%
17 Rouge 5 000 ⇌ 255 0–100%
18 Vert 5 000 ⇔ 255 0–100%
19 Bleu 5 000 ⇔ 255 0–100%
20 Ambre 5 000 ⇔ 255 0–100%

5-cellules RGB 15CH

Canal	Fonction	Valeur	Pourcentage/Configuration
1 Rouge 1 000 ⇔ 255 0–100%
2	V e r t	1	000 ⇔ 255 0–100%
3	Bleu 1	000 ⇔ 255	0–100%
4 Rouge 2 000 ⇔ 255 0–100%
5	V e r t	2	000 ⇔ 255 0–100%
6	Bleu 2	000 ⇔ 255	0–100%
7 Rouge 3 000 ⇔ 255 0–100%
8	V e r t	3	000 ⇔ 255 0–100%
9	Bleu 3	000 ⇔ 255	0–100%
10 Rouge 4 000 ⇔ 255 0–100%
11	Vert 4	000 ⇔ 255	0–100%
12 Bleu 4 000 ⇔ 255 0–100%
13 Rouge 5 000 ⇔ 255 0–100%
14 Vert 5 000 ⇔ 255 0–100%
15 Bleu 5 000 ⇔ 255 0–100%

5-cellules HSV 15CH

Canal	Fonction	Valeur	Pourcentage/Configuration
1	Teintes 1	000 ⇔ 255	0–100%
2	Saturation 1	000 ⇔ 255	0–100%
3	Valeur 1	000 ⇔ 255	0–100%
4	Teintes 2	000 ⇔ 255	0–100%
5	Saturation 2	000 ⇔ 255	0–100%
6	Valeur 2	000 ⇔ 255	0–100%
7	Teintes 3	000 ⇔ 255	0–100%
8	Saturation 3	000 ⇔ 255	0–100%
9	Valeur 3	000 ⇔ 255	0–100%
10	Teintes 4	000 ⇔ 255	0–100%
11	Saturation 4	000 ⇔ 255	0–100%
12	Valeur 4	000 ⇔ 255	0–100%
13	Teintes 5	000 ⇔ 255	0–100%
14	Saturation 5	000 ⇔ 255	0–100%
15	Valeur 5	000 ⇔ 255	0–100%

RDM (Remote Device Management)

Technical line drawing of a long rectangular industrial or structural component with circular holes and mounting feet (no text or symbols)

Technical line drawing of a long rectangular industrial or structural component with circular patterns on its side (no text or symbols)

5-cel RGBAL FULL 70CH

5-cel RGBAL Fine 50CH

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

[EMPTY]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

ART NET

ETHERNET

UL 1573

CSA C22.2 No. 166

E113093

CE FC

RoHS
