USER MANUAL Ovation P-56VW Chauvet

Technical line drawing of a mounted optical or radar device with no visible text or symbols

Model ID: OVATIONP56VW

About This Guide

The Ovation P-56VW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, the customer must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives the customer specific legal rights. The customer may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult a local distributor.

Safety Notes

• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it (IP20).
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
  • DO NOT operate this product if the housing, lenses, or cables appear damaged.

- DO NOT connect this product to a dimmer or rheostat.

CAUTION: This product's housing may be hot when lights are operating.

- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

- USE a safety cable when mounting this product overhead.

- ONLY connect this product to a grounded and protected circuit.

- ONLY use the hanging/mounting bracket to carry this product.

• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 11.5 ft (3.5) m is not expected.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced with a special cable or cord exclusively available from the manufacturer or its service agent.

- The light source contained in this luminaire shall only be replaced by the manufacturer, its service agent, or a similarly qualified person.

• In the event of a serious operating problem, stop using immediately.

FCC Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

What is Included

• Ovation P-56VW
• Gel frame holder (7.5 in/191 mm accessories)
• N e ^® powerCON ^® power cord

• Medium and wide lenses
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

It is possible to link up to 7 Ovation P-56VW products at 100 VAC, 9 products at 120 V, 16 products at 208 V, 18 products at 230 V, or 18 products at 240 VAC. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a flathead screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation P-56VW will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation P-56VW uses a 3- or 5-pin DMX data connection for its DMX personalities: 1Ch, 3Ch, 5Ch, 6Ch, 8Ch, 11Ch, 15Ch, and 18Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation P-56VW uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

Remote Device Management

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check with the manufacturer or the DMX controller's User Manual, as not all DMX controllers have this capability. The Ovation P-56VW supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps can support the weight of the product. For the Chauvet line of mounting clamps, go to: http://trusst.com/productcategory/truss-clamps/.

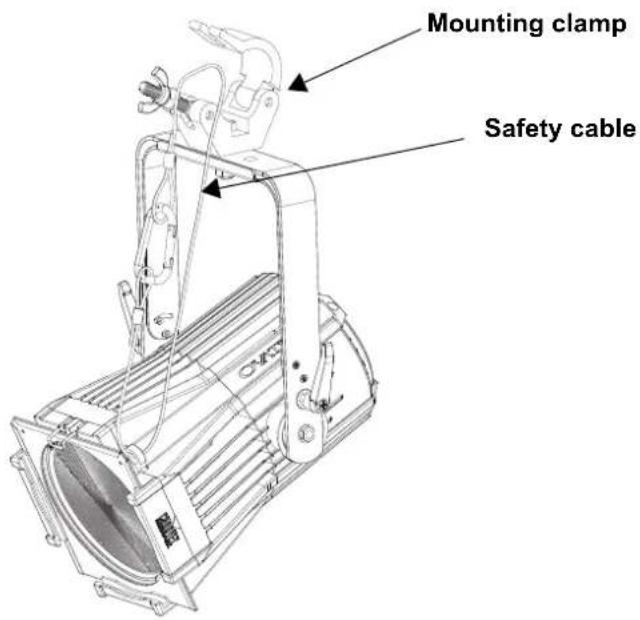

Product Mounting Diagram

Mounting clamp Safety cable

Overhead Mounting

Technical line drawing of a large industrial lamp or reflector device with no visible text or symbols

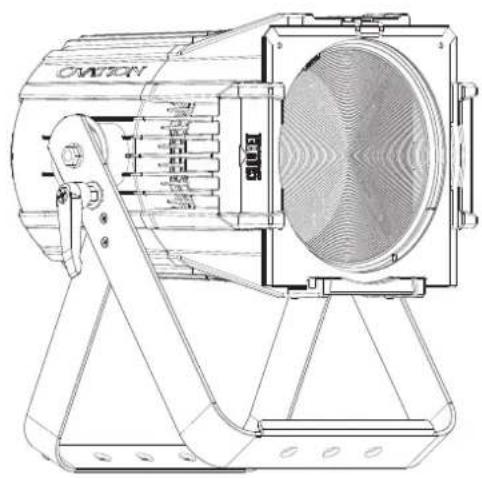

Floor Mounting

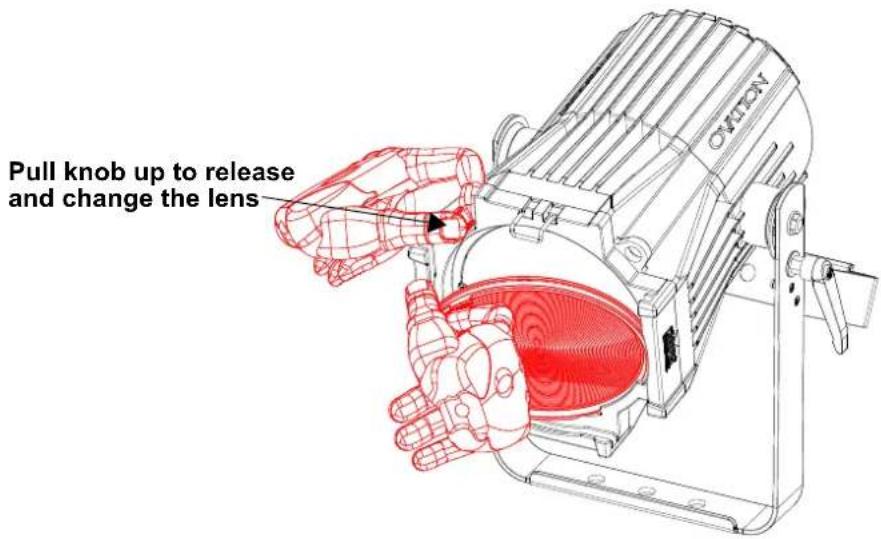

Alternate Lenses

The interchangeable medium and wide lenses allow the product to have alternate beam angles.

Pull knob up to release and change the lens

Color Temperature

Color Temperature DMX Chart

DMX Channel Value	Color Temperature	DMX Channel Value	Color Temperature	DMX Channel Value	Color Temperature
000 ⇔ 005	No function/2800K	084 ⇔ 090	3900–4000K	168 ⇔ 174	5100–5200K
006 ⇔ 013	2800–2900K	091 ⇔ 097	4000–4100K	175 ⇔ 181	5200–5300K
014 ⇔ 020	2900–3000K	098 ⇔ 104	4100–4200K	182 ⇔ 188	5300–5400K
021 ⇔ 027	3000–3100K	105 ⇔ 111	4200–4300K	189 ⇔ 195	5400–5500K
028 ⇔ 034	3100–3200K	112 ⇔ 118	4300–4400K	196 ⇔ 202	5500–5600K
035 ⇔ 041	3200–3300K	119 ⇔ 125	4400–4500K	203 ⇔ 209	5600–5700K
042 ⇔ 048	3300–3400K	126 ⇔ 132	4500–4600K	210 ⇔ 216	5700–6000K
049 ⇔ 055	3400–3500K	133 ⇔ 139	4600–4700K	217 ⇔ 223	6000–6500K
056 ⇔ 062	3500–3600K	140 ⇔ 146	4700–4800K	224 ⇔ 230	6500–7000K
063 ⇔ 069	3600–3700K	147 ⇔ 153	4800–4900K	231 ⇔ 237	7000–7500K
070 ⇔ 076	3700–3800K	154 ⇔ 160	4900–5000K	238 ⇔ 244	7500–8000K
077 ⇔ 083	3800–3900K	161 ⇔ 167	5000–5100K	245 ⇔ 255	8000K

Color Temperature Values Chart

Display Readout	Red Value Orange Value		Green Value	Royal Blue Value	Blue Value	Lime Value
2800K	193	181	015	032	023	255
2900K	184	172	024	036	025	255
3000K	176	161	027	037	028	255
3100K	167	156	030	042	034	255
3200K	162	146	034	046	035	255
3300K	157	140	039	048	040	255
3400K	153	132	042	050	044	255
3500K	149	128	046	053	047	255
3600K	144	122	050	055	050	255
3700K	140	118	053	057	054	255
3800K	135	115	054	059	057	255
3900K	132	111	056	063	062	255
4000K	128	107	059	066	065	255
4100K	125	105	062	068	067	255
4200K	123	103	067	070	071	255
4300K	120	101	071	072	074	255
4400K	118	099	074	074	078	255
4500K	116	097	079	077	080	255
4600K	114	094	083	078	083	255
4700K	112	092	087	080	085	255
4800K	107	090	089	082	087	255
4900K	105	088	092	085	089	255
5000K	103	086	095	087	092	255
5100K	101	084	099	088	094	255
5200K	100	082	101	091	096	255
5300K	099	079	104	095	097	255
5400K	098	077	106	098	099	255
5500K	097	079	108	102	102	255
5600K	096	077	109	104	104	255
5700K	095	076	110	106	106	255
6000K	089	072	115	111	113	255
6500K	081	066	120	121	120	255
7000K	077	059	124	128	129	255
7500K	073	054	127	136	136	255
8000K	068	050	135	144	142	255

The color temperatures above are simulated renditions of the color output produced compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level	Programming Levels Description
DMX Address	001-512*				Selects DMX address(*highest channel restricted to personality chosen)
DMX Channel	1Ch	Color Temperature _ _ _ _ _		1-channel: dimmerSee Color Temperature
		Manual Color Mixer	Red	0-255	Combine red, orange, green, royal blue, blue, and lime to make custom color (0-100%)
			Orange
			Green
			Royal Blue
			Blue
			Lime
	3Ch 3-channel: dimmer, color temperature, hue
	5Ch				5-channel: 16-bit dimmer, color temperature, hue, strobe
	6Ch 6-channel: red, orange, green, royal blue, blue, lime
	8Ch				8-channel: red, orange, green, royal blue, blue, lime, strobe
	11Ch				11-channel: dimmer, red, orange, green, royal blue, blue, lime, strobe, color temperature, hue, control
	15Ch				15-channel: 16-bit dimmer, 16-bit red, orange, green, royal blue, blue, and lime, strobe
	18Ch				18-channel: 16-bit dimmer, 16-bit red, orange, green, royal blue, blue, and lime, strobe, color temperature, hue, control
Static	Color Temperature	2800K2900K3000K3100K3200K3300K3400K3500K3600K3700K3800K3900K4000K4100K4200K4300K4400K4500K4600K4700K4800K4900K5000K5100K5200K5300K5400K5500K5600K5700K6000K6500K7000K7500K8000K	Dimmer 0-255	Hue -25-25	Sets the color temperature, dimmer, and hue (green/magenta) levels. Emulates a tungsten lamp at the specified color temperature. Refer to the Color Temperature Values Chart for specific values.
	Manual Color Mixer	RedOrangeGreenRoyal BlueBlueLime		0-255	Combines red, orange, green, royal blue, blue, and lime to make a custom color (0-100%)
Red Shift	OnOff				Mimics halogen lamp dimming
Master/Slave	Master				Receives DMX signal from the DMX controller (master)
	Slave Receives DMX signal from the master unit
Dimmer Curve	S-CurveLinearSquareInverse square				Sets the dimmer curve
Dimmer Mode	Off Linear dimmer
	Dimmer 1-3				Dimming curves, from fast (Dimmer 1) to slow (Dimmer 3)
Main Level	Programming Levels			Description
White Balance	Off Uses factory default white setting
	Manual	Red	125-255	Sets red LED maximum value
		Orange Sets orange LED max		maximum value
		Green Sets green LED max		imum value
		Royal Blue Sets royal blue LED max		maximum value
		Blue Sets blue LED max		m value
		Lime Sets lime LED max		m value
LED Frequency	600Hz1200Hz2000Hz4000Hz6000Hz25KHz			Sets the PWM output frequency
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Back Light	10S			Turns off display backlight after 10 seconds of inactivity
	30S			Turns off display backlight after 30 seconds of inactivity
	2Min			Turns off display backlight after 2 minutes of inactivity
	Always On Display backlight always on
Information	Fixture Hours __ H			Shows total hours the product has been powered on
	LED Hours __ H Shows total LED hours
	Version	V__		Shows current firmware version
	UID	--------		Shows product UID
Factory Reset	No			Resets the product to factory default settings
	Yes

WARNING: When operating in Fan Mode: Off, the fixture will become hotter to the touch than when using other fan modes. Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects.

NOTICE: When operating in Fan Mode: Off, output of the fixture will be reduced and will not reach the same levels as when using other fan modes.

DMX Values

18Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2 Dimmer fine 000 ⇔ 255 0–100%
3	R e d	000 ⇔ 255 0–100%
4 Red fine 000 ⇔ 255 0–100%
5 Orange 000 ⇔ 255 0–100%
6 Orange fine 000 ⇔ 255 0–100%
7	G r e e	n	000 ⇔ 255 0–100%
8 Green fine 000 ⇔ 255 0–100%
9	Royal blue	000 ⇔ 255	0–100%
10	Royal blue fine	000 ⇔ 255	0–100%
11	Blue	000 ⇔ 255	0–100%
12	Blue fine	000 ⇔ 255	0–100%
13	Lime	000 ⇔ 255	0–100%
14	Lime fine	000 ⇔ 255	0–100%
15	Strobe	000 ⇔ 010 No function011 ⇔ 255	Strobe, slow to fast
16	Color temperature	000 ⇔ 255	Refer to Color Temperature DMX Chart
17	Hue	000 ⇔ 255	-25–25
18	Control(hold for 3 seconds,then release)	000 ⇔ 007 No function008 ⇔ 015 Red shift: On016 ⇔ 023 Red shift: Off024 ⇔ 031 Dimmer reset032 ⇔ 039 Dimmer: S-Curve040 ⇔ 047 Dimmer: Linear048 ⇔ 055 Dimmer: Square056 ⇔ 063 Dimmer: Inverted square064 ⇔ 071 Dimmer speed mode off072 ⇔ 079 Dimmer speed mode 1080 ⇔ 087 Dimmer speed mode 2088 ⇔ 095 Dimmer speed mode 3096 ⇔ 103 Fan auto104 ⇔ 111 Fan on112 ⇔ 119 Fan off120 ⇔ 127 Fan silent128 ⇔ 255 No function (reserved)

15Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇌ 255 0–100%
2 Dimmer fine 000 ⇌ 255 0–100%
3	R e d	000 ⇌ 255 0–100%
4	R e d	f i	n e 000 ⇌ 255 0–100%
5 Orange 000 ⇌ 255 0–100%
6 Orange fine 000 ⇌ 255 0–100%
7 Green 000 ⇌ 255 0–100%
8 Green fine 000 ⇌ 255 0–100%
9	Royal blue	000 ⇌ 255	0–100%
10	Royal blue fine	000 ⇌ 255	0–100%
11	Blue	000 ⇌ 255	0–100%
12	Blue fine	000 ⇌ 255	0–100%
13	Lime	000 ⇌ 255	0–100%
14	Lime fine	000 ⇌ 255	0–100%
15	Strobe	000 ⇌ 010 No function011 ⇌ 255	Strobe, slow to fast

11Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	R e d	000 ⇔ 255 0–100%
3 Orange 000 ⇔ 255 0–100%
4 Green 000 ⇔ 255 0–100%
5	Royal blue	000 ⇔ 255	0–100%
6	Blue	000 ⇔ 255	0–100%
7	L i m e	000 ⇔ 255 0–100%
8 Strobe		000 ⇔ 010 No function
		011 ⇔ 255	Strobe, slow to fast
9	Color temperature	000 ⇔ 255	Refer to Color Temperature DMX Chart
10	Hue	000 ⇔ 255	-25–25
11	Control(hold for 3 seconds,then release)	000 ⇔ 007 No function
		008 ⇔ 015 Red shift: On
		016 ⇔ 023 Red shift: Off
		024 ⇔ 031 Dimmer reset
		032 ⇔ 039 Dimmer: S-Curve
		040 ⇔ 047 Dimmer: Linear
		048 ⇔ 055 Dimmer: Square
		056 ⇔ 063 Dimmer: Inverted square
		064 ⇔ 071 Dimmer speed mode off
		072 ⇔ 079 Dimmer speed mode 1
		080 ⇔ 087 Dimmer speed mode 2
		088 ⇔ 095 Dimmer speed mode 3
		096 ⇔ 103 Fan auto
		104 ⇔ 111 Fan on
		112 ⇔ 119 Fan off
		120 ⇔ 127 Fan silent
		128 ⇔ 255 No function (reserved)

8Ch

Channel Function Value Percent/Setting
1	D	i	m	m	e r	000 ⇔ 255 0–100%
2	R	e	d		000 ⇔ 255 0–100%
3	O	r	a	n	g e	000 ⇔ 255 0–100%
4	G	r	e	e	n	000 ⇔ 255 0–100%
5	R	o	y	a	l	b l u e 000 ⇔ 255 0-
6	B	l	u	e	000 ⇔ 255 0–100%
7	L	i	m	e	000 ⇔ 255 0–100%
8 Strobe					000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast

6Ch

Channel Function Value Percent/Setting
1	R	e	d		000 ⇔ 255 0–100%
2	O	r	a	n	g e	000 ⇔ 255 0–100%
3	G	r	e	e	n	000 ⇔ 255 0–100%
4	R	o	y	a	l	b l u e 000 ⇔ 255 0-
5	B	l	u	e	000 ⇔ 255 0–100%
6	L	i	m	e	000 ⇔ 255 0–100%

5Ch

Channel Function Value Percent/Setting
1	D	i	m	m	e	r
2 Dimmer fine 000 ⇔ 255 0–100%
3	Color temperature				000 ⇔ 255	Refer to Color Temperature DMX Chart
4	H	u	e		000 ⇔ 255 -25–25
5 Strobe					000 ⇔ 010 No function011 ⇔ 255	Strobe, slow to fast

3Ch

Channel Function Value Percent/Setting
1	D	i	m m	e r	000 ⇔ 255 0–100%
2	Color temperature			000 ⇔ 255	Refer to Color Temperature DMX Chart
3	H	u	e	000 ⇔ 255 -25–25

1Ch

Channel Function Value Percent/Setting
1	Dimmer	000 ⇔ 255	0–100% (color set through menu)

Acerca de Esta Guía

Remote Device Management

Technical line drawing of a large industrial lamp or reflector device with no visible text or symbols

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd. Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetprofessional.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

E113093

RoHS
