About This Guide

The Maverick MK3 Spot Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• CAUTION: Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
  • DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
  • DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
  • In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America, and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Contact

Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Maverick MK3 Spot • 2 Omega brackets with mounting hardware
• Seetronic Powerkon IP65 power cord • Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing The Fuse

1. Disconnect this product from power
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Maverick MK3 Spot will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Maverick MK3 Spot uses a 3- or 5-pin DMX data connection for its DMX personalities: 39Ch and 31Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Signal Connection

The Maverick MK3 Spot can link to controller software using an Ethernet connection. If using other Art-Net ^™ or sACN - compatible products with the Maverick MK3 Spot you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Maverick MK3 Spot supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

Product Mounting Diagram

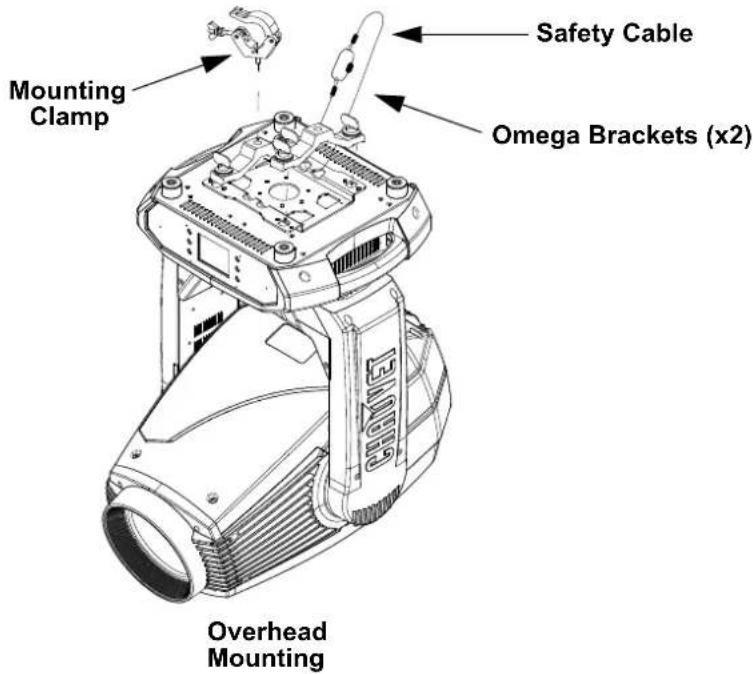

Mounting Clamp Safety Cable Omega Brackets (x2) Overhead Mounting

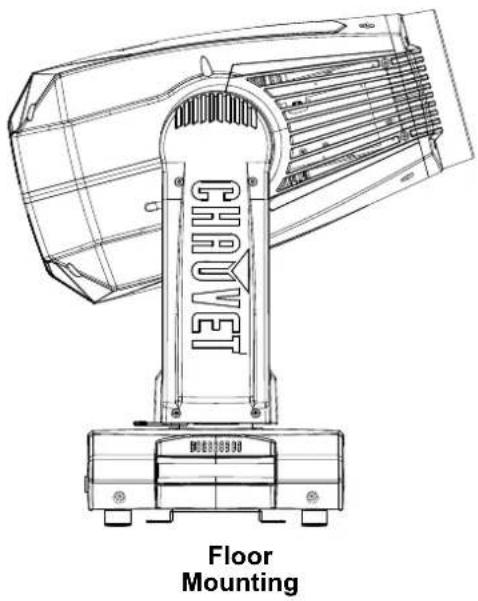

DHUET Floor Mounting

Control Panel Description

Button Name Function
<↑>		Navigates upwards through the menu list or increases the numeric value when in a function
	Exits from the current menu or function
		Navigates downwards through the menu list or decreases the numeric value when in a function
	Navigates leftwards through the menu list
		Enables the currently displayed menu or sets the currently selected value into the selected function
		Navigates rightwards through the menu list

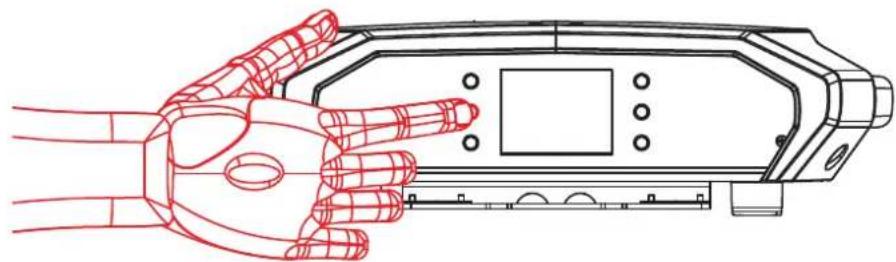

Battery Powered Display

Press and hold until menu screen appears (approximately 15 seconds).

Line drawing of a robotic hand holding a device (no text or symbols present)

Menu Map

Main Level Programming Levels Description
Address 000-512 Network Setting
Network Setup	IP Mode	Manual	Selection of IP modeDHCP
		Static
	Universe 000-255 Set the Universe
	Ip 002.243.075.222 IP setting
	SubMask 255.000.000.000 Subnet Mask
Personality	DMX 31CH	YES	Choose 31 Channels of DMX
		NO
	DMX 39CH	NO	Choose 39 Channels of DMX
		YES
Settings	Control Mode	DMX	Signal Selection
		WDMX
		ArtNet
		sACN
	Pan Reverse	NO	Reverse the Pan
		YES
	Tilt Reverse	NO	Reverse the Tilt
		YES
	Screen Reverse	NO	Manually or automatically reverse the screen
		YES
		AUTO
	Pan Angle	540	Change the Pan angle360
		180
	Tilt Angle	270	Change the Tilt angle180
		90
	BL. O. P/T Move	NO	Enable/disable XY blackout
		YES
	BL. O. Color Move	NO	Enable/disable color blackout
		YES
	BL. O. Gobo Move	NO	Enable/disable gobo blackout
		YES
	Calibration	NO	Turn on Calibration
		YES
	Touchscreen Lock	NO	Lock the touchscreen
		YES
	Lock Screen	NO	Lock the buttons and touchscreen
		YES
	Swap XY	NO	Swap the pan and tilt
		YES
	WDMX Reset	NO	Reset the wireless DMX
		YES
	Backlight Timer	30S	Set the backlight to turn off automatically after a chosen time
		1M
		5M
		ON
	Loss of Data	Hold	Loss of data setting
		Close
	Fans	Auto	Change the fan speed mode
		Full
		ECO

Main Level Programming Levels Description
Settings (cont.)	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	PWM Option	600Hz		PWM selection
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	Preset Select	PRESET A		Recorded preset menu options PRESET B
		PRESET C
	Preset Sync	NO Allows recorded preset menu options to be transferred to other Maverick MK3 Spots in the DMX daisy chain
		YES
	Reset Function	Pan/Tilt	YES/NO	Reset individual functions to factory
		Iris/Prism
		Color/CMY
		Gobo/GoboRotate
		Frost/Animation
		All
	Factory Settings	NO		Reset all functions to factory
		YES
Test	Manual Test	Auto Test Auto test the product
		Pan	000-255	Individually test each function/channel
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Virtual Shaking
		Cyan
		Magenta
		Yellow
		CTO
		Color
		Gobo
		Gobo Rotate
		Gobo Index
		Gobo2
		Gobo3
		Gobo3 Rotate
		Gobo3 Index
		Animation
		Animation Rotate
		Focus
		Focus Fine
		Focus Auto
		Zoom
		Zoom Fine
		Prism
		Prism Rotate
		Prism2
		Prism2 Rotate
		Iris
		Frost
		Frost2
		CRI Filter
		CMY Macro
		CMY Macro Speed
		Special Function
Information	Fixture Information	Ver Current Version
		Running Mode		Current Mode
		DMX Address
		Temperature Current Temperature
		Fixture Hours Current active hours
		Ip Current IP address
		SubMask Current subnet mask
		MAC MAC address
	Fan Information	head Fan1 Speed		View speed setting
		head Fan2 Speed
		head Fan3 Speed
		head Fan4 Speed
		head Fan5 Speed
		head Fan6 Speed
	Error Information	Will appear on screen
	Channel Information	Frequency Hz		Status of individual channel
		Pan	000-255
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Virtual Shaking
		Cyan
		Magenta
		Yellow
		CTO
		Color
		Gobo
		Gobo Rotate
		Gobo Index
		Gobo2
		Gobo3
		Gobo3 Rotate
		Gobo3 Index
		Animation
		Animation Rotate
		Focus
		Focus Fine
		Focus Auto
		Zoom
		Zoom Fine
		Prism
		Prism Rotate
		Prism2
		Prism2 Rotate
		Iris
		Frost
		Frost2
		CRI Filter
		CMY Macro
		CMY Macro Speed
		Special Function

DMX Values
Dmx Mode 39 CH

Channel Function Value Percent/Setting
1	P	a	n	255 0-100%
2	F	i	n	e 255 Fine control (16-bit) a n 000
3	T	i	l	t 255 0-100% 000
4 Fine Tilt 000				255 Fine control (16-bit)
5 Pan/Tilt Speed 000				255 0-100%
6 Dimmer 000				255 0-100%
7 Fine Dimmer 000				255 Fine control (16-bit)
8	S	t	r	000 003 Closed004 007 Open008 076 Slow to fast077 145 Pulse effect from slow to fast146 215 Random effect from slow to fast216 255 Closed
9 Virtual Strobe				000 001 No function002 128 Shaking strobe, slow to fast129 255 Fade in/out, slow to fast
10 Cyan	000			255 0-100%
11	Magenta			000 255 0-100%
12 Yellow	000			255 0-100%
13 CTO	000			255 0-100%
14 Color Wheel				000 007 White008 015 Red016 023 Orange024 031 Green032 039 Yellow040 047 Blue048 059 CTB 8000K060 187 Split colors188 219 Clockwise color scroll, fast to slow220 223 Stop224 255 Counter-clockwise color scroll, slow to fast
15	Rotating Gobo Wheel 1			000 007 Open008 015 Gobo 1 (Sailboats)016 023 Gobo 2 (Radial Dot)024 031 Gobo 3 (Mower Blade)032 039 Gobo 4 (Bolts)040 047 Gobo 5 (Shower Glass)048 055 Gobo 6 (Ballistic Clouds)056 063 Gobo 7 (4 Eyes)064 071 Gobo 7 Shaking072 079 Gobo 6 Shaking080 087 Gobo 5 Shaking088 095 Gobo 4 Shaking096 103 Gobo 3 Shaking104 111 Gobo 2 Shaking112 119 Gobo 1 Shaking120 127 Open128 191 Clockwise gobo scroll, slow to fast192 255 Counter-clockwise gobo scroll, slow to fast
16 Gobo 1 Rotating				000 063 Rotating gobo index064 145 Clockwise rotating, fast to slow146 151 Stop152 231 Counter-clockwise rotating, slow to fast232 255 Bounce effect
17	Fine Gobo Wheel 1 Index			000 255 Fine control (16-bit)

Channel Function Value Percent/Setting
18 Static	Gobo Wheel 2	000 ⇔ 005	Open
		006 ⇔ 011	Gobo 1 (Beam)
		012 ⇔ 017	Gobo 2 (Bars)
		018 ⇔ 023	Gobo 3 (Circles)
		024 ⇔ 029	Gobo 4 (Breakup)
		030 ⇔ 035	Gobo 5 (Dots)
		036 ⇔ 041	Gobo 6 (Circuits)
		042 ⇔ 047	Gobo 7 (Triangles)
		048 ⇔ 053	Gobo 8 (Forest)
		054 ⇔ 063	Gobo 9 (Rainbows)
		064 ⇔ 069	Gobo 9 Shaking
		070 ⇔ 075	Gobo 8 Shaking
		076 ⇔ 081	Gobo 7 Shaking
		082 ⇔ 087	Gobo 6 Shaking
		088 ⇔ 093	Gobo 5 Shaking
		094 ⇔ 099	Gobo 4 Shaking
		100 ⇔ 105	Gobo 3 Shaking
		106 ⇔ 111	Gobo 2 Shaking
		112 ⇔ 117	Gobo 1 Shaking
		118 ⇔ 127	Open
		128 ⇔ 191	Clockwise gobo scroll, slow to fast
		192 ⇔ 255	Counter-clockwise gobo scroll, slow to fast
19	Rotating Gobo Wheel 3	000 ⇔ 007	Open
		008 ⇔ 015	Gobo 1 (Spiral)
		016 ⇔ 023	Gobo 2 (Abstracts)
		024 ⇔ 031	Gobo 3 (Brick Wall)
		032 ⇔ 039	Gobo 4 (Chess)
		040 ⇔ 047	Gobo 5 (Granny Sue)
		048 ⇔ 055	Gobo 6 (Color Weave)
		056 ⇔ 063	Gobo 7 (Indigo Square Breakup)
		064 ⇔ 071	Gobo 7 Shaking
		072 ⇔ 079	Gobo 6 Shaking
		080 ⇔ 087	Gobo 5 Shaking
		088 ⇔ 095	Gobo 4 Shaking
		096 ⇔ 103	Gobo 3 Shaking
		104 ⇔ 111	Gobo 2 Shaking
		112 ⇔ 119	Gobo 1 Shaking
		120 ⇔ 127	Open
		128 ⇔ 191	Clockwise gobo scroll, slow to fast
		192 ⇔ 255	Counter-clockwise gobo scroll, slow to fast
20 Gobo	3 Rotating	000 ⇔ 063	Rotating gobo index
		064 ⇔ 145	Clockwise rotating, fast to slow
		146 ⇔ 151	Stop
		152 ⇔ 231	Counter-clockwise rotating, slow to fast
		232 ⇔ 255	Bounce effect
21	Fine Gobo Wheel 3 Index	000 ⇔ 255	Fine control (16-bit)
22 Animation Wheel 000		⇔ 255	Animation effect
23	Animation Wheel Rotating	000 ⇔ 124	Clockwise rotating, fast to slow
		125 ⇔ 130	Stop
		131 ⇔ 255	Counter-clockwise rotating, slow to fast
24 Focus 000		⇔ 255	0-100%
25 Fine Focus 000		⇔ 255	Fine control (16-bit)
26 Auto Focus		000 ⇔ 010	No function
		011 ⇔ 030	0-5 m
		031 ⇔ 050	6 m
		051 ⇔ 070	7 m
		071 ⇔ 090	8 m
		091 ⇔ 110	9 m
		111 ⇔ 130	10 m
		131 ⇔ 150	12.5 m
		151 ⇔ 170	15 m
		171 ⇔ 190	17.5 m
		191 ⇔ 210	20-60 m
		211 ⇔ 255	Auto-detect distance
27	Zoom	000 ⇔ 255	0-100%
28 Fine Zoom 000		⇔ 255	Fine control (16-bit)
29 Prism		000 ⇔ 004	No function
		005 ⇔ 255	Prism Effect
30 Prism	Rotating	000 ⇔ 127	Rotating position
		128 ⇔ 189	Clockwise rotating, fast to slow
		190 ⇔ 193	Stop
		194 ⇔ 255	Counter-clockwise rotating, slow to fast
31 Prism	2	000 ⇔ 004	No function
		005 ⇔ 255	Prism Effect
32 Prism	Rotating 2	000 ⇔ 127	Rotating position
		128 ⇔ 189	Clockwise rotating, fast to slow
		190 ⇔ 193	Stop
		194 ⇔ 255	Counter-clockwise rotating, slow to fast
33 Iris		000 ⇔ 063	0-100%
		064 ⇔ 127	Auto change, slow to fast
		128 ⇔ 191	Slow zoom out, fast zoom in (slow to fast)
		192 ⇔ 255	Slow zoom in, fast zoom out (slow to fast)
34 Frost	1 000	⇔ 255	0-100%
35 Frost	2 000	⇔ 255	0-100%
36 CRI Filter		000 ⇔ 004	No function
		005 ⇔ 255	CRI filter
37 CMY Macro		000 ⇔ 009	No function
		010 ⇔ 255	CMY macro
38 CMY Macro Speed 000		⇔ 255	100%-0
39 Control		000 ⇔ 007	No function
		008 ⇔ 015	Pan/tilt blackout
		016 ⇔ 023	Color blackout
		024 ⇔ 031	Gobo blackout
		032 ⇔ 039	Pan/tilt/color blackout
		040 ⇔ 047	Pan/tilt/gobo blackout
		048 ⇔ 055	Pan/tilt/color/gobo blackout
		056 ⇔ 095	No function
		096 ⇔ 103	Pan reset
		104 ⇔ 111	Tilt reset
		112 ⇔ 119	Color reset
		120 ⇔ 127	Gobo reset
		128 ⇔ 135	No function
		136 ⇔ 143	Prism reset
		144 ⇔ 151	No function
		152 ⇔ 159	All reset
		160 ⇔ 167	Iris reset
		168 ⇔ 175	Frost reset
		176 ⇔ 183	Zoom reset
		184 ⇔ 191	CMY reset
		192 ⇔ 199	Fan low speed (eco)
		200 ⇔ 207	Fan full speed
		208 ⇔ 215	Fan auto
		216 ⇔ 220	No function
		221 ⇔ 225	Iris fast mode
		226 ⇔ 230	Iris smooth mode
		231 ⇔ 235	Pan/tilt swap on
		236 ⇔ 240	Pan/tilt swap off
		241 ⇔ 245	No function
		246 ⇔ 250	Pan/tilt smooth mode
		251 ⇔ 255	Pan/tilt fast mode

Dmx Mode 31 CH

Channel Function Value Percent/Setting
1	P a n	⇔ 255 0000%
2	F i n	e⇔ 255 Fine control (16-bit) a n 000
3 Tilt 000		⇔ 255 0-100%
4 Fine Tilt 000		⇔ 255 Fine control (16-bit)
5 Pan/Tilt Speed 000		⇔ 255 0-100%
6	D i m	m 255 0-800% r 000
7 Strobe		000 ⇔ 003	Closed
		004 ⇔ 007	Open
		008 ⇔ 076	Slow to fast
		077 ⇔ 145	Pulse effect from slow to fast
		146 ⇔ 215	Random effect from slow to fast
		216 ⇔ 255	Closed
8 Virtual	Strobe	000 ⇔ 001	No function
		002 ⇔ 128	Shaking strobe, slow to fast
		129 ⇔ 255	Fade in/out, slow to fast
9	C y a	n- 255 0-100% 000
10	Magenta	000 ⇔ 255 0-100%
11	Yellow	000 ⇔ 255 0-100%
12	CTO	000 ⇔ 255 0-100%
13	Color Wheel	000 ⇔ 007	Open
		008 ⇔ 015	Red
		016 ⇔ 023	Orange
		024 ⇔ 031	Green
		032 ⇔ 039	Yellow
		040 ⇔ 047	Blue
		048 ⇔ 059	CTB 8000K
		060 ⇔ 187	Split colors
		188 ⇔ 219	Clockwise color scroll, fast to slow
		220 ⇔ 223	Stop
		224 ⇔ 255	Counter-clockwise color scroll, slow to fast
14	Rotating Gobo Wheel 1	000 ⇔ 007	Open
		008 ⇔ 015	Gobo 1 (Sailboats)
		016 ⇔ 023	Gobo 2 (Radial Dot)
		024 ⇔ 031	Gobo 3 (Mower Blade)
		032 ⇔ 039	Gobo 4 (Bolts)
		040 ⇔ 047	Gobo 5 (Shower Glass)
		048 ⇔ 055	Gobo 6 (Ballistic Clouds)
		056 ⇔ 063	Gobo 7 (4 Eyes)
		064 ⇔ 071	Gobo 7 Shaking
		072 ⇔ 079	Gobo 6 Shaking
		080 ⇔ 087	Gobo 5 Shaking
		088 ⇔ 095	Gobo 4 Shaking
		096 ⇔ 103	Gobo 3 Shaking
		104 ⇔ 111	Gobo 2 Shaking
		112 ⇔ 119	Gobo 1 Shaking
		120 ⇔ 127	Open
		128 ⇔ 191	Clockwise gobo scroll, slow to fast
		192 ⇔ 255	Counter-clockwise gobo scroll, slow to fast
15	Gobo 1 Rotating	000 ⇔ 063	Rotating gobo index
		064 ⇔ 145	Clockwise rotating, fast to slow
		146 ⇔ 149	Stop
		150 ⇔ 231	Counter-clockwise rotating, slow to fast
		232 ⇔ 255	Bounce effect

Channel Function Value Percent/Setting
16 Static	Gobo Wheel 2	000 ⇔ 005	Open
		006 ⇔ 011	Gobo 1 (Beam)
		012 ⇔ 017	Gobo 2 (Bars)
		018 ⇔ 023	Gobo 3 (Circles)
		024 ⇔ 029	Gobo 4 (Breakup)
		030 ⇔ 035	Gobo 5 (Dots)
		036 ⇔ 041	Gobo 6 (Circuits)
		042 ⇔ 047	Gobo 7 (Triangles)
		048 ⇔ 053	Gobo 8 (Forest)
		054 ⇔ 063	Gobo 9 (Rainbows)
		064 ⇔ 069	Gobo 9 Shaking
		070 ⇔ 075	Gobo 8 Shaking
		076 ⇔ 081	Gobo 7 Shaking
		082 ⇔ 087	Gobo 6 Shaking
		088 ⇔ 093	Gobo 5 Shaking
		094 ⇔ 099	Gobo 4 Shaking
		100 ⇔ 105	Gobo 3 Shaking
		106 ⇔ 111	Gobo 2 Shaking
		112 ⇔ 117	Gobo 1 Shaking
		118 ⇔ 127	Open
		128 ⇔ 191	Clockwise gobo scroll, slow to fast
		192 ⇔ 255	Counter-clockwise gobo scroll, slow to fast
17	Rotating Gobo Wheel 3	000 ⇔ 007	Open
		008 ⇔ 015	Gobo 1 (Spiral)
		016 ⇔ 023	Gobo 2 (Abstracts)
		024 ⇔ 031	Gobo 3 (Brick Wall)
		032 ⇔ 039	Gobo 4 (Chess)
		040 ⇔ 047	Gobo 5 (Granny Sue)
		048 ⇔ 055	Gobo 6 (Color Weave)
		056 ⇔ 063	Gobo 7 (Indigo Square Breakup)
		064 ⇔ 071	Gobo 7 Shaking
		072 ⇔ 079	Gobo 6 Shaking
		080 ⇔ 087	Gobo 5 Shaking
		088 ⇔ 095	Gobo 4 Shaking
		096 ⇔ 103	Gobo 3 Shaking
		104 ⇔ 111	Gobo 2 Shaking
		112 ⇔ 119	Gobo 1 Shaking
		120 ⇔ 127	Open
		128 ⇔ 191	Clockwise gobo scroll, slow to fast
		192 ⇔ 255	Counter-clockwise gobo scroll, slow to fast
18 Gobo	3 Rotating	000 ⇔ 063	Rotating gobo index
		064 ⇔ 145	Clockwise rotating, fast to slow
		146 ⇔ 149	Stop
		150 ⇔ 231	Counter-clockwise rotating, slow to fast
		232 ⇔ 255	Bounce effect
19 Animation Wheel 000		⇔ 255 Animation effect
20	Animation Wheel Rotating	000 ⇔ 124	Clockwise rotating, fast to slow
		125 ⇔ 130	Stop
		131 ⇔ 255	Counter-clockwise rotating, slow to fast
21 Focus	000	⇔ 255 0-100%
22 Zoom	000	⇔ 255 0-100%
23 Prism		000 ⇔ 004	No function
		005 ⇔ 255	Prism Effect
24 Prism	Rotating	000 ⇔ 127	Rotating position
		128 ⇔ 189	Clockwise rotating, fast to slow
		190 ⇔ 193	Stop
		194 ⇔ 255	Counter-clockwise rotating, slow to fast
25 Prism	2	000 ⇔ 004	No function
		005 ⇔ 255	Prism Effect
26 Prism	Rotating 2	000 ⇔ 127	Rotating position
		128 ⇔ 189	Clockwise rotating, fast to slow
		190 ⇔ 193	Stop
		194 ⇔ 255	Counter-clockwise rotating, slow to fast
Channel Function Value Percent/Setting
27 Iris		000 ⇔ 063	0-100%
		064 ⇔ 127	Auto change, slow to fast
		128 ⇔ 191	Slow zoom out, fast zoom in (slow to fast)
		192 ⇔ 255	Slow zoom in, fast zoom out (slow to fast)
28 Frost	1 000	⇔ 255 0-100%
29 Frost	2 000	⇔ 255 0-100%
30 CRI Filter		000 ⇔ 004	No function
		005 ⇔ 255	CRI filter
31 Control		000 ⇔ 007	No function
		008 ⇔ 015	Pan/tilt blackout
		016 ⇔ 023	Color blackout
		024 ⇔ 031	Gobo blackout
		032 ⇔ 039	Pan/tilt/color blackout
		040 ⇔ 047	Pan/tilt/gobo blackout
		048 ⇔ 055	Pan/tilt/color/gobo blackout
		056 ⇔ 095	No function
		096 ⇔ 103	Pan reset
		104 ⇔ 111	Tilt reset
		112 ⇔ 119	Color reset
		120 ⇔ 127	Gobo reset
		128 ⇔ 135	No function
		136 ⇔ 143	Prism reset
		144 ⇔ 151	No function
		152 ⇔ 159	All reset
		160 ⇔ 167	Iris reset
		168 ⇔ 175	Frost reset
		176 ⇔ 183	Zoom reset
		184 ⇔ 191	CMY reset
		192 ⇔ 199	Fan low speed (eco)
		200 ⇔ 207	Fan full speed
		208 ⇔ 215	Fan auto
		216 ⇔ 220	No function
		221 ⇔ 225	Iris fast mode
		226 ⇔ 230	Iris smooth mode
		231 ⇔ 235	Pan/tilt swap on
		236 ⇔ 240	Pan/tilt swap off
		241 ⇔ 245	No function
		246 ⇔ 250	Pan/tilt smooth mode
		251 ⇔ 255	Pan/tilt fast mode

Acerca de Esta Guía

Technical line drawing of a mechanical device with no visible text or symbols

Montaje en el Suelo

Line drawing of a robotic hand holding a device (no text or symbols present)

Mapa de Menú

Technical line drawing of a radar or air conditioner unit with 'CHAVET' branding on the top (no other text or symbols)

Montage au Sol

Line drawing of a robotic hand holding a device (no text or symbols present)

Plan du Menu

RDM (Remote Device Management)

Technical line drawing of a CHAVET airship with no visible text or symbols

Line drawing of a robotic hand holding a device panel (no text or symbols)

Menüstruktur

Line drawing of a robotic hand holding an electronic device (no text or symbols present)

Menumap

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573

® CSA C22.2 No. 166

us E113093

RoHS
