USER MANUAL Maverick MK Pyxis Chauvet

Model ID: MAVERICKMKPYXIS

About This Guide

The Maverick MK Pyxis Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

The product is for professional use only.
DO NOT open this product. It contains no user-serviceable parts.
DO NOT look at the light source when the product is on.
To eliminate unnecessary wear and improve its lifespan, completely disconnect the product from power via breaker or by unplugging it during periods of non-use.
CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
CAUTION: This product's housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 12.8 ft (3.9) m is not expected.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
USE a safety cable when mounting this product overhead.
DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket or the handles to carry this product.
If the external flexible cable or cord of this product is damaged, it shall be replaced with a special cable or cord exclusively available from the manufacturer or its service agent.
The light source contained in this product shall only be replaced by the manufacturer, its service agent, or a similarly qualified person.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
In the event of a serious operating problem, stop using immediately.

Contact

Outside the U.S., U.K., Ireland, France, Germany, Mexico, or Benelux contact your distributor to request support or return a product. Visit www.chauvetprofessional.com for contact information.

What is Included

- Maverick MK Pyxis

• 2 Omega brackets with mounting hardware

- Seetronic Powerkon IP65 power cord

- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC live Black Brown Yellow/brass
AC neutral White Blue Silver
AC ground Green/yellow Green/yellow		Green

Chauvet Maverick MK Pyxis - AC Power - 1

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link up to 3 Maverick MK Pyxis products at 100 V, 4 products at 120 V, 7 products at 208 V, or up to 8 products at 230 V or 240 V. Never exceed this number. Power-linking cables can be purchased separately.

Replacing the Fuse

Disconnect this product from power.
Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
Remove blown fuse and replace with a good fuse of the same type and rating.
Screw the fuse holder cap back in place and reconnect power.

Signal Connections

The Maverick MK Pyxis can be linked to a controller or controller software using a DMX connection, an Ethernet connection, or both. If using other Art-Net™, sACN, or Kling-Net-compatible products with the Maverick MK Pyxis, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Control Personalities

The Maverick MK Pyxis uses DMX, Art-Net™, sACN, W-DMX, and Kling-Net for its control personalities:

Single Control	Dual Control Movement	Dual Control Pixels
Basic (26 channels)	Basic (13 channels)	Basic (30 channels)
Standard (66 channels)	Standard (30 channels)	Standard (40 channels)
Advanced (113 channels)	Advanced (41 channels)	Advanced (80 channels)
Tour (131 channels)	Uses DMX, Art-NetTM, or sACN	Uses DMX, Art-NetTM, sACN, or Kling-Net
Uses DMX, Art-NetTM, sACN, or W-DMX	Uses DMX, Art-NetTM, or sACN	Uses DMX, Art-NetTM, sACN, or Kling-Net

Chauvet Maverick MK Pyxis - Control Personalities - 1

In Dual Control mode, the Movement protocol and the Pixels protocol cannot be the same.

DMX Connection

The Maverick MK Pyxis will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is available from www.chauvetprofessional.com.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers a large amount of DMX512 data using a Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network. ACN is maintained by the Professional Lighting and Sound Association (PLASA).

Kling-Net Connection

Kling-Net is a network protocol that allows autoconfiguration of display devices using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos software manual for detailed instructions on programming this product.

Chauvet Maverick MK Pyxis - Kling-Net Connection - 1

For smooth-running operation, ArKaos Kling-Net requires a gigabit (1,000 Mbps) Ethernet card and network router.
• ArKaos Kling-Net will only run Standard Pixels or Basic Pixels mode.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. The Maverick MK Pyxis supports RDM protocol that allows feedback to monitor temperature and changes to menu options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

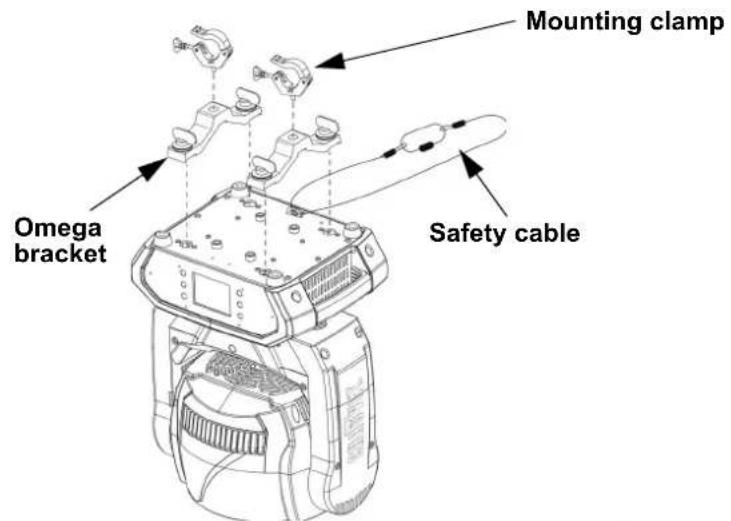

Mounting Diagram

Chauvet Maverick MK Pyxis - Mounting Diagram - 1


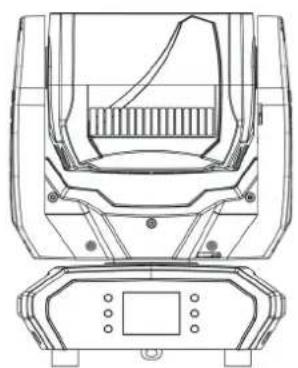

Chauvet Maverick MK Pyxis - Mounting Diagram - 2

Overhead Mounting Surface Mounting

Touchscreen Control Panel

The Maverick MK Pyxis has a touchscreen display and six control buttons. The touchscreen can be locked and calibrated through the Setup options in the menu.

Control Panel Description

Button Function
< ↑ >	Navigates upwards through the menu list or increases the numeric value when in a function
< ≡ >	Exits from the current menu or function
< ↓ >	Navigates downwards through the menu list or decreases the numeric value when in a function
< ← >	Navigates leftwards through the menu list
< ← → >	Enables the currently displayed menu or sets the currently selected value into the selected function
< ➔ >	Navigates rightwards through the menu list

Battery-Powered Display

Press and hold until menu screen appears (approx 15 sec.).

Chauvet Maverick MK Pyxis - Battery-Powered Display - 1

Refer for the Maverick MK Pyxis product page on www.chauvetprofessional.com for the latest menu map.

Programming Levels Description
Control Settings Control Settings Main Level
Control Settings	Single Control	DMX	Personality	Basic
				Standard
				Advanced
				Tour
		Start Address	0-512 Sets the DMX starting address
		ArtNet	Personality	Basic
				Standard
				Advanced
				Tour
		Start Address	0-512 Sets the Art-NetTM starting address
		Universe 0-255 Sets the Art-NetTM universe
		sACN	Personality	Basic
				Standard
				Advanced
				Tour
		Start Address	0-512 Sets the sACN starting address
		Universe 0-255 Sets the sACN universe
		WDMX	Personality	Basic
				Standard
				Advanced
				Tour
		Start Address	0-512 Sets the WDMX starting address
Dual Control	Movement	DMX	Personality	Basic
				Standard
				Advanced
		Start Address	0-512 Sets the DMX starting address
		ArtNet	Personality	Basic
				Standard
				Advanced
		Start Address	0-512 Sets the Art-NetTM starting address
		Universe 0-255 Sets the Art-NetTM universe
		sACN	Personality	Basic
				Standard
				Advanced
		Start Address	0-512 Sets the sACN starting address
		Universe 0-255 Sets the sACN universe
	Pixels	DMX	Personality	Basic
				Standard
				Advanced
		Start Address	0-512 Sets the DMX starting address
		ArtNet	Personality	Basic
				Standard
				Advanced
		Start Address	0-512 Sets the Art-NetTM beginning address
		Universe 0-255 Sets the Art-NetTM universe
		sACN	Personality	Basic
				Standard
				Advanced
		Start Address	0-512 Sets the sACN starting address
		Universe 0-255 Sets the sACN universe
		KlingNet Personality	Basic	Sets the Kling-Net personality (see Control Personalities)
			Standard

Programming Levels Description
Test Mode Test Mode Main Level
Test Mode	Auto Test Auto test all functions
	Manual Test	Pan	000-255	Manually control and test all settings through the control panel
		Tilt
		P/T Speed
		Red
		Green
		Blue
		White
		CTC
		Color
		Pattern
		LED Macro
		LED Ma. Speed
		LED Ma. Fade
		Background
		Background Dim.
		Dimmer
		Shutter
		Function
		Zoom
Setup Setup Main Level
Setup	Network Settings	IP Mode	Manual Manually set IP address
			DHCP Network sets IP address
			Static Product sets IP address
		IP _ _ _ _ Sets IP address in Manual mode
		SubMask _ _ _ Sets Subnet Mask in Manual mode
	Pan Reverse	NO Normal pan
		YES Reversed pan
	Tilt Reverse	NO Normal tilt
		YES Reversed tilt
	Zoom Reverse	NO Normal Zoom
		YES Reversed Zoom
	Screen Reverse	NO Normal display
		YES Inverted display
		AUTO		Automatic display orientation
	Pan Angle	540		540° pan range
		360		360° pan range
		180		180° pan range
	Tilt Angle	270		270° tilt range
		180		180° tilt range
		90		90° tilt range
	BL. O. P/T Move	NO Do not blackout while pan/tilt
		YES Blackout while pan/tilt
	Calibration	NO Keep current settings
		YES Calibrate touchscreen
	Touchscreen Lock	NO Display responds to touch
		YES Display does not respond to touch
	Lock Screen	NO		Lock the buttons and touchscreen Passcode: 0920
		YES
	Swap XY	NO Do not swap pan and tilt
		YES Pan controls tilt, tilt controls pan
	WDMX Reset	NO Do not reset WDMX
		YES Reset WDMX
Setup (cont.)				Setup Main Level (cont.)
Setup (cont.)	Backlight Timer	30S Display turns off after 30 seconds
		1M Display turns off after 1 minute
		5M Display turns off after 5 minutes
		ON Display stays on
	Loss of Data	Hold Holds last signal received
		Close Blacks out fixture
	Fans	Auto		Fan speed according to product temperature
		Full Fan speed set on high
		ECO Quiet mode
	C Mixing Mode	RGBW RGBW mode (additive)
		CMY CMY mode (subtractive)
	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth		Set the dimmer speed
		Fast
	PWM Option	600Hz		Sets the Pulse Width Modulation frequency
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	Color Balance	Red	000-255	Sets red LED maximum value
		Green Sets green LED maximum value
		Blue Sets blue LED maximum value
		White Sets white LED maximum value
	Preset Select	PRESET A		Recorded preset menu optionsPRESET B

		PRESET C
	Preset Sync	NO Allows recorded preset		menu options to be transferred to other Maverick MK Pyxis in the DMX daisy chain
		YES
	Reset Function	Pan/Tilt	NO	Reset individual functions or all functions from startup
			YES
		Zoom	NO
			YES
		All	NO
			YES
	Factory Settings	NO		Reset to factory default settings
		YES
Sys Info				Sys Info Main Level
Sys Info	Fixture Information	Ver	V_	Shows firmware version
		Running Mode	---	Shows current running mode
		Address	---	Shows current starting address
		Temperature	---	Shows current product temperature in °C
		Fixture Hours	----	Shows number of hours product has been powered on
		Ip	----	Shows current IP address
		SubMask	----	Shows current Subnet Mask
		MAC	----	Shows current MAC address
	Fan Information	Head Fan1 Speed	----	Shows speed of head fans in rpm
		Head Fan2 Speed	----
	Error Information	No Error!*		Shows any errors, or No Error!

Programming Levels Description
Sys Info (cont.)				Sys Info Main Level (cont.)
Sys Info (cont.)	Channel Information	Frequency	---	Shows all current values from input signals, 000–255
		Pan
		Pan Fine
		Tilt
		Tilt Fine
		Pan Rotation
		Tilt Rotation
		P/T Speed
		CTC
		Color (1–2)
		Pattern
		LED Macro
		LED Ma. Speed
		LED Ma. Fine
		Background
		Background Dim.
		Bg. Dim. Fine
		Dimmer (A–B)
		Dimmer Fine (A–B)
		Shutter (1–2)
		Zoom
		Function
		Red (all, 1–10)
		Red Fine (all, 1–10)
		Green (all, 1–10)
		Green fine (all, 1–10)
		Blue (all, 1–10)
		Blue Fine (all, 1–10)
		White (all, 1–10)
		White Fine (all, 1–10)
		Dimmer (1–10)
		Dimmer Fine (1–10)

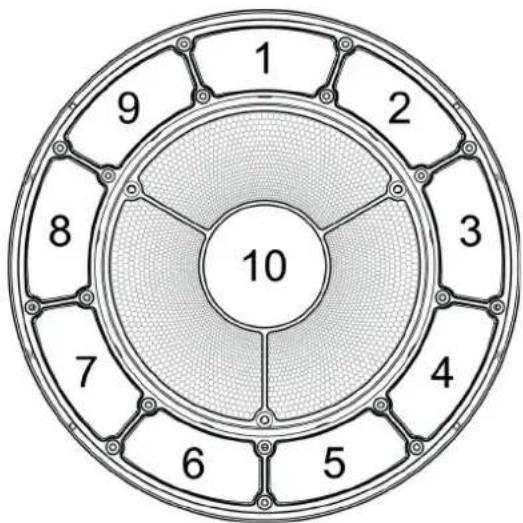

Zones for Pixel Control

Chauvet Maverick MK Pyxis - Menu Map - 1

DMX Values

Single Control Values

Single Control: Tour Mode (131Ch)

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255 0–100%
2 Pan	Fine 000	⇔ 255 0–100%
3	T i l t	000255 0–100%
4 Tilt	Fine 000	⇔ 255 0–100%
5 Continuous Pan		000 No function001 ⇔ 127 Continuous pan, fast to slow128 No function129 ⇔ 255 Reverse continuous pan, slow to fast
6 Continuous Tilt		000 No function001 ⇔ 127 Continuous tilt, fast to slow128 No function129 ⇔ 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000		⇔ 255 Fast to slow
8	CTC	000 No function001 ⇔ 255 Color temperature, 2800–10000 K
9 Ring	Color	000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255–0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0–255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255–0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255–0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow

Channel	Function	Value	Percent/Setting
10 Beam Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
11 Gobo		000 No function001 ⇔ 255 Gobos (indexed)
12	LED Macro / Auto Program	000 ⇔ 015 No function016 ⇔ 135 LED macros136 ⇔ 255 Auto programs
13	LED Macro / Auto Program Speed	000 ⇔ 127 Auto speed, fast to slow clockwise128 Hold129 ⇔ 255 Auto speed, slow to fast counter-clockwise
14 LED Built-in Delay	000 ⇔ 255 Fast to slow
15	Background Color	000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 1 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-1 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 256 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
16 Background Dimmer	000 ⇔ 255 0-100%
17 Background Fine Dimmer	000 ⇔ 255 0-100%
18 Main Dimmer	000 ⇔ 255 0-100%
19 Main Fine Dimmer	000 ⇔ 255 0-100%
20 Ring	Shutter	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 069 Strobe, fast to slow070 ⇔ 089 Strobe 100-0%, fast to slow090 ⇔ 109 Strobe 0-100%, fast to slow110 ⇔ 129 Random strobe, fast to slow130 ⇔ 149 Random strobe 100-0%, fast to slow150 ⇔ 169 Random strobe 0-100%, fast to slow170 ⇔ 189 Pulse strobe, fast to slow190 ⇔ 209 Random pulse strobe, fast to slow210 ⇔ 229 Strobe 0-100-0%, fast to slow230 ⇔ 244 Random pulse strobe, fast to slow245 ⇔ 255 On
21 Beam	Shutter	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 069 Strobe, fast to slow070 ⇔ 089 Strobe 100-0%, fast to slow090 ⇔ 109 Strobe 0-100%, fast to slow110 ⇔ 129 Random strobe, fast to slow13O ⇔ 149 Random strobe 100-0%, fast to slow150 ⇔ 169 Random strobe 0-100%, fast to slow170 ⇔ 189 Pulse strobe, fast to slow190 ⇔ 209 Random pulse strobe, fast to slow210 ⇔ 229 Strobe 0-100-0%, fast to slow23O ⇔ 244 Random pulse strobe, fast to slow245 ⇔ 255 On
22 Zoom	000	⇔ 255 Wide to narrow
23 Control		000 ⇔ 009 No function010 ⇔ 014 Blackout on Pan/Tilt015 ⇔ 019 Reserved for future use020 ⇔ 024 RGBW (additive) color-mixing mode025 ⇔ 029 CMY (subtractive) color-mixing mode030 ⇔ 049 Reserved for future use050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 Reserved for future use070 ⇔ 074 Reset all075 ⇔ 109 Reserved for future use110 ⇔ 114 Fast Pan/Tilt speed115 ⇔ 119 Slow Pan/tilt speed120 ⇔ 124 Slow fan mode125 ⇔ 129 Full fan mode130 ⇔ 134 Auto fan mode135 ⇔ 139 Fast dimmer mode140 ⇔ 144 Slow dimmer mode145 ⇔ 255 Reserved for future use
24 Main Red 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
25 Main Fine Red 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
26 Main Green 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
27 Main Fine Green 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
28 Main Blue 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
29 Main Fine Blue 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
30 Main White 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
31 Main Fine White 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
32 Dimmer 1 000		255 0-100%
33 Fine Dimmer 1 000		255 0-100%
34 Red 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
35 Fine Red 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
36 Green 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
37 Fine Green 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
38 Blue 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
39 Fine Blue 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
40 White 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
41 Fine White 1 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
42 Dimmer 2 000		255 0-100%
43 Fine Dimmer 2 000		255 0-100%
44 Red 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
45 Fine Red 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
46 Green 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
47 Fine Green 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
48 Blue 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
49 Fine Blue 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
50 White 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
51 Fine White 2 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
52 Dimmer 3 000		255 0-100%
53 Fine Dimmer 3 000		255 0-100%
54 Red 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
55 Fine Red 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
56 Green 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
57 Fine Green 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
58 Blue 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
59 Fine Blue 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
60 White 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
61 Fine White 3 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
62 Dimmer 4 000		255 0-100%
63 Fine Dimmer 4 000		255 0-100%
64 Red 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
65 Fine Red 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
66 Green 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
67 Fine Green 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
68 Blue 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
69 Fine Blue 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
70 White 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
71 Fine White 4 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
72 Dimmer 5 000		255 0-100%
73 Fine Dimmer 5 000		255 0-100%
74 Red 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
75 Fine Red 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
76 Green 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
77 Fine Green 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
78 Blue 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
79 Fine Blue 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
80 White 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
81 Fine White 5 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
82 Dimmer 6 000		255 0-100%
83 Fine Dimmer 6 000		255 0-100%
84 Red 6 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
85 Fine Red 6 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
86 Green 6 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
87	Fine Green 6	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
88 Blue 6 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
89 Fine Blue 6 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
90 White 6 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
91 Fine White 6 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
92 Dimmer 7 000		⇔ 255	0-100%
93 Fine Dimmer 7 000		⇔ 255	0-100%
94 Red 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
95 Fine Red 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
96 Green 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
97 Fine Green 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
98 Blue 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
99 Fine Blue 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
100 White 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
101 Fine White 7 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
102 Dimmer 8 000		⇔ 255	0-100%
103 Fine Dimmer 8 000		⇔ 255	0-100%
104 Red 8 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
105 Fine Red 8 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
106 Green 8 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
107 Fine Green 8 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
108 Blue 8 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
109 Fine Blue 8 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
110	White 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
111	Fine White 8	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
112	Dimmer 9 000	⇔ 255	0-100%
113	Fine Dimmer 9 000	⇔ 255	0-100%
114	Red 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
115	Fine Red 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
116	Green 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
117 Fine Green 9 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
118	Blue 9	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
119 Fine Blue 9 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
120 White 9 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
121 Fine White 9 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
122 Dimmer 10	000	⇔ 255	0-100%
123 Fine Dimmer 10	000	⇔ 255	0-100%
124 Red 10	000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
125 Fine Red 10	000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
126 Green 10	000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
127 Fine Green 10	000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
128 Blue 10 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
129 Fine Blue 10 000		⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
130 White 10	000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
131 Fine White 10	000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%

Single Control: Advanced Mode (113Ch)

Channel Function Value Percent/Setting
1	P a n	000	255	0-100%
2 Pan Fine 000			255	0-100%
3 Tilt 000			255	0-100%
4 Tilt Fine 000			255	0-100%
5 Continuous Pan			000 No function001 127 Continuous pan, fast to slow128 No function129 255 Reverse continuous pan, slow to fast
6 Continuous Tilt			000 No function001 127 Continuous tilt, fast to slow128 No function129 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000			255 Fast to slow
8	CTC		000 No function001 255 Color temperature, 2800-10000 K
9 Ring Color			000 No function001 002 2700K R = 156 G = 118 B = 0 W = 63003 004 3200K R = 156 G = 141 B = 5 W = 89005 006 4200K R = 156 G = 141 B = 14 W = 255007 008 5600K R = 156 G = 207 B = 54 W = 255009 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 247 Color fade, fast to slow248 255 Color snap, fast to slow

Channel	Function	Value	Percent/Setting
10 Beam Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
11	Gobo	000 No function001 ⇔ 255 Cobos (indexed)
12 LED	Macro / Auto Program	000 ⇔ 015 No function016 ⇔ 135 LED macros136 ⇔ 255 Auto programs
13	LED Macro /Auto Program Speed	000 ⇔ 127 Auto speed, fast to slow clockwise128 Hold129 ⇔ 255 Auto speed, slow to fast counterclockwise
14 LED	Built-in Delay 000	⇔ 255 Fast to slow
15 Background Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 1 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-1 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 256 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇒ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
16 Background Dimmer	000	⇔ 255 0-100%
17 Background Fine Dimmer	000	⇔ 255 0-100%
18 Ring Dimmer	000	⇔ 255 0-100%
19 Ring Fine Dimmer	000	⇔ 255 0-100%

Channel	Function	Value	Percent/Setting
20 Beam Dimmer 000		255 0–100%
21 Beam Fine Dimmer 000		255 0–100%
22 Ring Shutter		000 019 Off020 024 On025 069 Strobe, fast to slow070 089 Strobe 100–0%, fast to slow090 109 Strobe 0–100%, fast to slow110 129 Random strobe, fast to slow130 149 Random strobe 100–0%, fast to slow150 169 Random strobe 0–100%, fast to slow170 189 Pulse strobe, fast to slow190 209 Random pulse strobe, fast to slow210 229 Strobe 0–100–0%, fast to slow230 244 Random pulse strobe, fast to slow245 255 On
23 Beam Shutter		000 019 Off020 024 On025 069 Strobe, fast to slow070 089 Strobe 100–0%, fast to slow090 109Strobe 0–100%, fast to slow110 129 Random strobe, fast to slow130 149 Random strobe 100–0%, fast to slow150 169 Random strobe 0–100%, fast to slow170 189 Pulse strobe, fast to slow190 209 Random pulse strobe, fast to slow210 229 Strobe 0–100–0%, fast to slow230 244 Random pulse strobe, fast to slow245 255 On
24 Zoom 000		255 Wide to narrow
25 Control		000 009 No function010 014 Blackout on Pan/Tilt015 019 Reserved for future use020 024 RGBW (additive) color-mixing mode025 029 CMY (subtractive) color-mixing mode030 049 Reserved for future use050 054 Pan reset055 059 Tilt reset060 064 Zoom reset065 069 Reserved for future use070 074 Reset all075 109 Reserved for future use110 114 Fast Pan/Tilt speed115 119 Slow Pan/tilt speed120 124 Slow fan mode125 129 Full fan mode130 134 Auto fan mode135 139 Fast dimmer mode140 144 Slow dimmer mode145 255 Reserved for future use
26 Main Red 000		255 RGBW Mode: 0–100% / CMY Mode: 100–0%
27 Main Fine Red 000		255 RGBW Mode: 0–100% / CMY Mode: 100–0%
28 Main Green 000		255 RGBW Mode: 0–100% / CMY Mode: 100–0%
29 Main Fine Green 000		255 RGBW Mode: 0–100% / CMY Mode: 100–0%
30 Main Blue 000		255 RGBW Mode: 0–100% / CMY Mode: 100–0%
31 Main Fine Blue 000		255 RGBW Mode: 0–100% / CMY Mode: 100–0%

Channel	Function	Value	Percent/Setting
32	Main White	000 ⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
33	Main Fine White 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
34	Red 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
35	Fine Red 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
36	Green 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
37	Fine Green 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
38	Blue 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
39	Fine Blue 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
40	White 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
41	Fine White 1 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
42	Red 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
43	Fine Red 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
44	Green 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
45	Fine Green 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
46	Blue 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
47	Fine Blue 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
48	White 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
49	Fine White 2 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
50	Red 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
51	Fine Red 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
52	Green 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
53	Fine Green 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
54	Blue 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
55	Fine Blue 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
56	White 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
57	Fine White 3 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
58	Red 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
59	Fine Red 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
60	Green 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
61	Fine Green 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
62	Blue 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
63	Fine Blue 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
64	White 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
65	Fine White 4 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
66	Red 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
67	Fine Red 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
68	Green 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
69	Fine Green 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
70	Blue 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
71	Fine Blue 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
72	White 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
73	Fine White 5 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
74	Red 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
75	Fine Red 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
76	Green 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
77	Fine Green 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
78	Blue 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
79	Fine Blue 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
80	White 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
81	Fine White 6 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
82	Red 7 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
83	Fine Red 7 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
84	Green 7 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
85	Fine Green 7 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
86	Blue 7 000	⇔ 255	RGBW Mode: 0-100% / CMY Mode: 100-0%
87 Fine	Blue 7 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
88 White	7 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
89 Fine	White 7 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
90 Red	8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
91 Fine	Red 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
92 Green	8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
93 Fine	Green 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
94 Blue	8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
95 Fine	Blue 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
96 White	8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
97 Fine	White 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
98 Red	9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
99 Fine	Red 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
100 Green	9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
101 Fine	Green 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
102 Blue	9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
103 Fine	Blue 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
104 White	9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
105 Fine	White 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
106 Red	10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
107 Fine	Red 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
108 Green	10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
109 Fine	Green 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
110	Blue 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
111	Fine Blue 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
112	White 10	000 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
113	Fine White 10	000 255 RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Standard Mode (66Ch)

Channel Function Value Percent/Setting

000

255

0-100%

2 Pan

Fine 000

255

0-100%

000 255

0-100%

4 Tilt Fine 000

255

0-100%

5 Continuous Pan

000 No function001 127 Continuous pan, fast to slow128 No function129 255 Reverse continuous pan, slow to fast

6 Continuous Tilt

000 No function001 127 Continuous tilt, fast to slow128 No function129 255 Reverse continuous tilt, slow to fast

7 Pan/Tilt Speed 000

255 Fast to slow

CTC

000 No function001 255 Color temperature, 2800-10000 K

9 Ring Color

000 No function001 002 2700K R=156 G=118 B=0 W=63003 004 3200K R=156 G=141 B=5 W=89005 006 4200K R=156 G=141 B=14 W=255007 008 5600K R=156 G=207 B=54 W=255009 010 8000K R=130 G=255 B=96 W=255011 Blue R=0 G=0 B=255 W=0012 048 + Green R=0 G=0-255 B=255 W=0049 Cyan R=0 G=255 B=255 W=0050 086 - Blue R=0 G=255 B=255-0 W=0087 Green R=0 G=255 B=0 W=0088 124 + Red R=0-255 G=255 B=0 W=0125 Yellow R=255 G=255 B=0 W=0126 162 - Green R=255 G=255-0 B=0 W=0163 Red R=255 G=0 B=0 W=0164 200 + Blue R=255 G=0 B=0-255 W=0201 Magenta R=255 G=0 B=255 W=0202 238 - Red R=255-0 G=0 B=255 W=0239 Blue R=0 G=0 B=255 W=0240 247 Color fade, fast to slow248 255 Color snap, fast to slow

Channel	Function	Value	Percent/Setting
10 Beam Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
11	Gobo	000 No function001 ⇔ 255 Gobos (indexed)
12 LED	Macro / Auto Program	000 ⇔ 015 No function016 ⇔ 135 LED macros136 ⇔ 255 Auto programs
13	LED Macro /Auto Program Speed	000 ⇔ 127 Auto speed, fast to slow clockwise128 Hold129 ⇔ 255 Auto speed, slow to fast counterclockwise
14 LED	Built-in Delay 000	⇔ 255 Fast to slow
15 Background Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 1 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-25W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 C = 255-0 B = 0 W = 0163 Red R = 255 C = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 C = 0 B = 0-255 W = 0201 Magenta R = 255 C = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 C = 0 B = 255 W = 0239 Blue R = 0 C = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
16 Background Dimmer	000	⇔ 255 0-100%
17 Ring Dimmer	000	⇔ 255 0-100%
18 Beam Dimmer	000	⇔ 255 0-100%
19 Ring Shutter		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 069 Strobe, fast to slow070 ⇔ 089 Strobe 100-0%, fast to slow090 ⇔ 109 Strobe 0-100%, fast to slow110 ⇔ 129 Random strobe, fast to slow130 ⇔ 149 Random strobe 100-0%, fast to slow150 ⇔ 169 Random strobe 0-100%, fast to slow170 ⇔ 189 Pulse strobe, fast to slow190 ⇔ 209 Random pulse strobe, fast to slow210 ⇔ 229 Strobe 0-100-0%, fast to slow230 ⇔ 244 Random pulse strobe, fast to slow245 ⇔ 255 On
20 Beam Shutter		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 069 Strobe, fast to slow070 ⇔ 089 Strobe 100-0%, fast to slow090 ⇔ 109 Strobe 0-100%, fast to slow110 ⇔ 129 Random strobe, fast to slow135 ⇔ 149 Random strobe 100-0%, fast to slow150 ⇔ 169 Random strobe 0-100%, fast to slow170 ⇔ 189 Pulse strobe, fast to slow190 ⇔ 209 Random pulse strobe, fast to slow210 ⇔ 229 Strobe 0-100-0%, fast to slow235 ⇔ 244 Random pulse strobe, fast to slow245 ⇔ 255 On
21 Zoom 000		⇔ 255 Wide to narrow
22 Control		000 ⇔ 009 No function010 ⇔ 014 Blackout on Pan/Tilt015 ⇔ 019 Reserved for future use020 ⇔ 024 RGBW (additive) color mixing mode025 ⇔ 029 CMY (subtractive) color mixing mode030 ⇔ 049 Reserved for future use050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 Reserved for future use070 ⇔ 074 Reset all075 ⇔ 109 Reserved for future use110 ⇔ 114 Fast Pan/Tilt speed115 ⇔ 119 Slow Pan/tilt speed120 ⇔ 124 Slow fan mode125 ⇔ 129 Full fan mode130 ⇔ 134 Auto fan mode135 ⇔ 139 Fast dimmer mode140 ⇔ 144 Slow dimmer mode145 ⇔ 255 Reserved for future use
23 Main Red 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
24 Main Green 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
25 Main Blue 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
26 Main White 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
27 Red 1 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
28 Green 1 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
29 Blue 1 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
30 White 1 000		⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%

Channel Function Value Percent/Setting
31 Red 2 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
32 Green 2 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
33 Blue 2 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
34 White 2 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
35 Red 3 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
36 Green 3 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
37 Blue 3 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
38 White 3 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
39 Red 4 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
40 Green 4 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
41 Blue 4 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
42 White 4 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
43 Red 5 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
44 Green 5 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
45 Blue 5 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
46 White 5 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
47 Red 6 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
48 Green 6 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
49 Blue 6 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
50 White 6 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
51 Red 7 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
52 Green 7 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
53 Blue 7 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
54 White 7 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
55 Red 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
56 Green 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
57 Blue 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
58 White 8 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
59 Red 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
60 Green 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
61 Blue 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
62 White 9 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
63 Red 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
64 Green 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
65 Blue 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
66 White 10 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Basic Mode (26Ch)

Channel Function Value Percent/Setting
1	P a n 000	⇔ 255 0-100%
2 Pan	Fine 000	⇔ 255 0-100%
3	T i l t	000 ⇔ 255 0-100%
4 Tilt Fine 000		⇔ 255 0-100%
5 Continuous Pan		000 No function001 ⇔ 127 Continuous pan, fast to slow128 No function129 ⇔ 255 Reverse continuous pan, slow to fast
6 Continuous Tilt		000 No function001 ⇔ 127 Continuous tilt, fast to slow128 No function129 ⇔ 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000		⇔ 255 Fast to slow
8	CTC	000 No function001 ⇔ 255 Color temperature, 2800-10000 K
9 Ring Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow

Channel	Function	Value	Percent/Setting
10 Beam Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
11	Gobo	000 No function001 ⇔ 255 Gobos (indexed)
12 LED	Macro / Auto Program	000 ⇔ 015 No function016 ⇔ 135 LED macros136 ⇔ 255 Auto programs
13	LED Macro / Auto Program Speed	000 ⇔ 127 Auto speed, fast to slow clockwise128 Hold129 ⇔ 255 Auto speed, slow to fast counterclockwise
14 LED	Built-in Delay 000	000 ⇔ 255 Fast to slow
15 Background Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 166 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R=0 G=0 B=255 W=0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0G=255B=0W=0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 265 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 256 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
16 Background Dimmer	000	000 ⇔ 255 0-100%
17 Ring Dimmer	000	000 ⇔ 255 0-100%
18 Beam Dimmer	000	000 ⇔ 255 0-100%
Channel	Function Value Percent/Setting
19 Ring	Shutter	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 069 Strobe, fast to slow070 ⇔ 089 Strobe 100-0%, fast to slow090 ⇔ 109 Strobe 0-100%, fast to slow110 ⇔ 129 Random strobe, fast to slow130 ⇔ 149 Random strobe 100-0%, fast to slow150 ⇔ 169 Random strobe 0-100%, fast to slow170 ⇔ 189 Pulse strobe, fast to slow190 ⇔ 209 Random pulse strobe, fast to slow210 ⇔ 229 Strobe 0-100-0%, fast to slow230 ⇔ 244 Random pulse strobe, fast to slow245 ⇔ 255 On
20 Beam	Shutter	000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 069 Strobe, fast to slow070 ⇔ 089 Strobe 100-0%, fast to slow090 ⇔ 109 Strobe 0-100%, fast to slow110 ⇔ 129 Random strobe, fast to slow13O ⇔ 149 Random strobe 100-0%, fast to slow150 ⇔ 169 Random strobe 0-100%, fast to slow170 ⇔ 189 Pulse strobe, fast to slow190 ⇔ 209 Random pulse strobe, fast to slow210 ⇔ 229 Strobe 0-100-0%, fast to slow23O ⇔ 244 Random pulse strobe, fast to slow245 ⇔ 255 On
21 Zoom	000	⇔ 255 Wide to narrow
22 Control		000 ⇔ 009 No function010 ⇔ 014 Blackout on Pan/Tilt015 ⇔ 019 Reserved for future use020 ⇔ 024 RGBW (additive) color mixing mode025 ⇔ 029 CMY (subtractive) color mixing mode030 ⇔ 049 Reserved for future use050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 Reserved for future use070 ⇔ 074 Reset all075 ⇔ 109 Reserved for future use110 ⇔ 114 Fast Pan/Tilt speed115 ⇔ 119 Slow Pan/tilt speed120 ⇔ 124 Slow fan mode125 ⇔ 129 Full fan mode130 ⇔ 134 Auto fan mode135 ⇔ 139 Fast dimmer mode140 ⇔ 144 Slow dimmer mode145 ⇔ 255 Reserved for future use
23 Main Red	000	⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
24 Main Green	000	⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
25 Main Blue	000	⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%
26 Main White	000	⇔ 255 RGBW Mode: 0-100% / CMY Mode: 100-0%

Dual Control Values (Movement)
Dual Control: Advanced Movement Mode (41Ch)

Channel Function Value Percent/Setting
1	P a n 000	255 0–100%
2 Pan Fine 000		255 0–100%
3 Tilt 000		255 0–100%
4 Tilt Fine 000		255 0–100%
5 Continuous Pan		000 No function001 127 Continuous pan, fast to slow128 No function129 255 Reverse continuous pan, slow to fast
6 Continuous Tilt		000 No function001 127 Continuous tilt, fast to slow128 No function129 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000		255 Fast to slow
8	CTC	000 No function001 255 Color temperature, 2800–10000 K
9 Ring Color	Color	000 No function001 0022700K R = 156 G = 118 B = 0 W = 63003 0043200K R = 156 G = 141 B = 5 W = 89005 0064200K R = 156 G = 141 B = 14 W = 255007 0085600K R = 156 G = 207 B = 54 W = 255009 0108000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 048 + Green R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 086 - Blue R = 0 G = 255 B = 255–0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 124 + Red R = 0–255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 162 - Green R = 255 G = 255–0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 200 + Blue R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 238 - Red R = 255–0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 247 Color fade, fast to slow248 255 Color snap, fast to slow
Channel	Function	Value	Percent/Setting
10 Beam Color		000 No function001 ✦ 002 2700K R = 156 G = 118 B = 0 W = 63003 ✦ 004 3200K R = 156 G = 141 B = 5 W = 89005 ✦ 006 4200K R = 156 G = 141 B = 14 W = 255007 ✦ 008 5600K R = 156 G = 207 B = 54 W = 255009 ✦ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ✦ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ✦ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ✦ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ✦ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ✦ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ✦ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ✦ 247 Color fade, fast to slow248 ✦ 255 Color snap, fast to slow
11	Gobo	000 No function001 ✦ 255 Gobos (indexed)
12 LED	Macro / Auto Program	000 ✦ 015 No function016 ✦ 135 LED macros136 ✦ 255 Auto programs
13	LED Macro / Auto Program Speed	000 ✦ 127 Auto speed, fast to slow clockwise128 Hold129 ✦ 255 Auto speed, slow to fast counter-clockwise
14 LED	Built-in Delay 000	✿ 255 Fast to slow
15 Background Color		000 No function001 ✦ 002 2700K R = 156 G = 118 B = 0 W = 63003 ✦ 004 3200K R = 156 G = 141 B = 5 W = 89005 ✦ 006 4200K R = 141 B = 14 W = 255007 ✦ 008 5600K R = 156 G = 207 B = 54 W = 255009 ✦ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 1 G = 0 B = 255 W = 0012 ✦ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ✦ 086 - Blue R = 0 G = 255 B = 255-1 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ✦ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ✦ 162 - Green R = 256 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ✦ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 & 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ✦ 247 Color fade, fast to slow248 ✦ 255 Color snap, fast to slow
16 Background Dimmer	000	✿ 255 0-100%
17 Background Fine Dimmer	000	✿ 255 0-100%
18 Ring Dimmer	000	✿ 255 0-100%
19 Ring Fine Dimmer	000	✿ 255 0-100%
20 Beam Dimmer 000		255	0-100%
21 Beam Fine Dimmer 000		255	0-100%
22 Ring Shutter		000 019 Off020 024 On025 069 trobe, fast to slow070\Leftrightarrow089trobe 100-0%, fast to slow090 109 trobe 0-100%, fast to slow110\Leftrightarrow129 Random strobe, fast to slow130\Leftrightarrow149 Random strobe 100-0%, fast to slow150\Leftrightarrow169 Random strobe 0-100%, fast to slow170\Leftrightarrow189 Pulse strobe, fast to slow190\Leftrightarrow209 Random pulse strobe, fast to slow210\Leftrightarrow229trobe 0-100-0%, fast to slow230 244 Random pulse strobe, fast to slow245 255 On
23 Beam Shutter		000 019 Off020 024 On025 069 trobe, fast to slow070\Leftrightarrow089trobe 100-0%, fast to slow090 129 Random strobe, fast to slow110 149 Random strobe 100-0%, fast to slow130 169 Random strobe 0-100%, fast to slow150 189 Random strobe, fast to slow170 209 Random pulse strobe, fast to slow190 229 trobe 0-100-0%, fast to slow210\Leftrightarrow244 Random pulse strobe, fast to slow230\Leftrightarrow255 On
24 Zoom 000		\Leftrightarrow255 Wide to narrow
25 Control		000\Leftrightarrow009 No function010\Leftrightarrow014 Blackout on Pan/Tilt015\Leftrightarrow019 Reserved for future use020\Leftrightarrow024 RGBW (additive) color-mixing mode025\Leftrightarrow029 CMY (subtractive) color-mixing mode030\Leftrightarrow049 Reserved for future use050\Leftrightarrow054 Pan reset055\Leftrightarrow059 Tilt reset060\Leftrightarrow064 Zoom reset065\Leftrightarrow069 Reserved for future use070\Leftrightarrow074 Reset all075\Leftrightarrow109 Reserved for future use110\Leftrightarrow114 Fast Pan/Tilt speed115\Leftrightarrow119low Pan/tilt speed120 124 low fan mode125\Leftrightarrow129 Full fan mode130\Leftrightarrow134 Auto fan mode135\Leftrightarrow139 Fast dimmer mode140\Leftrightarrow144low dimmer mode145 255 Reserved for future use
26 Ring Red 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
27 Fine Ring Red 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
28 Beam Red 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
29 Fine Beam Red 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
30 Ring Green 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
31 Fine Ring Green 000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
32	Beam Green 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Fine Beam Green 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
34	Ring Blue 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
35	Fine Ring Blue 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Beam Blue 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
37	Fine Beam Blue 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
38	Ring White 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
39	Fine Ring White 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
40	Beam White 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Fine Beam White 000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control: Standard Movement Mode (30Ch)

Channel	Function	Value	Percent/Setting
1	Pan	000 ⇔ 255 0–100%
2	Pan Fine	000 ⇔ 255 0–100%
3	Tilt	000 ⇔ 255 0–100%
4	Tilt Fine	000 ⇔ 255 0–100%
5	Continuous Pan	000	No function
		001 ⇔ 127	Continuous pan, fast to slow
		128	No function
		129 ⇔ 255	Reverse continuous pan, slow to fast
6	Continuous Tilt	000	No function
		001 ⇔ 127	Continuous tilt, fast to slow
		128	No function
		129 ⇔ 255	Reverse continuous tilt, slow to fast
7	Pan/Tilt Speed	000 ⇔ 255	Fast to slow
8	CTC	000	No function
8	CTC	001 ⇔ 255	Color temperature, 2800–10000 K
9	Ring Color	000	No function
		001 ⇔ 002	2700K	R = 156	G = 118	B = 0	W = 63
		003 ⇔ 004	3200K	R = 156	G = 141	B = 5	W = 89
		005 ⇔ 006	4200K	R = 156	G = 141	B = 14	W = 255
		007 ⇔ 008	5600K	R = 156	G = 207	B = 54	W = 255
		009 ⇔ 010	8000K	R = 130	G = 255	B = 96	W = 255
		011	Blue	R = 0	G = 0	B = 255	W = 0
		012 ⇔ 048	+ Green	R = 0	G = 0–255	B = 255	W = 0
		049	Cyan	R = 0	G = 255	B = 255	W = 0
		050 ⇔ 086	- Blue	R = 0	G = 255	B = 255–0	W = 0
		087	Green	R = 0	G = 255	B = 0	W = 0
		088 ⇔ 124	+ Red	R = 0–255	G = 255	B = 0	W = 0
		125	Yellow	R = 255	G = 255	B = 0	W = 0
		126 ⇔ 162	- Green	R = 255	G = 255–0	B = 0	W = 0
		163	Red	R = 255	G = 0	B = 0	W = 0
		164 ⇔ 200	+ Blue	R = 255	G = 0	B = 0–255	W = 0
		201	Magenta	R = 255	G = 0	B = 255	W = 0
		202 ⇔ 238	- Red	R = 255–0	G = 0	B = 255	W = 0
		239	Blue	R = 0	G = 0	B = 255	W = 0
		240 ⇔ 247	Color fade, fast to slow
		248 ⇔ 255	Color snap, fast to slow
Channel	Function	Value	Percent/Setting
10 Beam Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 255 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
11	Gobo	000 No function001 ⇔ 255 Gobos (indexed)
12 LED	Macro / Auto Program	000 ⇔ 015 No function016 ⇔ 135 LED macros136 ⇔ 255 Auto programs
13	LED Macro / Auto Program Speed	000 ⇔ 127 Auto speed, fast to slow clockwise128 Hold129 ⇔ 255 Auto speed, slow to fast counterclockwise
14 LED	Built-in Delay 000	000 ⇔ 255 Fast to slow
15 Background Color		000 No function001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 166 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Blue R=0 G=0 B=255 W=0012 ⇔ 048 + Green R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - Blue R = 0 G = 255 B = 255-0 W = 0087 Green R = 0G=255B=0W=0088 ⇔ 124 + Red R = 0-255 G = 255 B = 0 W = 0125 Yellow R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - Green R = 255 G = 255-0 B = 0 W = 0163 Red R = 265 G = 0 B = 0 W = 0164 ⇔ 200 + Blue R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - Red R = 255-0 G = 0 B = 256 W = 0239 Blue R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Color fade, fast to slow248 ⇔ 255 Color snap, fast to slow
16 Background Dimmer	000	000 ⇔ 255 0-100%
17 Ring Dimmer	000	000 ⇔ 255 0-100%
18 Beam Dimmer	000	000 ⇔ 255 0-100%
19 Ring Shutter		000 ✦ 019 Off020 ✦ 024 On025 ✦ 069 trobe, fast to slow070 ✦ 089trobe 100-0%, fast to slow090 ✦ 109 trobe 0-100%, fast to slow110 ✦ 129 Random strobe, fast to slow130 ✦ 149 Random strobe 100-0%, fast to slow150 ✦ 169 Random strobe 0-100%, fast to slow170 ✦ 189 Pulse strobe, fast to slow190 ✦ 209 Random pulse strobe, fast to slow210 ✦ 229trobe 0-100-0%, fast to slow230 ✦ 244 Random pulse strobe, fast to slow245 ✦ 255 On
20 Beam Shutter		000 ✦ 019 Off020 ✦ 024 On025 ✦ 069 trobe, fast to slow070 ✦ 089trobe 100-0%, fast to slow090 ✦ 109 trobe 0-100%, fast to slow110 ✦ 129 Random strobe, fast to slowly130 ✦ 149 Random strobe 100-0%, fast to slow150 ✦ 169 Random strobe 0-100%, fast to slow170 ✦ 189 Pulse strobe, fast to slow190 ✦ 209 Random pulse strobe, fast to slow210 ✦ 229trobe 0-100-0%, fastto slow230 ✦ 244 Random pulse strobe, fast to slow245 ✦ 255 On
21 Zoom 000		↔ 255 Wide to narrow
22 Control		000 ✦ 009 No function010 ✦ 014 Blackout on Pan/Tilt015 ✦ 019 Reserved for future use020 ✦ 024 RGBW (additive) color-mixing mode025 ✦ 029 CMY (subtractive) color-mixing mode030 ✦ 049 Reserved for future use050 ✦ 054 Pan reset055 ✦ 059 Tilt reset060 ✦ 064 Zoom reset065 ✦ 069 Reserved for future use070 ✦ 074 Reset all075 ✦ 109 Reserved for future use110 ✦ 114 Fast Pan/Tilt speed115 ✦ 119 Slow Pan/tilt speed120 ✦ 124 Slow fan mode125 ✦ 129 Full fan mode130 ✦ 134 Auto fan mode135 ✦ 139 Fast dimmer mode140 ✦ 144 Slow dimmer mode145 ✦ 255 Reserved for future use
23 Ring Red 000		↔ 255 0-100%
24 Beam Red 000		↔ 255 0-100%
25 Ring Green 000		↔ 255 0-100%
26 Beam Green 000		↔ 255 0-100%
27 Ring Blue 000		↔ 255 0-100%
28 Beam Blue 000		↔ 255 0-100%
29 Ring White 000		↔ 255 0-100%
30 Beam White	000	↔ 255 0-100%

Dual Control: Basic Movement Mode (13Ch)

Channel Function Value Percent/Setting
1	P a n 000	255 0–100%
2 Pan Fine 000		255 0–100%
3 Tilt 000		255 0–100%
4 Tilt Fine 000		255 0–100%
5 Continuous Pan		000 No function001 127 Continuous pan, fast to slow128 No function129 255 Reverse continuous pan, slow to fast
6 Continuous Tilt		000 No function001 127 Continuous tilt, fast to slow128 No function129 255 Reverse continuous tilt, slow to fast
7 Pan/Tilt Speed 000		255 Fast to slow
8 Ring Dimmer 000		255 0–100%
9 Beam Dimmer 000		255 0–100%
10	Ring Shutter	000 019 Off020 024 On025 069 trobe, fast to slow070\Leftrightarrow089trobe 100–0%, fast to slow090 109 trobe 0–100%, fast to slow110\Leftrightarrow129 \| Random strobe, fast to slow130\Leftrightarrow149 Random strobe 100–0%, fast to slow150\Leftrightarrow169 Random strobe 0–100%, fast to slow170\Leftrightarrow189 Pulse strobe, fast to slow190\Leftrightarrow209 Random pulse strobe, fast to slow210\Leftrightarrow229trobe 0–100–0%, fast to slow230 244 Random pulse strobe, fast to slow245 255 On
11	Beam Shutter	000 019 Off020 024 On025 069 trobe, fast to slow070\Leftrightarrow089trobe 100–0%, fast to slow090 109 trobe0–100%, fast to slow110\Leftrightarrow129 \| Random strobe, fast to slow130\Leftrightarrow149 Random strobe 100–0%, fast to slow150\Leftrightarrow169 Random strobe 0–100%, fast to slow170\Leftrightarrow189 Puls strobe, fast to slow190\Leftrightarrow209 Random pulse strobe, fast to slow210\Leftrightarrow229trobe 0–100–0%, fast to slow230 244 Random pulse strobe, fast to slow245 255 On
12	Zoom	000 255 Wide to narrow
Channel Function Value Percent/Setting
13 Control	000 ⇔ 009 No function010 ⇔ 014 Blackout on Pan/Tilt015 ⇔ 019 Reserved for future use020 ⇔ 024 RGBW (additive) color-mixing mode025 ⇔ 029 CMY (subtractive) color-mixing mode030 ⇔ 049 Reserved for future use050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 Reserved for future use070 ⇔ 074 Reset all075 ⇔ 109 Reserved for future use110 ⇔ 114 Fast Pan/Tilt speed115 ⇔ 119 low Pan/tilt speed120 ⇔ 124low fan mode125 ⇔ 129 Full fan mode130 ⇔ 134 Auto fan mode135 ⇔ 139 Fast dimmer mode140 ⇔ 144 $low dimmer mode145 ⇔ 255 Reserved for future use

Dual Control Values (Pixels)
Dual Control: Advanced Pixels Mode (80Ch)

Channel	Function	Value	Percent/Setting
1	R	e	d	1	000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
2	F	i	n	e	R e ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
3	G	r	e	e	n 1 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
4 Fine	Green	1	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
5	B	l	u	e	1 000255 RGBW Mode: 0–100% / CMY Mode: 100–0%
6 Fine	Blue	1	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
7	W	h	i	t	e 1 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
8 Fine	White	1		000	⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
9	R	e	d	2	000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
10	Fine Red	2			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
11	Green	2			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
12	Fine Green	2	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
13	Blue	2	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
14	Fine Blue	2	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
15	White	2			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
16	Fine White	2			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Red	3			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Fine Red	3			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Green	3			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Fine Green	3	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Blue	3	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Fine Blue	3	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
23	White	3			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Fine White	3			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Red	4			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
26	Fine Red	4			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
27	Green	4			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
28	Fine Green	4	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Blue	4	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Fine Blue	4	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
31	White	4			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
32	Fine White	4			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Red	5			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
34	Fine Red	5			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
35	Green	5			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Fine Green	5	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
37	Blue	5	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
38	Fine Blue	5	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
39	White	5			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
40	Fine White	5			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Red	6			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
42	Fine Red	6			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
43	Green	6			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
44	Fine Green	6	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
45	Blue	6	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
46	Fine Blue	6	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
47	White	6			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
48	Fine White	6			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
49	Red	7			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
50	Fine Red	7			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
51	Green	7			000 ⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
52	Fine Green	7	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
53	Blue	7	000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%

Channel	Function	Value	Percent/Setting
54	Fine Blue 7	000 ⇔ 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
55 White 7 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
56 Fine White 7 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
57 Red 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
58 Fine Red 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
59 Green 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
60 Fine Green 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
61 Blue 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
62 Fine Blue 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
63 White 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
64 Fine White 8 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
65 Red 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
66 Fine Red 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
67 Green 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
68 Fine Green 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
69 Blue 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
70 Fine Blue 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
71 White 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
72 Fine White 9 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
73 Red 10 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
74 Fine Red 10 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
75 Green 10 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
76 Fine Green 10 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
77 Blue 10 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
78 Fine Blue 10 000		⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
79 White 10	000	⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%
80 Fine White 10	000	⇔ 255 RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control: Standard Pixels Mode (40Ch)

Channel Function Value Percent/Setting
1	R e d 1		000	255 RGBW Mode: 0-100% / CMY Mode: 100-0%
2 Green 1 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
3	B l u e 1			255 RGBW Mode: 0-100% / CMY Mode: 100-0%
4	W h i t e			255 RGBW Mode: 0-100% / CMY Mode: 100-0%
5	R e d 2		000	255 RGBW Mode: 0-100% / CMY Mode: 100-0%
6 Green 2 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
7	B l u e 2			255 RGBW Mode: 0-100% / CMY Mode: 100-0%
8	W h i t e			255 RGBW Mode: 0-100% / CMY Mode: 100-0%
9	R e d 3		000	255 RGBW Mode: 0-100% / CMY Mode: 100-0%
10 Green 3 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
11 Blue 3		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
12 White 3		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
13 Red 4		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
14 Green 4 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
15 Blue 4 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
16 White 4		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
17 Red 5		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
18 Green 5 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
19 Blue 5 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
20 White 5		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
21 Red 6		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
22 Green 6 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
23 Blue 6 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
24 White 6		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
25 Red 7		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
26 Green 7 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
27 Blue 7 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
28 White 7		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
29 Red 8		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
30 Green 8 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
31 Blue 8 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
32 White 8		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
33 Red 9		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
34 Green 9 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
35 Blue 9 000				255 RGBW Mode: 0-100% / CMY Mode: 100-0%
36 White 9		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
37 Red 10		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
38 Green 10		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
39 Blue 10		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%
40 White 10		000		255 RGBW Mode: 0-100% / CMY Mode: 100-0%

Dual Control: Basic Pixels Mode (30Ch)

Channel Function Value Percent/Setting
1	R	e	d	1	000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
2	G	r	e	e	n ⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
3	B	l	u	e	1 ⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
4	R	e	d	2	000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
5	G	r	e	e	n ⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
6	B	l	u	e	2 ⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
7	R	e	d	3	000	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
8	G	r	e	e	n ⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
9	B	l	u	e	3 ⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
10 Red 4 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
11 Green 4 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
12 Blue 4 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
13 Red 5 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
14 Green 5 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
15 Blue 5 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
16 Red 6 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
17 Green 6 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
18 Blue 6 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
19 Red 7 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
20 Green 7 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
21 Blue 7 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
22 Red 8 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
23 Green 8 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
24 Blue 8 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
25 Red 9 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
26 Green 9 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
27 Blue 9 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
28 Red 10 000					⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
29 Green 10				000	⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%
30 Blue 10				000	⇔	255 RGBW Mode: 0–100% / CMY Mode: 100–0%

Acerca de esta Guía

Mapa de Menú

Valores "Dual Control" (Movement)
"Dual Control": Modo "Advanced Movement" (41Ch)

Canal Función Valor Porcentaje/Configuración
1 Movimiento panorámico 000	255 0–100%
2 Movimiento panorámico fino 000	255 0–100%
3 Inclinación 000	255 0–100%
4 Inclinación fino 000	255 0–100%
5	Movimiento panorámico continua	000 Sin función001 127 Movimiento panorámico continua, rápido a lento128 Sin función129 255 Movimiento panorámico continua inverso, lento a rápido
6 Inclinación continua	000 Sin función001 127 Inclinación continua, rápido a lento128 Sin función129 255 Inclinación continua inverso, lento a rápido
7	Velocidad de movimiento panorámico / inclinación	000 255 Rápido a lento
8	CTC	000 Sin función001 255 Temperature de color, 2800–10000 K
9 Color del anillo	000 Sin función001 002 2700K R = 156 G = 118 B = 0 W = 63003 004 3200K R = 156 G = 141 B = 5 W = 89005 006 4200K R = 156 G = 141 B = 14 W = 255007 008 5600K R = 156 G = 207 B = 54 W = 255009 010 8000K R = 130 G = 255 B = 96 W = 255011 Azul R = 0 G = 0 B = 255 W = 0012 048 + verde R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 086 - azul R = 0 G = 255 B = 255–0 W = 0087 Verde R = 0 G = 255 B = 0 W = 0088 124 + rojo R = 0–255 G = 255 B = 0 W = 0125 Amarillo R = 255 G = 255 B = 0 W = 0126 162 - verde R = 255 G = 255–0 B = 0 W = 0163 Rojo R = 255 G = 0 B = 0 W = 0164 200 + azul R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 238 - rojo R = 255–0 G = 0 B = 255 W = 0239 Azul R = 0 G = 0 B = 255 W = 0240 247 Cambio de color, rápido a lento248 255 Salto de color, rápido a lento

Canal	Función	Valor	Porcentaje/Configuración
10 Color del haz		000 Sin función001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Azul R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + verde R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - azul R = 0 G = 255 B = 255–0 W = 0087 Verde R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + rojo R = 0–255 G = 255 B = 0 W = 0125 Amarillo R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - verde R = 255 G = 255–0 B = 0 W = 0163 Rojo R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + azul R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - rojo R = 255–0 G = 0 B = 255 W = 0239 Azul R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Cambio de color, rápido a lento248 ⇔ 255 Salto de color, rápido a lento
11	Gobo	000 Sin función001 ⇔ 255 Gobos (indexado)
12	Macro LED / Programa automático	000 ⇔ 015 Sin función016 ⇔ 135 Macros LED136 ⇔ 255 Programas automáticos
13	Velocidad Macro LED / Programa automático	000 ⇔ 127 Rápido a lento sentido horario128 Mantener129 ⇔ 255 Lento a rápido, sentido antihorario
14 Retardo LED integrado	000	⇔ 255 Rápido a lento
15 Color de fondo		000 Sin función001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 155 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Azul R= 0 G = 0 B = 255 W = 0012 ⇔ 048 + verde R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - azul R = 0 G = 255 B = 265–0 W = 0087 Verde R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + rojo R = 0–255 G = 255 B = 0 W = 0125 Amarillo R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - verdeR = 255 G = 255–0 B = 0 W = 0163 Rojo R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + azul R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 V = 0202 ⇔ 238 - rojo R = 255–0 G = 0 B = 255 W = 0239 Azul R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Cambio de color, rápido a lento248 ⇔ 255 Salto de color, rápido a lento
15 Color de fondo
16 Atenuador fondo	000	⇔ 255 0–100%
17 Atenuador fondo fino	000	⇔ 255 0–100%
18 Atenuador del anillo	000	⇔ 255 0–100%
19 Atenuador del anillo fino	000	⇔ 255 0–100%
20 Atenuador del haz 000		255	0–100%
21 Atenuador del haz fino 000		255	0–100%
22 Obturador del anillo		000 019	Apagado
		020 024	Encendido
		025 069	Estroboscopio, rápido a lento
		070 089	Estroboscopio 100–0%, rápido a lento
		090 109	Estroboscopio 0–100%, rápido a lento
		110 129	Estroboscopio aleatorio, rápido a lento
		130 149	Estroboscopio aleatorio 100–0%, rápido a lento
		150 169	Estroboscopio aleatorio 0–100%, rápido a lento
		170 189	Estroboscopio pulso, rápido a lento
		190 209	Estroboscopio pulso aleatorio, rápido a lento
		210 229	Estroboscopio 0–100–0%, rápido a lento
		230 244	Estroboscopio pulso aleatorio, rápido a lento
		245 255	Encendido
23 Obturador del haz		000 019	Apagado
		020 024	Encendido
		025 069	Estroboscopio, rápido a lento
		070 089	Estrobscopio 100–0%, rápido a lento
		090 109	Estroboscopio 0–100%, rápido a lento
		110 129	Estroboscopio aleatorio, rápido a lento
		130 149	Estroboscopio aleatorio 100–0%, rápido a lento
		150 169	Estroboscopio aleatorio 0–100%, rápido a lento
		170 189	Estroboscopio pulso, rápido a lento
		210 229	Estroboscopio pulso aleatorio, rápido a lento
		230 244	Estroboscopio pulso aleatorio, rápido a lento
		245 255	Encendido
24 Zoom 000		255	Ancho a estrecho
25 Control		000 009	Sin función
		010 014	Blackout panorámica/inclinación
		015 019	Reservado para usos futuros
		020 024	Modo de mezcla de color RGBW (adición)
		025 029	Modo de mezcla de color CMY (sustracción)
		030 049	Reservado para usos futuros
		050 054	Reiniciar movimiento panorámico
		055 059	Reiniciar inclinación
		060 064	Restablecer zoom
		065 069	Reservado para usos futuros
		070 074	Reiniciar todo
		075 109	Reservado para usos futuros
		110 114	Velocidad alta panorámica/Inclinación
		115 119	Velocidad baja panorámica/Inclinación
		120 124	Modo de ventilador lento
		125 129	Modo de ventilador al máximo
		130 134	Modo de ventilador automático
		135 139	Modo de atenuador rápido
		140 144	Modo de atenuador lento
		145 255	Reservado para usos futuros
26 Anillo rojo 000		255	Modo RGBW: 0–100% / Modo CMY: 100–0%
27 Anillo rojo fino 000		255	Modo RGBW: 0–100% / Modo CMY: 100–0%
28 Haz rojo 000		255	Modo RGBW: 0–100% / Modo CMY: 100–0%
29 Haz rojo fino 000		255	Modo RGBW: 0–100% / Modo CMY: 100–0%
30 Anillo verde 000		255	Modo RGBW: 0–100% / Modo CMY: 100–0%
31 Anillo verde fino 000		255	Modo RGBW: 0–100% / Modo CMY: 100–0%
32 Haz	verde 000	⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
33 Haz	verde fino 000	⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
34 Anillo azul 000		⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
35 Anillo azul fino 000		⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
36 Haz	azul 000	⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
37 Haz	azul fino 000	⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
38 Anillo blanco 000		⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
39 Anillo blanco fino 000		⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
40 Haz	blanco 000	⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
41 Haz	blanco fino 000	⇔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%

"Dual Control": Modo "Standard Movement" (30Ch)

Canal	Función	Valor	Porcentaje/Configuración
1	Movimiento panorámico	000 ⇔ 255 0–100%
2	Movimiento panorámico fino	000 ⇔ 255 0–100%
3	Inclinación	000 ⇔ 255 0–100%
4	Inclinación fino	000 ⇔ 255 0–100%
5	Movimiento panorámico continua	000	Sin función
		001 ⇔ 127	Movimiento panorámico continua, rápido a lento
		128	Sin función
		129 ⇔ 255	Movimiento panorámico continua inverso, lento a rápido
6	Inclinación continua	000	Sin función
		001 ⇔ 127	Inclinación continua, rápido a lento
		128	Sin función
		129 ⇔ 255	Inclinación continua inverso, lento a rápido
7	Velocidad de movimiento panorámico / inclinación	000 ⇔ 255	Rápido a lento
8	CTC	000	Sin función
8	CTC	001 ⇔ 255	Temperature de color, 2800–10000 K
9	Color del anillo	000	Sin función
		001 ⇔ 002	2700K	R = 156	G = 118	B = 0	W = 63
		003 ⇔ 004	3200K	R = 156	G = 141	B = 5	W = 89
		005 ⇔ 006	4200K	R = 156	G = 141	B = 14	W = 255
		007 ⇔ 008	5600K	R = 156	G = 207	B = 54	W = 255
		009 ⇔ 010	8000K	R = 130	G = 255	B = 96	W = 255
		011	Azul	R = 0	G = 0	B = 255	W = 0
		012 ⇔ 048	+ verde	R = 0	G = 0–255	B = 255	W = 0
		049	Cyan	R = 0	G = 255	B = 255	W = 0
		050 ⇔ 086	- azul	R = 0	G = 255	B = 255–0	W = 0
		087	Verde	R = 0	G = 255	B = 0	W = 0
		088 ⇔ 124	+ rojo	R = 0–255	G = 255	B = 0	W = 0
		125	Amarillo	R = 255	G = 255	B = 0	W = 0
		126 ⇔ 162	- verde	R = 255	G = 255–0	B = 0	W = 0
		163	Rojo	R = 255	G = 0	B = 0	W = 0
		164 ⇔ 200	+ azul	R = 255	G = 0	B = 0–255	W = 0
		201	Magenta	R = 255	G = 0	B = 255	W = 0
		202 ⇔ 238	- rojo	R = 255–0	G = 0	B = 255	W = 0
		239	Azul	R = 0	G = 0	B = 255	W = 0
		240 ⇔ 247	Cambio de color, rápido a lento
		248 ⇔ 255	Salto de color, rápido a lento
Canal	Función	Valor	Porcentaje/Configuración
10 Color del haz		000 Sin función001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Azul R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + verde R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - azul R = 0 G = 255 B = 255–0 W = 0087 Verde R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + rojo R = 0–255 G = 255 B = 0 W = 0125 Amarillo R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - verde R = 255 G = 255–0 B = 0 W = 0163 Rojo R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + azul R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - rojo R = 255–0 G = 0 B = 255 W = 0239 Azul R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Cambio de color, rápido a lento248 ⇔ 255 Salto de color, rápido a lento
11 Gobo		000 Sin función001 ⇔ 255 Gobos (indexado)
12	Macro LED /Programa automático	000 ⇔ 015 $in función016 ⇔ 135 Macros LED136 ⇔ 255 Programas automáticos
13	Velocidad Macro LED /Programa automático	000 ⇔ 127 Rápido a lento sentido horario128 Mantener129 ⇔ 255 Lento a rápido, sentido antihorario
14 Retardo LED integrado	000	⇔ 255 Rápido a lento
15 Color de fondo		000 Sin función001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 155 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Azul R= 0 G = 0 B = 255 W = 0012 ⇔ 048 + verde R = 0 G = 0–255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - azul R = 0 G = 255 B = 265–0 W = 0087 Verde R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + rojo R = 0–255 G = 255 B = 0 W = 0125 Amarillo R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - verdeR = 255 G = 255–0 B = 0 W = 0163 Rojo R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + azul R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 V = 0202 ⇔ 238 - rojo R = 255–0 G = 0 B = 255 W = 0239 Azul R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Cambio de color, rápido a lento248 ⇔ 255 Salto de color, rápido a lento
15 Color de fondo
16 Atenuador fondo	000	⇔ 255 0–100%
17 Atenuador del anillo	000	⇔ 255 0–100%
18 Atenuador del haz	000	⇔ 255 0–100%
19 Obturador del anillo		000 ✦ 019 Apagado020 ✦ 024 Encendido025 ✦ 069 Estroboscopio, rápido a lento070 ✦ 089 Estroboscopio 100–0%, rápido a lento090 ✦ 109 Estroboscopio 0–100%, rápido a lento110 ✦ 129 Estroboscopio aleatorio, rápido a lento130 ✦ 149 Estroboscopio aleatorio 100–0%, rápido a lento150 ✦ 169 Estroboscopio aleatorio 0–100%, rápido a lento170 ✦ 189 Estroboscopio pulso, rápido a lento190 ✦ 209 Estroboscopio pulso aleatorio, rápido a lento210 ✦ 229 Estroboscopio 0–100–0%, rápido a lento230 ✦ 244 Estroboscopio pulso aleatorio, rápido a lento245 ✦ 255 Encendido
20 Obturador del haz		000 ✦ 019 Apagado020 ✦ 024 Encendido025 ✦ 069 Estroboscopio, rápido a lento070 ✦ 089 Estroboscopio 100–0%, rápido a lento090 ✦ 109 Estroboscopio 0–100%, rápido a lento110 ✧ 129 Estroboscopio aleatorio, rápido a lento130 ✧ 149 Estroboscopio aleatorio 100–0%, rápido a lento150 ✧ 169 Estroboscopio aleatorio 0–100%, rápido a lento170 ✧ 189 Estroboscopio pulso, rápido a lento190 ✧ 209 Estroboscopio pulso aleatorio, rápido a lento210 ✧ 229 Estroboscopio 0–100–0%, rápido a lento230 ✧ 244 Estroboscopio pulso aleatorio, rápido a lento245 ✧ 255 Encendido
21 Zoom 000		↔ 255 Ancho a estrecho
22 Control		000 ✦ 009 Sin función010 ✦ 014 Blackout panorámica/inclinación015 ✦ 019 Reservado para usos futuros020 ✦ 024 Modo de mezcla de color RGBW (adición)025 ✦ 029 Modo de mezcla de color CMY (sustracción)030 ✦ 049 Reservado para usos futuros050 ✦ 054 Reiniciar movimiento panorámico055 ✦ 059 Reiniciar inclinación060 ✦ 064 Restablecer zoom065 ✦ 069 Reservado para usos futuros070 ✦ 074 Reiniciar todo075 ✦ 109 Reservado para usos futuros110 ✧ 114 Velocidad alta panorámica/Inclinación115 ✧ 119 Velocidad baja panorámica/Inclinación120 ✧ 124 Modo de ventilador lento125 ✧ 129 Modo de ventilador al máximo130 ✧ 134 Modo de ventilador automático135 ✧ 139 Modo de atenuador rápido140 ✧ 144 Modo de atenuador lento145 ✧ 255 Reservado para usos futuros
23 Anillo rojo 000		↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
24 Haz rojo 000		↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
25 Anillo verde 000		↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
26 Haz verde 000		↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
27 Anillo azul 000		↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
28 Haz azul 000		↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
29 Anillo blanco 000		↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%
30 Haz blanco	000	↔ 255 Modo RGBW: 0–100% / Modo CMY: 100–0%

"Dual Control": Modo "Basic Movement" (13Ch)

Plan du menu

Valeurs "Dual Control" (Movement)
"Dual Control": Mode "Advanced Movement" (41Ch)

Canal Fonction Valeur Pourcentage/Paramétrage
1 Pan (balayage) 000		⇔ 255 0-100%
2	P a n f i	n ⇔ 25500-100%
3 Tilt (basculement) 000		⇔ 255 0-100%
4	T i l t f	i ⇔n 255 0-9000%
5 Pan en continu		000 Pas de fonction001 ⇔ 127 Pan en continu, rapide à lent128 Pas de fonction129 ⇔ 255 Pan en continu inversé, lent à rapide
6 Tilt en continu		000 Pas de fonction001 ⇔ 127 Tilt en continu, rapide à lent128 Pas de fonction129 ⇔ 255 Tilt en continu inversé, lent à rapide
7 Vitesse Pan/Tilt 000		⇔ 255 Rapide à lent
8	CTC	000 Pas de fonction001 ⇔ 255 Température de couleur, 2800-10000 K
9 Couleur de l'anneau		000 Pas de fonction001 ⇔ 002 2700K R = 156 G = 118 B = 0 W = 63003 ⇔ 004 3200K R = 156 G = 141 B = 5 W = 89005 ⇔ 006 4200K R = 156 G = 141 B = 14 W = 255007 ⇔ 008 5600K R = 156 G = 207 B = 54 W = 255009 ⇔ 010 8000K R = 130 G = 255 B = 96 W = 255011 Bleu R = 0 G = 0 B = 255 W = 0012 ⇔ 048 + vert R = 0 G = 0-255 B = 255 W = 0049 Cyan R = 0 G = 255 B = 255 W = 0050 ⇔ 086 - bleu R = 0 G = 255 B = 255-0 W = 0087 Vert R = 0 G = 255 B = 0 W = 0088 ⇔ 124 + rouge R = 0-255 G = 255 B = 0 W = 0125 Jaune R = 255 G = 255 B = 0 W = 0126 ⇔ 162 - vert R = 255 G = 255-0 B = 0 W = 0163 Rouge R = 255 G = 0 B = 0 W = 0164 ⇔ 200 + bleu R = 255 G = 0 B = 0-255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 ⇔ 238 - rouge R = 255-0 G = 0 B = 255 W = 0239 Bleu R = 0 G = 0 B = 255 W = 0240 ⇔ 247 Changement de couleur, rapide à lent248 ⇔ 255 Saut de couleur, rapide à lent

"Dual Control": Mode "Basic Movement" (13Ch)

Valeurs "Dual Control" (Pixels)
"Dual Control": Mode "Advanced Pixels" (80Ch)

Canal Fonction Valeur Pourcentage/Paramétrage
1 Rouge 1 000		255 Mode RGBW: 0–100% / Mode CMY: 100–0%
2 Rouge fin 1 000		255 Mode RGBW: 0–100% / Mode CMY: 100–0%
3	V e r t 1	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
4	V e r t f	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
5	B l e u 1	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
6 Bleu fin 1 000		255 Mode RGBW: 0–100% / Mode CMY: 100–0%
7	B l a n c	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
8 Blanc fin 1 000		255 Mode RGBW: 0–100% / Mode CMY: 100–0%
9 Rouge 2 000		255 Mode RGBW: 0–100% / Mode CMY: 100–0%
10	Rouge fin 2 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
11	Vert 2	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
12	Vert fin 2	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
13	Bleu 2	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
14	Bleu fin 2 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
15	Blanc 2	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
16	Blanc fin 2	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
17	Rouge 3 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
18	Rouge fin 3 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
19	Vert 3	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
20	Vert fin 3	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
21	Bleu 3	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
22	Bleu fin 3 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
23	Blanc 3	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
24	Blanc fin 3	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
25	Rouge 4 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
26	Rouge fin 4 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
27	Vert 4	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
28	Vert fin 4	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
29	Bleu 4	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
30	Bleu fin 4 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
31	Blanc 4	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
32	Blanc fin 4	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
33	Rouge 5 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
34	Rouge fin 5 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
35	Vert 5	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
36	Vert fin 5	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
37	Bleu 5	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
38	Bleu fin 5 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
39	Blanc 5	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
40	Blanc fin 5	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
41	Rouge 6 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
42	Rouge fin 6 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
43	Vert 6	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
44	Vert fin 6	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
45	Bleu 6	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
46	Bleu fin 6 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
47	Blanc 6	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
48	Blanc fin 6	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
49	Rouge 7 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
50	Rouge fin 7 000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
51	Vert 7	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
52	Vert fin 7	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
53	Bleu 7	255 Mode RGBW: 0–100% / Mode CMY: 100–0%

Canal	Fonction	Valeur	Pourcentage/Paramétrage
54 Bleu fin 7 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
55 Blanc 7 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
56 Blanc fin 7 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
57 Rouge 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
58 Rouge fin 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
59 Vert 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
60 Vert fin 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
61 Bleu 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
62 Bleu fin 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
63 Blanc 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
64 Blanc fin 8 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
65 Rouge 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
66 Rouge fin 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
67 Vert 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
68 Vert fin 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
69 Bleu 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
70 Bleu fin 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
71 Blanc 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
72 Blanc fin 9 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
73 Rouge 10 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
74 Rouge fin 10 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
75 Vert 10 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
76 Vert fin 10 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
77 Bleu 10 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
78 Bleu fin 10 000		⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
79 Blanc 10	000	⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%
80 Blanc fin 10	000	⇔ 255	Mode RGBW: 0–100% / Mode CMY: 100–0%

"Dual Control": Mode "Standard Pixels" (40Ch)

Canal Fonction Valeur Pourcentage/Paramétrage
1 Rouge 1 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
2	V e r t 1		00255 Mode RGBW: 0–100% / Mode CMY: 100–0%
3	B l e u 1		00255 Mode RGBW: 0–100% / Mode CMY: 100–0%
4 Blanc 1 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
5 Rouge 2 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
6	V e r t 2		00255 Mode RGBW: 0–100% / Mode CMY: 100–0%
7	B l e u 2		00255 Mode RGBW: 0–100% / Mode CMY: 100–0%
8 Blanc 2 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
9 Rouge 3 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
10 Vert3		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
11	Bleu 3		000 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
12 Blanc 3 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
13 Rouge 4 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
14 Vert 4		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
15 Bleu 4		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
16 Blanc 4 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
17 Rouge 5 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
18 Vert 5		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
19 Bleu 5		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
20 Blanc 5 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
21 Rouge 6 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
22 Vert 6		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
23 Bleu 6		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
24 Blanc 6 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
25 Rouge 7 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
26 Vert 7		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
27 Bleu 7		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
28 Blanc 7 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
29 Rouge 8 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
30 Vert 8		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
31 Bleu 8		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
32 Blanc 8 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
33 Rouge 9 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
34 Vert 9		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
35 Bleu 9		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
36 Blanc 9 000			255 Mode RGBW: 0–100% / Mode CMY: 100–0%
37 Rouge 10		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
38 Vert10		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
39 Bleu 10		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%
40 Blanc 10		000	255 Mode RGBW: 0–100% / Mode CMY: 100–0%

"Dual Control": Mode "Basic Pixels" (30Ch)

Canal Fonction Valeur Pourcentage/Paramétrage
1 Rouge 1 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
2	V	e	r	t	1	⇔0265 Mode RGBW: 0–100% / Mode CMY: 100–0%
3	B	l	e	u	1	⇔0265 Mode RGBW: 0–100% / Mode CMY: 100–0%
4 Rouge 2 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
5	V	e	r	t	2	⇔0265 Mode RGBW: 0–100% / Mode CMY: 100–0%
6	B	l	e	u	2	⇔0265 Mode RGBW: 0–100% / Mode CMY: 100–0%
7 Rouge 3 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
8	V	e	r	t	3	⇔0265 Mode RGBW: 0–100% / Mode CMY: 100–0%
9	B	l	e	u	3	⇔0265 Mode RGBW: 0–100% / Mode CMY: 100–0%
10 Rouge 4 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
11	Vert 4				000 ⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
12 Bleu	4			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
13 Rouge 5 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
14 Vert	5			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
15 Bleu	5			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
16 Rouge 6 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
17 Vert	6			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
18 Bleu	6			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
19 Rouge 7 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
20 Vert	7			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
21 Bleu	7			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
22 Rouge 8 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
23 Vert	8			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
24 Bleu	8			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
25 Rouge 9 000					⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
26 Vert	9			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
27 Bleu	9			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
28 Rouge 10				000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
29 Vert	10			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%
30 Bleu	10			000	⇔ 255 Mode RGBW: 0–100% / Mode CMY: 100–0%

RDM (Remote Device Management)

Menu Map

Menumap

"Dual Control"-waarden (Movement)
"Dual Control": "Advanced Movement"-modus (41Ch)

Kanaal Functie Waarde Percentage/Instelling

1 Zwenken 000

255 0–100%

F i j n e

z w255 0–400% n k e n 000

K a n t e

l 255 0–100% 000

4 Fijnekantelen 000

255 0–100%

5 Continue zwenken

000 Geen functie001 127 Continue zwenken, snel tot langzaam128 Geen functie129 255 Omgekeerde continue zwenken, langzaam tot snel

6 Continue kantelen

000 Geen functie001 127 Continue kantelen, snel tot langzaam128 Geen functie129 255 Omgekeerde continue kantelen, langzaam tot snel

7 Zwenken/Kantelensnelheid 000

255 Snel tot langzaam

CTC

000 Geen functie001 255 Kleurtemperatuur, 2800–10000 K

9 Ring kleur

000 Geen functie001 002 2700K R = 156 G = 118 B = 0 W = 63003 004 3200K R = 156 G = 141 B = 5 W = 89005 006 4200K R = 156 G = 141 B = 14 W = 255007 008 5600K R = 156 G = 207 B = 54 W = 255009 010 8000K R = 130 G = 255 B = 96 W = 255011 Blauw R = 0 G = 0 B = 255 W = 0012 048 + groen R = 0 G = 0–255 B = 255 W = 0049 Cyaan R = 0 G = 255 B = 255 W = 0050 086 - blauw R = 0 G = 255 B = 255–0 W = 0087 Groen R = 0 G = 255 B = 0 W = 0088 124 + rood R = 0–255 G = 255 B = 0 W = 0125 Geel R = 255 G = 255 B = 0 W = 0126 162 - groen R = 255 G = 255–0 B = 0 W = 0163 Rood R = 255 G = 0 B = 0 W = 0164 200 + blauw R = 255 G = 0 B = 0–255 W = 0201 Magenta R = 255 G = 0 B = 255 W = 0202 238 - rood R = 255–0 G = 0 B = 255 W = 0239 Blauw R = 0 G = 0 B = 255 W = 0240 247 Kleurverandering, snel tot langzaam248 255 Kleursprong, snel tot langzaam

General Information Technical Support

World Headquarters

Address: 5200 NW 108th Ave. Voice: (844) 393-7575

Sunrise, FL 33351 Fax: (954) 756-8015

Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com

Fax: (954) 929-5560

Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com

U.K.

Address: Unit 1C Email: UKtech@chauvetlighting.eu

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: +44 (0) 1773 511115

Fax: +44 (0) 1773 511110

Benelux

Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: +32 9 388 93 97

France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: FRtech@chauvetlighting.fr

France Website: www.chauvetprofessional.eu

Voice: +33 1 78 85 33 59

Germany

(Entrance by Calle 2)

Email: servicio@chauvet.com.mx

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Outside the U.S., U.K., Ireland, France, Germany, Mexico or Benelux, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

Chauvet Maverick MK Pyxis - Germany - 1

Chauvet Maverick MK Pyxis - Germany - 2

Chauvet Maverick MK Pyxis - Germany - 3

UL 1573

CSA C22.2 No. 166

E113093

Chauvet Maverick MK Pyxis - Germany - 4

Chauvet Maverick MK Pyxis - Germany - 5

Chauvet Maverick MK Pyxis - Germany - 6

RoHS

Chauvet Maverick MK Pyxis - Germany - 7

Chauvet Maverick MK Pyxis - Germany - 8

Table of contents Click a title to access it

About This Guide
Disclaimer
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
Safety Notes
Contact
What is Included
AC Power
Power Linking
Replacing the Fuse
Signal Connections
Control Personalities
DMX Connection
Art-Net™ Connection
sACN Connection
Kling-Net Connection
RDM (Remote Device Management)
Mounting
Mounting Diagram
Touchscreen Control Panel
Control Panel Description
Battery-Powered Display
Menu Map
DMX Values
Single Control Values
Acerca de esta Guía
General Information Technical Support
World Headquarters
U.K.
Benelux
France
Germany

Manual assistant

Waiting for your message

Product information

Brand : Chauvet

Model : Maverick MK Pyxis

Category : Lamp
