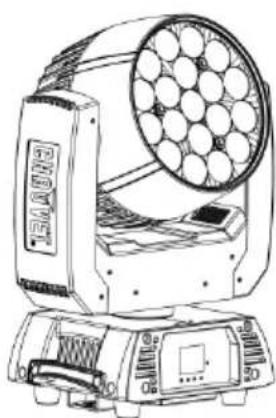

Line drawing of a CHAVET radar or optical instrument with a circular array of spherical components (no text or symbols)About This Guide
The Rogue™ R2 Wash Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
• DO NOT open this product. It contains no user-serviceable parts.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on. - CAUTION: This product's housing may be hot when lights are operating.
- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead. - DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
- DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit. - ONLY use the hanging/mounting bracket or the handles to carry this product. Do not carry by the moving head.
• In the event of a serious operating problem, stop using immediately. - The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
From outside the U.S., UK, Ireland, Mexico, or Benelux contact, the distributor of record to request support or return a product.
- From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.
What Is
- Rogue™ R2 Wash
- Warranty Card
Included
- Neutrik® powerCON® power cord
- Quick Reference Guide
- Omega bracket with mounting hardware
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Power Linking
You can link up to 4 Rogue™ R2 Wash products at 120 V, 8 products at 208 V, or 9 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.
AC Plug
| Connection | Wire (U.S.) | Wire (Europe) | Screw Color |
| AC Live | Black | Brown | Yellow/Brass |
| AC Neutral | White | Blue | Silver |
| AC Ground | Green/Yellow | Green/Yellow | Green |
Replacing The Fuse
- Disconnect this product from power.
- Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
- Remove blown fuse and replace with a good fuse of the same type and rating.
- Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Rogue™ R2 Wash will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.
DMX Connection
The Rogue™ R2 Wash uses a 3- or 5-pin DMX data connection for its DMX personalities: 15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH MS, 54CH and 56CH. See the User Manual for information about connecting and configuring the product for DMX operation.
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps (such as TRUSST® clamps from Chauvet) are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to www.trusst.com/productcategory/accessories-clamps/.

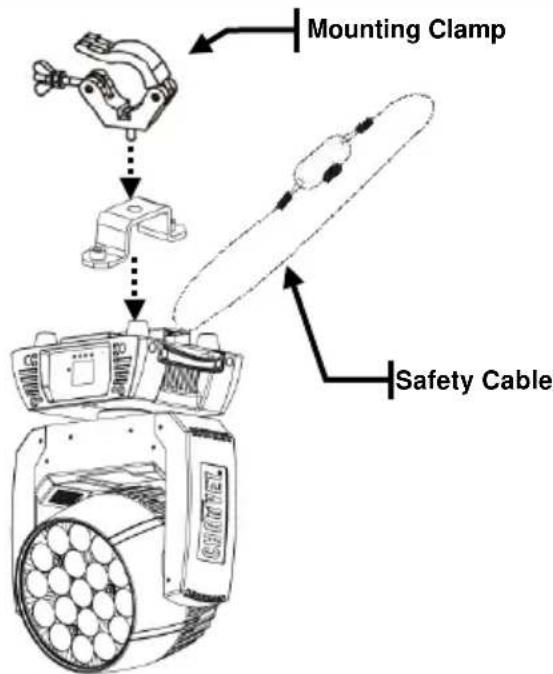

Product Mounting Diagram

When using only one mounting clamp, be sure to use a clamp with a captive bolt to prevent accidental loosening.
Control Panel Description
| Button | Function |
| Exits from the current menu or function | |
| Enables the currently displayed menu or sets the currently selected value into the selected function | |
| Navigates upwards through the menu list or increases the numeric value when in a function | |
| Navigates downwards through the menu list or decreases the numeric value when in a function |
Menu Map
| Main Level | Programming Levels | Description | ||
| Address | 001–512 | Sets the DMX starting address | ||
| Run Mode | DMX | 15CH | Selects the DMX mode | |
| 17CH | ||||
| 22CH | ||||
| 33CH | ||||
| 33CH MS | ||||
| 54CH | ||||
| 54CH MS | ||||
| 56CH | ||||
| Auto Test | Runs the product's test sequence | |||
| Manual Test | Pan | 000–255 | Allows manual control of all settings from the control panel | |
| Tilt | ||||
| Dimmer | ||||
| Shutter | ||||
| Red 1 | ||||
| Green 1 | ||||
| Blue 1 | ||||
| White 1 | ||||
| Red 2 | ||||
| Green 2 | ||||
| Blue 2 | ||||
| White 2 | ||||
| Red 3 | ||||
| Green 3 | ||||
| Blue 3 | ||||
| White 3 | ||||
| Red 4 | ||||
| Green 4 | ||||
| Blue 4 | ||||
| White 4 | ||||
| Red 5 | ||||
| Green 5 | ||||
| Blue 5 | ||||
| White 5 | ||||
| Zoom | ||||
Menu Map (Cont.)
| Main Level | Programming Levels | Description | ||||
| Setup | Pan Reverse | OFF | Reverse pan operation | |||
| ON | Normal pan operation | |||||
| Tilt Reverse | OFF | Reverse tilt operation | ||||
| ON | Normal tilt operation | |||||
| Pan Angle | 540 | Selects the 540° pan angle range | ||||
| 360 | Selects the 360° pan angle range | |||||
| 180 | Selects the 180° pan angle range | |||||
| Tilt Angle | 230 | Selects the 230° tilt angle range | ||||
| 180 | Selects the 180° tilt angle range | |||||
| 90 | Selects the 90° tilt angle range | |||||
| Fans | Auto | Selects the fan's operation mode. | ||||
| ECO | ||||||
| Full | ||||||
| Display | OFF | Determines how long the backlight of the display will stay on after last command button pressed | ||||
| ON | ||||||
| Screen Rev | OFF | Rotates control screen view 180° | ||||
| ON | Normal control screen view | |||||
| Dimmer Curve | Linear | Liner dimmer | ||||
| Square | Square curve dimmer | |||||
| I Squa | Reverse square curve dimmer | |||||
| SCurve | S curve dimmer | |||||
| Dimmer Speed | Smooth | Slow (Smooth) or fast (Fast) dimmer curves | ||||
| Fast | ||||||
| Color calibration | Off | Max. output when RGBW DMX channels are at full | ||||
| On | Factory calibrated color temperature when RGBW DMX channels are at full | |||||
| Custom | RED | 100-255 | Manual calibration of color temperature when RGBW DMX channels are at full | |||
| GREEN | ||||||
| BLUE | ||||||
| Reset Function | Pan/Tilt | NO | Resets pan/tilt functions to the home position | |||
| YES | ||||||
| Zoom | NO | Resets all Zoom functions to the home position | ||||
| YES | ||||||
| All | NO | Resets all functions to the home position | ||||
| YES | ||||||
| Factory Set | Reverts the product back to the original factory settings | |||||
| Main Level | Programming Levels | Description | ||||
| Sys Info | Ver | Displays the software version | ||||
| Running Mode | Displays the current running mode | |||||
| Dmx Address | Displays the current DMX address | |||||
| Temperature | Displays the product's temperature in Celsius | |||||
| Fixture Time | Displays the product's total time running | |||||

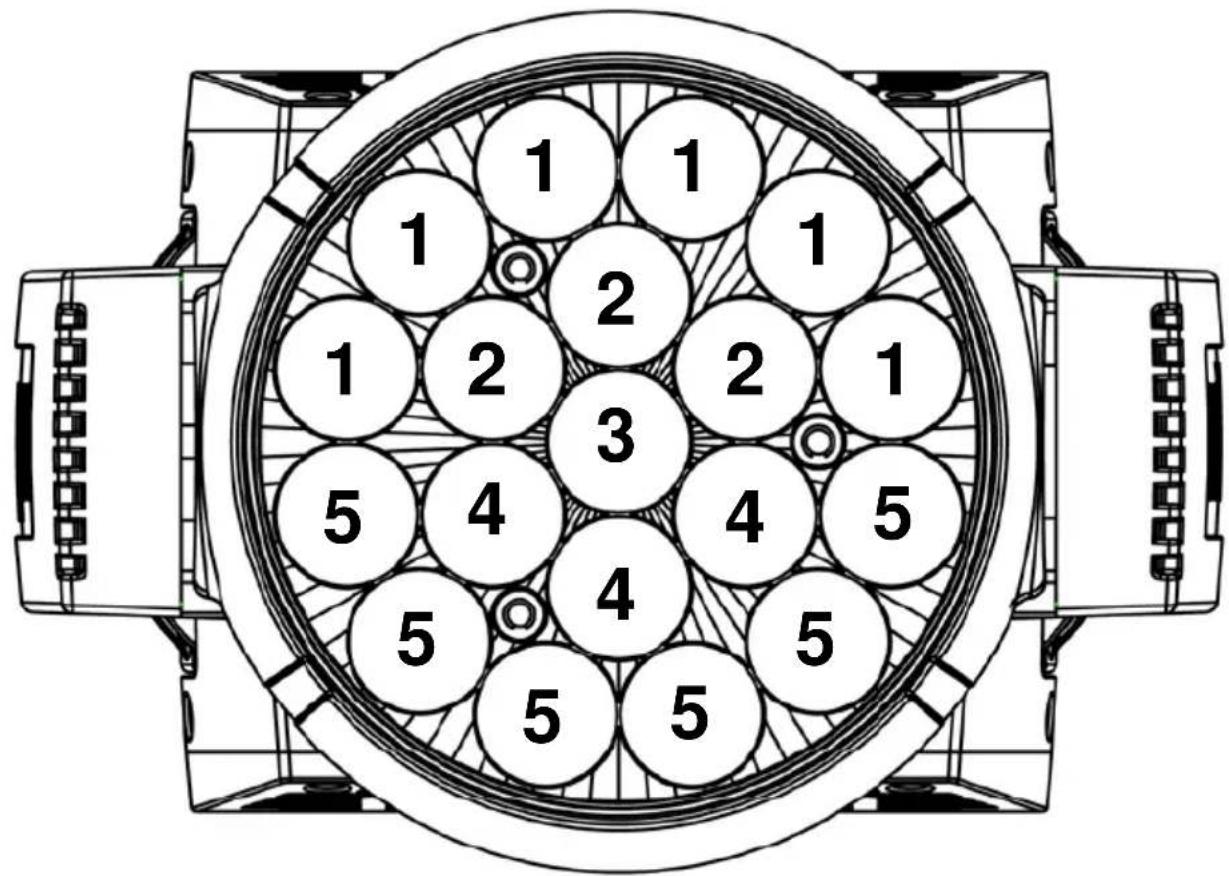

Rogue™ R2 Wash Zone Selection for DMX Control
| 56CH Channel | Function | Value | Percent/Setting |
| 1 | Pan | 000Ü 255 | 0–100% |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) |
| 3 | Tilt | 000Ü 255 | 0–100% |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0–100% |
| 6 | Dimmer | 000Ü 255 | 0–100% |
| 7 | Fine Dimmer | 000Ü 255 | Fine control (16-bit) |
| 8 Shutter | 000Ü 019 | Closed | |
| 020Ü 024 | Open | ||
| 025Ü 064 | Fast to slow | ||
| 065Ü 069 | Open | ||
| 070Ü 084 | Fast on/ramp off | ||
| 085Ü 089 | Open | ||
| 090Ü 104 | Ramp off/fast on | ||
| 105Ü 109 | Open | ||
| 110Ü 124 | Random | ||
| 125Ü 129 | Open | ||
| 130Ü 144 | Random fast on/ramp off | ||
| 145Ü 149 | Open | ||
| 150Ü 164 | Random slow on/fast off | ||
| 165Ü 169 | Open | ||
| 170Ü 184 | Pulse | ||
| 185Ü 189 | Open | ||
| 190Ü 204 | Random pulse | ||
| 205Ü 209 | Open | ||
| 210Ü 224 | Fade on/off | ||
| 225Ü 229 | Open | ||
| 230Ü 244 | Pulse | ||
| 245Ü 255 | Open | ||
| 9 | Red 1 | 000Ü 255 | 0–100% |
| 10 | Fine Red 1 | 000Ü 255 | Fine control (16-bit) |
| 11 | Green 1 | 000Ü 255 | 0–100% |
| 12 | Fine Green 1 | 000Ü 255 | Fine control (16-bit) |
| 13 | Blue 1 | 000Ü 255 | 0–100% |
| 14 | Fine Blue 1 | 000Ü 255 | Fine control (16-bit) |
| 15 | White 1 | 000Ü 255 | 0–100% |
| 16 | Fine White 1 | 000Ü 255 | Fine control (16-bit) |
| 17 | Red 2 | 000Ü 255 | 0–100% |
| 18 | Fine Red 2 | 000Ü 255 | Fine control (16-bit) |
DMX Values (Cont.)
| 56CH (Cont.) | Channel | Function | Value | Percent/Setting |
| 19 | Green 2 | 000Ü 255 | 0–100% | |
| 20 | Fine Green 2 | 000Ü 255 | Fine control (16-bit) | |
| 21 | Blue 2 | 000Ü 255 | 0–100% | |
| 22 | Fine Blue 2 | 000Ü 255 | Fine control (16-bit) | |
| 23 | White 2 | 000Ü 255 | 0–100% | |
| 24 | Fine White 2 | 000Ü 255 | Fine control (16-bit) | |
| 25 | Red 3 | 000Ü 255 | 0–100% | |
| 26 | Fine Red 3 | 000Ü 255 | Fine control (16-bit) | |
| 27 | Green 3 | 000Ü 255 | 0–100% | |
| 28 | Fine Green 3 | 000Ü 255 | Fine control (16-bit) | |
| 29 | Blue 3 | 000Ü 255 | 0–100% | |
| 30 | Fine Blue 3 | 000Ü 255 | Fine control (16-bit) | |
| 31 | White 3 | 000Ü 255 | 0–100% | |
| 32 | Fine White 3 | 000Ü 255 | Fine control (16-bit) | |
| 33 | Red 4 | 000Ü 255 | 0–100% | |
| 34 | Fine Red 4 | 000Ü 255 | Fine control (16-bit) | |
| 35 | Green 4 | 000Ü 255 | 0–100% | |
| 36 | Fine Green 4 | 000Ü 255 | Fine control (16-bit) | |
| 37 | Blue 4 | 000Ü 255 | 0–100% | |
| 38 | Fine Blue 4 | 000Ü 255 | Fine control (16-bit) | |
| 39 | White 4 | 000Ü 255 | 0–100% | |
| 40 | Fine White 4 | 000Ü 255 | Fine control (16-bit) | |
| 41 | Red 5 | 000Ü 255 | 0–100% | |
| 42 | Fine Red 5 | 000Ü 255 | Fine control (16-bit) | |
| 43 | Green 5 | 000Ü 255 | 0–100% | |
| 44 | Fine Green 5 | 000Ü 255 | Fine control (16-bit) | |
| 45 | Blue 5 | 000Ü 255 | 0–100% | |
| 46 | Fine Blue 5 | 000Ü 255 | Fine control (16-bit) | |
| 47 | White 5 | 000Ü 255 | 0–100% | |
| 48 | Fine White 5 | 000Ü 255 | Fine control (16-bit)Open | |
| 000Ü 004 | ||||
| 005Ü 009 | Color 1 | |||
| 010Ü 014 | Color 2 | |||
| 015Ü 019 | Color 3 | |||
| 020Ü 024 | Color 4 | |||
| 025Ü 029 | Color 5 | |||
| 030Ü 034 | Color 6 | |||
| 035Ü 039 | Color 7 | |||
| 040Ü 044 | Color 8 | |||
| 045Ü 049 | Color 9 | |||
| 050Ü 054 | Color 10 | |||
| 055Ü 059 | Color 11 | |||
| 060Ü 064 | Color 12 | |||
| 065Ü 069 | Color 13 | |||
| 070Ü 074 | Color 14 | |||
| 075Ü 079 | Color 15 | |||
| 080Ü 084 | Color 16 | |||
| 085Ü 089 | Color 17 | |||
| 090Ü 094 | Color 18 | |||
| 095Ü 099 | Color 19 | |||
| 100Ü 104 | Color 20 | |||
| 49 Color | 105Ü 109 | Color 21 | ||
| 110Ü 114 | Color 22 | |||
| 115Ü 119 | Color 23 | |||
| 120Ü 124 | Color 24 | |||
| 125Ü 129 | Color 25 | |||
| 130Ü 134 | Color 26 | |||
| 135Ü 139 | Color 27 | |||
| 140Ü 144 | Color 28 | |||
| 145Ü 149 | Color 29 | |||
| 150Ü 154 | Color 30 | |||
| 155Ü 159 | Color 31 | |||
| 160Ü 164 | Color 32 | |||
| 165Ü 169 | Color 33 | |||
| 170Ü 174 | Color 34 | |||
| 175Ü 179 | Closed | |||
| 180Ü 201 | Clockwise color scroll, fast to slow | |||
| 202Ü 207 | Stop on current color | |||
| 208Ü 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Ü 234 | Closed | |||
| 235Ü 249 | Color scroll | |||
| 250Ü 255 | Closed | |||
| 50 Zone Selection | 000Ü 007 | Zone 1, 2, 3, 4, 5 | ||
| 008Ü 015 | Zone 2, 3, 4, 5 | |||
| 016Ü 023 | Zone 3, 4, 5 | |||
| 024Ü 031 | Zone 4, 5 | |||
| 032Ü 039 | Zone 5 | |||
| 040Ü 047 | No function | |||
| 048Ü 055 | Zone 1 | |||
| 056Ü 063 | Zone 1, 2 | |||
| 064Ü 071 | Zone 1, 2, 3 | |||
| 072Ü 079 | Zone 1, 2, 3, 4 | |||
| 080Ü 087 | Zone 1, 2, 3, 4, 5 | |||
| 088Ü 095 | Zone 1 | |||
| 096Ü 103 | Zone 2 | |||
| 104Ü 111 | Zone 3 | |||
| 112Ü 119 | Zone 4 | |||
| 120Ü 127 | Zone 5 | |||
| 128Ü 135 | Zone 1, 2 | |||
| 136Ü 143 | Zone 2, 3 | |||
| 144Ü 151 | Zone 3, 4 | |||
| 152Ü 159 | Zone 4, 5 | |||
| 160Ü 167 | Zone 1, 5 | |||
| 168Ü 175 | Zone 1, 2, 3 | |||
| 176Ü 183 | Zone 2, 3, 4 | |||
| 184Ü 191 | Zone 3, 4, 5 | |||
| 192Ü 199 | Zone 1, 4, 5 | |||
| 200Ü 207 | Zone 1, 2, 5 | |||
| 208Ü 215 | Zone 1, 2, 3, 4 | |||
| 216Ü 223 | Zone 2, 3, 4, 5 | |||
| 224Ü 231 | Zone 1, 3, 4, 5 | |||
| 232Ü 239 | Zone 1, 2, 4, 5 | |||
| 240Ü 247 | Zone 1, 2, 3, 5 | |||
| 250Ü 255 | Zone 1, 2, 3, 4, 5 | |||
| 000Ü 015 | No function | |||
| 016Ü 020 | Ring macro 1 | |||
| 021Ü 025 | Ring macro 2 | |||
| 026Ü 030 | Ring macro 3 | |||
| 031Ü 035 | Ring macro 4 | |||
| 036Ü 040 | Ring macro 5 | |||
| 041Ü 045 | Ring macro 6 | |||
| 046Ü 050 | Ring macro 7 | |||
| 051Ü 055 | Ring macro 8 | |||
| 056Ü 060 | Ring macro 9 | |||
| 061Ü 065 | Ring macro 10 | |||
| 066Ü 070 | Ring macro 11 | |||
| 071Ü 075 | Ring macro 12 | |||
| 076Ü 080 | Ring macro 13 | |||
| 081Ü 085 | Ring macro 14 | |||
| 086Ü 090 | Ring macro 15 | |||
| 091Ü 095 | Ring macro 16 | |||
| 096Ü 100 | Ring macro 17 | |||
| 101Ü 105 | Ring macro 18 | |||
| 106Ü 110 | Ring macro 19 | |||
| 111Ü 115 | Ring macro 20 | |||
| 116Ü 120 | Ring macro 21 | |||
| 121Ü 125 | Ring macro 22 | |||
| 126Ü 130 | Ring macro 23 | |||
| 51 Programs | 131Ü 135 | Ring macro 24 | ||
| 136Ü 140 | Color ring macro 1 | |||
| 141Ü 145 | Color ring macro 2 | |||
| 146Ü 150 | Color ring macro 3 | |||
| 151Ü 155 | Color ring macro 4 | |||
| 156Ü 160 | Color ring macro 5 | |||
| 161Ü 165 | Color ring macro 6 | |||
| 166Ü 170 | Color ring macro 7 | |||
| 171Ü 175 | Color ring macro 8 | |||
| 176Ü 180 | Color ring macro 9 | |||
| 181Ü 185 | Color ring macro 10 | |||
| 186Ü 190 | Color ring macro 11 | |||
| 191Ü 195 | Color ring macro 12 | |||
| 196Ü 200 | Color ring macro 13 | |||
| 201Ü 205 | Color ring macro 14 | |||
| 206Ü 210 | Color ring macro 15 | |||
| 211Ü 215 | Color ring macro 16 | |||
| 216Ü 220 | Color ring macro 17 | |||
| 221Ü 225 | Color ring macro 18 | |||
| 226Ü 230 | Color ring macro 19 | |||
| 231Ü 235 | Color ring macro 20 | |||
| 236Ü 240 | Color ring macro 21 | |||
| 241Ü 245 | Color ring macro 22 | |||
| 246Ü 250 | Color ring macro 23 | |||
| 251Ü 255 | Color ring macro 24 | |||
| 52 | Auto Speed | 000Ü 255 | 0–100% (Only when using Ch. 51) | |
| 53 Movement Macros | 000Ü 007 | No function | ||
| 008Ü 023 | Effect 1 | |||
| 024Ü 039 | Effect 2 | |||
| 040Ü 055 | Effect 3 | |||
| 056Ü 071 | Effect 4 | |||
| 072Ü 087 | Effect 5 | |||
| 088Ü 103 | Effect 6 | |||
| 104Ü 119 | Effect 7 | |||
| 120Ü 135 | Effect 8 | |||
| 136Ü 151 | Effect 9 | |||
| 152Ü 167 | Effect 10 | |||
| 168Ü 183 | Effect 11 | |||
| 184Ü 199 | Effect 12 | |||
| 200Ü 215 | Effect 13 | |||
| 216Ü 231 | Effect 14 | |||
| 232Ü 247 | Effect 15 | |||
| 248Ü 255 | Effect 16 | |||
| 54 | Movement Macro Speed | 000Ü 255 | 0–100% | |
| 55 | Zoom | 000Ü 255 | 0–100% | |
| 000Ü 009 | No function | |||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 050Ü 054 | Pan reset (5 s activation delay) | |||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement | |||
| 56 Control | reverse (5 s activation delay) | |||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 095Ü 099 | Disable Pan movement | |||
| reverse (5 s activation delay) | ||||
| 100Ü 104 | Disable Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 105Ü 109 | Disable Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function | |||
| 54CH Channel | Function | Value | Percent/Setting | |
| 1 | Pan | 000Ü 255 | 0-100% | |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) | |
| 3 | Tilt | 000Ü 255 | 0-100% | |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) | |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0-100% | |
| 6 | Dimmer | 000Ü 255 | 0-100% | |
| 7 | Fine Dimmer | 000Ü 255 | Fine control (16-bit) | |
| 8 Shutter | 000Ü 019 | Closed | ||
| 020Ü 024 | Open | |||
| 025Ü 064 | Fast to slow | |||
| 065Ü 069 | Open | |||
| 070Ü 084 | Fast on/ramp off | |||
| 085Ü 089 | Open | |||
| 090Ü 104 | Ramp off/fast on | |||
| 105Ü 109 | Open | |||
| 110Ü 124 | Random | |||
| 125Ü 129 | Open | |||
| 130Ü 144 | Random fast on/ramp off | |||
| 145Ü 149 | Open | |||
| 150Ü 164 | Random slow on/fast off | |||
| 165Ü 169 | Open | |||
| 170Ü 184 | Pulse | |||
| 185Ü 189 | Open | |||
| 190Ü 204 | Random pulse | |||
| 205Ü 209 | Open | |||
| 210Ü 224 | Fade on/off | |||
| 225Ü 229 | Open | |||
| 230Ü 244 | Pulse | |||
| 245Ü 255 | Open | |||
| 9 | Red 1 | 000Ü 255 | 0-100% | |
| 10 | Fine Red 1 | 000Ü 255 | Fine control (16-bit) | |
| 11 | Green 1 | 000Ü 255 | 0-100% | |
| 12 | Fine Green 1 | 000Ü 255 | Fine control (16-bit) | |
| 13 | Blue 1 | 000Ü 255 | 0-100% | |
| 14 | Fine Blue 1 | 000Ü 255 | Fine control (16-bit) | |
| 15 | White 1 | 000Ü 255 | 0-100% | |
| 16 | Fine White 1 | 000Ü 255 | Fine control (16-bit) | |
| 17 | Red 2 | 000Ü 255 | 0-100% | |
| 18 | Fine Red 2 | 000Ü 255 | Fine control (16-bit) | |
DMX Values (Cont.)
| 54CH (Cont.) | Channel | Function | Value | Percent/Setting |
| 19 | Green 2 | 000Ü 255 | 0–100% | |
| 20 | Fine Green 2 | 000Ü 255 | Fine control (16-bit) | |
| 21 | Blue 2 | 000Ü 255 | 0–100% | |
| 22 | Fine Blue 2 | 000Ü 255 | Fine control (16-bit) | |
| 23 | White 2 | 000Ü 255 | 0–100% | |
| 24 | Fine White 2 | 000Ü 255 | Fine control (16-bit) | |
| 25 | Red 3 | 000Ü 255 | 0–100% | |
| 26 | Fine Red 3 | 000Ü 255 | Fine control (16-bit) | |
| 27 | Green 3 | 000Ü 255 | 0–100% | |
| 28 | Fine Green 3 | 000Ü 255 | Fine control (16-bit) | |
| 29 | Blue 3 | 000Ü 255 | 0–100% | |
| 30 | Fine Blue 3 | 000Ü 255 | Fine control (16-bit) | |
| 31 | White 3 | 000Ü 255 | 0–100% | |
| 32 | Fine White 3 | 000Ü 255 | Fine control (16-bit) | |
| 33 | Red 4 | 000Ü 255 | 0–100% | |
| 34 | Fine Red 4 | 000Ü 255 | Fine control (16-bit) | |
| 35 | Green 4 | 000Ü 255 | 0–100% | |
| 36 | Fine Green 4 | 000Ü 255 | Fine control (16-bit) | |
| 37 | Blue 4 | 000Ü 255 | 0–100% | |
| 38 | Fine Blue 4 | 000Ü 255 | Fine control (16-bit) | |
| 39 | White 4 | 000Ü 255 | 0–100% | |
| 40 | Fine White 4 | 000Ü 255 | Fine control (16-bit) | |
| 41 | Red 5 | 000Ü 255 | 0–100% | |
| 42 | Fine Red 5 | 000Ü 255 | Fine control (16-bit) | |
| 43 | Green 5 | 000Ü 255 | 0–100% | |
| 44 | Fine Green 5 | 000Ü 255 | Fine control (16-bit) | |
| 45 | Blue 5 | 000Ü 255 | 0–100% | |
| 46 | Fine Blue 5 | 000Ü 255 | Fine control (16-bit) | |
| 47 | White 5 | 000Ü 255 | 0–100% | |
| 48 | Fine White 5 | 000Ü 255 | Fine control (16-bit) | |
| 000Û 004 | Open | |||
| 005Û 009 | Color 1 | |||
| 010Û 014 | Color 2 | |||
| 015Û 019 | Color 3 | |||
| 020Û 024 | Color 4 | |||
| 025Û 029 | Color 5 | |||
| 030Û 034 | Color 6 | |||
| 035Û 039 | Color 7 | |||
| 040Û 044 | Color 8 | |||
| 045Û 049 | Color 9 | |||
| 050Û 054 | Color 10 | |||
| 055Û 059 | Color 11 | |||
| 060Û 064 | Color 12 | |||
| 065Û 069 | Color 13 | |||
| 070Û 074 | Color 14 | |||
| 075Û 079 | Color 15 | |||
| 080Û 084 | Color 16 | |||
| 085Û 089 | Color 17 | |||
| 090Û 094 | Color 18 | |||
| 095Û 099 | Color 19 | |||
| 100Û 104 | Color 20 | |||
| 49 Color | 105Û 109 | Color 21 | ||
| 110Û 114 | Color 22 | |||
| 115Û 119 | Color 23 | |||
| 120Û 124 | Color 24 | |||
| 125Û 129 | Color 25 | |||
| 130Û 134 | Color 26 | |||
| 135Û 139 | Color 27 | |||
| 140Û 144 | Color 28 | |||
| 145Û 149 | Color 29 | |||
| 150Û 154 | Color 30 | |||
| 155Û 159 | Color 31 | |||
| 160Û 164 | Color 32 | |||
| 165Û 169 | Color 33 | |||
| 170Û 174 | Color 34 | |||
| 175Û 179 | Closed | |||
| 180Û 201 | Clockwise color scroll, fast to slow | |||
| 202Û 207 | Stop on current color | |||
| 208Û 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Û 234 | Closed | |||
| 235Û 249 | Color scroll | |||
| 250Û 255 | Closed | |||
| 50 Zone Selection | 000Û 007 | Zone 1, 2, 3, 4, 5 | ||
| 008Û 015 | Zone 2, 3, 4, 5 | |||
| 016Û 023 | Zone 3, 4, 5 | |||
| 024Û 031 | Zone 4, 5 | |||
| 032Û 039 | Zone 5 | |||
| 040Û 047 | No function | |||
| 048Û 055 | Zone 1 | |||
| 056Û 063 | Zone 1, 2 | |||
| 064Û 071 | Zone 1, 2, 3 | |||
| 072Û 079 | Zone 1, 2, 3, 4 | |||
| 080Û 087 | Zone 1, 2, 3, 4, 5 | |||
| 088Û 095 | Zone 1 | |||
| 096Û 103 | Zone 2 | |||
| 104Û 111 | Zone 3 | |||
| 112Û 119 | Zone 4 | |||
| 120Û 127 | Zone 5 | |||
| 128Û 135 | Zone 1, 2 | |||
| 136Û 143 | Zone 2, 3 | |||
| 144Û 151 | Zone 3, 4 | |||
| 152Û 159 | Zone 4, 5 | |||
| 160Û 167 | Zone 1, 5 | |||
| 168Û 175 | Zone 1, 2, 3 | |||
| 176Û 183 | Zone 2, 3, 4 | |||
| 184Û 191 | Zone 3, 4, 5 | |||
| 192Û 199 | Zone 1, 4, 5 | |||
| 200Û 207 | Zone 1, 2, 5 | |||
| 208Û 215 | Zone 1, 2, 3, 4 | |||
| 216Û 223 | Zone 2, 3, 4, 5 | |||
| 224Û 231 | Zone 1, 3, 4, 5 | |||
| 232Û 239 | Zone 1, 2, 4, 5 | |||
| 240Û 247 | Zone 1, 2, 3, 5 | |||
| 250Û 255 | Zone 1, 2, 3, 4, 5 | |||
| 000Ü 015 | No function | |||
| 016Ü 020 | Ring macro 1 | |||
| 021Ü 025 | Ring macro 2 | |||
| 026Ü 030 | Ring macro 3 | |||
| 031Ü 035 | Ring macro 4 | |||
| 036Ü 040 | Ring macro 5 | |||
| 041Ü 045 | Ring macro 6 | |||
| 046Ü 050 | Ring macro 7 | |||
| 051Ü 055 | Ring macro 8 | |||
| 056Ü 060 | Ring macro 9 | |||
| 061Ü 065 | Ring macro 10 | |||
| 066Ü 070 | Ring macro 11 | |||
| 071Ü 075 | Ring macro 12 | |||
| 076Ü 080 | Ring macro 13 | |||
| 081Ü 085 | Ring macro 14 | |||
| 086Ü 090 | Ring macro 15 | |||
| 091Ü 095 | Ring macro 16 | |||
| 096Ü 100 | Ring macro 17 | |||
| 101Ü 105 | Ring macro 18 | |||
| 106Ü 110 | Ring macro 19 | |||
| 111Ü 115 | Ring macro 20 | |||
| 116Ü 120 | Ring macro 21 | |||
| 121Ü 125 | Ring macro 22 | |||
| 126Ü 130 | Ring macro 23 | |||
| 51 Programs | 131Ü 135 | Ring macro 24 | ||
| 136Ü 140 | Color ring macro 1 | |||
| 141Ü 145 | Color ring macro 2 | |||
| 146Ü 150 | Color ring macro 3 | |||
| 151Ü 155 | Color ring macro 4 | |||
| 156Ü 160 | Color ring macro 5 | |||
| 161Ü 165 | Color ring macro 6 | |||
| 166Ü 170 | Color ring macro 7 | |||
| 171Ü 175 | Color ring macro 8 | |||
| 176Ü 180 | Color ring macro 9 | |||
| 181Ü 185 | Color ring macro 10 | |||
| 186Ü 190 | Color ring macro 11 | |||
| 191Ü 195 | Color ring macro 12 | |||
| 196Ü 200 | Color ring macro 13 | |||
| 201Ü 205 | Color ring macro 14 | |||
| 206Ü 210 | Color ring macro 15 | |||
| 211Ü 215 | Color ring macro 16 | |||
| 216Ü 220 | Color ring macro 17 | |||
| 221Ü 225 | Color ring macro 18 | |||
| 226Ü 230 | Color ring macro 19 | |||
| 231Ü 235 | Color ring macro 20 | |||
| 236Ü 240 | Color ring macro 21 | |||
| 241Ü 245 | Color ring macro 22 | |||
| 246Ü 250 | Color ring macro 23 | |||
| 251Ü 255 | Color ring macro 24 | |||
| 52 | Auto Speed | 000Ü 255 | 0–100% (Only when using Ch. 51) | |
| 53 | Zoom | 000Ü 255 | 0–100% | |
| 54 Control | 000Ü 009 | No function | ||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 050Ü 054 | Pan reset (5 s activation delay) | |||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 095Ü 099 | Disable Pan movement | |||
| reverse (5 s activation delay) | ||||
| 100Ü 104 | Disable Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 105Ü 109 | Disable Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function | |||
| 54CH MS Channel | Function | Value | Percent/Setting | |
| 1 | Pan | 000Ü 255 | 0–100% | |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) | |
| 3 | Tilt | 000Ü 255 | 0–100% | |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) | |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0–100% | |
| 6 | Dimmer | 000Ü 255 | 0–100% | |
| 7 | Fine Dimmer | 000Ü 255 | Fine control (16-bit) | |
| 8 Shutter | 000Ü 019 | Closed | ||
| 020Ü 024 | Open | |||
| 025Ü 064 | Fast to slow | |||
| 065Ü 069 | Open | |||
| 070Ü 084 | Fast on/ramp off | |||
| 085Ü 089 | Open | |||
| 090Ü 104 | Ramp off/fast on | |||
| 105Ü 109 | Open | |||
| 110Ü 124 | Random | |||
| 125Ü 129 | Open | |||
| 130Ü 144 | Random fast on/ramp off | |||
| 145Ü 149 | Open | |||
| 150Ü 164 | Random slow on/fast off | |||
| 165Ü 169 | Open | |||
| 170Ü 184 | Pulse | |||
| 185Ü 189 | Open | |||
| 190Ü 204 | Random pulse | |||
| 205Ü 209 | Open | |||
| 210Ü 224 | Fade on/off | |||
| 225Ü 229 | Open | |||
| 230Ü 244 | Pulse | |||
| 245Ü 255 | Open | |||
DMX Values (Cont.)
| 54CH MS (Cont.) | Channel | Function | Value | Percent/Setting |
| 000Ü 004 | Open | |||
| 005Ü 009 | Color 1 | |||
| 010Ü 014 | Color 2 | |||
| 015Ü 019 | Color 3 | |||
| 020Ü 024 | Color 4 | |||
| 025Ü 029 | Color 5 | |||
| 030Ü 034 | Color 6 | |||
| 035Ü 039 | Color 7 | |||
| 040Ü 044 | Color 8 | |||
| 045Ü 049 | Color 9 | |||
| 050Ü 054 | Color 10 | |||
| 055Ü 059 | Color 11 | |||
| 060Ü 064 | Color 12 | |||
| 065Ü 069 | Color 13 | |||
| 070Ü 074 | Color 14 | |||
| 075Ü 079 | Color 15 | |||
| 080Ü 084 | Color 16 | |||
| 085Ü 089 | Color 17 | |||
| 090Ü 094 | Color 18 | |||
| 095Ü 099 | Color 19 | |||
| 100Ü 104 | Color 20 | |||
| 9 Color | 105Ü 109 | Color 21 | ||
| 110Ü 114 | Color 22 | |||
| 115Ü 119 | Color 23 | |||
| 120Ü 124 | Color 24 | |||
| 125Ü 129 | Color 25 | |||
| 130Ü 134 | Color 26 | |||
| 135Ü 139 | Color 27 | |||
| 140Ü 144 | Color 28 | |||
| 145Ü 149 | Color 29 | |||
| 150Ü 154 | Color 30 | |||
| 155Ü 159 | Color 31 | |||
| 160Ü 164 | Color 32 | |||
| 165Ü 169 | Color 33 | |||
| 170Ü 174 | Color 34 | |||
| 175Ü 179 | Closed | |||
| 180Ü 201 | Clockwise color scroll, fast to slow | |||
| 202Ü 207 | Stop on current color | |||
| 208Ü 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Ü 234 | Closed | |||
| 235Ü 249 | Color scroll | |||
| 250Ü 255 | Closed | |||
| 10 Zone Selection | 000Ü 007 | Zone 1, 2, 3, 4, 5 | ||
| 008Ü 015 | Zone 2, 3, 4, 5 | |||
| 016Ü 023 | Zone 3, 4, 5 | |||
| 024Ü 031 | Zone 4, 5 | |||
| 032Ü 039 | Zone 5 | |||
| 040Ü 047 | No function | |||
| 048Ü 055 | Zone 1 | |||
| 056Ü 063 | Zone 1, 2 | |||
| 064Ü 071 | Zone 1, 2, 3 | |||
| 072Ü 079 | Zone 1, 2, 3, 4 | |||
| 080Ü 087 | Zone 1, 2, 3, 4, 5 | |||
| 088Ü 095 | Zone 1 | |||
| 096Ü 103 | Zone 2 | |||
| 104Ü 111 | Zone 3 | |||
| 112Ü 119 | Zone 4 | |||
| 120Ü 127 | Zone 5 | |||
| 128Ü 135 | Zone 1, 2 | |||
| 136Ü 143 | Zone 2, 3 | |||
| 144Ü 151 | Zone 3, 4 | |||
| 152Ü 159 | Zone 4, 5 | |||
| 160Ü 167 | Zone 1, 5 | |||
| 168Ü 175 | Zone 1, 2, 3 | |||
| 176Ü 183 | Zone 2, 3, 4 | |||
| 184Ü 191 | Zone 3, 4, 5 | |||
| 192Ü 199 | Zone 1, 4, 5 | |||
| 200Ü 207 | Zone 1, 2, 5 | |||
| 208Ü 215 | Zone 1, 2, 3, 4 | |||
| 216Ü 223 | Zone 2, 3, 4, 5 | |||
| 224Ü 231 | Zone 1, 3, 4, 5 | |||
| 232Ü 239 | Zone 1, 2, 4, 5 | |||
| 240Ü 247 | Zone 1, 2, 3, 5 | |||
| 250Ü 255 | Zone 1, 2, 3, 4, 5 | |||
| 000Ü 015 | No function | |||
| 016Ü 020 | Ring macro 1 | |||
| 021Ü 025 | Ring macro 2 | |||
| 026Ü 030 | Ring macro 3 | |||
| 031Ü 035 | Ring macro 4 | |||
| 036Ü 040 | Ring macro 5 | |||
| 041Ü 045 | Ring macro 6 | |||
| 046Ü 050 | Ring macro 7 | |||
| 051Ü 055 | Ring macro 8 | |||
| 056Ü 060 | Ring macro 9 | |||
| 061Ü 065 | Ring macro 10 | |||
| 066Ü 070 | Ring macro 11 | |||
| 071Ü 075 | Ring macro 12 | |||
| 076Ü 080 | Ring macro 13 | |||
| 081Ü 085 | Ring macro 14 | |||
| 086Ü 090 | Ring macro 15 | |||
| 091Ü 095 | Ring macro 16 | |||
| 096Ü 100 | Ring macro 17 | |||
| 101Ü 105 | Ring macro 18 | |||
| 106Ü 110 | Ring macro 19 | |||
| 111Ü 115 | Ring macro 20 | |||
| 116Ü 120 | Ring macro 21 | |||
| 121Ü 125 | Ring macro 22 | |||
| 126Ü 130 | Ring macro 23 | |||
| 131Ü 135 | Ring macro 24 | |||
| 136Ü 140 | Color ring macro 1 | |||
| 141Ü 145 | Color ring macro 2 | |||
| 146Ü 150 | Color ring macro 3 | |||
| 151Ü 155 | Color ring macro 4 | |||
| 156Ü 160 | Color ring macro 5 | |||
| 161Ü 165 | Color ring macro 6 | |||
| 166Ü 170 | Color ring macro 7 | |||
| 171Ü 175 | Color ring macro 8 | |||
| 176Ü 180 | Color ring macro 9 | |||
| 181Ü 185 | Color ring macro 10 | |||
| 186Ü 190 | Color ring macro 11 | |||
| 191Ü 195 | Color ring macro 12 | |||
| 196Ü 200 | Color ring macro 13 | |||
| 201Ü 205 | Color ring macro 14 | |||
| 206Ü 210 | Color ring macro 15 | |||
| 211Ü 215 | Color ring macro 16 | |||
| 216Ü 220 | Color ring macro 17 | |||
| 221Ü 225 | Color ring macro 18 | |||
| 226Ü 230 | Color ring macro 19 | |||
| 231Ü 235 | Color ring macro 20 | |||
| 236Ü 240 | Color ring macro 21 | |||
| 241Ü 245 | Color ring macro 22 | |||
| 246Ü 250 | Color ring macro 23 | |||
| 251Ü 255 | Color ring macro 24 | |||
| 12 | Auto Speed | 000Ü 255 | 0–100% (Only when using Ch. 11) | |
| 13 | Zoom | 000Ü 255 | 0-100% | |
| 14 Control | 000Ü 009 | No function | ||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 050Ü 054 | Pan reset (5 s activation delay) | |||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 095Ü 099 | Disable Pan movement | |||
| reverse (5 s activation delay) | ||||
| 100Ü 104 | Disable Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 105Ü 109 | Disable Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function | |||
| 15 | Red 1 | 000Ü 255 | 0-100% | |
| 16 | Fine Red 1 | 000Ü 255 | Fine control (16-bit) | |
| 17 | Green 1 | 000Ü 255 | 0-100% | |
| 18 | Fine Green 1 | 000Ü 255 | Fine control (16-bit) | |
| 19 | Blue 1 | 000Ü 255 | 0-100% | |
| 20 | Fine Blue 1 | 000Ü 255 | Fine control (16-bit) | |
| 21 | White 1 | 000Ü 255 | 0-100% | |
| 22 | Fine White 1 | 000Ü 255 | Fine control (16-bit) | |
| 23 | Red 2 | 000Ü 255 | 0-100% | |
| 24 | Fine Red 2 | 000Ü 255 | Fine control (16-bit) | |
| 25 | Green 2 | 000Ü 255 | 0–100% | |
| 26 | Fine Green 2 | 000Ü 255 | Fine control (16-bit) | |
| 27 | Blue 2 | 000Ü 255 | 0–100% | |
| 28 | Fine Blue 2 | 000Ü 255 | Fine control (16-bit) | |
| 29 | White 2 | 000Ü 255 | 0–100% | |
| 30 | Fine White 2 | 000Ü 255 | Fine control (16-bit) | |
| 31 | Red 3 | 000Ü 255 | 0–100% | |
| 32 | Fine Red 3 | 000Ü 255 | Fine control (16-bit) | |
| 33 | Green 3 | 000Ü 255 | 0–100% | |
| 34 | Fine Green 3 | 000Ü 255 | Fine control (16-bit) | |
| 35 | Blue 3 | 000Ü 255 | 0–100% | |
| 36 | Fine Blue 3 | 000Ü 255 | Fine control (16-bit) | |
| 37 | White 3 | 000Ü 255 | 0–100% | |
| 38 | Fine White 3 | 000Ü 255 | Fine control (16-bit) | |
| 39 | Red 4 | 000Ü 255 | 0–100% | |
| 40 | Fine Red 4 | 000Ü 255 | Fine control (16-bit) | |
| 41 | Green 4 | 000Ü 255 | 0–100% | |
| 42 | Fine Green 4 | 000Ü 255 | Fine control (16-bit) | |
| 43 | Blue 4 | 000Ü 255 | 0–100% | |
| 44 | Fine Blue 4 | 000Ü 255 | Fine control (16-bit) | |
| 45 | White 4 | 000Ü 255 | 0–100% | |
| 46 | Fine White 4 | 000Ü 255 | Fine control (16-bit) | |
| 47 | Red 5 | 000Ü 255 | 0–100% | |
| 48 | Fine Red 5 | 000Ü 255 | Fine control (16-bit) | |
| 49 | Green 5 | 000Ü 255 | 0–100% | |
| 50 | Fine Green 5 | 000Ü 255 | Fine control (16-bit) | |
| 51 | Blue 5 | 000Ü 255 | 0–100% | |
| 52 | Fine Blue 5 | 000Ü 255 | Fine control (16-bit) | |
| 53 | White 5 | 000Ü 255 | 0–100% | |
| 54 | Fine White 5 | 000Ü 255 | Fine control (16-bit) | |
| 33CH Channel | Function | Value | Percent/Setting | |
| 1 | Pan | 000Ü 255 | 0-100% | |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) | |
| 3 | Tilt | 000Ü 255 | 0-100% | |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) | |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0-100% | |
| 6 | Dimmer | 000Ü 255 | 0-100% | |
| 7 Shutter | 000Ü 019 | Closed | ||
| 020Ü 024 | Open | |||
| 025Ü 064 | Fast to slow | |||
| 065Ü 069 | Open | |||
| 070Ü 084 | Fast on/ramp off | |||
| 085Ü 089 | Open | |||
| 090Ü 104 | Ramp off/fast on | |||
| 105Ü 109 | Open | |||
| 110Ü 124 | Random | |||
| 125Ü 129 | Open | |||
| 130Ü 144 | Random fast on/ramp off | |||
| 145Ü 149 | Open | |||
| 150Ü 164 | Random slow on/fast off | |||
| 165Ü 169 | Open | |||
| 170Ü 184 | Pulse | |||
| 185Ü 189 | Open | |||
| 190Ü 204 | Random pulse | |||
| 205Ü 209 | Open | |||
| 210Ü 224 | Fade on/off | |||
| 225Ü 229 | Open | |||
| 230Ü 244 | Pulse | |||
| 245Ü 255 | Open | |||
| 8 | Red 1 | 000Ü 255 | 0-100% | |
| 9 | Green 1 | 000Ü 255 | 0-100% | |
| 10 | Blue 1 | 000Ü 255 | 0-100% | |
| 11 | White 1 | 000Ü 255 | 0-100% | |
| 12 | Red 2 | 000Ü 255 | 0-100% | |
| 13 | Green 2 | 000Ü 255 | 0-100% | |
| 14 | Blue 2 | 000Ü 255 | 0-100% | |
| 15 | White 2 | 000Ü 255 | 0-100% | |
| 16 | Red 3 | 000Ü 255 | 0-100% | |
| 17 | Green 3 | 000Ü 255 | 0-100% | |
| 18 | Blue 3 | 000Ü 255 | 0-100% | |
| 19 | White 3 | 000Ü 255 | 0-100% | |
| 20 | Red 4 | 000Ü 255 | 0-100% | |
| 21 | Green 4 | 000Ü 255 | 0-100% | |
| 22 | Blue 4 | 000Ü 255 | 0-100% | |
| 23 | White 4 | 000Ü 255 | 0-100% | |
DMX Values (Cont.)
| 33CH(Cont.) | Channel | Function | Value | Percent/Setting |
| 24 | Red 5 | 000Ü 255 | 0-100% | |
| 25 | Green 5 | 000Ü 255 | 0-100% | |
| 26 | Blue 5 | 000Ü 255 | 0-100% | |
| 27 | White 5 | 000Ü 255 | 0-100% | |
| 28 Color | 000Ü 004 | Open | ||
| 005Ü 009 | Color 1 | |||
| 010Ü 014 | Color 2 | |||
| 015Ü 019 | Color 3 | |||
| 020Ü 024 | Color 4 | |||
| 025Ü 029 | Color 5 | |||
| 030Ü 034 | Color 6 | |||
| 035Ü 039 | Color 7 | |||
| 040Ü 044 | Color 8 | |||
| 045Ü 049 | Color 9 | |||
| 050Ü 054 | Color 10 | |||
| 055Ü 059 | Color 11 | |||
| 060Ü 064 | Color 12 | |||
| 065Ü 069 | Color 13 | |||
| 070Ü 074 | Color 14 | |||
| 075Ü 079 | Color 15 | |||
| 080Ü 084 | Color 16 | |||
| 085Ü 089 | Color 17 | |||
| 090Ü 094 | Color 18 | |||
| 095Ü 099 | Color 19 | |||
| 100Ü 104 | Color 20 | |||
| 105Ü 109 | Color 21 | |||
| 110Ü 114 | Color 22 | |||
| 115Ü 119 | Color 23 | |||
| 120Ü 124 | Color 24 | |||
| 125Ü 129 | Color 25 | |||
| 130Ü 134 | Color 26 | |||
| 135Ü 139 | Color 27 | |||
| 140Ü 144 | Color 28 | |||
| 145Ü 149 | Color 29 | |||
| 150Ü 154 | Color 30 | |||
| 155Ü 159 | Color 31 | |||
| 160Ü 164 | Color 32 | |||
| 165Ü 169 | Color 33 | |||
| 170Ü 174 | Color 34 | |||
| 175Ü 179 | Closed | |||
| 180Ü 201 | Clockwise color scroll, fast to slow | |||
| 202Ü 207 | Stop on current color | |||
| 208Ü 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Ü 234 | Closed | |||
| 235Ü 249 | Color scroll | |||
| 250Ü 255 | Closed | |||
| 29 Zone Selection | 000Ü 007 | Zone 1, 2, 3, 4, 5 | ||
| 008Ü 015 | Zone 2, 3, 4, 5 | |||
| 016Ü 023 | Zone 3, 4, 5 | |||
| 024Ü 031 | Zone 4, 5 | |||
| 032Ü 039 | Zone 5 | |||
| 040Ü 047 | No function | |||
| 048Ü 055 | Zone 1 | |||
| 056Ü 063 | Zone 1, 2 | |||
| 064Ü 071 | Zone 1, 2, 3 | |||
| 072Ü 079 | Zone 1, 2, 3, 4 | |||
| 080Ü 087 | Zone 1, 2, 3, 4, 5 | |||
| 088Ü 095 | Zone 1 | |||
| 096Ü 103 | Zone 2 | |||
| 104Ü 111 | Zone 3 | |||
| 112Ü 119 | Zone 4 | |||
| 120Ü 127 | Zone 5 | |||
| 128Ü 135 | Zone 1, 2 | |||
| 136Ü 143 | Zone 2, 3 | |||
| 144Ü 151 | Zone 3, 4 | |||
| 152Ü 159 | Zone 4, 5 | |||
| 160Ü 167 | Zone 1, 5 | |||
| 168Ü 175 | Zone 1, 2, 3 | |||
| 176Ü 183 | Zone 2, 3, 4 | |||
| 184Ü 191 | Zone 3, 4, 5 | |||
| 192Ü 199 | Zone 1, 4, 5 | |||
| 200Ü 207 | Zone 1, 2, 5 | |||
| 208Ü 215 | Zone 1, 2, 3, 4 | |||
| 216Ü 223 | Zone 2, 3, 4, 5 | |||
| 224Ü 231 | Zone 1, 3, 4, 5 | |||
| 232Ü 239 | Zone 1, 2, 4, 5 | |||
| 240Ü 247 | Zone 1, 2, 3, 5 | |||
| 250Ü 255 | Zone 1, 2, 3, 4, 5 | |||
| 000Ü 015 | No function | |||
| 016Ü 020 | Ring macro 1 | |||
| 021Ü 025 | Ring macro 2 | |||
| 026Ü 030 | Ring macro 3 | |||
| 031Ü 035 | Ring macro 4 | |||
| 036Ü 040 | Ring macro 5 | |||
| 041Ü 045 | Ring macro 6 | |||
| 046Ü 050 | Ring macro 7 | |||
| 051Ü 055 | Ring macro 8 | |||
| 056Ü 060 | Ring macro 9 | |||
| 061Ü 065 | Ring macro 10 | |||
| 066Ü 070 | Ring macro 11 | |||
| 071Ü 075 | Ring macro 12 | |||
| 076Ü 080 | Ring macro 13 | |||
| 081Ü 085 | Ring macro 14 | |||
| 086Ü 090 | Ring macro 15 | |||
| 091Ü 095 | Ring macro 16 | |||
| 096Ü 100 | Ring macro 17 | |||
| 101Ü 105 | Ring macro 18 | |||
| 106Ü 110 | Ring macro 19 | |||
| 111Ü 115 | Ring macro 20 | |||
| 116Ü 120 | Ring macro 21 | |||
| 121Ü 125 | Ring macro 22 | |||
| 126Ü 130 | Ring macro 23 | |||
| 30 Programs | 131Ü 135 | Ring macro 24 | ||
| 136Ü 140 | Color ring macro 1 | |||
| 141Ü 145 | Color ring macro 2 | |||
| 146Ü 150 | Color ring macro 3 | |||
| 151Ü 155 | Color ring macro 4 | |||
| 156Ü 160 | Color ring macro 5 | |||
| 161Ü 165 | Color ring macro 6 | |||
| 166Ü 170 | Color ring macro 7 | |||
| 171Ü 175 | Color ring macro 8 | |||
| 176Ü 180 | Color ring macro 9 | |||
| 181Ü 185 | Color ring macro 10 | |||
| 186Ü 190 | Color ring macro 11 | |||
| 191Ü 195 | Color ring macro 12 | |||
| 196Ü 200 | Color ring macro 13 | |||
| 201Ü 205 | Color ring macro 14 | |||
| 206Ü 210 | Color ring macro 15 | |||
| 211Ü 215 | Color ring macro 16 | |||
| 216Ü 220 | Color ring macro 17 | |||
| 221Ü 225 | Color ring macro 18 | |||
| 226Ü 230 | Color ring macro 19 | |||
| 231Ü 235 | Color ring macro 20 | |||
| 236Ü 240 | Color ring macro 21 | |||
| 241Ü 245 | Color ring macro 22 | |||
| 246Ü 250 | Color ring macro 23 | |||
| 251Ü 255 | Color ring macro 24 | |||
| 31 | Auto Speed | 000Ü 255 | 0–100% (Only when using Ch. 30) | |
| 32 | Zoom | 000Ü 255 | 0–100% | |
| 000Ü 009 | No function | |||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 050Ü 054 | Pan reset (5 s activation delay) | |||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 095Ü 099 | Disable Pan movement | |||
| reverse (5 s activation delay) | ||||
| 100Ü 104 | Disable Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 105Ü 109 | Disable Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function | |||
| 33CH MS | Channel | Function | Value | Percent/Setting |
| 1 | Pan | 000Ü 255 | 0–100% | |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) | |
| 3 | Tilt | 000Ü 255 | 0–100% | |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) | |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0–100% | |
| 6 | Dimmer | 000Ü 255 | 0–100% | |
| 7 | Shutter | 000Ü 019 | Closed | |
| 020Ü 024 | Open | |||
| 025Ü 064 | Fast to slow | |||
| 065Ü 069 | Open | |||
| 070Ü 084 | Fast on/ramp off | |||
| 085Ü 089 | Open | |||
| 090Ü 104 | Ramp off/fast on | |||
| 105Ü 109 | Open | |||
| 110Ü 124 | Random | |||
| 125Ü 129 | Open | |||
| 130Ü 144 | Random fast on/ramp off | |||
| 145Ü 149 | Open | |||
| 150Ü 164 | Random slow on/fast off | |||
| 165Ü 169 | Open | |||
| 170Ü 184 | Pulse | |||
| 185Ü 189 | Open | |||
| 190Ü 204 | Random pulse | |||
| 205Ü 209 | Open | |||
| 210Ü 224 | Fade on/off | |||
| 225Ü 229 | Open | |||
| 230Ü 244 | Pulse | |||
| 245Ü 255 | Open | |||
| 33CH MS (Cont.) | Channel | Function | Value | Percent/Setting |
| 000Ü 004 | Open | |||
| 005Ü 009 | Color 1 | |||
| 010Ü 014 | Color 2 | |||
| 015Ü 019 | Color 3 | |||
| 020Ü 024 | Color 4 | |||
| 025Ü 029 | Color 5 | |||
| 030Ü 034 | Color 6 | |||
| 035Ü 039 | Color 7 | |||
| 040Ü 044 | Color 8 | |||
| 045Ü 049 | Color 9 | |||
| 050Ü 054 | Color 10 | |||
| 055Ü 059 | Color 11 | |||
| 060Ü 064 | Color 12 | |||
| 065Ü 069 | Color 13 | |||
| 070Ü 074 | Color 14 | |||
| 075Ü 079 | Color 15 | |||
| 080Ü 084 | Color 16 | |||
| 085Ü 089 | Color 17 | |||
| 090Ü 094 | Color 18 | |||
| 095Ü 099 | Color 19 | |||
| 100Ü 104 | Color 20 | |||
| 8 Color | 105Ü 109 | Color 21 | ||
| 110Ü 114 | Color 22 | |||
| 115Ü 119 | Color 23 | |||
| 120Ü 124 | Color 24 | |||
| 125Ü 129 | Color 25 | |||
| 130Ü 134 | Color 26 | |||
| 135Ü 139 | Color 27 | |||
| 140Ü 144 | Color 28 | |||
| 145Ü 149 | Color 29 | |||
| 150Ü 154 | Color 30 | |||
| 155Ü 159 | Color 31 | |||
| 160Ü 164 | Color 32 | |||
| 165Ü 169 | Color 33 | |||
| 170Ü 174 | Color 34 | |||
| 175Ü 179 | Closed | |||
| 180Ü 201 | Clockwise color scroll, fast to slow | |||
| 202Ü 207 | Stop on current color | |||
| 208Ü 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Ü 234 | Closed | |||
| 235Ü 249 | Color scroll | |||
| 250Ü 255 | Closed | |||
| 9 Zone Selection | 000Ü 007 | Zone 1, 2, 3, 4, 5 | ||
| 008Ü 015 | Zone 2, 3, 4, 5 | |||
| 016Ü 023 | Zone 3, 4, 5 | |||
| 024Ü 031 | Zone 4, 5 | |||
| 032Ü 039 | Zone 5 | |||
| 040Ü 047 | No function | |||
| 048Ü 055 | Zone 1 | |||
| 056Ü 063 | Zone 1, 2 | |||
| 064Ü 071 | Zone 1, 2, 3 | |||
| 072Ü 079 | Zone 1, 2, 3, 4 | |||
| 080Ü 087 | Zone 1, 2, 3, 4, 5 | |||
| 088Ü 095 | Zone 1 | |||
| 096Ü 103 | Zone 2 | |||
| 104Ü 111 | Zone 3 | |||
| 112Ü 119 | Zone 4 | |||
| 120Ü 127 | Zone 5 | |||
| 128Ü 135 | Zone 1, 2 | |||
| 136Ü 143 | Zone 2, 3 | |||
| 144Ü 151 | Zone 3, 4 | |||
| 152Ü 159 | Zone 4, 5 | |||
| 160Ü 167 | Zone 1, 5 | |||
| 168Ü 175 | Zone 1, 2, 3 | |||
| 176Ü 183 | Zone 2, 3, 4 | |||
| 184Ü 191 | Zone 3, 4, 5 | |||
| 192Ü 199 | Zone 1, 4, 5 | |||
| 200Ü 207 | Zone 1, 2, 5 | |||
| 208Ü 215 | Zone 1, 2, 3, 4 | |||
| 216Ü 223 | Zone 2, 3, 4, 5 | |||
| 224Ü 231 | Zone 1, 3, 4, 5 | |||
| 232Ü 239 | Zone 1, 2, 4, 5 | |||
| 240Ü 247 | Zone 1, 2, 3, 5 | |||
| 250Ü 255 | Zone 1, 2, 3, 4, 5 | |||
| 10 Programs | 000Ü 015 | No function | ||
| 016Ü 020 | Ring macro 1 | |||
| 021Ü 025 | Ring macro 2 | |||
| 026Ü 030 | Ring macro 3 | |||
| 031Ü 035 | Ring macro 4 | |||
| 036Ü 040 | Ring macro 5 | |||
| 041Ü 045 | Ring macro 6 | |||
| 046Ü 050 | Ring macro 7 | |||
| 051Ü 055 | Ring macro 8 | |||
| 056Ü 060 | Ring macro 9 | |||
| 061Ü 065 | Ring macro 10 | |||
| 066Ü 070 | Ring macro 11 | |||
| 071Ü 075 | Ring macro 12 | |||
| 076Ü 080 | Ring macro 13 | |||
| 081Ü 085 | Ring macro 14 | |||
| 086Ü 090 | Ring macro 15 | |||
| 091Ü 095 | Ring macro 16 | |||
| 096Ü 100 | Ring macro 17 | |||
| 101Ü 105 | Ring macro 18 | |||
| 106Ü 110 | Ring macro 19 | |||
| 111Ü 115 | Ring macro 20 | |||
| 116Ü 120 | Ring macro 21 | |||
| 121Ü 125 | Ring macro 22 | |||
| 126Ü 130 | Ring macro 23 | |||
| 131Ü 135 | Ring macro 24 | |||
| 136Ü 140 | Color ring macro 1 | |||
| 141Ü 145 | Color ring macro 2 | |||
| 146Ü 150 | Color ring macro 3 | |||
| 151Ü 155 | Color ring macro 4 | |||
| 156Ü 160 | Color ring macro 5 | |||
| 161Ü 165 | Color ring macro 6 | |||
| 166Ü 170 | Color ring macro 7 | |||
| 171Ü 175 | Color ring macro 8 | |||
| 176Ü 180 | Color ring macro 9 | |||
| 10 | Programs (Cont.) | 181Ü 185 | Color ring macro 10 | |
| 186Ü 190 | Color ring macro 11 | |||
| 191Ü 195 | Color ring macro 12 | |||
| 196Ü 200 | Color ring macro 13 | |||
| 201Ü 205 | Color ring macro 14 | |||
| 206Ü 210 | Color ring macro 15 | |||
| 211Ü 215 | Color ring macro 16 | |||
| 216Ü 220 | Color ring macro 17 | |||
| 221Ü 225 | Color ring macro 18 | |||
| 226Ü 230 | Color ring macro 19 | |||
| 231Ü 235 | Color ring macro 20 | |||
| 236Ü 240 | Color ring macro 21 | |||
| 241Ü 245 | Color ring macro 22 | |||
| 246Ü 250 | Color ring macro 23 | |||
| 251Ü 255 | Color ring macro 24 | |||
| 11 | Auto Speed | 000Ü 255 | 0–100% (Only when using Ch. 10) | |
| 12 | Zoom | 000Ü 255 | 0–100% | |
| 000Ü 009 | No function | |||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 13 Control | 050Ü 054 | Pan reset (5 s activation delay) | ||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement reverse (5 s activation delay) | |||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 13 | Control (Cont.) | 095Ü 099 | Disable Pan movement reverse (5 s activation delay) | |
| 100Ü 104 | Disable Tilt movement reverse (5 s activation delay) | |||
| 105Ü 109 | Disable Pan/Tilt movement reverse (5 s activation delay) | |||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function | |||
| 14 | Red 1 | 000Ü 255 | 0–100% | |
| 15 | Green 1 | 000Ü 255 | 0–100% | |
| 16 | Blue 1 | 000Ü 255 | 0–100% | |
| 17 | White 1 | 000Ü 255 | 0–100% | |
| 18 | Red 2 | 000Ü 255 | 0–100% | |
| 19 | Green 2 | 000Ü 255 | 0–100% | |
| 20 | Blue 2 | 000Ü 255 | 0–100% | |
| 21 | White 2 | 000Ü 255 | 0–100% | |
| 22 | Red 3 | 000Ü 255 | 0–100% | |
| 23 | Green 3 | 000Ü 255 | 0–100% | |
| 24 | Blue 3 | 000Ü 255 | 0–100% | |
| 25 | White 3 | 000Ü 255 | 0–100% | |
| 26 | Red 4 | 000Ü 255 | 0–100% | |
| 27 | Green 4 | 000Ü 255 | 0–100% | |
| 28 | Blue 4 | 000Ü 255 | 0–100% | |
| 29 | White 4 | 000Ü 255 | 0–100% | |
| 30 | Red 5 | 000Ü 255 | 0–100% | |
| 31 | Green 5 | 000Ü 255 | 0–100% | |
| 32 | Blue 5 | 000Ü 255 | 0–100% | |
| 33 | White 5 | 000Ü 255 | 0–100% | |
| 22CH Channel | Function | Value | Percent/Setting | |
| 1 | Pan | 000Ü 255 | 0–100% | |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) | |
| 3 | Tilt | 000Ü 255 | 0–100% | |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) | |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0–100% | |
| 6 | Dimmer | 000Ü 255 | 0–100% | |
| 7 | Fine Dimmer | 000Ü 255 | Fine control (16-bit) | |
| 8 Shutter | 000Ü 019 | Closed | ||
| 020Ü 024 | Open | |||
| 025Ü 064 | Fast to slow | |||
| 065Ü 069 | Open | |||
| 070Ü 084 | Fast on/ramp off | |||
| 085Ü 089 | Open | |||
| 090Ü 104 | Ramp off/fast on | |||
| 105Ü 109 | Open | |||
| 110Ü 124 | Random | |||
| 125Ü 129 | Open | |||
| 130Ü 144 | Random fast on/ramp off | |||
| 145Ü 149 | Open | |||
| 150Ü 164 | Random slow on/fast off | |||
| 165Ü 169 | Open | |||
| 170Ü 184 | Pulse | |||
| 185Ü 189 | Open | |||
| 190Ü 204 | Random pulse | |||
| 205Ü 209 | Open | |||
| 210Ü 224 | Fade on/off | |||
| 225Ü 229 | Open | |||
| 230Ü 244 | Pulse | |||
| 245Ü 255 | Open | |||
| 9 | Red | 000Ü 255 | 0–100% | |
| 10 | Fine Red | 000Ü 255 | Fine control (16-bit) | |
| 11 | Green | 000Ü 255 | 0–100% | |
| 12 | Fine Green | 000Ü 255 | Fine control (16-bit) | |
| 13 | Blue | 000Ü 255 | 0–100% | |
| 14 | Fine Blue | 000Ü 255 | Fine control (16-bit) | |
| 15 | White | 000Ü 255 | 0–100% | |
| 16 | Fine White | 000Ü 255 | Fine control (16-bit) | |
DMX Values (Cont.)
| 22CH (Cont.) | Channel | Function | Value | Percent/Setting |
| 000Ü 004 | Open | |||
| 005Ü 009 | Color 1 | |||
| 010Ü 014 | Color 2 | |||
| 015Ü 019 | Color 3 | |||
| 020Ü 024 | Color 4 | |||
| 025Ü 029 | Color 5 | |||
| 030Ü 034 | Color 6 | |||
| 035Ü 039 | Color 7 | |||
| 040Ü 044 | Color 8 | |||
| 045Ü 049 | Color 9 | |||
| 050Ü 054 | Color 10 | |||
| 055Ü 059 | Color 11 | |||
| 060Ü 064 | Color 12 | |||
| 065Ü 069 | Color 13 | |||
| 070Ü 074 | Color 14 | |||
| 075Ü 079 | Color 15 | |||
| 080Ü 084 | Color 16 | |||
| 085Ü 089 | Color 17 | |||
| 090Ü 094 | Color 18 | |||
| 095Ü 099 | Color 19 | |||
| 100Ü 104 | Color 20 | |||
| 17 Color | 105Ü 109 | Color 21 | ||
| 110Ü 114 | Color 22 | |||
| 115Ü 119 | Color 23 | |||
| 120Ü 124 | Color 24 | |||
| 125Ü 129 | Color 25 | |||
| 130Ü 134 | Color 26 | |||
| 135Ü 139 | Color 27 | |||
| 140Ü 144 | Color 28 | |||
| 145Ü 149 | Color 29 | |||
| 150Ü 154 | Color 30 | |||
| 155Ü 159 | Color 31 | |||
| 160Ü 164 | Color 32 | |||
| 165Ü 169 | Color 33 | |||
| 170Ü 174 | Color 34 | |||
| 175Ü 179 | Closed | |||
| 180Ü 201 | Clockwise color scroll, fast to slow | |||
| 202Ü 207 | Stop on current color | |||
| 208Ü 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Ü 234 | Closed | |||
| 235Ü 249 | Color scroll | |||
| 250Ü 255 | Closed | |||
| 18 Zone Selection | 000Ü 007 | Zone 1, 2, 3, 4, 5 | ||
| 008Ü 015 | Zone 2, 3, 4, 5 | |||
| 016Ü 023 | Zone 3, 4, 5 | |||
| 024Ü 031 | Zone 4, 5 | |||
| 032Ü 039 | Zone 5 | |||
| 040Ü 047 | No function | |||
| 048Ü 055 | Zone 1 | |||
| 056Ü 063 | Zone 1, 2 | |||
| 064Ü 071 | Zone 1, 2, 3 | |||
| 072Ü 079 | Zone 1, 2, 3, 4 | |||
| 080Ü 087 | Zone 1, 2, 3, 4, 5 | |||
| 088Ü 095 | Zone 1 | |||
| 096Ü 103 | Zone 2 | |||
| 104Ü 111 | Zone 3 | |||
| 112Ü 119 | Zone 4 | |||
| 120Ü 127 | Zone 5 | |||
| 128Ü 135 | Zone 1, 2 | |||
| 136Ü 143 | Zone 2, 3 | |||
| 144Ü 151 | Zone 3, 4 | |||
| 152Ü 159 | Zone 4, 5 | |||
| 160Ü 167 | Zone 1, 5 | |||
| 168Ü 175 | Zone 1, 2, 3 | |||
| 176Ü 183 | Zone 2, 3, 4 | |||
| 184Ü 191 | Zone 3, 4, 5 | |||
| 192Ü 199 | Zone 1, 4, 5 | |||
| 200Ü 207 | Zone 1, 2, 5 | |||
| 208Ü 215 | Zone 1, 2, 3, 4 | |||
| 216Ü 223 | Zone 2, 3, 4, 5 | |||
| 224Ü 231 | Zone 1, 3, 4, 5 | |||
| 232Ü 239 | Zone 1, 2, 4, 5 | |||
| 240Ü 247 | Zone 1, 2, 3, 5 | |||
| 250Ü 255 | Zone 1, 2, 3, 4, 5 | |||
| 000Ü 015 | No function | |||
| 016Ü 020 | Ring macro 1 | |||
| 021Ü 025 | Ring macro 2 | |||
| 026Ü 030 | Ring macro 3 | |||
| 031Ü 035 | Ring macro 4 | |||
| 036Ü 040 | Ring macro 5 | |||
| 041Ü 045 | Ring macro 6 | |||
| 046Ü 050 | Ring macro 7 | |||
| 051Ü 055 | Ring macro 8 | |||
| 056Ü 060 | Ring macro 9 | |||
| 061Ü 065 | Ring macro 10 | |||
| 066Ü 070 | Ring macro 11 | |||
| 071Ü 075 | Ring macro 12 | |||
| 076Ü 080 | Ring macro 13 | |||
| 081Ü 085 | Ring macro 14 | |||
| 086Ü 090 | Ring macro 15 | |||
| 091Ü 095 | Ring macro 16 | |||
| 096Ü 100 | Ring macro 17 | |||
| 101Ü 105 | Ring macro 18 | |||
| 106Ü 110 | Ring macro 19 | |||
| 111Ü 115 | Ring macro 20 | |||
| 116Ü 120 | Ring macro 21 | |||
| 121Ü 125 | Ring macro 22 | |||
| 126Ü 130 | Ring macro 23 | |||
| 19 Programs | 131Ü 135 | Ring macro 24 | ||
| 136Ü 140 | Color ring macro 1 | |||
| 141Ü 145 | Color ring macro 2 | |||
| 146Ü 150 | Color ring macro 3 | |||
| 151Ü 155 | Color ring macro 4 | |||
| 156Ü 160 | Color ring macro 5 | |||
| 161Ü 165 | Color ring macro 6 | |||
| 166Ü 170 | Color ring macro 7 | |||
| 171Ü 175 | Color ring macro 8 | |||
| 176Ü 180 | Color ring macro 9 | |||
| 181Ü 185 | Color ring macro 10 | |||
| 186Ü 190 | Color ring macro 11 | |||
| 191Ü 195 | Color ring macro 12 | |||
| 196Ü 200 | Color ring macro 13 | |||
| 201Ü 205 | Color ring macro 14 | |||
| 206Ü 210 | Color ring macro 15 | |||
| 211Ü 215 | Color ring macro 16 | |||
| 216Ü 220 | Color ring macro 17 | |||
| 221Ü 225 | Color ring macro 18 | |||
| 226Ü 230 | Color ring macro 19 | |||
| 231Ü 235 | Color ring macro 20 | |||
| 236Ü 240 | Color ring macro 21 | |||
| 241Ü 245 | Color ring macro 22 | |||
| 246Ü 250 | Color ring macro 23 | |||
| 251Ü 255 | Color ring macro 24 | |||
| 20 | Auto Speed | 000Ü 255 | 0–100% (Only when using Ch. 19) | |
| 21 | Zoom | 000Ü 255 | 0–100% | |
| 22 Control | 000Ü 009 | No function | ||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 050Ü 054 | Pan reset (5 s activation delay) | |||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 095Ü 099 | Disable Pan movement | |||
| reverse (5 s activation delay) | ||||
| 100Ü 104 | Disable Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 105Ü 109 | Disable Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function | |||
| 17CH Channel | Function | Value | Percent/Setting | |
| 1 | Pan | 000Ü 255 | 0–100% | |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) | |
| 3 | Tilt | 000Ü 255 | 0–100% | |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) | |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0–100% | |
| 6 | Dimmer | 000Ü 255 | 0–100% | |
| 7 Shutter | 000Ü 019 | Closed | ||
| 020Ü 024 | Open | |||
| 025Ü 064 | Fast to slow | |||
| 065Ü 069 | Open | |||
| 070Ü 084 | Fast on/ramp off | |||
| 085Ü 089 | Open | |||
| 090Ü 104 | Ramp off/fast on | |||
| 105Ü 109 | Open | |||
| 110Ü 124 | Random | |||
| 125Ü 129 | Open | |||
| 130Ü 144 | Random fast on/ramp off | |||
| 145Ü 149 | Open | |||
| 150Ü 164 | Random slow on/fast off | |||
| 165Ü 169 | Open | |||
| 170Ü 184 | Pulse | |||
| 185Ü 189 | Open | |||
| 190Ü 204 | Random pulse | |||
| 205Ü 209 | Open | |||
| 210Ü 224 | Fade on/off | |||
| 225Ü 229 | Open | |||
| 230Ü 244 | Pulse | |||
| 245Ü 255 | Open | |||
| 8 | Red | 000Ü 255 | 0–100% | |
| 9 | Green | 000Ü 255 | 0–100% | |
| 10 | Blue | 000Ü 255 | 0–100% | |
| 11 | White | 000Ü 255 | 0–100% | |
DMX Values (Cont.)
| 17CH (Cont.) | Channel | Function | Value | Percent/Setting |
| 000Û 004 | Open | |||
| 005Û 009 | Color 1 | |||
| 010Û 014 | Color 2 | |||
| 015Û 019 | Color 3 | |||
| 020Û 024 | Color 4 | |||
| 025Û 029 | Color 5 | |||
| 030Û 034 | Color 6 | |||
| 035Û 039 | Color 7 | |||
| 040Û 044 | Color 8 | |||
| 045Û 049 | Color 9 | |||
| 050Û 054 | Color 10 | |||
| 055Û 059 | Color 11 | |||
| 060Û 064 | Color 12 | |||
| 065Û 069 | Color 13 | |||
| 070Û 074 | Color 14 | |||
| 075Û 079 | Color 15 | |||
| 080Û 084 | Color 16 | |||
| 085Û 089 | Color 17 | |||
| 090Û 094 | Color 18 | |||
| 095Û 099 | Color 19 | |||
| 100Û 104 | Color 20 | |||
| 12 Color | 105Û 109 | Color 21 | ||
| 110Û 114 | Color 22 | |||
| 115Û 119 | Color 23 | |||
| 120Û 124 | Color 24 | |||
| 125Û 129 | Color 25 | |||
| 130Û 134 | Color 26 | |||
| 135Û 139 | Color 27 | |||
| 140Û 144 | Color 28 | |||
| 145Û 149 | Color 29 | |||
| 150Û 154 | Color 30 | |||
| 155Û 159 | Color 31 | |||
| 160Û 164 | Color 32 | |||
| 165Û 169 | Color 33 | |||
| 170Û 174 | Color 34 | |||
| 175Û 179 | Closed | |||
| 180Û 201 | Clockwise color scroll, fast to slow | |||
| 202Û 207 | Stop on current color | |||
| 208Û 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Û 234 | Closed | |||
| 235Û 249 | Color scroll | |||
| 250Û 255 | Closed | |||
| 13 Zone Selection | 000Û 007 | Zone 1, 2, 3, 4, 5 | ||
| 008Û 015 | Zone 2, 3, 4, 5 | |||
| 016Û 023 | Zone 3, 4, 5 | |||
| 024Û 031 | Zone 4, 5 | |||
| 032Û 039 | Zone 5 | |||
| 040Û 047 | No function | |||
| 048Û 055 | Zone 1 | |||
| 056Û 063 | Zone 1, 2 | |||
| 064Û 071 | Zone 1, 2, 3 | |||
| 072Û 079 | Zone 1, 2, 3, 4 | |||
| 080Û 087 | Zone 1, 2, 3, 4, 5 | |||
| 088Û 095 | Zone 1 | |||
| 096Û 103 | Zone 2 | |||
| 104Û 111 | Zone 3 | |||
| 112Û 119 | Zone 4 | |||
| 120Û 127 | Zone 5 | |||
| 128Û 135 | Zone 1, 2 | |||
| 136Û 143 | Zone 2, 3 | |||
| 144Û 151 | Zone 3, 4 | |||
| 152Û 159 | Zone 4, 5 | |||
| 160Û 167 | Zone 1, 5 | |||
| 168Û 175 | Zone 1, 2, 3 | |||
| 176Û 183 | Zone 2, 3, 4 | |||
| 184Û 191 | Zone 3, 4, 5 | |||
| 192Û 199 | Zone 1, 4, 5 | |||
| 200Û 207 | Zone 1, 2, 5 | |||
| 208Û 215 | Zone 1, 2, 3, 4 | |||
| 216Û 223 | Zone 2, 3, 4, 5 | |||
| 224Û 231 | Zone 1, 3, 4, 5 | |||
| 232Û 239 | Zone 1, 2, 4, 5 | |||
| 240Û 247 | Zone 1, 2, 3, 5 | |||
| 250Û 255 | Zone 1, 2, 3, 4, 5 | |||
| 000Ü 015 | No function | |||
| 016Ü 020 | Ring macro 1 | |||
| 021Ü 025 | Ring macro 2 | |||
| 026Ü 030 | Ring macro 3 | |||
| 031Ü 035 | Ring macro 4 | |||
| 036Ü 040 | Ring macro 5 | |||
| 041Ü 045 | Ring macro 6 | |||
| 046Ü 050 | Ring macro 7 | |||
| 051Ü 055 | Ring macro 8 | |||
| 056Ü 060 | Ring macro 9 | |||
| 061Ü 065 | Ring macro 10 | |||
| 066Ü 070 | Ring macro 11 | |||
| 071Ü 075 | Ring macro 12 | |||
| 076Ü 080 | Ring macro 13 | |||
| 081Ü 085 | Ring macro 14 | |||
| 086Ü 090 | Ring macro 15 | |||
| 091Ü 095 | Ring macro 16 | |||
| 096Ü 100 | Ring macro 17 | |||
| 101Ü 105 | Ring macro 18 | |||
| 106Ü 110 | Ring macro 19 | |||
| 111Ü 115 | Ring macro 20 | |||
| 116Ü 120 | Ring macro 21 | |||
| 121Ü 125 | Ring macro 22 | |||
| 126Ü 130 | Ring macro 23 | |||
| 14 Programs | 131Ü 135 | Ring macro 24 | ||
| 136Ü 140 | Color ring macro 1 | |||
| 141Ü 145 | Color ring macro 2 | |||
| 146Ü 150 | Color ring macro 3 | |||
| 151Ü 155 | Color ring macro 4 | |||
| 156Ü 160 | Color ring macro 5 | |||
| 161Ü 165 | Color ring macro 6 | |||
| 166Ü 170 | Color ring macro 7 | |||
| 171Ü 175 | Color ring macro 8 | |||
| 176Ü 180 | Color ring macro 9 | |||
| 181Ü 185 | Color ring macro 10 | |||
| 186Ü 190 | Color ring macro 11 | |||
| 191Ü 195 | Color ring macro 12 | |||
| 196Ü 200 | Color ring macro 13 | |||
| 201Ü 205 | Color ring macro 14 | |||
| 206Ü 210 | Color ring macro 15 | |||
| 211Ü 215 | Color ring macro 16 | |||
| 216Ü 220 | Color ring macro 17 | |||
| 221Ü 225 | Color ring macro 18 | |||
| 226Ü 230 | Color ring macro 19 | |||
| 231Ü 235 | Color ring macro 20 | |||
| 236Ü 240 | Color ring macro 21 | |||
| 241Ü 245 | Color ring macro 22 | |||
| 246Ü 250 | Color ring macro 23 | |||
| 251Ü 255 | Color ring macro 24 | |||
| 15 | Auto Speed | 000Ü 255 | 0–100% (Only when using Ch. 14) | |
| 16 | Zoom | 000Ü 255 | 0–100% | |
| 17 Control | 000Ü 009 | No function | ||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 050Ü 054 | Pan reset (5 s activation delay) | |||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 095Ü 099 | Disable Pan movement | |||
| reverse (5 s activation delay) | ||||
| 100Ü 104 | Disable Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 105Ü 109 | Disable Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function | |||
| 15CH Channel | Function | Value | Percent/Setting | |
| 1 | Pan | 000Ü 255 | 0–100% | |
| 2 | Fine Pan | 000Ü 255 | Fine control (16-bit) | |
| 3 | Tilt | 000Ü 255 | 0–100% | |
| 4 | Fine Tilt | 000Ü 255 | Fine control (16-bit) | |
| 5 | Pan/Tilt Speed | 000Ü 255 | 0–100% | |
| 6 | Dimmer | 000Ü 255 | 0–100% | |
| 7 | Fine Dimmer | 000Ü 255 | Fine control (16-bit) | |
| 8 Shutter | 000Ü 019 | Closed | ||
| 020Ü 024 | Open | |||
| 025Ü 064 | Fast to slow | |||
| 065Ü 069 | Open | |||
| 070Ü 084 | Fast on/ramp off | |||
| 085Ü 089 | Open | |||
| 090Ü 104 | Ramp off/fast on | |||
| 105Ü 109 | Open | |||
| 110Ü 124 | Random | |||
| 125Ü 129 | Open | |||
| 130Ü 144 | Random fast on/ramp off | |||
| 145Ü 149 | Open | |||
| 150Ü 164 | Random slow on/fast off | |||
| 165Ü 169 | Open | |||
| 170Ü 184 | Pulse | |||
| 185Ü 189 | Open | |||
| 190Ü 204 | Random pulse | |||
| 205Ü 209 | Open | |||
| 210Ü 224 | Fade on/off | |||
| 225Ü 229 | Open | |||
| 230Ü 244 | Pulse | |||
| 245Ü 255 | Open | |||
| 9 | Red | 000Ü 255 | 0–100% | |
| 10 | Green | 000Ü 255 | 0–100% | |
| 11 | Blue | 000Ü 255 | 0–100% | |
| 12 | White | 000Ü 255 | 0–100% | |
DMX Values (Cont.)
| 15CH (Cont.) | Channel | Function | Value | Percent/Setting |
| 13 Color | 000Û 004 | Open | ||
| 005Û 009 | Color 1 | |||
| 010Û 014 | Color 2 | |||
| 015Û 019 | Color 3 | |||
| 020Û 024 | Color 4 | |||
| 025Û 029 | Color 5 | |||
| 030Û 034 | Color 6 | |||
| 035Û 039 | Color 7 | |||
| 040Û 044 | Color 8 | |||
| 045Û 049 | Color 9 | |||
| 050Û 054 | Color 10 | |||
| 055Û 059 | Color 11 | |||
| 060Û 064 | Color 12 | |||
| 065Û 069 | Color 13 | |||
| 070Û 074 | Color 14 | |||
| 075Û 079 | Color 15 | |||
| 080Û 084 | Color 16 | |||
| 085Û 089 | Color 17 | |||
| 090Û 094 | Color 18 | |||
| 095Û 099 | Color 19 | |||
| 100Û 104 | Color 20 | |||
| 105Û 109 | Color 21 | |||
| 110Û 114 | Color 22 | |||
| 115Û 119 | Color 23 | |||
| 120Û 124 | Color 24 | |||
| 125Û 129 | Color 25 | |||
| 130Û 134 | Color 26 | |||
| 135Û 139 | Color 27 | |||
| 140Û 144 | Color 28 | |||
| 145Û 149 | Color 29 | |||
| 150Û 154 | Color 30 | |||
| 155Û 159 | Color 31 | |||
| 160Û 164 | Color 32 | |||
| 165Û 169 | Color 33 | |||
| 170Û 174 | Color 34 | |||
| 175Û 179 | Closed | |||
| 180Û 201 | Clockwise color scroll, fast to slow | |||
| 202Û 207 | Stop on current color | |||
| 208Û 229 | Counter-clockwise color scroll, fast to slow | |||
| 230Û 234 | Closed | |||
| 235Û 249 | Color scroll | |||
| 250Û 255 | Closed | |||
| 14 | Zoom | 000Û 255 | 0–100% | |
| 000Ü 009 | No function | |||
| 010Ü 014 | Blackout during pan/tilt | |||
| 015Ü 019 | No function | |||
| 020Ü 024 | No function | |||
| 025Ü 029 | No function | |||
| 030Ü 034 | No function | |||
| 035Ü 039 | No function | |||
| 040Ü 044 | No function | |||
| 045Ü 049 | No function | |||
| 050Ü 054 | Pan reset (5 s activation delay) | |||
| 055Ü 059 | Tilt reset (5 s activation delay) | |||
| 060Ü 064 | Zoom reset (5 s activation delay) | |||
| 065Ü 069 | No function | |||
| 070Ü 074 | All reset (5 s activation delay) | |||
| 075Ü 079 | No function | |||
| 080Ü 084 | Pan/Tilt movement | |||
| 15 Control | reverse (5 s activation delay) | |||
| 085Ü 089 | Pan movement reverse (5 s activation delay) | |||
| 090Ü 094 | Tilt movement reverse (5 s activation delay) | |||
| 095Ü 099 | Disable Pan movement | |||
| reverse (5 s activation delay) | ||||
| 100Ü 104 | Disable Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 105Ü 109 | Disable Pan/Tilt movement | |||
| reverse (5 s activation delay) | ||||
| 110Ü 114 | No function | |||
| 115Ü 119 | No function | |||
| 120Ü 124 | Economy fan (5 s activation delay) | |||
| 125Ü 129 | Full fan (5 s activation delay) | |||
| 130Ü 134 | Auto fan (5 s activation delay) | |||
| 135Ü 139 | Fast dimmer curve (5 s activation delay) | |||
| 140Ü 144 | Smooth dimmer curve (5 s activation delay) | |||
| 145Ü 255 | No function |
Acerca de esta Guía
Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: (954) 577-4455
Fax: (954) 929-5560
Toll free: (800) 762-1084
Technical Support
Voice: (954) 577-4455 (Press 4)
Fax: (954) 756-8015
Email: tech@chauvetlighting.com
World Wide Web
www.chauvetlighting.com
UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd.
General Information
Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: +44 (0)1773 511115
Fax: +44 (0)1773 511110
Technical Support
Email: uktech@chauvetlighting.com
World Wide Web
www.chauvetlighting.co.uk
MEXICO - Chauvet Mexico
General Information
Address: Av. Santa Ana 30
Parque Industrial Lerma
Lerma, Mexico C.P. 52000
Voice: +52 (728) 285-5000
Technical Support
Email: servicio@chauvet.com.mx
World Wide Web
www.chauvet.com.mx
CHAUVET EUROPE - Chauvet Europe BVBA
General Information
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details.
UL 1573
CSA C22.2 No. 166
E113093
