USER MANUAL Rogue R3 Wash Chauvet

Line drawing of a CHU VET radar or optical instrument with spherical components (no text or symbols on the device itself)

About This Guide

The Rogue R3 Wash Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product. Do not carry by the moving head.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.

What is Included

• Rogue R3 Wash
• Neutrik® powerCON® power cord
• Omega bracket with mounting hardware
• Warranty Card
• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow		Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

You can link up to 2 Rogue R3 Wash products at 120 V, 4 products at 208 V, or 4 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.

Replacing The Fuse

1. Disconnect this product from power
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Rogue R3 Wash will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue R3 Wash uses a 3- or 5-pin DMX data connection for its DMX personalities: 21, 62, 71, and 107. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Rogue R3 Wash supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

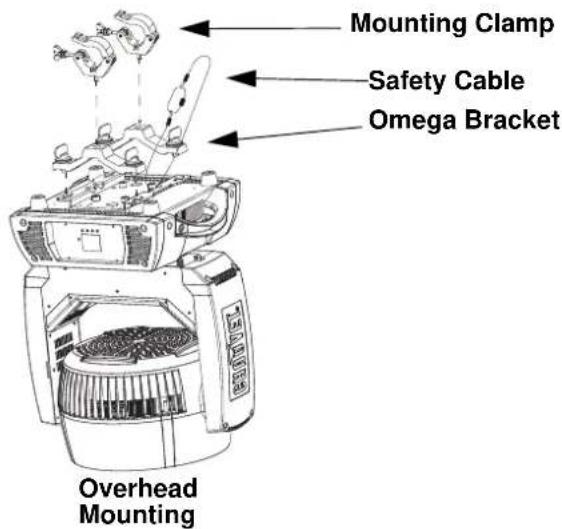

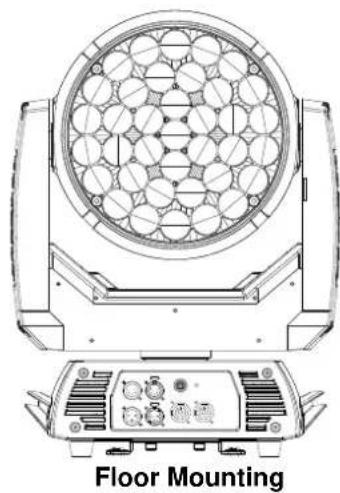

Product Mounting Diagram

Mounting Clamp Safety Cable Omega Bracket Overhead Mounting

Architectural diagram of a multi-floor floor-mounted lighting fixture with grid-patterned central panel (no text or symbols)

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
Address 001-512 Sets the DMX starting address
Running Mode	DMX	21		Selects the DMX mode
		62
		71
		107
	Auto Test Runs the product's test sequence
	Manual Test	Pan	000-255	Allows manual control of all settings from the control panel
		Tilt
		P/T Speed
		Red
		Green
		Blue
		White
		CTC
		Color
		Pattern
		LED Macro
		LED Ma. Speed
		LED Ma. Fade
		Background
		Background Dim.
		Dimmer
		Shutter
		Zoom
Setup	Pan Reverse	OFF Reverse pan operation
		ON Normal pan operation
	Tilt Reverse	OFF Reverse tilt operation
		ON Normal tilt operation
	Zoom Reverse	OFF Reverse zoom operation
		ON Normal zoom operation
	Pan Angle	540 Selects the 540° pan angle range
		360 Selects the 360° pan angle range
		180 Selects the 180° pan angle range
	Tilt Angle	230 Selects the 230° tilt angle range
		180 Selects the 180° tilt angle range
		90 Selects the 90° tilt angle range
	XY Mode	Fast		Sets pan/tilt speed
		Slow
	Fans	Auto		Selects the fan's operation modeECO
		Full
	Display	OFF Determines how long the backlight of the display will stay on after last command button pressed
		ON
	Screen Rev	OFF Normal control		screen view
		ON Rotates control		screen view 180°
	C Mixing Mode	RGBW		Product mixes color using the RGBW method
		CMY		Product mixes color using the CMY method
	Dimmer Curve	Linear Liner dimmer
		Square Square curve dimmer
		I Squa Reverse square curve dimmer
		Scurve		S curve dimmer

Main Level Programming Levels Description
Setup	Dimmer Speed		Smooth		Slow (Smooth) or fast (Fast) dimmer curves
			Fast
	Color calibration	ON			Max. output when RGBW DMX channels are at full
		OFF			Factory calibrated color temperature when RGBW DMX channels are at full
		Custom	RED	100-255	Manual calibration of color temperature when RGBW DMX channels are at full
			GREEN
			BLUE
	Reset Function	Pan/Tilt		Yes	Resets pan/tilt functions to the home position
				No
		Zoom		Yes	Resets all Zoom functions to the home position
				No
		All		Yes	Resets all functions to the home position
				No
	Factory Reset		Yes		Reverts the product back to the original factory settings
			No
Sys Info	Ver Displays the software version
	Running Mode Displays the current running mode
	DMX Address Displays the current DMX address
	Temperature				Displays the product's temperature in Celsius
	Fixture Time Displays the product's total time running
	UID Shows product UID

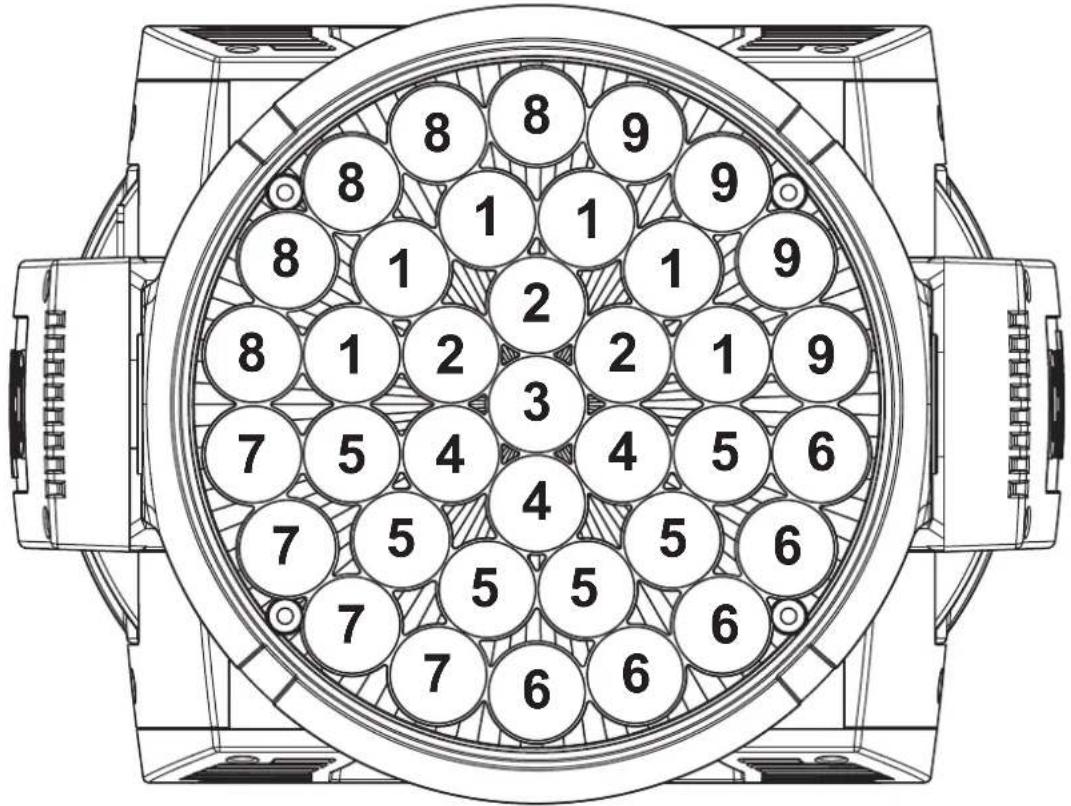

Rogue R3 Wash Zone Selection for DMX Control

8 8 9 1 1 9 8 1 2 1 9 8 1 2 2 1 9 7 5 4 4 5 6 7 5 4 5 6 7 5 5 5 6 7 6 6

DMX Value
107 Channel Function Value Percent/Setting

	1	P	a ⇔ 255 0-100%	000
	2	F i	⇔ 256	Fine control (16-bit)	P	a	n
	3	T	i ⇔ 255 0-100%	t	000
	4 Fine	Tilt 000	⇔ 255	Fine control (16-bit)
	5 Pan/Tilt Speed	000	⇔ 255 0-100%
	6	Dimmer	000 ⇔ 255 0-100%
	7	Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
	8	Shutter	000 ⇔ 019	off
			020 ⇔ 024	on
			025 ⇔ 064	strobe 1 with decreasing speed
			065 ⇔ 069	on
			070 ⇔ 084	strobe 2 (fast on slow off) with decreasing speed
			085 ⇔ 089	on
			090 ⇔ 104	strobe 3 (slow on fast off) with decreasing speed
			105 ⇔ 109	on
			110 ⇔ 124	strobe 4 (random strobe) with decreasing speed
			125 ⇔ 129	on
			130 ⇔ 144	strobe 5 (random fast on slow off) with decreasing speed
			145 ⇔ 149	on
			150 ⇔ 164	strobe 6 (random slow on fast off) with decreasing speed
			165 ⇔ 169	on
			170 ⇔ 184	strobe 7 (pulse strobe) with decreasing speed
			185 ⇔ 189	on
			190 ⇔ 204	strobe 8 (random pulse strobe) with decreasing speed
			205 ⇔ 209	on
			210 ⇔ 224	strobe 9 (fade on or off) with decreasing speed
			225 ⇔ 229	on
			230 ⇔ 244	strobe 10 (pulse strobe) with decreasing speed
			245 ⇔ 255	on
	9	CTC	000	No function
			001 ⇔ 255	2800 to 10,000K
	10	Color	000	No function
			001 ⇔ 002	2700K R:156 G: 118 B: 0 W: 63
			003 ⇔ 004	3200K R:156 G: 141 B: 5 W: 89
			005 ⇔ 006	4200K R:156 G: 141 B: 14 W: 255
			007 ⇔ 008	5600K R:156 G: 207 B: 54 W: 255
			009 ⇔ 010	8000K R:130 G: 255 B: 96 W: 255
			11	Blue R: 0 G: 0 B: 255 W: 0
			012 ⇔ 048	R: 0 G: + B: 255 W: 0
			049	Cyan R: 0 G: 255 B: 255 W: 0
			050 ⇔ 086	R: 0 G: 255 B: - W: 0
			087	Green R: 0 G: 255 B: 0 W: 0
			088 ⇔ 124	R: + G: 255 B: 0 W: 0
			125	Yellow R: 255 G: 255 B: 0 W: 0
			126 ⇔ 162	R: 255 G: - B: 0 W: 0
			163	Red R: 255 G: 0 B: 0 W: 0
			164 ⇔ 200	R: 255 G: 0 B: + W: 0
			201	Magenta R: 255 G: 0 B: 255 W: 0
			202 ⇔ 238	R: - G: 0 B: 255 W: 0
			239	Blue R: 0 G: 0 B: 255 W: 0
			240 ⇔ 247	Color change, fast to slow
			248 ⇔ 255	Color jump, fast to slow
	11	Gobo	000 ⇔ 003	No function
			004 ⇔ 006	Gobo 1
			007 ⇔ 009	Gobo 2
			010 ⇔ 012	Gobo 3
			013 ⇔ 015	Gobo 4
			016 ⇔ 018	Gobo 5
			019 ⇔ 021	Gobo 6
			022 ⇔ 024	Gobo 7
			025 ⇔ 027	Gobo 8
			028 ⇔ 030	Gobo 9
			031 ⇔ 033	No Gobo

107

Channel	Function Value Percent/Setting
11 Gobo		034 ⇔ 036	Gobo 10
		037 ⇔ 039	Gobo 11
		040 ⇔ 042	Gobo 12
		043 ⇔ 045	Gobo 13
		046 ⇔ 048	Gobo 14
		049 ⇔ 051	Gobo 15
		052 ⇔ 054	Gobo 16
		055 ⇔ 057	Gobo 17
		058 ⇔ 060	Gobo 18
		061 ⇔ 063	Gobo 19
		064 ⇔ 066	Gobo 20
		067 ⇔ 069	Gobo 21
		070 ⇔ 072	Gobo 22
		073 ⇔ 075	Gobo 23
		076 ⇔ 078	Gobo 24
		079 ⇔ 081	Gobo 25
		082 ⇔ 084	Gobo 26
		085 ⇔ 087	Gobo 27
		088 ⇔ 090	Gobo 28
		091 ⇔ 093	Gobo 29
		094 ⇔ 096	Gobo 30
		097 ⇔ 099	Gobo 31
		100 ⇔ 102	Gobo 32
		103 ⇔ 105	Gobo 33
		106 ⇔ 108	Gobo 34
		109 ⇔ 111	Gobo 35
		112 ⇔ 114	Gobo 36
		115 ⇔ 117	Gobo 37
		118 ⇔ 120	Gobo 38
		121 ⇔ 123	Gobo 39
		124 ⇔ 126	Gobo 40
		127 ⇔ 129	Gobo 41
		130 ⇔ 132	Gobo 42
		133 ⇔ 135	Gobo 43
		136 ⇔ 138	Gobo 44
		139 ⇔ 141	Gobo 45
		142 ⇔ 144	Gobo 46
		145 ⇔ 147	Gobo 47
		148 ⇔ 150	Gobo 48
		151 ⇔ 153	Gobo 49
		154 ⇔ 156	Gobo 50
		157 ⇔ 159	Gobo 51
		160 ⇔ 162	Gobo 52
		163 ⇔ 165	Gobo 53
		166 ⇔ 168	Gobo 54
		169 ⇔ 171	Gobo 55
		172 ⇔ 174	Gobo 56
		175 ⇔ 177	Gobo 57
		178 ⇔ 180	Gobo 58
		181 ⇔ 183	Gobo 59
		184 ⇔ 186	Gobo 60
		187 ⇔ 189	Gobo 61
		190 ⇔ 192	Gobo 62
		193 ⇔ 195	Gobo 63
		196 ⇔ 198	Gobo 64
		199 ⇔ 201	Gobo 65
		202 ⇔ 204	Gobo 66
		205 ⇔ 207	Gobo 67
		208 ⇔ 210	Gobo 68
		211 ⇔ 213	Gobo 69
		214 ⇔ 216	Gobo 70
		217 ⇔ 219	Gobo 71
		220 ⇔ 222	Gobo 72
		223 ⇔ 225	Gobo 73
226 ⇔ 228	Gobo 74
229 ⇔ 231	Gobo 75

107

Channel Function Value Percent/Setting
11 Gobo		232 ⇌ 234	Gobo 76
		235 ⇌ 237	Gobo 77
		238 ⇌ 240	Gobo 78
		241 ⇌ 243	Gobo 79
		244 ⇌ 246	Gobo 80
		247 ⇌ 249	Gobo 81
		250 ⇌ 252	Gobo 82
		253 ⇌ 255	Gobo 83
12 LED Built-in		000 ⇌ 015	No function
		016 ⇌ 017	Built-in 1
		018 ⇌ 019	Built-in 2
		020 ⇌ 021	Built-in 3
		022 ⇌ 023	Built-in 4
		024 ⇌ 025	Built-in 5
		026 ⇌ 027	Built-in 6
		028 ⇌ 029	Built-in 7
		030 ⇌ 031	Built-in 8
		032 ⇌ 033	Built-in 9
		034 ⇌ 035	Built-in 10
		036 ⇌ 037	Built-in 11
		038 ⇌ 039	Built-in 12
		040 ⇌ 041	Built-in 13
		042 ⇌ 043	Built-in 14
		044 ⇌ 045	Built-in 15
		046 ⇌ 047	Built-in 16
		048 ⇌ 049	Built-in 17
		050 ⇌ 051	Built-in 18
		052 ⇌ 053	Built-in 19
		054 ⇌ 055	Built-in 20
		056 ⇌ 057	Built-in 21
		058 ⇌ 059	Built-in 22
		060 ⇌ 061	Built-in 23
		062 ⇌ 063	Built-in 24
		064 ⇌ 065	Built-in 25
		066 ⇌ 067	Built-in 26
		068 ⇌ 069	Built-in 27
		070 ⇌ 071	Built-in 28
		072 ⇌ 073	Built-in 29
		074 ⇌ 075	Built-in 30
		076 ⇌ 077	Built-in 31
		078 ⇌ 079	Built-in 32
		080 ⇌ 081	Built-in 33
		082 ⇌ 083	Built-in 34
		084 ⇌ 085	Built-in 35
		086 ⇌ 087	Built-in 36
		088 ⇌ 089	Built-in 37
		090 ⇌ 091	Built-in 38
		092 ⇌ 093	Built-in 39
		094 ⇌ 095	Built-in 40
		096 ⇌ 097	Built-in 41
		098 ⇌ 099	Built-in 42
		100 ⇌ 101	Built-in 43
		102 ⇌ 103	Built-in 44
		104 ⇌ 105	Built-in 45
		106 ⇌ 107	Built-in 46
		108 ⇌ 109	Built-in 47
		110 ⇌ 111	Built-in 48
		112 ⇌ 113	Built-in 49
		114 ⇌ 115	Built-in 50
		116 ⇌ 117	Built-in 51
		118 ⇌ 119	Built-in 52
		120 ⇌ 121	Built-in 53
		122 ⇌ 123	Built-in 54
		124 ⇌ 125	Built-in 55
		126 ⇌ 127	Built-in 56

107

Channel Function Value Percent/Setting
12 LED Built-in		128 ⇌ 135	Built-in 57
		136 ⇌ 137	Built-in 58
		138 ⇌ 139	Built-in 59
		140 ⇌ 141	Built-in 60
		142 ⇌ 143	Built-in 61
		144 ⇌ 145	Built-in 62
		146 ⇌ 147	Built-in 63
		148 ⇌ 149	Built-in 64
		150 ⇌ 151	Built-in 65
		152 ⇌ 153	Built-in 66
		154 ⇌ 155	Built-in 67
		156 ⇌ 157	Built-in 68
		158 ⇌ 159	Built-in 69
		160 ⇌ 161	Built-in 70
		162 ⇌ 163	Built-in 71
		164 ⇌ 165	Built-in 72
		166 ⇌ 167	Built-in 73
		168 ⇌ 169	Built-in 74
		170 ⇌ 171	Built-in 75
		172 ⇌ 173	Built-in 76
		174 ⇌ 175	Built-in 77
		176 ⇌ 177	Built-in 78
		178 ⇌ 179	Built-in 79
		180 ⇌ 181	Built-in 80
		182 ⇌ 183	Built-in 81
		184 ⇌ 185	Built-in 82
		186 ⇌ 187	Built-in 83
		188 ⇌ 189	Built-in 84
		190 ⇌ 191	Built-in 85
		192 ⇌ 193	Built-in 86
		194 ⇌ 195	Built-in 87
		196 ⇌ 197	Built-in 88
		198 ⇌ 199	Built-in 89
		200 ⇌ 201	Built-in 90
		202 ⇌ 203	Built-in 91
		204 ⇌ 205	Built-in 92
		206 ⇌ 207	Built-in 93
		208 ⇌ 209	Built-in 94
		210 ⇌ 211	Built-in 95
		212 ⇌ 213	Built-in 96
		214 ⇌ 215	Built-in 97
		216 ⇌ 217	Built-in 98
		218 ⇌ 219	Built-in 99
		220 ⇌ 221	Built-in 100
		222 ⇌ 223	Built-in 101
		224 ⇌ 225	Built-in 102
		226 ⇌ 227	Built-in 103
		228 ⇌ 229	Built-in 104
		230 ⇌ 231	Built-in 105
		232 ⇌ 233	Built-in 106
		234 ⇌ 235	Built-in 107
		236 ⇌ 237	Built-in 108
		238 ⇌ 239	Built-in 109
		240 ⇌ 241	Built-in 110
		242 ⇌ 243	Built-in 111
		244 ⇌ 245	Built-in 112
		246 ⇌ 247	Built-in 113
		248 ⇌ 255	Built-in 114
13 LED Built-in Speed		000 ⇌ 127	Clockwise fast to slow
		128	Stop
		129 ⇌ 255	Counter-clockwise slow to fast
14 LED Built-in Delay 000		⇔ 255	Fast to slow

107

Channel	Function	Value	Percent/Setting
15	Background Color Macros	000001 ⇔ 002003 ⇔ 004005 ⇔ 006007 ⇔ 008009 ⇔ 01011012 ⇔ 048049050 ⇔ 086087088 ⇔ 124125126 ⇔ 162163164 ⇔ 200201202 ⇔ 238239240 ⇔ 247248 ⇔ 255	No function2700K R:156 G: 118 B: 0 W: 633200K R:156 G: 141 B: 5 W: 894200K R:156 G: 141 B: 14 W: 2555600K R:156 G: 207 B: 54 W: 2558000K R:130 G: 255 B: 96 W: 255Blue R: 0 G: 0 B: 255 W: 0R: 0 G: + B: 255 W: 0Cyan R: 0 G: 255 B: 255 W: 0R: 0 G: 255 B: - W: 0Green R: 0 G: 255 B: 0 W: 0R: + G: 255 B: 0 W: 0Yellow R: 255 G: 255 B: 0 W: 0R: 255 G: - B: 0 W: 0Red R: 255 G: 0 B: 0 W: 0R: 255 G: 0 B: + W: 0Magenta R: 255 G: 0 B: 255 W: 0R: - G: 0 B: 255 W: 0Blue R: 0 G: 0 B: 255 W: 0Color change, fast to slowColor jump, fast to slow
16	Background Color Dimmer	000 ⇔ 255	0-100%
17	Background Color Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
18	Background Red	000 ⇔ 255	0-100%
19	Background Fine Red	000 ⇔ 255	Fine control (16-bit)
20	Background Green	000 ⇔ 255	0-100%
21	Background Fine Green	000 ⇔ 255	Fine control (16-bit)
22	Background Blue 000	⇔ 255	0-100%
23	Background Fine Blue	000 ⇔ 255	Fine control (16-bit)
24	Background White 000	⇔ 255	0-100%
25	Background Fine White	000 ⇔ 255	Fine control (16-bit)
26	Zoom	000 ⇔ 255	0-100%

107

Channel	Function	Value	Percent/Setting
27 Control		000 ⇔ 009	No function
		010 ⇔ 014	Pan/Tilt blackout
		015 ⇔ 019	No function
		020 ⇔ 024	RGBW color mixing (5 sec.)
		025 ⇔ 029	CMY color mixing (5 sec.)
		030 ⇔ 034	No function
		035 ⇔ 039	No function
		040 ⇔ 044	No function
		045 ⇔ 049	No function
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	No function
		070 ⇔ 074	All reset
		075 ⇔ 079	No function
		080 ⇔ 084	Pan/Tilt reverse
		085 ⇔ 089	Pan reverse
		090 ⇔ 094	Tilt reverse
		095 ⇔ 099	Cancel pan reverse
		100 ⇔ 104	Cancel tilt reverse
		105 ⇔ 109	Cancel pan/tilt reverse
		110 ⇔ 114	No function
		115 ⇔ 119	No function
		120 ⇔ 124	Fan low speed
		125 ⇔ 129	Fan full speed
		130 ⇔ 134	Fan auto
		135 ⇔ 139	Dimmer Fast mode
		140 ⇔ 144	Dimmer Smooth mode
		145 ⇔ 255	No function
28 Red (Cyan) 000		⇔ 255	0-100%
29 Fine Red (Cyan) 000		⇔ 255	Fine control (16-bit)
30 Green (Magenta) 000		⇔ 255	0-100%
31 Fine Green (Magenta) 000		⇔ 255	Fine control (16-bit)
32 Blue (Yellow) 000		⇔ 255	0-100%
33	Fine Blue (Yellow)	000 ⇔ 255	Fine control (16-bit)
34	White	000 ⇔ 255	0-100%
35	Fine White	000 ⇔ 255	Fine control (16-bit)
36	Red 1 (Cyan)	000 ⇔ 255	0-100%
37	Fine Red 1 (Cyan)	000 ⇔ 255	Fine control (16-bit)
38	Green 1 (Magenta)	000 ⇔ 255	0-100%
39	Fine Green 1 (Magenta)	000 ⇔ 255	Fine control (16-bit)
40	Blue 1 (Yellow)	000 ⇔ 255	0-100%
41	Fine Blue 1 (Yellow)	000 ⇔ 255	Fine control (16-bit)
42 White 1	000	⇔ 255	0-100%
43	Fine White 1	000 ⇔ 255	Fine control (16-bit)
44	Red 2 (Cyan)	000 ⇔ 255	0-100%
45	Fine Red 2 (Cyan)	000 ⇔ 255	Fine control (16-bit)
46	Green 2 (Magenta)	000 ⇔ 255	0-100%
47	Fine Green 2 (Magenta)	000 ⇔ 255	Fine control (16-bit)
48	Blue 2 (Yellow)	000 ⇔ 255	0-100%
49	Fine Blue 2 (Yellow)	000 ⇔ 255	Fine control (16-bit)
50 White 2	000	⇔ 255	0-100%
51	Fine White 2	000 ⇔ 255	Fine control (16-bit)
52	Red 3 (Cyan)	000 ⇔ 255	0-100%

107

Channel	Function	Value	Percent/Setting
53 Fine Red 3 (Cyan) 000		255 Fine control (16-bit)
54 Green 3 (Magenta) 000		255 0-100%
55	Fine Green 3 (Magenta)	000 255 Fine control (16-bit)
56 Blue 3 (Yellow) 000		255 0-100%
57 Fine Blue 3 (Yellow) 000		255 Fine control (16-bit)
58 White 3 000		255 0-100%
59 Fine White 3 000		255 Fine control (16-bit)
60 Red 4 (Cyan) 000		255 0-100%
61 Fine Red 4 (Cyan) 000		255 Fine control (16-bit)
62 Green 4 (Magenta) 000		255 0-100%
63	Fine Green 4 (Magenta)	000 255 Fine control (16-bit)
64 Blue 4 (Yellow) 000		255 0-100%
65 Fine Blue 4 (Yellow) 000		255 Fine control (16-bit)
66 White 4 000		255 0-100%
67 Fine White 4 000		255 Fine control (16-bit)
68 Red 5 (Cyan) 000		255 0-100%
69 Fine Red 5 (Cyan) 000		255 Fine control (16-bit)
70 Green 5 (Magenta) 000		255 0-100%
71	Fine Green 5 (Magenta)	000 255 Fine control (16-bit)
72 Blue 5 (Yellow) 000		255 0-100%
73 Fine Blue 5 (Yellow) 000		255 Fine control (16-bit)
74 White 5 000		255 0-100%
75 Fine White 5 000		255 Fine control (16-bit)
76 Red 6 (Cyan) 000		255 0-100%
77 Fine Red 6 (Cyan) 000		255 Fine control (16-bit)
78 Green 6 (Magenta) 000		255 0-100%
79	Fine Green 6 (Magenta)	000 255 Fine control (16-bit)
80 Blue 6 (Yellow) 000		255 0-100%
81 Fine Blue 6 (Yellow) 000		255 Fine control (16-bit)
82 White 6 000		255 0-100%
83 Fine White 6 000		255 Fine control (16-bit)
84 Red 7 (Cyan) 000		255 0-100%
85 Fine Red 7 (Cyan) 000		255 Fine control (16-bit)
86 Green 7 (Magenta) 000		255 0-100%
87	Fine Green 7 (Magenta)	000 255 Fine control (16-bit)
88 Blue 7 (Yellow) 000		255 0-100%
89 Fine Blue 7 (Yellow) 000		255 Fine control (16-bit)
90 White 7 000		255 0-100%
91 Fine White 7 000		255 Fine control (16-bit)
92 Red 8 (Cyan) 000		255 0-100%
93 Fine Red 8 (Cyan) 000		255 Fine control (16-bit)
94 Green 8 (Magenta) 000		255 0-100%
95	Fine Green 8 (Magenta)	000 255 Fine control (16-bit)
96 Blue 8 (Yellow) 000		255 0-100%

107	Channel	Function	Value	Percent/Setting
	97	Fine Blue 8 (Yellow)	000 ⇔ 255	Fine control (16-bit)
	98 White 8 000		⇔ 255	0-100%
	99 Fine White 8 000		⇔ 255	Fine control (16-bit)
	100 Red 9 (Cyan) 000		⇔ 255	0-100%
	101 Fine Red 9 (Cyan) 000		⇔ 255	Fine control (16-bit)
	102 Green 9 (Magenta) 000		⇔ 255	0-100%
	103	Fine Green 9 (Magenta)	000 ⇔ 255	Fine control (16-bit)
	104 Blue 9 (Yellow) 000		⇔ 255	0-100%
	105	Fine Blue 9 (Yellow)	000 ⇔ 255	Fine control (16-bit)
	106	White 9	000 ⇔ 255	0-100%
	107	Fine White 9 000	⇔ 255	Fine control (16-bit)
71	Channel	Function	Value	Percent/Setting
	1	Pan	000 ⇔ 255	0-100%
	2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
	3	Tilt	000 ⇔ 255	0-100%
	4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
	5	Pan/Tilt Speed	000 ⇔ 255	0-100%
	6	Dimmer	000 ⇔ 255	0-100%
	7	Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
	8	Shutter	000 ⇔ 019	off
			020 ⇔ 024	on
			025 ⇔ 064	strobe 1 with decreasing speed
			065 ⇔ 069	on
			070 ⇔ 084	strobe 2 (fast on slow off) with decreasing speed
			085 ⇔ 089	on
			090 ⇔ 104	strobe 3 (slow on fast off) with decreasing speed
			105 ⇔ 109	on
			110 ⇔ 124	strobe 4 (random strobe) with decreasing speed
			125 ⇔ 129	on
			130 ⇔ 144	strobe 5 (random fast on slow off) with decreasing speed
			145 ⇔ 149	on
			150 ⇔ 164	strobe 6 (random slow on fast off) with decreasing speed
			165 ⇔ 169	on
			170 ⇔ 184	strobe 7 (pulse strobe) with decreasing speed
			185 ⇔ 189	on
			190 ⇔ 204	strobe 8 (random pulse strobe) with decreasing speed
			205 ⇔ 209	on
			210 ⇔ 224	strobe 9 (fade on or off) with decreasing speed
			225 ⇔ 229	on
			230 ⇔ 244	strobe 10 (pulse strobe) with decreasing speed
			245 ⇔ 255	on
	9	CTC	000	No function
			001 ⇔ 255	2800 to 10,000K
71	Channel	Function	Value	Percent/Setting
	10 Color		000001 ⇔ 002003 ⇔ 004005 ⇔ 006007 ⇔ 008009 ⇔ 01011012 ⇔ 048049050 ⇔ 086087088 ⇔ 124125126 ⇔ 162163164 ⇔ 200201202 ⇔ 238239240 ⇔ 247248 ⇔ 255	No function2700K R:156 G: 118 B: 0 W: 633200K R:156 G: 141 B: 5 W: 894200K R:156 G: 141 B: 14 W: 2555600K R:156 G: 207 B: 54 W: 2558000K R:130 G: 255 B: 96 W: 255Blue R: 0 G: 0 B: 255 W: 0R: 0 G: + B: 255 W: 0Cyan R: 0 G: 255 B: 255 W: 0R: 0 G: 255 B: - W: 0Green R: 0 G: 255 B: 0 W: 0R: + G: 255 B: 0 W: 0Yellow R: 255 G: 255 B: 0 W: 0R: 255 G: - B: 0 W: 0Red R: 255 G: 0 B: 0 W: 0R: 255 G: 0 B: + W: 0Magenta R: 255 G: 0 B: 255 W: 0R: - G: 0 B: 255 W: 0Blue R: 0 G: 0 B: 255 W: 0Color change, fast to slowColor jump, fast to slow
	11 Gobo		000 ⇔ 003004 ⇔ 006007 ⇔ 009010 ⇔ 012013 ⇔ 015016 ⇔ 018019 ⇔ 021022 ⇔ 024025 ⇔ 027028 ⇔ 030031 ⇔ 033034 ⇔ 036037 ⇔ 039040 ⇔ 042043 ⇔ 045046 ⇔ 048049 ⇔ 051052 ⇔ 054055 ⇔ 057058 ⇔ 060061 ⇔ 063064 ⇔ 066067 ⇔ 069070 ⇔ 072073 ⇔ 075076 ⇔ 078079 ⇔ 081082 ⇔ 084085 ⇔ 087088 ⇔ 090091 ⇔ 093094 ⇔ 096097 ⇔ 099100 ⇔ 102103 ⇔ 105106 ⇔ 108109 ⇔ 111112 ⇔ 114115 ⇔ 117118 ⇔ 120121 ⇔ 123	No functionGobo 1Gobo 2Gobo 3Gobo 4Gobo 5Gobo 6Gobo 7Gobo 8Gobo 9No GoboGobo 10Gobo 11Gobo 12Gobo 13Gobo 14Gobo 15Gobo 16Gobo 17Gobo 18Gobo 19Gobo 20Gobo 21Gobo 22Gobo 23Gobo 24Gobo 25Gobo 26Gobo 27Gobo 28Gobo 29Gobo 30Gobo 31Gobo 32Gobo 33Gobo 34Gobo 35Gobo 36Gobo 37Gobo 38Gobo 39

71

Channel Function Value Percent/Setting
11 Gobo		124 ⇌ 126	Gobo 40
		127 ⇌ 129	Gobo 41
		130 ⇌ 132	Gobo 42
		133 ⇌ 135	Gobo 43
		136 ⇌ 138	Gobo 44
		139 ⇌ 141	Gobo 45
		142 ⇌ 144	Gobo 46
		145 ⇌ 147	Gobo 47
		148 ⇌ 150	Gobo 48
		151 ⇌ 153	Gobo 49
		154 ⇌ 156	Gobo 50
		157 ⇌ 159	Gobo 51
		160 ⇌ 162	Gobo 52
		163 ⇌ 165	Gobo 53
		166 ⇌ 168	Gobo 54
		169 ⇌ 171	Gobo 55
		172 ⇌ 174	Gobo 56
		175 ⇌ 177	Gobo 57
		178 ⇌ 180	Gobo 58
		181 ⇌ 183	Gobo 59
		184 ⇌ 186	Gobo 60
		187 ⇌ 189	Gobo 61
		190 ⇌ 192	Gobo 62
		193 ⇌ 195	Gobo 63
		196 ⇌ 198	Gobo 64
		199 ⇌ 201	Gobo 65
		202 ⇌ 204	Gobo 66
		205 ⇌ 207	Gobo 67
		208 ⇌ 210	Gobo 68
		211 ⇌ 213	Gobo 69
		214 ⇌ 216	Gobo 70
		217 ⇌ 219	Gobo 71
		220 ⇌ 222	Gobo 72
		223 ⇌ 225	Gobo 73
		226 ⇌ 228	Gobo 74
		229 ⇌ 231	Gobo 75
		232 ⇌ 234	Gobo 76
		235 ⇌ 237	Gobo 77
		238 ⇌ 240	Gobo 78
		241 ⇌ 243	Gobo 79
		244 ⇌ 246	Gobo 80
		247 ⇌ 249	Gobo 81
		250 ⇌ 252	Gobo 82
		253 ⇌ 255	Gobo 83
12 LED Built-in		000 ⇌ 015	No function
		016 ⇌ 017	Built-in 1
		018 ⇌ 019	Built-in 2
		020 ⇌ 021	Built-in 3
		022 ⇌ 023	Built-in 4
		024 ⇌ 025	Built-in 5
		026 ⇌ 027	Built-in 6
		028 ⇌ 029	Built-in 7
		030 ⇌ 031	Built-in 8
		032 ⇌ 033	Built-in 9
		034 ⇌ 035	Built-in 10
		036 ⇌ 037	Built-in 11
		038 ⇌ 039	Built-in 12
		040 ⇌ 041	Built-in 13
		042 ⇌ 043	Built-in 14
		044 ⇌ 045	Built-in 15
		046 ⇌ 047	Built-in 16
		048 ⇌ 049	Built-in 17
		050 ⇌ 051	Built-in 18
		052 ⇌ 053	Built-in 19
		054 ⇌ 055	Built-in 20

71

Channel Function Value Percent/Setting
12 LED Built-in		056 ⇔ 057	Built-in 21
		058 ⇔ 059	Built-in 22
		060 ⇔ 061	Built-in 23
		062 ⇔ 063	Built-in 24
		064 ⇔ 065	Built-in 25
		066 ⇔ 067	Built-in 26
		068 ⇔ 069	Built-in 27
		070 ⇔ 071	Built-in 28
		072 ⇔ 073	Built-in 29
		074 ⇔ 075	Built-in 30
		076 ⇔ 077	Built-in 31
		078 ⇔ 079	Built-in 32
		080 ⇔ 081	Built-in 33
		082 ⇔ 083	Built-in 34
		084 ⇔ 085	Built-in 35
		086 ⇔ 087	Built-in 36
		088 ⇔ 089	Built-in 37
		090 ⇔ 091	Built-in 38
		092 ⇔ 093	Built-in 39
		094 ⇔ 095	Built-in 40
		096 ⇔ 097	Built-in 41
		098 ⇔ 099	Built-in 42
		100 ⇔ 101	Built-in 43
		102 ⇔ 103	Built-in 44
		104 ⇔ 105	Built-in 45
		106 ⇔ 107	Built-in 46
		108 ⇔ 109	Built-in 47
		110 ⇔ 111	Built-in 48
		112 ⇔ 113	Built-in 49
		114 ⇔ 115	Built-in 50
		116 ⇔ 117	Built-in 51
		118 ⇔ 119	Built-in 52
		120 ⇔ 121	Built-in 53
		122 ⇔ 123	Built-in 54
		124 ⇔ 125	Built-in 55
		126 ⇔ 127	Built-in 56
		128 ⇔ 135	Built-in 57
		136 ⇔ 137	Built-in 58
		138 ⇔ 139	Built-in 59
		140 ⇔ 141	Built-in 60
		142 ⇔ 143	Built-in 61
		144 ⇔ 145	Built-in 62
		146 ⇔ 147	Built-in 63
		148 ⇔ 149	Built-in 64
		150 ⇔ 151	Built-in 65
		152 ⇔ 153	Built-in 66
		154 ⇔ 155	Built-in 67
		156 ⇔ 157	Built-in 68
		158 ⇔ 159	Built-in 69
		160 ⇔ 161	Built-in 70
		162 ⇔ 163	Built-in 71
		164 ⇔ 165	Built-in 72
		166 ⇔ 167	Built-in 73
		168 ⇔ 169	Built-in 74
		170 ⇔ 171	Built-in 75
		172 ⇔ 173	Built-in 76
		174 ⇔ 175	Built-in 77
		176 ⇔ 177	Built-in 78
		178 ⇔ 179	Built-in 79
		180 ⇔ 181	Built-in 80
		182 ⇔ 183	Built-in 81
		184 ⇔ 185	Built-in 82
		186 ⇔ 187	Built-in 83

71	Channel	Function	Value	Percent/Setting
	12 LED Built-in		188 ⇔ 189	Built-in 84
			190 ⇔ 191	Built-in 85
			192 ⇔ 193	Built-in 86
			194 ⇔ 195	Built-in 87
			196 ⇔ 197	Built-in 88
			198 ⇔ 199	Built-in 89
			200 ⇔ 201	Built-in 90
			202 ⇔ 203	Built-in 91
			204 ⇔ 205	Built-in 92
			206 ⇔ 207	Built-in 93
			208 ⇔ 209	Built-in 94
			210 ⇔ 211	Built-in 95
			212 ⇔ 213	Built-in 96
			214 ⇔ 215	Built-in 97
			216 ⇔ 217	Built-in 98
			218 ⇔ 219	Built-in 99
			220 ⇔ 221	Built-in 100
			222 ⇔ 223	Built-in 101
			224 ⇔ 225	Built-in 102
			226 ⇔ 227	Built-in 103
			228 ⇔ 229	Built-in 104
			230 ⇔ 231	Built-in 105
			232 ⇔ 233	Built-in 106
			234 ⇔ 235	Built-in 107
			236 ⇔ 237	Built-in 108
			238 ⇔ 239	Built-in 109
			240 ⇔ 241	Built-in 110
			242 ⇔ 243	Built-in 111
			244 ⇔ 245	Built-in 112
			246 ⇔ 247	Built-in 113
			248 ⇔ 255	Built-in 114
	13 LED Built-in Speed		000 ⇔ 127	Clockwise fast to slow
			128	Stop
			129 ⇔ 255	Counter-clockwise slow to fast
	14 LED Built-in Delay 000		⇔ 255	Fast to slow
	15	Background Color Macros	000	No function
			001 ⇔ 002	2700K R:156 G: 118 B: 0 W: 63
			003 ⇔ 004	3200K R:156 G: 141 B: 5 W: 89
			005 ⇔ 006	4200K R:156 G: 141 B: 14 W: 255
			007 ⇔ 008	5600K R:156 G: 207 B: 54 W: 255
			009 ⇔ 010	8000K R:130 G: 255 B: 96 W: 255
			11	Blue R: 0 G: 0 B: 255 W: 0
			012 ⇔ 048	R: 0 G: + B: 255 W: 0
			049	Cyan R: 0 G: 255 B: 255 W: 0
			050 ⇔ 086	R: 0 G: 255 B: - W: 0
			087	Green R: 0 G: 255 B: 0 W: 0
			088 ⇔ 124	R: + G: 255 B: 0 W: 0
			125	Yellow R: 255 G: 255 B: 0 W: 0
			126 ⇔ 162	R: 255 G: - B: 0 W: 0
			163	Red R: 255 G: 0 B: 0 W: 0
			164 ⇔ 200	R: 255 G: 0 B: + W: 0
			201	Magenta R: 255 G: 0 B: 255 W: 0
			202 ⇔ 238	R: - G: 0 B: 255 W: 0
			239	Blue R: 0 G: 0 B: 255 W: 0
			240 ⇔ 247	Color change, fast to slow
			248 ⇔ 255	Color jump, fast to slow
	16	Background Color Dimmer	000 ⇔ 255	0-100%
	17	Background Red	000 ⇔ 255	0-100%
	18	Background Green 000	⇔ 255	0-100%
	19	Background Blue 000	⇔ 255	0-100%
	20	Background White	000 ⇔ 255	0-100%
	21	Zoom	000 ⇔ 255	0-100%

71

Channel	Function	Value	Percent/Setting
22 Control		000 ⇔ 009	No function
		010 ⇔ 014	Pan/Tilt blackout
		015 ⇔ 019	No function
		020 ⇔ 024	RGBW color mixing (5 sec.)
		025 ⇔ 029	CMY color mixing (5 sec.)
		030 ⇔ 034	No function
		035 ⇔ 039	No function
		040 ⇔ 044	No function
		045 ⇔ 049	No function
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	No function
		070 ⇔ 074	All reset
		075 ⇔ 079	No function
		080 ⇔ 084	Pan/Tilt reverse
		085 ⇔ 089	Pan reverse
		090 ⇔ 094	Tilt reverse
		095 ⇔ 099	Cancel pan reverse
		100 ⇔ 104	Cancel tilt reverse
		105 ⇔ 109	Cancel pan/tilt reverse
		110 ⇔ 114	No function
		115 ⇔ 119	No function
		120 ⇔ 124	Fan low speed
		125 ⇔ 129	Fan full speed
		130 ⇔ 134	Fan auto
		135 ⇔ 139	Dimmer Fast mode
		140 ⇔ 144	Dimmer Smooth mode
		145 ⇔ 255	No function
23 Red (Cyan) 000		⇔ 255	0-100%
24 Green (Magenta) 000		⇔ 255	0-100%
25 Blue (Yellow) 000		⇔ 255	0-100%
26 White 000		⇔ 255	0-100%
27 Dimmer 1 000		⇔ 255	0-100%
28	Red 1 (Cyan)	000 ⇔ 255	0-100%
29	Green 1 (Magenta)	000 ⇔ 255	0-100%
30	Blue 1 (Yellow)	000 ⇔ 255	0-100%
31 White 1 000		⇔ 255	0-100%
32 Dimmer 2 000		⇔ 255	0-100%
33	Red 2 (Cyan)	000 ⇔ 255	0-100%
34	Green 2 (Magenta)	000 ⇔ 255	0-100%
35	Blue 2 (Yellow)	000 ⇔ 255	0-100%
36 White 2 000		⇔ 255	0-100%
37 Dimmer 3 000		⇔ 255	0-100%
38	Red 3 (Cyan)	000 ⇔ 255	0-100%
39	Green 3 (Magenta)	000 ⇔ 255	0-100%
40	Blue 3 (Yellow)	000 ⇔ 255	0-100%
41 White 3 000		⇔ 255	0-100%
42 Dimmer 4 000		⇔ 255	0-100%
43	Red 4 (Cyan)	000 ⇔ 255	0-100%
44	Green 4 (Magenta)	000 ⇔ 255	0-100%
45	Blue 4 (Yellow)	000 ⇔ 255	0-100%
46 White 4 000		⇔ 255	0-100%
47 Dimmer 5 000		⇔ 255	0-100%
48	Red 5 (Cyan)	000 ⇔ 255	0-100%

71	Channel	Function	Value	Percent/Setting
	49	Green 5 (Magenta)	000 ⇔ 255	0-100%
	50 Blue 5 (Yellow) 000		⇔ 255 0-100%
	51 White 5 000		⇔ 255 0-100%
	52 Dimmer 6 000		⇔ 255 0-100%
	53 Red 6 (Cyan) 000		⇔ 255 0-100%
	54 Green 6 (Magenta) 000		⇔ 255 0-100%
	55 Blue 6 (Yellow) 000		⇔ 255 0-100%
	56 White 6 000		⇔ 255 0-100%
	57 Dimmer 7 000		⇔ 255 0-100%
	58 Red 7 (Cyan) 000		⇔ 255 0-100%
	59 Green 7 (Magenta) 000		⇔ 255 0-100%
	60 Blue 7 (Yellow) 000		⇔ 255 0-100%
	61 White 7 000		⇔ 255 0-100%
	62 Dimmer 8 000		⇔ 255 0-100%
	63 Red 8 (Cyan) 000		⇔ 255 0-100%
	64 Green 8 (Magenta) 000		⇔ 255 0-100%
	65 Blue 8 (Yellow) 000		⇔ 255 0-100%
	66 White 8 000		⇔ 255 0-100%
	67 Dimmer 9 000		⇔ 255 0-100%
	68 Red 9 (Cyan) 000		⇔ 255 0-100%
	69 Green 9 (Magenta) 000		⇔ 255 0-100%
	70 Blue 9 (Yellow) 000		⇔ 255 0-100%
	71 White 9 000		⇔ 255 0-100%

62	Channel Function Value Percent/Setting
	1	Pan	000 ⇔ 255	0-100%
	2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
	3	Tilt 000	⇔ 255	0-100%
	4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
	5	Pan/Tilt Speed	000 ⇔ 255	0-100%
	6	Dimmer	000 ⇔ 255	0-100%
	7	Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
	8	Shutter	000 ⇔ 019	off
			020 ⇔ 024	on
			025 ⇔ 064	strobe 1 with decreasing speed
			065 ⇔ 069	on
			070 ⇔ 084	strobe 2 (fast on slow off) with decreasing speed
			085 ⇔ 089	on
			090 ⇔ 104	strobe 3 (slow on fast off) with decreasing speed
			105 ⇔ 109	on
			110 ⇔ 124	strobe 4 (random strobe) with decreasing speed
			125 ⇔ 129	on
			130 ⇔ 144	strobe 5 (random fast on slow off) with decreasing speed
			145 ⇔ 149	on
			150 ⇔ 164	strobe 6 (random slow on fast off) with decreasing speed
			165 ⇔ 169	on
			170 ⇔ 184	strobe 7 (pulse strobe) with decreasing speed
			185 ⇔ 189	on
			190 ⇔ 204	strobe 8 (random pulse strobe) with decreasing speed
			205 ⇔ 209	on
			210 ⇔ 224	strobe 9 (fade on or off) with decreasing speed
			225 ⇔ 229	on
			230 ⇔ 244	strobe 10 (pulse strobe) with decreasing speed
			245 ⇔ 255	on
62	Channel	Function	Value	Percent/Setting
	9	CTC	000001 ⇔ 255	No function2800 to 10,000K
	10 Color		000001 ⇔ 002003 ⇔ 004005 ⇔ 006007 ⇔ 008009 ⇔ 01011012 ⇔ 048049050 ⇔ 086087088 ⇔ 124125126 ⇔ 162163164 ⇔ 200201202 ⇔ 238239240 ⇔ 247248 ⇔ 255	No function2700K R:156 G: 118 B: 0 W: 633200K R:156 G: 141 B: 5 W: 894200K R:156 G: 141 B: 14 W: 2555600K R:156 G: 207 B: 54 W: 2558000K R:130 G: 255 B: 96 W: 255Blue R: 0 G: 0 B: 255 W: 0R: 0 G: + B: 255 W: 0Cyan R: 0 G: 255 B: 255 W: 0R: 0 G: 255 B: - W: 0Green R: 0 G: 255 B: 0 W: 0R: + G: 255 B: 0 W: 0Yellow R: 255 G: 255 B: 0 W: 0R: 255 G: - B: 0 W: 0Red R: 255 G: 0 B: 0 W: 0R: 255 G: 0 B: + W: 0Magenta R: 255 G: 0 B: 255 W: 0R: - G: 0 B: 255 W: 0Blue R: 0 G: 0 B: 255 W: 0Color change, fast to slowColor jump, fast to slow
	11	Gobo	000 ⇔ 003004 ⇔ 006007 ⇔ 009010 ⇔ 012013 ⇔ 015016 ⇔ 018019 ⇔ 021022 ⇔ 024025 ⇔ 027028 ⇔ 030031 ⇔ 033034 ⇔ 036037 ⇔ 039040 ⇔ 042043 ⇔ 045046 ⇔ 048049 ⇔ 051052 ⇔ 054055 ⇔ 057058 ⇔ 060061 ⇔ 063064 ⇔ 066067 ⇔ 069070 ⇔ 072073 ⇔ 075076 ⇔ 078079 ⇔ 081082 ⇔ 084085 ⇔ 087088 ⇔ 090091 ⇔ 093094 ⇔ 096097 ⇔ 099100 ⇔ 102103 ⇔ 105106 ⇔ 108109 ⇔ 111112 ⇔ 114115 ⇔ 117118 ⇔ 120121 ⇔ 123	No functionGobo 1Gobo 2Gobo 3Gobo 4Gobo 5Gobo 6Gobo 7Gobo 8Gobo 9No GoboGobo 10Gobo 11Gobo 12Gobo 13Gobo 14Gobo 15Gobo 16Gobo 17Gobo 18Gobo 19Gobo 20Gobo 21Gobo 22Gobo 23Gobo 24Gobo 25Gobo 26Gobo 27Gobo 28Gobo 29Gobo 30Gobo 31Gobo 32Gobo 33Gobo 34Gobo 35Gobo 36Gobo 37Gobo 38Gobo 39

62

Channel Function Value Percent/Setting
11 Gobo		124 ⇌ 126	Gobo 40
		127 ⇌ 129	Gobo 41
		130 ⇌ 132	Gobo 42
		133 ⇌ 135	Gobo 43
		136 ⇌ 138	Gobo 44
		139 ⇌ 141	Gobo 45
		142 ⇌ 144	Gobo 46
		145 ⇌ 147	Gobo 47
		148 ⇌ 150	Gobo 48
		151 ⇌ 153	Gobo 49
		154 ⇌ 156	Gobo 50
		157 ⇌ 159	Gobo 51
		160 ⇌ 162	Gobo 52
		163 ⇌ 165	Gobo 53
		166 ⇌ 168	Gobo 54
		169 ⇌ 171	Gobo 55
		172 ⇌ 174	Gobo 56
		175 ⇌ 177	Gobo 57
		178 ⇌ 180	Gobo 58
		181 ⇌ 183	Gobo 59
		184 ⇌ 186	Gobo 60
		187 ⇌ 189	Gobo 61
		190 ⇌ 192	Gobo 62
		193 ⇌ 195	Gobo 63
		196 ⇌ 198	Gobo 64
		199 ⇌ 201	Gobo 65
		202 ⇌ 204	Gobo 66
		205 ⇌ 207	Gobo 67
		208 ⇌ 210	Gobo 68
		211 ⇌ 213	Gobo 69
		214 ⇌ 216	Gobo 70
		217 ⇌ 219	Gobo 71
		220 ⇌ 222	Gobo 72
		223 ⇌ 225	Gobo 73
		226 ⇌ 228	Gobo 74
		229 ⇌ 231	Gobo 75
		232 ⇌ 234	Gobo 76
		235 ⇌ 237	Gobo 77
		238 ⇌ 240	Gobo 78
		241 ⇌ 243	Gobo 79
		244 ⇌ 246	Gobo 80
		247 ⇌ 249	Gobo 81
		250 ⇌ 252	Gobo 82
		253 ⇌ 255	Gobo 83
12 LED Built-in		000 ⇌ 015	No function
		016 ⇌ 017	Built-in 1
		018 ⇌ 019	Built-in 2
		020 ⇌ 021	Built-in 3
		022 ⇌ 023	Built-in 4
		024 ⇌ 025	Built-in 5
		026 ⇌ 027	Built-in 6
		028 ⇌ 029	Built-in 7
		030 ⇌ 031	Built-in 8
		032 ⇌ 033	Built-in 9
		034 ⇌ 035	Built-in 10
		036 ⇌ 037	Built-in 11
		038 ⇌ 039	Built-in 12
		040 ⇌ 041	Built-in 13
		042 ⇌ 043	Built-in 14
		044 ⇌ 045	Built-in 15
		046 ⇌ 047	Built-in 16
		048 ⇌ 049	Built-in 17
		050 ⇌ 051	Built-in 18
		052 ⇌ 053	Built-in 19
		054 ⇌ 055	Built-in 20

62

Channel Function Value Percent/Setting
12 LED Built-in	056 ⇔ 057	Built-in 21
	058 ⇔ 059	Built-in 22
	060 ⇔ 061	Built-in 23
	062 ⇔ 063	Built-in 24
	064 ⇔ 065	Built-in 25
	066 ⇔ 067	Built-in 26
	068 ⇔ 069	Built-in 27
	070 ⇔ 071	Built-in 28
	072 ⇔ 073	Built-in 29
	074 ⇔ 075	Built-in 30
	076 ⇔ 077	Built-in 31
	078 ⇔ 079	Built-in 32
	080 ⇔ 081	Built-in 33
	082 ⇔ 083	Built-in 34
	084 ⇔ 085	Built-in 35
	086 ⇔ 087	Built-in 36
	088 ⇔ 089	Built-in 37
	090 ⇔ 091	Built-in 38
	092 ⇔ 093	Built-in 39
	094 ⇔ 095	Built-in 40
	096 ⇔ 097	Built-in 41
	098 ⇔ 099	Built-in 42
	100 ⇔ 101	Built-in 43
	102 ⇔ 103	Built-in 44
	104 ⇔ 105	Built-in 45
	106 ⇔ 107	Built-in 46
	108 ⇔ 109	Built-in 47
	110 ⇔ 111	Built-in 48
	112 ⇔ 113	Built-in 49
	114 ⇔ 115	Built-in 50
	116 ⇔ 117	Built-in 51
	118 ⇔ 119	Built-in 52
	120 ⇔ 121	Built-in 53
	122 ⇔ 123	Built-in 54
	124 ⇔ 125	Built-in 55
	126 ⇔ 127	Built-in 56
	128 ⇔ 135	Built-in 57
	136 ⇔ 137	Built-in 58
	138 ⇔ 139	Built-in 59
	140 ⇔ 141	Built-in 60
	142 ⇔ 143	Built-in 61
	144 ⇔ 145	Built-in 62
	146 ⇔ 147	Built-in 63
	148 ⇔ 149	Built-in 64
	150 ⇔ 151	Built-in 65
	152 ⇔ 153	Built-in 66
	154 ⇔ 155	Built-in 67
	156 ⇔ 157	Built-in 68
	158 ⇔ 159	Built-in 69
	160 ⇔ 161	Built-in 70
	162 ⇔ 163	Built-in 71
	164 ⇔ 165	Built-in 72
	166 ⇔ 167	Built-in 73
	168 ⇔ 169	Built-in 74
	170 ⇔ 171	Built-in 75
	172 ⇔ 173	Built-in 76
	174 ⇔ 175	Built-in 77
	176 ⇔ 177	Built-in 78
	178 ⇔ 179	Built-in 79
	180 ⇔ 181	Built-in 80
	182 ⇔ 183	Built-in 81
	184 ⇔ 185	Built-in 82
	186 ⇔ 187	Built-in 83
	188 ⇔ 189	Built-in 84
190 ⇔ 191	Built-in 85

62	Channel	Function	Value	Percent/Setting
	12 LED Built-in		192 ⇔ 193	Built-in 86
			194 ⇔ 195	Built-in 87
			196 ⇔ 197	Built-in 88
			198 ⇔ 199	Built-in 89
			200 ⇔ 201	Built-in 90
			202 ⇔ 203	Built-in 91
			204 ⇔ 205	Built-in 92
			206 ⇔ 207	Built-in 93
			208 ⇔ 209	Built-in 94
			210 ⇔ 211	Built-in 95
			212 ⇔ 213	Built-in 96
			214 ⇔ 215	Built-in 97
			216 ⇔ 217	Built-in 98
			218 ⇔ 219	Built-in 99
			220 ⇔ 221	Built-in 100
			222 ⇔ 223	Built-in 101
			224 ⇔ 225	Built-in 102
			226 ⇔ 227	Built-in 103
			228 ⇔ 229	Built-in 104
			230 ⇔ 231	Built-in 105
			232 ⇔ 233	Built-in 106
			234 ⇔ 235	Built-in 107
			236 ⇔ 237	Built-in 108
			238 ⇔ 239	Built-in 109
			240 ⇔ 241	Built-in 110
			242 ⇔ 243	Built-in 111
			244 ⇔ 245	Built-in 112
			246 ⇔ 247	Built-in 113
			248 ⇔ 255	Built-in 114
	13 LED Built-in Speed		000 ⇔ 127	Clockwise fast to slow
			128	Stop
			129 ⇔ 255	Counter-clockwise slow to fast
	14 LED Built-in Delay 000		⇔ 255	Fast to slow
	15	Background Color Macros	000	No function
			001 ⇔ 002	2700K R:156 G: 118 B: 0 W: 63
			003 ⇔ 004	3200K R:156 G: 141 B: 5 W: 89
			005 ⇔ 006	4200K R:156 G: 141 B: 14 W: 255
			007 ⇔ 008	5600K R:156 G: 207 B: 54 W: 255
			009 ⇔ 010	8000K R:130 G: 255 B: 96 W: 255
			11	Blue R: 0 G: 0 B: 255 W: 0
			012 ⇔ 048	R: 0 G: + B: 255 W: 0
			049	Cyan R: 0 G: 255 B: 255 W: 0
			050 ⇔ 086	R: 0 G: 255 B: - W: 0
			087	Green R: 0 G: 255 B: 0 W: 0
			088 ⇔ 124	R: + G: 255 B: 0 W: 0
			125	Yellow R: 255 G: 255 B: 0 W: 0
			126 ⇔ 162	R: 255 G: - B: 0 W: 0
			163	Red R: 255 G: 0 B: 0 W: 0
			164 ⇔ 200	R: 255 G: 0 B: + W: 0
			201	Magenta R: 255 G: 0 B: 255 W: 0
			202 ⇔ 238	R: - G: 0 B: 255 W: 0
			239	Blue R: 0 G: 0 B: 255 W: 0
			240 ⇔ 247	Color change, fast to slow
			248 ⇔ 255	Color jump, fast to slow
	16	Background Color Dimmer	000 ⇔ 255	0-100%
	17	Background Red	000 ⇔ 255	0-100%
	18 Background Green 000		⇔ 255	0-100%
	19	Background Blue	000 ⇔ 255	0-100%
	20	Background White	000 ⇔ 255	0-100%
	21	Zoom 000	⇔ 255	0-100%

62

Channel	Function	Value	Percent/Setting
22 Control		001 ⇔ 009	No function
		010 ⇔ 014	Pan/Tilt blackout
		015 ⇔ 019	No function
		020 ⇔ 024	RGBW color mixing (5 sec.)
		025 ⇔ 029	CMY color mixing (5 sec.)
		030 ⇔ 034	No function
		035 ⇔ 039	No function
		040 ⇔ 044	No function
		045 ⇔ 049	No function
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	No function
		070 ⇔ 074	All reset
		075 ⇔ 079	No function
		080 ⇔ 084	Pan/Tilt reverse
		085 ⇔ 089	Pan reverse
		090 ⇔ 094	Tilt reverse
		095 ⇔ 099	Cancel pan reverse
		100 ⇔ 104	Cancel tilt reverse
		105 ⇔ 109	Cancel pan/tilt reverse
		110 ⇔ 114	No function
		115 ⇔ 119	No function
		120 ⇔ 124	Fan low speed
		125 ⇔ 129	Fan full speed
		130 ⇔ 134	Fan auto
		135 ⇔ 139	Dimmer Fast mode
		140 ⇔ 144	Dimmer Smooth mode
		145 ⇔ 255	No function
23 Red (Cyan) 000		⇔ 255 0-100%
24 Green (Magenta) 000		⇔ 255 0-100%
25 Blue (Yellow) 000		⇔ 255 0-100%
26 White 000		⇔ 255 0-100%
27 Red 1 (Cyan) 000		⇔ 255 0-100%
28 Green 1 (Magenta) 000		⇔ 255 0-100%
29 Blue 1 (Yellow)		000 ⇔ 255 0-100%
30 White 1 000		⇔ 255 0-100%
31 Red 2 (Cyan) 000		⇔ 255 0-100%
32 Green 2 (Magenta) 000		⇔ 255 0-100%
33 Blue 2 (Yellow)		000 ⇔ 255 0-100%
34 White 2 000		⇔ 255 0-100%
35 Red 3 (Cyan) 000		⇔ 255 0-100%
36 Green 3 (Magenta) 000		⇔ 255 0-100%
37 Blue 3 (Yellow)		000 ⇔ 255 0-100%
38 White 3 000		⇔ 255 0-100%
39 Red 4 (Cyan) 000		⇔ 255 0-100%
40 Green 4 (Magenta) 000		⇔ 255 0-100%
41 Blue 4 (Yellow)		000 ⇔ 255 0-100%
42 White 4 000		⇔ 255 0-100%
43 Red 5 (Cyan) 000		⇔ 255 0-100%
44 Green 5 (Magenta) 000		⇔ 255 0-100%
45 Blue 5 (Yellow)		000 ⇔ 255 0-100%
46 White 5 000		⇔ 255 0-100%
47 Red 6 (Cyan) 000		⇔ 255 0-100%
48 Green 6 (Magenta) 000		⇔ 255 0-100%

QUICK REFERENCE GUIDE

EN

62 Channel Function Value Percent/Setting

49	Blue 6 (Yellow)	000 ⇔ 255 0-100%
50	White 6 000	⇔ 255 0-100%
51	Red 7 (Cyan) 000	⇔ 255 0-100%
52	Green 7 (Magenta) 000	⇔ 255 0-100%
53	Blue 7 (Yellow) 000	⇔ 255 0-100%
54	White 7 000	⇔ 255 0-100%
55	Red 8 (Cyan) 000	⇔ 255 0-100%
56	Green 8 (Magenta) 000	⇔ 255 0-100%
57	Blue 8 (Yellow) 000	⇔ 255 0-100%
58	White 8 000	⇔ 255 0-100%
59	Red 9 (Cyan) 000	⇔ 255 0-100%
60	Green 9 (Magenta) 000	⇔ 255 0-100%
61	Blue 9 (Yellow) 000	⇔ 255 0-100%
62	White 9 000	⇔ 255 0-100%

21 Channel Function Value Percent/Setting

1	P	a ⇔ 255	0-100%	000
2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
3	Tilt	000 ⇔ 255	0-100%
4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed	000 ⇔ 255	0-100%
6	Dimmer	000 ⇔ 255	0-100%
		000 ⇔ 019	off
		020 ⇔ 024	on
		025 ⇔ 064	strobe 1 with decreasing speed
		065 ⇔ 069	on
		070 ⇔ 084	strobe 2 (fast on slow off) with decreasing speed
		085 ⇔ 089	on
		090 ⇔ 104	strobe 3 (slow on fast off) with decreasing speed
		105 ⇔ 109	on
		110 ⇔ 124	strobe 4 (random strobe) with decreasing speed
		125 ⇔ 129	on
7	Shutter	130 ⇔ 144	strobe 5 (random fast on slow off) with decreasing speed
		145 ⇔ 149	on
		150 ⇔ 164	strobe 6 (random slow on fast off) with decreasing speed
		165 ⇔ 169	on
		170 ⇔ 184	strobe 7 (pulse strobe) with decreasing speed
		185 ⇔ 189	on
		190 ⇔ 204	strobe 8 (random pulse strobe) with decreasing speed
		205 ⇔ 209	on
		210 ⇔ 224	strobe 9 (fade on or off) with decreasing speed
		225 ⇔ 229	on
		230 ⇔ 244	strobe 10 (pulse strobe) with decreasing speed
		245 ⇔ 255	on
8	CTC	000	No function
		001 ⇔ 255	2800 to 10,000K

21	Channel	Function	Value	Percent/Setting
	9 Color		000001 ⇔ 002003 ⇔ 004005 ⇔ 006007 ⇔ 008009 ⇔ 01011012 ⇔ 048049050 ⇔ 086087088 ⇔ 124125126 ⇔ 162163164 ⇔ 200201202 ⇔ 238239240 ⇔ 247248 ⇔ 255	No function2700K R:156 G: 118 B: 0 W: 633200K R:156 G: 141 B: 5 W: 894200K R:156 G: 141 B: 14 W: 2555600K R:156 G: 207 B: 54 W: 2558000K R:130 G: 255 B: 96 W: 255Blue R: 0 G: 0 B: 255 W: 0R: 0 G: + B: 255 W: 0Cyan R: 0 G: 255 B: 255 W: 0R: 0 G: 255 B: - W: 0Green R: 0 G: 255 B: 0 W: 0R: + G: 255 B: 0 W: 0Yellow R: 255 G: 255 B: 0 W: 0R: 255 G: - B: 0 W: 0Red R: 255 G: 0 B: 0 W: 0R: 255 G: 0 B: + W: 0Magenta R: 255 G: 0 B: 255 W: 0R: - G: 0 B: 255 W: 0Blue R: 0 G: 0 B: 255 W: 0Color change, fast to slowColor jump, fast to slow
	10	Gobo	000 ⇔ 003004 ⇔ 006007 ⇔ 009010 ⇔ 012013 ⇔ 015016 ⇔ 018019 ⇔ 021022 ⇔ 024025 ⇔ 027028 ⇔ 030031 ⇔ 033034 ⇔ 036037 ⇔ 039040 ⇔ 042043 ⇔ 045046 ⇔ 048049 ⇔ 051052 ⇔ 054055 ⇔ 057058 ⇔ 060061 ⇔ 063064 ⇔ 066067 ⇔ 069070 ⇔ 072073 ⇔ 075076 ⇔ 078079 ⇔ 081082 ⇔ 084085 ⇔ 087088 ⇔ 090091 ⇔ 093094 ⇔ 096097 ⇔ 099100 ⇔ 102103 ⇔ 105106 ⇔ 108109 ⇔ 111112 ⇔ 114115 ⇔ 117118 ⇔ 120121 ⇔ 123	No functionGobo 1Gobo 2Gobo 3Gobo 4Gobo 5Gobo 6Gobo 7Gobo 8Gobo 9No GoboGobo 10Gobo 11Gobo 12Gobo 13Gobo 14Gobo 15Gobo 16Gobo 17Gobo 18Gobo 19Gobo 20Gobo 21Gobo 22Gobo 23Gobo 24Gobo 25Gobo 26Gobo 27Gobo 28Gobo 29Gobo 30Gobo 31Gobo 32Gobo 33Gobo 34Gobo 35Gobo 36Gobo 37Gobo 38Gobo 39

21

Channel Function Value Percent/Setting
10 Gobo		124 ⇌ 126	Gobo 40
		127 ⇌ 129	Gobo 41
		130 ⇌ 132	Gobo 42
		133 ⇌ 135	Gobo 43
		136 ⇌ 138	Gobo 44
		139 ⇌ 141	Gobo 45
		142 ⇌ 144	Gobo 46
		145 ⇌ 147	Gobo 47
		148 ⇌ 150	Gobo 48
		151 ⇌ 153	Gobo 49
		154 ⇌ 156	Gobo 50
		157 ⇌ 159	Gobo 51
		160 ⇌ 162	Gobo 52
		163 ⇌ 165	Gobo 53
		166 ⇌ 168	Gobo 54
		169 ⇌ 171	Gobo 55
		172 ⇌ 174	Gobo 56
		175 ⇌ 177	Gobo 57
		178 ⇌ 180	Gobo 58
		181 ⇌ 183	Gobo 59
		184 ⇌ 186	Gobo 60
		187 ⇌ 189	Gobo 61
		190 ⇌ 192	Gobo 62
		193 ⇌ 195	Gobo 63
		196 ⇌ 198	Gobo 64
		199 ⇌ 201	Gobo 65
		202 ⇌ 204	Gobo 66
		205 ⇌ 207	Gobo 67
		208 ⇌ 210	Gobo 68
		211 ⇌ 213	Gobo 69
		214 ⇌ 216	Gobo 70
		217 ⇌ 219	Gobo 71
		220 ⇌ 222	Gobo 72
		223 ⇌ 225	Gobo 73
		226 ⇌ 228	Gobo 74
		229 ⇌ 231	Gobo 75
		232 ⇌ 234	Gobo 76
		235 ⇌ 237	Gobo 77
		238 ⇌ 240	Gobo 78
		241 ⇌ 243	Gobo 79
		244 ⇌ 246	Gobo 80
		247 ⇌ 249	Gobo 81
		250 ⇌ 252	Gobo 82
		253 ⇌ 255	Gobo 83
11 LED Built-in		001 ⇌ 015	No function
		016 ⇌ 017	Built-in 1
		018 ⇌ 019	Built-in 2
		020 ⇌ 021	Built-in 3
		022 ⇌ 023	Built-in 4
		024 ⇌ 025	Built-in 5
		026 ⇌ 027	Built-in 6
		028 ⇌ 029	Built-in 7
		030 ⇌ 031	Built-in 8
		032 ⇌ 033	Built-in 9
		034 ⇌ 035	Built-in 10
		036 ⇌ 037	Built-in 11
		038 ⇌ 039	Built-in 12
		040 ⇌ 041	Built-in 13
		042 ⇌ 043	Built-in 14
		044 ⇌ 045	Built-in 15
		046 ⇌ 047	Built-in 16
		048 ⇌ 049	Built-in 17
		050 ⇌ 051	Built-in 18
		052 ⇌ 053	Built-in 19
		054 ⇌ 055	Built-in 20

21

Channel Function Value Percent/Setting
11 LED Built-in	056 ⇔ 057	Built-in 21
	058 ⇔ 059	Built-in 22
	060 ⇔ 061	Built-in 23
	062 ⇔ 063	Built-in 24
	064 ⇔ 065	Built-in 25
	066 ⇔ 067	Built-in 26
	068 ⇔ 069	Built-in 27
	070 ⇔ 071	Built-in 28
	072 ⇔ 073	Built-in 29
	074 ⇔ 075	Built-in 30
	076 ⇔ 077	Built-in 31
	078 ⇔ 079	Built-in 32
	080 ⇔ 081	Built-in 33
	082 ⇔ 083	Built-in 34
	084 ⇔ 085	Built-in 35
	086 ⇔ 087	Built-in 36
	088 ⇔ 089	Built-in 37
	090 ⇔ 091	Built-in 38
	092 ⇔ 093	Built-in 39
	094 ⇔ 095	Built-in 40
	096 ⇔ 097	Built-in 41
	098 ⇔ 099	Built-in 42
	100 ⇔ 101	Built-in 43
	102 ⇔ 103	Built-in 44
	104 ⇔ 105	Built-in 45
	106 ⇔ 107	Built-in 46
	108 ⇔ 109	Built-in 47
	110 ⇔ 111	Built-in 48
	112 ⇔ 113	Built-in 49
	114 ⇔ 115	Built-in 50
	116 ⇔ 117	Built-in 51
	118 ⇔ 119	Built-in 52
	120 ⇔ 121	Built-in 53
	122 ⇔ 123	Built-in 54
	124 ⇔ 125	Built-in 55
	126 ⇔ 127	Built-in 56
	128 ⇔ 135	Built-in 57
	136 ⇔ 137	Built-in 58
	138 ⇔ 139	Built-in 59
	140 ⇔ 141	Built-in 60
	142 ⇔ 143	Built-in 61
	144 ⇔ 145	Built-in 62
	146 ⇔ 147	Built-in 63
	148 ⇔ 149	Built-in 64
	150 ⇔ 151	Built-in 65
	152 ⇔ 153	Built-in 66
	154 ⇔ 155	Built-in 67
	156 ⇔ 157	Built-in 68
	158 ⇔ 159	Built-in 69
	160 ⇔ 161	Built-in 70
	162 ⇔ 163	Built-in 71
	164 ⇔ 165	Built-in 72
	166 ⇔ 167	Built-in 73
	168 ⇔ 169	Built-in 74
	170 ⇔ 171	Built-in 75
	172 ⇔ 173	Built-in 76
	174 ⇔ 175	Built-in 77
	176 ⇔ 177	Built-in 78
	178 ⇔ 179	Built-in 79
	180 ⇔ 181	Built-in 80
	182 ⇔ 183	Built-in 81
	184 ⇔ 185	Built-in 82
	186 ⇔ 187	Built-in 83
	188 ⇔ 189	Built-in 84
190 ⇔ 191	Built-in 85

21	Channel	Function	Value	Percent/Setting
	11 LED	Built-in	192 ⇔ 193	Built-in 86
			194 ⇔ 195	Built-in 87
			196 ⇔ 197	Built-in 88
			198 ⇔ 199	Built-in 89
			200 ⇔ 201	Built-in 90
			202 ⇔ 203	Built-in 91
			204 ⇔ 205	Built-in 92
			206 ⇔ 207	Built-in 93
			208 ⇔ 209	Built-in 94
			210 ⇔ 211	Built-in 95
			212 ⇔ 213	Built-in 96
			214 ⇔ 215	Built-in 97
			216 ⇔ 217	Built-in 98
			218 ⇔ 219	Built-in 99
			220 ⇔ 221	Built-in 100
			222 ⇔ 223	Built-in 101
			224 ⇔ 225	Built-in 102
			226 ⇔ 227	Built-in 103
			228 ⇔ 229	Built-in 104
			230 ⇔ 231	Built-in 105
			232 ⇔ 233	Built-in 106
			234 ⇔ 235	Built-in 107
			236 ⇔ 237	Built-in 108
			238 ⇔ 239	Built-in 109
			240 ⇔ 241	Built-in 110
			242 ⇔ 243	Built-in 111
			244 ⇔ 245	Built-in 112
			246 ⇔ 247	Built-in 113
			248 ⇔ 255	Built-in 114
	12 LED	Built-in Speed	001 ⇔ 127	Clockwise fast to slow
			128	Stop
			128 ⇔ 255	Counter-clockwise slow to fast
	13 LED	Built-in Delay 000	⇔ 255	Fast to slow
	14	Background Color Macros	000	No function
			001 ⇔ 002	2700K R:156 G: 118 B: 0 W: 63
			003 ⇔ 004	3200K R:156 G: 141 B: 5 W: 89
			005 ⇔ 006	4200K R:156 G: 141 B: 14 W: 255
			007 ⇔ 008	5600K R:156 G: 207 B: 54 W: 255
			009 ⇔ 010	8000K R:130 G: 255 B: 96 W: 255
			11	Blue R: 0 G: 0 B: 255 W: 0
			012 ⇔ 048	R: 0 G: + B: 255 W: 0
			049	Cyan R: 0 G: 255 B: 255 W: 0
			050 ⇔ 086	R: 0 G: 255 B: - W: 0
			087	Green R: 0 G: 255 B: 0 W: 0
			088 ⇔ 124	R: + G: 255 B: 0 W: 0
			125	Yellow R: 255 G: 255 B: 0 W: 0
			126 ⇔ 162	R: 255 G: - B: 0 W: 0
			163	Red R: 255 G: 0 B: 0 W: 0
			164 ⇔ 200	R: 255 G: 0 B: + W: 0
			201	Magenta R: 255 G: 0 B: 255 W: 0
			202 ⇔ 238	R: - G: 0 B: 255 W: 0
			239	Blue R: 0 G: 0 B: 255 W: 0
			240 ⇔ 247	Color change, fast to slow
			248 ⇔ 255	Color jump, fast to slow
	15	Background Color Dimmer	000 ⇔ 255	0-100%
	16	Zoom	000 ⇔ 255	0-100%

21

Channel	Function Value Percent/Setting
17 Control		001 ⇔ 009	No function
		010 ⇔ 014	Pan/Tilt blackout
		015 ⇔ 019	No function
		020 ⇔ 024	RGBW color mixing (5 sec.)
		025 ⇔ 029	CMY color mixing (5 sec.)
		030 ⇔ 034	No function
		035 ⇔ 039	No function
		040 ⇔ 044	No function
		045 ⇔ 049	No function
		050 ⇔ 054	Pan reset
		055 ⇔ 059	Tilt reset
		060 ⇔ 064	Zoom reset
		065 ⇔ 069	No function
		070 ⇔ 074	All reset
		075 ⇔ 079	No function
		080 ⇔ 084	Pan/Tilt reverse
		085 ⇔ 089	Pan reverse
		090 ⇔ 094	Tilt reverse
		095 ⇔ 099	Cancel pan reverse
		100 ⇔ 104	Cancel tilt reverse
		105 ⇔ 109	Cancel pan/tilt reverse
		110 ⇔ 114	No function
		115 ⇔ 119	No function
		120 ⇔ 124	Fan low speed
		125 ⇔ 129	Fan full speed
		130 ⇔ 134	Fan auto
		135 ⇔ 139	Dimmer Fast mode
		140 ⇔ 144	Dimmer Smooth mode
		145 ⇔ 255	No function
18 Red (Cyan) 000		⇔ 255	0-100%
19 Green (Magenta) 000		⇔ 255	0-100%
20 Blue (Yellow) 000		⇔ 255	0-100%
21 White 000		⇔ 255	0-100%

Acerca de Esta Guía

Technical line drawing of a circular mechanical device with internal geometric patterns and control panel (no text or symbols)

Suelo

Avant de monter cet appareil, lisez et assimilez les Consignes de Sécurité. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

Technical line drawing of a dual-mounted industrial lamp with a circular grid pattern and control panel (no text or symbols)

General Information Technical Support

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Website

Toll Free: [phone] www.chauvetlighting.com

EUROPE

General Information Technical Support

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Website

Belgium www.chauvetlighting.eu

Voice: [phone]

General Information Technical Support

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

Website

NG16 6NT www.chauvetlighting.co.uk

Voice: [phone]

Fax: [phone]

MEXICO

General Information Technical Support

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record..

UL 1573

® CSA C22.2 No. 166

us E113093

RoHS
