USER MANUAL Ovation E-4WW IP Chauvet

QR code image containing encoded data, no visible human-readable text

Scan the QR code to access the product page, warranty terms, and the complete User Manual

OVATION

E-4 WW IP

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

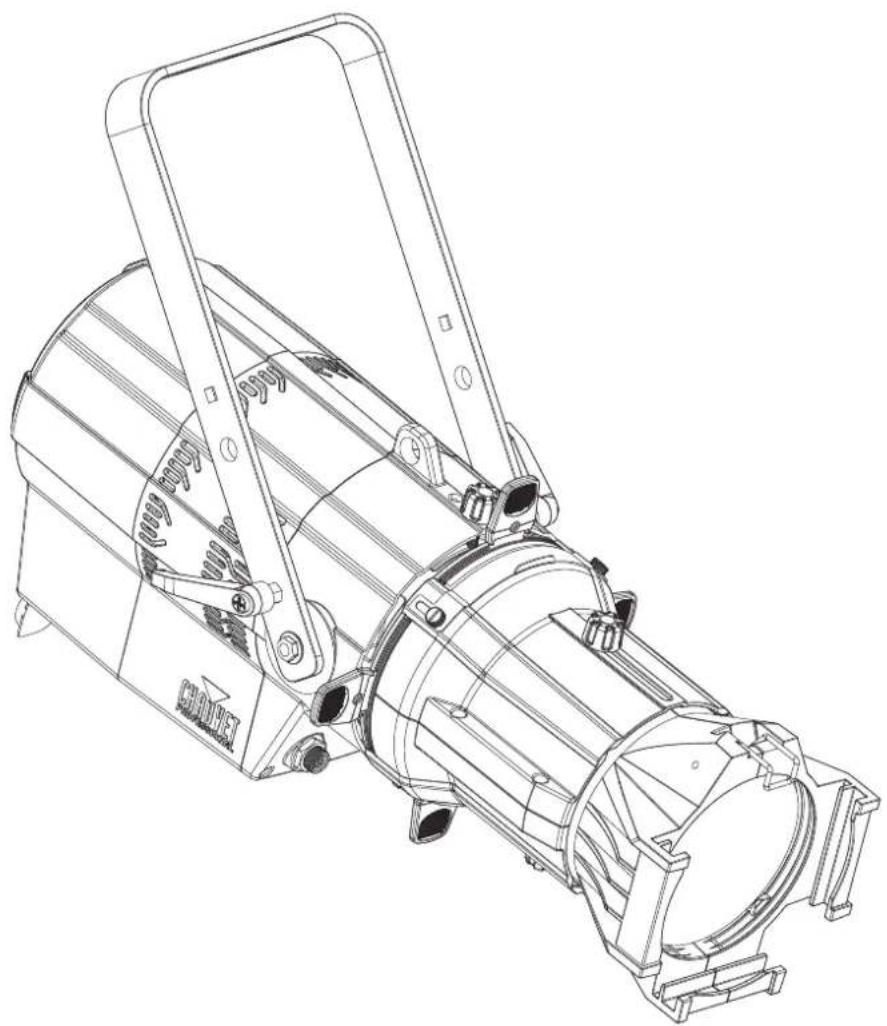

Technical line drawing of a mechanical device with no visible text or symbols

Model ID: OVATIONE4WWIP

Intentionally Left Blank Page

Safety Notes

These Safety Notes include important information about installation, use, and maintenance of the Ovation E-4WW IP.

• The luminaire is intended for professional use only.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 10 ft (3.0 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or a similar qualified person.

- CAUTION:

• This product's housing may be hot when operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow the product to fully acclimate to the surrounding environment before connecting it to power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.

• ALWAYS:

• When using an IP65-rated product in an outdoor environment, use IP65- (or higher) rated power and data cable.
• Replace and secure IP-rated protective covers to all power, data, USB, or other ports when not in use.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.

D O N O T :

• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Leave any flammable material within 50 cm of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
• Submerge this product (adhere to standards for the published IP rating). Regular outdoor operation is fine.

• Permanently install outdoors in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Locations where normal temperatures exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

- ONLY use the hanging/mounting bracket to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
- The minimum startup temperature is -4^ (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22^ ( -30^ ). Do not operate the product at lower temperatures.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- In the event of a serious operating problem, stop using immediately.

FCC Statement of Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

What is Included

- Ovation E-4WW IP

- Quick Reference Guide

- Seetronic Powerkon IP65 power cable

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link Ovation E-4WW IP products. See the table below for the current draw at each voltage and frequency:

	100 V, 60 Hz	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz	240 V, 60 Hz
Current Draw	4.34 A	3.57 A	2.0 A	1.81 A	1.73 A

Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

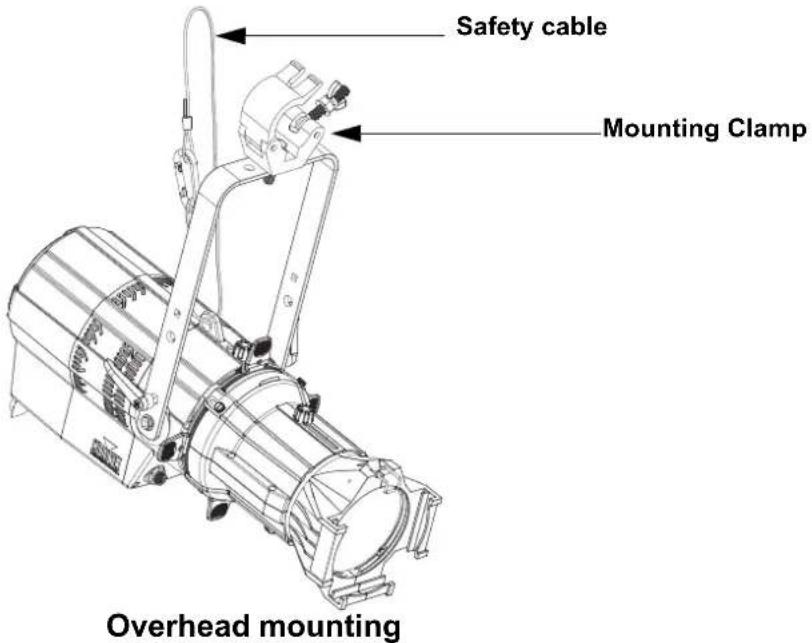

Mounting Diagram

Safety cable Mounting Clamp Overhead mounting

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Notas de seguridad

Intentionally Left Blank Page

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd. Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetprofessional.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
