USER MANUAL ÉPIX Strip IP Chauvet

Technical line drawing of a long industrial conveyor system with cooling fans and heat exchangers (no text or symbols)

About This Guide

The ÉPIX Strip IP Quick Reference Guide (QRG) has basic product information such as connection and mounting. Download the ÉPIX Drive 2000 IP User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: This product's housing may be hot when lights are operating.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Temporary outdoor operation is fine.
• When using this product in an outdoor environment, use IP65 (or higher) rated power and data cables. Be sure to secure unused power and data ports with attached IP65 covers.
• DO NOT operate this product if the housing, ports, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to an ÉPIX Drive 2000 IP or an ÉPIX Drive 900.
• Only use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• ÉPIX Strip IP
  • Square Milky Filter (Installed)
• Black Stealth Filter
• Round Milky Filter
• Quick Reference Guide

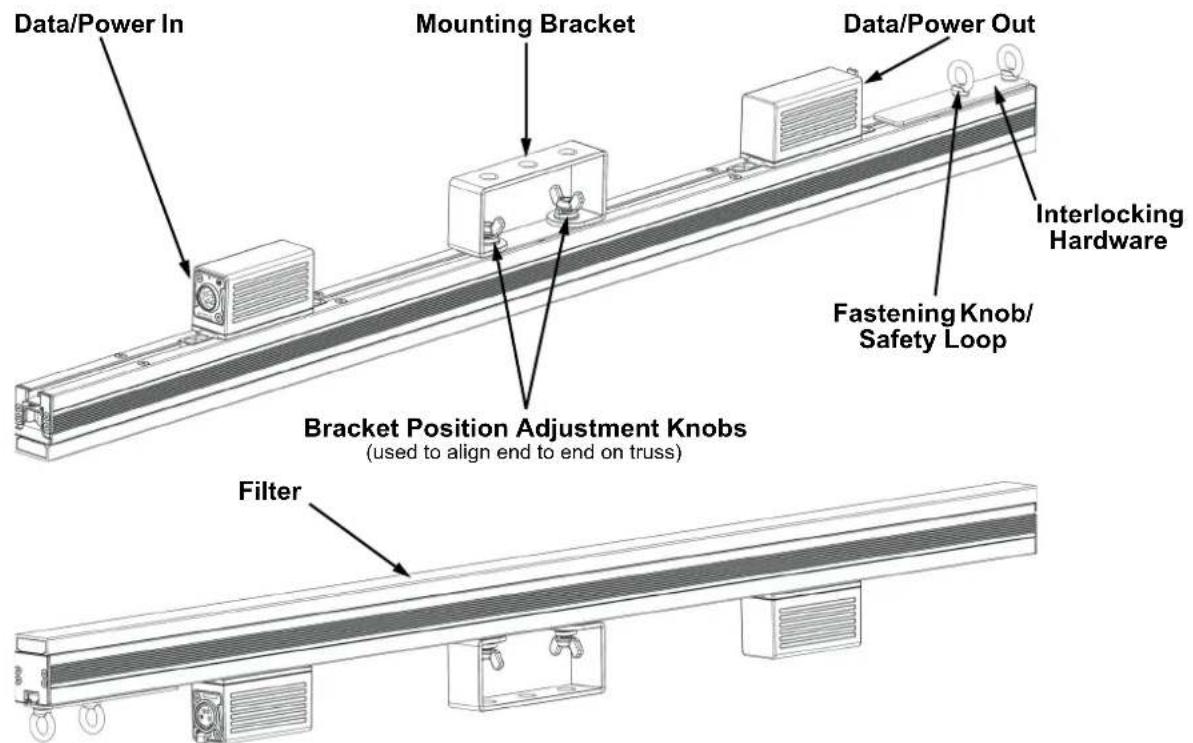

Product Overview

Data/Power In Mounting Bracket Data/Power Out Interlocking Hardware Fastening Knob/ Safety Loop Bracket Position Adjustment Knobs (used to align end to end on truss) Filter

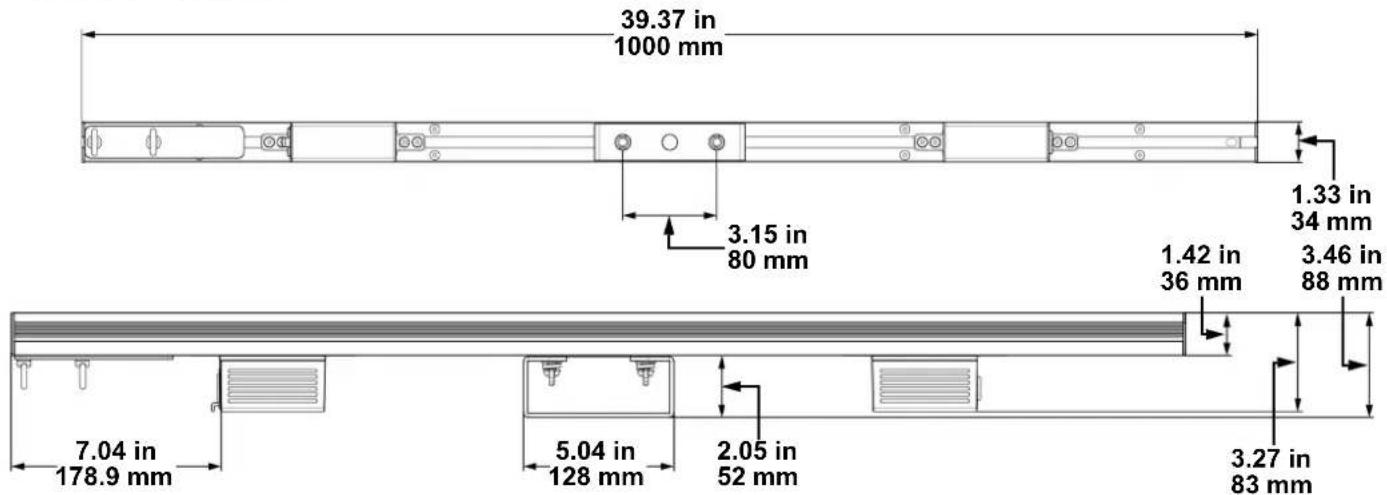

Product Dimensions

39.37 in 1000 mm 3.15 in 80 mm 1.42 in 36 mm 1.33 in 34 mm 3.46 in 88 mm 7.04 in 178.9 mm 5.04 in 128 mm 2.05 in 52 mm 3.27 in 83 mm

Power

This product is powered by an ÉPIX Drive 2000 IP. Refer to the ÉPIX Drive 2000 IP User Manual for detailed instructions on how to connect this product to power.

Power Linking

You can link up to 10 ÉPIX Strip IP products to each port of an ÉPIX Drive 2000 IP. Never exceed this number.

• Use ONLY IP65 4-pin XLR cables with the ÉPIX Strip IP. For our CHAUVET Professional line of IP65 4-pin XLR cables, go to https://www.chauvetprofessional.com/accessories.
• To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the ÉPIX Drive 2000 IP from power via breaker or by unplugging it.

Scrambled Pulse-Width Modulation

This product features Scrambled-PWM (S-PWM) technology, which de-synchronizes the pulse widths of each color of the multi-color LEDs. This ensures that there is always some LED output, reducing flicker, and maintaining the same grayscale performance.

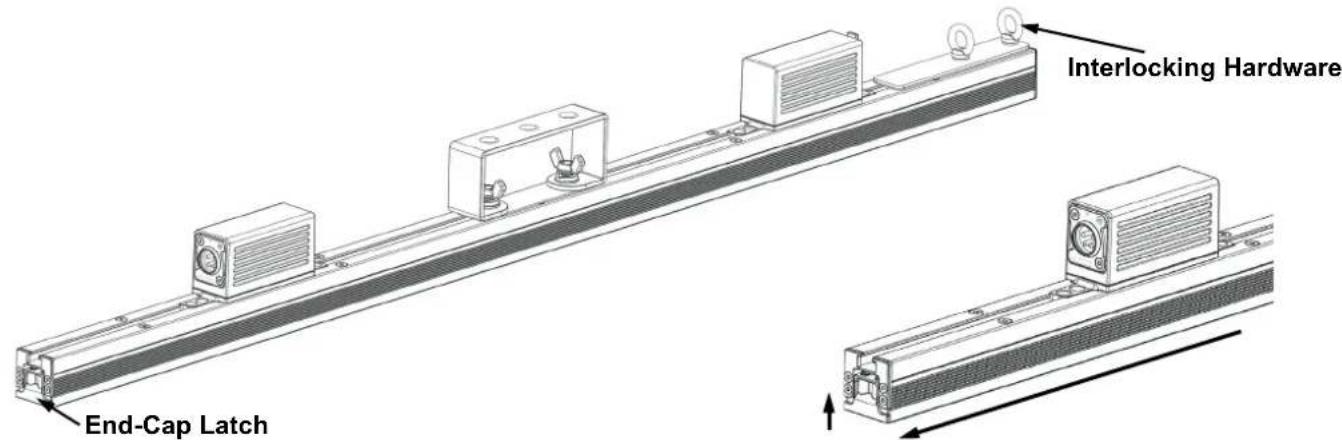

Filter Installation

The ÉPIX Strip IP includes a Square Milky Filter already installed. Follow the procedure below to install the included Black Stealth Filter or Round Milky Filter.

1. Locate the end cap of the product that does not have the interlocking hardware.
2. Push in on the end-cap latch.
3. Slide the installed filter out and replace it with the desired filter.
4. Release the end-cap latch.

Interlocking Hardware End-Cap Latch

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

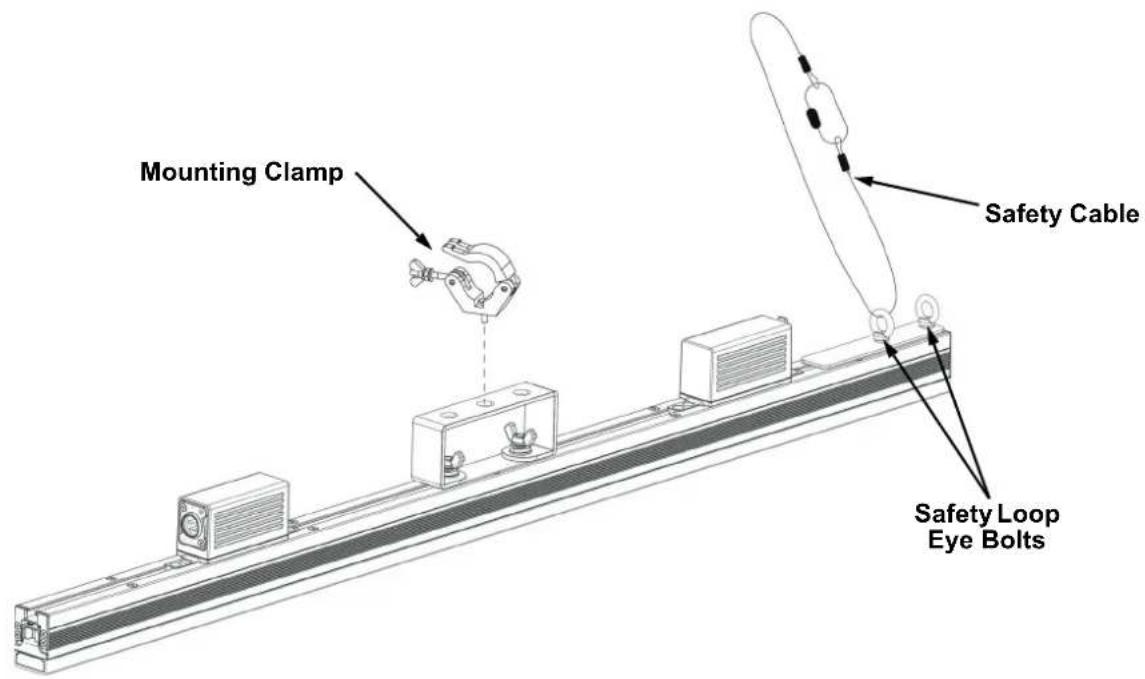

Mounting Diagram

Mounting Clamp Safety Cable Safety Loop Eye Bolts

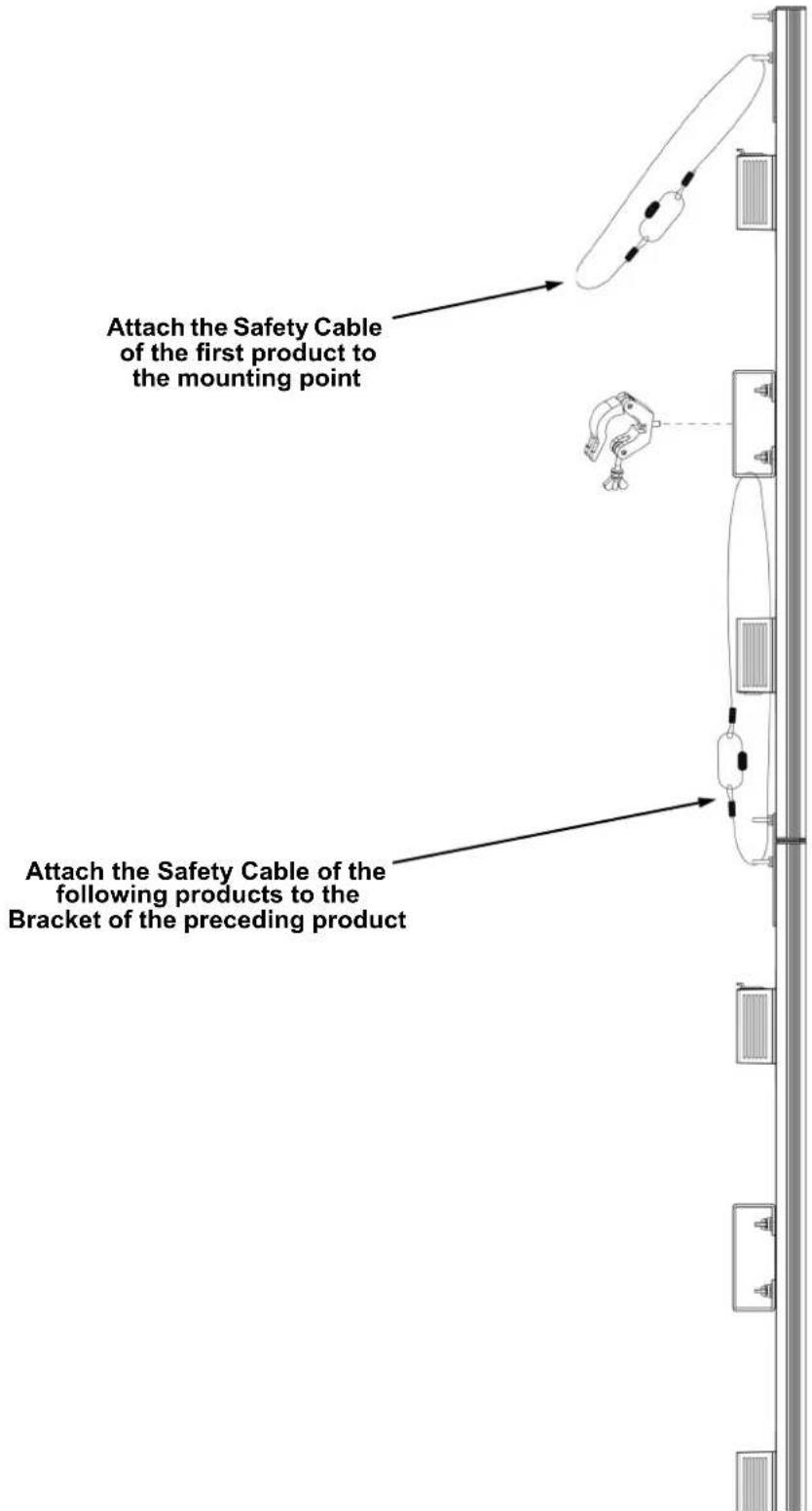

Vertical Mounting Instructions

1. Attach the clamp to the mounting bracket.
2. Attach the clamp to the desired structure or surface.
3. Attach a safety cable to the product's safety loop.

Attach the Safety Cable of the first product to the mounting point Attach the Safety Cable of the following products to the Bracket of the preceding product

Never attach more than 4 products together when hanging vertically from a single mounting point.

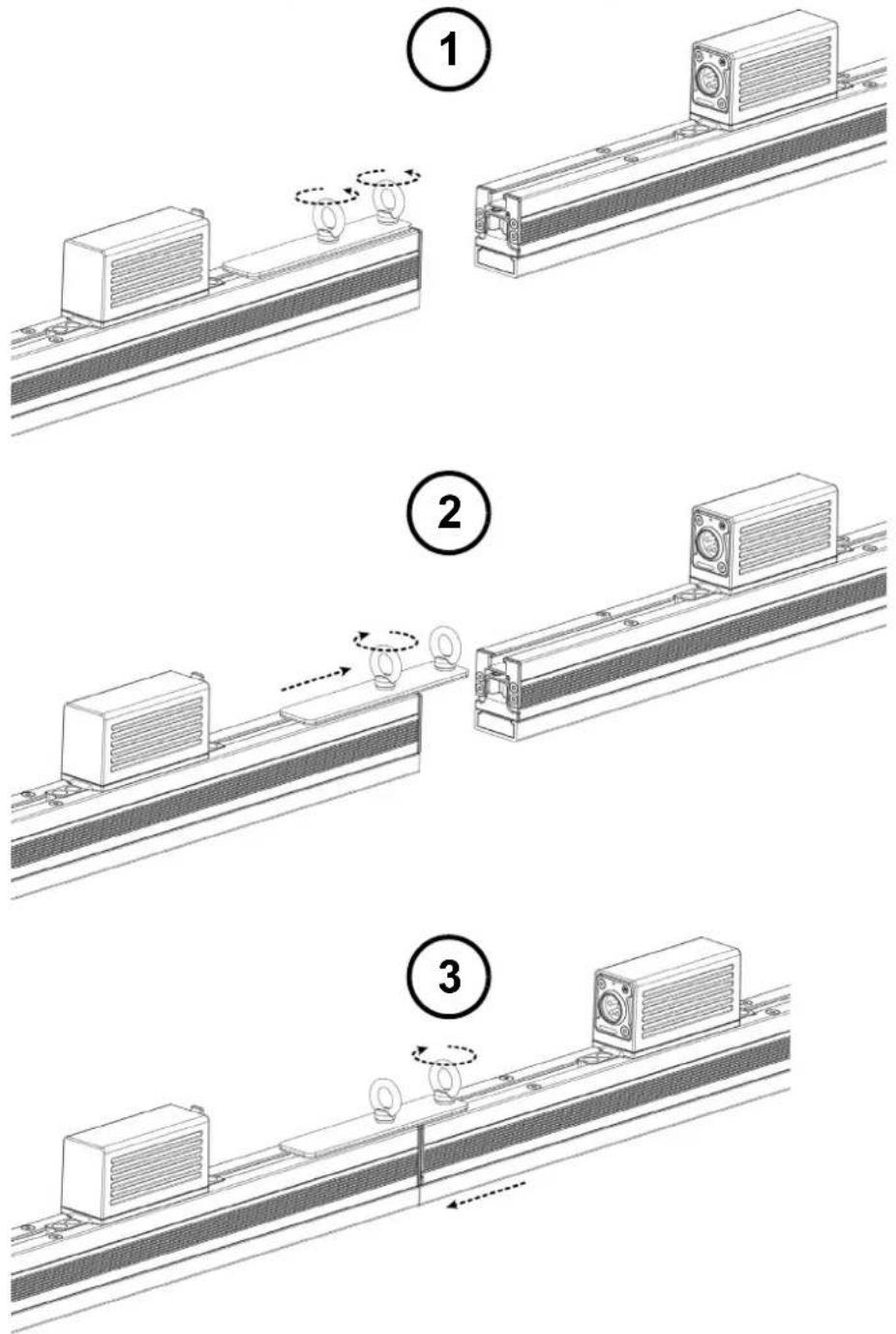

Series Attachment Instructions

The EPIX Strip IP can be attached in an end to end formation to create a strip up to 4 meters long from one mounting point. Do not connect any more than 4 EPIX Strip IP products in a row when hanging vertically.

1. Loosen the 2 fastening eye bolts.

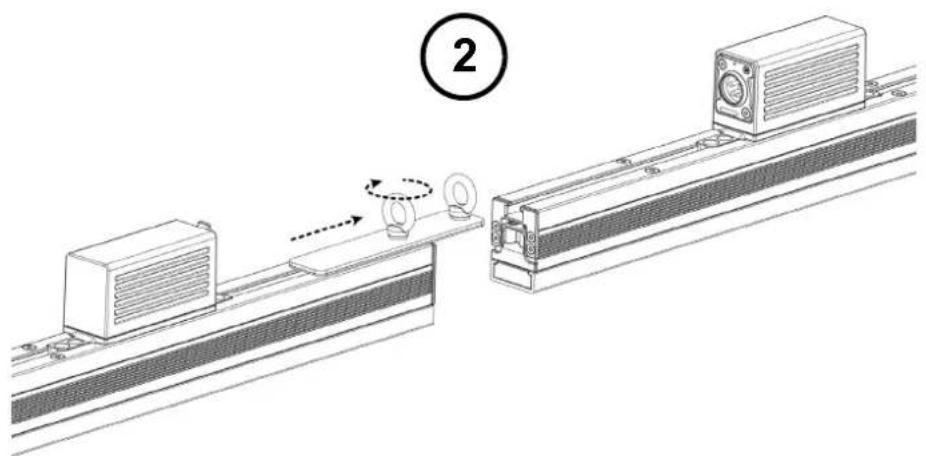

2. Slide the connecting bracket out until it stops and tighten the eye bolt closest to the center of the product.

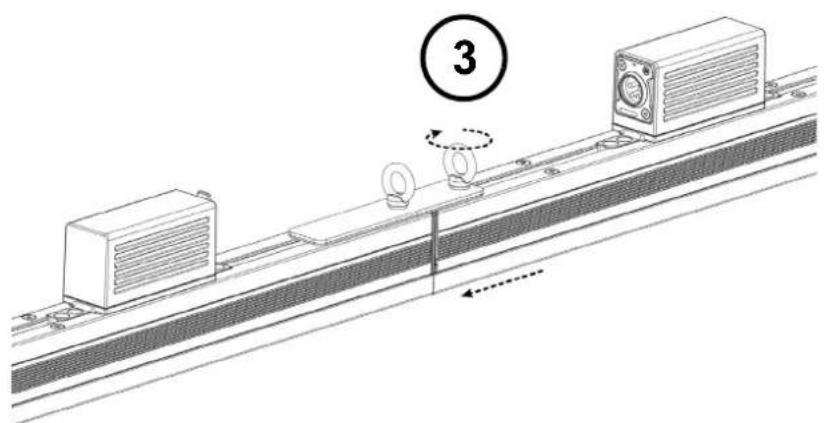

3. Slide the second ÉPIX Strip IP into the connecting bracket and tighten the remaining eye bolt.
4. Attach the safety cable as shown in Vertical Mounting Instructions .

Technical diagram showing three sequential steps of a mechanical assembly with labeled components and motion indicators.

Install the safety cable last when attaching ÉPIX Strip IP products in series.

Technical Specifications

Dimensions and Weight

Filter Length Width Height Weight

Square Milky Filter 39.37 in (1000 mm) 3.93 in (100 mm) 1.33 in (34 mm) 6 lb (2.7 kg)

Black Stealth Filter 39.37 in (1000 mm) 3.46 in (88 mm) 1.33 in (34 mm) 6 lb (2.7 kg)

Round Milky Filter 39.37 in (1000 mm) 5.03 in (128 mm) 1.77 in (45 mm) 6 lb (2.7 kg)

Note: Dimensions in inches are rounded.

Power

Power Supply Range Power Linking
ÉPIX Drive 2000 IP 100 to 240 VAC, 50/60 Hz 10 per ÉPIX Drive 2000 IP port
Parameter	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz
Consumption	35 W	44 W	44 W
Operation Current	0.292 A	0.210 A	0.195 A
Power I/O	U.S./Worldwide		UK/Europe
Power Input Connector	IP65 4-pin XLR		IP65 4-pin XLR
Power Cord Plug	IP65 4-pin XLR		IP65 4-pin XLR

Light Source

Type	Color	Quantity	Lifespan
SMD 505 LED	Tri-color RGB	100	50,000 hours

Photometrics

Parameter	Square Milky Filter	Black Stealth Filter	Round Milky Filter
Viewing Angle	160°	140°	160°
Illuminance	2,470 NITS	1,455 NITS	1,360 NITS
Pixel Pitch	10 mm	10 mm	10 mm
Refresh Rate	4,800 Hz	4,800 Hz	4,800 Hz

Control

Data I/O	Channel Range (Art-NetTM/sACN)	Channel Range (Kling-Net)
IP65 4-pin XLR	7, 8, 15, 30, 60 or 300	Determined by ArKaos MediaMaster software

Thermal

Maximum External Temp.	Cooling
113 °F (45 °C)	Convection

Ordering

Product Name	Item Name	Item Code	UPC Number
ÉPIX Strip IP	EPIXSTRIPIP	03091318 781462216665
