Model ID: COLORADO1QUADZOOM

About This Guide

The Colorado 1 Quad Zoom Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 3.5 m is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

• When using this product in an outdoor, IP65 type environment, be sure to use IP65 (or higher) rated power/data cables, secure unused ports with attached IP65 covers, and secure the display plate to the control panel.

• USE a safety cable when mounting this product overhead.

• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F ( 45 °C ). Do not operate this product at higher temperatures.

Contact

Outside the U.S., U.K., Ireland, France, Germany, Mexico, or Benelux, contact your distributor to request support or return a product. From inside the U.S., UK, Ireland, France, Germany, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.

What is Included

• Colorado 1 Quad Zoom
- Seetronic Powerkon IP65 power cord
- Gel frame holder (7.5 in/191 mm accessories)
- Gel frame
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 13 Colorado 1 Quad Zoom products at 100 VAC, 15 at 120 VAC, 27 at 208 VAC, 28 at 230 VAC, or 29 at 240 VAC. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow		Green

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• When using this product in an outdoor IP65 type environment, be sure to use IP65 (or higher) rated power cables and secure unused ports with attached IP65 covers.

DMX Linking

The Colorado 1 Quad Zoom will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Colorado 1 Quad Zoom uses a 5-pin DMX data connection for its DMX personalities: TOUR, TR16, FULL, ARC.1, AR1.D, ARC.2, AR2.D, C1Q, STD.Y, AR2.S, AR2.Z, and HSV. See the User Manual for information about connecting and configuring the product for DMX operation.

When using this product in an outdoor IP65 type environment, be sure to use IP65 (or higher) rated data cables and secure unused ports with attached IP65 covers.

The C1Q personality has been designed to be used to match the Colorado 1-Quad series. In this personality, the zoom is locked to match the beam and field angles of the Colorado 1-Quad series.

For optimum control of the 16-bit dimming channels in the TR16, FULL, and STD.Y personalities, be sure that both dimming curves in SETTING > DIMMER are set to OFF

Master/Slave Connection

The Colorado 1 Quad Zoom uses the DMX data connection for its Master/Slave mode. See the User Manual for information about connecting and configuring the product for master/slave operation.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

Product Mounting Diagram

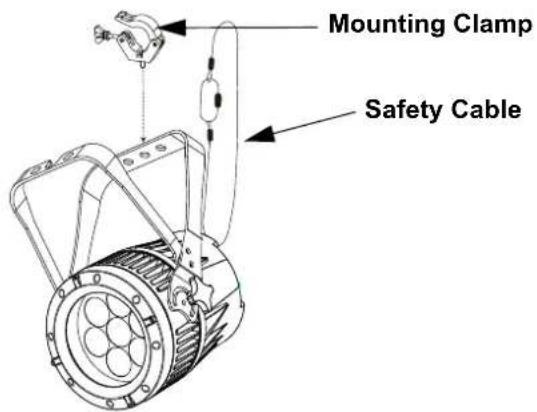

Mounting Clamp Safety Cable

Overhead Mounting

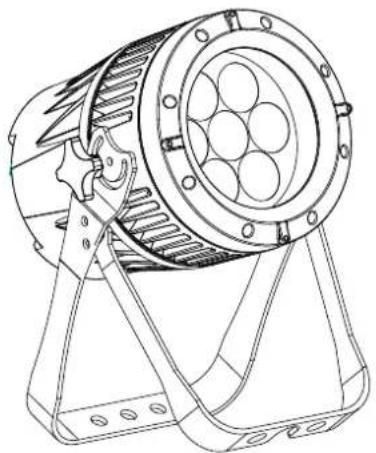

Technical line drawing of a mechanical device with circular components and mounting brackets (no text or symbols)

Floor Mounting

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Passcode

After being prompted, enter the following passcode by pressing:

, , , ,

This passcode cannot be changed and must be used whenever prompted.

Menu Map

Main Level Programming Levels Description
STAT	RED R.		0-255	Combines red, green, blue, and white to make a custom color (0–100%)
	GREEN G.
	BLUE B.
	WHITE W.
	ZOOM Z. Changes the beam angle (zoom)
	STROBE S. 0-20			Selects the strobe frequency (0–20 Hz)
AUTO	AT. 1-10 P. 0-255			Selects automatic programs and auto program speed
	PR 1-10			Selects customizable programs
RUN	DMX			Receives DMX signals from the DMX controller
	SLAVE			Receives DMX signals from the master
ADDR	D. 001-512			Sets the DMX starting address
PERS	FULL			25-channel: 16-bit RGBW pixel control and dimmer; strobe, color macro, auto/custom, dimmer speed, auto speed, zoom, zoom reset
	TR16			17-channel: 16-bit RGBW and dimmer; strobe, color macro, auto/custom, dimmer speed, auto speed, zoom, zoom reset
	STD.Y			17-channel: 16-bit RGBW and dimmer; strobe, color macro, auto/custom, dimmer speed, auto speed, zoom, zoom reset
	TOUR			12-channel: RGBW, dimmer, strobe, color macro, auto/custom, dimmer speed, auto speed, zoom, zoom reset
	C1Q**			10-channel: RGBW, dimmer, strobe, color macro, auto/custom, dimmer speed, auto speed **
	AR2.Z			7-channel: RGBW, dimmer, zoom, zoom reset
	AR2.S 6-channel: RGBW, dimmer, strobe
	AR2.D 5-channel: RGBW, dimmer
	ARC.2 4-channel: RGBW
	AR1.D 4-channel: RGB, dimmer
	ARC.1 3-channel: RGB control
	HSV. 3-channel: HSV control
EDIT PR. 1-10	SC.01-30	RED	0-255	Combines red, green, blue, and white to make a custom color (0-100%)
		GREN
		BLUE
		WHIT
		ZOOM Changes the beam angle (zoom)
		STRB 0-20 Selects the strobe frequency (0–20 Hz)
		TIME	0-255	Defines the step duration (slow to fast)
		FADE Defines the fade duration (slow to fast)

Main Level Programming Levels Description
SET	****(Enter Passcode)	UPLD		****(Enter Passcode)	SEND	Uploads custom programs to other Colorado 1 Quad Zoom
		KEY		OFF		Sets to key lock(Passcode mode)
				ON
		REST		****(Enter Passcode)		Resets the fixture to factory defaults
		COLR		OFF RGB set to 255 = max. output
				RGBW RGB set to 255 = balanced white
				UC. Universal color balance
		DIMX		OFF		Selects dimming profiles from fast (DIM1) to slow (DIM4) or OFF
				DIM1
				DIM2
				DIM3
				DIM4
		CURV		OFF No dimmer
				CV1		Dimmer curves fast (CV1) to slow (CV3)
				CV2
				CV3
		DERR		SAVE		Continues with last command upon loss of DMX control
				BLACK Blacks out fixture upon loss of DMX
		SLCK		OFF		SET main level access lock
				ON
		ZOOM		BASE		Sets default zoom position (full movement)
				POS1 Sets position 1 setting for zoom limit
				POS2 Sets position 2 setting for zoom limit
CAL	****(Enter Passcode)	CAL1	WH.01-11	RED	0-255	Modifies the color macros used in the TOUR, FULL, C1Q, STD.Y, and TR16 personalities
				GREEN
				BLUE
				WHITE
		CAL2	R.			Defines the color temperature used when COLOR is set to RGBW
			G.
			B.
		CALR		****(Enter Passcode)		Defaults CAL to factory settings
ZOOM	POS.1			P. 0-255		Sets the min/max position of the zoom function
	POS.2

**Zoom locked to match Colorado 1-Quad Tour series.

DMX Values

FULL Channel Function Value Percent/Setting
	1 Dimmer 000	255 0-100%
	2 Fine Dimmer 000	255		Fine control (16-bit) (Step Duration if Custom 1–10 in CH. 21 is active)
	3R e	d 255		0–100% (Fade Duration if Custom 1–10 in CH. 21 is active)
	4F i	n 255 Fine control (16-bit) d 1 000
	5 Green 1 000	255 0-100%
	6 Fine Green 1 000	255 Fine control (16-bit)
	7B l	u 255 0-100% 000
	8 Fine Blue 1 000	255 Fine control (16-bit)
	9W h	i 255 0-100% 1 000
	10Fine White 1	000 255 Fine control (16-bit)
	11Red 2	000 255 0–100%
	12Fine Red 2	000 255 Fine control (16-bit)
	13Green 2	000 255 0-100%
	14Fine Green 2 000	255 Fine control (16-bit)
	15Blue 2	000 255 0-100%
	16Fine Blue 2	000 255 Fine control (16-bit)
	17White 2	000 255 0-100%
	18Fine White 2	000 255 Fine control (16-bit)
	19Color Macro + White Balance	000 010011 030031 050051 070071 090091 110111 130131 150151 170171 200201 205206 210211 215216 220221 225226 230231 235236 240241 245246 251251 255		No functionR:100% G: 0-100% B: 0R:100%-0 G: 100% B: 0R:0 G: 100% B: 0-100%R:0 G: 100%-0 B: 100%R:0-100% G: 0 B: 100%R:100% G: 0 B: 100%-0R:100% G: 0-100% B: 0-100%R:100%-0 G: 100%-0 B: 100%RGBW: 100%White 1White 2White 3White 4White 5White 6White 7White 8White 9White 10White 11
	20Strobe	000 009010 255		No function0-20 Hz

FULL

Channel Function Value Percent/Setting
21 Programs		000 ⇔ 040	No function
		041 ⇔ 050	Auto 1
		051 ⇔ 060	Auto 2
		061 ⇔ 070	Auto 3
		071 ⇔ 080	Auto 4
		081 ⇔ 090	Auto 5
		091 ⇔ 100	Auto 6
		101 ⇔ 110	Auto 7
		111 ⇔ 120	Auto 8
		121 ⇔ 130	Auto 9
		131 ⇔ 140	Auto 10
		141 ⇔ 150	Custom 1
		151 ⇔ 160	Custom 2
		161 ⇔ 170	Custom 3
		171 ⇔ 180	Custom 4
		181 ⇔ 190	Custom 5
		191 ⇔ 200	Custom 6
		201 ⇔ 210	Custom 7
		211 ⇔ 220	Custom 8
		221 ⇔ 230	Custom 9
		231 ⇔ 255	Custom 10
22 Auto Speed 000		⇔ 255 0-100% (only when using Auto 1–10 in CH. 21)
23 Dimmer Speed		000 ⇔ 009	Preset dimmer speed from display menu
		010 ⇔ 029	Linear dimmer
		030 ⇔ 069	Nonlinear dimming curve 1 (fastest)
		070 ⇔ 129	Nonlinear dimming curve 2
		130 ⇔ 189	Nonlinear dimming curve 3
		190 ⇔ 255	Nonlinear dimming curve 4 (slowest)
24 Zoom 000		⇔ 255 0-100%
25	Zoom Control	000 ⇔ 200	No function
		201 ⇔ 220	Zoom reset
		221 ⇔ 255	No function

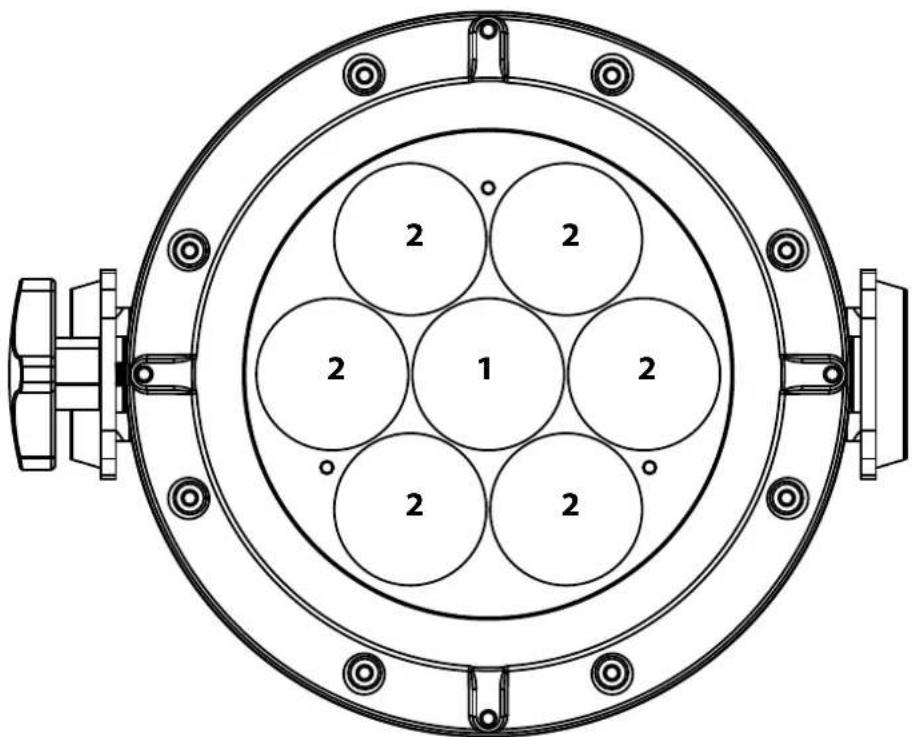

COLORado 1-Quad Zoom Tour Pixel Selection for DMX Control

2 2 2 1 2 2 2 2

TR16 Channel Function Value Percent/Setting

1 Dimmer 000		255 0-100%
2 Fine Dimmer 000		255	Fine control (16-bit) (Step Duration if Custom 1–10 in CH. 13 is active)
3	R e	d 255	0-100% (Fade Duration if Custom 1–10 in CH. 13 is active)000
4	F i	n 255 Fine cBntrol (16-bit) d 000
5 Green	000	255 0-100%
6 Fine Green 000		255 Fine control (16-bit)
7	B l	u 255 0-100% 000
8	F i	n 255 Fine cBntrol (16-bit) u e
9	W h	i 255 0-100% 000
10 Fine White 000		255 Fine control (16-bit)
11	Color Macro + White Balance	000 010011 030031 050051 070071 090091 110111 130131 150151 170171 200201 205206 210211 215216 220221 225226 230231 235236 240241 245246 251251 255	No functionR:100% G: 0-100% B: 0R:100%-0 G: 100% B: 0R:0 G: 100% B: 0-100%R:0 G: 100%-0 B: 100%R:0-100% G: 0 B: 100%R:100% G: 0 B: 100%-0R:100% G: 0-100% B: 0-100%R:100%-0 G: 100%-0 B: 100%RGBW: 100%White 1White 2White 3White 4White 5White 6White 7White 8White 9White 10White 11
12 Strobe		000 009010 255	No function0-20 Hz
13 Programs		000 040041 050051 060061 070071 080081 090091 100101 110111 120121 130131 140141 150151 160161 170171 180181 190191 200201 210211 220221 230231 255	No functionAuto 1Auto 2Auto 3Auto 4Auto 5Auto 6Auto 7Auto 8Auto 9Auto 10Custom 1Custom 2Custom 3Custom 4Custom 5Custom 6Custom 7Custom 8Custom 9Custom 10
14 Auto Speed 000		255 0-100% (only when using Auto 1–10 in CH. 13)

TR16	Channel Function Value Percent/Setting
	15 Dimmer Speed	000 ⇔ 009010 ⇔ 029030 ⇔ 069070 ⇔ 129130 ⇔ 189190 ⇔ 255		Preset dimmer speed from display menuLinear dimmerNonlinear dimming curve 1 (fastest)Nonlinear dimming curve 2Nonlinear dimming curve 3Nonlinear dimming curve 4 (slowest)
	16 Zoom	000	⇔ 255 0-100%
	17	ZoomControl	000 ⇔ 200201 ⇔ 220221 ⇔ 255	No functionZoom resetNo function
STD.Y	Channel Function Value Percent/Setting
	1 Dimmer 000		⇔ 255 0-100%
	2 Fine Dimmer 000		⇔ 255	Fine control (16-bit) (Step Duration if Custom 1–10 in CH. 13 is active)
	3	R e	d ⇔ 255	0-100% (Fade Duration if Custom 1–10 in CH. 13 is active)000
	4	F i	n ⇔ 255 Fine control (16-bit) d 000
	5 Green	000	⇔ 255 0-100%
	6 Fine Green	000	⇔ 255 Fine control (16-bit)
	7	B I	u ⇔ 255 0-100% 000
	8	F i	n ⇔ 255 Fine control (16-bit) u e
	9	W h	i ⇔ 255 0-100% 000
	10 Fine White	000	⇔ 255 Fine control (16-bit)
	11	Color Macro + White Balance	000 ⇔ 010011 ⇔ 030031 ⇔ 050051 ⇔ 070071 ⇔ 090091 ⇔ 110111 ⇔ 130131 ⇔ 150151 ⇔ 170171 ⇔ 200201 ⇔ 205206 ⇔ 210211 ⇔ 215216 ⇔ 220221 ⇔ 225226 ⇔ 230231 ⇔ 235236 ⇔ 240241 ⇔ 245246 ⇔ 251251 ⇔ 255	No functionR:100% G: 0-100% B: 0R:100%-0 G: 100% B: 0R:0 G: 100% B: 0-100%R:0 G: 100%-0 B: 100%R:0-100% G: 0 B: 100%R:100% G: 0 B: 100%-0R:100% G: 0-100% B: 0-100%R:100%-0 G: 100%-0 B: 100%RGBW: 100%White 1White 2White 3White 4White 5White 6White 7White 8White 9White 10White 11
	12 Strobe		000 ⇔ 009010 ⇔ 255	No function0-20 Hz

STD.Y

Channel Function Value Percent/Setting
13 Programs		000 ⇔ 040	No function
		041 ⇔ 050	Auto 1
		051 ⇔ 060	Auto 2
		061 ⇔ 070	Auto 3
		071 ⇔ 080	Auto 4
		081 ⇔ 090	Auto 5
		091 ⇔ 100	Auto 6
		101 ⇔ 110	Auto 7
		111 ⇔ 120	Auto 8
		121 ⇔ 130	Auto 9
		131 ⇔ 140	Auto 10
		141 ⇔ 150	Custom 1
		151 ⇔ 160	Custom 2
		161 ⇔ 170	Custom 3
		171 ⇔ 180	Custom 4
		181 ⇔ 190	Custom 5
		191 ⇔ 200	Custom 6
		201 ⇔ 210	Custom 7
		211 ⇔ 220	Custom 8
		221 ⇔ 230	Custom 9
		231 ⇔ 255	Custom 10
14 Auto Speed 000		⇔ 255 0-100% (only when using Auto 1–10 in CH. 13)
15 Dimmer Speed		000 ⇔ 009	Preset dimmer speed from display menu
		010 ⇔ 029	Linear dimmer
		030 ⇔ 069	Nonlinear dimming curve 1 (fastest)
		070 ⇔ 129	Nonlinear dimming curve 2
		130 ⇔ 189	Nonlinear dimming curve 3
		190 ⇔ 255	Nonlinear dimming curve 4 (slowest)
16 Zoom	000	⇔ 255 0-100%
17	Zoom Control	000 ⇔ 200	No function
		201 ⇔ 220	Zoom reset
		221 ⇔ 255	No function

TOUR

Channel Function Value Percent/Setting
1 Dimmer 000			255 0-100%
2	R e		d 255	0-100% (Step Duration if Custom 1–10 in CH. 8 is active)000
3 Green	000		255	0-100% (Fade Duration if Custom 1–10 in CH. 8 is active)
4	B l		u 255 0-100%	000
5	W h		i 255 0-100%	000
6	Color Macro + White Balance		000 010011 030031 050051 070071 090091 110111 130131 150151 170171 200201 205206 210211 215216 220221 225226 230231 235236 240241 245246 251251 255	No functionR:100% G: 0-100% B: 0R:100%-0 G: 100% B: 0R:0 G: 100%-0 B: 0-100%R:0 G: 100%-0 B: 100%R:0-100% G: 0 B: 100%R:100% G: 0 B: 100%-0R:100% G: 0-100% B: 0-100%R:100%-0 G: 100%-0 B: 100%RGBW: 100%White 1White 2White 3White 4White 5White 6White 7White 8White 9White 10White 11

TOUR

Channel Function Value Percent/Setting
7 Strobe		000 ⇔ 009010 ⇔ 255	No function0-20 Hz
8	P r	000 ⇔ 040041 ⇔ 050051 ⇔ 060061 ⇔ 070071 ⇔ 080081 ⇔ 090091 ⇔ 100101 ⇔ 110111 ⇔ 120121 ⇔ 130o 131 ⇔ 140141 ⇔ 150151 ⇔ 160161 ⇔ 170171 ⇔ 180181 ⇔ 190191 ⇔ 200201 ⇔ 210211 ⇔ 220221 ⇔ 230231 ⇔ 255	No functionAuto 1Auto 2Auto 3Auto 4Auto 5Auto 6Auto 7Auto 8Auto 9Auto 10 a m sCustom 1Custom 2Custom 3Custom 4Custom 5Custom 6Custom 7Custom 8Custom 9Custom 10
9	A u	t ⇔ 255 0-100%S (only when using Auto 1–10 in CH. 8) d		000
10 Dimmer Speed		000 ⇔ 009010 ⇔ 029030 ⇔ 069070 ⇔ 129130 ⇔ 189190 ⇔ 255	Preset dimmer speed from display menuLinear dimmerNonlinear dimming curve 1 (fastest)Nonlinear dimming curve 2Nonlinear dimming curve 3Nonlinear dimming curve 4 (slowest)
11 Zoom	000	⇔ 255 0-100%
12	ZoomControl	000 ⇔ 200201 ⇔ 220221 ⇔ 255	No functionZoom resetNo function

C1Q	Channel Function Value Percent/Setting
	1 Dimmer 000		255 0-100%
	2	R e	d 255		0-100% (Step Duration if Custom 1–10 in CH. 8 is active) 000
	3 Green	000		255	0–100% (Fade Duration if Custom 1–10 in CH. 8 is active)
	4	B I	u 255 0-100%		000
	5	W h	i 255 0-100%		000

C1Q

Channel Function Value		Percent/Setting
6	Color Macro + White Balance	000 ⇔ 010	No function
		011 ⇔ 030	R:100% G: 0-100% B: 0
		031 ⇔ 050	R:100%-0 G: 100% B: 0
		051 ⇔ 070	R:0 G: 100% B: 0-100%
		071 ⇔ 090	R:0 G: 100%-0 B: 100%
		091 ⇔ 110	R:0-100% G: 0 B: 100%
		111 ⇔ 130	R:100% G: 0 B: 100%-0
		131 ⇔ 150	R:100% G: 0-100% B: 0-100%
		151 ⇔ 170	R:100%-0 G: 100%-0 B: 100%
		171 ⇔ 200	RGBW: 100%
		201 ⇔ 205	White 1
		206 ⇔ 210	White 2
		211 ⇔ 215	White 3
		216 ⇔ 220	White 4
		221 ⇔ 225	White 5
		226 ⇔ 230	White 6
		231 ⇔ 235	White 7
		236 ⇔ 240	White 8
		241 ⇔ 245	White 9
		246 ⇔ 251	White 10
		251 ⇔ 255	White 11
7 Strobe		000 ⇔ 009	No function
		010 ⇔ 255	0-20 Hz
8	P r	000 ⇔ 040	No function
		041 ⇔ 050	Auto 1
		051 ⇔ 060	Auto 2
		061 ⇔ 070	Auto 3
		071 ⇔ 080	Auto 4
		081 ⇔ 090	Auto 5
		091 ⇔ 100	Auto 6
		101 ⇔ 110	Auto 7
		111 ⇔ 120	Auto 8
		121 ⇔ 130	Auto 9
		o 131 ⇔ 140	Auto 10 a m s
		141 ⇔ 150	Custom 1
		151 ⇔ 160	Custom 2
		161 ⇔ 170	Custom 3
		171 ⇔ 180	Custom 4
		181 ⇔ 190	Custom 5
		191 ⇔ 200	Custom 6
		201 ⇔ 210	Custom 7
		211 ⇔ 220	Custom 8
		221 ⇔ 230	Custom 9
		231 ⇔ 255	Custom 10
9 Auto Speed 000		⇔ 255 0-100% (only when using Auto 1–10 in CH. 8)
10 Dimmer Speed		000 ⇔ 009	Preset dimmer speed from display menu
		010 ⇔ 029	Linear dimmer
		030 ⇔ 069	Nonlinear dimming curve 1 (fastest)
		070 ⇔ 129	Nonlinear dimming curve 2
		130 ⇔ 189	Nonlinear dimming curve 3
		190 ⇔ 255	Nonlinear dimming curve 4 (slowest)

AR2.Z	Channel Function Value Percent/Setting
	1 Dimmer 000		255 0-100%
	2	R e	d 255 0-100%		000
	3 Green	000	255 0-100%
	4	B l	u 255 0-100%		000
	5	W h	i 255 0-100%		000
	6 Zoom	000	255 0-100%
	7	Zoom Control	000 200201 220221 255		No functionZoom resetNo function
AR2.S	Channel Function Value Percent/Setting
	1 Dimmer 000		255 0-100%
	2	R e	d 255 0-100%		000
	3 Green	000	255 0-100%
	4	B l	u 255 0-100%		000
	5	W h	i 255 0-100%		000
	6 Strobe		000 009010 255		No function0-20 Hz
AR2.D	Channel Function Value Percent/Setting
	1 Dimmer 000		255 0-100%
	2	R e	d 255 0-100%		000
	3 Green	000	=
	4	B l	u \)
	5	W h	i \)
ARC.2	Channel Function Value Percent/Setting
	1	R e	d
	2 Green	000
	3	B l	u =
	4	W h	i =
AR1.D	Channel Function Value Percent/Setting
	1 Dimmer 000		=
	2	R e	d =
	3 Green	000	=
	4	B l	u =
ARC.1	Channel Function Value Percent/Setting
	1	R e	d =
	2 Green	000	=
	3	B l	u =
HSV	Channel Function Value Percent/Setting
	1	H u	e =
	2	S a	t =
	3	V a	l =

Acerca de Esta Guía

Avant de monter cet appareil, lisez et assimilez les Consignes de Sécurité. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

Technical line drawing of a mechanical device labeled 'Montage au Sol' (no other text or symbols)

Technical line drawing of a mechanical device with multiple circular components mounted on a stand (no text or symbols)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, France, Germany, Benelux or Mexico, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

E113093
