Product Type	Professional LED moving head light
Light Source	LED RGBW (red, green, blue, white)
DMX Personalities	14 channels, 15 channels, 19 channels, 21 channels
Pan Angle	540°, 360° or 180° (configurable)
Tilt Angle	230°, 180° or 90° (configurable)
Zoom	Motorized, continuous adjustment from 0 to 100%
Dimmer	Smooth or fast, with selectable curves (linear, square, S)
Strobe	Multiple effects: classic strobe, random, pulse, etc.
Power Supply	100-240 VAC, 50/60 Hz (universal power supply)
Max Electrical Chaining	7 units at 100 V, 9 at 120 V, 16 at 208 V, 18 at 230 V, 19 at 240 V
Protection Rating	IP20 (indoor use only)
Max Ambient Temperature	45 °C (113 °F)
Safety Distance	Do not stare directly within 3.5 m (11.5 ft)
Mounting	Omega bracket with captive bolt, safety cable required
Ventilation	Fan with Auto, ECO (silent) and Full modes
Fuse	Replaceable (type and amperage specified in manual)
DMX Connection	XLR 3 or 5 pin, RDM protocol supported
Display	LCD screen with rotation function (Screen Rev)
Maintenance	Clean lenses with a soft cloth and appropriate cleaner
Warranty	Limited warranty, applies under conditions (see manual)

Frequently Asked Questions - Rogue R1X Wash Chauvet

How to set the starting DMX address on the Chauvet Rogue R1X Wash?

Access the main menu, select 'Address', then use the arrow keys to choose an address between 001 and 512. Confirm with the 'Enter' button (DMX address).

What are the available DMX modes and how to select them?

The Rogue R1X Wash offers 4 personalities: 14CH, 15CH, 19CH and 21CH. In the 'Run Mode' menu, choose 'DMX' then the desired personality. The 21CH mode offers the most complete control with movement macros (DMX personalities).

How to perform an automatic test of the fixture?

In the main menu, go to 'Run Mode' then select 'Auto Test'. The fixture will automatically execute a test sequence of all its functions (automatic test).

What to do if the fixture no longer responds to DMX commands?

First check the DMX cabling and the starting address. Make sure the console is sending data. If the problem persists, try a factory reset via the 'Factory Set' menu.

How to clean the lenses of the Rogue R1X Wash?

Unplug the fixture. Use a soft, lint-free cloth slightly dampened with an optical glass cleaner. Never apply liquid directly to the lens (lens maintenance).

What is the maximum number of fixtures I can daisy chain electrically?

This depends on the voltage: up to 7 units at 100 V, 9 at 120 V, 16 at 208 V, 18 at 230 V and 19 at 240 V. Never exceed these limits to avoid overloads (electrical daisy chaining).

How to replace the fuse of the fixture?

Disconnect power. Use a flathead screwdriver to unscrew the fuse holder cover. Remove the defective fuse and replace it with an identical fuse (same type and amperage). Screw the cover back on (fuse replacement).

The fan is too noisy, how to make it quieter?

In the 'Setup' menu, set the 'Fans' option to 'ECO'. This mode prioritizes silence while adapting speed to temperature. You can also select 'Auto' for automatic management (ECO fan mode).

How to reverse the rotation direction of Pan or Tilt?

In the 'Setup' menu, go to 'Pan Reverse' or 'Tilt Reverse' and set to 'ON' to reverse the direction. This is useful if the fixture is mounted upside down (pan/tilt reverse).

What to do if the display screen is inverted?

In the 'Setup' menu, select 'Screen Rev' and set to 'ON' to invert the display by 180°, or 'OFF' for normal display (screen rotation).

USER MANUAL Rogue R1X Wash Chauvet

Black RTX WASH DGUE VR headset with green laser light source, displayed on a stand (no readable text or symbols)

Model ID: ROGUER1XWASH

About This Guide

The Rogue R1X Wash Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 11.5 ft (3.5 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 8 in (20 cm) of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Rogue R1X Wash
  • N e ^® powerCON ^® ipower cord
• Omega bracket with mounting hardware
• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

It is possible to power link up to 7 Rogue R1X Wash products at 100 V, 9 products at 120 V, 16 products at 208 V, 18 products at 230 V, or up to 19 products at 240 V. Never exceed this number. Power-linking cables can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect the product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Rogue R1X Wash will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue R1X Wash uses a 3- or 5-pin DMX data connection for its DMX personalities: 14CH, 15CH, 19CH, and 21CH. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Rogue R1X Wash supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

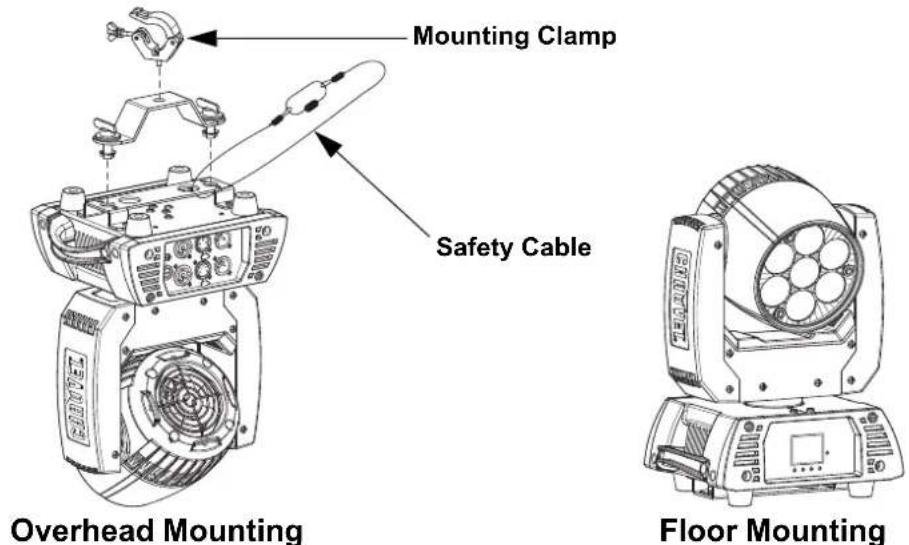

Mounting Diagram

When using only one mounting clamp, be sure to use a clamp with a captive bolt to prevent accidental loosening.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function

Menu Map

Refer to the Rogue R1X Wash product page on www.chauvetprofessional.com for the latest menu map.

Main Level Programming Levels Description
Address 001-512 Sets the starting address
Run Mode	DMX	14CH		Selects the DMX personality
		15CH
		19CH
		21CH
	Auto Test Auto test all functions
	Manual Test	Pan	000-255	Manually control and test all settings through the control panel
		Tilt
		Dimmer
		Shutter
		Red
		Green
		Blue
		White
		Zoom
Setup	Pan Reverse	OFF Normal pan
		ON Reversed pan
	Tilt Reverse	OFF Normal tilt
		ON Reversed tilt
	Pan Angle	540 540° pan range
		360 360° pan range
		180 180° pan range
	Tilt Angle	230 230° tilt range
		180 180° tilt range
		90		90° tilt range
	Fans	Auto		Fan speed according to product temperature
		ECO		Quiet mode
		Full		Fan speed set on high
	Display	OFF Display turns off
		ON Display stays on
	Screen Rev	OFF Normal display
		ON Inverted display
	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth		Smooth dimmer speed
		Fast		Fast dimmer speed

Main Level	Programming Levels				Description
Setup (cont.)	PWM Option	600Hz			Sets the PWM frequency
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	LED R POWER	050-100 Sets red LED power
	LED G POWER	050-100 Sets green LED power
	LED B POWER	050-100 Sets blue LED power
	LED W POWER	050-100 Sets white LED power
	White Mode	On Calibrates white to 7500K
		Off Uses maximum output values
		Custom	RED	000-255	Sets red LED maximum value
			GREEN Sets green LED max	maximum value
			BLUE Sets blue LED max	imum value
			WHITE Sets white LED max	maximum value
	Color Calibration	On Uses factory default			white setting
		Off Uses maximum output values
		Custom	RED	100-255D m	Sets red LED maximum value
			GREEN Sets green LED max	maximum value
			BLUE Sets blue LED max	imum value
	Reset Function	Pan/Tilt	NO		Reset individual functions or all functions from start-up
			YES
		Zoom	NO
			YES
		All	NO
			YES
	Factory Set Reset to factory default settings
Sys Info	System Information	Ver V_ Shows firmware version
		Running Mode _ _ Shows current running mode
		DMX Address _ _ Shows current starting address
		Temperature _ _			Shows current product temperature in °C
		Fixture Time _ _			Shows number of hours product has been powered on
		UID: _			Shows product UID

DMX Values
Color Chart

DMX Value	Percent/Setting	Red Value	Green Value	Blue Value	White Value
000 ⇔ 004 Open 000 000 000 000
005 ⇔ 009	Color 1	000	000	000	255
010 ⇔ 014	Color 2	255	235	052	000
015 ⇔ 019	Color 3	214	134	048	000
020 ⇔ 024	Color 4	255	000	044	000
025 ⇔ 029	Color 5	255	059	113	000
030 ⇔ 034	Color 6	255	138	219	000
035 ⇔ 039	Color 7	226	175	226	000
040 ⇔ 044	Color 8	040	001	255	000
045 ⇔ 049	Color 9	000	000	255	000
050 ⇔ 054	Color 10	000	078	255	000
055 ⇔ 059	Color 11	000	199	255	000
060 ⇔ 064	Color 12	000	255	234	000
065 ⇔ 069	Color 13	149	246	255	000
070 ⇔ 074	Color 14	137	255	227	000
075 ⇔ 079	Color 15	213	220	222	000
080 ⇔ 084	Color 16	219	232	175	000
085 ⇔ 089	Color 17	205	255	199	000
090 ⇔ 094	Color 18	115	255	165	000
095 ⇔ 099	Color 19	006	255	143	000
100 ⇔ 104	Color 20	000	255	094	000
105 ⇔ 109	Color 21	029	255	000	000
110 ⇔ 114	Color 22	032	223	000	000
115 ⇔ 119	Color 23	075	255	000	000
120 ⇔ 124	Color 24	080	232	000	000
125 ⇔ 129	Color 25	108	226	000	000
130 ⇔ 134	Color 26	145	194	000	000
135 ⇔ 139	Color 27	210	255	000	000
140 ⇔ 144	Color 28	225	232	000	000
145 ⇔ 149	Color 29	023	215	000	000
150 ⇔ 154	Color 30	247	214	000	000
155 ⇔ 159	Color 31	255	163	000	000
160 ⇔ 164	Color 32	255	152	000	000
165 ⇔ 169	Color 33	255	108	000	000
170 ⇔ 174	Color 34	255	255	255	255
175 ⇔ 179 Open 000 000 000 000
180 ⇔ 201	Color scroll, fast to slow	Various	Various	Various	Various
202 ⇔ 207	Hold	Various	Various	Various	Various
208 ⇔ 229	Reverse color scroll, fast to slow	Various	Various	Various	Various
230 ⇔ 234	No function	000	000	000	000
235 ⇔ 249	Color snap, fast to slow	Various	Various	Various	Various
250 ⇔ 255	No function	000	000	000	000

21CH

Channel Function Value Percent/Setting
1	P a n	000 ⇔ 255	0–100%
2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
3	T i l t	000	⇔ 255 0–100%
4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed	000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
8	S t r o	000 ⇔ 019	Off
		020 ⇔ 024	On
		025 ⇔ 064	Strobe, fast to slow
		065 ⇔ 069	On
		070 ⇔ 084	Fast on, slow off (fast to slow)
		085 ⇔ 089	On
		090 ⇔ 104	Slow on, fast off (fast to slow)
		105 ⇔ 109	On
		110 ⇔ 124	Random strobe, fast to slow
		125 ⇔ 129	On
		130 ⇔ 144	Random fast on, slow off (fast to slow)
		145 ⇔ 149	On
		150 ⇔ 164	Random slow on, fast off (fast to slow)
		165 ⇔ 169	On
		170 ⇔ 184	Pulse strobe, fast to slow
		184 ⇔ 189	On
		190 ⇔ 204	Random pulse strobe, fast to slow
		205 ⇔ 209	On
		210 ⇔ 224	Slow on, slow off (fast to slow)
		225 ⇔ 229	On
		230 ⇔ 244	Pulse strobe, fast to slow
		245 ⇔ 255	On
9	Red	000 ⇔ 255	0–100%
10	Fine Red	000 ⇔ 255	Fine control (16-bit)
11	Green	000 ⇔ 255	0–100%
12	Fine Green	000 ⇔ 255	Fine control (16-bit)
13	Blue	000 ⇔ 255	0–100%
14	Fine Blue	000 ⇔ 255	Fine control (16-bit)
15	White	000 ⇔ 255	0–100%
16	Fine White	000 ⇔ 255	Fine control (16-bit)
17	Color	000 ⇔ 255	See the Color Chart
18	Zoom	000 ⇔ 255	100%–0
Channel Function Value Percent/Setting
19 Movement Macros	Control(5 second activation delay)	000 ⇔ 007 No function008 ⇔ 023 Movement macro 1024 ⇔ 039 Movement macro 2040 ⇔ 055 Movement macro 3056 ⇔ 071 Movement macro 4072 ⇔ 087 Movement macro 5088 ⇔ 103 Movement macro 6104 ⇔ 119 Movement macro 7120 ⇔ 135 Movement macro 8136 ⇔ 151 Movement macro 9152 ⇔ 167 Movement macro 10168 ⇔ 183 Movement macro 11184 ⇔ 199 Movement macro 12200 ⇔ 215 Movement macro 13216 ⇔ 231 Movement macro 14232 ⇔ 247 Movement macro 15248 ⇔ 255 Movement macro 16
20 Movement Macro Speed	000 ⇔ 255	Movement macro speed, fast to slow
21		000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 119 No function120 ⇔ 124 Fan ECO mode125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto mode135 ⇔ 139 Fast dimmer140 ⇔ 144 Smooth dimmer145 ⇔ 149 Linear dimmer curve150 ⇔ 154 Square dimmer curve155 ⇔ 159 Inverse square dimmer curve160 ⇔ 164 S-curve dimmer curve165 ⇔ 169 White mode on170 ⇔ 174 White mode off175 ⇔ 255 No function

19CH

Channel Function Value Percent/Setting
1	P a n		000 ⇔ 255 0–100%
2	Fine Pan		000 ⇔ 255	Fine control (16-bit)
3	T i l t		000	⇔ 255 0–100%
4	Fine Tilt		000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed		000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	Fine Dimmer		000 ⇔ 255	Fine control (16-bit)
8	S t r o		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
9	Red		000 ⇔ 255	0–100%
10	Fine Red		000 ⇔ 255	Fine control (16-bit)
11	Green		000 ⇔ 255	0–100%
12	Fine Green		000 ⇔ 255	Fine control (16-bit)
13	Blue		000 ⇔ 255	0–100%
14	Fine Blue		000 ⇔ 255	Fine control (16-bit)
15	White		000 ⇔ 255	0–100%
16	Fine White		000 ⇔ 255	Fine control (16-bit)
17	Color		000 ⇔ 255	See the Color Chart
18	Zoom		000 ⇔ 255	0–100%

Channel Function Value Percent/Setting
19	Control(5 second activation delay)	000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 119 No function120 ⇔ 124 Fan ECO mode125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto mode135 ⇔ 139 Fast dimmer140 ⇔ 144 Smooth dimmer145 ⇔ 149 Linear dimmer curve150 ⇔ 154 Square dimmer curve155 ⇔ 159 Inverse square dimmer curve160 ⇔ 164 S-curve dimmer curve165 ⇔ 169 White mode on170 ⇔ 174 White mode off175 ⇔ 255 No function

15CH

Channel Function Value Percent/Setting
1	P a n		000 ⇔ 255 0–100%
2	Fine Pan		000 ⇔ 255	Fine control (16-bit)
3	T i l t		000 ⇔ 255 0–100%
4	Fine Tilt		000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed		000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	Fine Dimmer		000 ⇔ 255	Fine control (16-bit)
8	S t r o		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
9	Red		000 ⇔ 255	0–100%
10	Green		000 ⇔ 255	0–100%
11	Blue		000 ⇔ 255	0–100%
12	White		000 ⇔ 255	0–100%
13	Color		000 ⇔ 255	See the Color Chart
14	Zoom		000 ⇔ 255	0–100%

Channel Function Value Percent/Setting
15	Control(5 second activation delay)	000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 119 No function120 ⇔ 124 Fan ECO mode125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto mode135 ⇔ 139 Fast dimmer140 ⇔ 144 Smooth dimmer145 ⇔ 149 Linear dimmer curve150 ⇔ 154 Square dimmer curve155 ⇔ 159 Inverse square dimmer curve160 ⇔ 164 S-curve dimmer curve165 ⇔ 169 White mode on170 ⇔ 174 White mode off175 ⇔ 255 No function

14CH

Channel Function Value Percent/Setting
1	P a n		000 ⇔ 255 0–100%
2	Fine Pan		000 ⇔ 255	Fine control (16-bit)
3	T i l t		000	⇔ 255 0–100%
4	Fine Tilt		000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed		000 ⇔ 255	Fast to slow
6 Dimmer 000 ⇔ 255 0–100%
7	S t r o		000 ⇔ 019 Off020 ⇔ 024 On025 ⇔ 064 Strobe, fast to slow065 ⇔ 069 On070 ⇔ 084 Fast on, slow off (fast to slow)085 ⇔ 089 On090 ⇔ 104 Slow on, fast off (fast to slow)105 ⇔ 109 On110 ⇔ 124 Random strobe, fast to slow125 ⇔ 129 On130 ⇔ 144 Random fast on, slow off (fast to slow)145 ⇔ 149 On150 ⇔ 164 Random slow on, fast off (fast to slow)165 ⇔ 169 On170 ⇔ 184 Pulse strobe, fast to slow184 ⇔ 189 On190 ⇔ 204 Random pulse strobe, fast to slow205 ⇔ 209 On210 ⇔ 224 Slow on, slow off (fast to slow)225 ⇔ 229 On230 ⇔ 244 Pulse strobe, fast to slow245 ⇔ 255 On
8	Red		000 ⇔ 255	0–100%
9	Green		000 ⇔ 255	0–100%
10	Blue		000 ⇔ 255	0–100%
11	White		000 ⇔ 255	0–100%
12	Color		000 ⇔ 255	See the Color Chart
13	Zoom		000 ⇔ 255	0–100%

Channel Function Value Percent/Setting
14	Control(5 second activation delay)	000 ⇔ 009 No function010 ⇔ 014 Blackout during pan/tilt015 ⇔ 049 No function050 ⇔ 054 Pan reset055 ⇔ 059 Tilt reset060 ⇔ 064 Zoom reset065 ⇔ 069 No function070 ⇔ 074 Reset all075 ⇔ 079 No function080 ⇔ 084 Reverse pan and tilt movement085 ⇔ 089 Reverse pan movement090 ⇔ 094 Reverse tilt movement095 ⇔ 099 Normal pan movement100 ⇔ 104 Normal tilt movement105 ⇔ 109 Normal pan and tilt movement110 ⇔ 119 No function120 ⇔ 124 Fan ECO mode125 ⇔ 129 Fan full speed130 ⇔ 134 Fan auto mode135 ⇔ 139 Fast dimmer140 ⇔ 144 Smooth dimmer145 ⇔ 149 Linear dimmer curve150 ⇔ 154 Square dimmer curve155 ⇔ 159 Inverse square dimmer curve160 ⇔ 164 S-curve dimmer curve165 ⇔ 169 White mode on170 ⇔ 174 White mode off175 ⇔ 255 No function

Acerca de Esta Guía

RDM (Remote Device Management)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

®

us

UL 1573

CSA C22.2 No. 166

E113093

RoHS
