USER MANUAL WELL Pad Chauvet

WIRELESS EVENT LED LUMINAIRE

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

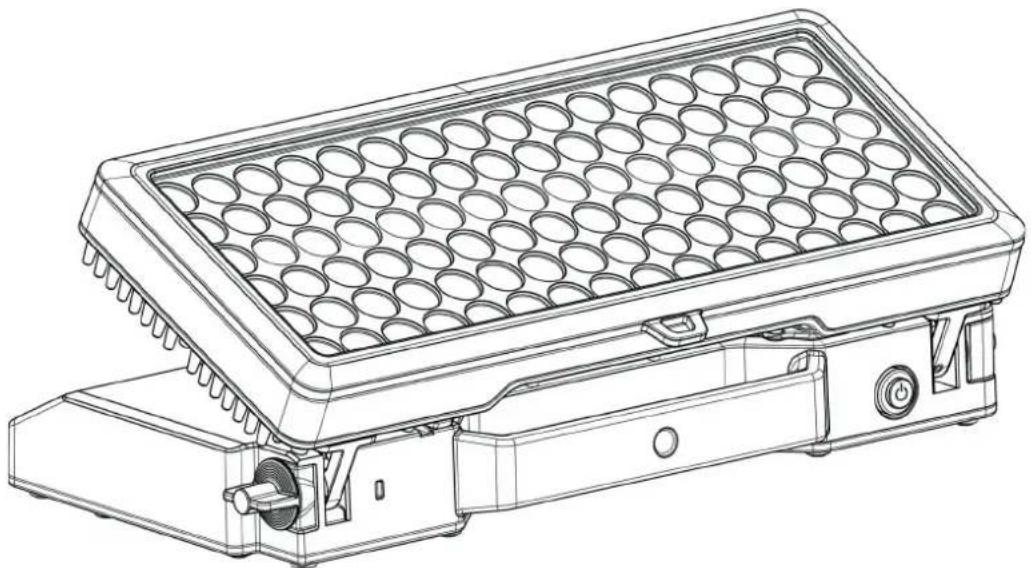

Technical line drawing of a rectangular electronic device with circular grid pattern and mounting base (no text or symbols)

About This Guide

The WELL Pad Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

- DO NOT open this product. It contains no user-serviceable parts.

- DO NOT look at the light source when the product is on.

- Be sure the product is closed completely before inserting into the charging case.

- Do not operate the product in a sealed enclosure or in an area without air circulation.

- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

CAUTION: This product's housing may be hot when lights are operating.

• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.

- USE a safety cable when mounting this product overhead.

• DO NOT submerge this product (IP65).

• DO NOT operate this product if the housing, lenses, or cables appear damaged.

- DO NOT connect the charging case to a dimmer or rheostat.

- ONLY connect this product to a grounded and protected circuit.

- ONLY use the handle to carry this product.

• In the event of a serious operating problem, stop using immediately.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

• The minimum startup temperature is -4^ ( -20^ ). Do not start the product at lower temperatures.

• The minimum ambient temperature is -22^ ( -30^ ). Do not operate the product at lower temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

- 4x WELL Pad

- Charging Case

- IR Remote

The charging case has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50/60 Hz. AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

DMX Linking

The WELL Pad will work with a DMX controller using a wireless DMX connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The WELL Pad uses a wireless DMX data connection for its DMX personalities: 4Ch, 6Ch, 10Ch, HSV, and HSI. See the User Manual for information about connecting and configuring the product for DMX operation.

Infrared Remote Control (IRC)

The WELL Pad is fully compatible with the Infrared Remote Control (IRC) from CHAUVET. For more information on the IRC, download the User Manual from www.chauvetprofessional.com.

It may be necessary to turn the product off and on again when switching from W-DMX to IRC and vice versa.

Wireless Operation

In optimal conditions, the WELL Pad can operate up to 300 m (900 ft) away from the W-DMX transmitter. The W-DMX receiver in the WELL Pad must be paired with the W-DMX transmitter for wireless operation.

Initial Setup

1. Turn the W-DMX transmitter on.
2. Connect the W-DMX transmitter to a DMX controller.
3. Place the WELL Pad within 300 m from the W-DMX transmitter.
4. Turn the WELL Pad on.

Configuration

1. From the WELL Pad's control panel, go to DMX Address.
2. Select the start address, as with any other DMX compatible product.
3. Go to Wireless Setting > Operating Mode.
4. Select Receive.
5. Go to Wireless Setting > W-DMX On/Off.

6. Select On. (The Signal Strength Indicator will show a ? in front of the bars)

7. Press the reset button on the W-DMX transmitter. (The Signal Strength Indicator on theWELL Pad will show a 5 in front of the bars for 3 seconds while a connection is established.)

Product Pairing

If the WELL Pad has already been paired with the W-DMX transmitter, the Signal Strength Indicator in the middle of the OLED screen will show the strength of the signal. In this case, the WELL Pad is ready to work in Wireless mode.

Pairing the WELL Pad and a new W-DMX transmitter

1. From the WELL Pad's control panel, go to Wireless Setting >Receive Reset.
2. Select Yes. The Signal Strength Indicator on the WELL Pad will show a ? in front of the bars.
3. From the W-DMX transmitter, press (the Signal Indicator on the transmitter will flash).
4. Once the transmitter has found the WELL Pad, the Signal indicator on the W-DMX transmitter will illuminate solid.
5. The Signal Strength Indicator in the middle of the OLED screen on the WELL Pad will show the strength of the signal.

W-DMX operation can be interrupted or inhibited by liquid masses between the transmitter and receiver such as water, snow, or people. For best results, keep the area between the transmitter and receiver clear of any liquid mass.

Battery Charge Notes

This product is equipped with a built-in rechargeable lithium ion battery.

- Avoid depleting the battery below 10% .

• For best results, charge the battery in a temperature between 32^ F ( 0^ C), and 95^ F ( 35^ C).

- When charging the battery, keep the product at least 1 m from any open flame or hot plate.

- If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

- While charging, the device may heat up. This is normal and should not affect the device's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

- When charging the battery, keep the charging case's cover open.

• Always charge the battery with the product in an upright position.

- Do not charge the battery for more than 24 hours.

CAUTION: The power button must be in the off position before placing the product in the charging case.

Storage Notes

• Recharge the battery to full capacity before storing the product.
• Store charged product(s) in a dry environment, away from direct sunlight.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

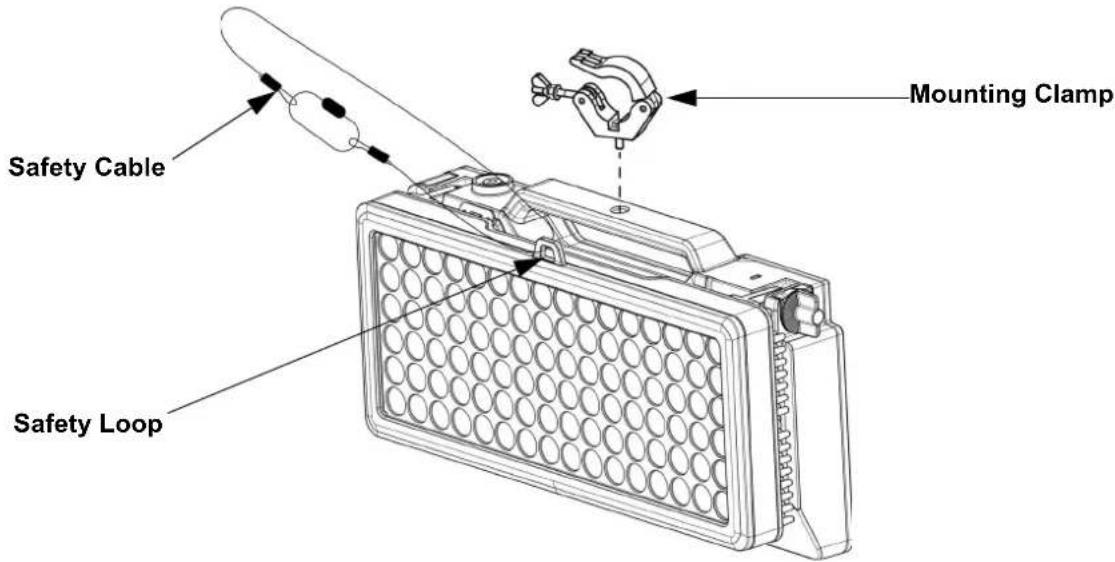

Mounting Diagram

Safety Cable Mounting Clamp Safety Loop

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function

Passcode

After being prompted, enter the following passcode: , , , , .

This passcode cannot be changed and must be used whenever prompted.

Virtual Color Wheel (VCW)

The WELL Pad includes a feature called the Virtual Color Wheel (VCW). This feature is available as a stand-alone control mode for manual use and also as a control channel in select DMX personalities. Over 30 pre-mixed colors, custom blended by our engineers, are available to call up for easier programming.

The DMX values used to mix these colors are provided below. Adjust the overall intensity of the product in order to more closely replicate familiar colors. A chart is available at www.chauvetprofessional.com to compare these pre-mixed colors with popular gel colors. This chart is for comparison purposes only and is not a representation that these pre-mixed colors match any of the gel colors listed.

Virtual Color Wheel Chart

Display Readout	Red Value	Green Value	Blue Value	Amber Value
-- 000 000 000 000
C3050 - Md Yellow 230	255 000 253
C3040 - Lt Yellow 255	244 036 255
C3240 - Amb Yellow 200	200 000 255
C2340 - VLt Amber 255	204 072 255
C2040 - Lt Amber 252	184 060 255
C2050 - Md Amber 226	150 012 255
C2060 - Dk Amber 255	136 016 255
C1050 - Lt Red 225	000 027 097
C1080 - Md Red	255 000 016 002
C1020 - NC Pink	255	245	118	255
C1030 - Md Pink	255	205	115	255
C1630 - Dk Pink	255 228	166 255
C1250 - Md Red Amber	253 035	042 212
C1060 - Dk Red Amber	193 000	035 100
C1650 - Magenta	255	116	116	255
C6170 - Dk Magenta	255 000	122 048
C6020 - Lt Lavender	255 255	116	137
C5030 - Lt Blue	000 255	167 230
C5020 - VLt Blue	086 255	167 255
C5430 - Lt Blue 2 000	255 159 208
C5070 - Blue	000 244	255 063
C5050 - Md Blue	000 255	217 171
C5060 - Dk Blue	000 242	255 134
C5690 - Indigo 000	021 255 120
C5080 - VDk Blue 000	182 255 007
C5081 - VDk Blue2	000 174	255 051
C4370 - Yel Green	000 255	037 107
C4070 - Green 000	255 070 177
C4550 - Turquoise 000	255 103 234
C4560 - Aqua	000	255	112	223
C4570 - Blue Green	000 255	101 030
-- 000 000 000 000

Note: The colors above are simulated renditions of the color output produced as compared to other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

Menu Map

Main Level Programming Levels Description
Auto Show Auto 1-5 <1-100> Automatic programs
Static	Fixed Color	R Red
		G Green
		B Blue
		A Amber
		GB Green and blue
		RB Red and blue
		RG Red and green
		RGB Red, green, and blue
		RA Red and amber
		GA Green and amber
		BA Blue and amber
		RGA Red, green, and amber
		RBA Red, blue, and amber
		GBA Green, blue, and amber
		RGBA Red, green, blue, and amber
	Virtual Color Wheel	C3050-Md Yellow	Dimmer<000-255>	Virtual color wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart section for specific values.
		C3040-Lt Yellow
		C3240-Amb Yellow
		C2340-VLt Amber
		C2040-Lt Amber
		C2050-Md Amber
		C2060-Dk Amber
		C1050-Lt Red
		C1080-Md Red
		C1020-NC Pink
		C1030-Md Pink
		C1630-Dk Pink
		C1250-Md Red Amber
		C1060-Dk Red Amber
		C1650-Magenta
		C6170-Dk Magenta
		C6020-Lt Lavender
		C5030-Lt Blue
		C5020-VLt Blue
		C5430-Lt Blue2
		C5070-Blue
		C5050-Md Blue
		C5060-Dk Blue
		C5690-Indigo
		C5080-VDk Blue
		C5081-VDk Blue2
		C4370-Yel Green
		C4070-Green
		C4550-Turquoise
		C4560-Aqua
		C4570-Blue Green
	Manual Color Mixer	Red	<0-255>	Combines red, green, blue, and amber to make a custom color (0-100%)
		Green
		Blue
		Amber
Dimmer Mode	Off Linear dimmer
	Dimmer 1-3			Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
Main Level	Programming Levels			Description
Back Light	On Display backlight always on
	10S			Turns off display backlight after 10 seconds of inactivity
	20S			Turns off display backlight after 20 seconds of inactivity
	30S			Turns off display backlight after 30 seconds of inactivity
Information	Fixture Hours <__ _ H> Shows total hours the product has been powered on
	Version <V__ > Shows current firmware version
	UID <_______> Shows product UID
DMX Address	<1-510>			Selects DMX address (highest channel restricted to personality chosen)
DMX Channel	4Ch 4-channel: RGBA control
	6Ch 6-channel: Dimmer, RGBA control, Strobe
	10Ch			10-channel: Dimmer, RGBA control, Strobe, Color Macros, Auto Programs, Auto Speed, Dimmer Speed Mode
	HSV 3-channel: Hue, Saturation, Value
	HSI 3-channel: Hue, Saturation, Intensity
Master/Slave	Master Master mode (Standalone)
	Slave			Slave mode (DMX)
White Balance	Off Disables white balance settings
	Manual	Red	<125-255>	Sets red, green, blue, and amber LED maximum values.
		Green
		Blue
		Amber
LED Frequency	600Hz			PWM frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Wireless Setting	W-DMX On/Off	On		Enables/disables wireless DMX
		Off
	Operating Mode	Receive		Receive WDMX
		Transmit		Transmit WDMX
	Link(Only in Transmit mode)	Link		Links or unlinks to a WDMX receiver
		Unlink
	Receive Reset(Only in Receive mode)	No		Resets the internal receiver
		Yes
IR Setting	On			Enables/disables IR receiver
	Off
Key Lock	On			Locks display (password is,,),
	Off
Reset Factory	No			Resets the product to factory default settings
	Yes

DMX Values
10Ch

Channel Function Value Percent/Setting

1 Dimmer 000

255 0-100%

2

R

e

d

000

255 0-100%

3

G

r

e

e

n

2550-100%

4

B

l

u

e

000 255 0-100%

5

A

m

b

e

r

25500-100%

6

S

t

r

o

b

000 010 No function011 255 Strobe, slow to fast

7 Color Macro

000 010 No function011 030 R: 100% G: 0-100% B: 0% A: 0%031 050 R: 100-0% G: 100% B: 0% A: 0%051 070 R: 0% G: 100% B: 0-100% A: 0%071 090 R: 0% G: 100-0% B: 100% A: 0%091 110 R: 0-100% G: 0% B: 100% A: 0%111 130 R: 100% G: 0% B: 100-0% A: 0%131 150 R: 100% G: 0-100% B: 0-100% A: 0%151 170 R: 100-0% G: 100-0% B: 100% A: 0%171 200 R: 100% G: 100% B: 100% A: 100%201 205 Color temperature 1 (warmest)206 210 Color temperature 2211 215 Color temperature 3216 220 Color temperature 4221 225 Color temperature 5226 230 Color temperature 6231 235 Color temperature 7236 240 Color temperature 8241 245 Color temperature 9246 250 Color temperature 10251 255 Color temperature 11 (coolest)

8 Auto Program

000 051 No function052 101 Auto 1102 152 Auto 2153 203 Auto 3204 254 Auto 4255 Auto 5 (Auto 1-4)

9

Auto Speed

000 255 Auto speed, slow to fast

10

Dimmer Speed Mode

000 051 Preset dimmer speed from display menu052 101 Dimmer speed mode off (linear dimmer)102 152 Dimmer speed mode 1 (fastest)153 203 Dimmer speed mode 2204 255 Dimmer speed mode 3 (slowest)

6Ch

Channel Function Value Percent/Setting
1 Dimmer 000						255 0–100%
2	R	e	d	000		255 0–100%
3	G	r	e	e	n	2550–100%
4	B	l	u	e		000 255 0–100%
5	A	m	b	e	r	25500–100%
6	S	t	r	o	b	000 010 No functione011 255 Strobe, slow to fast

4Ch

Channel Function Value Percent/Setting
1	R	e	d	000		255 0–100%
2	G	r	e	e	n	2550–100%
3	B	l	u	e		000 255 0–100%
4	A	m	b	e	r	25500–100%

HSV

Channel Function Value Percent/Setting
1	H	u	e	000	255	0–100%
2 Saturation	000				255	0–100%
3	Va	l	u	e	255	0–100000

HSI

Channel	Function Value Percent/Setting
1	H	u	e	000	255 0–100%
2	Saturation	000			255 0–100%
3	Intensity			000	255 0–100%

Acerca de Esta Guía

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

RoHS
