USER MANUAL Sirocco Prixton

Line drawing of a vacuum cleaner with long handle and mounted device (no text or symbols)

ASPIRADOR

VACUUM CLEANER

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a handheld device with internal components and a directional arrow (no text or symbols)

Technical line drawing of a cylindrical mechanical device mounted on a base (no text or symbols)

Technical line drawing of a mechanical device with two cylindrical components and a base mount, showing internal gear and a directional arrow (no text or symbols)

Illustration of four different stages of a water treatment procedure: pouring liquid into a container, washing in a basin with plastic bottles, and drying with sun (no text or symbols)

Three-step diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

Esponja de aire

This products uses lithium-ion battery for power. Its very convenience for using.

Operation safety and notice

The Sirocco vacuum clearer is electrical appliance, so it must be used under normal conditions, it should not be operated without supervision

1. It may cause fire and damaging people if the cleaner vacuum the following items:

a) Heat source: Charcoal fire, cigarette ends
b) Large sharp fragment: broken glass piece
c) Liquid: hazardous artical (solvent, corrodent) acid agent, cleanser and water
d) Inflammable and explosive goods: gasoline and alcohol products
e) Construction waste and cement
2. Cut off the power when cleaning, maintenance and not using in a while.
3. Recommended using the supplied charger, checking the voltage the machine and the charger, making sure its consistent
4. Do not immerse the body of the unit into water
5. The children should not play or operate the vacuum cleaner in case any accidents happens.
6. Do not operate cleaner under such circumstance:

a) Falling down with apparent damage or out of order

b) Damage charger

1. Do not operate for a long period of time when the suction inlet was blocked, in case the motor was damaged or machine was deformed.

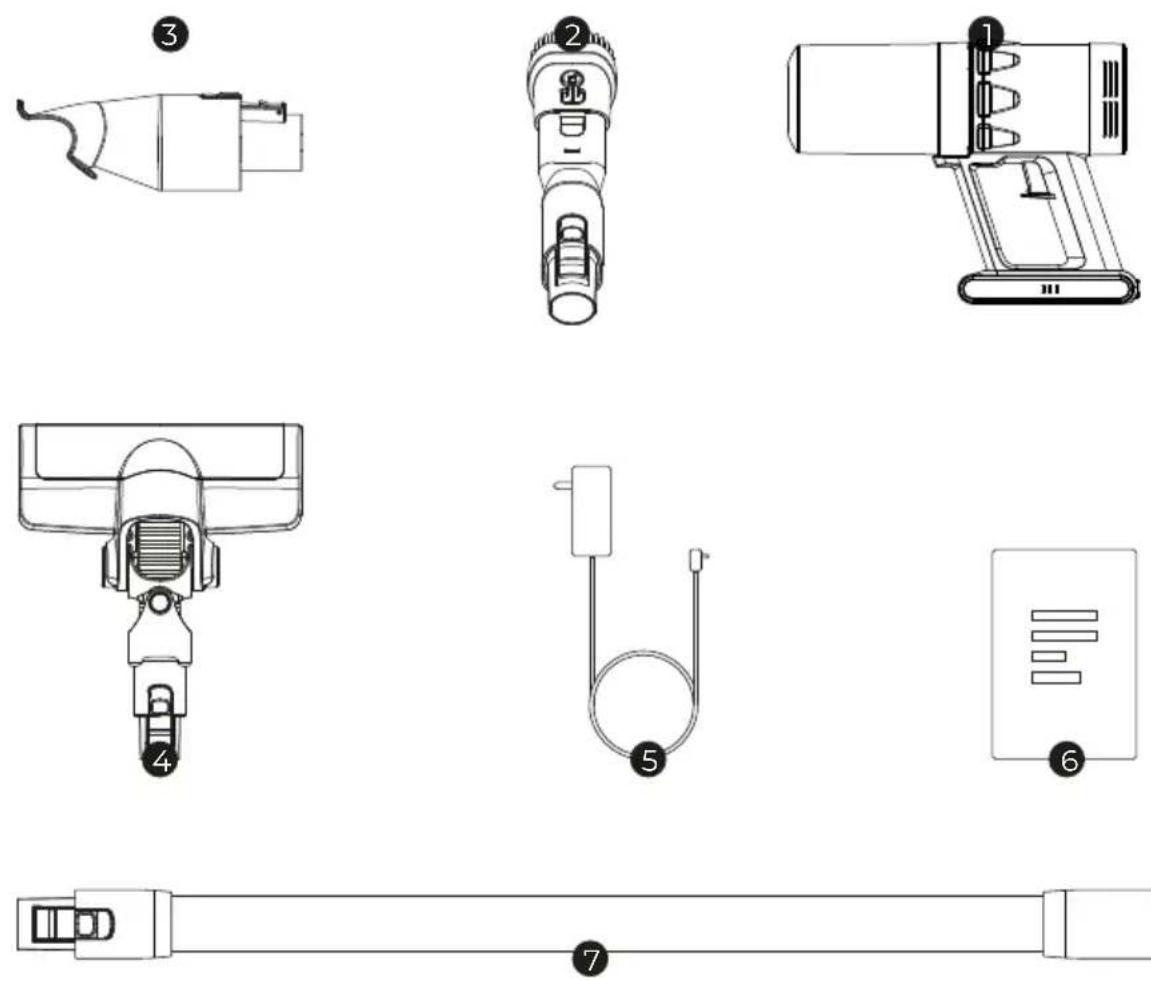

Product parts name and diagram

1. Vacuum cleaner

2. Telescopic brush

3. Multi-function brush

4. Brush Assembly

5. Charger

6. Instruction manual

7. Tube Assembly

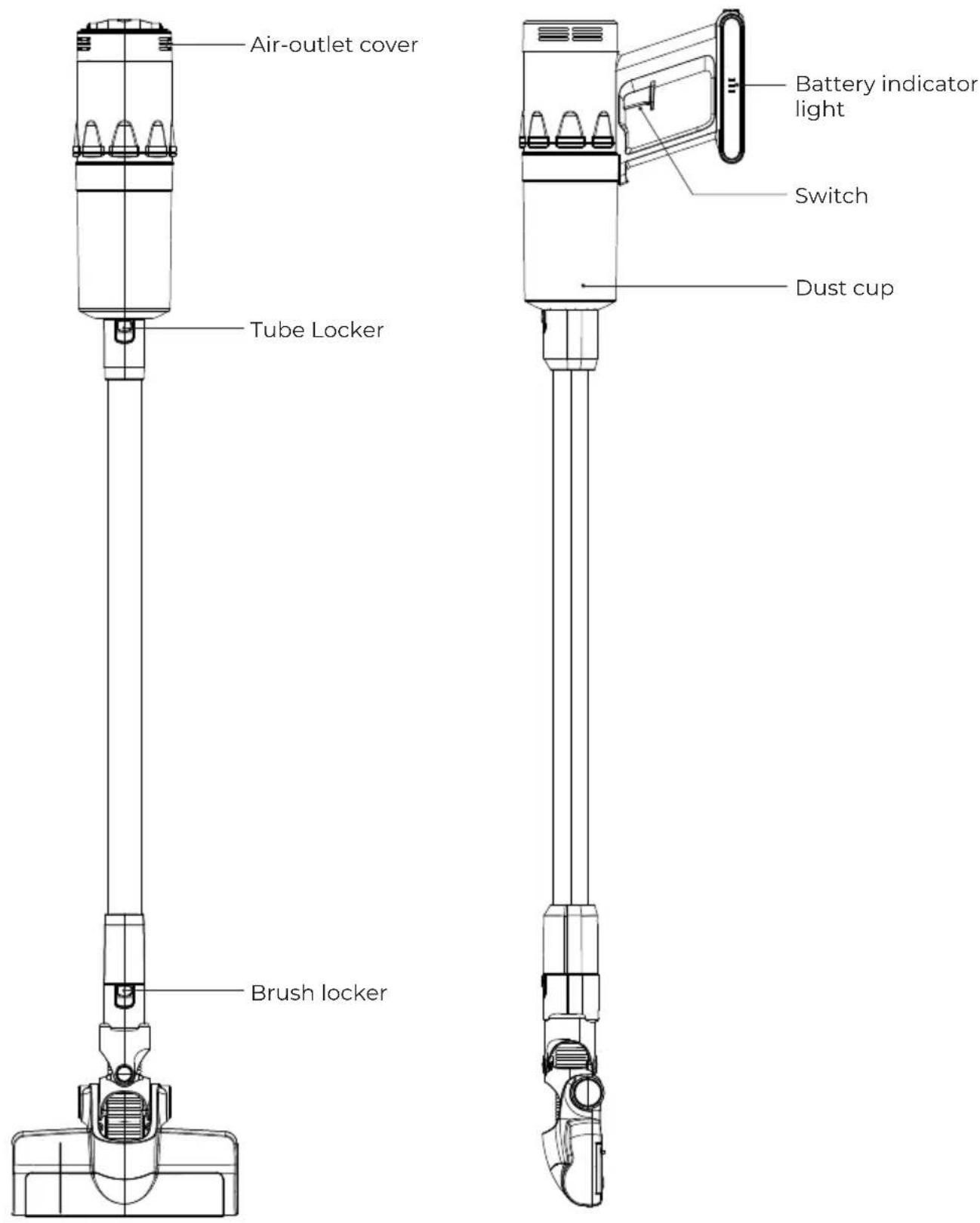

Product Component Description

Operation

Note: Air-inlet must be kept unobstructed, and there are no foreign bodies blocked, otherwise will cause the motor overheating causes the accident.

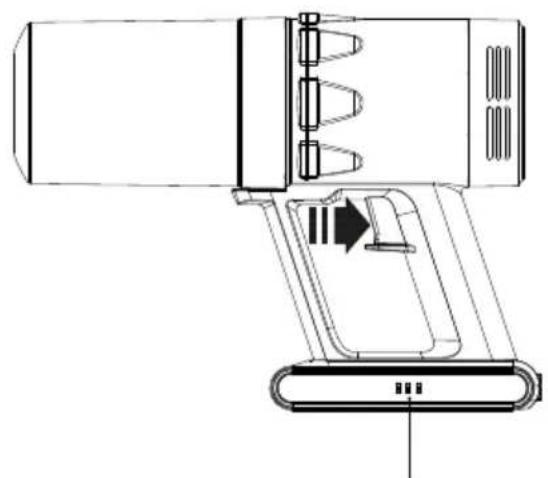

Operation: press the handle on the power switch, the machine open, belongs to low mode, work to push the button once again, when need to turn it off, continue to press the switch button, the vacuum cleaner stops working.

Working state: low model high mode shutdown.

Technical line drawing of a handheld device with internal components and directional arrows (no text or symbols)

Battery indicator

Note

Note that the speed regulation button does not need to be pressed for a long lime in the work. After the work of the machine, the display window of the battery pack will display the power, and the indicator light will gradually go out with the decrease of the power. Until it is all out. The machine has stopped working and needs recharging.

Charging

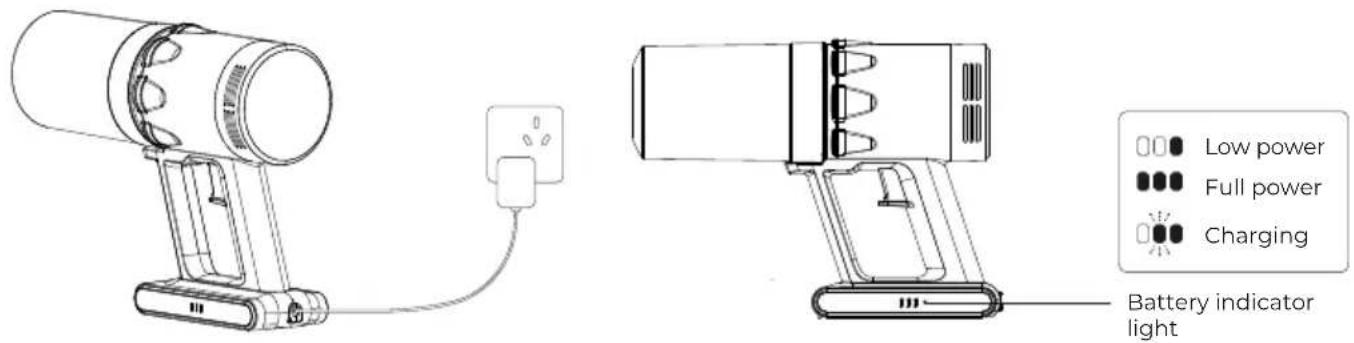

The charging port of the machine is at the tail of the machine. Remains closed to vacuum cleaner, put cleaner configuration power adapter plug one end into the power supply, the region round plug end insert the charging jack on the vacuum cleaner battery pack, when connected to the upper part of the vacuum cleaner will become blue lights flashing, when light into three blue lights all, don't blink after said vacuum cleaner battery has been charged, can pull out the power adapter plug, the vacuum cleaner can be used again. Note: the power adapter must use the adapter configured by this machine. After the power adapter is charged, it should be connected to the power supply line in time.

Low power Full power Charging Battery indicator light

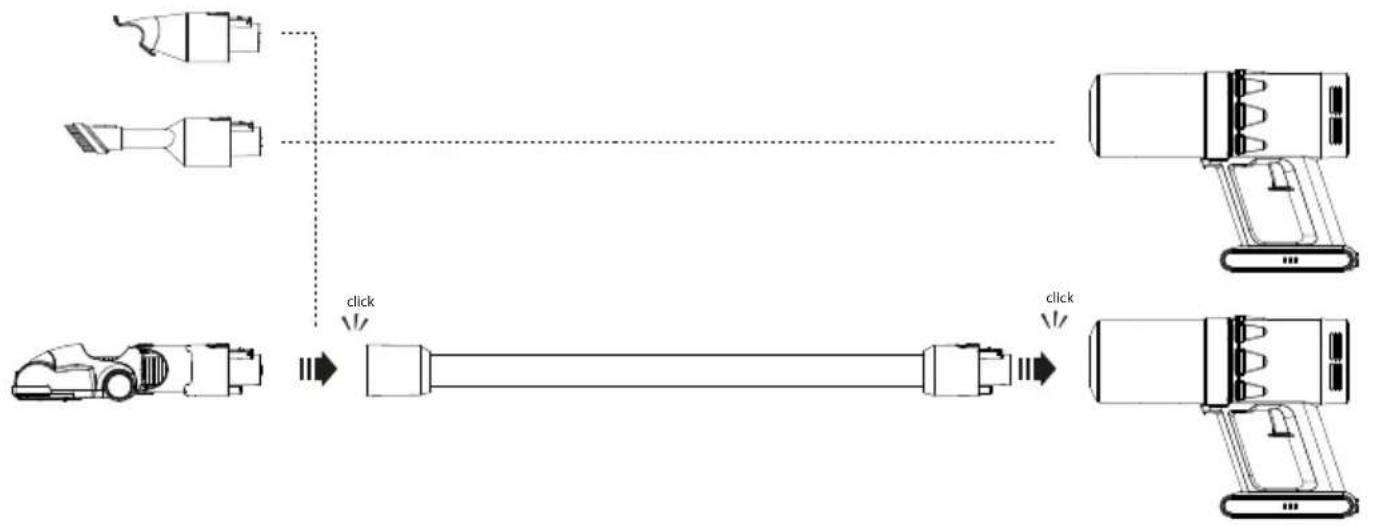

Accessories installing How to Install Accessories

1. According to the figure in the portable machine dust cup front insert multi-purpose brush head, the department after the lock up, brush a head in place, you can use
2. According to the figure in the portable machine dust cup front insert over components. The current lock up after, to take over the installed, you can use the link to brush accessories like.
3. According to the figure in the control of components connected to the brush to brush the front of the lock up local, to brush installed can use, according to the need to match on all kinds of accessoreis. Used for cleaning floor/curtain etc.

Machine cleaning Cleaning the dust cup

Note

Clean the filter components regularly, because the mites in the abdorbed cotton wool may not be killed, and will continue to breed. In order to avoid secondary pollution, the filter components should be cleaned after cleaning, or replace with new filter components.

1. Turn of

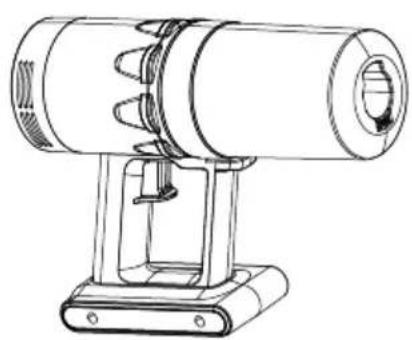

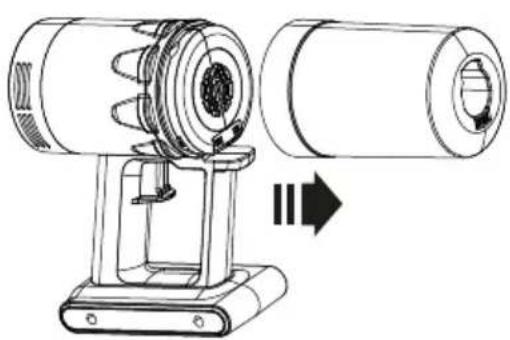

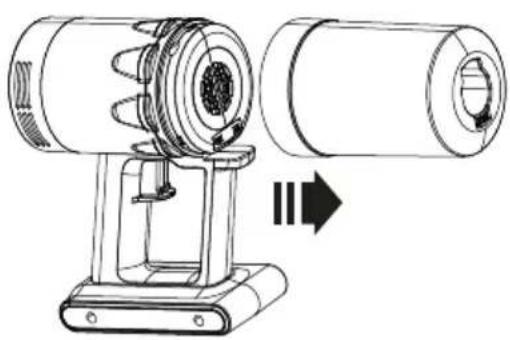

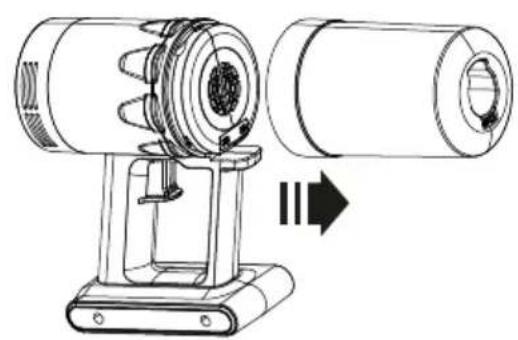

2. As shown in the figure, grasp the handle of the machine with the left hand and rotate the dust cup counterclockwise with the other hand. After drawing the reference point, pull out the dust cup outwards.

Technical line drawing of a cylindrical mechanical device mounted on a base (no text or symbols)

Technical line drawing of a mechanical device with two cylindrical components and directional arrows indicating motion (no text or symbols)

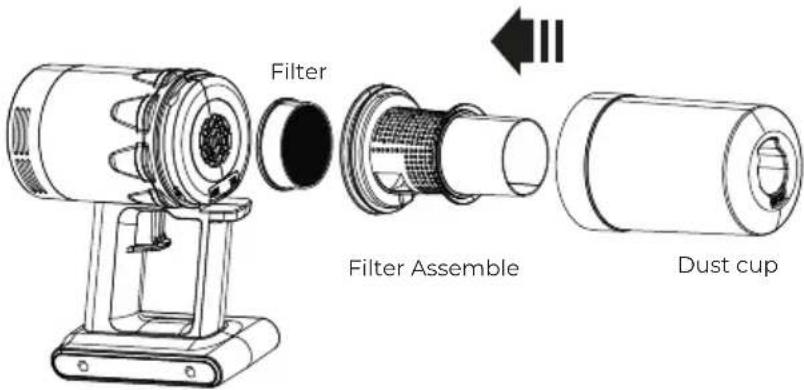

1. Hold the dust cup and press the arrow to take out the filter assembly. Clean up the dust

Filter Filter Assemble Dust cup

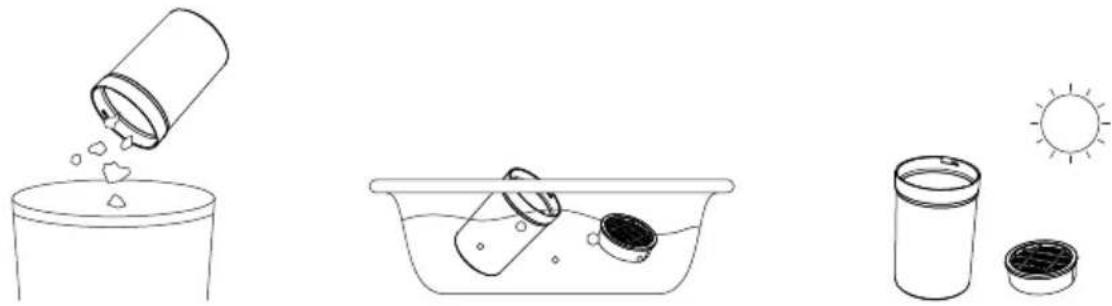

1. Clean up the dust, wash the filter assembly and filter with water, and dry them.

Illustration of four different stages of a water treatment procedure: pouring liquid into a container, washing in a basin with plastic bottles, and drying with sunlight (no text or symbols)

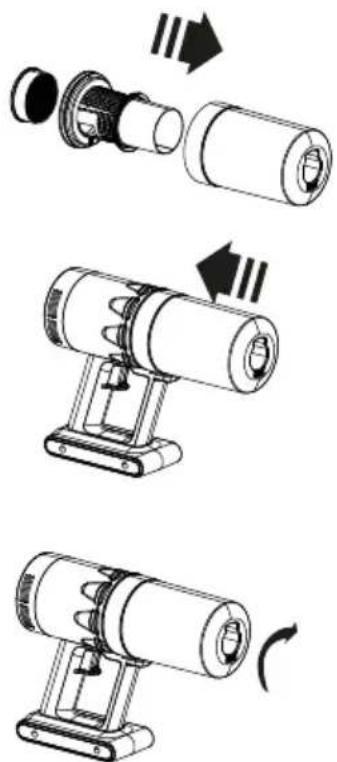

Dust cup Reset

A. Put the filter element into the filter assembly, align the positioning shape of the inlet on the filter assembly with the positioning shape of the dust cup inlet, and then push the filter assembly into the dust cup. When the filter unit is flat and cannot be moved down, the unit is placed in place.

B. Hold the host and press the disassembly dust cup component in the opposite direction. Align the reference point of unlocking dust cup on the dust cup with the reference point of the host

Three-step diagram showing a mechanical device with internal components and rotation arrows (no text or symbols)

Air sponge

Air sponge cleaning

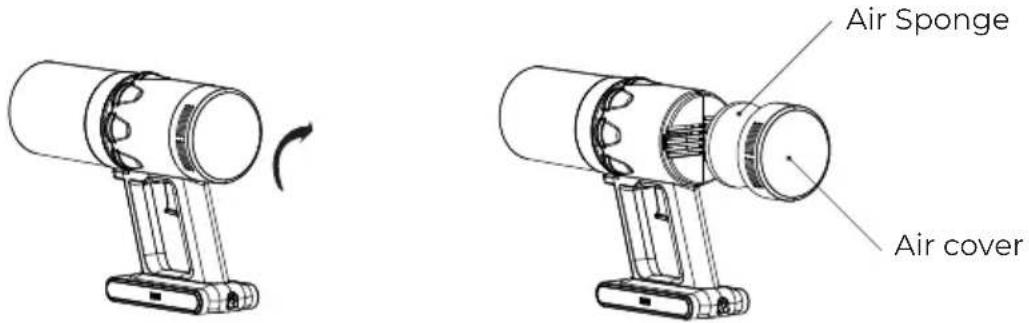

As shown in the figure, grasp the handle of the machine with the left hand and rotate the outlet cover plate clockwise with the other hand.

Pull out the cover plate outwards. Rinse out the cover plate and the sponge with water. Dry before use.

Air Sponge Air cover

Return the outlet cover plate

After loading the air sponge into the air cover plate, grasp the machine with the left hand and hold the air cover plate with the other hand. Parallel load the air cover plate inward to the bottom and rotate the air cover plate in the opposite direction.

Maintenance and storage

1. All daily maintenance and maintenance work must be carried out after the vacuum cleaner has turned off the power.
2. Frequently clean up the garbage in the dust bucket to avoid the failure of the vacuum cleaner.
3. Vacuum cleaner surface cannot be swabbed with gasoline-like or oily appearance, apply soft cloth or neuter dishwashing essence is swabbed, scrub cloth when swabbing must twist dry, cannot infiltrate water inside vacuum cleaner electric appliance element.
4. Keep the storage area dry.
5. Heavy objects should not be piled above the machine.

Trouble shooting

When encountering the following general problems, users can conduct their own investigation: Note: when the following problems are found, please turn off the switch immediately to prevent damage to the machine and other hazards.

Problem	Reason	Solutions
could not turn on	power off	recharge
	did not switch the button	turn on the switch
	without battery pack	put back the battery pack
	spare parts damage	change the vacuum cleaner
Noise	dustbin is full or the vent is blocked	remove and clean the dustbin
the suction has reduced	dustbin is full	remove and clean the fliter
	battery is low	recharge
dust come out during using	HEPA is broken	turn off the machine and change the HEPA
	forgetting put back the HEPA	stop using ,put back the HEPA
could not recharge	the adaptor unplugged	plug the adaptor
	the adaptor did not connect the vacuum	connect the adaptor
	the adaptor damaged	change the adaptor
	spare parts in vacuum cleaner damaged	change the vacuum cleaner

Warranty policy

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified eu declaration of conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
PRIXTON	SIROCCO	VACUUM CLEANER	HOME

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address: www.prixton.com

LA TRASTIENDA DIGITAL

Technical line drawing of a handheld device with internal components and directional arrows (no text or symbols)

Technical line drawing of a cylindrical mechanical device mounted on a stand (no text or symbols)

Technical line drawing of a mechanical device with two cylindrical components and a base mount, showing internal gear structure (no text or symbols)

Illustration of four different stages of a water treatment procedure: pouring liquid into a container, washing in a basin with a lid, and sun partially visible (no text or symbols)

Three-step diagram showing a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Éponge à air

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a cylindrical mechanical device mounted on a base (no text or symbols)

Technical line drawing of a mechanical device with two cylindrical components and a base mount, showing a directional arrow (no text or symbols)

Illustration of four different stages of a water treatment procedure: pouring liquid into a bucket, washing in a basin with plastic bottles, and drying with sunlight (no text or symbols)

Three-step diagram showing a mechanical device with exploded view, side view, and rotation arrow (no text or symbols)

Spugna dell'aria

Pure diagram of a horizontal cylindrical object with internal components and a numbered label (7), no text or symbols present.

Technical line drawing of a handheld device with internal components and a directional arrow (no text or symbols)

IBatterie-Anzeige

Hinweis

Technical line drawing of a cylindrical mechanical device mounted on a base (no text or symbols)

Technical line drawing of a mechanical device with two cylindrical components and directional arrows indicating motion (no text or symbols)

Illustration of four different stages of a water treatment procedure: pouring liquid into a container, washing in a basin with a bottle, and drying with sunlight (no text or symbols)

Exploded view diagram of a mechanical component showing internal parts and a directional arrow (no text or symbols)

Illustration of a cylindrical device mounted on a stand with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a rotating shaft and base mount (no text or symbols)

Luftfilter-Schwamm

Technical line drawing of a handheld device with internal components and directional arrows (no text or symbols)

Technical line drawing of a cylindrical mechanical device mounted on a base (no text or symbols)

Technical line drawing of a mechanical device with two cylindrical components and directional arrows indicating motion (no text or symbols)

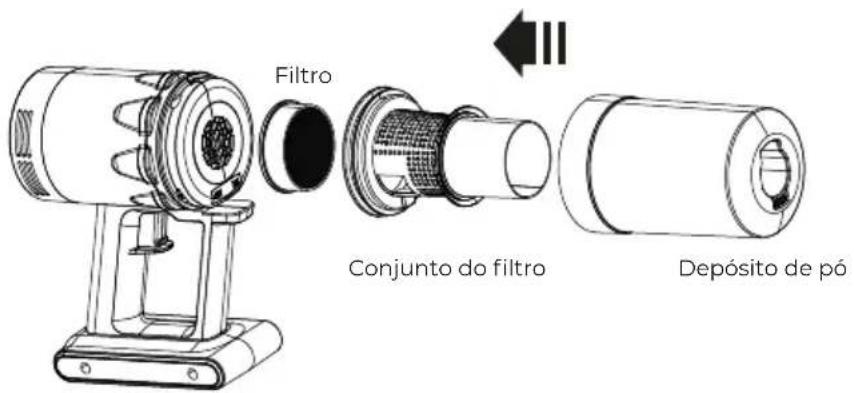

1. Segure o depósito de pó e pressione a seta para retirar o conjunto do filtro.
