USER MANUAL MGF80 Prixton

Illustration of a medical pressure tool (no text or symbols present)

PISTOLA MASAJE

MASSAGE GUN

Prohibition sign with hand holding a device, enclosed in a red circle

Prohibition sign with pictogram of a person holding a device, enclosed in a red circle

To reduce the risk of malfunction, electric shock, injury, fire, death, and equipment damage, please read all instructions and warnings in this manual before using this product.

Please consult your physician before using this product.

Attention

1. For adults use only. Stop the use of this item if your muscles get injured.
2. Do not use this item on non-dry or unclean skin. Always wear a shirt/clothing when using.
3. Do not use this product on neck, head or any hard areas of the body. Do not use this product on bones. Stop the use of this item if you experience pain or discomfort.
4. Use this product only on the soft tissue of your body.
5. Do not place any objects in the vents of this product.
6. Do not submerge the product in water or allow water to enter the vents of the product.
7. Do not put the product into fire, keep away from sources of fire.
8. Do not drop this product intentionally.
9. Do not use adapter of any kind other than the adapter included in the attachment.
10. Do not disassemble this product by yourself.
11. Do not let the fingers, hair or the body parts to reach the joint between the massage node and machine while the machine is running to avoid accident.

Do not touch this part while the machine is running without massage node.

Prohibition sign with hand holding a device, enclosed in a red circle

Do not touch this part while the machine is running with massage node.

Prohibition sign with hand and bottle crossed out, no text present

*Warnings and Cautions

1. Keep this product away from water or heated surfaces. Keep the vents free from dust.

2. Unplug the charger while charging is completed.

3. The product cannot be used while being charged.

4. Thoroughly inspect products according to the operation instructions in this manual before every use.

* Important

1. Do not use this product in any of the following cases without the consent of your physician.

Pregnancy, diabetic complications (such as neuropathy or retinal damage), wearing a pacemaker, epilepsy or migraine, disc herniation, advancement of the spine, vertebral detachment, or spinal joint stiffness, recent joint replacement surgery or IUD, having metal needle or steel plate, and any problems related to your health. These contraindications mentioned above do not mean that you are not allowed to use this product, we recommend you to consult your physician before use.

IMPORTANT: The massager may turn off automatically every 10 minutes. If desired, you may immediately turn on the massager again. Do not use the massager for longer than one hour (six 10 minute sessions) at a time. After one hour, allow the massager to cool for at least 30 minutes before you use it again.

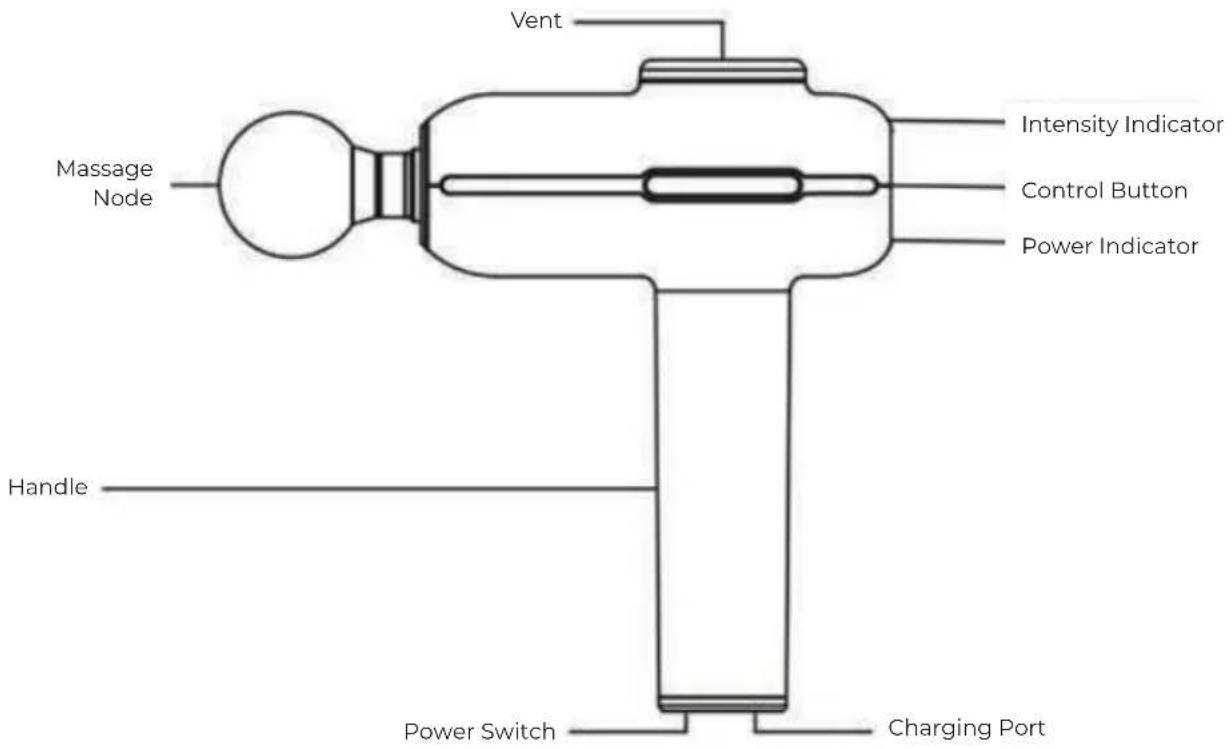

Product Introduction

Vent Intensity Indicator Control Button Power Indicator Massage Node Handle Power Switch Charging Port

1. High-speed brushless balancing motor with quite whisper.
   2.EVA soft massage node to provide more comfortable massage.
2. Rechargeable lithium-ion battery.
3. Delicate handle for a more comfortable grip.
   5.Wireless, lightweight and portable.
   6.5-speed adjustable intensity.
   7.User-friendly design: sweat-proof and moisture-proof.
4. Integrated design combining the battery with machine for safe use.

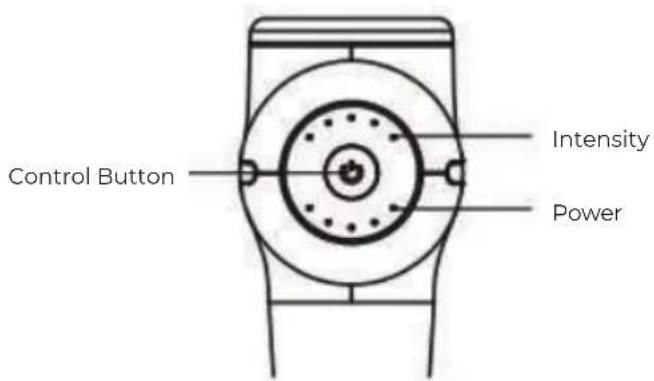

Control Button Intensity Power

1. Intensity Indicator : 1-5
2. All 5 power indicators on indicates sufficient power.

4 replaceable massage nodes

ball

cone

flat

fork

Instructions for massage node installation:

Swap massager nodes when the massager is off.

Parameters

Intensity 5

Voltage 12 V

Battery Capacity 2000mAh

Dimension 16.3*22.5*6.3cm

Net Weight 0.9KG

Endurance 8h

Charge

1. Charge the battery for at least 6 hours before first use.

2.Plug the adapter into the massager charging port and then plug into an outlet to charge.

3.The power indicator will flicker regularly while charging and keep steady on when fully charged.

1. The battery can be charged at any time and under any power level. Do not use the massager while charging.

Operation Instructions

1. Move power switch, located at the bottom of the device, to ON position. Press the control button to turn the massager on. Press it again to cycle through the 5 intensity levels.

2. While finishing using, move power switch to OFF position to turn the massager off.

Maintenance, Cleaning, Storage, Delivery

1.Spot clean only. Unplug and wipe with a damp cloth.

2.Air-dry only. Never place in a dryer.

3.Clean the massager and pack well if not using for a long time and charge every half a year.

1. This product can be transported by automobiles, trains, ships, and aircrafts.

Massage Node Operation Guidance

BALL:

Mainly used for large muscle groups

CONE:

Mainly used for trigger point and deep muscle groups

FLAT :

Suitable for all body parts

FORK :

Mainly used for spine, waist and large muscle groups

ARM

brachioradialis 10-15s x 3 times

flexor carpi radialis 10-15s x 3 times

palmaris longus ----12-15s x 3 times

extensor carpi ulnaris ----10-15s x 3 times

extensor digitorum ----5-10s x 2 times

extensor carpi radialis longus ----5-10s x 2 times

extensor carpi radialis brevis ----5-10s x 2 times

biceps brachii ----12-20s x 3 times

brachialis 12-20s x 3 times

deltoideus triangularis ----12-20s x 3 times

ectopectoralis ----12-20s x 3 times

SHOULDER

triceps brachii 15-20s x 3 times

rhomboideus 20-30s x 3 times

upper trapezius ----15-20s x 3 times

middle trapezius 15-20s x 3 times

lower trapezius----15-20s x 3 times

supraspinatus ----10-15s x 3 times

levator scapulae ----10-12s x 3 times

teres major 10-12s x 3 times

teres minor 10-12s x 3 times

infraspinatus 10-12s x 3 times

Suggestion: Massage in the direction of middle to two sides, top to bottom.

WAIST

erector spine----30-60s x 4 times

latissimus dorsi ----30-60s x 4 times

thoracolumbar fascia ----40-60s x 3 times

psoas major----30-60s x 3 times

obliquus externus abdominis ----10-15s x 2 times

erector spine ----15-20s x 2 times

quadratus lumborum 20-30s x 2 times

iliopsoas----20-30s x 3 times

ectogluteus 30-60s x 4 times

gluteus medius ----30-60s x 4 times

piriformis ----60-90s x 1 times

Suggestion: Massage in the direction of middle to two sides, top to bottom.

THIGH

biceps femoris ----20-30s x 3 times

semitendinosus ----20-30s x 3 times

semimembranosus ----20-30s x 3 times

gracilis 10-15s x 2 times

breviductor 10-15s x 2 times

adductor longus 10-15s x 2 times

rectus femoris ----30-45s x 2 times

vastus lateralis ----30-45s x 2 times

medial vastus ----30-45s x 2 times

sartorius ----30-45s x 1 times

tensor fasciae latae ----15-20s x 2 times

Suggestion: Massage in the direction of top to bottom.

FOOT

musculus gastrocnemius ----20-30s x 3 times

soleus----20-30s x 3 times

Suggestion: Massage in the direction of middle to two sides, top to bottom

WARRANTY POLICY

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

SIMPLIFIED EU DECLARATION OF CONFORMITY

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL	DESCRIPTION	CATEGORY
Prixton	MGF80	Massage Gun Synergy	Fitness

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com
