USER MANUAL MGF200 Prixton

Line drawing of a handheld pressure tool with no text or symbols

PISTOLA MASAJE

MASSAGE GUN

SIN CABLES/RECARGABLE

Five black plastic tool icons arranged in a row: a cap, Y-shaped, conical, bulb, and bulb (no text or symbols)

The MGF200 is a cordless state-of-the-art vibration massage device that relaxes sore stiff muscles, increases circulation and range of motion, and improves the overall health of the body's soft tissue

CORDLESS/RECHARGEABLE

26V Lithium-Ion Battery

LIGHTWEIGHT DESIGN

25 lbs/1.1kg

LED. Lithium-Ion. Small

SPECIFICATIONS

1. Powerful Brushless High-torque Motor Classic Quiet Smooth Technology
2. Rechargeable Lithium-Ion Battery (4+Hrs of Use Per Charge)
3. 30 Speed Settings for Optimal Pressure Cordless and Lightweight (2.5lbs) *Includes AC wall charger.
4. ON/OFF Power Switch
   5.6 Interchangeable Applicators(x6)

Weight

2.5lbs/.1 kg

Charge

220V

50/60hz. 5A-26VDC-1A

Six black plastic push-button buttons arranged in a row (no text or symbols visible)

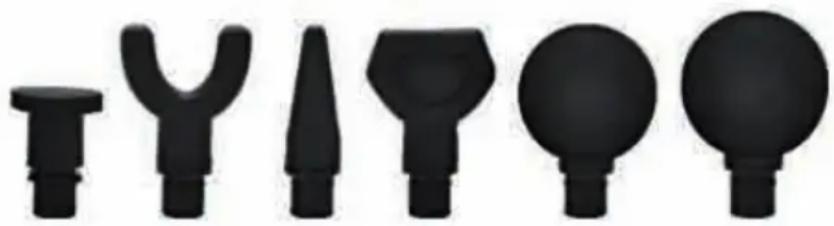

Flat, Fork, Bullet, Key Head, Small Ball, Big Ball

USAGE INSTRUCTIONS

PLEASE READ PRIOR TO USE

CHARGING

1. Full charge battery tor up to six hours before first use either attached or detached from the device.
2. To charge, connect DC end of the supplied 24V adapter to the battery's charging port and plug AC side cable into wall outlet.
   3.LED band on battery lights pulsate to show battery level and indicate active charging.
3. With battery attached. LED lights on unit flash to show battery level and indicate active charging.
   5.Full charge is indicated when all LED lights stop flashing and remain fully illuminated.
4. Battery may be recharged at any time and at any battery level
5. It is not recommended to fully deplete the battery to the red LED level.
6. The average run-tire is 2+ hours depending on speed level and pressure applied during use.

OPERATING

1. Align and attach battery into base of unit-ensure it is securely locked in place.

2. Power device on by moving the power switch on the bottom of the battery to the ON position Power device off by moving the power switch to the OFF-position.

3. With power switch in ON position, touch the power sign on LCD screen, and touch the "+" and "-" to change the levels of device, up to 30 levels.

4. Massage desired body part at the desired speed applying pressure as needed.

5. When changing the massage head, apply some vegetable oil on the inner wall of the massage head or the outer diameter of the massage head rubber ring to increase the lubrication degree of the massage head and the mounting hole, so as to facilitate disassembly and assembly. It is recommended that the massage head be stored separately to prevent adhesion to the massage gun mounting hole.

IMPORTANT: The massager may turn off automatically every 10 minutes. If desired, you may immediately turn on the massager again. Do not use the massager for longer than one hour (six 10 minute sessions) at a time. After one hour, allow the massager to cool for at least 30 minutes before you use it again.

DISCLAIMER

WARNINGS&CAUTION

1. Do not immerse in water. Keep away from liquids or heat sources, Keep ventilation Ports free from dust and debris.
2. Do not remove screws attempt to disassemble.
3. Do not operate continuously for more than one hour, Allow device to rest for 30 minutes before re-using.
4. Unplug the charger from device battery after charging or prior to use.
5. For adult use only. Do not use if injured. Consult your doctor before using this product.

SAFETY INSTRUCTIONS

DANGER: TO REDUCE RISKS OF ELECTRIC SHOCK, FIRE, AND PERSONAL INJURY THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS:

1. For adult use only
2. Use only on a dry clean surface of the body over clothing by lightly pressing and moving across the body for approximately 60 seconds per region.
3. Use the it only on the body's soft tissue as desired without producing pain or discomfort. Do not use on head or any hard or bony area of the body
4. Use only the applicators that provide the best desired effect
5. Bruising can occur regardless of control setting or pressure applied, Check treated areas frequently and immediately stop at first sign of pain discomfort,
6. Keep fingers. hair or any other body part away from tho shaft and bock side of tho applicator as pinching may occur.
7. Do not place any objects into the ventilation holes of the massage gun
8. Do not immerse in water or allow water to enter the ventilation holes of the massage gun.
9. Do not drop or misuse the massage gun.
10. Only recharge with supplied 26VDC charger.
11. Carefully examine device and battery before each use.
12. Do not tamper or alter massage gun in any way.
13. Never leave the massage gun operating or charging unattended.

DISCLAIMER

PLEASE DO NOT USE THE MGF200. OR ANY VIBRATION DEVICE WITHOUT FIRST OBTAINING APP-

ROVAL FROM YOUR DOCTOR IF ANY OF THE FOLLOWING APPLY

Pregnancy, diabetes with complications such as neuropathy or retinal damage, wear of pace-makers, recent surgery epilepsy or migraines herniated disks. Spondylolisthesis,

spondylol-ysis, or spondylosis, recent joint replacements or IUD's, metal pins or plates or any concerns about your physical health. Frail individuals and children should be accompanied by an adult when using any vibration device. These contra indications do not mean that you are not able to use a vibration or exercise device but we advise you to consult a doctor first. Ongoing research is being done to the effects of vibration exercise for specific medical disorders. I his will likely result in the shortening of the list of contra indications as shown above. Practical experience has shown that integration of vibration exercise into a treatment plan is advisory in a number of cases This must be done on the advice of and in accompaniment with doctor, specialist or physiotherapist.

ARM

brachioradialis ----10-15s x 3 times

flexor carpi radialis 10-15s x 3 times

palmaris longus 12-15s x 3 times

extensor carpi ulnaris ----10-15s x 3 times

extensor digitorum ----5-10s x 2 times

extensor carpi radialis longus ----5-10s x 2 times

extensor carpi radialis brevis ----5-10s x 2 times

biceps brachii 12-20s x 3 times

brachialis 12-20s x 3 times

deltoideus triangularis ----12-20s x 3 times

ectopectoralis 12-20s x 3 times

SHOULDER

triceps brachii 15-20s x 3 times

rhomboideus ----20-30s x 3 times

upper trapezius ----15-20s x 3 times

middle trapezius 15-20s x 3 times

lower trapezius----15-20s x 3 times

supraspinatus ----10-15s x 3 times

levator scapulae 10-12s x 3 times

teres major 10-12s x 3 times

teres minor 10-12s x 3 times

infraspinatus ----10-12s x 3 times

Suggestion: Massage in the direction of middle to two sides, top to bottom.

WAIST

erector spine----30-60s x 4 times

latissimus dorsi ----30-60s x 4 times

thoracolumbar fascia ----40-60s x 3 times

psoas major----30-60s x 3 times

obliquus externus abdominis ----10-15s x 2 times

erector spine ----15-20s x 2 times

quadratus lumborum 20-30s x 2 times

iliopsoas----20-30s x 3 times

ectogluteus ----30-60s x 4 times

gluteus medius ----30-60s x 4 times

piriformis 60-90s x 1 times

Suggestion: Massage in the direction of middle to two sides, top to bottom.

THIGH

biceps femoris ----20-30s x 3 times

semitendinosus ----20-30s x 3 times

semimembranosus ----20-30s x 3 times

gracilis 10-15s x 2 times

breviductor 10-15s x 2 times

adductor longus 10-15s x 2 times

rectus femoris ----30-45s x 2 times

vastus lateralis ----30-45s x 2 times

medial vastus ----30-45s x 2 times

sartorius ----30-45s x 1 times

tensor fasciae latae ----15-20s x 2 times

Suggestion: Massage in the direction of top to bottom.

FOOT

musculus gastrocnemius ----20-30s x 3 times

soleus----20-30s x 3 times

Suggestion: Massage in the direction of middle to two sides, top to bottom

WARRANTY POLICY

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

SIMPLIFIED EU DECLARATION OF CONFORMITY

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL	DESCRIPTION	CATEGORY
Prixton	MGF200	Massage Gun Xtreme	Fitness

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com LA TRASTIENDA DIGITAL
