1.1 For your safety

If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.

This appliance is designed to refrigerate beverages and foods and is intended for domestic use.

The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.

The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage. This warning is also contained on the label attached to the inside of the refrigerator door.

When the freezer is functioning do not touch the inner surfaces in stainless steel with wet or damp hands, since skin may stick to the very cold surfaces.

Do not use any type of electrical equipment inside of the food conservation compartments.

When positioning the shelves, do not place fingers in the shelf slide guides.

Do not position containers of flammab near the appliance.

Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to off the breaker or remove the fuse that controls the socket that the appliance is connected to.

The packaging parts can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.

Any repairs must be performed by a qualified Service technician.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not damage the appliance refrigerant circuit pipes.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service

or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

1.2 Important information when using the appliance

Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
Do not stand on or lean heavily against base of appliance, drawers or doors, etc.
Before cleaning the appliance, pull out the power cord plug or switch off the fuse. Do not pull out the power cord plug by tugging on the power cord.
Store high-percentage alcohol tightly closed and standing up.
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
Never cover or block the ventilation openings for the appliance.

Clean the ice bucket or drawer regularly but using only drinking water.

The filter must be changed when indicated on the control panel or when the ice/water dispenser has not been used for more than 30 days.

With each filter replacement, sanitise the ice and/or water distribution system using a food grade disinfectant (with sodium hypochlorite), which does not alter the characteristics of the materials. Rinse with at least 2 litres of water before use.

Only original spare parts supplied by the manufacturer should be used when replacing components in the ice and water dispenser.

Any work on the appliance must be carried out by a qualified technician or the After-sales Service.

1.3 Caring for the environment

Pay special attention to correct disposal procedure for all the packaging materials.
The appliance must not be disposed of with urban waste. Contact local waste disposal centres for on how to dispose of recyclable waste.
Prior to disposal, cut the power supply cord and make it impossible to close the door.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.

1.4 Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)

Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the water dispensed.

When using the appliance for the first time and every time the filter is changed, it is recommended to let the water flow in the circuit using the "Manual Cleaning" and discard the ice produced in the first 24 hours.

If the water dispenser has not been used for more than 4/5 days, it is advisable to clean the circuit and run off the first litre of water.

Reposition the removable water dispenser (if present), ensuring your hands are hygienically clean.

2.1 Installation

Make sure that installation is performed correctly.

adhering to all directions in the specific installation manual provided with the appliance.

Attention

Do not use extension cords and/or multiple adapters for the power supply connection.

2.2 Connection to the water system

Diagram of a mechanical assembly showing two components with no visible text or symbols

The models provided with Ice Maker require a connection to the domestic water supply system. This can be executed through the 1/4" water line (copper or polyethylene) to the house water supply.

The system pressure must be between from 8 psi to 75 psi (between 0.5 bar and 5 bar).

Different pressures can cause malfunctions or leaks in the water system.

The appliance should be supplied only with drinkable water.

Attention

The appliance should be supplied only with drinkable water.

Attention

Make sure that installation is performed correctly, according to all of the directions in the specific installation manual provided with the appliance.

Attention

Do not attempt to use a locally sourced garden hose threaded adapter or braided supply line. It will strip the threads on the appliance water connection sole-noid.

2.3 Connection to the electrical power supply

The appliance operates at 115 V AC, 60 Hz and is equipped with a power supply cord with a 3-prong grounded plug, which must be connected to a corresponding 3-prong (15 Amp) grounding-type wall receptacle.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Important

Do not use extension cords and/or multiple adapters for the power supply connection.

3.1 Know your Fulgor Milano

Congratulations for having purchased your new Fulgor Milano: from now on you can use our innovative conservation system, which will allow you to keep all of your food in the best way possible.

This manual will answer most of your questions about the product's features. Should you require further information, please check our website

call us:
write us an e-mail at
our website

Important

Before calling, write down the model type and serial number which are available on the warranty certificate and on the rating plate, and any messages which may have appeared on the display.

Digital display screen showing a virtual machine interface with Chinese text and a 'OK' button

3.2 Main components

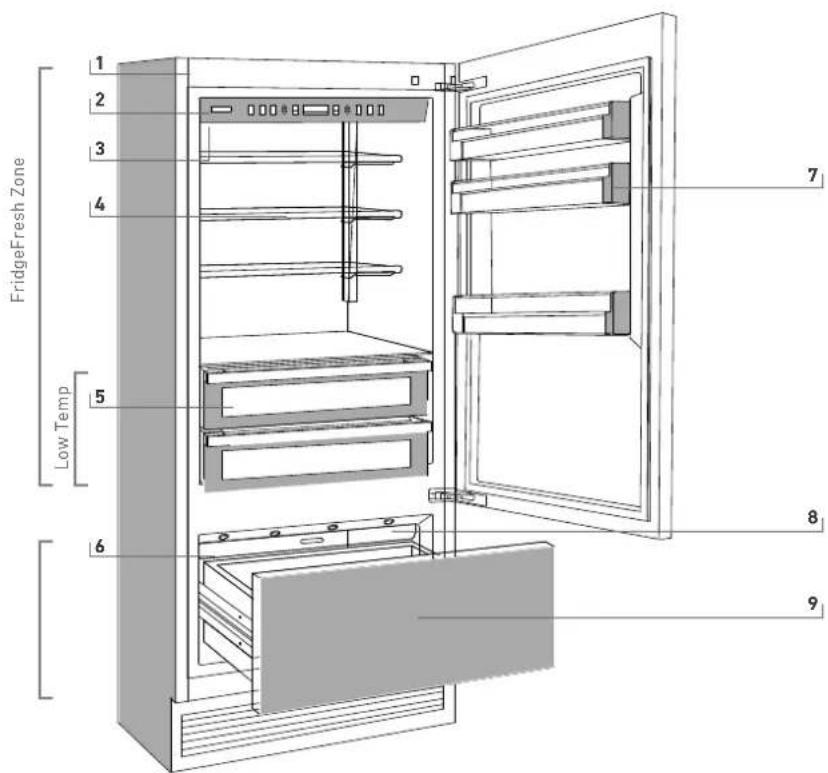

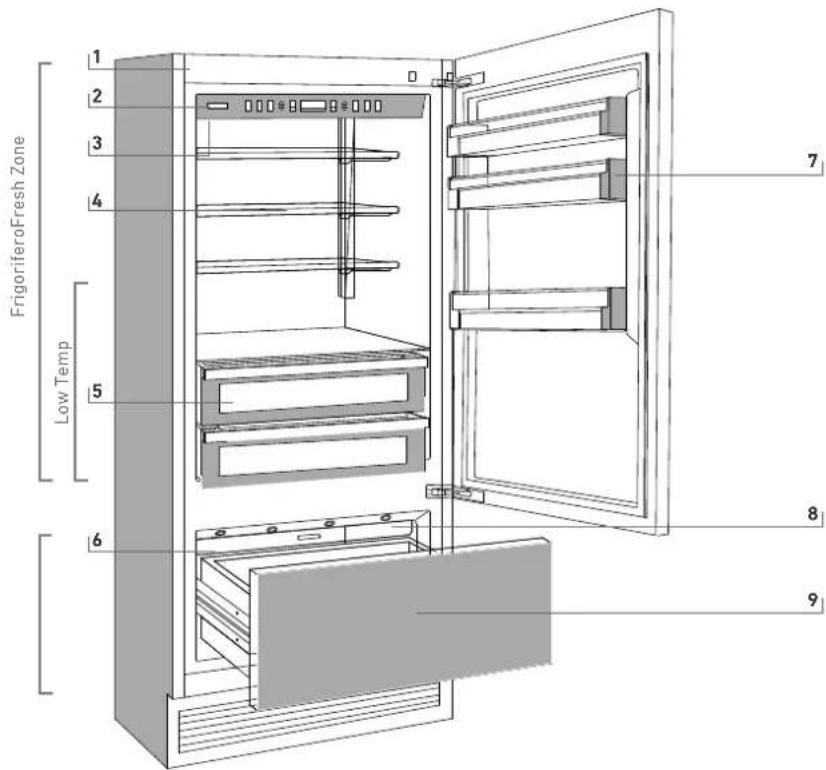

FridgeFresh Zone 1 2 3 4 5 Low Temp 6 7 8 9

1 Stainless steel structure with aluminum trim
2 Control panel
3 Water Filter (*)
4 Patented shelf positioning system
5 Fresh drawer with controlled humidity
6 Automatic icemaker (*)
7 Spacious door shelves
8 Led lighting
9 Freezer compartment that can be transformed into a refrigerator or Fresh compartment (Fresh Zone function)
(*) on some models

3.3 Electronic Control

The innovative electronic control system designed by Fulgor Milano maintains constant temperature in multiple compartments and displays it on the control panel. It also allows user interaction making it possible to personalize settings of various functions and to alert the user with sound and/or visual messages should any malfunction occur in the appliance.

3.4 Main control panel

					[CHTS]		[S52K]
		1	2	3	4	5	6	7	8	9
1		Unit				Switches the appliance (all compartments) between ON and STAND BY (press for three seconds).
2		Fridge				Allows switching ON and OFF of only the refrigerator compartment (press for three seconds).
3		Menu Allows access to the appliance function menu
4		Up/down Fridge				Using the Up and Down buttons, it is possible to change the set temperature of the refrigerator and navigate through the interactive menu.
5		Display				It shows the temperature of the refrigerator and freezer compartments, the date and time, Menu functions and visual messages.
6		Up/Down Freezer(Fresh Zone)				By selecting Up/Down the preset temperature can be changed according to the selected function mode (freezer, refrigerator, Fresh) and navigate through the interactive menu.
7		Enter Confirms activation or deactivation of the selections made in the Menu.
8		Ice maker Allows activating or deactivating the automatic ice production.
9		Alarm				Blinks to signal user alerts such as door left open, also in combination with a sound signal which can be deactivated by pressing the button.

4.1 Switching on and off

First startup

When the appliance is connected to the electrical power supply but has not yet been switched on, the display shows the message

Stand by

This is a safety message to warn that the appliance is connected to the mains, and all the panel buttons are off.

To switch on all the appliance compartments, press the Unit ⏻ button for three seconds.

When the appliance is first switched on is recommended to wait at least 12 hours without opening the doors and before placing any food inside the unit.

During such period deactivated any error message by pressing the Alarm button. (**)

Switching off the Refrigerator and Fresh compartments

Press Fridge or Crisper button for three seconds.

Switching off the Fresh Zone compartment

Can only be switched off by switching off the whole unit.

Press Unit for three seconds.

Restarting

Use the same buttons to restart.

The freezer compartment always stays on and cannot be switched off except by completely switching off the appliance by pressing the Unit

button for three seconds.

Switching off for long periods

During long absence periods it is recommended to switch off the refrigerator by pressing the Unit

- button for three seconds and disconnecting the electrical plug or the breaker controlling the socket.

Completely empty the refrigerator, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors.

If at the first startup the Standby message does not appear, but another message appears, it means that the appliance has already started the cooling process. If this is the case, deactivate any possible sound signal by pressing the Alarm button ⏻, close the door and wait until the set temperature is reached.

During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached.

Each time the appliance is switched on it goes trough a self-diagnosis procedure lasting three minutes before completely starting up.

If only the refrigerator compartment or the Fresh compartment is switched off, the specific fan will continue to operate to prevent the formation of unpleasant odors and mold.

Before switching off the appliance for a long period of time, remove all of the items inside and leave the doors and drawers open to prevent the formation of unpleasant odors and mold.

4.2 How to adjust the temperature for different requirements

Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low consumption. Usually, it is not necessary to modify the settings. Nevertheless, according to special needs, it is possible to modify the set temperatures as follows:

Refrigeration Compartment

From +1^ to +7^ (from 34^ to 46^ ), the recommended preset temperature is +4^ ( 39^ ).

To adjust the temperature use the Up/Down buttons △. Upon touching these buttons the newly set temperature will appear in the display. To modify this temperature, use the buttons until reaching the desired temperature.

Freezer Compartment (Fresh Zone)

From -13°C to -23°C (from 9°F to -11°F), the recommended temperature is preset at -18° (0°F). To adjust the temperature use the Up/Down buttons △. Upon touching these buttons the newly set temperature will appear in the display. To modify this temperature, use the buttons until reaching the desired temperature.

In case the compartment is used as refrigerator or Fresh compartment (Fresh Zone function) the recommended and preset temperatures will correspond to those indicated for the respective compartments.

The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods.

6 to 12 hours are necessary to reach the selected temperature.

4.3 Ice Maker Activation (optional)

The Ice Maker button 🔧 located on the main control panel permits activation of the automatic ice-maker.

The button is illuminated when the icemaker is functioning.

A prewash of the water circuit should be performed before activating the Ice Maker for the first time. To do this touch at the same time buttons Enter √ and Ice Maker 🌐

After a few minutes the Ice Maker can be activated.

Important

Do not activate the Ice Maker unless the appliance is connected to the water mains.

4.4 Information and malfunction messages on the display

An integrated control system provides information through light signals or text messages visualized on the display.

The information signal is always visualized with a fixed text message, while a malfunction signal is visualized with blinking text. The sound signal that accompanies some malfunction signals can be deactivated by pressing the Alarm button 📋 on the main control panel.

The list of malfunction signals is located at the back of this manual.

5.1 Customization and language settings

Hand gesture pointing at a software interface with icons for exit, refresh, language selection, and other functions

To prevent an inadvertent change to the settings the keypad is automatically locked after a certain period of time.

To re-activate the Menu function, press simultaneously the Menu button ■ and the Down button ↗ for at least three seconds.

The key lock can be disabled through the specific function in the Settings menu.

It is possible to customized the functions of your Fulgor Milano to adapt it to diverse usage needs, resetting the main parameters (Settings) or activating special functions (Functions).

Functions are visualized on the main display by pressing the Menu button ≡.

The Up/Down buttons ▼ permit scrolling the available functions, which can be selected by pressing the Enter button √. The display visualizes the current functioning status.

Using the Up/Down buttons ▼, it is also possible to scroll through the selected function, activating or deactivating by pressing the Enter button √. Once the function is confirmed, the display will automatically visualize the main menu to select other functions.

At any time it is possible to return to the previous selection through the Access button ≡

The language of the messages appearing on the display can be changed by operating as follows:

Enter the Menu by pressing the Menu button ≡ select Settings via the Up/Down buttons ▼ and confirm via Enter √. Then select the Language function and the desired language.

5.2 Special functions activated through the Menu

To use special functions, select the Menu button ≡ and use the Up/Down button △ to access the menu, confirming the selection Functions.

Max Cool Fridge

The function lowers the refrigerator temperature to +2°C (35.6°F) for 12 hours, permitting more rapid cooling of food that has just been placed in. Once the 12 hours have expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a timed activation of the function. After a prolonged interruption of electrical current, it is necessary to reactivate the function.

How to activate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { max cool Fridge } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle}\\text { max cool Fridge ON / OFF } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { max cool Fridge On }\end{array} $$

How to deactivate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\Delta} {\triangledown} \max \text { cool Fridge } \rightarrow \checkmark \rightarrow \overset {\Delta} {\triangledown}\\text { max cool Fridge ON / OFF } \rightarrow \checkmark \rightarrow \overset {\Delta} {\triangledown} \max \text { cool Fridge OFF }\end{array} $$

How to program timed activation

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { max cool Fridge } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}}\\text { max cool Time } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { Set Hours: } 1 \rightarrow \checkmark\end{array} $$

It is possible to program the function with a delay of 1 to 12 hours.

The various Shopping Modes help prepare the cooling, Fridge and Fresh Zone compartments for the introduction of a heat load which can consist of fresh food or other items which may have warmed during transport. The more quickly an item can be cooled or frozen the better it will be preserved.

This mode can also be effective at maintaining compartment temperatures while entertaining when higher than average door and drawer openings are anticipated.

Holiday Fridge

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the Fresh Zone compartment temperature to -18°C (46.4°F).

It is possible to program the duration, or it can be

manually deactivated upon re-entry after a period of absence.

This function remains active even if during the period of absence there is a prolonged interruption of electrical power.

How to activate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { holiday Fridge } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown}\\text { holiday ON / OFF } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { holiday Fridge On } \rightarrow \checkmark\end{array} $$

How to deactivate upon re-entry

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { holiday Fridge } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown}\\text { holiday ON / OFF } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { holiday Fridge Off } \rightarrow \checkmark\end{array} $$

How to program the duration

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { holiday } \quad \text { Fridge } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}}\\text { holiday } \quad \text { Time } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { Set Days: } 1 \rightarrow \checkmark\end{array} $$

It is possible to program a period from 1 to 90 days.

Max Cool Fresh Zone

This function must be activated at least 24 hours before inserting room temperature items into the freezer, or several hours before placing into the freezer previously frozen items which have been subject to a slight temperature rise. This function is automatically deactivated when the programmed time period expires. It is possible o program timed activation of the function.

If interrupted by a prolonged interruption of the electrical power, it is necessary to reactivate the function.

How to activate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\max}} \text { cool fresh zone } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\max}}\\text { max cool ON / OFF } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\max}} \text { cool fresh zone On } \rightarrow \checkmark\end{array} $$

How to deactivate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { max cool fresh zone } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle}\\text { max cool ON / OFF } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { max cool fresh zone Off } \rightarrow \checkmark\end{array} $$

How to program timed activation

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { max cool fresh zone } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle}\\text { max cool Time } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { Set Hours: } 1 \rightarrow \checkmark\end{array} $$

It is possible to program the function with a delay of 1 to 12 hours.

Holiday Fresh Zone

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the Fresh Zone compartment temperature to - 18°C (46.4°F).

It is possible to program the duration, or it can be manually deactivated upon re-entry after a period of absence.

This function remains active even if during the period of absence there is a prolonged interruption of electrical power.

How to activate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { holiday fresh zone } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}}\\text { holiday ON / OFF } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { holiday fresh zone On } \rightarrow \checkmark\end{array} $$

How to deactivate upon re-entry

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { holiday fresh zone } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}}\\text { holiday ON / OFF } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { holiday fresh zoneOff } \rightarrow \checkmark\end{array} $$

How to program the duration

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { holiday fresh zone } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle}\\text { holiday Time } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { Set Days: } 1 \rightarrow \checkmark\end{array} $$

It is possible to program a period from 1 to 90 days.

Beverage Cooler

This function can be activated when it is necessary to cool off beverages quickly, by placing them inside the freezer compartment.

It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the optimal temperature has been reached. After removing the beverages, deactivate the sound signal by pressing the Alarm button 🔒.

How to activate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { beverage cooler } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle}\\text { cooler ON / OFF } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { beverage cooler On } \rightarrow \checkmark\end{array} $$

How to deactivate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { beverage cooler } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle}\\text { cooler ON / OFF } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { beverage cooler Off } \rightarrow \checkmark\end{array} $$

How to program the duration

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { beverage cooler }\\text { Set Cooling Time } \rightarrow \checkmark \text { Set time }: 2 0 \min \rightarrow_ {\triangledown} ^ {\triangle} \rightarrow \checkmark\end{array} $$

Ice Maker

The IceMaker function permits selecting the size of the ice cubes, by choosing between Large (base setting) or Medium, and activation of the SuperIce function, which increases the quantity of produced ice.

The Superlce function deactivates automatically after 24 hours.

How to set large size ice cubes

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Ice Maker } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle}\\text { Set Cube Size } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Size:Large } \rightarrow_ {\nabla} ^ {\triangle} \rightarrow \checkmark\end{array} $$

How to set medium size ice cubes

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \underset {\nabla} {\overset {\triangle} {\longrightarrow}} \text { Ice Maker } \rightarrow \checkmark \rightarrow \underset {\nabla} {\overset {\triangle} {\longrightarrow}}\\text { Set Cube Size } \rightarrow \checkmark \rightarrow \underset {\nabla} {\overset {\triangle} {\longrightarrow}} \text { Size: Medium } \rightarrow \underset {\nabla} {\overset {\triangle} {\longrightarrow}} \rightarrow \checkmark\end{array} $$

How to activate the Superlce function

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { Ice Maker } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle}\\text { fast ice ON / OFF } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { fast ice On } \rightarrow \checkmark\end{array} $$

How to deactivate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Ice Maker } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle}\\text { fast ice ON / OFF } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { fast ice Off } \rightarrow \checkmark\end{array} $$

Sabbath Mode (Optional)

The function makes it possible to comply to certain religious observances requiring that the operation of the appliance is not affected by the opening or closing of the doors (the thermostatic control, the inner lighting and the ice maker are deactivated).

How to activate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Sabbath Mode } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle}\\text { Sabbath Mode ON / OFF } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Sabbath Mode On } \rightarrow \checkmark\end{array} $$

How to deactivate

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\Delta} {\triangledown} \text { Sabbath Mode } \rightarrow \checkmark \rightarrow \overset {\Delta} {\triangledown}\\text { Sabbath Mode ON / OFF } \rightarrow \checkmark \rightarrow \overset {\Delta} {\triangledown} \text { Sabbath Mode Off } \rightarrow \checkmark\end{array} $$

Water Filter

The View Status function permits visualizing the time left before the filter needs to be replaced.

How to check the status of the filter

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { Water Filter } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { Status Filter }\\rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { View Status } \rightarrow \checkmark\end{array} $$

It displays days and liters left before filter expiration.

Reset Filter

The Reset Filter function sets to zero the time left before the filter needs to be replaced. It is necessary to set the meter to zero each time the cartridge is replaced. As an alternative press for 5 seconds the Enter button √

How to set the filtered water meter to zero

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\Delta} \text { Water Filter } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\Delta} \text { Status Filter }\\rightarrow \checkmark \rightarrow_ {\nabla} ^ {\Delta} \text { Reset Filter } \rightarrow \checkmark\end{array} $$

Bypass Filter

This function is to be activated when it is not necessary to filter the water, because excellent quality water is already available from the home water system.

How to activate filter Bypass

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\Delta} {\underset {\triangledown} {\longrightarrow}} \text { Water Filter } \rightarrow \checkmark \rightarrow \overset {\Delta} {\underset {\triangledown} {\longrightarrow}} \text { Status Filter }\\rightarrow \checkmark \rightarrow \overset {\Delta} {\underset {\triangledown} {\longrightarrow}} \text { Bypass Filter } \rightarrow \checkmark \rightarrow \overset {\Delta} {\underset {\triangledown} {\longrightarrow}} \text { Bypass On } \rightarrow \checkmark\end{array} $$

How to deactivate filter Bypass

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { Water Filter } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { Status Filter }\\rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { Bypass Filter } \rightarrow \checkmark \rightarrow \overset {\triangle} {\triangledown} \text { Bypass Off } \rightarrow \checkmark\end{array} $$

Manual Clean, Water Filter

If ice production has been disabled or unused for a long period it is recommended to perform a Manual Clean function to flush out water which has sat in the system during this period.

Before proceeding it is important to turn off the ice maker by pressing button ⚙️.

How to manually clean the filter

$$ \begin{array}{l}\text { Functions } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { Water Filter } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}}\\text { Manual Clean } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { Enter to confirm } \rightarrow \checkmark\end{array} $$

Repeat the operation until the water is clean.

Correctly position the ice tray or another suitable container under the IceMaker to collect water, then close the drawer. At the end of the operation, wash the tray.

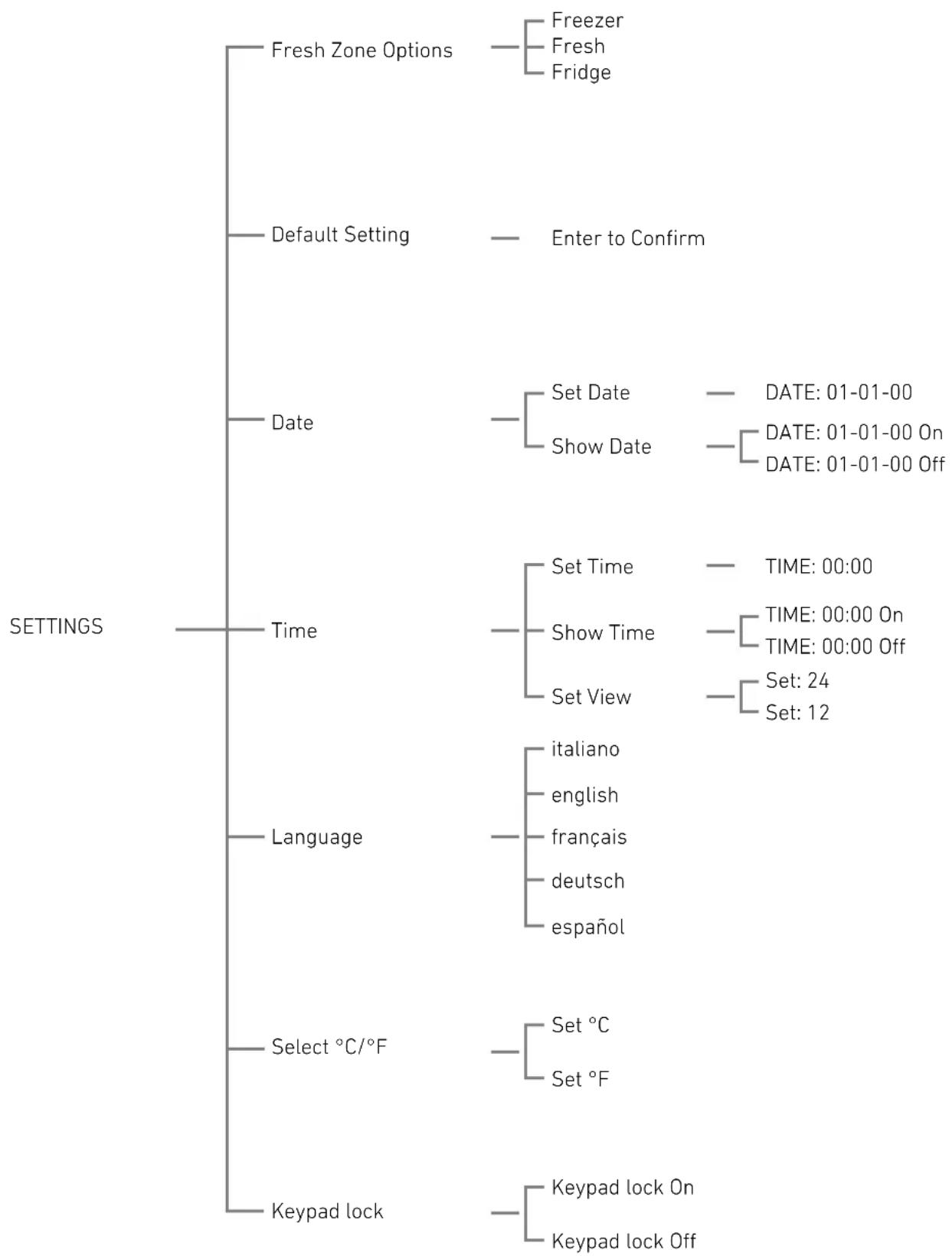

5.3 Basic settings of the Menu

Select the Menu button △ and used the Up/Down button ▽ to select Settings.

Fresh Zone Options

The freezer compartment can, if required, be converted to the refrigeration o Fresh operating mode.

How to set the Fridge function

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { fresh zone }}} \text { Options } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { Fridge }}} \rightarrow \checkmark \text { Enter to confirm } \rightarrow \checkmark\end{array} $$

How to set the Fresh function

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { fresh zone }}} \text { Options } \rightarrow \checkmark \rightarrow\\text { fresh } \rightarrow \checkmark \text { Enter to confirm } \rightarrow \checkmark\end{array} $$

How to revert to the Freezer function

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { fresh zone Options }}} \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { Freezer }}} \rightarrow \checkmark \text { Enter to confirm } \rightarrow \checkmark\end{array} $$

Default Setting

This offers the possibility to reset default factory settings and cancels any previous changes.

How to reset default settings

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\nabla} {\longrightarrow}} \quad \text { Default Setting } \rightarrow \checkmark\\text { Enter to confirm } \rightarrow \checkmark\end{array} $$

Important

If the default settings are restored, the default mode of the Fresh Zone compartment is freezer mode. If it was previously being used in refrigerator or Fresh mode be sure to set it back to your desired setting.

DATE

Set date

The display will show the date in the format dd:mm:yy (day:month:year), the day will blink. Use the Up/Down buttons ▼ to modify the setting, confirm with Enter √ to go on to the next setting; once the year is confirmed the date will be set.

How to set the date

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { Date } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\longrightarrow}} \text { Set Date }\\rightarrow \checkmark \text { DATE: 01 - 01 - 00 } \rightarrow \checkmark\end{array} $$

Show date

Using this function it is possible to deactivate/activate the date visualization on the display.

How to activate the date

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Date } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Show Date }\\rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { DATE: 01 - 01 - 00 On } \rightarrow \checkmark\end{array} $$

How to deactivate the date

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Date } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Show Date }\\rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { DATE: 01 - 01 - 00 OFF } \rightarrow \checkmark\end{array} $$

TIME

Set time

The display shows the hours and minutes in the format hh:mm and with hh: blinking. Use the Up/Down buttons △ to modify the setting and then confirm by pressing Enter √ to go on to the next setting. Once the minutes are confirmed, the time will be set.

How to set the time

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Time } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Set Time }\\rightarrow \checkmark \text { TIME:00:00 } \rightarrow \checkmark\end{array} $$

Set 12/24

This function selects the display at 12 or 24 h.

How to set the display to 12 h

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Time } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle} \text { Set View } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle}\\text { Serif2 } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\triangle}\end{array} $$

How to set the display to 24 h

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \stackrel {\triangle} {\triangledown} \text { Time } \rightarrow \checkmark \rightarrow \stackrel {\triangle} {\triangledown} \text { Set View } \rightarrow \checkmark \rightarrow \stackrel {\triangle} {\triangledown}\\text { Set:24 } \rightarrow \checkmark \rightarrow \stackrel {\triangle} {\triangledown}\end{array} $$

Show Time

Through this function it is possible to activate/deactivate the constant visualization of the time.

How to activate the permanent time

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \frac {\Delta}{\nabla} \text { Time } \rightarrow \checkmark \rightarrow \frac {\Delta}{\nabla} \text { Show Time }\\rightarrow \checkmark \rightarrow \frac {\Delta}{\nabla} \text { TIME:00:00On } \rightarrow \checkmark\end{array} $$

How to deactivate

$$ \begin{array}{l}\text { Settings } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { Time } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { Show Time }\\rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { TIME:00:00 OFF } \rightarrow \checkmark\end{array} $$

LANGUAGE

The function allows selection of the language for the display messages.

Italian

$$ \text { Settings } \rightarrow \checkmark \rightarrow \underset {\nabla} {\overset {\Delta} {\longrightarrow}} \text { Language } \rightarrow \checkmark \rightarrow \underset {\nabla} {\overset {\Delta} {\longrightarrow}} \text { italiano } \rightarrow \checkmark $$

English

$$ \text { Settings } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { Language }}} \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { english }}} \rightarrow \checkmark $$

French

$$ \text { Settings } \rightarrow \checkmark \rightarrow \overset {\Delta} {\underset {\triangledown} {\longrightarrow}} \text { Language } \rightarrow \checkmark \rightarrow \overset {\Delta} {\underset {\triangledown} {\longrightarrow}} \text { français } \rightarrow \checkmark $$

German

$$ \text { Settings } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\triangle} \text { Language } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\triangle} \text { deutsch } \rightarrow \checkmark $$

Spanish

$$ \text { Settings } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { Language } \rightarrow \checkmark \rightarrow \underset {\triangledown} {\overset {\triangle} {\longrightarrow}} \text { español } \rightarrow \checkmark $$

SET °C/°F

This function permits visualizing the temperature in Centigrade or Fahrenheit degrees. Normally, the appliance is set for visualization in centigrade degrees.

How to set the temperature in Centigrade

$$ \text { Settings } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { select 'C / 'F } \rightarrow \checkmark \rightarrow_ {\triangledown} ^ {\triangle} \text { Set 'C } \rightarrow \checkmark $$

How to set the temperature in Fahrenheit

$$ \text { Settings } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\Delta} \text { select 'C / 'F } \rightarrow \checkmark \rightarrow_ {\nabla} ^ {\Delta} \text { Set 'F } \rightarrow \checkmark $$

Keypad lock

Through this function it is possible to activate/deactivate the keypad lock.

How to activate

$$ \text { Settings } \rightarrow \checkmark \rightarrow \triangle_ {\triangledown} \text { keypad lock } \rightarrow \checkmark \rightarrow \triangle_ {\triangledown} $$

$$ \text { keypad lock } \quad \text { On } \rightarrow \checkmark $$

How to deactivate

$$ \text { Settings } \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text { keypad lock }}} \rightarrow \checkmark \rightarrow \overset {\triangle} {\underset {\triangledown} {\text {}}} $$

$$ \text { keypad lock } \quad \text { Off } \rightarrow \checkmark $$

6.1 Internal Layout (positioning, adjustment, removal)

Fresh Drawer

Fixed to the slide guides with two thumbscrews.

to remove the drawer, unscrew the thumbscrews and remove the drawer.

Illustration of a hand inserting a drawer into a cabinet (no text or symbols visible)

Fresh Zone Drawer

The upper Fresh Zone can be removed using the same method used for the Fridge drawer

to remove the inner Fresh Zone drawer unscrew the thumbscrews.

When replacing the drawers, make certain the back of the drawers engage under the clips on the slide guides.

Illustration of a hand holding a rectangular object with a circular inset showing a magnified view (no text or symbols)

Ice Tray

Located in the upper drawer of the freezer compartment

after removal, make sure to reposition it correctly.

Architectural diagram showing a multi-level building with structural elements and ventilation ducts (no text or symbols)

Warning

Do not place hands or fingers near the Ice-maker when in function.

Door Shelves

The door shelves can be easily removed for cleaning

Hold the door shelf at the sides and push it upwards to release it from its seat, then pull it outwards.
Reverse the procedure to reinstall.

Technical line drawing of a mechanical component with dimension annotations (no readable text or symbols)

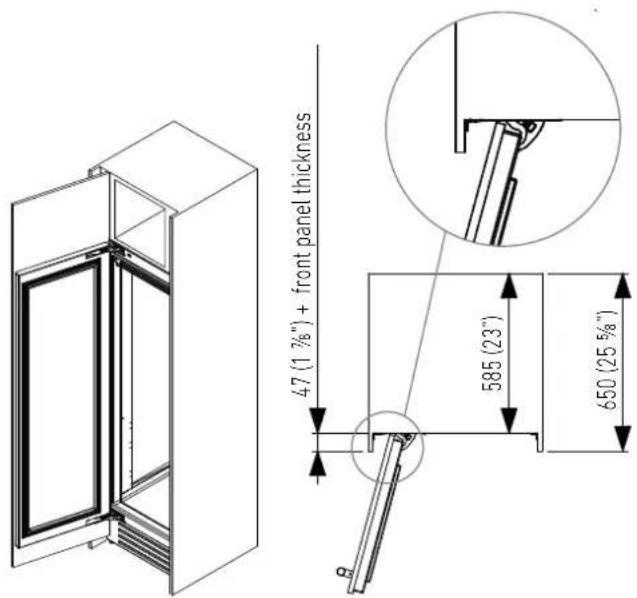

6.2 Maximum cabinet depth over "Integrated" refrigerator with single door panel

It is possible that the design of the kitchen and, in particular, of the niche where the "Integrated" refrigerator is going to be fitted includes a cabinet right above the refrigerator itself that must be closed with the same panel mounted on the Integrated refrigerator door."

In this case, the total depth of the cabinet without the door (above the refrigerator) must not exceed the total depth of the refrigerator itself. [1]

This will allow the panel attached to the refrigerator door to open correctly without interference during its rotation up to 105°.

47 (1 7/8") + front panel thickness 585 (23") 650 (25 5/8")

7.1 Activation and use of the Ice Maker

Notes

If the ice is not used frequently is advisable to empty the ice bin once every 8-10 days.

It is normal that some ice cubes stick to one another. If the ice is not frequently used, the older cubes can become opaque, and will have a strange flavour and become smaller.

The Icemaker automatically deactivates if the Vacation function is activated.

When the Icemaker is started for the first time, it is recommended to dispose of the first full bin of ice.

If the equipment has been switched off for a month or more, it is recommended to perform a water cleaning cycle.

The ice maker will only produce ice with the Fresh Zone compartment set to Freezer Mode.

The ice maker will continue to operate even when the ice bin is not in position

To activate the Ice Maker after installation of the appliance, press the Icemaker button ⚙.

Please note that 12 to 24 hours are necessary before ice production may begin.

The production is of 10 cubes per cycle in approximately 10 cycles in 24 hours.

The yield depends on the temperature set in the freezer, the room temperature and the frequency of door opening.

If the appliance is operating without being connected to the water system, make sure that the Icemaker is deactivated by pressing the button ⚙.

The Ice Maker produces ice until the ice tray is full and will automatically stop once the maximum level is reached.

With the SuperIce function, it is possible to increase the quantity of ice produced a 24 hours, while the Set Cube Size function permits selection of the size of the produced ice cubes.

Do the ice cubes have an unusual odour?

Ice is a porous material which can absorb odours from the environment. Ice cubes which have been in the ice cube container for a long time may absorb odours, stick together and slowly become smaller.

We recommend that old ice cubes not be used.

Other means of preventing odors:

The ice cube container should be cleaned occasionally with warm water. Make sure that you switch off the ice maker before clearing the container. Rinse out and wipe dry.
Check the contents of the freezer for spoiled or out-of-date food. All odorous foods should be wrapped thoroughly or stored in airtight containers to prevent the build-up of odors.
The water filter may have to be replaced in some models.
In some cases the quality of the water connection in the house should be checked.

Operating noises

Quite normal noises

Grumbling: refrigerating unit is running. Fan in the recirculating air system is running.
Bubbling, humming or gurgling noises: refrigerant is flowing through the tubes.
Clicking: motor is switching on or off. Solenoid valve on the water connection is opening/closing.
Rumbling: ice cubes are falling into the ice cube container.
Note:

Notes the appliance is powered by two independent compressors. It is therefore normal to always have one of two compressors in operation.

Warning

Do not place any bottles or food for rapid cooling in the ice cube container. The ice maker may become blocked and be damaged.

7.2 Water Filter

The Water Filter makes available high-quality water for the production of ice cubes. It provides up to 3000 liters of water for a maximum time of 12 months.

Illustration of a baby lying on a bed with a computer monitor, no text or symbols present

Reset water filter in the settings menu or by pressing the Enter button √ for 5 seconds.

When the filter is nearly expired the message "Replace Filter" will appear on the display.

Filter Replacement

The filter is located inside the refrigerator compartment, above the top glass panel. Prior to changing the filter, switch off the Ice Maker by pressing the IceMaker button.

Open the top glass panel and carefully rotate the filter cartridge for a quarter rotation in a counter clockwise direction until it detaches from its housing. It is normal for a small quantity of water to come out. Remove the cap of the new cartridge and insert it into the housing by gently rotating it for a quarter rotation in a clockwise direction until it locks into place.

Then enter the menu and set "Manual Clean" function. At the end of the cleaning cycle remove the water from the ice tray and wipe it dry.

8.1 Lighting

Pure electrical circuit lines without any symbols

To provide optimum interior lighting, LED strips illuminate the refrigerator compartment from the top and sets of LED lights directly illuminate different areas of the refrigerator compartment, of the Crisper-Fresco drawers and the freezer drawer.

In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Fulgor Milano technician.

9.1 General directions

Your Fulgor Milano is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments.

In addition, the double refrigeration ensures that frozen foods and ice do not absorb the odor of fresh foods and that the humidity in the refrigerator does not freeze and build up frost.

Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent refrigerator. It is also necessary to know the rules for correct food preservation.

Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels.

It is therefore recommended to follow the directions presented below which will permit using your refrigerator/freezer in the most effective and safe manner to keep your foods in the best way for as long as possible.

Bear in mind that the Fresh area is the area for preserving the most delicate fresh foods, since it ensures constant average temperature near freezing.

Periodically check that all foods are in a perfect state of preservation. It is usually quite clear when a food item is deteriorated, due to mold, unpleasant odor and unpleasant aspect. Nevertheless, there are cases in which these conditions are not so evident. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness. When in doubt, throw the food away.

Fridge from +1° to +7 °C (from 34°F to 46°F) Low Temp Fresh Zone from -13° to -23 °C (from 9°F to -11°F)

9.2 How to maintain good food quality

When buying groceries

Always take the following precautions:

Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods.
Purchase meat, poultry and fish last. Do not leave your groceries in a warm car after shopping. Keep a freezer bag in your car and use it in case of very high temperatures or long trips.
Check the production dates and "best before" times on foods to be sure that they are fresh.
Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period.
When possible, let warm foods adjust to room temperature for at least two hours before placing them in the refrigerator, unless you have activated the Shopping function before.

When placing foods in

Check the refrigeration temperature of the various compartments on the control panel:

The refrigerator temperature must be 7°C (46°F) or lower and the freezer temperature must be -18°C (0°F)
Follow the recommendations regarding the preservation times and temperatures indicated in the tables to follow.
Keep raw meat, fish and poultry separate from other foods and avoid any possible drippings.

When placing foods in

When placing in the refrigerator your meat, fish or poultry, leave these in their original packaging, unless the packaging is ripped or punctured. Repeated

handling could introduce bacteria into these foods.

To keep food in the freezer is a good idea to use freezer containers.
Label and date the packages
Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment.

Notes

When a high level of humidity is present either in the environment or in the foods placed in the Fresh drawers, the bottom of the Fresh compartment might be covered with some water or ice (if the temperature is set between 0^ C and -2C^ ).

Such condition is normal and it is due to the high humidity levels of the Fresh compartment; high humidity together with low temperatures is what guarantees a longer preservation of foods.

Water or ice can disappear on its own if the air humidity level should lower; it is also possible to remove the water with a towel. If a thin layer of ice has formed, set the temperature of the Fresh compartment to +2°C and after one day remove the water with a towel. If the layer of ice is thicker, it might be necessary to shut off the Fresh compartment for one day in order to melt it.

Warning

After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items.

After one minute the display will resume normal operation, while the Alarm button ⬆ will continue to blink.

Press the Alarm button to display the highest recorded temperatures.

10.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish.

Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth.

Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves.

You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.

Scrupulously follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.

Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.

Make sure you do not damage the refrigerant circuit in any way.

Warning

The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

10.2 Condenser cleaning

A ventilation grille is located either at the top of the appliance or at the bottom according to the model type.

To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In case of a significant dust build up, the ventilation grille can be removed to allow a more accurate cleaning of the filter.

Every 6 months the display shows the message "Check Cond", clean the condenser and press for 5 seconds the Enter √ button to reset.

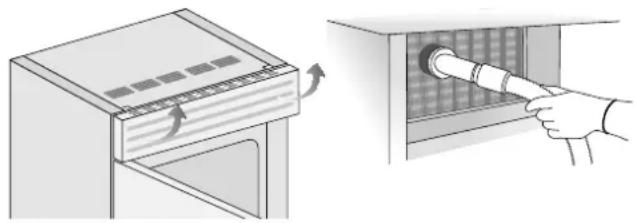

Operate as follows:

Switch off the appliance by pressing the Unit button ⏻ on the main control panel for approx 3 seconds.

Wait approx 30 minutes, until the finned condenser cools down to room temperature.
On models with ventilation at the base remove the grille at the bottom (magnetically attached) and take it off. On models with ventilation lift the grille as shown in the picture.
Thoroughly clean the grille and the foam filter, by means of a vacuum cleaner and the soft brush attachment.
Clean it thoroughly from any dust build up as shown in the picture, taking care not to damage it.
Start up the appliance again, by pressing the Unit button ⏻ on the main

Illustration showing a door latch with a handle inserting into a sink (no text or symbols present)

Warning

The edges of the condenser are sharp, therefore use adequate protection for the hands and arms when cleaning the condenser.

10.3 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent.

Rinse and dry right away.

Do not use mechanical devices or other methods to speed up defrosting.

Warning

Do not use water on the electrical parts, lights and control panel.

Warning

The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

Do not bring cold glass parts into contact with boiling water.

Do not wash any parts of the refrigerator in a dishwashing machine since this could damage or irreparably deform the parts.

11.1 Troubleshooting guide

If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and effective repair.

Malfunction message

A malfunction is usually indicated by a message on the display.

Problems that cannot be solved by the user are signaled through a malfunction code.

The refrigerator or the freezer does not work

Is the appliance connected to the electrical power supply?

Is electrical power available at the electricity socket?

Is the Unit button ⏻ activated?

Is the unit in 'Demo' Mode?

The refrigerator or the freezer is warmer than usual

Does the display show a malfunction code?

Is the temperature adjusted correctly?

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Is the unit in 'Demo' Mode?

The appliance remains in function for a long time period

Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time.

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.

Is one or more compartments in Shopping Mode?

If you hear unusual noises

It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase.

Noise could be more marked depending on the position of the appliance and the surrounding environment.

Condensation inside and outside of the refrigerator

If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.

In any case, make sure that the doors are always perfectly closed.

Ice or frost build up inside the refrigerator or freezer

Did you leave the doors open for a long period of time?

Do the doors close perfectly?

If the doors do not close perfectly, contact your installer.

In case of frost or ice build up in the Fresh compartment, due to frequent and prolonged opening of the doors, deactivate the Fresh function via the button on the control panel. Wait until the frost or ice melt, then remove the drawer and dry the sides and bottom of the compartment.

Unpleasant odors inside the refrigerator

Clean the appliance completely according to the instructions.

Hermetically cover all the food. Do not conserve food for prolonged periods of time.

The doors are difficult to open

The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.

Appliance is cooling but lights and display are not working

Check to see if the appliance was accidentally placed into Sabbath Mode

The Ice Maker does not work

Make sure that the Ice Maker is on (Icemaker button ☎ on).

To switch on the Ice Maker press the button.

Make sure that the appliance is connected to the water supply.

The Ice Maker does not produce sufficient amounts of ice

On average, the Ice Maker produces approximately 10 cubes of ice every two and half hours.

The ice cubes freeze into one block

If the ice is not used frequently, it is possible that blocks of ice may form. It is recommended to remove the block of ice cubes and then let the Ice Maker fill the ice tray again.

The ice has an unusual flavour or colour

When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes.

If the refrigerator was switched off for more than one month or if the cartridge was not changed for more than six months, it could be necessary to replace the filter cartridge.

Contact a plumber or a water treatment expert to make sure that the problem is not due to the water supply.

If the unit you purchased was used as a showroom model it may be in a special energy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please contact your point of purchase for assistance with disabling this feature.

11.2 Malfunction indications appearing on the display

Display message Malfunction description

	Prolonged interruption of electrical powerthe appliance resumes work automatically, the display shows the warmest temperatures achieved
Power Failure!!
Door Fridge OPEN	Fridge door openthe message appears after few minutes from the door opening
Fresh Zone OPEN	Freezer door openthe message appears after few minutes from the door opening
Replace filter	Replace filter cartridgemessage appears when only 30% of filter capacity is left
Fridge too warm	Fridge too warmsee Troubleshooting Guide
Fridge too cold	Fridge too coldwait for 12 hours: if malfunction persists call Customer Care for advice
Fresh Zone too warm	Freezer too warmsee Troubleshooting Guide
Fresh Zone too cold	Freezer too coldwait for 12 hours: if malfunction persists call Customer Care for advice
Error Code...	Functional problemscall Customer Care who may help you to salve the problem or put you in contact with the nearest Service Agent
Check condenser	Check CondenserEvery 6 months the display shows the message “Check Cond”, clean the condenser and press for 5 seconds the Enter √ button to reset.

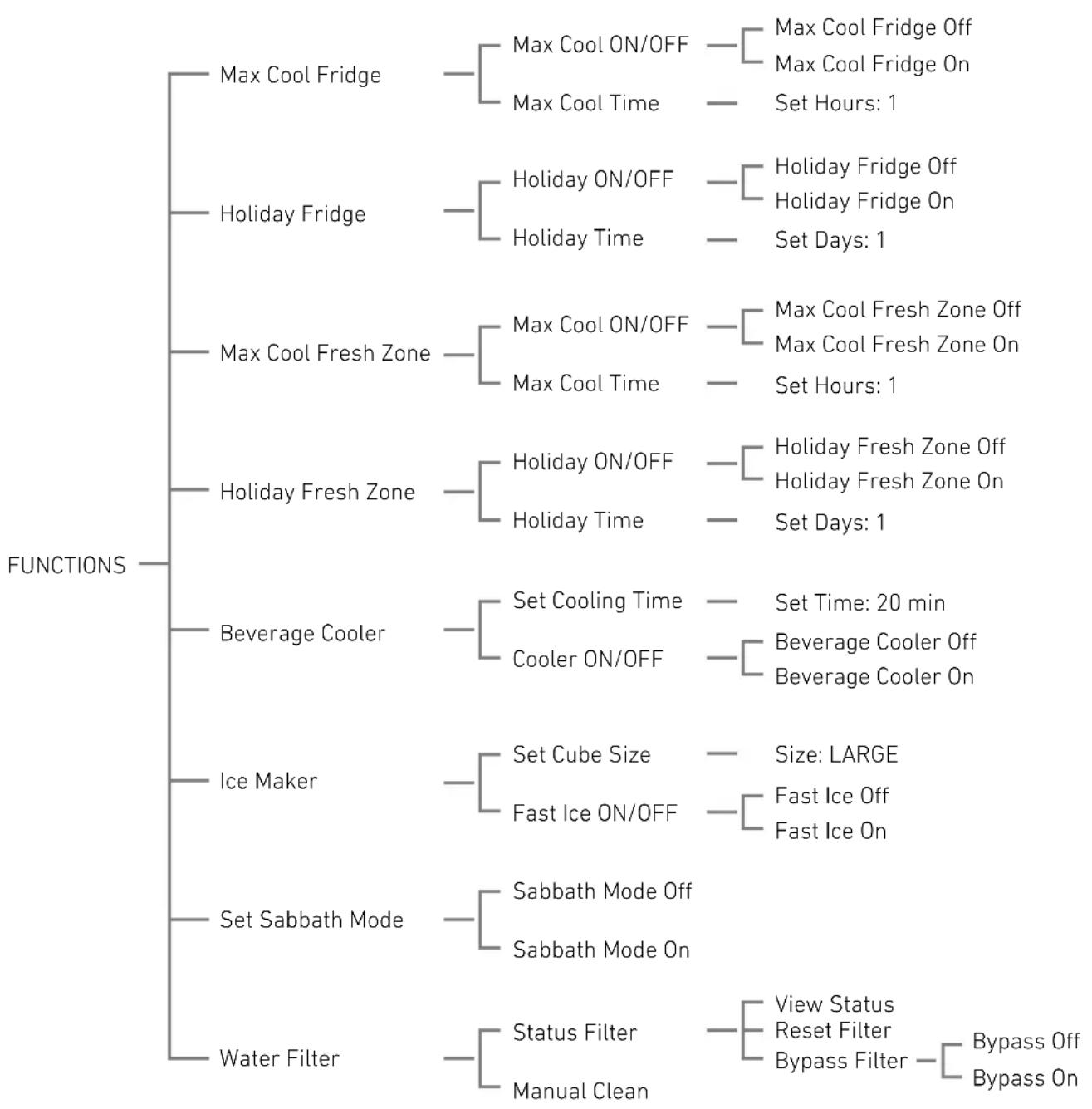

12.1 Functions

    B --> I["Max Cool ON/OFF"]
    B --> J["Max Cool Time"]
    I --> K["Max Cool Fridge Off"]
    I --> L["Max Cool Fridge On"]
    I --> M["Set Hours: 1"]

    C --> N["Holiday ON/OFF"]
    C --> O["Holiday Time"]
    N --> P["Holiday Fridge Off"]
    N --> Q["Holiday Fridge On"]
    N --> R["Set Days: 1"]

    D --> S["Max Cool ON/OFF"]
    D --> T["Max Cool Time"]
    S --> U["Max Cool Fresh Zone Off"]
    S --> V["Max Cool Fresh Zone On"]
    S --> W["Set Hours: 1"]

    E --> X["Holiday ON/OFF"]
    E --> Y["Holiday Time"]
    X --> Z["Holiday Fresh Zone Off"]
    X --> AA["Holiday Fresh Zone On"]
    X --> AB["Set Days: 1"]

    F --> AC["Set Cooling Time"]
    F --> AD["Cooler ON/OFF"]
    AC --> AE["Set Time: 20 min"]
    AD --> AF["Beverage Cooler Off"]
    AD --> AG["Beverage Cooler On"]

    G --> AH["Set Cube Size"]
    G --> AI["Fast Ice ON/OFF"]
    AH --> AJ["Size: LARGE"]
    AI --> AK["Fast Ice Off"]
    AI --> AL["Fast Ice On"]

    H --> AM["Sabbath Mode Off"]
    H --> AN["Sabbath Mode On"]

    I --> AO["View Status"]
    I --> AP["Reset Filter"]
    I --> AQ["Bypass Filter"]
    AO --> AR["Bypass Off"]
    AO --> AS["Bypass On"]

    J --> AT["Manual Clean"]

12.2 Settings

    B --> I["Freezer"]
    B --> J["Fresh"]
    B --> K["Fridge"]

    C --> L["Enter to Confirm"]

    D --> M["Set Date"]
    D --> N["Show Date"]
    M --> O["DATE: 01-01-00"]
    N --> P["DATE: 01-01-00 On"]
    N --> Q["DATE: 01-01-00 Off"]

    E --> R["Set Time"]
    E --> S["Show Time"]
    E --> T["Set View"]
    R --> U["TIME: 00:00"]
    S --> V["TIME: 00:00 On"]
    S --> W["TIME: 00:00 Off"]
    T --> X["Set: 24"]
    T --> Y["Set: 12"]

    F --> Z["italiano"]
    F --> AA["english"]
    F --> AB["français"]
    F --> AC["deutsch"]
    F --> AD["español"]

    G --> AE["Set °C"]
    G --> AF["Set °F"]

    H --> AG["Keypad lock On"]
    H --> AH["Keypad lock Off"]

1 INDICATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ 28

Mechanical assembly diagram showing two connected components with gears and a valve (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Important

Scanned document with a red rectangular label containing Chinese text and a QR code, likely a form or checklist.

Hand gesture pointing at a software interface with icons for zoom, feed, and control buttons

Fonctions → √ → △ max cool fridge → √ → △ max cool super cool on/off → √ → △ super cooling allume → √

Pour désactiver

Fonctions → √ → △ max cool fridge → √ → △ max cool super cool on/off → √ → △ super cooling ferme → √

Fonctions → √ → △ holiday fridge → √ → △ holiday on/off → √ → △ holiday fridge allume → √

Fonctions → √ → △_Holiday fresh zone → √ → △_Holiday time → √ → △_Régler jours: 1 → √

Illustration of a hand inserting a rectangular object into a drawer (no text or symbols)

Bac Fresh Zone

Illustration of a hand opening a box with a magnified view of the lid (no text or symbols)

Bac à Glace

Architectural elevation drawing of a building facade with structural elements (no text or symbols)

Technical line drawing of a mechanical component with dimension annotations (no readable text or symbols)

Illustration of a baby being held by an adult in a hospital bed (no text or symbols visible)

Pure electrical circuit lines without any symbols

Illustration showing a door handle opening and inserting a cylindrical component into a cabinet (no text or symbols)

Attention

Diagram of a pipe fitting with a bulb and connector (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Importante

Scanned document with a printed form or report in Chinese, including date, time, and signature fields.

3.2 Componentes principales

1 2 3 4 5 6 7 Low Temp 8 9 FrigoriferoFresh Zone

Hand gesture pointing at a software toolbar with icons for zoom, print, and display functions

Illustration of a hand opening a drawer with a handle, no text or symbols present

Cajón Fresh Zone

Illustration of a hand placing a rectangular object into a container with a pen, no text or symbols present

Cubitera del hielo

Architectural diagram of a multi-level storage or lifting device with no visible text or symbols

Technical line drawing of a mechanical bracket or bracket assembly with directional arrows and dimension labels (no text or symbols present)

Illustration of a baby being held by an adult in a hospital bed (no text or symbols visible)

Pure electrical circuit lines without any symbols

Illustration showing a door latch with a handle inserting into a sink, alongside a hand inserting a pipe (no text or symbols present)

Atención
