FM4BM30(I)FBI

FM4BM36(I)FBI

FM4FBM36(I)FBI

REFRIGERATOR

RÉFRIGÉRATEUR

EN

INSTALLATION MANUAL

FR

MANUEL D'INSTALLATION

TABLE OF CONTENTS PAGE

1 - Symbols and Their Meanings 2

Disposing the packaging materials 2

Product weight 3

Load bearing capacity of the doors 3

2 - Installation Place 4

Furniture 4

Ventilation 5

Electrical Connection 5

Water Connection 5

3 - Tool list 6

4 - Alternatives for installation 7

5 - Preparation for installation

Cabinet Dimensions 8

Location of the Electrical Wiring 9

Location of the Water System 9

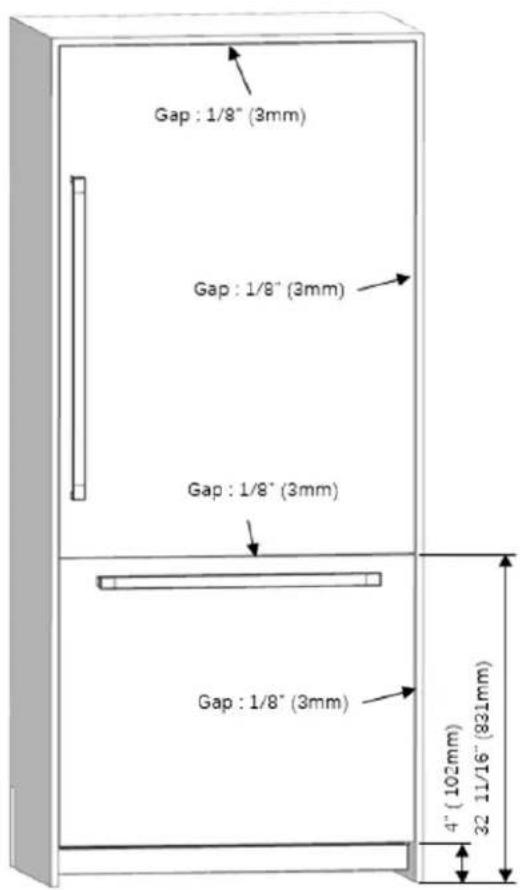

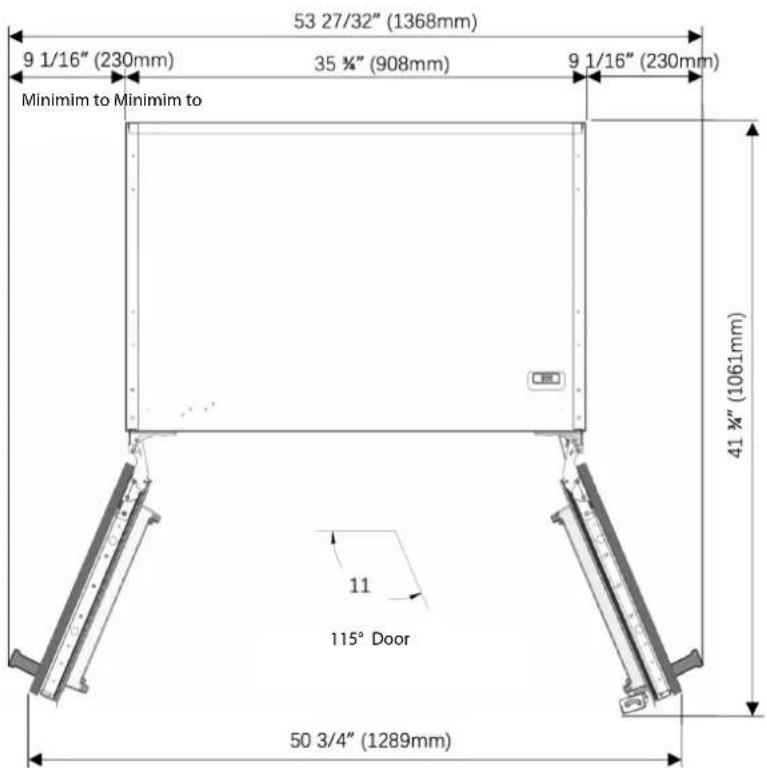

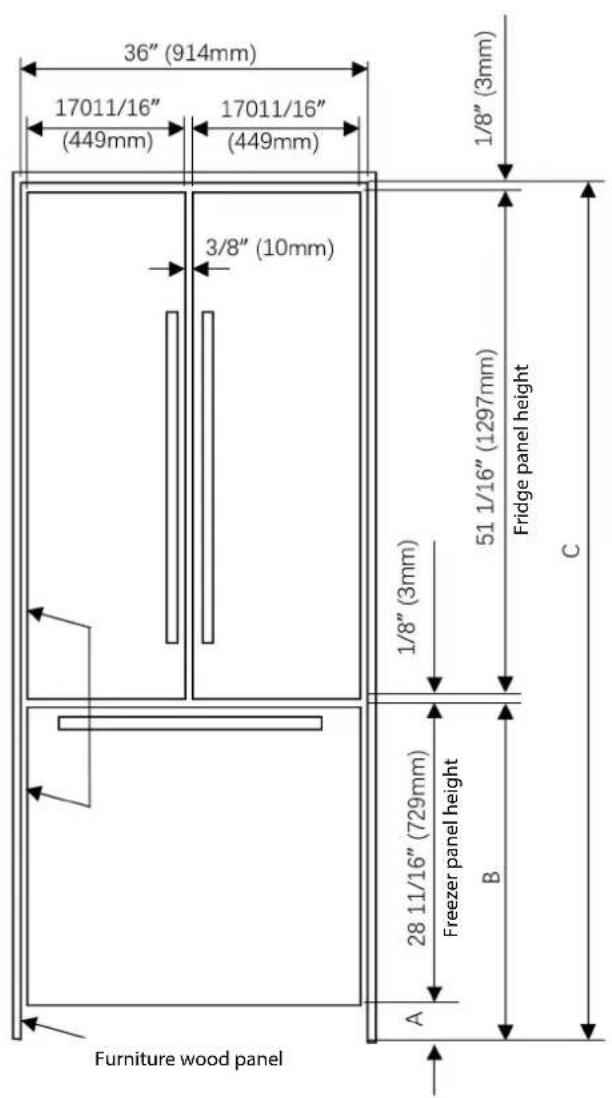

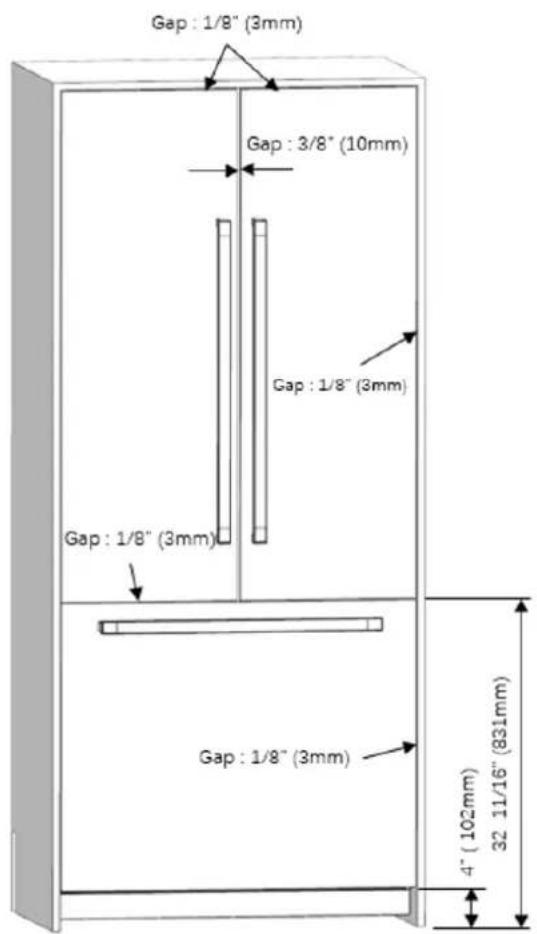

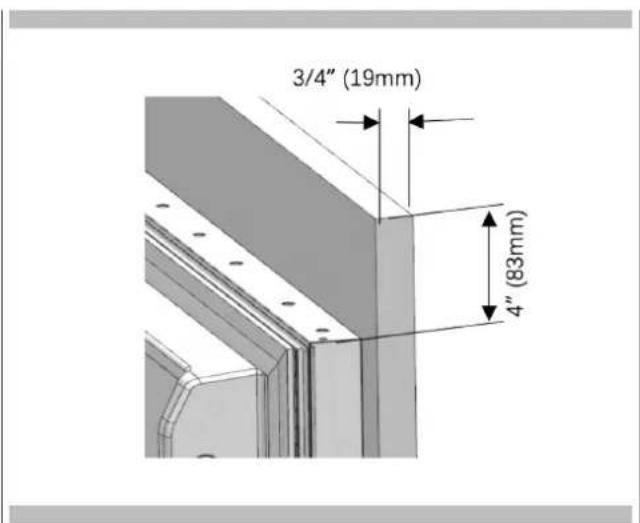

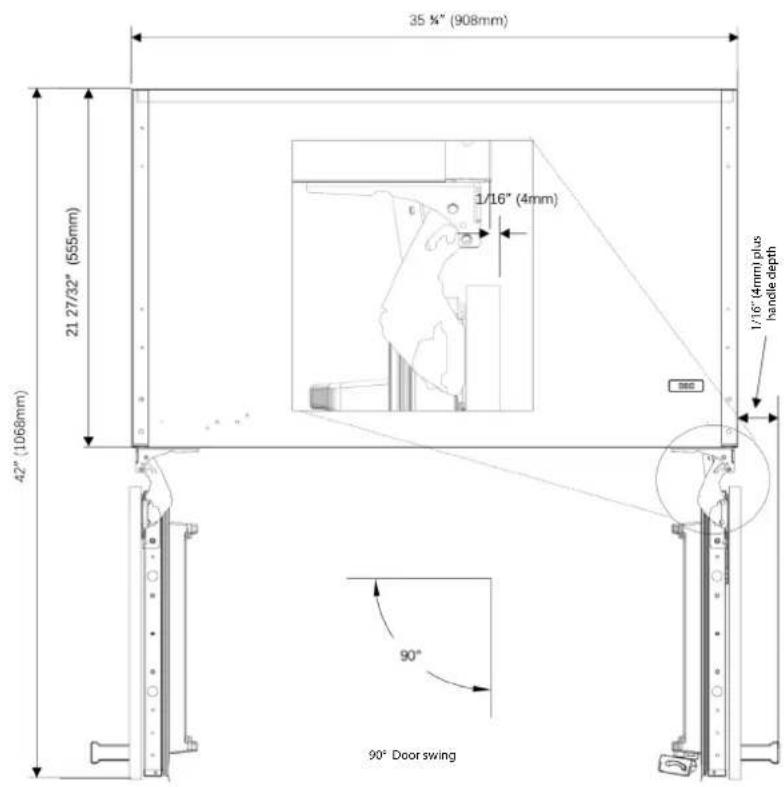

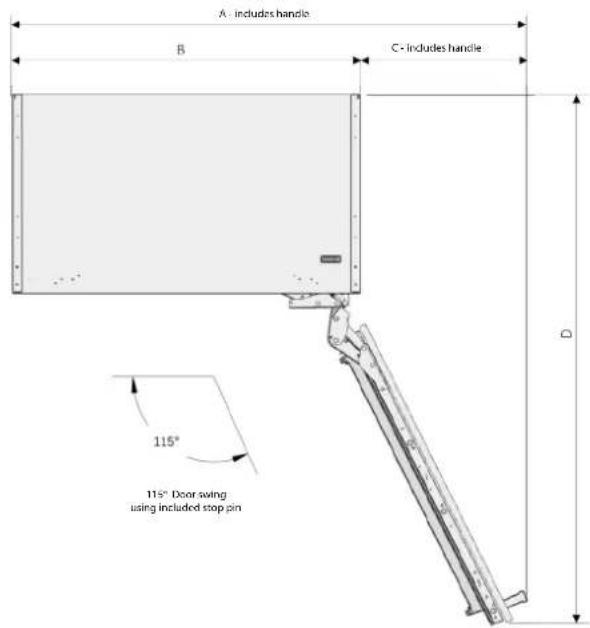

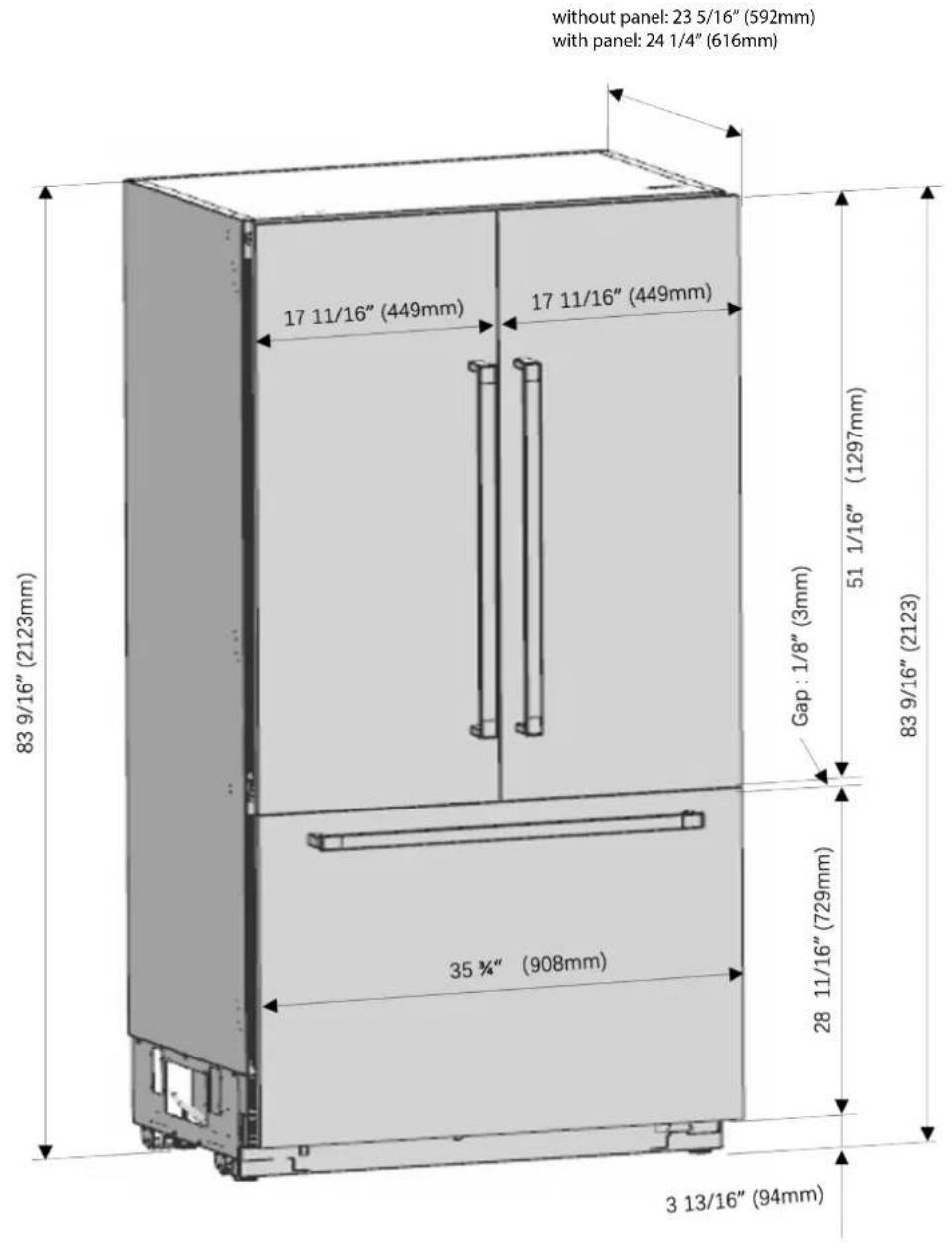

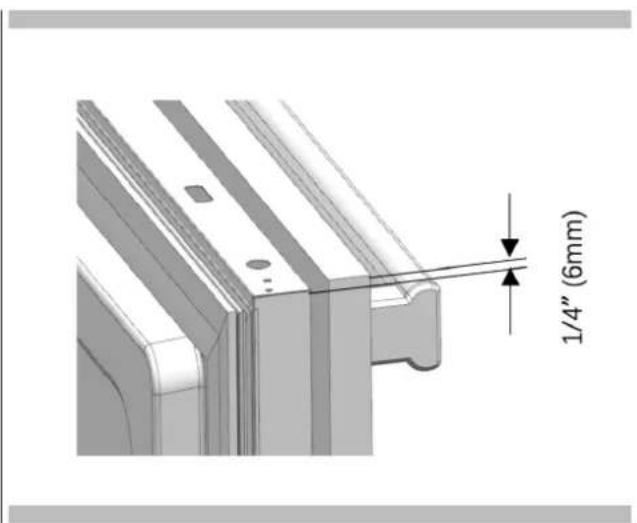

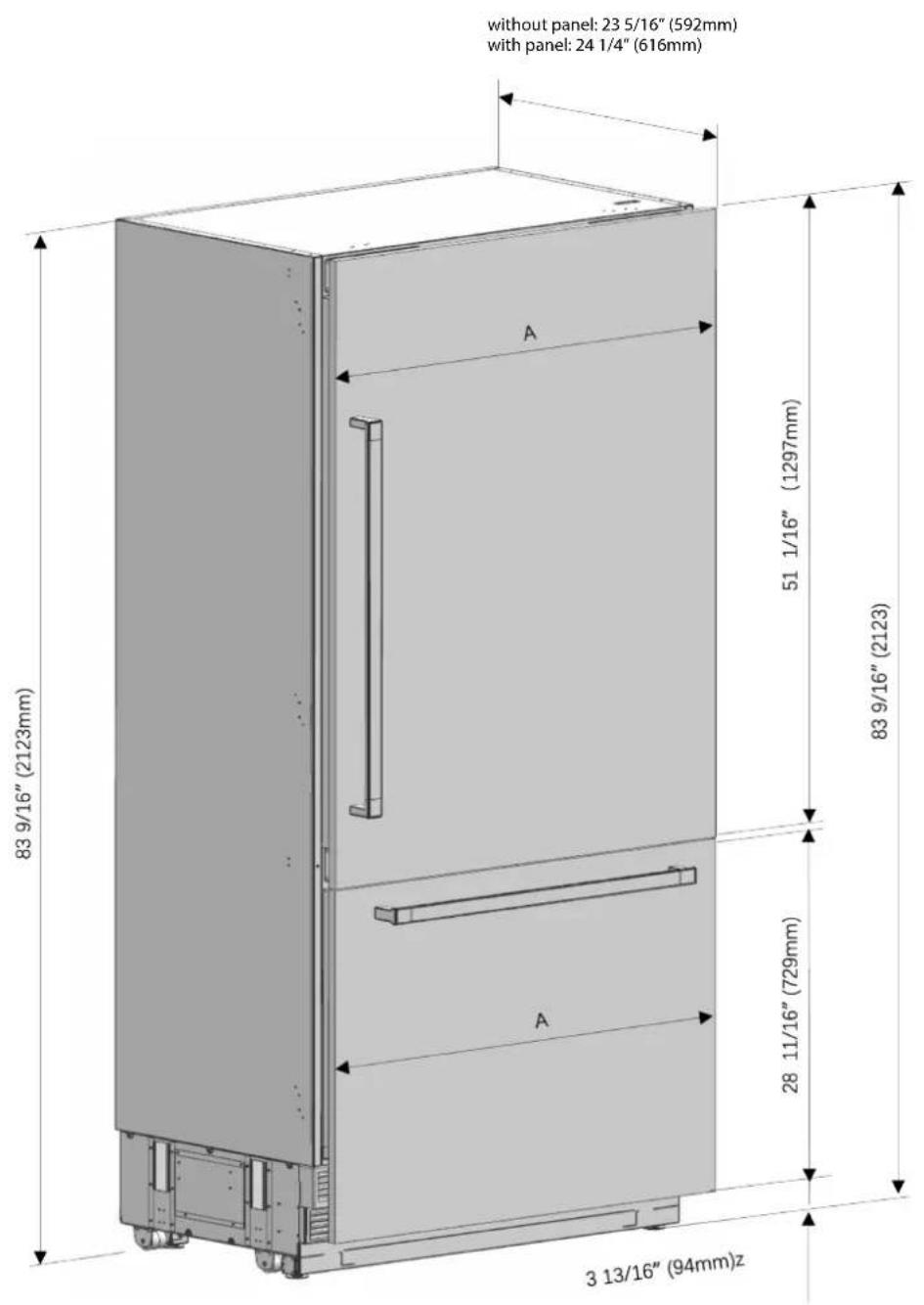

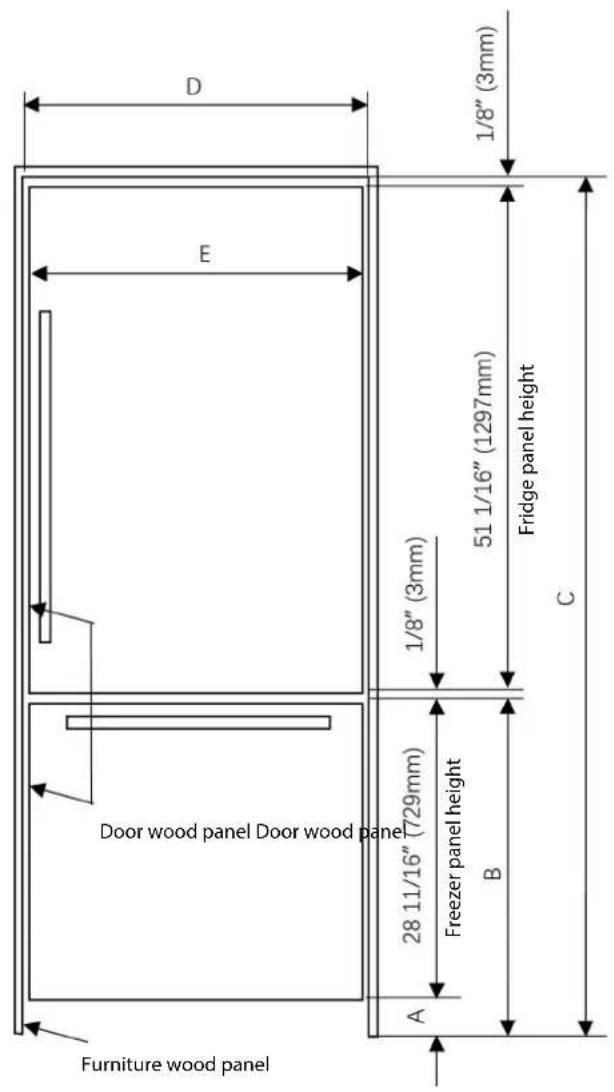

Product Dimensions 10

Unpacking 17

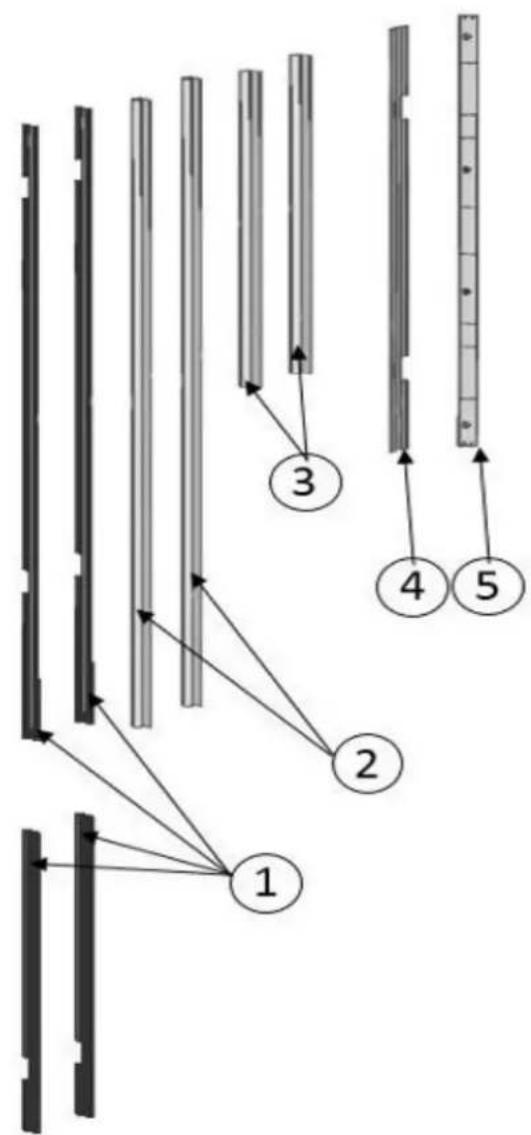

Removing Accessories from the Back 18

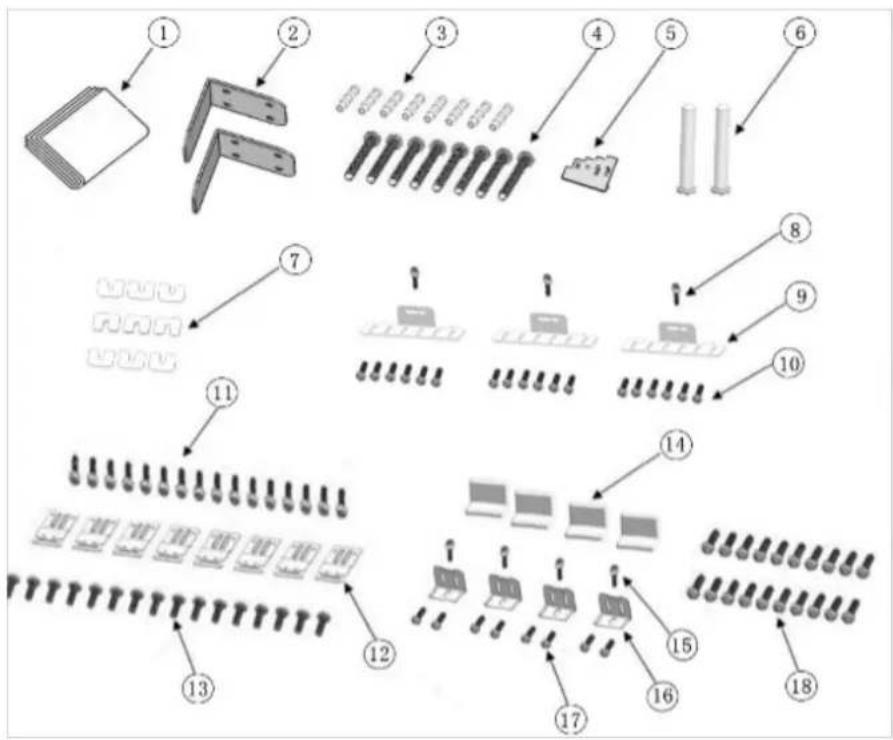

Removing Mounting Parts in the Freezer 19 Compartment

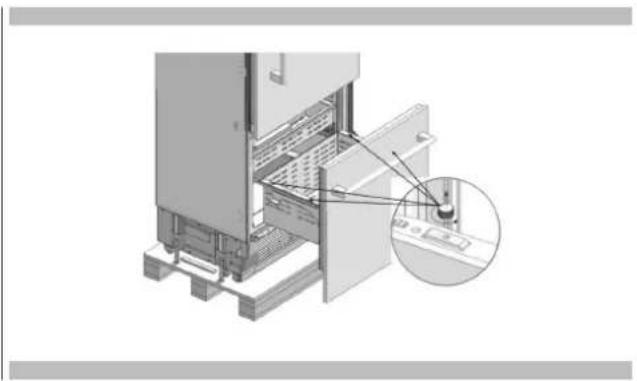

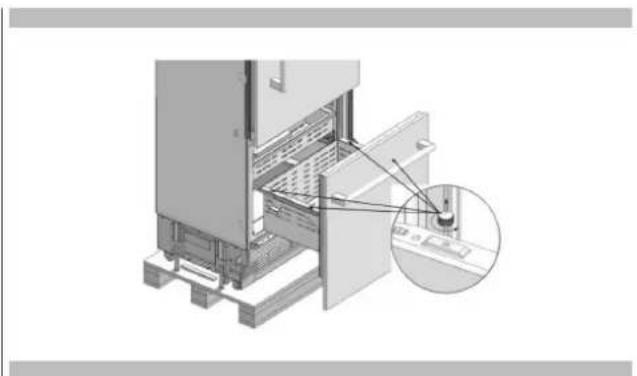

Removing the Freezer Drawer Bin 20

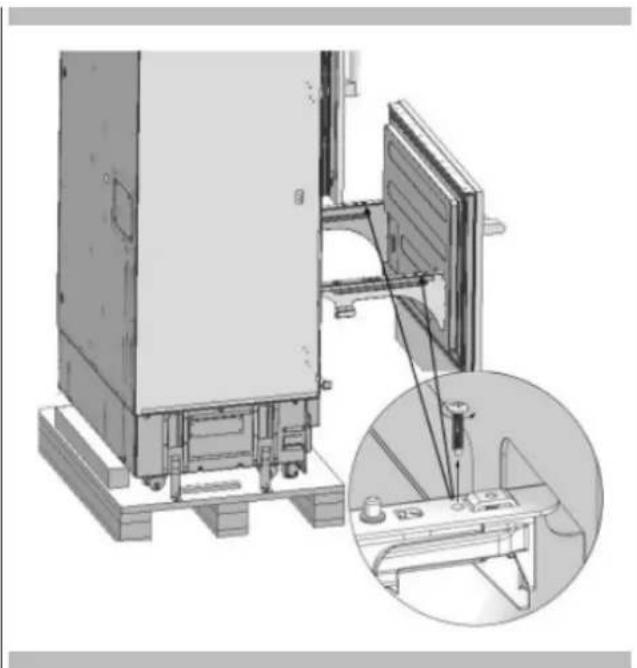

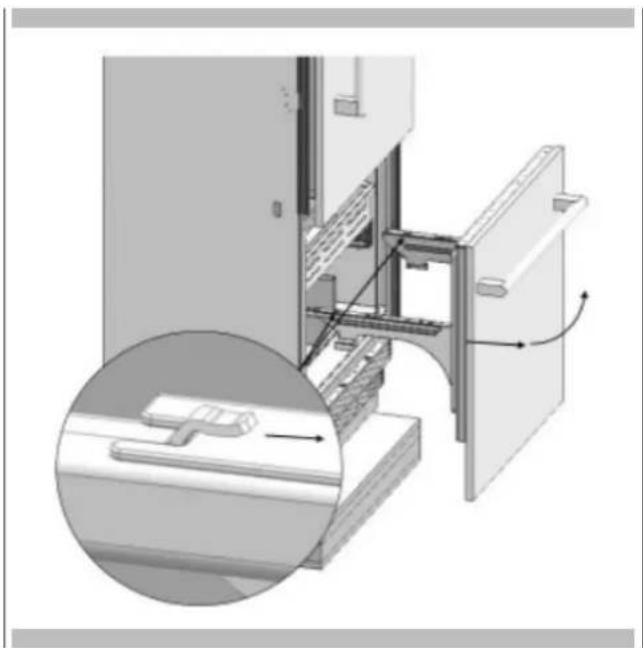

Removing the Freezing Drawer 20

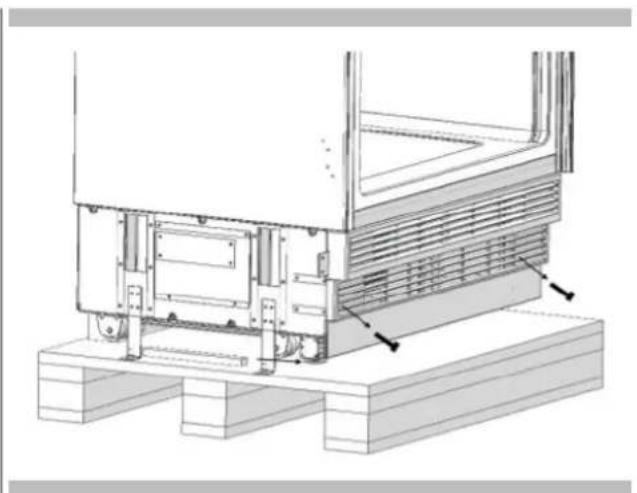

Removing the Lower Ventilation Assembly 21

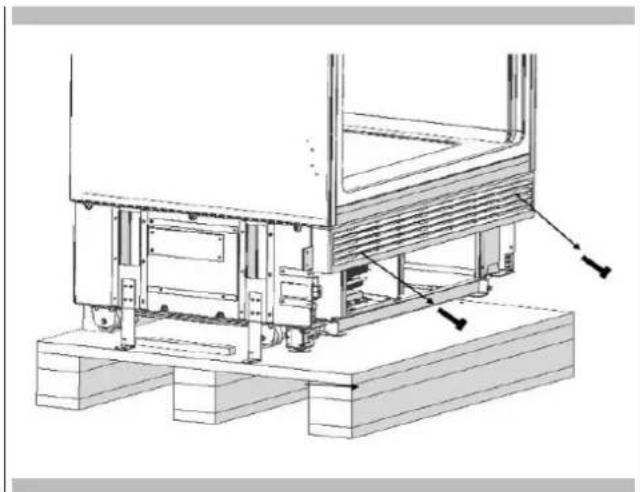

Removing the Upper Ventilation Part 21

6 - Preparing for installation

Mounting the Anti-Tip Brackets 22

Alternative Anti-Tip Method 23

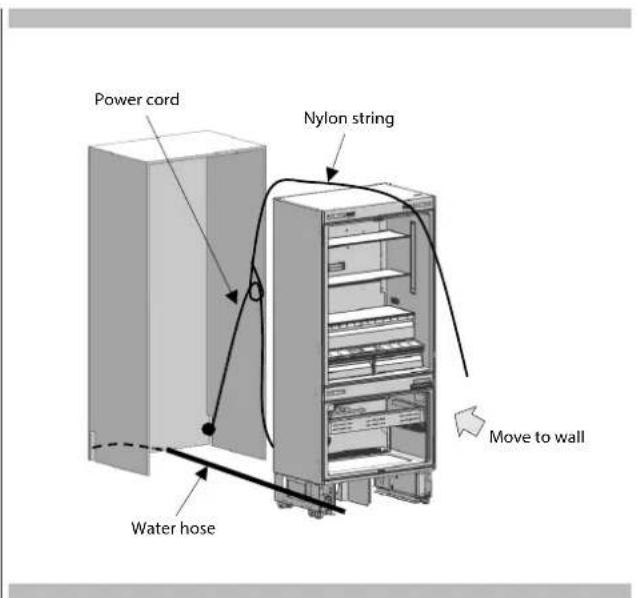

Preparing the Water Hose and the Power Plug 23

7 - Installation into the cabinet

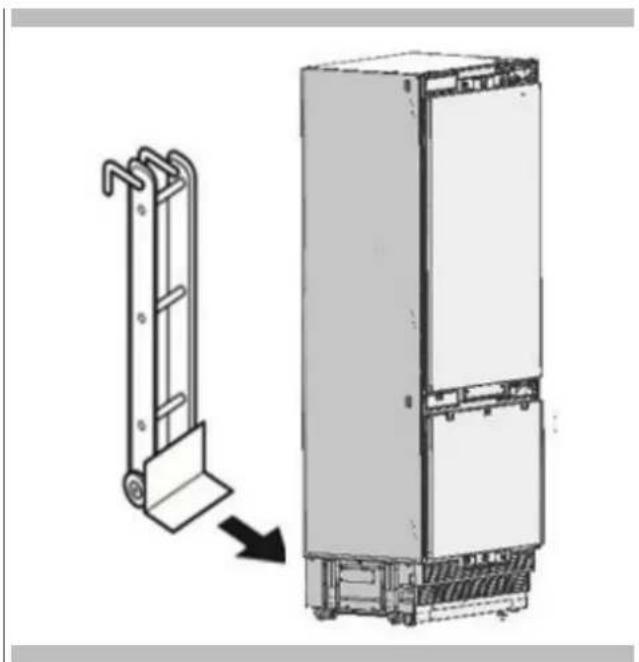

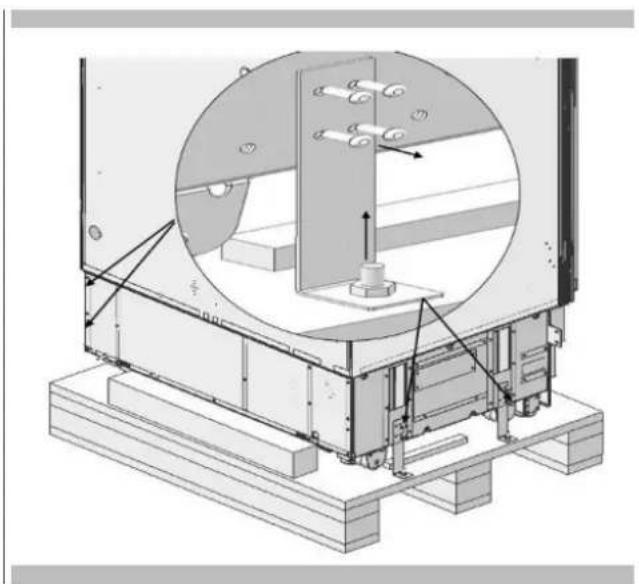

Taking the Appliance from the Wooden Pallet 24

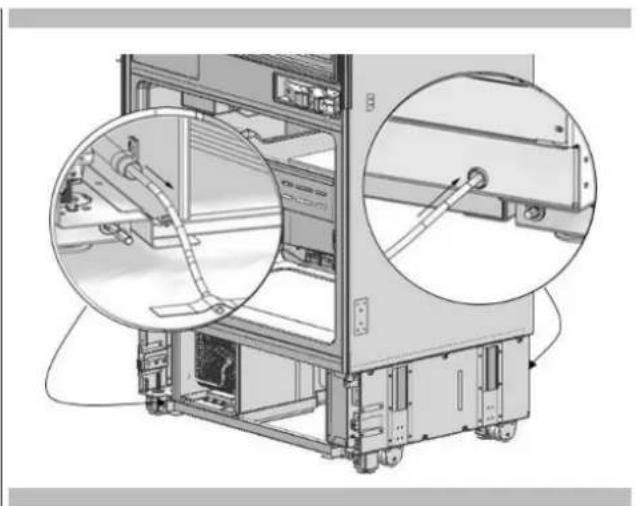

Placing the Appliance into the Cabinet 24

Adjusting the Height of the Appliance in the Cabinet 25

Adjusting the Appliance with Respect to the Side Walls 26

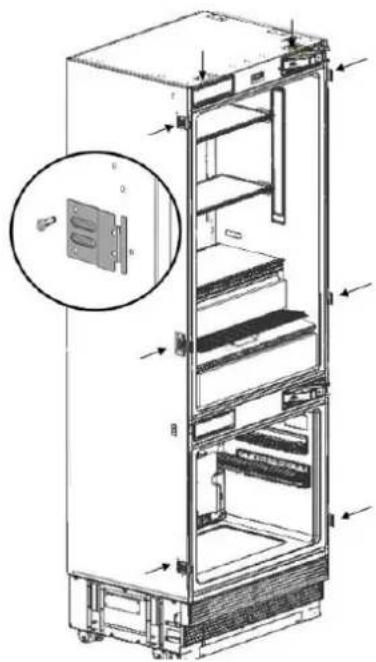

Attaching the Cabinet Connection Brackets 26

8 - Installing at the bottom

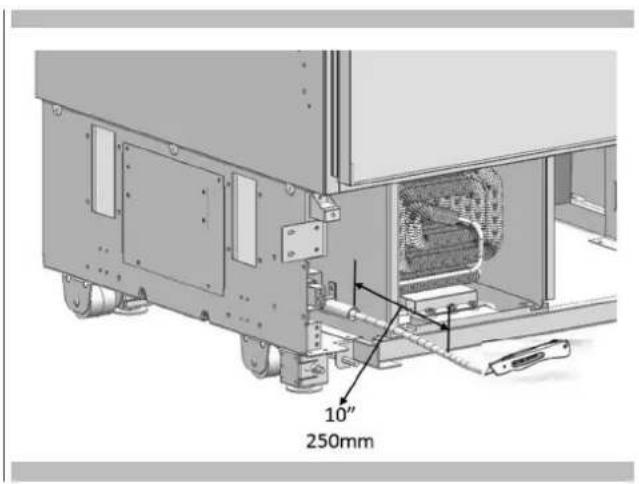

Water connection 28

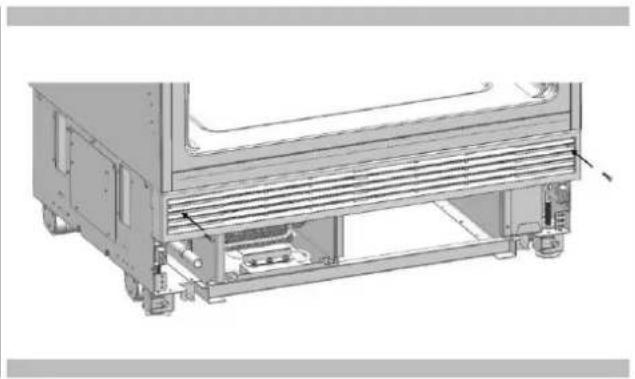

Attaching the Upper Ventilation Part 28

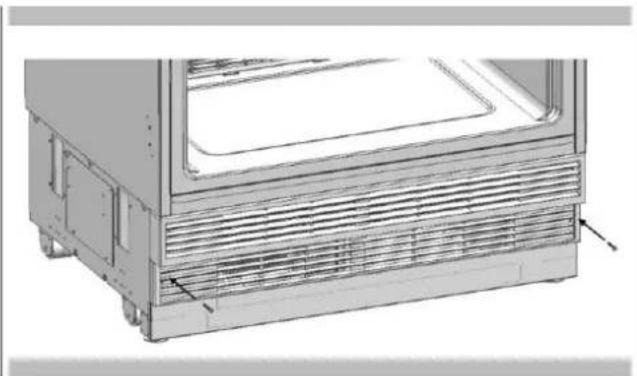

Attaching the Lower Ventilation Assembly 29

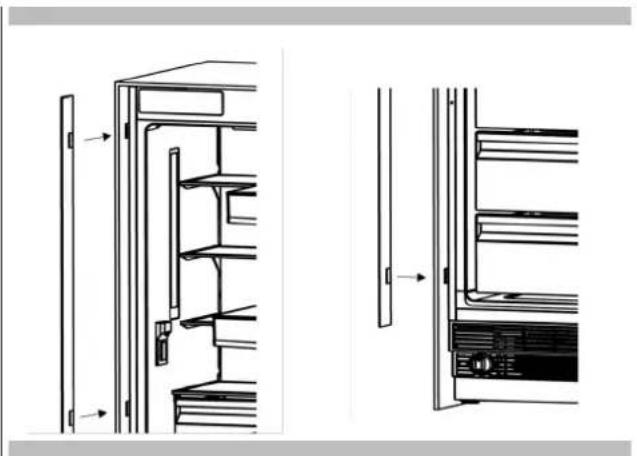

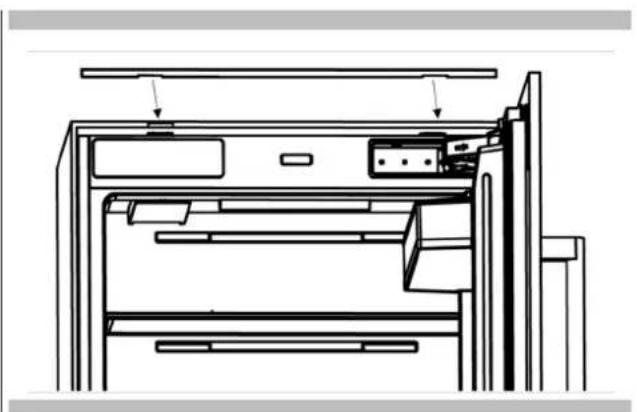

Attaching the Decorative Trim Parts 29

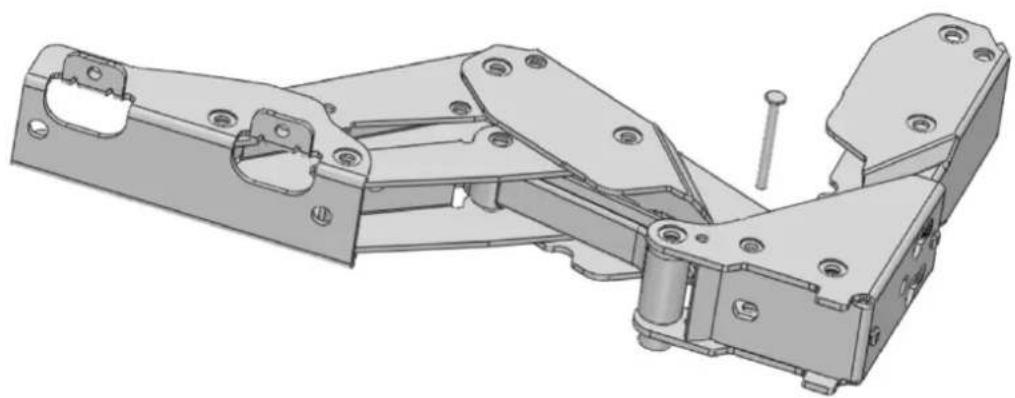

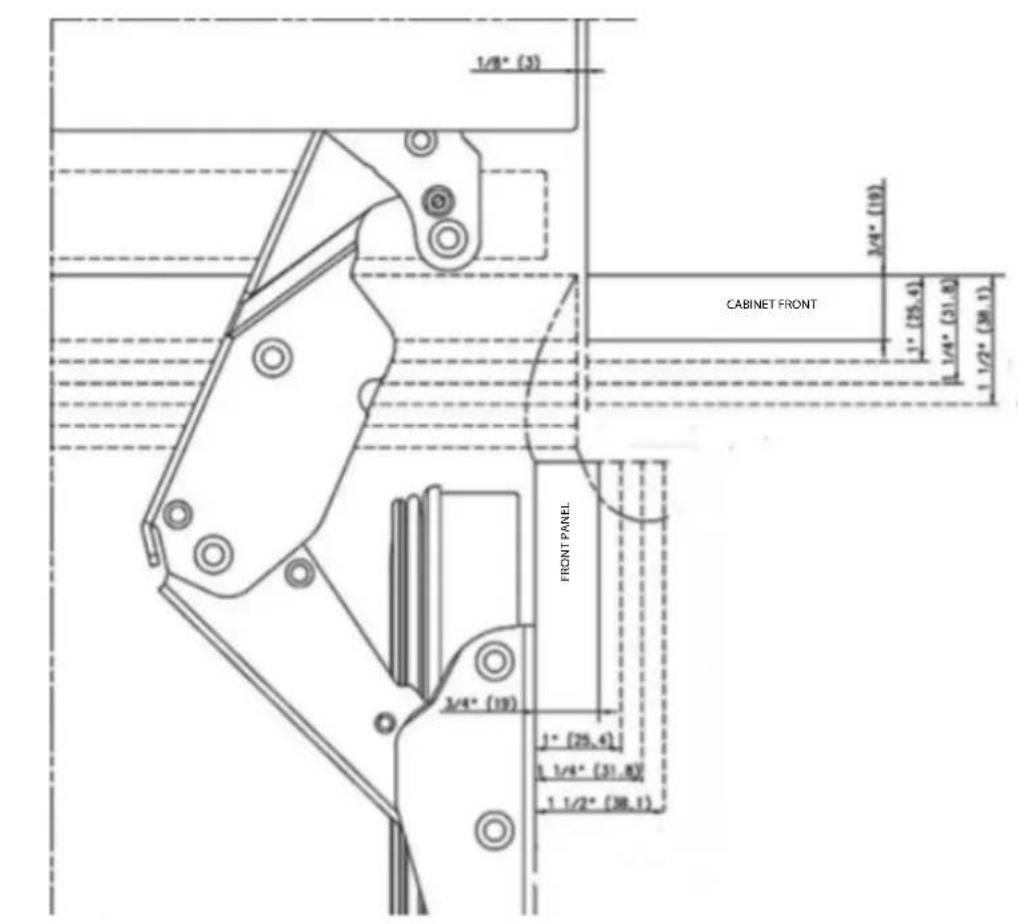

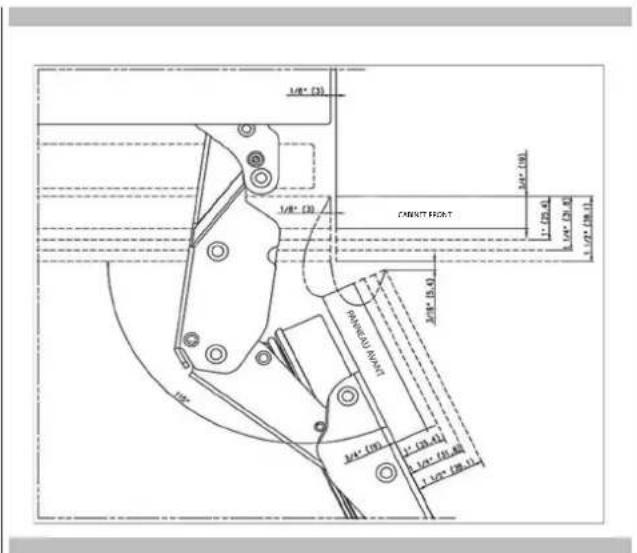

Choosing the Door Thickness 29

TABLE OF CONTENTS PAGE

9 - Door overlay preparation 31

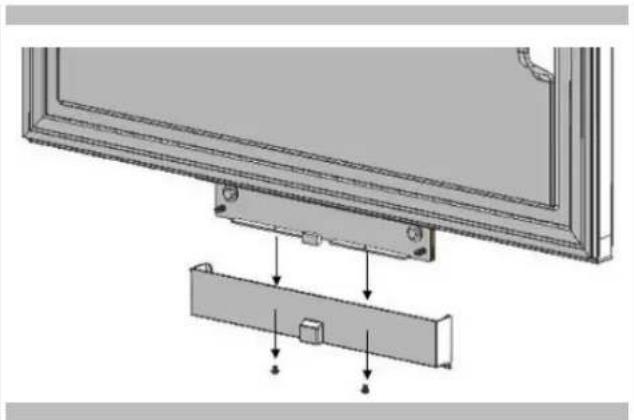

Removing the Mechanism Covers 31

Removing the Door Panel-Adjustment 31

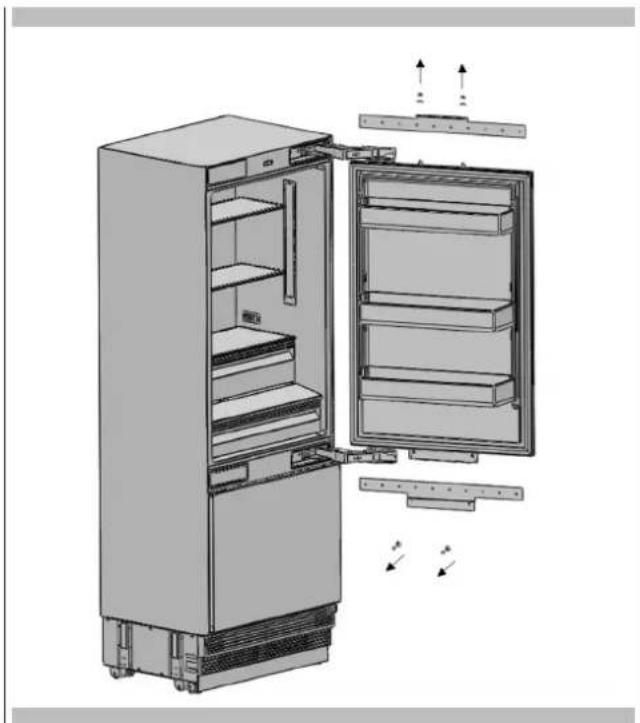

Mechanisms on the Refrigerator

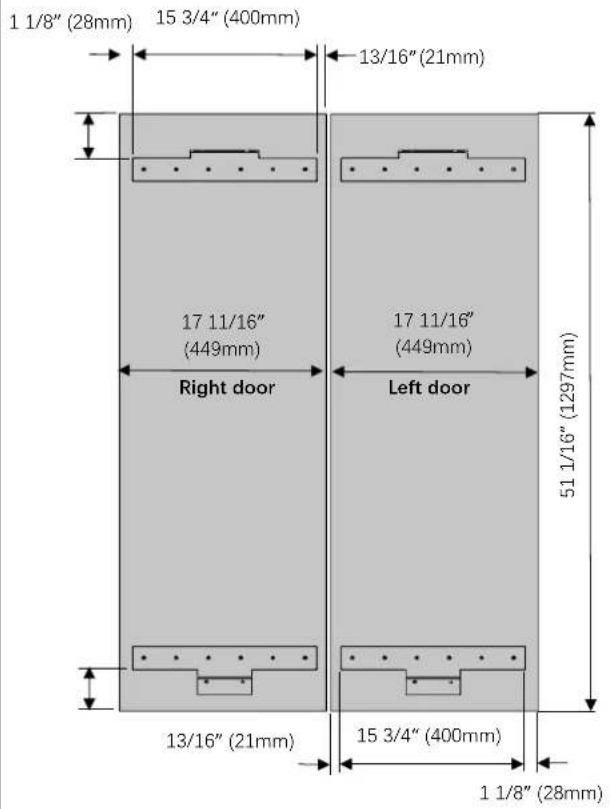

Preparing the Door Overlay Panels 31

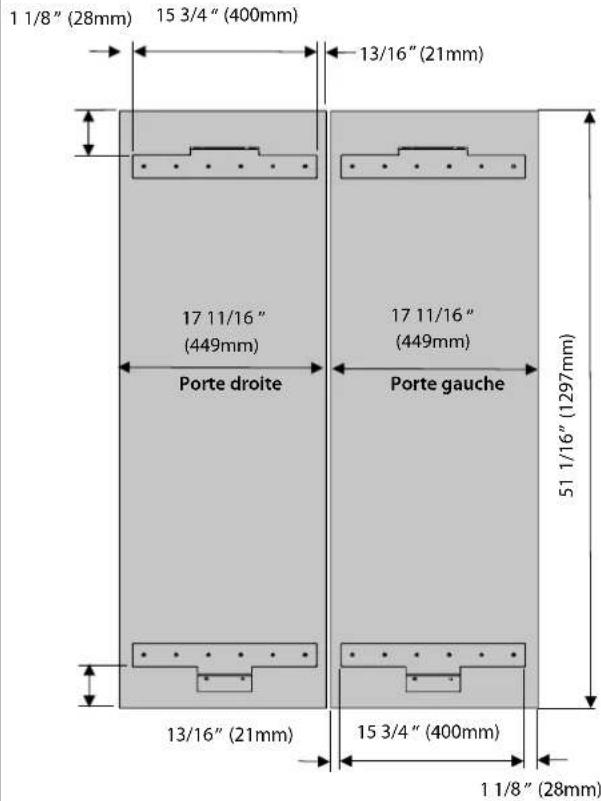

Preparing the Fridge Door Overlay Panel 32

Preparing the Freezer Door Overlay Panel 33

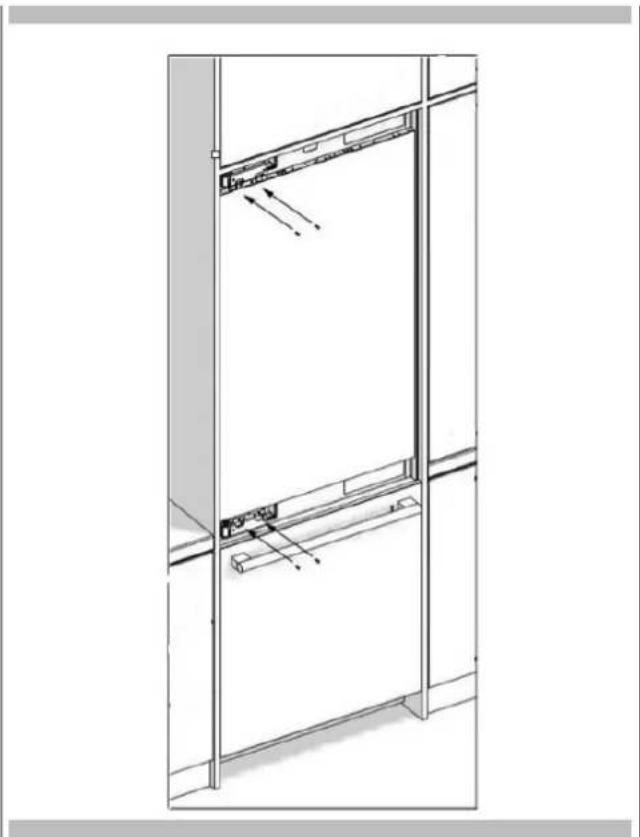

Installing the Fridge Door Overlay Panel 34

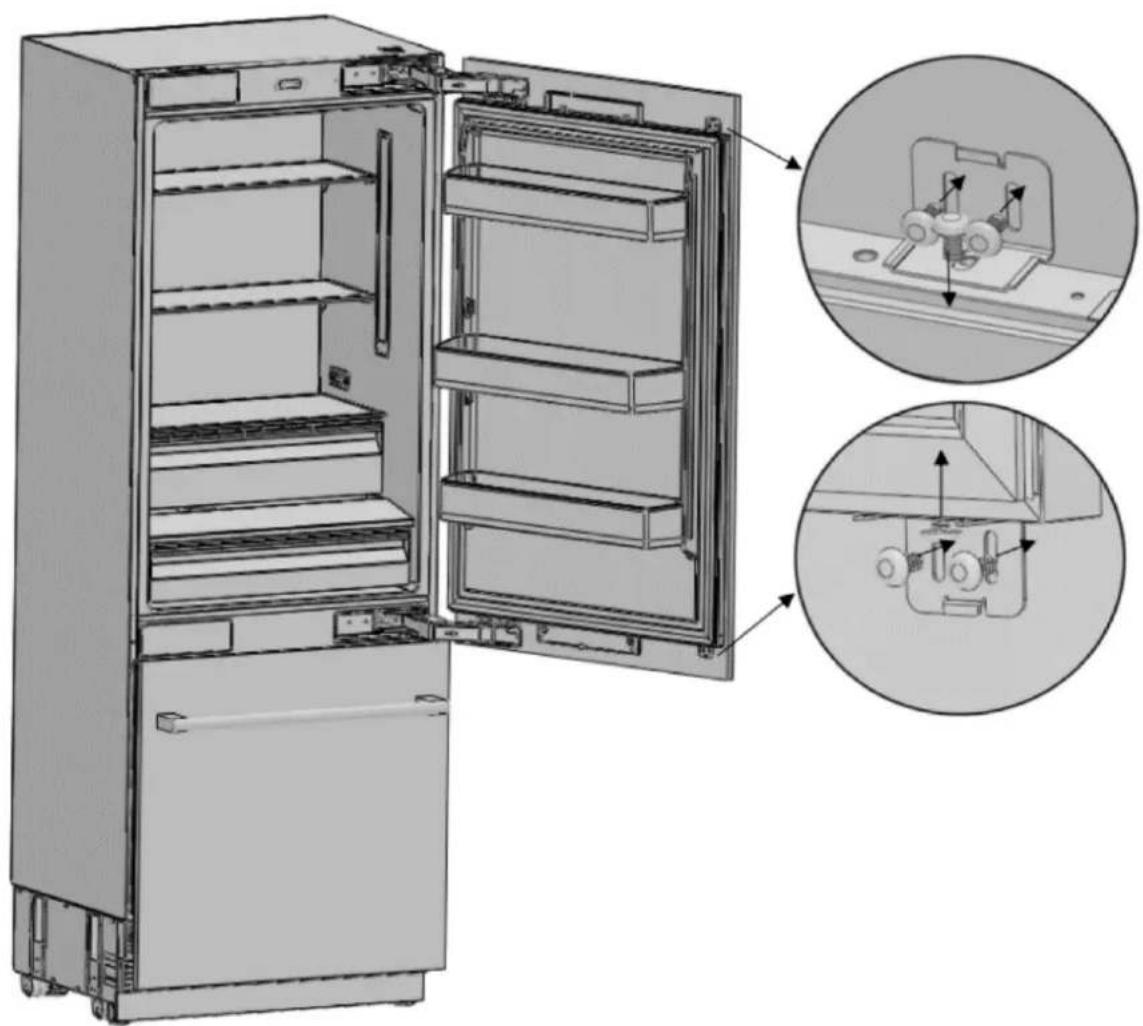

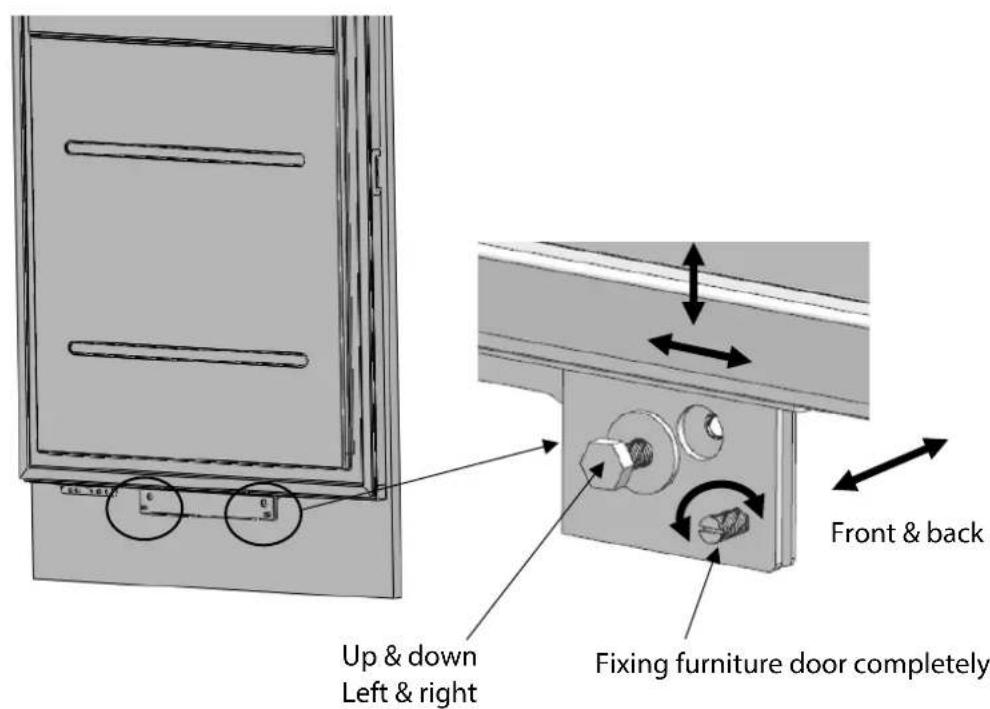

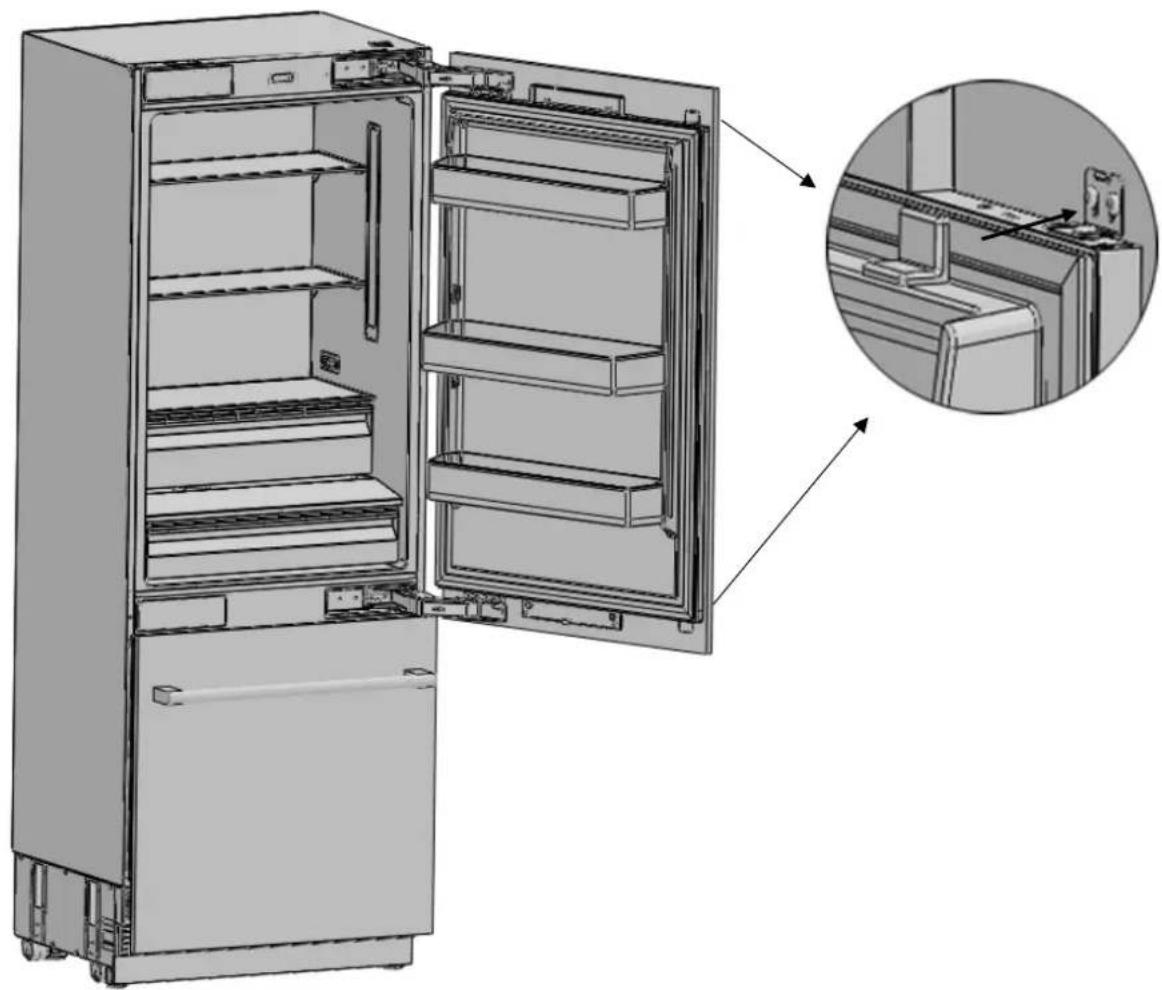

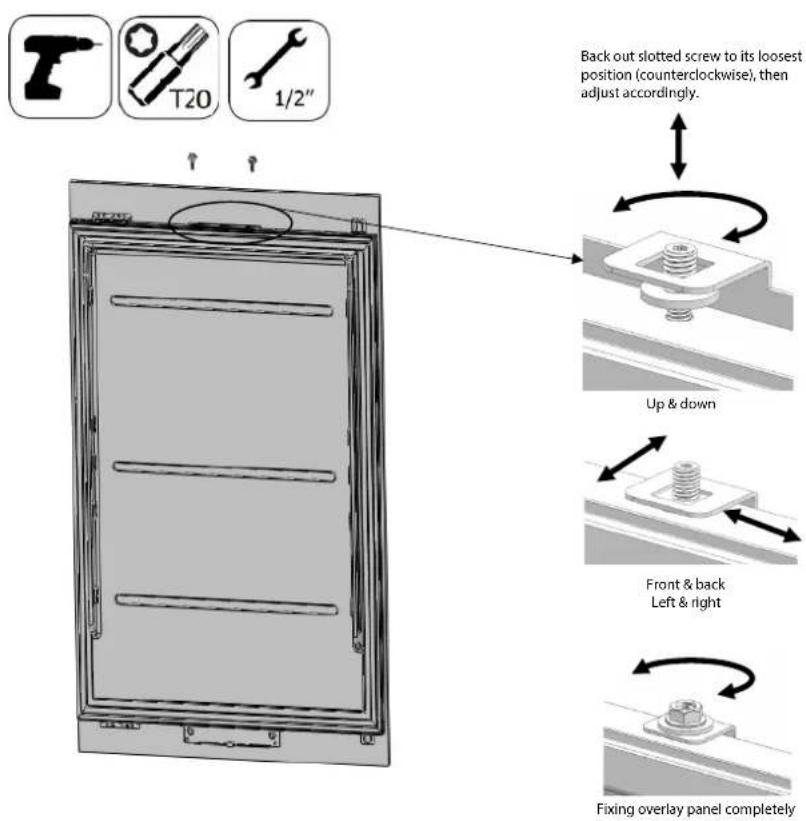

How to align the fridge door with bolts 34

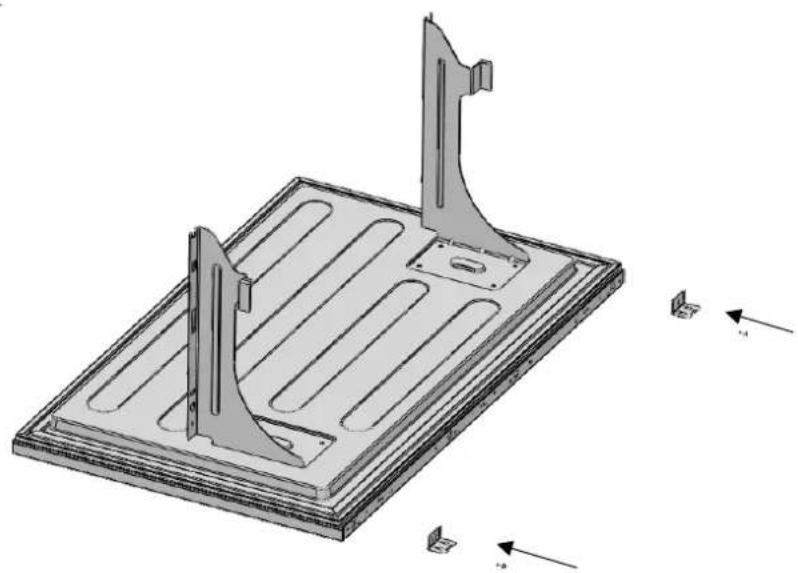

Installing the Freezer Door Overlay Panel 40

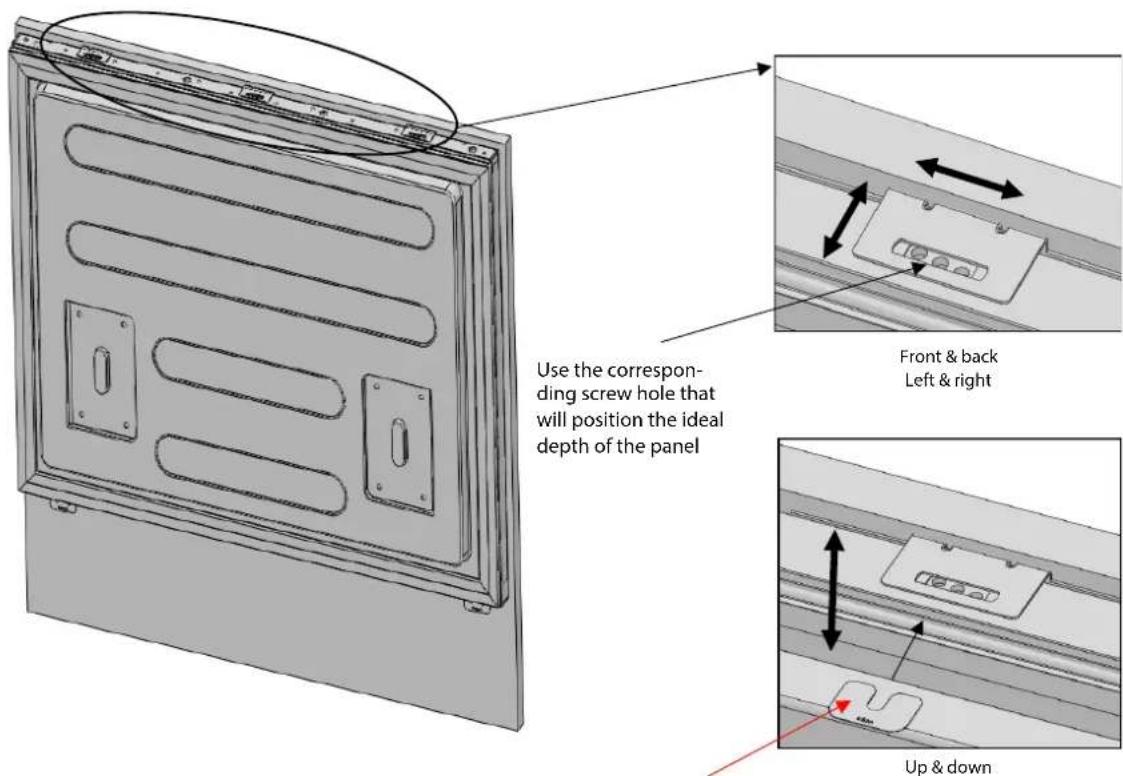

How to align the freezing door overlay panel 41 to the lower section

10 - Hinge adjustment 45

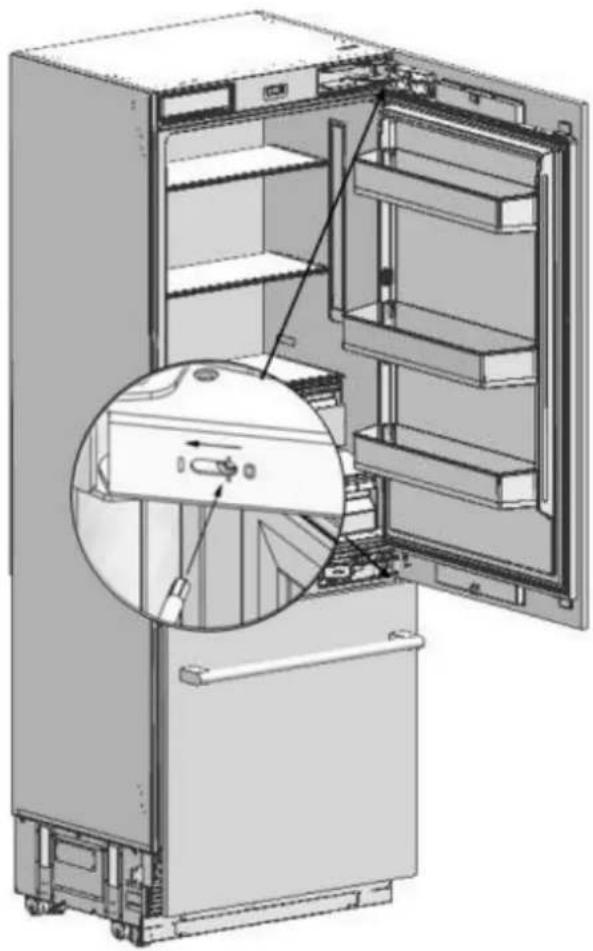

Adjusting the Strength of the Hinges 45

11 - Changing the swing of the door 46

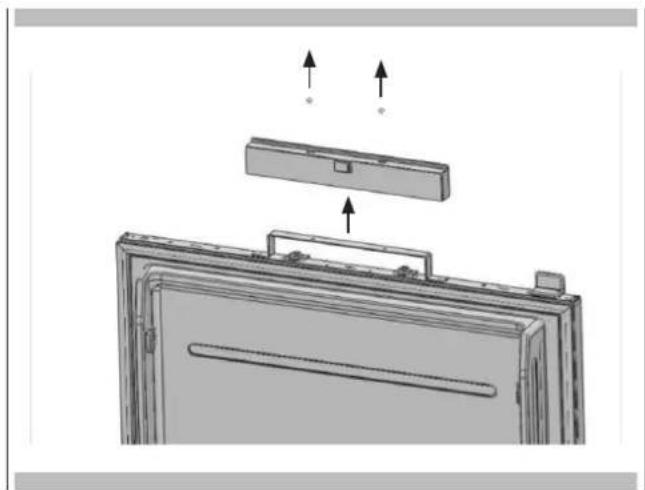

Removing the Fridge Door 46

Removing and Preparing the Fridge Inner Door 48

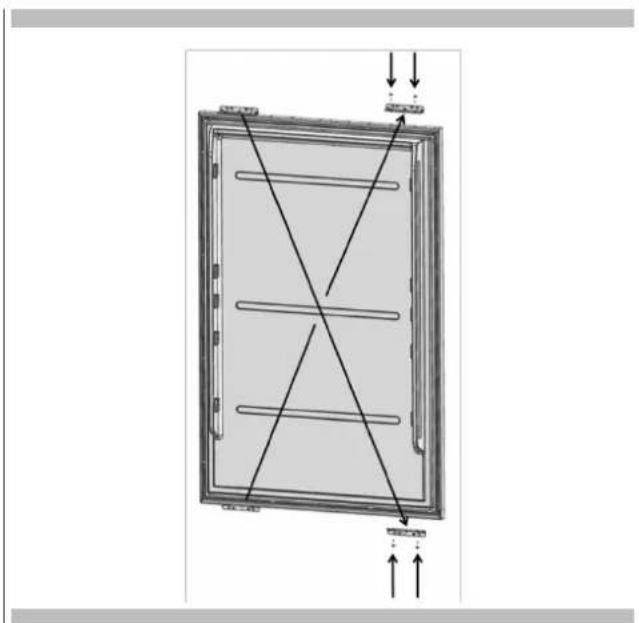

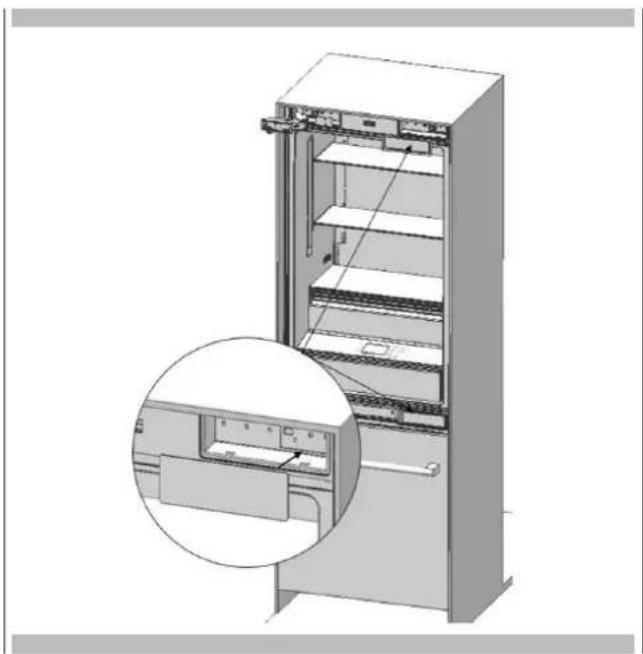

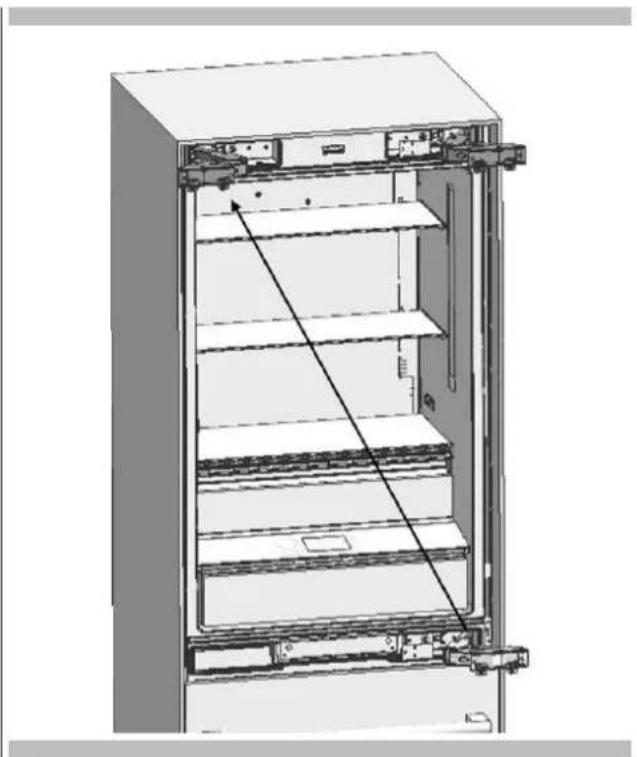

Replacing the Hinges 48

Installing the Fridge Door 49

12 - Dual installation 50

Cabinet Dimensions 50

Location of the Electrical Wiring 50

Location of the water system 51

Mounting Part Lists 52

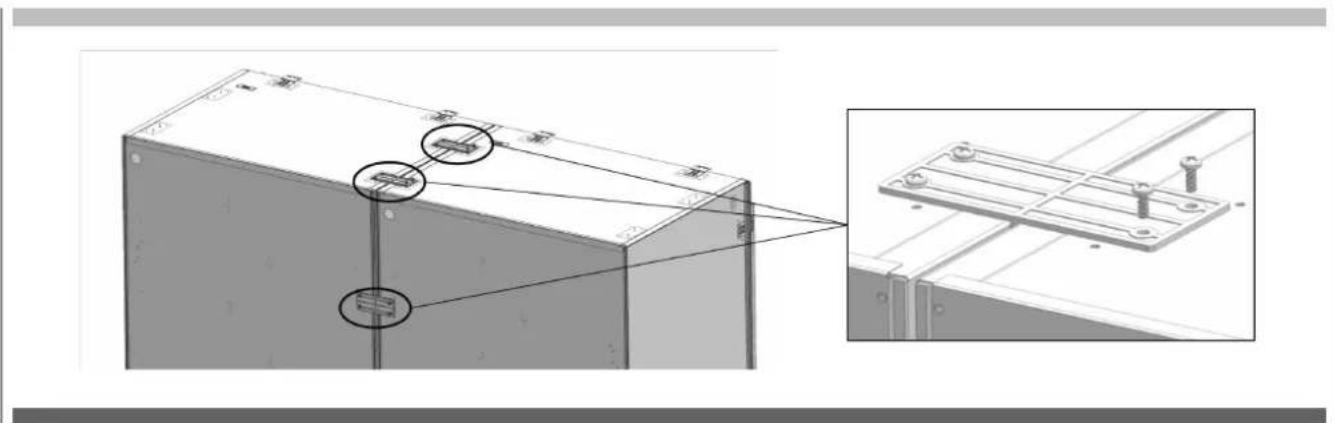

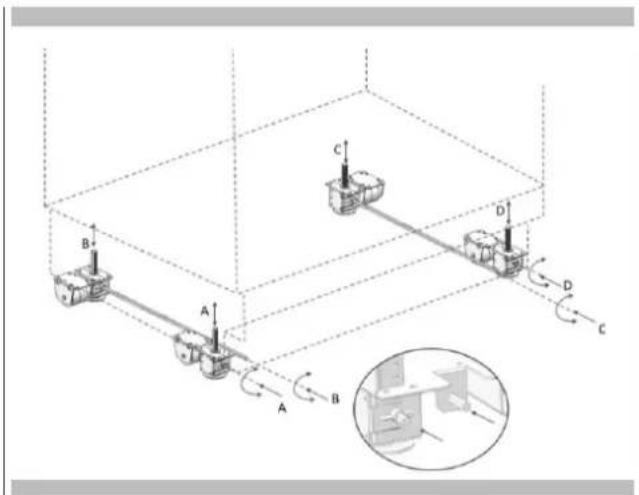

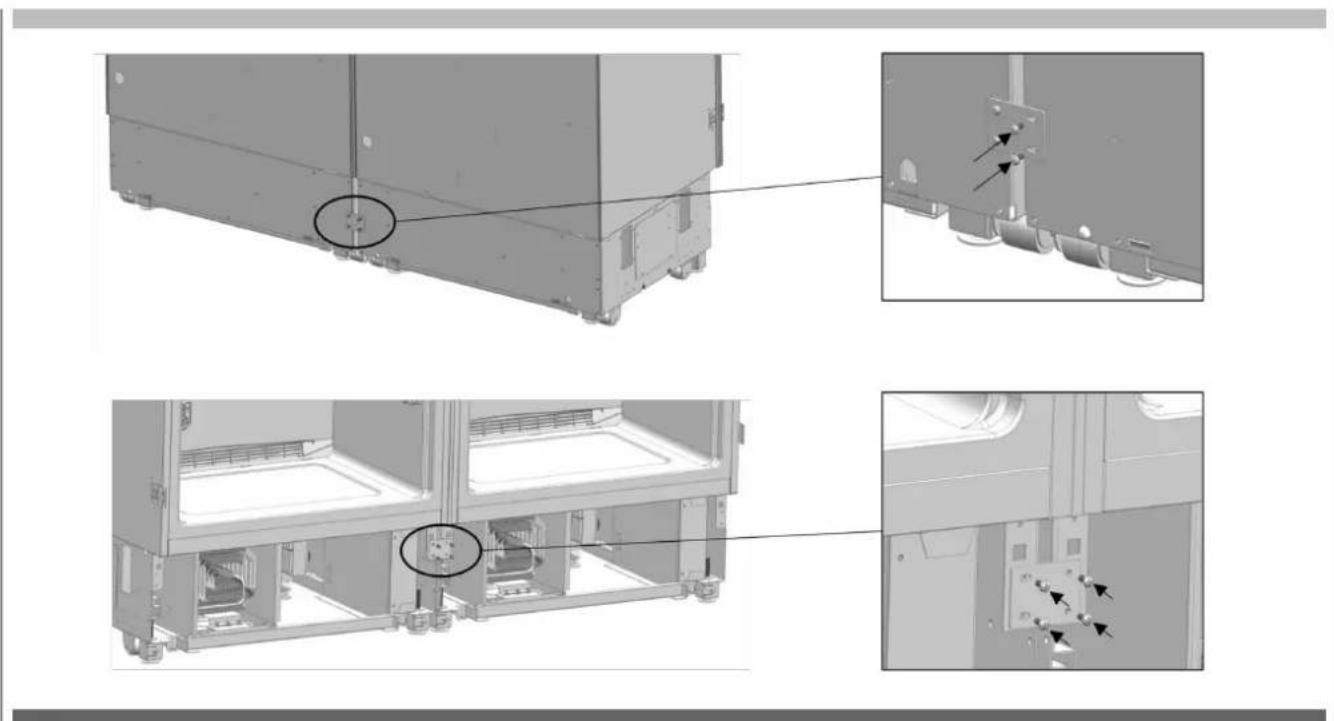

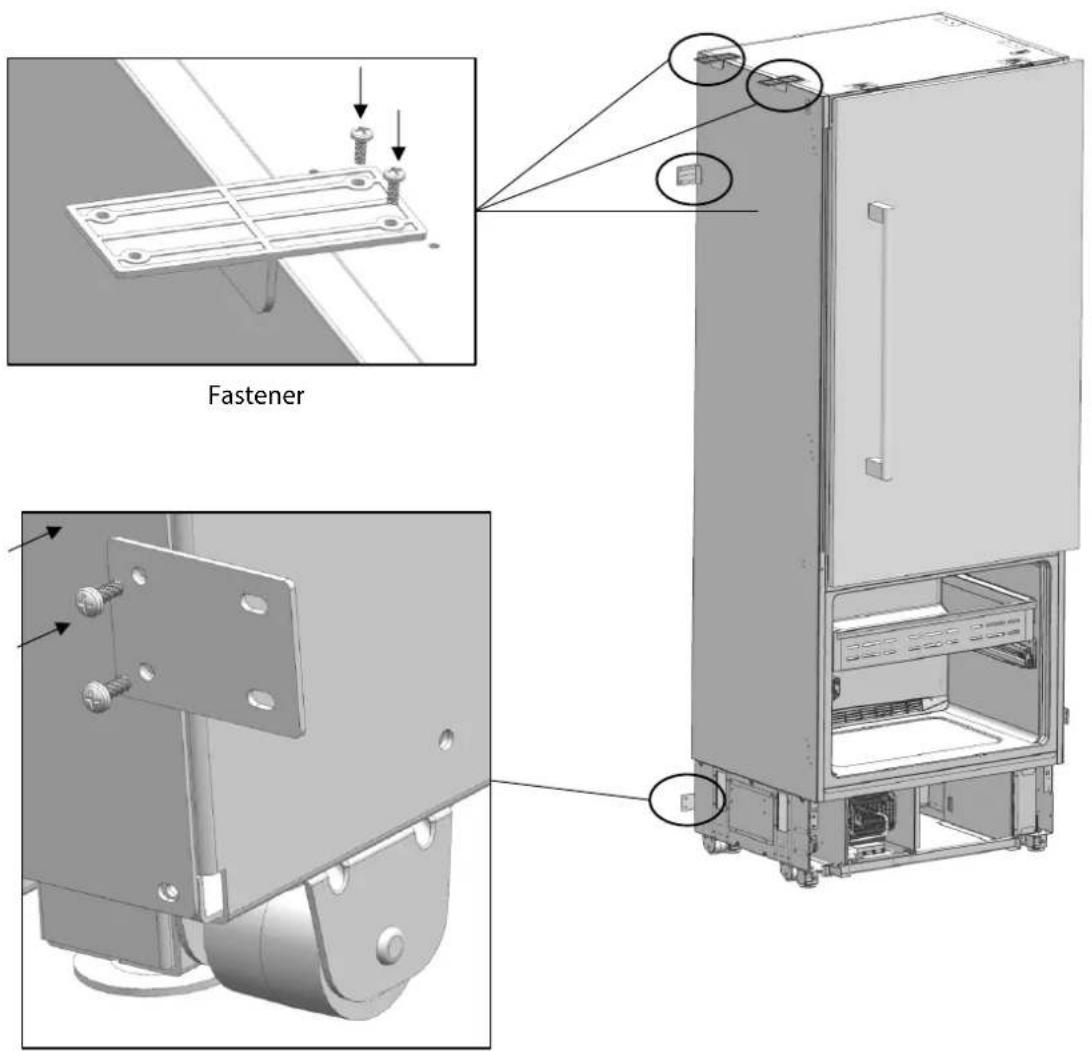

Attaching the fasteners and connecting 54 bracket

Adjusting the height of the refrigerator in the cabinet 56

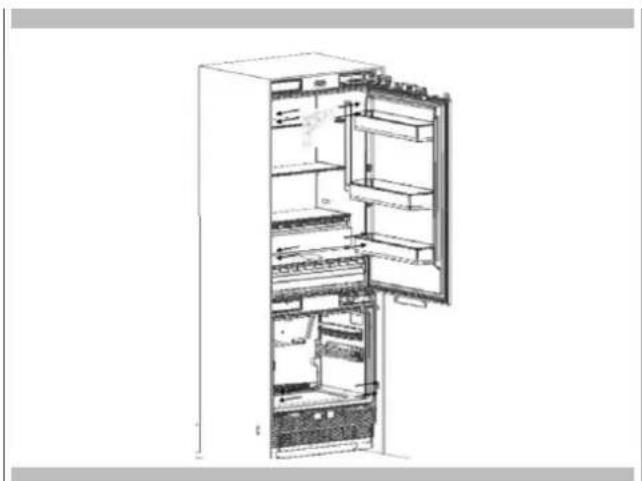

Screwing the bracket furniture on the cabinet side walls 56

Screwing the bracket furniture on the cabinet top wall 56

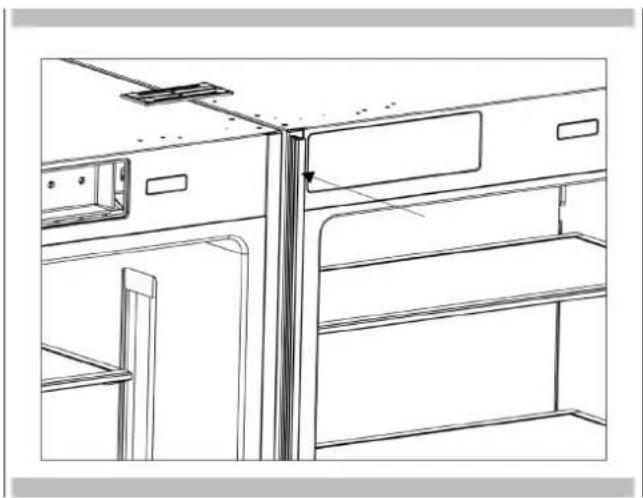

Attaching the decorative trim parts 56

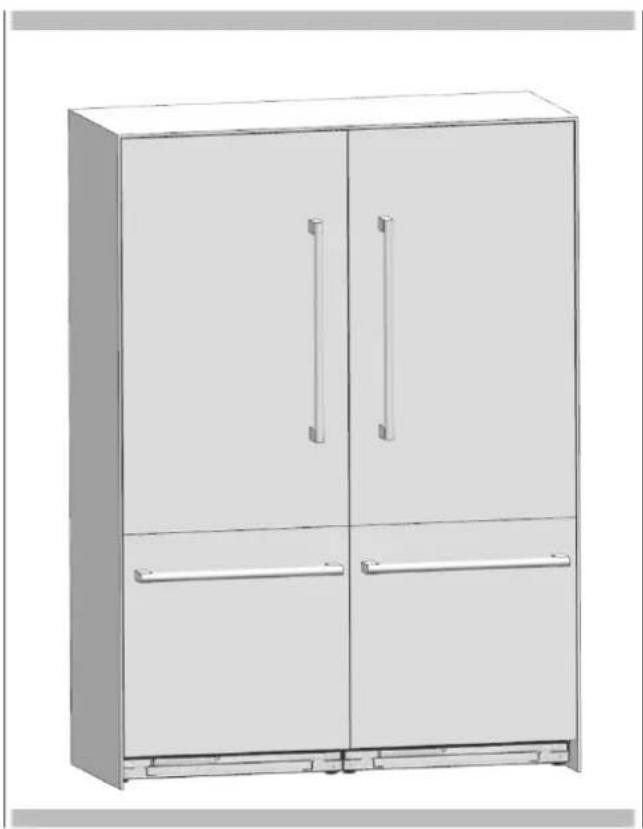

Completion installation 57

Symbols used in the installation manual are as follows.

Icon Mode Description

Important information or useful usage tips.

WARNING: Conditions that may damage the product or its operating functions.

ATTENTION: Conditions containing serious injury risk.

Conditions containing electric shock risk.

Packaging materials of the product have been manufactured from recyclable materials.

Disposing the packaging materials

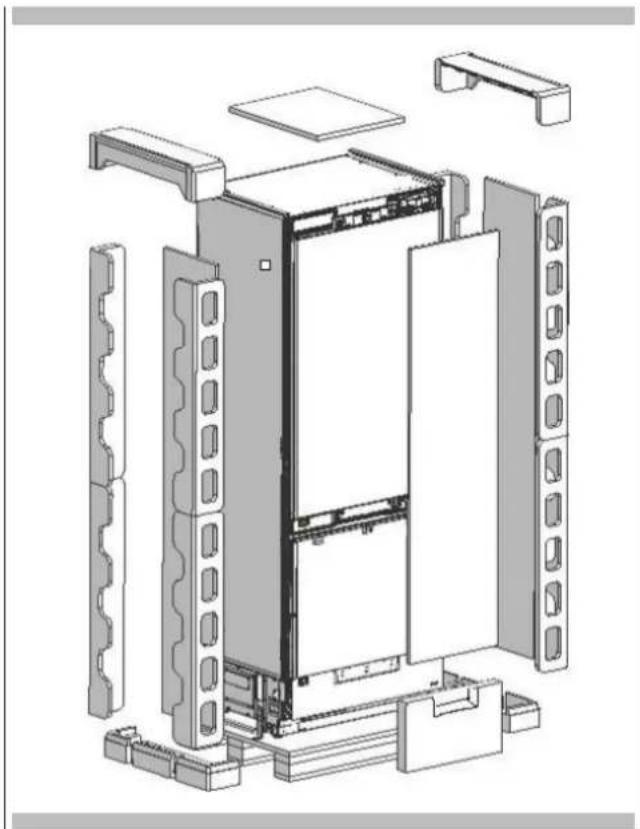

The package has been designed to protect the product during transport.

The packaging materials used for the product do not harm the nature during disposal and they need to be recycled.

All plastic packaging materials, bags etc. must be disposed safely and kept out of the reach of children.

Please return the packaging to your dealer.

WARNING

This installation manual has been prepared to help installation teams. The User Manual provided with the product must also be taken into consideration.

You may get seriously injured and your product may get damaged if you ignore the warnings given in this or other manuals. Please read the following carefully.

R600a Refrigerant

WARNING

This product contains R600a isobutane refrigerant, which is a very eco-friendly natural gas. However, it is also flammable. Please follow the warnings given below:

• If the product has been transported horizontally, you must wait for 4 hours minimum before plugging it in.
  • The following instructions must be followed during installation:
  • Dimensions of the installation area must be suitable.
• Dimensions, features and position of the object used to support and fix the product to this area must be suitable.
• Minimum clearances between product parts and surrounding structures must be suitable.
• Minimum dimensions and proper organization of ventilation holes must be observed.
  • The product must be connected to the mains power,
• and corresponding connections of other components must be suitable.
• The product must be disconnectable from the power supply after installation.
• The socket or fuse must be accessible to de-energize the product.
• Extension cables or ungrounded (two-terminal) adapters must not be used.

ATTENTION

You must wear gloves and eye protectors when installing the product.

You must also take measures against high noise levels when using power tools.

ATTENTION

Make sure that your product is suitable for your local mains.

ATTENTION

The product must be installed by a qualified technician according to the installation instructions.

WARNING

The product may tip over since it is quite heavy. For this reason, precautions must be taken against tipping over.

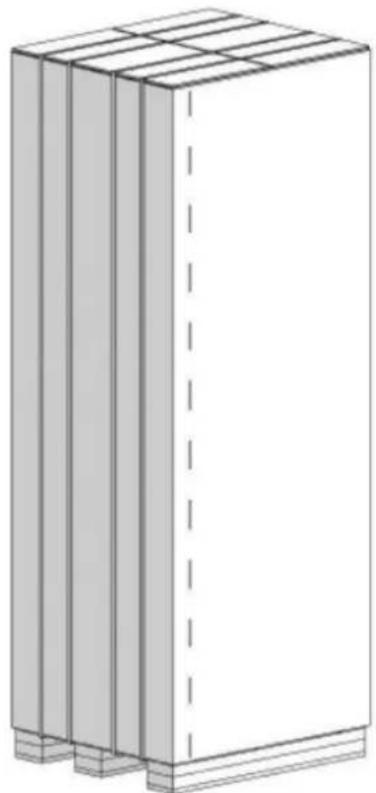

The doors of the product must be kept closed until it reaches the destination, and it must be transported in accordance with the installation instructions.

Climate range Ambient temperature of the room For Best results
SN	Between +50°F (10oC) and +90°F (32°C)	This appliance has been designed to be used in certain climate ranges (ambient temperatures). It must not be used out of this range.
N	Between +60°F (16°C) and +90°F (32°C)
ST	Between +60°F (16°C) and +110°F (38°C)
T	Between +60°F (16°C) and +120°F (43°C)

Product weight

Category FM4BM30(I)FBI FM4BM36(I)FBI FM4FBM36(I)FBI
Product weight 361lbs (164kg) 373lbs (169kg) 355lbs (161kg)

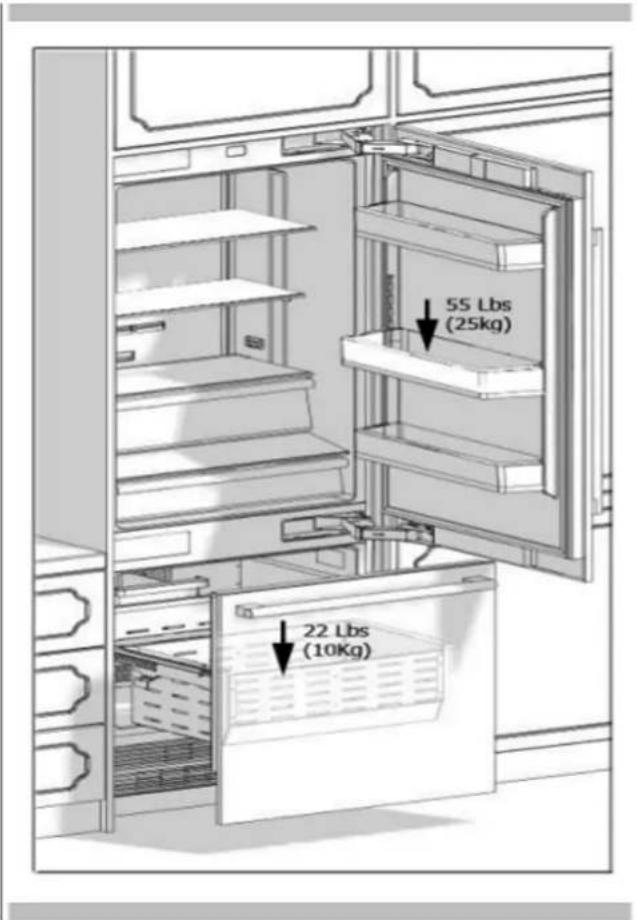

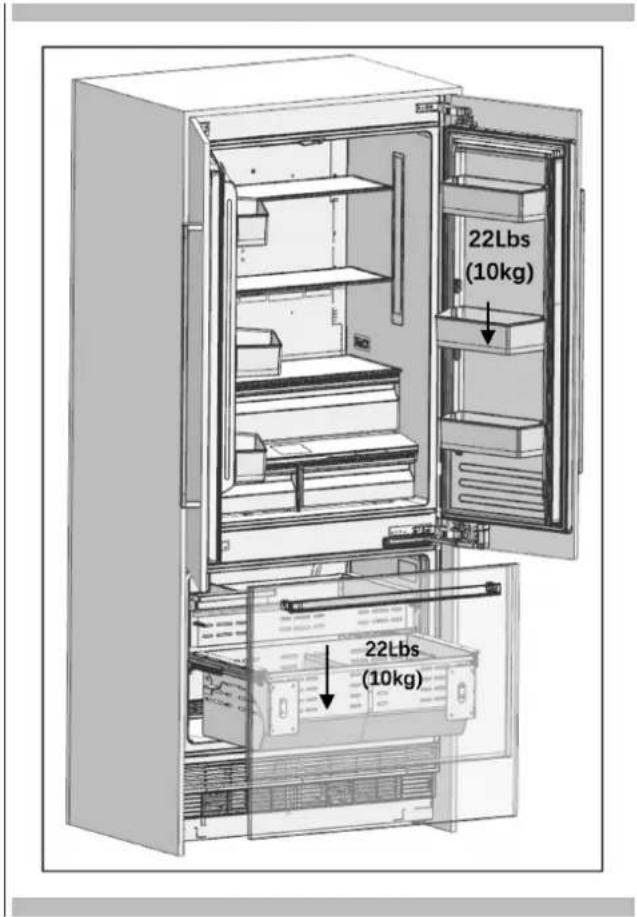

Load bearing capacity of the doors (does not include overlay panel weight)

Max load FM4BM30(I)FBI FM4BM36(I)FBI FM4FBM36(I)FBI
Fridge door(s)	55lbs (25kg)	55lbs (25kg) 22lbs (10kg) ea.
Freezer drawer	22lbs (10kg)	22lbs (10kg) 22lbs (10kg)

55 Lbs (25kg) 22 Lbs (10kg)

FM4BM30(I)FBI
FM4BM36(I)FBI

22Lbs (10kg) 22Lbs (10kg)

FM4FBM36(I)FBI

You must follow the instructions below:

• The floor on which the product will be installed must be capable of bearing 1,200 pounds (544 kg) minimum.
• Kitchen floor and the bottom of the product must be at the same level. Otherwise, problems may occur with the air circulation of the product.
• There must be no objects preventing the installation of the product at the back and on the side walls of the product's installation place.
  • The power socket must be in the correct place.
• The dimensions of the furniture where the product will be installed must be in strict conformity with the dimensions given in the manual.
• Do not install the product with the fridge and the freezer directly next to each other without the use of the correct side by side joining kit. Otherwise, condensation and damage may occur in the product. (Please Cabin Installation" for detailed information)
• The flatness of the floor where the product will be installed must be checked with a Bubble Level Tool.
• The installation area must not be subjected to direct sunlight, and it must be away from heat sources, ovens, radiators etc.
• The ambient temperature must be between 55 F (13 C) and 110 F (43 C). Otherwise, functional errors arise when the product is running.
• If it is not possible to avoid installing the product near a heat source, the minimum clearances given below must be maintained between the product and the said source:

• 1 1/4" (3 cm) from electric hobs or ovens

• 12" (30 cm) from gas or fuel operated hobs or ovens.

Please observe the following rules:

• The circuit breaker or fuse must be easily accessible in case of an emergency.
• Plug or cable must not touch the back surface of the product. Otherwise, it may get damaged due to the vibration of the product.
• Do not connect the plugs of other appliances behind this product.
• If the humidity or salinity level is high where the product is used, corrosion may be seen on the outer surface of the product.
• Keep the installation room dry and well-cleaned to avoid corrosion.

To avoid the risk of electric shock:

• Connect the plug to a grounded 3-pin socket.
• Do not remove the ground terminal of the plug.
• Do not use adapters.
  • Do not use extension cables.

ATTENTION

Failure to follow these instructions may result in death, fire, or electric shock. Connecting the grounding conductor of the equipment to an improper place may lead to electric shock. Please have the grounding checked by a qualified electrician or service technician if you have any doubt about the proper grounding of the product.

Installation, repair, and other procedures performed by unqualified persons may cause danger. Before installing the appliance, make sure that the voltage, load, and circuit current parameters on the data plate are in compliance with the power mains in your house.

The appliance is provided with a NEMA 5-15 P plug and a 3-pin power cable which is in the UL list and ready to be connected to a 120 V, 60 Hz power supply. Fuse is 15 A. The appliance must be connected to a 3-pin socket. The receptacle must be installed only by a licensed electrician. If the electrical wiring or the electric power supply of the house needs alteration, the necessary procedures must be performed by a qualified electrician.

ATTENTION

Do not install your refrigerator:

• In outdoor areas.
• In environments where water is dripping.
- In environments where temperature is lower than 55 F (13 C).

Furniture

Make sure that the furniture where you will install the appliance has been safely mounted in your kitchen.

Your furniture must be connected to the floor and the wall properly and with suitable connections.

For the best installation, clearances between the furniture and the product must be in compliance with the values specified in the installation instructions.

Side walls must be free of clearances and their surfaces must be flat.

Minimum thickness of the side walls must be 5/8" (16 mm).

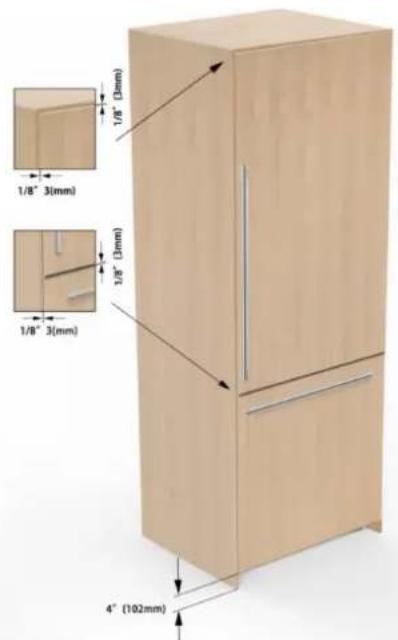

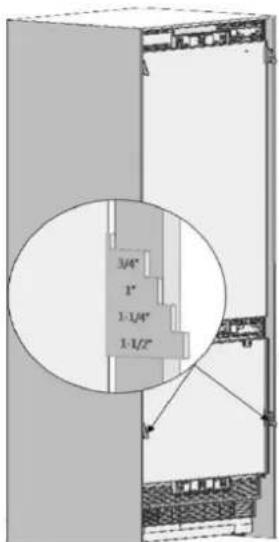

Minimum thickness of the doors to be attached to the product must be " (19 mm)

ATTENTION

The stainless steel door option is also available

Ventilation

Vent holes where the air enters and exits the unit must not be blocked or obstructed. In addition, you must periodically clean the dust and dirt that accumulate on these holes over time.

Electrical Connection

• Never use an extension cable.
- The power socket absolutely must be grounded and checked by an authorized person.
- Location of the electrical wiring must comply with the dimensions specified in the manual.

ATTENTION

RISK OF ELECTRIC SHOCK

Electrical grounding is necessary. This appliance is equipped with a three-pin plug to protect you against possible electric shocks.

• Do not remove the round grounding terminal from the plug.
• Do not use two-pin grounding adapters.
• Do not use extension cables to energize the product.

ATTENTION

Do not connect the grounding cable to the gas pipe. Please have the grounding checked by a qualified electrician

WARNING

Please wait for 3-6 hours before energizing the product to protect it against possible damage. This way, the refrigerant and the lubricants in the system get balanced.

Water Connection

• Pressure of the mains water must be in compliance with the values specified in the manual.
• The location of the water system must comply with the dimensions specified in the manual.

IMPORTANT INFORMATION

Bypass is recommended for the water filtering system if a reverse osmosis system is used.

Tools to be used when installing the product are as follows:

Icon Mode Description
	Cordless Drill
	Safety Goggles
	12 " Wrench
	Hammer
	Ladder
	∅2.4 Drill Bit
	∅8.0 Drill Bit
	Box Cutter
	Safety Gloves
	Tape Measure
	Phillips Bt
	Masking Tape
	3/8" Socket
	1/4" Socket
	Appliance Cart
	Standard bit screwd river
	Bubble Level Tool
	Torx 20 bit
	Torx 25 bit

WARNING

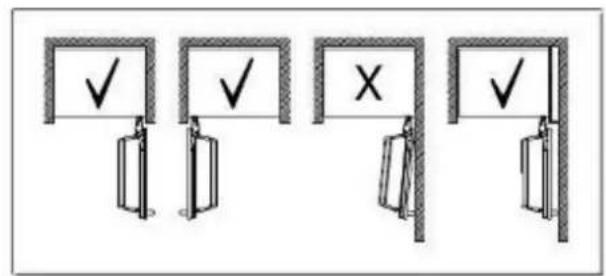

The product can be placed in various ways based on the kitchen design. It must be installed in a place where it is ensured that the door can be opened and closed properly. If the doors cannot be opened 90 degrees at least, you cannot completely open the drawers inside the product. See door swing dimensions on page 19 - 22.

WARNING

Door swing should be done before installing the door overlay panels – see pages 76 - 78 for instructions.

• Single cabin placement methods

Diagram showing four labeled boxes with checkmarks and arrows, likely indicating approval or cancellation steps.

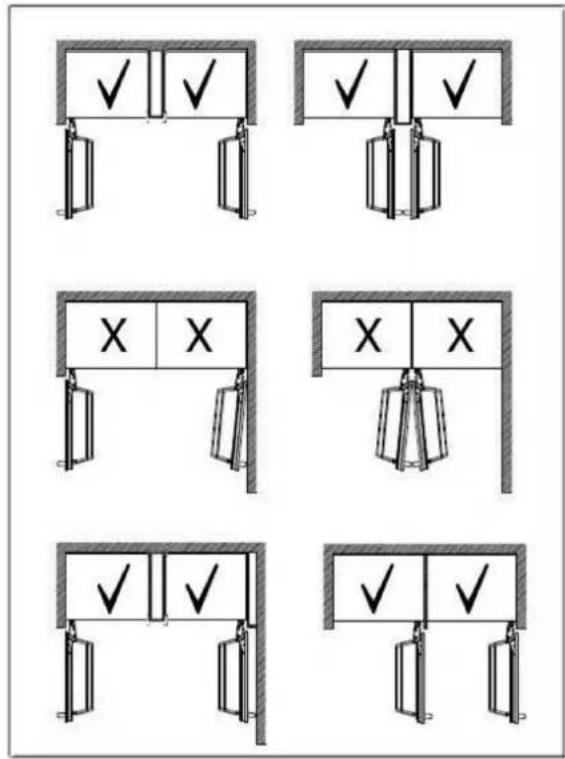

• Dual cabin placement methods

Diagram showing six identical configurations of a lifting device with checkmarks and X marks, each labeled with '✓' and 'X' symbols.

EN 5 - Preparation for installation

The instructions below have been prepared according to Built-in type.

Built-in: The Appliance and Panels fully seat into the opening, and dedicated cabinet is placed between the two kitchen cabinets or decorative columns.

This is the most common installation scenario.

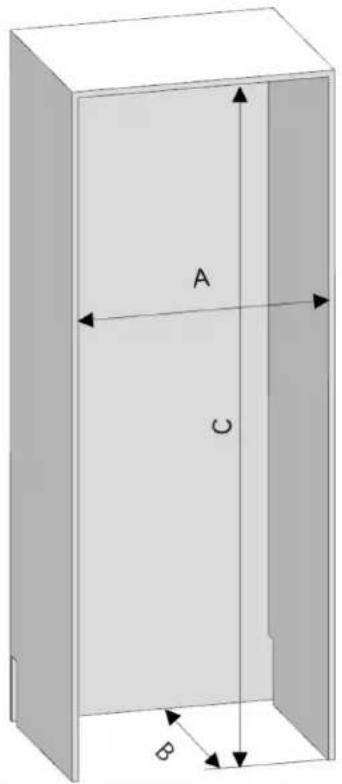

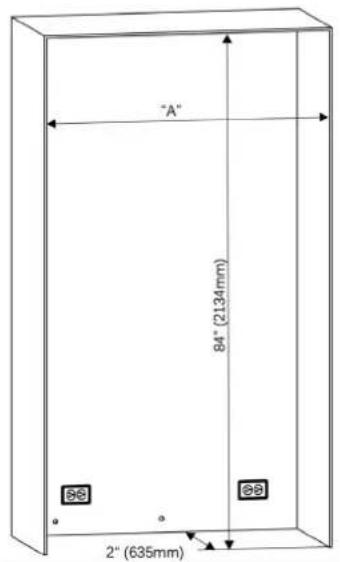

Cabin Dimensions

• Cabinet dimensions below must be checked before starting the installation.

Category FM4BM30(I)FBI FM4BM36(I)FBI FM4FBM36(I)FBI
A width 30" (762mm)	36" (914mm)	36" (914mm)
B depth 25" (635mm)	25" (635mm)	25" (635mm)
C height 84" (2134mm)	84" (2134mm)	84" (2134mm)

A C B

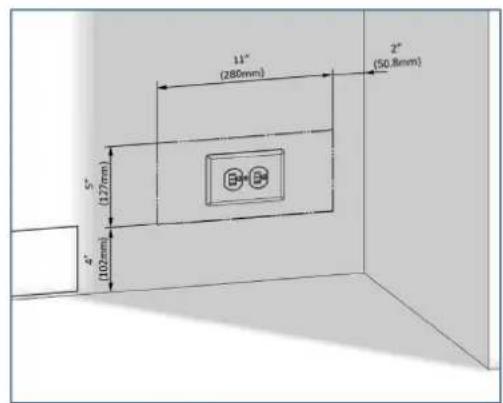

Location of the Electrical Wiring

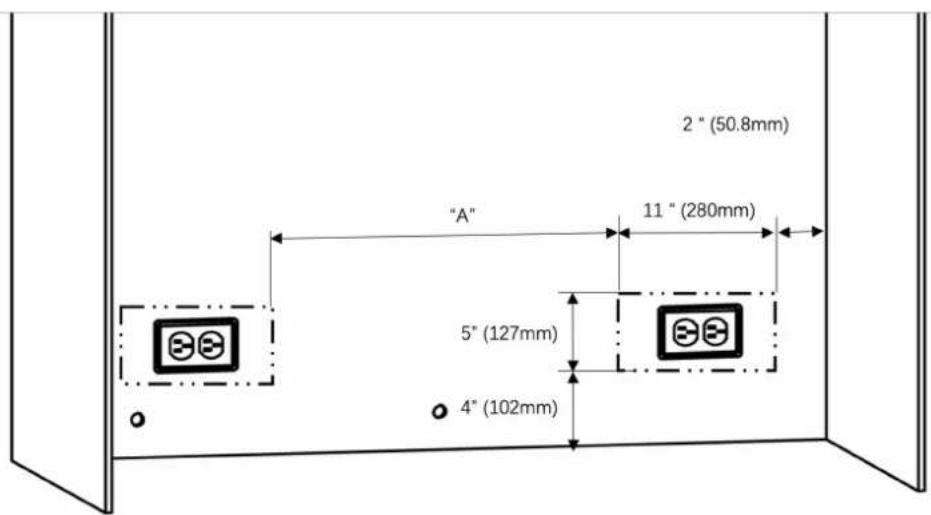

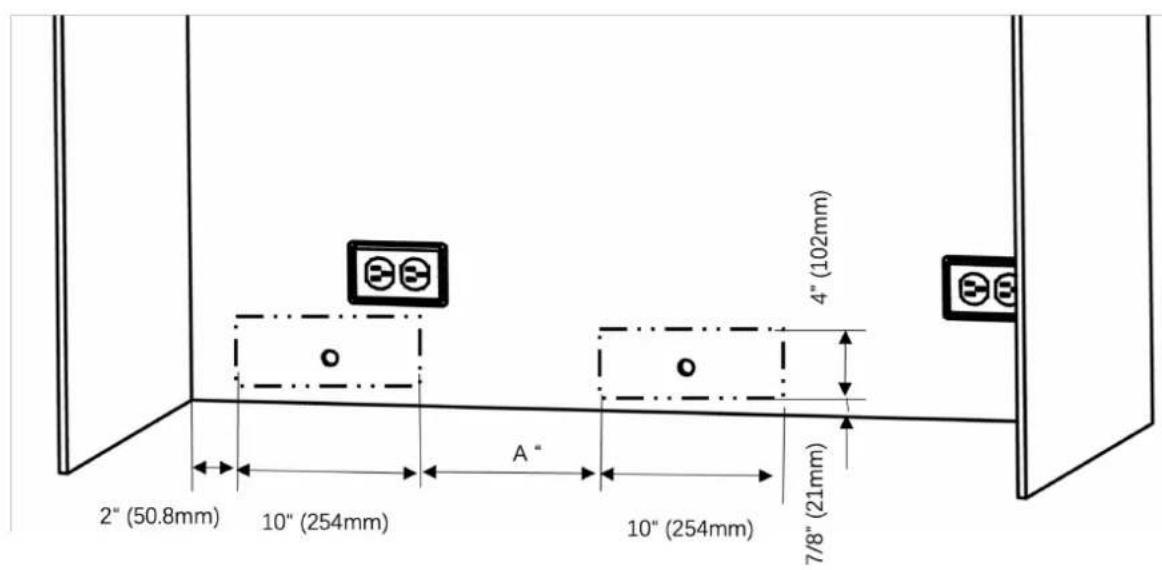

Location of the electrical wiring must be within the range given below.

ATTENTION

Do not use extension cables or two-pin adaptor and do not remove the ground terminal of the grounding cable..

ATTENTION

A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that the grounding of the socket is correct.

11" (280mm) 2" (50.8mm) 5" (127mm) 4" (100mm)

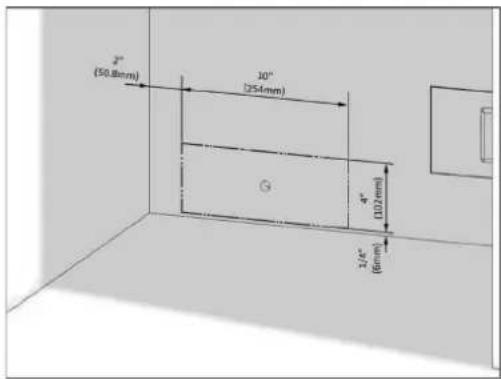

Location of the Water System

The water connected to the appliance must be potable.

Location of the water system must be within the range given below.

Water system of the refrigerator must be connected to the water mains system in the house.

The user must be able to switch it on/off with the valve when necessary.

Objects that might pierce the water hoses or cause them to twist must not be present where the water line is installed.

Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).

If the water pressure exceeds 80 psi, install a pressure limiting device or water impact protector to the inlet valve. Never install the product or operate the appliance if it is possible for the water pressure to exceed 120 psi.

WARNING

Make sure that there is no water leakage when making the water connections. Otherwise, there will be water on the floor and the furniture will get damaged. You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of " for water connections of the product during installation. A connector that has a thread with an external diameter of must be used to connect the hose end to the product. Before completing the installation, make sure that water flows and there is no water leakage.

2" (50.8mm) 30" (254mm) 4" (102mm) 2/4" (6mm)

WARNING

• Flatness of the floor where the product will be installed must be checked with a Bubble Level Tool.
• Uprightness of the furniture flanges must be checked with a Bubble Level Tool.
• If the appliance is not level and square, problems may arise with the installation.

3D rendering of a cabinet with open door and side door (no text or symbols)

Product dimensions

Category FM4BM30(I)FBI FM4BM36(I)FBI FM4FBM36(I)FBI
A 29 3/4" (756mm)	35 3/4" (908mm)	35 3/4" (908mm)

FM4FBM30(I)FBI

without panel: 23 5/16" (592mm) with panel: 24 1/4" (616mm) 83 9/16" (2123mm) A 51 1/16" (1297mm) 83 9/16" (2123) 28 11/16" (729mm) 3 13/16" (94mm)z

FM4FBM36(I)FBI

without panel: 23 5/16" (592mm) with panel: 24 1/4" (616mm) 17 11/16" (449mm) 17 11/16" (449mm) 83 9/16" (2123mm) 51 1/16" (1297mm) 83 9/16" (2123) Gap : 1/8" (3mm) 35 ¼" (908mm) 28 11/16" (729mm) 3 13/16" (94mm)

Category FM4BM30(I)FBI FM4BM36(I)FBI FM4FBM36(I)FBI

A 15 9/32" (388mm) 15 9/32" (388mm) | 15 9/32" (388mm)

Technical line drawing of an open refrigerator with a door and side-mounted unit, labeled 'A' (no text or symbols on the diagram itself)

Category FM4BM30(I)FBI FM4BM36(I)FBI

A 32 7/16" (824mm) 38 7/16" (976mm)

B 29 3/4" (756mm) 35 3/4" (908mm)

C 55 1/32" (1398mm) 61" (1550mm)

Category FM4BM30(I)FBI FM4BM36(I)FBI

A	443/8"(1127mm)	54 3/4"(1391mm)
B 29	3/4"(756mm) 35 3/4"(908mm)
C	14 5/8"(371mm)	19"(483mm)
D	52 11/16"(1338mm)	57 11/16"(1466mm)

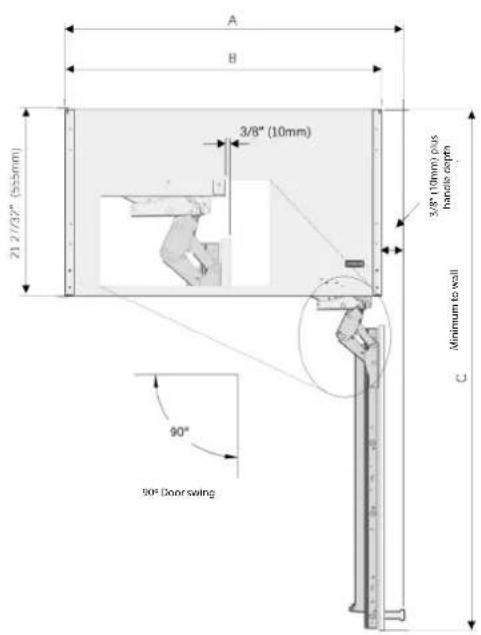

A B 3/8" (10mm) 21 27/37" (55mm) 3/8" (10mm) plus handle depth Minimum to wall 90° 90° Door swing

A - includes handle B C - includes handle 115° 115° Door swing using included stop pin

FM4FBM36(I)FBI

35 % (908mm) 21 27/32" (555mm) 42" (1068mm) 1/16" (4mm) 1/16" (4mm) plus handle depth 90" 90° Door swing

FM4FBM36(I)FBI

53 27/32" (1368mm) 9 1/16" (230mm) 35 ¼" (908mm) 9 1/16" (230mm) Minimim to Minimim to 41 ¾" (1061mm) 11 115° Door 50 3/4" (1289mm)

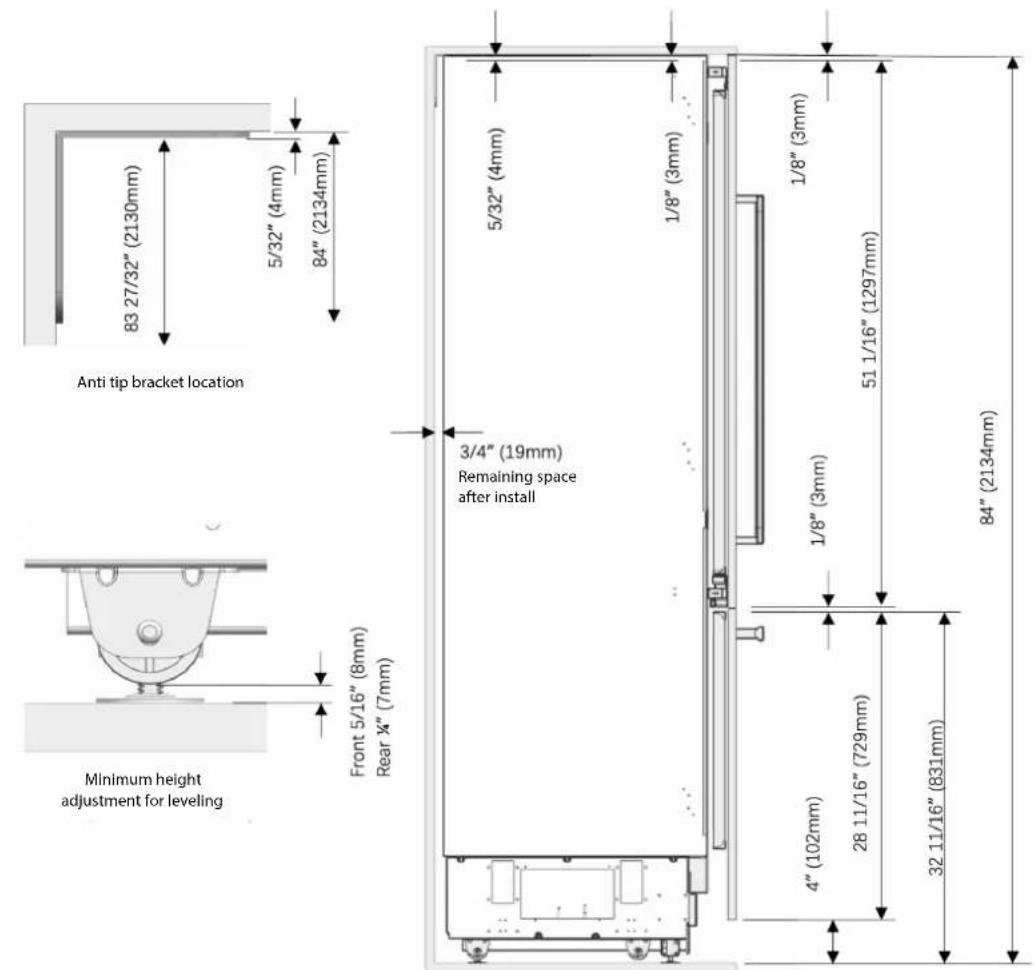

Anti tip bracket location 5/32" (4mm) 83 27/32" (2130mm) 5/32" (4mm) 84" (2134mm) 5/32" (4mm) 1/8" (3mm) 1/8" (3mm) 3/4" (19mm) Remaining space after install 51 1/16" (1297mm) 1/8" (3mm) 1/8" (3mm) 84" (2134mm) Front 5/16" (8mm) Rear ¼" (7mm) Minimum height adjustment for leveling 4" (102mm) 28 11/16" (729mm) 32 11/16" (831mm)

3/4" (19mm) 4" (83mm)

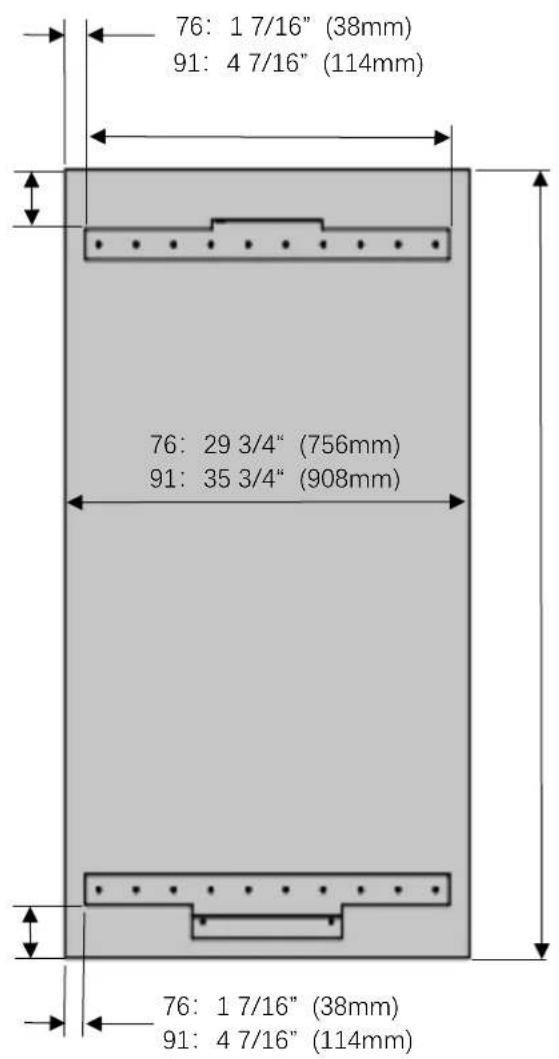

Assembly dimension between Wood panel and fridge door

1/4" (6mm)

Assembly dimension between Wood panel and freezer door

FM4BM30(I)FBI - FM4BM36(I)FBI FM4FBM36(I)FBI

Gap : 1/8" (3mm) Gap : 1/8" (3mm) Gap : 1/8" (3mm) Gap : 1/8" (3mm) 4" (102mm) 32 11/16" (831mm)

Technical diagram of a 3mm x 4mm x 8mm x 10mm x 12mm x 14mm x 16mm x 18mm x 20mm x 22mm x 24mm x 26mm x 28mm x 30mm x 32mm x 34mm x 36mm x 38mm x 40mm x 42mm x 44mm x 46mm x 48mm x 50mm x 52mm x 54mm x 56mm x 58mm x 60mm x 62mm x 64mm x 66mm x 68mm x 70mm x 72mm x 74mm x 76mm x 78mm x 80mm x 82mm x 84mm x 86mm x 88mm x 90mm x 92mm x 94mm x 96mm x 98mm x 100mm x 102mm x 104mm x 106mm x 108mm x 110mm x 112mm x 114mm x 116mm x 118mm x 120mm x 122mm x 124mm x 126mm x 128mm x 130mm x 132mm x 134mm x 136mm x 138mm x 140mm x 142mm x 144mm x 146mm x 148mm x 150mm x 152mm x 154mm x 156mm x 158mm x 160mm x 162mm x 164mm x 166mm x 168mm x 170mm x 172mm x 174mm x 176mm x 178mm x 180mm x 182mm x 184mm x 186mm x 188mm x 190mm x 192mm x 194mm x 196mm x 198mm x 200mm x 202mm x 204mm x 206mm x 208mm x 210mm x 212 mm Gap: (3/8" (3.8m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" (3.9m)) Gap: (3/8" Gap: (3/8" (3.9m)) Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: [3/8" Gap: [3/8" (3.9m)] Gap: [3/8" (3.9m)] Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(4.0m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3.9m) Gap: {3/8}"(4.0m) Gap: {3/8}"(3.9m) Gap: {3/8}"(3,40) Gap: {3/8}"(4,0) Gap: {3/8}"(4,0) Gap: {3/8}"(4,0) Gap: {3/8}"(4,0) Gap: {4,0} Gap: {4,0}

	A B C
standard 4" (102mm)	32 11/16" (831mm)	84" (2134mm)
minimum 3 13/16"(97mm)	32 1/2" 826mm	83 13/16" 2129mm
maximum 5 3/8" 137mm	34 1/8" 866mm	85 3/8" 2169mm

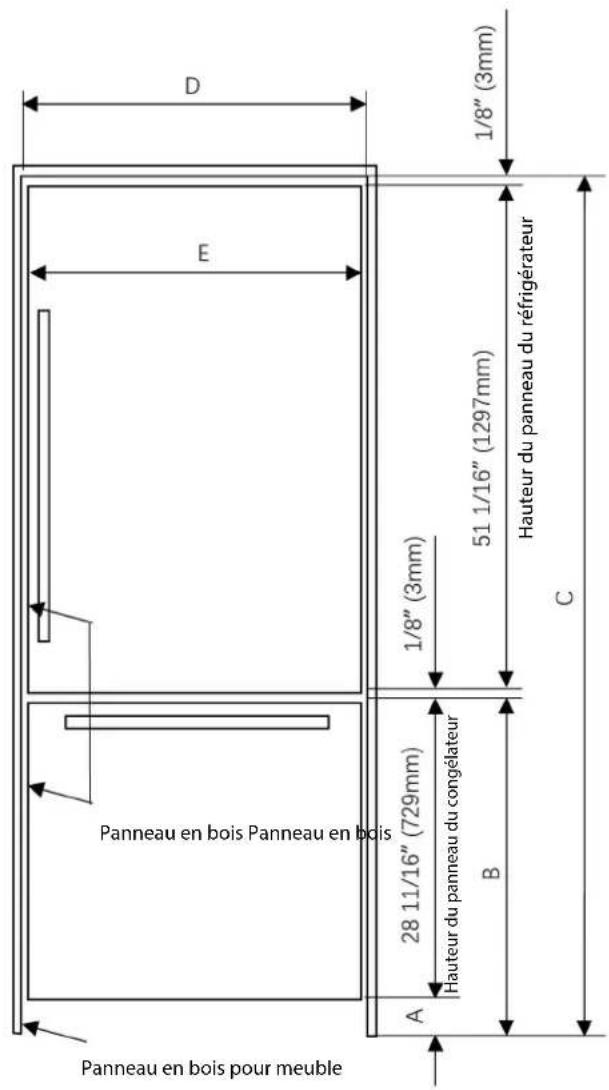

D E 1/8" (3mm) 51 1/16" (1297mm) Fridge panel height C Door wood panel Door wood panel 28 11/16" (729mm) Freezer panel height B A Furniture wood panel

36" (914mm) 17011/16" (449mm) 17011/16" (449mm) 3/8" (10mm) 1/8" (3mm) 51 1/16" (1297mm) Fridge panel height C 1/8" (3mm) 28 11/16" (729mm) Freezer panel height B A Furniture wood panel

Category FM4BM30(I)FBI FM4BM36(I)FBI FM4FBM36(I)FBI
D	30" (762mm)	36" (914mm)	36" (914mm)
E	29 3/4" (756mm)	35 3/4" (908mm)	35 3/4" (908mm)

Unpacking

WARNING

At least two persons must carry the refrigerator.

• Use a box cutter to remove the tape.
- Cut the Packaging Board with a Box Cutter through the section illustrated in dotted lines and remove it.

3D line drawing of a rectangular cabinet or shelf unit with three vertical panels stacked vertically (no text or symbols)

- Remove the Packaging Polystyrene material.

Exploded view diagram of a modular device with internal components and mounting brackets (no text or symbols)

ATTENTION

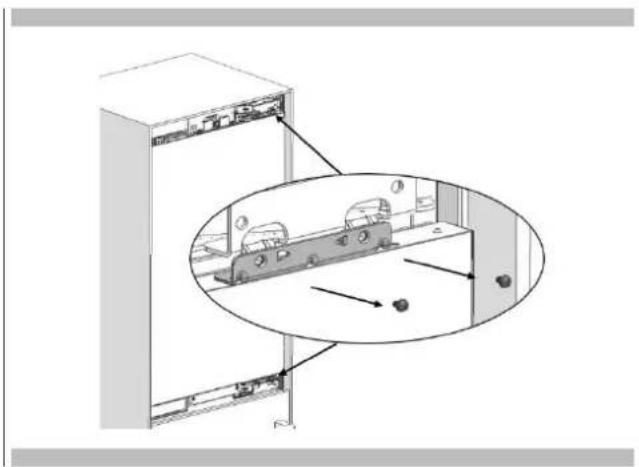

Do not remove the tape of the upper door on the product until the refrigerator is placed into the cabinet. Risk of tipping over.

Removing Accessories from the Back


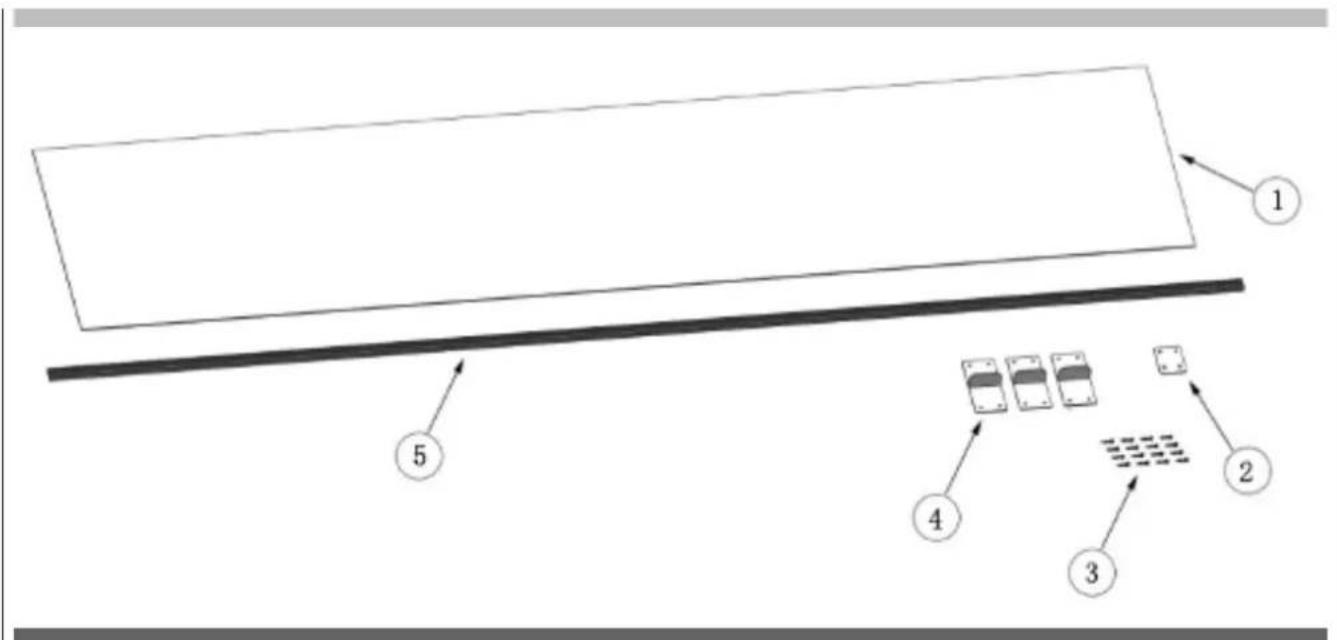

No Part name spec 30 36 36F

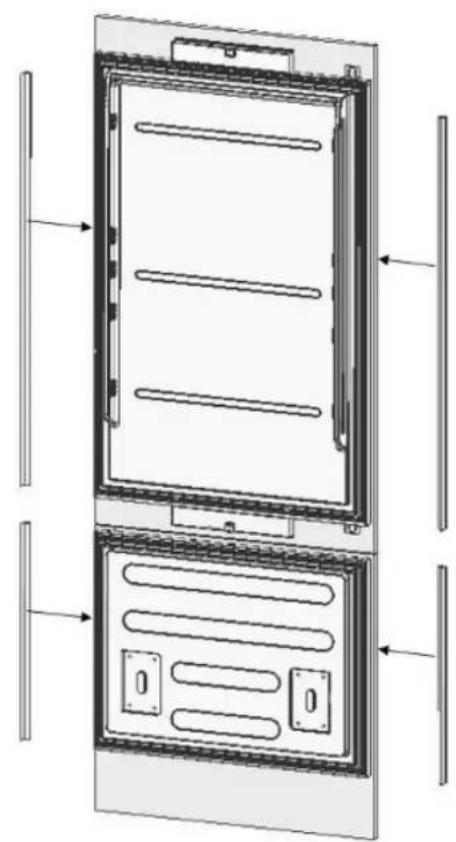

1 Trim fridge furniture side PVC extrusion L=617,	L=1,259 4 4 4
2 Trim fridge door side PVC extrusion L=1136 2	2 4
3 Trim freezer door side PVC extrusion L=556 2	2 2
4 Trim furniture top PVC extrusion L=762, L=914	1 1 1
5 Cover freezer door top	abs	1 1 1

Conference

Category	FM4BM30(I)FBI	FM4BM36(I)FBI	FM4FBM36(I)FBI
Abbreviation.	30	36	36F

Removing mounting Parts in the Freezer Compartment

No Part name spec 30 36 36F
1 Furniture door preparation template paper 1 1 1
2 Anti tip bracket T4.0, Zn-coating 2 2 2
3 Dowel - 8 8 8
4 Anti tip bracket screws M8*L60 8 8 8
5 Position adjustment jig PS		1 1 1
6	90° limiting pins	sus	2	2	-
7 Freezer furniture door adjustment washer abs 9 9		9
8	Screw freezer door hanger bracket	ST4.8*16, round head screw	3	3	3
9 Freezer door hanger bracket T1.0, Cr+zn-coating 3 3 3
10	Screw freezer furniture door hanger bracket	ST4x14, counter sunk head screw	18	18	18
11	Screw cabinet connecting bracket	M4*12, truss washer head	16	16	16

Conference

Category	FM4BM30(I)FBI	FM4BM36(I)FBI	FM4FBM36(I)FBI
Abbreviation.	30	36	36F

No Part name spec 76 91 92
12 Cabinet- cabin connecting bracket paper 8 8 8
13 Screw cabin connecting bracket T4.0, Zn-coating		16 16 16
14 Cover furniture door bracket - 4 4 2
15 Screw door fixing bracket M8*L60 4 4 2
16 Door- door furniture connecting bracket PS		4 4 2
17 Screw furniture door fixing bracket sus		8 8 4
18	Screw furniture door hanger bracket	M4*12, truss washer head	20	20	24

• Anti tip bracket screws
• dowels

- Truss washer head screw Spec : M4x12 Fixing Refrigerator Such as cabinet and door (press part)

- Counter sunk head screw Spec : ST4x14 Fixing the cabin and furniture door (wood part) and door (press part)

- Round head screw Spec : ST 4.8x16 Fixing freezer door top part and furniture door (press part)

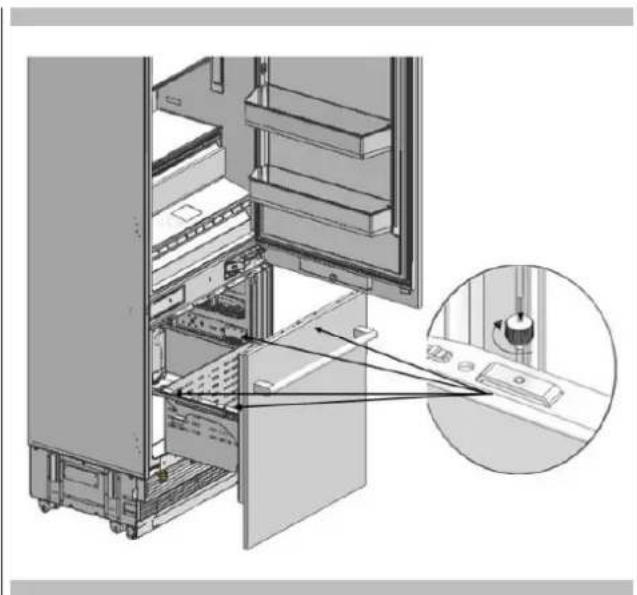

Removing the Freeze Drawer Bin

- Remove it manually with 4 knurled screws.

Technical diagram of a server rack with an inset close-up showing internal components (no text or symbols)

- Remove the Lower Bin.

3D technical illustration of a server rack with an inset close-up showing a component (no text or symbols)

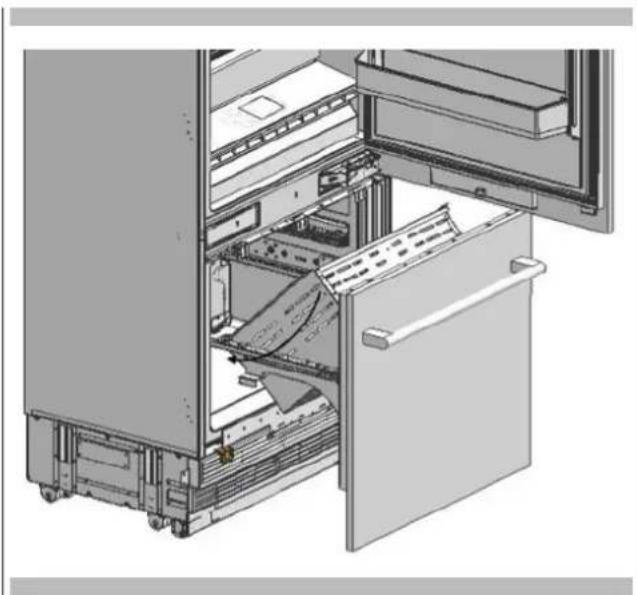

Removing the Freezing Drawer

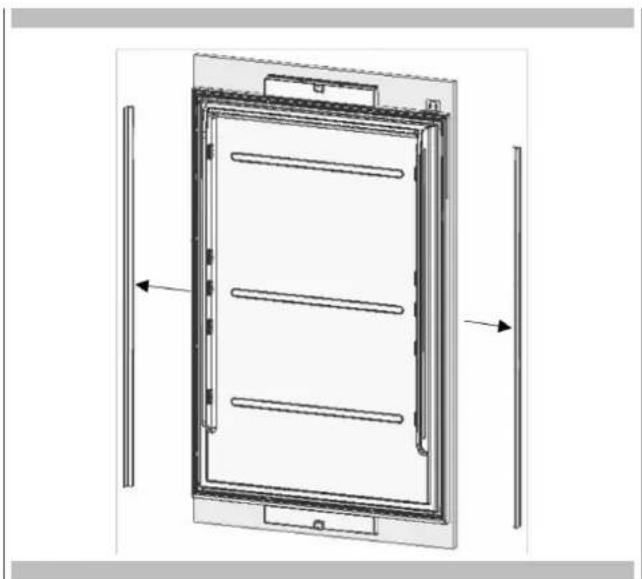

Remove 2 screws which are near the front section and connect the freezing door and the rail.

Technical illustration of a mechanical assembly with an inset close-up showing a component detail (no text or symbols present)

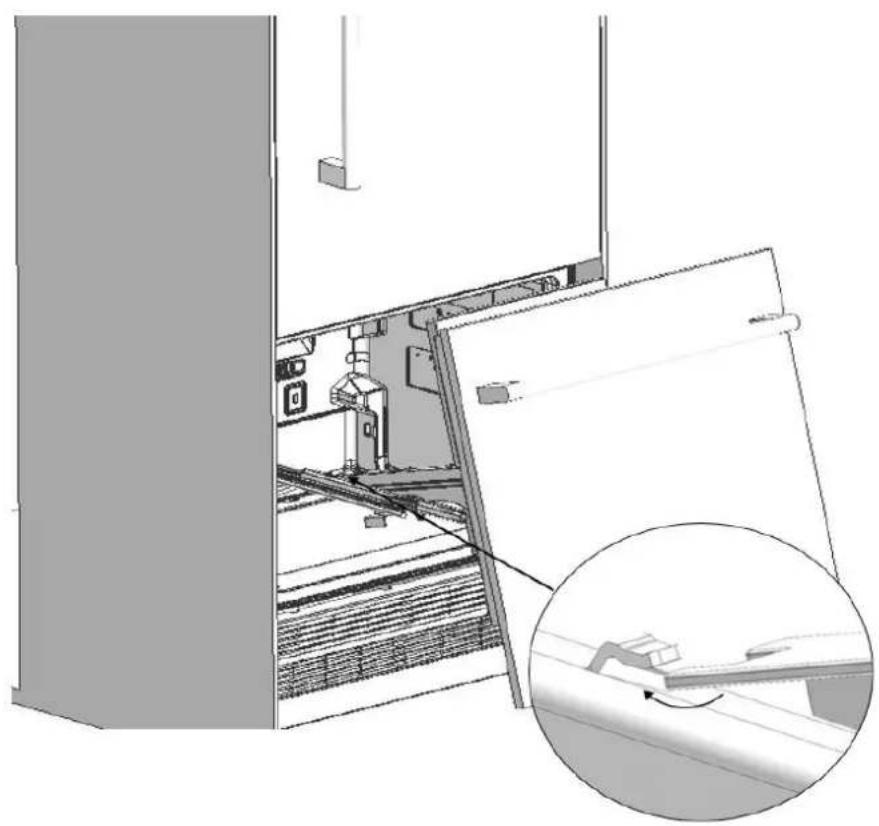

- Pull the door frontward to free it from the tabs at the back and remove it.

Diagram of a refrigerator interior showing door, drawer, and shelf with an inset close-up of the handle (no text or symbols)

Removing the Lower Ventilation Assembly

- Remove the 2 screws to take out the Lower Vent Hole Assembly.

Technical diagram of a mechanical assembly with mounting base and structural components (no text or symbols)

Removing the Upper Ventilation Part

- Remove the 2 screws to take out the Upper Vent Hole Part.

Technical line drawing of a mechanical assembly with mounting base and structural components (no text or symbols)

Continue to install the product according to the instructions below. Additionally, consider national and local instructions regarding installation.

Please observe the following:

• For the USA, The National Electrical Code, ANSI/NFPA 70 – last version/State or Municipality directives and/or regional directives.
• For Canada, The Canadian Electrical Code, C22.1 version/State or Municipality directives and/or regional directives.

Mounting the Anti-Tip Brackets

WARNING

You must definitely use anti-tip brackets to prevent the appliance from tipping over in absence of connecting to a secured cabinet. Using them in addition to securing to the cabinet, increases security.

WARNING

Make sure that there is no electrical or water connection where the screws will be tightened, and connections will be established.

WARNING

Please remember to use the necessary protective equipment when drilling holes in the wall and performing installation.

• Mark the wall for Anti-Tip Brackets (item No.2).

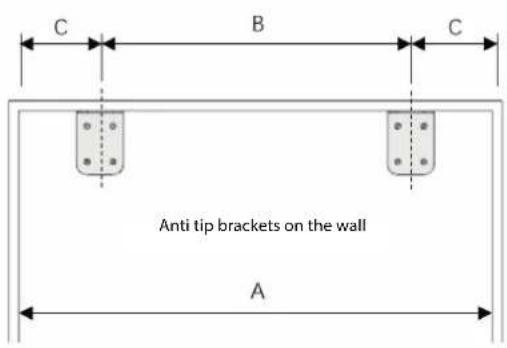

C B C Anti tip brackets on the wall A

Category	FM4BM30(I)FBI FM4BM36(I)FBI FM4FBM36(I)FBI
A 30"	(762mm) 36" (914mm)	36" (914mm)
B	23 5/8"(600mm)	23 5/8"(600mm)	23 5/8"(600mm)
C	3 3/16"(81mm)	6 3/16"(157mm)	6 3/16"(157mm)

- last

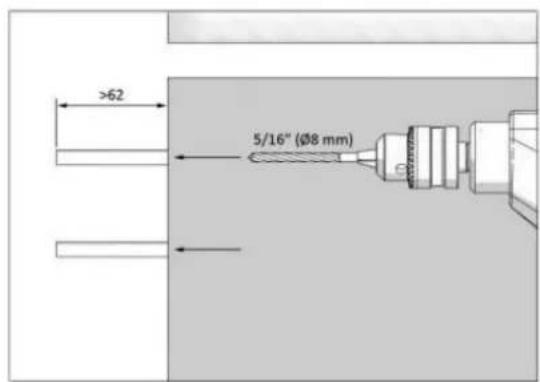

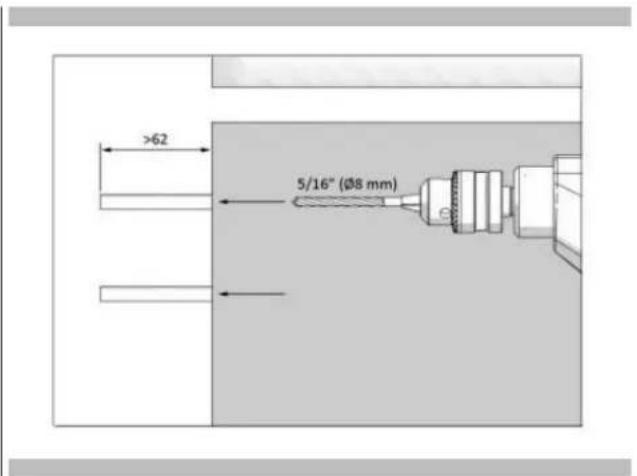

- Use a drill to create holes for dowels (item No.3) at the marked points. (5/16" -∅8)

Ø8 5/16"

>62 5/16" (∅8 mm)

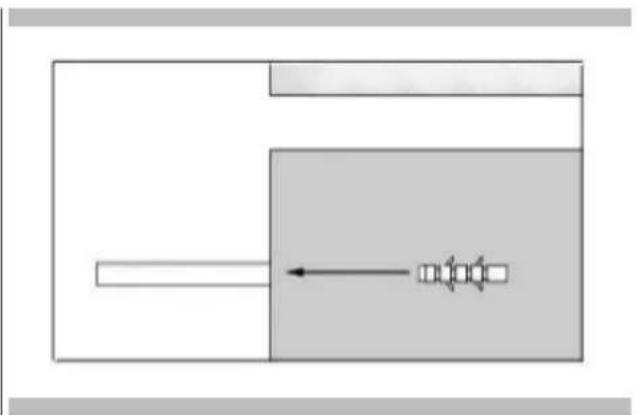

• Use the hammer to fit the dowels (item No.3)

Pure diagram of a mechanical or fluid system with no text, numbers, or symbols

- Fit the anti-tip brackets (item No.2) into their places, using 4 screws (item No.4) for each. You must use both the (2) brackets to ensure the safety of the product.

If you are not sure whether the existing connection parts are fit to the wall as securely as they should be, you can use alternative anti-tip methods.

If there is furniture at the back wall of the refrigerator, please make sure that the furniture is fixed to the wall. For this, you need to be sure that the back wall of the furniture is fixed to the concrete back wall or to a wooden stud with suitable fasteners.

Alternative anti-tip method

If the anti-tip brackets cannot be connected securely, you must use the alternative method below. In this method, you can use wooden blocking to avoid the risk of tipping over. It must be installed as illustrated in the figure below.

There must be no clearance between the product and the wooden blocking.

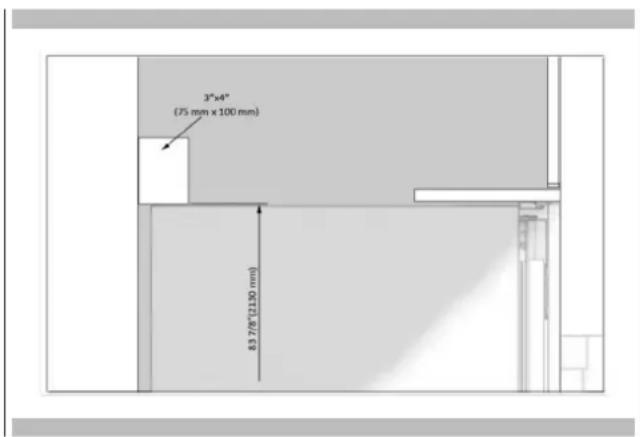

Minimum section dimensions of the blocking must be 3"x4" (75 mm x 100 mm). The width of the blocking must be equal to the clearance where it will be installed.

An additional block must be used if the niche depth is more than anticipated. The blocking must contact the product with a contact of 2" (50.8 mm).

To determine the location for the blocking, mark it on the rear wall, select suitable screws and connect safely.

WARNING

The number and features of the screws to be used for the blocking must be determined so that there is a secure connection.

3"×4" (75 mm x 100 mm) 8.9 7/8"(2130 mm)

Preparing the Water Hose and the Power Plug

You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of 1/2" for water connections of the product during installation. A connector that has a thread with an external diameter of must be used to connect the hose end to the product. You can choose the method A or method B below to prevent the cable from getting jammed.

- Method A: Locate the water hose and power supply on the back.

Cable location water line location

- Method B: Locate the water hose and power supply on the side.

Keep open for water line Keep for power cord Water hose 2" (50.8mm)

Utilize the factory installed pass-through tube to feed the waterline through to the front where the connection to the valves will be made.

EN 7 - Installation to the cabinet

Taking the Refrigerator from the Wooden Pallet

- Remove the brackets that connect the refrigerator to the Wooden Pallet.

Technical diagram of a mechanical assembly with circular component and mounting base (no visible text or symbols)

- Recline the refrigerator slowly and pull back with the help of the cart, and then land it.

Technical illustration of a mechanical device with a pull-up mechanism and its side view showing internal components (no text or symbols)

ATTENTION

The risk of tipping over is high as of this point. You should not open the doors until the product is placed into the cabinet.

Placing the Refrigerator into the Cabinet

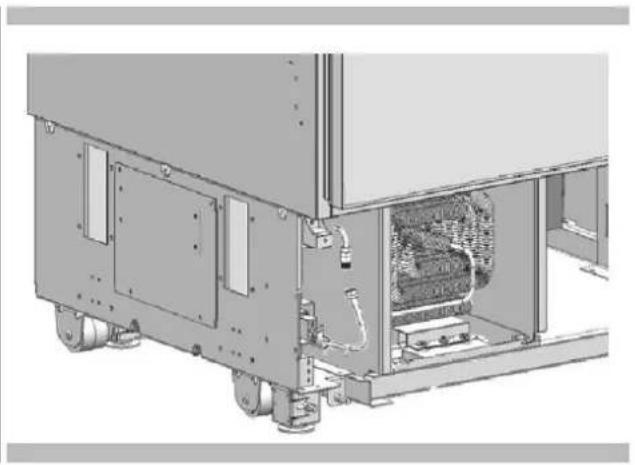

- Insert the waterline into the tube at the back and take it out from the front.

Technical illustration of a server rack with zoomed-in views showing internal components (no text or symbols)

i IMPORTANT INFORMATION

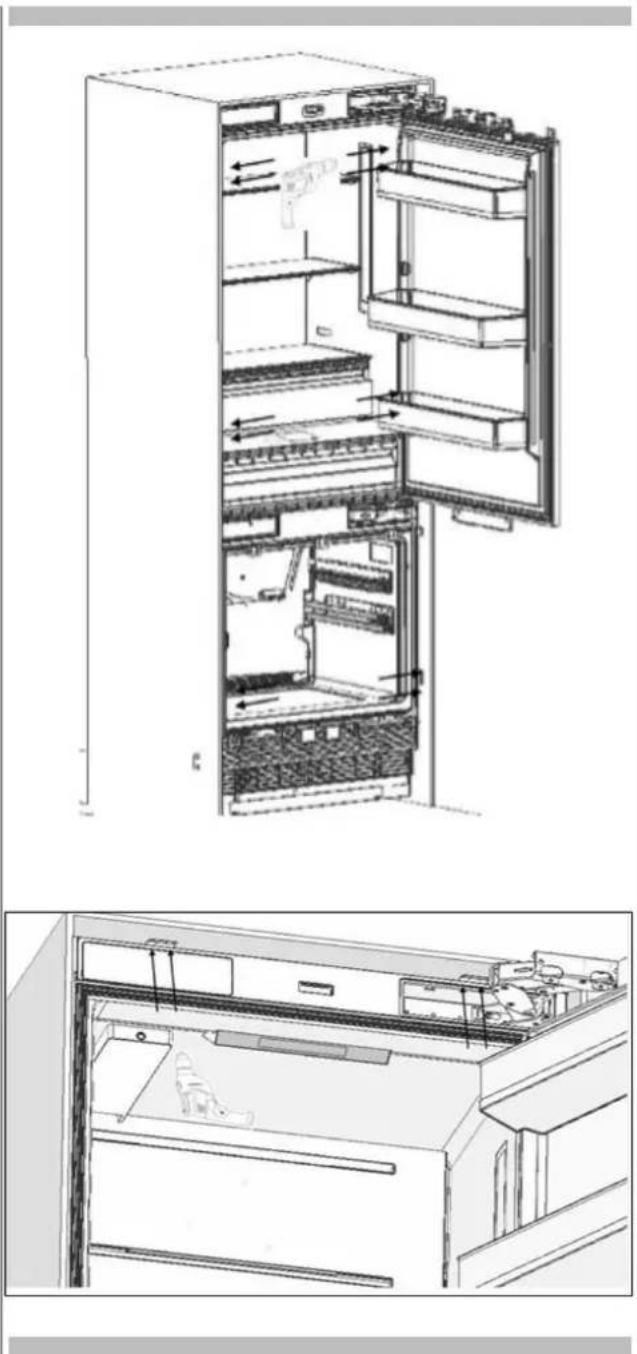

- Apply the below method to prevent the cable from getting jammed.

Power cord Nylon string Water hose Move to wall

- Start the refrigerator and make sure it has power. (You can check if the lights in the freezer compartment are on or off to see if the product is operating).

IMPORTANT INFORMATION

You can use masking tape and similar protectors on parts you think this is necessary to protect the edges of the furniture when placing the product.

WARNING

The plug of the product must be accessible after installation. If the plug is not accessible after installation, the power must be cut off from the circuit breaker.

WARNING

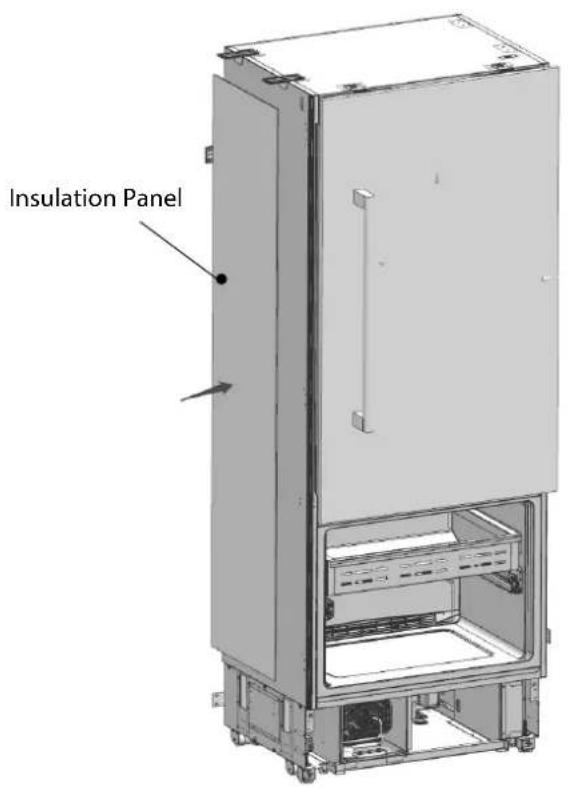

Make sure that the mains cable is not pinched when placing the product.

• Push the product carefully towards the cabin to place it. If there is strain during the placement of the product into the cabin:
• The floor might be rough or uneven.
• Adjustable feet might be loose. (please see the relevant section to learn how to adjust the adjustable feet)

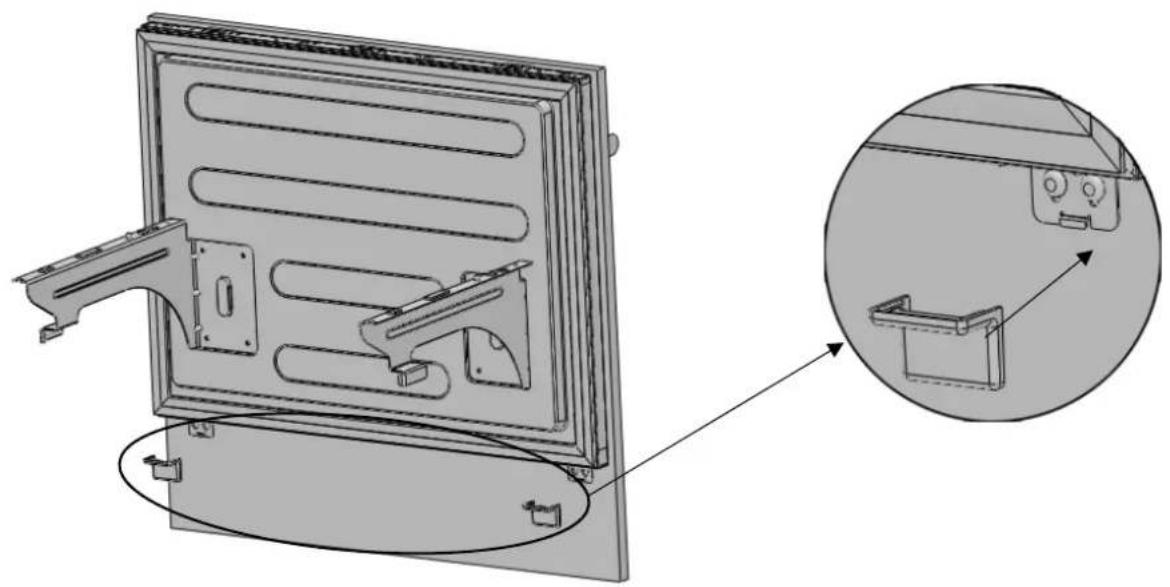

• You must attach the freezer door temporarily to align the product before placing it.

IMPORTANT INFORMATION

You must use the upper edges of the freezer door when aligning the product with the furniture. Adjustment of other edges are explained in the following pages.

1/8" (3mm) 1/8" 3(mm) 1/8" 3(mm) 4" (102mm)

Adjusting the Height of the Refrigerator in the Cabinet

- Adjust the refrigerator height using the adjustable feet.

WARNING

Start with raising the front feet first (before the back feet) to reduce the risk of the appliance falling frontward.

Technical diagram showing a 3D mechanical setup with labeled components A, B, C, D and rotational directions A, B, C, D, including an inset image of a cabinet or fixture.

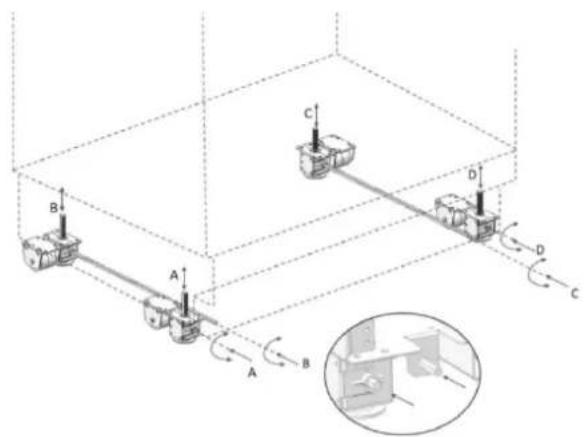

A/D -Turn the key clockwise to lift the front. B/C -Turn the key clockwise to lift the rear.

• After adjusting the adjustable feet, check the level in both width and depth directions.

Interior view of a technical enclosure or enclosure with internal components and structural elements (no visible text or symbols)

The maximum height that the adjustable feet can reach is 19/16" (40 mm) and the product height is 85 3/8" (2,169 mm)

i IMPORTANT INFORMATION

Adjusting the Appliance with Respect to the Side Walls

- For products with overlay panels in place, the position of the appliance is adjusted so that the door and the furniture surfaces are flush. You can also use position adjustment jig (Item No5) if necessary.

Technical line drawing of a cabinet with internal components and a magnified inset showing internal structure (no text or symbols)

- For products without overlay panels in place already, the product is placed using the adjustment part (Item No5) as shown in the figure below.

i IMPORTANT INFORMATION

It is very important to align the upper edge of the freezer door when aligning, as its position is fixed and all other panels can be adjusted with respect to it. All the other edges can be adjusted with the adjustment mechanisms.

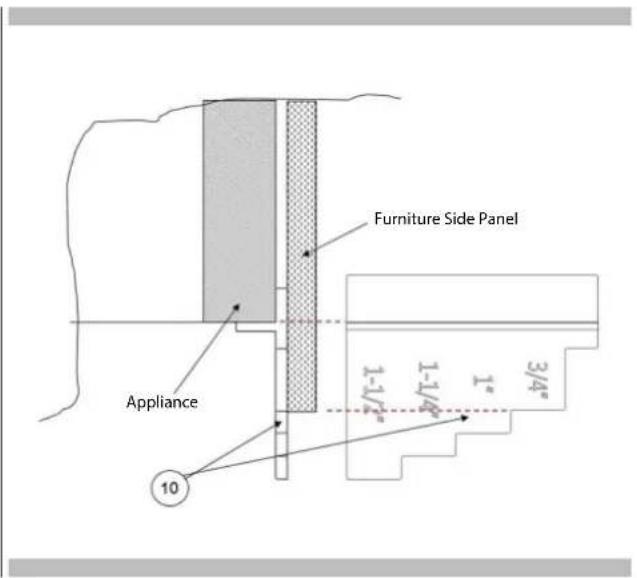

3/4" 1" 1-1/4" 1-1/2"

- For products without overlay panels in place already, the product is placed using the adjustment part (Item No5) as shown in the figure below.

Furniture Side Panel Appliance 10 1-1/2" 1-1/4" 1" 3/4"

Attaching the Cabinet Connection Brackets

- Fix the cabinet connection brackets (Item No12) to the appliance, where: 2 on the top, and 3 on each side. Use screw cabinet connecting bracket (Item No11) to tighten.

Technical line drawing of a refrigerator interior showing internal compartments and storage areas (no text or labels)

WARNING

Before starting to screw the side and upper brackets, please make sure that water is supplied to the product and there is no water leakage.

i IMPORTANT INFORMATION

If you have difficulty tightening the screws, opening a reference hole with the drill will make this procedure easier.

- Attach cabinet connection brackets (Item No12) to the cabinet with 16 screws cabin connecting bracket (Item No13).

Technical line drawing of an open refrigerator showing internal compartments and doorways (no text or labels)

Water connection

- Use the box cutter to cut the water hose squarely from the end of the pass-through tube, leaving a section of 10".

10" 250mm

- Use the 2 wrenches to firmly connect the hose coming from the mains and the hose coming from the valve.

WARNING

The hose coming from the mains must be one piece. Do not use extension hoses.

WARNING

Make sure that the power is cut off when making the water connection of the product.

WARNING

The water valve must be off when connecting the water hose.

WARNING

It is recommended that the water on/off valve remains accessible after installing the product.

WARNING

This product is suitable for use with cold water mains only.

WARNING

Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).

IMPORTANT INFORMATION

Once the connection is complete, you must turn on the mains valve and make sure that there is no leakage at that point.

Technical line drawing of an industrial machine or equipment component with internal components and mounting brackets (no visible text or symbols)

Attaching the Upper Ventilation Part

• Use 2 screws to attach the upper vent hole part.

Technical line drawing of a mechanical assembly with no visible text or symbols

Attaching the Lower Ventilation Assembly

• Use 2 screws to attach the lower ventilation part.

Technical illustration of a mechanical or electronic device casing with ventilation grilles and mounting brackets (no text or symbols)

IMPORTANT INFORMATION

You can move the lower vent hole ventilation part to adjust it to the kick plate in the kitchen.

WARNING

Forward-backward travel distance of the lower kick plate can be 15/16" (23 mm). As you can see in the figure, the decorative kick plate must not be in front of the upper vent hole level.

Attaching the Decorative Trim Parts

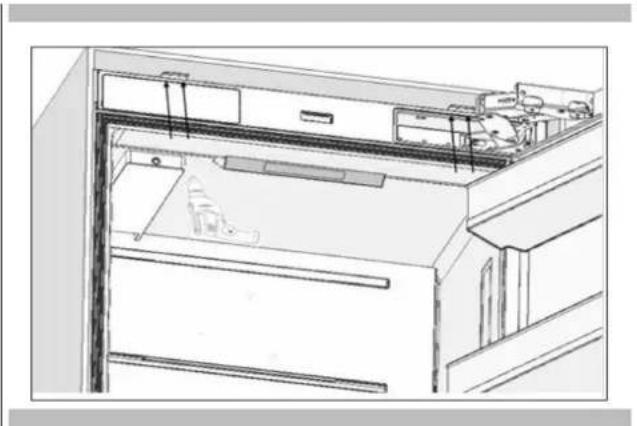

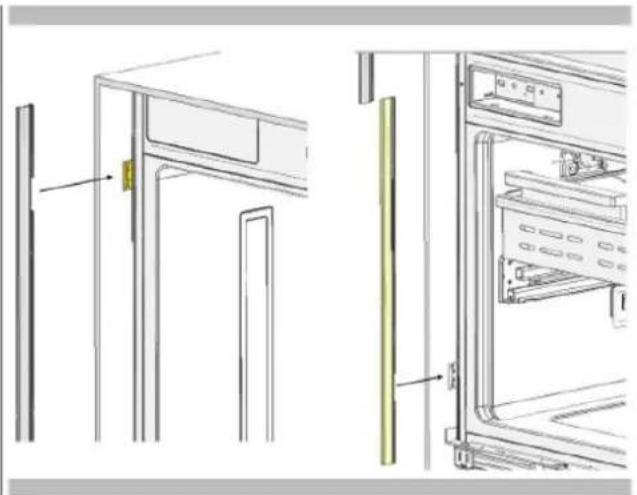

- Attach the trim fridge furniture side (Item No1) onto cabinet-cabin connecting bracket (Item No12).

Technical line drawing of a door and shelf assembly (no text or symbols)

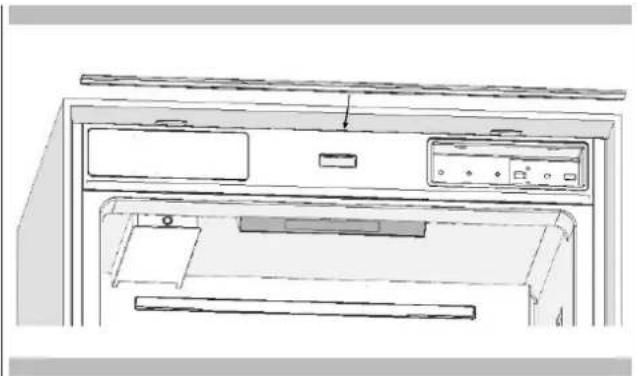

- Attach the trim furniture top (Item No4) over top cabinet connection bracket (Item No12).

Line drawing of a front view of a kitchen appliance with a door, drawer, and control panel (no text or symbols)

WARNING

Maximum weights of the door overlay panels to be mounted to the product are as follows. Fridge Door: 35.7 lbs. (16.2 kg)

Freezer Door: 19.8 lbs. (9 kg)

Choosing the Door Thickness

- If the door thickness is more than 1 12 " (38 mm) opening must be limited to 90. You must use a limiting pin on the hinge (included).

- You can limit the opening degree of your door to 90 if you want. In this case, the door thickness levels can be like the following (you can look at the relevant section to learn how to attach the 90 limiting pin (Item No6).

1/4" (3) 3/4" (10) CABINET FRONT 1" (25.4) 1/4" (31.8) 1 1/2" (38.1) FRONT PANEL 3/4" (10) 1" (25.4) 1 1/4" (31.8) 1 1/2" (38.1)

3D mechanical assembly diagram showing a bracket with mounting holes and a rod (no text or symbols)

90°limit pin should be inserted to upper hinge and lower hinge

This section contains information about preparing the door overlay panels and mounting them to the product.

Removing the Mechanism Covers

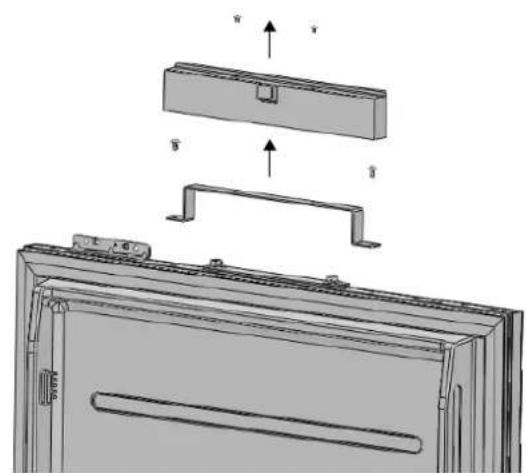

- Remove screws to take off the upper bracket cover and fixing bracket.

IMPORTANT: There is a magnet inserted into this cover that is necessary for the appliance to detect when the door is closed. Ensure this cover with magnet is replaced when completing the installation.

Technical diagram of a door frame assembly with mounting brackets and a handle, showing no text or symbols.

- Remove two screws to take off the lower bracket cover.

Technical diagram showing a mechanical assembly with mounting brackets and a separate panel (no text or symbols present)

Removing the Panel-Adjustment Mechanisms on the Refrigerator

- Remove the upper and lower Adjusting Mechanism assemblies from the door.

Illustration of a refrigerator interior showing open doors and shelf compartments (no text or labels)

Preparing the Door Overlay Panelst

i IMPORTANT INFORMATION

You must take the dimensions into account when grouping the bracket parts on the furniture doors. When marking, you can use the "Furniture door preparation (Item No 1) provided with the product.

templ

PERIODS TDP PERIODS Bottom PERIODS TDP

WARNING

Handle connection holes must be adjusted according to the handles to be used in kitchen design.

WARNING

Minimum thickness of the door must be " (19mm).

Preparing the Fridge Door Overlay Panel
FM4BM30(I)FBI - FM4BM36(I)FBI

76: 1 7/16" (38mm) 91: 4 7/16" (114mm) 76: 29 3/4" (756mm) 91: 35 3/4" (908mm) 76: 1 7/16" (38mm) 91: 4 7/16" (114mm)

FM4BM36(I)FBI

1 1/8" (28mm) 15 3/4" (400mm) 13/16" (21mm) 17 11/16" (449mm) 17 11/16" (449mm) Right door Left door 51 1/16" (1297mm) 13/16" (21mm) 15 3/4" (400mm) 1 1/8" (28mm)

WARNING

You must use screws suitable for the door thickness.

- Install the two hanger brackets using the provided screws (Item No18). You can also use the furniture door preparation template (Item No 1) provided with the product to align these parts. It is recommended to keep this template for future reference.

FM4BM30(I)FBI - FM4BM36(I)FBI

Diagram illustrating a physical process with two plates and directional arrows, possibly representing motion or force vectors.

FM4BM36(I)FBI

Diagram showing two devices with downward arrows pointing to a rectangular surface, possibly illustrating a physical or mathematical concept.

• Attach the fridge door handle.
• Depending on the style of screw you may need to countersink. The screw head must not protrude.

Simple line drawing of a cabinet with a handle and a pointer, no text or symbols present

Preparing the Freezer Door Overlay Panel

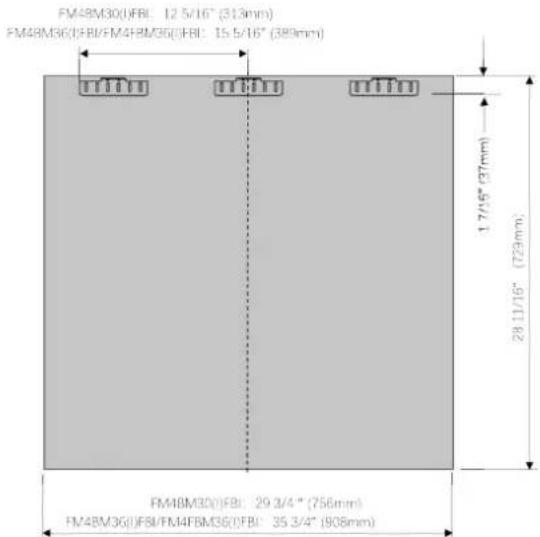

FM48M30(1)FBI: 12 5/16" (313mm) FM48M36(1)FBI/FM48M36(1)FBI: 15 5/16" (389mm) 17/16" (37mm) 28 11/16" (729mm) FM48M30(1)FBI: 29 3/4" (756mm) FM48M36(1)FBI/FM48M36(1)FBI: 35 3/4" (908mm)

WARNING

Handle connection holes must be adjusted according to the handles to be used in kitchen design.

WARNING

Minimum thickness of the door must be " (19 mm).

WARNING

You must use screws suitable for the door overlay panel thickness.

- Attach freezer door hanger brackets (Item No9) using 6 screws (Item No18) for each.

3D rendering of a flat rectangular plate with three small triangular cutouts above it (no text or symbols)

• Attach the fridge door handle.
• Depending on the style of screw you may need to countersink. The screw head must not protrude.

Simple line drawing of a cabinet with a handle and a pointer, no text or symbols present

Installing the fridge door overlay

- Attach the fridge door overlay panel to the fridge door.

Simple line drawing of a vertical panel with an arrow indicating rotation (no text or symbols)

How to align the fridge door with bolts

Position of the door overlay panel to the kitchen cabinets must be flush.

To achieve this, you should adjust 3D direction using by two fixing bolt to perform fine adjustments.

Before you begin, review the position of the door overlay panels with respect to the adjacent cabinets.

Distances between door overlay panels must be 1/8" (3 mm), assuming that the panel dimensions are correct.

You can make door adjustments based on this distance.

• How to align the door overlay upper part with bolts.

Back out slotted screw to its loosest position (counterclockwise), then adjust accordingly. Up & down Front & back Left & right Fixing overlay panel completely

• How to align the door overlay panel lower section with bolts.

Up & down Left & right Fixing furniture door completely Front & back

Use the set screws to position the panel in the Z (depth) direction then fix in place firmly with the washers and bolts removed in the earlier steps. Do not over-tighten as it will bend the brackets.

Once you are satisfied with the panel positioning - finally fix the door overlay panel with the provided brackets shown below. This gives additional strength to the handle side where most of the pulling pressure is applied to the door overlay panel.

• Use the door overlay panel connecting bracket (Item No16) to join the furniture door.
• Use 1 screw door fixing bracket (Item No15) to fix on the door.
• Use 2 screws (Item No17) to fix on the door overlay panel.

FM4BM30(I)FBI - FM4FBM36(I)FBI

Technical illustration of an open refrigerator with internal compartments and close-up insets showing internal components (no text or symbols)

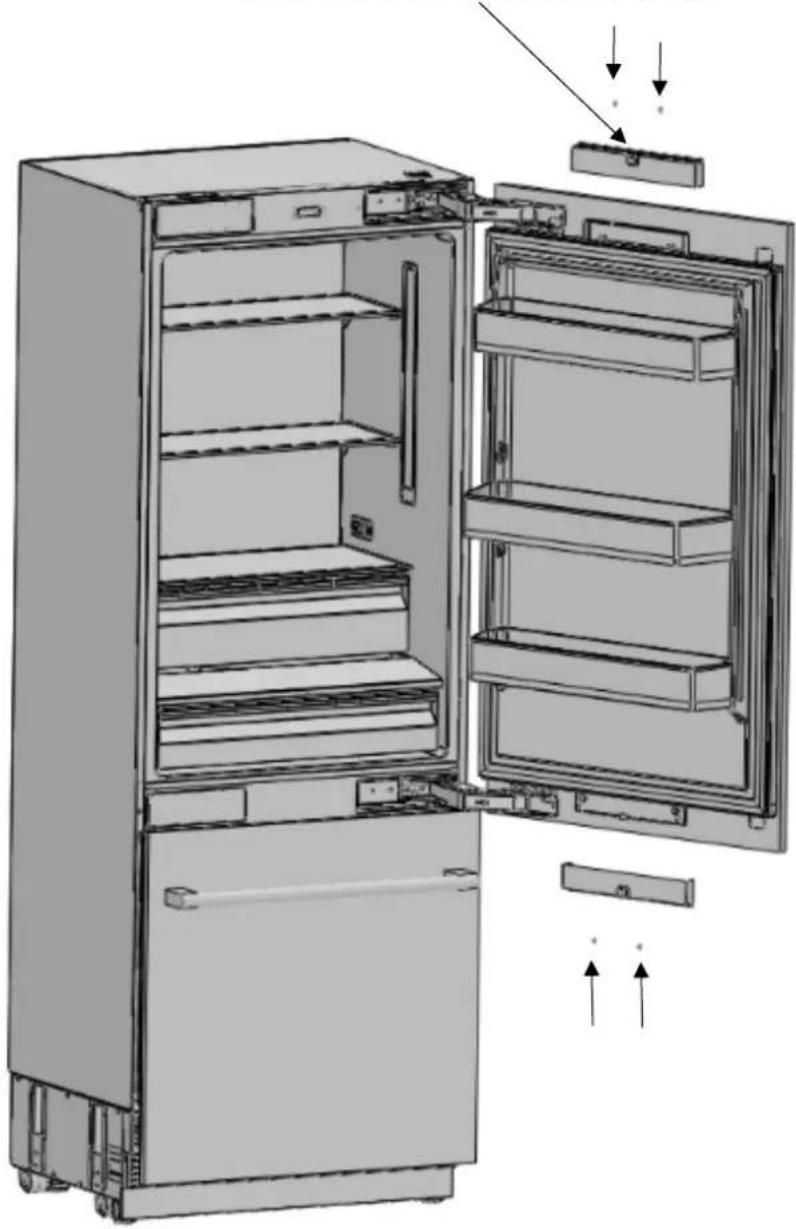

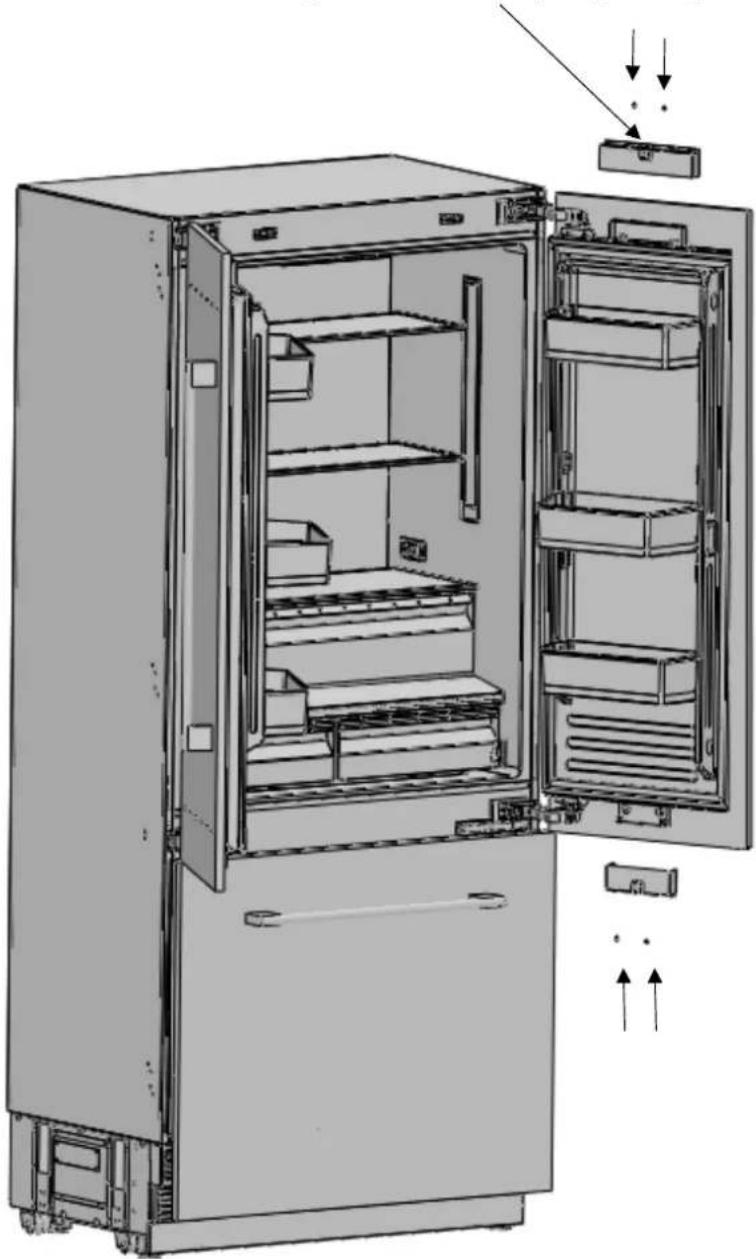

- Snap on the door bracket covers. (Item No 14).

FM4BM30(I)FBI - FM4FBM36(I)FBI

Technical illustration of an open refrigerator with a close-up inset showing internal components (no text or symbols)

- Snap on the bracket covers.

FM4BM30(I)FBI - FM4FBM36(I)FBI

IMPORTANT: Ensure the upper cover contains a magnet to detect door opening / closing.

Diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

WARNING

There is a magnet on the cover door hanger bracket upper. This is a functional part for the operation of the product. It should not be confused with the lower cover.

- Attach and screw the upper/lower decoration cover.

FM4FBM36(I)FBI

IMPORTANT: Ensure the upper cover contains a magnet to detect door opening / closing.

Technical line drawing of an open refrigerator with internal compartments and doorways (no text or symbols)

WARNING

There is a magnet on the cover door hanger bracket upper. This is a functional part for the operation of the product. It should not be confused with the lower cover.

Installing the freezer door overlay panel

- Attach door overlay panel connecting bracket (Item No16) on the door lower section with screw door fixing bracket (Item No15).

3D technical illustration of a metal plate with cutouts and mounting brackets, showing internal structure and directional arrows (no text or symbols)

- Attach the door overlay panel to the freezing door

Diagram showing two vertical panels with arrows pointing to a right-side panel (no text or symbols)

How to align the freezing door overlay panel to the lower section

- How to align the freezer door overlay panel upper part with screw freezer door hanger bracket (Item No8).

Use the corresponding screw hole that will position the ideal depth of the panel Front & back Left & right Up & down

If there is gap between bracket and foaming door, this plastic shim can be used to fill the space.

• Use the door overlay panel connecting bracket (Item No16) to join the freezer door overlay panel.
  • Use 2 screws (Item No17) to secure the door overlay panel.

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

EN

- Clip the door overlay panel bracket cover onto the brackets (Item No 14).

Technical line drawing of a mechanical component with an inset close-up view showing internal structure (no text or symbols)

• Install the complete freezer door assembly onto the rails.

Technical illustration of a kitchen appliance with an inset close-up showing a mechanical component (no text or symbols present)

- Once the freezer door assembly is in place, secure to the drawer rails with 2 screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

- Locate the drawer onto the rail and tighten the screws.

3D technical illustration of an open refrigerator with internal compartments and door handle (no text or symbols)

Interior view of a refrigerator with open doors and internal compartments, showing a close-up of the door handle (no text or symbols visible)

EN

- Snap the freezer drawer cover strip (Item No5) onto the buttons on top of the freezer drawer. It should fit tightly against the overlay panel.

Technical illustration of a structural assembly with two parallel plates and internal channels (no text or symbols)

• Install the complete freezer door assembly onto the rails.

Tape

Technical diagram of a door frame with internal compartments and mounting brackets (no text or symbols)

Adjusting the strength of the hinges

- Use a drill to adjust the strength of the close assist of the upper and lower hinges of the fridge door. Set the hinge adjustment screw to position "1" from position "0".

0 = Weakest setting

I = Strongest setting

Interior view of a refrigerator showing open doors and internal shelves, with a magnified inset highlighting the interior structure (no text or symbols visible)

WARNING

The door must be fully open during this adjustment.

WARNING

This hinge adjustment must definitely be performed after the door has been adjusted.

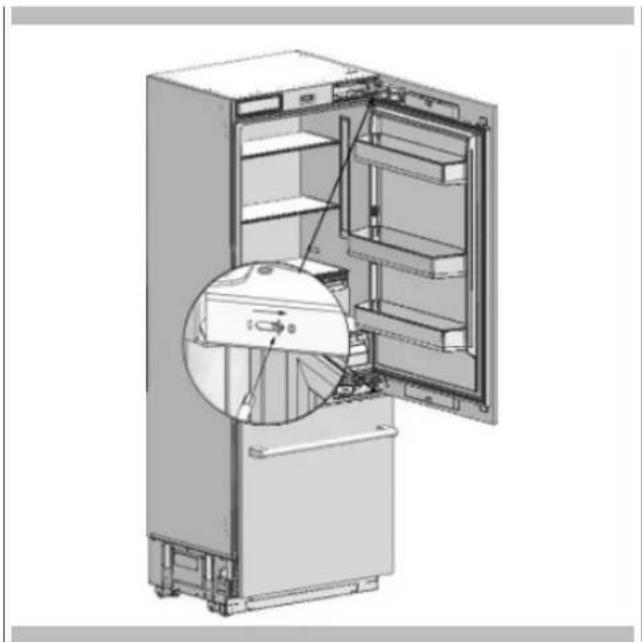

Removing the fridge door

- Set the hardness level of the hinge to "0".

Interior view of a refrigerator showing open door, shelves, and internal compartments (no text or symbols visible)

• Loosen 2 screws of the upper cover of the fridge door and remove it.
• Remove the upper adjustment kits.

Diagram of a device with an open lid and internal components, showing upward arrows indicating motion (no text or symbols present)

ATTENTION

Failure to set the hinge to "0" and continuing installation like that may cause injury.

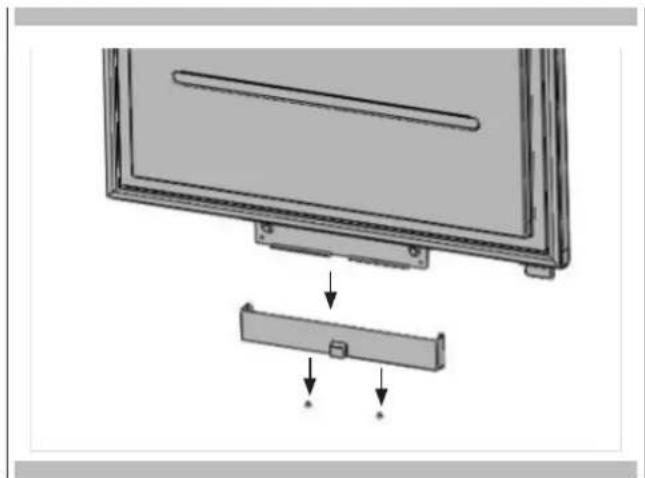

- Loosen 2 screws of the lower cover of the fridge door and remove it.

- Remove the side trims.

Technical diagram of a door frame with two vertical supports and horizontal slots, showing internal structure (no text or symbols)

Diagram showing a monitor mounted on a base with a separate panel inserted, no text or symbols present

- Remove fridge lower and upper bracket and fixing screws.

FM4BM30(I)FBI - FM4FBM36(I)FBI

Technical illustration of an open refrigerator with internal compartments and exploded view showing internal components (no text or symbols)

WARNING

The clad door will be released when these screws are removed. You must take measures to prevent the door from falling. You can tape the Furniture Door to the Inner Door or ask for help from another person.

• Take the Fridge Furniture Door and lay it down on a table upside down.
• You must attach the Furniture Door by rotating it 180 based on its current position.

Removing and preparing the Fridge Inner Door

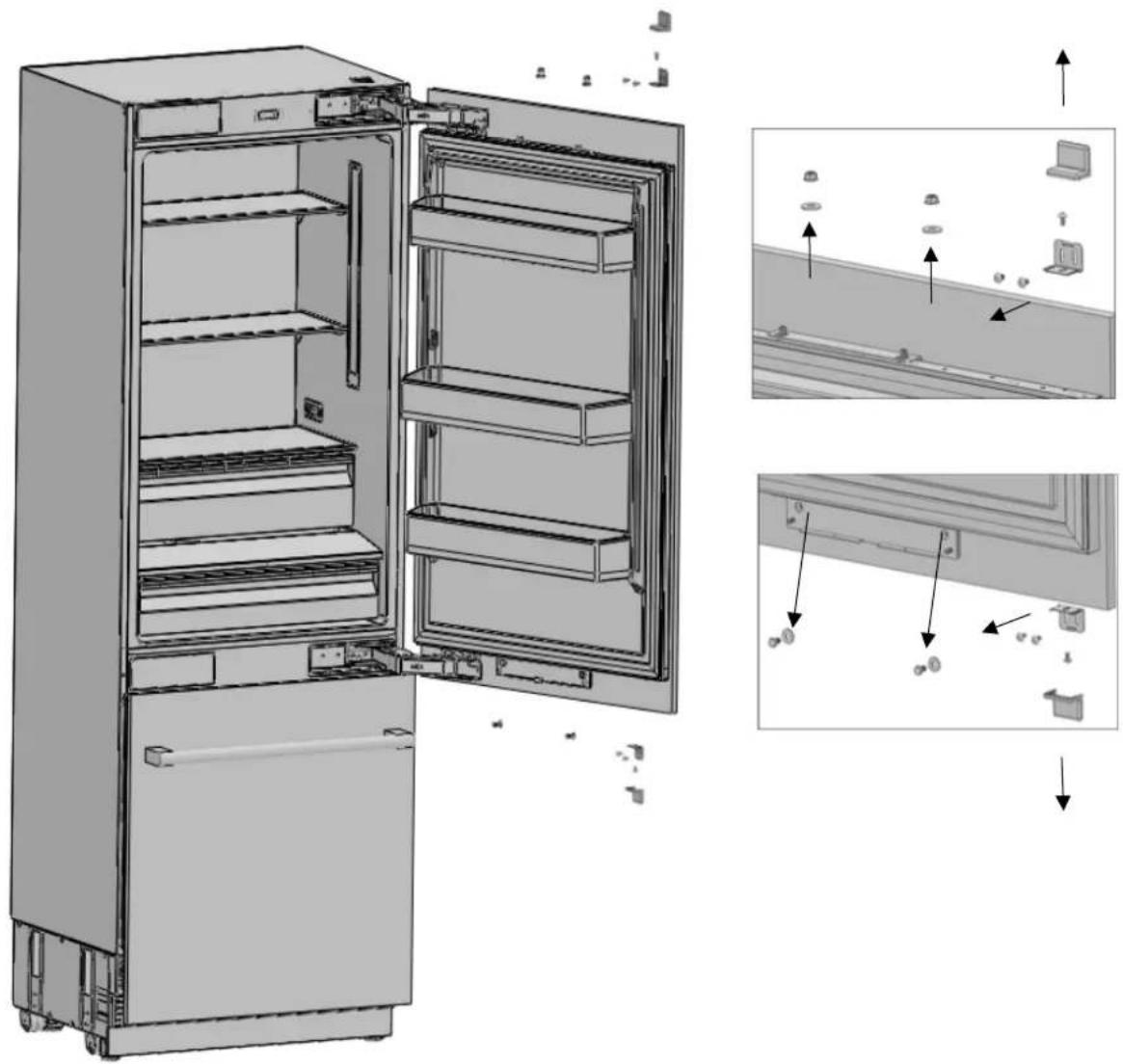

- Remove the hinge connection screws of the Hinge Brackets.

ATTENTION

The appliance door will be released when these screws are removed. You must take measures to prevent the door from falling.

Diagram of a server rack with an inset close-up showing internal components (no text or symbols)

- Take out the fridge door and lay it down on a table remove the fixing parts and screw them to the opposite side of the door as shown figure.

Technical diagram of a rectangular panel with internal horizontal lines and diagonal braces, no text or symbols present

Replacing the hinges

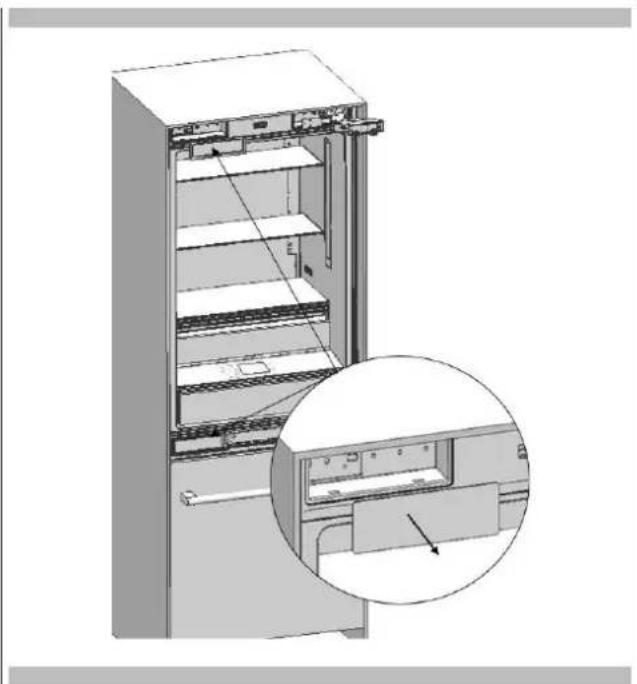

- Remove the Hinge Caps located at the other side where you will fix the hinges.

Diagram of a refrigerator interior showing the exterior and front views, with an inset close-up highlighting the door mechanism (no text or symbols present)

- Remove the lower right hinge by loosening its 2 screws and fix it to its slot at the upper left side.

Diagram of an open refrigerator showing internal shelves and door panel (no text or labels)

- Attach the hinge slot caps removed from the left side to the hinge caps at the right side.

3D rendering of a refrigerator with open doors and internal compartments, showing a close-up inset (no text or symbols)

Installing the Fridge Door

- Place the Fridge Door to the refrigerator and fix it with 4 screws.

Technical line drawing of a cabinet or shelving unit with internal compartments and hanging fixtures (no text or symbols)

If you are going to make a dual installation, you must use the FM4JOINKIT installation kit. Available from your dealer. The instructions below have been prepared according to Built-in type.

Built-in: Overlay panels for a flush finish with adjacent cabinetry. This is the most common installation scenario.

Cabinet Dimensions

Cabinet dimensions below must be checked before starting the installation.

"A" 84" (2134mm) 2" (635mm)

Dual opening dimension

Category	30"+30"(76+76mm)	30"+36"(76+91mm)	36"+36"(91+91mm)
"A" Dimension	60"(1524mm)	66"(1676mm)	72"(1828mm)

Reference

Category FM4BM30(I)FBI FM4BM36(I)FBI

Abbreviation 30" (76mm) 36" (91mm)

Location of the Electrical Wiring

Location of the electrical wiring must be within the range given below.

ATTENTION

Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable.

ATTENTION

A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that the grounding of the socket is correct.

2" (50.8mm) "A" 11" (280mm) 5" (127mm) 4" (102mm)

Category	30"+30"(76+76mm)	30"+36"(76+91mm)	36"+36"(91+91mm)
"A" Dimension	19 1/8"(485mm)	25 1/16"(637mm)	25 1/16"(637mm)

Location of the water system

The water connected to the water mains must be potable.

The location of the water system must be within the range given below.

The water system of the refrigerator must be connected to the water mains system in the house.

The user must be able to switch it on/off with the valve when necessary.

Objects that might pierce the water hoses or cause them to twist must not be present where the water line is installed.

Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).

If the water pressure exceeds 80 psi, install a pressure limiting device or water impact protector to the inlet valve.

Never install the product or operate the appliance if it is possible for the water pressure to exceed 120 psi.

WARNING

Make sure that there is no water leakage when making the water connections.

Otherwise, there will be water on the floor and the furniture will get damaged.

You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of " for water connections of the product during installation.

A connector that has a thread with an external diameter of must be used to connect the hose end to the product. Before completing the installation, make sure that water flows and there is no water leakage.

2" (50.8mm) 10" (254mm) 10" (254mm) 7/8" (21mm) A" 4" (102mm)

Category 76+76 76+91 91+91
"A" Dimension	20" (508mm)	20" (508mm)	26" (660mm)

Mounting Part list

Diagram showing a rectangular object with labeled components and a schematic diagram of a device layout with numbered parts.

No Part name spec Q'ty Remark
1 Insulation foam panel Sponge, gray, T3.0*400*1750 1
2 Connecting bracket T2.0, Cr+zn-coating 2
3 Truss washer head M4*12 16
4 Fastener	POM	3
5 Central cover	PVC extrusion L=1876	1

- Truss washer head screw Spec : M4x12 Fixing Refrigerator Such as cabinet and door (press part)

Stick the insulation panel (Item No1) to the side of one appliance so that it remains in between two cabins.

Insulation Panel

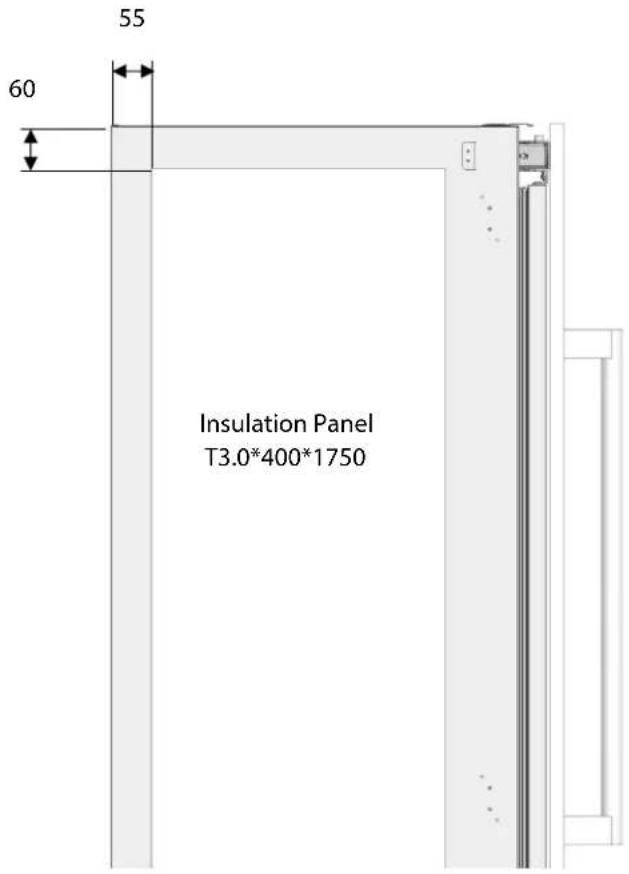

55 60 Insulation Panel T3.0*400*1750

Attaching the fasteners and connecting bracket

Screw the connecting bracket(Item No2) and fasteners (Item No4) that are going to connect two refrigerators together.

Fastener

Connecting bracket

Make power and water connections of the refrigerator as explained earlier in this manual. After making sure that they are in alignment Screw the upper brackets to the other refrigerator.

Technical diagram showing a mechanical assembly with labeled components and an inset view of a bracket mounting detail.

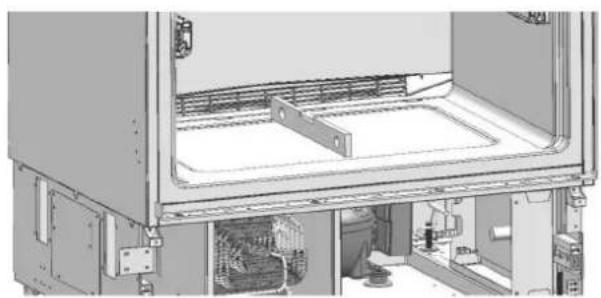

After making sure that they are in alignment screw the lower brackets to the other refrigerator.

Technical diagram showing three views of a mechanical assembly with labeled components (no text or symbols present)

Adjusting the height of the refrigerator in the cabinet Adjust the refrigerator height using the adjustable feet.

WARNING

Diagram of a 3D room layout with labeled equipment and directional arrows, including a magnified inset showing a desk setup.

Fist start with raising the front feet (before the back feet) to reduce the risk of the appliance falling frontward.

• A/D -Turn the key clockwise to lift the front.
• B/C -Turn the key clockwise to lift the rear.

Screwing the bracket furniture on the cabinet side walls

Secure the appliance connecting brackets to the cabinet with 12 screws.

Line drawing of an open refrigerator with internal compartments and doorways (no text or labels)

Screwing the bracket furniture on the cabinet top wall Secure the appliance connecting brackets to the cabinet with 4screws.

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Attaching the decorative trim parts

Attach the side trim onto the cabinet-appliance connecting brackets.

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Attach the top trim onto the cabinet-appliance connecting brackets.

Technical line drawing of a refrigerator interior showing front and rear compartments with no text or symbols

Attach the trim furniture middle (Item No5) between two refrigerators.

Line drawing of a cabinet interior showing front and side views (no text or symbols)

Completion installation

You can see previous pages for other installation procedures.

Illustration of a four-door stainless steel cabinet with handles and two doors, no text or symbols present.

TABLE DES MATIÈRES PAGE

12 - Double installation 50

55 Lbs (25kg) 22 Lbs (10kg)

FM4BM30(I)FBI
FM4BM36(I)FBI

22Lbs (10kg) 22Lbs (10kg)

FM4FBM36(II)FBI

Diagram showing four labeled boxes with checkmarks and arrows, likely indicating selection or confirmation steps.

Diagram showing six identical configurations of a lifting device with checkmarks and X marks, each containing a box and vertical bar.

11" (280mm) 2" (50.8mm) 5" (127mm) 4" (102mm)

2" (50.8mm) 30" (254mm) 4" (102mm) 2/4" (6mm)

AVERTISSEMENT

3D rendering of a two-bar electrical cabinet or enclosure with open doors and internal compartments (no text or symbols visible)

Technical line drawing of an open refrigerator with a door and side-mounted unit, labeled 'A' (no text or symbols on the diagram itself)

3/4" (19mm) 4" (83mm)

1/4" (6mm)

Écart : 1/8" (3mm) Écart : 3/8" (10mm) Écart : 1/8" (3mm) Écart : 1/8" (3mm) Écart : 1/8" (3mm) 4" (102mm) 32 11/16" (831mm)

	A B C
standard 102 mm (4 po) 831 mm (32 11/16 po) 2134 mm (84 po)
minimum 97 mm (3 13/16 po) 826 mm (32 1/2 po) 2129 mm (83 13/16 po)
maximum 137 mm (5 3/8 po) 866 mm (34 1/8 po) 2169 mm (85 3/8 po)

3D line drawing of a rectangular cabinet or shelf unit with three vertical panels stacked vertically (no text or symbols)

Exploded view diagram of a modular device with internal components and mounting brackets (no text or symbols)

ATTENTION

Technical illustration of a server rack with an inset close-up showing a component (no text or symbols present)

3D technical illustration of a server rack with an inset close-up showing a component (no text or symbols)

Technical illustration of a mechanical assembly with an inset close-up showing a component detail (no text or symbols present)

Diagram of a refrigerator interior showing door, drawer, and shelf with an inset close-up of the tray (no text or symbols)

Technical diagram of a mechanical assembly with mounting base and structural components (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base and structural components (no text or symbols)

Four black-and-white icons representing different objects: a power tool, a screwdriver, a helmet, and a glove (no text or symbols)

>62 5/16" (∅8 mm)

Pure diagram of a mechanical or fluid system with no text, numbers, or symbols

Technical diagram of a mechanical assembly with circular component and mounting base (no visible text or symbols)

Technical illustration of a mechanical device with a lever mechanism and its side view showing internal components (no text or symbols)

ATTENTION

Technical illustration of a server rack with zoomed-in views showing internal components (no text or symbols)

INFORMATIONS IMPORTANTES

1/8" (3mm) 1/8" (3mm) 1/8" (3mm) 1/8" (3mm) 4" (102mm)

Technical diagram showing mechanical assembly with labeled components A, B, C and directional arrows indicating motion or force vectors.

Technical line drawing of an internal machine or enclosure with visible structural elements and components (no text or symbols)

3D diagram of a cabinet with internal structural lines and a magnified inset showing window frame detail (no text or symbols)

3/4" 1" 1-1/4" 1-1/2"

Technical line drawing of an open refrigerator with a close-up inset showing internal components (no text or symbols)

AVERTISSEMENT

Technical line drawing of an open refrigerator showing internal compartments and doorways (no text or labels)

Raccordement d'eau

10" 250mm

Technical line drawing of an industrial machine or equipment housing with internal components and mounting brackets (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

3D technical illustration of a mechanical oven or rack unit with ventilation grilles and a door opening (no text or symbols visible)

INFORMATIONS IMPORTANTES

Technical line drawing of a door frame and interior enclosure (no text or symbols)

Line drawing of a front view of a computer oven with internal compartments and ventilation slots (no text or symbols)

AVERTISSEMENT

1/8" (2) 1/8" (3) FACE AVANT DE L'ARMOIRE 1/4" (2) 0 1/2" (3) 0 1/4" (5) 0 RANS DU FAINT 1/4" (10) 1/4" (20) 0 1/4" (30) 0 1/4" (38) 0

3D mechanical assembly diagram showing a bracket with mounting holes and a pin (no text or symbols)

Technical diagram of a device with an open panel and a rectangular component, showing alignment and assembly (no text or symbols)

Technical diagram showing a mechanical assembly with mounting brackets and a bracket, no text or symbols present

Technical illustration of an open refrigerator with visible door, shelves, and cooling unit (no text or labels)

76: 1 7/16" (38mm) 91: 4 7/16" (114mm) 76: 29 3/4" (756mm) 91: 35 3/4" (908mm) 76: 1 7/16" (38mm) 91: 4 7/16" (114mm)

FM4BM36(I)FBI

1 1/8" (28mm) 15 3/4" (400mm) 13/16" (21mm) 17 11/16" (449mm) 17 11/16" (449mm) Porte droite Porte gauche 51 1/16" (1297mm) 13/16" (21mm) 15 3/4" (400mm) 1 1/8" (28mm)

AVERTISSEMENT

Diagram showing two parallel plates with downward arrows indicating direction of movement or force, no text or symbols present.

FM4BM36(I)FBI

Diagram showing two objects interacting with a surface, one above and one below, with no visible text or symbols.

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

3D diagram of a flat rectangular plate with three small protrusions above it, no text or symbols present.

Simple line drawing of a mechanical setup with a piston and frame (no text or symbols)

Simple line drawing of a vertical panel with an arrow indicating rotation (no text or symbols)

Technical illustration of an open refrigerator with internal compartments and external components, showing internal mechanisms (no text or symbols)

Technical illustration of an open refrigerator with internal shelves and a close-up inset showing the exterior panel detail (no text or symbols present)

Illustration of an open refrigerator with internal compartments and doorways, showing exterior and interior views (no text or labels)

AVERTISSEMENT

Technical line drawing of an open refrigerator with internal compartments and doorways (no text or labels)

AVERTISSEMENT

3D technical illustration of a metal plate with cutouts and mounting brackets, showing internal structure and directional arrows (no text or symbols)

Diagram showing two vertical panels with arrows pointing to a right-side panel (no text or symbols)

Technical line drawing of a mechanical component with an inset close-up showing internal components (no text or symbols)

FR

Technical line drawing of a mechanical component with an inset close-up view showing internal structure (no text or symbols)

Technical illustration of a kitchen appliance with an inset close-up showing a mechanical component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

3D technical illustration of an open refrigerator with internal compartments and door handle (no text or symbols)

Interior view of a refrigerator with open doors and internal compartments, showing a close-up of the door handle (no text or symbols visible)

FR

Technical illustration of a structural assembly with two parallel plates and internal channels (no text or symbols)

Technical diagram of a door frame with internal compartments and mounting brackets (no text or symbols)

Interior view of a refrigerator showing open doors and internal shelves, with a magnified inset highlighting the interior structure (no text or symbols visible)

AVERTISSEMENT

Diagram of an open refrigerator showing internal compartments and a magnified view of the interior (no text or labels)

ATTENTION

Technical diagram of a door frame with two vertical supports and horizontal slots, showing internal structure (no text or symbols)

Diagram of a device with an open lid and internal components, showing upward arrows indicating motion (no text or symbols present)

Diagram showing a monitor mounted on a base with a separate panel inserted, and arrows indicating assembly or insertion (no text or symbols present)

Technical illustration of an open refrigerator with internal compartments and exploded view showing internal components (no text or symbols)

AVERTISSEMENT

Diagram of a server rack with an inset close-up showing internal components and directional arrows (no text or symbols)

Technical diagram of a rectangular panel with internal horizontal lines and diagonal braces, showing directional arrows (no text or symbols)

Diagram of a refrigerator interior showing the exterior and front views, with an inset close-up highlighting the door mechanism (no text or symbols present)

Diagram of a refrigerator interior showing the door, shelves, and door frame (no text or labels)

Technical illustration of a refrigerator with open doors and internal compartments, showing a close-up inset (no text or symbols)

Technical line drawing of a cabinet or storage unit with internal components and directional arrows (no text or symbols)

FR 12 - Double installation

"A" 84" (2134mm) 2" (635mm)

2" (50.8mm) "A" 11" (280mm) 5" (127mm) 4" (102mm)

Catégorie	76 +76 mm(30 po +30 po)	30 po +36 po(76 +91 mm)	36 po +36 po(91 +91 mm)
Dimension « A »	485 mm(19 1/8 po)	637 mm(25 1/16 po)	637 mm(25 1/16 po)

2" (50.8mm) 10" (254mm) 10" (254mm) 7/8" (21mm) A" 4" (102mm)

Diagram showing a rectangular object with labeled components and a schematic diagram of a device layout with numbered parts.

Technical diagram showing a mechanical assembly with labeled components and an inset view of a bracket mounting detail.

Technical diagram showing three views of a mechanical assembly with labeled components (no text or symbols present)

Diagram of a mechanical or electrical system with labeled components A, B, C, D and directional arrows indicating rotation or movement.

Line drawing of an open refrigerator with visible door, shelves, and insulation (no text or symbols)

Line drawing of a refrigerator interior showing front and rear compartments with no text or symbols

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Technical line drawing of a refrigerator interior showing front and rear panels with no text or symbols

Line drawing of a cabinet interior showing front and side views (no text or symbols)

3D rendering of a double-door stainless steel cabinet with two doors and four drawers (no text or symbols)

FULGOR

MILANO

SINCE 1949
