Thank you for choosing our ceramic heater. Before using the appliance, carefully read these instructions to ensure it is used correctly.

The safety precautions enclosed reduce the risk of death, injury and electrical shock when correctly followed. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and package. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident prevention measures when using an electrical appliance. We assume no liability for customers failing to comply with these requirements.

SAFETYWARNINGS

When using any electrical appliance, basic safety precautions should always be observed:

• This product is only suitable for well insulated spaces or occasional.
• Check that the mains voltage corresponds with the rating of the appliances in water or any other liquid.
• Do not touch hot surfaces, use handles or knob.
• To protect against electric shock, do not immerse cords, plugs or appliances in water or any other liquid.
• Do not leave any appliance unattended while it is operation.
• Close supervision is necessary when any appliance is used by or near children or ill people.
• Unplug from socket when not in use or before cleaning. Allow to cool before putting on or taking off any parts.
• Do not operate the appliance with a damaged cord or plug or after the appliance has been damaged in any way. If the supply cord is damaged, it must be replaced by the manufacturer, the service agent or similarly qualified persons in order to avoid a hazard.
• The use of accessory attachments is not recommended.
• The use of accessory attachments is not recommended by the appliance manufacturer as it may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter or let it come into contact with any hot surfaces.
• To disconnect, remove the plug from the socket. Do not pull the plug out by the cord.
• No liability will be assumed for any damage caused by non-compliance with these instructions or any other improper use or mishandling.
• Do not use this fan heater in the immediate vicinity of a bath, a shower or a swimming pool.
• Never place flammable objects or clothing on top of the heater.

• Allow a 50 cm safe area around the heater on the top and sides and a 120 cm safe area at the front.

• Never use a heater in a room with explosive gases such as petrol, or while using any kinds of flammable glues, sprays or solvents.

• Prevent the appliance from overheating by keeping the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and outlets from time to time for accumulated dust. DO NOT COVER.

• If overheating occurs, the built-in overheating safety device will shut the appliance off.

• Do not insert any foreign objects into the grill.

• Keep the rear grill clear of any draped fabric or curtains.

• Warning: In order to avoid overheating, do not cover the heater.

• The heater must not be located immediately below a plug socket.

• Children younger than three years old should be kept away unless continuously supervised.

• This appliance can be used by children aged eight years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or instructed on how to use the appliance safely and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

• Children aged between three and eight years old may only switch the appliance on or off if it has been placed or installed in its intended normal operating position and they have been instructed on how to use the appliance safely and understand the hazards involved. Children aged between three and eight years old may not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention must be paid when children and vulnerable people are present.

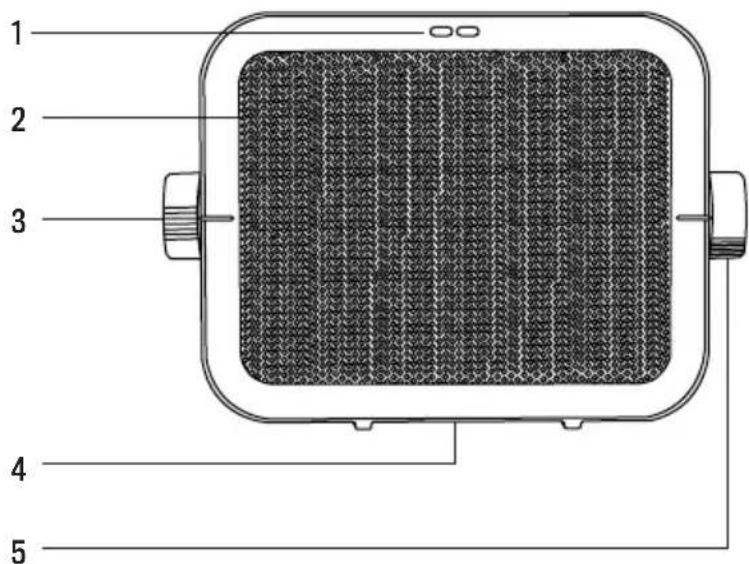

• Power light

• Grade

• Speed selection knob
• Anti-tilt switch protector
• Temperature selection knob

PARTS LIST

• Remove the heater from all packaging and place it in desired location.
• Ensure there is a safe area between the heater and furniture, curtains, etc. (50 cm safe area from the top and sides and 120 cm safe area in front).
• Unwind the power cord and plug it into the power outlet.
  To activate the heater, turn the knob clockwise to the position for cool air.
• Turn the knob to "1" for medium power or keep turning to position "2" for maximum power.

AUTO SAFETY SHUT OFF

The heater has a built-in safety device, which will switch the heater OFF in case of accidental overheating. To reset the heater, follow these steps:

1. Turn the control setting to the 'O' position.
2. Unplug the heater and wait 5-10 minutes for the unit to cool down.
3. After the unit has cooled, plug it in and operate normally.
4. Turn rotary switch into desired position (Fan, Low or High).
5. Turn the thermostat switch to the desired temperature position.
6. When the room temperature is comfortable, slowly turn the thermostat switch anticlockwise to the minimum position until the appliance switches off.
7. The thermostat switch will keep the room at the desired temperature automatically.

You can also turn the thermostat switch anticlockwise to the minimum position or turn the thermostat switch clockwise to the maximum position to decrease or increase the temperature.

ANTI-TILT SWITCH PROTECTOR

This heater is equipped with a safety tip-over switch, which automatically shuts off the heater element if it is not in the upright position. The heater will resume as normal when it is returned to the upright position.

CLEANING AND MAINTENANCE

• Be sure to switch off power supply and pull out the plug before cleaning.
• Wait for the heater to cool down sufficiently.
• Clean the body of the heater with a damp cloth. DO NOT ALLOW water into the appliance.
  DO NOT use soap or chemicals which may damage the housing of the heater.
• Allow sufficient drying time before operating again.
• Clean the air inlets and outlets regularly with a vacuum cleaner (at least twice a year for regular use).
• When the unit is not in use, we recommend placing the heater in its original packaging and storing in a cool, dry place.

This product is only suitable for well insulated spaces or occasional use.

Heat Output		Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output 1,5 KW		Manual heat charge control, with integrated thermostat.	NO
Minimum heat output (indicative)	0,75 KW	Manual heat charge control, with room and/or outdoor temperature feedback.	NO
Maximum continuous heat output	1,5 KW	Electronic heat charge control with room and/for outdoor temperature feedback.	NO
Auxiliar electricity consumption Fan assisted heat output NO
At nominal heat output	0,000 kw	Type of heat output/room temperature control (elect one).
At minimum heat output 0,000 kw		Single state heat output and no room temperature control.	NO
In standby mode 0,000 kw		Two or more manual stages, no room temperature control.	NO
		With mechanic thermostat room temperature control.	YES
		With electronic room temperature control. NO
		Electronic room temperature control plus day timer.	NO
		Electronic room temperature control plus week timer.	NO
		Other control options (multiple selections possible).
		Room temperature control, with presence detection.	NO
		Room temperature control, with open window detection.	NO
		With distance control option. NO
		With adaptive start control. NO
		With working time limitation.	NO
		With black bulb sensor.	NO

In compliance with Directives: 2012/19/EU and 2015/863/EU on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal. The symbol with the crossed dustbin shown on the package indicates that the product at the end of its service life shall be collected as separate waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis. The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws.
