ERA C PRF0194197 - Basket ELICA - Free user manual and instructions

Brand	Elica
Model	ERA C PRF0194197
Product type	Kitchen hood
Usage	Extraction (external ducting) or recirculating (internal recycling)
Minimum installation height (electric cooker)	50 cm
Minimum installation height (gas/mixed cooker)	65 cm
Control type	Control panel with speed selector and light switch
Grease filter	Metallic, dishwasher safe or hand washable
Activated carbon filter	Replacement every 4 months maximum (only in recirculating mode)
Lighting	LED 3W max, E14 socket
Power supply	See voltage on rating plate
Protection device	Standardized circuit breaker for total disconnection
External cleaning	Damp cloth with neutral liquid detergent
Internal cleaning and filters	At least once a month
Safety	Disconnect before maintenance, do not flambé under the hood, do not use without grille
Users	Children aged 8 and above under supervision

Frequently Asked Questions - ERA C PRF0194197 ELICA

What is the minimum installation height of the hood?

For an electric cooker, the minimum distance is 50 cm between the hob and the lowest part of the hood. For a gas or mixed cooker, this distance is 65 cm. Always follow the cooker manufacturer's instructions if they require a greater distance.

How to clean the grease filters?

The metallic grease filters should be cleaned once a month. You can wash them by hand with a non-abrasive detergent or in a dishwasher at low temperature and short cycle. Note: dishwasher washing may cause discoloration but does not affect filtering performance.

How often to replace the carbon filter?

The activated carbon filter (used only in recirculating mode) must be replaced every 4 months at most. It cannot be cleaned or regenerated. The frequency depends on usage and how regularly the grease filter is cleaned.

What type of bulb to use for replacing the lighting?

Use only LED bulbs of 3W max with E14 socket. Consult the manual for the ILCOS D code (alphanumeric position '1d'). Before replacing, unplug the appliance and ensure the lamps are cool.

Can I use the hood without filters?

No, never use the hood without the grille correctly installed. The filters are essential to prevent fire hazards and protect the motor. Additionally, do not use without the lamps correctly mounted to avoid electric shock.

How to connect the hood electrically?

The voltage must match that indicated on the rating plate located inside the hood. If a plug is present, connect it to an accessible wall outlet after installation. If direct connection, install a standardized circuit breaker to allow total disconnection. Before reconnecting, verify that the cable is correctly routed.

Can the hood be used in recirculating mode?

Yes, the hood is designed to work in extraction (external ducting) or recirculating (internal recycling) mode. In recirculating mode, you must install an activated carbon filter (not supplied) and replace it regularly.

What to do if the lighting does not work?

First check that the lamps are correctly inserted in their housing. If they are, replace the defective bulbs with LED 3W E14 bulbs. If the problem persists, contact customer service.

Is it necessary to clean the hood regularly?

Yes, the hood must be cleaned at least once a month, inside and outside. Regular cleaning of the grease filters and replacement of the carbon filter (if applicable) are essential to maintain efficiency and avoid fire hazards.

Can I use abrasive products for cleaning?

No, use exclusively a damp cloth with neutral liquid detergents. Avoid any cleaning tools or instruments, as well as abrasive products and alcohol, which could damage the surfaces.

USER MANUAL ERA C PRF0194197 ELICA

EN Instruction on mounting and use

1

Technical line drawing of a mechanical assembly with a cart and a component, no text or symbols present

3

OK!

4

Isometric line drawing of a rectangular container with internal compartments and a central slot (no text or symbols)

OK!

Technical line drawing of a mechanical assembly inside a transparent enclosure, showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical device with gears and flanges (no text or symbols)

6

Technical line drawing of a device interior showing internal components and a magnified view (no text or symbols)

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the

hood and filters will lead to the risk of fires.

• Do not flambé under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

- Do not connect the appliance to the mains until the installation is fully complete.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

- The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

- Use the correct length for the screws which are identified in the Installation Guide.

- In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

- Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

- This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

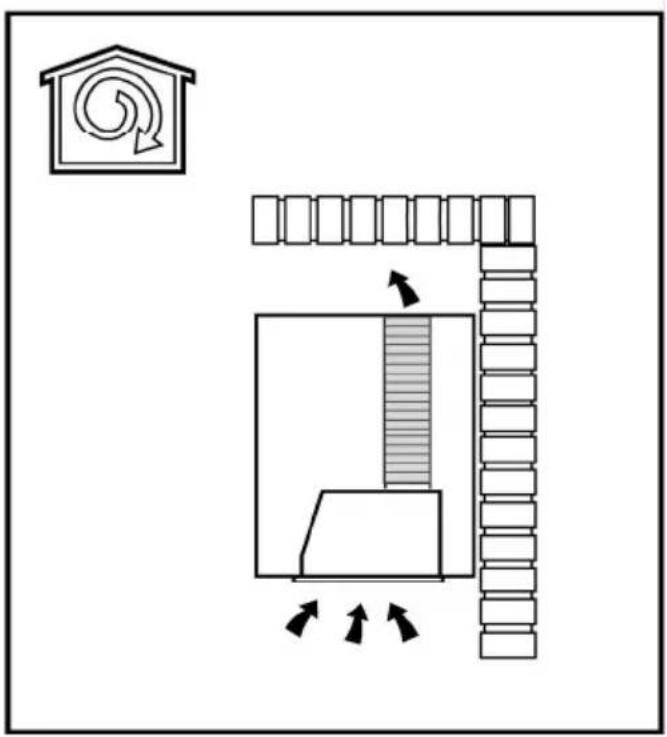

The hood is designed to be used either for exhausting

or filter version

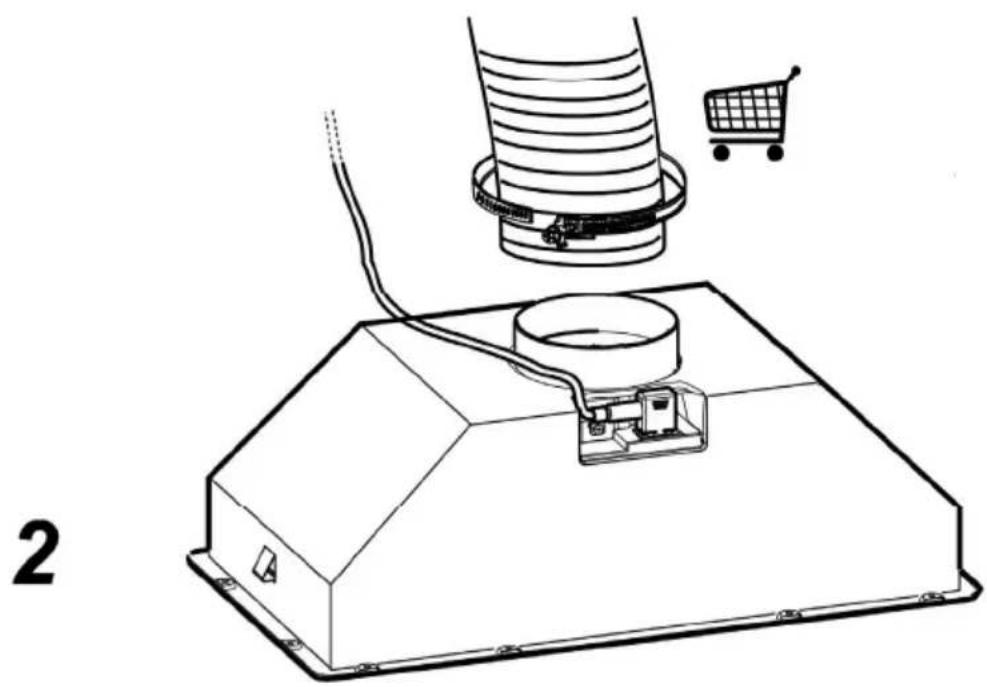

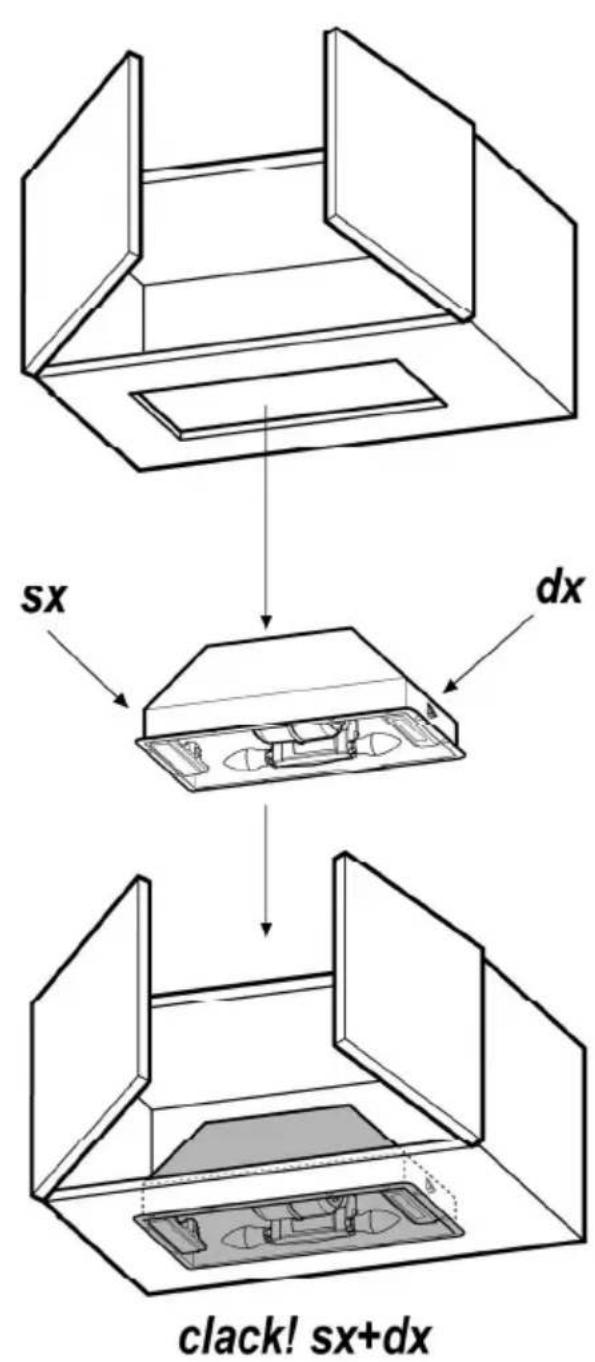

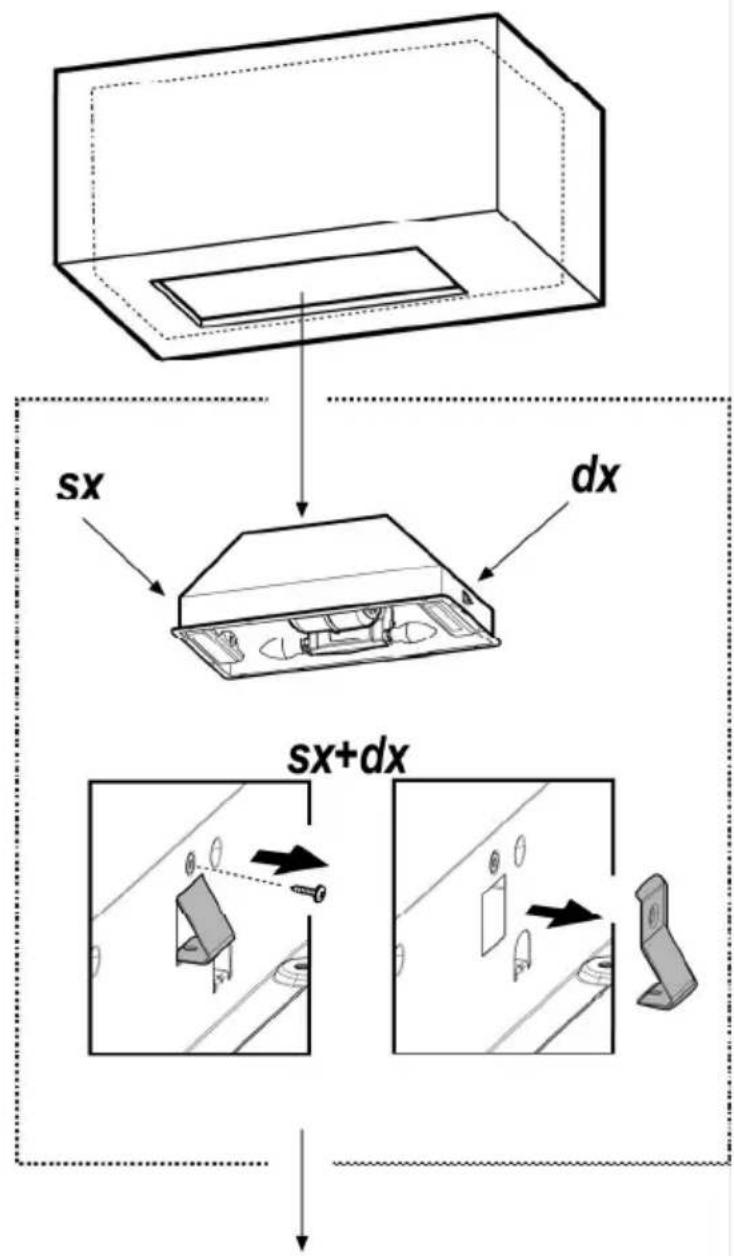

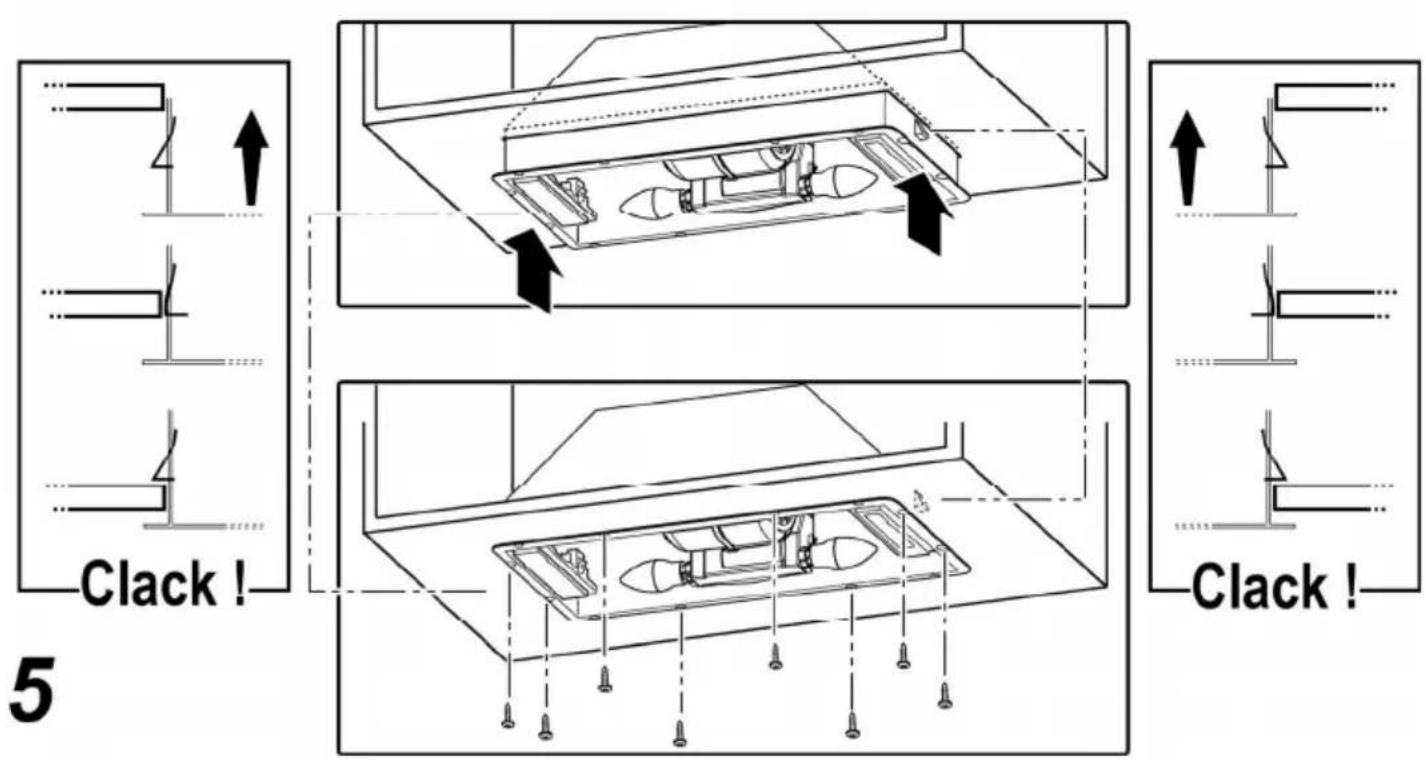

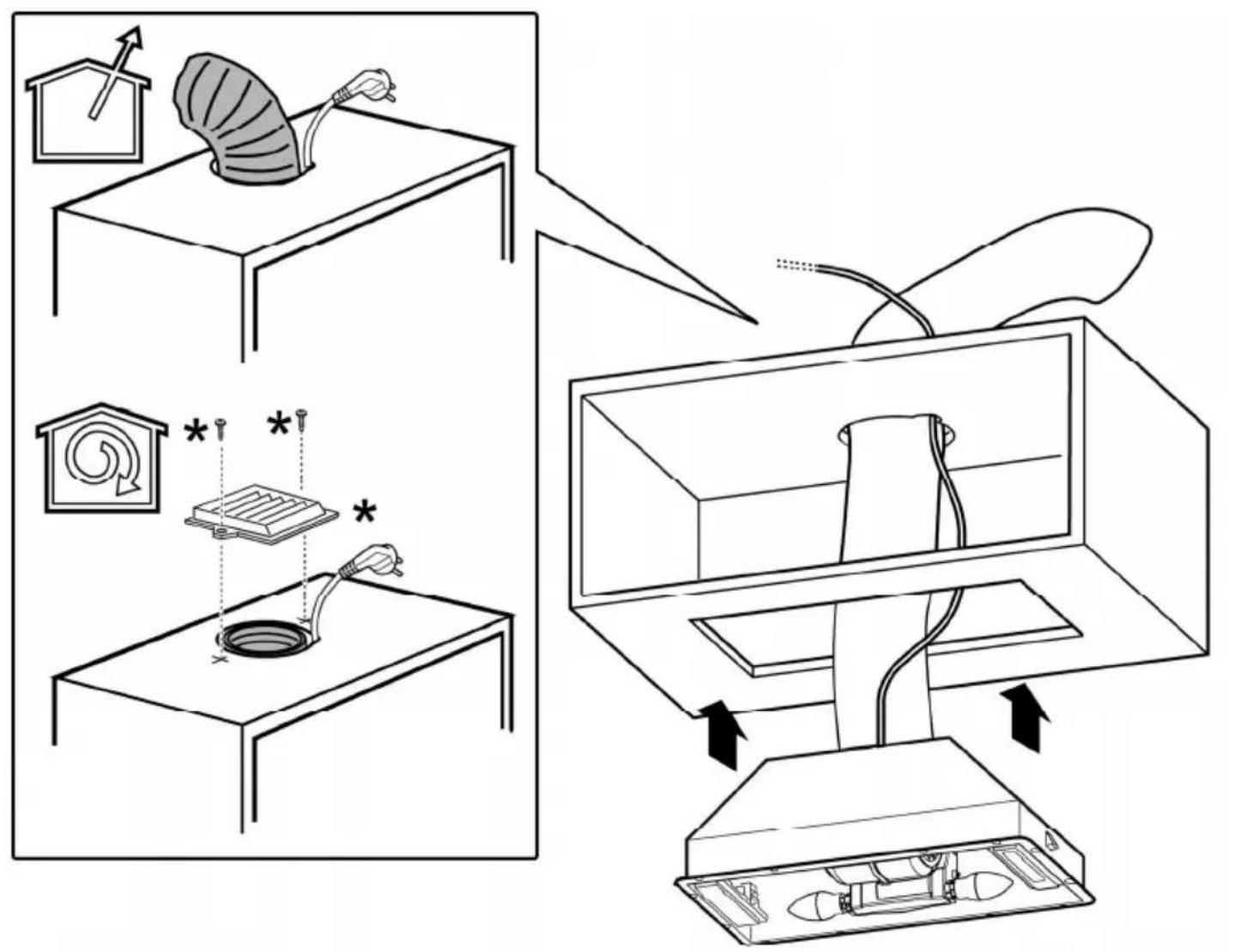

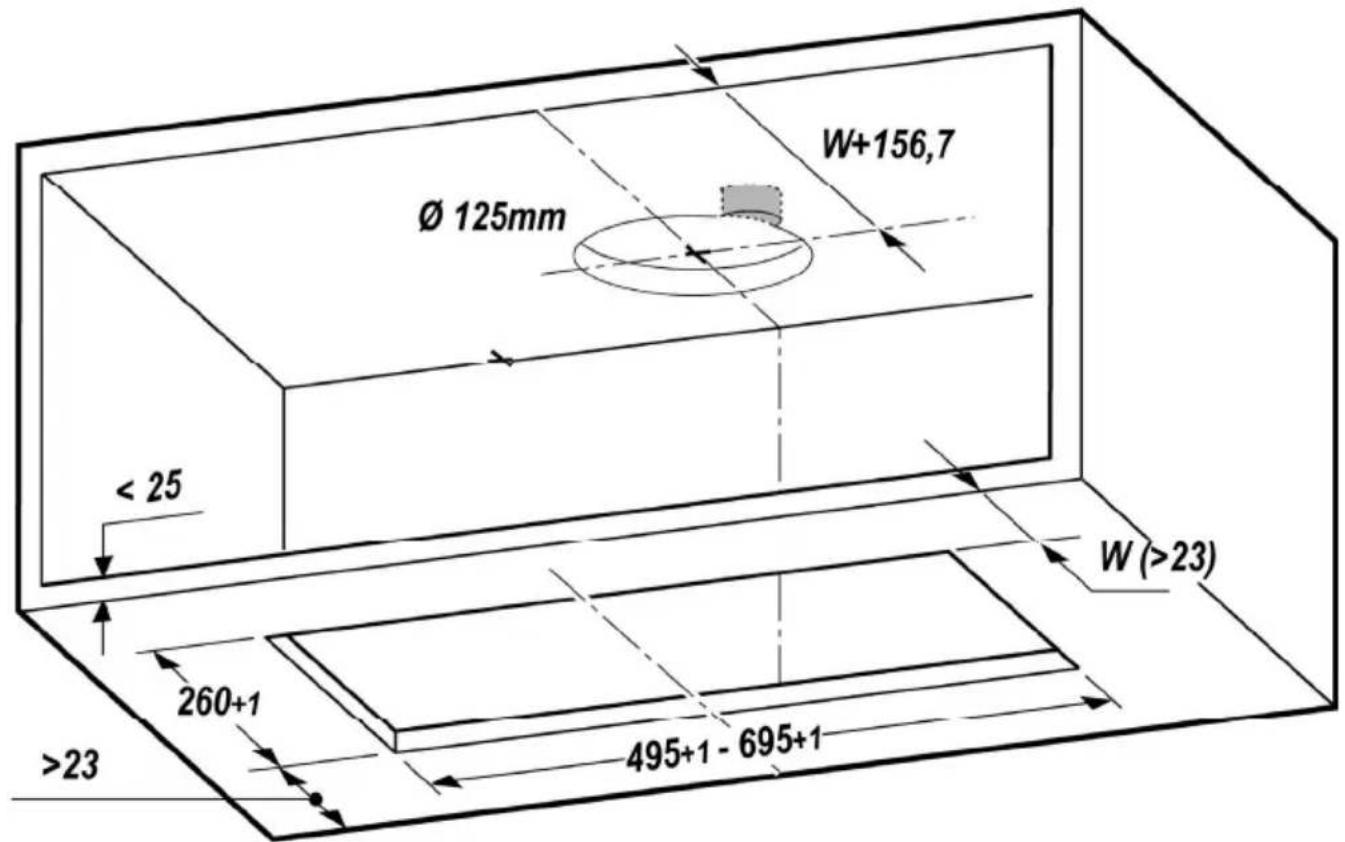

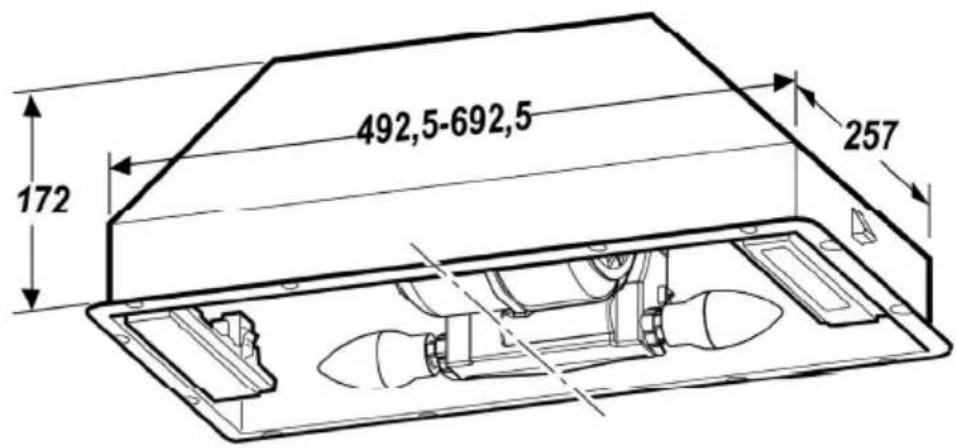

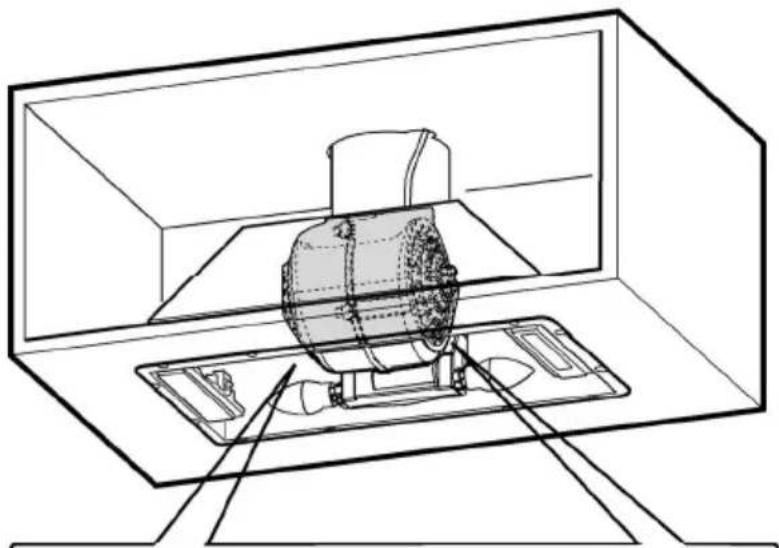

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

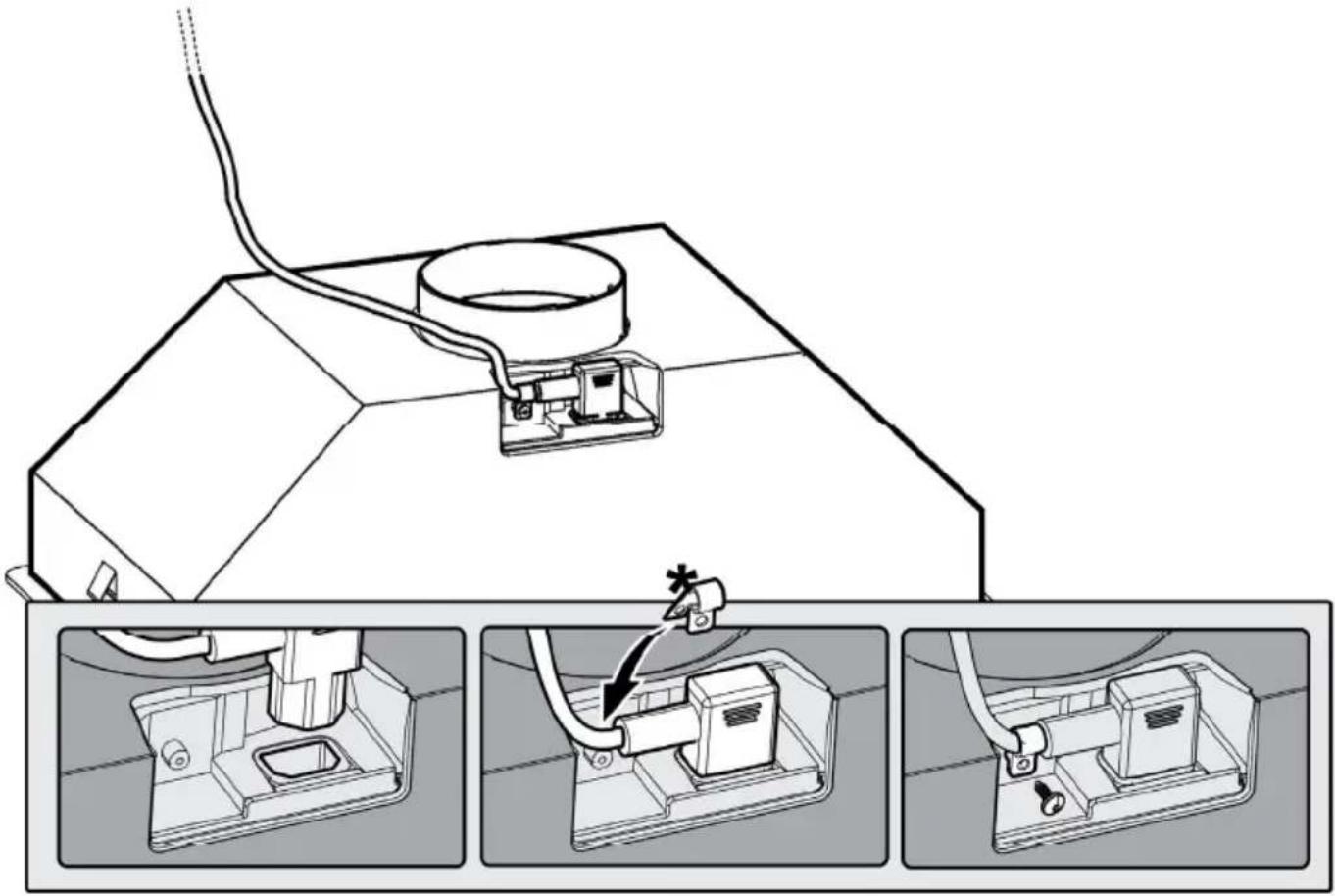

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

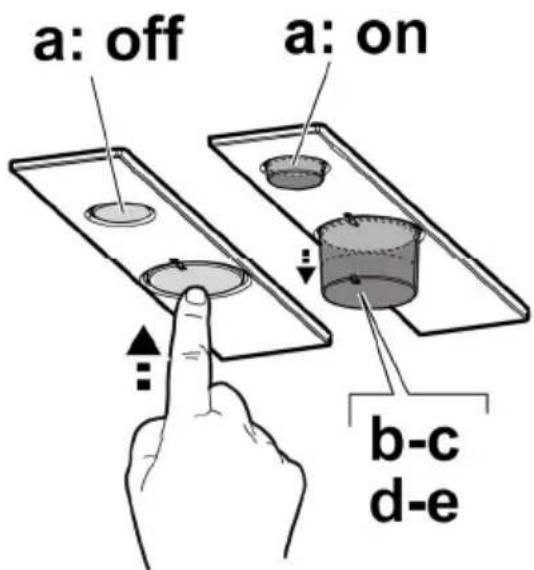

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

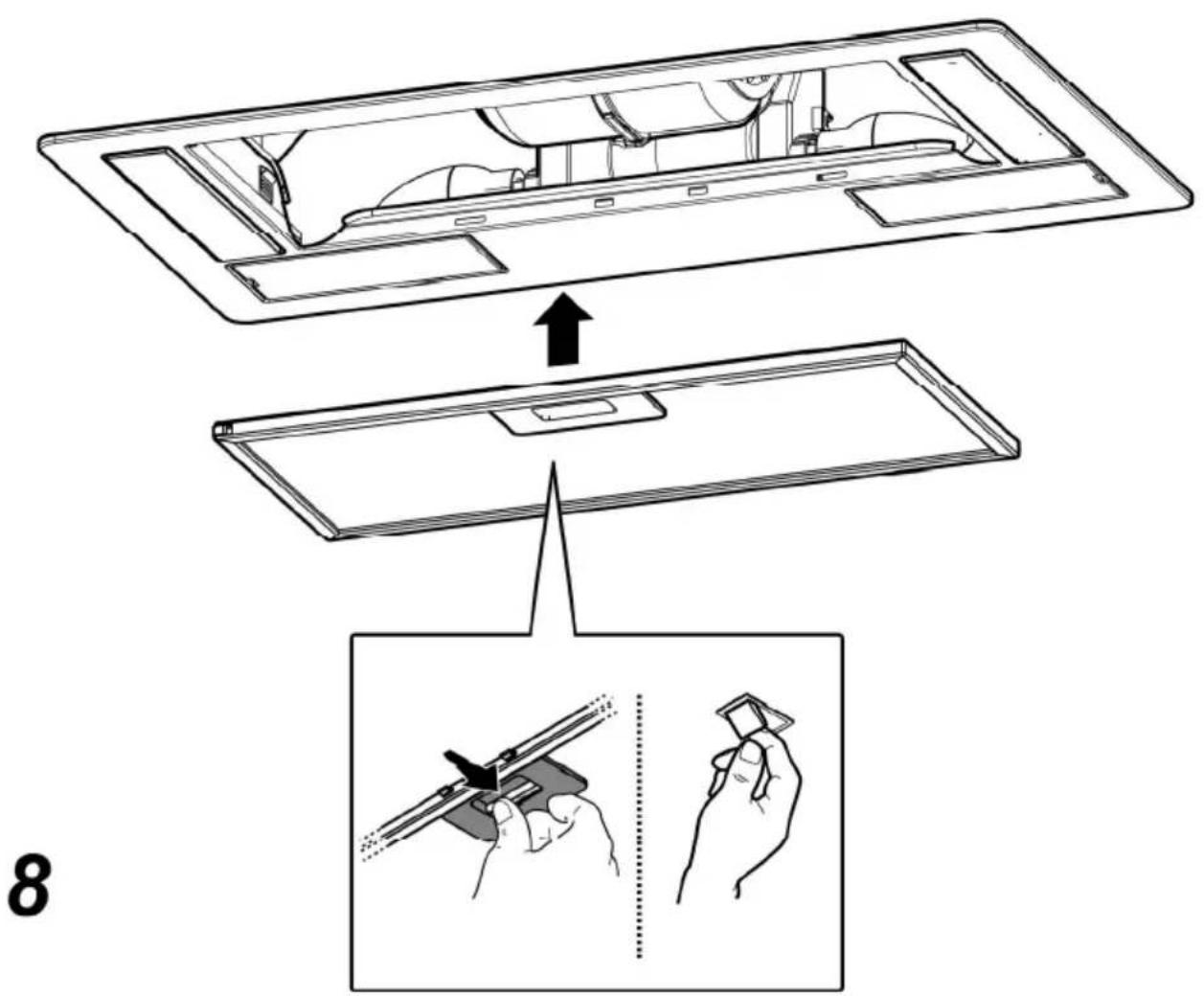

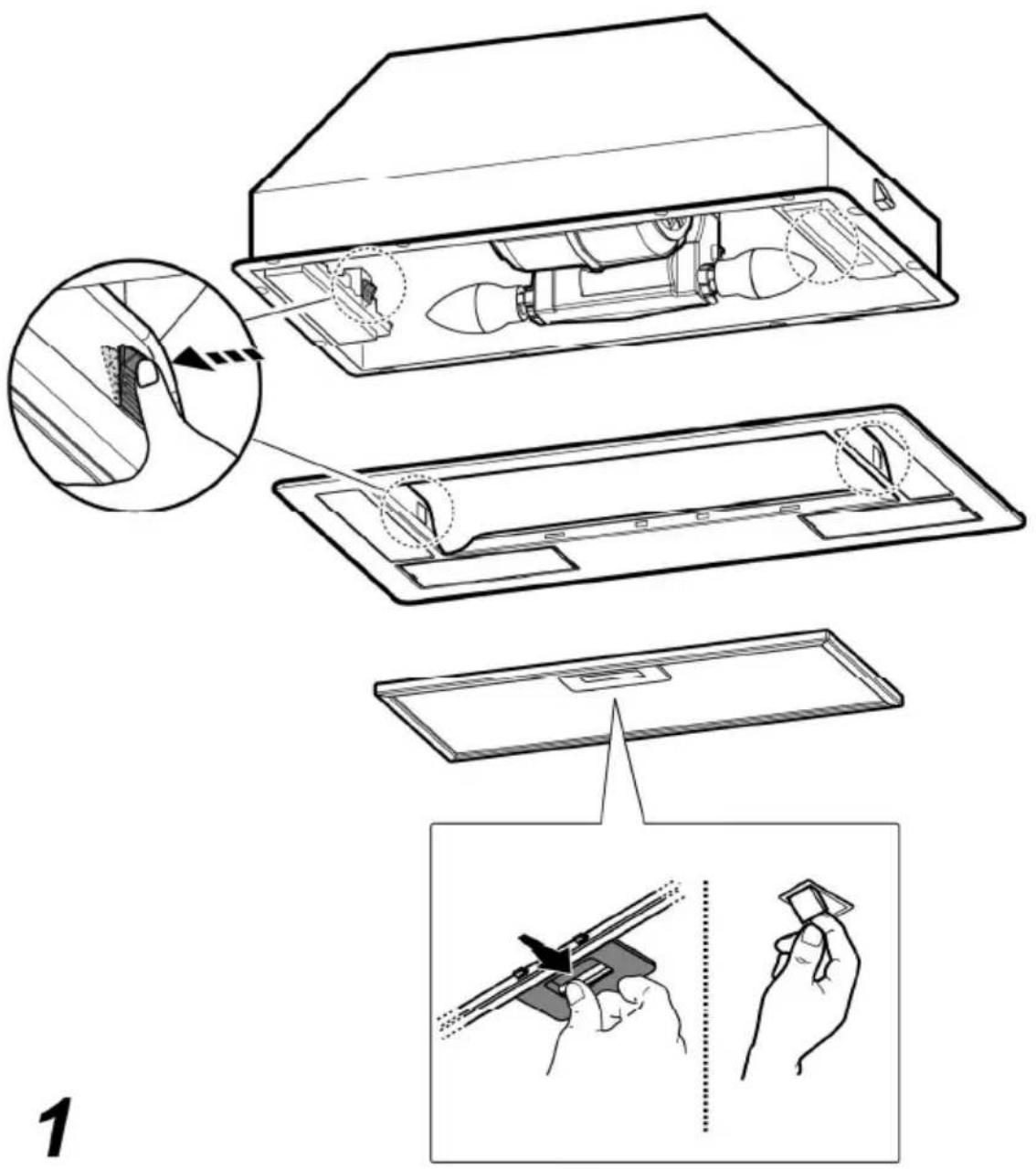

Grease filter

Fig. 1-7

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

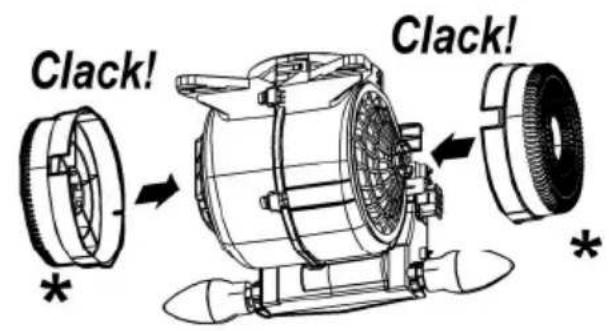

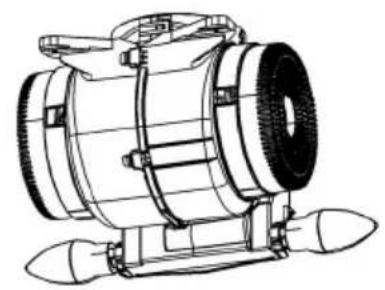

Charcoal filter (filter version only)

Fig. 5

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

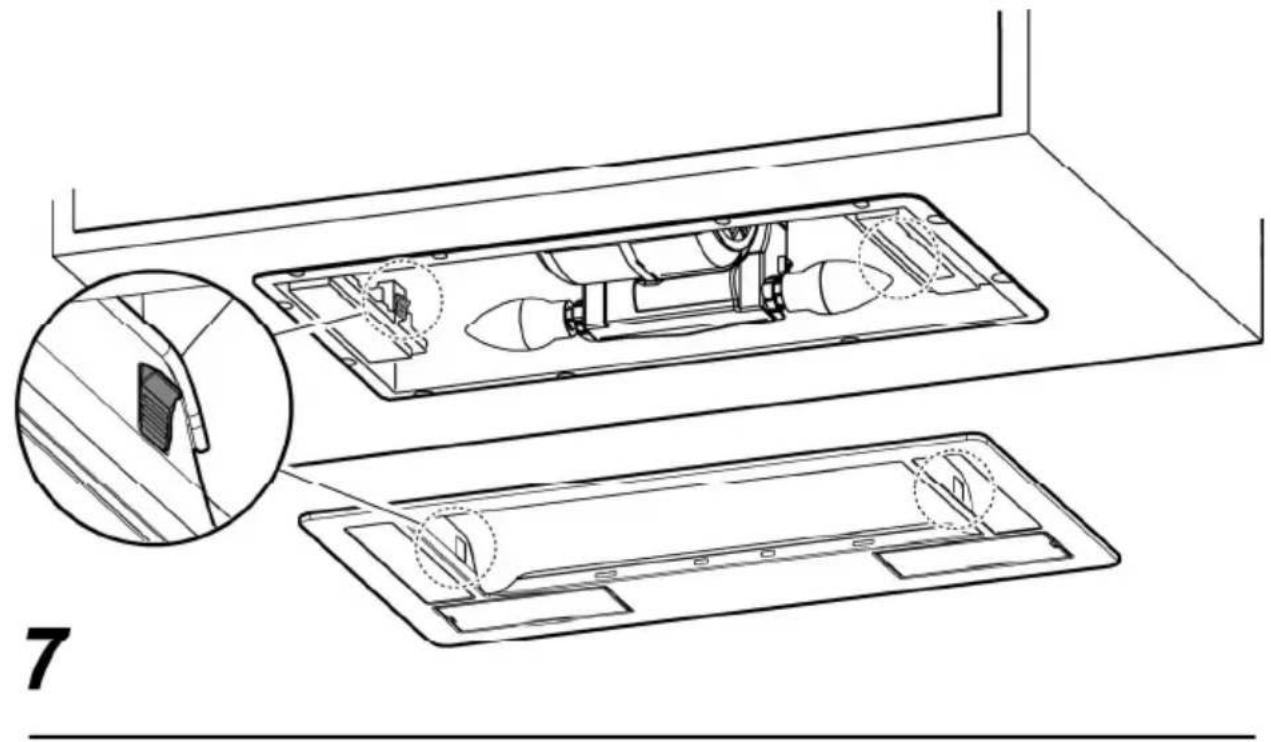

Replacing lamps

Fig.7

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Remove the suction gril to access the lamp area.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

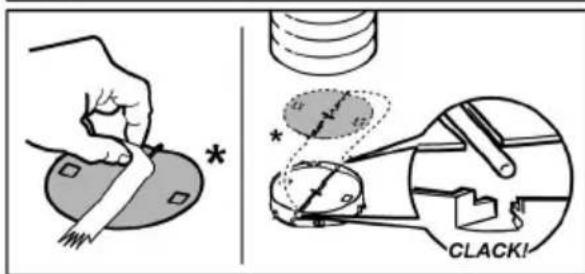

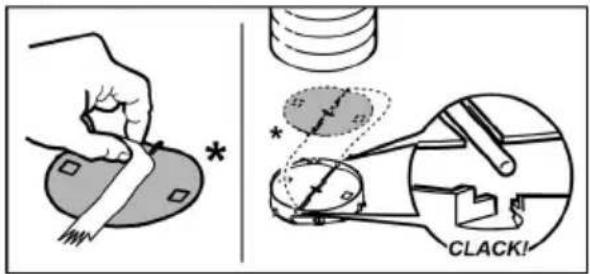

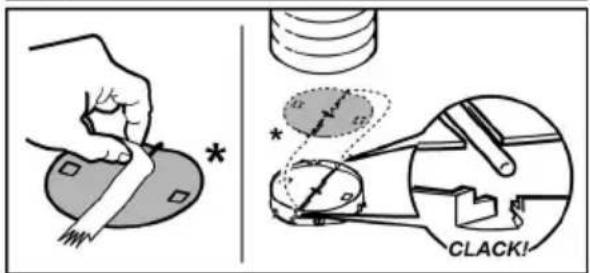

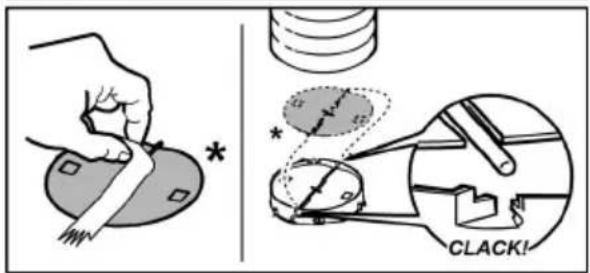

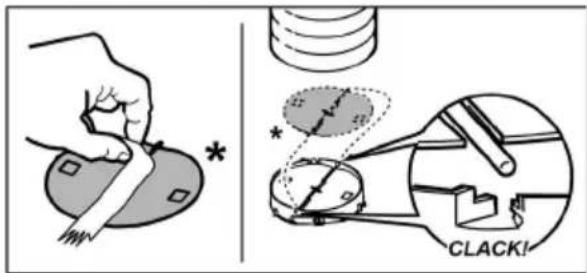

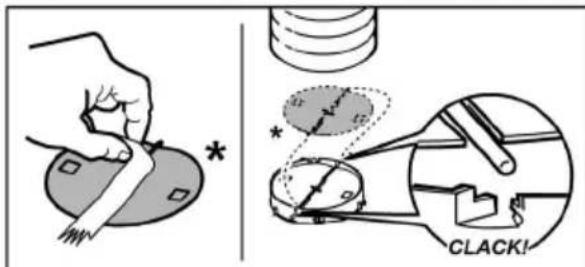

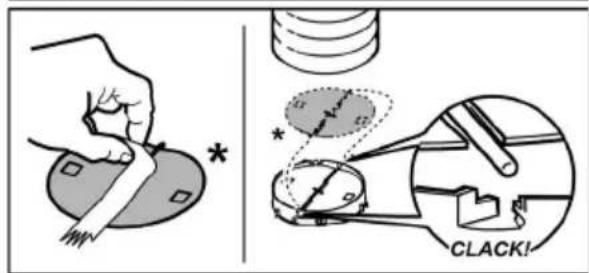

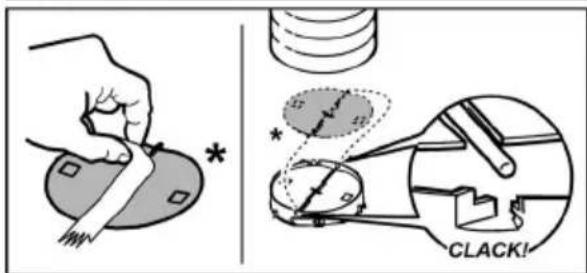

On some models ONLY:

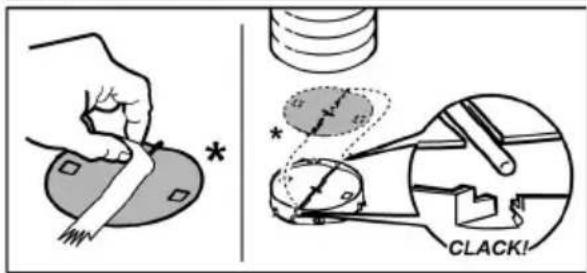

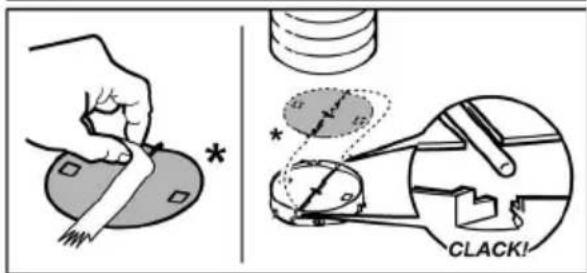

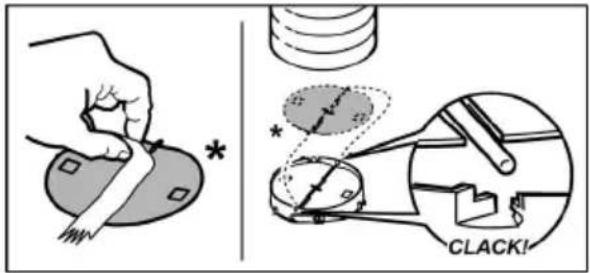

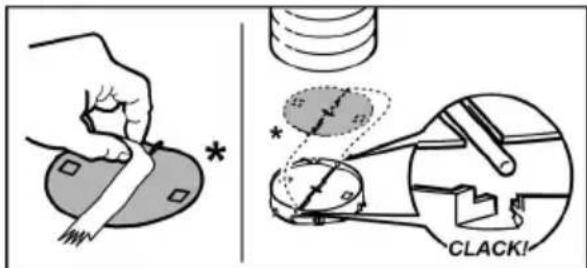

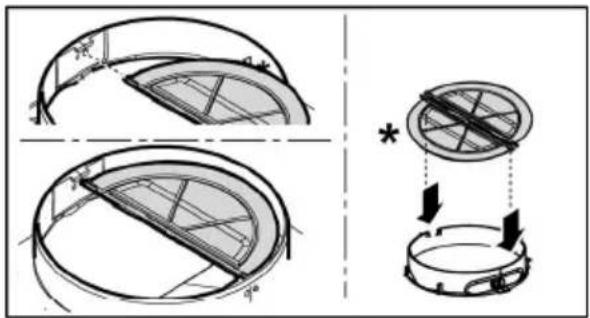

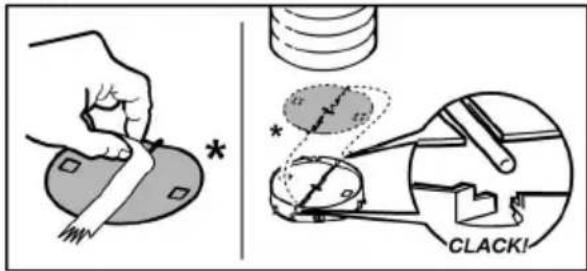

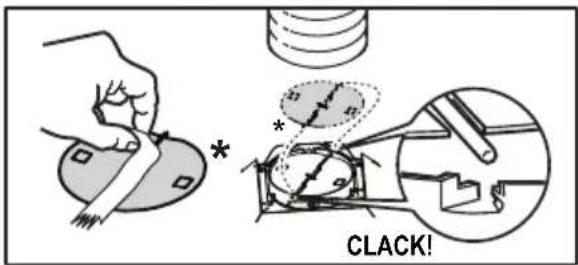

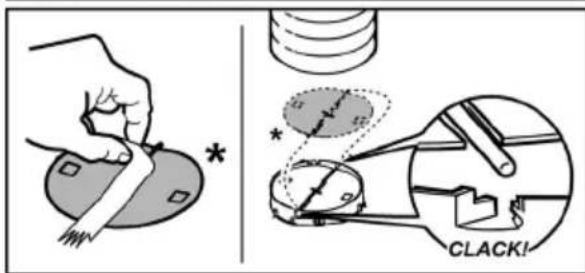

A Non Return Backdraft Damper is included in the supply, as optional accessory to be installed under certain installation conditions (i.e. if there is no protection against accidental backdraft of air from the outside). The damper must be installed inside the dedicated housing, inside of the Air Outlet Fitting, before installing the flue.
