USER MANUAL BM5HP Ubiquiti Networks

Zero-Variable Outdoor airMAX® Radio

Model: BM5HP

MULTILINGUAL

QUICK START GUIDE

Introduction

Thank you for purchasing the Ubiquiti Networks® Bullet™ M5. This Quick Start Guide is designed to guide you through installation and also includes warranty terms.

Package Contents

Two laboratory glassware containers, one with clear liquid and label '100% 25% 30% 40% 50% 60% 70% 80% 90% 100% 110% 120% 130% 140% 150% 160% 170% 180% 190% 200% 210% 220% 230% 240% 250% 260% 270% 280% 290% 300% 310% 320% 330% 340% 350% 360% 370% 380% 390% 400% 410% 420% 430% 440% 450% 460% 470% 480% 490% 500% 510% 520% 530% 540% 550% 560% 570% 580% 590% 600% 610% 620% 630% 640% 650% 660% 670% 680% 690% 700% 710% 720% 730% 740% 750% 760% 770% 780% 790% 800% 810% 820% 830% 840% 850% 860% 870% 880% 890% 900% 910% 920% 930% 940% 950% 960% 970% 980% 990% 1000%.

BulletM5 Quick Start Guide

Installation Requirements

- Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable

TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is designed for outdoor installations. It is the professional installer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

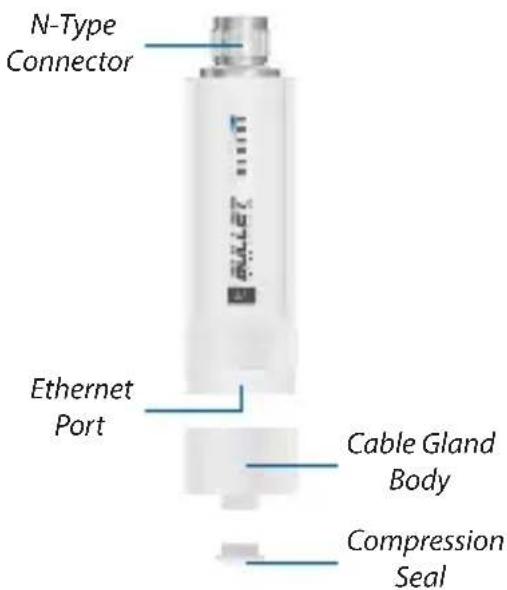

Hardware Overview

N-Type Connector Ethernet Port Cable Gland Body Compression Seal

English

Hardware Installation

1. Unscrew the Cable Gland Body and detach it from the Bullet.

White cylindrical device with metallic connectors and a blue 'M' label, no readable text or symbols beyond the branding.

1. Remove the Compression Seal from the Cable Gland Body.

Simple diagram of a lamp with a downward arrow pointing to a base (no text or symbols)

1. Slip the Compression Seal around the cable.

Pure diagram of a cylindrical object with a vertical line above it, no text or symbols present

1. Feed the Ethernet cable through the Cable Gland Body and seat the Compression Seal into the Cable Gland Body.

Pure mechanical assembly diagram showing a shaft and housing with no text or symbols

1. Connect the Ethernet cable to the port located on the bottom of the Bullet.

Close-up of a white electronic device with a circular connector and cable, no visible text or symbols

1. Securely screw the Cable Gland Body into the Bullet. Ensure the Compression Seal is securely compressed and tightly sealed around the cable.

Close-up of a white handheld device with a metallic lever and control knob (no visible text or symbols)

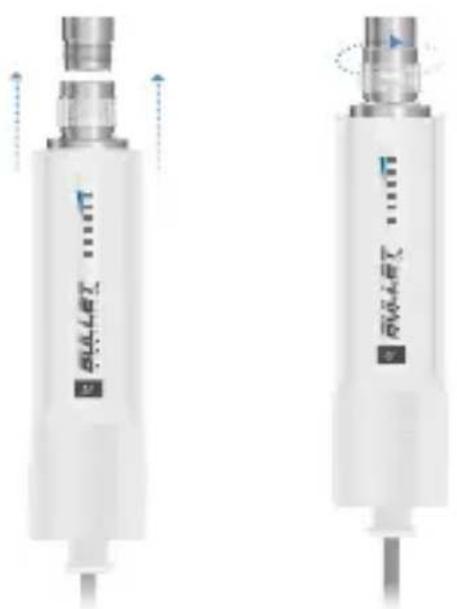

1. Connect the Bullet to the N-Type connector of the antenna.

Two white laboratory pipettes with digital display and directional arrows, no visible text or symbols on the devices themselves.

Accessing airOS

1. Ensure the host system is connected via Ethernet to the Bullet.
2. Configure the host system with an IP address on the 192.168.1.x subnet.
3. Launch a web browser and type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac).

https://192.168.1.20

1. When the login screen appears, type ubnt for the username and password and select your country and language.

2. You must agree to the Terms of Use to use the product. Click Login.

Summary job The company is not necessarily a company's name. It is not necessarily a company's name or its title. The company is not necessarily a company's name or its title. The company is not necessarily a company's name or its title. The company is not necessarily a company's name or its title. The company is not necessarily a company's name or its title. The company is not necessarily a company's name or its title. The company is not necessarily a company's name or its title. The company is not necessarily a company's name or its title. The company is not necessarily a company's name or his title. The company is not necessarily a company's name or his title. The company is not necessarily a company's name or his title. The company is not necessarily a company's name or his title. The company is not necessarily a company's name or his title. The company is not necessarily a company's name or his title. The company is not necessarily a company's name or his title. The company is not necessarily a company's name or his title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily aCompany's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company is not necessarily a Company's name or its title. The company's name or its title is not necessarily a Company's name or its title. The company's name or its title is not necessarily a Company's name or its title. The company's name or its title is not necessarily a Company's name or its title. The company's name or its title is not necessarily a Company's name or its title. The company's name or its title is not necessarily a Company's name or its title. The company's name or its title is not necessarily a Company's name or itstitle<|ref_end|><|rotate_up|> If you have been done in the following activities: (1) If you are doing it, you should be done in the following activities: (2) If you are doing it, you should be done in the following activities: (3) If you are doing it, you should be done in the following activities: (4) If you are doing it, you should be done in the following activities: (5) If you are doing it, you should be done in the following activities: (6) If you are doing it, you should be done in the following activities: (7) If you are doing it, you should be done in the following activities: (8) If you are doing it, you should be done in the following activities: (9) If you are doing it, you should be done in the following activities: (10) If you are doing it, you should be done in the following activities: (11) If you are doing it, you should be done in the following activities: (12) If you are doing it, you should be done in the following activities: (13) If you are doing it, you should be done in the following activities: (14) If you are doing it, you should be done in the following activities: (15) If you are doing it, you should be done in the following activities: (16) If you are doing it, you should be done in the following activities: (17) If you are doing it, you should be done in the following activities: (18) If you are doing it, you should be done in the following activities: (19) If you are doing it, you should be done in the following activities: (20) If you are doing it, you should be done in the following activities: (21) If you are doing it, you should be done in the following activities: (22) If you are doing it, you should be done in the following activities: (23) If you are doing it, you should be done in the following activities: (24) If you are doing it, you should be done in the following activities: (25) If you are doing it, you should be done in the following activities: (26) If you are doing it, you should be done in the following activities: (27) If you are doing it, you should be done in the following activities: (28) If you are doing it, you should be done in the following activities: (29) If you are doing it, you should be done in the following activities: (30) If you are doing it, you should be done in the following activities: (31) If you are doing it, you should be done in the following activities: (32) If you are doing it, you should be done in the following activities: (33) If you are doing it, you should be done in the following activities: (34) If you are doing it, you should be done in the following activities: (35) If you are doing it, you should be done in the following activities: (36) If you are doing it, you should be done in the following activities: (37) If you are doing it, you should be done in the following activities: (38) If you are doing it, you should be done in the following activities: (39) If you are doing it, you should be done in the following activities: (40) If you are doing it, you should be done in the following activities: (41) If you are doing it, you should be done in the following activities: (42) If you are doing it, you should be done in the following activities: (43) If you are doing it, you should be done in the following activities: (44) If you are doing it, you should be done in the following activities: (45) If you are doing it, you should be done in the following activities: (46) If you are doing it, you should be done in the following activities: (47) If you are doing it, you should be done in the following activities: (48) If you are doing it, you should be done in the following activities: (49) If you are doing it, you should be done in the following activities: (50) If you are doing it, you should be done in the following activities: (51) If you are doing it, you should be done in the following activities: (52) If you are doing it, you should be done in the following activities: (53) If you are doing it, you should be done in the following activities: (54) If you are doing it, you shall be done in the following activities: (55) If you are doing it, you shall be done in the following activities: (56) If you are doing it, you shall be done in the following activities: (57) If you are doing it, you shall be done in the following activities: (58) If you are doing it, you shall be done in the following activities: (59) If you are doing it, you shall be done in the following activities: (60) If you are doing it, you shall be done in the following activities: (61) If you are doing it, you shall be done in the following activities: (62) If you are doing it, you shall be done in the following activities: (63) If you are doing it, you shall be done in the following activities: (64) If you are doing it, you shall be done in the following activities: (65) If you are doing it, you shall be done in the following activities: (66) If you are doing it, you shall be done in the following activities: (67) If you are doing it, you shall be done in the following activities: (68) If you are doing it, you shall be done in the following activities: (69) If you are doing it, you shall be done in the following activities: (70) If you are doing it, you shall be done in the following activities: (71) If you are doing it, you shall be done in the following activities: (72) If you are doing it, you shall be done in the following activities: (73) If you are doing it, you shall be done in the following activities: (74) If you are doing it, you shall be done in the following activities: (75) If you are doing it, you shall be done in the following activities: (76) If you are doing it, you shall be done in the following activities: (77) If you are doing it, you shall be done in the following activities: (78) If you are doing it, you shall be done in the following activities: (79) If you are doing it, you shall be done in the following activities: (80) If you are doing it, your shall be done in the following activities: (10) If your job will start at 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 minutes later than 10 min

Specifications

Frequency Range 5150 – 5875 MHz
Maximum Transmitted Output Power (EIRP)	36 dBm

Hardwareinstallation

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Country List

AT	BE	BG	CY	CZ	DE	DK
EE	EL	ES	FI	FR	HR	HU
IE	IT		LV		LT	LU	MT	NL
PL	PT		RO		SE	SI	SK	UK

BFWA (Broadband Fixed Wireless Access) members noted in blue

Note: This device meets Max. TX power limit per ETSI regulations.

The following apply to products that operate in the 5 GHz frequency range:

Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states.

Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm.

Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band.

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Deutsch

Declaration of Conformity

български [Bulgarian] С настоящото UBIQUITI NETWORKS декларира, че този тип радиосьоръжение BM5HP е в съответствие с Директива 2014/53/EC. Цялостният текст на EC декларацията за съответствие може да се намери на следния интернет адрес: www.ubnt.com/compliance Hrvatski [Croatian] UBIQUITI NETWORKS ovime izjavljuje da je radijska oprema tipa BM5HP u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: www.ubnt.com/compliance Čeština [Czech] Tímto UBIQUITI NETWORKS prohlašuje, že typ rádiového zařízení BM5HP je v souladu se směrnici 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance

Lietuvių kalba [Lithuanian] Aš, UBIQUITI NETWORKS, patvirtinu, kad radijo įrenginių tipas BM5HP atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: www.ubnt.com/compliance Malti [Maltese] B'clan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta' tagħmir tar-radju BM5HP huwa konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista' tiĝi kkonsultata minn www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance

www.ubnt.com/compliance
