Product Type Managed Gigabit PoE+ Switch
Brand Ubiquiti Networks
Model US-8-150W
Dimensions 148 x 99.5 x 30.5 mm (5.8 x 3.9 x 1.2 in)
Weight 0.8 kg (1.76 lb)
Power Supply AC/DC adapter, 100-240V AC input, 150W output
Ports 8 x Gigabit RJ45 (PoE+), 2 x SFP
PoE Budget 150W total (max 30W per port)
Management UniFi Controller (cloud or local)
Cooling Fanless, silent operation
Mounting Desktop or wall-mountable (brackets included)
LED Indicators Power, link, PoE status
VLAN Support 802.1Q VLAN tagging, port-based VLANs
Security RADIUS, MAC filtering, port security
Standards IEEE 802.3af/at (PoE+), 802.3ab, 802.3z
Operating Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Maintenance Clean with dry, soft cloth. Do not use liquids or solvents.
Spare Parts Power adapter, mounting brackets (available separately)
Repairability No user-serviceable parts. Contact support for failures.

Frequently Asked Questions - US-8-150W Ubiquiti Networks

How do I factory reset the US-8-150W?
Press and hold the reset button on the back of the switch for about 10 seconds until all LEDs flash. The switch will reboot to factory defaults.
What is the PoE budget and how is it distributed?
The US-8-150W has a total PoE budget of 150W. Each port can deliver up to 30W (802.3at). The total power drawn by all PoE devices must not exceed 150W.
Does this switch support VLANs?
Yes, it supports 802.1Q VLAN tagging and port-based VLANs. Configuration is done via the UniFi Controller.
Can I manage this switch without a UniFi Controller?
Basic operation is possible without a controller, but advanced features like VLANs, PoE settings, and monitoring require the UniFi Controller software (available for Windows, macOS, Linux, or cloud key).
What is the maximum cable length for PoE?
The maximum cable length for PoE is 100 meters (328 feet) per port, using Cat5e or better cable.
How do I adopt the switch into my UniFi network?
Connect the switch to your network and ensure the UniFi Controller is on the same subnet. The switch should appear in the controller's 'Devices' section. Click 'Adopt' to manage it.
Is the US-8-150W fanless?
Yes, it is fanless and operates silently, making it suitable for office or home environments.
What are the SFP ports used for?
The two SFP ports are for fiber or copper SFP modules (sold separately) to connect to other switches or devices at gigabit speeds.
Does it support LLDP or CDP?
Yes, it supports LLDP (Link Layer Discovery Protocol) for network topology discovery. CDP is not supported by default but can be enabled via configuration.
What is the warranty period?
Ubiquiti offers a limited 1-year warranty. Check with your reseller for specific terms.

User questions about US-8-150W Ubiquiti Networks

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Switch in PDF format for free! Find your manual US-8-150W - Ubiquiti Networks and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. US-8-150W by Ubiquiti Networks.

USER MANUAL US-8-150W Ubiquiti Networks

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi® Switch. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms.

Package Contents

Front view of a network switch device with multiple Ethernet ports and an external drive (no visible text or labels)

UniFi Switch

Coiled black cable with two connectors (no text or symbols visible)

Power Cord Mount Brackets

Ubiquiti Networks US-8-150W - Package Contents - 3
(Qty. 2)

Ubiquiti Networks US-8-150W - Package Contents - 4
Bracket Screws (M4, Qty. 8)

Ubiquiti Networks US-8-150W - Package Contents - 5
Mounting Screws (M4, Qty. 4)

Ubiquiti Networks US-8-150W - Package Contents - 6
Screw Anchors (M4, Qty. 4)

Ubiquiti Networks US-8-150W - Package Contents - 7
Quick Start Guide

System Requirements

• Linux, Mac OS X, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.6 (1.8 or newer recommended)
- Web Browser: Mozilla Firefox, Google Chrome, Microsoft Edge, or Microsoft Internet Explorer 11
- UniFi Controller software v5 or above (recommended) or v4.8.x (offers possibly reduced feature set) available at: downloads.ubnt.com/unifi

TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.

Network Topology Requirements

  • A DHCP-enabled network for the UniFi Switch to obtain an IP address (connected devices will also obtain IP addresses after deployment)
  • A UniFi Cloud Key or management station running the UniFi Controller software v5 or above (recommended) or v4.8.x (possibly offering reduced feature set), located either on-site and connected to the same Layer 2 network, or off-site in a cloud or NOC

Sample Network Diagram

All UniFi devices support off-site management controllers.

For setup details, refer to the User Guide on the website:

documentation.ubnt.com/unifi

Hardware Overview

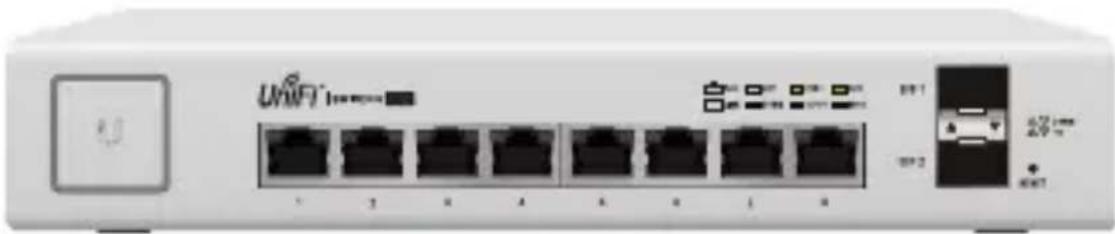

Front Panel

RJ45 1-8 SFP 1-2 UniFr Reset Button

Port Description
RJ45 1-8RJ45 ports support 10/100/1000 Ethernet connections and Power over Ethernet (PoE).
SFP 1-2Hot-swappable SFP ports support 1 Gbps connections.
Reset ButtonThis button serves two functions for the UniFi Switch: · Restart Press and release the Reset button quickly. · Restore to Factory Default Settings Press and hold the Reset button for more than five seconds.

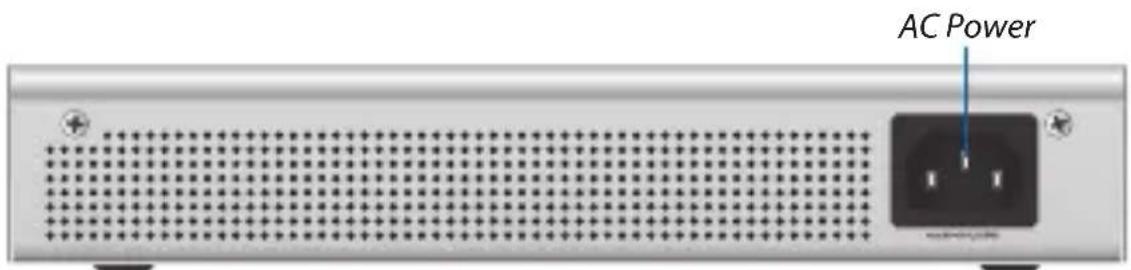

Back Panel

AC Power

Port Description
AC PowerConnect the included Power Cord to the AC Power port.

LEDs
System PoE RJ45 Link/Speed/Activity UniFi SFP Link/Speed/Activity

System LED

State Status
Flashing White Initializing.
Steady White Factory defaults, waiting for integration.
Alternating White/BlueDevice is busy; do not touch or unplug it. This usually indicates that a process such as a firmware upgrade is taking place.
Steady BlueSuccessfully integrated into a network and working properly.
Flashing BlueThis is used to locate a device.When you click Locate in the UniFi Controller software, the System LED will flash blue. The software will also display the location of the UniFi Switch on the map.

RJ45 LEDs

LEDState Status
PoEOff No PoE
Amber IEEE 802.3af/802.3at
Green 24V Passive
Link/Speed/ActivityOff No Link
AmberLink Established at 10/100Mbps Flashing Indicates Activity
GreenLink Established at 1000Mbps (1 Gbps) Flashing Indicates Activity

SFP LEDs

LEDState Status
Link/Speed/ActivityOff No Link
GreenLink Established at 1GbpsFlashing Indicates Activity

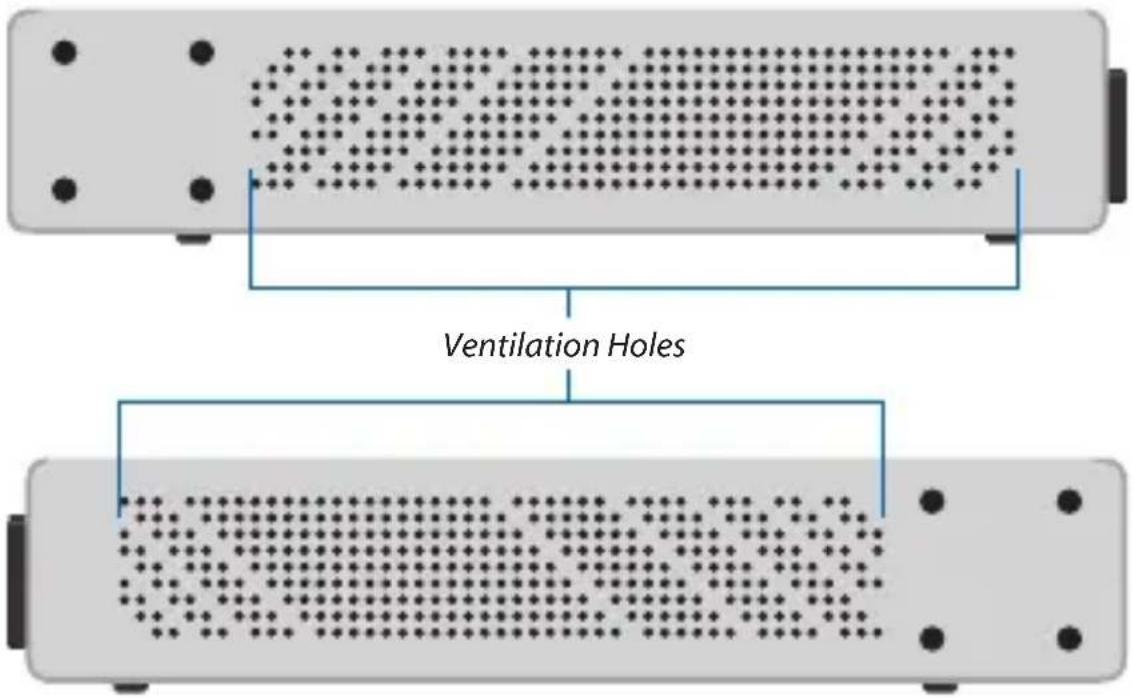

Side Panels
Ventilation Holes

Ubiquiti Networks US-8-150W - Back Panel - 4

WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW.

Ubiquiti Networks US-8-150W - Back Panel - 5

WARNING: The US-8-150W must not be stacked. Do not place it on top of another switch. Do not place anything on top of the US-8-150W.

Hardware Installation

Ubiquiti Networks US-8-150W - Hardware Installation - 1

WARNING: To reduce the risk of fire or electric shock, do not expose the switch to rain or moisture.

Shelf Mounting

  1. Position the two Mount Brackets as shown below, and attach the brackets using the eight Bracket Screws.

Illustration of a network switch device with ports and connectors, showing internal connections without any text or symbols.

  1. Secure the UniFi Switch to the shelf using the four Mounting Screws.

Exterior view of a network switch device with ports and connectors (no visible text or symbols)

Wall Mounting

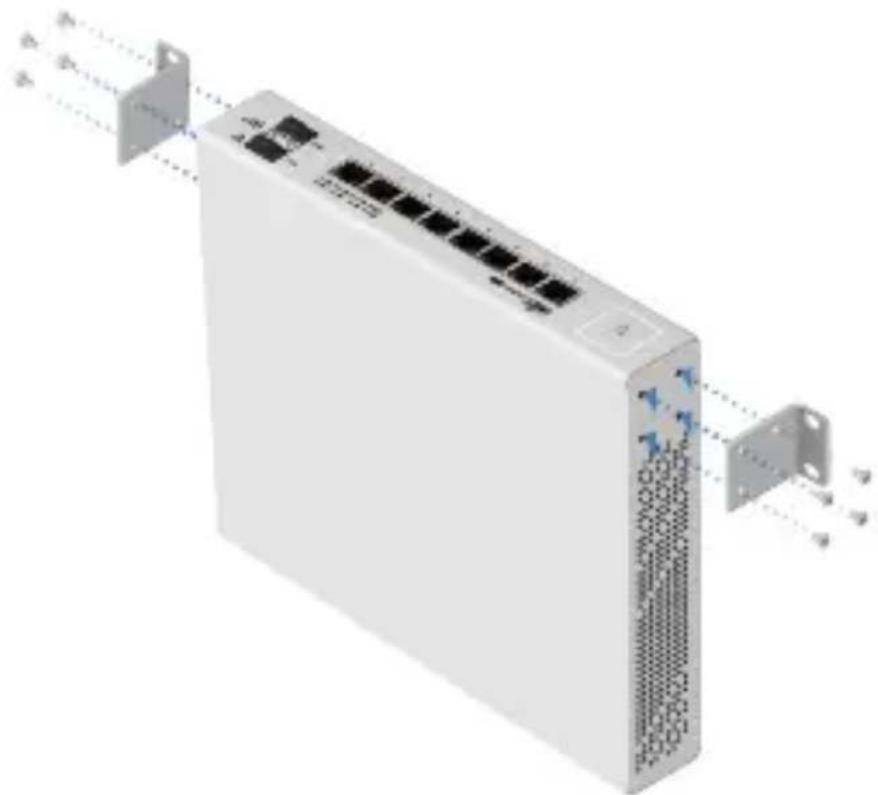

  1. Position the two Mount Brackets as shown below, and attach the brackets using the eight Bracket Screws.

3D rendering of a white network switch device with multiple ports and connectors, showing internal wiring and mounting brackets (no text or symbols visible)

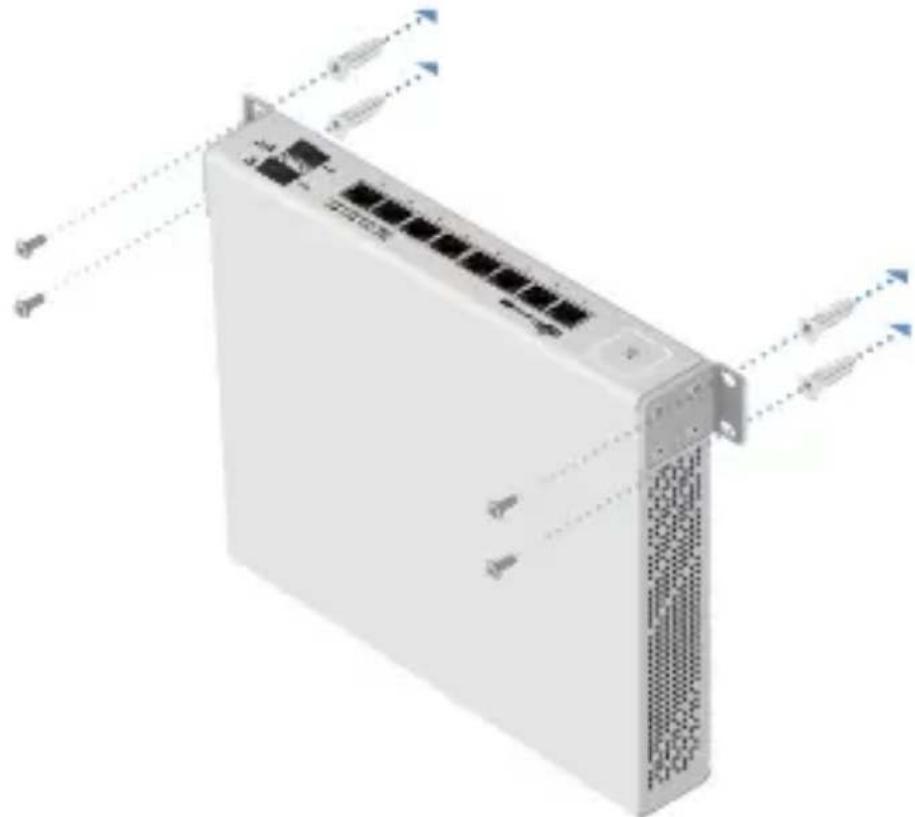

  1. Attach the UniFi Switch to the wall using the four Screw Anchors and four Mounting Screws.

3D rendering of a white server rack with multiple ports and ventilation slots, shown with directional arrows indicating data flow (no text or symbols present)

Connecting Power

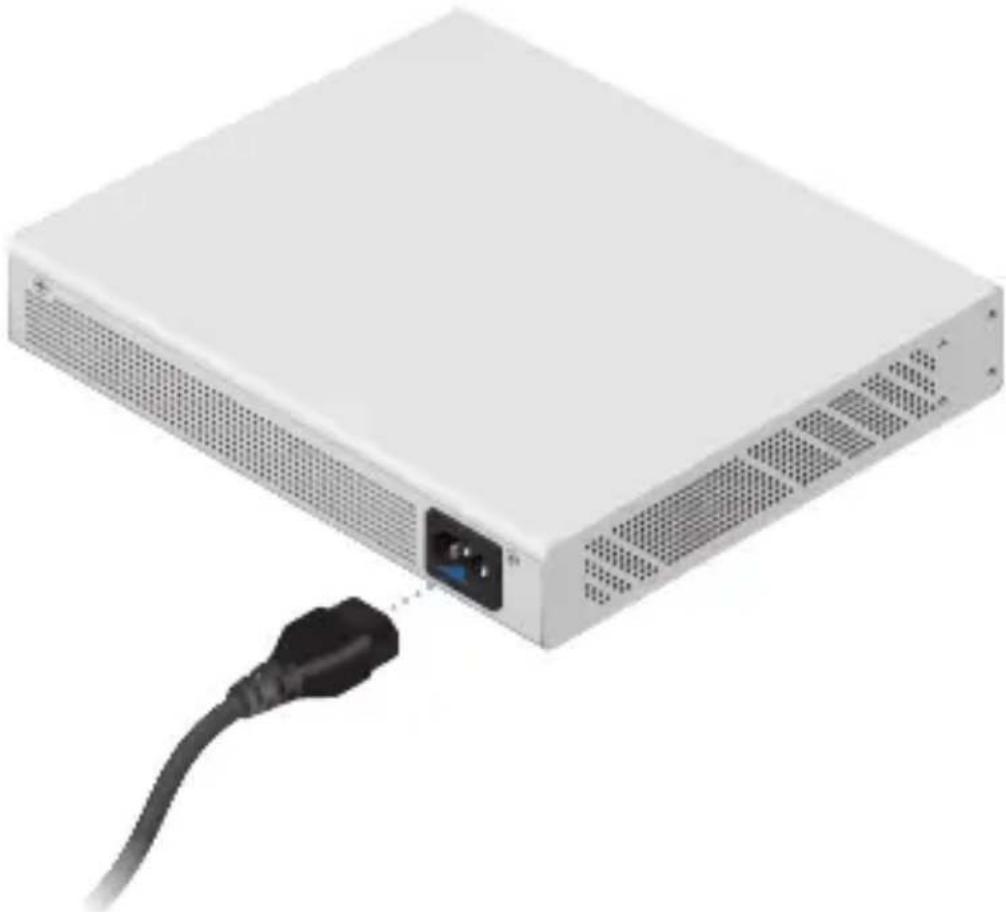

  1. Connect the Power Cord to the power port on the back of the UniFi Switch.

Exterior view of a white network switch device with a black cable inserted (no text or symbols visible)

  1. Plug the Power Cord into a power outlet.

3D illustration of a black rectangular electronic device with multiple power outlets and a cable, no text or symbols present.

Connecting Ethernet

  1. Connect an Ethernet cable from your DHCP server or LAN to any port on the UniFi Switch.

White network switch device with multiple Ethernet ports and a cable (no visible text or labels)

  1. Connect your computer or host system and other devices to the other ports on the UniFi Switch.

White network switch device with multiple ports and two cables (no visible text or labels)

Using SFP Ports

To use an SFP port:

  1. Remove the dust plug covering the SFP port.
  2. Insert a compatible fiber SFP module into the SFP port.

White network switch device with multiple Ethernet cables and a central port (no visible text or labels)

  1. Connect the fiber optic cable to the fiber SFP module.

White network switch device with multiple Ethernet cables plugged into a port (no visible text or labels)

For information about compatible fiber SFP modules, visit: community.ubnt.com/unifi

Software Installation

Download and install the latest version of the UniFi Controller software at downloads.ubnt.com/unifi and follow the on-screen instructions.

Ubiquiti Networks US-8-150W - Software Installation - 1

Note: If you already have UniFi Controller v4.8.x or above installed, skip to the section, Adopting the UniFi Switch.

After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. Enter the admin name and password that you created and click Log In.

UniFi® +5.00 Username Password FORCOT PASSWORD!

You can manage your network and view network statistics using the UniFi Controller management interface.

To adopt the UniFi Switch, proceed to the Adopting the UniFi Switch section.

For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: documentation.ubnt.com/unifi

Adopting the UniFi Switch

  1. From the UniFi Controller dashboard, click Devices in the left menu bar.

| Metric | Value | | :--- | :--- | | Growth Rate (%) | 28 | | Average Total Traffic (k) | 29.6 | | Network Type | single user | | Network Type (User) | single user | | User Engagement | 1 | | User Engagement (User) | 1 | | User Engagement (User) | 30 | | User Engagement (User) | 50 | | User Engageme…

  1. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt.

| Company | Revenue ($M) | |---|---| | In Producers | 47,869.1 | | Automotive Sales | 46,541.23 | | Aerospace & Defense | 46,865.25 | | Chemicals & Materials | 46,865.26 | | Biotechnology | 46,865.2 | | Biotechnology Products | 46,865.2 | | Wind Power | 46,865.23 | | Wind Power | 46,865.23 | | Wind…

  1. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted.

Configuring PoE Settings

By default, PoE settings for ports 1-8 are set to auto-sensing PoE+. PoE will automatically be activated on the port when an 802.3af/at device is connected. For 24V passive PoE, PoE must be manually activated.

Ubiquiti Networks US-8-150W - Configuring PoE Settings - 1

WARNING: Before manually activating 24V passive PoE, ensure that the connected device supports 24V passive PoE.

  1. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. Click the switch to access its settings.
序号名称产品名称规格单价数量单价数量
1BoschusBoschus500000347.8296/100000015,679,000.00214.752,500
2Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
3Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
4Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
5Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
6Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
7Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
8Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
9Boschus LiraBoschus Lira500000347.8296/100000015,679,000.00214.752,500
10Boschus LiraBoschus Lira500000347.8296/15,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,673,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,674,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,679,674,679,679,679,679,673,679,679,679,679,679,679,679,673, 679, 679, 679, 679, 679, 679, 679, 679, 673, 673, 673, 673, 673, 673, 673, 673, 673, 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 673 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 823 , 824 , 824 , 824 , 824 , 824 , 824 , 824 , 824 , 824 , 824 , 824 , 824 , 824
  1. Click the Ports tab.

O4:18b6a0:16:30 CONNECTED DISABLED 1 GBPS 30 GBPS STP-SLOCKING DISCONNECTED 180/12 MBPS 4 PDE MIRROR Details Ports Configuration OVERVIEW MAC Address 04:18b6a0:16:30 Model Unit Switch B-POE-150W Version Revelco.4422 IP MODEA 192.569.1.9 Temperature VPC Bit Level ON Baseline 8ms 10s > UPLINK > DOWNLI…

  1. Click Actions for the port you want to configure.

OK: $BdSca016c30 CONNECTED DISABLED DECONNECTED 1 GBPS 180/19 MBPS 30 GBPS PCE STP/SLOCKING MIRROR Details Ports Configuration PORT NAME STATUS TX RX POE NETWORKS/VLANE ACTIONS 1 Port 1 1,000 FDR (Upina) 45.4 KB 20.5 KB PoE+ AB 2 Port 2 0 B 0 B PoE+ AB 3 Port 3 0 B 0 B PoE+ AB 4 Port 4 0 B 0 B PoE+…

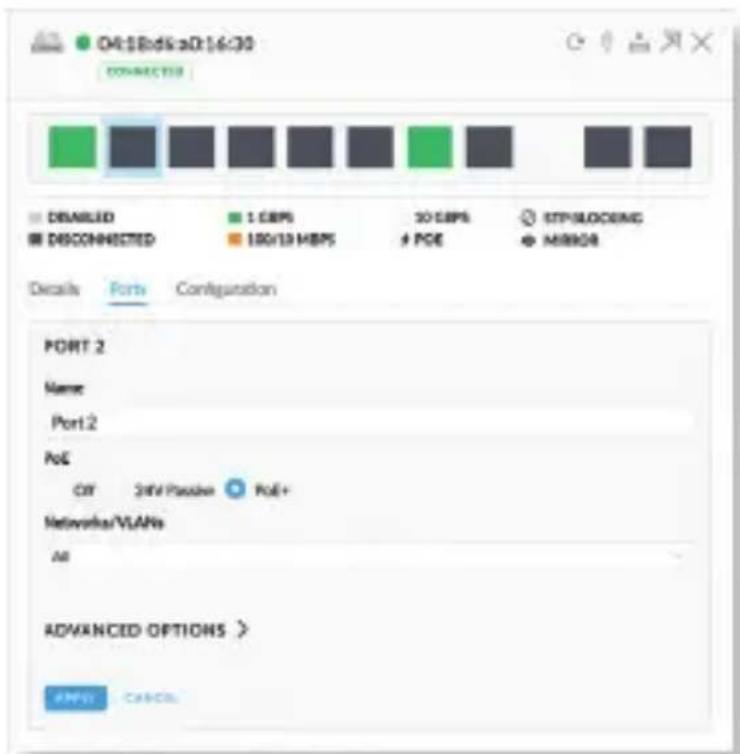

  1. Select the appropriate mode: Off, 24V Passive, or PoE+ from the PoE setting. Then click Apply.

04:58b6k±0:16:30 CONNECTED DISABLED 1.68PS 30.68PS STP/SLOCING DISCONNECTED 180/19 HSPS # POE MIRROR Details Ports Configuration PORT 2 Name Port 2 PoE Off 24W Passive PoE+ Networks/VLANs All ADVANCED OPTIONS > EMP-Cancel

For more information, refer to the User Guide on the website: documentation.ubnt.com/unifi

Specifications

UniFi Switch US-8-150W
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight1.65 kg (3.64 lb)
With Mount Brackets1.73 kg (3.81 lb)
Interfaces
Networking(8) 10/100/1000 Mbps RJ45 Ports(2) 1 Gbps SFP Ports
ManagementEthernet In-Band
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
Max. Power Consumption
Including PoE Output150W
Excluding PoE Output20W
Processor Specs ARM Cortex-A9 400 MHz
Memory Information 256MB DDR3
Code Storage 32 MB NOR Flash
Line Rate 10 Gbps, Non-Blocking
LEDs
SystemStatus
RJ45 Data PortsPoE; Link/Speed/Activity
SFP Data PortsLink/Speed/Activity
PoE Output (RJ45 Ports) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6);Passive 24V/0.7A 2-Pair (+4, 5; -7, 8)
ESD/EMP Protection ± 24kV Air, ± 24kV Contact
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45°C (23 to 113°F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC

Safety Notices

  1. Read, follow, and keep these instructions.
  2. Heed all warnings.
  3. Only use attachments/accessories specified by the manufacturer.

Ubiquiti Networks US-8-150W - Safety Notices - 1

WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20mm of clearance next to the ventilation holes for adequate airflow.

Ubiquiti Networks US-8-150W - Safety Notices - 2

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

Ubiquiti Networks US-8-150W - Safety Notices - 3

WARNING: Do not use this product in location that can be submerged by water.

Ubiquiti Networks US-8-150W - Safety Notices - 4

WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

  1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer's label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
  3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.

a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

UBIQUITI NETWORKS, Inc ("UBIQUITI NETWORKS") warrants that the product(s) furnished hereunder (the "Product(s)") shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS' sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. The expense of removal and reinstallation of any Product is not included in this warranty. The warranty period of any repaired or replaced Product shall not extend beyond its original term.

Warranty Conditions

The above warranty does not apply if the Product:

(I) has been modified and/or altered, or an addition made thereto, except by Ubiquiti Networks, or Ubiquiti Networks' authorized representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical, electromagnetic or electrical stress, including lightning strikes, or accident;
(V) has been damaged or impaired as a result of using third party firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation; all Ethernet cabling runs use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is used, and for indoor installations, indoor cabling requirements are followed.

Returns

No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS' facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA number can be found at: www.ubnt.com/support/warranty.

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER'S EQUIPMENT OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer's selection of products (including the Products) for buyer's application and/or failure of products (including the Products) to meet government or regulatory requirements.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Note

Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canada

CAN ICES-3(A)/NMB-3(A)

This Class A digital apparatus complies with Canadian CAN ICES-3(A).

CAN ICES-3(A)/NMB-3(A)

Australia and New Zealand

Ubiquiti Networks US-8-150W - Australia and New Zealand - 1

Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Ubiquiti Networks US-8-150W - CE Marking - 1

RoHS/WEEE Compliance Statement

Ubiquiti Networks US-8-150W - RoHS/WEEE Compliance Statement - 1

English

European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Deutsch

Declaration of Conformity

Česky [Czech]UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI NETWORKS zařízení, je ve shod se základními požadavky a dalšími příslušnými ustanoveními směrnic 2014/30/EU, 2014/35/EU.
Dansk [Danish]Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enhed, er i overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiver 2014/30/EU, 2014/35/EU.
Nederlands [Dutch]Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI NETWORKS apparaat, in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijnen 2014/30/EU, 2014/35/EU.
EnglishHereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU.
Eesti [Estonian]Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI NETWORKS seade, on vastavus olulistele nõuetele ja teistele asjakohastele sätetele direktiivide 2014/30/EL, 2014/35/EL.
Suomi [Finnish]Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja muiden sitä koskevien direktiivien 2014/30/EU, 2014/35/EU.
Français [French]Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI NETWORKS, est conforme aux exigences essentielles et aux autres dispositions pertinentes des directives 2014/30/UE, 2014/35/UE.
Deutsch [German]Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI NETWORKS Gerät, in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinien 2014/30/EU, 2014/35/EU befindet.
Ελληνική [Greek]Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις των οδηγιών 2014/30/EE, 2014/35/EE.
Magyar [Hungarian]Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit.
Íslenska [Icelandic]Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB.
Italiano [Italian]Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti delle direttive 2014/30/UE, 2014/35/UE.
Latviski [Latvian]Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās 2014/30/ES, 2014/35/ES.
Lietuviškai[Lithuanian]UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS jrenginys atitinka esminius reikalavimus ir kitas 2014/30/ES, 2014/35/ES Direktyvų nuostatas.
Malti[Maltese]Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz UBIQUITI NETWORKS huwa konformi mar-rekwiziti essenzjali u dispożizzjonijiet rilevanti oħrajn ta ‘Direttivi 2014/30/UE, 2014/35/UE.
Norsk[Norwegian]Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enheten, er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene 2014/30/EU, 2014/35/EU.
Polski[Polish]Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektyw 2014/30/UE, 2014/35/UE.
Português[Portuguese]UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, está conforme com os requisitos essenciais e outras disposições das Directivas 2014/30/UE, 2014/35/UE.
Română[Romanian]Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivelor 2014/30/UE, 2014/35/UE.
Slovensky[Slovak]Týmto UBIQUITI NETWORKS, prehlasuje, že toto UBIQUITI NETWORKS zariadenie, je v súlade so základnými požiadavkami a d’alšími relevantnými ustanoveniami smernice 2014/30/EÚ, 2014/35/EÚ.
Español[Spanish]Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de las Directivas 2014/30/UE, 2014/35/UE.
Svenska[Swedish]Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI NETWORKS enhet är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiven 2014/30/EU, 2014/35/EU.

Online Resources

Support help.ubnt.com

Community community.ubnt.com

Downloads downloads.ubnt.com

IN-APP SUPPORT UNiFi 360 LIVE GLOBAL 2417

Ubiquiti Networks US-8-150W - Online Resources - 2

www.ubnt.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Ubiquiti Networks

Model : US-8-150W

Category : Switch
