WSFME31 - Speaker stands SANUS - Free user manual and instructions

Product Type	Wall mount for speaker
Brand	Sanus
Model	WSFME31
Compatibility	Sonos Era 300
Maximum supported weight	4.5 kg (10 lb)
Compatible wall types	Wood studs (2x4 inches minimum), solid concrete or concrete block, wall panel (drywall thickness ≥12.7 mm)
Materials	Steel (estimated)
Tools required for installation	Level, power drill, screwdriver, stud finder, awl (3 mm)
Box contents	Wall plate, speaker brackets, screws, anchors, hardware (details on page 3 of the manual)
Mounting instructions	Included, with detailed steps for each wall type
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not exceed the maximum load. Ensure the wall supports 5 times the total weight. Read the manual carefully before installation.
Warranty	Check Sanus website for details (estimated)
Repairability	Spare parts not specified. Contact Sanus customer service if issues arise.

Frequently Asked Questions - WSFME31 SANUS

Is the WSFME31 mount compatible with all Sonos speakers?

No, this mount is specifically designed for the Sonos Era 300. Do not use it with other models.

What is the maximum weight this mount can support?

The maximum weight is 4.5 kg (10 lb), as stated in the manual.

What types of walls are suitable for installation?

The mount can be installed on wood studs, solid concrete or concrete block, or wall panel (drywall at least 12.7 mm).

What tools are needed to mount this support?

You will need a level, a power drill, a screwdriver, a stud finder, and a 3 mm awl.

Is installation difficult?

Installation is designed to be simple if you follow the steps. Make sure to read the manual carefully and adhere to safety instructions.

How do I remove the speaker from the mount?

Refer to page 14 of the manual for removal instructions. Generally, you need to loosen the mounting screws.

Can I clean the mount with household products?

It is recommended to clean the mount with a soft, dry cloth. Avoid abrasive or chemical products.

What if a part is missing or damaged?

Contact Sanus customer service directly (not the retailer) to obtain replacement parts.

Is this mount under warranty?

Sanus generally offers a limited warranty. Check the website or manual for specifics on this model.

Can I use this mount for purposes other than speakers?

No, the mount is intended only for the use specified by the manufacturer. Do not use it for other equipment.

USER MANUAL WSFME31 SANUS

WSFME31

WSFME32

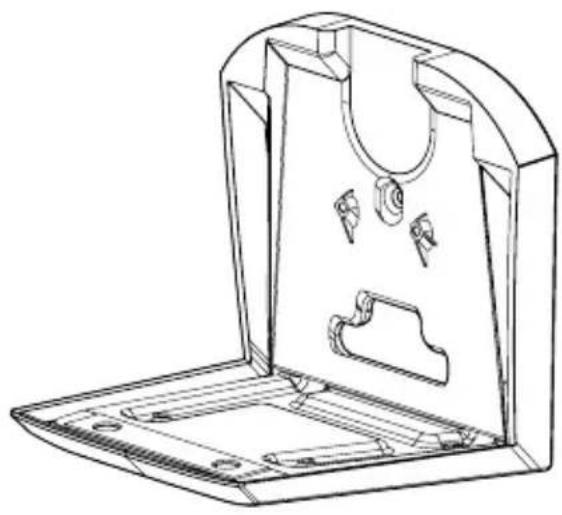

Fixed Speaker Wall Mount

For SONOS ^® Era 300 ^TM

INSTRUCTION MANUAL

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

US: [phone] · EMEA: [phone] · UK: [phone]

We're ready to help!

IMPORTANT SAFETY INSTRUCTIONS

— PLEASE READ ENTIRE MANUAL PRIOR TO USE — SAVE THESE INSTRUCTIONS

Before getting started, let's make sure this product is perfect for you!

This mount is designed to support only Sonos® Era 300™ speakers.

CAUTION: Avoid potential personal injuries and property damage!

• Check your speaker owner's manual to see if there are any special requirements for mounting your speaker.
• Please read through these instructions completely to be sure you're comfortable with this easy install process.
• Do not use this product for any purpose not explicitly specified by manufacturer.
  ● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• The wall must be capable of supporting five times the weight of the speaker and mount combined.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at [phone] (EMEA: [phone]; UK: [phone]).

Speaker Weight Limit DO NOT EXCEED

Tools Needed

Pencil

Wood Stud Install

Concrete Install

Drywall Install

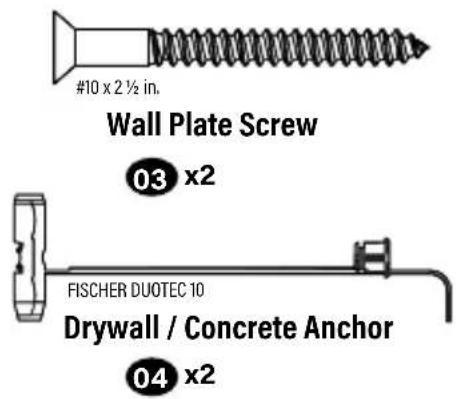

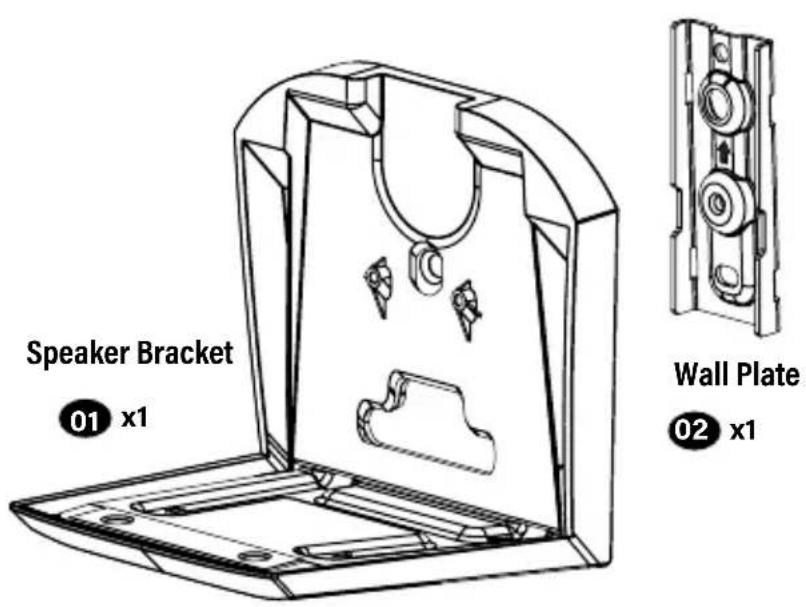

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

Quantities shown are for one speaker mount.

Speaker Bracket Screw

Speaker Screw

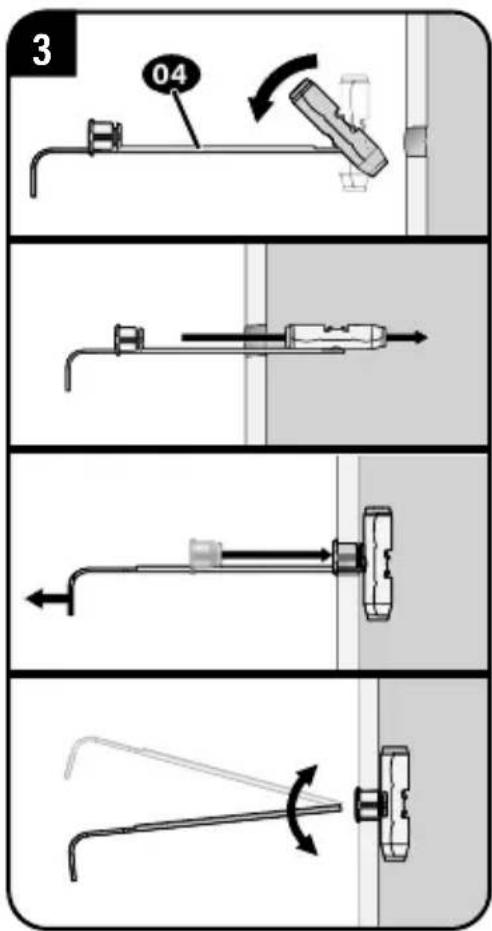

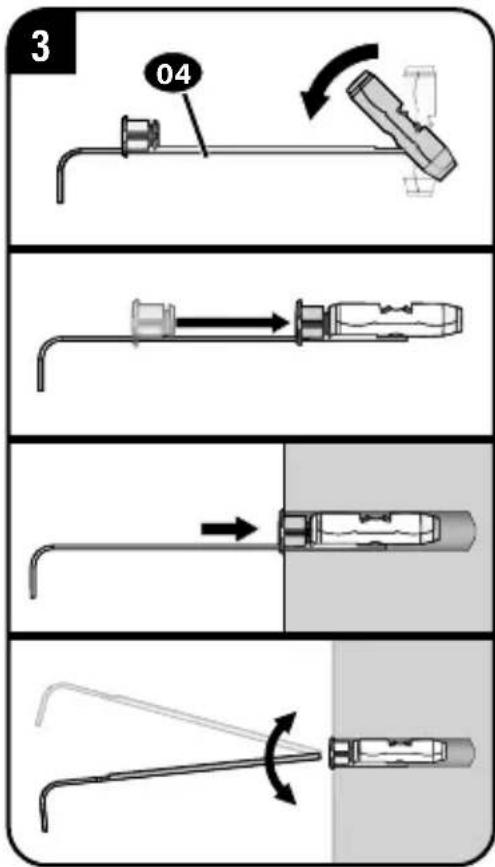

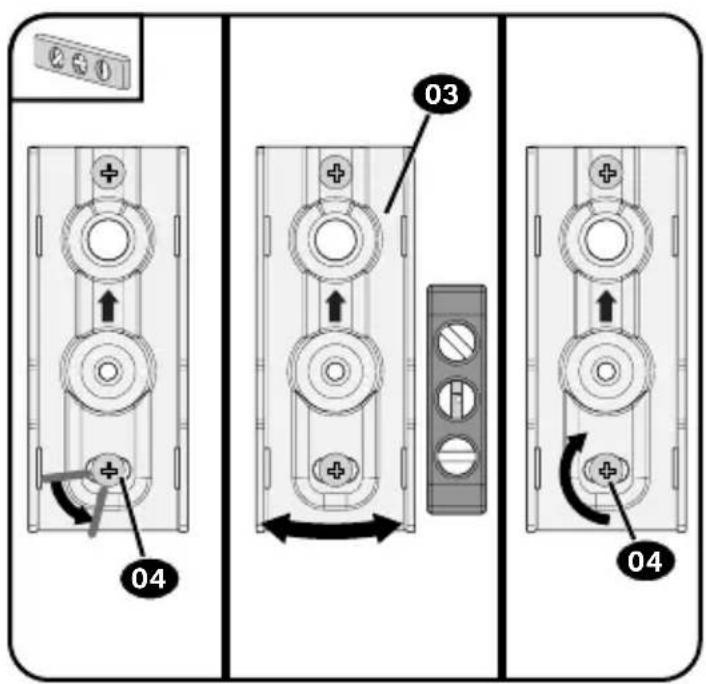

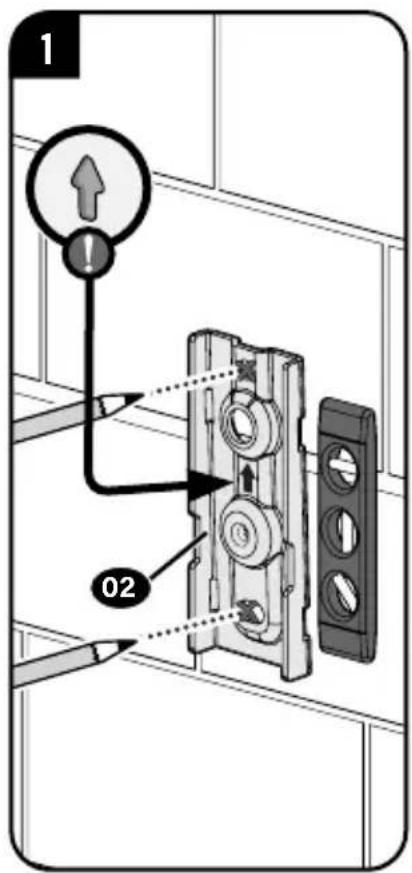

STEP 1-A

Drywall Only InstallationAttack

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall must not be less than 1/2 in. (12.7 mm)

CAUTION: Avoid potential personal injury or property damage!

DO NOT use power tools for this step.

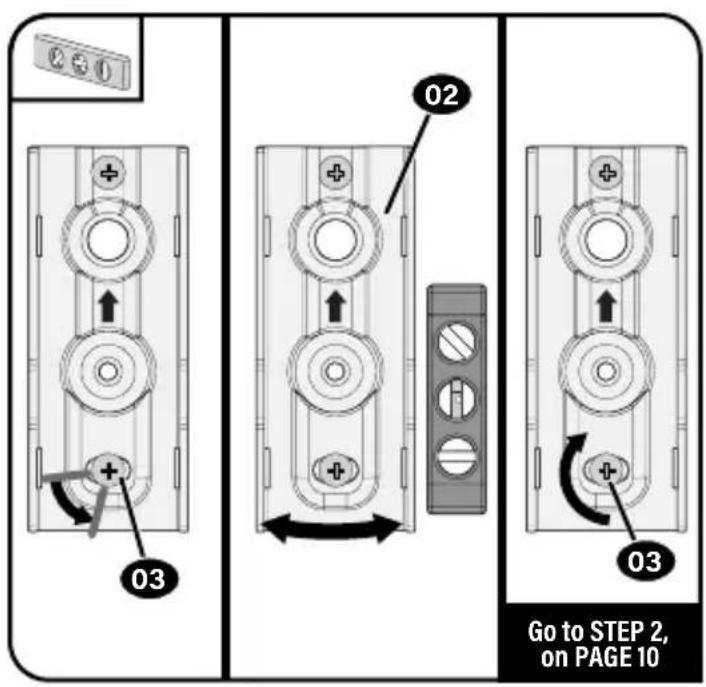

Both screws 03 MUST BE firmly tightened to prevent unwanted movement of the wall plate 04. Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.

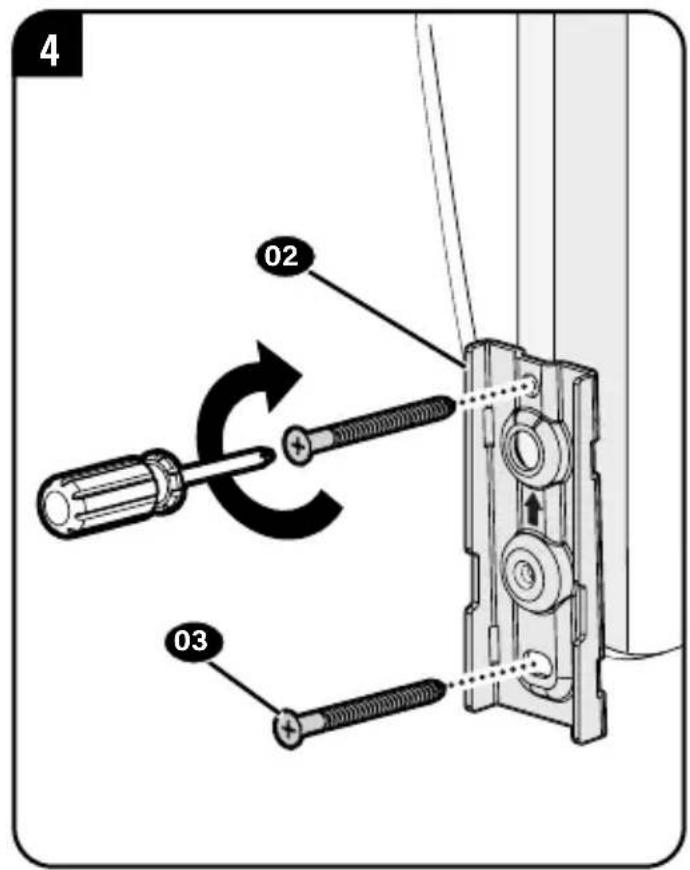

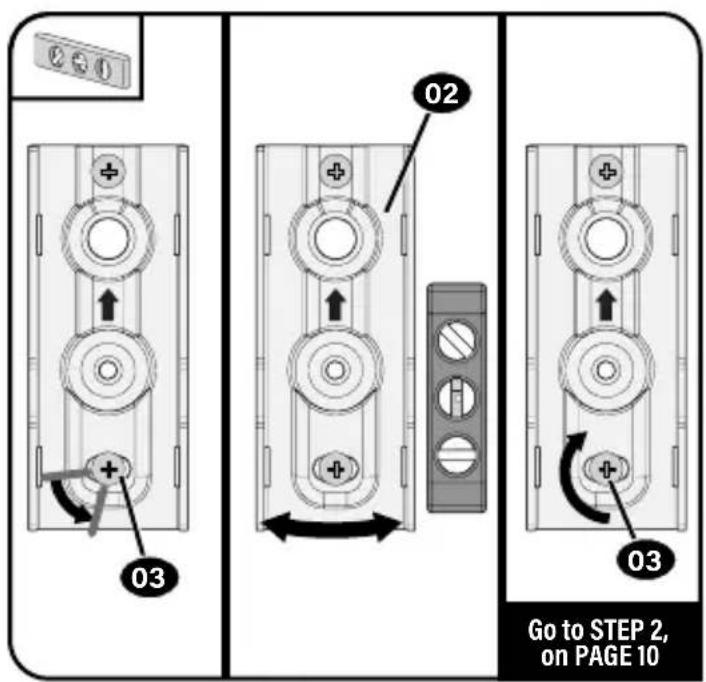

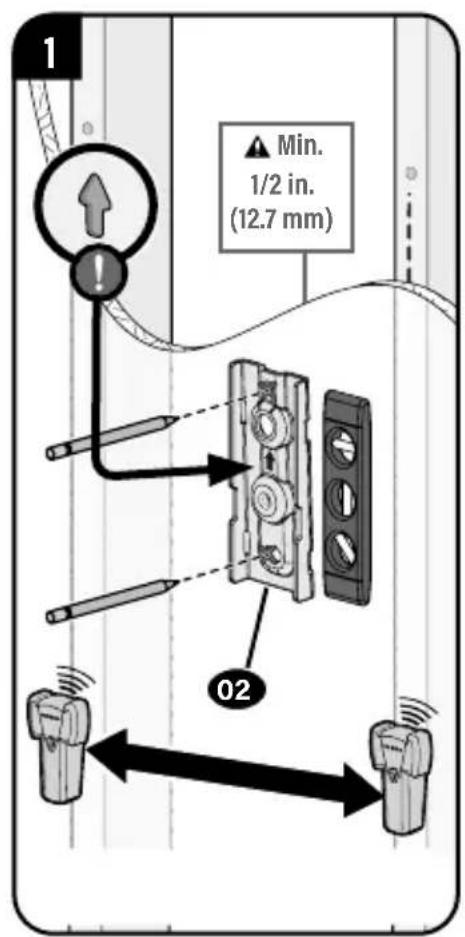

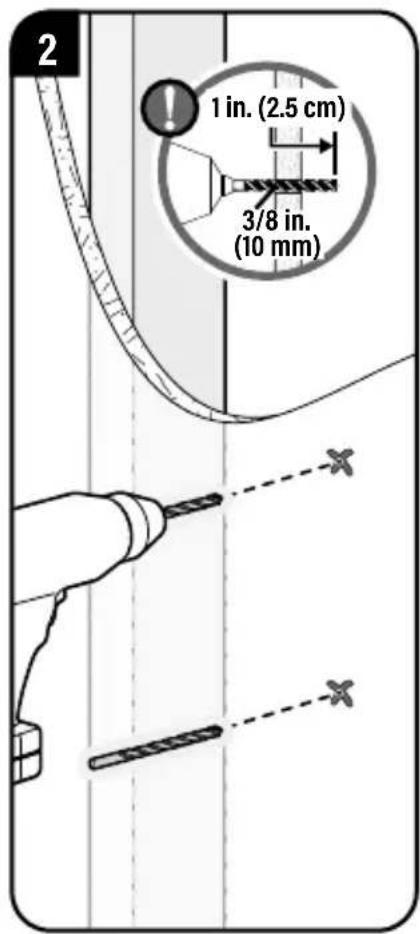

STEP 1-B

Attach Wall Plate to Wall

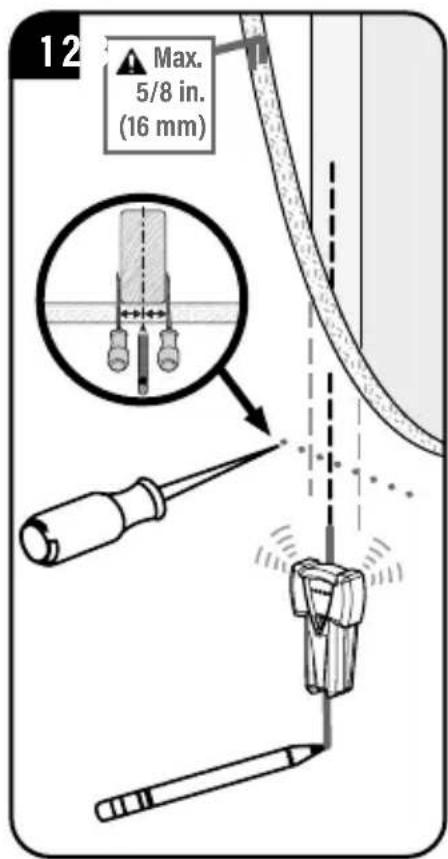

Wood Stud Installation

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall must not exceed 5/8 in. (16 mm)
- Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
- Stud center must be verified

CAUTION: Avoid potential personal injury or property damage!

DO NOT use power tools for this step.

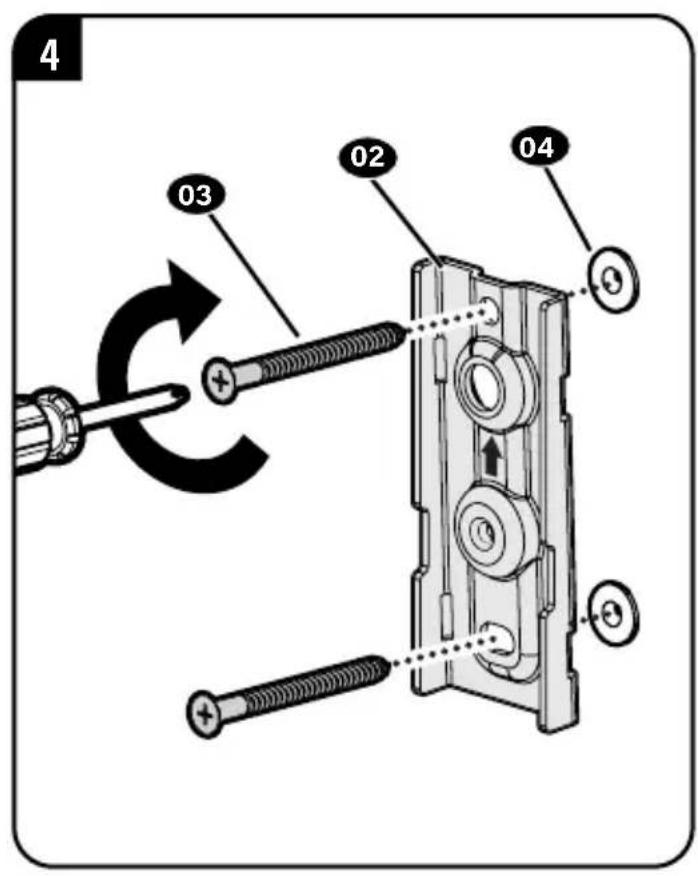

Both screws 03 MUST BE firmly tightened to prevent unwanted movement of the wall plate 02. Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.

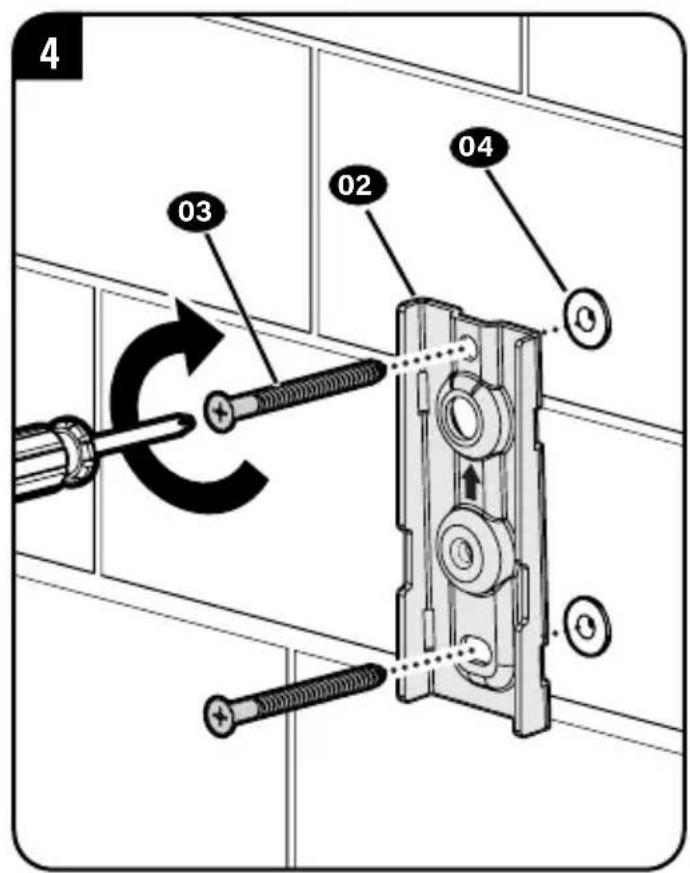

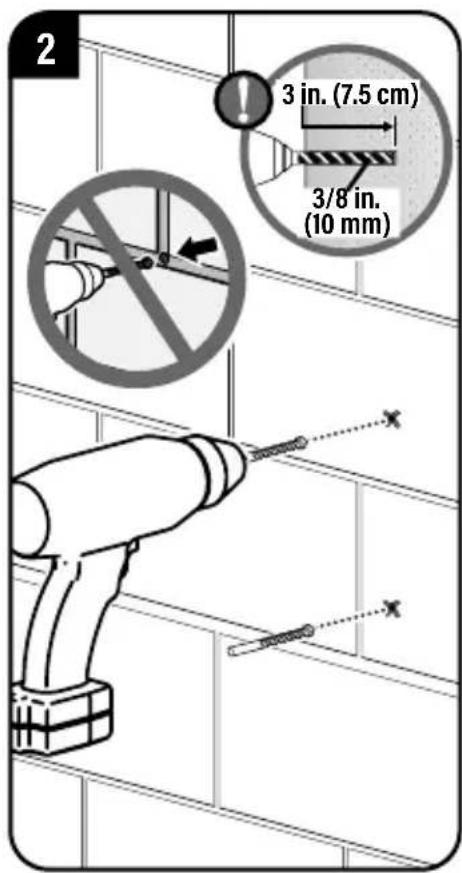

STEP 1-C

Attach Wall Plate to Wall

Solid Concrete or Concrete Block Installation

CAUTION: Avoid potential personal injury or property damage!

• Mount the wall pl02 directly onto the concrete surface (no wall covering)
  ● Minimum solid concrete thickness: 8 in. (203 mm)
  ● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)

CAUTION: Avoid potential personal injury or property damage!

DO NOT use power tools for this step.

Both screws 03 MUST BE firmly tightened to prevent unwanted movement of the wall plate 02. Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.

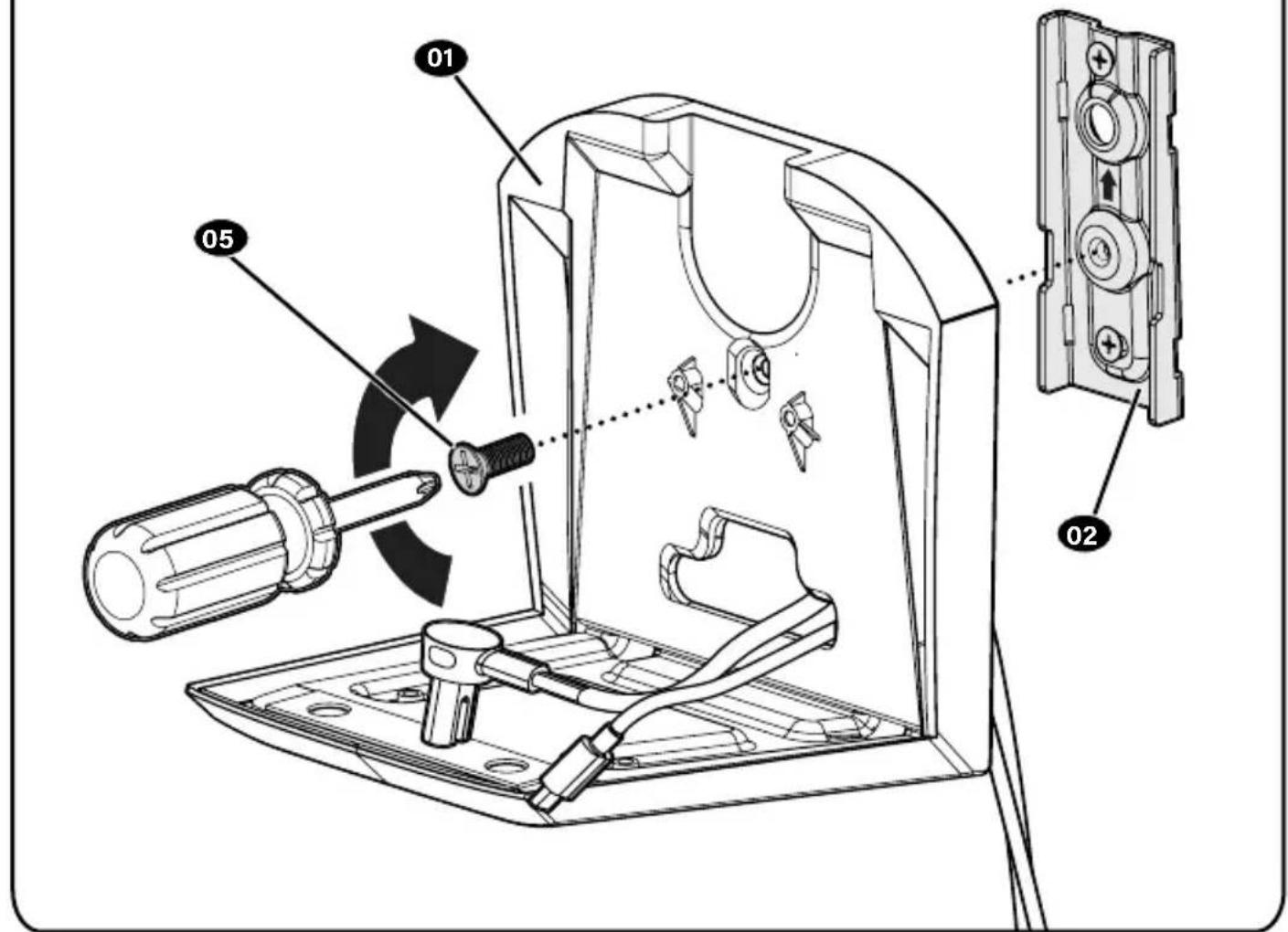

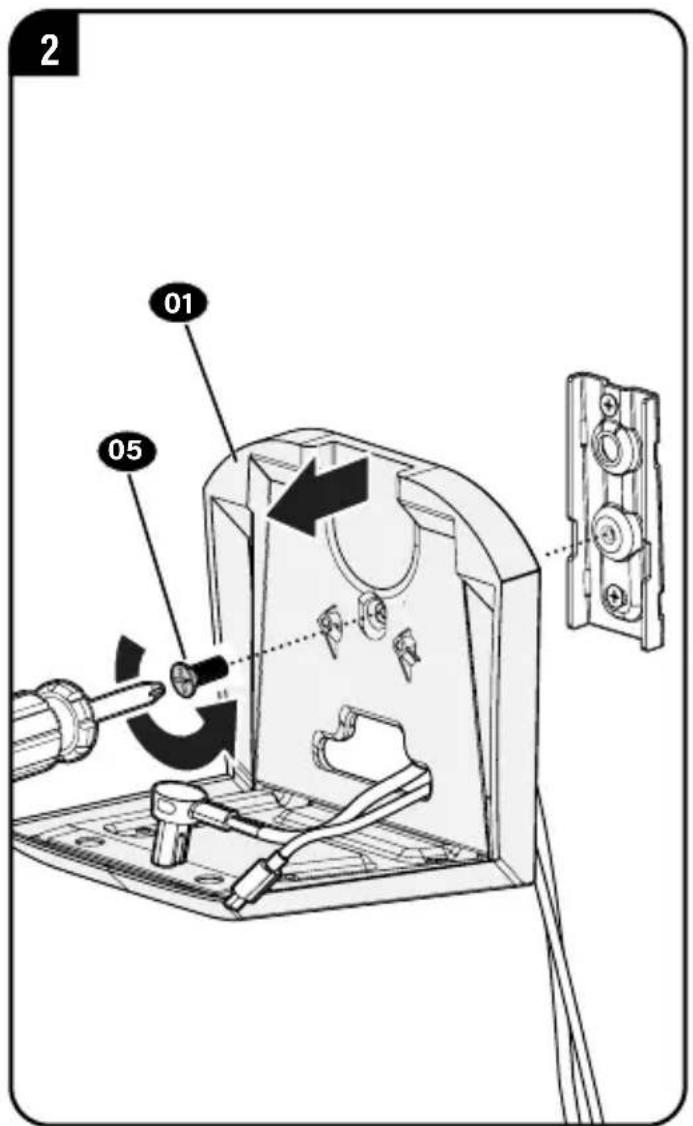

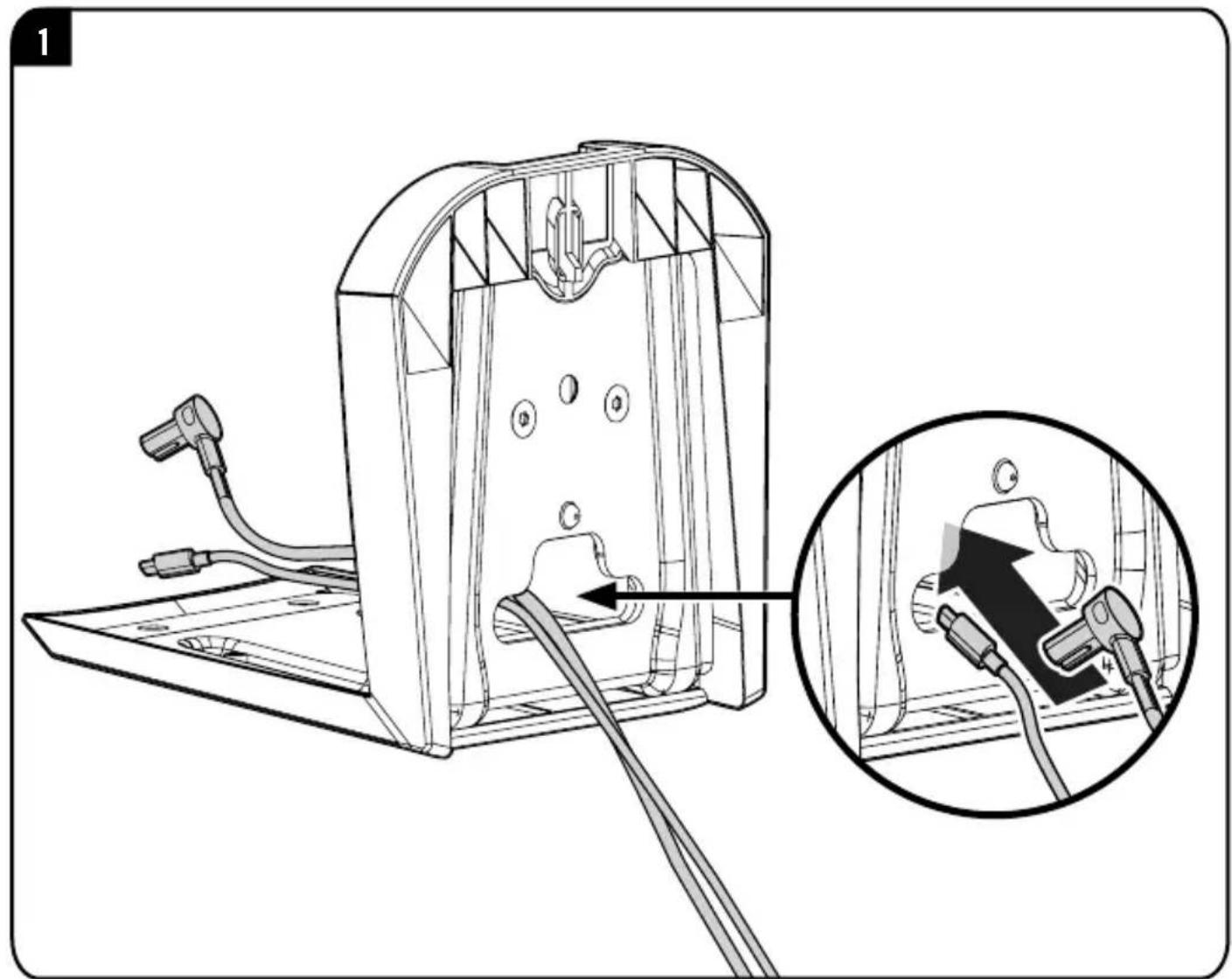

STEP 2

Attach Bracket to Wall Plate

Technical diagram of a mechanical device with internal components and a magnified inset showing a plug inserted into a housing (no text or symbols present)

2

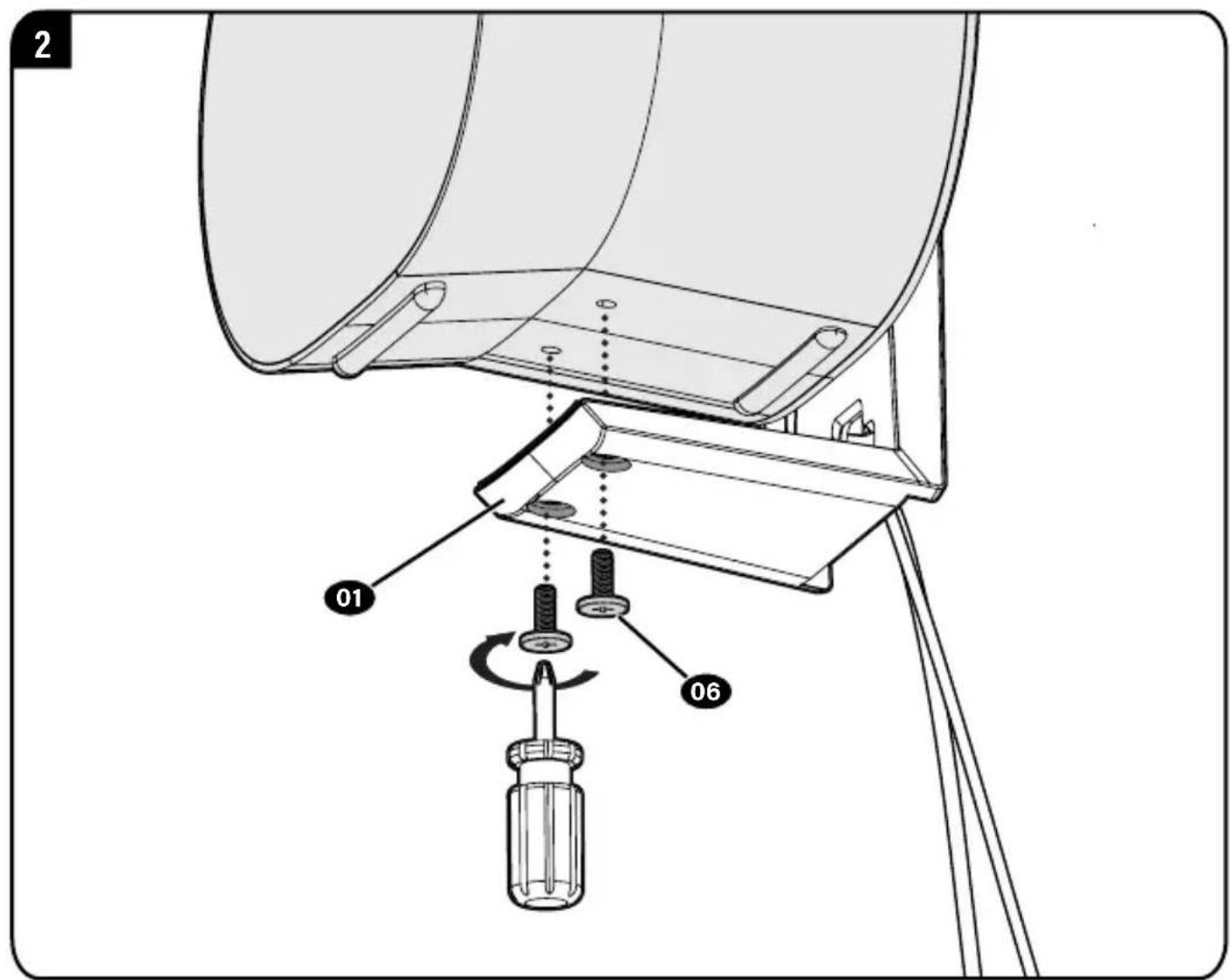

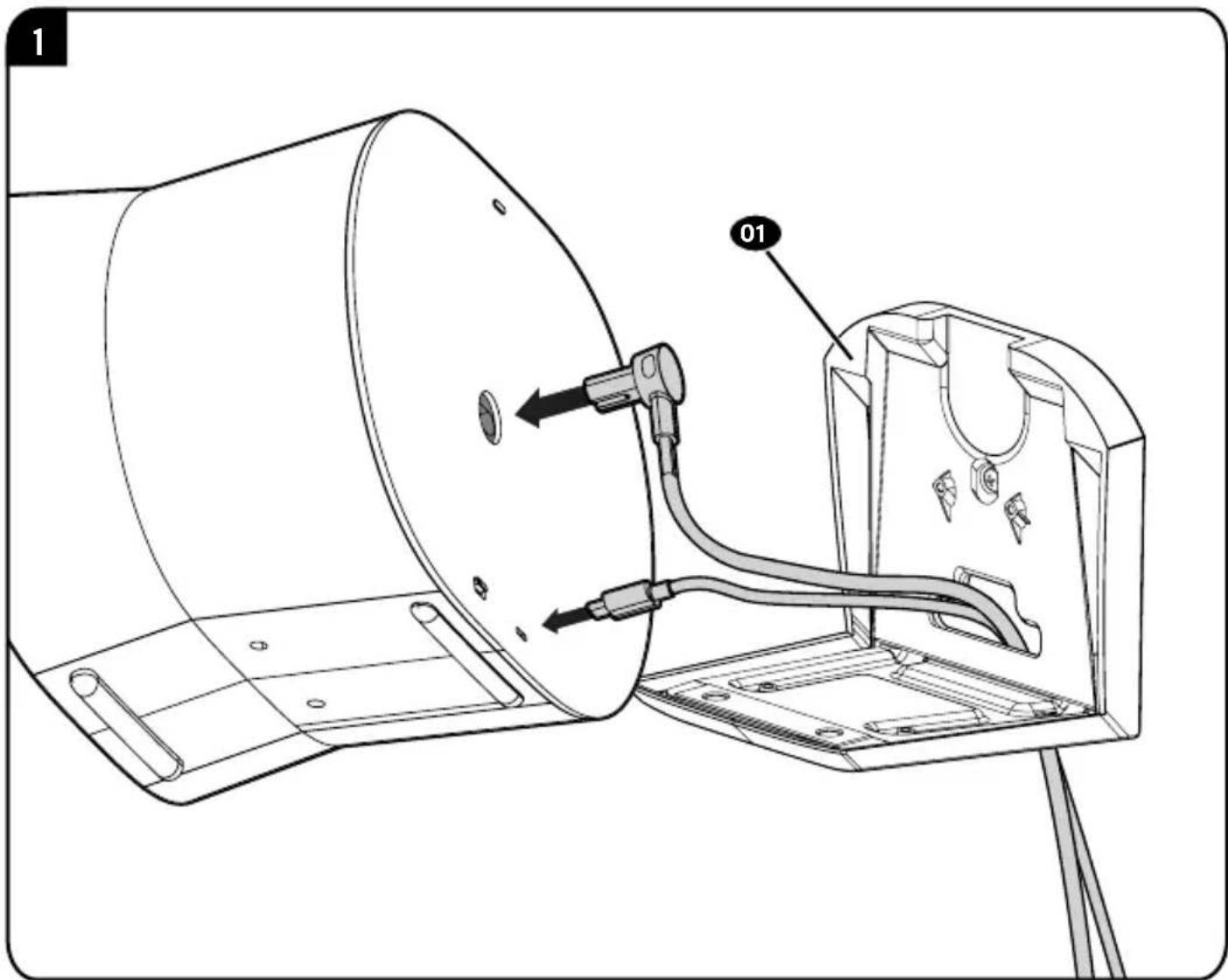

STEP 3

Attach Your Speaker

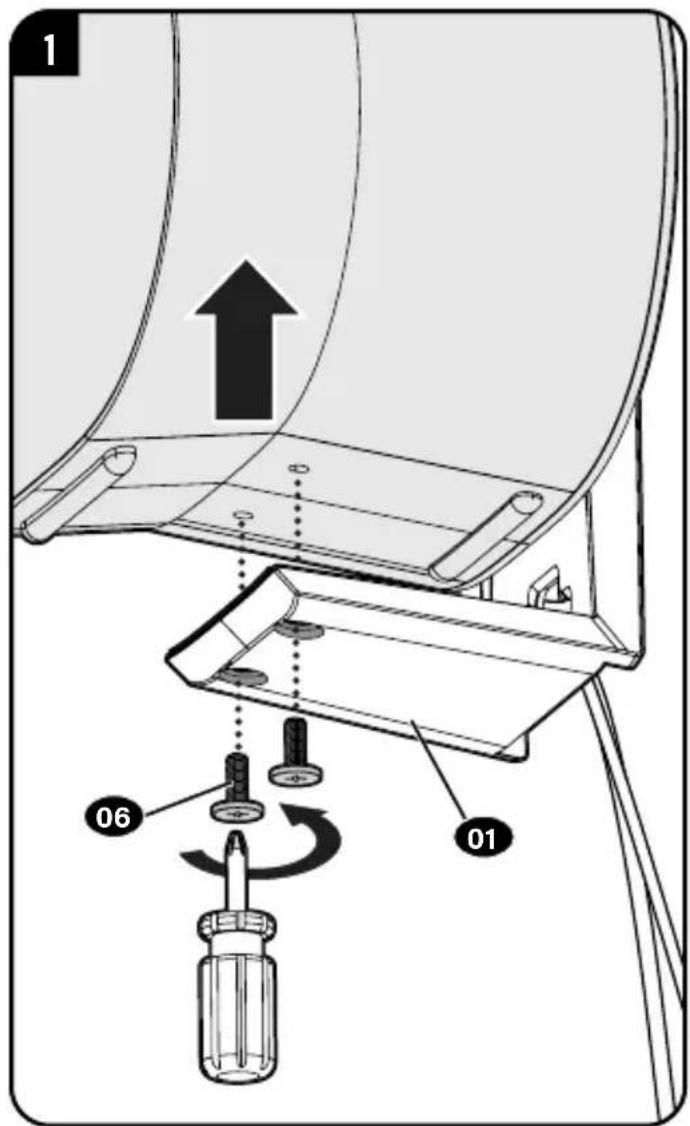

To Remove

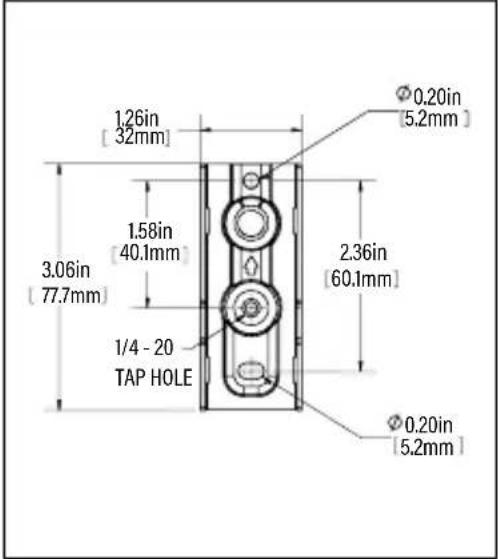

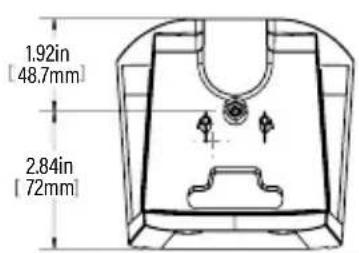

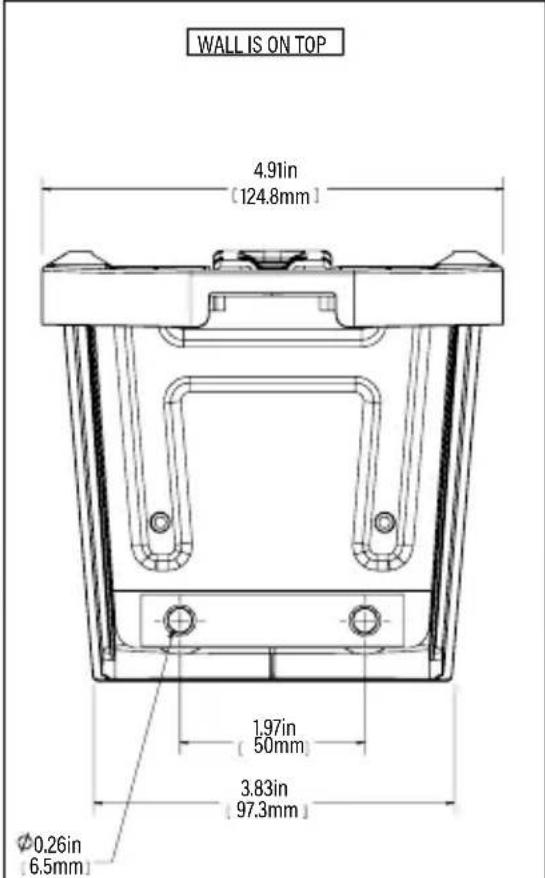

Dimensions

WALL PLATE

TOP VIEW

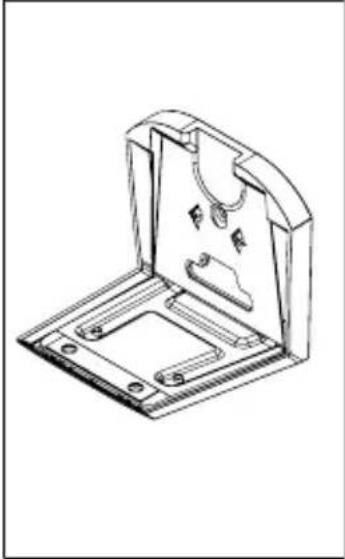

3-D

Technical line drawing of a mechanical bracket or mounting plate (no text or symbols)

FRONT VIEW

SIDE VIEW

WALL IS ON RIGHT

ESPAÑOL

Thank you for choosing SANUS! Please take a moment to let us know how we did:

Legrand AV Inc.

6436 City West Parkway

Eden Prairie, MN 55344 USA

US: [phone]

Legrand AV Netherlands B.V.

Franklinstraat 14

6003 DK Weert Netherlands

UK: [phone]

EMEA: [phone]

Authorized Representative for the UK

Starline Holding Technology Ltd.

Unit C Island Road

Reading RG2 ORP UK

Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, "Legrand"), intend to make this manual accurate and complete. However, Legrand AV makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand AV makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

©2023 Legrand AV Inc. All rights reserved. SANUS is a brand of Legrand.

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

Legrand AV Inc. · 6436 City West Parkway · Eden Prairie, MN 55344 USA

6901-603224 00
