USER MANUAL Superdrive V-20 Budda

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection.

Logo referenced in Directive 2002/96/EC Annex IV(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005

The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005

Correct Disposal of this product. This marking indicates that this product should not be disposed with other house hold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems, or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.

11. Only use attachments/accessories provided by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Never break off the ground pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.

16. If this product is to be mounted in an equipment rack, rear support should be provided.

17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

18. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.

19. The on/off switch in this unit does not break both sides of the primary mains. Hazardous energy can be present inside the chassis when the on/off switch is in the off position. The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

20. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours Sound Level dBA, Slow Response

8 90
6 92
4 95
3 97
2 100
1 1/2 102
1 105
1/2	110
1/4 or less

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

BUDDA®

V Series™ II Superdrive™

V-20 V-40

112 COMBO 212 COMBO HEAD

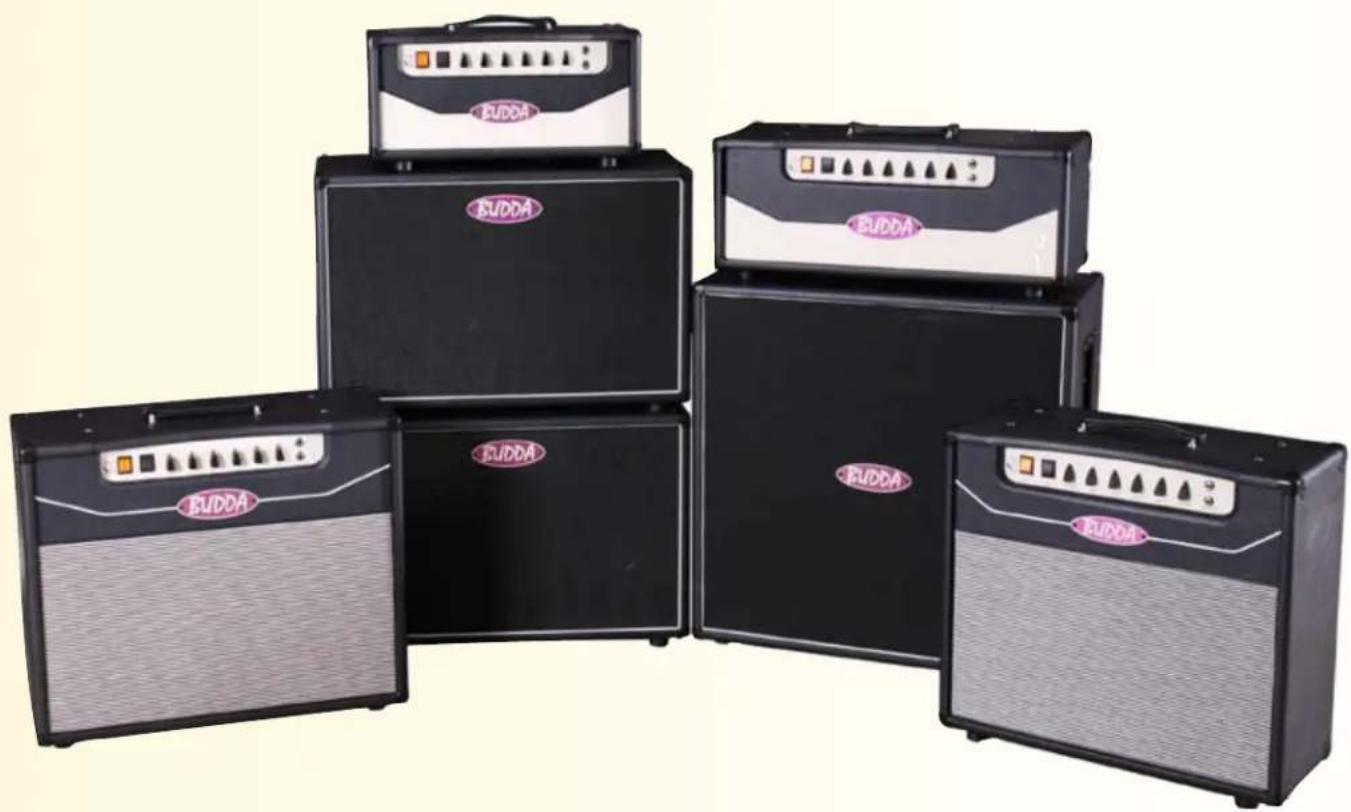

Five black BUDDA audio amplifiers arranged in a triangular layout, no visible text or labels on the devices themselves.

Budda™ V-Series™ II Superdrive™ Guitar Amplifiers

Thank you for purchasing the finest tube amplifier in the business. We appreciate your support and look forward to providing you with years of trouble-free service.

Before we get into the features of your amplifier, we would like to note that tube amplifiers require a little bit of care and maintenance to ensure many years of service. We would like to share the most important tips with you right here:

When you first turn on your amplifier, remember to leave it on Rest for at least 30 seconds before turning it to Go. This will give the tubes time to warm up and will extend tube life.

Front Panel Functions: What they do and how to use them

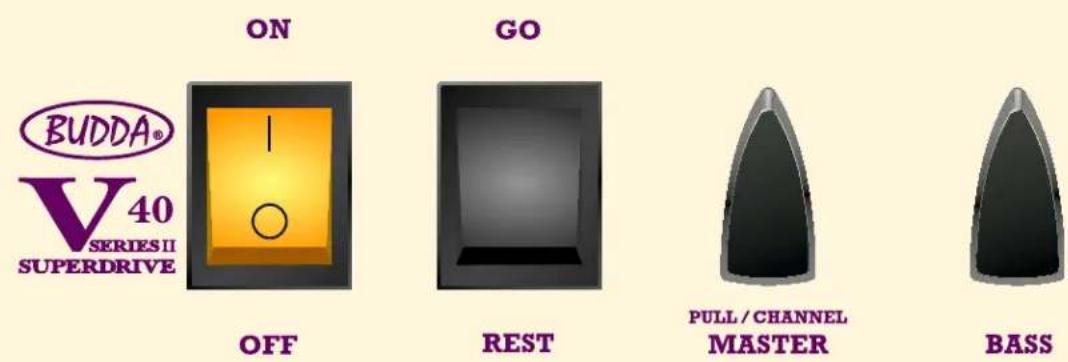

On / Off: Power On and Off switch. Make sure the black Go/Rest switch is set on Rest before you turn the power to On.

Go / Rest: Standby control. Always remember to leave it on Rest for at least 30 seconds before turning it to Go when you turn the amp On. Always switch the amplifier to Rest before plugging or unplugging any devices or cables.

Master: The Master controls the overall Volume of your amplifier. It also has a push/pull feature that allows you to select between the Rhythm (push) and Drive (pull) channels. The higher the setting, the louder the output and greater the tube saturation. Note: pulling this control will disable the footswitch function.

Bass: Use this control to dial your bass frequencies. Adjustments to this manual usually depend upon your pickup configuration; single coils will require more bass and humbuckers less.

Mid: Use this push/pull control to dial in your midrange frequencies. Mids are the most active part of the EQ circuit. Cutting scoops your tone, sort of like creating a "V" in a graphic equalizer. Boosting them will add more fundamental guitar frequencies.

Pull "Thick": Pulling this control will add fullness to the tone of the amp. This is more noticeable in the Drive mode, but affects the Rhythm mode as well.

Check to make sure that the Impedance switch on the rear panel is set to the correct impedance (4, 8 or 16 ohms) for your cabinet. Improper loading may cause excess tube and transformer wear and eventual failure. Use high-quality speaker cables to ensure maximum performance. For tube-related problems, please see the troubleshooting section on page 10 of this manual.

All Superdrive chassis are fabricated from aluminum, which helps to reduce weight along with our custom pine cabinets. Low weight is a significant benefit for all players who gig, as well as their happy road crew & techs. Aluminum is also a great conductor of heat. It may feel warmer to the touch than a traditional steel chassis, but there's no need to worry.

PULL / "THICK" MID

INPUT FOOTSWITCH

Treble: Use this control to dial in your treble frequencies. Typically, guitars that use single coils will require less treble and humbuckers more.

Drive: This controls the overall distortion of your amplifier.

Lower settings will offer a blues type of gain

Mid settings are good for crunch

Higher settings are great for solo work

Rhythm: Use the Rhythm control to adjust the gain of your Rhythm channel

Pull Brite: This control adds brilliance to the Rhythm channel. Use this to create shimmery clean tones and also to give your treble a boost when using guitars with humbuckers and darker-sounding woods.

Input: This is where you plug in your guitar cable.

Footswitch: Plug your Budda single-button footswitch cable here to switch between the Rhythm and Drive channels of your amp. If you forget your switch at the gig, you can pull the Master control to access the Drive channel.

EFFECTS LOOP SEND RETURN BUDDA® V 40 SERIES II SUPERDRIVE DESIGNED AND MADE IN U.S.A. SLAVE SLAVE LEVEL

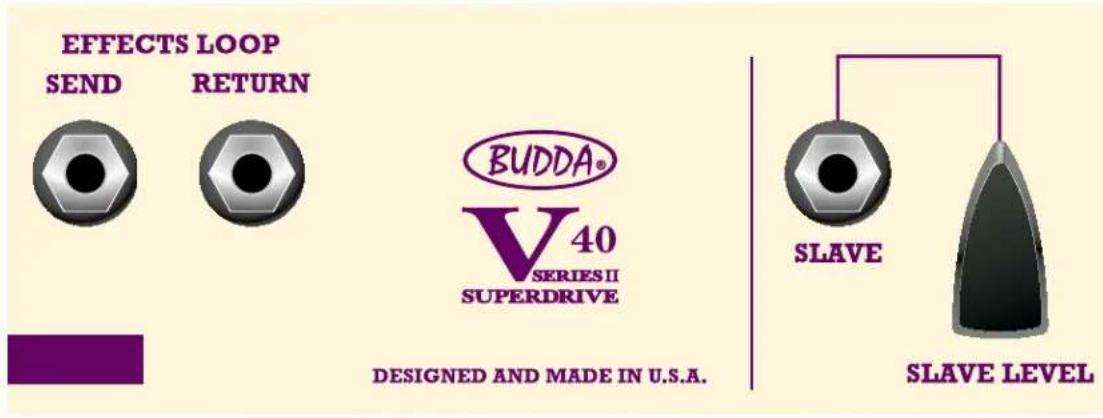

Rear Panel Functions: What they do and how to use them

Effects Loop: Superdrive V amps have passive series loops. This is where you plug in your effects devices.

Send: Use this jack to send your signal to an external effect unit input, or to another amplifier's effects return input. This signal comes from the preamp and includes the EQ section and Master Volume control of your amplifier.

Return: Use this jack to receive the output of your effects device or another amplifier's send or direct output. This path sends the signal to the power amp and is post EQ and Master Volume. At this point you are accessing only the power (output) section of the amplifier.

Slave: The Slave out is a 100-ohm compensated signal that is in parallel with the speaker output. It contains the full complement of preamp and power amp characteristics of your amp. Use this output to send your signal to a power amplifier connected to additional speaker cabinets for a louder version of your amp.

Slave Level: This controls the level of the output from your Slave out. If slaving to an effects unit in a stereo amp rig, use the unit's input sensitivity LED lights as a gauge to set the slave level. Use this control to avoid overloading the input of your slave amp or effects unit.

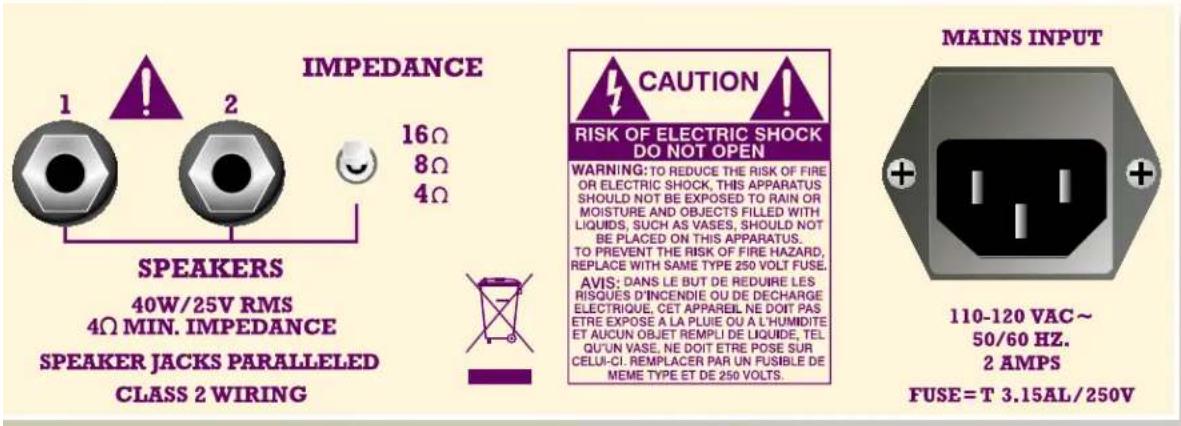

IMPEDANCE 16Ω 8Ω 4Ω CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS. TO PREVENT THE RISK OF FIRE HAZARD, REPLACE WITH SAME TYPE 250 VOLT FUSE. AVIS: DANS LE BUT DE REDUIRE LES RISQUES D'INCENDIE OU DE DECHARGE ELECTRIQUE, CET APPAREIL NE DOIT PAS ETRE EXPOSE A LA PLUIE OU A L'HUMIDITE ET AUCUN OBJET REMPU DE LIQUIDE, TEL QU'UN VASE, NE DOIT ETRE POSE SUR CELUI-CL. REEMPLACER PAR UN FUSIBLE DE MEME TYPE ET DE 250 VOLTS. MAINS INPUT 110-120 VAC~ 50/60 Hz. 2 AMPS FUSE = T 3.15AL/250V SPEAKERS 40W/25V RMS 4Ω MIN. IMPEDANCE SPEAKER JACKS PARALLELED CLASS 2 WIRING

Speakers: This is where you plug in your speaker cabinets.

Impedance: Select the proper impedance to match your speaker load. Our combos and cabinets are normally wired for 8 ohms unless otherwise stated.

AC POWER INLET:

This is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to this connector to provide power to the unit. Damage to the equipment may result if improper line voltage is used. (See line voltage marking on unit).

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly.

To prevent the risk of shock or fire hazard, always make sure that the amplifier and all associated equipment is properly grounded.

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows:

(1) The wire which is colored green and yellow must be connected to the terminal which is marked by the letter E, or by the Earth symbol, or colored green or green and yellow. (2) The wire which is colored blue must be connected to the terminal

which is marked with the letter N, or the color black. (3) The wire which is colored brown must be connected to the terminal which is marked with the letter L, or the color red.

Getting Started:

Initial Setup:

Start with the Drive channel, then set up the Rhythm channel.

Drive Channel

Select the Drive channel by pulling the Master control out. Set the Master Volume at approximately 9 o'clock.

Next, use the Drive control. We recommend starting at around 10 o'clock.

As you rotate the knob clockwise, listen to your signal until it begins to distort. The higher the setting, the more distortion you will add to your signal.

Dial the right amount of distortion until you are satisfied with your overdrive.

Go back and turn up the Master Volume to add girth to the overall tone. Notice how the amp sustains a note longer when the master is turned up.

Find your sweet spot using the Drive and Master controls. This will be a good reference for your Drive channel.

Rhythm Channel

Select the Rhythm channel by pushing the Master control in.

Next, use the Rhythm control

Rotate clockwise until the volume of the Rhythm channel is at a good level relative to the volume of the Drive channel.

Try pulling the Rhythm/Brite control to add treble, shimmer and brightness (see Pull "Brite").

Trouble Shooting Tips:

Preamp and power tubes may become microphonic and lose power over time. A few of the common symptoms are:

A high-pitched squealing sound when you turn on your amp.

A static sound when your guitar volume is turned down.

A loss of output or a muddy signal.

One simple test to determine whether your amp is experiencing preamp or power tube problems can be performed by plugging your guitar into the effects return of your amp:

If the static or squealing noise continues, then the problem is related to the power tubes or driver tube (third from left) and they should be replaced.

If the static noise goes away, then the first or second preamp tube is the culprit and should be changed. Start by replacing the first position tube, farthest to the left looking at the rear of your amp.

We suggest changing power tubes every 6 months for those who play their amp more than an hour per day 3 to 5 times a week. You can get a copy of our tube layout chart online at www.budda.com (click on Resources).

If you experience any problems other than those already mentioned above, please contact us for a consultation to determine the problem. We offer customer support between the hours of 10 a.m. and 5 p.m. Pacific Standard Time. You can reach us toll free at [phone], or e-mail us at [e-mail].

We are excited to be an important part of your sound. Enjoy the tones, and from all of us at Budda, "play it like it's on 11!"

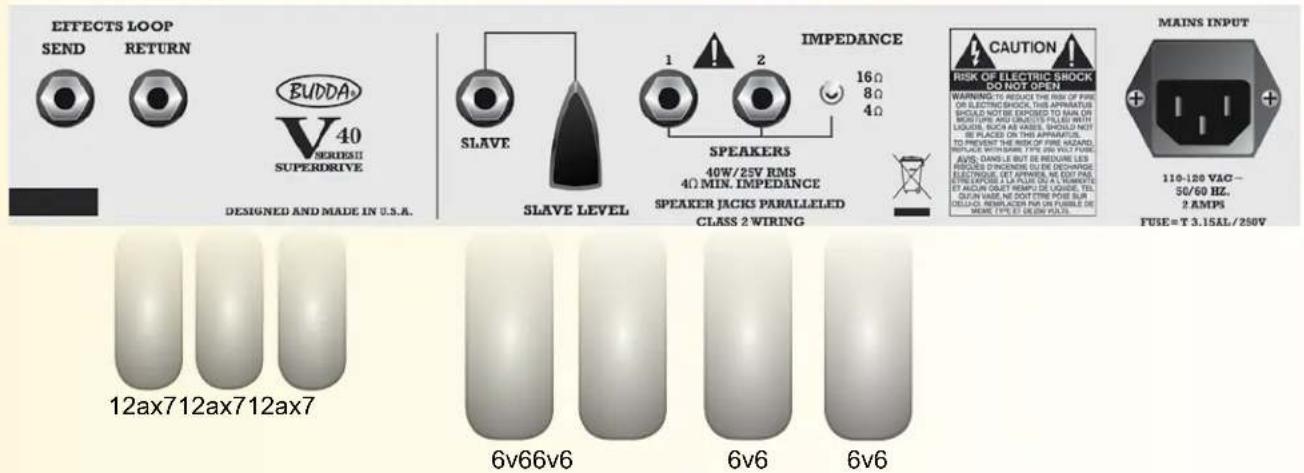

V Series™ II Superdrive™ Rear Panels and Tube Complement

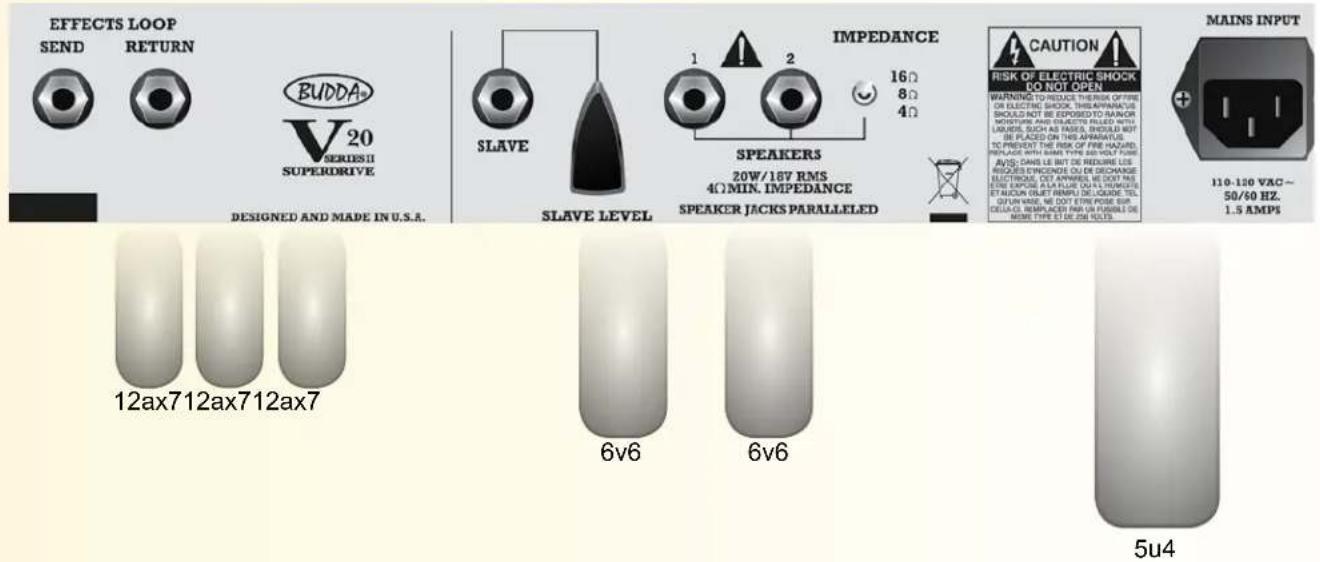

V-20 Rear Panel

EFFECTS LOOP SEND RETURN BUDDA V 20 SERIES II SUPERDRIVE DESIGNED AND MADE IN U.S.A. SLAVE IMPEDANCE 16Ω 8Ω 4Ω SPEAKERS 20W/18V RMS 4Ω MIN. IMPEDANCE SPEAKER JACKS PARALLELED SLAVE LEVEL MAINS INPUT 110-120 VAC— 50/60 Hz. 1.5 AMPS 12ax712ax712ax7 6v6 6v6 5u4

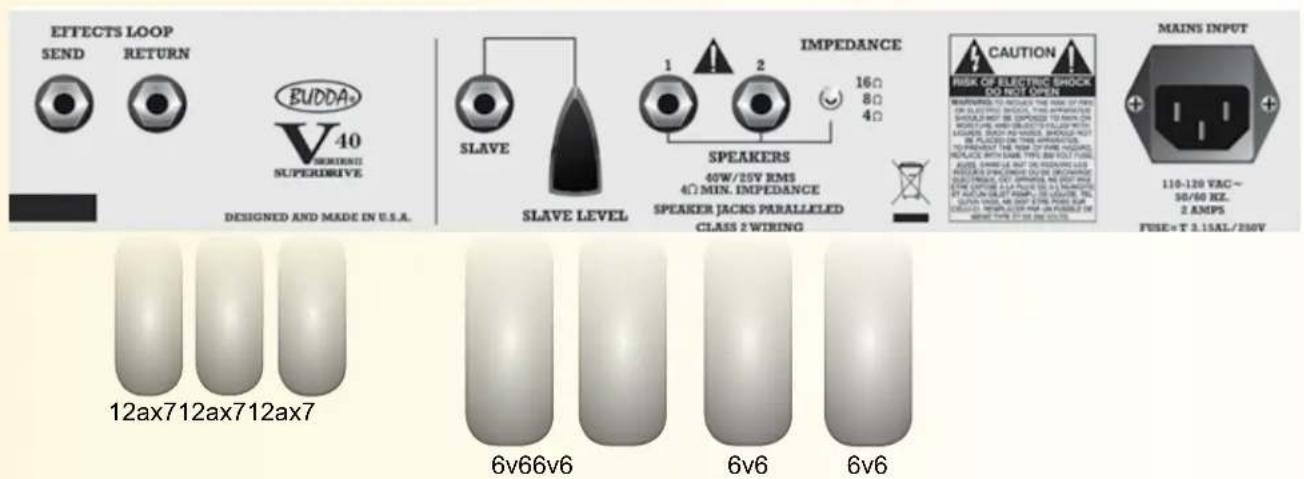

V-40 Rear Panel

EFFECTS LOOP SEND RETURN BUDDA V40 SUPERDRIVE DESIGNED AND MADE IN U.S.A. SLAVE IMPEDANCE 16Ω 8Ω 4Ω SLAVE LEVEL SPEAKERS 40W/25V RMS 4Ω MIN. IMPEDANCE SPEAKER JACKS PARALLELED CLASS 2 WIRING CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING TO REVEE THE RAIL OF FIRE OR ELECTRIC SHOCK. THIS APPMATIC SHOULD NOT BE EXPOSED TO RAIL OR MORTUM AND UNRECTED FILLED WITH LQUID, RICH AS VARES, SHOULD NOT BE PLACED ON THIS APPMATIC. TO PREVENT THE RISK OF FIRE X/AZARD. INPLADE WITH SHARE TYPE IN VOLT FUBE AVS: DAMO LE BUT DE REDUARE LES ARDOES D'INGENDE DURE DECHARGE ELECTROUS SET APPARES, NE COTY PAE THRE EXPOSE 2 LA FLAIR DU A REMARTE ET AUGUN GATE MENSU LE LIONGE, TEL QUN HARE NE DOT FTIRE PASE SUR DELUXO REMILDER PAE ON FUBILE DE WHOLE TYPE ET GREEN PAES. MAINS INPUT 110-120 VAC- 50/60 Hz. 2 AMPS FUSE = T 3.15AL / 250V 12ax712ax712ax7 6v66v6 6v6 6v6

BUDDA.COM

BUDDA®

V Series™ II Superdrive™

V-20 V-40

COMBO 112 COMBO HEAD 212

Exterior view of six black and gray audio amplifiers labeled 'BUDDA' (no additional text or symbols visible)

PULL / "THICK" MID

PULL / BRITE RHYTHM

INPUT FOOTSWITCH

Three identical rounded rectangular shapes with no text or symbols on the shapes themselves.

Two identical gray cylindrical objects with no visible text or symbols on the surfaces

Two identical cylindrical objects with no visible text or symbols, labeled '6v6' below each.

BUDDA® BUDDA.COM

BUDDA®

V Series™ II Superdrive™

V-20 V-40

112 COMBO 212 COMBO HEAD

Exterior view of six black BUDDA audio amplifiers arranged in a triangular formation (no text or symbols visible on the devices themselves)

PULL / "THICK" MID

PULL / BRITE RHYTHM

INPUT FOOTSWITCH

Three identical rounded rectangular shapes with no text or symbols on the shapes themselves.

Two identical gray cylindrical objects with no visible text or symbols on the surfaces

Two identical cylindrical objects with no visible text or symbols, labeled '6v6' below each.

BUDDA® BUDDA.COM

BUDDA®

V Series™ II Superdrive™

V-20 V-40

112 COMBO 212 COMBO HEAD

Exterior view of six black BUDDA audio amplifiers arranged in a triangular formation (no text or symbols visible on the devices themselves)

PULL / "THICK" MID

PULL / BRITE RHYTHM

INPUT FOOTSWITCH

Three identical rounded objects with a label below (12ax7, 12ax7, 12ax7), no other text or symbols visible.

Two identical gray cylindrical objects with no visible text or symbols on the surfaces

Two identical cylindrical objects with no visible text or symbols, labeled '6v6' below each.

BUDDA® BUDDA.COM

BUDDA®

V Series™ II Superdrive™

V-20 V-40

112 COMBO 212 COMBONUPPI

Exterior view of six black audio amplifiers with visible brand logos (BUDDA), arranged in a triangular formation (no text or symbols on the devices themselves)

PULL / "THICK" MID

PULL / BRITE RHYTHM

INPUT FOOTSWITCH

Exterior view of six black BUDDA audio amplifiers arranged in a triangular formation (no text or symbols visible on the devices themselves)

Three identical rounded objects with no visible text or symbols on them

Two identical gray cylindrical objects with no visible text or symbols on the surfaces

Two identical cylindrical objects with no visible text or symbols, labeled '6v6' below each.

BUDDA® BUDDA.COM

BUDDA®

V Series™ II Superdrive™

V-20 V-40

COMBO 112 TESTATA COMBO 212

Exterior view of six black BUDDA audio amplifiers arranged in a triangular formation (no text or symbols visible on the devices themselves)

Dark rectangular frame with a purple 'GO' above it, no other text or symbols visible.

REST

PULL / CHANNEL MASTER

PULL / "THICK" MID

PULL / BRITE RHYTHM

INPUT FOOTSWITCH

EFFECTS LOOP SEND RETURN BUDDA® V20 SERIENI SUPERDRIVE DESIGNED AND MADE IN U.S.A. SLAVE IMPEDANCE 16Ω 8Ω 4Ω SLAVE LEVEL SPEAKERS 20W/18V RMS 4Ω MIN. IMPEDANCE SPEAKER JACKS PARALLELED CAUTION! RISK OF ELECTRIC SHOCK DO NOT OPEN BEANSING TO REVEE THIS RISK OF FLOW ON ELECTRIC SHOCK, THIS APPARATUS SHANKS NOT BE EXPRESSED TO MAIN OR MOBILITY AND ELECTRIC PULLIES WITH LPGATE SCREW ON METER CAPS OF 3000 AND PLUGED ON THIS APPARATUS TO PRESENT THE RISK OF FIRST HAZARD, APPLADE WITH SHAK TYPE ASSEMBLED FOR AVOC. SHINE LEUT TO PREVENT LED ABOVE SWITCH TO ON EXCHARGE ELECTRICAL OUT APPLICABLE AT END OF THIS APPARATUS OF ACQUIN-DRIFT MOUNT TO EXCHARGE ELECTRICAL OUT APPLICABLE AT END OF THIS APPARATUS 5u4

Pannello Posteriore V-40

EFFECTS LOOP SEND RETURN BUDDA® V 40 MEDIUMI SUPERACTIVE DESIGNED AND MADE IN U.S.A. SLAVE IMPEDANCE 16Ω 8Ω 4Ω SPEAKERS 40W/25V RMS 4Ω MIN. IMPEDANCE SPEAKER JACKS PARALLELED CLASS 2 WIRING CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN MAINS INPUT 110-120 VAC~ 50/60 KZ. 2 AMPS FUSE=T 2.15AL/250V 12ax712ax712ax7 6v66v6 6v6 6v6

BUDDA.COM

BUDDA®

Exterior view of six black BUDDA audio amplifiers arranged in a triangular formation (no text or symbols visible on the devices themselves)

Amplificadores de Guitrra Budda™ Série V™ II Superdrive™

PULL / "THICK" MID

PULL / BRITE RHYTHM

INPUT FOOTSWITCH

EFFECTS LOOP SEND RETURN BUDDA® 40 SUPERDRIVE DESIGNED AND MADE IN U.S.A. IMPEDANCE 16Ω 8Ω 4Ω SLAVE SPEAKERS 40W/25Y RMS 4Ω MIN. IMPEDANCE SPEAKER JACKS PARALLELED CLASS 2 WIRING CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN PREVENTING TO REVE IN THE RAIL OF THIS ON ELECTRIC SHOCK, THIS APPARATIVE SHOCK NOT BE EXPOSED TO BHAIC ON MOISTURE AND SUBJECT TO VALVE WITH LEATHER, SHAFT AS HANDS, SHOULD NOT BE PLACED ON THIS APPARVATION. TO PREVENT THE WM OF PARE MOUNTS REPLACE WITH SWEI TWO VOLT FUBE. ALVES, DHAW AT THE DRAMING LUX PARED SPECUM ORDER (OUT CHAMPED ELECTRICAL OUT CHAMPED) NO. 31 CHAMPED BY LOAN OILUT ROLL (IN LAKEE). THIS LAVEL WIRE, HE DRY ETRIN POURS ARE COLDEN. NEWMULDER HAS UP POURD IN WHIP THAN 37.15AL/230V MAINS INPUT 110-120 VAC~ 50/60 KZ. 2 AMPS FUSE*T 3.15AL/230V 12ax712ax712ax7 6v66v6 6v6 6v6

BUDDA.COM

BUDDA®

V Series™ II Superdrive™

V-20 V-40

112 コンボ 212 コンボヘッド

Exterior view of six black audio amplifiers with visible brand logos (BUDDA), arranged in a triangular formation (no text or symbols on the devices themselves)

PULL / "THICK" MID

PULL / BRITE RHYTHM

INPUT FOOTSWITCH

Exterior view of six black BUDDA audio amplifiers arranged in a triangular formation (no text or symbols visible on the devices themselves)

EFFECTS LOOP SEND RETURN BUDDA® 40 SUPERDRIVE DESIGNED AND MADE IN U.S.A. IMPEDANCE 16Ω 8Ω 4Ω SLAVE SPEAKERS 40W/25Y RMS 4Ω MIN. IMPEDANCE SPEAKER JACKS PARALLELED CLASS 2 WIRING CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN PREVENTING TO REVE IN THE RAIL OF THIS ON ELECTRIC SHOCK, THIS IMPERVATION SHOCK NOT BE EXPOSED TO BHAIC ON MOISTURE AND SUBJECT TO VALLEY WITH LEAVES, SHAP AS HANDS, SHOULD NOT BE PLACED ON THIS IMPERVATION. TO PREVENT THE WM OF PARE MOUNTS REPLACE WITH SWEI TWO VOLT FUBE. ALVES, DHAW AT THE DRAMING LVD PROTECTED SPECUM DUCT OR CHAMPED ELECTRICAL OUT OR INSIDE TO 3.1 MAXIMUM STRAW OUT (LEFT) SIMUL 20 LAYOUT. THIS OUTLINE WIRE, HE GIFT ETRIN POURS ARE CONDUCTOR. IMPERLED FOR PURABLE IN WHIP TYPE BY NO. 230V MAINS INPUT 110-120 VAC~ 50/60 KZ. 2 AMPS FUSE+ T 2.15AL/230V 12ax712ax712ax7 6v66v6 6v6 6v6

BUDDA.COM

BUDDA AMPLIFICATION

LIMITED WARRANTY

EFFECTIVE DATE: AUGUST 1, 2009

What This Warranty Covers

Your Budda Warranty covers defects in material and workmanship in Budda products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Budda; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Budda Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

PRODUCT CATEGORY DURATION

AMPLIFIERS, OTHER THAN TUBES AND SPEAKER COMPONENTS 1 YEAR

TUBES 90 DAYS

SPEAKER COMPONENTS (INCL. SPEAKERS, BASKETS, DRIVERS, DIAPHRAGM REPLACEMENT KITS AND PASSIVE CROSSOVERS) 90 DAYS

What Budda Will Do

We will repair or replace (at Budda's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Budda for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Budda will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Budda Dealer or Authorized Budda Service Center.
(2) Call Budda Service at [phone] and obtain clearance to mail your amplifier to Budda.

Limitation of Implied Warranties

ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

If you live in a state that does not allow limitations on how long an implied warranty lasts, the above limitation may not apply to you.

Exclusion of Damages

BUDDA'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT BUDDA'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. BUDDA SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF BUDDA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

If you live in a state that does not allow the exclusion or limitation of incidental or consequential damages, the above exclusion or limitation may not apply to you.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, contact the Budda International Service Center at [phone].

Warranty conditions subject to change without notice.

Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005

The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005

BUDDA.COM

Features and specifications are subject to change without notice

Printed in the U.S.A. • 80302603

Budda Amplification Warranty Card

U.S. customer warranty registration.

Give us some information and put your warranty into effect!

Please take a few minuets to fill out this warranty card to help us get to know and serve you better.

To save time, submit your warranty registration online at budda.com

click on resources / product registration

Name: Phone: ____ ____

Street Address: ____

City: State: Zip:

Email Address: ____

Product Purchased: ____

Date of Purchase: ____

Serial Number: ____

Purchased From: ____

Quality of service where purchased: ____

How did you become aware of Budda? Store □ Friend □ Mailer □

Ad

Web Site

Friend

Mailer

Improvements or suggestions of Budda products: ____

For customer service please call: Toll Free [phone].

M-F, 8-5 p.m. Central time or email us at:

[e-mail]

BUDDA®

Thank you for taking the time to fill out our survey! Don't forget to fold and tape

(with Budda address facing out), affix postage stamp and drop in the mail!

Logo referenced in Directive 2002/96/EC Annex IV

(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005

The bar is the symbol for marking of new waste and

is applied only to equipment manufactured after

13 August 2005

Meridian, MS 39301

412 HWY. 11/80 East

Budda Amplification

EUDDA
