USER MANUAL M1 Rexing

Thank you for choosing REXING! We hope you love your new product as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. You can reach us via [e-mail] or call us at [phone]. Our support team will respond you as soon as possible.

Always a surprise in Rexing. Check us out here.

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

2. What's in the Box

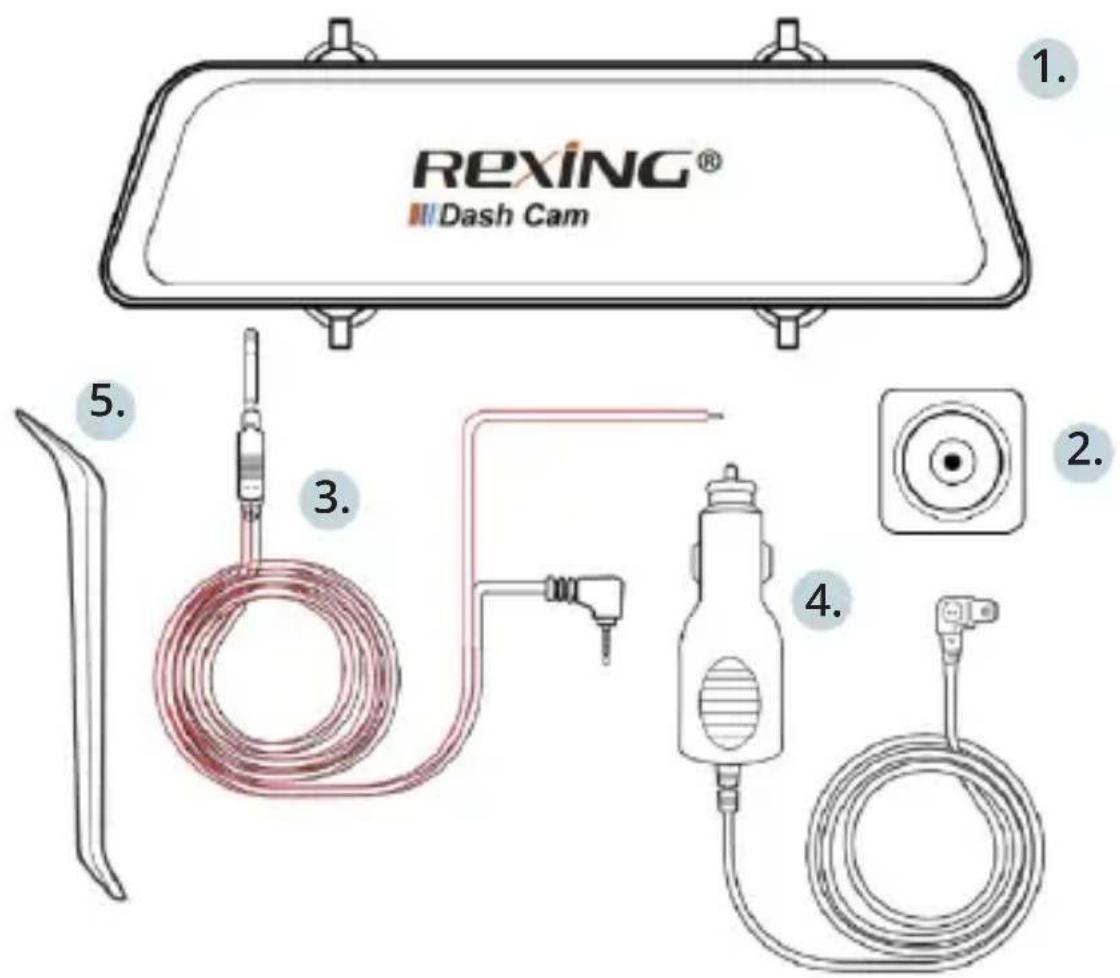

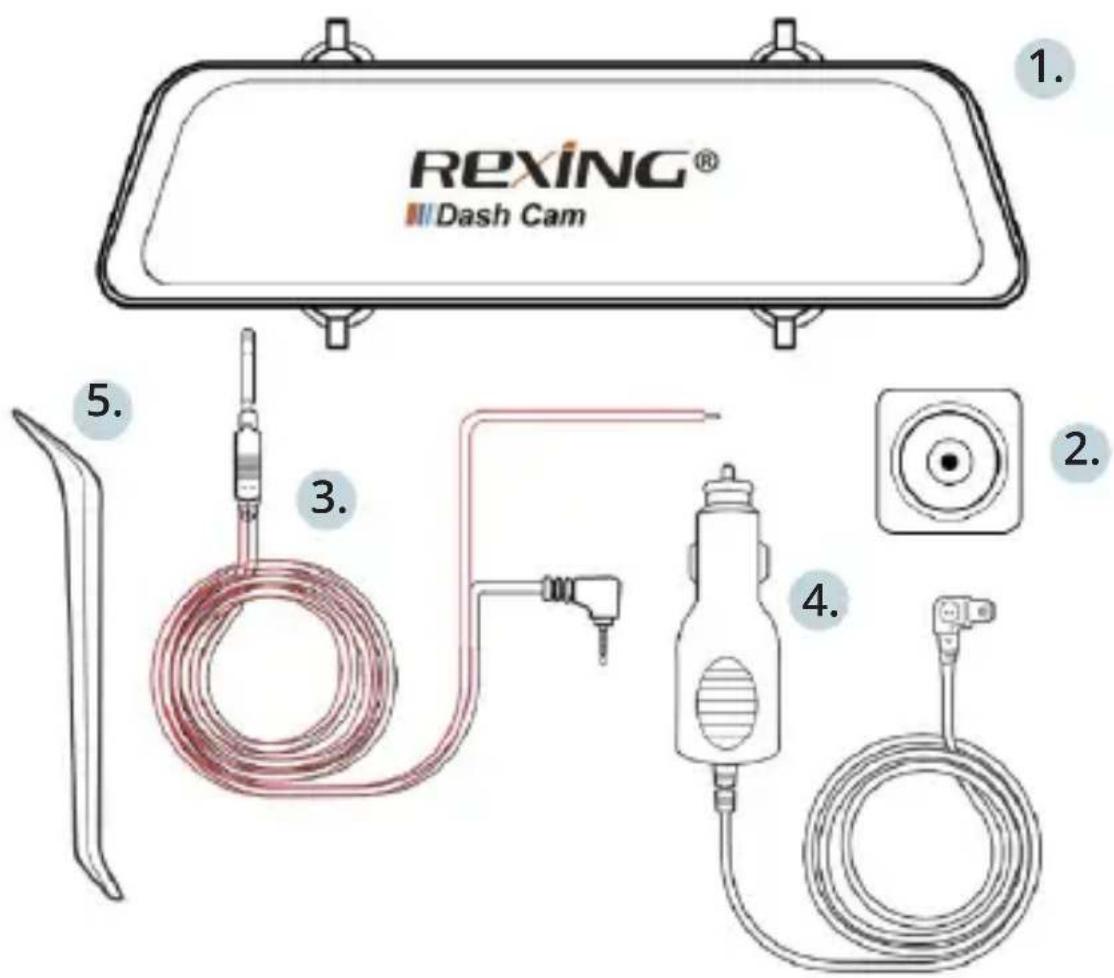

REXING® Dash Cam 1. 2. 3. 4. 5.

6.7.

1. Rexing M1 Dash Cam
2. Waterproof HD Rear Camera
3. Rear Camera Extension Cable (18ft)
4. Car Charger (12ft)
5. Cable Management Tool
6. M1 Quick Start Guide
7. Safety Guide

REXING® m1 Quick Start Guide ■REXING® ■Rexing-2009-2010 ■Rexing-2009-2010 ■Rexing-2009-2010 ■Rexing-2009-2010 ■Rexing-2009-2010 ■Rexing-2009-2010 ■Rexing-2009-2010 ■Rexing-2008-2010 ■Rexing-2008-2010 ■Rexing-2008-2010 ■Rexing-2008-2010 ■Rexing-2008-2010 ■Rexing-2008-2010 ■Rexing-2008-2010 ■Rexin-2008-2010 ■Rexin-2008-2010 ■Rexin-2008-2010 ■Rexin-2008-2010 ■Rexin-2008-2010 ■Rexin-2008-2010 ■Rexin-2008-2011 ■Rexin-2008-2011 ■Rexin-2008-2011 ■Rexin-2008-2011 ■Rexin-2008-2011 ■Rexin-2008-2011 ■Rexin-2008-2011 ■Rexin-2007-2011 ■Rexin-2007-2011 ■Rexin-2007-2011 ■Rexin-2007-2011 ■Rexin-2007-2011 ■Rexin-2007-2011 ■Rexin-2007-2011 ■Rexing 2016 SoFety Guide 安全ガイド

3. Camera Overview

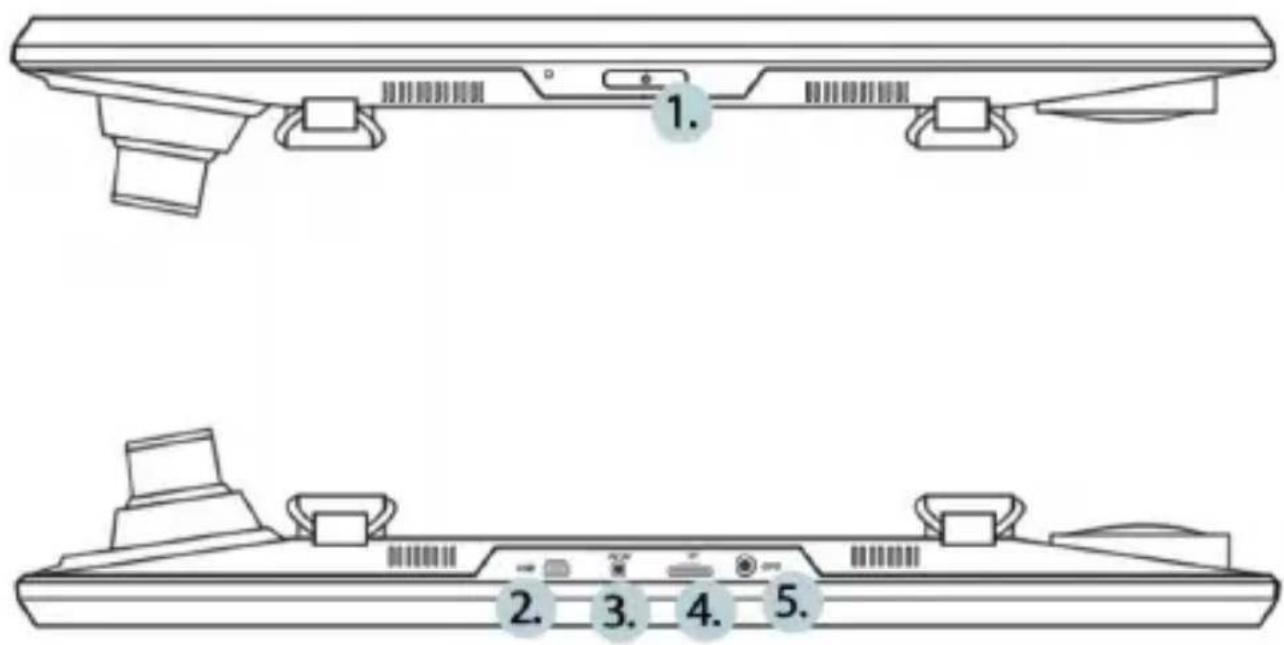

Technical diagram showing labeled components of a device or fixture, with numbered parts indicating different parts.

1. Power Button / Screen Toggle Button
2. USB Charging Port
3. Rear Camera Port
4. Micro SD (TF) Card Slot
5. GPS Logger Port (M1 not support)

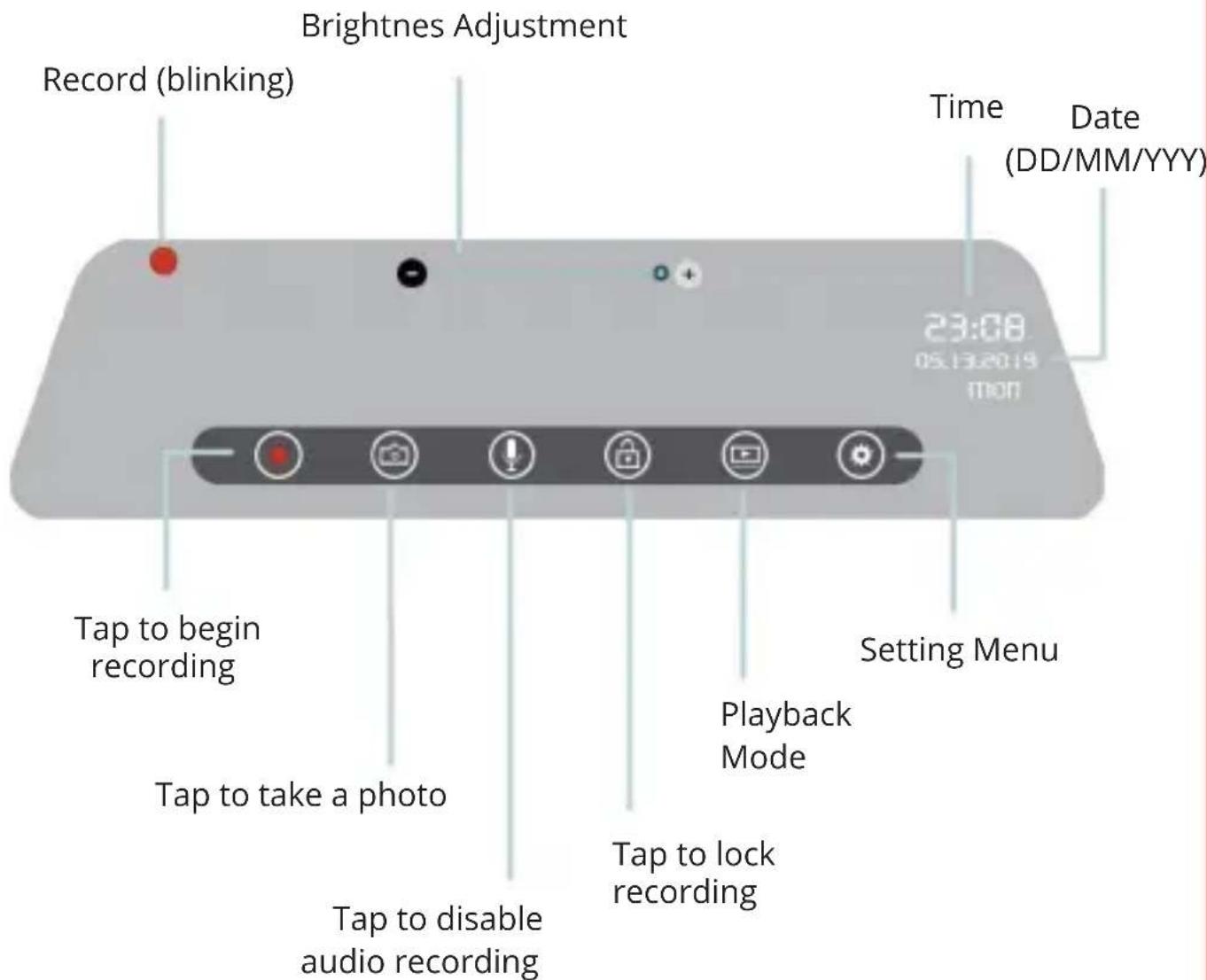

Screen Icons

Brightnes Adjustment Record (blinking) Time Date (DD/MM/YYYY) 23:08 05:13:2019 MON Tap to begin recording Tap to take a photo Playback Mode Setting Menu Tap to disable audio recording Tap to lock recording

* Swipe left/right on touchscreen to switch front/rear view
* Swipe up/down on touchscreen to adjust view angle

4. Installation

Step 1: Install the Dash Cam

Technical diagram of a mechanical component with two side views and an arrow indicating direction (no text or symbols)

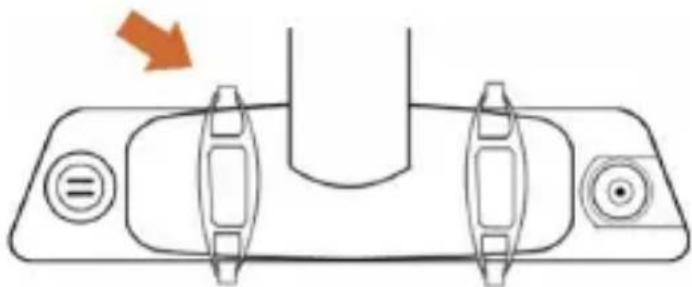

Unhook the straps in the back of the front camera, then wrap them around your rearview mirror.

Connect the straps to the hook on the back of the camera to secure the camera to the rearview mirror.

REXING® Dash Cam e Memory Card

Step 2: Insert the Memory Card

The Rexing M1 accepts [Class 10/UHS-1 or higher] Micro SD memory cards up to 256GB.

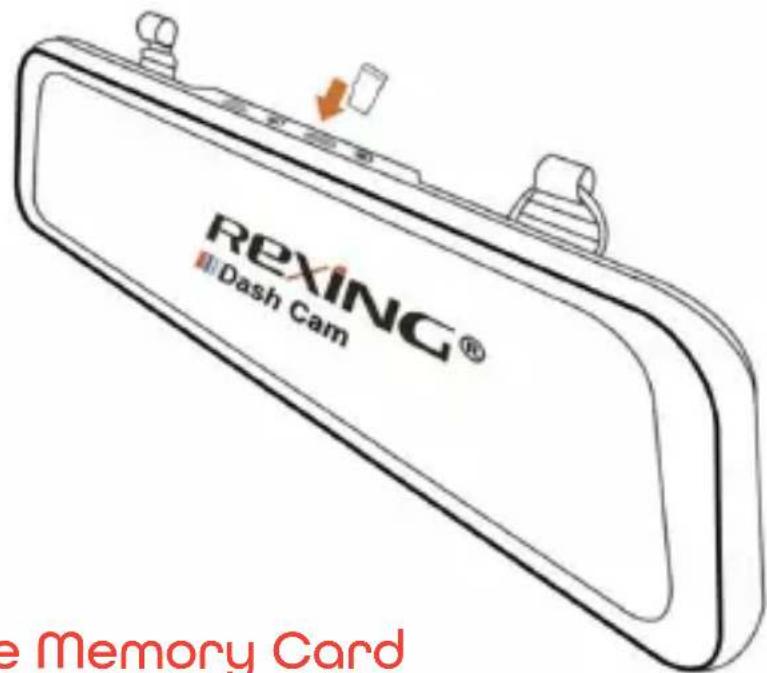

You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you've powered down the device.

Gently push the memory card in until you hear a click, and allow the spring release to push the card out.

Step 3:

Power the Camera and Format the Memory Card

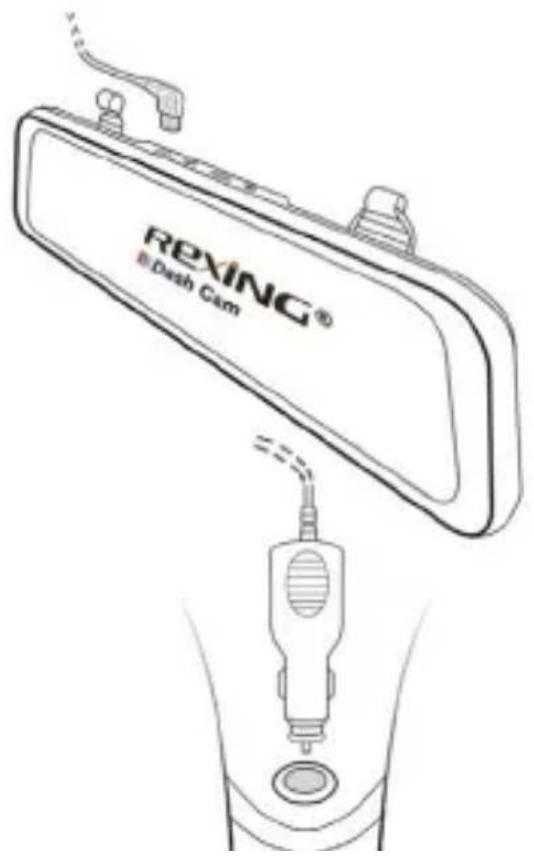

Power the camera by connecting the charger to the car cigarette lighter and camera. To ensure the M1 records to your memory card properly and without error. Before you start using a new memory card, you must format the card within the camera using the format function. Always backup card before formatting.

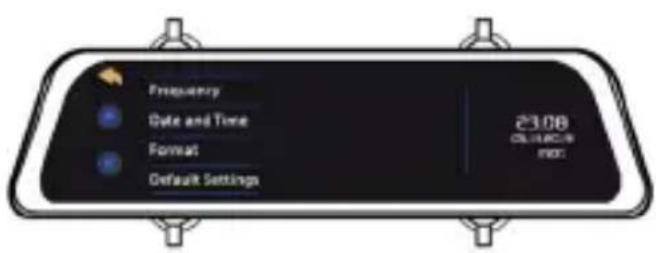

To format the memory card, make sure you have inserted your memory card, then turn on the device by connecting to a power source. Upon turning on the camera, tap Record button to stop recording. Then tap the Settings button to access the Settings Menu.

Use the arrow keys to navigate to the "Format" option. Once this option is highlighted, tap "Yes" to continue. You will be asked to confirm your choice. Tap "OK" to confirm.

You may now disconnect from power. The camera will shut down after 3 seconds. The camera should begin recording automatically the next time it is powered on.

REXING® ®Desh Cam

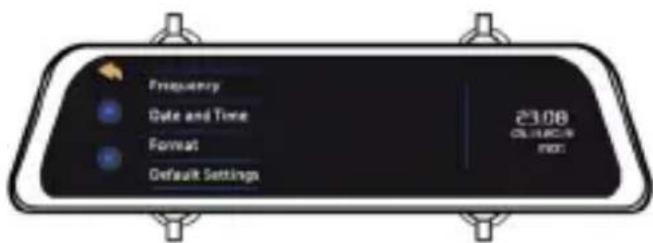

Frequency Date and Time Format Default Settings 23:08 01:00:00 PM

Format Card? All data will be deleted. Yes

Press the Yes button to confirm formatting the card

Step 4:

Hardware the red line to rear tail reverse light

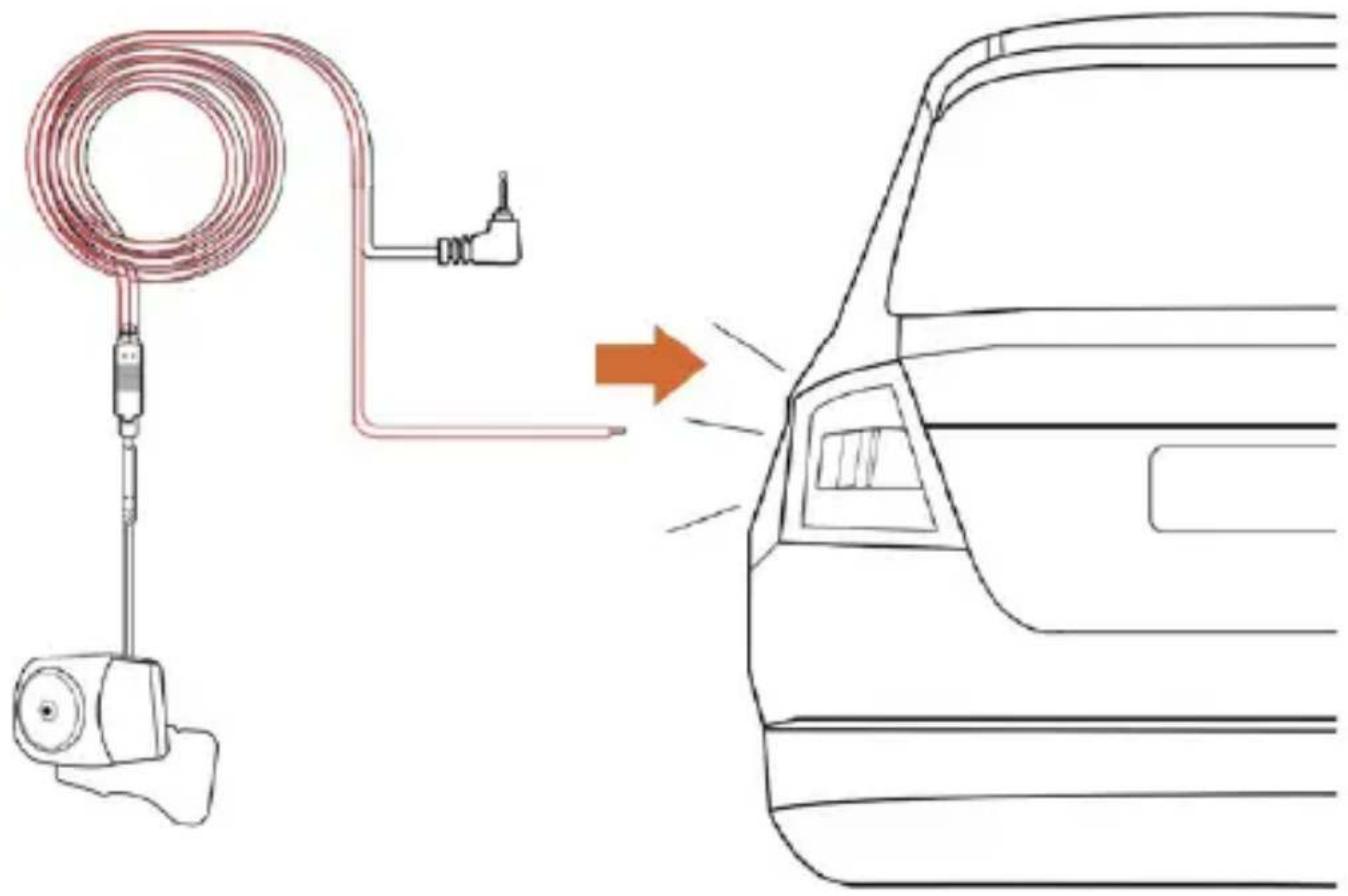

In order to use automatic backup camera switch function, connect the red line of rear camera to your car's rear tail reverse light.

When put the car on reverse, the dash cam will automatically switch to backup camera view.

Diagram illustrating the process of a car hood with cable installation and headlighting, showing structural change from left to right.

Step 5: Mount the Rear Camera

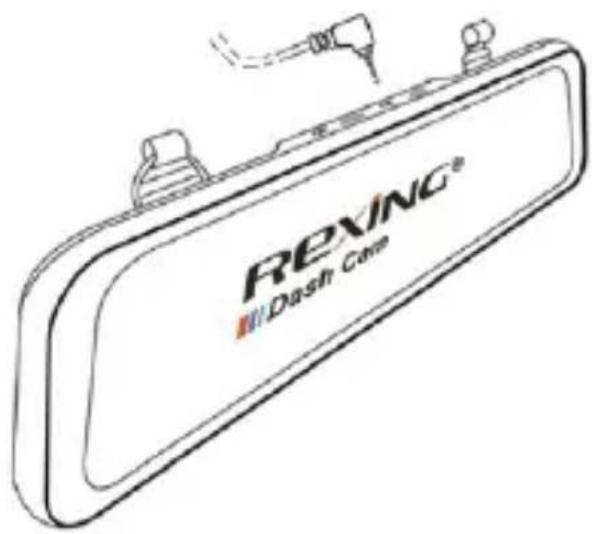

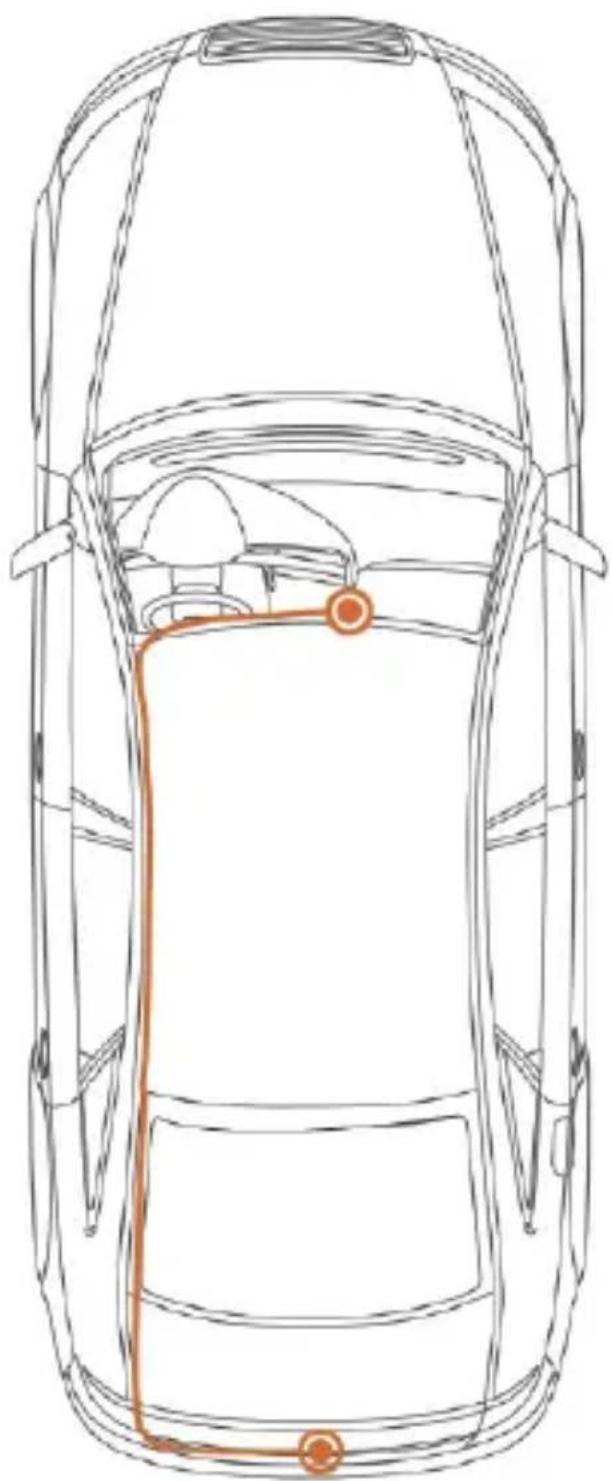

Mount the rear camera as shown below. Use the rear camera extension cable to connect the waterproof rear camera to the front camera.

Rear Camera installation

Plug the Rear Camera into the Dash Cam

REXING® Dash Care

Top-down line drawing of a car showing the roof, dashboard, and side panels with no text or symbols

Step 6: Installing the Camera onto the Rear Mirror

Unhook the straps in the back of the front camera, then wrap them around your rearview mirror and carefully route the power cable around the windscreen and tuck it under the trim.

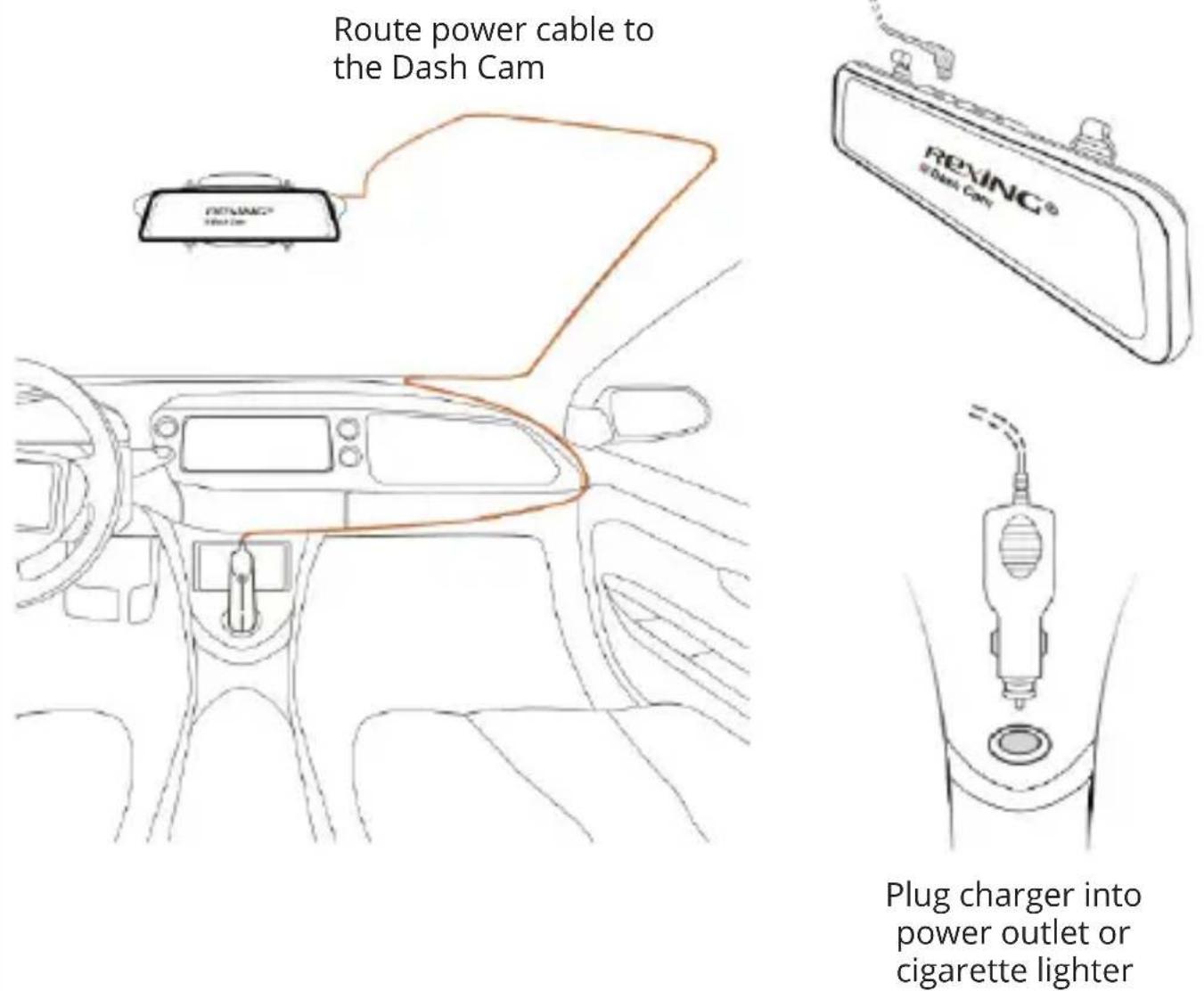

Plug the Car Charger Cable to a 12V DC power outlet or the car cigarette lighter.

Connect car charger to the camera. The camera will auto-start recording once powered on.

Plug Mini USB Connector to the Dash Cam

5. Basic Operation

Device Power

The device will be automatically powered on when plugged into a 12V accessory socket or cigarette lighter when receives a charge (i.e.: the vehicle is started).

To turn the device on manually, press and hold the POWER button until the welcome screen appears.

The camera will automatically start recording when powered on.

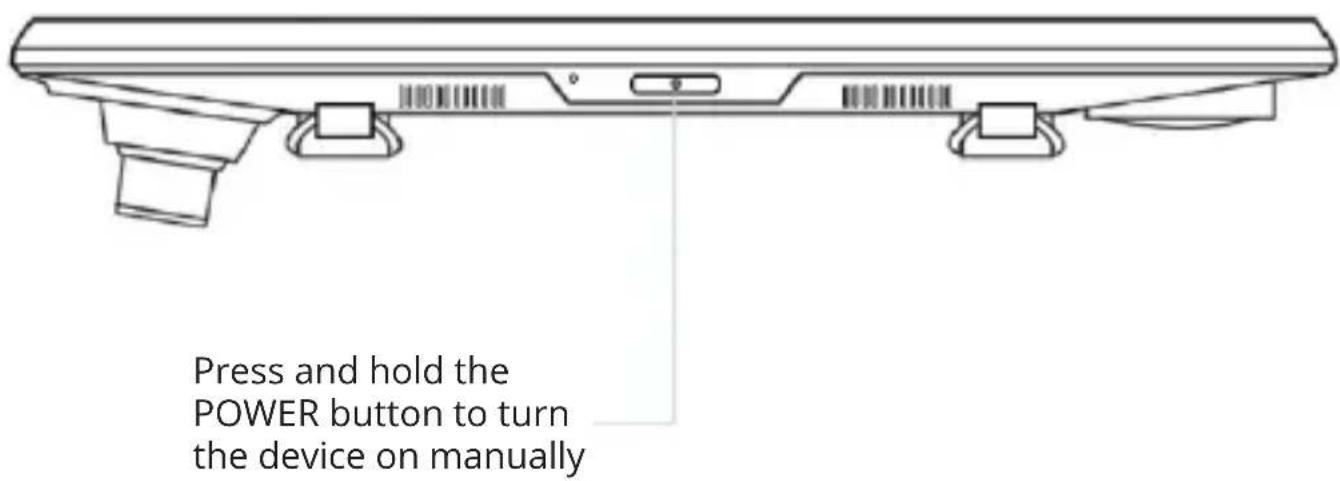

Press and hold the POWER button to turn the device on manually

Menu Settings

Power the camera On. If the camera is recording, tap the record button to stop recording.

Tap 📄 button and toggle to the playback mode.

Tap 📷 button once to enter the settings menu for a Mode.

Press / to enter system settings (set up).

Video Recording

The camera will automatically start recording when the device receives a charge. The red dot will blink when recording. Tap the record button to stop recording.

Video Playback

Playback of videos can be done on the device or a computer.

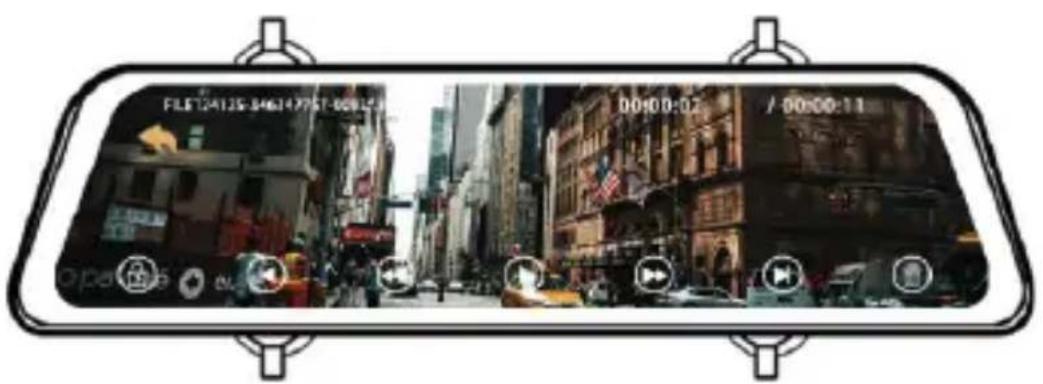

To playback a video on the device, switch to Playback mode by tapping the Playback button on the display menu.

Use the 📄 / 📁 icons on the left to switch between front and rear camera recordings, as well as locked recordings and photos.

In Playback Mode, you may lock or delete recordings with the respective icons on the bottom right of the display, right beneath the time and date.

Scroll between your files by swiping up and down on the file list.

To play back a recording, tap the name of the file you want to play back, then tap on the preview frame to play.

While playing back a recording, you can 📄 (pause), ▶ (play), ← (rewind), or ➤ (fast forward) the recording by tapping the icons on the display.

To exit a recording, tap the 🔊 icon on the topleft of the display.

To exit Playback Mode, tap the 🔺 icon on the top left of the display.

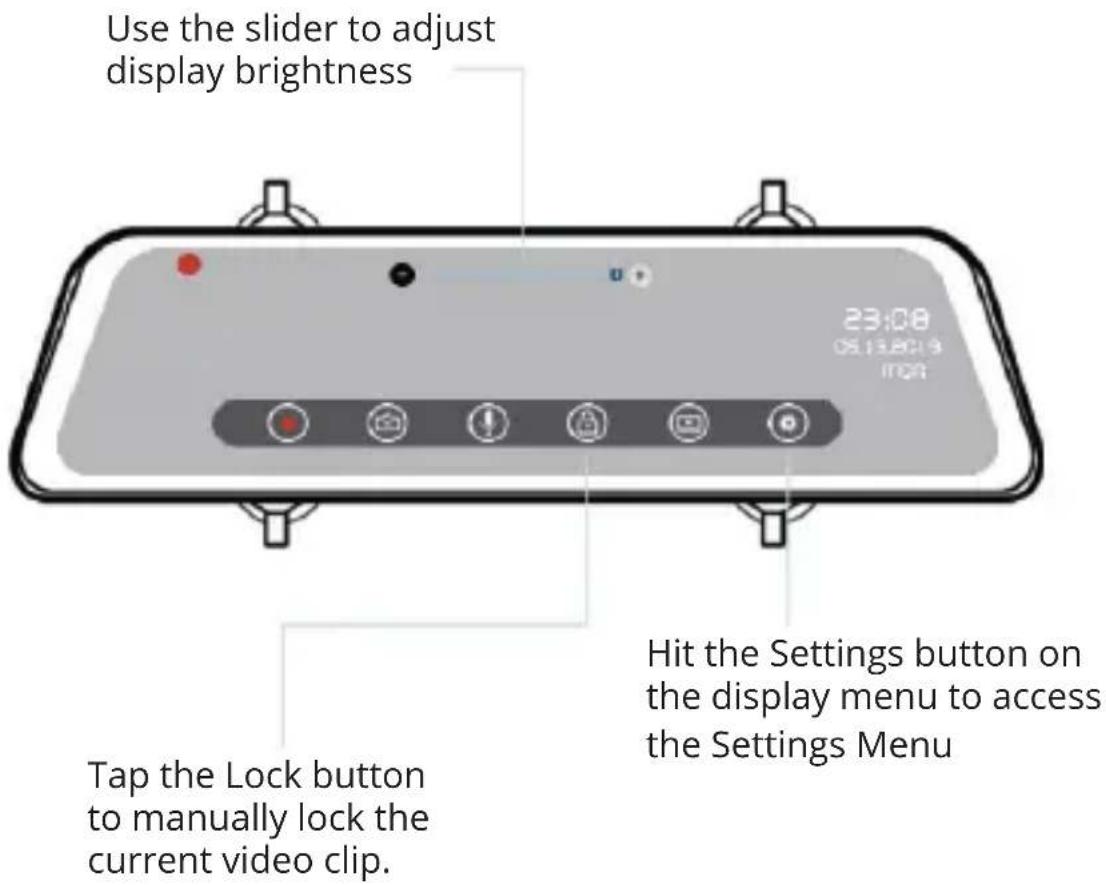

Use the slider to adjust display brightness 23:00 08:13:00:13 inca Tap the Lock button to manually lock the current video clip. Hit the Settings button on the display menu to access the Settings Menu

FILE:24125-34614775T-00915 00:00:02 / 00:00:11

To playback a video on the computer, use an SD card adapter.

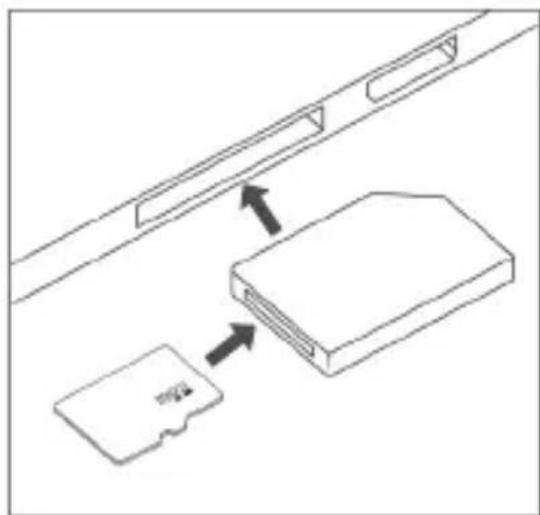

To playback a video using an SD card adapter, remove the memory card and insert it into an SD card adapter. Place the adapter in the computer.

Diagram showing a device with a card and a physical device, labeled in Chinese.

Recommended Media Players: QuickTime Media Player / VLC / Windows Media Player

Insert your micro SD into an SD card adapter, then insert the SD card adapter into your computer (or card reader) to access your card storage. Your front and rear camera videos will be stored under the "Video" folder, sorted into the "F" and "R" subfolders respectively.

Locked videos can be found on the memory card under the "Lock" folder.

Taking Photos

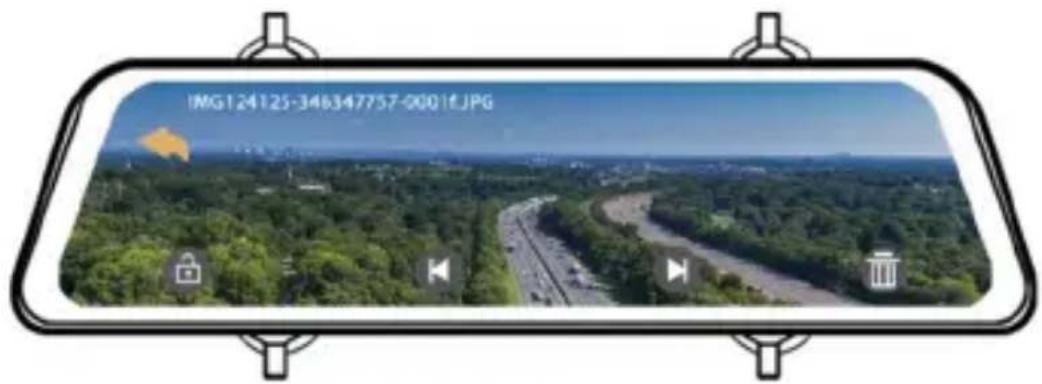

To take a photo, tap the 📄 button to take a photo.

To view a photo, stop video recording and tap button to Playback Mode. And tap in the Playback Mode to enter the photo playback.

Swipe on the screen to toggle through your photos.

To delete a photo, stop video recording and toggle to the Playback Mode and toggle through the videos and photos to the one you want to delete.

Press 📄 on the right side corner. And tap the YES button to delete selected file.

Toggle to the Playback mode and select a photo to view


Delete Selected File? Yes No

Choose the desired option

1. 概要

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

ホームページ

QR code image containing encoded data, no visible human-readable text

REXING® Dash Cam 1. 2. 3. 4. 5.

6.7.

Technical diagram of a device rear panel with labeled components including buttons, switches, and display areas

Technical diagram of a mechanical component with two side views and an arrow indicating direction (no text or symbols)

Step 1:

ドライブレコーダーの 取り付け

REXING® Dash Cam

Step 2:

メモリカードを挿入する

REXING® ®Desh Cam

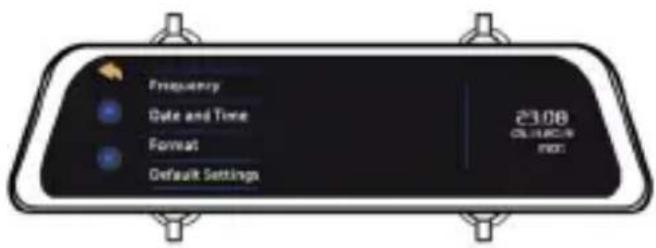

Frequency Date and Time Format Default Settings 23:08 CIL1AUC1B POST

Format Card? All data will be deleted. Yes

Diagram illustrating the process of a car's electrical cable installation, showing cable connection to front and side panels with an orange arrow indicating direction.

Step 5:

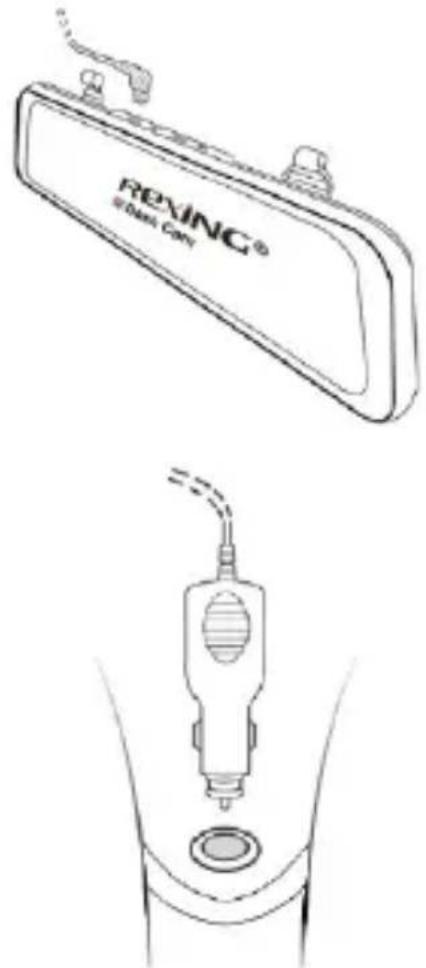

リアカメラの取り付け

REXING® Dash Cam

Top-down line drawing of a car showing the roof, dashboard, and side panel (no text or symbols)

Line drawing of a car interior with dashboard and steering wheel (no text or symbols)

REVINC® Dual Care

車両の電源コネクター

またはシガーライ

ターに車載充電器を

接続します

5. 基本操作

機器の電源

Technical line drawing of a mechanical component with mounting feet and a central hub (no text or symbols)

Diagram showing a device with a card and a physical component, labeled in Chinese.

Aerial view of a green forested area with a highway and road, framed within a rounded rectangular frame (no visible text or symbols)

Delete Selected File? Yes No

希望のオプション を選択

1. Aperçu

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

boîte?

5.

3.

1.

2.

4.

6.7.

Technical diagram showing labeled components of a device or fixture, with numbered parts indicating different parts.

Technical diagram of a mechanical component with two side views and an arrow indicating direction (no text or symbols)

REXING® Dash Cam

REXING® ®Desh Cam

Frequency Date and Time Format Default Settings 23:08 CLUBC19 min

Format Card? All data will be deleted. Yes

Diagram showing a car's cable installation and impact on the side of a vehicle, with an arrow indicating the process.

Étape 5:

REXING® Dash Case

Top-down line drawing of a car showing the roof, dashboard, and side panel (no text or symbols)

FILE:24125-34614775T-00915 00:00:02 / 00:00:11

Diagram showing a device with a card and a physical device connected to a device, with directional arrows indicating flow or interaction.

Delete Selected File? Yes No

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

REXING® Dash Cam 1. 2. 3. 4. 5. 6.

6.7.

Technical diagram of a device rear panel with labeled components including buttons, switches, and display areas

Technical diagram of a mechanical component with two side views and an arrow indicating direction (no text or symbols)

REXING® ®Desh Cam

Frequency Date and Time Format Default Settings 23:08 01:00:00 PM

Format Card? All data will be deleted. Yes

Diagram showing a car's cable installation and impact on the side of a vehicle, with an arrow indicating the process.

Passo 5:

Montare la Telecamera Posteriore

REXING® Dash Care

Top-down line drawing of a car showing the roof, dashboard, and side panels with no text or symbols

Line drawing of a car interior showing dashboard, steering wheel, and camera (no text or symbols)

REXING U-Daxi Care

FILE:24125-3461477ST-00915 00:00:02 / 00:00:11

Diagram showing a device with a card and a physical device connected to a device, with directional arrows indicating flow or interaction.

Lettori Multimediali Consigliati: QuickTime Media Player / VLC / Windows Media Player

Delete Selected File? Yes No

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

REXING® Dash Cam 1. 2. 3. 4. 5.

6.7.

Technical diagram of a device rear panel with labeled components including buttons, switches, and display areas

Technical diagram of a mechanical component with two side views and an arrow indicating direction (no text or symbols)

REXING® Dash Cam

REXING® ®Desh Cam

Frequency Date and Time Format Default Settings 23:08 01:00:00 PM

Format Card? All data will be deleted. Yes

Diagram showing a car's cable installation and impact on the side of a vehicle, with an arrow indicating the process.

Paso 5:

REXING® Dash-Care

Top-down line drawing of a car showing the roof, dashboard, and side panels with no text or symbols

Line drawing of a car interior showing dashboard, steering wheel, and camera (no text or symbols)

REXING® Diastom Care

FILE:24125-34614775T-00915 00:00:02 / 00:00:11

Diagram showing a device with a card and a physical device connected to a device, with directional arrows indicating flow or interaction.

Reproductores multimedia recomendados: QuickTime Media Player / VLC / Windows Media Player

Delete Selected File? Yes No

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

REXING® Dash Cam 1. 2. 3. 4. 5.

6.7.

Technical diagram of a mechanical component with two side views and an arrow indicating direction (no text or symbols)

REXING® Dash Cam

REXING® ®Desh Cam

Frequency Date and Time Format Default Settings 23:08 CULUBUCIN POST

Format Card? All data will be deleted. Yes

Diagram illustrating the process of a car's electrical cable installation, showing cable connection to front and side panels with an orange arrow indicating direction.

Schritt 5:

Rexinc® Dash Care

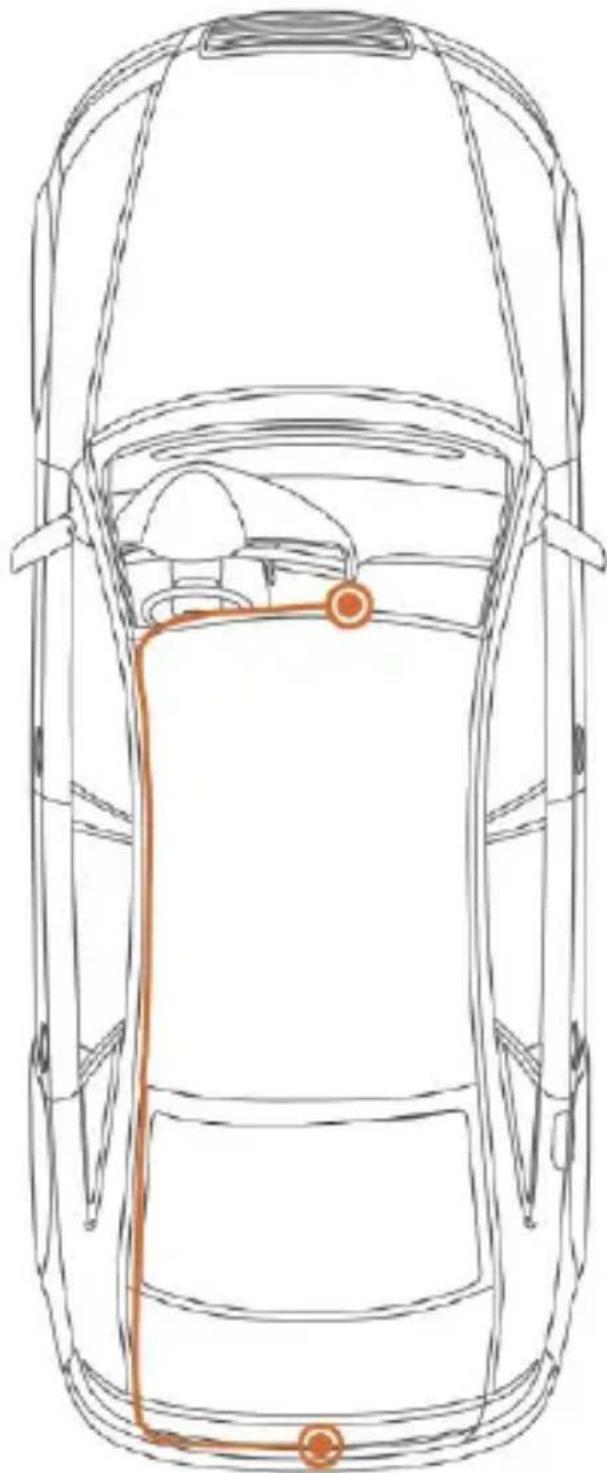

Top-down line drawing of a car showing the front and rear views with no text or symbols

Line drawing of a car interior with dashboard and steering wheel (no text or symbols)

USB Stecker in the Dash-Cam REYING® © Desh-Cam

FILE:24125-3461477ST-00915 00:00:02 / 00:00:11

Diagram showing a device with a card and an internal component, labeled in Chinese.

Empfohlene Media Player: QuickTime Media Player / VLC / Windows Media Player

Delete Selected File? Yes No
