USER MANUAL V3 Basic Rexing

Thank you for choosing REXING! We hope you love your new product as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. You can reach us via [e-mail] or call us at [phone]. Our support team will respond you as soon as possible.

Always a surprise in Rexing. Check us out here.

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

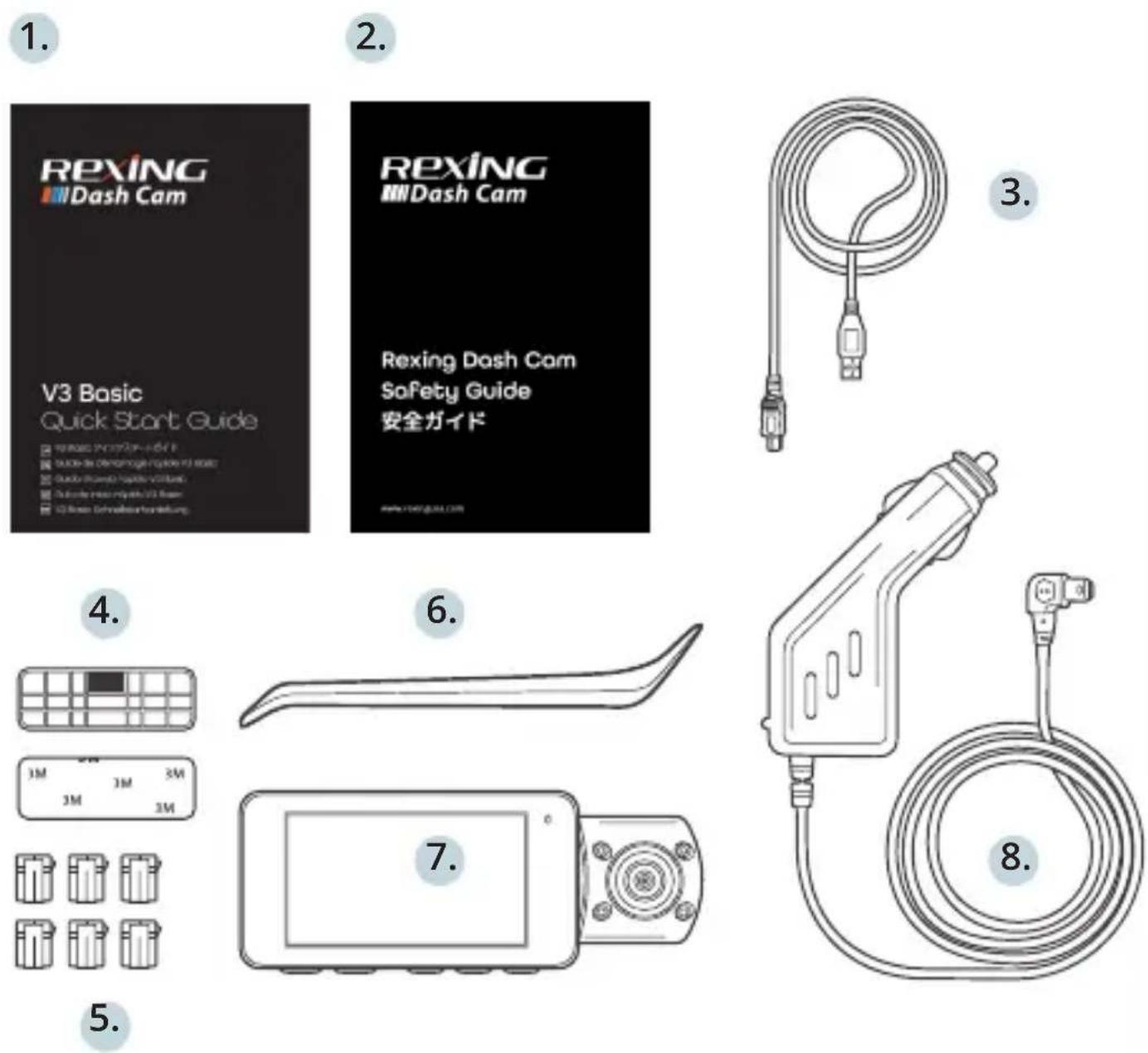

2. What's in the Box

1. V3 Basic Quick Start Guide
2. Safety Guide
3. USB Cable
4. 3M Adhesive Mount
5. Cable Adhesive Spacer
6. Cable Management Tool

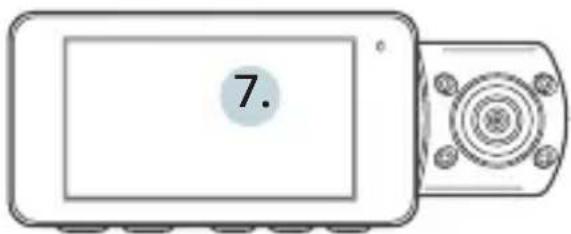

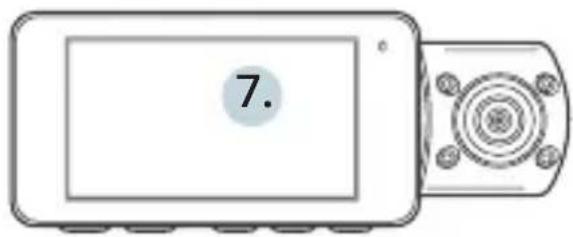

7. Rexing V3 Basic Dashboard Camera

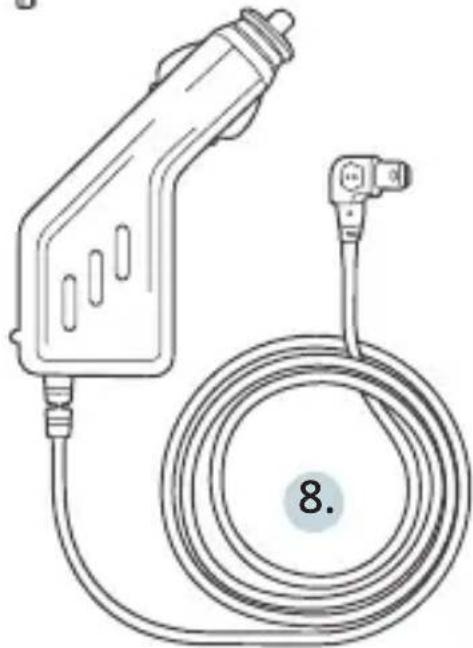

8. Car Power Connector (12ft)

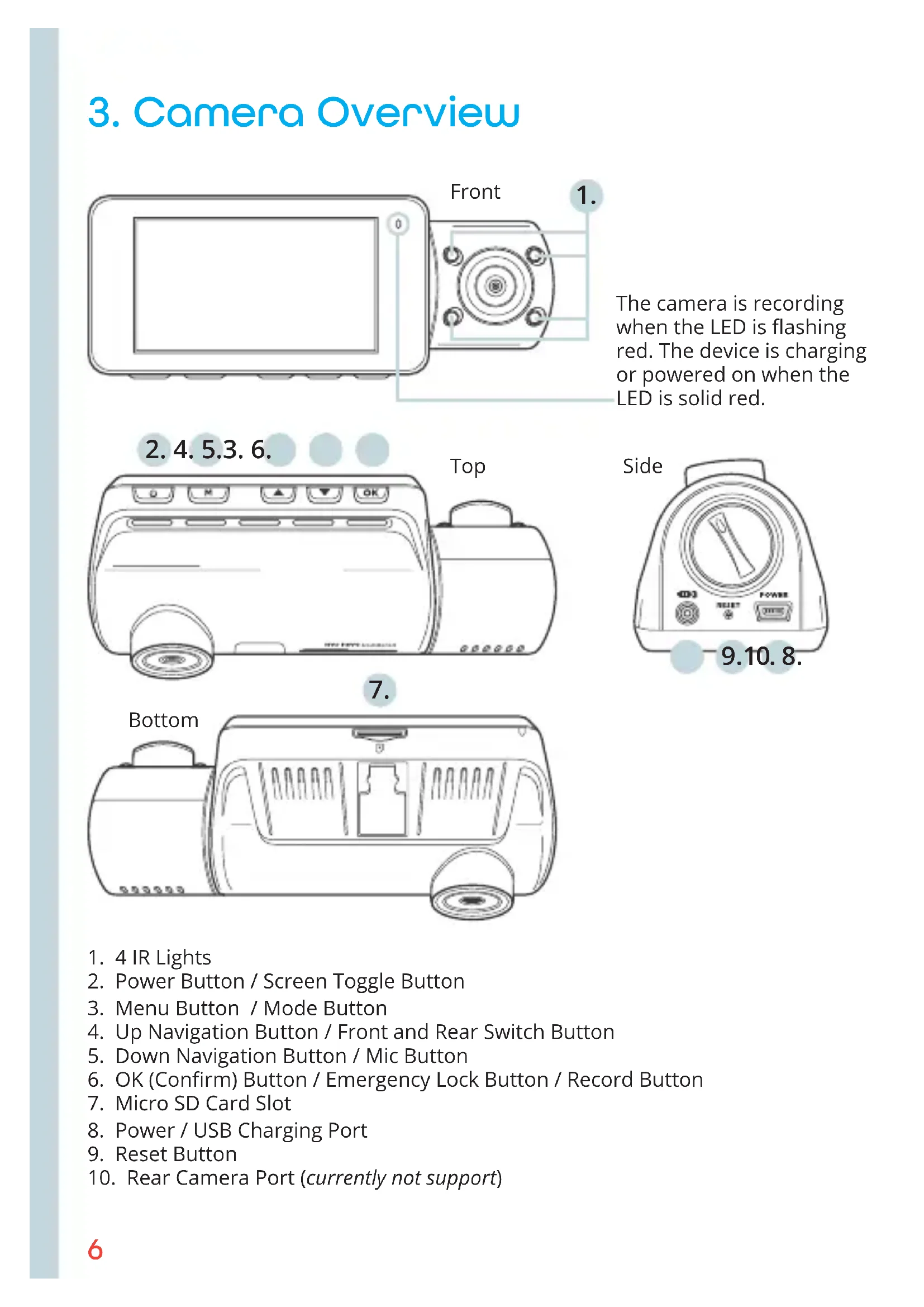

3. Camera Overview

Front 1.

The camera is recording when the LED is flashing red. The device is charging or powered on when the LED is solid red.

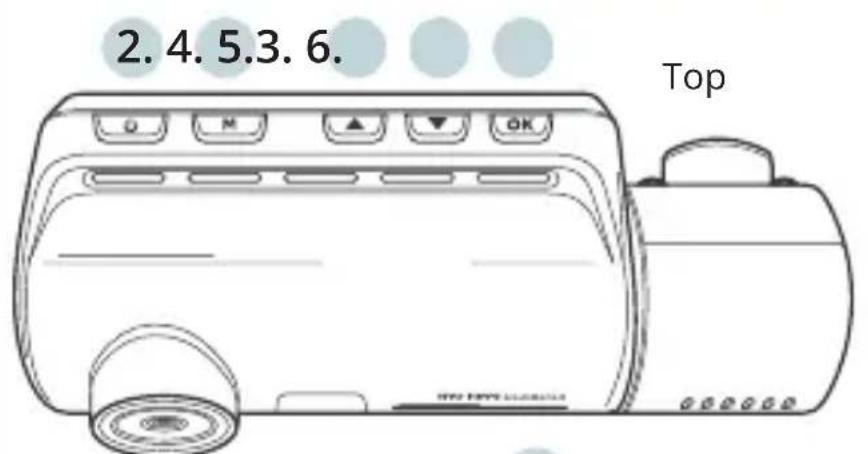

2. 4. 5.3. 6. Top

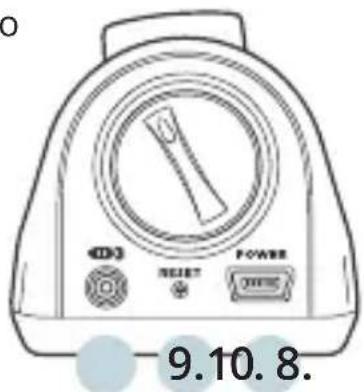

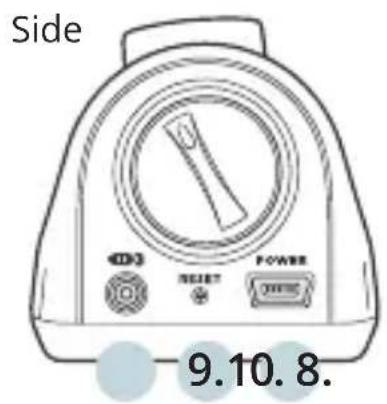

Side 9.10.8.

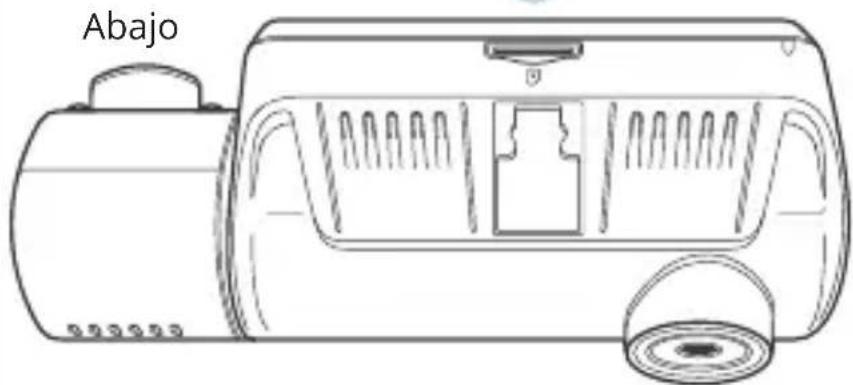

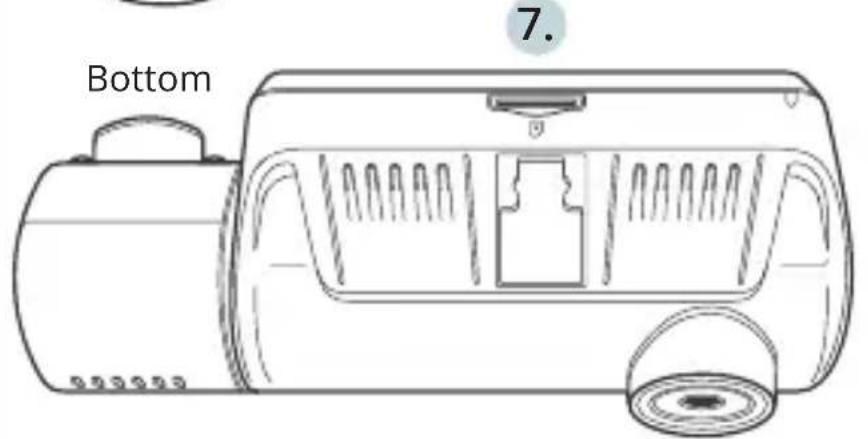

Bottom 7.

1. 4 IR Lights
2. Power Button / Screen Toggle Button
3. Menu Button / Mode Button
4. Up Navigation Button / Front and Rear Switch Button
5. Down Navigation Button / Mic Button
6. OK (Confirm) Button / Emergency Lock Button / Record Button
7. Micro SD Card Slot
8. Power / USB Charging Port
9. Reset Button
10. Rear Camera Port (currently not support)

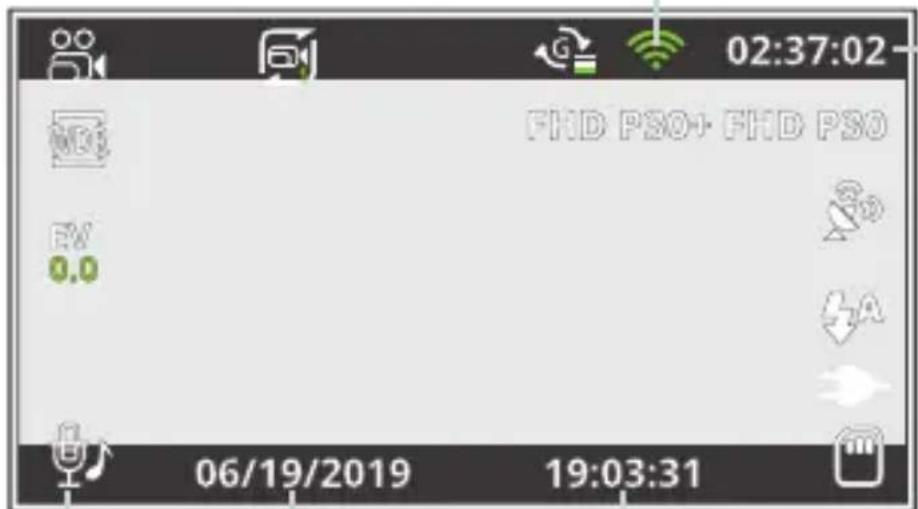

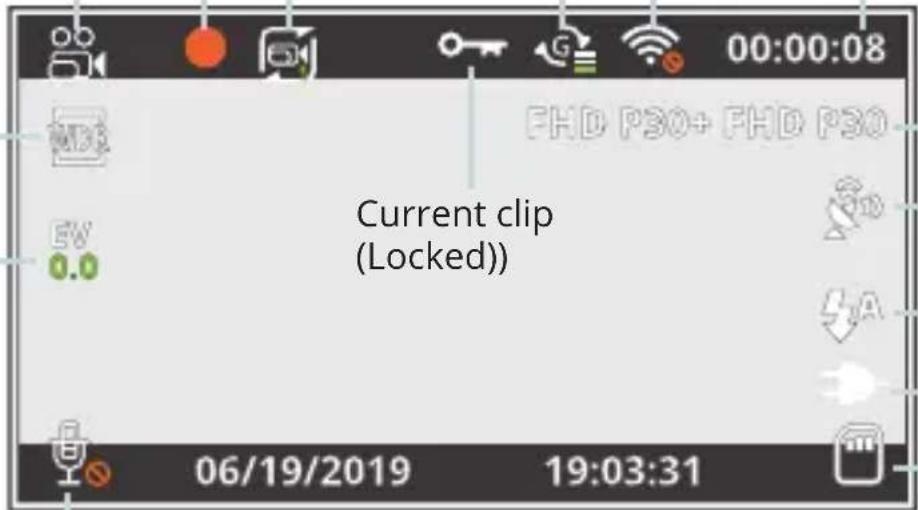

Screen Icons

Exposure Value

WDR Mode (on)

Recording

Standby Status

Wi-Fi

(Not Connected)

Recording Time

(current clip)

G Sensor Level

Recording (on)

Loop Recording

Time

Current clip (Locked)

Video Resolution

GPS Signal

(Searching)

IR Lights

Battery Charging

Memory Card

(Inserted)

MIC (off)

Wi-Fi (Connected)

02:37:02 FHD PSO+ FHD PSO 0.0 06/19/2019 19:03:31

Memory Card

Remaining Time

Current Date

(DD/MM/YYYY)

Time (24h)MIC (on)

3. Installation

Step 1: Install the Dash Cam

Orient the

Orient the mount as shown

Place the 3M tape on the mount and properly orient the mount square to the roof and hood line of the vehicle.

Firmly press the mount onto the windshield. Wait at least 20 minutes before mounting the camera.

Orient the mount as shown on the illustration above.

Line drawing of a device rear panel with ports and a connector, showing internal structure and a downward arrow (no text or symbols)

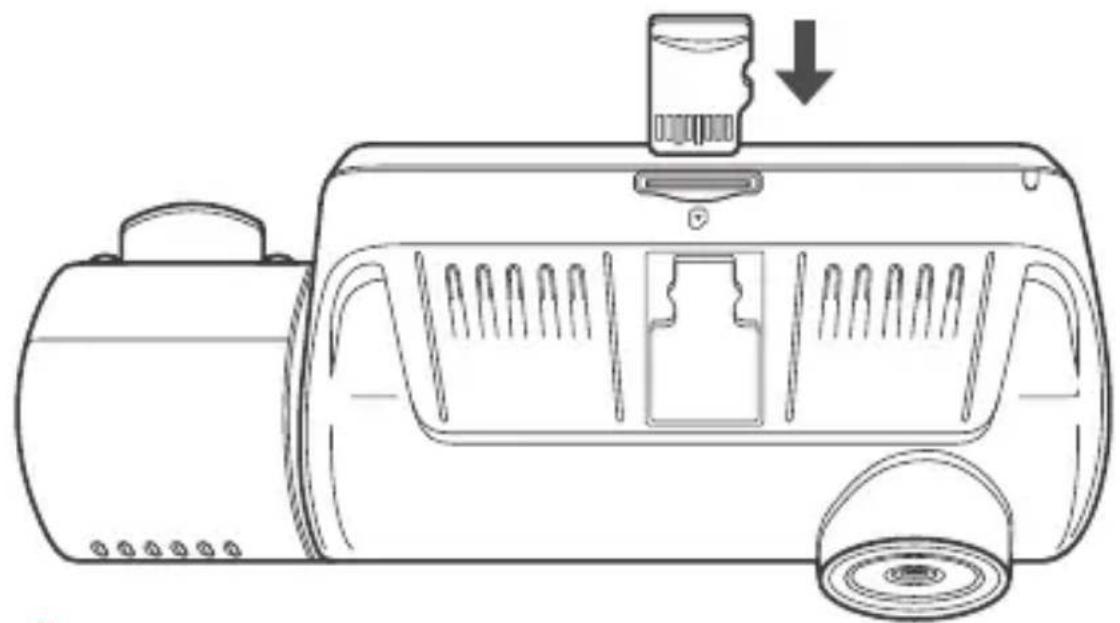

Step 2: Insert the Memory Card

The Rexing V3 Basic accepts [Class 10/UHS-1 or higher] Micro SD memory cards up to 256GB. You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you've powered down the device. Gently push the memory card in until you hear a click, and allow the spring release to push the card out.

Step 3: Power the Camera and Format the Memory Card

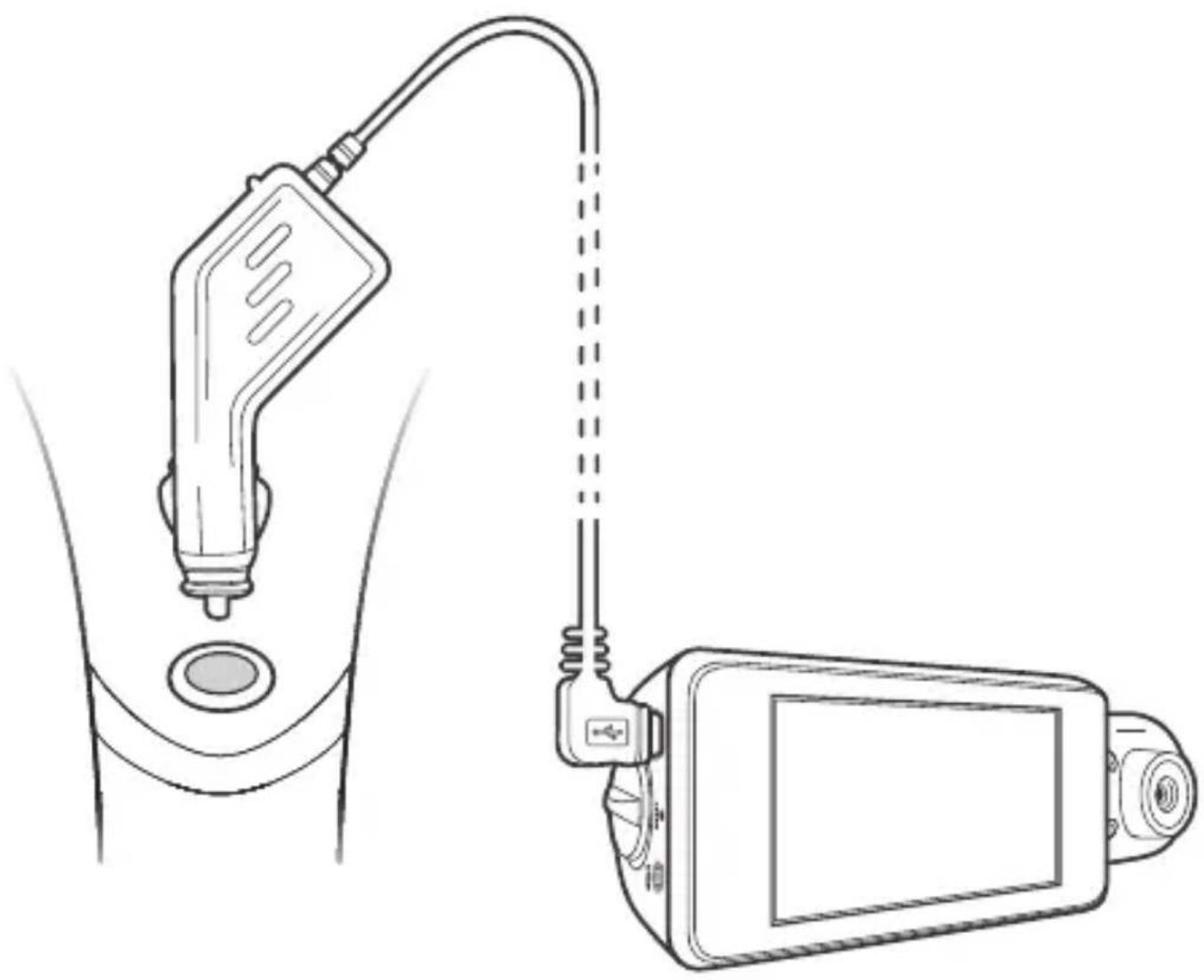

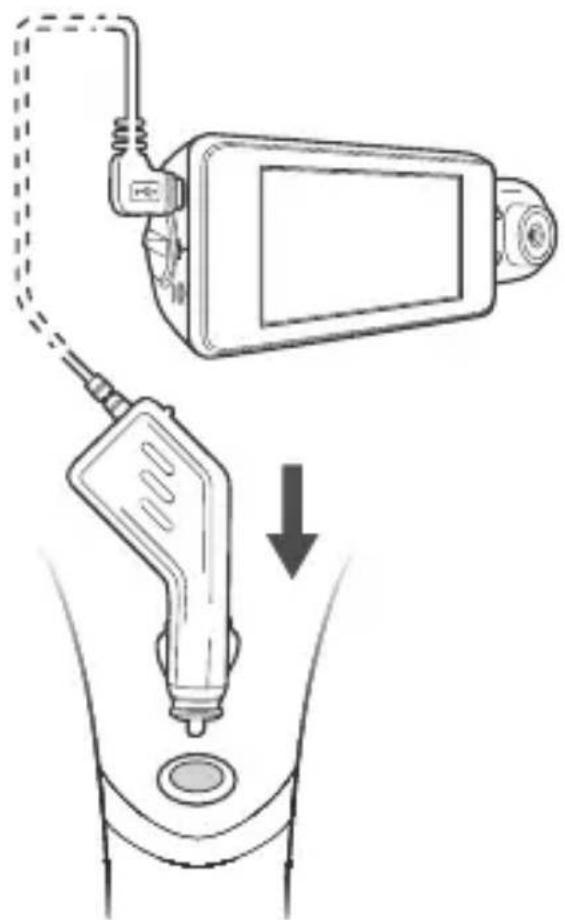

Power the camera by connecting the charger to the car cigarette lighter and camera. To ensure the V3 Basic records to your memory card properly and without error. Before you start using a new memory card, you must format the card within the camera using the format function. Always backup important data stored on the memory card before formatting.

Line drawing of a robotic arm connected to a handheld device via cable (no text or symbols)

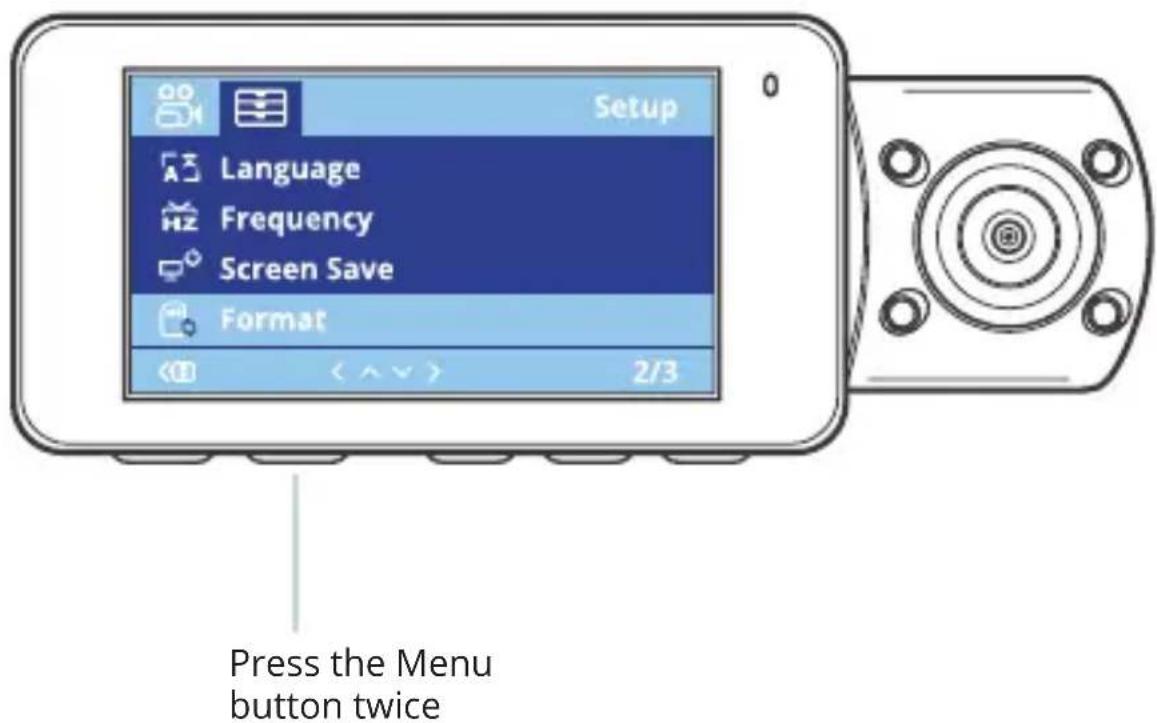

To format the memory card, make sure you have inserted your memory card, then turn on the device by connecting to a power source. Press OK to stop recording. Then press the MENU button twice to enter the System Setup Menu.

Setup Language Frequency Screen Save Format Press the Menu button twice

All date will be deleted Cancel OK

Press the OK button to confirm formatting the card

Use the UP and DOWN navigation buttons and go to the Format setting. Press the OK button to confirm the selection.

You may now disconnect from power. The camera will shut down after 3 seconds. The camera should begin recording automatically the next time it is powered on.

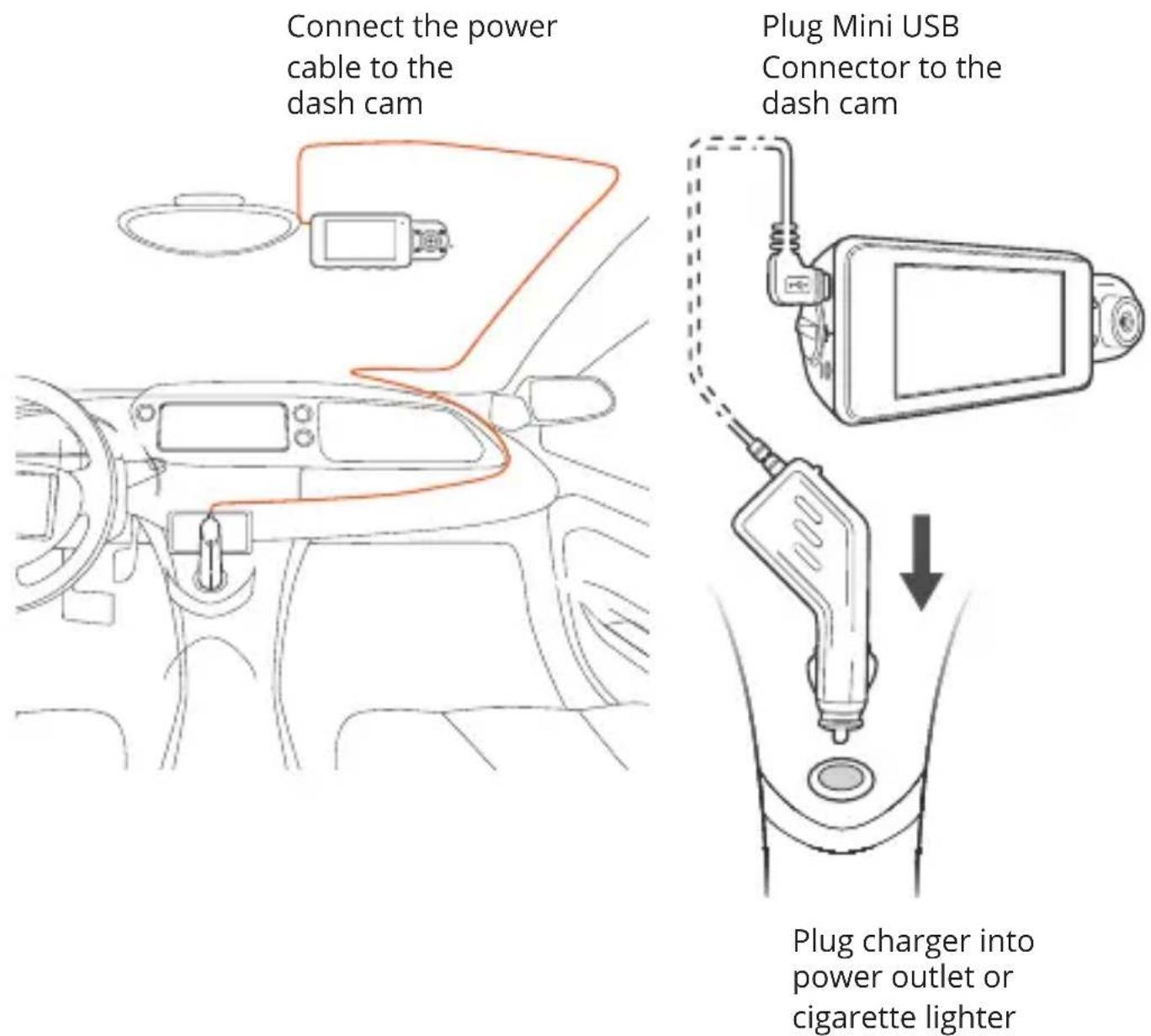

Step 4: Installing the Camera onto the Windshield

Place the camera on the mount and carefully route the power cable around the windscreen and tuck it under the trim.

Plug the car charger cable to a 12V DC power outlet or the car cigarette lighter.

Connect car charger to the camera. The camera will auto-start recording once it's powered on.

4. Basic Operation

Device Power

The device will be automatically powered on when plugged into a 12V accessory socket or cigarette lighter when receives a charge (i.e.: the vehicle is started).

To turn the device on manually, press and hold the Power button until the welcome screen appears.

The camera will automatically start recording when it's powered on.

Video Resolution Loop Recording WDR EV EV 1/2

Press and hold the Power button to turn the device on manually

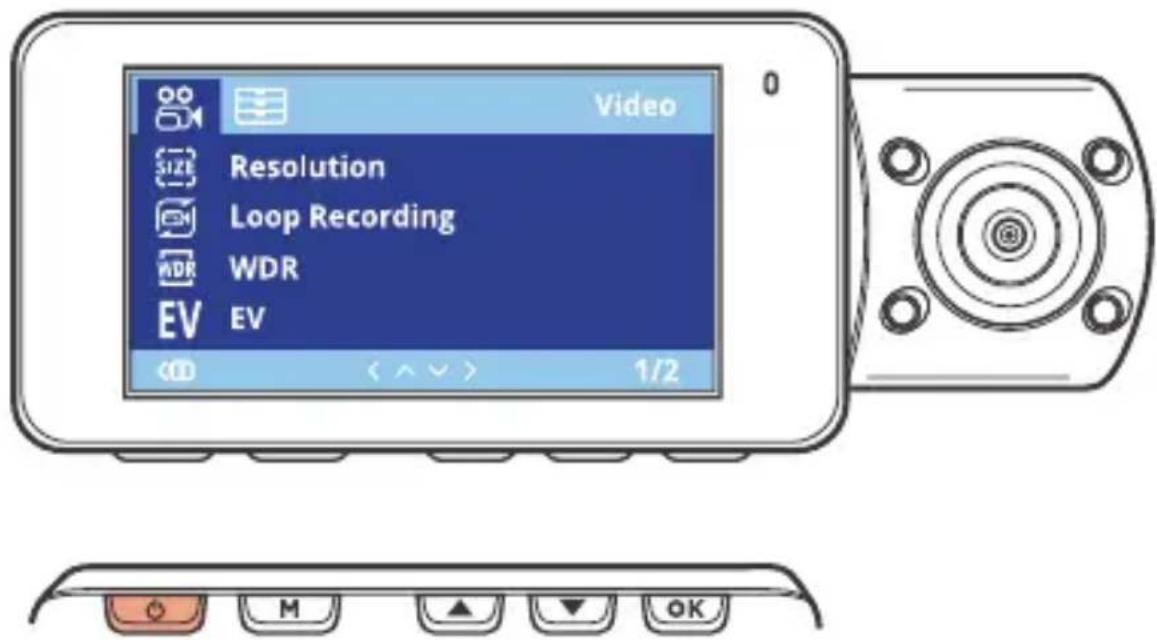

Menu Settings

Power the camera On. If the camera is recording, press the OK button to stop recording.

Hold the MENU button and toggle to the desired mode. Press the MENU button once to enter the settings menu for a Mode. Press the MENU button twice to enter the System Settings (Set up).

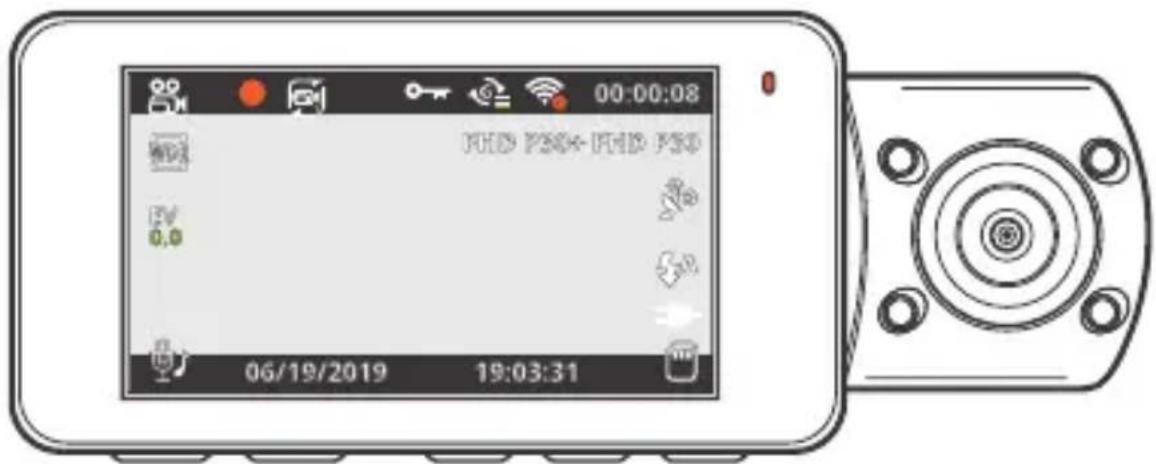

Video Recording

The camera will automatically start recording when the device receives a charge. The LED lights and red dot will blink red device when recording. Press the OK button to stop recording.

00:00:08 FHD P500-FHD P50 0.0 06/19/2019 19:03:31

Video Playback

Playback of videos can be done on the device or a computer.

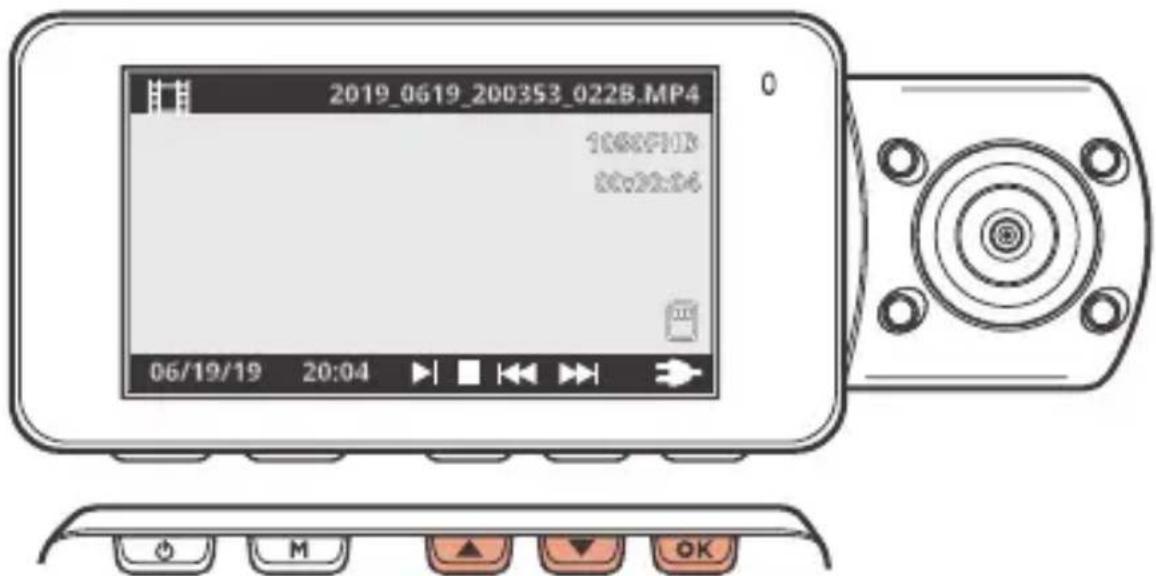

To playback a video on the device, toggle to the Playback mode. Use the UP and DOWN navigation buttons to toggle the desired video. Press the OK button to play.

2019_0619_200353_022B.MP4 10:00:01:00 06/19/19 20:04

During playback, use the OK (pause), UP navigation (rewind) and DOWN navigation (fast forward) buttons to control the video playback.

To playback a video on the computer, either use an SD card adapter or connect the device to the computer directly using the USB cable.

Diagram showing a device with a rectangular component and a separate card-like object, no text or symbols present.

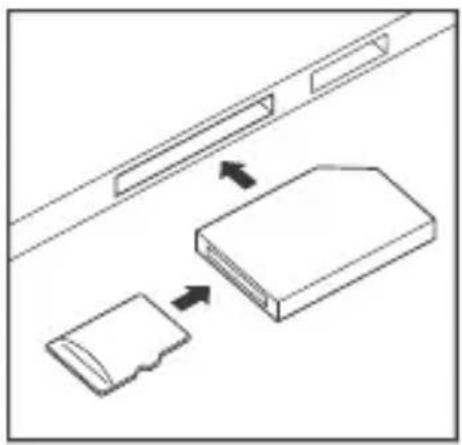

To playback a video using an SD card adapter, remove the memory card and insert it into an SD card adapter. Place the adapter in the computer. Then place the adapter into the computer.

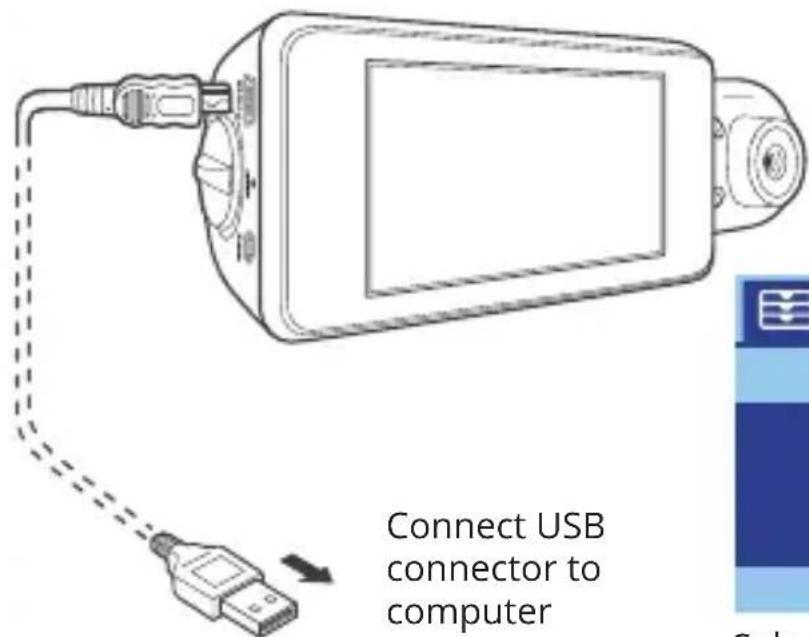

To playback a video using USB cable, connect the USB Cable to the device and the computer. After the device is powered on, press the OK button to select Mass Storage.

On the computer, navigate to device drive. The videos are stored at: \CARDV\MOVIE. The locked videos are stored at:\CARDV\MOVIE\RO.

Select the video to playback.

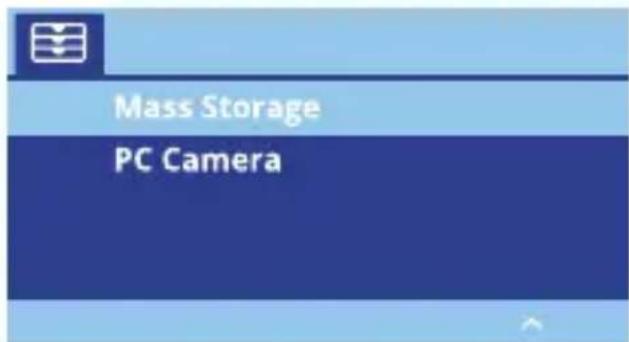

Connect USB connector to computer

Mass Storage PC Camera

Select Mass Storage

Wi-Fi Connect

Download "Rexing Connect" app from the App Store/Google Play Store.

1. To access or exit the Wi-Fi feature, hold down the UP navigation button.

2. Open Wi-Fi settings on your phone, find "SSID" from the list, tap to connect. (Default password: 12345678)

3. Open the Rexing Connect app, tap "Connect" to enter the realtime video streaming page.

2. 06/19/2019 19:03:31

1.

Wi-Fi Connect Connect 3.

1. Once connected, the dash cam screen will switch to the camera view and will display "Wi-Fi Connected" message. Using the Rexing Connect app, you can view a live preview of the dash cam screen, start / stop recording, as well as view and save your captures with your mobile device.

For further instruction regarding the Wi-Fi Connect feature, please visit www.rexingusa.com/wifi-connect/.

GPS Logger (Needs to be purchased separately)

When connected to the camera, it will record the speed and location of your vehicle as you drive.

You can then access these information while playing back your recordings using the GPS Video player (For windows and Mac, available at rexingusa.com).

The dash cam will automatically search for the GPS signal once it's connected to the power source. Press the MENU button once and go to System Settings. Toggle the GPS setting, and select your favorite speed unit.

After a GPS signal is found, the screen icon will turn from not connected to active - as per the below icons.

Abstract gray icon depicting a satellite dish with signal waves (no text or symbols)

GPS Signal - Searching

Abstract icon of a satellite dish with green signal waves, no text or symbols present

GPS Signal - Active

Symbolic illustration of satellite dish emitting signal waves with a prohibition sign (no text or numbers present)

GPS Signal - Not Connected

Taking Photos

To take a photo, stop video recording and toggle to the Photo Mode.

Press the OK button to take a photo.

To view a photo, stop video recording and toggle to the Playback Mode.

Press the UP and DOWN navigation buttons to toggle through your photos.

2019_0619_200353_022B.MP4 19:30:13 28:00:04 RISING DASH CAN DDO MP#: 18/36/2019-16:27:54 06/19/19 20:04

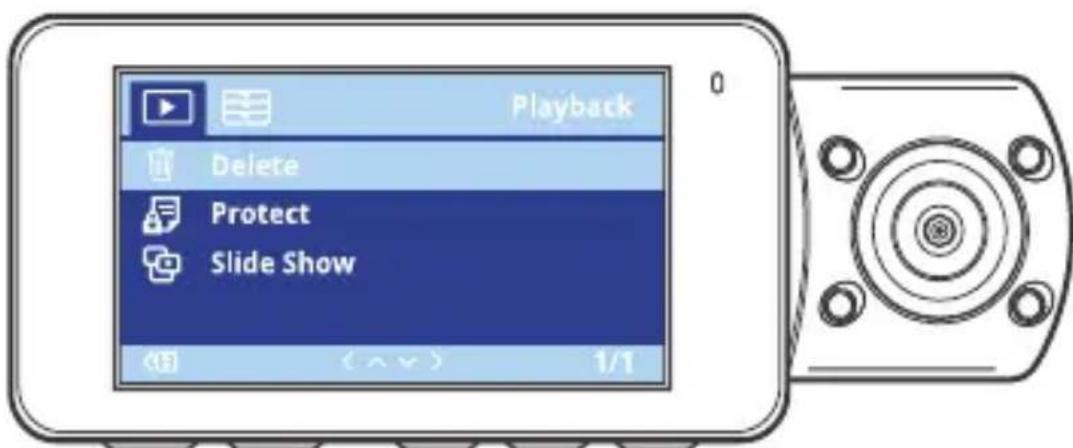

To delete a photo, stop video recording and toggle to the Playback Mode and toggle through the videos and photos to the one you want to delete.

Playback Delete Protect Slide Show 1/1

Press the MENU once and toggle to the Delete option.

Press the OK Button and select Delete Current or Delete All.

1. 概要

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

ホームページ

QR code image containing encoded data, no visible human-readable text

1.

2.

REXING Dash Cam V3 Basic Quick Start Guide ■ Reizabel 2017/04-06 (E) ■ Suisse de Ostenvooge Guide V3 8000 ■ Suisse Monetode Kapitex 2018 ■ Suisse Monaco mbate V3 8000 ■ U3 Base Schneubearbeitung

REXING MIDash Cam Rexing Dash Cam Safety Guide 安全ガイド www.108.com

Line drawing of a coiled cable with connectors (no text or symbols)

3.

4.

6.

Simple line drawing of a curved, elongated object resembling a tool or tool handle (no text or symbols)

7.

Line drawing of a handheld electric shock absorber with coiled cable and connector (no text or symbols)

5.

Line drawing of a device interior with ports and a connector, showing no text or symbols

Step 2:

メモリカードを挿入する

Line drawing of a robotic arm connected to a handheld device via cable (no text or symbols)

Line drawing of a car interior with dashboard, steering wheel, and camera (no text or symbols)

Medical procedure diagram showing a device connected to a catheter and a catheter with an arrow indicating insertion (no text or symbols present)

Video Resolution Loop Recording WDR EV 1/2

Diagram showing a device with a rectangular box and a separate card slot, connected by directional arrows (no text or symbols)

Mass Storage PC Camera

マスストレージを選択する

Wi-Fi接続

User interface control buttons labeled with icons for function, message, navigation, and OK

1.

Wi-Fi Connect Connect

3.

Abstract gray icon depicting a satellite dish with signal waves (no text or symbols)

GPS信号 - 検索中

Abstract icon of a satellite dish with green signal waves, no text or symbols present

GPS信号-アクティブ

Symbolic icon showing a satellite dish emitting signal waves and a prohibition sign (no text or numbers present)

GPS信号－未接続

写真を撮る

2019_0619_200353_022B.MP4 19:30:13 08:00:04 REKING DASH CAM D:00 MP#: 18/30/2019 16:27:54 06/19/19 20:04

Playback Delete Protect Slide Show (↑) (^^) 1/1

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

boîte

1.

2.

REXING Dash Cam V3 Basic Quick Start Guide ■ Reklasse 2017/20-2018 ■ Guide de Ostenanlage Guide V3 Solid ■ Guide de Anexo Kapital-Vollbut ■ Guide in multi-level V3 Rogen ■ U3 Risen Schwalbeartwicklung

REXING MIDash Cam Rexing Dash Cam Safety Guide 安全ガイド www.108.com

Line drawing of a coiled cable with connectors (no text or symbols)

3.

4.

6.

Simple line drawing of a curved, elongated object resembling a tool or tool handle (no text or symbols)

7.

Line drawing of a handheld electric shock absorber with coiled cable and connector (no text or symbols)

5.

Line drawing of a device interior with ports and a connector, showing no text or symbols

Line drawing of a robotic arm connected to a handheld device via cable (no text or symbols)

Line drawing of a car interior with dashboard, steering wheel, and attached sensor device (no text or symbols)

Medical procedure diagram showing a device being inserted into a patient's body, with an arrow indicating the insertion point (no text or symbols present)

Video Resolution Loop Recording WDR EV 1/2

2019_0619_200353_022B.MP4 10:00:00 00:00:00 06/19/19 20:04

Diagram showing a device with a rectangular component and a separate card-like object, no text or symbols present.

Mass Storage PC Camera

Wi-Fi Connect Connect 3.

Abstract gray icon of a satellite dish emitting signal waves (no text or symbols)

Signal GPS – Recherche

Abstract icon of a satellite dish with green signal waves, no text or symbols present

Signal GPS - Actif

Symbolic icon showing a satellite dish emitting signal waves and a red prohibition sign (no text or numbers present)

2019_0619_200353_022B.MP4 19:30E-13 28:00:04 BEKING DASH CAM DDO MP#: 18/30/2019 10:27:54 06/19/19 20:04

Playback Delete Protect Slide Show 1/1

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

2.

REXING Dash Cam V3 Basic Quick Start Guide ■ Reklasse 2017/20-2018 ■ Guide de Ostenanlage Guide V3 5000 ■ Guide de Anexo Kapital-Vollgas ■ Guide in multi-lapital V3 5000 ■ U3 Rises Schwalbeartwicklung

REXING MIDash Cam Rexing Dash Cam Safety Guide 安全ガイド www.108.com

Line drawing of a coiled cable with two connectors (no text or symbols)

3.

1.

2.

Simple line drawing of a curved, elongated object with no text or symbols

7.

Line drawing of a handheld electric shock absorber with coiled cable and connector (no text or symbols)

5.

Line drawing of a superiore oven with control buttons (no text or symbols on the device itself)

Superiore

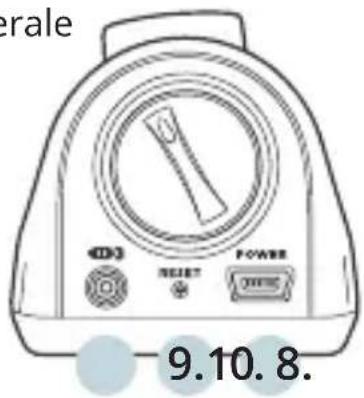

Laterale

terale 9.10.8.

1.

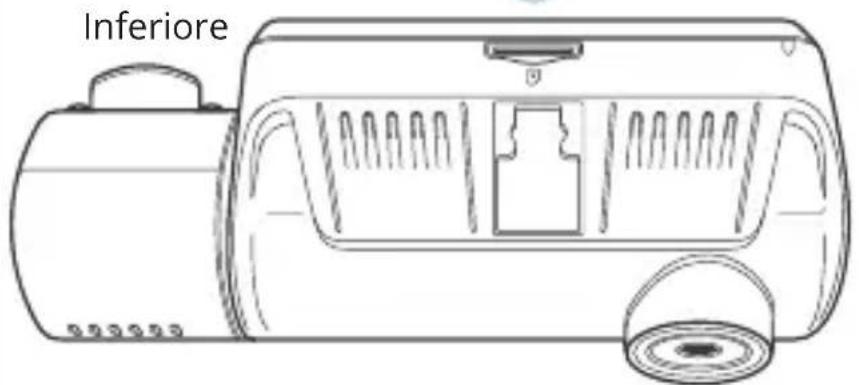

Inferiore

Line drawing of a device interior with ports and a connector, showing no text or symbols

Line drawing of a robotic arm connected to a digital device via cable (no text or symbols)

All date will be deleted Cancel OK

Line drawing of a car interior showing dashboard, steering wheel, and camera (no text or symbols)

Medical procedure diagram showing a device being inserted into a patient's body, with an arrow indicating the insertion point (no text or symbols present)

Video Resolution Loop Recording WDR EV EV < 1/2 M OK

Diagram showing a device with a rectangular component and a separate card-like object, no text or symbols present.

Mass Storage PC Camera

Wi-Fi Connect Connect 3.

Abstract gray icon depicting a satellite dish with signal waves (no text or symbols)

Abstract icon of a satellite dish with green signal waves, no text or symbols present

Symbolic icon showing a satellite dish emitting signal waves and a prohibition sign (no text or numbers present)

2019_0619_200353_022B.MP4 1:00:00:13 06:00:04 BEKING DASH CAM DDO MP#: 18/06/2019 10:27:54 06/19/19 20:04

Playback Delete Protect Slide Show 1/1

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

2.

REXING Dash Cam V3 Basic Quick Start Guide ■ Reklasse 2017/20-2018 ■ Guide de Ostenanlage Guide V3 Solid ■ Guide de Anexo Kapital-Vollbut ■ Guide in multi-level V3 Rogen ■ U3 Risen Schwalbeartwicklung

REXING MIDash Cam Rexing Dash Cam Safety Guide 安全ガイド www.108.com

Line drawing of a coiled cable with two connectors (no text or symbols)

3.

1.

2.

Simple line drawing of a curved, elongated object with no text or symbols

7.

Line drawing of a handheld electric shock absorber with coiled cable and connector (no text or symbols)

5.

Line drawing of a portable air purifier with control buttons (no text or symbols on body)

Arriba

Lado

9.10.8.

1.

Abajo

Line drawing of a device casing with internal components and a downward arrow indicating a component (no text or symbols)

Paso 2:

Line drawing of a robotic arm connected to a digital device via cable (no text or symbols)

Setup Language Frequency Screen Save Format 2/3

All date will be deleted Cancel OK

Line drawing of a car interior showing dashboard, steering wheel, and camera (no text or symbols)

Medical procedure diagram showing a device being inserted into a patient's body, with an arrow indicating the insertion point (no text or symbols present)

Video Resolution Loop Recording WDR EV EV 1/2

Diagram showing a device with a rectangular component and a separate card-like object, no text or symbols present.

Mass Storage PC Camera

06/19/2019 19:03:31 00:00:08 00:00:08+ 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 00:00:08 E:\K:\M3_80\99 HV: MA1C 345203178099 B.9 P2W2-12343678

User interface control buttons labeled with icons for function, navigation, and OK

1.

Wi-Fi Connect Connect

3.

Abstract gray icon depicting a satellite dish with signal waves (no text or symbols)

Abstract icon of a satellite dish with green signal waves, no text or symbols present

Señal GPS activa

Symbolic icon showing a satellite dish emitting signal waves and a prohibition sign (no text or numbers present)

2019_0619_200353_022B.MP4 19:00:13 08:00:04 REKING DASH CAM D00 MPa 18:00/2019 10:27:54 06/19/19 20:04

Playback Delete Protect Slide Show < img > 1/1

https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/

Facebook Instagram Site

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

1.

2.

REXING Dash Cam V3 Basic Quick Start Guide ■ Reklasse 2017/20-2018 ■ Guide de Ostenanlage Guide V3 Solid ■ Guide de Anexo Kapital-Vollbut ■ Guide in multi-level V3 Rogen ■ U3 Risen Schwalbeartwicklung

REXING MIDash Cam Rexing Dash Cam Safety Guide 安全ガイド http://www.midash.com

Line drawing of a coiled cable with two connectors (no text or symbols)

3.

4.

6.

Simple line drawing of a curved, elongated object with no text or symbols

7.

Line drawing of a handheld electric shock absorber with coiled cable and connector (no text or symbols)

5.

Line drawing of a portable oven with control buttons (no text or symbols)

Oben

Seite

e 403 NEIET POWER 9.10.8.

1.

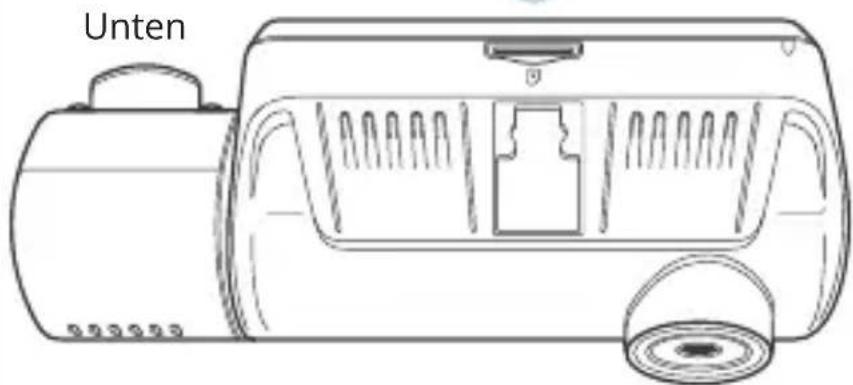

Unten

Line drawing of a device interior with a lid and ports, showing a downward arrow indicating a process or component (no text or symbols present)

Schritt 2:

Line drawing of a robotic arm connected to a digital device via cable (no text or symbols)

Setup Language Frequency Screen Save Format 2/3

All date will be deleted Cancel OK

Line drawing of a car interior showing dashboard, steering wheel, and camera (no text or symbols)

Medical procedure diagram showing a device connected to a catheter and a catheter with an arrow indicating insertion (no text or symbols present)

Video Resolution Loop Recording WDR EV 1/2

Diagram showing a device with a rectangular component and a separate card-like object, no text or symbols present.

Mass Storage PC Camera

Wi-Fi Connect Connect 3.

Abstract gray icon depicting a satellite dish with signal waves (no text or symbols)

GPS Signal - Suche

Abstract icon of a satellite dish with green signal waves, no text or symbols present

GPS Signal - Aktiv

Icon depicting satellite dish with signal waves and a prohibition symbol (no text or numbers)

2019_0619_200353_022B.MP4 19:30E-13 28:00:04 BEKING DASH CAM DDO MP#: 18/06/2019 10:27:54 06/19/19 20:04

Playback Delete Protect Slide Show 1/1

FCC ID: 2AW5W-V3BASIC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

REXING®

MADE IN CHINA
