USER MANUAL METRAFLEX 300M Gossen Metrawatt

Technical diagram of a mechanical device with numbered parts for identification

Bild 1

Line drawing of two hands holding a tool with a vertical line and directional arrow (no text or symbols)

90471 Nürnberg, Germany

METRAFLEX 300M German Rev 1

METRAFLEX 300M

3-349-713-37

1/2.13

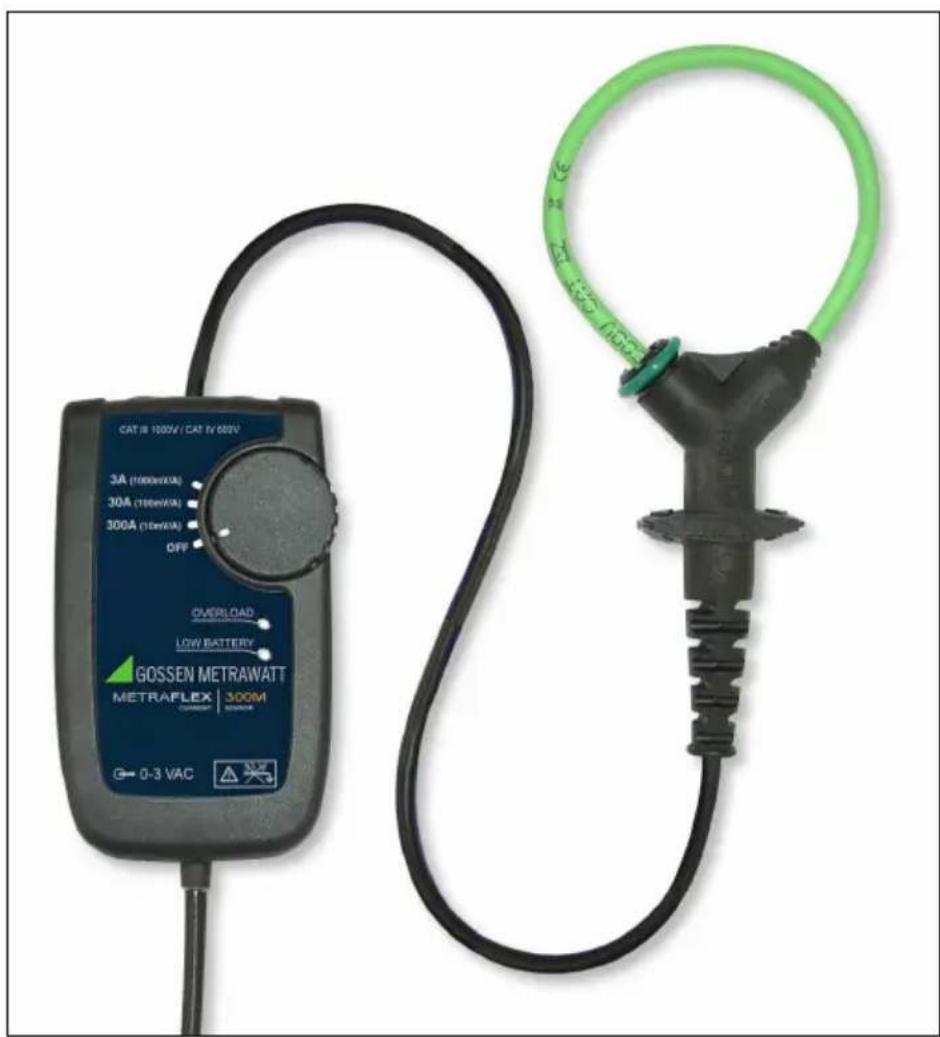

Flexible AC Current Probe

CAT18 1000V / CAT IV 600V 3A (1000mA) 30A (1500mA) 300A (150mA) OFF OVERLOAD LOW BATTERY GOSSEN METRAWATT METRAFLEX | 300M CURRENT | SEACH 0-3 VAC

Order Reference Order No.

METRAFLEX 300M Flexible AC Current Probe 3/30/300A ......Z207M

16 cm (6"), battery supply

Other head lengths available on request.

Thank you for buying this product. For safety reasons and optimum use of this instrument read through the operating instructions very carefully.

Table of Contents

1. SAFETY 4
2. INTRODUCTION 6
3. SPECIFICATIONS 7
4. OPERATION 10
   4.1 BATTERY INSTALLATION AND BATTERY STATUS ...... 10
   4.2 CONNECTING TO MEASURING DEVICE 12
   4.3 CONNECTING TO THE CIRCUIT TO BE MEASURED ..... 12
   4.4 MEASUREMENT 13
5. MAINTENANCE 14
6. WARRANTY.... 14
7. PRODUCT SUPPORT .... 15
8. REPAIR AND REPLACEMENT PARTS SERVICE

DKD CALIBRATION CENTRE AND RENTAL INSTRUMENT

SERVICE 15

1. SAFETY

The following symbols appear on the products:

Attention! Refer to Manual

Double/Reinforced Insulation

Do not apply around or remove from HAZARDOUS LIVE conductors without additional protective means.

"Additional protective means" can be:

• de-energizing the circuit
• wearing protective clothing suitable for high voltage work.

Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler for disposal.

Indicates EC conformity

The flexible current transformer is manufactured and tested in accordance with safety regulations IEC/EN 61010-1 / -031 /-2-032. If used for its intended purpose, safety is assured for the user, the device and the DUT.

Read the operating instructions carefully and thoroughly before placing the device into operation. Observe and follow all points included therein. Make the operating instructions accessible to all users.

In particular, observe the following safety instructions.

• Always inspect the electronics unit, connecting cable, and flexible probe for damage before using this product. Do not use product if damaged.
• This product must be used only by qualified personnel practising applicable safety precautions.
• Never apply the probe around bare conductors with hazardous voltages without having the appropriate permission to perform such work and without wearing protective clothing and gloves as required.
• Never apply the probe around bare conductors with voltage levels over 1000V to ground.
• Always connect electronics unit to measuring device before installing the flexible measuring head.
• Never change batteries while measurement head is installed on conductor.
• Never connect or disconnect the external power supply while the measurement head is installed on a conductor.
• Never connect the output to any equipment with a common mode voltage to earth greater than 30 Volts.
• If the probe is used in a manner not specified by the manufacturer the protection provided by the equipment may be impaired.

2. INTRODUCTION

The METRAFLEX are AC current probes utilising Rogowski principle. They can be used to measure AC current up to 300A by being connected to an appropriate measuring device (multimeter, data logger, power analyser etc.). The flexible probe allows current measurements on conductors that are hard to reach.

The probes provide an AC output voltage of 0...3V (METRAFLEX 300M), proportional to the current being measured with three selectable ranges.

Technical diagram of a mechanical device with numbered parts for identification

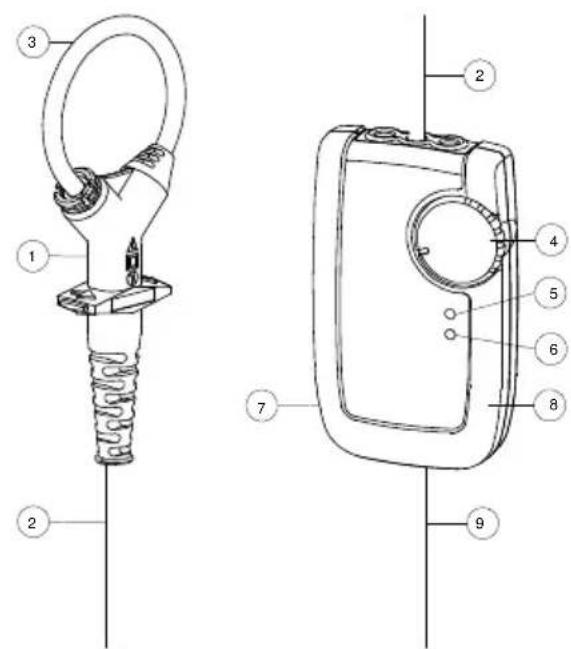

Fig 1

1. Probe Coupling
2. Probe Output Cable
3. Flexible Current Probe
4. Power On / Range Switch
5. RED LED - Overload
6. ORANGE LED – Low Battery
7. External Power Supply Input
8. Integrator Housing
9. Output Cable

3. SPECIFICATIONS

	METRAFLEX 300M
Measuring ranges 3A 30A 300A
Scaling factor 1 10 100
Output sensitivity 1V/A 100mV/A			10mV/A
Accuracy (45-65Hz) ±1% of rdg. ±0.1A			±1% of rc ±0.5A
Noise	40mArms	80mArms	400mArms
Output Connector 1 pair 4mm safety plugs
Power SupplyBatteryBattery Life (typ.)externalConnector	2x AA MN1500 LR6 Alkaline80 hrs (M'FLEX 300M)
	-
	-

Output load ≥ 100 k for specified accuracy

Frequency range 25 Hz to 50 kHz (-10% attenuation)

Phase angle error <±1^ (45-65Hz)

Position sensitivity ±2.5% of reading

External field ±0.5% of range with cable >200mm

(8") from the probe

Temperature coeff. ±0.15% / °K

Low battery Indicated by an orange LED

Overload Indicated by a red LED

Enclosure

Material ARNITE, UL94 V0

Degree of Protection IP40

Output connection 0.5m coax cable terminated with 4 mm safety plugs

Probe

Probe length 16 cm (6 inches), double insulated on request: 22 cm (9 inches), 31.5 cm (12 inches)

Probe diameter 6mm (0.25 inches)

Output cable 2m long (78.7 inches), probe to integrator

Material Alcryn, ARNITE, SANTOPRENE

Degree of Protection IP50

General Characteristics

Operating temp. -20°C to +65°C (-4°F to +149°F)

Storage temp. -40°C to +75°C (-40°F to +167°F)

Operating humidity 15% to 85% (non-condensing)

Weight 280g

Safety standards

EN 61010-1:2001

EN 61010-031:2002 +A1 :2008

EN 61010-2-032:2002

EMC standards

Emmision

EN 61326-2:2006 Class B

Immunity

EN 61326-2:2006

1000 V_RMS , Category III, 600 V_RMS , Category IV, Pollution Degree 2 (Probe and Integrator)

30V maximum between output and earth

ROHS and WEEE compliant

Rated for continuous use

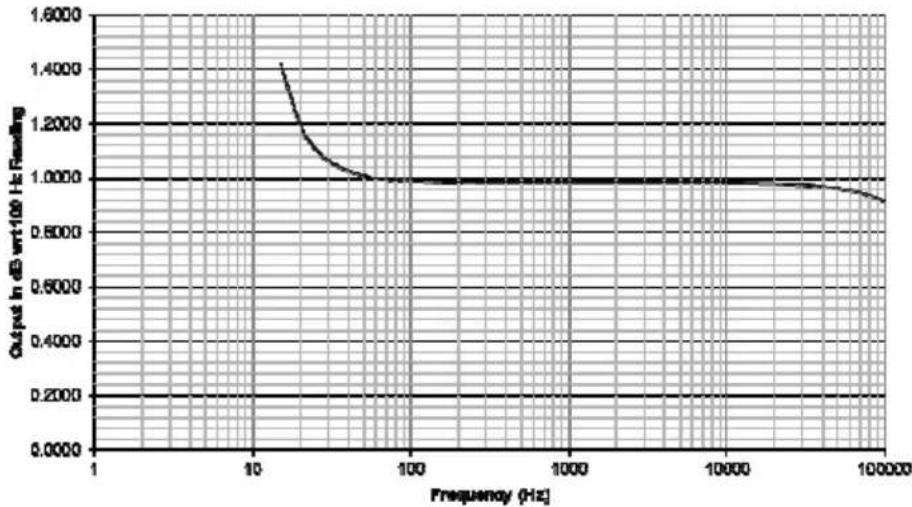

Metraflex 300M Frequency Response wrt 100 Hz Reading

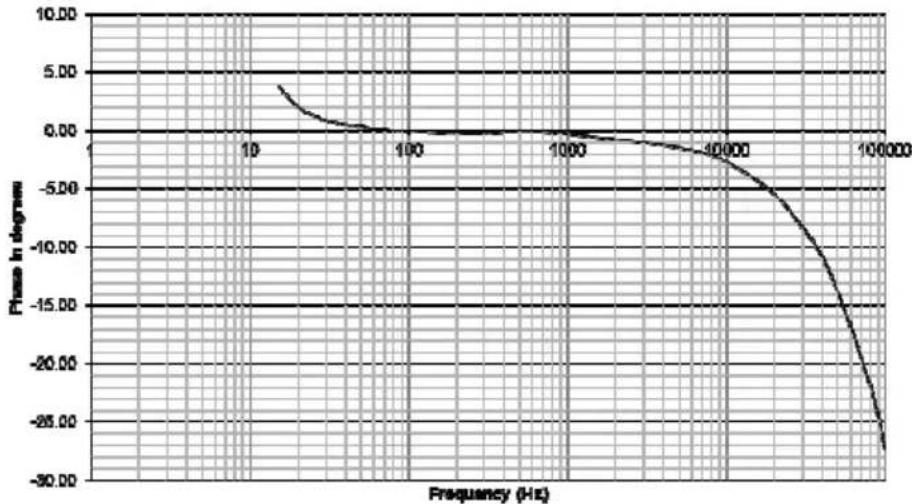

Metraflex 300M Phase Response

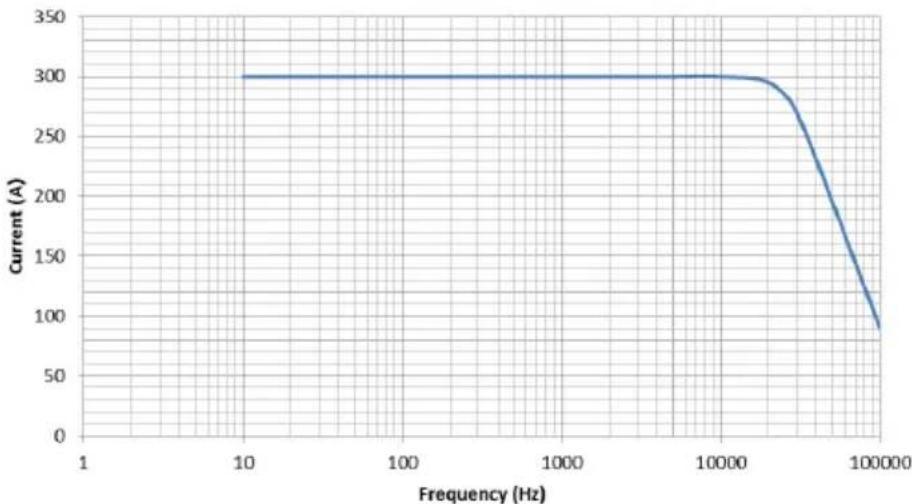

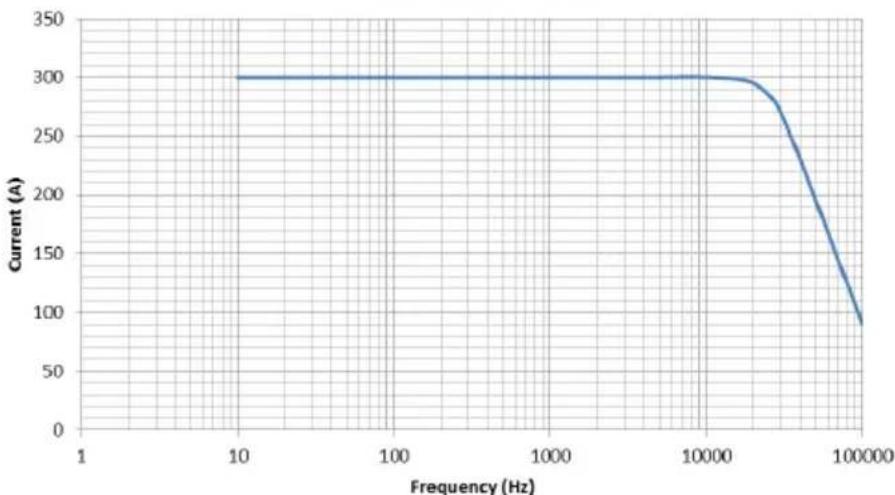

Metraflex 300M I * f De-rating curve

4. OPERATION

4.1 BATTERY INSTALLATION AND BATTERY STATUS

Never replace batteries with flexible measuring head installed on conductor to be tested or output connected to a measuring device.

Never operate the unit without the battery cover fitted.

The METRAFLEX require two AA MN1500 LR6 alkaline batteries for operation. The battery compartment is accessed from the rear of the electronics enclosure.

Battery status is indicated by an orange LED on the front of the integrator module. This LED will flash one time when the unit is switched ON. The length of time the LED is lit will increase as battery life decreases. Continuous lighting of LED indicates low battery and requires batteries to be replaced.

Should you suspect a depleted battery or the low battery LED blinking, proceed as follows.

1. Turn "OFF" all power to the unit and measurement circuits.
2. Set the probe selector switch to the "OFF" position.
3. Remove the flexible current probe from around the conductor of your measurement circuit. Disconnect the output from the measuring unit. Remove the external power supply cable.
4. Rotate the battery lock screw (1/4 turn) until it aligns with the unlock symbol. The battery cover can now be removed.
5. Install the replacement batteries into the battery holder. Observe correct polarity.
6. Replace the battery cover and turn the battery lock until it aligns with the lock symbol.

4.2 CONNECTING TO MEASURING DEVICE

Read safety section of instructions before operating this product.

METRAFLEX 300M: Plug the output cable of the current sensor into the voltage measuring input terminals of the multimeter (black to GND, red to V) and switch it to V AC.

4.3 CONNECTING TO THE CIRCUIT TO BE MEASURED

It is strongly recommended to de -energize the circuits to be measured when making connections to the installation. If it is necessary to make connections on energized circuits they must be made by qualified and authorized personnel only observing the required safety precautions.

Never apply the probe around bare conductors with voltage levels over 1000V (CAT III) or 600V (CAT IV) to ground.

Always connect electronics unit to measuring device before installing the flexible measuring head.

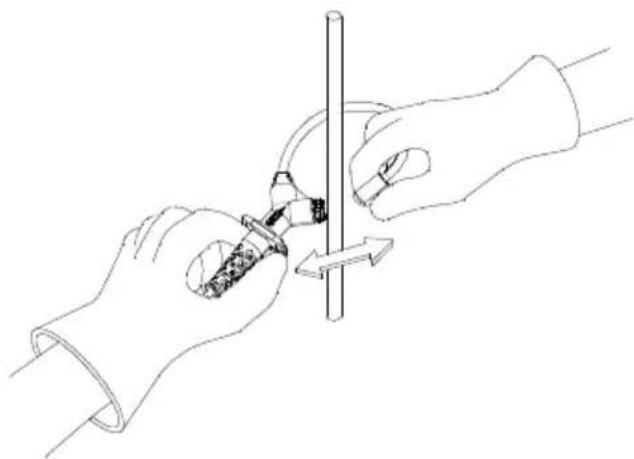

Open the probe coupling and slip the measuring head over the conductor carrying the current to be measured.

Close the probe coupling such that it visibly and audibly snaps into place.

Line drawing of two hands holding a tool with a vertical line and arrow indicating direction (no text or symbols)

An accurate measurement is assured under the following conditions:

- The conductor is centred within the measuring head.

- The measuring head forms a perfect circle.

- The probe coupling is not located close to other conductors carrying high current.

4.5 MEASUREMENT

To activate unit, move the rotary switch from the “off” position to the required measuring range. If the value of current being measured is unknown, first select the highest range and then reduce accordingly.

The red and the orange LED might flash when the unit is switched on or when the measuring range is changed.

To obtain correct results set the scaling factor on the meter or analyser for each measurement channel corresponding to the selected measuring range; see table under SPECIFICATIONS.

When measuring active power you also must observe the direction of the current flowing through the measuring head. Check the correct polarity at the power analyzers based on the vector representation of voltage and current, or by the polarity of the values for active power. These have to be positive for consumer measurements.

5. MAINTENANCE

Do not use METRAFLEX if damaged.

Always inspect the integrator unit, connecting cable, and flexible probes for damage before use.

To avoid electric shock, keep the METRAFLEX clean and free of surface contamination.

Use Isopropyl alcohol to clean the electronics unit and the probe.

Make sure the flexible probe, connecting cable, and electronics enclosure are dry before further use.

6. WARRANTY

Your METRAFLEX is guaranteed for two years from the date of purchase against defective material or workmanship. If the unit fails during the warranty period, we shall at our discretion, repair or replace it with a new or reconditioned unit provided we are satisfied that the failure is due to defective material or workmanship. To make a claim under warranty, the probe should be returned to us, postage prepaid, with a description of the defect. The use of a battery or external power supply, other than that specified invalidates this warranty.

Goods alleged by the buyer to be defective shall not form the subject of any claim for injury, loss, damage, or any expense howsoever incurred whether arising directly or indirectly from such alleged defects other than death or personal injury resulting from the seller's negligence.

No condition is made or to be implied nor is any warranty given or to be implied as to the life or wear of goods supplied or that they will be suitable for any particular purpose or for use under specific conditions, notwithstanding that such purpose or conditions may be made known to the seller.

7. PRODUCT SUPPORT

If required please contact:

Product Support Hotline

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

8. REPAIR AND REPLACEMENT PARTS SERVICE DKD CALIBRATION CENTRE AND RENTAL INSTRUMENT SERVICE

If required please contact:

GMC-I Service GmbH

Service Center

90471 Nürnberg, Germany

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

This address is only valid in Germany. Please contact our representatives or subsidiaries for service in other countries.
