Product Type	Air Purifier
Brand	IKEA
Model	STARKVIND 504.619.42
Dimensions (L x H x P)	51 cm x 53 cm x 19 cm
Weight	Approximately 5.9 kg
Power Supply	24.0 V DC, 1.3 A, 31.0 W (via included power adapter)
Power adapter	Input: 100-240 V AC, 50/60 Hz; Output: 24 V DC, 2.0 A
Wireless connectivity	Wi-Fi 2.4 GHz (2400-2483.5 MHz), range 10 m in open field
Compatible with	TRÅDFRI gateway and IKEA Home Smart app
Fan speeds	5 manual levels + automatic mode
Air quality sensor	PM2.5 particle measurement; green/orange/red LED indicator
Purified air flow (level 1)	55 m³/h (with particle filter) / 50 m³/h (with gas filter)
Purified air flow (level 5)	270 m³/h (with particle filter) / 240 m³/h (with gas filter)
Noise level (level 1)	24 dB(A) (with particle filter) / 24 dB(A) (with gas filter)
Noise level (level 5)	53 dB(A) (with particle filter) / 51 dB(A) (with gas filter)
Power consumption (level 5)	33.0 W (with particle filter) / 25.0 W (with gas filter)
Filters	Pre-filter (washable), particle filter, gas filter (optional)
Maintenance intervals	Pre-filter: clean every 2-4 weeks; Sensor: clean every 6 months; Particle filter: replace every 6 months; Gas filter: replace every 6 months
Operating temperature	0 °C to 40 °C
Operating humidity	10 to 60% RH (recommended: 40-60% RH)
Usage	Indoor only, domestic
Safety	Automatic shut-off if tipped over, child lock (min. age 8 years)
Warranty	Refer to IKEA document or after-sales service
Manufacturer	IKEA of Sweden AB, Box 702, SE-343 81 Älmhult, Sweden

Frequently Asked Questions - STARKVIND 504.619.42 IKEA

How can I connect the STARKVIND purifier to the IKEA Home Smart app?

Download the IKEA Home Smart app from the App Store (iOS) or Google Play (Android). Remove the front cover of the purifier to access the pairing button. Follow the app instructions to add the device to your TRÅDFRI gateway. Make sure the gateway is within 10 meters in open field.

How to clean the pre-filter and the air quality sensor?

Unplug the device before cleaning. The pre-filter can be cleaned with a vacuum or with water (depending on condition). The air quality sensor should be gently vacuumed every 6 months. Never use abrasive products or solvents.

When should I change the filters and how to replace them?

The LED light on the control panel illuminates to indicate that the filters need to be checked. The particle filter and gas filter (optional) should be replaced every 6 months. Unplug the device, remove the pre-filter, then the used filters. Install new filters, plug in, and press the RESET button for 3 seconds.

How to adjust fan speed and automatic mode?

Turn the control knob to manually select levels 1 to 5. Press the button to activate automatic mode, where the PM2.5 sensor adjusts speed based on air quality. Press again to turn off. A long press locks the control. You can also control via the app.

What do the air quality indicators (green, orange, red) mean?

The indicators show PM2.5 particle levels: green (0-35, good), orange (36-85, acceptable), red (86 and above, poor). They are active only in automatic mode.

Can I leave the purifier on continuously?

Yes, the device is designed for continuous use. However, unplug it if not used for a long period. Follow maintenance intervals to maintain performance.

What is the power consumption of the STARKVIND?

Consumption varies by speed: from 2.0 W (level 1, with particle filter) to 33.0 W (level 5, with particle filter). With gas filter, it is slightly lower (1.9 W to 25.0 W). The adapter has a standby consumption of 0.1 W.

Is the STARKVIND compatible with voice assistants?

The device is compatible with the TRÅDFRI gateway and the IKEA Home Smart app. It can be integrated into a smart home system, but voice assistants (Alexa, Google Assistant) require additional configuration via compatible bridges. Check the IKEA website for more information.

What to do if a burning smell or smoke comes from the device?

Unplug the power cord immediately and contact IKEA after-sales service. Do not attempt to repair the device yourself. Regular maintenance reduces this risk.

Can I use the purifier in a bathroom or kitchen?

No, the STARKVIND is designed for dry indoor use (temperature 0-40 °C, humidity 10-60% RH). Do not install it in a bathroom or near a heater. In a kitchen, it does not replace an extractor hood or ventilation system.

USER MANUAL STARKVIND 504.619.42 IKEA

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Electrical safety

• Do not use a damaged power plug or loose electrical outlet.
• Do not move the product by pulling the power cord.
• To prevent the power cord from being damaged or deformed, do not forcibly bend it or run it under a heavy object.
• If the electrical outlet is wet, carefully unplug the product and allow the electrical outlet to completely dry before subsequent use.
• Do not handle the power plug with a wet hand.
• Do not plug in and unplug the power plug repeatedly.
• Unplug the appliance before repair, inspection or parts replacement.
• Remove any dust or water from the power plug.
• Unplug the appliance if it is not to be used for a long time.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not attempt to repair or modify the power cord.
• This product shall only be used together with the included power supply unit.
• If any part is damaged, the product should not be used.

Installation safety

• The product is only intended for household use under normal operating conditions.
• Do not install the air purifier near a heating device.
• Do not use the product in wet environments or in environments with high humidity, such as the bathroom or in a room with great variations in temperature.
• This product is not a substitute for proper ventilation, regular vacuum cleaning or the functionality of an extractor hood or fan while cooking. Always place and use the product on a dry, stable, even and horizontal surface.
• Leave at least 30 cm of free space around the product.
• Do not use the product in areas where flammable gases or combustible materials are used or stored.
• Do not exert excessive force or subject the product to bumps and bangs. Install the product so that no obstacles around the product block the circulation of air.

Operational safety

• Never place the product in water.
• Do not disassemble, repair or modify the product.
• Unplug the product before you clean it.
• If the air purifier produces a strange noise, burning smell or smoke, immediately remove the power plug from the electrical outlet and call our Customer support.
• Do not spray any flammable materials into the air inlet.
• Do not stick fingers or foreign objects into the air inlet or outlet.
• Replace filters with new ones according to filter replacement cycles. Product performance may otherwise deteriorate.
• Do not push or lean against this product since it may tip over and cause physical injury or product malfunction.
• The product does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device upon accidents involving combustion processes and hazardous chemicals.

IMPORTANT:

STARKVIND air purifier can be used as a standalone device and also works together with TRÄDFRI Gateway and the IKEA Home smart app.

QUICK GUIDE

If you have an iOS device:

Go to the App Store and download the IKEA Home smart app. The app will take you through the process of adding STARKVIND air purifier to your TRÄDFRI Gateway.

If you have an Android device:

Go to Google Play and download the IKEA Home smart app. The app will take you through the process of adding STARKVIND air purifier to your TRÄDFRI Gateway.

Pairing: Adding STARKVIND air purifier to your TRÅDFRI Gateway.

STARKVIND air purifier E2007:

You will find the pairing button by removing the front cover.

• The range between the gateway and the receiver is measured in open air.
• Different building materials and placement of the units can affect the wireless connectivity range.
• If the app can't connect your air purifier to the gateway, then try to move the air purifier closer to your gateway.

Fan speed control

The fan speed can be regulated between 1 to 5 and Auto mode.

Auto mode

In Auto mode, the product selects the fan speed in accordance with the ambient air quality. The air quality sensor is active and measures PM 2.5 particles when the air purifier is running.

Only in the IKEA Home smart app. Indicators for air quality (PM 2.5):

Green: 0-35 / Good

Amber: 36-85 / OK

Red: 86- / Not good

• Operational temperature: 0°C to 40°C. • Humidity when operational: 10 to 60% RH (Recommended operational humidity: 40-60% RH)

When STARKVIND air purifier is connected to the mains for the first time, the LED lights on the control panel light up in succession. When the LED lights stop illuminating, the product is ready to use.

Press the control knob to put it in Auto mode, or

Turn to the desired level. Press the knob again to turn it off.

A long press activates the Control lock. It can also be controlled from the app IKEA Home smart.

Care instructions

Unplug the product before cleaning. To clean the product, wipe with a soft damp cloth. Use another soft dry cloth to wipe dry. Vacuum clean the pre-filter regularly.

Note!

Never use abrasive cleaners or chemical solvents since these can damage the product.

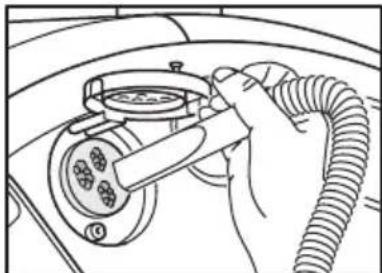

Cleaning the air quality sensor

Vacuum clean the air quality sensor regularly.

Filter replacement

When replacing the filter, it is essential that the user proceeds as follows:

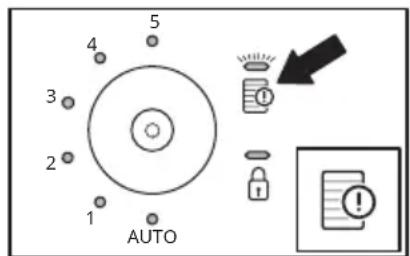

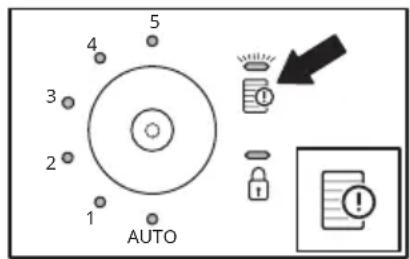

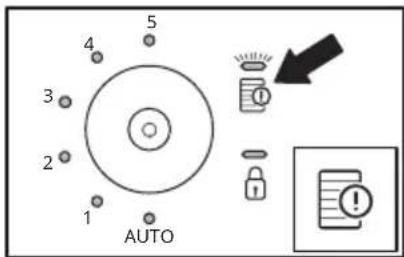

One LED light illuminated on the control panel indicates that you should check your filters.

Warning!

The power supply cord must be disconnected during filter replacement!

1. Disconnect the power and wait until the fan has stopped.
2. Remove the pre-filter and clean the pre-filter with a vacuum cleaner or with water depending on how dirty it is.
3. Remove filter(s), and handle used filters carefully. Dispose of the filter(s) in accordance with local environmental regulations for waste disposal.
4. Clean the inside, removing all dust and dirt.
5. Insert the new filter(s). (Touch only the frame of the gas filter).
6. Reconnect the power supply cord.
7. When you have replaced a filter, press and hold the RESET button for 3 seconds. The reset initialises the filter replacement cycle counter.
8. Fix the pre-filter in place.

- Wash your hands thoroughly after replacing the filter(s).

Technical specifications

Model: STARKVIND air purifier

Type: E2007

Dimensions: W: 51cm x H: 53cm x D: 19cm

Weight: approx. 5.9 kg

Input: 24.0V DC, 1.3A, 31.0W

Range: 10 m in open air

Operating frequency: 2400~2483.5MHz

Output power: 9.5 dBm

Filters:

Filter for particle removal.

Optional: Filter for gas cleaning.

Power Supply Unit

Type: KA4802A-2402000P

Input: 100-240 VAC, 50/60 Hz, 1.2A

Output: 24.0V DC, Max 2.0A, Max 48.0W

(Only EU/UK)

Average active efficiency: 87.7%

Efficiency at low load (10 %): 78.7 %

No load power consumption: 0.1 W

Indoor use only.

Manufacturer: IKEA of Sweden AB

(commercial registration number: 556074-7551)

Address: Box 702, SE-343 81 Älmhult, SWEDEN

STARKVIND air purifier E2007:

Operational modes with Particle filter (with Gas filter)

Level Noise CADR Power
1	24dB(A)(24dB(A))	55m3/h ( 50m3/h )	2.0W(1.9W)
2	33dB(A)(32dB(A))	120m3/h ( 110m3/h )	5.0W(4.0W)
3	43dB(A)(42dB(A))	190m3/h ( 150m3/h )	11.5W(9.5W)
4	51dB(A)(49dB(A))	250 m3/h ( 210m3/h )	24.5W(19.0W)
5	53dB(A)(51dB(A))	270 m3/h ( 240m3/h )	33.0W(25.0W)

The recommended filter replacement cycles may differ depending on the operating environment.

Filter Cycle Action
Pre-filter	Every 2~4 weeks	Cleaning
Air quality sensor	Every 6 months C	leaning
Particle filter Every	6 months Replacement
Gas filter Every 6 months Replacement

Save these instructions for future use.
