Brand	IKEA
Model	VINDSTYRKA 404.982.34
Product Type	Air Purifier
Dimensions (HxWxD)	47 x 27 x 27 cm
Weight	3.2 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	Max 30 W
Fan Speeds	5 speeds + auto mode
Noise Level	24 - 50 dB(A)
Maximum Airflow	190 m³/h
CADR (Smoke/Dust/Pollen)	170 m³/h
Recommended Room Size	Up to 20 m²
Filter Type	Pre-filter + HEPA H13 + Activated carbon
Filter Replacement Interval	Every 6-12 months
Particle Sensor	PM2.5 sensor
Display	PM2.5 value, color-coded air quality indicator
Modes	Auto, Night, Manual (5 speeds)
Timer	1-12 hours
Child Lock	Yes
Filter Reset Indicator	Yes
Material	Plastic (polypropylene)
Cleaning Instructions	Wipe with a damp cloth; do not use abrasive cleaners
Spare Parts Available	Replacement filter (VINDSTYRKA FILTER)
Warranty	2 years (may vary by region)
Certifications	CE, UKCA, AHAM verified

Frequently Asked Questions - VINDSTYRKA 404.982.34 IKEA

How often should I replace the filter in my VINDSTYRKA air purifier?

The filter should be replaced every 6-12 months depending on usage and air quality. The device has a filter reset indicator that will remind you when it's time. Replacement filters (VINDSTYRKA FILTER) can be purchased from IKEA.

How do I clean the VINDSTYRKA air purifier?

Unplug the device and wipe the exterior with a damp cloth. Do not use harsh chemicals or abrasives. The pre-filter can be vacuumed gently. Ensure all parts are dry before reassembling.

What is the recommended room size for the VINDSTYRKA?

The air purifier is suitable for rooms up to approximately 20 m² (215 sq ft) when operating at maximum speed. For optimal performance, place it in the room you use most often.

How does the auto mode work?

Auto mode uses the built-in PM2.5 sensor to detect particle levels. The fan speed automatically adjusts to maintain good air quality. The color-coded LED ring changes from blue (good) to red (poor) to indicate air quality.

Can I use the VINDSTYRKA overnight?

Yes, the device has a Night mode that runs at the lowest fan speed (24 dB(A)) for silent operation. The display dims so it won't disturb your sleep. You can also set a timer to turn it off after 1-12 hours.

Does the VINDSTYRKA have a child lock?

Yes, you can activate the child lock by pressing the buttons in a specific sequence (refer to the manual). This prevents accidental changes to settings, especially if children or pets touch the device.

What is the CADR of the VINDSTYRKA?

The Clean Air Delivery Rate (CADR) for smoke, dust, and pollen is 170 m³/h. This indicates the volume of filtered air delivered per minute. It is suitable for medium-sized rooms.

Can I wash the HEPA filter?

No, the HEPA and activated carbon filter should not be washed. Only the pre-filter can be vacuumed or gently brushed clean. Replace the main filter when the indicator lights up or every 6-12 months.

Where is the best placement for the air purifier?

Place the VINDSTYRKA on a flat, stable surface with at least 30 cm clearance on all sides. Avoid placing it near curtains or furniture that might block airflow. For best results, position it in the center of the room or near the source of pollutants.

Is the VINDSTYRKA energy efficient?

Yes, it uses only up to 30 W at maximum speed and much less on lower settings. In standby mode, power consumption is less than 1 W. This makes it an energy-efficient choice for continuous use.

USER MANUAL VINDSTYRKA 404.982.34 IKEA

Design and Quality IKEA of Sweden

1x

Works with

IKEA Home smart

DIRIGERAVINDSTYRKA

English 12

Czech 20

Italian 28

Hungarian 36

Polish 44

Estonian 52

Latvian 60

Lithuanian 68

Romanian 76

Slovak 84

Bulgarian 92

Croatian 100

Russian 108

Ukrainian 116

Serbian 124

Slovenian 132

Hebrew

140

Instructions for use

Freestanding or paired

VINDSTYRKA air quality sensor can be used freestanding, but also be connected to STARKVIND air purifiers and/or DIRIGERA hub for smart products.

Pairing button

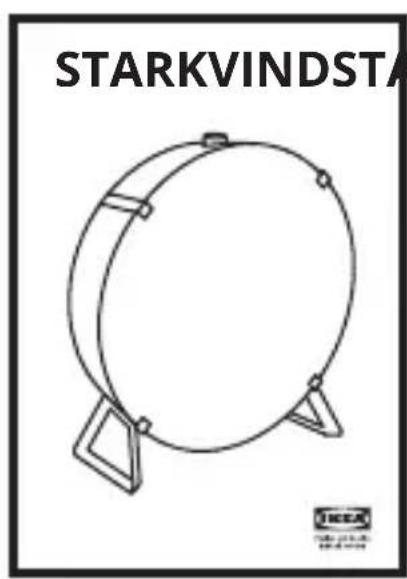

Connect VINDSTYRKA to STARKVIND air purifier

Long press the pairing buttons on VINDSTYRKA and STARKVIND at the same time to connect them. See pages 6-7.

When the connection is successful, the pairing icon should stop blinking on the display.

Recommended power supply:

5.0 VDC, 1.0 A (not included)

Connect VINDSTYRKA to DIRIGERA hub

By connecting VINDSTYRKA to DIRIGERA hub, you'll be able to see the room's air quality in the IKEA Home smart app.

If you have an iOS device:

Go to the App Store and download the IKEA Home smart app. The app will show you how to connect VINDSTYRKA to DIRIGERA hub.

If you have an Android device:

Go to Google Play and download the IKEA Home smart app. The app will show you how to connect VINDSTYRKA to DIRIGERA hub.

Pairing: Connecting VINDSTYRKA air quality sensor to DIRIGERA hub and STARKVIND air purifier.

• When the pairing mode is activated, the pairing icon 📊 on the display should blink until VINDSTYRKA is connected to the air purifier or the hub.
• When VINDSTYRKA is connected to 1 air purifier, the following icon should be active on the display.
• When VINDSTYRKA is connected to more than 1 air purifier, the following icon should be active on the display.
• When VINDSTYRKA is connected to DIRIGERA hub, only the pairing icon should be visible on the screen.

Display on VINDSTYRKA

Shows connected air purifiers.

1. PM2.5 Displays level of PM2.5 particles. PM2.5 are small inhalable particles, particles with a max. size of 2.5 micrometres. Green: 0-35 µg/m³, Yellow: 35-120 µg/m³, Red: >120 µg/m³.

- 20.°C—Room temperature - 32. %—Room relative humidity

Temperature and humidity can affect the indoor comfort and wellbeing.

Indicates increasing, stable or decreasing level of TVOC. TVOC stands for “Total Volatile Organic Compounds” (VOC).

Settings mode

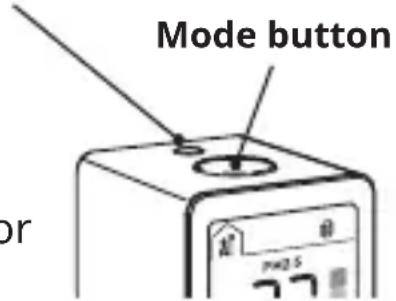

A long press on the mode button will enter the Settings mode.

Brightness

A flashing symbol means that it is possible to adjust the brightness level.

Press the mode button to select between level 1, 2, and 3.

A long press on the mode button confirms the setting and takes you to the settings for temperature.

Auto off: After 1 minute, the display brightness will return to its default setting (level 2).

Temperature unit

A flashing symbol means that it is possible to adjust the temperature.

Press the mode button to switch between Celsius and Fahrenheit.

A long press on the mode button confirms the setting and takes you back to the Settings mode.

Important!

• The product is only intended for household use under normal operating conditions.
• Do not block the air intakes and outlet in the rear.
• Do not leave the product in direct sunlight or near any heat source, as it may overheat.
• The wall socket must be located near the equipment and must be easily accessible.
• Do not subject the product to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Children should be supervised to ensure they do not play with the product.
• The product does not measure carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device upon accidents involving combustion processes and hazardous chemicals.
• Be sure to not exceed the maximum USB cable length recommended for the device.
• Never use a damage or faulty USB cable, since this can damage or harm the power adapter or your product.

- Unplug the product from the power source before cleaning and when it is not in use.

Save these instructions for future use.

Factory reset

Quick-press the pairing button 4 times to perform a factory reset.

Care instructions

Wipe with a soft cloth moistened with a little mild detergent. Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Model: VINDSTYRKA air quality sensor

Type: E2112

Input: 5.0 VDC, 1.0 A, 0.5 W, USB-C

Particle detection range: 0~1000 μg/m³

Radio range: 10 m in open air

Operating frequency: 2400~2483.5 MHz

Output power: 8 dBm

Operation temperature: 0°C to 40°C

Operating humidity: 0 to 95% RH

Max USB cable length: 3.0 m/9'8"

Indoor use only

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Instructions for use

5.0 VDC, 1.0 A (not included)

Connect VINDSTYRKA to the DIRIGERA hub

Manufacturer: IKEA of Sweden AB

Address: Box. 702, SE-343 81 Älmhult, SWEDEN

Input: 5.0 VDC, 1.0 A, 0.5 W, USB-C

Particle detection range: 0~1000 μg/m³

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Operating humidity: 0–95% RH

Input: 5.0 V DC, 1.0 A, 0.5 W, USB-C

Particle detection range: 0~1000 μg/m³

Range of action

5.0 VDC, 1.0 A (not included)

5.0 V DC, 1.0 A (not included)

Connecting VINDSTYRKA to DIRIGERA hub

By connecting VINDSTYRKA to the DIRIGERA hub, you can see the air quality in the room in the IKEA Home smart app.

Temperature unit

Input power: 5.0 V DC, 1.0 A, 0.5 W, USB-C

Particle detection range: 0~1000 μg/m³

Wireless range: 10 m outdoors

Operating frequency: 2400~2483.5 MHz

Output power: 8 dBm

Operating temperature: 0 °C to 40 °C

Operating humidity: 0 to 95% relative humidity

Maximum USB cable length: 3.0 m / 9 ft 8 in

For indoor use only

Temperature unit

A blinking symbol means that the temperature can be adjusted. Press the mode button to switch between Celsius and Fahrenheit.

5.0 VDC, 1.0 A (not included)

Input: 5.0 VDC, 1.0 A, 0.5 W, USB-C

Particle detection range: 0~1000 μg/m³

Connection range: 10 m outdoors

Operating frequency: 2400~2483.5 MHz

Output power: 8 dBm

Operating temperature: 0 to 40 °C

Operating humidity: 0 to 95% RH

Maximum USB cable length: 3.0 m/9'8"

© Inter IKEA Systems B.V. 2022 AA-2351596-1
