Product Type	Air Quality Sensor (PM2.5)
Model	VINDRIKTNING 804.982.46
Brand	IKEA
Power Input	5.0V DC, 2.0A, 0.5W
Power Connector	USB-C
Power Adapter	Not included (requires 5V/2A USB-C adapter)
Particle Detection Range	0 – 1000 µg/m³ (PM2.5)
LED Indicators	Green (0-35 Good), Amber (36-85 OK), Red (86+ Not good), Pulsing (start-up)
Operating Temperature	0°C to 40°C
Operating Humidity	0% to 95% RH (recommended 40-60% RH)
Indoor Use Only	Yes
Maximum USB Cable Length	3.0 m (9.8 ft)
Cleaning Instructions	Wipe with soft cloth moistened with mild detergent; dry with soft cloth
Safety Precautions	Do not block air intakes; avoid direct sunlight/heat; unplug before cleaning; do not repair yourself
Product Servicing	Do not attempt to repair; no user-serviceable parts
Disposal	Separate from household waste; recycle according to local regulations
Manufacturer	IKEA of Sweden AB, Box 702, SE-343 81 Älmhult, SWEDEN

Frequently Asked Questions - VINDRIKTNING 804.982.46 IKEA

How do I set up the VINDRIKTNING sensor?

Connect the USB-C power adapter (5V, 2A, not included) to the sensor. The device will start a start-up sequence for about 10 seconds with the LED pulsing. Once the LED stops pulsing, the sensor is ready to measure PM2.5 particles.

What do the LED colors indicate?

The LED shows air quality in three levels: Green (0-35 µg/m³, good/low), Amber (36-85 µg/m³, OK/medium), and Red (86+ µg/m³, not good/high). A pulsing LED means the sensor is in start-up mode.

How do I clean the VINDRIKTNING?

Unplug the sensor before cleaning. Wipe the exterior with a soft cloth moistened with a little mild detergent. Then use a dry soft cloth to wipe dry. Never use abrasive cleaners or chemical solvents.

Can I use the sensor outdoors?

No, the VINDRIKTNING is designed for indoor use only. Do not expose it to wet, moist, or excessively dusty environments, as this may cause damage.

Do I need a special power adapter?

The sensor requires a USB-C power adapter with output 5.0V, 2.0A. This adapter is not included with the product. Ensure the adapter is compliant with local safety standards.

What particles does the sensor detect?

The VINDRIKTNING measures PM2.5 particles (fine particulate matter with diameter less than 2.5 microns) in the range of 0 to 1000 µg/m³.

Is the VINDRIKTNING compatible with IKEA air purifiers?

The sensor can be used alongside IKEA air purifiers like FÖRNUFTIG to monitor air quality, but it does not directly control them. It provides visual feedback on PM2.5 levels.

What are the recommended operating conditions?

The sensor operates optimally at 0°C to 40°C and 40-60% relative humidity. It can tolerate 0-95% RH, but extreme humidity may affect accuracy.

How do I know if the sensor is working correctly?

After connecting power, the LED should pulse for about 10 seconds then display a steady color based on air quality. If the LED does not light up or stays off, check the USB connection and try a different power adapter.

What should I do if the sensor is not turning on?

First, ensure the USB-C cable is securely connected and the power adapter is supplying 5V/2A. Try a different adapter or cable. If it still doesn't work, the sensor may be defective; contact IKEA for support. Do not attempt to repair it yourself.

USER MANUAL VINDRIKTNING 804.982.46 IKEA

Line drawing of a 3D rectangular box with a vertical oval cutout on the front face (no text or symbols)

Design and Quality IKEA of Sweden

1

English 6

Español 9

Português 12

中文 15

繁中 18

한국어 21

日本語 24

Bahasa

Indonesia 27

Bahasa

Malaysia 30

عربي 33

Inu 36

Air quality sensor features

• USB-C power adapter (5.0V, 2.0A) not included.
  • Measure PM 2.5 particles
• LED status indicator

Instructions for use

• Connect the power adaptor to the USB-C port.
• The Air quality sensor initiate a start-up sequence for about 10 seconds.
• When the LEDs stop pulsing, the device is ready.

LED indicators for air quality (PM 2.5):

Green: 0-35 /Good + Low

Amber: 36-85/OK + Medium

Red: 86-/Not good + High

Pulsing: Start-up mode

Good to know

• Operation temperature: 0°C to 40°C.
- Operating humidity: 0 to 95% RH (Recommended working humidity: 40 - 60% RH)
- Unplug the product from the power source before cleaning and when it is not in use.

Save these instructions for future use.

Important!

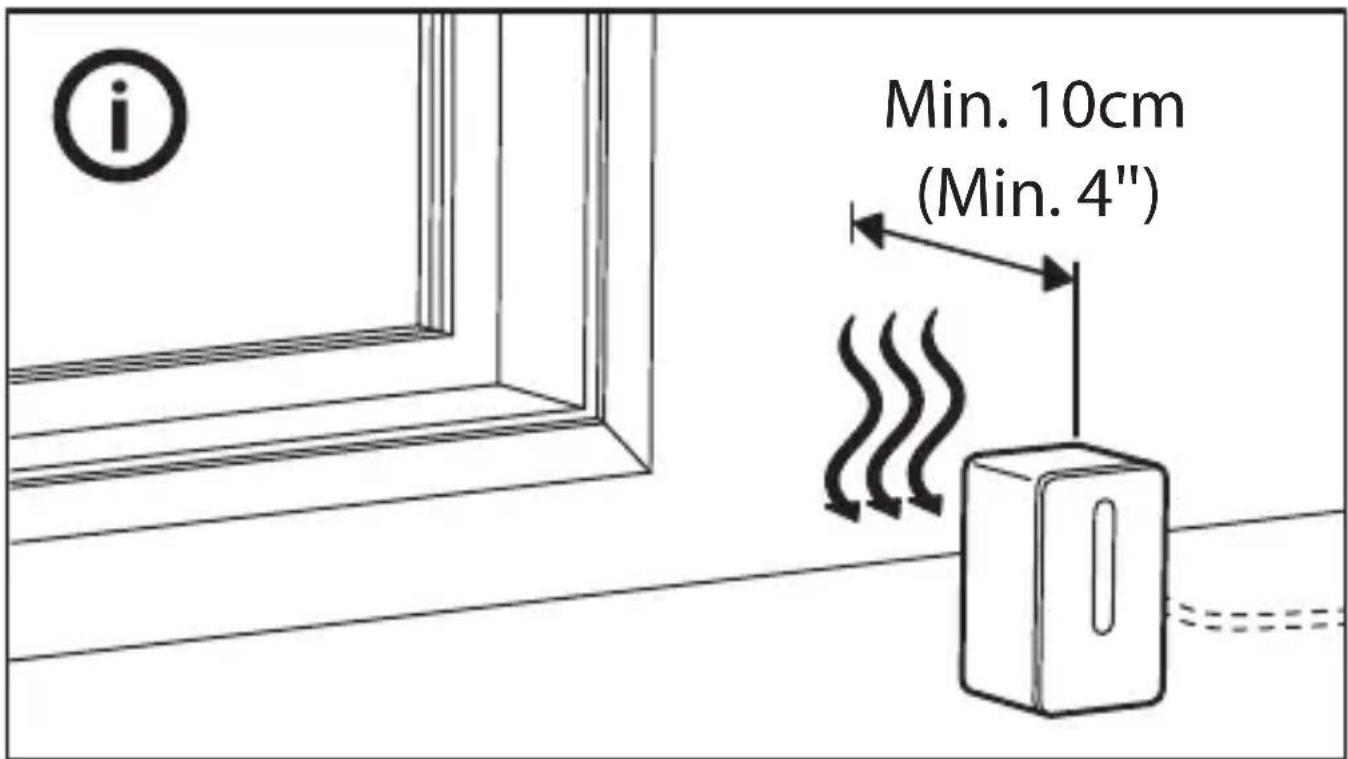

• Do not block the air intakes.
• Do not leave the device in direct sunlight or near any heat source, as it may overheat.
• The wall socket must be located near the equipment and must be easily accessible.
• Do not subject the unit to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Children should be supervised to ensure they do not play with the product.
• Be sure to not exceed the maximum USB cable length recommended for the device.

Care instructions

Wipe with a soft cloth moistened with a little mild detergent. Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Type: E2014 VINDRIKTNING

Input: 5.0V DC, 2.0A, 0.5 W, USB-C

Particle detection range: 0\~1000 ug/m3

Max USB cable length: 3.0 m/9'8"

Indoor use only

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
