USER MANUAL Breez Sonnenkönig

Festnetz 14 Cent/Minute

Modifications techniques

Telephone Fixe 14 Cent/Minute

Dynamic Fan Instruction manual

INDEX

1 Safety instructions 30
2 Operation 32
3 Instruction manual 33
4 Cleaning and maintenance 34
5 Warranty / Disposal / Technical change 35

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• Read all the instructions carefully before using the product.
• Check the voltage indicated on the rating plate. This product is designed for a 220 240V 50/60Hz electric supply.
• Do not place the electrical cord under a cover. Do not overlay the cord with little covers or such elements. Place the cord in an area where there is not any risk to stumble over it.
• Please place the fan on a flat, firm and safe surface before use.
• Disconnect the plug from the socket when not in use, seize the plug and then pull it out. Do not pull at the cord to pull out the plug.
• Please make sure that the fan will not meet any obstruction when oscillating.
• Do not put your fingers or any other object into the front case when the fan is operating. Please pay special attention when it is used near children to avoid children playing with the fan.

• Avoid hair, net curtains, tablecloth, clothes or curtains next to the openings of the fan. They could get caught in the fan, causing damage or injuries.

• Do not use the fan if it has a damaged cord or plug, after a malfunction, if the fan fell down or has been damaged in any way.

• Periodically check the electric cable of this fan. If the electric cable is damaged, it must be replaced by the manufacturer, its after-sales service or a similar qualified person in order to avoid a danger.
• Do not use this fan outside.
• Do not use this fan in a damp area such as the bathroom.
• Do not use this fan near a window and under direct sunshine.
• Do not use this fan with any semi-conductor speed control.
• The fan should not be operated without a base nor used lying on its side.
• Do not operate the fan in an area where gasoline, paint or similar flammable liquids are used or stocked.
• Unplug the unit before servicing or moving it, as well as for cleaning purposes.
• Do not leave the fan unattended, always unplug it when not in use.
• Use this fan only as it is described in this manual.
• Do not try to take this fan apart, there are no parts that could be repaired by the user. If you need maintenance, please send the fan back to the agent.
• Keep the fan clean and maintain it in good condition (use an authorized service agent).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Do not let them use the appliance without being supervised by a person responsible for their safety.

2 Operation

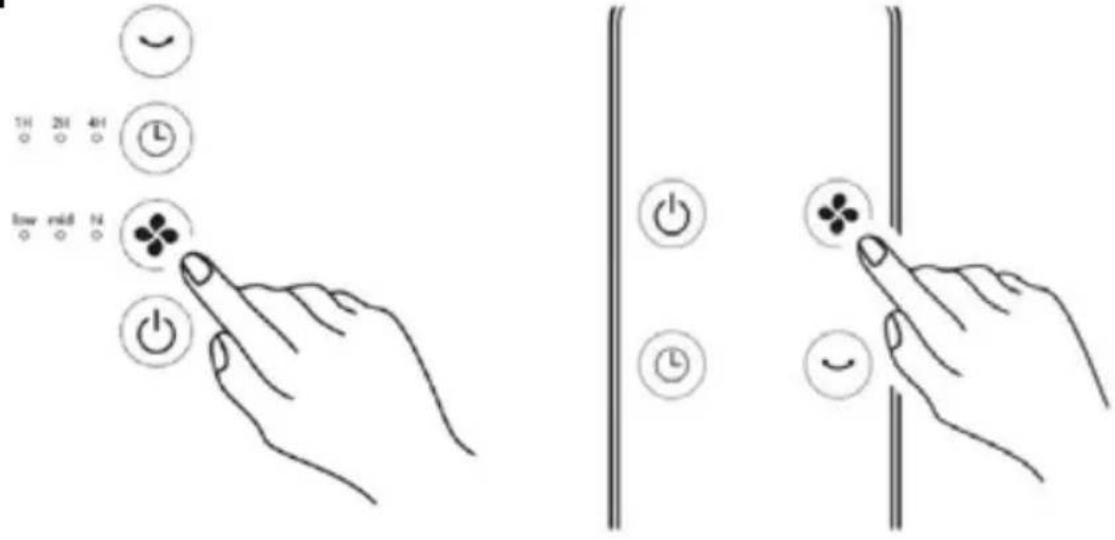

GB Control Panel Remote

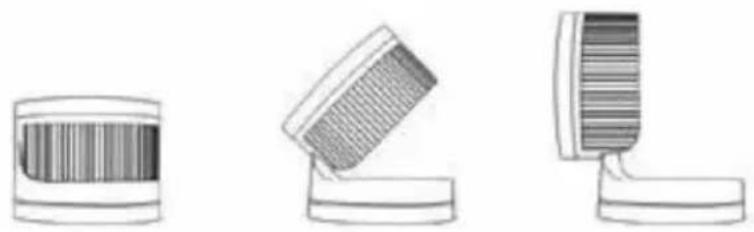

Manual Adjustment (up and down for 0^ / 45^ / 90^ )

3 Instruction manual

1. Unpack all the packaging from the unit.
2. Insert the plug into a 220 240V50 / 60Hz electrical power supply outlet.
3. Pull the tab.

Remote control

1. Press the buttons on the Touch Control Panel or Remote as below:

2. ON/OFF: Turn the fan on by pressing the ON/OFF button, to turn the fan off just press the button again.

3. SPEED: Adjust the fan speed to the desired level: HI, MED, LOW. The corresponding indicator light will light up. The default fan speed is MED.
4. TIMER: Press the TIMER button to set the timer from 1 hour to 7 hours. The corresponding indicator light will light up. The fan will automatically shut off when the timer has run down.
5. OSC: Press the OSC button to turn on the oscillation function. Press the button again to turn it off.

GB

4 Cleaning and maintenance

GB WARNING: ALWAYS UNPLUG THE UNIT BEFORE MOVING OR SERVICING IT. NEITHER IMMERSE THE POWER CORD, PLUG OR THE WHOLE UNIT INTO WATER NOR RINSE IT UNDER THE TAP!

Caution: Do not use a detergent, gasoline, benzene, thinner, or any other solvents to clean the unit to avoid damage of the appliance.

• Unplug the unit and wait until the fan stops running before cleaning the appliance.
• Use a damp cloth to clean the surface of the fan.

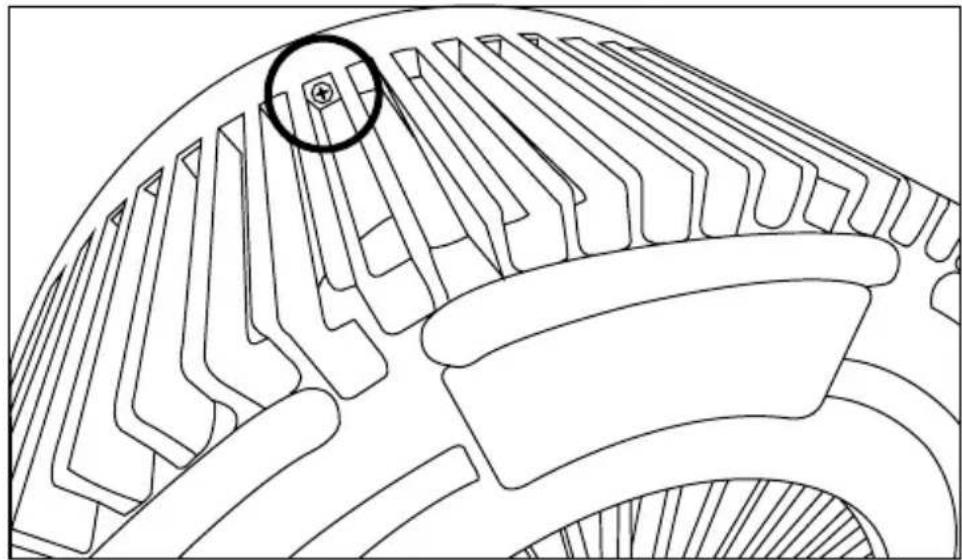

• Take off the cover carefully and take out the front cover. You could wash the front cover under running water. Rinse and dry the front cover before placing it back.

It is recommended to clean the fan every month.
- It is not recommended to take the fan apart, except by an authorized agent or any person qualified to undertake electrical repairs.
- If the fan is not used for a long time, store it in a cool, dry and safe place and far away from children. Do not store the appliance in a hot place or under sunshine.

Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

5 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

CE Declaration of Conformity

This device complies with the following standards
