USER MANUAL Black 16 Sonnenkönig

Exterior view of a modern office desk fan with a black stand and mesh fan (no text or symbols visible)

Technical diagram of a mechanical device with numbered components and labeled parts

3 Montage

Modern desktop fan with mesh grille and black stand (no visible text or symbols)

Article-nr. 10510011

FR

Sommaire

Technical diagram of a mechanical device with numbered components and labeled parts

3 Montage

Montage du châssis

Modifications techniques

Black desktop fan with mesh grille and black stand (no visible text or symbols)

Nr. articolo 10510011

IT

Indice

Technical diagram of a mechanical device with numbered components and labeled parts

3 Montaggio

1 Safety Instructions.... 28
2 Product parts .... 30
3 Product assembly 31
4 Operation of the product.... 31
5 Cleaning....32
6 Warranty / Disposal / Technical change 32

1 Safety Instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

GB

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

When using the electrical appliance, the following basic safety precautions should always be followed.

• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• The appliance may be used only for its intended purpose. No responsibility can be taken for any possible damage caused through incorrect use or improper handling.
• Before connecting the appliance to the power source, check that the current and power match those indicated on the rating label.
• Do not put the appliance or the plug in water or any other liquid. However, should the appliance accidentally fall into water, unplug the appliance immediately and have

it checked by a qualified person before using it again. Non-observance could cause a fatal electric shock!

• Never attempt to open the housing yourself.
• Do not place any kind of object into the inside of the housing.
• Do not use the appliance with wet hands, on a damp floor or when the appliance itself is wet.
• Do not touch the plug with wet or damp hands.
• Check the cord and the plug regularly for any possible damage. If the cord or plug is damaged, it must be replaced by the manufacturer or a qualified person in order to avoid a hazard.
• Do not use the appliance if it is dropped or otherwise damaged or if the cord or plug are damaged.
• In the case of any damages, take the appliance to an authorized service centre for examination and repair if necessary.
• Never attempt to repair the appliance yourself. This could cause an electric shock.
• Do not allow the cord to run over sharp edges and keep it well away from hot objects and open flames. Remove the plug from the socket only by pulling the plug.
• Make sure there is no danger of the cord or extension cord inadvertently being pulled out or causing anyone to trip when in use.
• If an extension cord is used, it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur.
• This appliance is not suitable for commercial use or outdoor use.
• Never leave the appliance unattended while it is in use.
• Never install the unit where it could be subject to:

- Heat sources such as radiators, heat registers, stoves or other products that produce heat

• Direct sunlight
• Mechanical vibration or shock
• Excessive dust
• Lack of ventilation, such as a cabinet or bookcase

• Uneven surface

• Switch off and unplug from the outlet when the product is not in use, before assembling or disassembling parts and before cleaning. Fully assemble the fan before switching it on.

• Avoid contact with moving parts. Do not insert any body parts (e.g. finger) or objects through the grille when the fan is operating.
• Do not cover the grille or operate the appliance in close proximity to curtains, etc.

GB

• This product is intended for normal domestic/household use only.
  • Always disconnect the fan when moving it from one location to another.
• The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or injuries.
• Be sure the fan is on a stable surface when operating to avoid tipping over.
• Do not immerse in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

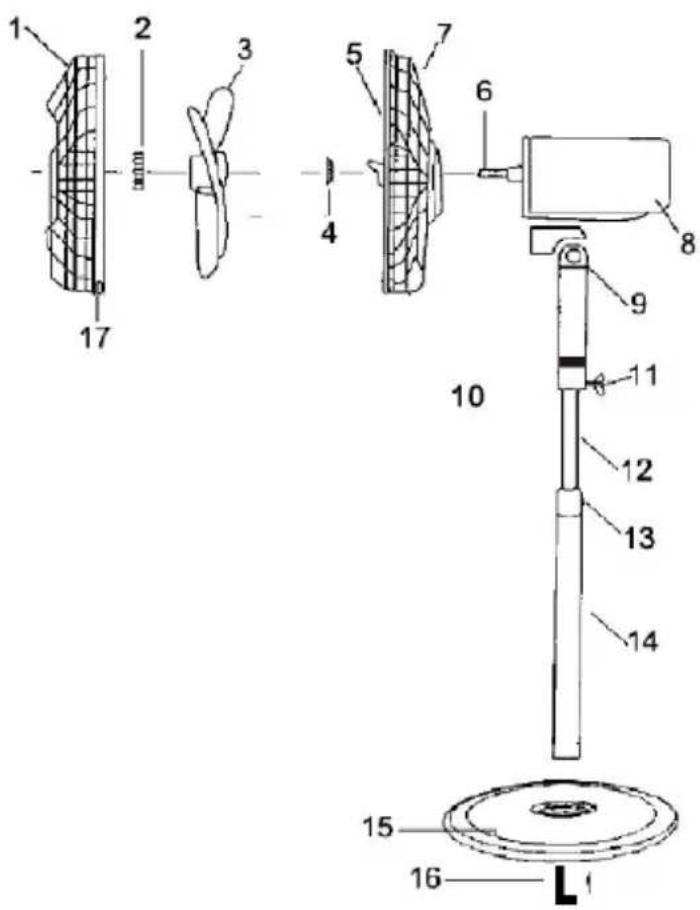

2 Product parts

1. Front Grille
2. Blade Cap
3. Blade
4. Plastic Mounting Nut
5. Rear Grille
6. Motor Shaft
7. Handle
8. Motor Housing
9. Neck Screw
10. Switch Box
11. Set Screw
12. Inner Tube
13. Height Adjustment Collar
14. Outer Tube
15. Stand cover
16. Screw

Technical diagram of a mechanical device with numbered components and labeled parts

3 Product Assembly

Base assembly

• Loosen the screw from the bottom of the outer tube (14).
• Place the inner tube (12) with the tube support onto the stand cover (15) and fix it with the screw (16).
• Attach the motor with the switch compartment to the inner pipe. Ensure the switch compartment is pushed fully onto the inner tube and secured with the screw provided.

Assembly of the blade and grille

• Unscrew the plastic mounting nut from the front of the motor housing by rotating it anticlockwise.
• Position the rear grille against the front of the motor housing with the handle on top, ensuring that the locating pegs on the motor housing are engaged correctly in the holes of the rear grille.
• Tighten the rear grille mounting nut clockwise. DO NOT OVERTIGHTEN IT.
• Push the fan blade onto the motor shaft, locating the slot at the back of the blade on the drive pin that passes through the motor shaft.
• Tighten the blade cap by turning it anticlockwise.
• Position the front grille against the rear grille so that the holes in the rims for the small nut and bolt are in line. Insert the bolt through the holes and screw on the nut. Do not fully tighten at this stage.
• Push the grille retaining clips into position and make sure they engage correctly on the rim of the grille.
• Fully tighten the small nut and bolt that pass through the rim of the grille

4 Operation of the product

• Place your fan on a level and dry surface.
• Plug the fan into a mains socket. Select the desired speed setting.
  There are 4 settings - 0 (off), 1 (low), 2 (medium) and 3 (high). The fan can be set to oscillate by pushing the oscillating knob downwards. To stop oscillation, pull up the oscillation knob. To adjust the tilt angle of the fan head, swivel the fan to the desired angle.

- Caution: The fan should always be switched off when making this adjustment.

5 Cleaning

• Switch off and unplug from the power supply before assembling or disassembling and cleaning.
• Keep the air vents at the rear of the main body free from dust or fluff – use a vacuum cleaner to remove these when necessary.
• Do not insert any object into any opening to remove fluff.
• Fan component parts should be cleaned using mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter the motor housing.
• Thoroughly remove the soap film with clean water.

CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the fan components.

6 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Reserving technical changes in technology and design

Please save the packaging materials of the unit.
