USER MANUAL MXR-40PRO IMG Stageline

English ..... Page 8

Français.....Page 12

These brief instructions give a quick overview of how to use the audio mixer. They are intended for users with basic knowledge of audio technology. Please read these instructions carefully prior to operating the unit and keep them for later reference.

1 Applications

This mixer can be used in many ways to mix audio signals (microphones, instruments, units with line level). The sum signal is output via the output jacks M L, M R (6), and the USB port (27). The USB port is also used as an input for audio data when the mixer is connected to a computer and for the integrated audio player to replay MP3, WAV and WMA files from a USB flash drive. In addition, the audio player is equipped with a Bluetooth module.

2 Safety Notes

The mixer corresponds to all relevant directives of the EU and is therefore marked with €€.

WARNING

The unit uses dangerous mains voltage. Leave servicing to skilled personnel; inexpert handling may result in electric shock.

• The unit is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity. The admissible ambient temperature range is 0–40°C.
• Do not place any vessel filled with liquid on the unit, e. g. a drinking glass.
• Immediately disconnect the unit from the mains socket,
• if the unit or the mains cable is visibly damaged,
• if a defect might have occurred after the unit was dropped or suffered a similar accident,
• if malfunctions occur.
  In any case the unit must be repaired by skilled personnel.
• For cleaning only use a dry, soft cloth; never use water or chemicals.

- No guarantee claims for the unit and no liability for any resulting personal damage or material damage will be accepted if the unit is used for other purposes than originally intended, if it is not correctly connected or operated, or if it is not repaired in an expert way. Likewise, no liability will be accepted for data loss caused by a defect or operating errors and for any consequential damage of this data loss.

If the unit is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment.

2.1 Conformity and approval

Herewith, MONACOR INTERNATIONAL declare that the Bluetooth module in the units MXR-40PRO, MXR-60PRO, MXR-80PRO and MXR-120PRO complies with the directive 2014/53/EU. The EU declarations of conformity are available on the Internet:

www.img-stageline.com

The Bluetooth module is generally approved for operation in EU and EFTA countries; it is licence-free and requires no registration.

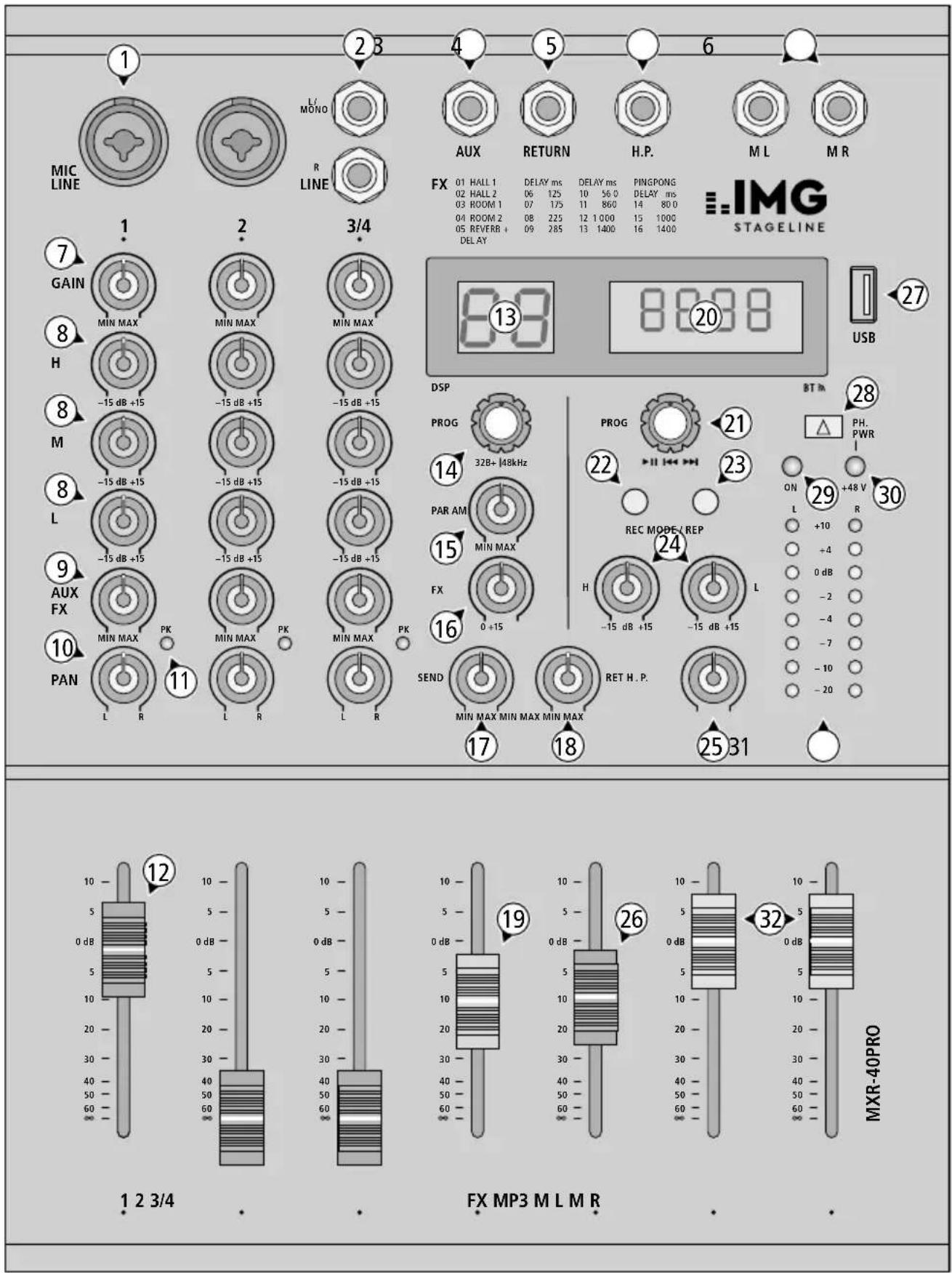

3 Overview

The mains jack 230 V\~ / 50 Hz for connection to a mains socket and the POWER switch are located on the rear side of the unit.

1 Combined input jack MIC / LINE for microphones (XLR jack) and audio sources with line level (6.3 mm jack)
2 Input LINE (6.3 mm jacks) of the stereo channel for units with line level When connecting a mono unit, only use the jack L / MONO. Thus, the signal will internally be routed to the right channel and the left channel.
3 Output AUX for the send way AUX
4 Input RETURN to connect the output of an effect unit or of an additional Line audio source; use the control RET (18) to add the input signal to the sum signal
5 Jack H. P. (headphones) for headphones
6 Stereo outputs M L, M R (6.3 mm jacks) for the sum signal

7 Control GAIN for the input gain

8 Equalizer controls for the high frequencies (H), mid-frequencies (M) and low frequencies (L)

9 Control AUX / FX to add the channel signal to the send way AUX and to the internal effect unit; the signal will be routed to the send way and the effect unit after the channel fader (12)

10 Panorama control PAN to place the mono signal in the stereo sound; for the stereo channel, the control is used as a balance control

11 LED indicator PK: will light up briefly when the maximum undistorted signal level has been reached. If it lights up for a longer time, the channel is overloaded; in this case, turn back the control GAIN (7).

12 Channel fader for the volume of the channel

13 Display for the effect number selected 1 - 16

14 Rotary knob PROG for effect selection When the rotary knob is turned for effect selection, the effect number will flash on the display (13) for a few seconds; the previous effect will still be activated. To activate the effect selected, press the knob; the effect number will stop flashing.

15 Control PARAM for the number of effect repeats

16 Control FX to adjust the input level for the effect unit; if the effect signal is distorted, turn back the control accordingly

17 Level control SEND for the signal of the send way AUX that is available at the output AUX (3)

18 Control RET to add the input signal available at the jack RETURN (4) to the sum signal

19 Fader FX to add the internal effect signal to the sum signal; if no effect is to be added, close the fader

20 Display for the audio player When the mixer is switched on, the display will briefly show the welcome message "HI"; when the USB port (27) is not connected, "no" will be shown on the display

21 Rotary knob PROG for the audio player - For title selection, turn the knob accordingly - To switch between replay and pause, briefly press the knob

22 Button REC to start / stop a recording: The sum signal will be saved as an MP3 file on a USB flash drive.

23 ButtonMODE/REP

Briefly press the button to go to:

- Bluetooth reception (indication "bLUE")

- no operation (indication "no")

– audio player (brief indication "USb")

Keep the button pressed until the following is shown:

"onE" = the current title is continuously repeated "ALL" = all titles are continuously repeated one after the other

24 Equalizer of the audio player for the high frequencies (H) and the low frequencies (L)

25 Volume control H. P. for the headphones

26 Fader MP3 to add the signal from the audio player or the USB port (27) to the sum signal

27 USB port

– output for digital sum signal

– input for audio data from the computer

- input for audio files from a USB flash drive to be replayed by means of the audio player

28 On / Off switch PH. PWR of the 48 V phantom power supply for the XLR microphone inputs MIC (1)

Caution: Only use the switch when the mixer is switched off; otherwise, there may be loud switching noise.

29 Power indicator ON

30 LED indicator "+48V"; will light up when the phantom power supply is switched on

31 Level indicator for the sum signal

32 Master faders for the output level of the sum signal available at the outputs ML, MR (6) and at the USB port (27)

4 Quick Start

To avoid loud interfering noise, set the control H.P. (25) to MIN and close the master faders M L, M R (32) prior to connection/disconnection and switch-on.

4.1 Connection

1) Connect the signal sources (microphones, instruments, etc.) to the input jacks (1, 2): Connect microphones by means of XLR plugs and units with line level by means of 6.3 mm plugs.

When using microphones that require phantom power supply, press the button PH.PWR (28); in all other cases, the button must not be pressed. When the button is

pressed, the LED indicator "+48 V"(30) will light up as an indication.

When connecting a mono unit to the stereo channel, only use the jack L/MONO (2). Thus, the signal will internally be routed to the right channel and the left channel.

2) When a computer is used to replay audio files or for recordings, connect the computer to the USB port (27).
3) Connect the unit to which the sum signal is to be sent (amplifier, active speaker system, recorder) to the output jacks M L, M R (6).
4) Headphones to monitor the signal can be connected to the jack H. P. (5).
5) Use the mains cable provided to connect the mains jack 230 V\~ / 50 Hz located on the rear side of the unit to a mains socket (230 V/ 50 Hz).

4.2 Switching on the unit, mixing input signals

1) To make the basic adjustments, first
- set the controls GAIN (7), H, M, L (8, 24) and PAN (10) to mid-position
- set the controls AUX/FX (9) and RET (18) to MIN
– close the channel faders (12) and the faders FX (19) and MP3 (26)

2) Switch on the signal sources, then switch on the mixer by means of the POWER switch on the rear side of the unit and finally switch on the unit connected to the output jacks M L, M R (6). To switch off, proceed in the reverse order.

Move the master faders M L and M R (32) to the position 0 dB and mix the input signals by means of the channel faders (12).

If a channel fader must be advanced almost to its maximum, turn the control GAIN (7) to the right to increase the input gain. If, however, the LED indicator PK (11) lights up for a longer period of time, turn back the control GAIN accordingly. The LED indicator PK may only briefly flicker at signal peaks.

3) Use the panorama controls PAN (10) to distribute the channel signals on the stereo base as desired.

4) Use the controls H, M and L (8) to adjust the sound of the input signals.

5) Use the master faders M L and M R (32) to adjust the sum signal for the subsequent unit to an optimum level. Use the control H. P. (25) to adjust the volume of the head-

phones (make sure that the volume is not too high; high volumes may damage your hearing!).

4.3 Adding effects

The internal effect unit can be used to create one of the 16 selectable effects and to add this effect to the sum signal.

1) To make sure that the subsequent effect settings are audible, set the controls PARAM (15) and FX (16) approx. to mid-position and move the fader FX (19) to the position 0 dB.
2) Turn the rotary knob PROG (14) to select the effect desired. The effect number will flash on the display (13) for a few seconds; the previous effect will still be activated. To activate the effect selected, press the rotary knob; the effect number will stop flashing.
3) Use the control AUX / FX (9) to adjust the intensity of the effect for each channel signal separately. The signal for the effect unit will be picked up after the channel faders (12), i. e. the effect portion of a channel is always proportionate to the channel level adjusted.
4) Use the control PARAM (15) to define the number of effect repeats.
5) To increase or reduce the overall intensity of the effect, advance or close the fader FX (19) accordingly. For a further increase of the intensity, turn the control FX (16) to the right; this control is used to adjust the input level of the effect unit. If distortions of the effect signal occur, turn back the control accordingly.

The signals that are picked up by means of the controls AUX/FX (9) from the input channels are also available at the output AUX (3) and may, for example, be routed to an external effect unit. For this, adjust the output level of the jack AUX by means of the control SEND (17). Route the output signal of the effect unit to the input RETURN (4) and then use the control RET (18) to add the signal to the sum signal.

Subject to technical modification.

All rights reserved by MONACOR® INTERNATIONAL GmbH & Co. KG. No part of this instruction manual may be reproduced in any form or by any means for any commercial use.
