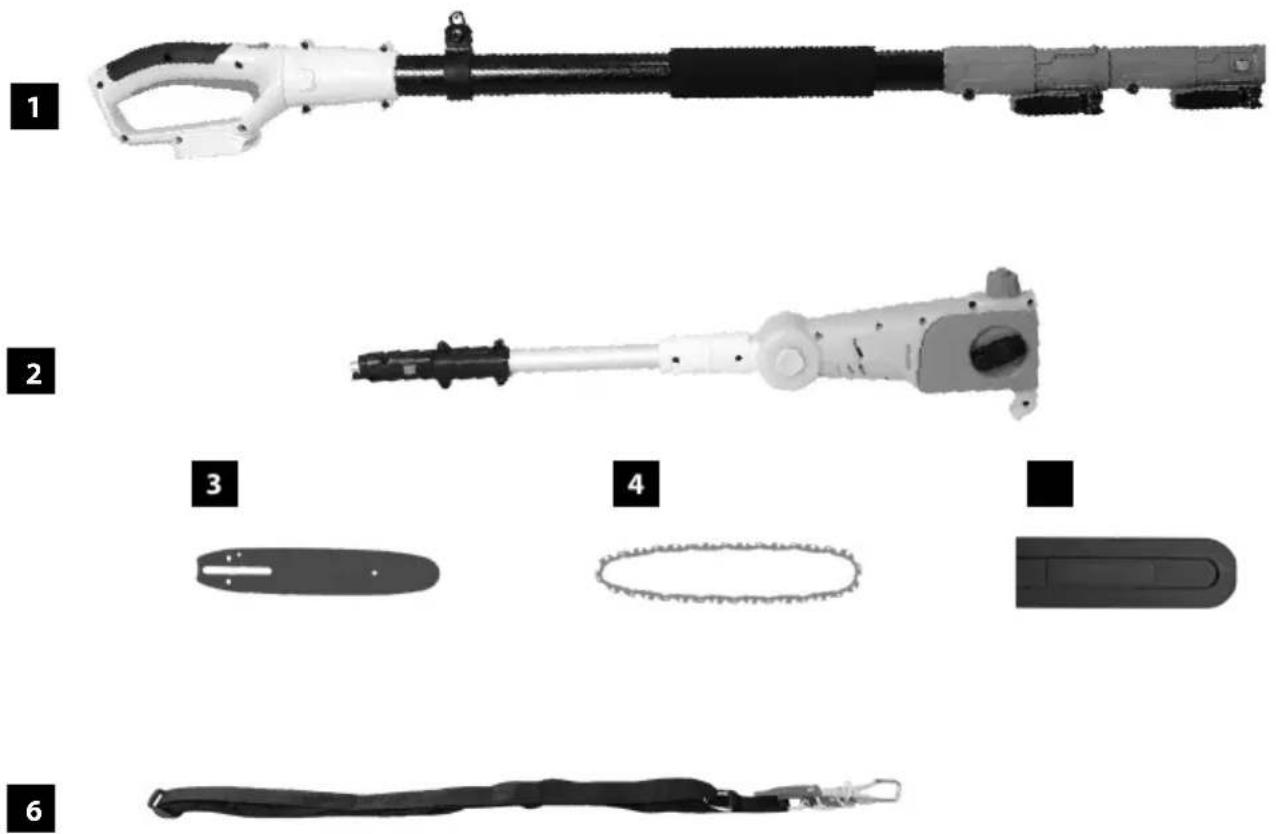

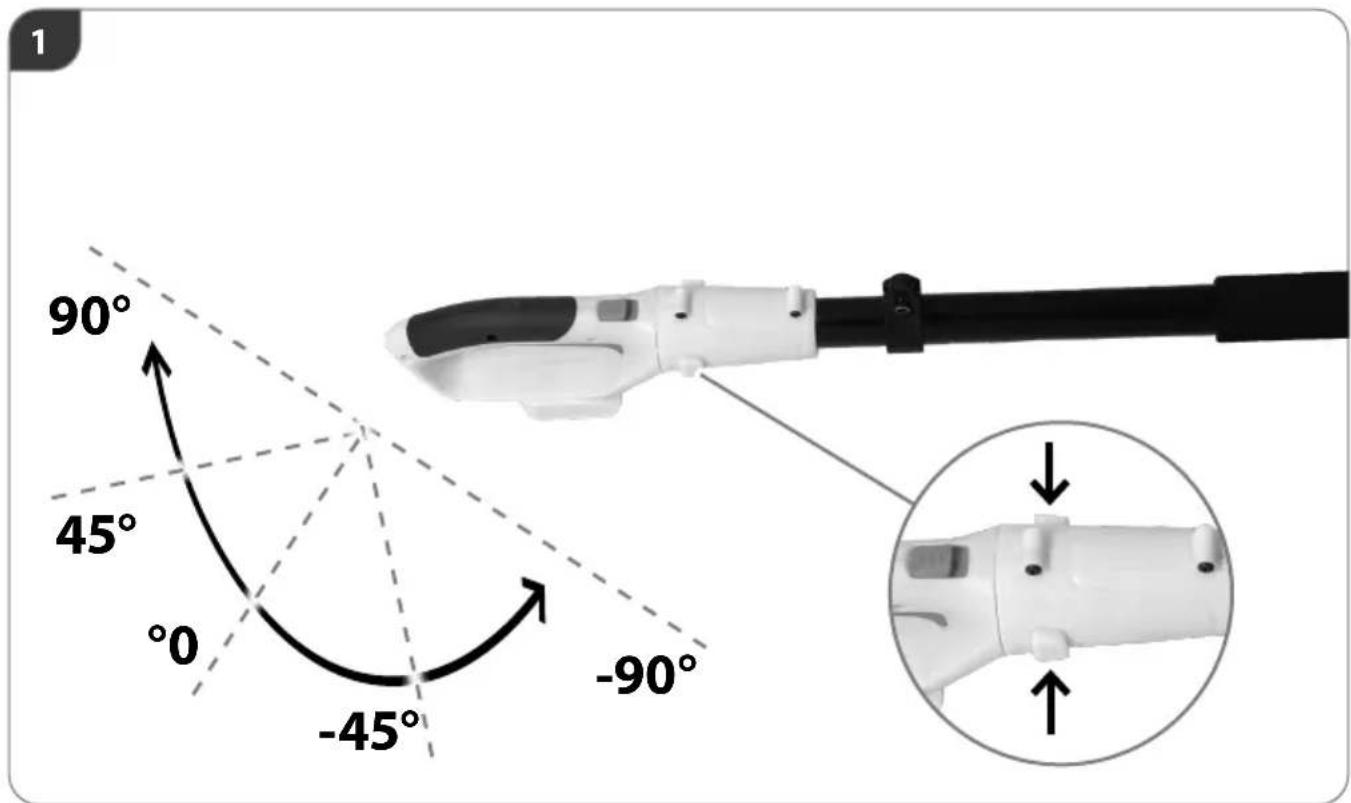

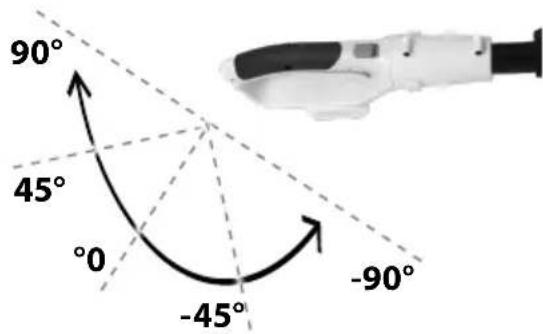

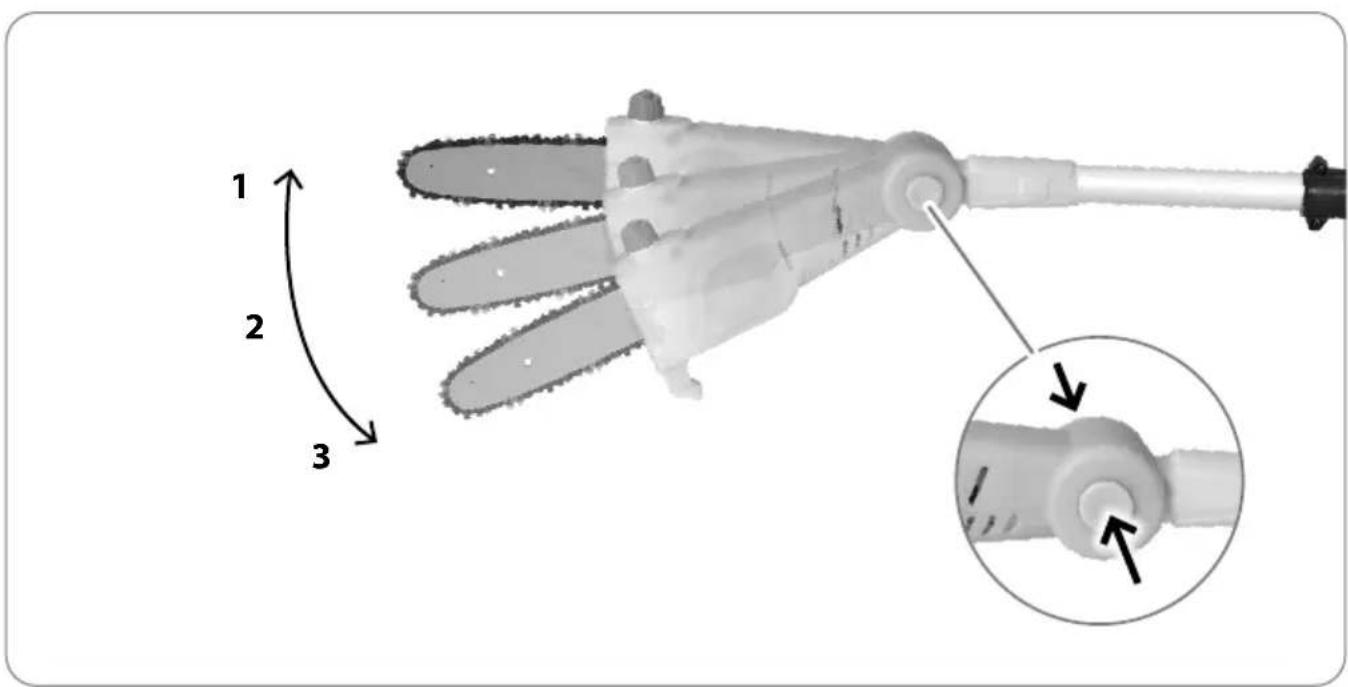

90° 45° 0 -45° -90°

START / STOP

IV

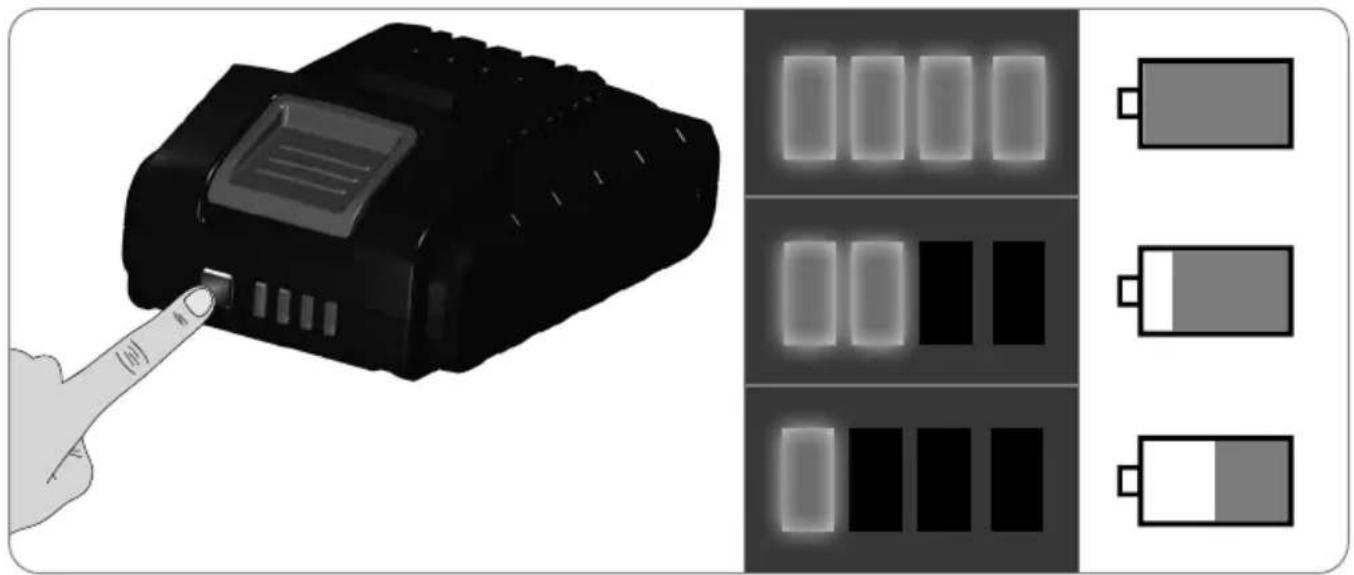

Close-up of a black electronic device with a small port and indicator finger pointing to it (no visible text or symbols)

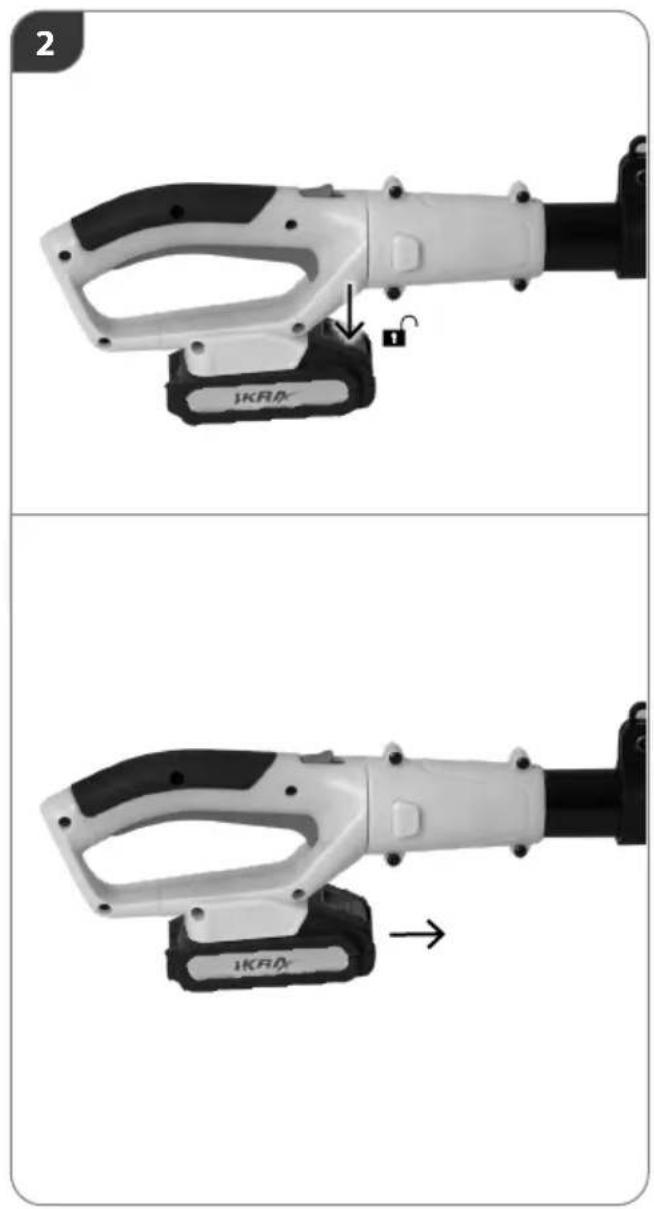

AKKU Battery |
batterie | accumulatore | AKUMULATOR

V

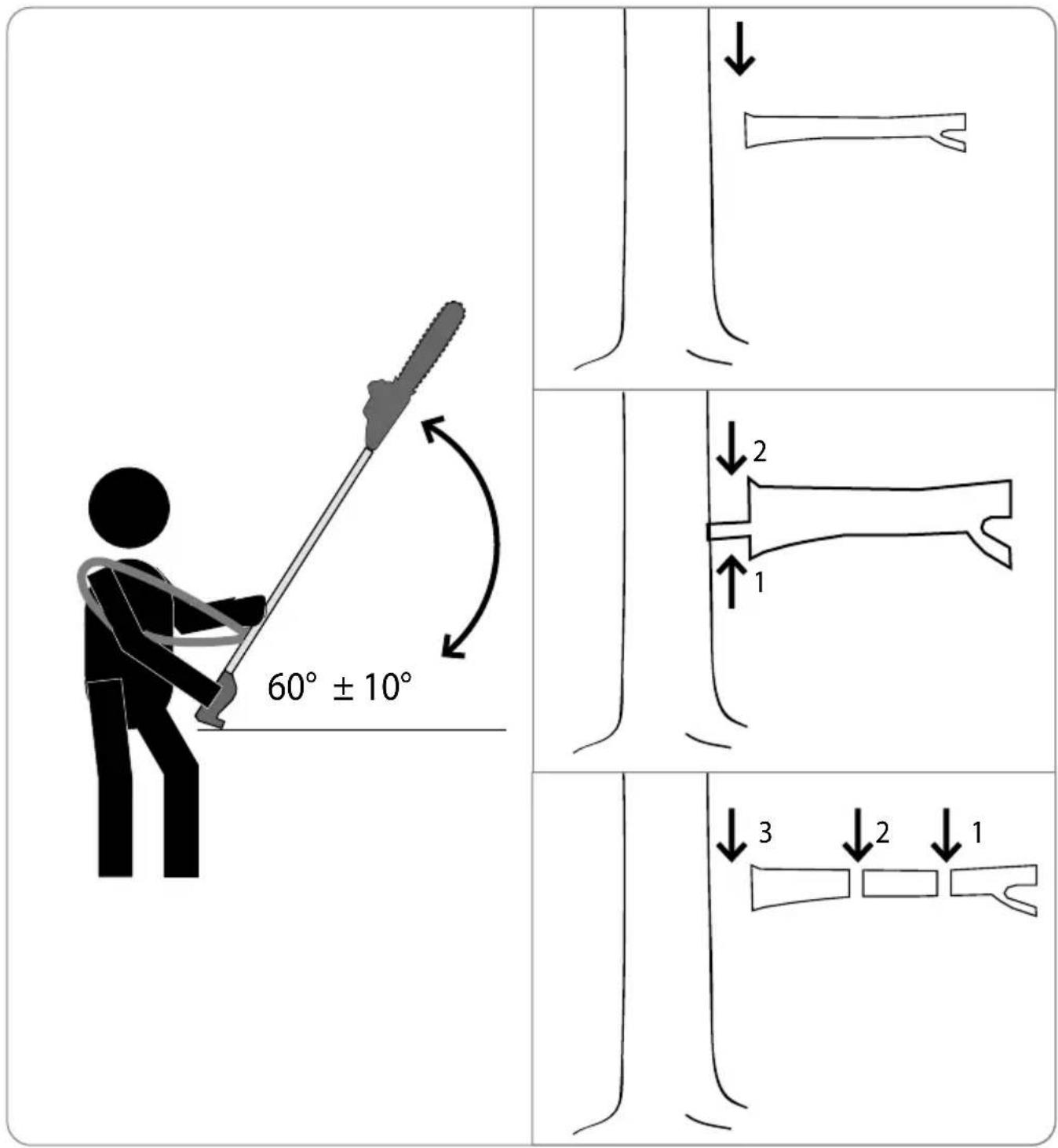

60° ± 10°

SÄGETECHNIK | Sawing technique |
Technologie de scie | Tecnologia di segatura | TECHNIKA CIĘCIA

VI

Abstract diagram with a brush and arrow, no readable text or symbols

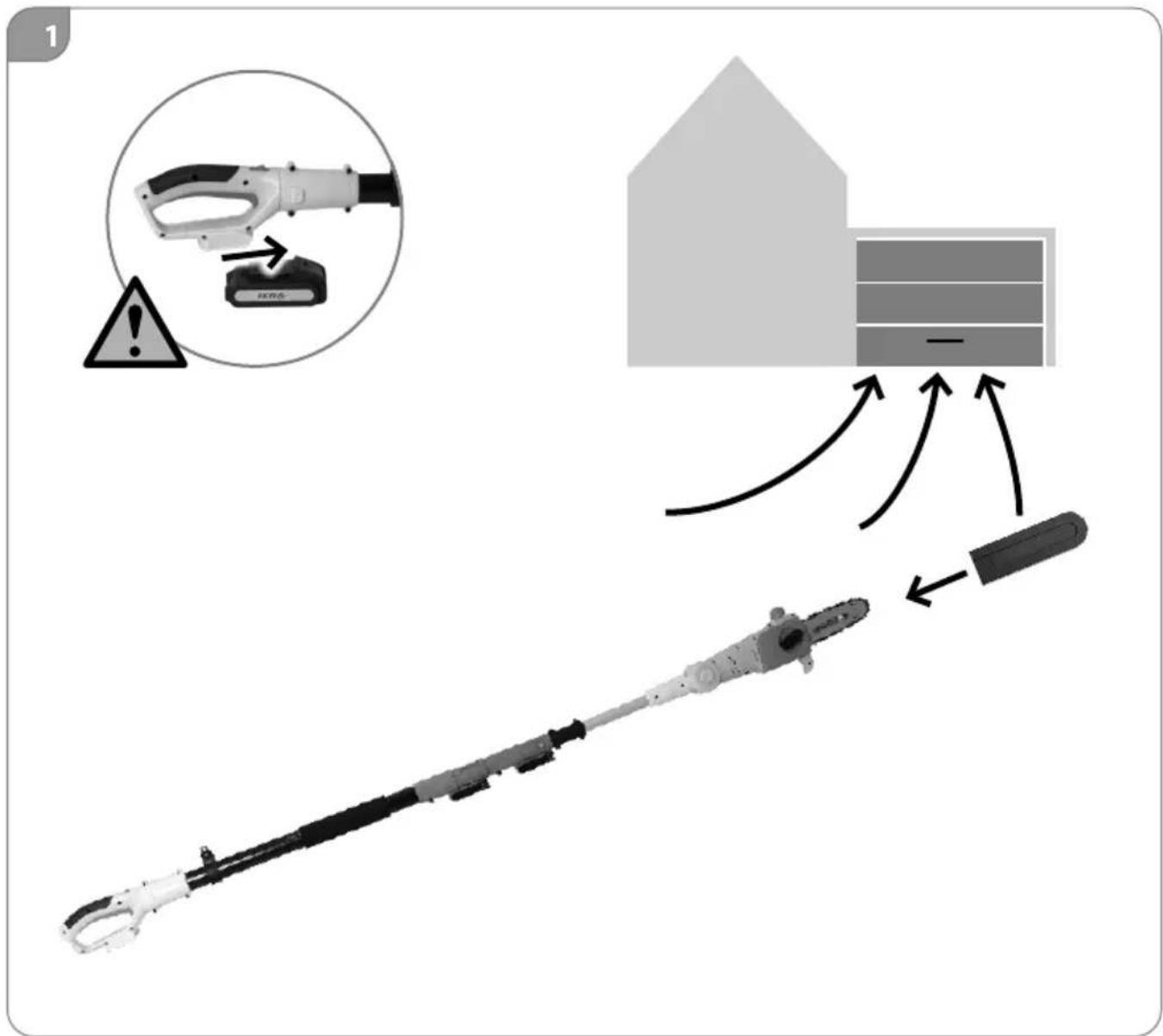

TRANSPORT UND LAGERUNG
Transportation and Storage | Transport et stockage | Trasporto e stoccaggio | TRANSPORT I SKŁADOWANIE

1 2 1

2 1 1 2 1 2

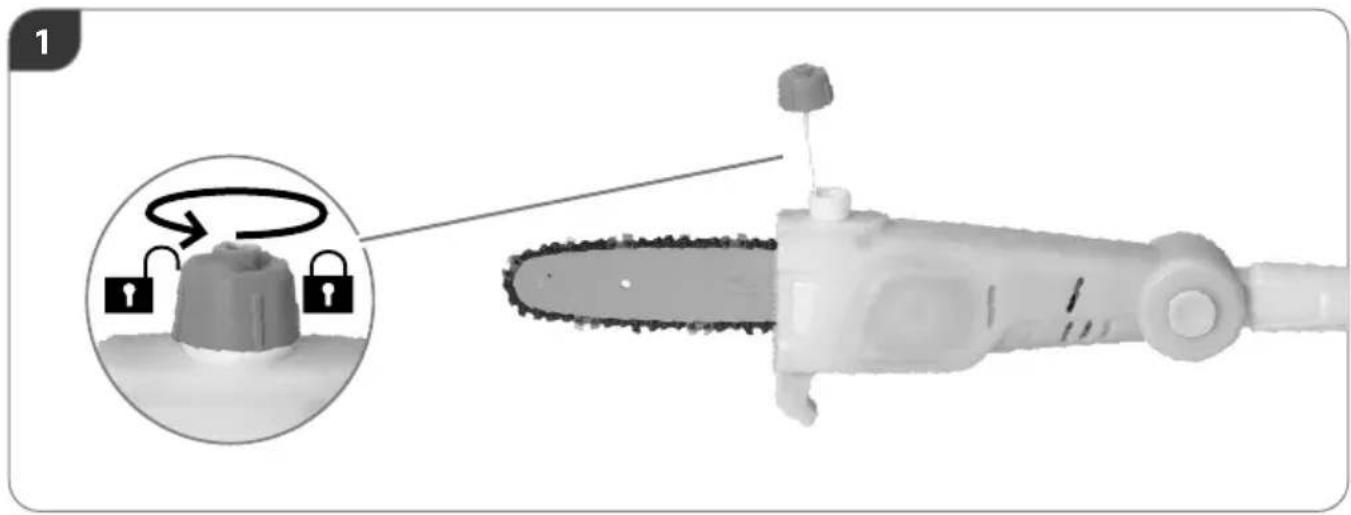

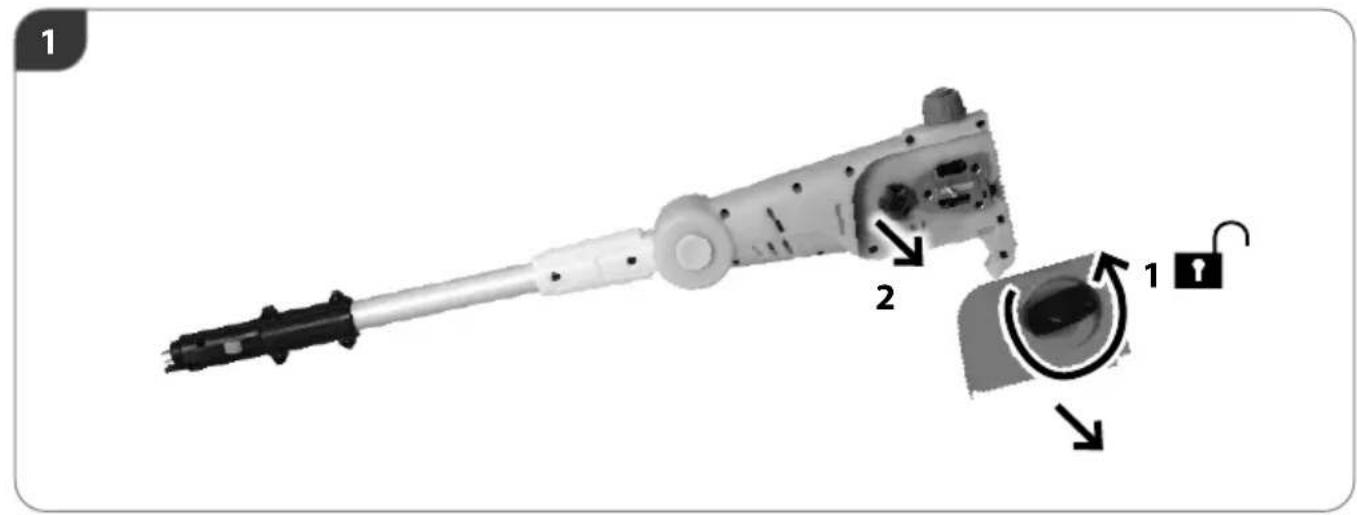

Close-up of a robotic chain saw with a lock icon and rotational arrow (no text or symbols)

1 ORIGON POWER SUGAR 91 3 mm

2 - +

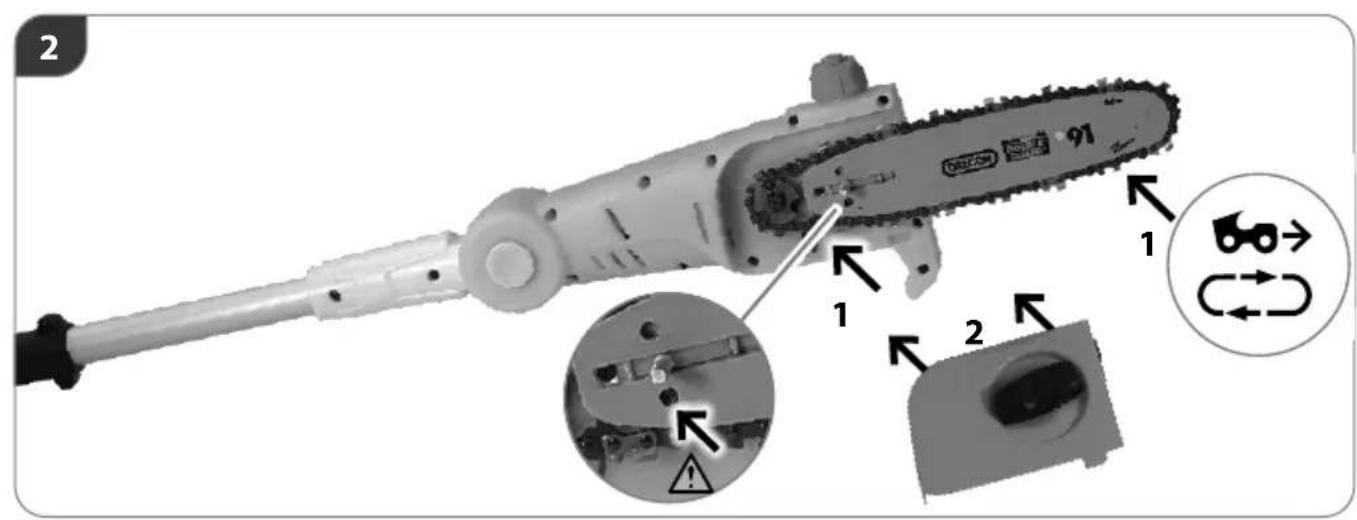

Close-up of a disson's chain saw with visible teeth and central bore (no text or symbols on the tool itself)

Illustration of a chain saw with a close-up inset showing the process (no text or symbols)

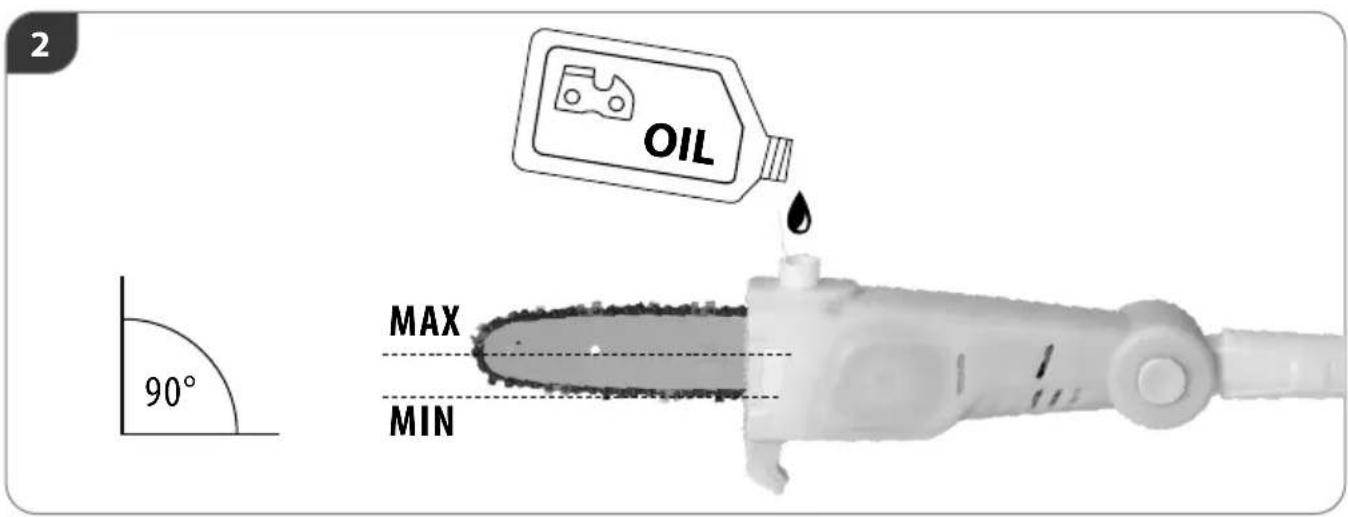

2 OIL 90° MAX MIN

1 2 3

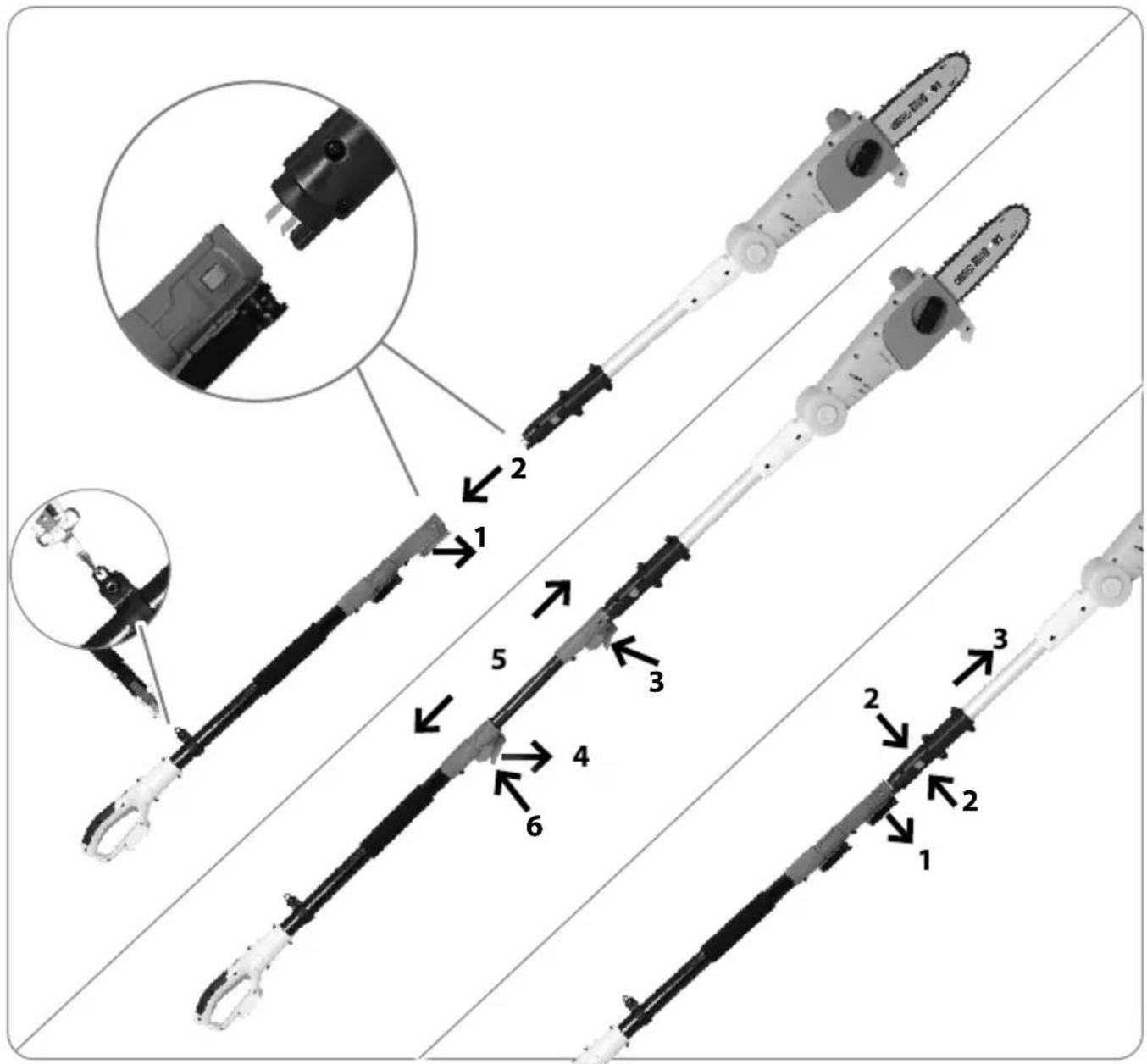

Technical diagram of a mechanical assembly with numbered parts and an inset close-up of a device component

Two identical pictograms showing a person with a checkmark and a cross symbol, likely indicating correct or incorrect conditions.

1 90° 45° 0 -45° -90°

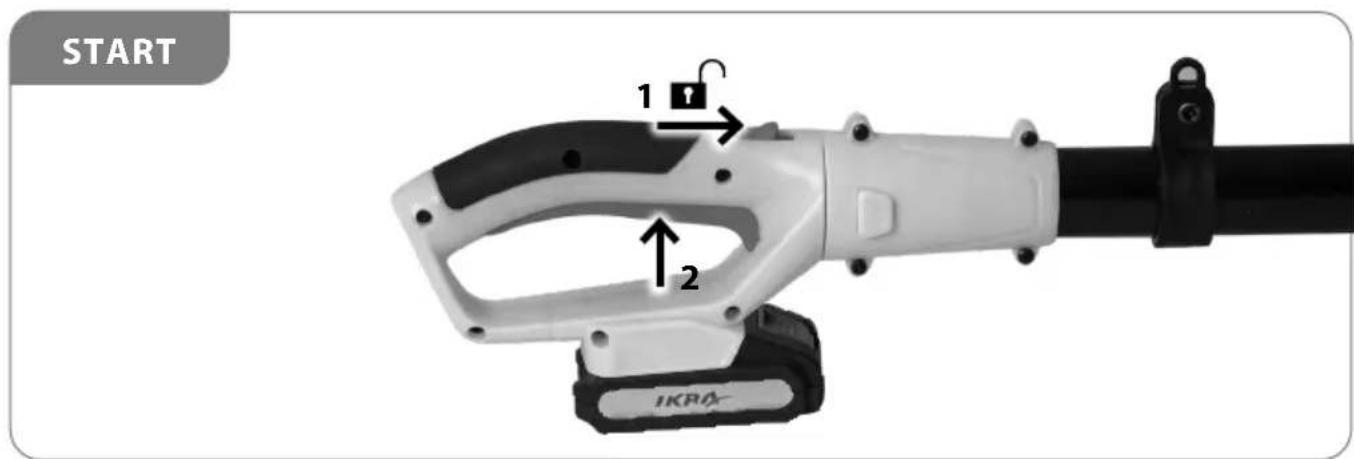

START 1 2 IKRO-

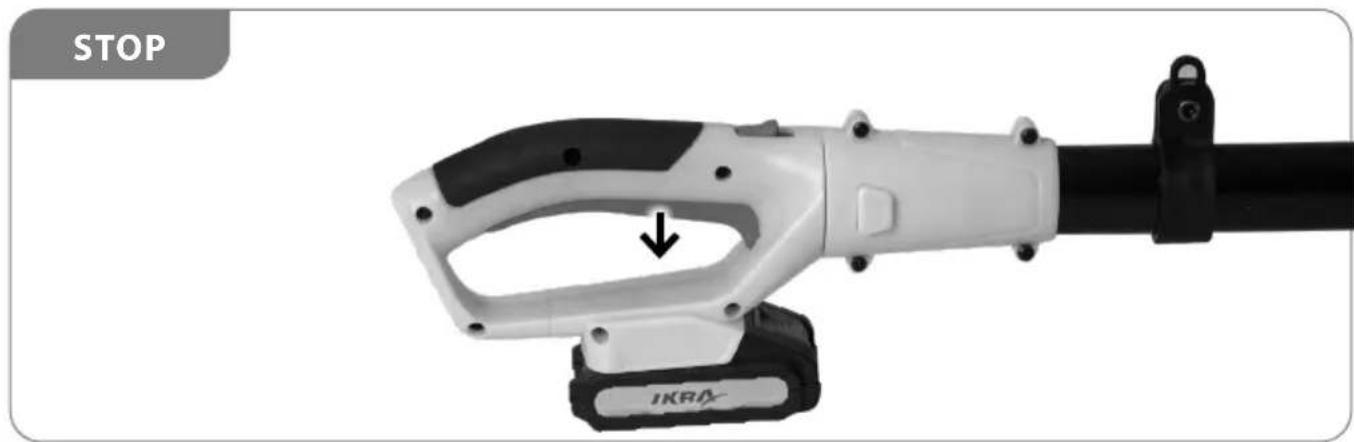

White and black electric vehicle charging plug with a black cable, labeled 'STOP' in the corner (no other text or symbols)

(10) (10)

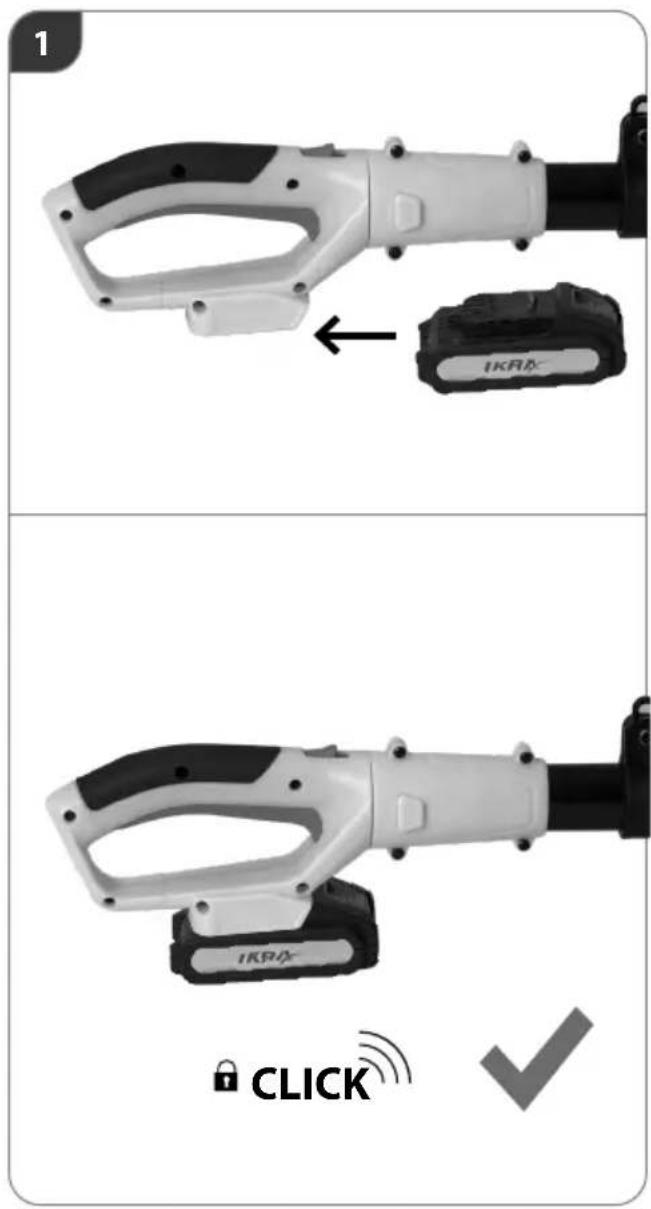

1 IKRJX IKRJX CLICK

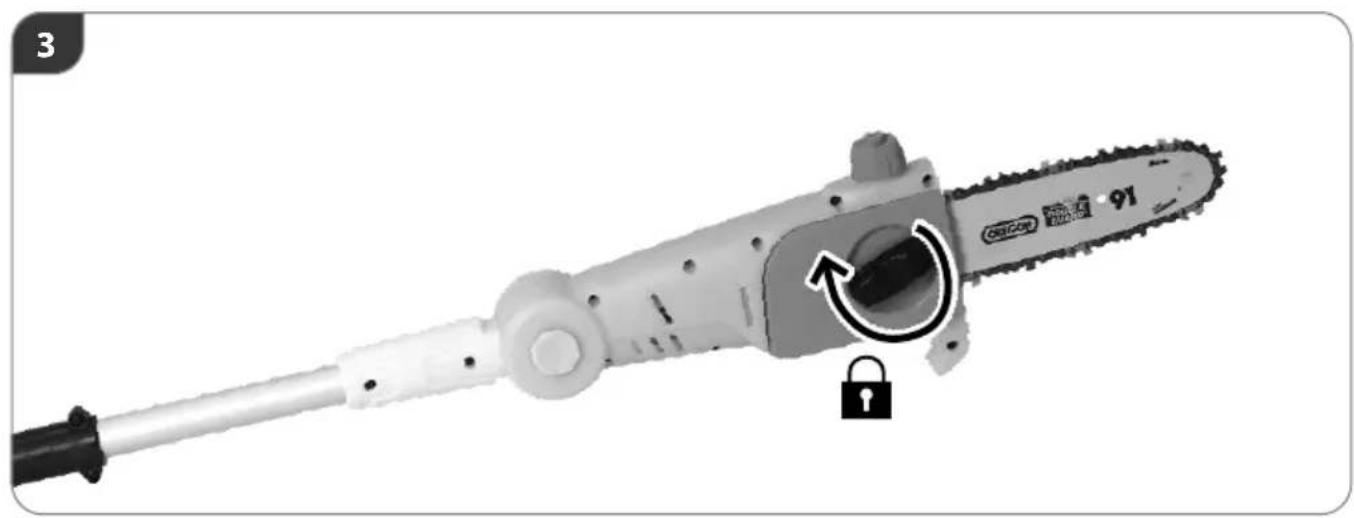

Two-step illustration of a robotic device with a lock and padlock, shown from top to bottom (no text or symbols)

60° ± 10° ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

Diagram illustrating a mechanical collision with a gear and a warning sign, showing motion and safety hazard.

Diagram illustrating a robotic device with warning and feedback, showing a hand holding a device and a warning icon with warning labels.

Diagram illustrating a hand cleaning a robotic device with a tool, showing correct and incorrect states of cleaning.

TECHNISCHE DATEN

Cordless-Chain saw ICPS 2020
No-load chain speed 5,0 m/s
Chain Oregon 91PO33X
Guide bar type 080SDEA318
Usable cutting length 200 mm/8"
Chain oil tank capacity 70 ml
Battery voltage 20 V / 2,0 Ah
Weight with battery (without cutting tool and shoulder strap)	3,2 kg
Vibration detailsVibration total values (triaxial vector sum) determined according to ISO 22867, Uncertainty K = 1,5 m/s ^2
Vibration emission value a_h	<2,5 m/s ^2
Noise informationMeasured according to ^1) EN 60745; ^2) 2000/14/ EG+2005/88/EC
Sound pressure level L_pA^1) Unsicherheit K = 3 dB (A) 74,4 dB (A)
Measured sound power level L_WA^2) Uncertainty K = 2,6 dB (A) 82,5 dB (A)
Guaranteed sound power level 86 dB (A)
Recommended battery types	Typ LI 22 / LBC202Z-2
Recommended charger	CGB20/JLH262102000G

Technical changes reserved.

WARNING: The declared vibration total value(s) and the declared noise emission value(s) were measured according to a standardized test method according to EN 60745 and can be used to compare one power tool with another. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

SAFETY WARNINGS

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool and battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool

repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Device-specific safety instructions

The chainsaw with telescoping arm is intended for removing branches from trees. It is not suitable for extensive sawing work and felling trees or for the sawing of materials other than wood. Please observe that our machine was not designed for use in commercial, technical or industrial applications. We assume no liability if the machine is used in commercial, technical or industrial applications or for equivalent activities.

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
• Hold the chain saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the chain saw "live" and could give the operator an electric shock.
  • Always hold the chain saw with your right hand

on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.

• Wear protective glasses and ear protectors. Further, wearing head, hand and leg protection equipment is recommended. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain.
• Do not work on trees with the chainsaw. There is a risk of injury when working on a tree.
• Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chain saw.
• When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and /or throw the chain saw out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
• Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw, always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
• Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
• Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.
• The machine is not protected against electric shock when coming into contact with high-voltage lines. Maintain a minimum clearance of 10m from currentcarrying lines. Life-threatening danger from electric shock!

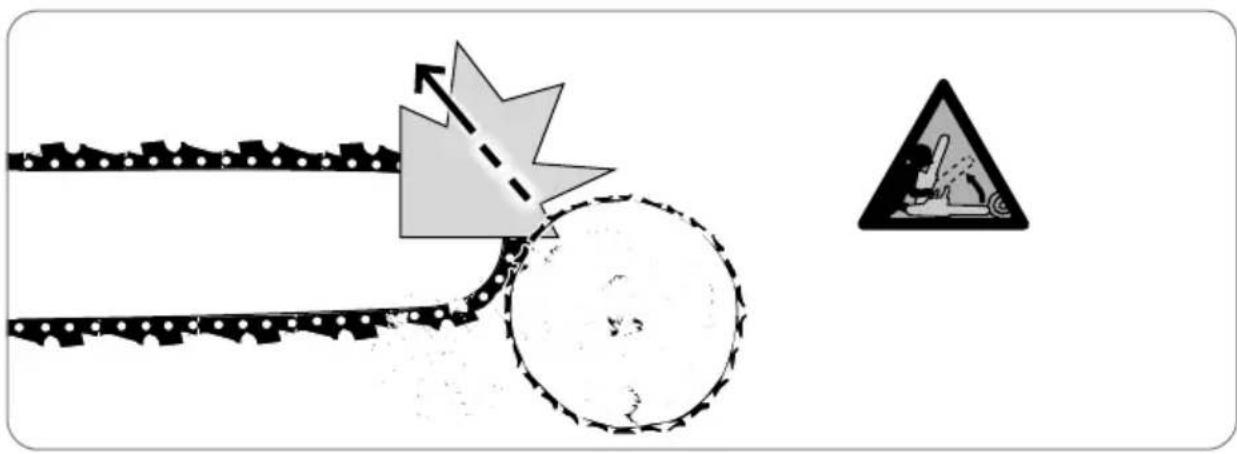

Causes and operator prevention of kickback:

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely solely on the safety devices with which the chain saw is equipped. As a chain saw user, you should

take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.
• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
• Only use replacement bars and chains specified by the manufacturer. Incorrect replacement guide bars and chains may cause chain breakage and/or kickback.
• Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

Additional Safety and Working Instructions

Ensure all guards, handles, and spiked bumper are properly fitted and are in good condition.

Check the pruner before each use for worn, damaged (e.g. cracks in the saw blade), loose or deformed parts. This ensures that the safety of the device is maintained.

Persons using the chain saw should be in good health. The chain saw is heavy, so the operator must be physically fit.

The operator should be alert, have a good vision, mobility, balance, and manual dexterity. If there is any doubt, do not operate the chain saw.

Do not start using the chain saw until you have a clear work area, secure footing, and a planned retreat path away from a falling tree. Beware of the emission of lubricant mist and saw dust. Wear a mask or respirator, if required.

Do not cut vines and/or small undergrowth (less than 75 mm in diameter).

Always hold the chain saw with both hands during operation. Use a firm grip with thumbs and fingers encircling the chain saw handles. Right hand must be on the rear handle and left hand on the front handle. Before starting the chain saw, make sure the saw chain is not contacting any object.

Do not modify the chain saw in any way or use it to power any attachments or devices not recommended by the manufacturer for your chain saw.

There should be a first-aid kit containing large wound dressings and a means to summon attention (e.g., whistle) close to the operator. A larger more comprehensive kit should be reasonably nearby.

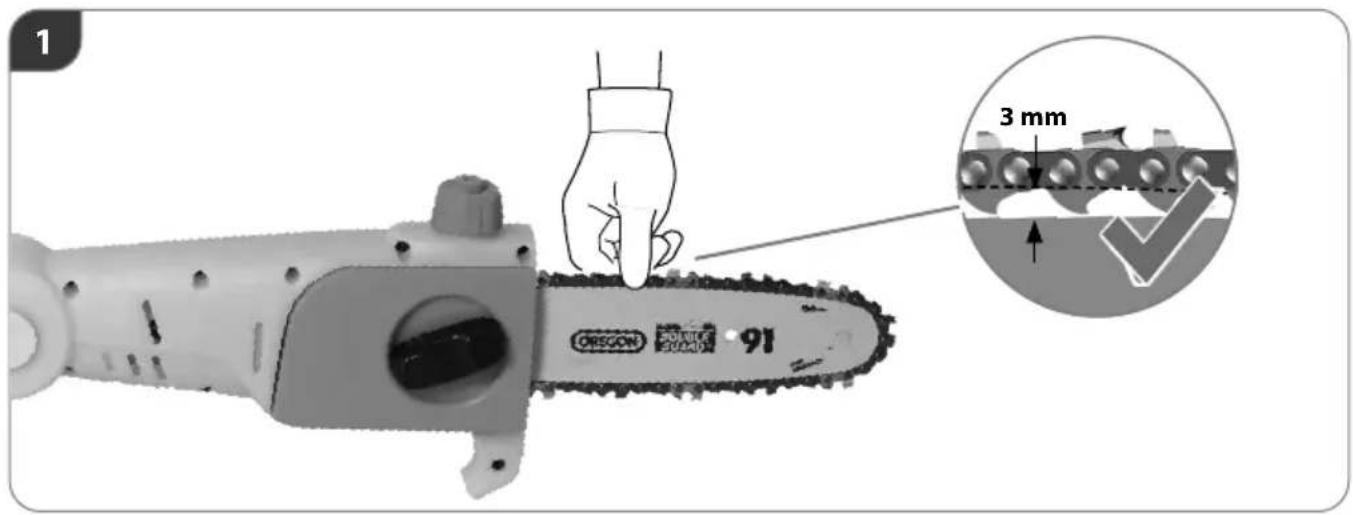

An incorrectly tensioned chain can jump off the guide bar and could result in serious injury or fatality. The length of the chain depends on the temperature. Check the tension frequently.

You should get used to your new chain saw by making simple cuts on securely supported wood. Do this whenever you have not operated the saw for some time.

To reduce the risk of injury associated with contacting moving parts, always stop the motor, apply the chain brake, remove the battery pack and make sure all moving parts have come to a stop before:

• cleaning or clearing a blockage
  • leaving the machine unattended
  • installing or removing attachments
• checking, conducting maintenance or working on the machine

The size of the work area depends on the job being performed as well as the size of the tree or work piece involved. For example, felling a tree requires a larger work area than making other cuts, i.e., bucking cuts, etc. The operator needs to be aware and in control of everything happening in the work area.

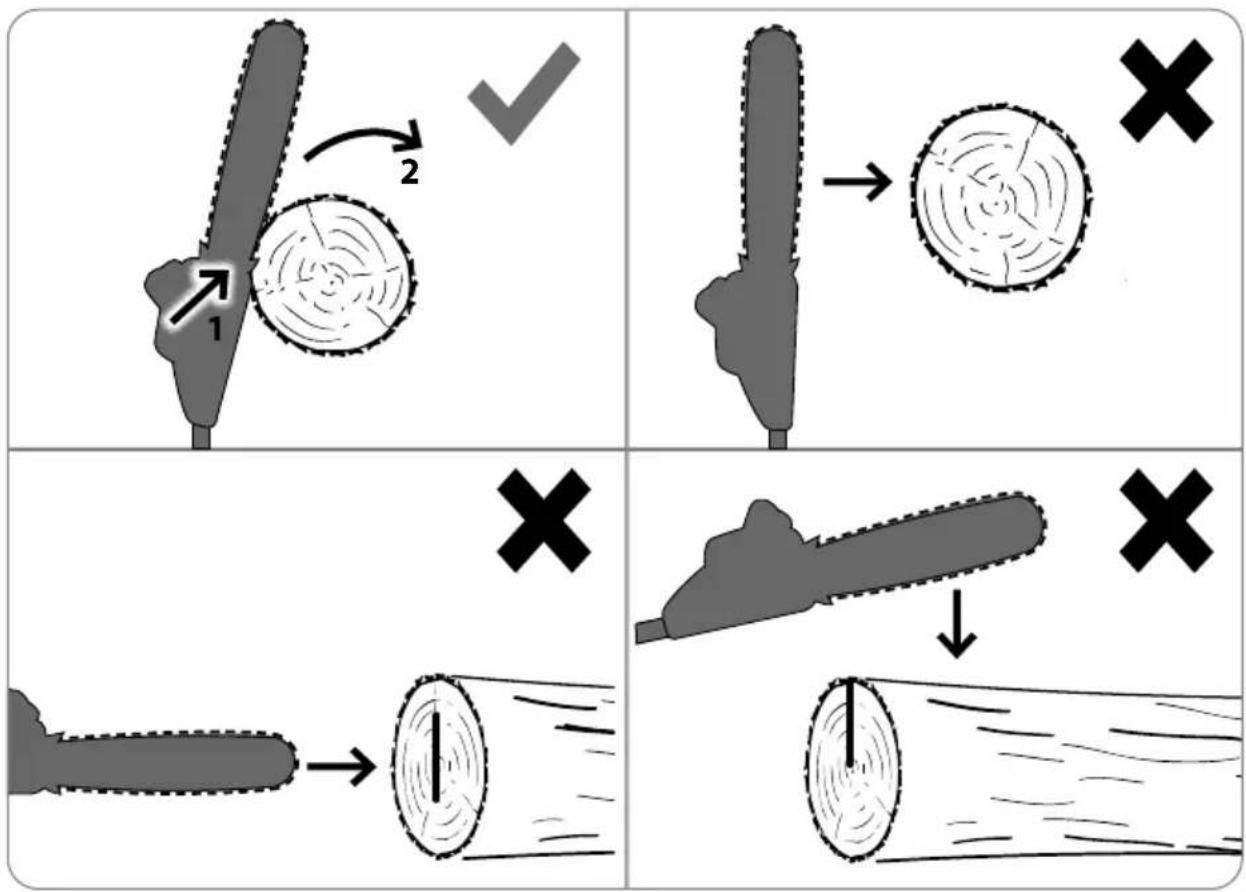

Do not cut with your body in line with the guide bar and chain. If you experience kickback, this will help prevent the chain coming into contact with your head or body.

Do not use a back-and-forward sawing motion, let the chain do the work. Keep the chain sharp and do not try to push the chain through the cut.

Do not put pressure on the saw at the end of the cut. Be ready to take on the weight of the saw as it cuts free from the wood. Failure to do so could result in possible serious personal injury.

Do not stop the saw in the middle of a cutting operation. Keep the saw running until it is already removed from the cut. Do not fix the on/off switch in the „on“ position when using the saw hand-held.

Remove the battery pack before starting any work on the appliance.

WARNING! To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your device, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., Can cause a short circuit.

Use only System Typ LI 22 / LBC202Z-2 chargers for charging System CGB20/JLH262102000G battery packs.

Never break open battery packs and chargers and store only in dry rooms. Keep dry at all times.

Prior to commissioning, check the following points on the pole-mounted pruner:

• Correct position of shoulder strap and inspection of the quick release mechanism
• Damage to the device like cracks on the guide rail
• Correct guide rail seating

• Installation/running direction of the problem-free (sharp) saw chain

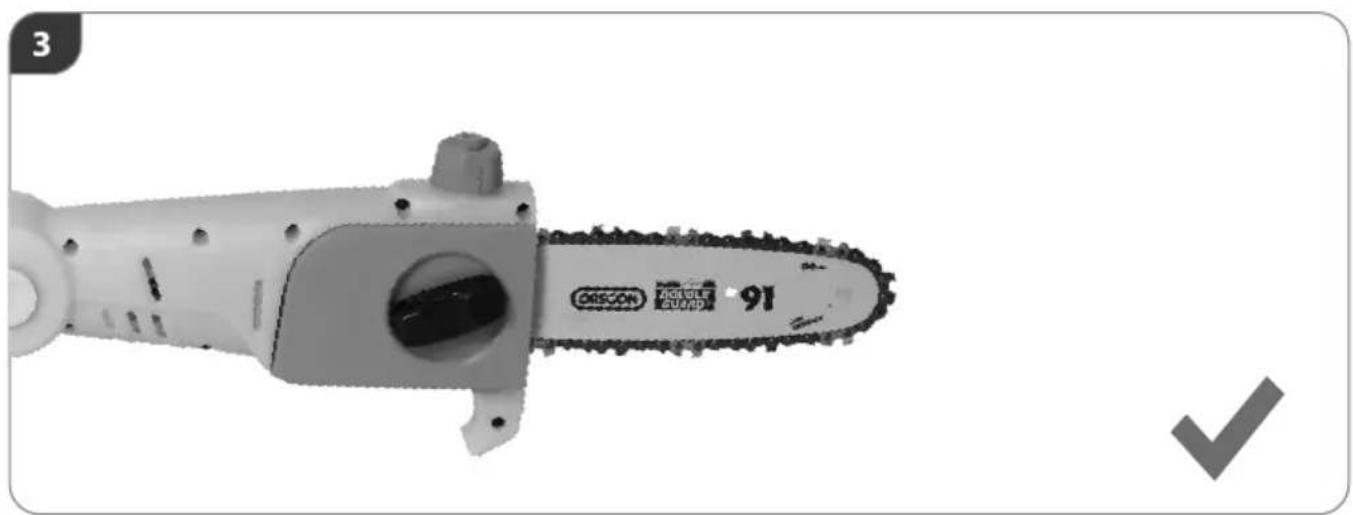

• Saw chain tension (in case of a new chain, check and readjust this multiple times)

• Functioning chain lubrication Check the automatic chain lubrication

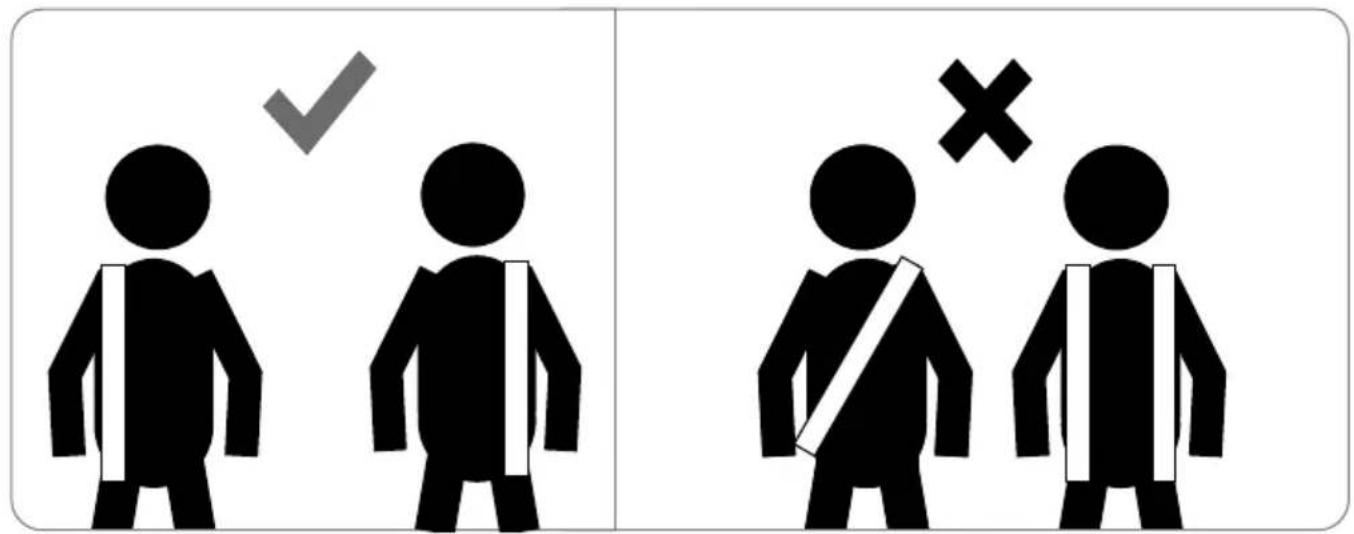

Installing the shoulder strap

1. Position the shoulder strap so that the strap is over the left shoulder (Chapter II).
2. Attach the snap hook to the shaft bracket on the shaft (Chapter II).

Position the shoulder strap so that the strap is over the left shoulder (Chapter II).

Attach the snap hook to the shaft bracket on the shaft (Chapter II).

Never carry the belt diagonally across your shoulders and chest, but rather only on one shoulder, so that you can rapidly move away from the tool in case of danger.

Regularly check the function of the automatic chain lubrication to prevent overheating and associated damage to the blade and saw chain. To do this, point the tip of the sword against a smooth surface (board, section of a tree) and let the chainsaw run. If an increasing amount of oil becomes visible during this procedure, the automatic chain lubrication is working properly.

WARNING! Danger of injury!

If the shoulder strap is not detached promptly in an emergency, serious injuries can result.

WARNING

Keep your working position in mind to ensure safe working. Do not use the pole-mounted pruner from a ladder or other unsafe position. Ensure that you have firm footing and use appropriate protective clothing. Do not be tempted to make ill-considered cuts. This can endanger yourself and others.

Cutting springpoles

A springpole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted stump has a high potential of springing back to the upright position during the bucking cut to separate the log from the stump. Watch out for springpoles—they are dangerous.

WARNING

Springpoles are dangerous and could strike the operator, causing the operator to lose control of the chain saw. This could result in severe or fatal injury to the operator. This should be done by trained users.

Some regions have regulations that restrict the use of the machine. Check with your local authority for advice.

Never allow children or people unfamiliar with the instructions to use the machine. Local regulations may

restrict the age of the operator.

Ensure before each use that all controls and safety devices function correctly. Do not use the machine if the "off" switch does not stop the motor.

Do not wear loose fitting clothing, short trousers, or jewellery of any kind.

Secure long hair so it is above shoulder level to prevent entanglement in moving parts.

Beware of thrown, flying, or falling objects. Keep all bystanders, children, and animals at least 15 m away from the work area.

Do not operate in poor lighting. The operator requires a clear view of the work area to identify potential hazards.

Use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the work area.

Operating similar tools nearby increases both the risk of hearing injury and the potential for other persons to enter your work area.

Keep firm footing and balance. Do not overreach.

Overreaching can result in loss of balance and can increase the risk of kickback.

Keep all parts of your body away from any moving part.

Inspect the chain saw before each use. Check for correct operation of all controls, including the chain brake. Check for loose fasteners, make sure all guards and handles are properly and securely attached. Replace any damaged parts before use.

Do not modify the machine in any way or use parts and accessories which are not recommended by the manufacturer.

WARNING

If the machine is dropped, suffers heavy impact or begins to vibrate abnormally, immediately stop the machine and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an service station.

Residual Risk

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following:

• Injury caused by vibration Always use the right tool for the job. Use designated handles. Restrict working time and exposure.
• Damage to hearing due to exposure to noise Wear hearing protection and limit exposure.
• Injury caused by contact with exposed saw teeth of the chain
• Injury caused by thrown-out pieces of the workpiece (wood chips, splinters)
  • Injury caused by dust and particles
• Injury to the skin caused by contact with lubricants
• Parts ejected from the saw chain (cutting/injection

hazards)

- Unforeseen, abrupt movement, or kickback of the guide bar (cutting hazards)“

Risk Reduction

• It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness, and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:
• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm.

• After each period of operation, exercise to increase blood circulation.
- Take frequent work breaks. Limit the amount of exposure per day.
- Protective gloves available from professional chain saw retailers are designed specifically for chain saw use which give protection, good grip and also reduce the effect of handle vibration. These gloves should comply with EN 381-7 and must be CE marked.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor.

WARNING

Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

TRANSPORTATION AND STORAGE

Always lightly oil the chain when storing to prevent rust. Always empty the oil tank when storing to prevent leakage.

Stop the machine, remove the battery, and allow it to cool before storing or transporting.

Clean all foreign materials from the machine. Store the machine in a cool, dry, and well-ventilated place that is inaccessible to children. Keep away from corrosive agents, such as garden chemicals and de-icing salts. Do not store outdoors.

Fit the guide bar cover before storing the machine or during transportation.

For transportation in vehicles, secure the machine against movement or falling to prevent injury to persons or damage to the machine.

AUTION

Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors.

When working with the device, a certain level of noise cannot be avoided. Noisy work should be scheduled for hours, during which it is allowed by statute or other local regulations. Adhere to any applicable rest times and limit your working time to the necessary minimum time. For your personal protection and the protection of people nearby, suitable hearing protection must be worn.

Please observe the following: according to the German Machine Noise Protection Regulation from September 2002, this device may not be operated on Sundays and Bank holidays or working days from 8pm to 7am. Furthermore, it is forbidden to operate the machine at the following times of day: from 7 a.m. to 9 a.m., from 1 p.m. to 3 p.m. and from 5 p.m. to 8 p.m.

Please do also consider any local regulations concerning noise protection!

ANGER

Warning This power tool generates an electromagnetic field during operation. Under certain circumstances, this field may affect active or passive medical implants. To reduce the risk

of serious or fatal injury, we recommend that individuals with medical implants consult your physician and the manufacturer of the medical implant before operating the machine.

WARNING

Risk of personal injury due to chainsaw in operation.

• Keep your hands in safe distance.
  Never use the machine with a damaged cover or protective device or without cover or protective devices.
• Remove the battery pack before starting any adjustment, cleaning and maintenance work on the device. Wait until all rotating parts have stopped and the appliance has cooled down.

Check the work area before using the appliance.

Remove any hard objects such as stones, shards of glass, wires, etc. that could be thrown off, knocked back or that could otherwise cause injury or damage during appliance operation.

Never use the appliance when the proper equipment is not fitted.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

If the appliance starts abnormally vibrating, switch the engine off and search for the cause immediately.

Generally, vibrations are a warning against operating failure.

When being blocked, turn the appliance immediately off and remove the jammed item.

The appliance must be stored in a dry place and protected from frost.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

SYMBOLS

	Warning /Caution!
	WARNING! Please read the instructions carefully before starting the machine.
	Remove the battery pack before starting any work on the appliance.
	Wear goggles. Wear ear protectors. Safety helmet
	Wearing safety gloves.
	Chain saw safety boots
	Warning against thrown-off items Do not let other persons get near due to foreign objects being thrown off. Minimum safe distance is 15 m.
	Warning of parts throwing away. Keep other people away. You could be injured by foreign objects being thrown out. The minimum safety distance is 15 m.
	Do not expose tools to rain. Do not use tools in damp or wet locations.
	Remove the battery pack before starting any adjustment, cleaning and maintenance work on the device.
CE	European Conformity Mark

	Protect the battery against temperatures above 45°C.
	Protect the battery against heat and fire.
	Protect the battery against water and moisture.
20 V	Output voltageDirect CurrentOutput current
~	Input voltage / AC CurrentFrequency, Rated input
	Sound power level
Typ LI 22	Recommended battery types
	Do not dispose electric tools, batteries/rechargeable batteries together with household waste material. Electric tools and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.
	Do not dispose electric tools, batteries/rechargeable batteries together with household waste material. Electric tools and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.
	Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way.

SPECIFIED CONDITIONS OF USE

The cordless chain saw is only intended for use outdoors.

For safety reasons, the chian saw must be adequately controlled by using two-handed operation at all times.

The chain saw is designed for cutting branches, trunks, logs, and beams of a diameter determined by the cutting length of the guide bar. It is only designed to cut wood. It is only to be used by adults who have received adequate training on the hazards and preventative measures/actions to be taken while using the chain saw.

Do not use the chain saw for any purpose not listed in the specified conditions of use. It is not to be used for professional tree services. The chain saw is not to be used by children or by persons not wearing adequate personal protective equipment and clothing.

WARNING

When using the chain saw, the safety rules must be followed. For your own safety and that of bystanders, you must read and fully understand these instructions before operating the chain saw. You should attend a professionally organized safety course in the use, preventative actions, first-aid, and maintenance of chain saws. Please keep these instructions safe for later use.

WARNING

Chain saws are potentially dangerous tools. Accidents involving the use of chain saws often result in loss of limbs or death. It is not just the chain saw that is the hazard. Falling branches, toppling trees, and rolling logs can all kill. Diseased or rotting timber poses additional hazards. You should assess your capability of completing the task safely. If there is any doubt, leave it to a professional tree surgeon.

Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

MAINTENANCE

DANGER

Remove the battery pack before starting any adjustment, cleaning and maintenance work

on the device. Wait until all rotating parts have stopped and the appliance has cooled down.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making. Use only original accessories and original spare parts. Using other spare parts can result in accidents/injuries of the user. The manufacturer will not be liable for any such damage. Please contact our service department if you need accessories or spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Keep your chain saw professionally maintained and safe.

- Sharpening the chain safely is a skilled task. Therefore, the manufacturer strongly recommends that a worn or dull chain is replaced with a new one, available at your service agent. The part number is available in the product specification table in this manual.

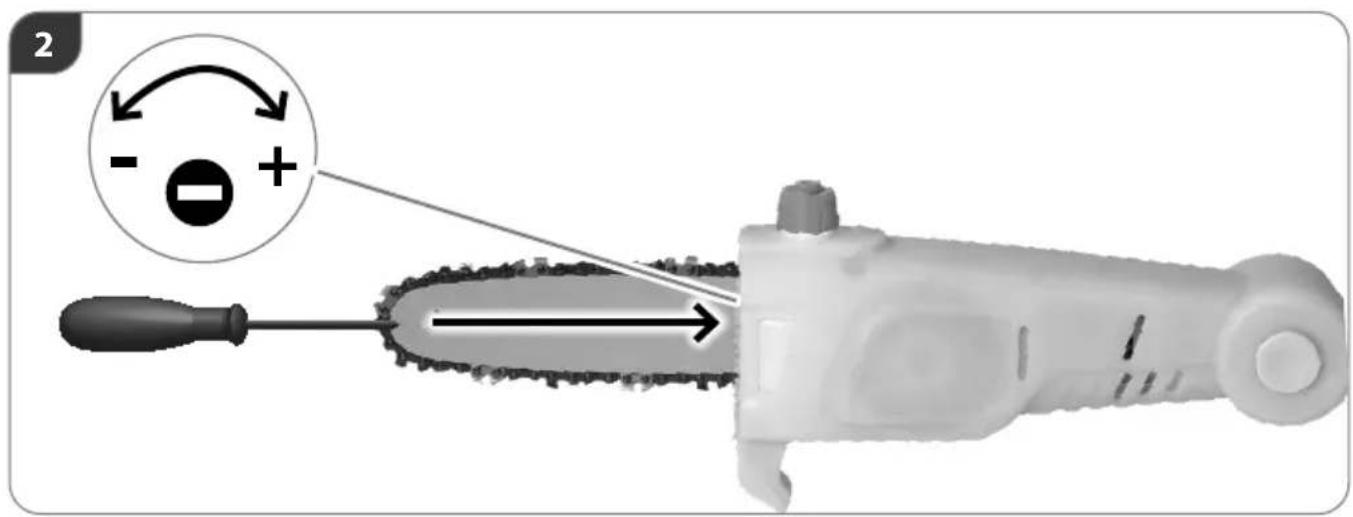

Follow instructions for lubricating and chain tension checking and adjustment.

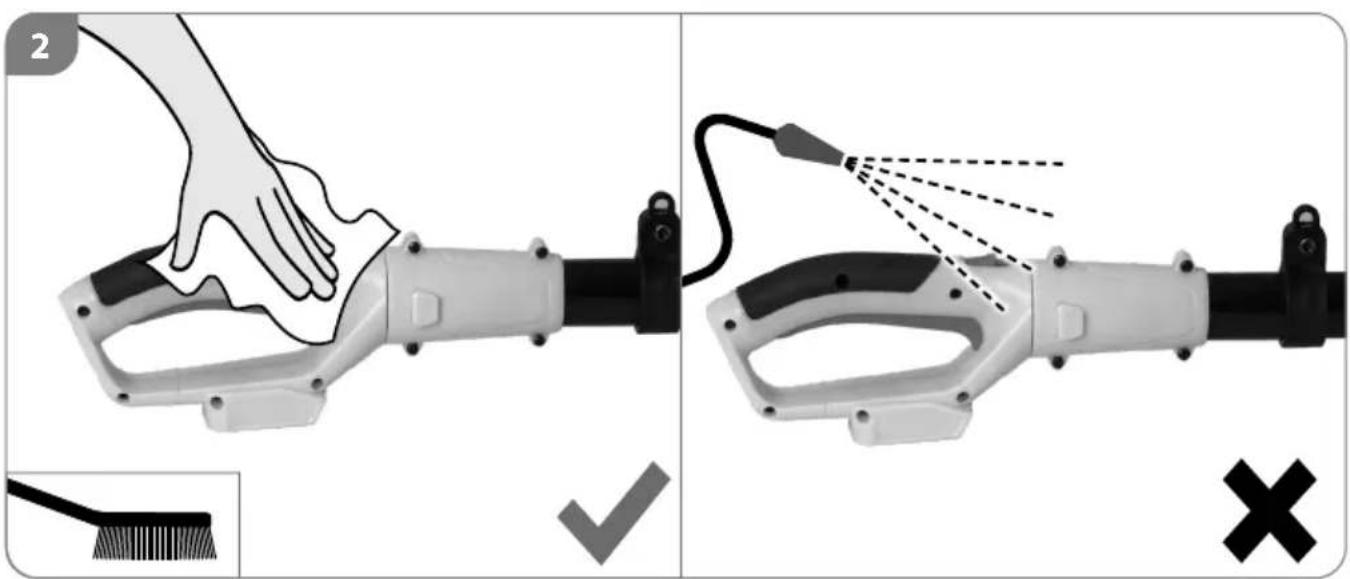

After each use, clean the machine with a soft dry cloth.

Remove any chips, dirt and debris in the battery bay.

Check all nuts, bolts, and screws at frequent intervals for security to ensure the machine is in safe working condition. Any part that is damaged should be properly repaired or replaced by a service station.

Replacement parts

Chain 91P033X

Guide Bar 080SDEA318

Chain must be fitted with bar from the same manufacturer according to above combinations.

Troubleshooting

⚠ Warning! Always remove the rechargeable battery before inspection and adjustment work.

Check the rechargeable battery capacity. If the charge level is low, this can lead to more blockages. Continue working with a fully charged rechargeable battery.

The following table lists error symptoms and describes how remedial action can be taken if your machine is not working properly. If this does not help to locate and eliminate the problem, contact your service workshop.

Cause Fault Remedy
Pole-mounted pruner is not working	The battery is empty See “Charging the rechargeable battery”
	The battery is faulty Have it replaced by our specialist service department.
Pole-mounted pruner is working erratically	Loose internal contact Visit a specialist workshop
	Ein-/Ausschalter defekt Visit a specialist workshop
Saw chain is dry No oil in tank	Top up oil
	Vent in the oil tank cap blocked	Clean the oil tank cap
	Oil outflow channel blocked Clear the oil outflow channel
Chain/guide rail hot No oil in tank	Top up oil
	Vent in the oil tank cap blocked	Clean the oil tank cap
	Oil outflow channel blocked Clear the oil outflow channel
	The chain is blunt Resharpen or replace the chain
Pole-mounted pruner does not pluck, vibrate or saw properly	Chain tension too loose	Adjust chain tension
	The chain is blunt Resharpen or replace the chain
	The chain is worn Replace the chain
	Saw teeth point in the wrong direction	Refit saw chain with teeth in correct direction

DISPOSAL

If your device should become useless somewhere in the future or you do not need it any longer, do not dispose of the device together with your domestic refuse, but dispose of it in an environmentally friendly manner.

Please dispose of the device itself at an according collecting/recycling point. By doing so, plastic and metal parts can be separated and recycled. Information concerning the disposal of materials and devices are available from your local administration.

Batteries are not to be put into the rubbish. As a consumer you are legally obliged to return used batteries and accumulators. At the end of the duration of your apparatus, the batteries or accumulators have to be taken from the apparatus, disposing of them separately. You have the possibility of delivering your old batteries and accumulators to the local collecting points of your municipality or to your dealer or to the distribution centers.

Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery.

Do not dispose of electric tools together with household waste material!

In observance of European Directive 2012/19/EU on waste electrical and electronic equipment

and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Recycling alternatives to request for return: If the ownership of the electronic device is relinquished, the owner of the device is under obligation to ensure its proper recycling instead of returning it. For this purpose, the old device can also be left with a collection facility that disposes of it in line with the national Recycling and Waste Act. This does not concern the accessories and tools without electronic components provided along with the old devices.

All postage or delivery costs as well as any other subsequent expenses will be borne by the customer. See service addresses on the back side

CARACTÉRISTIQUES TECHNIQUES

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.

The warranty is valid for 2 years from the handover date. The original invoice or a copy of the invoice serves as proof.

Warranty provider:

ikra GmbH, Schlesier Straße 36, D-64839 Münster-Altheim, Germany

Area of validity:

The warranty is only intended for consumers. A consumer is any natural person who concludes a legal transaction for purposes which can predominantly neither be attributed to his commercial nor to his self-employed professional activity.

The warranty is valid in Germany.

No restriction of the legal rights of the buyer:

Within the framework of the applicable national laws on the sale of consumer goods, the buyer has legal rights, e.g. due to liability for defects (guarantee), which are not restricted by the warranty.

Contents of the warranty:

In the event of a warranty claim, the warranty provider shall bear the repair and material costs for defective parts. If a repair is uneconomical, we reserve the right to provide the customer with a replacement device. The refund of the purchase price is excluded within the scope of the warranty. Postage and shipping costs inside Germany that are incurred under warranty shall be borne by ikra GmbH. Shipping costs incurred from or within countries other than Germany, as well as customs and import duties, shall be borne by the customer. Repair or replacement of the device does not lead to the warranty period starting again.

The warranty shall not apply or shall expire in the following cases:

• Batteries and wear parts
• Improper or inappropriate use, e.g. commercial use
• Damages that arise from the use of incorrect accessory parts
• Damage due to external influences, e.g. transport damage, weather damage, impact or breakage
• Damage caused by incorrect voltage (mains voltage), e.g. when used abroad
• Repairs with non-original parts (original spare parts can be found here: www.ikra.de/ersatzteile/)
  • Repairs or modifications that have not been carried out by us
  • Application of force
• Wilful motor overloading
• Malice, wilful deception

Repairs under warranty may only be carried out by authorised workshops or by the in-house customer service department, otherwise the warranty shall be voided. Service addresses can be found at www.ikra.dc/serviceadressen. During the repair we do not provide the customer with any temporary replacement equipment.

Repair costs that are not covered by the warranty will be invoiced to the customer. The customer shall be consulted prior to the performance of any repairs that result in additional costs.

Enforcement of the warranty (warranty claim):

If the product does not function during the warranty period or does not function as intended for use, this is a warranty claim.

In the event of a warranty claim, please contact

Tel: [phone]

Email: [e-mail]

You will find further service addresses, which you are welcome to contact if you require assistance, at www.ikra.de/serviceadressen.

Assertion of the defect must take place immediately after the occurrence of the defect and within the warranty period.

Our competent customer hotline and technical hotline are by your side throughout the complete warranty period with advice and assistance. In the event of a warranty case, contact us and you can send the faulty device to us free of charge. The return shipping of the repaired device or the replacement device back to you is also free of charge.

Durée de garantie:

GB - explains the following conformity according to EU directives and norms for the following product

Normen / Standard References:

EN 60745-1: 2009+A11:2010

EN ISO 11680-1:2011

EN 50581:2012

EN 55014-1:2017

EN 55014-2:2015

DE | Ikra Mogatec - Service

11 Othellos Street, Dali Industrial Zone

2540 Nicosia

[phone]

[phone]

[e-mail]

CZ | GentlemansTools s.r.o.

Nádražní 1585

Turnov 51101

[phone]

[e-mail]

DK | Bahn-Larsen

Skov- Have- og Parkmaskiner

Vinkelvej 28

7840 Hoejslev

① [phone]

[e-mail]

EE | Hooldusbuss OÜ

Kabelikopli tee, 5

79221 Kohila vald, Raplamaa

[phone]

[e-mail]

ES | Yaros Dau

C/ Puigpalter n° 48, Polígono Industrial UP4

17820 Banyoles (Girona)

[phone]

[phone]

[e-mail]

FR | ikra Service France

GB-Northampton, NN3 8RH

UK/N.Ireland: 0344 824 3524

[e-mail]

GR | Vrontani P. Christina

3 Molas Street

13679 Aharnes

[phone]

[phone]

[e-mail], [e-mail]

HR | VAR - ERCO d.o.o.

Stipana Vilova 14A

10090 ZAGREB

[phone]

[phone]

[e-mail]

HU | Tooltechnic Kft.

Vaskapu Utca 10-14,

H-1097 Budapest

[phone]

[phone]

[e-mail]

IN | Agritech Floritech Inc.

206 - B Rajindera Arihant Tower

B-1 Community Centre Janak Puri

New Delhi - 110058 / India

[phone]

[phone]

info@agrifl oritech.com

IR | BGR8 Ltd. c/o Seabourne Group

South Portway Close, Round Spinney

Northampton, NN3 8RH

[phone]

[phone]

[e-mail]

IT | Ikra Service Italia, by BRUMAR

Loc. Valgera 110/B

14100 ASTI (AT)

[phone]

目 [phone]

[e-mail]

JO | Taha & Qashou Agri Co. (LLC)

205 Mekka Street

Amman 11821, Jordan

[phone]

[phone]

[e-mail]

LT | ikra Lithuania

Kalvariju q. 206

08314 Vilnius

[phone] / [phone]

[e-mail]

LU | Bobinage Georges Back

53 Rue Nic. Meyers

4918 Bascharage

[phone]

[phone]

MK | FEROELEKTRO D.O.O.

Str.Nikola Parapunov br.35A/3

1000 Skopje

[phone]

[phone]

[e-mail]

MD | OLSOM S.R.L.

Mateevici Str., 38/1

2009 Chisinau

📞 [phone]

[phone]

[e-mail]

NL | Muldertechniek

Noorderkijl 1

9571 AR 2 e Exloermond

[phone]

SE | ikra Service Sweden

Verkstadsgatan 8

57341 Tranås

[phone]

[e-mail]

SI | BIBIRO d.o.o.

Tržaška cesta 233

1000 Ljubljana

[phone]

[phone]

[e-mail]

SK | AGF Invest s.r.o.

Hlinikova 365/39

95201 Vráble

[phone]

[phone]

info@agfi nvest.sk

(LLC "TC "Euroinstrument")

бул. I. Лепсе, 79
