FX-DS8L - Sprayer Fuxtec - Free user manual and instructions

Product Type	Pressure Sprayer
Brand	Fuxtec
Model	FX-DS8L
Total Capacity	8,0 litres
Maximum Fill Quantity	5 litres
Authorized Operating Pressure	2,5 bar
Max. Volumetric Flow Rate	1,5 l/min at 2,5 bar
Authorized Operating Temperature	1°C to 30°C
Spray Angle	35°
Nozzle Orifice	1,3 mm
Recoil Force	< 20 N
Power Source	Manual (lever pump)
Intended Use	Domestic and Garden
Tank Material	Plastic
Safety	Do not use with solvents, corrosive substances or petroleum products; liquid temperature 1-30°C; wear protective clothing
Maintenance	Clean with water after each use; grease the pump once a year
Storage	Protect from frost and heat sources
Compatible Products	Liquid fertilizers, herbicides and BBA-approved plant protection products
Warranty	See instructions

Frequently Asked Questions - FX-DS8L Fuxtec

How to open and close the FX-DS8L sprayer?

To open, unscrew the pump head by turning counterclockwise. To close, screw it back on firmly after filling. Make sure the seal is in place.

What to do if the pump does not build up pressure?

Operate the pump lever several times while the lance is closed, then open the lance. If the tank contains little liquid, continue pumping until you feel pressure. Also check that all connections are tight and the seals are in good condition.

Why is no liquid coming out even though the pump is under pressure?

The filter or nozzle of the lance is probably blocked. Clean the filter and nozzle with clean water.

What type of product can I use in the FX-DS8L?

The device is designed for water mixtures with BBA-approved plant protection products (liquid fertilizers, herbicides, etc.). Never use solvents, corrosive substances or petroleum products.

How to clean the sprayer after use?

Empty the tank, rinse it with clean water, then run the pump with clean water until all components are washed. Let air dry. Once a year, clean the pump and grease the moving parts.

What safety precautions should I take?

Wear protective clothing and follow the product dosages. Do not spray on people or animals. Do not smoke or eat during use. Wash hands thoroughly after use. Keep the device out of reach of children.

Can I use the device in windy weather?

No, it is forbidden to use the sprayer on days with strong wind to avoid product drift.

How to store the sprayer in winter?

Protect the device from frost. Completely empty the liquid and store it in a place protected from frost and heat sources.

What is the maximum fill capacity?

The total capacity is 8 litres, but the recommended maximum fill quantity is 5 litres to allow pressurization.

What to do if a seal is damaged?

Replace the defective seal. Regularly check the condition of seals and connections. If necessary, contact customer service.

USER MANUAL FX-DS8L Fuxtec

Line drawing of a spray sprayer with a long handle and hose against a black background (no text or symbols)

Silhouette of a stylized fox head (no text or symbols)

FUXTEC

Illustration of a spray gun with hose and control lever (no text or symbols)

CE

Baujahr 2019

Illustration of a spray gun with a hose and lever, no text or symbols present

Illustration of a spray bottle with a hose and a red checkmark, no text or symbols present

Simple diagram of a mechanical component with a red arrow indicating downward motion (no text or symbols)

1.

Simple line drawing of a mechanical lever with a red circular motion indicator (no text or symbols)

1.

Mechanical component diagram showing a lever with a red upward arrow indicating motion (no text or symbols)

7. Wartung

Read these instructions thoroughly before initial operation. They are an integral part of this device.

This device is only intended for the application of aqueous sprays in the home and allotment garden sectors. Usage of liquid fertilizers, weed-killers and plant protection products (PSM) approved by the Federal Biological Research Centre for Agriculture and Forestry (BBA) is permissible. No known damaging effects of these approved PSMs on the product materials used were known at the time of manufacture. If in doubt, please contact your pesticide manufacturer.

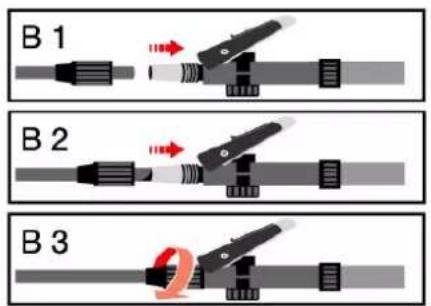

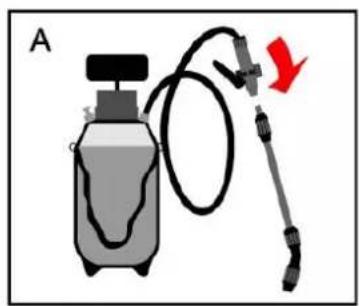

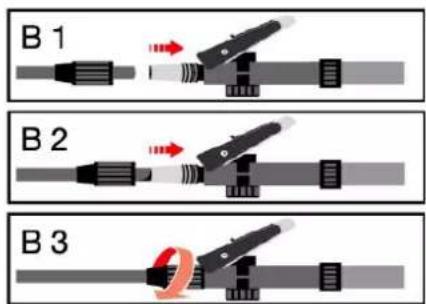

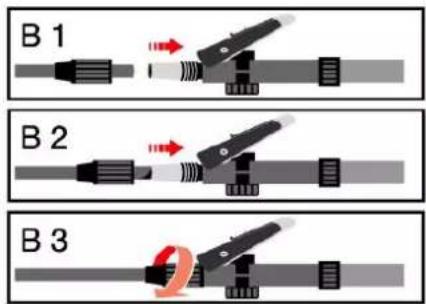

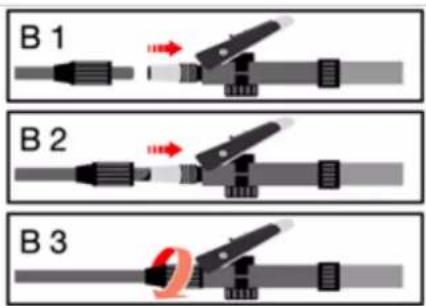

Assembly

Illustration of a spray gun with a bottle and hose, showing a red arrow indicating motion (no text or symbols)

Illustration of a spray gun with a hose and a red checkmark (no text or symbols)

Start Up

Each time before the device is used, the device should be checked to ensure that it is in a safe and serviceable condition or at least it should be checked for visible damages. Only add as much spraying fluid as necessary. Pay attention during filling that nothing spills over and that nothing sprays back. Use a funnel and a strainer for this.

Opening and Closing the Compression Sprayer

1.

Mechanical component diagram showing a lever with a red downward arrow (no text or symbols)

1.

Mechanical component with a red circular motion indicator and a rectangular shaft (no text or symbols)

1.

Mechanical component diagram showing a lever with a red upward arrow indicating motion (no text or symbols)

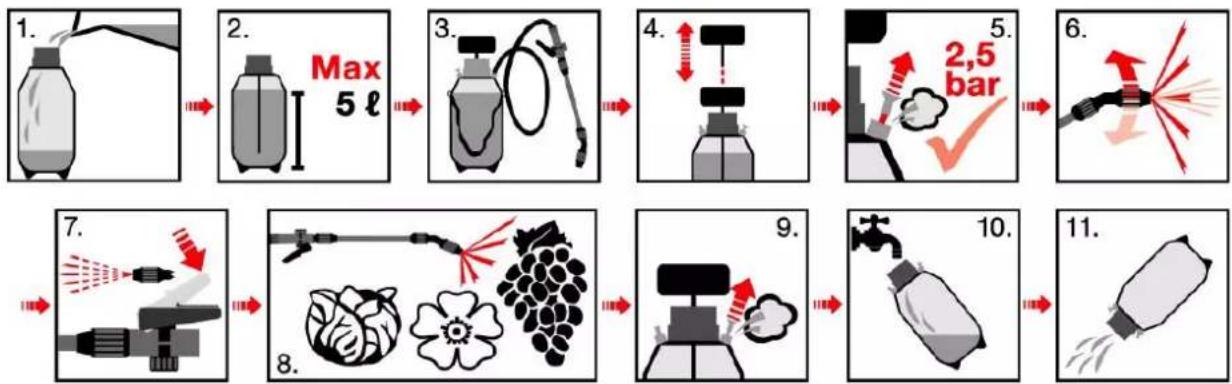

Instructions

Maintenance

After use, wash out the container with clean water. Then operate the unit with clean water until all of the components have been washed out. Leave open to dry.

The pump should be cleaned thoroughly once a year and all moving parts should be greased or oiled.

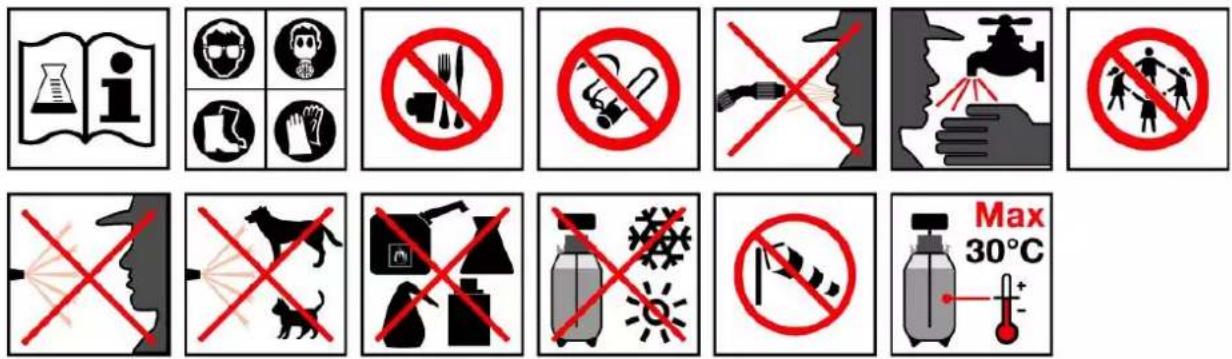

Safety Instructions

• Pay attention to the instructions for dosage and usage in the directions for use of the plant preservatives, and wear protective clothing if necessary.
• Do not eat, drink or smoke while working with plant protective agents.
• Never blow out nozzles and other small parts with the mouth.
• Wash hands and face thoroughly after finishing work.
• Keep plant protective agent device and protective agents away from children.
• Do not spray on humans or animals.
• Not intended for spraying of solvents, acidic or corrosive chemical agents and petroleum products.
• Protect device from heat sources and frost.
• Use of the device on windy days is forbidden.
• Admissible liquidity temperatures 1^ - 30^ .

Troubleshooting

The pump is pressurized but does not emit any liquid:

a) Check whether the filter and the nozzle of the spray lance are clean and clean if necessary.
No pressure is building up on the pump:
b) Activate the pump lever several times while the spray lance is closed and then open the pray lance.
c) When a little fluid is in the container, activate the pump lever until a certain resistance is felt.
d) Check whether all closures are tightly screwed.
e) Check whether the seals are intact. Replace if need be.

Technical Data

Max. filling quantity	:	5 Liter
Total volume	:	8,0 Liter
Admissible operating pressure	:	2,5 bar
Max. volume flow	:	1,5l/min, 2,5 bar
Admissible operating temperature	:	1°C – 30°C
Spraying figure	:	Hollow cone
Bore	:	1,3 mm
Recoil energy at jet	:	<20N
Spraying angle	:	35°
