Product Type	Manual Pressure Sprayer
Brand	Fuxtec
Model	FX-DS20L
Tank Capacity	20 liters
Net Weight	3.0 kg
Max. Operating Pressure	1.0 MPa (10 bar)
Max. Flow Rate	0.9 L/min
Operating Temperature	1 °C - 45 °C
Dimensions (L × H × D)	42.5 × 59.5 × 19.5 cm
Tank Material	Polyethylene (PE)
Pump Type	Manual lever pump
Intended Use	Domestic and garden, spraying of water/BBA-approved plant protection product mixtures
Approved Liquids	Water, liquid fertilizers, herbicides, approved plant protection products
Liquid Temperature	1 °C - 30 °C
Cleaning After Use	Rinse the tank and circulate clean water through the lance
Annual Maintenance	Clean the pump and grease/oil moving parts
Safety: Frost Protection	Protect the device from frost and heat sources
Safety: Prohibited Products	Do not use solvents, aggressive or corrosive chemicals, or petroleum products
Safety: Spraying	Do not spray on people or animals
Recycling	Device and accessories recyclable: dispose at store or recycling center (Triman logo)

Frequently Asked Questions - FX-DS20L Fuxtec

How to fill the FX-DS20L sprayer?

Use a funnel and a strainer to avoid spilling liquid. Fill only the required amount. Do not exceed the maximum capacity of 20 liters.

How to pressurize the sprayer?

Close the lance, then operate the pump lever several times until you feel resistance. You can then open the lance to spray.

What to do if pressure does not build up?

Check that all connections are tight and the seals are in good condition. If the tank contains little liquid, keep pumping until you feel pressure. Operate the lever several times with the lance closed.

What to do if no liquid comes out?

Clean the filter and the lance nozzle. If the problem persists, check that the pressure is sufficient and that the lance is not clogged.

How to clean the sprayer after use?

Empty the tank, rinse it with clean water, then run the pump with clean water until all components are washed. Allow to air dry.

What products can I use in this sprayer?

Use only water mixtures with liquid fertilizers, herbicides, or plant protection products approved by the BBA. Never use solvents, aggressive substances, or petroleum products.

Can I spray in strong wind?

No, it is forbidden to use the sprayer in strong wind to avoid product drift onto non-target areas.

How to maintain the FX-DS20L pump?

Once a year, thoroughly clean the pump and grease or oil all moving parts to ensure optimal operation.

What are the important safety instructions?

Wear protective clothing, do not eat, drink, or smoke during use. Wash your hands after use. Keep products and the device out of reach of children. Never blow into the nozzles.

How to recycle the sprayer at the end of its life?

The device, its accessories, and cords are recyclable. Dispose of them at a store or recycling center. Look for the Triman logo and follow sorting instructions. Prefer repair or donation.

USER MANUAL FX-DS20L Fuxtec

Line drawing of a yellow spray sprayer device with no visible text or symbols

Silhouette of a stylized fox head (no text or symbols)

FUXTEC

White spray sprayer with black filter and hose, no visible text or symbols

CE

Read these instructions thoroughly before initial operation. They are an integral part of this device.

This device is only intended for the application of aqueous sprays in the home and allotment garden sectors. Usage of liquid fertilizers, weed-killers and plant protection products (PSM) approved by the Federal Biological Research Centre for Agriculture and Forestry (BBA) is permissible. No known damaging effects of these approved PSMs on the product materials used were known at the time of manufacture. If in doubt, please contact your pesticide manufacturer.

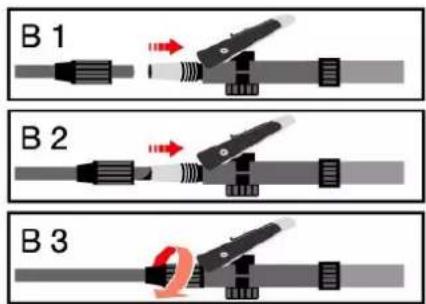

Assembly

For further details please have a look at our assembly video. Simply scan the following QR-Code and you will get directly to the video.

Start Up

Each time before the device is used, the device should be checked to ensure that it is in a safe and serviceable condition or at least it should be checked for visible damages. Only add as much spraying fluid as necessary. Pay attention during filling that nothing spills over and that nothing sprays back. Use a funnel and a strainer for this.

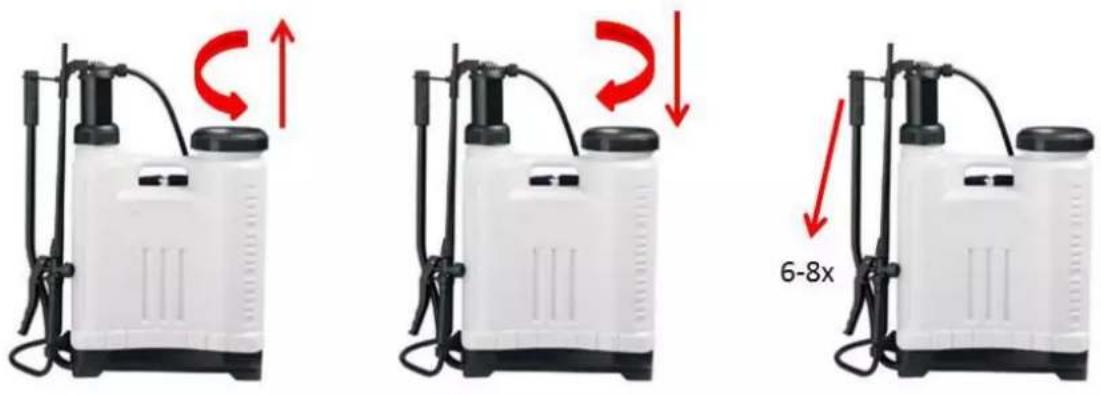

Opening and Closing the Compression Sprayer

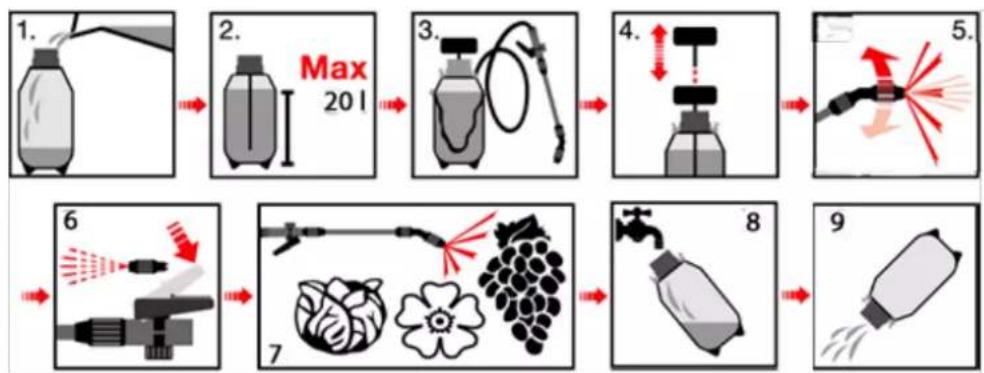

Instructions

Maintenance

After use, wash out the container with clean water. Then operate the unit with clean water until all of the components have been washed out. Leave open to dry.

The pump should be cleaned thoroughly once a year and all moving parts should be greased or oiled.

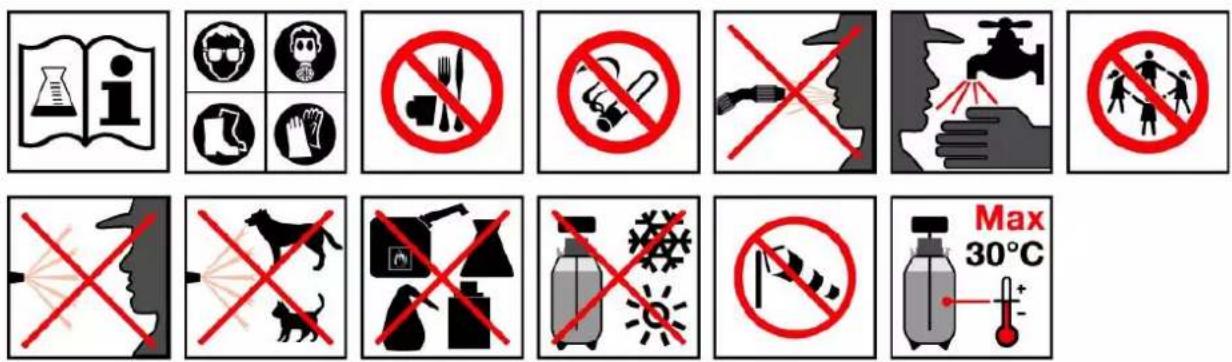

Safety Instructions

• Pay attention to the instructions for dosage and usage in the directions for use of the plant preservatives, and wear protective clothing if necessary.
• Do not eat, drink or smoke while working with plant protective agents.
• Never blow out nozzles and other small parts with the mouth.
• Wash hands and face thoroughly after finishing work.
• Keep plant protective agent device and protective agents away from children.
• Do not spray on humans or animals.
• Not intended for spraying of solvents, acidic or corrosive chemical agents and petroleum products.
• Protect device from heat sources and frost.
• Use of the device on windy days is forbidden.
• Admissible liquidity temperatures 1^ - 30^ .

Troubleshooting

The pump is pressurized but does not emit any liquid:

a) Check whether the filter and the nozzle of the spray lance are clean and clean if necessary.
No pressure is building up on the pump:
b) Activate the pump lever several times while the spray lance is closed and then open the pray lance.
c) When a little fluid is in the container, activate the pump lever until a certain resistance is felt.
d) Check whether all closures are tightly screwed.
e) Check whether the seals are intact. Replace if need be.

Technical Data

Max. filling quantity : 20 Liter

Net weight : 3,0 kg

Admissible operating pressure : 1,0 MPa

Max. volume flow : 0,9l/min

Admissible operating : 1°C – 45°C

temperature

Dimensions w x h x d: 42.5cm x 59.5cm x 19.5 cm

Housing material: PE

Manuel Français

Maintenance

Line drawing of a mechanical device with no text or symbols

ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI

10. Manuale d'uso Italiano

Manutenzione

Illustration of a spray gun with a hose and lever, showing a red arrow indicating motion (no text or symbols)

Illustration of a spray gun with a hose and red checkmark (no text or symbols)

Puesta en marcha
