USER MANUAL PIXMA G540 CANON

Read Safety and Important Information (addendum) first.

Icon showing a printer with a paper airplane and a document, symbolizing file transfer or sync (no text present)

Installing the Printer...... page 1

Two white icons: a laptop and a smartphone, on a solid red background (no text or symbols)

Connecting to a Computer, Smartphone or Tablet...... page 6

Line drawing of a hand holding a device with no visible text or symbols

Diagram showing a hand holding a device with a red prohibition symbol indicating no liability.

Setting Up the Printer

For Setup, visit the URL

https://ij.start.canon

or scan the code with your mobile device

●Follow the instructions below if you do not have an internet connection.

1. Box Contents

- Print Heads

L

R

• Ink Bottles
  Power Cord
• Setup CD-ROM
  • Safety and Important Information
  • Getting Started (this manual)

2. Removing Packing Materials

1 Remove and dispose of any packing materials and orange tape.

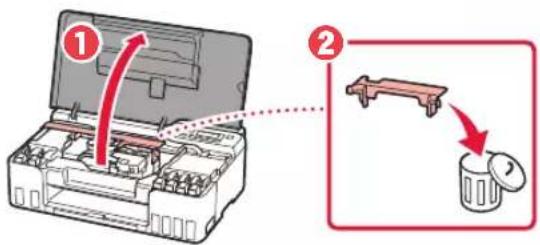

2 Open the top cover, remove and dispose of the orange tape and protective material inside.

Diagram showing a tool kit open with a handle and a close-up of the lid, labeled with steps ① and ②.

3. Installing the Print Heads

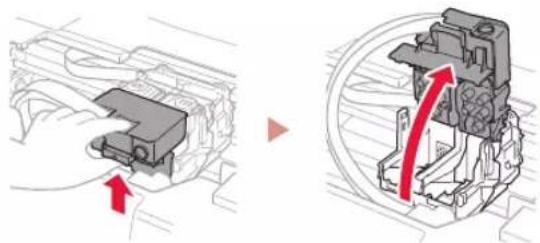

1 Open the print head locking cover.

Technical diagram showing mechanical assembly with red arrows indicating direction (no text or symbols)

2 Take out each print head from the package and remove the label.

L R

L R

3 Remove the orange tape.

L R

L R

Setting Up the Printer

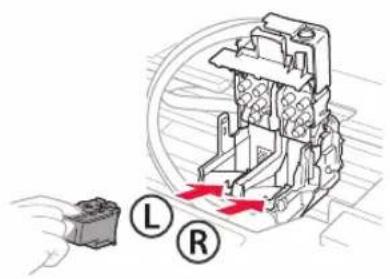

4 Insert the L print head on the left and the R print head on the right.

Technical diagram showing a mechanical assembly with labeled components L and R, and a hand holding a small component.

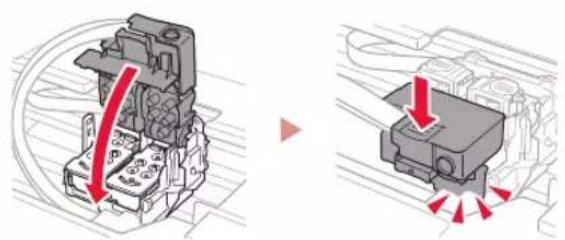

5 Close the print head locking cover and press down until it clicks.

Mechanical component diagram showing internal structure and assembly with red arrows indicating motion (no text or symbols)

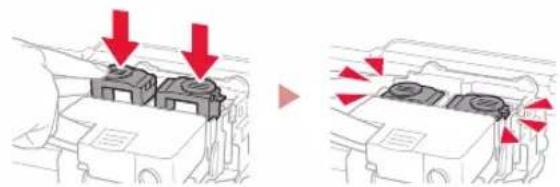

6 Press down both joint buttons completely until they click.

Diagram showing two views of a vehicle engine compartment with red arrows indicating downward motion (no text or symbols present)

Check!

7 Close the top cover.

Illustration of a mechanical tool kit with an open lid and internal compartments, showing no text or symbols.

4. Turning on the Printer

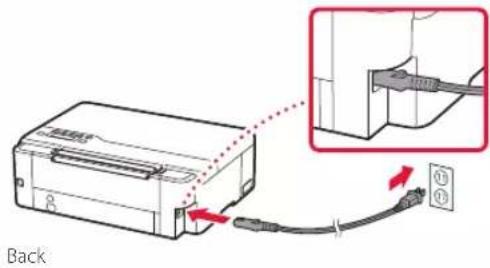

1 Connect the power cord.

Back

2 Press the ON button.

Diagram of a printer with a power button icon (no text or symbols on the device itself)

3 When the following screen appears, use the ◀ and ▶ buttons to select a language, and then press the OK button.

Language selection English 81 ↔ ◀ ▶ OK

Important

If an error appears on the screen, see "If an error message (support code) appears on the screen" on page 5 and follow the instructions.

5. Pouring Ink

Important

This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1 Open the top cover.

Illustration of a mechanical tool kit with an open lid and internal compartments, no text or symbols present.

2 Open the gray tank cap on the left of the printer.

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion or force (no text or symbols)

3 Hold the GY (gray) ink bottle upright and gently twist the bottle cap to remove.

Check!

GY

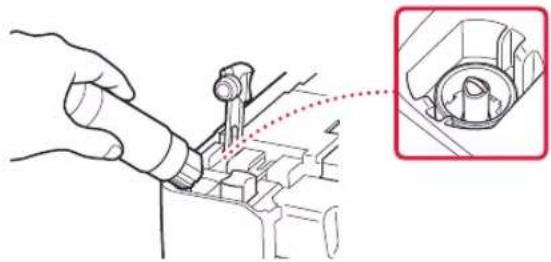

4 Align the nozzle of the ink bottle with the inlet.

Illustration of a hand using a tool to adjust mechanical components, with an inset showing a close-up of a mechanical component (no text or symbols present)

5 Slowly stand the ink bottle upside down and push down to pour the ink.

- If the ink does not pour, gently remove the ink bottle and try again.

Diagram showing a hand holding a mechanical component with red arrows labeled ① and ② indicating direction or force.

6 Gently remove the ink bottle from the inlet.

- Be careful not to spill the ink.

Diagram showing a hand operating a device with labeled parts and a close-up of the smartphone's screen.

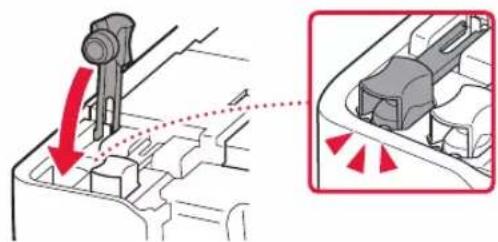

7 Replace the tank cap securely.

Diagram showing mechanical assembly with red arrows indicating motion and a magnified inset highlighting internal components.

Setting Up the Printer

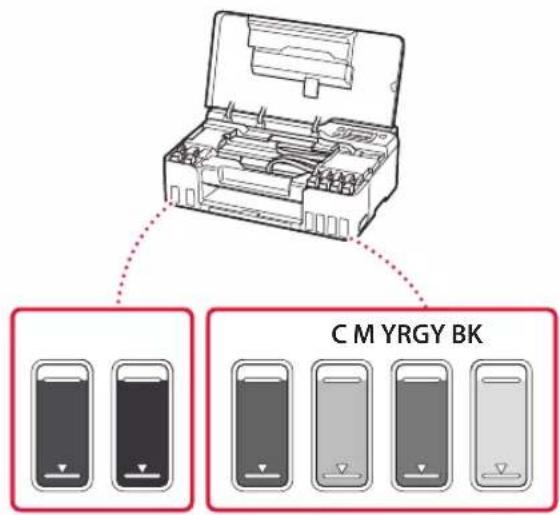

8 Repeat steps 2 through 7 to pour all ink for all colors into the ink tanks for each color.

- Pour the supplied ink that matches the color of the tank cap.

Check!

C M YRGY BK

9 Close the top cover.

Illustration of a toolbox with an open lid and a red arrow indicating compression or disassembly (no text or symbols)

10 Use the ◀ and ▶ buttons to select Yes, and then press the OK button.

6. Loading Paper

1 Use the ◀ and ▶ buttons to select Yes, and then press the OK button.

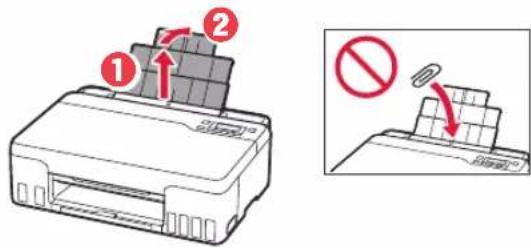

2 Extend the paper support.

Diagram showing printer printing process with numbered steps and a prohibition symbol indicating no printing.

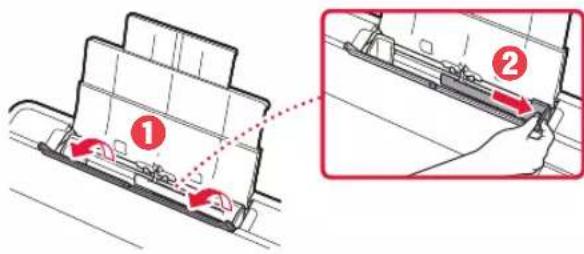

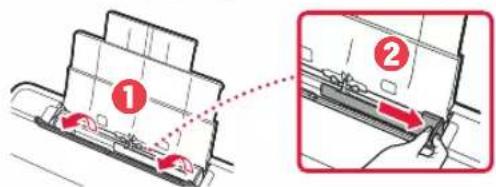

3 Open the feed slot cover and slide the right-hand side paper guide to the far right.

Diagram showing two steps of a mechanical or electrical component with labeled parts and directional arrows

4 Load paper.

• Load 2 or more sheets of Letter or A4 sized plain paper.
• Slide the side paper guide against the edge of the paper stack.

① ②

5 Close the feed slot cover.

Simple line drawing of a mechanical component with red rings and a blank sheet (no text or symbols)

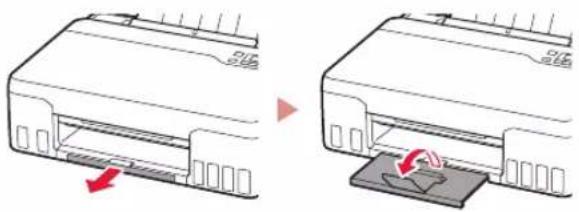

6 Extend the paper output tray.

Diagram showing two views of a printer or printer with arrows indicating process flow (no text or symbols present)

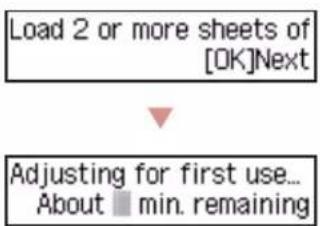

7 Follow the on-screen instructions, and then press the OK button.

Load 2 or more sheets of [OK]Next Adjusting for first use... About ■ min. remaining

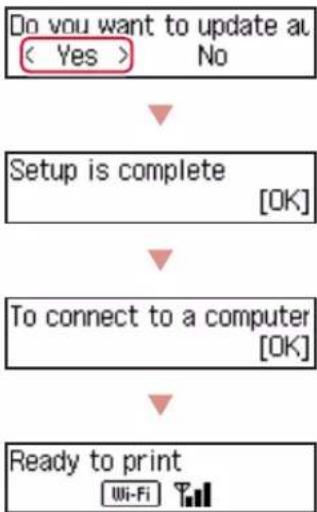

- Please wait momentarily until the following screen appears.

→ Proceed to the next page.

If an error message (support code) appears on the screen

Protective material rema Support code 1890 Support code

Check the support code, and then follow the instructions if the displayed code is written below.

1890

Protective material remaining.

→ "2. Removing Packing Materials" on page 1

1470/1471

Print heads are not installed correctly.

→ "3. Installing the Print Heads" on page 1

1474

Print heads are not installed correctly.

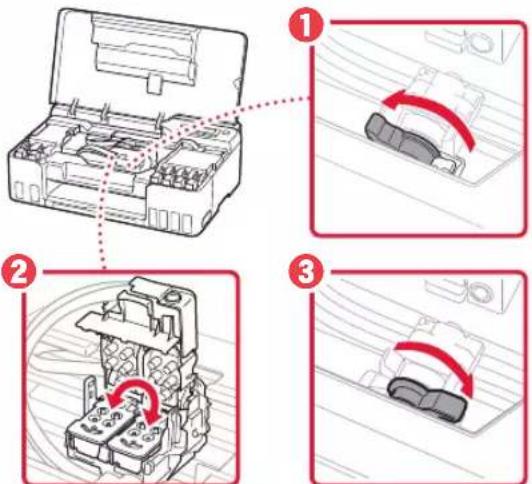

Close the ink valve lever, and swap the left and right print heads.

Diagram showing three steps of a mechanical assembly with numbered instructions and red arrows indicating motion or movement.

→ "3. Installing the Print Heads" on page 1

5200

Ink system preparation was not completed successfully. Press the ON button to restart the printer, and then see "5. Pouring Ink" on page 3.

For all other cases, refer to the Online Manual.

Setting Up the Printer

What device are you connecting?

Computer Smartphone

Computer and smartphone

7-a

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from your computer.

https://ij.start.canon

2 Select Set Up.
3 Enter your printer's model name and click Go.
4 Click Start.
5 Click (B) Connecting to a Computer/Smartphone.

• The following steps are for Windows users.

7 Run the downloaded file.

6 Click Download.

• Follow the on-screen instructions. This may take some time.
  • To connect to a smartphone as well, see "7-b. Connecting to a Smartphone" on page 7.

Using the Setup CD-ROM

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver.

7-b

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

• Search for "Canon PRINT" in App Store, or Google Play.

- Access the Canon website to download the app.

2 Open your smartphone's Wi-Fi settings. Check that the network name (SSID) that starts with "Canon_ij_" appears.

(Example of iOS screen)

Settings Wi-Fi Wi-Fi Canon_ij

The network name (SSID) that starts with "Canon_ij_"

• If "Canon_ij_" appears - Proceed to step 3.
• If "Canon_ij_" does not appear - Proceed to step

3 Tap the network name (SSID) that starts with "Canon_ij_".
4 Open the installed app, and follow the on-screen instructions in the app to add your printer.

Once you have added your printer, you can print from your smartphone.

To print photos, see "Loading Photo Paper" on page 8.

Loading Photo Paper

1 Extend the paper support.

Diagram showing a door handle with numbered arrows and Chinese text indicating process steps

2 Open the feed slot cover and slide the right-hand side paper guide to the far right.

Diagram showing two steps of a printer or printer device with red arrows indicating motion, labeled ① and ②.

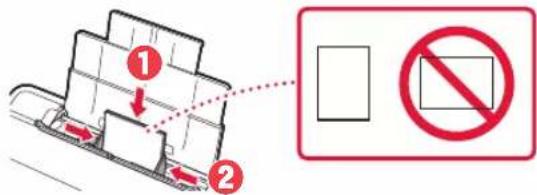

3 Load several sheets of photo paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

Diagram showing two blocks with directional arrows and a prohibition symbol, likely illustrating a physical or mechanical setup.

4 Close the feed slot cover.

Diagram of a mechanical component with red clamps and a base, no text or symbols present

5 When Save the rear tray paper information appears on the printer's screen, press the OK button.

6 Select the paper size and type, and press the OK button.

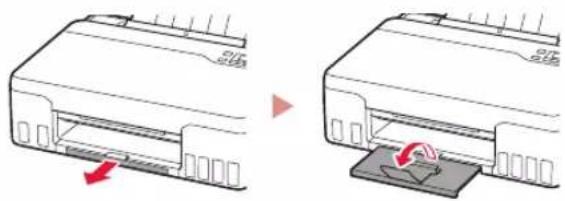

7 Extend the paper output tray.

Diagram showing two views of a printer with a paper clip inserted, no text or symbols present

Transporting Your Printer

When relocating the printer, check the following. Refer to the Online Manual for details.

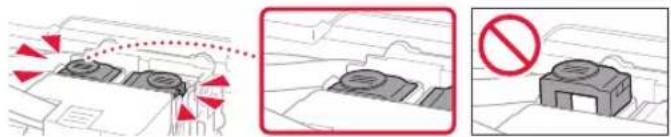

Check that both joint buttons are pressed down completely to avoid ink leaks.

Diagram illustrating vehicle parking and parking rules with red arrows indicating movement and a no-smoking symbol

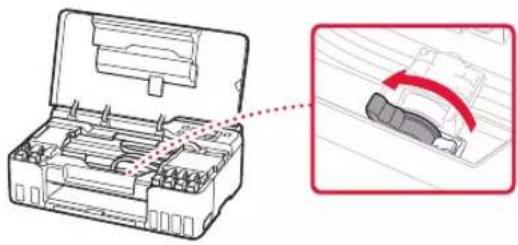

Check that the position of the ink valve lever is closed.

Technical illustration of a mechanical device with open casing and internal components, showing a close-up view of a component (no text or symbols present)

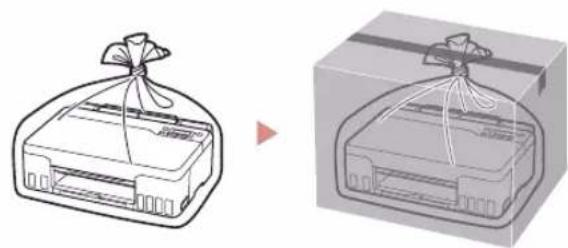

Pack the printer in a plastic bag in case ink leaks.

• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.
• Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".
